Freescale Semiconductor

Application Note

Document Number: AN3492

Rev. 0, 08/2007

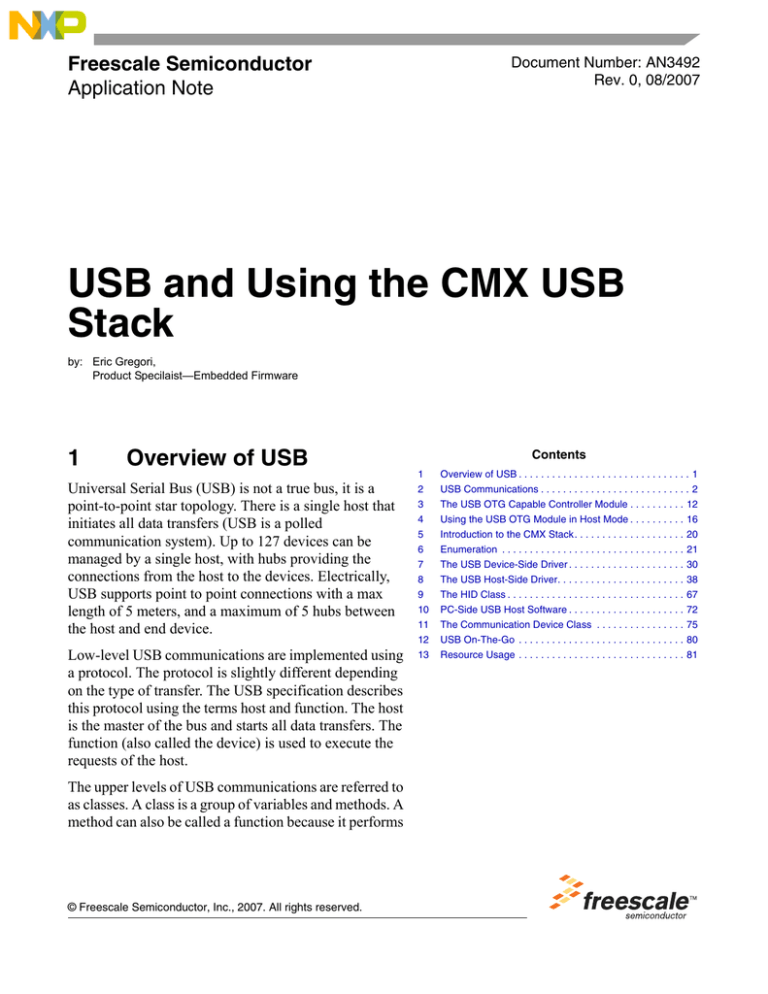

USB and Using the CMX USB

Stack

by: Eric Gregori,

Product Specilaist—Embedded Firmware

1 Overview of USB

Universal Serial Bus (USB) is not a true bus, it is a point-to-point star topology. There is a single host that initiates all data transfers (USB is a polled communication system). Up to 127 devices can be managed by a single host, with hubs providing the connections from the host to the devices. Electrically,

USB supports point to point connections with a max length of 5 meters, and a maximum of 5 hubs between the host and end device.

Low-level USB communications are implemented using a protocol. The protocol is slightly different depending on the type of transfer. The USB specification describes this protocol using the terms host and function. The host is the master of the bus and starts all data transfers. The function (also called the device) is used to execute the requests of the host.

Contents

1 Overview of USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2 USB Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

3 The USB OTG Capable Controller Module . . . . . . . . . . 12

4 Using the USB OTG Module in Host Mode . . . . . . . . . . 16

5 Introduction to the CMX Stack. . . . . . . . . . . . . . . . . . . . 20

6 Enumeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

7 The USB Device-Side Driver . . . . . . . . . . . . . . . . . . . . . 30

8 The USB Host-Side Driver. . . . . . . . . . . . . . . . . . . . . . . 38

9 The HID Class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

10 PC-Side USB Host Software . . . . . . . . . . . . . . . . . . . . . 72

11 The Communication Device Class . . . . . . . . . . . . . . . . 75

12 USB On-The-Go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

13 Resource Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

The upper levels of USB communications are referred to as classes. A class is a group of variables and methods. A method can also be called a function because it performs

© Freescale Semiconductor, Inc., 2007. All rights reserved.

USB Communications

an action. The key to understanding USB communication is understanding the difference between a protocol and a class. USB is not a layered communication protocol such as TCP/IP. It is a single layer communication protocol, with various application specific classes defining the variables transferred between hosts and devices, and the requests from the host to execute methods defined by the class.

There are various classes defined by the USB-IF: HID, CDC, mass-storage, audio, and video. Each of these classes have unique variables (data) that are exchanged between the host and device using set data structures. Each class also has methods that are actually implemented as function in the device that the host requests to execute.

The USB Implementers Forum manages the USB specification, which can be found at www.usb.org

The USB-IF also distributes vendor IDs. Vendor IDs provide a unique mechanism to identify a product.

The vendor ID is sent to the host when the device is connected. Vendor IDs can be purchased from the

USB-IF for $2000.00 to $4000.00.

2 USB Communications

USB is a host-controlled communication system. All transactions are initiated by the host. Transactions consist of three packets: a token packet (always sent by the host), a data packet (can be sent by host or device), and a handshake packet (sent by either the host or device). Because only the host can send a token packet, USB is essentially a polled communications protocol. The device cannot send data to the host unless the host initiates the transfer.

Packets are a block of information with a defined data structure. The packet is the lowest level of the USB transfer hierarchy describing the physical layer of the interface.

Only the host sends the token packet, starting every transfer.

2

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

USB Communications

2.1

Packet Structures

Token Packet

Sent from HOST Only

Field

Bits

SOF Packet

Sent from HOST

Field

Bits

Data Packet

Sent from HOST or DEVICE

Field

Bits

PID

8

PID

8

PID

8

Address

7

Endpoint

4

Frame Number

11

Data

0–1023

CRC

5

CRC

5

CRC

16

Handshake Packet

Sent from HOST or DEVICE

Field

Bits

Figure 1. Packet Structures

PID

8

2.2

Packet Identifiers (PID)

The packet identifier (PID) determines the packet type and the direction of data transfer. The PID is only

4 bits, but the packet contains both the PID and the compliment of the PID. This is a form of checksum.

The CRC is calculated on all but the PID field.

(LSb)

PID

0

PID

1

PID

2

PID

3

PID

0

PID

1

PID

2

(MSb)

PID

3

Figure 2. PID Register from Universal Serial Bus Specification, Rev. 2.0

Freescale Semiconductor

USB and Using the CMX USB Stack, Rev. 0

3

USB Communications

Token

PID Type

Data

Handshake

Special

Table 1. PID Description from Universal Serial Bus Specification, Rev. 2.0

OUT

PID Name

IN

SOF

SETUP

DATA0

DATA1

DATA2

MDATA

ACK

NAK

STALL

NYET

PRE

ERR

SPLIT

PING

Reserved

PID<3:0>

0001B

1001B

0101B

1101B

0011B

1011B

0111B

1111B

0010B

1010B

1110B

0110B

1100B

1100B

1000B

0100B

0000B

Description

Address + endpoint number in host-to-function transaction

Address + endpoint number in function-to-host transaction

Start-of-frame marker and frame number

Address + endpoint number in host-to-function transaction for

SETUP to a control pipe

Data packet PID even

Data packet PID odd

Data packet PID high speed, high bandwidth isochronous transaction in a microframe (see 5.9.3 for more information)

Data packet PID high speed for split and high bandwidth isochronous transactions (see 5.92, 11.20, and 11.21 for more information)

Receiver accepts error free data packet

Receiving device cannot accept data or transmitting device cannot send data

Endpoint is halted or a control pipe request is not supported

No response yet from receiver (see 8.5.1 and 11.7–11.21)

(Token) Host-issued preamble. Enables downstream bus traffic to low-speed devices.

(Handshake) Split transaction error handshake (reuses PRE value)

(Token) High-speed split transaction token (see 8.4.2)

(Token) High-speed flow control probe for a bulk/control endpoint (see 8.5.1)

Reserved PID

4

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

USB Communications

2.3

Frames, Transfers, and Transactions

Packets are grouped together into transactions. Each transaction has up to three phases, or parts that occur in sequence: token, data, and handshake. In the token phase, the host sends out a token packet. Depending on the type of transaction, the data phases and handshake phases are optional. Transfers are groups of transactions. Each transfer contains one or more transactions. Transfers are grouped into frames. Each frame begins with a (start-of-frame) SOF packet. Full-speed frames are 1 ms wide.

Transfer

1

Transac tion

Transaction 1

Frame

Transfer 2

Transaction 2 Transaction 3

Transfer 3

Transaction 1

1500 bytes / 1 ms

Transaction

Transaction

For each transaction there are three types of packets that communicate the data between HOST and DEVICE:

Token Packet – the header that defines what follows

Optional Data Packet – contains the data being transmitted

Status/Handshake Packet – used to acknowledge transactions and provide a means of error correction

Figure 3. A USB Frame

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor 5

USB Communications

2.4

The Data Toggle Bit

When a transfer contains multiple transactions, a data-toggle bit is used to keep the transmitting and receiving devices synchronized. The data-toggle bit is included in the PID field in the token packet. When the device is configured, the data-toggle bit is set to 0. When the receiver detects an incoming data transaction, it compares the received data-toggle bit to the state of its own data-toggle. If the bits match, the receiver toggles its bit and returns a ACK handshake packet to the sender. Upon receiving the ACK, the sender toggles its bit. The data-toggle bit is a 1 bit sequence number.

sender receiver

Data-toggle=0

Data-toggle=0->1

Data-toggle=1

Data-toggle=1

Data-toggle=1->0

DATA0

ACK

DATA1

Failed ACK

DATA1

ACK

Data-toggle=0->1

Data-toggle=1

Data-toggle=1->0

Data-toggle=0

Data is ignored

Data-toggle=0

Figure 4. Toggle Bit Sequence

6

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

USB Communications

2.5

Transaction Types

There are three transaction types: IN, OUT, and Setup. The transaction type is determined by the PID in the token packet. Because only the host sends token packets, the host determines the transaction type.

Transaction

Type

IN

OUT

Setup

Source of Data

Device

Host

Host

Table 2. Transaction Types

Type of Transfers

That Uses This Transaction Type

All

All

Control

Contents

Generic data

Generic data

A request

2.6

Transfer Types

Transactions are grouped into transfers. There are four types of transfers: control, bulk, interrupt, and isochronous. Each transfer is optimized for a specific type of data transfer.

Transfer Type

Control

Bulk

Interrupt

Isochronous

Setup

Table 3. Transfer Types

Stages (Transactions)

Data (IN or OUT)

(optional)

Status (IN or OUT)

Data (IN or OUT)

Data (IN or OUT)

Data (IN or OUT)

Phases (Packets)

Token

Data

Handshake

Token

Data

Handshake

Token

Data

Handshake

Token

Data

Handshake

Token

Data

Handshake

Token

Data

Freescale Semiconductor

USB and Using the CMX USB Stack, Rev. 0

7

USB Communications

Transfers

Control, Bulk, Interrupt, Isochronous

Transactions

Setup, Data (IN/OUT), Status (IN/OUT)

Packets

Token, Data, Handshake

Figure 5. Putting It All Together

2.7

Control Transfer

The host sends commands and query parameters via control packets. All devices use control transfers to

Endpoint 0 for the enumeration process.

The maximum transfer rate is 832 Kbytes/second for full-speed operation.

The maximum size for a control packet is 8, 16, 32, or 64 bytes for full-speed operation. These sizes are data only. All packets except the last one, must be the maximum packet size. The maximum packet size is determined during the enumeration phase. It is located in the device descriptor for the default control pipe

(Endpoint 0), and the endpoint descriptor for all other pipes. If a transfer has more data then will fit in one transaction, the host sends or requests the data in multiple transaction.

It should be noted on the following diagrams, that stall and NAK handshake packets can be sent during the data phase.

Control transfers can have up to three stages, each stage starting with its own token packet. When not in one of these three stages, the transfer is in the idle state.

IDLE STATE

SETUP STATE

DATA TX STATE

STATUS TX STATE

DATA RX STATE

STATUS RX STATE

Figure 6. Control Transfer State Machine

USB and Using the CMX USB Stack, Rev. 0

8 Freescale Semiconductor

Setup

Transaction

Token Packet

Sent by Host

PID = Setup

Data

Transaction

PID = IN

Status

Transaction

PID = OUT

PID = OUT

PID = IN

Data Packet

PID = DATA0

From Host

PID = DATX

From Host

PID = DATX

From Device

PID = DATA0

From Host

0 Length

PID = DATA0

From Device

0 Length

Figure 7. Control Transfer

USB and Using the CMX USB Stack, Rev. 0

PID = ACK

From Host

PID = NACK

From Device

PID = STALL

From Device

PID = ACK

From Device

PID = NACK

From Device

PID = STALL

From Device

PID = ACK

From Host

PID = NACK

From Device

PID = STALL

From Device

Handshake

Packet

PID = ACK

From Device

USB Communications

PID = ACK

From Device

PID = NACK

From Device

PID = STALL

From Device

Freescale Semiconductor 9

USB Communications

2.8

Interrupt Transfers

Interrupt transfers occur periodically, with a period specified by the endpoint descriptor. The interrupt transfer is different from the isochronous transfer in that the period is outside the time of a single frame.

There is not an interrupt mechanism in USB for devices. A device must always wait for a poll from the host to send data. The maximum full-speed data rate is 64 KB per second. The time specified in the endpoint descriptor is a maximum time. The host may poll for data at a faster rate. Because of this, there is no guaranteed transfer rate; it may be faster then required, but not slower.

If the host polls the device, and the device has no data to send, it responds with a NAK. Interrupt transfers contain only one transaction. Interrupt transfers are handshaked.

Bulk transfers are the same as interrupt transfers. The difference depends on how the host allocates bus bandwidth. Bulk transfers defer bandwidth to all other transfer types.

Token Packet

Sent by Host

Data Packet

Handshake

Packet

PID = ACK

From Device

PID = OUT

PID = DATX

From Host

PID = NACK

From Device

PID = STALL

From Device

Data

Transaction

PID = IN

PID = DATX

From Host

PID = ACK

From Host

PID = NACK

From Device

PID = STALL

From Device

Figure 8. Interrupt Transfers

10

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

Data Packet

USB Communications

2.9

Isochronous Transfers

Isochronous transfers guarantee a fixed transfer rate. Data is polled/sent on every frame at a fixed size. A full-speed isochronous transaction can send 1023 bytes per frame. A frame is sent every 1 ms. This translates to 1.023 megabytes per second.

The minimum is 1 byte per frame or 1 kilobyte per second. Isochronous transactions are not handshaked.

Isochronous transfers contain only one transaction.

Token Packet

Sent by Host

PID = OUT

PID = DATX

From Host

Data

Transaction

PID = IN

PID = DATX

From Host

Figure 9. Isochronous Transfers

2.10

The Start-Of-Frame (SOF) Packet

For full-speed operation, the host sends a SOF packet every 1 ms, indicating the start of a frame. The SOF packet provides a time reference for use by synchronous devices and hubs. Because the host initiates all transactions by sending a token packet, the device actually synchronizes to the token packet for normal data transfers, the SOF packet can be ignored.

The SOF packet is also used as a keep-alive mechanism. As long as the host is sending SOF packets to the device, the device cannot go into a suspend mode.

Freescale Semiconductor

USB and Using the CMX USB Stack, Rev. 0

11

The USB OTG Capable Controller Module

3 The USB OTG Capable Controller Module

This section describes the USB Dual-Mode (DM) controller. The On-The-Go (OTG) implementation in this module provides limited host functionality and device FS solutions for implementing a USB 2.0 full-speed/low-speed compliant peripheral. The OTG implementation supports the On-The-Go (OTG) addendum to the USB 2.0 Specification. Only one protocol can be active at any time. A negotiation protocol must be used to switch to a USB host functionality from a USB device. This is known as the master negotiation protocol (MNP).

Coldfire Core

D+/D-

USB

XCVR

Rx FIFO Coldfire

Core

Interface

DPLL

Serial

Interface

Engine

Coldfire RAM

DMA

Tx FIFO

USB Block Diagram

STAT

FIFO(4)

Figure 10. USB OTG Module Block Diagram

The module supports 16 bidirectional endpoints, DMA or FIFO data stream interfaces, and OTG protocol logic. The USB stack communicates with the hardware via buffer descriptors and EHCI compliant register set.

3.1

EHCI Registers

The enhanced host controller interface (EHCI) specification describes the register-level interface for a host controller for the Universal Serial Bus (USB) Revision 2.0. The EHCI specification defines two sets of registers:

Capability registers Specify the limits, restrictions, and capabilities of a host/device controller implementation.

Operational registers Used by the system software to control and monitor the operational state of the host controller.

12

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

The USB OTG Capable Controller Module

3.2

Interrupt Status Register

The Interrupt Status register is a critical part of the interface to the OTG module.

Figure 11. Interrupt Status Register

Table 4. Interrupt Status Register Field Descriptions

3.3

DATA Transfers

All USB OTG module interface/control registers are 8 bits wide. This allows the module to scale across the 8-bit and 32-bit parts. Registers that require 32 bits (pointers) are split up into four separate registers.

An example of this is the buffer descriptor table (BDT) page register. The BDT page register is initialized with a pointer to the start of the buffer descriptor table. The buffer descriptor table is a table of buffer descriptors in memory, aligned to a 512 byte boundary.

Freescale Semiconductor

USB and Using the CMX USB Stack, Rev. 0

13

The USB OTG Capable Controller Module

3.4

How the Pointer into the BDT is Calculated

31:24

BDT_PAGE3

23:16

BDT_PAGE2

15:9

BDT_PAGE1

8:5

ENDPOINT

4

IN

3

ODD

2:0

000

Figure 12. BDT Pointer

BDT_PAGE

END_POINT

ODD

BDT_PAGE registers in the control register block

END_POINT field from the USB TOKEN TX 1 for an TX transmit transfers and

0 for an RX receive transfers

This bit is maintained within the USB-FS SIE. It corresponds to the buffer that is currently in use. The buffers are used in a ping-pong fashion.

Each buffer descriptor is 8 bytes.

000

Data transfers between endpoints and RAM are configured via buffer descriptors. A buffer descriptor contains a 32 bit status/control entry and a 32 bit pointer to a buffer in RAM (8 bytes). For each endpoint, there are four buffer descriptors. Every endpoint direction requires two 8-byte buffer descriptor entries.

Therefore, a system with 16 fully bidirectional endpoints requires 512 bytes of system memory to implement the BDT. The two buffer descriptor (BD) entries allows for an EVEN BD and ODD BD entry for each endpoint direction. This allows the microprocessor to process one BD while the USB-FS is processing the other BD. Double buffering BDs in this way allows the USB-FS to easily transfer data at the maximum throughput provided by USB.

Figure 13. Buffer Descriptor

The buffer address entry points to the start of the buffer in RAM. The BC bits (10 bits) set the length of the buffer. The OWN bit is a semaphore mechanism used to indicate whether the CPU core or the USB module own the buffer descriptor. The USB module will not modify or use the buffer descriptor if OWN is zero. The software should only modify the buffer descriptor when OWN is zero. After the software sets up the buffer descriptor, the last thing it should do is set OWN to 1.

14

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

Locates the start of the BDT

USB Control Registers (8 bits)

BDT Page Ptr1

BDT Page Ptr2

BDT Page Ptr3

Status (EP and direction)

Index into the

BDT

BDT3 BDT2 BDT1 EPn

31

Concatenate these to form the address into the BDT

Dir

0

The USB OTG Capable Controller Module

ColdFire RAM

(512 bytes max)

EP1 Buffer Descriptor

.

.

EPn Buffer Descriptor

31

Byte Count (Packet Size) + OWN

0

EP1 Buffer Address

Memory

Data Buffer EP1 of

Length = Packet Size

.

.

Data Buffer EPn

Index into the memory designated for the USB endpoint data buffers

Figure 14. Buffer Descriptor Table (512 Bytes Max)

3.5

Firmware Example

Setting up the buffer descriptor table:

The following code should be inserted in the link command file to create a 512 byte aligned area in RAM.

/* Buffer descriptor base address

shall be aligned to 512 byte boundary.

Size shall be 512 bytes. */

__BDT_BASE

= ALIGN(512);

= .;

= . + 512;

__BDT_END = .;

Then the BDT_PAGE registers can be initialized from C code using the following macros and code snippet.

/* This macro shall evaluate to a uint32 pointer to the start address of the

buffer descriptor table (BDT). The BDT has 32 bytes for each endpoint.

The BDT shall be aligned to 512 byte boundary! */ extern hcc_u32 _BDT_BASE[];

#define BDT_BASE ((hcc_u32*)(_BDT_BASE))

/* Set BDT address. */

MCF_USB_BDT_PAGE_01 = (hcc_u8)(((hcc_u32)BDT_BASE) >> 8);

MCF_USB_BDT_PAGE_02 = (hcc_u8)(((hcc_u32)BDT_BASE) >> 16);

MCF_USB_BDT_PAGE_03 = (hcc_u8)(((hcc_u32)BDT_BASE) >> 24);

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor 15

Using the USB OTG Module in Host Mode

4 Using the USB OTG Module in Host Mode

The USB OTG module makes developing host-side USB drivers easy. The hardware does all the work.

The hardware does so much of the work that a host driver can be implemented without interrupts. The hardware supports features such as automatic SOF packet generation and TX, device detection, and auto transaction transfers.

Host mode allows bulk, isochronous, interrupt, and control transfers. Bulk data transfers are performed at nearly the full USB bus bandwidth. Support is provided for ISO transfers, but the number of ISO streams that can be practically supported is affected by the interrupt latency of the processor servicing the token during interrupts from the SIE.

4.1

Device Detection and Speed Determination

USB communications occur over 2 wires (D+ and D–). The host pulls these wires low using 2 pulldown resistors. A device has a pullup on either the D+ or D– line depending on the speed it supports (full or low).

The host can detect a device being plugged in by sensing when either the D+ or D– lines go high. It can also determine the speed using this system.

Transceiver

D+

D

15K

HOST or Hub Port

15K

Full Speed Attach Event

1.5K

D+

VBU

D

Transcei

DEVICE ver

When no device is connected D+ and D- are at 0V

Transceiver

D+

D

15K

HOST or Hub Port

15K

Low Speed Attach Event

1.5K

D+

VBU

D

Transcei

DEVICE ver

Figure 15. The Physical Layer

When a device is plugged in, the USB OTG controller generates a ATTACH indication or interrupt if the interrupt is enabled.

Table 5. Attach Interrupt Register (ATTACH)

The firmware can determine the speed of the device via the state of the JSTATE and SE0 bits in the control register. If the JSTATE bit is 0, then the connecting device is low speed.

USB and Using the CMX USB Stack, Rev. 0

16 Freescale Semiconductor

Using the USB OTG Module in Host Mode

4.2

The Start-Of-Frame Packet

The host sends a SOF packet every 1 ms (full speed) to keep the device from entering suspend mode. The

USB OTG module generates this packet automatically. The SOF threshold register is used to program the number of USB byte times before USB controller stops initiating token packet transaction. This register must be set to a value that ensures that other packets are not actively being transmitted when the SOF time counts to zero. When the SOF counter reaches the threshold value, no more tokens are transmitted until after the SOF has been transmitted. The value programmed into the threshold register must reserve enough time to ensure the worst case transaction completes. In general, the worst case transaction is a IN token followed by a data packet from the target followed by the response from the host. The actual time required is a function of the maximum packet size on the bus. Typical values for the SOF threshold are: 64-byte packets=74; 32-byte packets=42; 16-byte packets=26; 8-byte packets=18.

Field

Bits

PID Frame Number

8 11

Figure 16. SOF Packet

CRC

5

The SOF packet contains a 11 bit frame number. The USB OTG module automatically increments the frame counter. The counter can be reset or read by the firmware via the FRM_NUML and FRM_NUMH registers.

4.3

Addressing a Device

USB support up to 127 devices on a node. This is accomplished by an address field in the token packet.

Field

Bits

PID Address Endpoint

8 7

Figure 17. Token Packet

4

CRC

5

When operating in Host mode (HOST_MODE_EN=1), the USB module transmits this address with a

TOKEN packet. This enables the USB module to uniquely address an USB peripheral. In either mode, the

USB_EN bit within the control register must be set. The Address register is reset to 0x00 after the reset input becomes active or the USB module decodes a USB reset signal. This action initializes the Address register to decode address 0x00 as required by the USB specification.

Table 6. Address Register (ADDR)

Freescale Semiconductor

USB and Using the CMX USB Stack, Rev. 0

17

Using the USB OTG Module in Host Mode

4.4

Data Transactions in Host Mode

The host starts all transactions by sending a token packet. Like device mode operation, the USB OTG module uses buffer descriptors in a buffers descriptor table to transmit and receive data. The hardware handles most of the transaction. A token packet is created by the USB OTG module using data from the

TOKEN register. For an OUT transaction, the host then automatically sends the DATA packet. Finally, the hardware verifies the ACK from the device and automatically resends the data if the transaction is not

ACKed.

With the hardware doing so much of the work, the USB host-side driver can be a very simple piece of software.

Figure 18. USB Host-Side Driver

4.5

Endpoint Control Registers

The endpoint control registers contain the endpoint control bits for each of the 16 endpoints available within the USB module for a decoded address. The format for these registers is shown in the following figure. Endpoint 0 (ENDPT0) is associated with control pipe 0 which is required for all USB functions.

Therefore, after a USB_RST interrupt occurs the ColdFire core should set the ENDPT0 register to contain

0x0D.

In Host mode, ENDPT0-15 is used to determine the handshake, retry, and low-speed characteristics of the host transfer. For control, bulk, and interrupt transfers in Host mode, the EP_HSHK bit must be set to 1.

For isochronous transfers, it must be set to 0. Common values to use for ENDPT0-15 in host mode are

0x4D for control, bulk, and interrupt transfers, and 0x4C for isochronous transfers.

18

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

Using the USB OTG Module in Host Mode

There are 16 endpoint registers ENDPT0-15.

Figure 19. Endpoint Register (0–15)

Table 7. Endpoint Register (ENDPT0–15)

Field Description

7

HOST_WO_HUB

6

RETRY_DIS

4

EP_CTL_DIS

3

EP_RX_EN

2

EP_TX_EN

1

EP_STALL

This is a Host mode only bit and is only present in the control register for endpoint 0 (ENDPT0). When set this bit allows the host to communicate to a directly connected low speed device. When cleared, the host produces the PRE_PID then switch to low speed signaling when sending a token to a low speed device as required to communicate with a low speed device through a hub.

This is a Host mode only bit and is only present in the control register for endpoint 0 (ENDPT0). When set this bit causes the host to not retry NAK’ed (Negative Acknowledgement) transactions. When a transaction is NAKed, the BDT PID field is updated with the NAK PID, and the TOKEN_DNE interrupt is set. When this bit is cleared NAKed transactions is retried in hardware. This bit must be set when the host is attempting to poll an interrupt endpoint.

This bit, when set, disables control (SETUP) transfers. When cleared, control transfers are enabled.

This applies if and only if the EP_RX_EN and EP_TX_EN bits are also set.

This bit, when set, enables the endpoint for RX transfers

This bit, when set, enables the endpoint for TX transfers

0

EP_HSHK

When set this bit indicates that the endpoint is called. This bit has priority over all other control bits in the EndPoint Enable Register, but it is only valid if EP_TX_EN=1 or EP_RX_EN=1. Any access to this endpoint causes the USB Module to return a STALL handshake. After an endpoint is stalled it requires intervention from the Host Controller.

When set this bet enables an endpoint to perform handshaking during a transaction to this endpoint.

This bit is generally set unless the endpoint is Isochronous.

Freescale Semiconductor

USB and Using the CMX USB Stack, Rev. 0

19

Introduction to the CMX Stack

5 Introduction to the CMX Stack

The CMX USB-Lite stack can be downloaded from the Freescale web site. The firmware is provided as public source under the license included in the installation executable.

5.1

Included Projects

HID keyboard device

HID mouse device

The USB stack emulates a keyboard.

The USB stack emulates a mouse.

HID generic device Implements a user defined HID device

HID PC software (VC++) Used to communicate with the HID generic device.

HID host Allows the user to connect and communicate with a keyboard, mouse, or joystick

CDC device, serial to USB The USB stack can be used as a USB to serial converter.

Mass-Storage host Using this firmware, the USB stack can read and write to a USB flash stick.

5.2

The Files in the Firmware

USB Basic device controller

Usb.c

Usb.h

Usb_config.h

Low-level USB driver and usb_it_handler() isr

Header for USB driver

USB driver compile time configuration parameters

HID device class files

Hid.c

Hid.h

Hid_generic.c

HID device layer including the state machine

Header for hid.c

Demo application using a generic report structure

Used to communicate with the board via the HID PC application

Hid_generic.h

Hid_kbd.c

Hid_kbd.h

Hid_mouse.c

Header for hid_generic.c

HID keyboard demo

HID mouse demo

Hid_mouse.h

Hid_usb_config.c

USB enumeration structures for keyboard, mouse, and generic HID demos

Hid_usb_config.h

Header for hid_usb_config.c

Hid_main.c

Initial entry point for HID device demos

CDC class files

Cdc_usb_config.c

USB configuration structures for the serial to USB CDC demo

Cdc_usb_config.h

Header file for cdc_usb_config.c

USB and Using the CMX USB Stack, Rev. 0

20 Freescale Semiconductor

Enumeration

Cdc_main.c

Usb_cdc.c

Usb_cdc.h

USB basic host controller

Usb_host.c

Usb_host.h

Usb_utils.c

Usb_utils.h

Main loop, read/writes the UART, and transfers data to the USB stack

CDC layer for the USB driver, cdc_getch() and cdc_putch()

Header for usb_cdc.c

USB host driver

Header for usb_host.c

USB host driver utility functions

Header file for usb_utils.c

HID host class files

Hid_demo.c

Hid_parser.c

Hid_parser.h

Hid_usage.h

Host_hid.c

Host_hid.h

Host_hid_joy.c

Host_hid_kbd.c

Prints information about connected devices to the serial line

Read and write access to HID report items

Header file for hid_parser.c

HID usage codes

Basic HID functionality used by HID drivers

Header for host_hid.c

HID joystick driver

HID keyboard driver

Host_hid_mouse.c

HID mouse driver

Mass storage host

Mst_main.c

Scsi.c

Usb_mst.c

Terminal.c

Mst_glue.h

Thin-lib.a

Initial entry point for mass storage demo

SCSI layer for USB mass storage class host demo

USB layer of USB mass storage class host driver

Simple terminal interface allows users to execute commands to exercise the mass storage stack

Links sector driver of FAT file system to SCSI Layer of mass storage driver

Limited function FAT file system library

6 Enumeration

Enumeration is the process of the host learning about the device. Enumeration occurs on Endpoint 0, using default address 0. During the enumeration process, the host assigns another address to the device. All USB devices must support control transfers, the standard requests, and Endpoint 0. For a successful enumeration, the device must respond to each request by returning requested information and taking other requested actions.

Freescale Semiconductor

USB and Using the CMX USB Stack, Rev. 0

21

Enumeration

The USB specification defines six device states. During enumeration, a device moves through four of the states: powered, default, address, and configured. (The other states are attached and suspend.)

Attached: The device can be in an attached or detached stat; the specification only defines the attached stat.

Powered:

Default:

A USB device must be able to be addressed within a specified time period from when power is initially applied. After an attachment to a port has been detected, the host may enable the port, which will also reset the device attached to the port.

The host will provide up to 100 ma at this point.

After the device has been powered, it must not respond to any bus transactions until it has received a reset from the bus. After receiving a reset, the device is then addressable at the default address (0).

Address:

Configured:

Suspended:

All USB devices use the default address when initially powered or after the device has been reset. Each USB device is assigned a unique address by the host after attachment or after reset. A USB device maintains its assigned address while suspended. A USB device responds to requests on its default pipe whether the device is currently assigned a unique address or is using the default address.

Before a USB device’s function may be used, the device must be configured.

Configuration involves correctly processing a SetConfiguration() request with a non-zero configuration value. Configuring a device or changing an alternate setting causes all of the status and configuration values associated with endpoints in the affected interfaces to be set to their default values. This includes setting the data toggle of any endpoint using data toggles to the value DATA0.

To conserve power, USB devices automatically enter the suspended state when the device has observed no bus traffic for a specified period (refer to

Section 7, “The

USB Device-Side Driver ,”). When suspended, the USB device maintains any

internal status, including its address and configuration. All devices must suspend if bus activity has not been observed for the length of time specified in the USB specification. Attached devices must be prepared to suspend at any time they are powered, whether they have been assigned a non-default address or are configured.

The enumeration process is driven by the host. The host submits USB level requests to the device, the device responds with a action or data.

6.1

Enumeration Steps

1. The device is plugged into a host. The host provides power to the device with a current limit of

100 ma.

2. The host determines low-speed/full-speed capability by pullup resistors connected to either the D+ or D– lines. At this point, the device is in the powered state.

3. The host sends a reset to the device by setting D+ and D– low for at least 10 milliseconds. When the host removes the reset, the device goes into the default state.

USB and Using the CMX USB Stack, Rev. 0

22 Freescale Semiconductor

Enumeration

4. In the default state, the device is ready to respond to control transfers at Endpoint 0. The host communicates with the device using the default address of 00. The device can draw up to 100 ma from the host.

5. The host sends a GET_DESCRIPTOR request to Endpoint 0, address 0, to learn the maximum packet size of the default pipe. The eight-byte device descriptor contains the maximum packet size supported by Endpoint 0.

6. The host assigns a unique address to the device by sending a SET_ADDRESS request. The device is in the address state.

7. The host sends a GET_DESCRIPTOR request to the new address to read the full device descriptor.

8. The host then requests any additional descriptors specified in the device descriptor. Each descriptor begins its length and type.

9. The host assigns a device driver based on the data in the descriptors. Windows

®

will use the devices vendor ID and product ID to find an appropriate INF file to determine what drivers to load.

If there is no match, Windows will use a default driver according to class.

10. If the device supports multiple configurations, the host will send a SET_CONFIGURATION request to the device to select the desired configuration.

6.2

Types of Descriptors

Type

Standard

Class

Specific to HID

21

29

22

23

Value

05

06

07

08

01

02

03

04

Descriptor

device configuration string interface endpoint device qualifier other speed configuration interface power

HID hub report physical

6.3

Device Descriptor

Because the device descriptor represents the entire device, there can be only one per device. This descriptor specifies basic information such as: USB version supported, maximum packet size, the number of configurations, and vendor and product ID info.

Table 8. Device Descriptors

0 bLength 1 Number

Description

Size of this descriptor in bytes

2 bcdUSB 2 BCD USB Specification Release Number 0x0200

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor 23

Enumeration

4

5

6 bDeviceClass bDeviceSubClass bDeviceProtocol

7 bMaxPacketSize0

8 idVendor

10 idProduct

12 bcdDevice

14

15 iManufacturer iProduct

16 iSerialNumber 1

17 bNumConfigurations 1

1

1

2

2

1

2

1

1

1

Table 8. Device Descriptors (continued)

Description

Class Class code (see spec)

SubClass Subclass code (see spec)

Protocol Protocol code (see spec)

Number Max packet size for endpoint zero (only 8, 16, 32, or 64 are valid)

ID Product

ID Device release number in BCD

BCD

Index

Index

Number

Index of string descriptor describing manufacturer

Index of string descriptor describing product

Index of string descriptor describing the device’s serial number

Number of possible configurations

6.4

Configuration Descriptor

When the host requests the configuration descriptor, all related interface and endpoint descriptors are returned. Each device has at least one configuration descriptor that describes the device’s features and abilities. The device can have multiple configurations. The host selects a specific configuration using a

SET_CONFIGURATION request.

Table 9. Configuration Descriptors

0 bLength 1 Number Size of this descriptor in bytes

2 wTotalLength 2 Number Total length of data returned for this configuration. Includes the combined length of all descriptors (configuration, interface, endpoint, and class or vendor specific), returned for this configuration.

4

5 bNumInterfaces bConfigurationValue

1

1

Number Number of interfaces supported by this configuration

Number Value to use as an argument to themSetConfiguration() request to select this configuration

Index Index of string descriptor describing this configuration 6 iConfiguration 1

7 bmAttributes 1 Configuration

D7: Reserved (set to one)

D6: Self-poweredD5: Remote Wakeup

D4...0: Reserved (reset to zero)

8 bMaxPower 1 mA Maximum power consumption of the USB device from the bus in this Specific configuration when the device is fully operational.

Expressed in 2 mA units (i.e., 50 = 100 mA).

24

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

0

2

3

4

Enumeration

6.5

Interface Descriptor

A configuration’s interface descriptor contains information about the endpoints the interface supports.

Each configuration must support at least one interface, but can support many. The host selects the interface with a SET_INTERFACE request.

Table 10. Interface Descriptors

bLength 1 bInterfaceNumber bAlternateSetting bNumEndpoints

1

1

1

Number Size of this descriptor in bytes

Number

Number

Number

Number of this interface.

Value used to select this alternate setting for the interface identified in the prior field

Number of endpoints used by this interface (excluding endpoint zero). If this value is zero, this interface only uses the default control pipe.

If this field is reset to zero, the device does not use a class-specific protocol on this interface. If this field is set to

FFH, the device uses a vendor-specific protocol for this interface.

6.6

Endpoint Descriptor

Every endpoint except 0 must have a endpoint descriptor.

Table 11. Endpoint Descriptors

0 bLength 1 Number

Description

Size of this descriptor in bytes

2 bEndpointAddress 1 Endpoint The address of the endpoint on the USB device described by this descriptor. The address is encoded as follows:

Bit 3...0: The endpoint number

Bit 6...4: Reserved, reset to zero

Bit 7: Direction, ignored for control endpoints

0 = OUT endpoint

1 = IN endpoint

Freescale Semiconductor

USB and Using the CMX USB Stack, Rev. 0

25

Enumeration

4

6 wMaxPacketSize bInterval

Table 11. Endpoint Descriptors (continued)

2

1

Number

Number

Description

Maximum packet size this endpoint is capable of sending or receiving when this configuration is selected. For all endpoints, bits 10..0 specify the maximum packet size (in bytes). For high-speed isochronous and interrupt endpoints:

Bits 12..11 specify the number of additional transaction opportunities per microframe:

00 = None(1 transaction / microframe)

01 = 1 additional (2 per microframe)

10 = 2 additional (3 per microframe)

11 = Reserved Bits 15..13 are reserved and must be set

to zero.

Interval for polling endpoint for data transfers. Expressed in frames or microframes depending on the device operating speed (i.e., either 1 millisecond or 125 s units).

For full-/high-speed isochronous endpoints, this value must be in the range from 1 to 16. The bInterval value is used as the exponent for a 2bInterval-1 value; e.g., a bInterval of 4 means a period of 8 (24-1).

For full-/low-speed interrupt endpoints, the value of this field may be from 1 to 255. For high-speed interrupt endpoints, the bInterval value is used as the exponent for a 2bInterval-1 value; e.g., a bInterval of 4 means a period of 8 (24-1). This value must be from 1 to 16.

For high-speed bulk/control OUTendpoints, the bInterval must specify the maximum NAK rate of the endpoint. A value of 0 indicates the endpoint never NAKs. Other values indicate at most 1 NAK each bInterval number of microframes. This value must be in the range from 0 to 255.

6.7

String Descriptor

The string descriptor contains descriptive text. The specification supports string descriptors for: the manufacture, product, serial number, configuration, and interface. String descriptors are optional.

Table 12. String Descriptors

0 bLength 1 Number

Description

Size of this descriptor in bytes

2 bString N Number Unicode encoded string

The bString field is overloaded. For string descriptor 0, the bString is an array of 1 or more language identifier codes. For other string descriptors, this is a unicoded string.

Unicode uses 2 bytes per character.

USB and Using the CMX USB Stack, Rev. 0

26 Freescale Semiconductor

Enumeration

6.8

Common Descriptor Hierarchy

DEVICE

Descriptor

Configuration

Descriptor

Configuration

Descriptor

Interface

Descriptor

Interface

Descriptor

Interface

Descriptor

Interface

Descriptor

Endpoint

Descriptor

Endpoint

Descriptor

Endpoint

Descriptor

Endpoint

Descriptor

Endpoint

Descriptor

Endpoint

Descriptor

Figure 20. Common Descriptor Hierarchy

Endpoint

Descriptor

Endpoint

Descriptor

6.9

USB Standard Device Requests

The USB specification defines 11 standard requests for control transfer. These requests are used by the host to enumerate the device. During enumeration, the hosts sends these requests to the device after the device is reset, starting when it is in the default state. The device firmware simply responds the to requests with either data or an action.

Table 13. USB Standard Device Requests

Request#

0x00

0x01

0x03

0x05

0x06

0x07

0x08

0x09

0x0A

0x0B

0x0C

Name

Get_Status

Clear_Feature

Set_Feature

Set_Address

Get_Descriptor

Set_Descriptor

Get_Configuration

Set_Configuration

Get_Interface

Set_Interface

Sync_Frame

Data Source

device none none none device host device none device none device

Value

0 feature feature address 0 type&index x type&index

0 x

1

2

0

0 config

0 interface

0

0

2

0

1

Data Length Data

status none none none descriptor descriptor configuration none alternate none frame #

The data source parameter defines who is sending the data. The value column specifies the data in the value field. The data column specifies the data transferred during the data stage of the USB transaction. The data length specifies the number of bytes in the data field. The x specifies the descriptor length.

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor 27

Enumeration

6.10

USB Standard Device Requests—Setup Transfer Data Packet

Data Format

The 11 standard device requests are sent from the host on the devices default control pipe. These requests are made using control transfers. Control transfers have three phases: setup, data, and handshake. The setup transaction includes a data packet sent from the host to the device (out transfer). The request is transferred in the data packet of the setup transaction.

Setup

Transaction

Token Packet

Sent by Host

PID = Setup

Data Packet

Request Packet

8 Bytes

PID = ACK

From Device

Handshake

Packet

PID = DAT0

From Host

Figure 21. Setup Transaction on Control Transfer

Table 14. Device Request

Offset Field Size Value

Bitmap

Description

D7: Data transfer direction

0 = Host-to-device

1 = Device-to-host

D6 . . . 5: Type

0 = Standard

1 = Class

2 = Vendor

3 = Reserved

D4 . . . 0: Recipient

0 = Device

1 = Interface

2 = Endpoint

3 = Other

4 . . . 31 = Reserved

1 bRequest 1

2

4 wValue wIndex

2

2

6 wLength 2

Value

Index or Offset

Count

Word-sized field that varies according to request

Word-sized field that varies according to request; typically used to pass an index or offset

Number of bytes to transfer if there is a Data stage

28

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

Enumeration

6.11

Decoding the Generic HID Descriptors

#define USB_FILL_DEV_DESC(usb_ver, dclass, dsubclass, dproto, psize, vid,\

pid, relno, mstr, pstr, sstr, ncfg) hcc_u8 geh_device_descriptor[] = {

USB_FILL_DEV_DESC(

0x0101, // USB version 1.1

0, // device class 0 ( each interface defines it’s own class info )

0, // device subclass 0 ( each interface defines it’s own class info )

0, // device protocol 0 ( does not use class-specific protocols )

EP0_PACKET_SIZE, // endpoint 0 control packet size is 8 bytes

GEH_VENDOR_ID, // Vendor ID = 0xC1CA

GEH_PRODUCT_ID, // Product ID is 3

GEH_DEVICE_REL_NUM, // Release number 0

1, // String index 1 is manufacture name

2, // String index 2 is Product name

3, // String index 3 is Serial Number

1) // Only 1 configuration hcc_u8 * geh_string_descriptors[] = {

string_descriptor0, // String index 0 placeholder

str_manufacturer, // String index 1

geh_product, // String index 2

geh_serail_number, // String index 3

geh_config // String index 4

geh_interface // String index 5

};

#define USB_FILL_CFG_DESC(size, nifc, cfg_id, str_ndx, attrib, pow) \

(hcc_u8)0x09u, STDD_CONFIG, (hcc_u8)(size), (hcc_u8)((size) >> 8)\

, (hcc_u8)(nifc), (hcc_u8)(cfg_id), (hcc_u8)(str_ndx), (hcc_u8)(attrib),

(hcc_u8)(pow)

#define USB_FILL_IFC_DESC(ifc_id, alt_set, no_ep, iclass, isubclass, iproto, strndx) \

(hcc_u8)0x09u, STDD_INTERFACE,(hcc_u8)(ifc_id), (hcc_u8)(alt_set), (hcc_u8)(no_ep)\

, (hcc_u8)(iclass), (hcc_u8)(isubclass), (hcc_u8)(iproto), (hcc_u8)(strndx)

#define USB_FILL_EP_DESC(addr, dir, attrib, psize, interval) \

(hcc_u8)0x07u, STDD_ENDPOINT, (hcc_u8)((addr)&0x7f) | (((hcc_u8)(dir))<<0x7)\

, (hcc_u8)(attrib), (hcc_u8)((psize) & 0xff), (hcc_u8)(((psize) >> 8) & 0xff)\

, (interval) hcc_u8 geh_config_descriptor[] = {

USB_FILL_CFG_DESC(

9+3+9+9+7, // Descriptor has 37 bytes

1, // 1 configuration

1, // This is configuration number 1

4, // String index 4 describes this configuration

CFGD_ATTR_SELF_PWR, // Device is self powered

0), // Devices requires 0*2ma of current

USB_FILL_OTG_DESC(

1, // OTG disabled

1),

USB_FILL_IFC_DESC(

GEH_IFC_INDEX,// Interface ID = 0

0, // Alternate setting = 0

1, // Number of endpoints excluding endpoint 0

0x3, // HID interface class

0x0, // subclass 0

0x0, // Protocol 0

5), // String index 5 describes this interface

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor 29

The USB Device-Side Driver

USB_FILL_HID_DESC(9, 0x0100, 0x0, 1, 0x22, sizeof(geh_report_descriptor)),

USB_FILL_EP_DESC(

0x1, // Endpoint 1

1, // IN

0x3, // Interrupt transfers

8, // Packet Size = 8 bytes

0x20), // Host data polling interval = 32ms

7 The USB Device-Side Driver

The low-level USB driver interfaces directly with the USB OTG module. There are two separate drivers, one for host and another for device. The file usb.c and its header file usb.h are the device-side USB low-level drivers. On the host side, the files usb_host.c, and usb_host.h contain the low-level driver.

The USB device driver is in the file usb.c. The driver provides the low-level functions for initializing the

USB OTG module, and transmitting data. The heart of the driver is the ISR. The USB OTG module has seven interrupt sources. All the interrupt sources are ORed together to create a single interrupt vector.

30

Figure 22. USB Module Interrupt Sources

Table 15. Bit Descriptions

Field Description

7

STALL

6

ATTACH

5

RESUME

4

SLEEP

3

TOK_DNE

2

SOF_TOK

1

ERROR

Stall Interrupt

In target mode this bit is asserted when a STALL handshake is sent by the SIE.

This interrupt can be use to determine if the last USB transaction was completed successfully or if it stalled.

Attach Interrupt

This bit is set when the USB module detects the attach of a USB device. This signal is only valid if

HOST_MODE_EN is true. This interrupt signifies that a peripheral is now present and must be configured.

This bit is set depending upon the DP/DM signals, and can be used to signal remote wake-up signaling on the USB bus. When not in suspend mode, this interrupt should be disabled.

This bit is set when the USB module detects a constant idle on the USB bus for three milliseconds. The sleep timer is reset by activity on the USB bus.

This bit is set when the current token being processed has completed. The ColdFire core should immediately read the STAT register to determine the endpoint and BD used for this token. Clearing this bit

(by writing a one) causes the STAT register to be cleared or the STAT holding register to be loaded into the

STAT register.

This bit is set when the USB module receives a SOF token. In host mode this bit is set when the SOF threshold is reached, so that software can prepare for the next SOF.

This bit is set when any of the error conditions within the ERR_STAT register occur. The ColdFire core must then read the ERR_STAT register to determine the source of the error.

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

The USB Device-Side Driver

Table 15. Bit Descriptions (continued)

Field Description

0

USB_RST

This bit is set when the USB module has decoded a valid USB reset. This informs the microprocessor that it should write 0x00 into the address register and enable Endpoint 0. USB_RST is set after a USB reset has been detected for 2.5 microseconds. It is not be asserted again until the USB reset condition has been removed and then reasserted.

The TOK_DNE interrupt occurs after a the current token is processed. This occurs in either a TX or RX.

The driver must read the status register to determine whether the last transaction was a TX or RX, and to determine which buffer descriptor was used.

Figure 23. USB Module Status Register

The ENDP field is the endpoint number the last transaction occurred on, the TX bit determines the direction (0 = RX, 1 = TX), and the ODD field determine which of the two buffer descriptors was used.

The driver uses this data plus the BDT_PAGE register data to calculate the buffer descriptor absolute address.

#define BDT_CTL_RX(ep, b) (BDT_BASE[((ep)<<3)+((b)<<1)+0])

#define BDT_ADR_RX(ep, b) (BDT_BASE[((ep)<<3)+((b)<<1)+1])

#define BDT_CTL_TX(ep, b) (BDT_BASE[((ep)<<3)+((b)<<1)+4])

#define BDT_ADR_TX(ep, b) (BDT_BASE[((ep)<<3)+((b)<<1)+5])

Where ep is the ENDP field, the endpoint number. The b parameter is the ODD field.

The OWN bit is cleared by the driver to indicate that the buffer descriptor is owned by the firmware.

The driver interfaces with the next level above the stack using the ep_info data structure. There is one ep_info structure for each endpoint. These structures are stored in a array declared in usb.c. static ep_info_t ep_info[16]; typedef struct {

volatile hcc_u32 tlength;

volatile hcc_u32 maxlength;

void * volatile address;

volatile usb_callback_t data_func;

hcc_u16 psize;

hcc_u32 data0_tx;

hcc_u32 data0_rx;

volatile hcc_u8 state;

volatile hcc_u8 flags;

volatile hcc_u8 error;

hcc_u8 next_rx;

hcc_u8 next_tx;

} ep_info_t;

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor 31

The USB Device-Side Driver

Field

tlength maxlength address data_func psize data0_tx data0_rx state flags error next_rx next_tx

Table 16. ep_info Data Structure

Description

Transfer length (the number of bytes to transfer, decremented after each packet is transferred)

Maximum length of transfer

Pointer to data buffer

If:

• The buffer is empty and more data needs to be sent

• All transmission is finished

• In case of an error

Maximum packet size allowed for endpoint tx toggle bit rx toggle bit

Control endpoint state machine state values

EPST_IDLE

EPST_DATA_TX

EPST_DATA_TX_LAST

EPST_DATA_RX

EPST_STATUS_TX

EPST_STATUS_RX

EPST_TX_STOP

EPST_ABORT_TX

EPST_DATA_TX_WAIT_DB

EPST_DATA_TX_EMPTY_DB

Endpoint flag bits

EPFL_ERROR // There was an error during the ongoing transfer.

EPFL_ZPACKET // After the last data packet an additional zero length packet needs to be transmitted

to close the transfer.

Error flags:

USBEPERR_NONE // No error

USBEPERR_TO_MANY_DATA // To many data received

USBEPERR_PROTOCOL_ERROR // Protocol error

USBEPERR_USER_ABORT // Transfer was aborted by the application

USBEPERR_HOST_ABORT // Host aborted the transfer

Next buffer to be used. The USB module supports two buffers / endpoint direction. This specifies the next buffer to use.

Next buffer to be used. The USB module supports two buffers / endpoint direction. This specifies the next buffer to use.

32

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

The USB Device-Side Driver

ep_info[ENDP]

BDT_PAGE[(ENDP<<3)+(ODD<<1)+(4*TX)+1]

Buffers in RAM

Buffers

Descriptors in RAM

TOK_DNE ENDP ODD TX usb_it_handler() in usb.c

DMA

BDT_PAGE ODD TX interrupt

USB OTG Module

Figure 24. USB Device-Side Driver Block Diagram

7.1

Usb_it_handler()

The heart of the USB driver is the interrupt handler. The USB module generates interrupts from eight different events as specified by the USB module specification.

Table 17. USB Module Interrupt Sources

Interrupt

USB_RST

ERROR

RESUME

SLEEP

STALL

SOF_TOK

ATTACH

TOK_DNE

usb_it_handler() Response

The handler resets its state machine, disables all endpoints, and resets Endpoint 0. usb_state is set to

USBST_DEFAULT. The usb_reset_event() callback function is called to indicate the reset to the higher layers of the stack.

The usb_bus_error_event() callback function is called.

The usb_wakeup_event() callback function is called.

The usb_suspend_event() callback function is called.

The control endpoint is reset.

This interrupt is not used by usb_it_handler().

This interrupt is not used by usb_it_handler().

All transactions start with a token packet sent by the host. In device mode, this interrupt occurs after the device receives the token packet from the host. This is where the communication takes place. This portion of the interrupt processes packets for the IN (TX) endpoints, the OUT (RX) endpoint, and control endpoints.

Freescale Semiconductor

USB and Using the CMX USB Stack, Rev. 0

33

The USB Device-Side Driver

TX

BD OWN bit = 0

Toggle

Ep_info[ep].next_tx

TOK_DNE interrupt

RX

0 1

MCF_USB_STAT & BD OWN bit = 0

MCF_USB_STAT_TX

Toggle

Ep_info[ep].next_rx

If ( PID == setup packet ) is_stp = 1 is_rx = 1

Figure 25. TOK_DNE Interrupt Flow

After the interrupt has claimed the buffer descriptors by clearing the OWN bit, and the buffer is toggled in the ep_info structure. If this packet is a RX packet, then the PID is checked to determine if it is a SETUP packet. The is_stp flag is set if it is a setup packet. Setup packets for control endpoints are handled by a state machine.

The MCF_USB_ENDPT_EP_CTL_DIS flag is located in the endpoint control registers. This bit, when set, disables control (SETUP) transfers. When cleared, control transfers are enabled. If the packet received is from a endpoint supporting control transfers, then the MCF_USB_ENDPT_EP_CTL_DIS flag is cleared, allowing SETUP packets to be received on the endpoint. Control endpoints are supported by a state machine. Control transfers contain multiple tokens: a setup token indicates the start of the transfer, an in or out token indicates the start of data, and a handshake token for handshaking. The state machine is entered after each of these tokens. The state machine starts in the IDLE_STATE. While in the

IDLE_STATE, it is waiting for a setup packet to indicate the start of a control transfer.

34

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

IDLE STATE

SETUP Packet received usb_stm_ctrl0()

DATA TX STATE

_usb_send(ep)

STATUS TX STATE ep_info[ep].data_func()

DATA RX STATE

_usb_receive(ep)

STATUS RX STATE ep_info[ep].data_func()

Figure 26. Control Endpoint State Machine

The USB Device-Side Driver

Control Endpoint state machine yes

Control

Endpoint? no

OUT endpoint

For interrupt, isochronous, and bulk transfers.

_usb_receive(ep)

IN endpoint

For interrupt, isochronous, and bulk transfers.

1 0 is_rx _usb_send(ep)

User callback function ep_info.data_func()

It exit

Figure 27. In, Out, and Control Endpoint Processing

Freescale Semiconductor

USB and Using the CMX USB Stack, Rev. 0

35

The USB Device-Side Driver

7.2

Enumeration Support—usb_stm_ctrl0()

The setup packet contains 8 bytes of data. This data is used to support the 11 standard USB requests required for enumeration. These requests are parsed in the usb_stm_ctrl0() function. The usb_stm_ctrl0() function is called by the USB interrupt handler when a SETUP packet is received. The 8 bytes contain the request, and parameters for the request. Requests are always sent from the host.

USBRQ_SET_ADDRESS

This request sets the device address for all future device accesses.

new_address = device address sent from host

The function cb_set_address() is called at the end of this transaction.

USBRQ_GET_DESCRIPTOR

This request returns the specified descriptor if the descriptor exists.

The host specifies the descriptor it is asking for. The device sends the descriptor to the host during the data phase.

USBRQ_GET_CONFIGURATION

This request returns the current device configuration value.

If the returned value is zero, the device is not configured.

USBRQ_SET_CONFIGURATION

This request sets the device configuration.

The host specifies the configuration that the device should use.

The firmware calls set_config() with the configuration number sent by the host.

USBRQ_CLEAR_FEATURE

This request is used to clear or disable a specific feature.

The firmware disables the endpoint specified by the host.

7.3

USB Device-Side API

hcc_u8 usb_init(hcc_u8 ip, hcc_u8 use_alt_clk)

The usb_init() function is used to initialize the usb driver.

ip = interrupt level assigned to the USB module

us_alt_clk = Clock source select for module void usb_stop(void)

Disable USB interrupts, and shutdown the USB module.

void usb_send hcc_u8 ep, usb_callback_t f, hcc_u8* data, hcc_u32 tr_length,

hcc_u32 req_length)

Setup a TX (IN) transfer. The data will be transferred the next time the host

request data from the endpoint. Because all packet transmission on USB are started

by the host, it needs to know how many bytes shall be transferred during a

transfer. Because of this the host will always tell the device how many bytes it can

receive (req_length). On the other hand, the the device may have less data ready

(tr_length). Calls the _usb_send( ep ) function.

USB and Using the CMX USB Stack, Rev. 0

36 Freescale Semiconductor

The USB Device-Side Driver

ep = endpoint number

f = pointer to user callback function. A callback will be made

if: - the buffer is empty and more data needs to be sent

- all transmission is finished

- in case of an error

data = pointer to data buffer

buffer_size = size of data buffer

tr_length = number of bytes to be transferred.

req_length = the number of bytes the host wants to receive.

void usb_receive( hcc_u8 ep, usb_callback_t f, hcc_u8* data, hcc_u32 tr_length,

hcc_u32 req_length)

Setup a RX (OUT) transfer on the endpoint. When the host sends data the

callback function is called. The data can be found in the ep_info structure.

Parameters are same as usb_send().

hcc_u8 usb_ep_is_busy(hcc_u8 ep)

returns nonzero if endpoint is busy (a transfer is ongoing).

hcc_u8 usb_get_state(void)

returns USB state hcc_u8 usb_ep_error(hcc_u8 ep)

Returns endpoint ( ep ) specific error code.

7.4

USB Driver Callback Functions

callback_state_t usb_ep0_callback(void)

This callback function is called when a SETUP packet is received on a

control endpoint. The USB driver has already processed any USB standard

packets for enumeration. This callback is used to implement class specific

requests.

void usb_bus_error_event(void)

USB callback function. Is called by the USB driver if an USB error event

occurs.

void usb_wakeup_event(void)

USB callback function. Is called by the USB driver if an USB wakeup event

occurs.

void usb_suspend_event(void)

USB callback function. Is called by the USB driver if an USB suspend event

occurs.

void usb_reset_event(void)

USB callback function. Is called by the USB driver if an USB reset event

occurs.

Freescale Semiconductor

USB and Using the CMX USB Stack, Rev. 0

37

The USB Host-Side Driver

8 The USB Host-Side Driver

The USB host-side driver is in the files usb_host.c and usb_utils.c. The host-side driver is simple thanks to the advanced USB hardware. The host-side driver does not require interrupts. Host mode allows bulk, isochronous, interrupt, and control transfers. Bulk data transfers are performed at nearly the full USB bus bandwidth. Support is provided for ISO transfers, but the number of ISO streams that can be practically supported is affected by the interrupt latency of the processor servicing the token during interrupts from the SIE.

8.1

Initializing the Host Controller (host_init() in usb_host.c)

1. Setup the buffer table and point to first RX / TX buffer descriptors

// use first rx and tx buffer

MCF_USB_CTL |= MCF_USB_CTL_ODD_RST;

// set BDT address

MCF_USB_BDT_PAGE_01 = (hcc_u8)(((hcc_u32)BDT_BASE) >> 8);

MCF_USB_BDT_PAGE_02 = (hcc_u8)(((hcc_u32)BDT_BASE) >> 16);

MCF_USB_BDT_PAGE_03 = (hcc_u8)(((hcc_u32)BDT_BASE) >> 24);

2. Configure the SOF threshold

MCF_USB_SOF_THLDL = 74; // disable transactions 74 bytes before SOF

3. Enable pulldown resistors

38

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

The USB Host-Side Driver

MCF_USB_OTG_CTRL = MCF_USB_OTG_CTRL_DP_LOW | MCF_USB_OTG_CTRL_DM_LOW |

MCF_USB_OTG_CTRL_OTG_EN;

MCF_GPIO_PQSPAR |= MCF_GPIO_PQSPAR_PQSPAR5(3) | MCF_GPIO_PQSPAR_PQSPAR6(3);

4. Enable host mode (CTL[HOST_MODE_EN]=1). Pulldown resistors enabled, pullup disabled.

SOF generation begins. SOF counter loaded with 12,000. Eliminate noise on the USB by disabling start-of-frame packet generation by writing the USB enable bit to 0 (CTL[USB_EN]=0).

MCF_USB_CTL = MCF_USB_CTL_HOST_MODE_EN;

5. Enable the ATTACH interrupt (INT_ENB[ATTACH]=1) or clear the ATTACH flag if polling (to clear the flag, write a 1).

MCF_USB_INT_STAT = MCF_USB_INT_STAT_ATTACH;

6. Wait for ATTACH interrupt (INT_STAT[ATTACH]) or poll. Signaled by USB Target pull-up resistor changing the state of DPLUS or DMINUS from 0 to 1 (SE0 to J or K state).

if (MCF_USB_INT_STAT & MCF_USB_INT_STAT_ATTACH) device is attached

7. (optional) Check the state of the JSTATE and SE0 bits in the control register. If the JSTATE bit is 0, then the connecting device is low speed. If the connecting device is low speed then set the low-speed bit in the address registers (ADDR[LS_EN]=1) and the host the host without hub bit in

Endpoint 0 register control (EP_CTL0[HOST_WO_HUB]=1).

8. Enable RESET (CTL[RESET]=1) for 10 ms.

MCF_USB_CTL |= MCF_USB_CTL_RESET; // start reset signaling Delay 10ms

MCF_USB_CTL &= ~MCF_USB_CTL_RESET; // stop reset signaling

MCF_USB_INT_STAT = MCF_USB_INT_STAT_USB_RST; // clear reset event

Freescale Semiconductor

USB and Using the CMX USB Stack, Rev. 0

39

The USB Host-Side Driver

9. Enable the SOF packet to keep the connected device from going to suspend (CTL[USB_EN=1]).

MCF_USB_CTL |= MCF_USB_CTL_USB_EN_SOF_EN;

10. Set up the endpoint control register for bidirectional control transfers.

EP_CTL0[4:0] = 0x0d.

8.2

usb_host_transaction() in usb_host.c

With USB, data is transferred in transactions. The hosts initiates all transactions by sending a token to the device. There are three tokens: in, out, and setup. Setup is a special token used to start a control transfer.

The driver only supports control transfers on Endpoint 0. This is not a limitation of the USB specification, but a limitation of the free USB stack.

The usb_host_transaction() function generates one transaction of the type specified in the command line.

For control transfers, the usb_host_function() will be called three times to support the token, data, and handshaking phases.

static hcc_u16 usb_host_start_transaction(hcc_u8 type, hcc_u8 *buffer, hcc_u16 length, hcc_u8 ep)

where: type = type of transaction to initiate ( define in usb_host.h )

TRT_SETUP = SETUP transaction

TRT_IN = IN transaction

TRT_OUT = OUT transaction

*buffer = Pointer to data area for transfer

length = Size of the buffer in bytes

ep = EndPoint handle

The ep parameter requires a little more explanation. The structure my_device, declared in usb_host.c, is used by the host firmware to encapsulate the device information. There is only one my_device entry. The example host firmware does not support hubs; therefore, only one device is supported.

dev_table_element_t my_device; // declared in usb_host.c

typedef struct

{

hcc_u8 address; // Device address

hcc_u8 low_speed; // Low Speed device flag

device_ep_t eps[MAX_EP_PER_DEVICE]; // Device endpoints

} dev_table_element_t;

40

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

The USB Host-Side Driver

typedef struct

{

hcc_u16 last_due; // Interval due time

hcc_u16 psize; // Packet size

hcc_u8 type; // Endpoint type

hcc_u8 address; // Endpoint Address

hcc_u8 interval; // Interrupt frame interval

hcc_u8 tgl_rx; // RX DATA toggle state

hcc_u8 tgl_tx; // TX DATA toggle state

} device_ep_t;

8.3

usb_host_transaction() Pseudo Code

static hcc_u16 usb_host_start_transaction(hcc_u8 type, hcc_u8 *buffer, hcc_u16 length, hcc_u8 ep)

{

The device address is set using the ADDR register. If the device is a low-speed device, the LS_EN flag is set to force the USB OTG module to create a preamble.

/* Set device address. */

MCF_USB_ADDR = (hcc_u8)(my_device.low_speed ?

my_device.address | MCF_USB_ADDR_LS_EN :

my_device.address);

The host firmware does not support a hub.

/* We are not talking over a HUB. */

MCF_USB_ENDPT0 = MCF_USB_ENDPT0_HOST_WO_HUB;

Freescale Semiconductor

USB and Using the CMX USB Stack, Rev. 0

41

The USB Host-Side Driver

Interrupt endpoints are limited to only one transaction per x frames, where x is the interval defined for the endpoint. The endpoint interval is defined in my_device.eps[ep].interval. The last_due variable contains the frame number for when it is safe to send the next interrupt transaction. Because frames occur every millisecond, frame numbers translate to time in milliseconds. Therefore, the code below waits for interval ms after the last transaction, before sending a transaction.

/* If this is an interrupt endpoint wait till the endpoint is due. */

if (my_device.eps[ep].type == EPTYPE_INT)

{

hcc_u16 elapsed;

/* Disable hardware retry. */

MCF_USB_ENDPT0 |= MCF_USB_ENDPT0_RETRY_DIS;

/* Disable software retry. */

retry=1;

/* wait till frame is due */

do {

elapsed=(hcc_u16)(MCF_USB_FRM_NUM-my_device.eps[ep].last_due);

elapsed &= ((1<<11)-1);

} while(elapsed < my_device.eps[ep].interval);

Increment last_due by interval for next transaction

my_device.eps[ep].last_due += my_device.eps[ep].interval;

my_device.eps[ep].last_due &= ((1<<11)-1);

}

The following switch statement will do a setup, in, or out transaction depending on the type of transaction requested by the function call (type is a input parameter to this function).

The do loop is a software retry loop. If the transaction completes in a error, the software will attempt retries.

do {

tr_error=tre_none;

retry--;

switch(type)

{

42

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

The USB Host-Side Driver

8.4

usb_host_transaction()—Setup Transaction

A setup transaction consists of a setup packet, followed by data from the host, with the device sending a handshake packet. A setup packet is part of a control transfer. The driver forces Endpoint 0 for control transfers as a limitation of the free USB stack.

case TRT_SETUP:

/* Configure bidirectional communication. */

/* Usb spec says setup packets shall be accepted

even if the device was not able to process its packet

buffer. Thus NAK handshake should not be given to a

setup packet by the device. Anyway some devices will

happily NAK setup packets :( */

RETRY_DIS is only set for a interrupt packet (see above). Retries are enabled here to support non-compliant devices that NAK setup transactions. Control endpoints are bidirectional, so both the RX and TX are enabled. Handshaking is enabled.

MCF_USB_ENDPT0 |= 0x0d;

For a setup transaction, the data toggles are reset to 1.

/* After the setup we shall send/receive DATA1 packets. */

my_device.eps[ep].tgl_tx=1;

my_device.eps[ep].tgl_rx=1;

During a setup transaction, the host sends a data packet. To do this, you need to setup the buffer descriptor appropriately. The OWN bit is set to indicate that the USB OTG module owns the buffer descriptor, and can send the data when appropriate. There is no actual data transmission at this time, the transmission is being setup to happen automatically after the TOKEN packet is transmitted.

The BDT_ADR_TX macro generates a pointer to a buffer descriptor address field. A pointer to buffer is inserted into the address field.

/* Set data buffer address. */

WR_LE32(&BDT_ADR_TX(0, ep_info.next_tx), (hcc_u32)buffer);

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor 43

The USB Host-Side Driver

The BDT_CTL_TX macro generates a pointer to a buffer descriptor control word. The byte count (BC) field of the control word is set to eight (8 bytes of data transfer). The OWN bit is set.

/* Set packet properties and give buffer to USB. */

bdt_ctl=&BDT_CTL_TX(0, ep_info.next_tx);

WR_LE32(bdt_ctl, (0x8<<16) | BDT_CTL_OWN | 0);

At this point, you must wait until the last transaction is complete. This is done by polling the TOKBUSY bit.

/* Wait until pending tokens are processed. */ while(MCF_USB_CTL & MCF_USB_CTL_TXDSUSPEND_TOKBUSY)

{

}

At this point, begin the transaction by writing to the TOKEN register.

TOKEN_SETUP(PID) = 0x0D.

/* Start transaction. */

MCF_USB_TOKEN=(hcc_u8)((TOKEN_SETUP<<4) | (my_device.eps[ep].address | (0<<7))); break;

44

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

The USB Host-Side Driver

8.5

usb_host_transaction()—In Transaction

case TRT_IN:

/* Configure bi-directional communication + auto repeat. */

MCF_USB_ENDPT0 |= 0x0d;

/* Set RX buffer address. */

WR_LE32(&BDT_ADR_RX(0, ep_info.next_rx), (hcc_u32)buffer);

/* Set packet properties and give next buffer to USB. */

bdt_ctl=&BDT_CTL_RX(0, ep_info.next_rx);

WR_LE32(bdt_ctl, (length<<16) | BDT_CTL_OWN |

my_device.eps[ep].tgl_rx);

my_device.eps[ep].tgl_rx =(hcc_u8)(my_device.eps[ep].tgl_rx ? 0 :

BDT_CTL_DATA);

/* Wait till pending tokens are processed. */

while(MCF_USB_CTL & MCF_USB_CTL_TXDSUSPEND_TOKBUSY)

{

}

/* Start transaction. */

MCF_USB_TOKEN=(hcc_u8)((TOKEN_IN<<4) |

(my_device.eps[ep].address | (1<<7)));

reak;

8.6

usb_host_transaction()—Out Transaction

case TRT_OUT:

/* Configure bi-directional communication + auto repeat. */

MCF_USB_ENDPT0 |= 0x0d;

/* Set TX buffer address. */

WR_LE32(&BDT_ADR_TX(0, ep_info.next_tx), (hcc_u32)buffer);

/* Set packet properties and give buffer to USB. */

bdt_ctl=&BDT_CTL_TX(0, ep_info.next_tx);

WR_LE32(bdt_ctl, (length<<16) | BDT_CTL_OWN |

my_device.eps[ep].tgl_tx);

my_device.eps[ep].tgl_tx = (hcc_u8)(my_device.eps[ep].tgl_tx ? 0 :

BDT_CTL_DATA);

/* Wait till pending tokens are processed. */

while(MCF_USB_CTL & MCF_USB_CTL_TXDSUSPEND_TOKBUSY)

{

}

/* Start transaction. */

MCF_USB_TOKEN=(hcc_u8)((TOKEN_OUT<<4) |

(my_device.eps[ep].address | (0<<7)));

break;

// End of switch(type)

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor 45

The USB Host-Side Driver

8.7

usb_host_transaction()—Transaction Complete

After the transaction is initiated above, wait for the entire transaction to complete by polling the

TOK_DNE bit.

/* Wait for transaction end. */

while((MCF_USB_INT_STAT & (MCF_USB_INT_STAT_TOK_DNE | MCF_USB_INT_STAT_STALL |

MCF_USB_INT_STAT_ERROR)) ==0)

{

}

Check for errors:

if ((MCF_USB_ERR_STAT & ~MCF_USB_ERR_STAT_CRC5_EOF) != 0)

{

MCF_USB_ERR_STAT = 0xff;

MCF_USB_INT_STAT = MCF_USB_INT_STAT_ERROR;

tr_error=tre_data_error;

continue;

}

Acknowledge the TOK_DNE signal:

/* device not disconnected while waiting for an aswer */

/* clear transfer ok event */

MCF_USB_INT_STAT=MCF_USB_INT_STAT_TOK_DNE;

MCF_USB_CTL &= ~MCF_USB_CTL_TXDSUSPEND_TOKBUSY;

8.8

usb_host_transaction()—Data Toggling

USB uses a one-bit sequence number, referred to as a data toggle. After transmitting or receiving data, we toggle the toggle bit for the next transaction.

/* switch to next buffer */

if (type== TRT_SETUP || type == TRT_OUT)

{

ep_info.next_tx ^= 0x1u;

}

else

{

ep_info.next_rx ^= 0x1u;

}

46

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

The USB Host-Side Driver

8.9

usb_host_transaction()—Transaction Status

The status of the last transaction is returned in the TOK_PID field of the buffer descriptor. The token variable below is assigned the 4 bits in the TOK_PID field.

/* Check transaction status.*/

token=(hcc_u8)((RD_LE32(bdt_ctl) >> 2) & 0x0f); token = TOK_PID for buffer descriptor from last transaction. TOK_PID contains the transfer status.

/* transaction accepted by device */

switch (token)

{

default:

case TOKEN_ACK: // TOKEN_ACK = 0x02 defined in usb_host.c

return((hcc_u16)((RD_LE32(bdt_ctl) >> 16u) & 0x3ffu));

case TOKEN_NAK: // TOKEN_NAK = 0x0A defined in usb_host.c

/* device is not ready */

if (my_device.eps[ep].type == EPTYPE_INT)

{

return(0);

}

/* retry */

break; // by not returning, we go around the loop again

case TOKEN_STALL: /* endpoint stalled by device */

/* we can not get here because we already checked

INT_STAT_STALL. */

tr_error=tre_stall;

return((hcc_u16)-1u);

case 0xf: /* data error, retry */

tr_error=tre_data_error;

break;

case 0: /* no answer, retry. */

tr_error=tre_silent;

break;

}

} while(retry);

return((hcc_u16)-1u);

}

Freescale Semiconductor

USB and Using the CMX USB Stack, Rev. 0

47

The USB Host-Side Driver

8.10

USB Host-Side Driver API

8.10.1

USB Host-Side Driver API—Sending / Receiving Data

These four functions are used to send data to the device, or receive data from the device. These functions are essentially wrappers around the usb_host_start_transaction() function. These functions block until the transfer is complete or there is an error.

8.10.1.1

hcc_u16 host_send_control(hcc_u8 *setup_data, hcc_u8* buffer, hcc_u8 ep)

setup_data = pointer to 8 bytes of data to send in SETUP phase.

buffer = Pointer to data buffer to be sent during data phase.

ep = handle to endpoint (index into my_device.eps[ep])

The host_send_control() function performs an out control transfer. Control transfers have three phases: setup, data, handshake. This function creates all three phases. Sending the data pointed to by buffer during the DATA phase.

The SETUP data size is fixed at 8 bytes.

If the number of bytes to send is > packet size, then multiple DATA transactions are performed. The ep parameter (endpoint handle) is passed directly to the usb_host_start_transaction() function. The ep parameter is an index into the eps array of the my_device structure. This function is used to send requests and or data to the device.

The function returns –1 on error, or number of transmitted bytes

Pseudo code: hcc_u16 host_send_control(hcc_u8 *setup_data, hcc_u8* buffer, hcc_u8 ep)

{

hcc_u32 curr=0;

hcc_u16 length=RD_LE16(setup_data+6);

/* setup transaction. */

usb_host_start_transaction(TRT_SETUP, setup_data, 8, ep);

/* data transactions */

while(curr<length)

{

hcc_u16 psize=(hcc_u16)(MIN(my_device.eps[ep].psize, length));

hcc_u8 r=(hcc_u8)usb_host_start_transaction(TRT_OUT, buffer+curr, psize, ep);

if (r != psize)

return((hcc_u16)-1u);

curr += psize;

}

/* handshake transaction */

my_device.eps[ep].tgl_rx = BDT_CTL_DATA;

usb_host_start_transaction(TRT_IN, (void *)0, 0, ep);

USB and Using the CMX USB Stack, Rev. 0

48 Freescale Semiconductor

The USB Host-Side Driver

return((hcc_u16)curr);

}

8.10.1.2

hcc_u32 host_send(hcc_u8* buffer, hcc_u32 length, hcc_u8 ep)

buffer = pointer to data to send.

length = # of bytes to send.

ep = handle to endpoint ( index into my_device.eps[ep] )

The host_send() function creates a OUT transfer for non-control endpoints. This function is used to send data to the device. OUT transfers consists of three packets: TOKEN, DATA, followed by a handshake packet from the device. The usb_host_start_transaction() function does most of the work.

Returns –1 on error, or number of bytes sent.

Pseudo code: hcc_u32 host_send(hcc_u8* buffer, hcc_u32 length, hcc_u8 ep)

{

hcc_u32 curr=0;

/* data transactions */

while(curr<length)

{

hcc_u16 psize=(hcc_u16)(MIN(my_device.eps[ep].psize, length));

/* do transaction */

usb_host_start_transaction(TRT_OUT, buffer+curr, psize, ep);

curr += psize;

}

return(curr);

}

8.10.1.3

hcc_u32 host_receive(hcc_u8* buffer, hcc_u32 length, hcc_u8 ep)

buffer = pointer to storage area for received data.

length = size of buffer.

ep = handle to endpoint ( index into my_device.eps[ep] )

The host_receive() function performs a IN transfer on a non-control endpoint. This function is used to receive data from a device.This function is similar to host_send().

Pseudo code: hcc_u32 host_receive(hcc_u8* buffer, hcc_u32 length, hcc_u8 ep)

{

hcc_u32 curr=0;

/* data transactions */

while(curr<length)

{

hcc_u16 got,

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor 49

The USB Host-Side Driver

psize=(hcc_u16)(MIN(my_device.eps[ep].psize, length));

got=usb_host_start_transaction(TRT_IN, buffer+curr, psize, ep);

if (got == ((hcc_u16)-1u))

break;

curr += got;

/* short packet means end of transfer */

if (got != my_device.eps[ep].psize)

break;

}

return(curr);

}

8.10.1.4

hcc_u16 host_receive_control(hcc_u8 *setup_data, hcc_u8* buffer, hcc_u8 ep)

The host_receive_control() function performs a IN transfer on a control endpoint. This function is used to receive data from a device on a control endpoint. For instance, during enumeration, this function is used to receive a descriptor.

The DATA packet in the SETUP transaction is limited to carrying eight bytes (all USB standard requests are eight bytes). Also, there is no data length in the parameter list because this function assumes a USB standard request packet is being sent in the SETUP stage; therefore, the size of the data transfer is determined from byte 6 in the setup data packet (see USB standard requests in the enumeration section).

setup_data = pointer to 8 bytes of data to send in SETUP phase.

buffer = pointer to storage area for received data.

ep = handle to endpoint ( index into my_device.eps[ep] ) pseudo code hcc_u16 host_receive_control(hcc_u8 *setup_data, hcc_u8* buffer, hcc_u8 ep)

{

hcc_u32 curr=0;

hcc_u16 length = RD_LE16(setup_data+6);

/* setup transaction. */

usb_host_start_transaction(TRT_SETUP, setup_data, 8, ep);

/* data transactions */

while(curr<length)

{

hcc_u16 got,

psize=(hcc_u16)(MIN(my_device.eps[ep].psize, length));

got=usb_host_start_transaction(TRT_IN, buffer+curr, psize, ep);

curr += got;

if (got == ((hcc_u16)-1u))

return((hcc_u16)-1u);

/* short packet means end of transfer */

if (got != my_device.eps[ep].psize)

break;

}

USB and Using the CMX USB Stack, Rev. 0

50 Freescale Semiconductor

The USB Host-Side Driver

/* handshake transaction */

my_device.eps[0].tgl_tx = BDT_CTL_DATA;

if (((hcc_u16)-1u)==usb_host_start_transaction(TRT_OUT, (void *)0, 0, ep)) return((hcc_u16)-1u); return((hcc_u16)curr);

}

8.10.2

USB Host-Side Driver API—Endpoint Management

Each device connected to the host has an entry in the my_device array. Because the host firmware is limited to accepting one device only, there is only one entry in the array. Each device entry in the my_device array includes a eps array. The eps array is used to describe a endpoint. When a data transfer function is called with a endpoint handle, the handle is an index into the eps array.

EndPoint Structure ( EPS ) hcc_u16 last_due; // Set during transaction hcc_u16 psize; // Set by functions below hcc_u8 type; // Set by functions below hcc_u8 address; // Set by functions below hcc_u8 interval; // Set by functions below hcc_u8 tgl_rx; // Set during transaction hcc_u8 tgl_tx; // Set during transaction

There are three functions used to manage the eps array: host_add_ep(), host_remove_ep(), and host_modify_ep().

8.10.2.1

hcc_u8 host_add_ep(hcc_u8 type, hcc_u8 address, hcc_u8 interval, hcc_u16 psize)

type = type of endpoint ( defined in usb_host.h ) -> eps.type

EPTYPE_CTRL

EPTYPE_ISO

EPTYPE_BULK

EPTYPE_INT address = address of endpoint = 0 to 0x0f -> eps.address

interval = poll interval for interrupt endpoints -> eps.interval

psize = maximum packet size for endpoint -> eps.psize

The host_add_ep() function adds an endpoint into the eps array for the device supported. The function returns a handle that is actually an index into the eps array. The handle is not the endpoint address. If a –1 is returned, then there are no more endpoints available for the device.

8.10.2.2

void host_remove_ep(hcc_u8 ep_handle)

The host_remove_ep() function sets the eps[ep_handle].address = INVALID_ADDRESS, marking the endpoint as empty.

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor 51

The USB Host-Side Driver

8.10.2.3

void host_modify_ep(hcc_u8 ep_handle, hcc_u8 type, hcc_u8 address, hcc_u8 interval, hcc_u16 psize)

ep_handle = handle returned from host_add_ep().

type = type of endpoint ( defined in usb_host.h ) -> eps[ep_handle].type

EPTYPE_CTRL

EPTYPE_ISO

EPTYPE_BULK

EPTYPE_INT address = address of endpoint = 0 to 0x0f -> eps[ep_handle].address

interval = poll interval for interrupt endpoints -> eps[ep_handle].interval

psize = maximum packet size for endpoint -> eps[ep_handle].psize

Modifies eps[ep_handle]

8.10.3

USB Host-Side Driver API—Device Management

8.10.3.1

hcc_u8 host_has_device(void)

The host_has_device() function calls the chk_dev() function. Returns a true if(my_device.address !=

INVALID_ADDRESS ). This is a indication that the device remains connected. void host_reset_bus(void)

Set the USB_CTL_RESET for 10 ms to perform reset signaling on the USB bus. If a device is detected, configure Endpoint 0 to get device descriptor/Endpoint 0 packet size. Then set device address to 1.

8.10.3.2

void host_init(void)

See detailed description in

Section 8.1, “Initializing the Host Controller (host_init() in usb_host.c)

.”

8.10.3.3

int host_scan_for_device(void)

Calls chk_dev() to see if device is connected, and if so, calls host_reset_bus(). Returns 1 if a device is connected and host received device descriptor.

8.10.3.4

void host_stop(void)

Shuts down the USB OTG module.

8.10.3.5

void host_sleep(void)

Disables SOF transmissions.

8.10.3.6

void host_wakeup(void)

Enables SOF transmissions.

USB and Using the CMX USB Stack, Rev. 0

52 Freescale Semiconductor

The USB Host-Side Driver

8.11

usb_utils.c

The following functions are used during the process of enumeration.

8.11.1

void fill_setup_packet(hcc_u8* dst, hcc_u8 dir, hcc_u8 type, hcc_u8 recipient, hcc_u8 req, hcc_u16 val, hcc_u16 ndx, hcc_u16 len)

This function is used to fill out a standard USB request setup data packet.

dst = a pointer to 8 byte buffer dir = Data Direction – macros defined in usb_utils.h

STP_DIR_IN

STP_DIR_OUT type = Request type

STP_TYPE_STD

STP_TYPE_CLASS

STP_TYPE_VENDOR recipient = What is requested

STP_RECIPIENT_DEVICE

STP_RECIPIENT_IFC

STP_RECIPIENT_ENDPT

STP_RECIPIENT_OTHER req = Request ID ( either standard USB requests, or HID requests )

STDRQ_GET_STATUS ( usb_utils.h )

STDRQ_CLEAR_FEATURE ( usb_utils.h )

STDRQ_SET_FEATURE ( usb_utils.h )

STDRQ_SET_ADDRESS ( usb_utils.h )

STDRQ_GET_DESCRIPTOR ( usb_utils.h )

STDRQ_SET_DESCRIPTOR ( usb_utils.h )

STDRQ_GET_CONFIGURATION ( usb_utils.h )

STDRQ_SET_CONFIGURATION ( usb_utils.h )

STDRQ_GET_INTERFACE ( usb_utils.h )

STDRQ_SET_INTERFACE ( usb_utils.h )

STDRQ_SYNCH_FRAME ( usb_utils.h )

HIDRQ_GET_REPORT ( host_hid.c )

HIDRQ_GET_IDLE ( host_hid.c )

HIDRQ_GET_PROTOCOL ( host_hid.c )

HIDRQ_SET_REPORT ( host_hid.c )

HIDRQ_SET_IDLE ( host_hid.c )

HIDRQ_SET_PROTOCOL ( host_hid.c ) val = Request specific Data

STDDTYPE_DEVICE ( usb_utils.h )

STDDTYPE_CONFIGURATION ( usb_utils.h )

STDDTYPE_STRING ( usb_utils.h )

STDDTYPE_INTERFACE ( usb_utils.h )

STDDTYPE_ENDPOINT ( usb_utils.h ) ndx = index or offset len = Number of bytes to transfer

Freescale Semiconductor

USB and Using the CMX USB Stack, Rev. 0

53

The USB Host-Side Driver

Table 18. void fill_setup_packet Field Descriptions

1

2

4

Offset

0

Field/

Parameter

bmRequestType /

(dir|type|recipient)

Size

1

6 bRequest / req wValue / val wIndex / ndx wLength / len

1

2

2

2

Value Description

Bitmap Characteristics of request:

D7: Data transfer direction

0 = Host-to-drive

1 = Device-to-host

D6 . .. 5: Type

0 = Standard

1 = Class

2 = Vendor

3 = Reserved

D4 ... 0: Recipient

0 = Device

1 = Interface

2 = Endpoint

3 = Other

4 ... 31 = Reserved

Specific request Request #

Value Word-sized field that varies according to request

Index or Offset Index or Offset Word-sized field that varies according to request typically used to pass an index or offset

Count Number of bytes to transfer if int get_dev_desc(void)

8.11.2

int get_dev_desc(void)

The get_dev_desc() function requests a device descriptor from the device. The device descriptor is stored in dbuffer. dbuffer is a global data area of 255 bytes (declared in usb_utils.c). A setup data packet is generated using the fill_setup_packet() function, then sent using the host_receive_control() function.

Returns 0 on success.

fill_setup_packet(

setup, // 8 byte array to store setup packet

STP_DIR_IN, // Data from device

STP_TYPE_STD, // USB standard request

STP_RECIPIENT_DEVICE, // Request for device

STDRQ_GET_DESCRIPTOR, // Get descriptor

(STDDTYPE_DEVICE<<8)|0, // descriptor type is device

0, // NA for this request

18); // Expect 18 bytes of data host_receive_control( setup, dbuffer, 0 );

54

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

The USB Host-Side Driver

8.11.3

int get_cfg_desc (hcc_u8 ndx)

The get_cfg_desc() function requests a configuration descriptor from the device. The configuration descriptor can be any size. The host has no idea how big the descriptor is until the descriptor is received.

The get_cfg_desc() function first sends a configuration request with a length of 5. Bytes 2 and 3 are the total length (word) of the configuration descriptor. After receiving the partial configuration descriptor, a request is made for the complete descriptor.

0

1 bLength bDescriptorType

1

1

Table 19. Configuration Descriptors

Number

Constant

Description

Size of this descriptor in bytes

CONFIGURATION Descriptor Type (0x02)

The configuration descriptor is stored in dbuffer. dbuffer is a global data area of 255 bytes (declared in usb_utils.c). A setup data packet is generated using the fill_setup_packet() function, then sent using the host_receive_control() function. Returns 0 on success.

fill_setup_packet( setup, // 8 byte array to store setup packet

STP_DIR_IN, // Data from device

STP_TYPE_STD, // USB standard request

STP_RECIPIENT_DEVICE, // Request for device

STDRQ_GET_DESCRIPTOR, // Get descriptor

(STDDTYPE_CONFIGURATION<<8)| // type configuration ndx), // configuration index

0, // NA for this request

5); // Read first 5 bytes of desc host_receive_control( setup, dbuffer, 0 ); fill_setup_packet( setup, // 8 byte array to store setup packet

STP_DIR_IN, // Data from device

STP_TYPE_STD, // USB standard request

STP_RECIPIENT_DEVICE, // Request for device

STDRQ_GET_DESCRIPTOR, // Get descriptor

(STDDTYPE_CONFIGURATION<<8)| // type configuration ndx) // configuration index

0, // NA for this request

RD_LE16(dbuffer+2)); // Read complete descriptor host_receive_control( setup, dbuffer, 0 );

8.11.4

int set_ep0_psize(void)

The set_ep0_psize() function performs a read device descriptor operation, then calls host_modify_ep() to configure Endpoint 0 packet size. The device descriptor is stored in dbuffer. This function is used during enumeration to setup Endpoint 0. Returns a 0 on success.

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor 55

The USB Host-Side Driver

8.11.5

int set_address(hcc_u8 address)

The set_address() function sends a set address request to the device.

fill_setup_packet( setup, // pointer to 8 byte array

STP_DIR_OUT, // OUT transfer

STP_TYPE_STD, // Standard request

STP_RECIPIENT_DEVICE, // Request for device

STDRQ_SET_ADDRESS, // set address request address, // address to set device to

0, // NA

0); // NA host_send_control(setup, dbuffer, 0);

/* we need to wait maximum 50 mS to let the device change its address. */

host_ms_delay(45);

8.11.6

int set_config(hcc_u8 cfg)

Sets the device configuration using a set configuration request.

fill_setup_packet( setup, // pointer to 8 byte array

STP_DIR_OUT, // OUT transfer

STP_TYPE_STD, // Standard request

STP_RECIPIENT_DEVICE, // request for device

STDRQ_SET_CONFIGURATION, // Set configuration cfg, // config to use

0, // NA

0); // NA

host_send_control(setup, dbuffer, 0);

8.11.7

int get_device_info(device_info_t *res)

Sends a get device descriptor request to the device using the get_dev_desc() function call. The device descriptor is parsed into a device_info_t structure, and stored at the address pointed to by res. Returns a 0 on success.

get_dev_desc(); // Reads device descriptor into dbuffer

/* give read values to caller */

res->clas=DEVDESC_CLASS(dbuffer);

res->sclas=DEVDESC_SCLASS(dbuffer);

res->protocol=DEVDESC_PROTOCOL(dbuffer);

res->rev=DEVDESC_REV(dbuffer);

res->vid=DEVDESC_VID(dbuffer);

res->pid=DEVDESC_PID(dbuffer);

res->ncfg=DEVDESC_NCFG(dbuffer);

56

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

The USB Host-Side Driver

8.11.8

int get_cfg_info(cfg_info_t *res)

Parses a configuration descriptor into a cfg_info_t structure. The data is stored at the address pointed to by res. This function does not request a configuration descriptor from the device. It assumes the configuration descriptor is stored in dbuffer.

res->nifc=CONFDESC_INTRFACES(dbuffer); res->ndx=CONFDESC_MY_NDX(dbuffer); res->str=CONFDESC_MY_STR(dbuffer); res->attrib=CONFDESC_ATTRIB(dbuffer); res->max_power=CONFDESC_MAX_POW(dbuffer);

8.11.9

int get_ifc_info(ifc_info_t *res, hcc_u16 offset)

Parses the interface descriptor indexed by offset. The parsed interface descriptor is stored in the ifc_info_t structure pointed to by res.

res->clas=IFCDESC_CLASS(&dbuffer[offset]); res->sclas=IFCDESC_SCLASS(&dbuffer[offset]); res->protocol=IFCDESC_PROTOCOL(&dbuffer[offset]); res->ndx=IFCDESC_MY_NDX(&dbuffer[offset]); res->alt_set=IFCDESC_ALTERNATE(&dbuffer[offset]); res->str=IFCDESC_MY_STR(&dbuffer[offset]); res->nep=IFCDESC_ENDPONTS(&dbuffer[offset]);

8.11.10 int get_ep_info(ep_info_t *res, hcc_u16 offset)

Parses the endpoint descriptor indexed by offset. The parsed endpoint descriptor is stored in the ep_info_t structure pointed to by res.

res->address=EPDESC_ADDRESS(&dbuffer[offset]); res->type=EPDESC_ATTRIB(&dbuffer[offset]); res->interval=EPDESC_INTERVAL(&dbuffer[offset]); res->psize=EPDESC_PSIZE(&dbuffer[offset]);

8.12

Host Firmware—host_scan_for_device()

The host_scan_for_device() function call performs most of the device enumeration. The majority of the work is done in the host_reset_bus() call and the chk_dev() call.

Pseudo code int host_scan_for_device(void)

{ if (chk_dev()) // Check for ATTACH indication

{ host_reset_bus(); // Start Enumeration return(1);

} return(0);

}

Pseudo code static hcc_u8 chk_dev(void)

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor 57

The USB Host-Side Driver

{

// Verify that device is not already enumerated if (my_device.address == INVALID_ADDRESS)

{ int x;

/* If we can not clear the attach flag, then a device is connected. */

MCF_USB_INT_STAT = MCF_USB_INT_STAT_ATTACH;

/* Some delay is needed between clearing the ATTACH flag, and checking it again. Unfortunately there is no information about the length of the delay. */ for(x=0; x< 10000; x++); if (MCF_USB_INT_STAT & MCF_USB_INT_STAT_ATTACH) evt_connect();

} return((hcc_u8)(my_device.address != INVALID_ADDRESS));

}

The evt_connect() function verifies that device is attached, sets up Endpoint 0, and determines the speed of the device (full or low).

static hcc_u8 evt_connect(void)

{ hcc_u8 ep; int x;

/* debounce (100 mS) */ host_ms_delay(100);

/* clear attach event */

MCF_USB_INT_STAT = MCF_USB_INT_STAT_ATTACH;

/* Some delay is needed between clearing the ATTACH flag, and checking it again. Unfortunately there is no information about the length of the delay. */ for(x=0; x<10000; x++) ;

/* Is a device connected? */ if((MCF_USB_INT_STAT & MCF_USB_INT_STAT_ATTACH) == 0) return(0); // no

/* A newly connected device shall have address 0, */ my_device.address=0;

/* and only ep0 is working. We assume packet size of ep0 is the possible minimum. We will read the real value during enumeration. */ host_modify_ep(0, EPTYPE_CTRL, 0, 0, MIN_EP0_PSIZE);

/* remove all endpoints except 0 */ for(ep=1;ep<MAX_EP_PER_DEVICE;ep++) host_remove_ep(ep);

/* clear low speed bit to make JSTATE detection consistent. */

MCF_USB_ADDR=0;

USB and Using the CMX USB Stack, Rev. 0

58 Freescale Semiconductor

The USB Host-Side Driver

/* let settle D+ and D- to the right state */ host_ms_delay(1);

/* Check if device is low or high speed. */ if ((MCF_USB_CTL & MCF_USB_CTL_JSTATE) == 0)

{

/* Low speed device. */ my_device.low_speed=1;

MCF_USB_ADDR = MCF_USB_ADDR_LS_EN;

} else my_device.low_speed=0; return(1);

} void host_reset_bus(void)

{ hcc_u8 ep=0;

/********* reset */

/* Start reset signaling. */

MCF_USB_CTL |= MCF_USB_CTL_RESET;

/* The minimum reset signal length is 10 mS. We use an 1 mS timer so it has at least 1 mS error (1 period). USB specifies +-0.05% accuracy for frame interval. So we are good enough if we wait for 11 SOF due times. */ host_ms_delay(11);

/* stop reset signaling */

MCF_USB_CTL &= ~MCF_USB_CTL_RESET;

/* Clear reset event. */

MCF_USB_INT_STAT = MCF_USB_INT_STAT_USB_RST;

/********* do firmware reset */

/* A reset device shall have address 0, */ my_device.address=0;

/* and only ep0 is working. We assume packet size of ep0 is the possible minimum. We will read the real value during enumeration. */ host_modify_ep(0, EPTYPE_CTRL, 0, 0, MIN_EP0_PSIZE);

/* remove all endpoints except 0 */ for(ep=1;ep<MAX_EP_PER_DEVICE;ep++) host_remove_ep(ep);

/* check if we have a device connected */

/* if a device is connected, it will answer to address 0 */ if (chk_dev())

{

/* enable SOF generation */

MCF_USB_CTL |= MCF_USB_CTL_USB_EN_SOF_EN;

MCF_USB_INT_STAT = MCF_USB_INT_STAT_SLEEP |

MCF_USB_INT_STAT_RESUME;

/* device may need max 10 mS reset recovery time */

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor 59

The USB Host-Side Driver

host_ms_delay(100);

/* Read out endpoint 0 packet size. */ if (set_ep0_psize())

return;

/* set device address */ if (set_address(1))

return;

} my_device.address=1;

}

8.13

Host Firmware—Device Enumeration

After the USB OTG module is initialized via a call to host_init(), the host firmware continuously calls host_scan_for_device().

Host_init():

1. The device is plugged into a host. The host provides power to the device with a current limit of

100 ma. The host looks for a device attach indication.

2. The host determines low-speed/full-speed capability by pullup resistors connected to either the D+ or D– lines. At this point, the device is in the powered state.

3. The host sends a reset to the device, by setting D+ and D– low for at least 10 milliseconds. When the host removes the reset, the device goes into the default state.

4. In the default state, the device is ready to respond to control transfers at Endpoint 0. The host communicates with the device using the default address of 00. The device can draw up to 100 ma from the host.

5. The host sends a GET_DESCRIPTOR request to Endpoint 0, address 0, to learn the maximum packet size of the default pipe. The eight bytes of the device descriptor contains the maximum packet size supported by Endpoint 0.

6. The host assigns a unique address to the device by sending a SET_ADDRESS request. The device is now in the address state.

while(!host_scan_for_device());

7. The host sends a GET_DESCRIPTOR request to the new address to read the full device descriptor. get_dev_desc(); // The device descriptor is in dbuffer

8. The host then requests any additional descriptors specified in the device descriptor. Each descriptor begins its length and type.

get_cfg_desc(1); // The configuration descriptor is in dbuffer

9. The host assigns a device driver based on the data in the descriptors. Windows will use the devices vendor ID and product ID to find an appropriate INF file to determine what drivers to load. If there is no match, Windows uses a default driver according to class.

10. If the device supports multiple configurations, the host sends a SET_CONFIGURATION request to the device to select the desired configuration.

set_config(1);

USB and Using the CMX USB Stack, Rev. 0

60 Freescale Semiconductor

The USB Host-Side Driver

8.14

emg_host_demo()

The following code is an example of how to enumerate a device using the host API. In this example, the firmware prints out the device and configuration descriptors to the serial port (38400, 8, n, 1). A new function (not part of the standard stack) was written to request the string descriptors from the device.

//

// Enumerate device, and output device / configuration descriptors to the serial port in hex

// Serial descriptors are also printed to the serial port

//

// Written by Eric Gregori (847) 651 - 1971

// int main(void)

{ hcc_u8 cfg, str1, str2, str3; hcc_u16 length, i; device_info_t dev_inf; cfg_info_t cfg_inf; hw_init(); uart_init(38400, 1, 'n', 8); host_init(); print( "\r\nHost Demo by Eric Gregori\n\r" ); print("EMG Host application started.\r\n"); while(1)

{ busy_wait();

/* a device is already connected, wait till it is disconnected */ print("Waiting for device removal.\r\n"); while(host_has_device()); // Spin waiting for !ATTACH

print("Device disconnected.\r\n");

/* At this point no device is attached. Wait till attachment. */ print("Waiting for device...\r\n"); while(!host_scan_for_device()); // Spin waiting for ATTACH print("Device connected.\r\n");

// Read and parse device descriptor

// get_device_info() calls get_dev_desc() if( !get_device_info(&dev_inf) )

{ print( "\n\rDevice Descriptor\n\r" ); for( i=0; i<18; i++ )

{

emg_printbytehex( dbuffer[i] );

print( " " );

} print( "\n\r" ); str1 = dbuffer[14]; str2 = dbuffer[15];

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor 61

The USB Host-Side Driver

str3 = dbuffer[16]; if( str1 )

{

print( "\r\nManufacture: " );

emg_print_str_desc( str1 );

} if( str2 )

{

print( "\r\nProduct: " );

emg_print_str_desc( str2 );

} if( str3 )

{

print( "\r\nSerial Number: " );

emg_print_str_desc( str3 );

} print( "\r\n\r\nDecoded Device Descriptor" ); print( "\n\ridVendor = " ); emg_printwordhex( dev_inf.vid ); print( "\n\ridProduct = " ); emg_printwordhex( dev_inf.pid ); print( "\n\rbcdDevice = " ); emg_printwordhex( dev_inf.rev ); print( "\n\rbDeviceClass = " ); emg_printbytehex( dev_inf.clas ); print( "\n\rbDeviceSubClass = " ); emg_printbytehex( dev_inf.sclas ); print( "\n\rbDeviceProtocol = " ); emg_printbytehex( dev_inf.protocol ); print( "\n\rbNumConfigurations = " ); emg_printbytehex( dev_inf.ncfg ); print( "\n\r" );

} else print( "\r\nFailure Reading Device Descriptor" );

// Read all configuration descriptors for(cfg=0; cfg < dev_inf.ncfg; cfg++)

{

// get the configuration descriptor if (get_cfg_desc(cfg)) continue; // Descriptor cfg not found else

{ print( "\n\rConfiguration Descriptor - " ); emg_printbytehex( cfg ); length=RD_LE16(dbuffer+2); for( i=0; i<length; i++ )

{

if( (i%16) == 0 )

print( "\n\r" );

emg_printbytehex( dbuffer[i] );

print( " " );

USB and Using the CMX USB Stack, Rev. 0

62 Freescale Semiconductor

} str1 = dbuffer[6]; print( "\n\r\n\rDecoded Configuration Descriptor" );

// Call get_cfg_info() to parse configuration descriptor get_cfg_info( &cfg_inf ); if( str1 )

{

print( "\r\nManufacture: " );

emg_print_str_desc( str1 );

}

} print( "\n\r\n\r" );

} // end of config descriptor read

} //

// while(1) print( "\n\rbNumInterfaces = " ); emg_printbytehex( cfg_inf.nifc ); print( "\n\rbConfigurationValue = " ); emg_printbytehex( cfg_inf.ndx ); print( "\n\riConfiguration = " ); emg_printbytehex( cfg_inf.str ); print( "\n\rbmAttributes = " ); emg_printbytehex( cfg_inf.attrib ); print( "\n\rbMaxPower * 2ma = " ); emg_printbytehex( cfg_inf.max_power );

The USB Host-Side Driver

}

8.15

Displaying a String Descriptor—emg_print_str_desc()

void emg_print_str_desc( unsigned char desc )

{ unsigned chari; if( !emg_get_str_descriptor( desc ) )

{

// Unicoded string is in dbuffer starting at 2

// strlen = (dbuffer[0] - 2)*2 for( i=2; i<=(dbuffer[0]-2); i+=2 ) uart_putch( dbuffer[i] );

}

Freescale Semiconductor

USB and Using the CMX USB Stack, Rev. 0

63

The USB Host-Side Driver

8.16

emg_get_str_descriptor()

int emg_get_str_descriptor( unsigned char desc )

{ hcc_u8 setup[8]; hcc_u16 length=3; hcc_u8 retry=3; std_error=stderr_none; do

{

// Build SETUP data packet fill_setup_packet(setup, STP_DIR_IN, STP_TYPE_STD, STP_RECIPIENT_DEVICE,

STDRQ_GET_DESCRIPTOR, (hcc_u16)((STDDTYPE_STRING<<8)|desc), 0, length); if (length == host_receive_control(setup, dbuffer, 0))

{

/* Check returned descriptor type and length (ignore extra bytes) */ if ((USBDSC_TYPE(dbuffer) == STDDTYPE_STRING))

{

length=dbuffer[0];

if( length >= DBUFFER_SIZE )

length = DBUFFER_SIZE-1;

// Rebuild SETUP data packet with new length

fill_setup_packet(setup, STP_DIR_IN, STP_TYPE_STD,

STP_RECIPIENT_DEVICE,

STDRQ_GET_DESCRIPTOR,

(hcc_u16)((STDDTYPE_STRING<<8)|desc),

0, length);

if (length == host_receive_control(setup, dbuffer, 0))

return(0);

}

}

}while(retry--); std_error=stderr_host; return(1);

}

8.17

emg_host_demo()—Camera 1 Enumeration

Host Demo by Eric Gregori

EMG Host application started.

Waiting for device removal.

Device disconnected.

Waiting for device...

Device connected.

Device Descriptor

12 01 10 01 FF FF FF 08 45 05 33 83 01 00 00 00 00 01

Decoded Device Descriptor idVendor = 0545 idProduct = 8333

USB and Using the CMX USB Stack, Rev. 0

64 Freescale Semiconductor

bcdDevice = 0001 bDeviceClass = FF bDeviceSubClass = FF bDeviceProtocol = FF bNumConfigurations = 01

Configuration Descriptor - 00

09 02 89 00 01 01 00 80 32 09 04 00 00 01 FF FF

FF 00 07 05 81 01 00 00 01 09 04 00 01 01 FF FF

FF 00 07 05 81 01 00 01 01 09 04 00 02 01 FF FF

FF 00 07 05 81 01 80 01 01 09 04 00 03 01 FF FF

FF 00 07 05 81 01 00 02 01 09 04 00 04 01 FF FF

FF 00 07 05 81 01 80 02 01 09 04 00 05 01 FF FF

FF 00 07 05 81 01 00 03 01 09 04 00 06 01 FF FF

FF 00 07 05 81 01 80 03 01 09 04 00 07 01 FF FF

FF 00 07 05 81 01 FF 03 01

Decoded Configuration Descriptor bNumInterfaces = 01 bConfigurationValue = 01 iConfiguration = 00 bmAttributes = 80 bMaxPower * 2ma = 32

Waiting for device removal.

8.18

emg_host_demo()—Camera 2 Enumeration

Device disconnected.

Waiting for device...

Device connected.

Device Descriptor

12 01 10 01 00 00 00 40 45 0C 0D 60 01 01 00 01 00 01

Product:

Decoded Device Descriptor idVendor = 0C45 idProduct = 600D bcdDevice = 0101 bDeviceClass = 00 bDeviceSubClass = 00 bDeviceProtocol = 00 bNumConfigurations = 01

Configuration Descriptor - 00

09 02 17 01 01 01 00 80 FA 09 04 00 00 03 FF FF

FF 00 07 05 81 01 00 00 01 07 05 82 02 40 00 00

07 05 83 03 01 00 64 09 04 00 01 03 FF FF FF 00

07 05 81 01 80 00 01 07 05 82 02 40 00 00 07 05

83 03 01 00 64 09 04 00 02 03 FF FF FF 00 07 05

81 01 00 01 01 07 05 82 02 40 00 00 07 05 83 03

01 00 64 09 04 00 03 03 FF FF FF 00 07 05 81 01

80 01 01 07 05 82 02 40 00 00 07 05 83 03 01 00

64 09 04 00 04 03 FF FF FF 00 07 05 81 01 00 02

01 07 05 82 02 40 00 00 07 05 83 03 01 00 64 09

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

The USB Host-Side Driver

65

The USB Host-Side Driver

04 00 05 03 FF FF FF 00 07 05 81 01 A8 02 01 07

05 82 02 40 00 00 07 05 83 03 01 00 64 09 04 00

06 03 FF FF FF 00 07 05 81 01 20 03 01 07 05 82

02 40 00 00 07 05 83 03 01 00 64 09 04 00 07 03

FF FF FF 00 07 05 81 01 84 03 01 07 05 82 02 40

00 00 07 05 83 03 01 00 64 09 04 00 08 03 FF FF

FF 00 07 05 81 01 FF 03 01 07 05 82 02 40 00 00

07 05 83 03 01 00 64

Decoded Configuration Descriptor bNumInterfaces = 01 bConfigurationValue = 01 iConfiguration = 00 bmAttributes = 80 bMaxPower * 2ma = FA

Waiting for device removal.

8.19

emg_host_demo()—Mouse Enumeration

Device disconnected.

Waiting for device...

Device connected.

Device Descriptor

12 01 00 02 00 00 00 08 6D 04 16 C0 40 03 01 02 00 01

Manufacture: Logitech

Product: Optical USB Mouse

Decoded Device Descriptor idVendor = 046D idProduct = C016 bcdDevice = 0340 bDeviceClass = 00 bDeviceSubClass = 00 bDeviceProtocol = 00 bNumConfigurations = 01

Configuration Descriptor - 00

09 02 22 00 01 01 00 A0 32 09 04 00 00 01 03 01

02 00 09 21 10 01 00 01 22 34 00 07 05 81 03 04

00 0A

Decoded Configuration Descriptor bNumInterfaces = 01 bConfigurationValue = 01 iConfiguration = 00 bmAttributes = A0 bMaxPower * 2ma = 32

Waiting for device removal.

66

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

The HID Class

9 The HID Class

One of the first USB classes to be adopted by the Windows operating system was the Human Interface

Device (HID) class. Originally part of Windows 98, the HID class has been supported in every version of

Microsoft Windows since. The HID class has been supported in Linux since version 2.2.7 of the kernel.

Although, it is generally considered unstable in Linux versions before kernel 2.4.

The HID class was designed to provide communications between a input or simple output device and a computer. Example HID devices include: mouses, keyboards, joysticks, front panels, and remote controls.

Data transfers are bidirectional and acknowledged.

Specification

USB 1.1 Low-speed

USB 2.0 Low-speed

USB 1.1 Full-speed

USB 2.0 Full-speed

Table 20. HID Speeds and Limitations

Bytes/Transaction

8

64

Bytes / Second

800

64999

The HID class supports both interrupt and control transfers. If interrupt transfers are used, then the maximum performance number mentioned above can be achieved. If control transfers are used, then the maximum performance may be achieved but not guaranteed. The HID specification can be found at http://www.usb.org/developers/hidpage/ . At the time of publication, the specification is Device Class

Definition for HID 1.11.

All HID transfers use either the default control pipe or an interrupt pipe for communications to the host.

The specification requires that a HID device must have an interrupt in endpoint for sending data to the host.

A interrupt out endpoint to receive data from the host is optional.

Table 21. Data and Transfer Types

Transfer Type Source of Data

Control

Control

Interrupt

Interrupt

Device

(IN transfer)

Device

(OUT transfer)

Device

(IN transfer)

Device

(OUT transfer)

(optional)

Type of Data

Data that does not have critical timing requirements

Data that does not have critical timing requirements, or any data if there is no OUT interrupt pipe.

Periodic data or data that must be transferred at max rate.

Periodic data or data that must be transferred at max rate.

Freescale Semiconductor

USB and Using the CMX USB Stack, Rev. 0

67

The HID Class

A application can also use the default control pipe for data transfers. The control pipe for a HID is used for standard USB requests as well as six class-specific requests. The HID specific requests used for data transfers are Set_Report and Get_Report. The Set_Idle, Get_Idle, Set_Protocol, and Get_Protocol are the other four HID requests sent through the default control pipe.

Request #

0x01

0x02

0x03

0x09

0x0A

0x0B

Request

Get_Report

Get_Idle

Get_Protocol

Set_Report

Set_Idle

Set_Protocol

Table 22. HID Specific Requests

Data Source

Device

Device

Device

Host

Host

Host

Data Length

Report length

1

1

Report length

0 o

Data Contents

Report

Idle duration

Protocol

Report

None

None

Required

Yes

No

Required for boot devices

No

No

Required for boot devices

The HID stack uses a report structure to communicate with the application. During enumeration the device shares report descriptors with the host. The report descriptors describe the data that will be transmitted/received in the report structures. There are specifications for these report structures and descriptors, but they tend to be application specific. If the user controls both sides of the communication, and is not expecting to communicate with a standard driver on the PC side (keyboard, mouse, ..) then a generic report structure/descriptor can be used.

Table 23. HID Report Specifications

Specification/File

Hut1_2.pdf

Pid1_01.pdf

Pdcv10.pdf

Usbmon10.pdf

Oaaddataformatsv6.pdf

Pos1_02.pdf

Usage

Mouse, keyboard, joystick, simulation controls, telephone controls, digitizers, bar code scanners, scales, point of sale, and arcade and camera controls

Physical interface devices (force feedback joysticks, steering wheels, etc.)

Power devices such as UPS

Monitor control

Arcade products (coin mechanisms, bill validators, input pads, and general-purpose I/O)

Point of sale devices

9.1

HID Device Firmware

The HID device firmware is located in the file hid.c. The HID stack is initialized with a call to HID_init().

The application has to call the function hid_process() within its main loop to process HID reports through the queuing mechanism. Report entries are created with calls to the hid_add_report() function. After a report entry is created, data is sent with the hid_write_report() call, and received with the hid_read_report() call.

The heart of the HID firmware is the usb_ep0_hid_callback(void) callback function. This function is called by the USB driver Endpoint 0 handler. When a packet is received on Endpoint 0, the USB drivers

USB and Using the CMX USB Stack, Rev. 0

68 Freescale Semiconductor

The HID Class

check the request type for any USB level request packets. If the packet is not a standard USB request, it is passed up the stack via the usb_ep0_callback() which calls the us_ep0_hid callback().

The HID endpoint 0 handler processes the following HID specific requests.

/* Class specific requests. */

#define HIDRQ_GET_REPORT 0x1

#define HIDRQ_GET_IDLE 0x2

#define HIDRQ_GET_PROTOCOL 0x3

#define HIDRQ_SET_REPORT 0x9

#define HIDRQ_SET_IDLE 0xa

#define HIDRQ_SET_PROTOCOL 0xb

Data from host, interrupt driven, using Endpoint 0 (the control endpoint): usb_it_handler(void) usb.c usb_stm_ctrl0() usb.c usb_ep0_callback() hid.c reports structure hid.c

Data to the HOST is inserted directly into USB buffer descriptors for endpoint 1: reports structure hid.c hid_process(void) hid.c usb_send(void) usb.c

_usb_send(void) usb.c

Synchronization with the USB bus is handled entirely by the USB module.

usb_it_handler() endpoint0 usb_stm_ctr10() usb.c

USBRQ_SET_ADDRESS

USBRQ_GET_DESCRIPTOR

USBRQ_GET_CONFIGURATION

USBRQ_SET_CONFIGURATION

USBRQ_CLEAR_FEATURE usb_ep0_hid_callback() hid_usb_config.c

usb_ep0_hid_callback hid.c

GHIDD_HID_DESCRIPTOR

GHIDD_REPORT_DESCRIPTOR

GHIDD_PHYSICAL_DESCRIPTOR

HIDRQ_GET_REPORT

HIDRQ_GET_IDLE

HIDRQ_SET_REPORT

HIDRQ_SET_PROTOCOL

Figure 28. Request Propogation Through the Stack

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor 69

The HID Class

The HID stack supports three type of reports: input, output, and features. The demo applications limit the number of reports to two ( MAX_NO_OF_REPORTS in hid.c). The maximum number of bytes that can be sent through a report is limited to eight as defined by the macro MAX_REPORT_LENGTH in the file hid.c, and the report descriptors defined in the file hid_usb_config.c.

The report descriptors are in the file hid_usb_config.c. The format for report descriptors is defined in the

HID specification. Report descriptors consist of a tag followed by parameters. There are two groups of tags, short and long. Short tags are limited to 1–5 bytes total length. Long tags can contain as many as 262 total bytes.

The total length of the report descriptor depends on the number and type of tags used in the descriptor.

To increase the maximum amount of data allowed in a report, the MAX_REPORT_LENGTH macro must be increased to increase the size of the report buffers, and the report descriptor must be modified so that the host is informed of the size of the report during enumeration.

User Application

reports

HID.c

Ep_info

Usb_send()

Stuffs data directly into

EP buffers

Usb_it_handler() in usb.c

End Point

Buffers

USB Module EP Buffer Descriptors

USB module ( MAC / PHY )

Figure 29. USB HID Stack Block Diagram

USB and Using the CMX USB Stack, Rev. 0

70 Freescale Semiconductor

The HID Class

9.2

HID Device API

void HID_init(hcc_u16 default_idle_time, hcc_u8 ifc_number) default_idle_time is the idle time in ms reported back to the host via a

HIDRQ_GET_IDLE request.

Causes the endpoint to NAK any polls on an interrupt in endpoint while its current report remains unchanged. In the absence of a change, polling will continue to be NAKed for a given time-based duration.

For keyboards, the spec recommends a idle time of 500ms, for mice the spec recommends a idle time of 0.

The ifc_number specifies the interface number to start the HID protocol on. void hid_process(void)

This function walks through the reports and sends any reports marked as type rpt_in that are pending. This is the transmit portion of the HID protocol. Reports are transmitted on endpoint 1. for(x=0; x<sizeof(reports)/sizeof(reports[0]); x++)

{ if( reports[x].used

&& reports[x].pending

&& reports[x].type==rpt_in)

{ usb_send(1, (void *)0

, reports[x].buffer

, reports[x].size

, reports[x].size); while(usb_ep_is_busy(1)); // Wait for TX done reports[x].pending=0; break;

}

} hcc_u8 hid_add_report(hid_report_type type, hcc_u8 id, hcc_u8 size)

Initializes a unused report in the reports array.

type is either: rpt_in, rpt_out, or rpt_feature as defined in hid.h

id attaches this report to a REPORT ID created in a report descriptor.

size is the number of byte in the report ( should match report descriptor ).

calls.

Returns a report number to be used with write, read, and pending function void hid_write_report(hcc_u8 r, hcc_u8 *data)

Copy report.size ( set in add report ) bytes from *data into report r.

The report is marked pending, so it will be transmitted on the next call to hid_process().

void hid_read_report(hcc_u8 r, hcc_u8 *data)

Copy report.size ( set in add report ) bytes from report r to *data.

The report is marked not pending.

hcc_u8 hid_report_pending(hcc_u8 r)

Returns the pending status of report r.

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor 71

PC-Side USB Host Software

}

9.3

Sample HID Main Application Loop

void hid_generic(void)

{ hcc_u8 out_report; hcc_u8 in_report;

HID_init(500, 0); // 500ms delay between report polls out_report=hid_add_report(rpt_out, 0, 1); // reports from host,1 byte in_report=hid_add_report(rpt_in, 0, 1); // report to host, 1 byte while(!device_stp)

{ hid_process(); // Send any pending rpt_in reports if (!hid_report_pending(in_report)) // Has the last report completed TX?

{ hcc_u8 tmp=0; hid_write_report(in_report, &tmp); // Copy tmp to in_report

} if (hid_report_pending(out_report)) // Has host sent a report?

{ hcc_u8 rx_data; hid_read_report(out_report, &rx_data); // copy out_report to

// rx_data

}

}

10 PC-Side USB Host Software

To connect your embedded device to a PC host requires a driver on the PC side. The configuration descriptor is used by the device to inform the PC of which driver to load. Both Linux and Windows provide baseline drivers for the common USB classes.

10.1

Windows USB Drivers

The Windows Driver Kit (WDK) includes documentation for developing USB device drivers in a

Windows environment. The Driver Development Kit (DDK) includes the libraries and examples of USB drivers. The DDK is included in the WDK. The Windows DDK requires Microsoft Visual Studio

®. The

DDKs include two USB driver examples, the BulkUSB and IsoUSB, plus a USB filter driver and a

USBView utility. Early Win98/ME and Win2K examples are plagued by bugs, so it is recommended you use the WinXP DDK as a foundation for your new drivers.

Windows USB drivers are kernel-mode drivers. A kernel-mode driver runs in protected kernel space. The application cannot access protected kernel space directly. It uses a mechanism referred to as a I/O request packet, or IRP. A IRP is a data structure used to communicate between a driver in kernel space, other drivers in kernel space, or an application in user space.

The USB driver system contains many sub-drivers. These sub-drivers use IRPs to communicate between them. The application communicates with the USB stack using URB’s. USB client drivers set up USB

USB and Using the CMX USB Stack, Rev. 0

72 Freescale Semiconductor

PC-Side USB Host Software

request blocks (URBs) to send requests to the host controller driver. The URB structure defines a format for all possible commands that can be sent to a USB device.

10.2

Windows XP

®

USB Driver Stack

Client Device Driver

Single Interface

Client Device Driver

Interface 1

Client Device Driver

Interface 2

URB URB

URB

Generic Parent Driver

Handles devices with multiple interfaces. usbccgp.sys

IRP

USB Hub driver

Usbhub.sys

IRP

Host Controller driver usbport.sys, usbehic.sys ( mini-port driver )

Figure 30. Windows XP USB Driver Stack

The host controller driver consists of the port driver, usbport.sys, and one or more of three miniport drivers that run concurrently. The port driver (usbport.sys) handles those aspects of the host controller driver's duties that are independent of the specific protocol.

The usbehic.sys mini-port driver is the hardware driver for enhanced host controller interface (EHCI) specific hardware.

The USB bus driver (usbhub.sys) is the driver for each USB hub. It is loaded if the PCI bus enumerator detects a USB hub. It exposes the USB driver interface.

Each particular device is supported by a USB client driver. Client device drivers for noncomposite devices are layered directly above the hub driver. For composite USB devices that expose multiple interfaces and do not have their own parent class driver, the system loads an extra driver called the USB common class generic parent driver, usbccgp.sys, between the hub driver and the client device drivers. The system assigns a separate PDO to each interface of a composite device.

Client device drivers for composite devices are loaded above the generic parent driver. A client driver for a composite device is no different from a client driver for a noncomposite devices, except for where it is loaded in the driver stack. Client drivers for composite devices sit above the generic parent driver.

Additional information about the USB driver stack can be found at www.msdn2.microsoft.com

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor 73

PC-Side USB Host Software

10.3

Windows XP Supported USB Classes

Table 24. Windows XP Supported USB Classes

Class Driver

Hub Device usbhub.sys

Human Interface Device (HID) hidclass.sys

Audio

Mass Storage sysaudio.sys

usbstor.sys

Printer

Communication Device

Imaging usbprint.sys

usb8023.sys

usbscan.sys

Description

Used for managing USB hubs

Used to support USB HID standard devices.

Audio class support

For USB mass storage support

For USB printer support

Provides CDC class support manages USB digital cameras and scanners

10.4

Windows XP USB HID Support

The Windows DDK provides support for host-side communication with USB HID devices. The DDK includes documentation for the HID functions, and a overview on how to use them. HID application programming is done using these libraries and header files included in the DDK: hid.lib

hidclass.lib

hidparse.lib

hidpi.h

hidsdi.h

hidusage.h

Using the hid libraries and example applications included in the SDK simplifies enumerating and communicating with HID devices.

10.5

Using the HID Library

1. /* Get the HID Globally Unique ID from the OS. */

GUID HidGuid;

HidD_GetHidGuid(&HidGuid);

2. /* Get an array of structures containing information about all attached and enumerated HIDs. */

HDEVINFO HidDevInfo;

HidDevInfo = SetupDiGetClassDevs(&HidGuid,

NULL,

NULL,

DIGCF_PRESENT|

DIGCF_INTERFACEDEVICE);

3. /* Get information about the HID device with the 'Index' array entry. */

Result = SetupDiEnumDeviceInterfaces(HidDevInfo,

0, &HidGuid,

Index,

&devInfoData);

USB and Using the CMX USB Stack, Rev. 0

74 Freescale Semiconductor

The Communication Device Class

4. /* Get the size of the DEVICE_INTERFACE_DETAIL_DATA structure. The first call returns an error condition, but you will get the size of the structure. */

Result = SetupDiGetDeviceInterfaceDetail(HidDevInfo,

&devInfoData,

NULL,

0,

&DataSize,

NULL);

5. /* Open a file handle to the device. Make sure the attributes specify overlapped transactions or the in transaction may block the input thread. */ hid_dev = CreateFile( detailData->DevicePath,

GENERIC_READ | GENERIC_WRITE, /* read / write access*/

0, /* exclusive access */

NULL, /* No security */

OPEN_EXISTING,

FILE_FLAG_OVERLAPPED, /* overlapped I/O */

NULL);

6. /* Get the device VID and PID to see if it is the device you want. */ if(hid_dev != INVALID_HANDLE_VALUE)

{

HIDD_ATTRIBUTES HIDAttrib;

HIDAttrib.Size = sizeof(HIDAttrib);

HidD_GetAttributes( hid_dev, &HIDAttrib);

To write or read from the device, standard file I/O functions are used: writefile(), readfile(), and

DeviceIoControl().

11 The Communication Device Class

The communication device class (CDC) is one class in a group of classes defined by the definition for communication devices. The other two classes are the communication interface class and the data interface class. The communication device class is a device- level definition and is used by the host to properly identify a communication device that may present several different types of interfaces. The communication interface class defines a general-purpose mechanism that can be used to enable all types of communication services on the USB. The data interface class defines a genera-purpose mechanism to enable bulk or isochronous transfer on the USB when the data does not meet the requirements for any other class.

Section 3.6.2.1, “Abstract Control Model Serial Emulation,” of the usbcdc version 1.1 specification defines serial emulation. A communication class interface is used for setting up the serial parameters (baud rate, data bits, flow control, etc.). The data class interface is used for transferring data.

Freescale Semiconductor

USB and Using the CMX USB Stack, Rev. 0

75

The Communication Device Class

11.1

CDC Serial to USB Configuration Descriptor

hcc_u8 usb_config_descriptor[] = {

USB_FILL_CFG_DESC(9+9+5+4+5+5+7+9+7+7, // descriptor size in bytes

2, // 2 interfaces

1, // configuration ID = 1

4, // 4 configuration strings

CFGD_ATTR_SELF_PWR, // Device is self powered

0), // 0*2ma = 0 ma

USB_FILL_IFC_DESC(0, // interface ID = 0

0, // no alternate setting

1, // This interface has 1 endpoint

2, // Class 2 = Communication Interface Class(28)

2, // SubClass 2 = Abstract Control Model(28)

1, // Protocol 1 = AT command set ??? ( page 28 )

5), // Description string 5

/* Comm interface/ abstract contorl model/ 00 no class protocol*/

USB_FILL_HDR_FUNCT_DESCR(0x0110), // Spec version 1.1 ( page 34 )

USB_FILL_CALL_MGM_FUNCT_DESCR(0, 1), // Capability = 00, Data Class Interface=1

USB_FILL_ACM_FUNCT_DESCR(0), // No ACM requests supported ( page 35 )

USB_FILL_UNION_FUNCT_DESCR(0, 1),1, // Master Interface =0, Slave = 1( page 40 )

USB_FILL_EP_DESC(0x1, // address = 0

EPD_DIR_TX, // IN endpoint ( device to host )

EPD_ATTR_INT, // Interrupt Endpoint

EP1_PACKET_SIZE, // 32 bytes

0x2 // 2ms poll interval

USB_FILL_IFC_DESC( 1, // Interface ID = 1

0, // No alternate setting

2, // This interface has 2 endpoints

10, // Data Interface Class

0, // Subclass 0

0x0, // Protocol 0

6), // Description string 6

/* Data interface/0/ no class specific protocol. */

USB_FILL_EP_DESC(0x2, // Address = 2

EPD_DIR_TX, // IN endpoint ( device to host )

EPD_ATTR_BULK, // Bulk transfer

EP2_PACKET_SIZE, // 32 bytes

0x0), // Ignored for Bulk endpoints

USB_FILL_EP_DESC(0x3, // Address = 3

EPD_DIR_RX, // OUT endpoint ( host to device )

EPD_ATTR_BULK, // Bulk transfer

EP3_PACKET_SIZE, // 32 bytes

0x0), // Ignored for Bulk endpoints

};

The demo CDC to serial firmware uses three endpoints;, two configured for bulk transfer (one in, one out).

These endpoints are used to exchange data. The third endpoint (address 1) is a interrupt transfer endpoint used to transfer configuration data.

76

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

The Communication Device Class

11.2

CDC Specific Requests

Requests are methods or functions that the host calls to initiate a action on the device. The CDC requests are used to adjust the serial parameters. The requests are sent down the default pipe, Endpoint 0.

Table 25. CDC Resquest Descriptions

Request Descriptor

GET_LINE_CODING Requests current DTE rate, stop-bits, parity, and number-of-character bits.

SET_LINE_CODING Configures DTE rate, stop-bits, parity, and number-of-character bits.

11.3

CDC Serial to USB Demonstration Firmware

The CDC project uses the usb.c driver. The configuration data described above is located in the file cdc_usb_config.c. The file usb_cdc.c contains the CDC specific methods and USB driver callbacks. The

Endpoint 0 callback function is used to capture the CDC specific requests.

The following code is a snippet of the Endpoint 0 callback function from the CDC demo. The function handles the two CDC specific requests. When the host sends a SET_LINE_CODING request, the firmware setups a received ep_info structure by calling the usb_receive() function. The receive expects seven bytes from the host, and directs the driver to put the bytes into the line_coding structure. The receive also sets the function got_line_coding() to be called after the data is received by the device. This function sets the new_line_coding flag to indicate to the rest of the firmware that new serial parameter data is available.

The line_coding[] array is a structure defined on page 58 of the CDC specification. The function cdc_get_line_coding(line_coding_t *l) translates.

Byte 0 1 2 3

BAUD

4

STOP BITS

5

PARITY

6

# OF DATA BITS callback_state_t usb_ep0_callback(void)

{ hcc_u8 *pdata=usb_get_rx_pptr(0);

/* A request to the command interface. */ if (STP_INDEX(pdata) == CMD_IFC_INDEX)

{ switch(STP_REQU_TYPE(pdata))

{

/* Class specific in request. */

case ((1<<7) | (1<<5) | 1):

/* Host wants to get a descriptor */

switch (STP_REQUEST(pdata))

{

case CDCRQ_GET_LINE_CODING:

usb_send( 0,

(void *) 0,

(void *)&line_coding,

7,

STP_LENGTH(pdata));

r=clbst_in;

break;

default:

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor 77

The Communication Device Class

break;

} break;

/* Class specific out request. */

case ((0<<7) | (1<<5) | 1):

switch (STP_REQUEST(pdata))

{

case CDCRQ_SET_LINE_CODING:

usb_receive(0,

got_line_coding,

(void *)&line_coding,

7,

7);

r=clbst_out;

break;

default:

break;

}

break;

}

}

11.4

CDC Serial to USB API

void cdc_init(void)

Initialize the CDC buffers.

void cdc_get_line_coding(line_coding_t *l)

Translate the CDC line coding structure into a line_coding_t structure.

typedef struct {

hcc_u32 bps;

hcc_u8 ndata;

hcc_u8 nstp;

hcc_u8 parity;

} line_coding_t; int cdc_line_coding_changed(void)

The application should call this function routinely.

Returns the new_line_coding flag, then clears the flag.

Returns 1 to indicate the host has sent a new line_coding structure. int cdc_putch(hcc_u8 c)

Inserts the byte c into a tx buffer. The character will be sent the next time the host polls the device.

This function calls usb_send().

Returns 1 if the character is successfully buffered.

Returns 0 if buffer was not available.

int cdc_input_ready(void)

The application should call this function routinely.

USB and Using the CMX USB Stack, Rev. 0

78 Freescale Semiconductor

The Communication Device Class

Uses the usb_receive() function to setup a ep_info structure to receive data on the RX_EP_NO endpoint.

Returns 1 if data has been received from the host, and is ready to be read by the application using a cdc_getch().

Returns 0 if no data is ready.

char cdc_getch(void)

Returns the next character from the rx_buffer.

This function should only be called if cdc_input_ready() returns 1.

callback_state_t usb_ep0_callback(void)

USB driver controls Endpoint 0 callback function. This function intercepts the

CDC specific requests: CDCRQ_GET_LINE_CODING, and

CDCRQ_SET_LINE_CODING.

callback_state_t got_line_coding(void)

This function is called by the control Endpoint 0 interrupt after new data is received by the host.

Data from the host on endpoint 0 is configuration data for the serial port.

11.5

Example CDC Application

int main()

{ hw_init();

/* USB irq is level 2, priority = 2. */ usb_init((2<<3) | 2, 0);

/* UART irq is level 3, priority = 3. (UART needs higherpriority. */ uart_init(9600, 1, 'n', 8); cdc_init();

/* Main application Loop */ while(1)

{

// Check for serial config change from host if (cdc_line_coding_changed())

{

// Configuration change line_coding_t l; hcc_u8 parity[]="noe"; cdc_get_line_coding(&l); uart_init(l.bps, l.nstp, parity[l.parity], l.ndata);

}

// Has the host sent data if (cdc_input_ready())

{

// Get character from CDC buffer and copy to UART buffer char c=cdc_getch(); uart_putch((hcc_u8)c);

}

// Is there any UART data

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor 79

USB On-The-Go

if (uart_input_ready())

{

// Read data from UART, send to USB hcc_u8 c=uart_getch(); cdc_putch(c);

}

} return 0;

}

12 USB On-The-Go

USB On-The-Go (OTG) is defined by the On-The-Go supplement to the USB2.0 Specification. The purpose of OTG is to allow a peripheral to be a host or a device. A good application for OTG is a camera.

After the pictures are taken, the camera is plugged into a PC to download the pictures. In this case, the camera is a device, but he user can also plug the camera directly into a printer, to print the pictures directly.

In the second case, the camera acts as a host.

A OTG device is either a host or a device, its mode is determined when it is connected to another USB product. The host negotiation protocol (HNP) is used to negotiate who is host. Another protocol, the session request protocol, determines who will power the bus.

12.1

Terminology

A-Device

B-Device

A device with a Standard-A or Micro-A plug inserted into its receptacle. The A-device supplies power to VBUS and is host at the start of a session. If the A-device is OTG

(equipped with a Micro-AB receptacle), it may relinquish the role of host to an OTG

B-device under certain conditions.

A device with a Standard-B, Micro-B or Mini-B plug inserted into its receptacle, or a captive cable ending in a Standard-A plug. The B-device is a peripheral at the start of a session. If the B-device is OTG (equipped with a Micro-AB receptacle), it may be granted the role of host from an OTG A-device

12.2

Session Request Protocol (SRP)

The session request protocol (SRP) allows a B-device to request the A-device to turn on VBUS and start a session. OTG-B (device) asks OTG-A (host) for a USB OTG session by signaling in one of two ways:

1. Pulsing an analog data line (D+ or D–)

2. Pulsing VBUS through a relatively high impedance ( > 281 ohm)

The OTG-B (device) pulses data line first then pulses VBUS.

Per the OTG specification: “Any A-device, including a PC or laptop, is allowed to respond to SRP. Any

B-device, including a standard USB peripheral, is allowed to initiate SRP. An On-The-Go device is required to be able to initiate and respond to SRP.”

USB and Using the CMX USB Stack, Rev. 0

80 Freescale Semiconductor

Resource Usage

12.3

Host Negotiation Protocol

Host negotiation protocol (HNP) allows the host function to be transferred between two directly connected

OTG devices. HNP may only be implemented through the Micro-AB receptacle on a device.

1. OTG-A (host) enables OTG-B (device) to become the host by sending SetFeature (b_hnp_enable) command to OTG-B (DEVICE).

2. OTG-A (host) suspends bus signaling so that OTG-B (device) can become host.

3. OTG-B (device) detects suspend condition and turns off pullup resistor.

4. Because HNP is enabled, OTG-A (host) interprets this disconnect as a request by the

OTG-B (device) to become host.OTG-A (HOST) turns on its pull-up resistor and becomes peripheral/device

5. To return control back to OTG-A (host), OTG-B (device) stops using bus and becomes peripheral/device.

6. OTG-A (host) sees lack of activity, disconnects, and becomes the host.

If the OTG-B (device) does not stall the SetFeature(b_hnp_enable) command, the OTG-A (host) must give the OTG-B (device) an opportunity to become the host before the OTG-A (host) may turn off VBUS.

13 Resource Usage

The USB stack uses a minimum amount of RAM and flash. The numbers below represent values pulled from the MAP files of the actual demo projects listed. These are baseline demos as distributed in the zip file from the Freescale website. The stack RAM usage is as specified in the original distributed firmware.

The hid-demo-flash project supports a keyboard device, a mouse device, and a generic device with the numbers listed. The primary impact of supporting all three devices is in flash size. Supporting only one device, removing support for the other two, would have a very small (less then 16 bytes) impact on RAM requirements. Three different configuration descriptors are stored in flash. Only one is required. Each group of descriptors is approximately 300 bytes, so if you are building a mouse device only, or a keyboard device only, or a generic device only, subtract 600 bytes from the flash number shown below for the hid-demo-flash project.

flash

RAM (total) stack bss bdt+align

HID device hid-demo-flash

22960

7680

5120

1621

939

Table 26. CMX USB Stack Memory Usage

CDC device cdc-demo-flash

18832

7168

5120

1224

824

OTG otg-app

54128

11264

7168

3338

758

HID host host-hid-demo

23904

7168

5120

1404

644

Mass storage Host mass-storage-demo

35728

7680

5120

1760

800

Freescale Semiconductor

USB and Using the CMX USB Stack, Rev. 0

81

Resource Usage flash

Ram (total) stack bss bdt+align

Table 27 was generated after testing the firmware with smaller stack sizes. The new stack sizes were tested by putting a marker at the end of the stack and running the demo through its paces. Demo operation was verified, and after the test the marker was checked (confirming that the stack did not overrun past the end).

Table 27. CMX USB Stack Memory Usage (Reduced Call Stack)

HID device hid-demo-flash

22960

4608

2048

1621

939

CDC device OTG cdc-demo-flash otg-app

18832

4096

54128

11264

2048

1224

824

7168

3338

758

HID host host-hid-demo

23904

4096

2048

1404

644

Mass Storage Host mass-storage-demo

35728

4608

2048

1760

800

82

USB and Using the CMX USB Stack, Rev. 0

Freescale Semiconductor

Resource Usage

Freescale Semiconductor

USB and Using the CMX USB Stack, Rev. 0

83

How to Reach Us:

Home Page:

www.freescale.com

E-mail:

[email protected]

USA/Europe or Locations Not Listed:

Freescale Semiconductor

Technical Information Center, CH370

1300 N. Alma School Road

Chandler, Arizona 85224

+1-800-521-6274 or +1-480-768-2130 [email protected]

Europe, Middle East, and Africa:

Freescale Halbleiter Deutschland GmbH

Technical Information Center

Schatzbogen 7

81829 Muenchen, Germany

+44 1296 380 456 (English)

+46 8 52200080 (English)

+49 89 92103 559 (German)

+33 1 69 35 48 48 (French) [email protected]

Japan:

Freescale Semiconductor Japan Ltd.

Headquarters

ARCO Tower 15F

1-8-1, Shimo-Meguro, Meguro-ku,

Tokyo 153-0064

Japan

0120 191014 or +81 3 5437 9125 [email protected]

Asia/Pacific:

Freescale Semiconductor Hong Kong Ltd.

Technical Information Center

2 Dai King Street

Tai Po Industrial Estate

Tai Po, N.T., Hong Kong

+800 2666 8080 [email protected]

For Literature Requests Only:

Freescale Semiconductor Literature Distribution Center

P.O. Box 5405

Denver, Colorado 80217

1-800-441-2447 or 303-675-2140

Fax: 303-675-2150

LDCForFreescaleSemiconducto[email protected]

Document Number: AN3492

Rev. 0

08/2007

Information in this document is provided solely to enable system and software implementers to use Freescale Semiconductor products. There are no express or implied copyright licenses granted hereunder to design or fabricate any integrated circuits or integrated circuits based on the information in this document.

Freescale Semiconductor reserves the right to make changes without further notice to any products herein. Freescale Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does

Freescale Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation consequential or incidental damages. “Typical” parameters that may be provided in Freescale Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals”, must be validated for each customer application by customer’s technical experts. Freescale Semiconductor does not convey any license under its patent rights nor the rights of others. Freescale Semiconductor products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the Freescale Semiconductor product could create a situation where personal injury or death may occur. Should Buyer purchase or use Freescale Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and hold Freescale Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that Freescale

Semiconductor was negligent regarding the design or manufacture of the part.

Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc.

All other product or service names are the property of their respective owners.

© Freescale Semiconductor, Inc. 2007. All rights reserved.

RoHS-compliant and/or Pb-free versions of Freescale products have the functionality and electrical characteristics as their non-RoHS-compliant and/or non-Pb-free counterparts. For further information, see http://www.freescale.com

or contact your

Freescale sales representative.

For information on Freescale’s Environmental Products program, go to http://www.freescale.com/epp .

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
