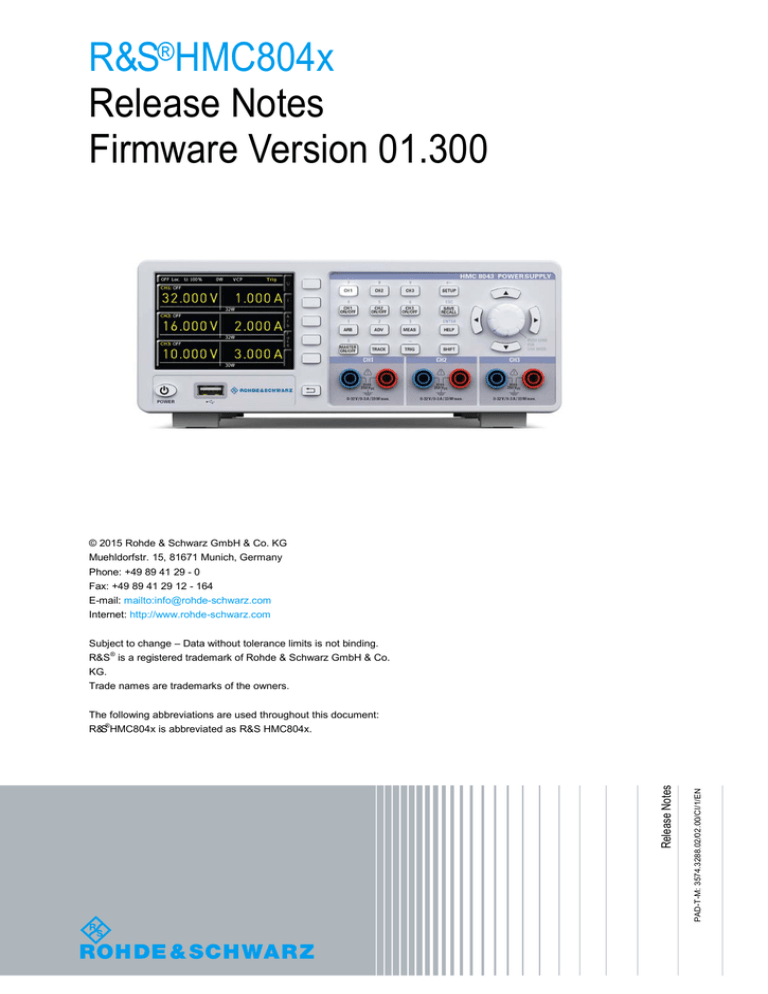

R&S®HMC804x Release Notes Version 01.300

R&S®HMC804x Release Notes Version 01.300
R&S®HMC804x
Release Notes
Firmware Version 01.300
© 2015 Rohde & Schwarz GmbH & Co. KG
Muehldorfstr. 15, 81671 Munich, Germany
Phone: +49 89 41 29 - 0
Fax: +49 89 41 29 12 - 164
E-mail: mailto:[email protected]
Internet: http://www.rohde-schwarz.com
Subject to change – Data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co.
KG.
Trade names are trademarks of the owners.
The following abbreviations are used throughout this document:
PAD-T-M: 3574.3288.02/02.00/CI/1/EN
Release Notes
R&S®HMC804x is abbreviated as R&S HMC804x.
R&S®HMC804x
Contents
Contents
1 Information on the Current Version and History .............................. 3
1.1
Version 01.300 ..............................................................................................................3
1.2
Version 01.202 ..............................................................................................................4
2 Firmware Update ................................................................................. 5
2.1
Preparing the Installation ............................................................................................5
3 Customer Support .............................................................................. 6
Release Notes
2
R&S®HMC804x
Information on the Current Version and History
1 Information on the Current Version and
History
1.1 Version 01.300
Changes to firmware version 01.202:
Firmware package contents
File Name
Description
HMC804x.hfu
Firmware update file
R&S_HMC804x_InstallationGuide_de_en_01.pdf
Firmware Installation Guide
R&S_HMC804x_ReleaseNotes_en_V01.300.pdf
Release Notes
New Functionality
●
●
Integrated menu help function via HELP button
Arbitrary "end point" behaviour selectable
Modified Functionality
●
●
If the USB stick has reached its capacity (4GB), a message will be shown on the
display
R&S HMC8043: Maximum output power increased from 99W to 100W
Improvements
●
●
●
●
Release Notes
General improvements
File name entry with space-bar fixed
Voltage setting fixed after ramp interrupt
R&S HMC8041: Selection of the 3.3V, 5V and 12V buttons fixed (Push-Long)
3
R&S®HMC804x
Information on the Current Version and History
1.2 Version 01.202
Changes to firmware version 01.104:
New Functionality
●
●
R&S HMC8041 supported
Logging per channel via front and remote control supported
Improvements
●
●
●
●
●
Release Notes
General improvements
Fuse delay setting fixed
Fuse Linking / AnalogIn functionality improved
Activation of the energy meter via SCPI remote command fixed
Starting of the sequence function via trigger fixed
4
R&S®HMC804x
Firmware Update
2 Firmware Update
Firmware updates for the R&S HMC804x are available as download from the
Rohde & Schwarz web page http://www.rohde-schwarz.com.
The installation file for R&S HMC804x is named HMC804x.hfu.
After the update to version 01.200 the instrument will start with preset instrument
settings. To check the installed firmware version press the SETUP key, open the soft
menu MISC and choose the soft menu key DEVICE INFOS. The firmware version is
shown via VERSION.
2.1 Preparing the Installation
Please refer to the firmware installation guide internal of the firmware file package.
Release Notes
5
R&S®HMC804x
Customer Support
3 Customer Support
Technical support – where and when you need it
For quick, expert help with any Rohde & Schwarz equipment, contact one of our
Customer Support Centers. A team of highly qualified engineers provides telephone
support and will work with you to find a solution to your query on any aspect of the
operation, programming or applications of Rohde & Schwarz equipment.
Up-to-date information and upgrades
To keep your instrument up-to-date and to be informed about new application notes
related to your instrument, please send an e-mail to the Customer Support Center
stating your instrument and your wish. We will take care that you will get the right
information.
Europe, Africa, Middle East
Phone +49 89 4129 12345
[email protected]
North America
Phone 1-888-TEST-RSA (1-888-837-8772)
[email protected]
Latin America
Phone +1-410-910-7988
[email protected]
Asia/Pacific
Phone +65 65 13 04 88
[email protected]
China
Phone +86-800-810-8828 / +86-400-650-5896
[email protected]
Release Notes
6
