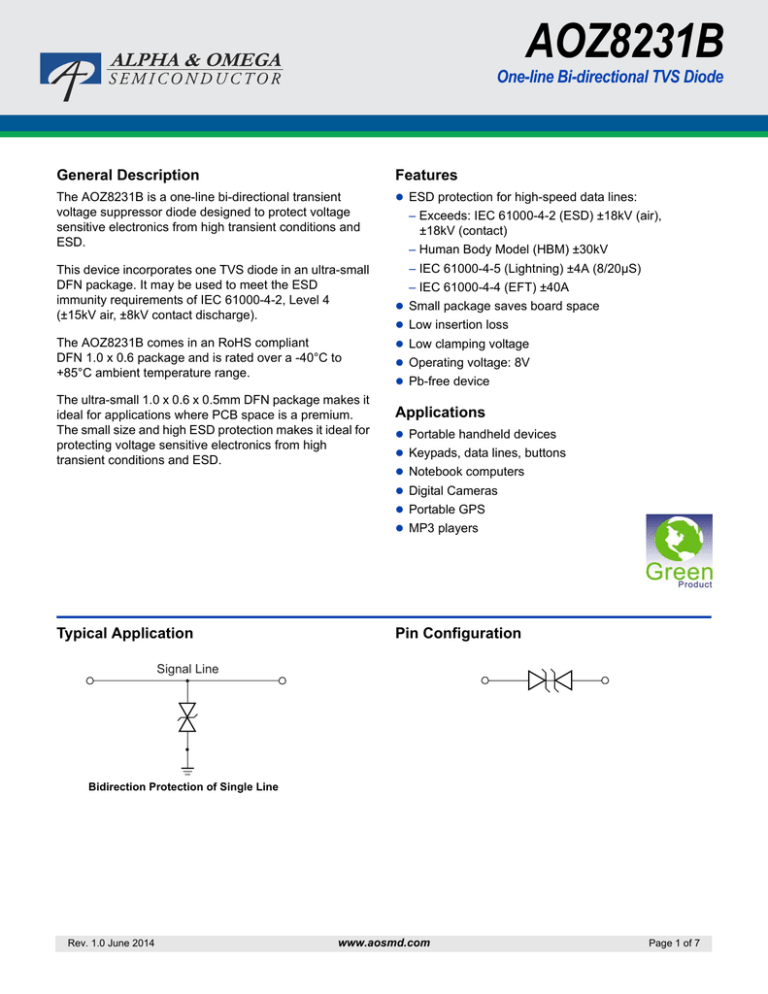

AOZ8231B One-line Bi-directional TVS Diode General Description

AOZ8231B One-line Bi-directional TVS Diode  General Description
AOZ8231B
One-line Bi-directional TVS Diode
General Description
Features
The AOZ8231B is a one-line bi-directional transient
voltage suppressor diode designed to protect voltage
sensitive electronics from high transient conditions and
ESD.
 ESD protection for high-speed data lines:
This device incorporates one TVS diode in an ultra-small
DFN package. It may be used to meet the ESD
immunity requirements of IEC 61000-4-2, Level 4
(±15kV air, ±8kV contact discharge).
The AOZ8231B comes in an RoHS compliant
DFN 1.0 x 0.6 package and is rated over a -40°C to
+85°C ambient temperature range.
The ultra-small 1.0 x 0.6 x 0.5mm DFN package makes it
ideal for applications where PCB space is a premium.
The small size and high ESD protection makes it ideal for
protecting voltage sensitive electronics from high
transient conditions and ESD.
– Exceeds: IEC 61000-4-2 (ESD) ±18kV (air),
±18kV (contact)
– Human Body Model (HBM) ±30kV
– IEC 61000-4-5 (Lightning) ±4A (8/20µS)
– IEC 61000-4-4 (EFT) ±40A
 Small package saves board space
 Low insertion loss
 Low clamping voltage
 Operating voltage: 8V
 Pb-free device
Applications
 Portable handheld devices
 Keypads, data lines, buttons
 Notebook computers
 Digital Cameras
 Portable GPS
 MP3 players
Typical Application
Pin Configuration
Signal Line
Bidirection Protection of Single Line
Rev. 1.0 June 2014
www.aosmd.com
Page 1 of 7
AOZ8231B
Ordering Information
Part Number
Ambient Temperature Range
Package
Environmental
AOZ8231BDI-08
-40°C to +85°C
DFN 1.0 x 0.6
Green Product
AOS Green Products use reduced levels of Halogens, and are also RoHS compliant.
Please visit www.aosmd.com/media/AOSGreenPolicy.pdf for additional information.
Absolute Maximum Ratings
Exceeding the Absolute Maximum ratings may damage the device.
Parameter
Rating
VP – VN
8V
Peak Pulse Current, tP = 8/20µs
4A
Storage Temperature (TS)
-65°C to +150°C
ESD Rating per IEC61000-4-2,
Contact(1)
ESD Rating per IEC61000-4-2, Air
ESD Rating per Human Body
±18kV
(1)
±18kV
Model(2)
±30kV
Notes:
1. IEC 61000-4-2 discharge with CDischarge = 150pF, RDischarge = 330Ω.
2. Human Body Discharge per MIL-STD-883, Method 3015 CDischarge = 100pF, RDischarge = 1.5kΩ.
Maximum Operating Ratings
Parameter
Rating
Junction Temperature (TJ)
Rev. 1.0 June 2014
-40°C to +125°C
www.aosmd.com
Page 2 of 7
AOZ8231B
Electrical Characteristics
TA = 25°C unless otherwise specified. VF = 0.9V Max. @ IF = 10mA for all types
Symbol
Parameter
IPP
Reverse Peak Pulse Current, (tperiod = 100ns, tr = 1ns)
VCL
Clamping Voltage @ IPP
VRWM
IR
VBR
I
IPP
Working Peak Reverse Voltage
Maximum Reverse Leakage Current
Breakdown Voltage
VCL VBR VRWM
IR
IT
IF
Forward Current
VF
Forward Voltage
PPK
Peak Power Dissipation
CJ
Diagram
VCL VBR VRWM
V
IPP
Capacitance @ VR = 0 and f = 1MHz
Device
Device
Marking
VRWM (V)
Max.
VBR (V)
Min. @
1mA
IR (µA)
Max.
IPP = 1A
IPP = 5A
IPP = 12A
AOZ8231BDI-08
1
8.0
9.5
0.1
15.0
18
22.5
Rev. 1.0 June 2014
VCL Max.
www.aosmd.com
CJ (pF) CJ (pF)
Typ.
Max.
45
56
Page 3 of 7
AOZ8231B
Typical Performance Characteristics
Clamping Voltage vs. Peak Pulse Current
(tperiod = 100 ns, tr = 1 ns)
45
Clamping Voltage, VCL (V)
40
35
30
25
8V
20
15
10
5
0
0
2
4
6
8
10
12
Peak Pulse Current, IPP (A)
Typical Variation of CIN vs. VR
(f = 1 MHz, T = 25 °C)
Normalized Capacitance (pF)
1.2
1.0
0.8
0.6
0.4
0.2
0
0
1
2
3
4
5
6
7
8
Input Voltage (V)
Rev. 1.0 June 2014
www.aosmd.com
Page 4 of 7
AOZ8231B
Package Dimensions, DFN 1.0 x 0.6
5 Index Area
(E/4xD)
2x
aaa C
3
e
A
aaa C 2x
D
ddd
C AB
B
E
Pin#1 ID
0.125x45°
2x b
L2
ddd
C AB
BOTTOM VIEW
TOP VIEW
6
A
Seating Plane
2x
7
ccc C
A1
C
SIDE VIEW
RECOMMENDED LAND PATTERN
1.00
0.30
0.55
0.40
0.125 x 45°
Dimensions in millimeters
Symbols
A
A1
b
D
E
e
L
aaa
ccc
ddd
Min.
0.47
0.00
0.45
Nom.
0.51
0.02
0.50
0.60 BSC
1.00 BSC
0.65 BSC
0.20
0.25
0.05
0.03
0.10
Max.
0.55
0.05
0.55
0.30
Dimensions in inches
Symbols
A
A1
b
D
E
e
L
aaa
ccc
ddd
Min.
0.019
0.000
0.018
0.008
Nom.
0.020
0.001
0.020
0.024
0.039
0.026
0.010
0.002
0.001
0.004
Max.
0.022
0.002
0.022
0.012
0.30
UNIT: mm
Notes:
1. Dimensions and tolerancing conform to ASME Y14.5-2009.
2. All dimensions are in milliteters.
3. “e” represents the terminal grid pitch.
4. N isthe total number of terminals.
5. A visual index feature must be located within the hatched area. Typical index feature (chamfer) must be located on the edge
of the Pin#1 feature.
6. This dimension includes stand-off height “A1” and packaged body thickness, but does not include attached feature e.g. external
heatsink or chip capacitors, an internal heatslug is not considered as attached feature.
7. Dimension “A1” is primarily terminal plating, and does not include small metal protrusions.
Rev. 1.0 June 2014
www.aosmd.com
Page 5 of 7
AOZ8231B
Tape and Reel Dimensions, DFN 1.0 x 0.6
Carrier Tape
P1
P2
T
D1
E1
E2
E
B0
K0
P0
D0
A0
UNIT: mm
Option
A
Package
B0
A0
K0
DFN 1.0x0.6/ 0.69 1.19
0.66
DFN 1.0x0.6A ±0.05 ±0.05 ±0.05
(8 mm)
D0
0.40
±0.05
D1
E
E1
1.50
8.00
1.75
±0.10 +0.3/-0.1 ±0.10
E2
3.50
±0.05
P0
2.00
±0.05
P1
4.00
±0.10
T
P2
0.23
2.00
±0.05 ±0.02
B
0.61
DFN 1.0x0.6/ 0.65 1.05
DFN 1.0x0.6A ±0.04 ±0.04 ±0.04
(8 mm)
0.40
±0.05
1.50
8.00
1.75
±0.10 +0.3/-0.1 ±0.10
3.50
±0.05
2.00
±0.10
4.00
±0.10
2.00
0.20
±0.05 ±0.05
Reel
W1
S
G
N
M
K
V
R
H
W
UNIT: mm
Tape Size Reel Size
8mm
ø178
M
ø178
±0.5
N
ø55
±1
W
8.4
+1.5/-0
W1
Max.
14.4
H
ø13.0
±0.5
K
Max.
10.1
S
2.0
±0.5
G
N/A
R
N/A
V
N/A
Leader / Trailer & Orientation
TVS
Unit Per Reel:
10000pcs
Trailer Tape
300mm Min.
Rev. 1.0 June 2014
Components Tape
Orientation in Pocket
www.aosmd.com
Leader Tape
500mm Min.
Page 6 of 7
AOZ8231B
Part Marking
AOZ8231BDI
(DFN1.0x0.6)
1
Product Number Code
Date Code
