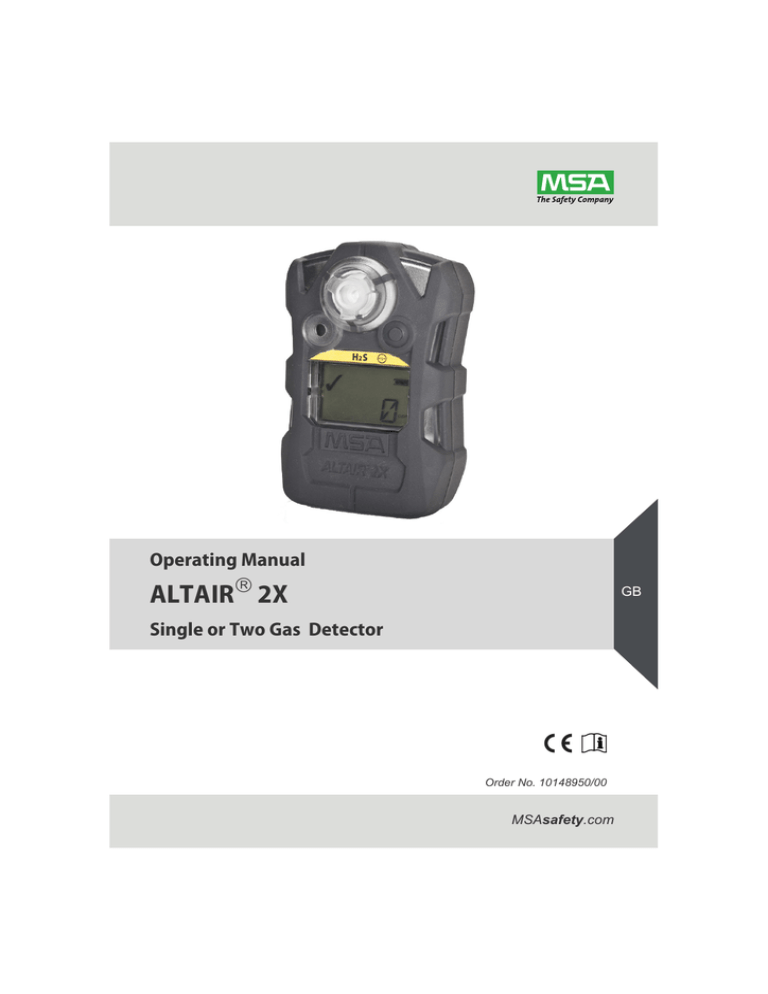

ALTAIR 2X  Operating Manual

ALTAIR 2X  Operating Manual

Operating Manual

ALTAIR

2X

Single or Two Gas Detector

Order No. 10148950/00

MSAsafety.com

GB

Declaration of Conformity

Declaration of Conformity

The manufacturer or the European Authorized Representative:

MSA AUER GmbH

Thiemannstrasse 1 declares that the product

D-12059 Berlin

ALTAIR 2X

based on the EC-Type Examination Certificate : FTZU 13 ATEX 0200 X complies with the ATEX directive 94/9/EC, Annex III. Quality Assurance Notification complying with Annex IV of the ATEX Directive 94/9/EC has been issued by

INERIS, Notified Body number: 0080.

Standards.

EN 60079-0:2012, EN 60079-11:2012

The product is in conformance with the directive 2004 / 108/ EC, (EMC):

EN 50270:2007 Type 2, EN 61000 - 6 - 3:2011

The product is in conformance with the directive 2006/66/EC.

GB

MSA AUER GmbH

Dr. Axel Schubert

R&D Instruments

& Approvals INT-T

Berlin,

November 2013

ALTAIR 2X 3

Contents

Contents

1 Safety Regulations ...................................................................................... 6

1.1

Correct Use ....................................................................................... 6

1.2

Liability Information ............................................................................ 7

1.3

Safety and Precautionary Measures ................................................. 7

1.4

Warranty ............................................................................................ 9

2 Description ................................................................................................ 11

2.1

Overview .......................................................................................... 11

2.2

On-Screen Indicators ....................................................................... 14

2.3

Sensor End of Life Warning ............................................................. 15

2.4

Sensor End of Life Alarm ................................................................. 15

2.5

Backlight .......................................................................................... 16

2.6

Fresh Air Setup (FAS) ..................................................................... 16

2.7

Bump Test for Sensors with XCell Pulse Technology ..................... 16

3 Use ............................................................................................................. 16

3.1

Environmental Factors ..................................................................... 16

3.2

Settings ............................................................................................ 16

3.3

First Use .......................................................................................... 17

3.4

Turning ON the Device .................................................................... 17

3.5

Function Checks Before Use ........................................................... 25

3.6

Duration of Use ................................................................................ 29

3.7

Monitoring Gas Concentration ......................................................... 31

3.8

Changing Alarm Setpoints ............................................................... 33

3.9

Displaying Device Data ................................................................... 34

3.10

IR mode ........................................................................................... 35

3.11

Turning OFF the Device .................................................................. 36

3.12

Data Logging ................................................................................... 36

GB

ALTAIR 2X 4

Contents

3.13

Calibration ....................................................................................... 37

3.14

Using the Device with a GALAXY GX2 Automated Test System .... 42

4 Maintenance .............................................................................................. 43

4.1

Troubleshooting ............................................................................... 43

4.2

Replacing the Battery ...................................................................... 44

4.3

Replacing the Sensor ...................................................................... 45

4.4

Cleaning .......................................................................................... 46

4.5

Storage ............................................................................................ 46

4.6

Scope of Delivery ............................................................................ 46

5 Technical Data ........................................................................................... 47

5.1

Technical Specifications .................................................................. 47

5.2

Sensor Data ..................................................................................... 48

5.3

Data Logging Specifications ............................................................ 51

6 Certification ............................................................................................... 52

6.1

Marking, Certificates and Approvals

According to the Directive 94/9/EC (ATEX) ...................................... 53

6.2

Marking, Certificates and Approvals According to IECEx ................ 54

7 Ordering Information ................................................................................ 55

7.1

Calibration Gas Cylinders ................................................................ 55

7.2

Replacement Parts and Accessories ............................................... 56

7.3

Sensor Replacement Kits ................................................................ 57

GB

ALTAIR 2X 5

Safety Regulations

1 Safety Regulations

1.1

Correct Use

The ALTAIR 2X gas detector, hereafter referred to as device, is intended for use by trained and qualified personnel. It is designed to be used when performing a hazard assessment to:

Assess potential worker exposure to toxic gases and vapours.

Determine the appropriate gas and vapour monitoring needed for a workplace.

The ALTAIR 2X gas detector can be equipped for:

Detecting specific toxic gases for which a sensor is installed

It is imperative that this operating manual be read and observed when using the product. In particular, the safety instructions, as well as the information for the use and operation of the product, must be carefully read and observed. Furthermore, the national regulations applicable in the user's country must be taken into account for a safe use.

WARNING

This product is supporting life and health. Inappropriate use, maintenance or servicing may affect the function of the device and thereby seriously compromise the user's life.

Before use the product operability must be verified. The product must not be used if the function test is unsuccessful, it is damaged, a competent servicing/ maintenance has not been made, genuine MSA spare parts have not been used.

Alternative use, or use outside this specification will be considered as noncompliance. This also applies especially to unauthorised alterations to the product and to commissioning work that has not been carried out by MSA or authorised persons.

GB

ALTAIR 2X 6

Safety Regulations

1.2

Liability Information

MSA accepts no liability in cases where the product has been used inappropriately or not as intended. The selection and use of this product must be under the direction of a qualified safety professional who has carefully evaluated the specific hazards of the jobsite where it will be used and who is completely familiar with the product and its limitations. The selection and use of this product and its incorporation into the safety scheme of the jobsite is the exclusive responsibility of the Employer.

Product liability claims, warranties also as guarantees made by MSA with respect to the product are voided, if it is not used, serviced or maintained in accordance with the instructions in this manual.

1.3

Safety and Precautionary Measures

WARNING

The following safety instructions must be followed implicitly. Misuse can result in loss of life or serious injury.

Use Device only for Assigned Gases

The device must be used only for gases for which a sensor is installed in the device.

Check Function

Before each day’s use, check the function of the device (

 chapter 3.5).

MSA recommends carrying out a routine inspection prior to each day’s use.

Perform a Bump Test

Bump test frequency is often stipulated by national or corporate regulations; however, bump testing before each day´s use is generally the accepted best safety practice and is therefore MSA’s recommendation. The device must pass the bump test. If it fails the test, perform a calibration before using the device.

Perform a bump test more frequently if the device is subjected to physical shock or high levels of contaminants.

GB

Check Function and Alarm before Each Use

In case of failed function tests, the device must be removed from use.

ALTAIR 2X 7

Safety Regulations

Check Confidence Indicator

The Confidence indicator must flash every 15 seconds after starting the device.

Defective Vibrating Alarm Possible

At ambient temperatures < 0 °C, the vibrating alarm can give a false alarm or can fail completely. In such conditions, do not rely solely on the vibrating alarm.

Physical Shock

Perform a calibration if device is subjected to physical shock.

Sensor Maintenance

Do not block sensor opening as this may cause inaccurate readings. Do not press on the face of the sensor, as this may damage it and cause erroneous readings. Do not use compressed air to clean the sensor holes, as the pressure may damage the sensor.

Observe Proper Time for Display Stabilising

Allow sufficient time for device to display accurate reading. Response times vary based on the type of sensor being utilized.

Be Aware of Environmental Conditions

A number of environmental factors may affect the sensor readings, including changes in pressure, humidity and temperature.

Be Aware of the Procedures for Handling Electrostatically Sensitive

Electronics

The device contains electrostatically sensitive components. Do not open or repair the device without using appropriate electrostatic discharge (ESD) protection. The warranty does not cover damage caused by electrostatic discharges.

GB

Be Aware of the Product Regulations

Follow all relevant national regulations applicable in the country of use.

Be Aware of the Warranty Regulations

The warranties made by Mine Safety Appliances Company with respect to the product are voided if the product is not used and maintained in accordance with the instructions in this manual. Please protect yourself and others by following them. We encourage our customers to write or call regarding this equipment prior to use or for any additional information relative to use or service.

ALTAIR 2X 8

Safety Regulations

1.4

Warranty

ITEM WARRANTY

Chassis and electronics

H

2

S, CO, SO

2

, NO

2

sensors

Cl

2

, NH

3

sensors

PERIOD

Three years

Three years

Two years

Specific battery run-time over temperature is not warranted.

This warranty does not cover filters, fuses or replaceable batteries. This warranty is valid only if the product is maintained and used in accordance with

Seller's instructions and/or recommendations.

The Seller shall be released from all obligations under this warranty in the event repairs or modifications are made by persons other than its own or authorised service personnel or if the warranty claim results from physical abuse or misuse of the product. No agent, employee or representative of the Seller has any authority to bind the Seller to any affirmation, representation or warranty concerning this product. Seller makes no warranty concerning components or accessories not manufactured by the Seller, but will pass on to the Purchaser all warranties of manufacturers of such components.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED,

IMPLIED OR STATUTORY, AND IS STRICTLY LIMITED TO THE TERMS

HEREOF. SELLER SPECIFICALLY DISCLAIMS ANY WARRANTY OF

MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE.

Exclusive Remedy

It is expressly agreed that Purchaser's sole and exclusive remedy for breach of the above warranty, for any tortious conduct of Seller, or for any other cause of action, shall be the replacement at Seller's option, of any equipment or parts thereof, which after examination by Seller is proven to be defective.

Replacement equipment and/or parts will be provided at no cost to Purchaser,

F.O.B. Seller's Plant. Failure of Seller to successfully replace any nonconforming equipment or parts shall not cause the remedy established hereby to fail of its essential purpose.

GB

ALTAIR 2X 9

Safety Regulations

Exclusion of Consequential Damage

Purchaser specifically understands and agrees that under no circumstances will seller be liable to purchaser for economic, special, incidental or consequential damages or losses of any kind whatsoever, including but not limited to, loss of anticipated profits and any other loss caused by reason of nonoperation of the goods. This exclusion is applicable to claims for breach of warranty, tortious conduct or any other cause of action against seller.

ALTAIR 2X 10

GB

2 Description

2.1

Overview

1

2

8

7

1

3

4

5

6

Description

Fig. 1

3

4

1

2

Device view

Alarm LED (red)

Infrared port

Sensor cover

Safe LED (green)

5 Button

6 Display with backlight

7 Gas type

8 Audible alarm transmitter

ALTAIR 2X 11

GB

Description

The device monitors gases in ambient air and in the workplace. The following toxic gases can be monitored in the ambient air:

Sulfur dioxide (SO

2

)

Nitrogen dioxide (NO

2

)

Carbon monoxide (CO)

Hydrogen sulfide (H

2

S)

Chlorine (Cl

2

)

Ammonia (NH

3

)

The Two Gas (Two-Tox) sensor provides two sensing capabilities in a single sensor. The following combinations are possible:

Carbon monoxide/hydrogen sulfide (CO/H

2

S)

Carbon monoxide/nitrogen dioxide (CO/NO

2

)

Hydrogen sulfide/sulfur dioxide (H

2

S/SO

2

)

The alarm levels for the individual gases are factory-set and and cannot be changed during operation. Changes can only be made through MSA Link software.

Short Term Exposure Limits (STEL)

The STEL alarm is calculated over a 15 minute exposure.

STEL calculation examples:

Assume the device has been running for at least 15 minutes:

15 minute exposure of 35 ppm:

(15 minutes x 35 ppm)

15 minutes

= 35 ppm

10 minute exposure of 35 ppm and 5 minutes exposure of 5 ppm:

(10 minutes x 35 ppm) + (5 minutes x 5 ppm)

15 minutes

= 25 ppm

If the device is on for longer than 15 minutes, the STEL is calculated for the most recent fifteen minutes of runtime.

GB

ALTAIR 2X 12

Description

Time Weighted Average (TWA)

The TWA alarm is calculated over an eight-hour exposure.

TWA calculation examples:

1 hour exposure of 50 ppm:

(1 hour x 50 ppm) + (7 hours x 0 ppm)

8 hours

= 6.25 ppm

4 hour exposure of 50 ppm and 4 hour exposure of 100 ppm:

(4 hours x 50 ppm) + (4 hours x 100 ppm)

8 hours

12 hour exposure of 100 ppm:

= 75 ppm

(12 hours x 100 ppm)

8 hours

= 150 ppm

If the device is ON for less than 8 hours (480 minutes), the balance of the minute ppm values is set to zero.

GB

ALTAIR 2X 13

Description

2.2

On-Screen Indicators

Fig. 2

GAS 1

Display

Only displayed for two gas detectors. The label above this bar shows which gas concentration is currently displayed

Sensor life Symbol – Indicates the end of sensor life

Bump Check Symbol – Indicates successful bump test or calibration

Alarm Symbol – Indicates alarm state.

No Gas Cylinder – Indicates cal gas should not be applied and device must be exposed to fresh air

Cal Gas Cylinder – Indicates cal gas must be applied

PEAK Symbol – Indicates a PEAK reading or high alarm

Minimum – Indicates a minimum value or low alarm

Short Term Exposure Limit (STEL) Symbol – Indicates a

STEL alarm

Time Weighted Average (TWA) Symbol – Indicates a

TWA alarm

GB

ALTAIR 2X 14

Description

Hourglass – Indicates user should wait

Device confidence indicator

Flow check symbol - Indicates that a flow check is being prepared or should be executed

Battery condition - Indicates the battery charge level

Indicates a battery alarm when flashing

Electronic pulse check symbol - Indicates a currently running electronic check of the sensor

Indicates required interaction

Gas concentration

% Vol ppm

Volume percent

Parts per million mg/m

3

2.3

Sensor End of Life Warning

If a sensor is nearing its end of life, the device will warn the user following a sensor calibration. The sensor is still fully functional at this point, but the warning gives the user time to plan for a replacement sensor and minimise downtime.

The

 symbol will be continuously displayed.

2.4

Sensor End of Life Alarm

If a sensor fails two calibrations in a row, a sensor End of Life Alarm condition is present. The

 symbol will flash continuously.

GB

ALTAIR 2X 15

Use

2.5

Backlight

The backlight can be manually activated with a quick push of the button. The backlight remains ON for a certain time, depending on the instrument settings.

2.6

Fresh Air Setup (FAS)

This check eliminates background contaminants, reducing the possibility of inaccurate readings.

The Fresh Air Setup zeroes toxic gas sensors. The Fresh Air Setup will not function if it is activated in a non-fresh air environment. If a dangerous level of gas is present, the device will ignore the Fresh Air Setup and go into alarm.

2.7

Bump Test for Sensors with XCell Pulse Technology

Sensors with XCell Pulse Technology can be bump tested with a combination of a pulse check and a flow check.

First, the device carries out an electronic pulse check of the sensor. Second, the user executes a flow check by exhaling onto the face of the device.

3 Use

3.1

Environmental Factors

A number of environmental factors may affect the gas sensor readings, including changes in pressure, humidity and temperature.

Temperature Changes

The sensors have built-in temperature compensation. However, if temperature shifts dramatically, the sensor reading may shift. Zero the device at the work site temperature for the least effect.

GB

3.2

Settings

Any changes of the device settings can only be carried out using the MSA

Link™ software. Ensure that the latest version of the MSA Link software is used.

The MSA Link application is available free on www.msasafety.com

.

ALTAIR 2X 16

Use

3.3

First Use

Before the device can be used for monitoring possible toxic gases in the atmosphere, it must be commissioned (

 Fig. 3 and Fig. 4).

When switching on the device for the first time and after a battery replacement the device will initialize the battery. During a battery initialisation, BATT INIT is shown on the display followed by a sequence of LED illuminations and activation of the vibration motor. The device then continues the start-up as described in section 3.4.

Calibrate devices with XCell Pulse Technology before first use to ensure optimal sensor performance.

3.4

Turning ON the Device

(1) Press the button.

All display segments are activated

Audible alarm sounds

Alarm LEDs light

Vibrating alarm is activated.

The device displays the following for a few seconds each:

-

MSA

Software version

-

WAIT

(Displayed for up to 20 seconds during sensor discovery)

If enabled: individual alarm indication settings

Gas type

Low alarm icon with low alarm setpoint

High alarm icon with high alarm setpoint

STEL alarm icon with STEL alarm setpoint

TWA alarm icon with TWA alarm setpoint

Calibration gas settings

(2) If the LastCalDate page is enabled, the display will show the last cal date of the installed sensor (DD-MMM-YY).

GB

ALTAIR 2X 17

Use

Button press to turn instrument ON

LCD Test

MSA

Version Number

WAIT

Gas Type

Depending on individual instrument settings

Individual Alarm indications disabled?

N

Y

Alarm Info Pages

(Low, High, STEL,

TWA)*

LEDS

OFF

Calibration Gas

Info Pages*

* Depending on individual instrument setup

HORN

OFF

Last Cal Date*

DD-MMM-YY

VIBE

OFF

Fig. 3

Startup continued

Startup

ALTAIR 2X 18

GB

Use

(3) Fresh Air Setup prompt (FAS?)/Pulse Check start screen (PULSE) is displayed, depending on the sensor installed.

WARNING

Only carry out the Fresh Air Setup/bump test in fresh, uncontaminated air; otherwise, inaccurate readings can falsely indicate a hazardous atmosphere as safe. If the quality of the surrounding air is uncertain, do not carry out a

Fresh Air Setup/bump test. Do not use the Fresh Air Setup/bump test as a substitute for daily calibration checks. The calibration check is required to verify span accuracy. Failure to follow this warning can result in serious personal injury or death.

Startup

Sensor Warmup

Screen

WAIT

XCell Pulse

Technology?

Y

N

N

Is FAS

Enabled?

Y

Pulse Check

Start Screen

PULSE

GB

Pulse Check

Fig. 4

C a l D u e

Startup, continued

FAS

ALTAIR 2X 19

Use

FAS

FAS?

is displayed.

To start the FAS press the button while FAS? is displayed.

 The display will show the results of the setup, PASS or ERR.

The fresh air setup has limits.

If a hazardous level of gas is present, the device displays ERR.

Press the button to acknowledge the error and perform a calibration.

Bump Test for Devices with XCell Pulse Technology

This test will start automatically.

-

PULSE

is displayed shortly.

The electronic pulse check icon and a countdown are displayed.

At the end of the countdown, the results of the electronic pulse check are displayed (PASS or ERR).

If ERR:

Press the button to return to normal operating mode and perform a calibration.

If PASS:

The display shows the Flow check icon and WAIT for followed by a countdown.

At the end of the countdown, the display will show FLOW and the green LEDs near the sensor will flash.

Exhale into the device.

 Hold device close to mouth (5 cm/2 inches distance) and blow forcefully onto the sensor opening for 2 seconds.

The results of the test are then displayed (PASS or ERR).

GB

ALTAIR 2X 20

Use

If ERR:

(1) Press the button to return to normal operating mode and perform inspection of sensor.

(2) Repeat the bump test if necessary.

(3) If the bump test fails, calibrate the device (

 Section 3.13).

If PASS:

The device returns to normal operating mode.

A

 is displayed for 24 hours to indicate that the self-test was successful.

If the safe LED (green) option is enabled, the green LEDs will flash periodically.

To clean the sensor inlet before or after a flow test, only use approved cleaner described in section 7.

(4) To bypass FAS, do

not

press the button.

 The device continues the ON sequence.

GB

ALTAIR 2X 21

Use

Startup

Fresh Air Setup

FAS

?

Button Press?

N

Y

Y

FAS Passed?

N

PASS ERR

Button Press?

N

Y

Cal Due

Fig. 5 FAS (Devices without XCell Pulse technology)

ALTAIR 2X 22

GB

Use

PageMenu Startup

BUMP PASS

Countdown to finalize

Pulse Check

PASS

N

Flow Check enabled?

Y

Countdown to exhale

FLOW

Y

Pulse Check pass?

N

ERR

Button Press?

N

Y

Y

Flow Check pass?

N

ERR

Button press?

N

Y

Fig. 6

Cal Due

Bump test for devices with XCell Pulse technology

ALTAIR 2X 23

GB

Use

(5) If Calibration Due (CAL DUE) is enabled via MSA Link™ software

(default is OFF):

If calibration is due, CAL DUE will scroll across the display continuously.

Press the button to proceed. A calibration is now necessary.

If calibration is not due, CAL, the number of days, and DAYS will scroll across the display once before proceeding.

Pulse and Flow

Check

Startup FAS

Is Cal Due?

Y

N

Cal Due

Information*

Y

Button Press?

N

* Depending on individual instrument setup

Measurement

Fig. 7 Calibration due

The device displays the gas reading in ppm or mg/m³ and the battery condition.

GB

ALTAIR 2X 24

Pulse Check after Cal Span cal Cal Due

Use

Zero Cal Page Menu Bump Test

0 ppm

Button press?

N

Y

Hold longer than

1 second?

N

Y

N

Hold longer than 3 seconds?

Y

Instrument

Shutdown

OFF

PageMenu

Fig. 8 Measurement

3.5

Function Checks Before Use

Checking the Confidence Indicator

The Confidence indicator must flash every 15 seconds after starting the device.

This indicates the device is operating correctly.

GB

Verifying Alarms

Verify that the audible, visual and vibrating alarms function.

During the turn-on sequence, the alarms are briefly activated (function tests).

See section 3.2 for details.

ALTAIR 2X 25

Use

Bump Test

WARNING

Perform a bump test to verify proper device operation. Failure to perform this test can result in serious personal injury or death.

Bump test frequency is often stipulated by national or corporate regulations; however, bump testing before each day's use is generally the accepted best safety practice and is therefore MSA's recommendation.

This test quickly confirms that the gas sensors are functioning. Perform a full calibration periodically to ensure accuracy and immediately if the device fails the bump test. The bump test can be performed using the procedure below or automatically using the GALAXY GX2 test stand.

Bump Test for Devices without XCell Pulse Technology

(1) Press the button for about 1 sec.

BUMP? is displayed.

(2) Press the button again while BUMP? is displayed.

(3) Feed test gas into the device:

Connect the regulator (screwed on the calibration gas cylinder) and the sensor opening with a tube and open the regulator.

Possible test gases

 Section 7.

If gas is detected PASS is displayed.

(4) Close the regulator.

GB

ALTAIR 2X 26

Use

If the bump test passes:

A

 is displayed for 24 hours to indicate that the bump test was successful.

If the safe LED (green) option is enabled, the green LEDs will flash every

15 seconds.

If the

 does not appear and ERR is displayed, check:

whether the sensor cover is clogged or filter is dirty,

whether the correct test gas and regulator were used,

whether the test gas cylinder is empty or the date has expired,

whether the test gas was fed in at the right moment,

whether test gas hose and cylinder/regulator as well as sensor cover and sensor are properly connected,

whether the flow regulator is set to 0.25 l/min

(5) Repeat the bump test if necessary.

(6) If the bump test fails, calibrate the device (

 Section 3.13).

(7) Repeat the bump test after the calibration.

GB

ALTAIR 2X 27

Use

Bump Test for Devices with XCell Pulse Technology

Devices with XCell Pulse technology can be bump tested with a combination of a pulse check and a flow check.

(1) Press the button for about 1 second.

PULSE?

is displayed.

(2) Press the button again while PULSE? is displayed.

(3) Follow the instructions in section 3.4

PageMenu

0 ppm

Wait for gas being applied and gas reading reaching threshold

Y

Bump passed?

N

PASS ERR

Button Press?

N

Y

Fig. 9

Measurement

Bump Test for devices without XCell Pulse technology

ALTAIR 2X 28

GB

Use

3.6

Duration of Use

Normal Operation

The device is ready for operation

as long as the empty battery icon is not flashing empty

and

the function tests are successful.

WARNING

If an alarm is triggered while using the device as a monitor, leave the area immediately.

Remaining on site under such circumstances can cause serious personal injury or death.

Battery Life Indicator

The battery condition icon is continuously displayed in the upper right-hand corner of the display. As the battery is depleted, battery icon segments blank until only the battery icon outline remains.

Battery Warning

A battery warning indicates that a nominal two days of operation remain at 20 °C before the device's battery is depleted. Actual runtime will vary depending on ambient temperature and alarm conditions.

The duration of remaining device operation during battery warning depends on ambient temperature (colder temperatures may reduce battery life) and the number and duration of alarms during battery warning.

When the device goes into Low Battery Warning, the:

battery life indicator flashes

alarm sounds every 30 seconds

alarm LEDs flash every 30 seconds

device repeats this warning every 30 seconds and continues to operate until it is turned off or battery shutdown occurs.

GB

ALTAIR 2X 29

Use

Battery Shut Down

WARNING

If a Battery Shutdown condition occurs, stop using the device and leave the area immediately. The device can no longer indicate potential hazards because it does not have enough power to operate properly.

Failure to follow this warning can result in serious personal injury or death.

When the battery can no longer operate the device, the device goes into Battery

Shutdown mode:

battery outline indicator flashes

alarm icon turns ON

alarm sounds

alarm LEDs flash

no gas reading display

display alternates between BATT and ERR

no other device pages can be viewed

The device remains in this state until it is turned OFF or the battery is completely depleted. The alarm lights and the audible alarm can be silenced by pushing the button.

When the device battery is running low, remove it from service and replace the battery.

GB

The alarm can be turned off by pressing the button.

ALTAIR 2X 30

Use

Sleep Mode

To save battery run time, the device can be setup to automatically go into sleep mode. If activated, the device will go into sleep mode if

The device has been continuously activated for at least 8 hours

The device has not detected any movement continuously for at least 2 hours after the 8-hour minimum operation time has elapsed

The device has not seen any alarm or readings other than 0 ppm (mg/m³) during the 2 hours of no movement

Before going into sleep mode, the device will show a warning to notify the user it will go into sleep mode if the device is not moved or no button is pressed.

During sleep mode, the device will be inactive, not measuring gas and not displaying any readings. The device can be reactivated by either pressing the button or deliberately moving the device so that a noticeable movement can be detected.

3.7

Monitoring Gas Concentration

WARNING

If a gas alarm condition is reached while using the device as a personal or area monitor, leave the area immediately: the ambient condition has reached a preset alarm level. Failure to follow this warning can result in serious personal injury or death.

Toxic Gases

The device displays the gas concentration in parts per million (ppm) or mg/m³ on the measuring page. The device remains on this page until another page is selected or the device is turned OFF.

There are four alarm setpoints in the device:

GB

High Alarm

Low Alarm

STEL Alarm

TWA Alarm

ALTAIR 2X 31

Use

Alarm Condition

The backlight turns ON for a user-settable time during an alarm condition.

If the gas concentration reaches or exceeds the alarm setpoint:

the alarm symbol will display and flash

the icon for the type of alarm will display and flash

a vibrating alarm is triggered

an alarm sounds

alarm LEDs flash

Low Alarm

If the gas concentration reaches or exceeds the low alarm setpoint the device will:

display the low alarm icon with the gas reading

enter a low alarm sequence

The low alarm can be silenced for a few seconds by pressing the button. It automatically clears once the gas level falls below the setpoint.

High Alarm

If the gas concentration reaches or exceeds the high alarm setpoint the device will:

display the high alarm icon with the gas reading

enter a high alarm sequence

The high alarm can be silenced for a few seconds by pressing the button while it is still in high alarm. The high alarm is latching and will not reset when gas concentration falls below the HIGH setpoint.

GB

To reset the alarm, push the button after the gas level falls below the setpoint.

Refer to the device during turn ON for factory-set alarm points.

ALTAIR 2X 32

Use

STEL Alarm

When the amount of gas detected by the device is greater than the STEL limit:

Alarm sounds

Alarm LEDs flash

STEL icon is displayed

The STEL alarm can be silenced for a few seconds by pressing the button while it is still in alarm.

The STEL alarm is non-latching and will reset when STEL reading falls below the STEL setpoint. The STEL value can be cleared. (

 Fig. 10 for details.)

TWA Alarm

When the TWA reading reaches or exceeds the TWA alarm setpoint:

Alarm sounds

Alarm LEDs flash

TWA icon is displayed.

The TWA alarm can be silenced for a few seconds by pressing the button while it is still in alarm.

The TWA alarm is latching and will not reset. The TWA value can be cleared.

(

 Fig. 10 for details.)

Refer to the device during test mode for factory-set alarm setpoints.

3.8

Changing Alarm Setpoints

Alarm setpoints can only be changed using the MSA Link™ Software.

GB

ALTAIR 2X 33

Use

3.9

Displaying Device Data

The Information page can be accessed by pushing the button for over one second.

The following modes are displayed:

Bump test

Peak Reading

The Peak/Hi and Min/Low values can be cleared.

When this page is displayed, press the button to clear.

-

CLR

is displayed

Value is deleted

Short Term Exposure Limit

The STEL reading calculated since power-ON displays. When this page is displayed, press the button to clear.

Time Weighted Average

-

CLR

is displayed

Value is deleted

STL

value is automatically reset to zero when the device is turned ON.

The TWA reading calculated since power-ON displays. When this page is displayed, press the button to clear.

-

CLR

is displayed

Value is deleted

TWA

value is automatically reset to zero when the device is turned ON.

GB

ALTAIR 2X 34

Use

Measurement

PULSE?

for

XCell Pulse technology

BUMP?

for other sensors

Min or Max

Screen*

„0 ppm“

Button Press?

Y

N

Min/Max information is reset

CLR

Button Press?

N

Y

N

XCell Pulse

Technology?

Y

STEL Screen*

„0 ppm“

Button Press?

Y

N

STEL information is reset

CLR

Bump Test Pulse Check

* Depending on individual instrument setup

TWA Screen*

„0 ppm“

Button Press?

Y

N

TWA information is reset

CLR

Cal Screen*

„CAL“ „?“

Button

Press?

Y

N

GB

Measurement

Zero Cal

Fig. 10 Displaying device data

3.10 IR mode

A button press (more than one second) in measurement mode will activate

IR mode for 1 minute. If no IR communications are detected, the device will exit this mode automatically.

ALTAIR 2X 35

Use

3.11 Turning OFF the Device

(1) Press and hold button until OFF is displayed.

(2) Release button while OFF is being displayed to turn off the device.

3.12 Data Logging

Session Data Log

The device can record events (see section 5.3 for details).

Periodic Data Log

Peak gas readings are periodically logged, based on user settings

(see section 5.3 for details).

The date and time display are based on the PC time. Make sure that the date and time on the PC are correct.

Changing the device battery can result in lost time in the data log.

After changing batteries, verify the Time and Date with the PC.

Connecting Device and a PC

(1) Switch on PC and align device to the IR interface of the PC.

(2) Press the button (for more than 1 second) on the device to enter IR mode.

(3) Start the MSA Link™ Software on the PC and start the connection.

GB

ALTAIR 2X 36

Use

3.13 Calibration

The device must be calibrated if it does not pass a bump test.

Perform a bump test (see section 3.5) before each day's use to verify proper device operation. The device must pass the bump test. If it fails the test, perform a calibration before using the device.

A calibration consists of the adjustment of the sensor output to match the precise concentration value of a known, traceable, calibration gas cylinder. A calibration can be performed at any time to ensure maximum accuracy. Calibration frequency is often stipulated by national or corporate regulations; however, a calibration should be performed periodically at regular intervals or if the unit fails a bump test. MSA recommends a calibration interval of 2 months for devices with XCell Pulse technology and a maximum 6 months for devices with standard XCell sensors.

Make sure that the calibration is carried out in clean, non-contaminated ambient air.

WARNING

Regulators and tubing used for bump testing and calibrating Cl

2

or NH

3

must be labelled by the user for that specific gas and must only be used for that gas exclusively in the future.

Due to high reactivity of Cl

2

and NH

3

gas, ambient humidity and calibration tubing material can react with the gas and cause the concentration reading to be lower than the actual concentration. When calibrating or bump checking with these gases, use dry tubing (for adequate material see section 7). For best calibration, use the shortest possible tubing to connect to the calibration cylinder for this gas.

GB

ALTAIR 2X 37

Use

Devices must be calibrated:

after subjected to physical shock,

after any extreme changes in the atmospheric temperature,

after use under high gas concentrations,

if the bump test/FAS failed,

at certain intervals by local procedures.

Calibration mode can be entered after the info screens have been displayed

(see Fig. 10).

(1) Press button for one second to access the information page.

(2) When ZERO? is displayed, press the button for a zero calibration.

If no zero calibration is carried out, the device returns to normal operating mode.

During the setup, the hour glass, the no calibration gas icon and the measured gas concentration are displayed.

If the zero cal operation fails, ERR is displayed. The device returns to normal operation after a button press.

If the zero calibration is successful, PASS is displayed followed by SPAN?.

(3) During the SPAN? display, press the button to start the calibration mode.

(4) Feed test gas into the device:

Connect the regulator (screwed on the calibration gas cylinder) and the sensor opening with a tube and open the regulator.

Possible test gases

 Section 7.

GB

WARNING

The concentration of the test gas used must match the stipulated in

Section 5.2 to calibrate the sensor correctly.

For two gas detectors, only calibration gas mixes can be used to calibrate the sensor correctly.

An incorrect calibration can lead to serious personal injury or death.

The current gas reading, hour glass and calibration gas cylinder icon are displayed.

If calibration is successful PASS is displayed and the device returns to normal operating mode.

ALTAIR 2X 38

Use

(5) Close the regulator.

For devices with XCell Pulse technology, WAIT is displayed together with the “no gas cylinder” icon. This shows that the regulator must be closed and the calibration gas must be removed from the device. Once gas is removed, the device will perform a secondary calibration operation (pulse check) on the sensor. During the pulse check, a countdown is displayed. The device will then return to normal operating mode.

If the span calibration fails, ERR is displayed. The device returns to normal operation after a button press.

(6) If calibration fails, check:

 whether the sensor inlet or sensor surface is dirty,

 whether the correct test gas was used, whether the test gas cylinder is empty or the date has expired, whether the test gas hose was connected to the sensor, whether the flow regulator is set to 0.25 l/min.

(7) If necessary, repeat steps (1) to (6).

PASS

is displayed. Otherwise (ERR), the device must be taken out of use.

If the calibration is successful, a

 is displayed for 24 hours. If the safe LED

(green) option is enabled, the green LEDs will flash periodically.

GB

ALTAIR 2X 39

Use

Page Menu Measurement

ZERO ?

N

Button Press?

Y

0 ppm

Y

Zero Passed?

N

Fig. 11 Zero calibration

PASS

Span Calibration

ERR

Button Press

N

Y

Measurement

ALTAIR 2X 40

GB

Use

Zero Calibration

SPAN?

Button Press?

N

Y

20 ppm

Y

Span passed?

N

PASS

XCell Pulse

Technology?

N

Y

ERR

Button Press?

N

Y

Pulse Check after Calibration

Fig. 12 Span calibration

ALTAIR 2X

M e a s u r e m e n t

41

GB

Use

Span Calibration

Waiting for the user to remove cal gas screen

WAIT

Is gas removed?

N

Y

Countdown to finalize

Pulse Check

This is a countdown for the

Pulse Check update after calibration

Measurement

Fig. 13 Pulse check after calibration for devices with XCell Pulse technology

3.14 Using the Device with a GALAXY GX2 Automated Test System

(1) Press the button (for more than 1 second) on the device to enter IR mode.

The device pages begin to display.

(2) Place the device into the suitable GALAXY GX2 test stand.

For further information see the operating manual for the GALAXY GX2

Automated Test System.

GB

ALTAIR 2X 42

Maintenance

4 Maintenance

If an error occurs during operation, use the displayed error codes to determine appropriate next steps.

4.1

Troubleshooting

Description Problem

Display

MEM RST

PCB ERR #

PRG ERR #

RAM ERR #

UNK ERR #

SNS ERR #

Reaction

Data Error Calibrate device. Reconfigure any custom settings (alarm setpoints, data log, etc...)

Contact MSA *) Electronic component error

Program memory error Contact MSA *)

RAM error Contact MSA *)

Unknown error

Sensor error

Sensor warning

Contact MSA *)

Contact MSA *)

Sensor is near the end of its life

&

Sensor alarm

Battery warning

(no alarm)

BATT

Battery empty

ERR

(with alarm – flash

LEDs, horn)

Device does not turn ON

Low battery

Sensor has reached the end of its life and cannot be calibrated.

Replace sensor and recalibrate.

Remove from service as soon as possible and replace battery

Device is no longer sensing gas.

Remove from service and replace battery.

Replace battery

*)

If the error occurs during the warranty period, please contact the MSA customer service. Otherwise, the device must be put out of operation.

#:

Some errors will show an additional error code number which should be noted and be available when contacting MSA.

GB

ALTAIR 2X 43

4.2

Replacing the Battery

WARNING

Risk of explosion: Do not change batteries in hazardous areas.

Only replace with: battery as listed in section 7.

1

Maintenance

2

Fig. 14 Sensor and Battery Replacement

1

2

Sensor

Battery

(1) Remove the four screws securing the case halves together.

(2) Carefully remove the front case to expose the battery.

The circuit board will remain with the back half of the case.

Do not touch the display connections (two blue connectors).

(3) Remove the depleted battery and replace only with one specified in section 7.

 Be sure to observe proper polarity on the battery, as shown on the battery holder.

(4) Ensure the interface and connectors for the display are clean and free of dirt for proper operation.

 If necessary, the display connectors can be cleaned with a soft, lint free cloth.

GB

ALTAIR 2X 44

Maintenance

(5) Reinstall the front case, making sure the sensor, horn gasket and sensor gasket are properly seated.

CAUTION

Do not over-tighten the screws; otherwise, the case may be damaged.

(6) Replace the four screws.

CAUTION

After replacing the battery or if the device was without power for some time, it is necessary to set time and date again using the MSA Link software.

When switching ON the device for the first time and after a battery replacement the device will initialize the battery. During a battery initialisation, BATT INIT is shown on the display followed by a sequence of LED illuminations and activation of the vibration motor. The device then continues the start-up as described in section 3.4.

4.3

Replacing the Sensor

CAUTION

Before handling the PC board, ensure you are properly grounded; otherwise, static charges from your body could damage the electronics. Such damage is not covered by the warranty. Grounding straps and kits are available from electronics suppliers.

(1) Verify that the device is turned off.

(2) Remove the four case screws and remove the front case to expose the sensor (located near the top of the device, near the alarm lights

 Fig. 14).

(3) Gently lift out and properly discard the sensor.

GB

WARNING

The new replacement sensor must be the same part number and type as the one being replaced; otherwise, improper operation will result.

(4) Install the new sensor in the sockets on the PC board (it can only be installed one way). Press the sensor firmly in place against the board.

(5) Reinstall the front case, making sure the sensor, horn gasket, and sensor gasket are properly seated.

ALTAIR 2X 45

Maintenance

(6) Ensure the interface and connectors for the display are clean and free of dirt for proper operation.

If necessary, the display connectors can be cleaned with a soft, lint-free cloth.

CAUTION

Do not over-tighten the screws; otherwise, the case may be damaged.

(7) Reinstall the screws.

WARNING

Calibration is required after a sensor is installed; otherwise, the device will not perform as expected and persons relying on this product for their safety could sustain serious personal injury or death.

(8) Calibrate the device.

4.4

Cleaning

Clean the exterior of the device regularly using only a damp cloth. Do not use cleaning agents other than listed in section 7.

4.5

Storage

When not in use, store the device in a safe, dry place between 0 °C and 40 °C.

After storage, always recheck device calibration before use.

4.6

Scope of Delivery

Pack the device in its original shipping container with suitable padding. If the original container is unavailable, an equivalent container may be substituted.

GB

ALTAIR 2X 46

Technical Data

5 Technical Data

5.1

Technical Specifications

Weight

Dimensions

(L x W x D)

Alarms

115 g (4 oz) (device with battery and clip)

87 x 55 x 48 mm (3.4 x 2.2 x 1.9 in) – with fastening clip

Two super bright LEDs with 320° viewing angle and a loud audible alarm, vibrating alarm

95 dB typical at 30 cm distance

Volume of audible alarm

Displays

Battery type

Large display of measured values

Non-rechargeable Lithium battery.

Only replace with: battery as listed in section 7.

Battery life

Temperature range

6 months to 12 months, depending on device settings, environmental conditions and general care and use.

At very low and very high temperatures the useable battery runtime can be significantly reduced.

Sensor

Electrochemical

Warm up time

1 minute during start-up procedure

Normal Operating Range

Extended Operating Range

-10°C to 40°C (14°F to 104°F)

-20°C to 50°C (-4°F to 122°F)

Short-term exposure

Storage

-40°C to 60°C (-40°F to 140°F)

0°C to 40°C (32°F to 104°F)

Vibrating Alarm 0°C to 50°C (32°F to 122°F)

Intrinsic Safety (ATEX, IEC, CSA) -40°C to 60°C (-40°F to 140°F)

Atmospheric

Pressure Range

At extremely low temperatures (below -20°C), the display can have a very slow update rate and can become hard to read.

80 to 120 kPa (11.6 to 17.4 PSIA)

Humidity range

15 % to 90 % relative humidity, non-condensing

5 % to 95 % relative humidity intermittent

Dust and spray protection

IP 67

GB

ALTAIR 2X 47

Technical Data

5.2

Sensor Data

Factory-set Alarm Thresholds and Setpoints

Sensor

Low Alarm

Set Point

High Alarm

Setpoint

Minimum

Alarm

Setpoint

25 ppm 100 ppm 10 ppm CO Carbon

Monoxide

CO Carbon

Monoxide

High

Concentration

25 ppm 100 ppm 10 ppm

H

2

S

Hydrogen

Sulfide

10 ppm 15 ppm 5 ppm

H

2

S Low

Concentration

5.0 ppm 10.0 ppm 1.0 ppm

(CO/H

2

S-LC sensor)

H

2

S Low

Concentration

10.0 ppm 15.0 ppm 1.0 ppm

(H

2

S-LC/SO

2 sensor)

Cl

2

Chlorine 0.5 ppm 1.0 ppm 0.3 ppm

NH

3

Ammonia

25 ppm 50 ppm 10 ppm

NO

2

Nitrogen

Dioxide

2.5 ppm 5.0 ppm 1.0 ppm

SO

2

Sulphur

Dioxide

2.0 ppm 5.0 ppm 1.0 ppm

Maximum

Alarm

Setpoint

STEL TWA

1700 ppm 100 ppm 25 ppm

8500 ppm 100 ppm 25 ppm

175 ppm 15 ppm 10 ppm

70.0 ppm 10.0 ppm 1.0 ppm

70.0 ppm 15.0 ppm 10.0 ppm

7.5 ppm

75 ppm

1.0 ppm

35 ppm

0.5 ppm

25 ppm

47.5 ppm 5.0 ppm 2.5 ppm

17.5 ppm 5.0 ppm 2.0 ppm

GB

ALTAIR 2X 48

Technical Data

Performance Specifications

Sensor

CO Carbon

Monoxide

CO Carbon

Monoxide

High Concentration

H

2

S Hydrogen

Sulfide

H

2

S Low

Concentration (CO/

H

2

S-LC sensor)

NH

NO

3

2

Ammonia

Nitrogen

Dioxide

SO

2

Sulphur

Dioxide

Range

0-1999 ppm

0-9999 ppm

0-200 ppm

0-100.0 ppm

0-100 ppm

0-50.0 ppm

0-20.0 ppm

Resolution

1 ppm

5 ppm

1 ppm

0.1 ppm

H

2

S Low

Concentration (H

2

S-

LC/SO

2

-sensor)

0-100.0 ppm 0.1 ppm

Cl

2

Chlorine 0-10.0 ppm 0.05 ppm

1 ppm

0.1 ppm

0.1 ppm

Reproducibility

Normal

Temperature Range

Extended

Temperature Range

+/-5 ppm or 10% of reading, whichever is greater

+/-10 ppm or 20% of reading, whichever is greater

+/-10 ppm or 10% of reading, whichever is greater

+/-25 ppm or 20% of reading, whichever is greater

+/-2 ppm or 10% of reading, whichever is greater

+/-5 ppm or 20% of reading, whichever is greater

+/-2 ppm or 10% of reading, whichever is greater

+/-5 ppm or 20% of reading, whichever is greater

+/-2 ppm or 10% of reading, whichever is greater

+/-5 ppm or 20% of reading, whichever is greater

+/-0,2 ppm or 10% of reading, whichever is greater

+/-0,5 ppm or 20% of reading, whichever is greater

+/-2 ppm or 10% of reading, whichever is greater

+/-5 ppm or 20% of reading, whichever is greater

+/-2 ppm or 10% of reading. whichever is greater

+/-3 ppm or 20% of reading, whichever is greater

+/-2 ppm or 10% of reading, whichever is greater

+/-3 ppm or 20% of reading, whichever is greater

GB

ALTAIR 2X 49

Technical Data

Calibration Specifications

Sensor

Response Time

(Typical) t[90]

Zero Gas

Zero Cal

Value

Calibration

Gas Concentration

Span Cal

Time

[min]

<15 s Fresh Air 0 ppm 60 ppm 1 CO Carbon

Monoxide

H

2

S Hydrogen

Sulfide

<15 s

Cl

2

Chlorine

NO

2

Nitrogen

Dioxide

<30 s

NH

3

Ammonia <40 s

<15 s

SO

2

Sulphur

Dioxide

<15 s

Fresh Air

Fresh Air

Fresh Air

Fresh Air

Fresh Air

0 ppm

0 ppm

0 ppm

0 ppm

0 ppm

20 ppm

10 ppm

25 ppm

10 ppm

10 ppm

1

2

2

2

1

GB

ALTAIR 2X 50

Technical Data

5.3

Data Logging Specifications

Session data log

Periodic data log

Number of stored events

50 (most recent occurrences)

Data transmission method

Via MSA infrared adapter on a PC using MSA

®

Link™ software

Event log information

Alarm - Alarm Type - Alarm Value -

Time/Date

Alarm Clear - Alarm Type - Alarm

Value - Time/Date

Cal (Pass/Fail) - Time/Date

Bump (Pass/Fail) - Time/Date

Error Non-Shutdown - Error Type

(See Error List) - Time/Date

ON/OFF - Time/Date

Transmission time

Alarm Peak (during an alarm event)

- Alarm Value - Time/Date

Typically less than 60 seconds max.

Default logging interval

Three minute peak readings

(configurable via PC from

15 seconds to 15 minute peaks or one minute average)

Storage time estimate

Typically greater than 100 hours for two-gas devices and greater than

150 hours with single gas devices with default interval (storage time varies based on interval and sensor activity)

Transmission time

Typically less than three minutes.

GB

ALTAIR 2X 51

Certification

6 Certification

See device label for the approvals that apply to your specific device.

Country USA

Exia

Class I, Groups A, B, C, D

Class II, Groups E, F, G

Class III

Ambient temperature: -40 °C to +60 °C; T4

Canada

Exia

Class I, Groups A, B, C, D

Class II, Groups E, F, G

Class III

Ambient temperature: -40 °C to +60 °C; T4

GB

ALTAIR 2X 52

Certification

6.1

Marking, Certificates and Approvals

According to the Directive 94/9/EC (ATEX)

Manufacturer: Mine Safety Appliances Company

1000 Cranberry Woods Drive

Cranberry Township, PA 16066 USA

Product:

EC-Type Examination Certificate:

ALTAIR 2X

FTZU 13 ATEX 0200 X

Type of protection:

Performance:

Marking:

EN 60079-0: 2012,

EN 60079-11: 2012, none

II 2G Ex ia IIC T4 Gb

-40° C

 Ta  +60° C

Battery:

Special Conditions:

T4: Lithium Saft LS 17330

Lithium EEMB ER 17335

The battery exchange has to be done only outside of the hazardous area.

Quality Assurance Notification: 0080

Year of Manufacture:

Serial Nr.: see Label see Label

GB

ALTAIR 2X 53

Certification

6.2

Marking, Certificates and Approvals According to IECEx

Manufacturer: Mine Safety Appliances Company

1000 Cranberry Woods Drive

Cranberry Township, PA 16066 USA

Product:

ALTAIR 2X

IECEx-Type Examination

Certificate:

IECEx FTZU 13.0025X

IEC 60079-0: 2011,

Type of protection:

IEC 60079-11: 2011 none Performance

Marking: Ex ia IIC T4 Gb

-40° C

 Ta  +60° C

Battery:

Special Conditions

T4 : Lithium Saft LS 17330

Lithium EEMB ER 17335

The battery exchange has to be done only outside of the hazardous area.

GB

ALTAIR 2X 54

Ordering Information

7 Ordering Information

7.1

Calibration Gas Cylinders

Description

Cylinder, 60 ppm CO, 34 L

Cylinder, 60 ppm CO, 20 ppm H

2

S, 34 L

Cylinder, 60 ppm CO, 20 ppm H

2

S, 58 L

Cylinder, 60 ppm CO, 20 ppm H

2

S, 116 L

Cylinder, 60 ppm CO, 10 ppm NO

2

, 34 L

Cylinder, 60 ppm CO, 10 ppm NO

2

, 58 L

Cylinder, 60 ppm CO, 10 ppm NO

2

, 116 L

Cylinder, 20 ppm H

2

S, 10 ppm SO

2

, 34 L

Cylinder, 20 ppm H

2

S, 10 ppm SO

2

, 58 L

Cylinder, 20 ppm H

2

S, 10 ppm SO

2

, 116 L

Cylinder, 20 ppm H

2

S, 34 L

Cylinder, 20 ppm H

2

S, 58 L

Cylinder, 20 ppm H

2

S, 116 L

Cylinder, 10 ppm Cl

2

, 34 L

Cylinder, 10 ppm Cl

2

, 58 L

Cylinder, 10 ppm NO

2

, 34 L

Cylinder, 10 ppm NO

2

, 58 L

Cylinder, 10 ppm SO

2

, 34 L

Cylinder, 10 ppm SO

2

, 58 L

Cylinder, 25 ppm NH

3

, 34 L

Cylinder, 25 ppm NH

3

, 58 L

Part No.

N.A.

EU

710882 10073231

10153800 10154976

10153801 10154977

10153802 -

10153803 10154978

10153804 10154980

10153805 -

10153806 10154995

10153807 10154996

10153808 -

10153844 10155919

10153845 10155918

10153846 -

711066 10011939

806740

711068

808977

711070

808978

711078

814866

-

10029521

-

10079806

-

-

10079807

GB

ALTAIR 2X 55

Ordering Information

7.2

Replacement Parts and Accessories

Description

Regulator, 0.25 lpm

MSA Link IR Dongle with USB connector

Horn and Sensor Gasket

Battery (Pack of 8)

Part No.

467895

Regulator, 0.25 lpm, Combination 711175

Tubing, 40 cm (16") (not used for NH

3

, Cl

2

)

Tubing, 40 cm (16"), Tygon (NH

3

, Cl

2

)

10030325

10080534

Repair Kit (Suspender clip, clip screw, adhesive strip, 4 case case screws, horn/sensor gasket, battery foam)

10154518

MSA Link Software CD-Rom 10088099

10082834

10152337-SP

10155203-SP

10155204-SP

10153060-SP Screws, Case (Pack of 40)

Front Case Replacement Assembly with Gaskets and

Display (without front label)

Grey for non-reactive gases (with filter)

Glow-in-the-dark for non-reactive gases (with filter)

Grey for reactive gases (without filter)

10154519

10154597

10154598

Front Case Label, Cl

2

(strip of 6)

Front Case Label, CO (strip of 6)

Front Case label, CO/H

2

S (strip of 6)

Front Case label, CO/NO

2

(strip of 6)

Front Case Label, H

2

S (strip of 6)

Front Case label, H

2

S/SO

2

(strip of 6)

Front Case Label, H

2

S-PLS (strip of 6)

Front Case Label, NH

3

(strip of 6)

Front Case Label, NO

2

(strip of 6)

Front Case Label, SO

2

(strip of 6)

Alcohol-free sanitizing wipe

10149015-SP

10149011-SP

10149000-SP

10149014-SP

10153586-SP

10149013-SP

10149012-SP

10149016-SP

10152883-SP

10152882-SP

10154893

GB

ALTAIR 2X 56

Ordering Information

7.3

Sensor Replacement Kits

Description

Cl

2

low power, replacement kit, XCell sensor

CO-HC low power, replacement kit, XCell sensor

H

2

S/CO low power, replacement kit, XCell sensor

H

2

S/CO-H

2

low power, replacement kit, XCell sensor

H

2

S-LC/CO low power, replacement kit, XCell sensor

H

2

S-LC/SO

2

low power, replacement kit, XCell sensor

H

2

S-PLS replacement kit, XCell sensor

NH

3

low power, replacement kit, XCell sensor

NO

2

/CO low power, replacement kit, XCell sensor

Part No.

10152600

10152602

10152603

10152604

10152605

10152607

10121227

10152601

10152606

GB

ALTAIR 2X 57

Thank you for reading this data sheet.

For pricing or for further information, please contact us at our UK Office, using the details below.

UK Office

Keison Products,

P.O. Box 2124, Chelmsford, Essex, CM1 3UP, England.

Tel: +44 (0)1245 600560

Fax: +44 (0)1245

808399

Email: [email protected]

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
