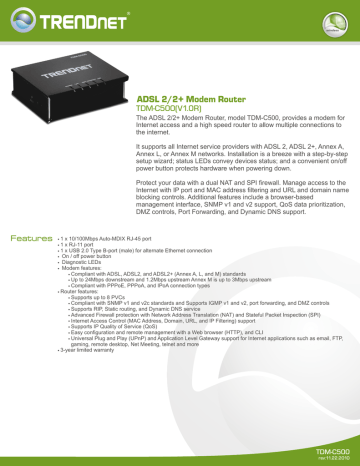

Trendnet TDM-C500 ADSL 2/2+ Modem Router Datasheet

wireless
ADSL 2/2+ Modem Router
TDM-C500(V1.0R)
The ADSL 2/2+ Modem Router, model TDM-C500, provides a modem for
Internet access and a high speed router to allow multiple connections to
the internet.
It supports all Internet service providers with ADSL 2, ADSL 2+, Annex A,
Annex L, or Annex M networks. Installation is a breeze with a step-by-step
setup wizard; status LEDs convey devices status; and a convenient on/off
power button protects hardware when powering down.
Protect your data with a dual NAT and SPI firewall. Manage access to the
Internet with IP port and MAC address filtering and URL and domain name
blocking controls. Additional features include a browser-based
management interface, SNMP v1 and v2 support, QoS data prioritization,
DMZ controls, Port Forwarding, and Dynamic DNS support.
Features
1 x 10/100Mbps Auto-MDIX RJ-45 port
1 x RJ-11 port
=
1 x USB 2.0 Type B-port (male) for alternate Ethernet connection
=
On / off power button
=
Diagnostic LEDs
=
Modem features:
=
Compliant with ADSL, ADSL2, and ADSL2+ (Annex A, L, and M) standards
=
Up to 24Mbps downstream and 1.2Mbps upstream Annex M is up to 3Mbps upstream
=
Compliant with PPPoE, PPPoA, and IPoA connection types
=
Router features:
=
Supports up to 8 PVCs
=
Compliant with SNMP v1 and v2c standards and Supports IGMP v1 and v2, port forwarding, and DMZ controls
=
Supports RIP, Static routing, and Dynamic DNS service
=
Advanced Firewall protection with Network Address Translation (NAT) and Stateful Packet Inspection (SPI)
=
Internet Access Control (MAC Address, Domain, URL, and IP Filtering) support
=
Supports IP Quality of Service (QoS)
=
Easy configuration and remote management with a Web browser (HTTP), and CLI
=
Universal Plug and Play (UPnP) and Application Level Gateway support for Internet applications such as email, FTP,
gaming, remote desktop, Net Meeting, telnet and more
=
3-year limited warranty
=
=
TDM-C500
rev:11.22.2010
ADSL 2/2+ Modem Router
TDM-C500(V1.0R)
SPECIFICATIONS
Hardware
Standards
• Compliant with ADSL standards:
• Compliant with ADSL2 standard:
ANSI T1.413 Issue2
G.992.3 (G.dmt.bis, Annex L)
G.992.1 (G.dmt, Annex A)
G.992.2 (G.lite)
• IEEE 802.3u 10/100Base TX Fast Ethernet
Protocol
• TCP/IP,NAT, HTTP, DHCP Server/Relay/Client, DDNS, DNS Proxy, UPNP
Firewall
• Network Address Translation (NAT) • Stateful Packet Inspection (SPI)
• Management Access Control for LAN
• Packet Filtering – IP, MAC, Domain, Keyword
ATM
• VC and LLC Multiplexing • Bridged/Routed Ethernet over ATM (RFC1483/2684) • OAM F4/F5 loop-back
• PPP over ATM (RFC2364) • PPP over Ethernet (RFC2516) • ATM Traffic Shaping QoS(UBR, CBR, rt-VBR, nrt-VBR)
Management
• Web based Configuration (HTTP) • Command Line Interface (CLI) via Telnet • SNMP v1 and v2c • IGMP v1 and v2 • SW upgrade
WAN Port
(ADSL line Interface)
• 1 x RJ-11 port
LAN Port
• 1 x 10/100Mbps Auto-MDIX RJ-45 port
USB
• Type B male port, supporting USB 2.0 and backwards compatible with 1.0 (optional LAN port)
Reset Button
• Reset to factory default
On/Off Power Button
• Power on/off button
LED
• Power, LAN: Link/ACT, USB, ADSL, Internet, USB
Power
• A: 9V, 1A external power adapter
Power Consumption
• 4.3 Watts
Dimensions
• 90 x 107 x 28 mm (3.5 x 4.2 x 1.1 in)
Weight
• 221 g (7.8 oz)
Temperature
• Operating: 0°~ 40°C (32°~ 104°F)
Humidity
• Max. 90% (non-condensation)
Certifications
• CE, FCC
NETWORKING SOLUTIONS
• Compliant with ADSL2+ standard:
G.992.5 Annex A and M
• EU : 9V, 0.5A external power adapter
• Storage: -10°~ 70°C (-14°~ 158°F)
PACKAGE CONTENTS
• TDM-C500
• Multi-Language Quick Installation Guide
• CD-ROM (User's Guide)
• Power adapter
• Cat. 5 Ethernet cable (1.5 m / 5 ft.)
• RJ-11 telephone cable (1.8 m / 6 ft.)
