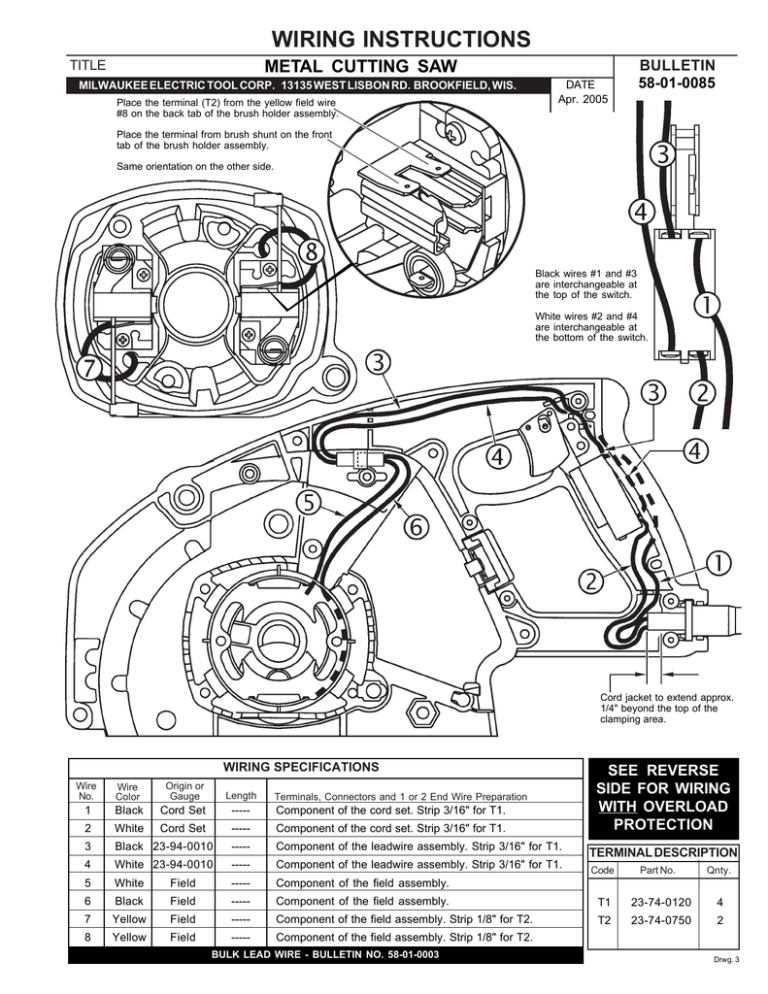

WIRING INSTRUCTIONS
BULLETIN
58-01-0085
METAL CUTTING SAW
TITLE
MILWAUKEE ELECTRIC TOOL CORP. 13135 WEST LISBON RD. BROOKFIELD, WIS.
Place the terminal (T2) from the yellow field wire
#8 on the back tab of the brush holder assembly.
DATE
Apr. 2005
Place the terminal from brush shunt on the front
tab of the brush holder assembly.
Same orientation on the other side.
Black wires #1 and #3
are interchangeable at
the top of the switch.
White wires #2 and #4
are interchangeable at
the bottom of the switch.
Cord jacket to extend approx.
1/4" beyond the top of the
clamping area.
WIRING SPECIFICATIONS
SEE REVERSE
SIDE FOR WIRING
WITH OVERLOAD
PROTECTION
Wire
No.
Wire
Color
Origin or
Gauge
Length
1
Black
Cord Set
-----
Component of the cord set. Strip 3/16" for T1.
2
White
Cord Set
-----
Component of the cord set. Strip 3/16" for T1.
3
Black 23-94-0010
-----
Component of the leadwire assembly. Strip 3/16" for T1.
4
White 23-94-0010
-----
Component of the leadwire assembly. Strip 3/16" for T1.
5
White
Field
-----
Component of the field assembly.
6
Black
Field
-----
Component of the field assembly.
T1
23-74-0120
4
T2
23-74-0750
2
Terminals, Connectors and 1 or 2 End Wire Preparation
7
Yellow
Field
-----
Component of the field assembly. Strip 1/8" for T2.
8
Yellow
Field
-----
Component of the field assembly. Strip 1/8" for T2.
BULK LEAD WIRE - BULLETIN NO. 58-01-0003
TERMINAL DESCRIPTION
Code
Part No.
Qnty.
Drwg. 3
Place the terminal (T2) from the yellow field wire
#8 on the back tab of the brush holder assembly.
Place the terminal from brush shunt on the front
tab of the brush holder assembly.
Same orientation on the other side.
Black wires #1 and #3
are interchangeable at
the top of the switch.
White wires #2 and #9
are interchangeable at
the bottom of the switch.
Overload Protector
T3
T3
WIRING SPECIFICATIONS
SEE REVERSE
SIDE FOR WIRING
WITHOUT
OVERLOAD
PROTECTION
Wire
No.
Wire
Color
Origin or
Gauge
Length
1
Black
Cord Set
-----
Component of the cord set. Strip 3/16" for T1.
2
White
Cord Set
-----
Component of the cord set. Strip 3/16" for T1.
3
Black
23-94-0011
-----
Component of the leadwire assembly.
4
White
23-94-0011
-----
Component of the leadwire assembly. Strip 5/16" for T3.
5
White
Field
-----
Component of the field assembly.
6
Black
Field
-----
Component of the field assembly.
7
Yellow
Field
-----
Component of the field assembly. Strip 1/8" for T2.
T1
23-74-0120
4
23-74-0750
2
23-74-1130
2
Terminals, Connectors and 1 or 2 End Wire Preparation
TERMINAL DESCRIPTION
Code
8
Yellow
Field
-----
Component of the field assembly. Strip 1/8" for T2.
T2
9
White
23-94-0011
-----
Component of the leadwire assembly. Strip 5/16" for T3.
T3
BULK LEAD WIRE - BULLETIN NO. 58-01-0003
Part No.
Qnty.
