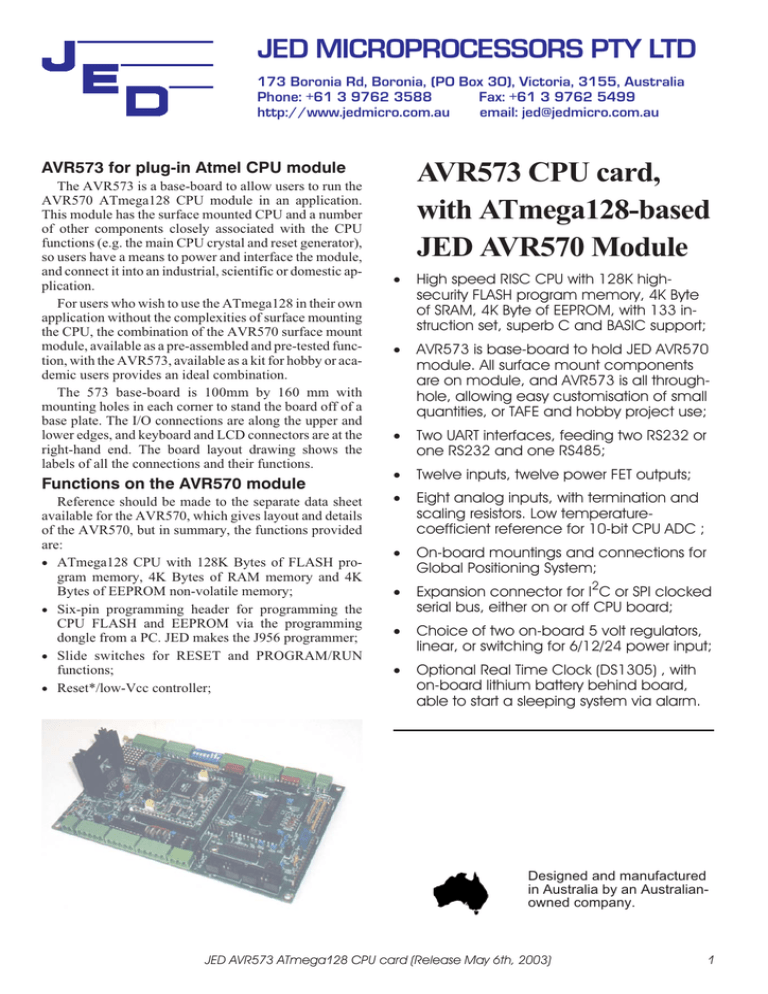

AVR573DS
JED MICROPROCESSORS PTY LTD
173 Boronia Rd, Boronia, (PO Box 30), Victoria, 3155, Australia
Phone: +61 3 9762 3588
Fax: +61 3 9762 5499
http://www.jedmicro.com.au
email: [email protected]
AVR573 for plug-in Atmel CPU module
The AVR573 is a base-board to allow users to run the
AVR570 ATmega128 CPU module in an application.
This module has the surface mounted CPU and a number
of other components closely associated with the CPU
functions (e.g. the main CPU crystal and reset generator),
so users have a means to power and interface the module,
and connect it into an industrial, scientific or domestic application.
For users who wish to use the ATmega128 in their own
application without the complexities of surface mounting
the CPU, the combination of the AVR570 surface mount
module, available as a pre-assembled and pre-tested function, with the AVR573, available as a kit for hobby or academic users provides an ideal combination.
The 573 base-board is 100mm by 160 mm with
mounting holes in each corner to stand the board off of a
base plate. The I/O connections are along the upper and
lower edges, and keyboard and LCD connectors are at the
right-hand end. The board layout drawing shows the
labels of all the connections and their functions.
Functions on the AVR570 module
Reference should be made to the separate data sheet
available for the AVR570, which gives layout and details
of the AVR570, but in summary, the functions provided
are:
· ATmega128 CPU with 128K Bytes of FLASH program memory, 4K Bytes of RAM memory and 4K
Bytes of EEPROM non-volatile memory;
· Six-pin programming header for programming the
CPU FLASH and EEPROM via the programming
dongle from a PC. JED makes the J956 programmer;
· Slide switches for RESET and PROGRAM/RUN
functions;
· Reset*/low-Vcc controller;
AVR573 CPU card,
with ATmega128-based
JED AVR570 Module
·
High speed RISC CPU with 128K highsecurity FLASH program memory, 4K Byte
of SRAM, 4K Byte of EEPROM, with 133 instruction set, superb C and BASIC support;
·
AVR573 is base-board to hold JED AVR570
module. All surface mount components
are on module, and AVR573 is all throughhole, allowing easy customisation of small
quantities, or TAFE and hobby project use;
·
Two UART interfaces, feeding two RS232 or
one RS232 and one RS485;
·
Twelve inputs, twelve power FET outputs;
·
Eight analog inputs, with termination and
scaling resistors. Low temperaturecoefficient reference for 10-bit CPU ADC ;
·
On-board mountings and connections for
Global Positioning System;
·
Expansion connector for I2C or SPI clocked
serial bus, either on or off CPU board;
·
Choice of two on-board 5 volt regulators,
linear, or switching for 6/12/24 power input;
·
Optional Real Time Clock (DS1305) , with
on-board lithium battery behind board,
able to start a sleeping system via alarm.
Designed and manufactured
in Australia by an Australianowned company.
JED AVR573 ATmega128 CPU card (Release May 6th, 2003)
1
· Ten-pin header for Atmel JTAG ICE debug system
(optional);
· Four power FET outputs from CPU;
· RS485 interface;
· DS1305 Real Time Clock (optional) with 32Khz crys-
tal, and Lithium backup battery (on back of module).
An alarm output FET can control power on function;
· Power Hold-On FET for CPU control of power switch
line from module;
Summary of I/O on the AVR573
On the upper edge of the board:
· Eight analog inputs;
· Eight DIP switch inputs;
· Eight analog or digitalinputs, with grounds to A port;
· Four inputs to CPU INT6/T3, INT7/IC3, T1, T2; and
· Dallas 1-Wire for sensors or memory.
On the lower edge of the board:
· Unregulated power input;
· Eight low power FET outputs;
· RS232 interface, RS232#0; and
· RS232 interface, RS223#1.
On the right-hand edge of the board are:
· Connector to an LCD text display; and
· Connector to an up to 24 key keyboard.
Via a second layer board:
· SPI interfaces to on and off board devices;
· I2C (TWI) clocked serial to on and off board devices;
· Via a separate connector, access to an on-board GPS
receiver.
Analog input system
The ATmega128 on the AVR570 module has an 8channel, 10-bit Analog to Digital converter, and all eight
input channels of the CPU are carried through the
AVR573 base-board to a set of eight plug-in strip sockets.
JED AVR573 ATmega128 CPU card (Release May 6th, 2003)
2
Users can install their own resistors or capacitors here for
input signal conditioning.
Inputs from screw terminals J1 and J2 are fed to two
socket positions on these strips, and Ground, Vcc and
CPU ADC input pins alternate with the input signals.
Users can install pull up resistors to Vcc or pulldown
resistors to ground. A pullup resistor to Vcc can supply
power to a sensor such as a Thermistor, an AD590
voltage-output temperature sensor or a grounded resistor
sensor such as a fuel or other liquid level sensor. A pulldown resistor to ground can terminate a 4-20mA loop system to measure the current. (A 200-Ohm resistor converts
a 20mA signal to 4.00 volts.) The reference-input voltage
is 4.096 volts so this gives an ADC count of 1000 for
20mA loop current.
After the positions for the pull-up and pulldown resistors are sockets for a series resistor for CPU input protection or voltage divider use. All analog inputs have lowleakage clamp diodes to ground and Vcc to protect inputs
from ElectroStatic Discharge (ESD) or fault-caused outof-range inputs. Typical input values could be 10K ohm.
If it is desired to handle larger input voltages than the
4.092V input undivided full-scale, additional resistor
sockets are provided (at the end of the socket strip) for a
CPU input-pin to ground resistor acting with the series resistor as a divider. A 4 to 1 resistor ratio divider would
give a 20 volt input range with a count of 1000 corresponding to 20 volts, i.e. 20mV per bit.
If no divider resistor is installed, a filter capacitor can
be placed in these last sockets.
(For best accuracy, 0.1% low temp-co resistors should
be used for dividers and 200 ohm loads. These are available from JED, RS or Farnell or other resistor suppliers.)
The reference voltage to the CPU ADC on the AVR570
is supplied from a Maxim MAX874CPA, which can be
accurately set with a trimpot on the board to 4.096 volts.
This gives a reading of 1000 counts for 4.000 volts, i.e. 4
mV per bit.
A 5 volt regulated power outlet is available on the analog input socket J1 pin 1 via a 100mA Polyfuse to supply
sensors or pre-processing logic.
JTAG interface
The AVR570 has pads for the optional connector to the
Atmel JTAG debug interface. This is enabled with a fuse
bit in the CPU set with the programmer, and when in use,
allocates the upper four lines of the ADC port (Port F).
Thus if the JTAG debugger is in use, these lines are unavailable for ADC or Port F use. The series resistors in
these four lines should be unplugged in this case.
Digital use of Port F, (ADC port)
The analog input connections discussed here can also
be used as 8 additional digital I/O lines. The analog port
pins are also wired in parallel with a digital I/O port, Port F
bits 0 ... 7, inside the CPU.
As a digital input, pullup resistors can be programmed
ON inside the CPU. These are of quite high value, and it is
recommended that external pull-up or pulldown resistors
be installed in the socket strips just discussed. Series protection resistors are then installed in the "series" positions
in the socket strips to bring the input signals to the CPU
port on the AVR570. Clamp diodes protect the CPU. As a
guideline, 4.7K pullup and series resistors are a good
choice.
As a digital output port, the outputs from the CPU are a
totem-pole output with 20mA source and sink drive. If
used in output mode, a low value series protection resistor
or a zero Ohm link should be installed in the "series"
socket positions.
Digital input system
The digital input system on the AVR573 has twelve input lines to the CPU ports (four to dedicated special function pins), an eight-way DIP switch input and a 6 by 4 keyboard scan system.
Port A of the CPU is shared between eight inputs, the
DIPswitch, and the keyboard functions; tristate buffers
are enabled and disabled as these latter functions are read.
All is controlled by an OUT instruction to the three lower
Port G pins.
Setting a "0", "1", "2" or "3" to these Port G bits scans
the four rows of the keyboard, and inputs from the six columns of the keyboard are enabled to the Port A bus into
the CPU and can be read with an IN instruction. (The top
two bits on this keyboard buffer are the DCD and CTS
lines of the serial port SER0.)
Setting "4" to these three Port G control bits enables a
read of the eight-way DIPswitch via CPU Port A. An ON
of a switch is read as a "0" on that bit. (Pads under the
DIPswitch allow the switch to be off-board, for example,
a thumbwheel switch on a front panel.)
Setting "5", "6" or "7" to these three Port G bits disables
the tristate buffers for the keyboard and DIP switch, and
10K Ohm series protection resistors from the J5 and J9
connectors allow input data to be read by the CPU, eight
bits wide, at Port A. These input ports have sockets for
user-installed quad (5-pin) pull-up or pulldown resistor
packs, typically 4.7K Ohms in value. (Pull-up resistors allow a switch or opto-isolator input to be sensed, a LOW
indicating a closed contact or active opto-isolator. Pulldown resistors allow for a voltage input to be sensed,
where a voltage greater than 2 volts being sensed as logic
HIGH.)
The other four inputs for the AVR573 come from the
connector J10, and are wired to CPU in put pins directly
via series protection resistors. The CPU pins have these
functions:
· Input 9 is Interrupt Input INT6, and CPU Port PE6.
This is also Timer 3 input;
· Input 10 is Interrupt Input INT7, and CPU Port PE7.
This is also Input Capture Trigger for Timer 3;
· Input 11 is Timer 1 input, and CPU Port PD6; and
· Input 12 is Timer 2 input, and CPU Port PD7;
JED AVR573 ATmega128 CPU card (Release May 6th, 2003)
Page 3
These 4 inputs also have sockets for a pull-up or pulldown resistor pack as above.
Digital output system
There are also two groups in the digital output system:
· Eight low-power FET outputs are fed from a TPIC6259
device, which provides eight, 250mA continuously
rated N-FETs with 1.3 Ohm typical channel resistance.
These have output clamps at 45 Volts. This device is an
addressable latch which has all outputs cleared OFF on
RESET, and can have bits set/cleared by placing an address on Port G bits 0, 1 and 2, data 0 or 1 on Port D bit
4, and then taking Port D bit 5 LOW then HIGH to latch
an output; and
interface, a jumper on the board must select the RS485 receiver to the CPU.
The CPU must turn on the RS485 transmitter before
any characters are transmitted. Because RS485 is a
"shared medium" system, the transmitter must be turned
off to release the lines for other devices on the RS485 network or to receive a reply from a remote node with which
this node is communicating. The TX_Enable line for the
RS485 transmitter is Port B bit 5. The ATmega128
UARTs have a convenient “Transmit Complete” Interrupt, allowing a routine to turn off the transmitter just after
the last character being transmitted clears the UART shift
register.
Serial I/O: GPS
Two UART driven serial ports are provided in the ATmega128 architecture, and these both are buffered on the
AVR573 base-board, with two RS232 and a RS485 interface, as well as a TTL/CMOS level interface to the onboard GPS.
As well, SPI and I2C (TWI) clocked serial interfaces
are provided in the CPU.
If the optional on-board GPS header and support is installed, four mounting studs hold the module, and a 20 pin
fine-pitch header interfaces to the pins on the rear of the
module. Communication with it is at TTL/CMOS level
asynchronous serial at 9600 baud, and uses the CPU
UART 0. (A jumper connects the receiver from the GPS to
the CPU RXD0.)
Five volt Vcc powers the GPS and Polyfuse-limited antenna power is supplied on another pin. System RESET*
also resets the GPS module.
A second jumper can be installed to connect the unused
RS232 RS232#0 receive buffer into the second serial input of the GPS to allow differential GPS correction signals (via J15) to be decoded by the GPS for high-accuracy
applications.
Serial I/O: RS232#0
Serial I/O: Expansion on/off board
UART0 in the CPU becomes the RS232#0 interface,
and J15 is the connector for this channel. This is pinned
out as a DTE (Data Terminal Equipment), so it will connect with a straight-through cable (such as a ribbon cable)
to a modem, GSM phone, etc. If it needs to connect to a PC
(also a DTE) a "null modem" cable is needed to swap signal and handshake lines.
As well as the TXD0 and RXD0 lines to the port, outputs RTS0 (derived from CPU Port B bit 6) and DTR0,
(derived from Port B bit 7) are available. Inputs for the
DCD0 and CTS0 lines are also provided, and are read via
the keyboard buffer to Port A bits 6 and 7 respectively
(when the keyboard is addressed via port G).
Connector J14 on the base-board is provided for expansion of I/O for the AVR573, making use of the SPI and/or
I2C (TWI) interfaces supported by hardware on the CPU.
This connector allows for a JED-made prototype board to
be plugged in, using the same mounting studs as the GPS
would use. This prototype or custom board is a little
longer to interface with connector J14. (It can also pick up
the GPS connector and use pins on that connector with
UART0 TX and RX lines. Thus, for example, a second
RS485 interface could be added to this board.)
The main expansion medium on this expansion connector is via the I2C and SPI interfaces. Port D Bit 0 is
SCL/INT0, and Port D Bit 1 is SDA/INT1.
Several other port pins come to this connector, and
these can be used for device or chip select lines for the SPI
interface.
Lines provided for SPI are:
· Port B Bit 0 (SS). This can be used either as a SPI chip
select, or for SPI master/slave handshake;.
· Port B Bit 1 (SCK);
· Port B Bit 2 (MOSI);
· Port B Bit 3 (MISO).
Port B, Bits 4 to 7 lines all have other functions:
· Bit 4 can be used as a SPI chip select, or alternatively as
the LCD backlight control, as selected by a jumper
L18. This jumper can also turn the backlight ON or
· Four high-power FETs, MTD3055, driven directly by
four CPU pins, Port E bits 2, 3, 4 and 5. CPU Port E Bits
3, 4 and 5 are respectively PWM Counter/Timer 3 Outputs A, B and C. These FETs are rated at 2A continuous
on the board, and have internal output clamps at 60
Volts.
Serial Interfaces
Serial I/O: RS232#1
UART1 in the CPU becomes the RS232#1 interface,
and J16 is the connector for this channel. Active lines on
this interface are TXD1 and RXD1. These lines go via
crossover links on the base-board so the port can be easily
configured as either a DTE or a DCE device. No active
handshake lines are provided, but another link jumpers
RTS and CTS lines. DSR, DTR and CDC lines on J16 are
also passively linked.
Serial I/O: RS485
UART1 serial comms can also be jumpered to transmit
and receive via a RS485 interface, as an alternate to
RS232#1. This connects to screw terminals J17, with a
ground and the differential signal lines. To use the RS485
JED AVR573 ATmega128 CPU card (Release May 6th, 2003).
Page 4
OFF permanently (e.g. when this bit is used by an interface);
· Bit 5 can be used as a SPI chip select, but is hardwired
to the TX enable of the RS485 transceiver, so should
not be used for any other purpose if the RS485 interface
is being used on the AVR573;
· Bit 6 can be used as a SPI chip select, but its alternate
function is to provide the RTS line on serial interface
RS232#0. Selection of this function is via link L13,
which disconnects the RS232 RTS driver and grounds
the input, sending out a permanent +9 on the RTS line.
Bit 6 is then released for use by the SPI interface;
· Bit 7 can be used as a SPI chip select, but its alternate
function is to provide the DTR line on serial interface
RS232#0. Selection of this function is via link L12,
which disconnects the RS232 RTS driver and grounds
the input, sending out a permanent +9 on the DTR line.
Bit 7 is then released for use by the SPI interface.
Note: If no I2C interface is used, Port D bit 0 and Port D
Bit 1 (The I2C SDA and SCL lines) can be used as SPI chip
select lines, or just as general purpose I/O lines. They can
even be used as interrupt input lines, as they are INT0 and
INT1 input lines.
I2C interface
The I2C interface uses the SDA and SCL lines from the
CPU (Port D, bits 0 and 1) and a full hardware-supported
interface inside the ATmega128 CPU, with clock speed
control and interrupt support. Multi-master and slave
modes are supported. Series protection resistors and pullups for the SDA and SCL lines are provided on the baseboard, so J14 could be used as a ribbon cable connector to
connect to another board, as well as to the “upstairs”
board.
A 4-way ribbon cable from this connector can pick up
pins 11 to 14, i.e. Ground, Vcc, SDA and SCL in order.
Because addressing is done in the structure of the I2C messages sent, and I2C chips have addresses either preset inside or set by address pins on the chip. Select lines are not
needed.
(Many pages in the ATmega128 data-sheet are devoted
to this interface, with sample code.)
SPI interface
This interface uses Port D Bits 1, 2 and 3 (SCK, MOSI
and MISO) as signal lines, and chip select lines from
available pins as discussed above.
As with the I2C interface, the SPI interface can also be
extended off-board by a ribbon cable. J12, Pins 1 and 2 are
Ground and Vcc. Pins 3 to 10 are Port B bits 0 ... 7 in turn,
leaving the top four pins available for the I2C, either on or
off board.
LCD and Keyboard Interface
Connector LCD1 is a 16-pin strip header to go to an offboard LCD display. This runs from Port C, Bits 0, 1 and 2
as control lines, and bits 4 to 7 as a 4-line (2-nibble) data
bus for the LCD. This will run any Hitachi 44780 controlled 4 line by 16 or 20 LCD or any 2 line by 16, 20, 32 or
40 LCD. A bias supply for the LCD display is supplied
from a trim pot to set the viewing angle. Positive or negative polarities are available and are selected by jumper
link L11, to accommodate wide-temperature-range LCD
displays.
A link from Port C, Bit 3 is available (via link L17) to
provide an additional E line to support a larger, twocontroller LCD, such as a 4 line by 40 display.
The keyboard interface was discussed above. It uses
codes 0, 1, 2 and 3 sent to Port G to select keyboard columns and then the read of the lower 6 bits as a row into
Port A.
Dallas 1-Wire I-Button
Port C, Bit 3 can be used as a 1-Wire port to a Dallas 1Wire network with one or more devices from the 1-Wire
range. Dallas 1-Wire ports are supported by software in
both BASCOM and CodeVision, and the port pin used is
setup in the program. Communications are initiated by the
CPU driving the line LOW for 500 microseconds to RESET the connected device. ONEs or ZEROs are sent with
shorter or longer pulses. Commands are sent in as ONEs
or ZEROs and data is read out by sending in a short pulse,
floating the port bit, and detecting whether the connected
device releases the line or holds the line LOW for a specified period.
The port is ESD protected by clamp diodes.
Real Time Clock system, with alarm
There is an option of a Dallas SPI interfaced Real Time
Clock on the AVR570 module. This has its own 32KHz
crystal and lithium backup battery (mounted on the back
of the AVR570, between the printed circuit boards). Two
lines from the AVR570 to the base-board allow a Pchannel power FET in series with the input power to be
controlled by the RTC. Thus an alarm time can be set in
register in the DS1505 RTC chip, and when the alarm activates, the board power is switched ON.
A data logging cycle or some other function can be performed, and then a new alarm time set and the board powerd down again.
Power supply system
The input power to the board connects into connector
J19. Several different board loadings are available depending on the application and power requirements.
In a simple application running from a mains (plugpack) or a low voltage battery supply (say, 3-cell lead acid
gel cell at 6 volts) or a 12 volt vehicle system, a lowdropout linear regulator, e.g. a LM2931 or LM2940) on a
heat-sink is installed, and will operate the system down to
5.5 volts input. The voltage limit of the regulator and the
dissipation limit of the regulator on its heat sink determine
maximum input voltage in this configuration. The maximum input voltage of the regulator (staying in regulation)
is +26 volt. Anything over this voltage, and the regulator
closes down. It does have a positive transient protection
rating of +60 volts, so if it is used in a +12 volt vehicle system, the regulator is able to withstand load dump pulses.
JED AVR573 ATmega128 CPU card (Release May 6th, 2003).
Page 5
The regulator is also reverse-protected against continuous
voltages of -15 volts and negative transients of -50 volts.
Dissipation limits for the linear regulator system are
determined by what power is consumed on and off board.
The CPU on the AVR570 module and the logic on the
AVR573 board consumes about 60 mA, so if just the CPU
system is used (no GPS or large LCD backlight current),
the heatsink will run the board with no detectable temperature rise on +12 volts. If this is all the power used, a
LM340-5 with higher voltage rating (35 volts) can be used
as a medium current linear regulator from even +24 volts,
probably with the addition of the series diode and the 30
volt Transorb and series Polyfuse for reverse voltage protection and overvoltage protection.
Power up to 100 mA at can be drawn from pin 1 of J1.
Power is consumed by the backlight of the LCD display, and this depends on whether it is run continuously,
or only on demand (e.g. when someone is using the keyboard). The current drawn depends on whether a small or
large display is used, and what level it is run at. This could
range from 50mA to 400mA, and is set by the backlight
series resistor, which can be changed by users.
Power is also consumed by the GPS at 5 volts, and can
be up to 250mA with an active antenna.
Switching regulator option
If a higher current is required at 5 volts (e.g. if a GPS or
higher LCD backlight current is installed) an option in
place of the linear regulator and heat sink is to install a Nemic Lambda 3 watt 9/18 volt to 5 volt, or a 18/36 volt to 5
volt DC/DC converter, for 12 or 24 volt systems. This
runs cool at 3 watts (600 mA output), and does require the
reverse voltage diode and Transorb for protection, especially in a vehicular environment.
To reduce the noise associated with switching regulators, a ferrite and feed-through EMC filter is installed on
the input side of the DC/DC converter filtering both
power and ground input lines. Then, on both the input and
output, a pair of 470 microfarrad low ESR (Effective
Series Resistance) capacitor filters output power to the
AVR573 and noise reflected back to the input power
source.
JED AVR573 ATmega128 CPU card (Release May 6th, 2003).
Page 6
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
