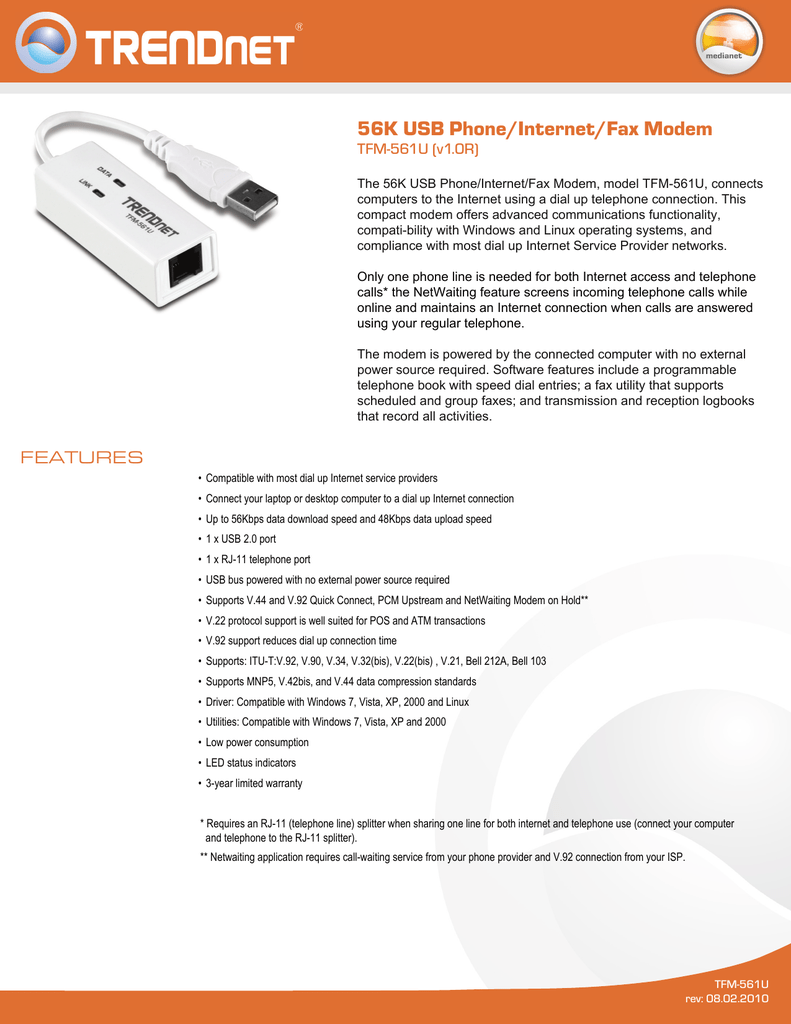

Trendnet TFM-561U 56K USB Phone/Internet/Fax Modem Datasheet

56K USB Phone/Internet/Fax Modem
TFM-561U (v1.0R)
The 56K USB Phone/Internet/Fax Modem, model TFM-561U, connects
computers to the Internet using a dial up telephone connection. This
compact modem offers advanced communications functionality,
compati-bility with Windows and Linux operating systems, and
compliance with most dial up Internet Service Provider networks.
Only one phone line is needed for both Internet access and telephone
calls* the NetWaiting feature screens incoming telephone calls while
online and maintains an Internet connection when calls are answered
using your regular telephone.
The modem is powered by the connected computer with no external
power source required. Software features include a programmable
telephone book with speed dial entries; a fax utility that supports
scheduled and group faxes; and transmission and reception logbooks
that record all activities.
FEATURES
• Compatible with most dial up Internet service providers
• Connect your laptop or desktop computer to a dial up Internet connection
• Up to 56Kbps data download speed and 48Kbps data upload speed
• 1 x USB 2.0 port
• 1 x RJ-11 telephone port
• USB bus powered with no external power source required
• Supports V.44 and V.92 Quick Connect, PCM Upstream and NetWaiting Modem on Hold**
• V.22 protocol support is well suited for POS and ATM transactions
• V.92 support reduces dial up connection time
• Supports: ITU-T:V.92, V.90, V.34, V.32(bis), V.22(bis) , V.21, Bell 212A, Bell 103
• Supports MNP5, V.42bis, and V.44 data compression standards
• Driver: Compatible with Windows 7, Vista, XP, 2000 and Linux
• Utilities: Compatible with Windows 7, Vista, XP and 2000
• Low power consumption
• LED status indicators
• 3-year limited warranty
* Requires an RJ-11 (telephone line) splitter when sharing one line for both internet and telephone use (connect your computer
and telephone to the RJ-11 splitter).
** Netwaiting application requires call-waiting service from your phone provider and V.92 connection from your ISP.
TFM-561U
rev: 08.02.2010
56K USB Phone/Internet/Fax Modem
TFM-561U (v1.0R)
SPECIFICATIONS
HARDWARE
Interface
• 1 x USB 2.0 (Type A)
• 1 x RJ-11 port (phone line)
Protocols
• ITU-T:V.92, V.90, V.34, V.32(bis), V.22(bis) , V.21, Bell 212A, Bell 103
Fax Mode
• Group 3, class 1, V.17, V.29, V.27 ter
Video Conferencing
• V.80x, and H.324 LAPM
Error Correction
• MNP2-4, and V.42
Data Compression
• MNP5, V.42bis, and V.44
Supported OS
• Windows 7 (32/64-bit), Vista (32/64-bit), XP (32-bit), 2000 and Linux
Dialing
• AA mode/DTMF Tone
LED
• Data, Link
Data Rate
• Up to 56Kbps
Power Management
• USB bus powered
Power Consumption
• Standby mode: 325mW
• Connection mode: 410mW
Dimensions
• 67 x 25 x 18 mm (2.64 x 0.98 x 0.71 in.)
Weight
• 30 g (1.06 oz.)
Temperature
• Storage: -20°C ~ 85°C (32°F~ 113°F)
• Operating: 0°C ~ 45°C (-4°F~185°F)
Humidity
• Max. 85% (non-condensing)
Certifications
• CE, FCC
PACKAGE CONTENTS
TFM-561U
Multi-Language Quick Installation Guide
CD-ROM (Driver & User’s Guide)
RJ-11 telephone cable (1.8m/ 6ft.)
RELATED PRODUCTS
TFM-PCIV92A
56K PCI Data/Fax/TAM Modem
TFM-560X
56K External Data/Fax/TAM Modem
