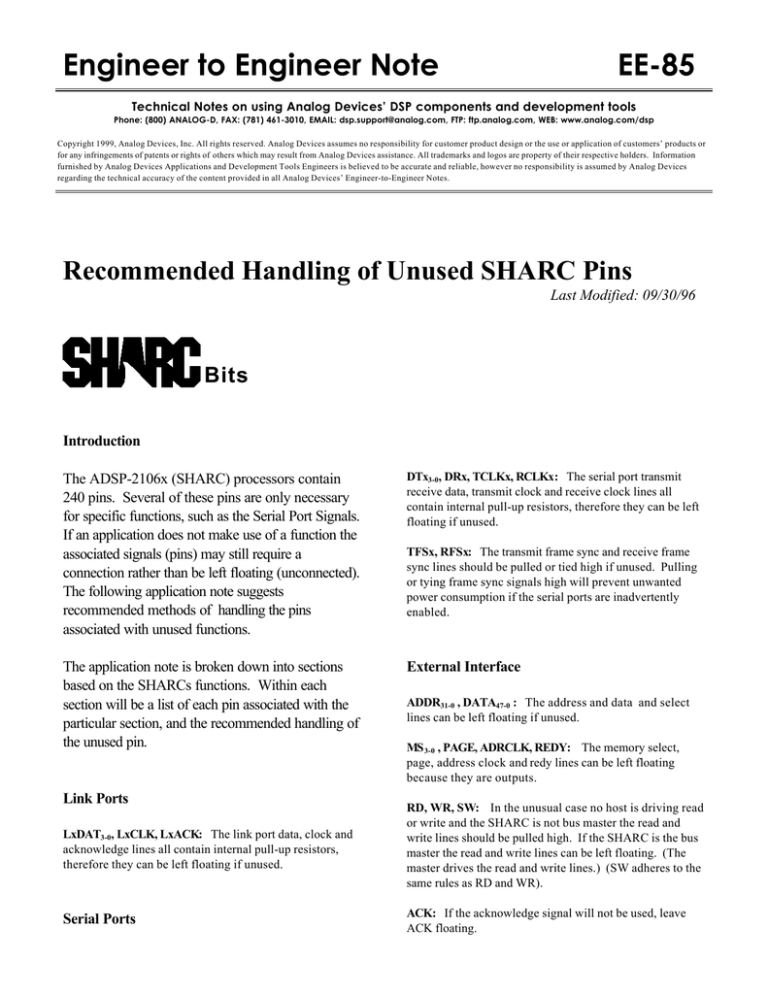

Engineer to Engineer Note
EE-85
Technical Notes on using Analog Devices’ DSP components and development tools
Phone: (800) ANALOG-D, FAX: (781) 461-3010, EMAIL: [email protected], FTP: ftp.analog.com, WEB: www.analog.com/dsp
Copyright 1999, Analog Devices, Inc. All rights reserved. Analog Devices assumes no responsibility for customer product design or the use or application of customers’ products or
for any infringements of patents or rights of others which may result from Analog Devices assistance. All trademarks and logos are property of their respective holders. Information
furnished by Analog Devices Applications and Development Tools Engineers is believed to be accurate and reliable, however no responsibility is assumed by Analog Devices
regarding the technical accuracy of the content provided in all Analog Devices’ Engineer-to-Engineer Notes.
Recommended Handling of Unused SHARC Pins
Last Modified: 09/30/96
Bits
Introduction
The ADSP-2106x (SHARC) processors contain
240 pins. Several of these pins are only necessary
for specific functions, such as the Serial Port Signals.
If an application does not make use of a function the
associated signals (pins) may still require a
connection rather than be left floating (unconnected).
The following application note suggests
recommended methods of handling the pins
associated with unused functions.
DTx3-0, DRx, TCLKx, RCLKx: The serial port transmit
receive data, transmit clock and receive clock lines all
contain internal pull-up resistors, therefore they can be left
floating if unused.
The application note is broken down into sections
based on the SHARCs functions. Within each
section will be a list of each pin associated with the
particular section, and the recommended handling of
the unused pin.
External Interface
Link Ports
TFSx, RFSx: The transmit frame sync and receive frame
sync lines should be pulled or tied high if unused. Pulling
or tying frame sync signals high will prevent unwanted
power consumption if the serial ports are inadvertently
enabled.
ADDR31-0 , DATA47-0 : The address and data and select
lines can be left floating if unused.
MS 3-0 , PAGE, ADRCLK, REDY: The memory select,
page, address clock and redy lines can be left floating
because they are outputs.
LxDAT3-0, LxCLK, LxACK: The link port data, clock and
acknowledge lines all contain internal pull-up resistors,
therefore they can be left floating if unused.
RD, WR, SW: In the unusual case no host is driving read
or write and the SHARC is not bus master the read and
write lines should be pulled high. If the SHARC is the bus
master the read and write lines can be left floating. (The
master drives the read and write lines.) (SW adheres to the
same rules as RD and WR).
Serial Ports
ACK: If the acknowledge signal will not be used, leave
ACK floating.
HBR, CS: If there is no host processor, host bus request
and chip select should be pulled or tied high.
HBG: In the unusual case the SHARC has an id greater
than 1 and there is no bus master, the host bus grant line
should be pulled high. If id is 1 or less and there will be no
arbitration for he bus, host bus grant can be left floating.
BR6-1: In a multiprocessor system pull the unused Bus
Request pins high (the processor drives its own BRx line).
If id=000 leave bus request pins floating.
DMA Requests
DMAR1, DMAR2: If DMA request 1 and DMA request 2
will not be used pull the pins high. Pulling them high will
prevent them from floating to a low logic level and
interfering with DMA channels 7 and 8.
DMAG1, DMAG2 : DMAG1 and DMAG2 are outputs and
can be left floating if unused.
Interrupt Requests, Flags and Timer Expired
FLAG3-0: The flag pins can be left floating if unused.
IRQ2-0: If the interrupt request lines are unused they
should be pulled or tied high.
TIMEXP: Timer expired is an output and can be left
floating if unused.
JTAG
TRST: The test reset pin must be asserted (pulsed) low
after power up. If the JTAG emulator will not be used, the
test reset pin must be tied low.
TCK: The test clock should be pulled or tied either high
or low if the JTAG emulator will not be used.
TMS, TDI: The test mode select and test data input pins
can be left floating if the JTAG emulation is not used.
These pins have internal pull-up resistors.
TDO, EMU: The test data output and emulation status
pins can be left floating if JTAG emulation is unused.
These signals are output only.
Miscellaneous
SBTS: The suspend bus three state should be tied high if
no other device will be connected and the pin is not used.
CPA: The core priority access pin can be left floating if
unused. The CPA is pulled high with an internal pull-up
resistor.
BMS: If EPROM boot select (EBOOT) is deserted, i.e.
EPROM boot is not selected, boot memory select must be
tied low of high. If EPROM is asserted BMS is an output.
ICSA, NC: These pins are reserved and should always be
left unconnected.
The remaining pins, which will be listed for completeness,
are associated with functionality that must be used. The
pins either configure a mode, supply vdd or gnd, clock or
reset. Please refer to the ADSP-2106x SHARC User’s
Manual or the ADSP-2106x Data Sheet for the proper
connection of the following pins: ID2-0, RPBA, EBOOT,
LBOOT, CLKIN, RESET, VDD and GND.
