CLICK PLC Software Specs

CLICK PLC Software Specs
Prices as of October 15, 2015. Check Web site for most current prices.

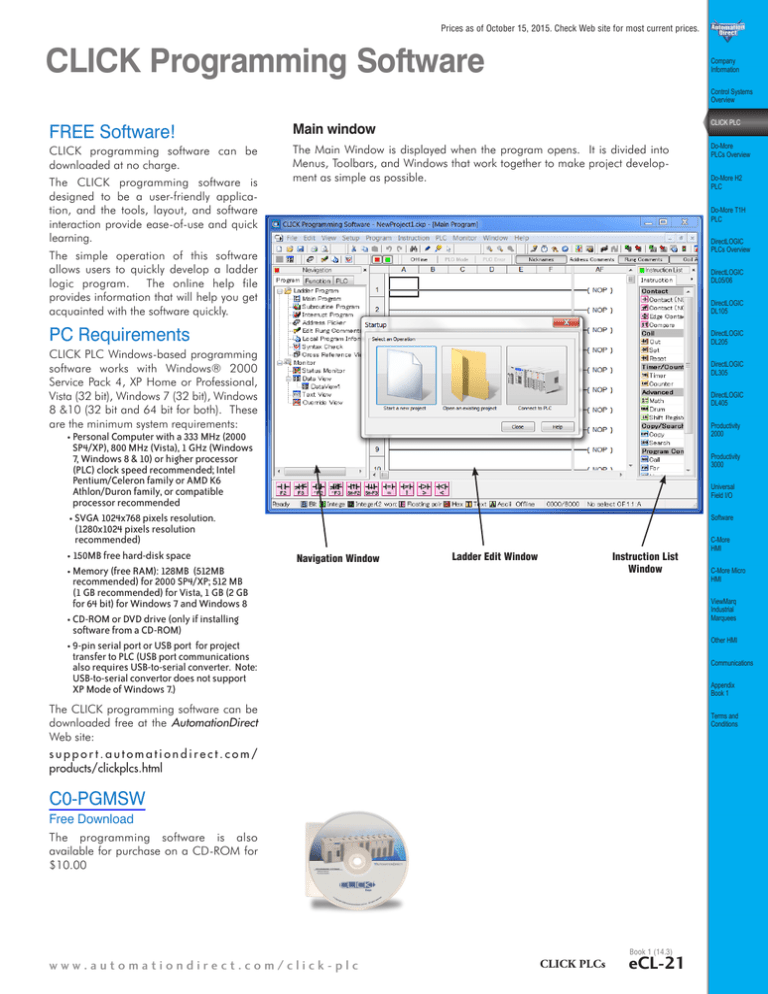

CLICK Programming Software
Company
Information
Control Systems
Overview
FREE Software!
CLICK programming software can be
downloaded at no charge.
The CLICK programming software is
designed to be a user-friendly application, and the tools, layout, and software
interaction provide ease-of-use and quick
learning.
Main window
CLICK PLC
The Main Window is displayed when the program opens. It is divided into
Menus, Toolbars, and Windows that work together to make project development as simple as possible.
Do-More
PLCs Overview
Do-More T1H
PLC
DirectLOGIC
PLCs Overview
The simple operation of this software
allows users to quickly develop a ladder
logic program. The online help file
provides information that will help you get
acquainted with the software quickly.
DirectLOGIC
DL05/06
DirectLOGIC
DL105
PC Requirements
CLICK PLC Windows-based programming
software works with Windows® 2000
Service Pack 4, XP Home or Professional,
Vista (32 bit), Windows 7 (32 bit), Windows
8 &10 (32 bit and 64 bit for both). These
are the minimum system requirements:
• Personal Computer with a 333 MHz (2000
SP4/XP), 800 MHz (Vista), 1 GHz (Windows
7, Windows 8 & 10) or higher processor
(PLC) clock speed recommended; Intel
Pentium/Celeron family or AMD K6
Athlon/Duron family, or compatible
processor recommended
• S VGA 1024x768 pixels resolution.
(1280x1024 pixels resolution
recommended)
• 150MB free hard-disk space
• Memory (free RAM): 128MB (512MB
recommended) for 2000 SP4/XP; 512 MB
(1 GB recommended) for Vista, 1 GB (2 GB
for 64 bit) for Windows 7 and Windows 8
• CD-ROM or DVD drive (only if installing
software from a CD-ROM)
• 9-pin serial port or USB port for project
transfer to PLC (USB port communications
also requires USB-to-serial converter. Note:
USB-to-serial convertor does not support
XP Mode of Windows 7.)
Do-More H2
PLC
DirectLOGIC
DL205
DirectLOGIC
DL305
DirectLOGIC
DL405
Productivity
2000
Productivity
3000
Universal
Field I/O
Software
Navigation Window
Instruction List
Window
Ladder Edit Window
C-More Micro
HMI
ViewMarq
Industrial
Marquees
Other HMI
Communications
Appendix
Book 1
The CLICK programming software can be
downloaded free at the AutomationDirect
Web site:
Terms and
Conditions
support.automationdirect.com/
products/clickplcs.html
C0-PGMSW
Free Download
The programming software is also
available for purchase on a CD-ROM for
$10.00
Book 1 (14.3)
www.automationdirect.com/click-plc
C-More
HMI
CLICK PLCs
eCL-21
Prices as of October 15, 2015. Check Web site for most current prices.
CLICK Programming Software
Instructions
The easy-to-use instructions are described
in the CLICK programming software
online help file.
Powerful Features!
Address Picker
The Address Picker is a powerful multi-function memory table which can be
used to assign nicknames, create address comments, and establish initial
values for specific memory locations. It can assign specific memory locations
to be retentive during power outages. The Address Picker also has powerful
tools for sorting the memory table and making it easier to use.
CLICK programming software has amazingly powerful features for a free software
product, such as
• Address picker
• Separate subroutine programs
• Separate interrupt programs
• Color r ung comment feature
• Project loader­­­
• Documentation is stored within the PLC
Memory­­­
Subroutine Programs
Subroutine programs can be created and
named to isolate a body of program code
that is run selectively. You can run up to
986 subroutine programs.
Interrupt Programs
Interrupt programs are created and
named. The Basic and Standard PLC
Units (with or without Ethernet) support
up to 12 interrupt programs. The
Analog PLC Units support up to 8 interrupt programs.
Book 1 (14.3)
eCL-22
CLICK PLCs
1-800-633-0405
Prices as of October 15, 2015. Check Web site for most current prices.
CLICK Programming Software
Company
Information
Control Systems
Overview
CLICK PLC
Color Rung Comment
Do-More
PLCs Overview
Easily create and edit rung comments with
colors and three text styles. Comments
are stored in the PLC memory for future
reference.
Do-More H2
PLC
Do-More T1H
PLC
DirectLOGIC
PLCs Overview
DirectLOGIC
DL05/06
DirectLOGIC
DL105
DirectLOGIC
DL205
DirectLOGIC
DL305
DirectLOGIC
DL405
Productivity
2000
Project Loader
Productivity
3000
The CLICK programming software can
export the CLICK project in an encrypted
format. The exported file can be sent
to the end user. Then the end user can
download the file into the CLICK PLC with
the tool called Project Loader.
Universal
Field I/O
Software
C-More
HMI
C-More Micro
HMI
ViewMarq
Industrial
Marquees
Other HMI
Communications
Appendix
Book 1
Terms and
Conditions
NOTE: Project Loader is a separate program from the CLICK programming software, but it is installed on the PC when the CLICK
programming software is installed.
Book 1 (14.3)
www.automationdirect.com/click-plc
CLICK PLCs
eCL-23
