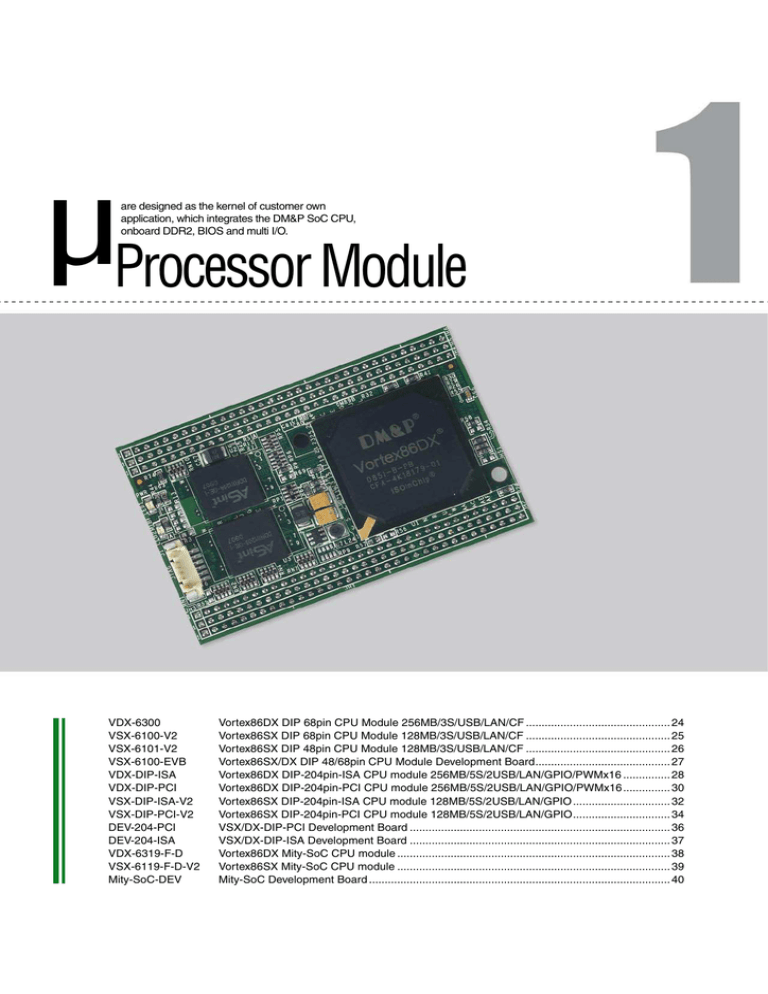

1.MicroProcessor_Module

µ are designed as the kernel of customer own application, which integrates the DM&P SoC CPU, onboard DDR2, BIOS and multi I/O.

Processor Module

VDX-6300

VSX-6100-V2

VSX-6101-V2

VSX-6100-EVB

VDX-DIP-ISA

VDX-DIP-PCI

VSX-DIP-ISA-V2

VSX-DIP-PCI-V2

Vortex86DX DIP 68pin CPU Module 256MB/3S/USB/LAN/CF .............................................. 24

Vortex86SX DIP 68pin CPU Module 128MB/3S/USB/LAN/CF .............................................. 25

Vortex86SX DIP 48pin CPU Module 128MB/3S/USB/LAN/CF .............................................. 26

Vortex86SX/DX DIP 48/68pin CPU Module Development Board ........................................... 27

Vortex86DX DIP-204pin-ISA CPU module 256MB/5S/2USB/LAN/GPIO/PWMx16 ............... 28

Vortex86DX DIP-204pin-PCI CPU module 256MB/5S/2USB/LAN/GPIO/PWMx16 ............... 30

Vortex86SX DIP-204pin-ISA CPU module 128MB/5S/2USB/LAN/GPIO ............................... 32

Vortex86SX DIP-204pin-PCI CPU module 128MB/5S/2USB/LAN/GPIO ............................... 34

DEV-204-PCI

DEV-204-ISA

VDX-6319-F-D

VSX/DX-DIP-PCI Development Board ................................................................................... 36

VSX/DX-DIP-ISA Development Board ................................................................................... 37

Vortex86DX Mity-SoC CPU module ....................................................................................... 38

VSX-6119-F-D-V2 Vortex86SX Mity-SoC CPU module ....................................................................................... 39

Mity-SoC-DEV Mity-SoC Development Board ................................................................................................ 40

VDX-6300

256MB/4S/3USB/LAN/2GPIO/CF/PWMx24

JTAG

COM 3

COM 4

68

88.90

2.54

2.54

35

PS/2 KBD

USB Port

COM 9

1

Top View

34

Compact Flash

Unit: mm

24

Specifications

SoC

DM&P SoC CPU Vortex86DX- 800MHz

Real Time Clock with Lithium Battery Backup

Cache

BIOS

System Memory

Watchdog Timer

0 & 1 Sets

L1:16K I-Cache, 16K D-Cache L2 Cache 128KB

AMI BIOS

256/512MB DDR2 Onboard

Software programmable from 30.5µ sec.to 512 sec. x 2 sets (Watchdog 1 fully compatible with M6117D)

LAN

Integrated 10/100Mbps Ethernet

Flash Disk Support

Compact Flash Type I/II

Onboard 4MB SPI Flash Disk

PWM

I/O Interface

24 Channels

RS-232 port x4 (TX/RX x3)

USB port (Ver2.0) x3

10/100Mbps Ethernet port x1

Connectors

1.25mm 3-pin wafer for RS-232 x3

1.25mm 5-pin wafer for USB x1

1.25mm 4-pin wafer for Keyboard x1

1.25mm 6-pin wafer for JTAG x1

Type I/II Compact Flash slot x1

Power Requirement Single Voltage +5V @ 380mA

Weight

Board Size

Operating

Temperature

28g

90 x 46mm (3.54 x 1.81 inches)

-20°C ~ +70°C

-40°C ~ +85°C (Optional)

Packing List

• VDX-6300 x1

Ordering Information

VDX-6300

VDX-6300-512

VSX-6100-EVB

Vortex86DX DIP 68pin CPU Module with 256MB

DDR2

Vortex86DX DIP 68pin CPU Module with 512MB

DDR2

Vortex86SX DIP 48/68pin CPU Module Development

Board

Signal Name

GND

Reset

GP00 /PWM0

GP01 /PWM1

GP02 /PWM2

GP03 /PWM3

GP04 /PWM4

GP05 /PWM5

GP06 /PWM6

GP07 /PWM7

SPICS / GP30

SPICLIK / GP31

SPIDO / GP32

SPIDI / GP33

GP34

GP35

GP36

GP37

SPEAKER

GP20 /PWM16

GP21 /PWM17

GP22 /PWM18

VBATT

VCC

GP10 /PWM8

GP11 /PWM9

GP12 /PWM10

GP13 /PWM11

GP14 /PWM12

GP15 /PWM13

GP16 /PWM14

GP17 /PWM15

SYSCLK

IRQ6

2.0mm 68-Pin Signal Assignment for

VDX-6300

21

22

23

24

17

18

19

20

13

14

15

16

9

10

11

12

PIN#

7

8

5

6

3

4

1

2

29

30

31

32

25

26

27

28

33

34

55

56

57

58

51

52

53

54

47

48

49

50

43

44

45

46

PIN#

39

40

41

42

35

36

37

38

63

64

65

66

59

60

61

62

67

68

GND

LUSBD2-

LUSBD2+

LUSBD3-

LUSBD3+

LAN-RX-

LAN-RX+

LAN-TX-

LAN-TX+

VCC

Signal Name

GND

TXDEN2

CTS2\

DSR2\

DTR2\

RXD2\

RI2\

RTS2\

CTS1\

DSR1\

DTR1\

RXD1\

RI1\

RTS1\

TXD1\

DCD1\

TXD2\

DCD2\

GND

GP23 /PWM19

GP24 /PWM20

GP25 /PWM21

GP26 /PWM22

GP27 /PWM23 w w w .

i c o p .

c o m .

t w

VSX-6100-V2

128MB/4S/3USB/LAN/GPIO/CF

PS/2 KBD

USB Port

COM 9

Compact Flash

JTAG

COM 3

COM 4

68

1

Top View

88.90

2.54

Specifications

SoC

DM&P SoC CPU Vortex86SX- 300MHz

Real Time Clock with Lithium Battery Backup

Cache

BIOS

L1:16K I-Cache, 16K D-Cache

AMI BIOS

System Memory

128/256MB DDR2 Onboard

Watchdog Timer 0

& 1 Sets

LAN

Integrated 10/100Mbps Ethernet

Flash Disk Support

Compact Flash Type I/II

Onboard 2MB SPI Flash Disk

I/O Interface

RS-232 port x4 (TX/RX x3)

USB port (Ver2.0) x3

10/100Mbps Ethernet port x1

Connectors

Software programmable from 30.5µ sec. to 512 sec. x 2 sets (Watchdog 1 fully compatible with M6117D)

1.25mm 3-pin wafer for RS-232 x3

1.25mm 5-pin wafer for USB x1

1.25mm 4-pin wafer for Keyboard x1

1.25mm 6-pin wafer for JTAG x1

Type I/II Compact Flash slot x1

Power Requirement Single Voltage +5V @ 340mA

Weight

28g

Board Size

Operating

Temperature

90 x 46mm (3.54 x 1.81 inches)

-20°C ~ +70°C

-40°C ~ +85°C (Optional)

Packing List

• VSX-6100-V2 x1

Ordering information

VSX-6100-V2 Vortex86SX DIP 68pin CPU Module with 128MB DDR2

VSX-6100-EVB Vortex86SX DIP 48/68pin CPU Module Development Board

GP11

GP12

GP13

GP14

GP15

GP16

GP17

SYSCLK

IRQ6

GP36

GP37

SPEAKER

GP20

GP21

GP22

VBATT

VCC

GP10

Signal Name

GND

PWRGND

GP00

GP01

GP02

GP03

GP04

GP05

GP06

GP07

SPICS/GP30

SPICLIK/GP31

SPIDO/GP32

SPIDI/GP33

GP34

GP35

2.0mm 68-Pin Signal Assignment for

VSX-6100-V2

30

31

32

33

34

26

27

28

29

22

23

24

25

17

18

19

20

21

13

14

15

16

9

10

11

12

6

7

4

5

8

2

3

PIN#

1

64

65

66

67

68

60

61

62

63

56

57

58

59

51

52

53

54

55

47

48

49

50

43

44

45

46

38

39

40

41

42

PIN#

35

36

37

CTS1\

DSR1\

DTR1\

RXD1\

RI1\

RTS1\

TXD1\

DCD1\

GND

LUSBD2-

LUSBD2+

LUSBD3-

LUSBD3+

LAN-RX-

LAN-RX+

LAN-TX-

LAN-TX+

VCC

TXD2\

DCD2\

GND

GP23

GP24

GP25

GP26

GP27

Signal Name

GND

TXDEN2

CTS2\

DSR2\

DTR2\

RXD2\

RI2\

RTS2\

All Specifications are subject to change without notice.

w w w .

i c o p .

c o m .

t w

2.54

35

2.54

34

Unit: mm

1

µProcessor

Module

2

Mity/Tiny CPU

Module

5

3.5” CPU

Module

6

Peripheral

Module

3

PC/104 CPU

Module

4

Half-Size CPU

Module

7

Display Product

Series

8

Accessories &

Technical Information

25

26

VSX-6101-V2

128MB/4S/3USB/LAN/GPIO/CF

63.50

2.54

2.54

48 25

PS/2 KBD

USB Port

COM9

JTAG

COM4

COM3

1

Bottom View

24

Compact Flash

Unit: mm

Specifications

SoC

DM&P SoC CPU Vortex86SX- 300MHz

Real Time Clock with Lithium Battery Backup

Cache

BIOS

L1:16K I-Cache, 16K D-Cache

AMI BIOS

System Memory

128/256MB DDR2 Onboard

Watchdog Timer0 &

1 Sets

Software programmable from 30.5µ sec. to 512 sec. x 2 sets (Watchdog 1 fully compatible with M6117D)

LAN

Integrated 10/100Mbps Ethernet

Flash Disk Support

Compact Flash Type I/II

Onboard 2MB SPI Flash Disk

I/O Interface

RS-232 port x4 (TX /RX x3)

USB port (Ver2.0) x3

10/100Mbps Ethernet port x1

Connectors

1.25mm 3-pin wafer for RS-232 x3

1.25mm 5-pin wafer for USB x1

1.25mm 4-pin wafer for Keyboard x1

1.25mm 6-pin wafer for JTAG x1

Type I/II Compact Flash slot x1

Power Requirement Single Voltage +5V @ 320mA

Weight

24g

Board Size

Operating

Temperature

64 x 46mm (2.52 x 1.81 inches)

-20°C ~ +70°C

-40°C ~ +85°C (Optional)

Packing List

• VSX-6101-V2 x1

Ordering information

VSX-6101-V2 Vortex86SX DIP 48pin CPU Module with 128MB DDR2

VSX-6100-EVB Vortex86SX DIP 48/68pin CPU Module Development Board

Signal Name

GND

PWRGND

GP00

GP01

GP02

GP03

GP04

GP05

GP06

GP07

SPICS/GP30

SPICLIK/GP31

SPIDO/GP32

SPIDI/GP33

GP34

GP35

GP36

GP37

SPEAKER

GP20

GP21

GP22

VBATT

VCC

2.0mm 48-Pin Signal Assignment for

VSX-6101-V2

15

16

17

18

11

12

13

14

6

7

4

5

8

9

10

2

3

PIN#

1

19

20

21

22

23

24

39

40

41

42

35

36

37

38

28

29

30

31

32

33

34

PIN#

25

26

27

43

44

45

46

47

48

RI1\

RTS1\

TXD1\

DCD1\

GND

LUSBD2-

LUSBD2+

LUSBD3-

Signal Name

GND

GP23

GP24

GP25

GP26

GP27

CTS1\

DSR1\

DTR1\

RXD1\

LUSBD3+

LAN-RX-

LAN-RX+

LAN-TX-

LAN-TX+

VCC w w w .

i c o p .

c o m .

t w

VSX-6100-EVB

VSX/VDX DIP 48/68pin Development Board

SERVO

PWR

Power

Connector

Reset

COM1

SERVO PWM GPIO

COM1 USB2 USB1 LAN

Specifications

Connectors

2.0mm 10-pin header for RS-232 x1

2.54mm 10-pin header for GPIO x3

2.54mm 10-pin header for PWM x1

2.54mm 3-pin header for SERVO x8

External RJ-45 connector for Ethernet x1

External USB connector x2

External 9-pin D-Sub male connector for RS-232 x1

Power Requirement Single Voltage +5V @ 250mA

Weight

70g

Board Size

101 x 78 mm (3.97 x 3.07 inches)

Operating

Temperature

-40°C ~ +85°C

Packing List

• VSX-6100-EVB x1

• CD for User’s Manual & Driver x1

Ordering information

VSX-6100-EVB Vortex86SX DIP 48/68pin CPU Module Development Board

GPIO

GPIO

Ø3.2

73.7

57.9

39.1

25.9

3.8

0.0

VSX-6100-EVB

VSX-6100-V2 Development Kit

77.5

73.7

62.2

21.6

Unit: mm

VSX-6100-V2

1

µProcessor

Module

2

Mity/Tiny CPU

Module

5

3.5” CPU

Module

6

Peripheral

Module

3

PC/104 CPU

Module

4

Half-Size CPU

Module

7

Display Product

Series

8

Accessories &

Technical Information

VSX-6101-V2

VSX-6100-EVB

VSX-6101-V2 Development Kit

w w w .

i c o p .

c o m .

t w

All Specifications are subject to change without notice.

27

28

VDX-DIP-ISA

45.0

43.0

41.0

39.0

JTAG

6.0

4.0

2.0

0.0

Unit: mm

Specifications

SoC

DM&P SoC CPU Vortex86DX- 800MHz

Real Time Clock with Lithium Battery Backup

Cache

Bus

L1:16K I-Cache, 16K D-Cache L2 Cache 128KB

ISA interface

BIOS

AMI BIOS

System Memory

256/512MB DDR2 Onboard

Watchdog Timer

0 & 1 Sets

LAN

Integrated 10/100Mbps Ethernet

Flash Disk Support

Onboard 4MB SPI Flash Disk

I/O Interface

Software programmable from 30.5µ sec. to 512 sec. x 2 sets (Watchdog 1 fully compatible with M6117D)

Enhanced IDE port (UltraDMA-100/66/33) x1

RS-232 port x5 (TX/RX x1)

USB port x4

16-bit GPIO port x2

Connectors

1.25mm 6-pin wafer for JTAG x1

Power Requirement Single Voltage +5V @ 320mA

Weight

23g

Board Size

Operating

Temperature

70 x 45mm (2.75 x 1.77 inches)

-20°C ~ +70°C

-40°C ~ +85°C (Optional)

Packing List

• VDX-DIP-ISA x1

Ordering Information

VDX-DIP-ISA

Vortex86DX DIP-204pin-ISA CPU Module with

256MB DDR2

VDX-DIP-ISA-512 Vortex86DX DIP-204pin-ISA CPU Module with

512MB DDR2

DIP-204pin-ISA Module

DIP-204pin-ISA module, measured at only 70 x 45mm, is designed particularly as the kernel for the diverse expandable applications. Through 6 rows of 34pin connector, DIP-

204pin-ISA module is able to provide multiple functions, such as PCI BUS, RS-232,

IDE, LAN, USB and GPIO.

To assist users easily adapt DIP-204pin-ISA Module into their applications, ICOP offers the complete development board for DIP-204pin-ISA Module. ICOP also supplies customers with the referential circuit diagram reducing their time and effort during the development process.

Please visit the website below for further information http://www.dmp.com.tw/tech/vortex86dx/

As to the referential circuit drawing, please contact [email protected]

w w w .

i c o p .

c o m .

t w

256MB/5S/4USB/LAN/2GPIO

VDX-DIP-ISA

JH6

JH5

JH4

1

1

1

COM3

COM4

KB/MS

PWR

MTBF

LAN

USB

LPC

64Mx8/128Mx8

70m

P3/SPI

P1

P0

COM1/P4

COM2/PWM

P2/SA23-31

34

34

34

Vortex86DX

45m

JTAG

64Mx8/128Mx8

JH3

JH2

JH1

1

1

1

ISA

MUX COM9

IDE

34

34

34

DIP-204pin-ISA Signal Assignment

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

10

11

12

13

14

15

16

17

18

6

7

8

9

2

3

4

5

Pin JH1

1 VCC-IN

SD7

SD6

SD5

SD4

SD3

SD2

SD1

SD0

RSTDRV

AEN

SMEMW

SMEMR

IOW

IOR

REFRESH

SYSCLK

OSC

IDED3

IDED4

IDED5

IDED6

IDED7

IDECS0

GND

MEMCS16

IOCS16

SBHE

ROMCS

GND

IDESA0

IDED0

IDED1

IDED2

MUX4

MUX5

MUX6

GPCS0

GND

IDESA1

IDED8

IDED9

IDED10

IDED11

IDED12

IDED13

IDED14

IDED15

IDECS1

GND

IRQ5

IRQ6

IRQ7

IRQ9

IRQ12

IRQ15

MUX1

MUX2

MUX3

JH2

VCC-IN

SD8

SD9

SD10

SD11

SD12

SD13

SD14

SD15

SA2

SA1

SA0

IOCHRDY

GND

TXD9\

RXD9\

IDESA2

IDERST

IDEINT

IDEREQ

IDERDY

IDEIOW

IDEACK

IDECBLID

IDEIOR

SA6

SA5

SA4

SA3

SA11

SA10

SA9

SA8

SA7

JH3

VCC3-OUT

SA19

SA18

SA17

SA16

SA15

SA14

SA13

SA12

DUPLEX

LFRAME-

LDRQ-

SERIRQ

LAD0

LAD1

LAD2

GP00

GP01

JH4

VBATT

PWRGD

SPEAKER

KBCLK

KBDATA

JH5

DCD4\

RXD4\

TXD4\

DTR4\

DSR4\

MSCLK

MSDATA

RTS4\

CTS4\

24MHZ RI4\

LINK/ACTIVE GND

LANTX+

LANRX+

LUSBD0+

LUSBD1+

LUSBD2+

LUSBD3+

GND

GP10

GP11

GP02

GP03

GP04

GP05

GP06

GP07

LAD3

GP20

GP21

GP22

GP23

GP24

GP25

GP26

DTR2\

DSR2\

RTS2\

CTS2\

RI2\

GP27 TXDEN2

VCC1.8-OUT GND

GP12

GP13

GP14

GP15

GP16

GP17

DCD2\

RXD2\

TXD2\

SPIDO

SPIDI

GP34

GP35

GP36

GP37

DCD1\

RXD1\

TXD1\

DTR1\

DSR1\

RTS1\

CTS1\

RI1\

TXDEN1

GND

LANTX-

LANRX-

LUSBD0-

LUSBD1-

LUSBD2-

LUSBD3-

GND

SPICS

SPICLK

JH6

DCD3\

RXD3\

TXD3\

DTR3\

DSR3\

RTS3\

CTS3\

RI3\

GND

DIP-204pin-ISA Signal

Assignment (Optional)

26

27

28

29

30

31

32

33

34

17

18

19

20

21

22

23

24

25

13

14

15

16

10

11

12

5

6

7

8

9

3

4

Pin JH4

1

2

VBATT

PWRGD

SPEAKER

KBCLK

KBDATA

MSCLK

MSDATA

JH5

DCD4\

RXD4\

TXD4\

DTR4\

DSR4\

RTS4\

CTS4\

24MHZ RI4\

LINK/ACTIVE GND

DUPLEX

LFRAME-

LDRQ-

SERIRQ

LAD0

LAD1

LAD2

LANTX+

LANRX+

LUSBD0+

LUSBD1+

LUSBD2+

LUSBD3+

GND

GP00

GP01

GP02

GP03

GP04

GP05

GP06

GP07

LAD3

GP10

GP11

GP12

GP13

GP14

GP15

GP16

GP17

PWM0CLK

SA24

SA25

SA26

SA27

SA28

PWM2CLK

PWM0OUT

PWM2OUT

GP44

GP41

GP45

PWM0GATE GP46

PWM1OUT GP42

SA29

SA30

PWM1GATE

PWM1CLK

GP47

GP43

SA31 PWM2GATE TXDEN1

VCC1.8-OUT GND GND

GP30

GP31

GP32

GP34

GP34

GP35

GP36

GP37

GP40

JH6

DCD3\

RXD3\

TXD3\

DTR3\

DSR3\

RTS3\

CTS3\

RI3\

GND

LANTX-

LANRX-

LUSBD0-

LUSBD1-

LUSBD2-

LUSBD3-

GND

All Specifications are subject to change without notice.

w w w .

i c o p .

c o m .

t w

1

µProcessor

Module

2

Mity/Tiny CPU

Module

5

3.5” CPU

Module

6

Peripheral

Module

3

PC/104 CPU

Module

4

Half-Size CPU

Module

7

Display Product

Series

8

Accessories &

Technical Information

29

30

VDX-DIP-PCI

45.0

43.0

41.0

39.0

JTAG

6.0

4.0

2.0

0.0

Unit: mm

Specifications

SoC

DM&P SoC CPU Vortex86DX- 800MHz

Real Time Clock with Lithium Battery Backup

Cache

Bus

L1:16K I-Cache, 16K D-Cache L2 Cache 128KB

PCI interface

BIOS

AMI BIOS

System Memory

256/512MB DDR2 on board

Watchdog Timer

LAN

Integrated 10/100Mbps Ethernet

Flash Disk Support

Onboard 4MB SPI Flash Disk

I/O Interface

Software programmable from 30.5µ sec.to 512 sec. x 2 sets (Watchdog 1 fully compatible with M6117D)

Enhanced IDE port (UltraDMA-100/66/33) x1

RS-232 port x5 (TX/RX x1)

USB port x4

16-bit GPIO port x2

Connectors

1.25mm 6-pin wafer for JTAG x1

Power Requirement Single Voltage +5V @ 340mA

Weight

23g

Board Size

Operating

Temperature

70 x 45mm (2.75 x 1.77 inches)

-20°C ~ +70°C

-40°C ~ +85°C (Optional)

Packing List

• VDX-DIP-PCI x1

Ordering Information

VDX-DIP-PCI Vortex86DX DIP-204pin-PCI CPU Module with

256MB DDR2

VDX-DIP-PCI-512 Vortex86DX DIP-204pin-PCI CPU Module with

512MB DDR2

DIP-204pin-PCI Module

DIP-204pin-PCI Module (70 x 45mm) is designed as the kernel of your own application, which integrates the Vortex86DX CPU, onboard 256MB DDR2, BIOS and multi I/O. The

I/O interface of DIP-204pin-PCI Module are 34-pin (1 x 34, pitch 2.0mm) connector x6 which including PCI bus, RS-232, Printer, IDE, LAN, USB, and GPIO.

For assisting users easily use our DIP-204pin- PCI Module, ICOP provides complete development kit of DIP-204pin- PCI Development Board for DIP-204pin- PCI Module.

We also supply our customers with referential circuit diagram for easing user’s effort during development process. Meanwhile, you can design your own based board which only equips I/O functions you need.

Please visit our website for getting further information you need: http://www.dmp.com.tw/tech/vortex86dx/

You also can contact us for getting referential circuit drawing: [email protected]

w w w .

i c o p .

c o m .

t w

256MB/5S/4USB/LAN/2GPIO

VDX-DIP-PCI

JH12

JH11

JH10

1

1

1

COM3

COM4

KB/MS

PWR

MTBF

LAN

USB

LPC

64Mx8/128Mx8

70m

P3/SPI

P1

P0

COM1/P4

COM2/PWM

P2/SA23-31

34

34

34

Vortex86DX

JTAG

64Mx8/128Mx8

JH9

JH8

JH7

1

1

1

PCI

COM9

IDE

34

34

34

DIP-204pin-PCI Signal Assignment

27

28

29

30

31

32

33

34

18

19

20

21

22

23

24

25

26

9

10

11

12

13

14

15

16

17

5

6

7

8

2

3

4

Pin JH7

1 VCC-IN

PCICLK0

PCICLK1

PCICLK2

GND

INT-A

INT-B

INT-C

INT-D

PCIRST-

FRAME-

IRDY-

TRDY-

DEVSEL-

STOP-

PAR

CBE-3

IDE2

IDE3

IDE4

IDE5

IDE6

IDE7

IDECS0

GND

CBE-2

CBE-1

CBE-0

NC

NC

GND

IDESA0

IDE0

IDE1

IDED10

IDED11

IDED12

IDED13

IDED14

IDED15

IDECS1

GND

AD6

AD4

AD2

AD0

NC

GND

IDESA1

IDED8

IDED9

AD24

AD22

AD20

AD18

AD16

AD14

AD12

AD10

AD8

JH8

VCC-IN

PGNT-0

PGNT-1

PGNT-2

GND

AD30

AD28

AD26

AD7

AD5

AD3

AD1

NC

GND

TXD9\

RXD9\

IDESA2

IDERST

IDEINT

IDEREQ

IDERDY

IDEIOW

IDEACK

IDECBLID

IDEIOR

AD25

AD23

AD21

AD19

AD17

AD15

AD13

AD11

AD9

JH9

VCC3-OUT

PREQ-0

PREQ-1

PREQ-2

GND

AD31

AD29

AD27

JH10

VBATT

PWRGD

SPEAKER

KBCLK

KBDATA

MSCLK

MSDATA

24MHZ

LINK/ACTIVE GND

DUPLEX LANTX+

LFRAME-

LDRQ-

SERIRQ

LANRX+

LUSBD0+

LUSBD1+

LAD0

LAD1

LAD2

GP00

LUSBD2+

LUSBD3+

GND

GP10

JH11

DCD4\

RXD4\

TXD4\

DTR4\

DSR4\

RTS4\

CTS4\

RI4\

GP01

GP02

GP03

GP04

GP05

GP06

GP07

LAD3

GP20

GP21

GP22

GP23

GP24

GP25

TXD2\

DTR2\

DSR2\

RTS2\

CTS2\

GP26

GP27

RI2\

TXDEN2

VCC1.8-OUT GND

GP11

GP12

GP13

GP14

GP15

GP16

GP17

DCD2\

RXD2\

TXD1\

DTR1\

DSR1\

RTS1\

CTS1\

RI1\

TXDEN1

GND

SPICLK

SPIDO

SPIDI

GP34

GP35

GP36

GP37

DCD1\

RXD1\

GND

LANTX-

LANRX-

LUSBD0-

LUSBD1-

LUSBD2-

LUSBD3-

GND

SPICS

JH12

DCD3\

RXD3\

TXD3\

DTR3\

DSR3\

RTS3\

CTS3\

RI3\

DIP-204pin-PCI Signal

Assignment (Optional)

25

26

27

28

29

30

31

32

33

34

11

12

13

14

15

16

17

7

8

9

10

21

22

23

24

18

19

20

4

5

6

2

3

Pin JH10

1 VBATT

PWRGD

SPEAKER

KBCLK

KBDATA

MSCLK

GP01

GP02

GP03

GP04

GP05

GP06

GP07

JH11

DCD4\

RXD4\

TXD4\

DTR4\

DSR4\

RTS4\

MSDATA

24MHZ

CTS4\

RI4\

LINK/ACTIVE GND

DUPLEX LANTX+

LFRAME-

LDRQ-

SERIRQ

LAD0

LAD1

LAD2

GP00

LANRX+

LUSBD0+

LUSBD1+

LUSBD2+

LUSBD3+

GND

GP10

GP11

GP12

GP13

GP14

GP15

GP16

GP17

LAD3

SA24

SA25

SA26

SA27

SA28

SA29

PWM0CLK

PWM2CLK

PWM0OUT

PWM1GATE

GP40

GP44

GP41

PWM2OUT GP45

PWM0GATE GP46

PWM1OUT GP42

GP47

SA30

SA31

PWM1CLK

VCC1.8-OUT GND

GP43

PWM2GATE TXDEN1

GND

JH12

DCD3\

RXD3\

TXD3\

DTR3\

DSR3\

RTS3\

GP31

GP32

GP34

GP34

GP35

GP36

GP37

CTS3\

RI3\

GND

LANTX-

LANRX-

LUSBD0-

LUSBD1-

LUSBD2-

LUSBD3-

GND

GP30

All Specifications are subject to change without notice.

w w w .

i c o p .

c o m .

t w

1

µProcessor

Module

2

Mity/Tiny CPU

Module

5

3.5” CPU

Module

6

Peripheral

Module

3

PC/104 CPU

Module

4

Half-Size CPU

Module

7

Display Product

Series

8

Accessories &

Technical Information

31

32

VSX-DIP-ISA-V2

45.0

43.0

41.0

39.0

JTAG

6.0

4.0

2.0

0.0

Unit: mm

Specifications

SoC

DM&P SoC CPU Vortex86SX- 300MHz

Real Time Clock with Lithium Battery Backup

Cache

Bus

L1:16K I-Cache, 16K D-Cache

ISA interface

BIOS

AMI BIOS

System Memory

128/256MB DDR2 Onboard

Watchdog Timer

0 & 1 Sets

LAN

Integrated 10/100Mbps Ethernet

Flash Disk Support

Onboard 2MB SPI Flash Disk

I/O Interface

Software programmable from 30.5µ sec. to 512 sec. x 2 sets (Watchdog 1 fully compatible with M6117D)

Enhanced IDE port (UltraDMA-100/66/33) x1

RS-232 port x5 (TX/RX x1)

USB port x4

16-bit GPIO port x2

Connectors

1.25mm 6-pin wafer for JTAG x1

Power Requirement Single Voltage +5V @ 260mA

Weight

23g

Board Size

Operating

Temperature

70 x 45mm (2.75 x 1.77 inches)

-20°C ~ +70°C

-40°C ~ +85°C (Optional)

Packing List

• VSX-DIP-ISA-V2 x1

Ordering Information

VSX-DIP-ISA-V2

Vortex86SX DIP-204pin-ISA CPU Module with

128MB DDR2

DIP-204pin-ISA Module

DIP-204pin-ISA module, measured at only 70 x 45mm, is designed particularly as the kernel for the diverse expandable applications. Through 6 rows of 34pin connector, DIP-

204pin-ISA module is able to provide multiple functions, such as PCI BUS, RS-232,

IDE, LAN, USB and GPIO.

To assist users easily adapt DIP-204pin-ISA Module into their applications, ICOP offers the complete development board for DIP-204pin-ISA Module. ICOP also supplies customers with the referential circuit diagram reducing their time and effort during the development process.

Please visit the website below for further information http://www.dmp.com.tw/tech/vortex86sx/

As to the referential circuit drawing, please contact [email protected]

w w w .

i c o p .

c o m .

t w

128MB/5S/4USB/LAN/2GPIO

VSX-DIP-ISA-V2

JH6

JH5

JH4

1

1

1

COM3

COM4

KB/MS

PWR

MTBF

LAN

USB

LPC

64Mx8/128Mx8

70m

P3/SPI

P1

P0

COM1/P4

COM2/PWM

P2/SA23-31

34

34

34

Vortex86SX

45m

JTAG

64Mx8/128Mx8

JH3

JH2

JH1

1

1

1

ISA

MUX COM9

IDE

34

34

34

DIP-204pin-ISA Signal Assignment

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

10

11

12

13

14

15

16

17

18

6

7

8

9

2

3

4

5

Pin JH1

1 VCC-IN

SD7

SD6

SD5

SD4

SD3

SD2

SD1

SD0

RSTDRV

AEN

SMEMW

SMEMR

IOW

IOR

REFRESH

SYSCLK

OSC

IDED3

IDED4

IDED5

IDED6

IDED7

IDECS0

GND

MEMCS16

IOCS16

SBHE

ROMCS

GND

IDESA0

IDED0

IDED1

IDED2

MUX4

MUX5

MUX6

GPCS0

GND

IDESA1

IDED8

IDED9

IDED10

IDED11

IDED12

IDED13

IDED14

IDED15

IDECS1

GND

IRQ5

IRQ6

IRQ7

IRQ9

IRQ12

IRQ15

MUX1

MUX2

MUX3

JH2

VCC-IN

SD8

SD9

SD10

SD11

SD12

SD13

SD14

SD15

SA2

SA1

SA0

IOCHRDY

GND

TXD9\

RXD9\

IDESA2

IDERST

IDEINT

IDEREQ

IDERDY

IDEIOW

IDEACK

IDECBLID

IDEIOR

SA6

SA5

SA4

SA3

SA11

SA10

SA9

SA8

SA7

JH3

VCC3-OUT

SA19

SA18

SA17

SA16

SA15

SA14

SA13

SA12

DUPLEX

LFRAME-

LDRQ-

SERIRQ

LAD0

LAD1

LAD2

GP00

GP01

JH4

VBATT

PWRGD

SPEAKER

KBCLK

KBDATA

JH5

DCD4\

RXD4\

TXD4\

DTR4\

DSR4\

MSCLK

MSDATA

RTS4\

CTS4\

24MHZ RI4\

LINK/ACTIVE GND

LANTX+

LANRX+

LUSBD0+

LUSBD1+

LUSBD2+

LUSBD3+

GND

GP10

GP11

GP02

GP03

GP04

GP05

GP06

GP07

LAD3

GP20

GP21

GP22

GP23

GP24

GP25

GP26

DTR2\

DSR2\

RTS2\

CTS2\

RI2\

GP27 TXDEN2

VCC1.8-OUT GND

GP12

GP13

GP14

GP15

GP16

GP17

DCD2\

RXD2\

TXD2\

SPIDO

SPIDI

GP34

GP35

GP36

GP37

DCD1\

RXD1\

TXD1\

DTR1\

DSR1\

RTS1\

CTS1\

RI1\

TXDEN1

GND

LANTX-

LANRX-

LUSBD0-

LUSBD1-

LUSBD2-

LUSBD3-

GND

SPICS

SPICLK

JH6

DCD3\

RXD3\

TXD3\

DTR3\

DSR3\

RTS3\

CTS3\

RI3\

GND

DIP-204pin-ISA Signal

Assignment (Optional)

26

27

28

29

30

31

32

33

34

17

18

19

20

21

22

23

24

25

13

14

15

16

10

11

12

5

6

7

8

9

3

4

Pin JH4

1

2

VBATT

PWRGD

SPEAKER

KBCLK

KBDATA

MSCLK

MSDATA

JH5

DCD4\

RXD4\

TXD4\

DTR4\

DSR4\

RTS4\

CTS4\

24MHZ RI4\

LINK/ACTIVE GND

DUPLEX

LFRAME-

LDRQ-

SERIRQ

LAD0

LAD1

LAD2

LANTX+

LANRX+

LUSBD0+

LUSBD1+

LUSBD2+

LUSBD3+

GND

GP00

GP01

GP02

GP03

GP04

GP05

GP06

GP07

LAD3

GP10

GP11

GP12

GP13

GP14

GP15

GP16

GP17

PWM0CLK

SA24

SA25

SA26

SA27

SA28

PWM2CLK

PWM0OUT

PWM2OUT

GP44

GP41

GP45

PWM0GATE GP46

PWM1OUT GP42

SA29

SA30

PWM1GATE

PWM1CLK

GP47

GP43

SA31 PWM2GATE TXDEN1

VCC1.8-OUT GND GND

GP30

GP31

GP32

GP34

GP34

GP35

GP36

GP37

GP40

JH6

DCD3\

RXD3\

TXD3\

DTR3\

DSR3\

RTS3\

CTS3\

RI3\

GND

LANTX-

LANRX-

LUSBD0-

LUSBD1-

LUSBD2-

LUSBD3-

GND

All Specifications are subject to change without notice.

w w w .

i c o p .

c o m .

t w

1

µProcessor

Module

2

Mity/Tiny CPU

Module

5

3.5” CPU

Module

6

Peripheral

Module

3

PC/104 CPU

Module

4

Half-Size CPU

Module

7

Display Product

Series

8

Accessories &

Technical Information

33

34

VSX-DIP-PCI-V2

45.0

43.0

41.0

39.0

JTAG

6.0

4.0

2.0

0.0

Unit: mm

Specifications

SoC

DM&P SoC CPU Vortex86SX- 300MHz

Real Time Clock with Lithium Battery Backup

Cache

Bus

L1:16K I-Cache, 16K D-Cache

PCI interface

BIOS

AMI BIOS

System Memory

128/256MB DDR2 Onboard

Watchdog Timer

0 & 1 Sets

LAN

Integrated 10/100Mbps Ethernet

Flash Disk Support

Onboard 2MB SPI Flash Disk

I/O Interface

Software programmable from 30.5µ sec. to 512 sec. x 2 sets (Watchdog 1 fully compatible with M6117D)

Enhanced IDE port (UltraDMA-100/66/33) x1

RS-232 port x5 (TX/RX x1)

USB port x4

16-bit GPIO port x2

Connectors

1.25mm 6-pin wafer for JTAG x1

Power Requirement Single Voltage +5V @ 280mA

Weight

23g

Board Size

Operating

Temperature

70 x 45mm (2.75 x 1.77 inches)

-20°C ~ +70°C

-40°C ~ +85°C (Optional)

Packing List

• VSX-DIP-PCI-V2 x1

Ordering Information

VSX-DIP-PCI-V2 Vortex86SX DIP-204pin-PCI CPU Module with 128MB

DDR2

DIP-204pin-PCI Module

DIP-204pin-PCI Module (70x45mm) is designed as the kernel of your own application, which integrates the Vortex86SX CPU, onboard 128MB DDR2, BIOS and multi I/O. The

I/O interface of DIP-204pin-PCI Module are 34-pin (1x34, pitch 2.0mm) connector x6 which including PCI bus, RS-232, IDE, LAN, USB, and GPIO.

For assisting users easily use our DIP-204pin-PCI Module, ICOP provides complete development kit of DIP-204pin-PCI Development Board for DIP-204pin-PCI Module.

We also supply our customers with referential circuit diagram for easing user’s effort during development process. Meanwhile, you can design your own based board which only equips I/O functions you need.

Please visit our website for getting further information you need: http://www.dmp.com.tw/tech/vortex86sx/

You also can contact us for getting referential circuit drawing: [email protected]

w w w .

i c o p .

c o m .

t w

128MB/5S/4USB/LAN/2GPIO

VSX-DIP-PCI-V2

JH12

JH11

JH10

1

1

1

COM3

COM4

KB/MS

PWR

MTBF

LAN

USB

LPC

64Mx8/128Mx8

70m

P3/SPI

P1

P0

COM1/P4

COM2/PWM

P2/SA23-31

34

34

34

Vortex86SX

JTAG

64Mx8/128Mx8

JH9

JH8

JH7

1

1

1

PCI

COM9

IDE

34

34

34

DIP-204pin-PCI Signal Assignment

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

10

11

12

13

14

15

16

17

18

6

7

8

9

2

3

4

5

Pin JH7

1 VCC-IN

PCICLK0

PCICLK1

PCICLK2

GND

INT-A

INT-B

INT-C

INT-D

PCIRST-

FRAME-

IRDY-

TRDY-

DEVSEL-

STOP-

PAR

CBE-3

CBE-2

CBE-1

CBE-0

NC

NC

GND

IDESA0

IDE0

IDE1

IDE2

IDE3

IDE4

IDE5

IDE6

IDE7

IDECS0

GND

AD4

AD2

AD0

NC

GND

IDESA1

IDED8

IDED9

IDED10

IDED11

IDED12

IDED13

IDED14

IDED15

IDECS1

GND

AD22

AD20

AD18

AD16

AD14

AD12

AD10

AD8

AD6

JH8

VCC-IN

PGNT-0

PGNT-1

PGNT-2

GND

AD30

AD28

AD26

AD24

AD5

AD3

AD1

NC

GND

TXD9\

RXD9\

IDESA2

IDERST

IDEINT

IDEREQ

IDERDY

IDEIOW

IDEACK

IDECBLID

IDEIOR

AD23

AD21

AD19

AD17

AD15

AD13

AD11

AD9

AD7

JH9

VCC3-OUT

PREQ-0

PREQ-1

PREQ-2

GND

AD31

AD29

AD27

AD25

DUPLEX

LFRAME-

LDRQ-

SERIRQ

LAD0

LAD1

LAD2

GP00

GP01

JH10

VBATT

PWRGD

SPEAKER

KBCLK

KBDATA

JH11

DCD4\

RXD4\

TXD4\

DTR4\

DSR4\

MSCLK

MSDATA

RTS4\

CTS4\

24MHZ RI4\

LINK/ACTIVE GND

LANTX+

LANRX+

LUSBD0+

LUSBD1+

LUSBD2+

LUSBD3+

GND

GP10

GP11

GP02

GP03

GP04

GP05

GP06

GP07

LAD3

GP20

GP21

GP22

GP23

GP24

GP25

GP26

DTR2\

DSR2\

RTS2\

CTS2\

RI2\

GP27 TXDEN2

VCC1.8-OUT GND

GP12

GP13

GP14

GP15

GP16

GP17

DCD2\

RXD2\

TXD2\

SPIDO

SPIDI

GP34

GP35

GP36

GP37

DCD1\

RXD1\

TXD1\

DTR1\

DSR1\

RTS1\

CTS1\

RI1\

TXDEN1

GND

LANTX-

LANRX-

LUSBD0-

LUSBD1-

LUSBD2-

LUSBD3-

GND

SPICS

SPICLK

JH12

DCD3\

RXD3\

TXD3\

DTR3\

DSR3\

RTS3\

CTS3\

RI3\

GND

DIP-204pin-PCI Signal

Assignment (Optional)

26

27

28

29

30

31

32

33

34

17

18

19

20

21

22

23

24

25

13

14

15

16

10

11

12

5

6

7

8

9

3

4

Pin JH10

1

2

VBATT

PWRGD

SPEAKER

KBCLK

KBDATA

MSCLK

MSDATA

JH11

DCD4\

RXD4\

TXD4\

DTR4\

DSR4\

RTS4\

CTS4\

24MHZ RI4\

LINK/ACTIVE GND

DUPLEX

LFRAME-

LDRQ-

SERIRQ

LAD0

LAD1

LAD2

LANTX+

LANRX+

LUSBD0+

LUSBD1+

LUSBD2+

LUSBD3+

GND

GP00

GP01

GP02

GP03

GP04

GP05

GP06

GP07

LAD3

GP10

GP11

GP12

GP13

GP14

GP15

GP16

GP17

PWM0CLK

SA24

SA25

SA26

SA27

SA28

PWM2CLK

PWM0OUT

PWM2OUT

GP44

GP41

GP45

PWM0GATE GP46

PWM1OUT GP42

SA29

SA30

PWM1GATE

PWM1CLK

GP47

GP43

SA31 PWM2GATE TXDEN1

VCC1.8-OUT GND GND

GP30

GP31

GP32

GP34

GP34

GP35

GP36

GP37

GP40

JH12

DCD3\

RXD3\

TXD3\

DTR3\

DSR3\

RTS3\

CTS3\

RI3\

GND

LANTX-

LANRX-

LUSBD0-

LUSBD1-

LUSBD2-

LUSBD3-

GND

All Specifications are subject to change without notice.

w w w .

i c o p .

c o m .

t w

1

µProcessor

Module

2

Mity/Tiny CPU

Module

5

3.5” CPU

Module

6

Peripheral

Module

3

PC/104 CPU

Module

4

Half-Size CPU

Module

7

Display Product

Series

8

Accessories &

Technical Information

35

36

VSX-DEV-204-PCI

GPIO 44-pin IDE

Power Connector

GND +5V 40-pin IDE

Power

Connector

Ø3.0

154.7

144.5

VSX-DIP-PCI Development Board

Ø3.0

160.0

144.2

113.8

GPIO

PCI Bus

COM4

COM3

COM3

COM4

39.9

5.0

0.0

41.3

40.9

5.0

USB1

COM1 COM2

PS/2 KB/MOUSE

USB2 LAN

Unit: mm

Spe cificati ons

Connectors

2.54mm 40-pin header for IDE x1

2.54mm 20-pin box header for GPIO x3

2.54mm 10-pin box header for RS-232 x2

2.0mm 44-pin header for IDE x1

124-pin slot for PCI x4

External RJ-45 connector for Ethernet x1

External USB connector x4

External 9-pin D-Sub male connector for RS-232 x4

External 6-pin Mini DIN connector for Keyboard x1

External 6-pin Mini DIN connector for Mouse x1

Power

Requirement

Weight

Board Size

Operating

Temperature

Single Voltage +5V @ 250mA

300g

240 x 160 mm (9.45 x 6.3 inches)

-40°C ~ +85°C

Packing List

• VSX-DEV-204-PCI x1

• Cable

HDD 40P (2.54) x1

RS-232 (2.54) x2

GPIO (2.54) x3

HDD 44P (2.0) x1

Ordering Information

VSX-DEV-204-PCI VSX-DIP-PCI Development Board

PCI-VGA-Z9s

XGI Z9s VGA/DVI PCI Board

COM2 LAN

PS/2 MOUSE

COM4

PCI-VGA-Z9s

Features

XGI Volari Z9s Chipset

PCI Bus

32MB DDR2 VGA Memory

1600 x 1200 @16M Colors Resolution

VGA & DVI Support

VSX-DIP-PCI Development Kit

VSX-DEV-204-PCI

VDX-DIP-PCI

PCI-VGA-Z9s

COM1

USB1 PS/2 KB

USB2 COM3 w w w .

i c o p .

c o m .

t w

VSX-DEV-204-ISA

VSX-DIP-ISA Development Board

Power

Connector

ISA Bus

GPIO

GPIO 44-pin IDE

Power Connector

GND +5V 40-pin IDE

USB1

COM1 COM2

PS/2 KB/MOUSE

USB2 LAN

Ø3.0

154.7

144.5

COM4

COM3

COM3

COM4

39.9

15.0

5.0

0.0

Ø3.0

Specifications

Connectors

2.54mm 40-pin header for IDE x1

2.54mm 20-pin box header for GPIO x3

2.54mm 10-pin box header for RS-232 x2

2.0mm 44-pin header for IDE x1

98-pin slot for ISA x2

External RJ-45 connector for Ethernet x1

External USB connector x4

External 9-pin D-Sub male connector for RS-232 x4

External 6-pin Mini DIN connector for Keyboard x1

External 6-pin Mini DIN connector for Mouse x1

Power Requirement Single Voltage +5V @ 250mA

Weight

300g

Board Size

240 x 160 mm (9.45 x 6.3 inches)

Operating

Temperature

-40°C ~ +85°C

Packing List

• VSX-DEV-204-ISA x1

• Cable

HDD 40P (2.54) x1

RS-232 (2.54) x2

GPIO (2.54) x3

HDD 44P (2.0) x1

Ordering information

VSX-DEV-204-ISA VSX-DIP-ISA Development Board

ICOP-2811 PC/104 VGA/LCD Module

ICOP-0091 PC/104 Interface to ISA Bus

ICOP-2811

COM2

COM1

LAN

PS/2 MOUSE

COM4

USB1

USB2

PS/2 KB

VSX-DIP-ISA Development Kit

VDX-DIP-ISA

ICOP-0091

COM3

VSX-DEV-204-ISA

160.0

144.2

113.8

40.9

5.0

Unit: mm

1

µProcessor

Module

2

Mity/Tiny CPU

Module

5

3.5” CPU

Module

6

Peripheral

Module

3

PC/104 CPU

Module

4

Half-Size CPU

Module

7

Display Product

Series

8

Accessories &

Technical Information

37 w w w .

i c o p .

c o m .

t w

All Specifications are subject to change without notice.

38

VDX-6319-F-D x-ISA bus

DMA

JTAG

42.0

256MB/2S/USB/GPIO

45.0

MTBF LED

IDE LED

Power LED

1.0

0.0

COM1 COM2 Parallel Port GPIO BAT+ USB Reset

GPCS KBD Buzzer

Unit: mm

Specifications

SoC

DM&P SoC CPU Vortex86DX- 800MHz

Real Time Clock with Lithium Battery Backup

Cache

Bus

L1:16K I-Cache, 16K D-Cache L2 Cache 128KB

16-bit x-ISA interface

BIOS

AMI BIOS

System Memory

256MB DDR2 Onboard

Watchdog Timer

Flash Disk Support

Onboard 4MB SPI Flash Disk

Onboard EmbedDisk 128MB

I/O Interface

Software programmable from 30.5µ sec. to 512 sec. x 2 sets (Watchdog 1 fully compatible with M6117D)

RS-232 port x2 (TTL x2)

USB port (Ver2.0) x1

Parallel port x1

16-bit GPIO port x1

Connectors

2.0mm 64-pin header for 16-bit x-ISA interface x1

2.0mm 64-pin header for I/O interface x1

2.0mm 9-pin header for DMA x1

1.25mm 6-pin wafer for JTAG x1

Power Requirement Single Voltage +5V @ 400mA

Weight

30g

Board Size

Operating

Temperature

65 x 45mm (2.56 x 1.77 inches)

-20°C ~ +70°C

-40°C ~ +85°C(Optional)

Mity-SoC Module

Mity-SoC Module: VDX-6319-F-D (65 x 45mm) is designed as the kernel of your own application, which integrates the Vortex86DX CPU, onboard 256/512MB DDR2,

EmbedDisk-128/256/512MB, BIOS and multi I/O. The I/O interface of Mity-SoC are

64-pin (2 x 32, pitch 2.0mm) connector x2; one is for x-ISA bus, another is for all I/O functions which including RS-232, Printer, IDE, and GPIO.

For assisting users easily use our Mity-SoC Module, ICOP provides complete development kit of Mity-SoC Development Board and Mity-SoC VGA/LCD Development

Kit for Mity-SoC Module.

We also supply our customers with referential circuit diagram for easing user’s effort during development process. Meanwhile, you can design your own based board which only equips I/O functions you need.

Please visit our website for getting further information you need: http://www.dmp.com.tw/tech/vortex86dx/

You also can contact us for getting referential circuit drawing: [email protected]

Mity-SoC CPU Module Ordering Selection

Ordering Type No.

SST-128MB SPI-4MB

VDX-6319-F-A V

VDX-6319-F-B

VDX-6319-F-C

VDX-6319-F-D

V

V

V

V

V

TTL

V

V

RS-232

V

V

Packing List

• VDX-6319-F-D x1

Ordering information

VDX-6319-F-D

VSX-6119-1

Vortex86DX Mity-SoC CPU Module with 256MB DDR2

Mity-SoC Development Board

ICOP-6019-VGA Mity-SoC VGA/LCD Development Kit w w w .

i c o p .

c o m .

t w

VSX-6119-F-D-V2

128MB/2S/USB/GPIO

x-ISA bus

DMA

COM1 COM2 Parallel Port GPIO

JTAG

BAT+ USB Reset

GPCS KBD Buzzer

Specifications

SoC

Cache

Bus

BIOS

System Memory

Watchdog Timer

Flash Disk Support

DM&P SoC CPU Vortex86SX- 300 MHz

Real Time Clock with Lithium Battery Backup

L1: 16K I-Cache, 16K D-Cache

16-bit x-ISA interface

AMI BIOS

128/256MB DDR2 Onboard

Software programmable from 30.5µ sec. to 512 sec. x 2 sets (Watchdog 1 fully compatible with M6117D)

Onboard 2MB SPI Flash Disk

Onboard EmbedDisk 128MB

I/O Interface

Connectors

RS-232 port x 2 (TTL x2)

USB port (Ver2.0) x 1

Parallel port x 1

16-bit GPIO port x 1

2.0mm 64-pin header for 16-bit x-ISA interface x 1

2.0mm 64-pin header for I/O interface x 1

2.0mm 9-pin header for DMA x 1

1.25mm 6-pin wafer for JTAG x 1

Power Requirement Single Voltage +5V @ 320mA

Weight

30g

Board Size

Operating

Temperature

65 x 45mm (2.56 x 1.77 inches)

-20°C ~ +70°C

-40°C ~ +85°C (Optional)

42.0

1.0

0.0

45.0

MTBF LED

IDE LED

Power LED

Unit: mm

Mity-SoC Module

Mity-SoC Module: VSX-6119-F-D (65x45mm) is designed as the kernel of your own application, which integrates the Vortex86SX CPU, Onboard 128MB DDR2, EmbedDisk-

128MB, BIOS and multi I/O. The I/O interface of Mity-SoC are 64-pin (2 x 32, pitch

2.0 mm) connector x 2; one is for x-ISA bus, another one for all I/O functions which including RS-232, Printer, IDE, and GPIO.

For assisting users easily use our Mity-SoC Module, ICOP provides complete development kit of Mity-SoC Development Board and Mity-SoC VGA/LCD Development

Kit for Mity-SoC Module.

We also supply our customers with referential circuit diagram for easing user’s effort during development process. Meanwhile, you can design your own based board which only equips I/O functions you need.

Please visit our website for getting further information you need: http://www.dmp.com.tw/tech/vortex86sx/

You also can contact us for getting referential circuit drawing: [email protected]

Mity-SoC CPU Module Ordering Selection

Ordering Type No.

SST-128MB SPI-2MB

VSX-6119-F-A

VSX-6119-F-B

VSX-6119-F-C

VSX-6119-F-D

V

V

V

V

V

V

TTL

V

V

RS-232

V

V

Packing List

• VSX-6119-F-D-V2 x1

Ordering information

VSX-6119-F-D-V2 Vortex86SX Mity-SoC CPU Module with 128MB

DDR2

VSX-6119-1 Mity-SoC Development Board

ICOP-6019-VGA Mity-SoC VGA/LCD Development Kit

1

µProcessor

Module

2

Mity/Tiny CPU

Module

5

3.5” CPU

Module

6

Peripheral

Module

3

PC/104 CPU

Module

4

Half-Size CPU

Module

7

Display Product

Series

8

Accessories &

Technical Information

39 w w w .

i c o p .

c o m .

t w

All Specifications are subject to change without notice.

Mity-SoC-DEV

VSX-6119-1

Reset USB x2

+5V DC Power-in

+5V DC Power-in x-ISA Socket

GPIO Parallel port COM2

GPIO Signal

Controlling Switch

+5V DC Power-in

COM1

VGA connector

Mity-SoC VGA/LCD Development Kit

ICOP-6019-VGA

Multi I/O Socket

LCD Connector

PS/2 KB/mouse

VGA Connector

PC/104 PS/2 KB

40

Specifications

Bus

16-bit x-ISA interface

PC/104 standard compliant

Status Indicator

Operating

Temperature

Digit Type 7-Segment LED Display for POST Code x2

GPIO LED x16

Connectors

2.54mm 26-pin box header for Printer x1

2.54mm 20-pin box header for 16-bit GPIO x1

2.54mm 10-pin box header for RS-232 x1

2.54mm 5-pin box header for Keyboard x1

2.54mm 2-pin header for Reset x1

32-pin DIP socket for DOC x1

External 15-pin D-Sub female connector for VGA

External 9-pin D-Sub male connector for RS-232 x1

External Mini DIN connector for Keyboard/Mouse x1

4-pin Molex connector for Power input x1

2-pin Terminal strip for Power input x1

DC Jack for Power input x1

Power Requirement Single Voltage +5V @ 150mA

Dimension

185 X 122mm (7.28 x 4.8 inches)

Weight

172g

-40°C ~ +85°C

Packing List

• VSX-6119-1

• CD for User’s Manual & Driver x1

• Cable

RS-232 (2.54) x1

Printer (2.54) x1

GPIO (2.54) x1

YKB x1

Specifications

Chipset

TOPRO TP6508IQ

VGA and Mono/STN/DSTN/TFT Flat Panel interface support

16-bit x-ISA interface

Bus

VGA Memory

Connectors

Onboard 1MB EDO RAM, support resolution up to

1024 x 768, 256 colors

2.0mm 44-pin box header for LCD x1

2.0mm 10-pin box header for VGA x1

2.54mm 4-pin wafer for +12V, -12V, -5V DC-in x1

Power Requirement Single Voltage +5V @ 200mA

Weight

32g

Board Size

80 X 50mm (3.14 x 1.96 inches)

Operating

Temperature

-20°C ~ +60°C

Packing List

• ICOP-6019-VGA x1

Ordering Information

VSX-6119-1 Mity-SoC Development Board

ICOP-6019-VGA Mity-SoC VGA/LCD Development Kit

Mity-SoC Development Kit

VSX-6119-F-D-V2

VDX-6319-F-D

ICOP-6019-VGA

VSX-6119-1 w w w .

i c o p .

c o m .

t w

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
