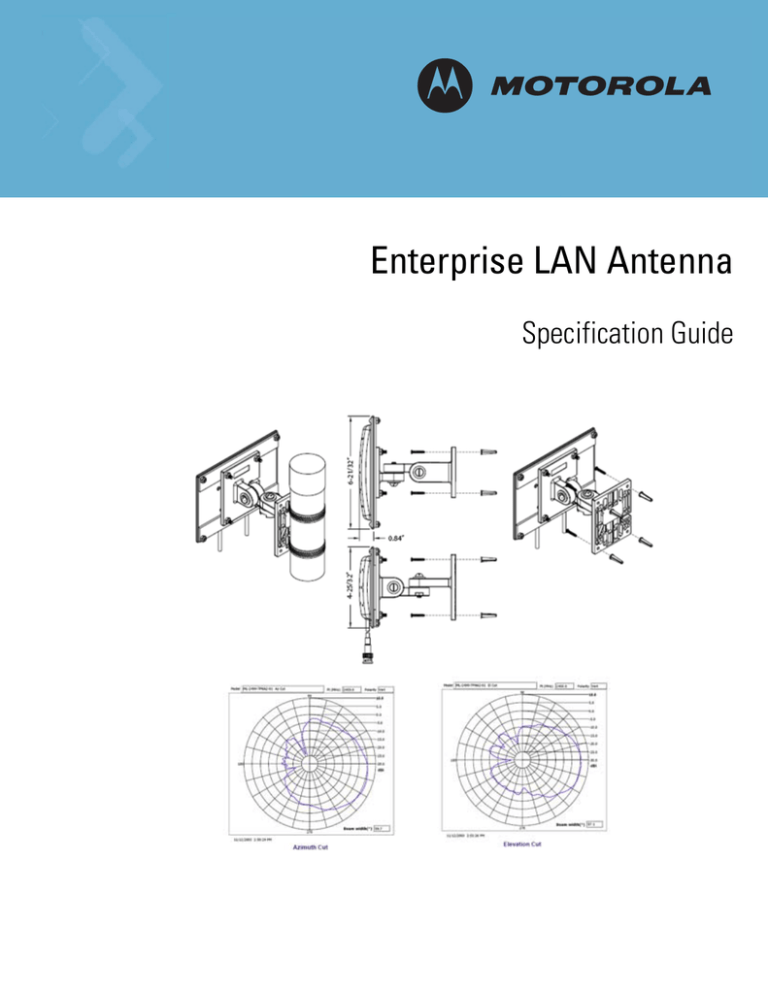

Antenna Guide
Enterprise LAN Antenna
Specification Guide
© 2008 Motorola, Inc. All rights reserved.
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. Symbol is a registered
trademark of Symbol Technologies, Inc. All other product or service names are the property of their respective owners.
Contents
Chapter 1.Antenna Selection and Description
1.1 Antenna Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1.2 Antenna Selection Criteria. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1.3 Antenna Accessories for Motorola Enterprise WLANs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Chapter 2.Product Compatibility
Chapter 3.802.11b/g/n Antenna Suite
3.1 Supported 802.11b/g/n Antenna Suite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Chapter 4.802.11a Antenna Suite
4.1 Supported 802.11a Antenna Suite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Chapter 5. 2.4GHz - 5.2GHz Dual Band Antenna Suite
5.1 Supported 2.4GHz - 5.2GHz Dual Band Antennas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Chapter 6. Antenna Cables
6.1 Supported Antenna Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Chapter 7. Supported Antenna Adapters
7.1 Supported Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
Chapter 8. Supported Lightning Arrestors
8.1 Lightning Arrestors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
Chapter 9.Mounting Kits
9.1 Lightning Arrestors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
Appendix A.Technical Support
TOC-2 Enterprise LAN Antenna Specification Guide
About This Guide
Introduction
This guide has been designed to help you choose the right Motorola antenna and accessories for your
wireless LAN deployment. It explains key factors to consider when choosing an antenna, and provides tables
illustrating various key characteristics of each antenna. A compatibility chart is also provided to show which
Motorola products are compatible with each other and what accessories may be required to complete the
system. A Motorola representative or sales partner can also help you determine the best configuration for
your installation.
NOTE: Illustrations displayed in this guide are samples and can differ from the actual
antenna.
Document Conventions
The following conventions are used in this document to draw your attention to important information:
NOTE: Indicate tips or special requirements.
!
CAUTION: Indicates conditions that can cause equipment damage or data loss.
WARNING! Indicates a condition or procedure that could result in
personal injury or equipment damage.
viii Enterprise LAN Antenna Specification Guide
Notational Conventions
The following additional notational conventions are used in this document:
• Italics are used to highlight the following:
• Chapters and sections in this and related documents
• Dialog box, window and screen names
• Drop-down list and list box names
• Check box and radio button names
• Icons on a screen.
• GUI text is used to highlight the following:
• Screen names
• Menu items
• Button names on a screen.
• bullets (•) indicate:
• Action items
• Lists of alternatives
• Lists of required steps that are not necessarily sequential
• Sequential lists (those that describe step-by-step procedures) appear as numbered lists.
Antenna Selection and Description
1.1 Antenna Selection
While several antennas may work in a given environment, some will provide better coverage than others.
Using the right antenna in the right location will maximize both the performance and coverage of your
network. Understanding the key characteristics that describe how an antenna sends and receives radio
frequency signals is critical to finding the ideal antenna for your deployment. This guide supports the
antennas used for an AP-5131 model access point and an AP300 (external antenna) model access port.
Motorola Enterprise Wireless LAN products operate in the 2.4 GHz and 5 GHz ISM bands allocated for
unlicensed use. Access point and access port products available today support either the 802.11b/g or the
802.11a standard, or both (with new 802.11n support planned in 2008). Wireless devices conforming to the
802.11b/g standard operate in the 2.4 GHz ISM band, while 802.11a devices operate in the 5 GHz band. The
antennas in this guide are grouped according to the frequency band they support. Some antennas are
designed to operate on either band. These antennas (described as "Dual-band") may be connected to radios
operating in either the 2.4 or 5 GHz bands, although a single antenna may not be connected to two radios at
the same time.
1.2 Antenna Selection Criteria
In addition to antenna frequency, there is other criteria to consider when selecting an antenna for your
AP-5131 or AP300 (external antenna) model access port.
1.2.1 Antenna Pattern
1.2.1.1 Omni-Directional
Signal radiates from the antenna in all directions on the horizontal plane.
1.2.1.2 Directional
Signal radiates in a specific direction, typically described as a beam of given width, expressed in degrees in
the horizontal and vertical plane. For more information, see Azimuth 3dB Beamwidth on page 1-3 and
Elevation 3dB Beamwidth on page 1-3.
1-2 Enterprise LAN Antenna Specification Guide
1.2.2 Antenna Type
1.2.2.1 Panel
A panel antenna is a flat antenna mounted to a wall or other vertical surface and radiates RF energy (radio
waves) directionally away from the wall. They usually have gain greater than 5 dBi and are not suitable for
omni-directional situations. Ideally suited for long hallways.
1.2.2.2 Patch
A patch antenna is a flat antenna mounted on the ceiling but whose pattern is omni-directional. Most of the
energy goes out horizontally to the sides of the antenna and equal in all directions.
1.2.2.3 Dipole
A dipole antenna is a tubular antenna that can be either a pipe shape, a straight flexible rod or a paddle. This
antenna has an omni-directional pattern when placed in a vertical position. It usually has 2 dBi of gain.
1.2.2.4 Dipole Array
Essentially a dipole, a dipole array is two or more dipoles that are placed one on top of the other, requiring
a longer tube to hold them. The advantage of a dipole array is that it has higher gain.
1.2.2.5 Parobolic Grid
A paraobolic grid antenna is a very directional, dish-like antenna. Its parabolic reflector focuses the RF
energy like a flashlight. Most of the time the radiating element is a dipole, but when combined with the dish,
it becomes very directional with gain up to 24 dBi. Usually used in long point-to-point systems.
1.2.2.6 Yagi
A yagi antenna is a antenna that has an internal structure resembling that of typical antennas used for TV
reception (a series of rods perpendicular to a main rod, making a triangular shape). This is a directional
antenna with less gain than the PGA, typically around 13 dBi. It may be used in either point-to-point
situations, or to cover a very long, narrow area in point-to-multi-point situations.
1.2.3 Antenna Performance Characteristics
1.2.3.1 Frequency
The frequency band within which the antenna performs at the stated specifications
1.2.3.2 Gain (dBi)
The relative amplification of the antenna with respect to an equivalent isotropic antenna, expressed on the
decibel logarithmic scale.
1.2.3.3 Cable loss (dB)
The signal strength loss introduced by the cable connected to the antenna expressed on the decibel
logarithmic scale.
1.2.3.4 Net gain (dBi)
The resulting amplification of the antenna paired with its cable.
Antenna Selection and Description 1-3
1.2.3.5 Polarization
The orientation of the electrical field which the antenna is optimized to receive. If the transmitting and
receiving antennas are both linear polarized, then turning one 90° so that they are cross polarized will reduce
the range significantly.
1.2.3.6 VSWR
Voltage Standing Wave Ratio (VSWR) is the ratio of maximum voltage to minimum voltage along the line.
Expresses the degree of match between the transmission line and the terminating element (antenna). When
VSWR is 1:1 the match is perfect, a VSWR of 1.5:1 corresponds to 96% power efficiency.
1.2.3.7 Azimuth 3dB Beamwidth
Width of the antenna beam on the horizontal plane expressed in degrees.
1.2.3.8 Elevation 3dB Beamwidth
Height of the antenna beam on the vertical plane expressed in degrees.
1.3 Antenna Accessories for Motorola Enterprise WLANs
Motorola offers a complete selection of antennas and accessories to ensure optimal coverage and
performance for 802.11a/b/g wireless LANs. Regardless of the size or layout of your environment, from a
small office or storefront to campus-wide, multiple-site, indoor and outdoor deployments, Motorola offers
the antennas, cables and accessories designed to fit your needs.
By combining this portfolio with a broad line of wireless switches, access ports, access points, client
connectivity cards, ruggedized mobile voice/data devices and network management software, as well as
wireless mobility planning and deployment services, Motorola offers comprehensive end-to-end wireless
enterprise LAN solutions, giving you secure, reliable access to your critical business data and applications
at the point of activity. For more information on Motorola's wireless products, visit www.symbol.com/
wireless
1.3.1 Choosing the Right Antenna and accessories for your WLAN
It is important to consider a number of factors when choosing an antenna and accessories for your Motorola
enterprise WLAN. To choose the right components, you'll need to know:
• Where you will be installing the antenna, and what type of coverage you will require
• In which band (802.11b/g or 802.11a) your network operates
• Which Motorola AP you plan to use
• Whether you will be deploying the network indoors or outdoors
• The distance between AP and antenna, to determine extender cable length, if any
Review the Product Compatibility chart to determine which antennas suit your needs. Using the part numbers
provided, determine which of the antennas will work with your hardware in your environment.
1-4 Enterprise LAN Antenna Specification Guide
Product Compatibility
To find the right antenna and accessories for your AP-5131 or AP300 (external antenna) deployment:
• Find your Motorola access point or access point model at the top of the chart (refer to the chart on the
following page). Follow that column down to find the antennas, cables and lightning arrestors
compatible with that model access port or access point. Write those part numbers down.
• Follow the row antenna across the table to the columns for the lightning arrestors and cables you wrote
down to confirm that they compatible with the antenna you've chosen and determine if an adaptor is
required to connect the two selected parts.
2-2 Enterprise LAN Antenna Specification Guide
802.11b/g/n Antenna Suite
3.1 Supported 802.11b/g/n Antenna Suite
Motorola supports numerous 802.11b/g/n antennas to suit the requirements of your unique AP-5131 or AP 300
(external antenna) deployment. Check the Motorola Web site periodically, as newly supported 802.11b/g/n antennas
will be added to this document as they are released. For more information, go to
http://support.symbol.com/support/product/manuals.do.
For detailed information on supported 802.11b/g/n antenna models, refer to:
• ML-2499-5PNL-72-N High Performance 135 Degree Panel Antenna - 5.5 dBi; N Male Connector
• ML-2499-7PNA2-01R 65 Degree H-Plane Diversity Directional Panel - 7 dBi, RP-BNC Male
• ML-2499-11PNA2-01R High-Gain 97 Degree H-Plane Directional Panel - 11 dBi, RP-BNC Male
• ML-2499-APA2-01R High Performance Omni-Directional 'Fixed Point' Dipole - 3.5 dBi, RP-BNC Female
• ML-2499-BPDA1-01R Heavy-Duty 35 Degree High-Gain Directional Panel - 14.5 dBi, N Female
• ML-2499-BPNA3-01R Heavy-Duty 35 Degree High-Gain Directional Panel - 14.5 dBi, N Female
• ML-2499-BYGA2-01R Heavy-Duty 35 Degree High-Gain Directional Yagi - 15 dBi, N Female
• ML-2499-HPA3-01R High Performance Omni-Directional "Pipe" Antenna - 5 dBi, RP-BNC Male
• ML-2499-PNAHD-01R Heavy-Duty 65 Degree H-Plane Directional Panel - 6.3 dBi, RP-BNC Male
• ML-2499-SD3-01R Low Profile Ceiling/Surface Mount Omni-Directional - 3.5 dBi, RP-BNC Male
• ML-2499-FHPA5-01R Omni-Directional "Pipe" Antenna - 7.7 dBi, N Male Connector
• ML-2499-FHPA9-01R High Performance Fixed Point Dipole - 2 dBi, Male Connector
3-2 Enterprise LAN Antenna Specification Guide
3.1.1 ML-2499-5PNL-72-N High Performance 135 Degree Panel Antenna - 5.5 dBi;
N Male Connector
Type
Panel
Frequency
2400-2500 MHz
Gain (dBi)
7.5
Net Gain (dBi)
5.5
Cable Loss (dB)
2
Polarization
Linear, Vertical
VSWR
1.7:1
Azimuth
3dB Beamwidth: 135°
Elevation
3dB Beamwidth: 56°
Cable Length (in.)
72
Cable Attenuation (dB/100 ft.)
33.5
Cable Type
RG-58 Ultralink
Connector Type
Type N - Male
Power
25 W
Weight
5 lb
802.11b/g/n Antenna Suite 3-3
3.1.2 ML-2499-7PNA2-01R 65 Degree H-Plane Diversity Directional Panel - 7 dBi,
RP-BNC Male
Type
Panel
Frequency
2400-2500 MHz
Gain (dBi)
7.6
Net Gain (dBi)
6.3
Cable Loss (dB)
1.3
Polarization
Linear, Vertical
VSWR
1.7:1 Typical
Azimuth
3dB Beamwidth: 60°
Elevation
3dB Beamwidth: 60°
Cable Length (in.)
48
Cable Attenuation (dB/100 ft.)
33.5
Cable Type
RG-58 Ultralink
Connector Type
RP-BNC Male
Power
10 W
Weight
9.6 oz
3-4 Enterprise LAN Antenna Specification Guide
3.1.3 ML-2499-11PNA2-01R High-Gain 97 Degree H-Plane Directional Panel - 11 dBi,
RP-BNC Male
Type
Panel
Frequency
2400-1500 MHz
Gain (dBi)
11.2
Net Gain (dBi)
8.5
Cable Loss (dB)
2.7
Polarization
Linear, Vertical
VSWR
1.7:1 Typical
Azimuth
3dB Beamwidth: 97°
Elevation
3dB Beamwidth: 14°
Cable Length (in.)
96
Cable Attenuation (dB/100 ft.)
33.5
Cable Type
RG-58 Ultralink
Connector Type
RP-BNC Male
Power
50 W
Weight
1.5 lb
802.11b/g/n Antenna Suite 3-5
3.1.4 ML-2499-APA2-01R High Performance Omni-Directional 'Fixed Point' Dipole
- 3.5 dBi, RP-BNC Female
Type
Dipole
Frequency
2400-2500 MHz
Gain (dBi)
2
Net Gain (dBi)
2
Cable Loss (dB)
0
Polarization
Linear, Vertical
VSWR
1.7:1 Typical
Azimuth
3dB Beamwidth: 360°
Elevation
3dB Beamwidth: 60°
Cable Length (in.)
0
Cable Attenuation (dB/100 ft.)
N/A
Cable Type
N/A
Connector Type
RP-BNC Female
Power
2W
Weight
1.2 oz
3-6 Enterprise LAN Antenna Specification Guide
3.1.5 ML-2499-BPDA1-01R Heavy-Duty 35 Degree High-Gain Directional Panel
- 14.5 dBi, N Female
Type
Parabolic Dish
Frequency
2400-2500 MHz
Gain (dBi)
23.5
Net Gain (dBi)
23.5
Cable Loss (dB)
0
Polarization
Linear, Vertical
VSWR
1.7:1 Typical
Azimuth
3dB Beamwidth: 10°
Elevation
3dB Beamwidth: 11°
Cable Length (in.)
0
Cable Attenuation (dB/100 ft.)
N/A
Cable Type
N/A
Connector Type
Type N - Female
Power
50 W
Weight
13 lb
802.11b/g/n Antenna Suite 3-7
3.1.6 ML-2499-BPNA3-01R Heavy-Duty 35 Degree High-Gain Directional Panel
- 14.5 dBi, N Female
Type
Panel
Frequency
2400-2500 MHz
Gain (dBi)
13.9
Net Gain (dBi)
13.6
Cable Loss (dB)
3
Polarization
Linear, Vertical
VSWR
1.5:1
Azimuth
3dB Beamwidth: 31°
Elevation
3dB Beamwidth: 28°
Cable Length (in.)
12
Cable Attenuation (dB/100 ft.)
33.5
Cable Type
RG-58 Ultralink
Connector Type
N - Female
Power
50 W
Weight
1.5 lb
3-8 Enterprise LAN Antenna Specification Guide
3.1.7 ML-2499-BYGA2-01R Heavy-Duty 35 Degree High-Gain Directional Yagi
- 15 dBi, N Female
Type
Yagi
Frequency
2400-2500 MHz
Gain (dBi)
14.1
Net Gain (dBi)
13.9
Cable Loss (dB)
3
Polarization
Linear, Vertical
VSWR
1.5:1 Typical
Azimuth
3dB Beamwidth: 28°
Elevation
3dB Beamwidth: 27°
Cable Length (in.)
12
Cable Attenuation (dB/100 ft.)
33.5
Cable Type
RG-58 Ultralink
Connector Type
Type N - Female
Power
50 W
Weight
1.25 lb
802.11b/g/n Antenna Suite 3-9
3.1.8 ML-2499-HPA3-01R High Performance Omni-Directional "Pipe" Antenna
- 5 dBi, RP-BNC Male
Type
Dipole Array
Frequency
2400-2500 mhZ
Gain (dBi)
4.6
Net Gain (dBi)
3.3
Cable Loss (dB)
1.3
Polarization
Linear, Vertical
VSWR
1.7:1
Azimuth
3dB Beamwidth: 360°
Elevation
3dB Beamwidth: 31°
Cable Length (in.)
48
Cable Attenuation (dB/100 ft.)
33.5
Cable Type
RG-58 Ultralink
Connector Type
RP-BNC Male
Power
50 W
Weight
.03 lb
3-10 Enterprise LAN Antenna Specification Guide
3.1.9 ML-2499-PNAHD-01R Heavy-Duty 65 Degree H-Plane Directional Panel
- 6.3 dBi, RP-BNC Male
Type
Panel
Frequency
2400-2500 Mhz
Gain (dBi)
7.6
Net Gain (dBi)
6.3
Cable Loss (dB)
1.3
Polarization
Linear, Vertical
VSWR
1.7:1
Azimuth
3dB Beamwidth: 55°
Elevation
3dB Beamwidth: 56°
Cable Length (in.)
48
Cable Attenuation (dB/100 ft.)
33.5
Cable Type
RG-58 Ultralink
Connector Type
RP-BNC Male
Power
50 W
Weight
.5 lb
802.11b/g/n Antenna Suite 3-11
3.1.10 ML-2499-SD3-01R Low Profile Ceiling/Surface Mount Omni-Directional
- 3.5 dBi, RP-BNC Male
Type
Panel
Frequency
2400-2500 MHz
Gain (dBi)
4.8
Net Gain (dBi)
3.5
Cable Loss (dB)
1.3
Polarization
Linear, Vertical
VSWR
1.7:1
Azimuth
3dB Beamwidth: 360°
Elevation
3dB Beamwidth: 52°
Cable Length (in.)
48
Cable Attenuation (dB/100 ft.)
33.5
Cable Type
RG-58 Ultralink
Connector Type
RP-BNC Male
Power
10 W
Weight
3.2 oz
3-12 Enterprise LAN Antenna Specification Guide
3.1.11 ML-2499-FHPA5-01R Omni-Directional "Pipe" Antenna - 7.7 dBi, N Male Connector
Type
Dipole Array
Frequency
2400-2500 MHz
Gain (dBi)
7.7
Net Gain (dBi)
7.7
Cable Loss (dB)
0.0
Polarization
Linear, Vertical
VSWR
2:1
Azimuth
3dB Beamwidth: 360°
Elevation
3dB Beamwidth: 25°
Cable Length (in.)
N/A
Cable Attenuation (dB/100 ft.)
N/A
Cable Type
N/A
Connector Type
Type N - Male
Power
10 W
Weight
.7 (.3)
802.11b/g/n Antenna Suite 3-13
3.1.12 ML-2499-FHPA9-01R High Performance Fixed Point Dipole - 2 dBi, Male Connector
Type
Dipole Array
Frequency
2400-2500 MHz
Gain (dBi)
9.0
Net Gain (dBi)
9.0
Cable Loss (dB)
0.0
Polarization
Linear, Vertical
VSWR
2:1
Azimuth
3dB Beamwidth: 360°
Elevation
3dB Beamwidth: 14°
Cable Length (in.)
N/A
Cable Attenuation (dB/100 ft.)
N/A
Cable Type
N/A
Connector Type
Type N - Male
Power
10 W
Weight
1.1 (.5)
3-14 Enterprise LAN Antenna Specification Guide
802.11a Antenna Suite
4.1 Supported 802.11a Antenna Suite
Motorola supports numerous 802.11a antennas to suit the requirements of your unique AP-5131 or AP 300
(external antenna) deployment. Check the Motorola Web site periodically, as newly supported 802.11a
antennas will be added to this document as they are released. For more information, go to
http://support.symbol.com/support/product/manuals.do.
For detailed information on supported 802.11a antenna models, refer to:
• ML-5299-APA1-01R High Performance Fixed Point Dipole - 2 dBi, RP-SMA Male Connector
• ML-5299-HPA1-01R High Performance Omni-Directional Antenna - 5 dBi, RP-SMA Male Connector
• ML-5299-PTA1-01R Low Profile Ceiling-Tile Mount Panel - 2 dBi, RP-SMA Male Connector
• ML-5299-WPNA1-01R Wall Mount Panel Antenna w/Articulating Mount - 13 dBi, RP-SMA Male
• ML-5299-FHPA10-01R Omni-Directional "Pipe" Antenna, 10 dBi, N-Male Connector
• ML-5299-FHPA6-01R Omni-Directional "Pipe" Antenna, 8 dBi, N-Male Connector
4-2 Enterprise LAN Antenna Specification Guide
4.1.1 ML-5299-APA1-01R High Performance Fixed Point Dipole - 2 dBi, RP-SMA
Male Connector
Type
Dipole
Frequency
4900-5875 MHz
Gain (dBi)
2.0/2.0
Net Gain (dBi)
2.0/2.0
Cable Loss (dB)
N/A
Polarization
Linear, Vertical
VSWR
1.5:1
Azimuth
3dB Beamwidth: 360°
Elevation
3dB Beamwidth: 75°
Cable Length (in.)
N/A
Cable Attenuation (dB/100 ft.)
N/A
Cable Type
N/A
Connector Type
RP-SMA Male
Power
1W
Weight
1 oz
802.11a Antenna Suite 4-3
4.1.2 ML-5299-HPA1-01R High Performance Omni-Directional Antenna - 5 dBi,
RP-SMA Male Connector
Type
Dipole Array
Frequency
4900-5875 MHz
Gain (dBi)
5.9
Net Gain (dBi)
5
Cable Loss (dB)
84
Polarization
Linear, Vertical
VSWR
2:1
Azimuth
3dB Beamwidth: 360°
Elevation
3dB Beamwidth: 17°
Cable Length (in.)
36
Cable Attenuation (dB/100 ft.)
28
Cable Type
LMR195
Connector Type
RP-SMA Male
Power
5W
Weight
0.3 lb.
4-4 Enterprise LAN Antenna Specification Guide
4.1.3 ML-5299-PTA1-01R Low Profile Ceiling-Tile Mount Panel - 2 dBi, RP-SMA
Male Connector
Type
Patch
Frequency
4900-5875 MHz
Gain (dBi)
6.5/2.0
Net Gain (dBi)
4.5/0
Cable Loss (dB)
2
Polarization
Linear, Vertical
VSWR
1.5:1
Azimuth
3dB Beamwidth: 360°
Elevation
3dB Beamwidth: 45°
Cable Length (in.)
36
Cable Attenuation (dB/100 ft.)
2.15
Cable Type
RG-58
Connector Type
RP-SMA Male
Power
2W
Weight
2.4 lb.
802.11a Antenna Suite 4-5
4.1.4 ML-5299-WPNA1-01R Wall Mount Panel Antenna w/Articulating Mount - 13 dBi,
RP-SMA Male
Type
Panel
Frequency
4900-5875 MHz
Gain (dBi)
14.2
Net Gain (dBi)
13
Cable Loss (dB)
1.2
Polarization
Linear, Vertical
VSWR
2:1
Azimuth
3dB Beamwidth: 31°
Elevation
3dB Beamwidth: 27°
Cable Length (in.)
36
Cable Attenuation (dB/100 ft.)
40
Cable Type
RG-303
Connector Type
RP-SMA Male
Power
10 W
Weight
0.7 lb.
4-6 Enterprise LAN Antenna Specification Guide
4.1.5 ML-5299-FHPA10-01R Omni-Directional "Pipe" Antenna, 10 dBi, N-Male Connector
Type
Dipole
Frequency
4900-5850 MHz
Gain (dBi)
10.0
Net Gain (dBi)
10.0
Cable Loss (dB)
0.0
Polarization
Linear, Vertical
VSWR
2:1
Azimuth
3dB Beamwidth: 360°
Elevation
3dB Beamwidth: 13
Cable Length (in.)
N/A
Cable Attenuation (dB/100 ft.)
N/A
Cable Type
N/A
Connector Type
Type N Male
Power
5W
Weight
.37 (.17)
802.11a Antenna Suite 4-7
4.1.6 ML-5299-FHPA6-01R Omni-Directional "Pipe" Antenna, 8 dBi, N-Male Connector
Type
Array
Frequency
4900-5850
Gain (dBi)
8.0
Net Gain (dBi)
8.0
Cable Loss (dB)
0.0
Polarization
Linear, Vertical
VSWR
2:1
Azimuth
3dB Beamwidth: 360°
Elevation
3dB Beamwidth: 16°
Cable Length (in.)
N/A
Cable Attenuation (dB/100 ft.)
N/A
Cable Type
N/A
Connector Type
Type N Male
Power
5W
Weight
.37 (.17)
4-8 Enterprise LAN Antenna Specification Guide
2.4GHz - 5.2GHz Dual Band Antenna Suite
5.1 Supported 2.4GHz - 5.2GHz Dual Band Antennas
Motorola supports several 2.4GHz - 5.2GHz Dual Band antennas to suit the requirements of your unique
AP-5131 or AP 300 (external antenna) deployment. Check the Motorola Web site periodically, as newly
supported 2.4GHz - 5.2GHz Dual Band antennas will be added to this document as they are released. For
more information, go to http://support.symbol.com/support/product/manuals.do.
For detailed information on supported 2.4GHz - 5.2GHz Dual Band antenna models, refer to:
• ML-2452-APA2-01 High Performance Dual Band Fixed Point Dipole - 3 dBi/4 dBi, RP-SMA Male
• ML-2452-PNA5-01R Dual Band Panel, 5 dBi, Connector Type N-Male
• ML-2452-PNA7-01R Dual Band Panel, 7 dBi, Connector Type N-Male
5-2 Enterprise LAN Antenna Specification Guide
5.1.1 ML-2452-APA2-01 High Performance Dual Band Fixed Point Dipole - 3 dBi/4 dBi,
RP-SMA Male
Type
Dipole
Frequency
2400-2500/5150-5850 MHz
Gain (dBi)
3.4
Net Gain (dBi)
3.4
Cable Loss (dB)
N/A
Polarization
Linear, Vertical
VSWR
1.92:1
Azimuth
3dB Beamwidth: 360°
Elevation
3dB Beamwidth: 35°
Cable Length (in.)
N/A
Cable Attenuation (dB/100 ft.)
N/A
Cable Type
N/A
Connector Type
RP-SMA Male
Power
10 W
Weight
0.7 oz
2.4GHz - 5.2GHz Dual Band Antenna Suite
5.1.2 ML-2452-PNA5-01R Dual Band Panel, 5 dBi, Connector Type N-Male
Type
Panel
Frequency
2400-2500/4900-5900 MHz
Gain (dBi)
4.5 (2400-2500); 5.0 (4900-5250); 7.5 (5250-5900)
Net Gain (dBi)
N/A
Cable Loss (dB)
N/A
Polarization
Linear, Vertical
VSWR
2:1
Azimuth
3dB Beamwidth: 120°
Elevation
3dB Beamwidth: 65°
Cable Length (in.)
30.5
Cable Attenuation (dB/100 ft.)
1.01/1.96
Cable Type
RG-58 Ultralink
Connector Type
Type N Male
Power
5W
Weight
.2 (.09)
5-4 Enterprise LAN Antenna Specification Guide
5.1.3 ML-2452-PNA7-01R Dual Band Panel, 7 dBi, Connector Type N-Male
Type
Panel
Frequency
2400-2500/4900-5900 MHz
Gain (dBi)
7.8 (2400-2500); 7.0 (4900-5250); 10.7 (5250-5900)
Net Gain (dBi)
N/A
Cable Loss (dB)
0.3/0.7
Polarization
Linear, Vertical
VSWR
2:1
Azimuth
3dB Beamwidth: 68°/ 52°
Elevation
3dB Beamwidth: 66°/ 60°
Cable Length (in.)
30.5
Cable Attenuation (dB/100 ft.)
1.01/1.96
Cable Type
RG-58 Ultralink
Connector Type
Type N Male
Power
10 W
Weight
.5 (.23)
Antenna Cables
6.1 Supported Antenna Cables
Motorola supports numerous cables to suit your unique AP-5131 or AP 300 (external antenna) deployment. Check the
Motorola Web site periodically, as new cables will be added to this document as they are released. For more
information, go to http://support.symbol.com/support/product/manuals.do.
For detailed information on supported cables, refer to:
• ML-1499-100JK-01R 100 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male with 2 Connector Seal Kits
• ML-1499-10JK-01R 10 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male
• ML-1499-25JK-01R 25 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male with 2 Connector Seal Kits
• ML-1499-50JK-01R 50 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male with 2 Connector Seal Kits
• ML-1499-72PJ-01R 6 ft. BNC Female to RP BNC Male Plenum Coaxial Jumper
6-2 Enterprise LAN Antenna Specification Guide
6.1.1 ML-1499-100JK-01R 100 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male
with 2 Connector Seal Kits
Type
Ultralink TL 93605
RF Connectors
N (m) to N (m)
Cable Attenuation (dB)
10.6 @ 2.4 GHz; 15.5 @ 5.8 GHz
Frequency
2400-2500 Mhz
6.1.2 ML-1499-10JK-01R 10 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male
Type
Ultralink TL 93605
RF Connectors
N (m) to N (m)
Cable Attenuation (dB)
2.0 @ 2.4 GHz; 2.9 @ 5.8 GHz
Frequency
2400-2500 Mhz
Antenna Cables 6-3
6.1.3 ML-1499-25JK-01R 25 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male
with 2 Connector Seal Kits
Type
Ultralink TL 93605
RF Connectors
N (m) to N (m)
Cable Attenuation (dB)
2.5 @ 2.4 GHz; 4.0 @ 5.8 GHz
Frequency
2400-2500 Mhz
6.1.4 ML-1499-50JK-01R 50 ft. Low-Loss Coaxial Cable Jumper: N Male to N Male
with 2 Connector Seal Kits
Type
Ultralink TL 93605
RF Connectors
N (m) to N (m)
Cable Attenuation (dB)
4.5 @ 2.4 GHz; 7.0 @ 5.8 GHz
Frequency
2400-2500 Mhz
6-4 Enterprise LAN Antenna Specification Guide
6.1.5 ML-1499-72PJ-01R 6 ft. BNC Female to RP BNC Male Plenum Coaxial Jumper
Type
CMP Plenum, RG-58
RF Connectors
BNC (f) to RP. BNC (m)
Cable Attenuation (dB)
9 dB
Frequency
2400-2500 Mhz
Supported Antenna Adapters
7.1 Supported Adapters
Motorola supports many adapters to suit your unique AP-5131 or AP 300 (external antenna) deployment.
Check the Motorola Web site periodically, as new adapters will be added to this document as they are
released. For more information, go to http://support.symbol.com/support/product/manuals.do.
For detailed information on supported antenna adapters, refer to:
• ML-1499-RBNCA1-01R 1 ft. N Female to RP BNC Female Cable Adapter with Connector Seal Kit
• ML-1499-RBNCA2-01R 1 ft. N Male to RP BNC Female Cable Adapter with Connector Seal Kit
• 25-85391-01R 3.5 in. Jumper Cable, RP-SMA (Female) to Type N (Male) Adaptor
• 25-72178-01 Jumper, RP-SMA(M) to RP-BNC(F)
• 25-90262-01R RP-SMA (Female) to Type N (Female) Adapter
• 25-90263-01R Type N (Male) to RP-SMA (Female) Bulkhead Adapter
7-2 Enterprise LAN Antenna Specification Guide
7.1.1 ML-1499-RBNCA1-01R 1 ft. N Female to RP BNC Female Cable Adapter with
Connector Seal Kit
Type
Black, Ultralink, RG-58
RF Connectors
N (f) to RP. BNC (f)
Frequency
2400-2500 MHz
Attenuation
.2 dB
7.1.2 ML-1499-RBNCA2-01R 1 ft. N Male to RP BNC Female Cable Adapter with
Connector Seal Kit
Type
RG-58
Frequency
2400-2500 MHz
Cable Loss (dB)
85
Cable Length (in.)
12
Connector 1
N - Male
Connector 2
RP-BNC-F
Power
2W
Color
Black
Supported Antenna Adapters 7-3
7.1.3 25-85391-01R 3.5 in. Jumper Cable, RP-SMA (Female) to Type N (Male) Adaptor
Type
Clear Jacket, RG-316
Connector 1
RP-SMA, Female
Connector 2
Type N, Male
Insertion Loss
2.4 GHz: 0.2 dB MIN
Insertion Loss
5.2 GHz: 0.3 dB MIN
7.1.4 25-72178-01 Jumper, RP-SMA(M) to RP-BNC(F)
Type
RG-316
Connector 1
RP-SMA, Male
Connector 2
RP-BNC, Female
Insertion Loss
2.4 GHz: .2 dB
Insertion Loss
5.2 GHz: .3 dB
7-4 Enterprise LAN Antenna Specification Guide
7.1.5 25-90262-01R RP-SMA (Female) to Type N (Female) Adapter
Type
RG-316
Connector 1
RP-SMA, Female
Connector 2
Type N, Female
Insertion Loss
2.4 GHz: .3 dB
Insertion Loss
5.2 GHz: .4 dB
7.1.6 25-90263-01R Type N (Male) to RP-SMA (Female) Bulkhead Adapter
Type
RG-316
Connector 1
Type N, Male
Connector 2
RP-SMA, Female, bulkhead
Insertion Loss
2.4 GHz: 0.2 dB MIN
Insertion Loss
5.2 GHz: 0.2 dB MIN
Supported Lightning Arrestors
8.1 Lightning Arrestors
Motorola supports several lightning arrestors to support your unique AP-5131 or AP 300 (external antenna)
deployment safety requirements. Check the Motorola Web site periodically, as new lightning arrestors will
be added to this document as they are released. For more information, go to
http://support.symbol.com/support/product/manuals.do.
For detailed information on supported lightning arrestors refer to:
• ML-1499-LAK1-01R 1 ft. N Male to RP BNC Male Lightning Arrestor with Connector Seal Kit
• ML-1499-LAK2-01R Lightning Arrestor Kit with N Male to N Male Barrel Adapter
• ML-2452-LAK1-01R Lightning Arrestor (N Female to N Female) with N Male to RP-SMA Male Adapter
8-2 Enterprise LAN Antenna Specification Guide
8.1.1 ML-1499-LAK1-01R 1 ft. N Male to RP BNC Male Lightning Arrestor with Connector
Seal Kit
Cable
Black, Ultralink, RG-58
RF Connectors
N (m) to RP. BNC (m)
Arrestor RF Connectors
N (f) to N (f)
Frequency
2400-2500 MHz
Insertion Loss
0.25 dB
8.1.2 ML-1499-LAK2-01R Lightning Arrestor Kit with N Male to N Male Barrel Adapter
RF Connectors
N (m) to N (m)
Arrestor RF Connectors
N (f) to N (f)
Frequency
2400-2500 MHz
Maximum RF Power
100 W
Insertion Loss
0.25 dB
Supported Lightning Arrestors 8-3
8.1.3 ML-2452-LAK1-01R Lightning Arrestor (N Female to N Female) with N Male to
RP-SMA Male Adapter
Cable
Black, Ultralink, RG-58
RF Connectors
N (m) to RP. SMA (m)
Frequency
100-6000 MHz
Maximum RF Power
200 W
VSWR (50 ohm)
1.4:1 dB Max
Insertion Loss
0.4 dB Max
Insulation Resistance
50 M-ohms
Connectors
Type N (f) to N (f)
Weight
4.5 oz
Operating Temperature
- 40° to 85°C
8-4 Enterprise LAN Antenna Specification Guide
Mounting Kits
9.1 Lightning Arrestors
Motorola supports mounting kits to support your unique AP-5131 or AP 300 (external antenna) deployment. Check the
Motorola Web site periodically, as new kits will be added to this document as they are released. For more information,
go to http://support.symbol.com/support/product/manuals.do.
For detailed information on supported mounting kits refer to:
• ML-1499-APAMK-01R Magnetic Base for ML-2452-APA2-01 with 6 Ft. Cable RP-SMA (Male)
• ML-1499-SD3MK-01R Articulating I-Beam Mount Kit for ML-2499-SD3-01 Omni Antenna
9-2 Enterprise LAN Antenna Specification Guide
9.1.1 ML-1499-APAMK-01R Magnetic Base for ML-2452-APA2-01 with 6 Ft. Cable
RP-SMA (Male)
Cable
RG-178
Connector 1
RP-SMA, Male
Connector 2
RP-SMA, Female
Attenuation (dB)
2.6 @ 2.4 GHz; 4.6 @ 5.5 Ghz
9.1.2 ML-1499-SD3MK-01R Articulating I-Beam Mount Kit for ML-2499-SD3-01
Omni Antenna
Functionality
Mounts Part No. ML-2499-SD3-01 to an I-beam.
Technical Support
Comprehensive on-line support is available at the Support Central site at
http://www.symbol.com/support/. Support Central provides our customers with a wealth of information and online
assistance including developer tools, software downloads, product manuals and online repair requests.
When contacting the Motorola Support Center, please provide the following information:
•
•
•
serial number of unit
model number or product name
software type and version number.
A-2 Enterprise LAN Antenna Specification Guidce
North American Contacts
Support (for warranty and service information):
telephone: 1-800-653-5350
fax: (631) 738-5410
Email: [email protected]
International Contacts
Outside North America:
Motorola, inc.
Symbol Place
Winnersh Triangle, Berkshire, RG41 5TP
United Kingdom
0800-328-2424 (Inside UK)
+44 118 945 7529 (Outside UK)
Web Support Sites
Product Downloads
http://www.symbol.com/downloads
Manuals
http://www.symbol.com/manuals
Additional Information
Obtain additional information by contacting Motorola at:
1-800-722-6234, inside North America
+1-516-738-5200, in/outside North America
http://www.motorola.com/
MOTOROLA INC.
1303 E. ALGONQUIN ROAD
SCHAUMBURG, IL 60196
http://www.motorola.com
72E-108048-01 Revision A
January 2008
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
