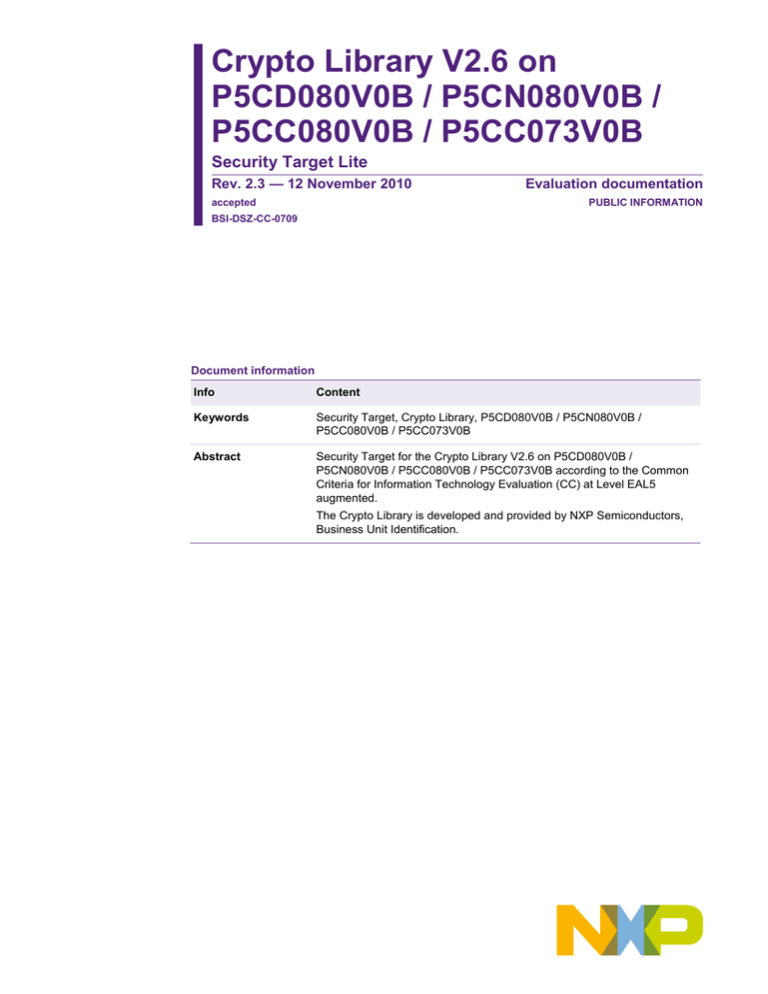

Security Target: 0709b_pdf
Crypto Library V2.6 on
P5CD080V0B / P5CN080V0B /
P5CC080V0B / P5CC073V0B
Security Target Lite
Rev. 2.3 — 12 November 2010
accepted
Evaluation documentation
PUBLIC INFORMATION
BSI-DSZ-CC-0709
Document information
Info
Content
Keywords
Security Target, Crypto Library, P5CD080V0B / P5CN080V0B /
P5CC080V0B / P5CC073V0B
Abstract
Security Target for the Crypto Library V2.6 on P5CD080V0B /
P5CN080V0B / P5CC080V0B / P5CC073V0B according to the Common
Criteria for Information Technology Evaluation (CC) at Level EAL5
augmented.
The Crypto Library is developed and provided by NXP Semiconductors,
Business Unit Identification.
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
Revision history
Rev
Date
Description
2.2
07-Oct-2010
First version generated from Security Target V2.2
2.3
12-Nov-2010
- Added note about DPA resistance of ECC Diffie-Hellman Key Exchange
- Refine security countermeasures in chapter 5.1.14
- Re-phrase fourth paragraph in chapter 1.2.1
- Re-phrase chapter 1.4.2
Contact information
For additional information, please visit: http://www.nxp.com
For sales office addresses, please send an email to: [email protected]
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
2 of 55
NXP Semiconductors
Crypto Library on SmartMX
Security Target Lite
PUBLIC INFORMATION
Glossary
CBC
Cipher Block Chaining (a block cipher mode of operation)
CBC-MAC
Cipher Block Chaining Message Authentication Code
CC
Common Criteria Version 3.1
CPU
Central Processing Unit
DEA
Data Encryption Algorithm.
DES
Data Encryption Standard.
DRNG
Deterministic Random Number Generator
EAL
Evaluation Assurance Level.
ECB
Electronic Code Book (a block cipher mode of operation)
ECC
Elliptic Curve Cryptography
IC
Integrated circuit.
IT
Information Technology.
MMU
Memory Management Unit
MX
Memory eXtension
n/a
not applicable
NDA
Non Disclosure Agreement.
PKC
Public Key Cryptography
PP
Protection Profile.
PSW(H)
Program Status Word (High byte)
SAR
Security Assurance Requirement.
SFR
as abbreviation of the CC term: Security Functional
Requirement, as abbreviation of the technical term of the
SmartMX-family: Special Function Register
SIM
Subscriber Identity Module.
ST
Security Target.
TOE
Target of Evaluation.
TRNG
True Random Number Generator
TSF
Part of the TOE that realises the security functionality
TSFI
TSF Interface, a means by which external entities (or subjects
in the TOE but outside of the TSF) supply data to the TSF,
receive data from the TSF and invoke services from the TSF. .
UART
Universal Asynchronous Receiver and Transmitter.
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
3 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
1.
ST Introduction
This chapter is divided into the following sections: “ST Identification”, “TOE overview”,
“CC Conformance and Evaluation Assurance Level”, “TOE Description”and “Further
Definitions and Explanations”.
1.1 ST Identification
This Security Target is for the Common Criteria evaluation of the “Crypto Library V2.6 on
P5CD080V0B / P5CN080V0B / P5CC080V0B / P5CC073V0B” provided by NXP
Semiconductors, Business Unit Identification.
For ease of reading during this Security Target the TOE is often called Crypto Library on
SmartMX.
ST Identification: Crypto Library V2.6 on P5CD080V0B / P5CN080V0B / P5CC080V0B /
P5CC073V0B, Rev. 2.3 - 12 November 2010
The TOE is a composite TOE, consisting of:
• The hardware “NXP SmartMX P5CD080V0B / P5CN080V0B / P5CC080V0B /
P5CC073V0B Secure Smart Card Controller”, which is used as evaluated platform,
and all its Major Configurations (see [10] for details):
− P5CD080V0B
− P5CN080V0B
− P5CC080V0B
− P5CC073V0B
• The “Crypto Library V2.6 on P5CD080V0B / P5CN080V0B / P5CC080V0B /
P5CC073V0B”, which is built upon this platform.
This Security Target builds on the Hardware Security Target [10], which refers to the
“NXP P5CD080V0B / P5CN080V0B / P5CC080V0B / P5CC073V0B Secure Smart Card
Controller” provided by NXP Semiconductors, Business Unit Identification.
1.2 TOE overview
1.2.1 Introduction
The Hardware Security Target [10] contains, in section 1.3 “ST Overview”, an
introduction about the SmartMX hardware TOE that is considered in the evaluation. The
Hardware Security Target includes IC Dedicated Software stored in the ROM provided
with the SmartMX hardware platform.
The Crypto Library on SmartMX is a cryptographic library, which provides a set of
cryptographic functions that can be used by the Smartcard embedded Software. The
cryptographic library consists of several binary packages that are intended to be linked to
the Smartcard Embedded Software. The Smartcard Embedded Software developer links
the binary packages that he needs to his Smartcard Embedded Software and the whole
is subsequently implemented in the User ROM.
The NXP SmartMX smart card processor provides the computing platform and
cryptographic support by means of co-processors for the Crypto Library on SmartMX.
The TOE provides the security functionality listed below in addition to the functionality
described in the Hardware Security Target [10] for the hardware platform:
AES
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
4 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
• The AES algorithm is intended to provide encryption and decryption functionality.
• The following modes of operation are supported for AES: ECB, CBC, CBC-MAC.
DES/3DES
• The Single-DES algorithm can be used as a building block, e.g. to implement a
Retail-MAC. However, the Single-DES algorithm alone is not considered to be
resistant against attacks with a high attack potential, therefore Single-DES alone
must not be used for encryption. See also Note 7 in section 4.1.1.
• The Triple-DES (3DES) algorithm is intended to provide encryption and decryption
functionality.
• The following modes of operation are supported for DES and Triple-DES: ECB, CBC,
CBC-MAC.
RSA
• The RSA algorithm can be used for encryption and decryption as well as for
signature generation and signature verification.
• The RSA key generation can be used to generate RSA key pairs.
• The RSA public key computation can be used to compute the public key that belongs
to a given private key.
ECC over GF(p)
• The ECC over GF(p) algorithm can be used for signature generation and signature
verification
• The ECC over GF(p) key generation algorithm can be used to generate ECC over
GF(p) key pairs.
• The ECC Diffie-Hellman key exchange algorithm can be used to establish
cryptographic keys. It can be also used as secure point multiplication.
• Provide secure point addition for Elliptic Curves over GF(p)
SHA
• The SHA-1, SHA-224 and SHA-256 algorithms can be used for different purposes
such as computing hash values in the course of digital signature creation or key
derivation.
Resistance of cryptographic algorithms against side-channel attacks
The cryptographic algorithms (except SHA) are resistant against Side Channel Attacks,
including Simple Power Analysis (SPA), Differential Power Analysis (DPA), Differential
Fault Analysis (DFA) and timing attacks. More detail may be found in Table 7.
Random number generation
• The TOE provides access to random numbers generated by a software (pseudo)
random number generator and functions to perform the required test of the hardware
(true) random number generator.
Other security functionality
• The TOE includes internal security measures for residual information protection.
• The TOE provides a secure copy routine.
Note that the TOE does not restrict access to the functions provided by the hardware:
these functions are still directly accessible to the Smartcard embedded Software.
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
5 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
1.2.2 Life-Cycle
The life cycle of the hardware platform as part of the TOE is described in section 1.4.4
“TOE Intended Usage” of the Hardware Security Target [10]. The delivery process or the
hardware platform is independent from the Crypto Library on SmartMX.
The Crypto Library is delivered in Phase 1 (for a definition of the Phases refer to section
‘1.2.3 TOE life cycle’ of the Protection Profile for a definition of the Phases refer to
section ‘1.2.3 TOE life cycle’ of the Protection Profile [9]) as a software package (a set of
binary files) to the developers of Smartcard Embedded Software. The Smartcard
Embedded Software may comprise in this case an operating system and/or other smart
card software (applications). The Software developer can incorporate the Crypto Library
into their product.
The subsequent use of the Crypto Library by Smartcard Embedded Software Developers
is out of the control of the developer NXP Semiconductors, Business Unit Identification;
the integration of the Crypto Library into Smartcard Embedded Software is not part of this
evaluation.
Security during Development and Production
The development process of the Crypto Library is part of the evaluation. The access to
the implementation documentation, test bench and the source code is restricted to the
development team of the Crypto Library on SmartMX. The security measures installed
within NXP, including a secure delivery process, ensure the integrity and quality of the
delivered Crypto Library binary files.
1.2.3 Specific Issues of Smartcard Hardware and the Common Criteria
Regarding the Application Note 2 of the Protection Profile [9] the TOE provides additional
functionality which is not covered in the Protection Profile and the Hardware Security
Target [10]. This additional functionality is added using the policy “P.Add-Func” (see
section 2.4 of this Security Target).
1.3 CC Conformance and Evaluation Assurance Level
The evaluation is based upon:
• Common Criteria for Information Technology Security Evaluation – Part 1:
Introduction and general model, Version 3.1 Revision 1, September 2006, CCMB2006-09-001, [1]
• Common Criteria for Information Technology Security Evaluation – Part 2:
Security functional components, Version 3.1 Revision 2, September 2007, CCMB2007-09-002, [2]
• Common Criteria for Information Technology Security Evaluation – Part 3:
Security assurance components, Version 3.1 Revision 2, September 2007, CCMB2007-09-003, [3]
For the evaluation the following methodology will be used:
• Common Criteria for Information Technology Security Evaluation – Evaluation
methodology, Version 3.1 Revision 2, September 2007, CCMB-2007-09-004, [4]
The chosen level of assurance is EAL 5 augmented.
The augmentations chosen are:
• ALC_DVS.2 and
• AVA_VAN.5.
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
6 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
This Security Target claims the following CC conformances:
• CC 3.1 Part 2 extended, Part 3 conformant, EAL 5 augmented
• Conformance to the Protection Profile “Bundesamt für Sicherheit in der
Informationstechnik (BSI): Security IC Platform Protection Profile, Version 1.0,
15.06.2007; Registered and Certified by Bundesamt für Sicherheit in der Informationstechnik (BSI) under the reference BSI-PP-0035”, [9]
The assurance level for evaluation and the functionality of the TOE are chosen in order
to allow the confirmation that the TOE is suitable for use within devices compliant with
the German Digital Signature Law.
Note 1.
The hardware platform is evaluated according to the assurance level EAL 5
augmented. The evaluation of the hardware platform is appropriate for the
composite evaluation since both the EAL level and the augmentations claimed
in this Security Target are identical to those claimed for the hardware platform
(refer to the Hardware Security Target [10]).
1.4 TOE Description
The Target of Evaluation (TOE) consists of a hardware part and a software part:
• The hardware part consists of the NXP P5CD080V0B / P5CN080V0B /
P5CC080V0B / P5CC073V0B Secure Smart Card Controller with IC Dedicated
Software stored in the Test-ROM that is not accessible in the System Mode or the
User Mode after Phase 3. The hardware part of the TOE includes dedicated
guidance documentation.
• The software part consists of the IC Dedicated Support Software “Crypto Library
V2.6 on P5CD080V0B / P5CN080V0B / P5CC080V0B / P5CC073V0B” which
consists of a software library and associated documentation. The Crypto Library on
SmartMX is an additional part that provides cryptographic functions that can be
operated on the hardware platform as described in this Security Target.
Fig 1 describes the scope of this Security Target. The TOE is described in three layers:
TOE Scope
Crypto Library
ST Hardware
Protection
Profile
TOE Hardware
Fig 1. Scope of the Security Target
1. The Protection Profile [9] describes general requirements for smart card controllers
and their support software. It is a common basis for smart card platform evaluations
and defines the minimum requirements for the TOE hardware and its associated
functionality.
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
7 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
2. The Hardware Security Target [10] defines the functionality of the platform provided
by the SmartMX Smart Card Controller.
3. The Crypto Library on SmartMX provides additional functionality to the developer of
Smartcard Embedded Software. It is a supplement of the basic cryptographic
features provided by the hardware platform. The Crypto Library on SmartMX
implements cryptographic algorithms with countermeasures against the attacks
described in this Security Target using the co-processors of the SmartMX to provide
a software programming interface for the developer of the Smartcard Embedded
Software.
The hardware part of the TOE is not described in detail in this document. Details are
included in the Hardware Security Target [10] and therefore this latter document will be
cited wherever appropriate. However the assets, assumptions, threats, objectives and
security functional requirements are tracked in this Security Target.
The TOE components consist of all the TOE components listed in Table 1 of the
Hardware Security Target [10] plus all TOE components listed in the table below:
Table 1.
Components of the TOE that are additional to Table 1 in [10]
Type
Name
Release
Date
Form of Delivery
Software
Crypto Library
2.6
26 March 2010
Electronic file
Documents
Guidance Documents [14]-[22]
See reference list
See reference list
Electronic Document
1.4.1 Hardware Description
The NXP SmartMX hardware is described in section 1.4.2.1 “Hardware Description” of
the Hardware Security Target [10]. The IC Dedicated Test Software and IC Dedicated
Support Software stored in the Test-ROM and delivered with the hardware platform is
described in section 1.4.2.2 “Software Description” of the Hardware Security Target [10].
1.4.2 Software Description
A Smartcard embedded Software developer may create Smartcard embedded Software
to execute on the NXP SmartMX hardware. This software is stored in the User ROM of
the NXP SmartMX hardware and is not part of the TOE, with one exception: the
Smartcard embedded Software may contain theCrypto Library on SmartMX (or parts
1
thereof ) and this Crypto Library (or parts thereof) is part of the TOE.
2
The TOE provides AES , DES, Triple-DES (3DES), RSA, RSA key generation, RSA
public key computation, ECC over GF(p) signature generation and verification, ECC over
GF(p) key generation, ECC Diffie-Helmann key-exchange , SHA-1, SHA-224 and SHA256 algorithms.
Many of these algorithms are resistant against side-channel attacks: more information
may be found in Table 7.
The TOE supports various key sizes for RSA up to a limit of 5024 bits and for ECC over
GF(p) up to a limit of 544.
1.
These crypto functions are supplied as a library rather than as a monolithic program, and hence a
user of the library may include only those functions that are actually required – it is not necessary to
include all cryptographic functions of the library in every Smartcard Embedded Software. For
example, it is possible to omit the RSA or the SHA-1 components. However, some dependencies
exist; details are described in the User Guidance [14].
2.
AES, DES and Triple-Des can be used in ECB, CBC or CBC-MAC mode.
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
8 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
In addition, the Crypto Library implements a software (pseudo) random number
generator which is initialized (seeded) by the hardware random number generator of the
SmartMX.
Finally, the TOE provides a secure copy routine and includes internal security measures
for residual information protection.
1.4.3 Documentation
The documentation for the NXP SmartMX hardware is listed in section 1.4.2.3
“Documentation” of the Hardware Security Target [10].
The Crypto Library has associated user guidance documentation (see Table 1). This
contains:
• the specification of the functions provided by the Crypto Library,
• details of the parameters and options required to call the Crypto Library by the
Smartcard Embedded Software and
• user guidelines on the secure usage of the Crypto Library, including the requirements
on the environment (the Smartcard Embedded Software calling the Crypto Library is
considered to be part of the environment).
1.4.4 Interface of the TOE
The interface to the NXP SmartMX hardware is described in section 1.4.5 “Interface of
the TOE” of the Hardware Security Target [10]. The use of this interface is not restricted
by the use of the Crypto Library on SmartMX.
The interface to the TOE additionally consists of software function calls, as detailed in the
“User Guide and Reference” document of the Crypto Library on SmartMX. The developer
of the Smartcard Embedded Software will link the required functionality of the Crypto
Library on SmartMX into the Smartcard Embedded Software as required for his
Application.
1.4.5 Life Cycle and Delivery of the TOE
The life cycle and delivery for the NXP SmartMX hardware is described in section 1.4.4
“TOE Intended Usage” of the Hardware Security Target [10]. The crypto library is
encrypted and signed for delivery. The actual delivery of the signed, encrypted file may
be by e-mail or on physical media such as compact disks.
The Crypto Library is delivered as part of Phase 1 (for a definition of the Phases refer to
section ‘1.2.3 TOE life cycle’ of the Protection Profile [9]) to the Smartcard Embedded
Software developer. The Smartcard Embedded Software developer then integrates the
Crypto Library in the Smartcard Embedded Software.
Delivery of the Crypto Library to the Smartcard Embedded Software developer may be
by e-mail or by delivering physical media such as compact disks by mail or courier. To
protect the Crypto Library during the delivery process, the Crypto Library is encrypted
and digitally signed.
1.4.6 TOE Intended Usage
Regarding to phase 7 (for a definition of the Phases refer to section ‘1.2.3 TOE life cycle’
of the Protection Profile [9]), the combination of the smartcard hardware and the
Smartcard Embedded Software is used by the end-user. The method of use of the
product in this phase depends on the application. The TOE is intended to be used in an
unsecured environment, that is, the TOE does not rely on the Phase 7 environment to
counter any threat.
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
9 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
For details on the usage of the hardware platform refer to section 1.4.4 “TOE Intended
Usage” in the Hardware Security Target [10].
The Crypto Library on SmartMX is intended to support the development of the Smartcard
Embedded Software since the cryptographic functions provided by the Crypto Library on
SmartMX include countermeasures against the threats described in this Security Target.
The used modules of the Crypto Library on SmartMX are linked to the other parts of the
Smartcard Embedded Software and they are implemented as part of the Smartcard
Embedded Software in the User ROM of the hardware platform.
1.4.7 TOE User Environment
The user environment for the crypto library is the Smartcard Embedded Software,
developed by customers of NXP, to run on the NXP SmartMX hardware.
1.4.8 General IT features of the TOE
The general features of the NXP SmartMX hardware are described in section 1.3 “TOE
overview” of the Hardware Security Target [10]. These are supplemented for the TOE by
the functions listed in section 1.2.1 of this Security Target.
1.5 Further Definitions and Explanations
Since the Security Target claims conformance to the Protection Profile [9], the concepts
are used in the same sense. For the definition of terms refer to the Protection Profile [9].
This chapter does not need any supplement in the Security Target.
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
10 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
2. Security Problem Definition
This Security Target claims conformance to the Protection Profile [9]. The Assets,
Assumptions, Threats and Organizational Security Policies of the Protection Profile are
assumed here, together with extensions defined in chapter 3 “Security Problem
Definition” of the Hardware Security Target [10]. In the following sub-sections, only
extensions to the different sections are listed. The titles of the chapters that are not
extended are cited here for completeness.
2.1 Description of Assets
Since this Security Target claims conformance to the Protection Profile [9], the assets
defined in section 3.1 of the Protection Profile apply to this Security Target.
User Data and TSF data are mentioned as assets in [10]. Since the data computed by
the crypto library contains keys, plain text and cipher text that are considered as User
Data and e.g. blinding vectors that are considered as TSF data the assets are
considered as complete for this Security Target.
2.2 Assumptions
Since this Security Target claims conformance to the Protection Profile [9], the
assumptions defined in section 3.2 of the Protection Profile, described in section 3.4
“Assumptions” of the Hardware Security Target [10], and shown in Table 2, are valid for
this Security Target.
Table 2.
Assumptions defined in the PP [9] and the Hardware Security Target [10]
Name
Title
Defined in
A.Process-Sec-IC
Protection during Packaging, Finishing and Personalization
PP [9]
A.Plat-Appl
Usage of Hardware Platform
PP [9]
A.Resp-Appl
Treatment of User Data
PP [9]
A.Check-Init
Check of initialisation data by the Smartcard Embedded
Software
HW-ST [10]
A.Key-Function
Usage of Key-dependent Functions
HW-ST [10]
This Security Target defines one additional assumption:
A.RSA-Key-Gen
Operational Environment for RSA Key Generation function
The RSA Key Generation provides two different modes. The
insecure mode is not secured against side-channel attacks.
Therefore the execution speed is faster than in the secure
mode. When this version is executed the environment has to
avoid side-channel attacks.
2.3 Threats
Since this Security Target claims conformance to the Protection Profile [9], the threats
defined in section 3.2 of the Protection Profile, described in section 3.2 “Threats” of the
Hardware Security Target [10], and shown in Table 3, are valid for this Security Target.
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
11 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
Table 3.
Threats defined in the Protection Profile
Name
Title
Defined in
T.Leak-Inherent
Inherent Information Leakage
PP [9]
T.Phys-Probing
Physical Probing
PP [9]
T.Malfunction
Malfunction due to Environmental Stress
PP [9]
T.Phys-Manipulation
Physical Manipulation
PP [9]
T.Leak-Forced
Forced Information Leakage
PP [9]
T.Abuse-Func
Abuse of Functionality
PP [9]
T.RND
Deficiency of Random Numbers
PP [9]
Note 2.
Within the Hardware Security Target [10], the threat T.RND has been used in a
context where the hardware (true) random number generator is threatened.
The TOE consists of both hardware (NXP SmartMX) and software (Crypto
Library on SmartMX). The Crypto Library provides random numbers generated
by a software (pseudo) random number generator. Therefore the threat T.RND
explicitly includes both deficiencies of hardware random numbers as well as
deficiency of software random numbers.
2.4 Organisational Security Policies
Since this Security Target claims conformance to the Protection Profile [9], the Policy
P.Process-TOE “Protection during TOE Development and Production” of the Protection
Profile is applied here also.
The hardware security target defines the following additional security policies:
P.Add-Components: Additional Specific Security Components
The SmartMX processor part of the TOE provides the following additional security
functionality to the Smartcard Embedded Software:
• Triple-DES encryption and decryption
• AES encryption and decryption
• Area based Memory Access Control
• Memory separation for different software parts (including IC Dedicated Software and
Security IC Embedded Software)
• Special Function Register Access Control
The Crypto Library part of the TOE uses the Triple-DES co-processor hardware to
provide DES security functionality, as listed below in P.Add-Func: Additional Specific
Security Functionality.
The Crypto Library makes no use of either the Area based Memory Access Control or the
Special Function Register Access Control. These features are for the use and control of
the Smartcard Embedded Software that includes the Crypto Library.
In addition to the security functionality provided by the hardware mentioned above and
defined in the Security Target of the SmartMX, the following additional security
functionality is provided by the Crypto Library for use by the Smart Card Embedded
Software:
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
12 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
P.Add-Func: Additional Specific Security Functionality
The TOE provides the following additional security functionality to the Smartcard
Embedded Software:
• AES encryption and decryption
• Triple-DES encryption and decryption,
3
• RSA encryption, decryption, signature generation and verification,
• RSA public key computation
• RSA key generation,
• ECC over GF(p) signature generation and encryption,
• ECC over GF(p) key generation,
• ECC Diffie-Hellman key exchange
• ECC Secure Point Addition
• SHA-1, SHA-224 and SHA-256 Hash Algorithms,
• access to the RNG (implementation of a software RNG and tests for the hardware
RNG),
• secure copy routine.
In addition, the TOE shall
• provide protection of residual information, and
• provide resistance against side channel attacks as described in Table 7 and in
section 5.1.13 F.COPY.
Regarding the Application Note 12 of the Protection Profile [9] there are no other
additional policies defined in this Security Target.
3.
See also Note 7 in section 4.1.1.
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
13 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
3. Security Objectives
This chapter contains the following sections: “Security Objectives for the TOE” and
“Security Objectives for the ”.
3.1 Security Objectives for the TOE
The following table lists the security objectives of the Protection Profile [9] and the
Hardware Security Target [10].
Table 4.
Security Objectives defined in the Protection Profile and the Hardware Security
Target
Name
Title
Defined in
O.Leak-Inherent
Protection against Inherent Information Leakage
PP [9]
O.Phys-Probing
Protection against Physical Probing
PP [9]
O.Malfunction
Protection against Malfunctions
PP [9]
O.Phys-Manipulation
Protection against Physical Manipulation
PP [9]
O.Leak-Forced
Protection against Forced Information Leakage
PP [9]
O.Abuse-Func
Protection against Abuse of Functionality
PP [9]
O.Identification
TOE Identification
PP [9]
O.RND
Random Numbers
PP [9]
O.HW_DES3
Triple DES Functionality
HW-ST [10]
O.HW_AES
AES Functionality
HW-ST [10]
O.MF_FW
MIFARE Firewall
HW-ST [10]
O.MEM_ACCESS
Area based Memory Access Control
HW-ST [10]
O.SFR_ACCESS
Special Function Register Access Control
HW-ST [10]
Note 3.
Within the Hardware Security Target [10], the objective O.RND has been used
in context with the hardware (true) random number generator (RNG). In
addition to this, the TOE (Crypto Library on SmartMX) also provides a software
(pseudo) RNG and implements test routines for the hardware RNG. Therefore
the objective O.RND is extended to comprise also the quality of random
numbers generated by the software (pseudo) RNG. See also Note 2 in section
2.3, which extends T.RND in a similar way.
The following additional security objectives are defined by this ST, and are provided by
the software part of the TOE:
O.AES
The TOE includes functionality to provide encryption and
decryption facilities of the AES algorithm, resistant to attack as
listed in Table 7.
O.DES3
The TOE includes functionality to provide encryption and
decryption facilities of the Triple-DES algorithm, resistant to
attack as listed in. (see also Note 7 in section 4.1.1).
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
14 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
O.RSA
The TOE includes functionality to provide encryption,
decryption, signature creation and signature verification using
the RSA algorithm, resistant to attack as listed in Table 7.
O.RSA_PubKey
The TOE includes functionality to compute an RSA public key
from an RSA private key, resistant to attack as listed in Table
7.
O.RSA_KeyGen
The TOE includes functionality to generate RSA key pairs,
resistant to attack as listed in Table 7.
O.ECC
The TOE includes functionality to provide signature creation
and signature verification as well as secure point addition
using the ECC over GF(p) algorithm, resistant to attack as
listed in Table 7.
O.ECC_DHKE
The TOE includes functionality to provide Diffie-Hellman key
exchange based on ECC over GF(p), resistant to attack as
listed in Table 7.
O.ECC_KeyGen
The TOE includes functionality to generate ECC over GF(p)
key pairs, resistant to attack as listed in Table 7.
O.SHA
The TOE includes functionality to provide electronic hashing
facilities using the SHA-1, SHA-224 and SHA-256 algorithms.
O.COPY
The TOE includes functionality to copy memory content using
a routine that implements countermeasures against side
channel attacks.
O.REUSE
The TOE includes measures to ensure that the memory
resources being used by the TOE cannot be disclosed to
subsequent users of the same memory resource.
3.2 Security Objectives for the Operational environment
The security objectives for the operational environment, listed in the following Table 5,
are taken from the PP [9]. Additional refinements in the Hardware Security Target [10]
are also valid in the ST for the Crypto Library (the “IC Dedicated Support Software”).
Table 5.
Security Objectives for the operational environment
Name
Title
Applies to phase
OE.Plat-Appl
Usage of Hardware Platform
Phase 1
OE.Resp-Appl
Treatment of User Data
Phase 1
OE.Process-Sec-IC
Protection during Packaging,
Finishing and Personalization
Phase 4 through delivery to phase
7
The crypto library TOE assumes that the Smartcard Embedded Software abides by the
provisions detailed in “Clarification of “Usage of Hardware Platform (OE.Plat-Appl)” and
“Clarification of Treatment of User Data (OE.Resp-Appl)” contained within section 4.2
“Security Objectives for the Operational environment” of the Hardware Security Target
[10].
The Hardware Security Target [10] defines, in section 4.3 “Security Objectives for the
Operational environment”, the following additional security objective for the Smart Card
Embedded Software:
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
15 of 55
NXP Semiconductors
Crypto Library on SmartMX
Security Target Lite
PUBLIC INFORMATION
OE.Check-Init
Check of initialization data by the Smart Card Embedded
Software.
This Security Target defines additional security objectives for the operational
environment:
OE.RSA-Key-Gen
In case that resistance of the fast, but insecure mode of the
RSA Key Generation against side channel attacks is needed,
the operational environment shall ensure that side-channel
attacks can not be performed.
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
16 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
4. Security Requirements
4.1 Security Functional Requirements
To support a better understanding of the combination Protection Profile and Security
Target of the hardware platform vs. this Security Target (Crypto Library on SmartMX), the
TOE SFRs are presented in the following two different sections.
4.1.1 SFRs of the Protection Profile and the Security Target of the platform
The Security Functional Requirements (SFRs) for this TOE (Crypto Library on SmartMX)
are specified based on the Smart Card IC Platform Protection Profile [9], and are defined
in the Common Criteria or in the Protection Profile, as is shown by the third column of the
following table:
Table 6.
SFRs defined in the Protection Profile or the Common Criteria
Name
Title
Defined in
FAU_SAS.1
Audit storage
PP Section 5.3 [9]
(provided by chip HW)
FCS_RNG.1
Generation of random numbers
PP [9] Section 5.1
FDP_IFC.1
Subset information flow control
CC Part 2 [2]
(provided partly by chip HW and
partly by crypto library SW, see the
following Note 4)
FDP_ITT.1
Basic internal transfer protection
CC Part 2 [2]
(provided partly by chip HW and
partly by crypto library SW, see the
following Note 4)
FMT_LIM.1
Limited capabilities
PP Section 5.2 [9]
(provided by chip HW)
FMT_LIM.2
Limited availability
PP Section 5.2 [9]
(provided by chip HW)
FPT_FLS.1
Failure with preservation of secure
state
CC Part 2 [2]
(provided by chip HW)
FPT_ITT.1
Basic internal TSF data transfer
protection
CC Part 2 [2]
(provided partly by chip HW and
partly by crypto library SW, see the
following Note 4)
FPT_PHP.3
Resistance to physical attack
CC Part 2 [2]
(provided by chip HW)
FRU_FLT.2
Limited fault tolerance
CC Part 2 [2]
(provided by chip HW)
These requirements have already been stated in the hardware ST [10] and are fulfilled by
the chip hardware, if not indicated otherwise in Table 6. See also the following Note 4.
Note 4.
Refinement: The functional requirements FDP_ITT.1, FPT_ITT.1 and
FDP_IFC.1 are refined for this composite evaluation to also include resistance
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
17 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
4
against leakage (SPA, DPA, Timing attacks) of secret information during the
application of: AES, DES, 3DES, RSA, RSA key generation, RSA public key
computation, ECC over GF(p), ECC Point Addition, ECC Diffie-Hellman Key
Exchange and ECC over GF(p) key generation. Compared to the Hardware
Security Target [10], the text of these requirements remains unchanged, but
these requirements now apply to a more comprehensive TOE (including
hardware and software). See also the following Note 6 for a discussion of DFA
resistance. – FDP_IFC.1 is again refined to include also resistance against
leakage for the secure copy routine (see also section 5.1.13 F.COPY as well
as the requirements FDP_ITT.1[COPY] and FPT_ITT.1[COPY] in section
5
4.1.2) .
Note 5.
Refinement: FPT_FLS.1 is refined as compared to its first definition in the PP
[9] and its instantiation in the hardware ST [10] to include not only the
hardware sensors but also “software sensors” that detect DFA attacks on AES,
DES, 3DES, RSA and ECC over GF(p) computations. Therefore the
requirement is repeated here together with the extended refinement.
FPT_FLS.1 now includes also DFA protection for AES, DES, 3DES, RSA and
ECC over GF(p). Note, that FRU_FLT.2, which is not modified, works closely
together with FPT_FLS.1.
The TOE shall meet the requirements “Random number generation” and “Failure with
preservation of secure state (FPT_FLS.1)” as specified below.
FCS_RNG.1[DET] Random number generation
The hardware part of the TOE (NXP SmartMX) provides a physical random number
generator (RNG) that fulfils FCS_RNG.1 as already mentioned above in Table 6. The
additional software part of the TOE (Crypto Library) implements a software (pseudo)
RNG that fulfils FCS_RNG.1[DET] (see below). This software RNG obtains its seed from
the hardware RNG, after the TOE (Crypto Library) has performed a self test of the
hardware RNG.
Hierarchical to:
No other components.
FCS_RNG.1.1[DET]
The TSF shall provide a deterministic random number
generator that implements a chi-squared test on the seed
generator.
FCS_RNG.1.2[DET]
The TSF shall provide random numbers that meet class K.4 of
AIS20 [5].
Application Notes:
The Crypto Library on SmartMX provides the smartcard
embedded software with seperate library calls to initialise the
random number generator (which includes the chi-squared
test) and to generate random data. It is the responsibility of
the user to initialise the random number generator before
generating random data
Dependencies:
No dependencies.
4.
5.
6
6
see also Table 7 Algorithm Resistance Overview
FDP_ITT.1 and FPT_ITT.1 are iterated in order to allow more exact mappings (see
FDP_ITT.1[COPY] and FPT_ITT.1[COPY] in section 4.1.2), but they still refer to the same
information flow control policy, i.e. FDP_IFC.1 is not iterated.
Implemented through a recursive call of 2-key triple-DES
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
18 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
Note:
Only if the chi-squared test succeeds the hardware RNG
seeds the software RNG implemented as part of the Crypto
Library on SmartMX (as part of security functionality
F.RNG_Access).
Note:
The Crypto Library does not prevent the operating system
from accessing the hardware RNG. If the hardware RNG is
used by the operating system directly, it has to be decided
based on the Smartcard Embedded Software's security
needs, what kind of test has to be performed and what
requirements will have to be applied for this test. In this case
the developer of the Smartcard Embedded Software must
ensure that the conditions prescribed in the Guidance,
Delivery and Operation Manual for the NXP SmartMX Secure
Smart Card Controller are met.
FPT_FLS.1 Failure with preservation of secure state
Hierarchical to:
No other components.
FPT_FLS.1.1
The TSF shall preserve a secure state when the following
types of failures occur: (i) exposure to operating conditions
which may not be tolerated according to the requirement
Limited fault tolerance (FRU_FLT.2) and where therefore a
malfunction could occur and (ii) DFA attacks on AES, DES,
3DES, RSA and ECC over GF(p).
Dependencies:
No dependencies
Refinement:
The term “failure” above also covers “circumstances”. The
TOE prevents failures for the “circumstances” defined above.
Note 6.
This refinement should be understood with the following implementation details
in mind: The TOE contains both hardware sensors (implemented in the chip
card hardware) and software sensors (implemented in the Crypto Library
software). The software sensors detect DFA attacks in AES, DES, 3DES, RSA
and ECC over GF(p) computations and this detection leads to a secure state
(no computation results are output and an exception is thrown) in case such an
attack occurs. The Smartcard Embedded Software is expected to handle this
exception and further ensure a secure state.
7
The properties of the cryptographic algorithms in respect to their resistance against Side
Channel Analysis (FDP_ITT.1, FPT_ITT.1, FDP_IFC.1, FPT_FLS.1) can be summarized
as follows:
Table 7.
Algorithm Resistance Overview
Algorithm
Resistant against
AES
Timing
SPA
DPA
DFA
DES
Timing
SPA
DPA
DFA
3DES
Timing
SPA
DPA
DFA
RSA encryption, decryption, signature
generation and verification
Timing
SPA
DPA
DFA
7.
SPA = Simple Power Analysis, DPA = Differential Power Analysis, DFA = Differential Fault Analysis
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
19 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
Algorithm
Resistant against
RSA Public Key Computation
Timing
SPA
n/a
n/a
RSA Key Generation
Timing
SPA
n/a
n/a
ECC over GF(p)
Timing
SPA
DPA
DFA
ECC Diffie-Hellman Key Exchange
Timing
SPA
DPA
n/a
ECC over GF(p) Key Generation
Timing
SPA
n/a
n/a
SHA-1, SHA-224 and SHA-256
-
-
n/a
n/a
The abbreviation “n/a” in Table 7 Algorithm Resistance Overview means “not applicable”,
i.e. the TOE does not provide countermeasures here. This does not mean that the
algorithm is insecure; rather at the time of writing this Security Target no promising
attacks were known.
Note 7.
The countermeasures that protect 3DES against side channel attacks also
protect the Single-DES algorithm against these kinds of attacks. Therefore side
channel resistance is also claimed for Single-DES. However, it must be noted
that Single-DES is no longer considered to be resistant against attackers with
a high attack potential, therefore Single-DES must not be used as an
encryption algorithm without any additional protection. For the evaluated TOE,
Single-DES does not constitute a security functionality on its own. – The
resistance of Single-DES and Triple-DES against side channel attacks protects
the confidentiality of the keys used in all modes of operation (ECB, CBC, CBCMAC).
Note 8.
The protection of the RSA Key Generation against attacks is only given if the
secure mode is executed or if the insecure mode is executed in a secure
environment.
Note 9.
DPA resistance for ECC Diffie-Hellman Key Exchange is only given with
respect to the private key, not for the public key. This is of interest when using
the function for a secure point multiplication. In this case only the scalar is
protected against DPA like attacks, but not the point.
The SFRs from Table 6 are supplemented by additional SFRs, defined in the Common
Criteria, as described in sections 6.1.2 “Additional SFRs regarding cryptographic
functionality” and 6.1.3 “Additional SFRs regarding access control” of the Hardware
Security Target [10] and shown in the following table.
Table 8.
SFRs defined in the Hardware Security Target
Name
Title
Defined in
FCS_COP.1[AES]
Cryptographic operation
CC Part 2 [2], and added to PP in the
Hardware ST [10] section 6.1.2 “Additional
SFRs regarding cryptographic functionality”.
FCS_COP.1[DES]
Cryptographic operation
CC Part 2 [2], and added to PP in the
Hardware ST [10] section 6.1.2 “Additional
SFRs regarding cryptographic functionality”.
FDP_ACC.1[MEM]
Subset access control
CC Part 2 [2], and added to PP in the
Hardware ST [10] section 6.1.3 “Additional
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
20 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
Name
Title
Defined in
SFRs regarding access control”.
FDP_ACC.1[SFR]
Subset access control
CC Part 2 [2], and added to PP in the
Hardware ST [10] section 6.1.3 “Additional
SFRs regarding access control”.
FDP_ACF.1[MEM]
Security attribute based
access control
CC Part 2 [2], and added to PP in the
Hardware ST [10] section 6.1.3 “Additional
SFRs regarding access control”.
FDP_ACF.1[SFR]
Security attribute based
access control
CC Part 2 [2], and added to PP in the
Hardware ST [10] section 6.1.3 “Additional
SFRs regarding access control”.
FMT_MSA.3[MEM]
Static attribute
initialization
CC Part 2 [2], and added to PP in the
Hardware ST [10] section 6.1.3 “Additional
SFRs regarding access control”.
FMT_MSA.3[SFR]
Static attribute
initialization
CC Part 2 [2], and added to PP in the
Hardware ST [10] section 6.1.3 “Additional
SFRs regarding access control”.
FMT_MSA.1[MEM]
Management of security
attributes
CC Part 2 [2], and added to PP in the
Hardware ST [10] section 6.1.3 “Additional
SFRs regarding access control”.
FMT_MSA.1[SFR]
Management of security
attributes
CC Part 2 [2], and added to PP in the
Hardware ST [10] section 6.1.3 “Additional
SFRs regarding access control”.
FMT_SMF.1
Specification of
management functions
CC Part 2 [2], and added to PP in the
Hardware ST [10] section 6.1.3 “Additional
SFRs regarding access control”.
Like the requirements already listed in Table 6, the requirements listed in Table 8 have
already been stated in the Hardware Security Target [10] and are fulfilled by the chip
hardware.
4.1.2 Additional SFRs
The SFRs in Table 6 and Table 8 are further supplemented by the additional SFRs
described in the following subsections of this Security Target, as listed in Table 9. The
SFRs described in Table 9 together with the extensions of FDP_ITT.1, FPT_ITT.1,
FDP_IFC.1 and FPT_FLS.1 form the set of SFRs that are new for the crypto library. The
composite TOE, consisting of chip hardware and crypto library software, fulfils all
requirements from Table 6, Table 8 and Table 9.
Table 9.
SFRs defined in this Security Target
Name
Title
Defined in
FCS_COP.1[SW-AES]
Cryptographic operation (AES)
CC Part 2 [2]; specified in this
ST, see below.
FCS_COP.1[SW-DES]
Cryptographic operation (TDES) CC Part 2 [2]; specified in this
ST, see below.
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
21 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
Name
Title
Defined in
FCS_COP.1[RSA_encrypt]
Cryptographic operation (RSA
encryption and decryption)
CC Part 2 [2]; specified in this
ST, see below.
FCS_COP.1[RSA_public]
Cryptographic operation (RSA
public key computation)
CC Part 2 [2]; specified in this
ST, see below.
FCS_COP.1[RSA_sign]
Cryptographic operation (RSA
signature generation and
verification)
CC Part 2 [2]; specified in this
ST, see below.
FCS_COP.1[ECC_GF_p]
Cryptographic operation (ECC
over GF(p) signature generation
and verification)
CC Part 2 [2]; specified in this
ST, see below.
FCS_COP.1[ECC_ADD]
Cryptographic operation (ECC
over GF(p) point addition)
CC Part 2 [2]; specified in this
ST, see below.
FCS_COP.1[ECC_DHKE]
Cryptographic operation (ECC
Diffie-Hellman key exchange)
CC Part 2 [2]; specified in this
ST, see below.
FCS_COP.1[SHA]
Cryptographic operation (SHA-1, CC Part 2 [2]; specified in this
SHA-224 and SHA-256)
ST, see below.
FCS_CKM.1[RSA]
Cryptographic key generation
(RSA key generation)
CC Part 2 [2]; specified in this
ST, see below.
FCS_CKM.1[ECC_GF_p]
Cryptographic key generation
(ECC over GF(p) key
generation)
CC Part 2 [2]; specified in this
ST, see below.
FCS_CKM.4
Cryptographic Key Destruction
CC Part 2 [2]; specified in this
ST, see below.
FDP_RIP.1
Subset residual information
protection
CC Part 2 [2]; specified in this
ST, see below.
FDP_ITT.1[COPY]
Basic internal (user data)
transfer protection
CC Part 2 [2]; specified in this
ST, see below.
FPT_ITT.1[COPY]
Basic internal TSF data transfer
protection
CC Part 2 [2]; specified in this
ST, see below.
The requirements listed in Table 9 are detailed in the following sub-sections.
Additional SFR regarding cryptographic functionality
The TSF provides cryptographic functionality to help satisfy several high-level security
objectives. In order for a cryptographic operation to function correctly, the operation must
be performed in accordance with a specified algorithm and with a cryptographic key of a
specified size. The following Functional Requirements to the TOE can be derived from
this CC component:
FCS_COP.1[SW-AES] Cryptographic operation
Hierarchical to:
No other components.
FCS_COP.1.1[SW-AES] The TSF shall perform encryption and decryption in
accordance with the specified cryptographic algorithm AES in
one of the following modes of operation: ECB, CBC or CBCaccepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
22 of 55
NXP Semiconductors
Crypto Library on SmartMX
Security Target Lite
PUBLIC INFORMATION
MAC and cryptographic key sizes 128, 192 and 256 bit that
meet the following: FIPS Publication 197, Advanced
Encryption Standard (AES), NIST Special Publication 80038A, 2001 (ECB and CBC mode) and ISO 9797-1, Algorithm 1
(CBC-MAC mode).
Dependencies:
[FDP_ITC.1 Import of user data without security attributes, or
FDP_ITC.2 Import of user data with security attributes, or
FCS_CKM.1 Cryptographic key generation]
FCS_CKM.4 Cryptographic key destruction.
FCS_COP.1[SW-DES] Cryptographic operation
Hierarchical to:
No other components.
FCS_COP.1.1[SW-DES] The TSF shall perform encryption and decryption in
accordance with the specified cryptographic algorithm TripleDES in one of the following modes of operation: ECB, CBC or
CBC-MAC and cryptographic key sizes double-length (112 bit)
or triple-length (168 bit) that meet the following: ANSI X9.521998 [32] (ECB and CBC mode) and FIPS PUB 81 [31] (ECB
and CBC mode) and ISO 9797-1 [26], Algorithm 1 (CBC-MAC
mode).
Application Notes:
(1) The TOE also implements Single-DES. For AVA_VAN.5 it
is not considered sufficient. Therefore Single-DES is not listed
here.
(2) The CBC mode is to be understood as “outer” CBC mode,
i.e. CBC mode as defined in [31] and [32] applied to the block
cipher algorithm (either DES or Triple-DES). The CBC-MAC
mode of operation as defined in ISO 9797-1 [26], Algorithm 1,
and also described in Appendix F of [31] is similar to CBC
mode, but the output of the CBC-MAC is restricted to the
output of the last Triple-DES operation, i.e. only the last block
of the ciphertext is returned.
Dependencies:
[FDP_ITC.1 Import of user data without security attributes, or
FDP_ITC.2 Import of user data with security attributes, or
FCS_CKM.1 Cryptographic key generation]
FCS_CKM.4 Cryptographic key destruction.
FCS_COP.1[RSA_encrypt] Cryptographic operation
Hierarchical to:
No other components.
FCS_COP.1.1[RSA_encrypt] The TSF shall perform encryption and decryption in
accordance with the specified cryptographic algorithm RSA
without or with EME-OAEP encoding method and
cryptographic key sizes 1536 bits to 5024 bits that meet the
following: PKCS #1, v2.1 (RSAEP, RSADP, RSAES-OAEP).
Application Notes:
The TOE also supports key lengths of 256 to 1535 bits. For
AVA_VAN.5 these are not considered sufficient. Therefore
only keys of at least 1536 bits are listed here.
Dependencies:
[FDP_ITC.1 Import of user data without security attributes, or
FDP_ITC.2 Import of user data with security attributes, or
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
23 of 55
NXP Semiconductors
Crypto Library on SmartMX
Security Target Lite
PUBLIC INFORMATION
FCS_CKM.1 Cryptographic key generation]
FCS_CKM.4 Cryptographic key destruction.
FCS_COP.1[RSA_sign] Cryptographic operation
Hierarchical to:
No other components.
FCS_COP.1.1[RSA_sign] The TSF shall perform signature generation and verification in
accordance with the specified cryptographic algorithm RSA
without or with EMSA-PSS encoding method and
cryptographic key sizes 1536 bits to 5024 bits that meet the
following: PKCS #1, v2.1 (RSASP1, RSAVP1, RSASSA-PSS).
Application Notes:
The TOE also supports key lengths of 256 to 1535 bit. For
AVA_VAN.5 these are not considered sufficient. Therefore
only keys of least 1536 bits are listed here.
Dependencies:
[FDP_ITC.1 Import of user data without security attributes, or
FDP_ITC.2 Import of user data with security attributes, or
FCS_CKM.1 Cryptographic key generation]
FCS_CKM.4 Cryptographic key destruction.
FCS_COP.1[RSA_public] Cryptographic operation
Hierarchical to:
No other components.
FCS_COP.1.1[RSA_public] The TSF shall perform public key computation in
accordance with the specified cryptographic algorithm RSA
and cryptographic key sizes 1536 bits to 2048 bits (Straight
Forward) or 1536 to 4096 bits (CRT) that meet the following:
PKCS #1, v2.1 (RSAEP, RSAVP1).
Application Notes:
(1) The TOE also supports key lengths of 256 to 1535 bits.
For AVA_VAN.5 these are not considered sufficient. Therefore
only keys of at least 1536 bits are listed here.
(2) The computation will result in the generation of a public
RSA key from the private key. As this key is implied by the
private key, this is not true key generation, and, to prevent
duplication in this ST, this has not been included as a
separate FCS_CKM.1 SFR.
Dependencies:
[FDP_ITC.1 Import of user data without security attributes, or
FDP_ITC.2 Import of user data with security attributes, or
FCS_CKM.1 Cryptographic key generation]
FCS_CKM.4 Cryptographic key destruction.
FCS_COP.1[ECC_GF_p] Cryptographic operation
Hierarchical to:
No other components.
FCS_COP.1.1[ECC_GF_p] The TSF shall perform signature generation and verification
in accordance with the specified cryptographic algorithm ECC
over GF(p) and cryptographic key sizes 192 to 544 bits that
meet the following: ISO 14888-3 [28].
Application Notes:
The TOE also supports key lengths of 128 to 191 bits. For
AVA_VAN.5 these are not considered sufficient. Therefore
only keys of least 192 bits are listed here.
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
24 of 55
NXP Semiconductors
Crypto Library on SmartMX
Security Target Lite
PUBLIC INFORMATION
Dependencies:
[FDP_ITC.1 Import of user data without security attributes, or
FDP_ITC.2 Import of user data with security attributes, or
FCS_CKM.1 Cryptographic key generation]
FCS_CKM.4 Cryptographic key destruction.
FCS_COP.1[ECC_ADD] Cryptographic operation
Hierarchical to:
No other components.
FCS_COP.1.1[ECC_ADD] The TSF shall perform secure point addition in accordance
with the specified cryptographic algorithm ECC over GF(p)
and cryptographic key sizes 192 to 544 bits that meet the
following: ISO 14888-3 [28].
Application Notes:
The point addition does not have a key. The key size given is
related to the length of the supported operand lengths.
The TOE also supports length from 128 to 191 bits. For
AVA_VAN.5 these are not considered sufficient. Therefore
only lengths of at least 192 bits are listed here.
Dependencies:
[FDP_ITC.1 Import of user data without security attributes, or
FDP_ITC.2 Import of user data with security attributes, or
FCS_CKM.1 Cryptographic key generation]
FCS_CKM.4 Cryptographic key destruction.
FCS_COP.1[ECC_DHKE] Cryptographic operation
Hierarchical to:
No other components.
FCS_COP.1.1[ECC_DHKE] The TSF shall perform Diffie-Hellman Key Exchange in
accordance with the specified cryptographic algorithm ECC
over GF(p) and cryptographic key sizes 192 to 544 bits that
meet the following: ISO 11770-3 [29].
Application Notes:
(1) The TOE also supports key lengths of 128 to 191 bits. For
AVA_VAN.5 these are not considered sufficient. Therefore
only keys of least 192 bits are listed here.
(2) The Diffie-Hellman Key Exchange will result in the
generation of a shared secret that could subsequently be used
as a cryptographic key for e.g. AES, DES or 3DES. However,
to prevent duplication in this ST, this has not been included as
a separate FCS_CKM.1 SFR.
(3) The input value pulic key is also treated as secret value.
Therefore it can be used as a secure point multiplication.
Dependencies:
[FDP_ITC.1 Import of user data without security attributes, or
FDP_ITC.2 Import of user data with security attributes, or
FCS_CKM.1 Cryptographic key generation]
FCS_CKM.4 Cryptographic key destruction.
FCS_COP.1[SHA] Cryptographic operation
Hierarchical to:
No other components.
FCS_COP.1.1[SHA]
The TSF shall perform cryptographic checksum generation in
accordance with the specified cryptographic algorithm SHA224 and SHA-256 and cryptographic key size none that meet
the following: FIPS 180-3 [33].
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
25 of 55
NXP Semiconductors
Crypto Library on SmartMX
Security Target Lite
PUBLIC INFORMATION
Application Notes:
The TOE also supports SHA-1. For AVA_VAN.5 it is not
considered sufficient. Therefore SHA-1 is not listed here.
Dependencies:
[FDP_ITC.1 Import of user data without security attributes, or
FDP_ITC.2 Import of user data with security attributes, or
FCS_CKM.1 Cryptographic key generation]
FCS_CKM.4 Cryptographic key destruction.
The TSF provides functionality to generate a variety of key pairs. In order for the key
generation to function correctly, the operation must be performed in accordance with a
specified standard and with cryptographic key sizes out of a specified range. The
following Security Functional Requirements to the TOE can be derived from this CC
component:
FCS_CKM.1[RSA] Cryptographic Key Generation
Hierarchical to:
No other components.
FCS_CKM.1.1[RSA]
The TSF shall generate cryptographic keys in accordance with
a specified cryptographic key generation algorithm RSA
(straight forward) and RSA-CRT and specified cryptographic
key sizes 1536-4096 bits that meet the following:
"Regulierungsbehörde für Telekommunikation und Post:
Bekanntmachung zur elektronischen Signatur nach dem
Signaturgesetz und der Signaturverordnung (Übersicht über
geeignete Algorithmen), German "Bundesanzeiger Nr. 59", p.
4695-4696, March 30th, 2005".
Application Notes:
The TOE also supports key lengths from 256 to 1535 bits. For
AVA_VAN.5 these are not considered sufficient. Therefore
only keys of least 1536 bits are listed here.
Dependencies:
[FCS_CKM.2 Cryptographic key distribution or
FCS_COP.1 Cryptographic operation]
FCS_CKM.4 Cryptographic key destruction
Note:
The standard “Geeignete Algorithmen” sets up requirements
for RSA key generation, if the generated RSA key pair is used
in a signature application according to the German Signature
Act. This standard is also accepted by the German
Bundesamt für Sicherheit in der Informationstechnik (BSI) for
Common Criteria evaluations that include the assurance
requirement AVA_VAN.5.
FCS_CKM.1[ECC_GF_p] Cryptographic Key Generation
Hierarchical to:
No other components.
FCS_CKM.1.1[ECC_GF_p] The TSF shall generate cryptographic keys in accordance
with a specified cryptographic key generation algorithm ECC
over GF(p) and specified cryptographic key sizes 192-544 bits
that meet the following: ISO 15946-1-2008 [27] and
“Bekanntmachung zur elektronischen Signatur nach dem
Signaturgesetz und der Signaturverordnung (Übersicht über
geeignete Algorithmen" [35].
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
26 of 55
NXP Semiconductors
Crypto Library on SmartMX
Security Target Lite
PUBLIC INFORMATION
Application Notes:
The TOE also supports key lengths of 128 to 191 bits. For
AVA_VAN.5 these are not considered sufficient. Therefore
only keys of at least 192 bits are listed here.
Dependencies:
[FCS_CKM.2 Cryptographic key distribution or
FCS_COP.1 Cryptographic operation]
FCS_CKM.4 Cryptographic key destruction
Note:
The standard “Geeignete Algorithmen” sets up requirements
for ECC key generation, if the generated ECC key pair is used
in a signature application according to the German Signature
Act. This standard is also accepted by the German
Bundesamt für Sicherheit in der Informationstechnik (BSI) for
Common Criteria evaluations that include the assurance
requirements AVA_VAN.5.
FCS_CKM.4 Cryptographic Key Destruction
Hierarchical to:
No other components.
FCS_CKM.4.1
The TSF shall destroy cryptographic keys in accordance with
a specified cryptographic key destruction method overwrite
that meets the following: ISO11568
Application Notes:
The Crypto Library on SmartMX provides the smartcard
embedded software with library calls to perform various
cryptographic algoritms that involve keys (e.g AES, DES,
RSA, etc.). Through the parameters of the library calls the
smartcard embedded software provides keys for the
cryptographic algoritms. To perform its cryptographic
algorithms the library copies these keys, or a transformation
thereof, to the working-buffer (supplied by the smartcard
embedded software) and/or the memory/special function
registers of the SmartMX. Depending upon the algorithm the
library either overwrites these keys before returning control to
the smartcard embedded software or provides a library call to
through which the smartcard embedded software can clear
these keys. In the case of a separate library call to clear keys
the guidance instructs the smartcard embedded software
when/how this call should be used.
Dependencies:
[FDP_ITC.1 Import of user data without security attributes, or
FDP_ITC.2 Import of user data with security attributes, or
FCS_CKM.1 Cryptographic Key Generation]
Note:
Clearing of keys that are provided by the smartcard
embedded software to the Crypto Library on SmartMX is the
responsibility of the smartcard embedded software.
FDP_RIP.1 Subset Residual Information Protection
Hierarchical to:
No other components.
This family addresses the need to ensure that information in a resource is no longer
accessible when the resource is deallocated, and that therefore newly created objects do
not contain information that was accidentally left behind in the resources used to create
the objects. The following Functional Requirement to the TOE can be derived from the
CC component FDP_RIP.1:
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
27 of 55
NXP Semiconductors
Crypto Library on SmartMX
Security Target Lite
PUBLIC INFORMATION
FDP_RIP.1.1
The TSF shall ensure that any previous information content of
a resource is made unavailable upon the deallocation of the
resource from the following objects: all objects (variables)
used by the Crypto Library as specified in the user guidance
documentation.
Dependencies:
No dependencies.
Note 10. The TSF ensures that, upon exit from each function, with the exception of input
parameters, return values or locations where it is explicitly documented that
values remain at specific addresses, any memory resources used by that
function that contained temporary or secret values are cleared.
FDP_ITT.1[COPY] Basic internal transfer protection
Basic internal transfer protection requires that user data be protected when transmitted
between parts of the TOE. The TOE provides a secure copy routine which copies blocks
of data in a way that protects these data against certain kinds of side channel attacks.
The following Functional Requirement to the TOE can be derived from the CC
component FDP_ITT.1:
Hierarchical to:
No other components.
FDP_ITT.1.1[COPY]
The TSF shall enforce the Data Processing Policy to prevent
9
the disclosure of user data when it is transmitted between
physically-separated parts of the TOE.
Refinement:
The different memories, the CPU and other functional units of
the TOE (e.g. a cryptographic co-processor) are seen as
physically separated parts of the TOE. The TSF shall provide
a secure copy routine that copies blocks of data in a way that
the data confidentiality is maintained in case of side channel
attacks. The Data Processing Policy is defined in the PP [9],
section 5.1.1, paragraph 156.
Dependencies:
[FDP_ACC.1 Subset access control or
FDP_IFC.1 Subset information flow control]
8
FPT_ITT.1[COPY] Basic internal TSF data transfer protection
Basic internal TSF data transfer protection requires that TSF data be protected when
transmitted between parts of the TOE. The TOE provides a secure copy routine which
copies blocks of data in a way that protects these data against certain kinds of side
channel attacks. The following Functional Requirement to the TOE can be derived from
the CC component FPT_ITT.1:
Hierarchical to:
No other components.
FPT_ITT.1.1[COPY]
The TSF shall protect TSF data from disclosure
transmitted between separate parts of the TOE.
Refinement:
The different memories, the CPU and other functional units of
the TOE (e.g. a cryptographic co-processor) are seen as
physically separated parts of the TOE. The TSF shall provide
a secure copy routine that copies blocks of data in a way that
10
when it is
8. assignment: access control SFP(s) and/or information flow control SFP(s)
9. selection: disclosure, modification, loss of use
10. selection: disclosure, modification
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
28 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
the data confidentiality is maintained in case of side channel
attacks.
Dependencies:
No dependencies.
Note 11. The Protection Profile [9] already includes the functional requirements
FDP_ITT.1 and FPT_ITT.1 (see [9], section 6.1, paragraphs 159 and 160).
These functional requirements have been iterated (with the postfix [COPY]
added), since FDP_ITT.1[COPY] and FPT_ITT.1[COPY] focus on a special
implementation detail (secure copy routine). Still FDP_ITT.1[COPY] refers to
the same information flow control policy “Data Processing Policy” as defined in
the PP [9], section 6.1, paragraph 159. FDP_ITT.1[COPY] protects user data,
while FPT_ITT.1[COPY] protects TSF data (the mechanism implemented in
the secure copy routine protects user data as well as TSF data).
4.2 Security Assurance Requirements
Table 10 below lists all security assurance components that are valid for this Security
Target. These security assurance components are required by EAL5 or by the Protection
Profile [9].
Table 10.
Security Assurance Requirements EAL5+ and PP augmentations
SAR
Title
Required by
ADV_ARC.1
Security architecture description
PP / EAL5
ADV_FSP.5
Complete semi-formal functional specification with
additional error information
EAL5
ADV_IMP.1
Implementation representation of the TSF
PP / EAL5
ADV_INT.2
Well-structured internals
EAL5
ADV_TDS.4
Semiformal modular design
EAL5
AGD_OPE.1
Operational user guidance
PP / EAL5
AGD_PRE.1
Preparative procedures
PP / EAL5
ALC_CMC.4
Production support, acceptance procedures and
automation
PP / EAL5
ALC_CMS.5
Development tools CM coverage
EAL5
ALC_DEL.1
Delivery procedures
PP / EAL5
ALC_DVS.2
Sufficiency of security measures
PP
ALC_LCD.1
Developer defined life-cycle model
PP / EAL5
ALC_TAT.2
Compliance with implementation standards
EAL5
ASE_CCL.1
Conformance claims
PP / EAL5
ASE_ECD.1
Extended components definition
PP / EAL5
ASE_INT.1
ST introduction
PP / EAL5
ASE_OBJ.2
Security objectives
PP / EAL5
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
29 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
SAR
Title
Required by
ASE_REQ.2
Derived security requirements
PP / EAL5
ASE_SPD.1
Security problem definition
PP / EAL5
ASE_TSS.1
TOE summary specification
PP / EAL5
ATE_COV.2
Analysis of coverage
PP / EAL5
ATE_DPT.3
Testing: modular design
EAL5
ATE_FUN.1
Functional testing
PP / EAL5
ATE_IND.2
Independent testing - sample
PP / EAL5
AVA_VAN.5
Advanced methodical vulnerability analysis
PP
4.2.1 Refinements of the TOE Security Assurance Requirements
The ST claims conformance to the Protection Profile “Bundesamt für Sicherheit in der
Informationstechnik (BSI): Security IC Platform Protection Profile, Version 1.0,
15.06.2007; Registered and Certified by Bundesamt für Sicherheit in der Informationstechnik (BSI) under the reference BSI-PP-0035”, and therefore it has to be conform to
the refinements of the TOE security assurance requirements (see Application Note 19 of
the PP).
The Hardware Security Target [10] has chosen the evaluation assurance level EAL5+.
This Hardware Security Target bases on the Protection Profile [9], which requires the
lower level EAL4+. This implies that the refinements made in the Protection Profile [9],
section 6.2.1 Refinements of the TOE Assurance Requirements, for EAL4+ had to be
refined again in order to ensure EAL5+ in the Hardware Security Target (this was
necessary for ACM_CMS.5 and ADV_FSP.5).
Since these refinements explain and interpret the CC for hardware, these refinements do
not affect the additional software in this composite TOE. Therefore all refinements made
in the PP [9] are valid without change for the composite TOE.
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
30 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
5. TOE Summary Specification
This chapter describes the “IT Security Functionality”.
5.1 IT Security Functionality
The evaluation of this cryptographic library is performed as a composite evaluation,
where the TOE comprises both the underlying hardware and the embedded software
(cryptographic library). The TOE of this composite evaluation therefore extends the
security functionality already available in the chip platform (see section 7.1 “Portions of
the TOE Security Functionality” of the Hardware Security Target [10]). The securioty
functionality of the hardware platform is listed in the following table; the additional
security functionality provided by the cryptographic library is described in the following
sub-sections.
Table 11.
IT security functionalities defined in the Hardware Security Target [10]
Name
Title
SS.RNG
Hardware Random Number Generator
SS.HW_AES
Hardware AES Co-processor
SS.HW_DES
Hardware Triple-DES Co-processor
SF.OPC
Control of Operating Conditions
SF.PHY
Protection against Physical Manipulation
SF.LOG
Logical Protection
SF.COMP
Protection of Mode Control
SF.MEM_ACC
Memory Access Control
SF.SFR_ACC
Special Function Register Access Control
Note 12. The security functionality SS.RNG implements the hardware RNG. The TOE
also implements software RNG as part of security functionality F.RNG_Access;
for details see section 5.1.11. The hardware RNG is not externally visible
through the interfaces of the Crypto Library; instead users of the Crypto Library
are intended to use the software RNG (F.RNG_Access).
Note 13. The security functionality F.LOG is extended by the crypto library TOE as
described in section 5.1.14 (see below).
The IT security functionalities directly correspond to the TOE security functional
requirements defined in section 4.1 above. The definitions of the IT security
functionalities refer to the corresponding security functional requirements.
5.1.1 F.AES
The TOE uses the SmartMX AES hardware coprocessor to provide AES encryption and
decryption facility using 128, 192 or 256 bit keys. The supported modes are ECB and
“outer” CBC (i.e. the CBC mode applied to the block cipher algorithm AES).
In addition, the TOE provides the ability to compute a CBC-MAC. The CBC-MAC mode
of operation is rather similar to the CBC mode of operation, but returns only the last
cipher text (see also ISO/IEC 9797-1 [26], Algorithm 1, or FIPS PUB 197 [34]).
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
31 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
F.AES is a basic cryptographic function which provides the AES algorithm as defined by
the standard FIPS PUB 197 [34].
The interface to F.AES allows AES operations independent from prior key loading. The
user has to take care that adequate keys of the correct size are loaded before the
cryptographic operation is performed. Details are described in the user guidance [14] and
[16].
Sidechannel attack resistance for this security functionality is discussed in section 5.1.14
F.LOG.
This security functionality covers:
•
FCS_COP.1[SW_AES].
5.1.2 F.DES
The TOE uses the SmartMX DES hardware coprocessor to provide a DES encryption
and decryption facility using 56-bit keys, and to provide Triple-DES encryption and
decryption. The Triple-DES function uses double-length or triple-length keys with sizes of
112 or 168 bits respectively. The supported modes are ECB and “outer” CBC (i.e. the
CBC mode applied to the block cipher algorithm 3DES or DES).
In addition, the TOE provides the ability to compute a CBC-MAC. The CBC-MAC mode
of operation is rather similar to the CBC mode of operation, but returns only the last
cipher text (see also ISO/IEC 9797-1 [26], Algorithm 1, or FIPS PUB 81 [31], Appendix
F). Like ECB and CBC, the CBC-MAC mode of operation can also be applied to both
DES and 3DES as underlying block cipher algorithm.
Note that only the Triple-DES encryption and decryption (two-key and three-key) is within
the scope of the AVA_VAN.5 requirement of this evaluation (see also Note 7 in section
4.1.1).
F.DES is a modular basic cryptographic function which provides the DES algorithm as
defined by the standard FIPS PUB 46-3 [30], and supports the 2-key and 3-key TripleDES algorithm according to the ANSI X9.52 [32].
The interface to F.DES allows performing Single-DES or 2-key and 3-key Triple-DES
operations independent from prior key loading. The user has to take care that adequate
keys of the correct size are loaded before the cryptographic operation is performed.
Details are described in the user guidance [14] and [17]. All modes of operation (ECB,
CBC, CBC-MAC) can be applied to DES, two-key 3DES and three-key 3DES for a total
of nine possible combinations.
Sidechannel attack resistance for this security functionality is discussed in section 5.1.14
F.LOG.
This security functionality covers:
•
. FCS_COP.1[SW_DES]
5.1.3 F.RSA_encrypt
The TOE provides functions that implement the RSA algorithm for data encryption and
decryption. This IT security functionality supports the EME-OAEP encoding schema, but
also work without any encoding schema. All algorithms are defined in PKCS #1, v2.1
(RSAEP, RSADP, RSAES-OAEP)
This routine supports various key lengths from 256 bits to 5024 bits. Note that, for the
evaluated TOE, RSA keys must have a key length of at least 1536 bit.
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
32 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
The TOE contains modular exponentiation functions, which, together with other functions
in the TOE, perform the operations required for RSA encryption or decryption. Two
different RSA algorithms are supported by the TOE, namely the "Simple Straight Forward
Method" (called RSA "straight forward", the key consists of the pair n and d) and RSA
using the "Chinese Remainder Theorem" (RSA CRT, the key consists of the quintuple p,
q, dp, dq, qInv).
Sidechannel attack resistance for this security functionality is discussed in section 5.1.14
F.LOG.
This security functionality covers:
•
. FCS_COP.1[RSA_encrypt]
5.1.4 F.RSA_sign
The TOE provides functions that implement the RSA algorithm and the RSA-CRT
algorithm for signature generation and verification. This IT security functionality supports
the EMSA-PSS signature schema, but also work without any signature schema. All
algorithms are defined in PKCS #1, v2.1 (RSASP1, RSAVP1, RSASSA-PSS)
This routine supports various key lengths from 256 bits to 5024 bits. Note that, for the
evaluated TOE, RSA keys must have a key length of at least 1536 bit.
The TOE contains modular exponentiation functions, which, together with other functions
in the TOE, perform the operations required for RSA signing or verifying. Two different
RSA algorithms are supported by the TOE, namely the "Simple Straight Forward
Method" (called RSA "straight forward", the key consists of the pair n and d) and RSA
using the "Chinese Remainder Theorem" (RSA CRT, the key consists of the quintuple p,
q, dp, dq, qInv).
Sidechannel attack resistance for this security functionality is discussed in section 5.1.14
F.LOG.
This security functionality covers:
•
. FCS_COP.1[RSA_sign]
5.1.5 F.RSA_public
The TOE provides functions that implement computation of an RSA public key from a
private key. All algorithms are defined in PKCS #1, v2.1 (RSAEP, RSAVP1).
This routine supports various key lengths from 1024 bits to 2048 bits (Straight Forward)
or from 1024 to 4096 bits (CRT). Note that if the TOE uses the generated key pair later
on, RSA keys must have a key length of at least 1536 bit.
Sidechannel attack resistance for this security functionality is discussed in section 5.1.14
F.LOG.
This security functionality covers:
•
. FCS_COP.1[RSA_public]
5.1.6 F.ECC_GF_p_ECDSA
The TOE provides functions to perform ECC Signature Generation and Signature
Verification according to ISO/IEC 14888-3 [28].
Note that hashing of the message must be done beforehand and is not provided by this
security functionality, but could be provided by F.SHA.
Also the TOE provides an interface for secure point addition over GF(p).
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
33 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
The supported key length is 128 bits to 544 bits. Note, for evaluation of the TOE, ECC
over GF(p) keys must have a minimum key length of 192 bits.
Sidechannel attack resistance for this security functionality is discussed in section 5.1.14
F.LOG.
This security functionality covers:
•
FCS_COP.1[ECC_GF_p]
•
FCS_COP.1[ECC_ADD]
5.1.7 F.ECC_GF_p_DH_KeyExch
The TOE provides functions to perform Diffie-Hellman Key Exchange according to ISO
11770-3 [29] section 8.4. This interface can also be used as secure point mulriplication.
The supported key length is 128 bits to 544 bits. Note that due to the AVA_VAN.5
requirement ECC over GF(p) keys must have a minimum key length of 192 bits.
Sidechannel attack resistance for this security functionality is discussed in section 5.1.14
F.LOG.
This security functionality covers:
•
. FCS_COP.1[ECC_DHKE]
5.1.8 F.RSA_KeyGen
The TOE provides functions to generate RSA key pairs as described in
„Regulierungsbehörde für Telekommunikation und Post: Bekanntmachung zur
elektronischen Signatur nach dem Signaturgesetz und der Signaturverordnung
(Übersicht über geeignete Algorithmen), German "Bundesanzeiger Nr. 59", p. 46954696, March 30th, 2005“.
It supports various key lengths from 256 bits to 4096 bits. Note that, for the evaluated
TOE, RSA keys must have a key length of at least 1536 bit. Two different output formats
for the key parameters are supported by the TOE, namely the "Simple Straight Forward
Method" (RSA "straight forward") and RSA using the "Chinese Remainder Theorem"
(RSA CRT).
Sidechannel attack resistance for this security functionality is discussed in section 5.1.14
F.LOG.
This security functionality covers:
•
. FCS_CKM.1[RSA]
5.1.9 F.ECC_GF_p_KeyGen
The TOE provides functions to perform ECC over GF(p) Key Generation according to
ISO/IEC 15946-1-2008 [27] section 6.1.
It supports key length from 128 to 544 bits. Note that due to the AVA_VAN.5 requirement
ECC over GF(p) keys must have a minimum key length of 192 bits.
Sidechannel attack resistance for this security functionality is discussed in section 5.1.14
F.LOG.
This security functionality covers:
•
. FCS_CKM.1[ECC_GF_p]
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
34 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
5.1.10 F.SHA
The TOE implements functions to compute the Secure Hash Algorithms SHA-1, SHA224 and SHA-256 according to the standard FIPS 180-3 [33]. Note that due to the
AVA_VAN.5 requirement only SHA-224 and SHA-256 shall be used.
The SHA-1 can be used for applications whenever a secure hash algorithm is required to
hash data, such as the input for digital signature creation.
This security functionality covers:
•
. FCS_COP.1[SHA]
5.1.11 F.RNG_Access
The TOE contains both a hardware Random Number Generator (RNG) and a software
RNG; for the hardware RNG (F.RNG) see the Note 12 above. F.RNG_Access consists of
the implementation of the software RNG and of appropriate online tests for the hardware
RNG (as required for FCS_RNG.1[DET] taken from the Protection Profile [9]):
The Crypto Library implements a software (pseudo) RNG that can be used as a general
purpose random source. This software RNG has to be seeded by random numbers taken
from the hardware RNG implemented in the SmartMX processor. The implementation of
the software RNG is based on the standard ANSI X9.17 as described in Menezes, A;
van Oorschot, P. and Vanstone, S.: Handbook of Applied Cryptography, CRC Press,
1996, http://www.cacr.math.uwaterloo.ca/hac/ [24].
In addition, the Crypto Library implements appropriate online tests according to the
Hardware User Guidance Manual [11] for the hardware RNG, which fulfils the
functionality class P2 defined by the AIS31 [6], as required by SFR FCS_RNG.1[DET].
The interface of F.RNG_Access allows to test the hardware RNG and to seed the
software RNG after successful testing.
This security functionality covers:
•
. FCS_RNG.1[DET]
5.1.12 F.Object_Reuse
The TOE provides internal security measures which clear memory areas used by the
Crypto Library after usage. This functionality is required by the security functional
component FDP_RIP.1 taken from the Common Criteria Part 2 [2].
These measures ensure that a subsequent process may not gain access to
cryptographic assets stored temporarily in memory used by the TOE.
This security functionality covers:
•
FDP_RIP.1
•
FCS_CKM.4
5.1.13 F.COPY
The function F.COPY implements functionality to copy memory content in a manner
protected against sidechannel attacks. This resistance against sidechannel attacks is
described in section 5.1.14 F.LOG.
This security functionality covers:
•
FDP_ITT.1[COPY]
•
FPT_ITT.1[COPY]
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
35 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
5.1.14 F.LOG
The IT Security functionality F.LOG – Logical Protection defined in the Hardware Security
Target [10] is extended in this Security Target to include software countermeasures
against side channel attacks. Such attacks can be performed by externally measuring the
power consumption of the SmartMX processor (Simple Power Analysis, SPA, or
Differential Power Analysis, DPA) or measuring the execution time. In addition, attacks
are possible that exploit unintended behaviour of the TOE in case of fault induction
(Differential Fault Analysis, DFA).
The resistance against side channel attacks is required by FDP_ITT.1, FPT_ITT.1 and
FDP_IFC.1 (SPA, DPA and timing attacks; see also Note 4 in section 4.1.1) as well as by
FPT_FLS.1 (DFA attacks).
DES and AES
11
The resistance of AES, DES and Triple-DES against SPA, DPA and timing protects the
confidentiality of the keys used in all modes of operation (ECB, CBC, and CBC-MAC).
This resistance is provided by the co-processors in the hardware part of the TOE.
12
The resistance of AES, DES and Triple-DES against DFA is arranged by performing
computations twice and verifying that the results are the same
RSA
The RSA cryptography implementations are resistant against:
• SPA and DPA attacks because of choice of modulus, exponent blinding and careful
coding.
• timing attacks, by careful coding and the timing resistance of the underlying FameXE
co-processor.
• DFA attacks as the private key operations are DFA resistant verifying the result using
the public key operation. The public key operations have no DFA protection, as there
is nothing to attack.
RSA Public Key Computation
The RSA public key computation is resistant against:
• SPA and DPA attacks by limiting the number of executions with the same private
key.
• Timing attacks, by careful coding.
• DFA attacks are not considered: At the time of writing this ST, no promising attack
paths for DFA attacks against RSA public key computation were known.
ECC over GF(p)
The ECC over GF(p) implementation is resistant against:
• SPA and DPA attacks because of randomized projective coordinates and careful
coding.
• Timing attacks, by careful coding and the timing resistance of the underlying
FameXE co-processor.
• DFA because of verifying the results with elliptic curve equation to check they are on
the curve.
11. See also Note 7 in section 4.1.1.
12. See also Note 7 in section 4.1.1.
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
36 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
ECC Diffie Hellman Key Exchange
The ECC Diffie Hellman Key Exchange implementation is resistant against:
• SPA and DPA attacks because of randomized projective coordinates and careful
coding.
• timing attacks, by careful coding and the timing resistance of the underlying FameXE
co-processor.
• DFA because of verifying the results with elliptic curve equation.
The attack resistance also includes the public key. This ensures that the function can
also be used for secure point multiplication.
RSA Key generation
The RSA key generation provides two different modes. An insecure mode without
countermeasures against side-channel attacks, but with high execution speed, and a
secure mode with countermeasures against side-channel attacks.
The insecure mode is only protected against side channel attacks if OE.RSA-Key-Gen is
fulfilled. In this case the environment has to make sure that no attacks can be performed.
In the secure mode the RSA key generation algorithm is resistant against:
• SPA attacks because of the SPA-resistance of the underlying functions, as the
exponentiation function, for example, and because of careful programming. The only
promising attack seems to be one on the Miller-Rabin-Primality-Test. The test
frequently repeats exponentiations with similar exponents. An upper limit of the
number of Miller-Rabin-tests limits those similar exponentiations and prevents such
an attack.
• Timing attacks, by careful coding and the timing resistance of the underlying
FameXE co-processor.
• DPA, because for every key pair generation, new random prime numbers are used.
There is no interface to force the key generation to repeat the previous calculation
with the same input parameters. This prevents DPA attacks.
• Perturbation attacks, by redundant checks for critical operations
• DFA attacks are not considered: At the time of writing this ST, no promising attack
paths for DFA attacks against RSA key generation were known.
ECC over GF(p) Key generation
The ECC over GF(p) key generation algorithm is resistant against:
• SPA attacks because of randomized projective coordinates and careful coding
• timing attacks, by careful coding and the timing resistance of the underlying FameXE
co-processor
• DPA, because there is no interface to force the key generation to repeat the previous
calculation with the same input parameters. This prevents DPA attacks.
• DFA attacks are not considered: At the time of writing this ST, no promising attack
paths for DFA attacks against ECC over GF(p) Key generation were known.
Nevertheless, the implementation has some measurements included to detect Fault
Attacks.
SHA
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
37 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
The TOE implements SHA-1, SHA-224 and SHA-256 calculations but these are not
resistant against side-channel attacks.
Secure copy
The secure copy function is protected against SPA by randomization: the byte order in
which a memory block is randomly permutated (based on F.RNG_Access). Because the
randomization is different every time, the averaging of power traces is prevented, since
the point in time in which a given byte is copied is different every time (with a very high
probability).
DPA, DFA and timing attacks are not applicable
This security functionality covers:
•
FDP_ITT.1
•
FPT_ITT.1
•
FDP_IFC.1
•
FPT_FLS.1
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
38 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
6. Rationale
This chapter contains the following sections: "Security Objectives Rationale", "Security
Requirements Rationale" and "Conformance Claim Rationale".
This Security Target is based on the Security Target for the hardware of the SmartMX.
This rationale is given for the combination of both (composite TOE), the Crypto Library
Software and the SmartMX hardware.
6.1 Security Objectives Rationale
Section 7.1 of the Protection Profile provides a rationale how the assumptions, threats,
and organisational security policies are addressed by the objectives that are subject of
the Protection Profile [9]. The following Table 12 reproduces the table in section 7.1 of
the Protection Profile [9].
Table 12.
Security Objectives versus Assumptions, Threats or Policies
Assumption, Threat or OSP
Security Objective
Note
A.Plat-Appl
OE.Plat-Appl
Phase 1
A.Resp-Appl
OE.Resp-Appl
Phase 1
P.Process-TOE
O.Identification
Phase 2 – 3, optional Phase 4
A.Process-Sec-IC
OE.Process-Sec-IC
Phase 5 – 6, optional Phase 4
T.Leak-Inherent
O.Leak-Inherent
T.Phys-Probing
O.Phys-Probing
T.Malfunction
O.Malfunction
T.Phys-Manipulation
O.Phys-Manipulation
T.Leak-Forced
O.Leak-Forced
T.Abuse-Func
O.Abuse-Func
T.RND
O.RND
The following Table 13 provides the justification for the additional security objectives.
They are in line with the security objectives of the Protection Profile and supplement
these according to the additional assumptions and organisational security policy.
Table 13.
Additional Security Objectives versus Assumptions or Policies
Assumption/Policy
Security Objective
P.Add-Components
O.HW_AES O.HW_DES3
O.MF_FW
O.MEM_ACCESS
O.SFR_ACCESS
O.Leak-Inherent
O.Phys-Probing
O.Malfunction
O.Phys-Manipulation
O.Leak-Forced
accepted
Evaluation documentation
Note
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
39 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
Assumption/Policy
Security Objective
Note
P.Add-Func
O.AES
O.DES3
O.RSA
O.RSA_PubKey
O.RSA_KeyGen
O.ECC
O.ECC_DHKE
O.ECC_KeyGen
O.SHA
O.RND
O.REUSE
O.COPY
O.MEM_ACCESS
O.Leak-Inherent
O.Phys-Probing
O.Malfunction
O.Phys-Manipulation
O.Leak-Forced
A.Key-Function
OE.Plat-Appl
OE.Resp-Appl
(Phase 1)
A.Check-Init
OE.Check-Init
(Phase 1) and (Phase 4 – 6)
A.RSA-Key-Gen
OE.RSA-Key-Gen
P.Add-Components
Since the objectives O.HW_DES3, O.MF_FW, O.MEM_ACCESS and O.SFR_ACCESS
require the TOE to implement exactly the same specific security functionality as required
by P.Add-Components, the organisational security policy is covered by these security
objectives. Additionally, the security objectives O.Leak-Inherent, O.Phys-Probing,
O.Malfunction, O.Phys-Manipulation and O.Leak-Forced define how to implement the
specific security functionality required by P.Add-Components and therefore support
P.Add-Components. These security objectives are also valid for the additional specific
security functionality since they must also avert the related threats for the components
added to the organisational security policy.
P.Add-Func
Since the objectives O.AES, O.DES3, O.RSA, O.RSA_PubKey, O.RSA_KeyGen,
O.ECC, O.ECC_DHKE, O.ECC_KeyGen, O.SHA, O.RND, O.COPY, O.REUSE and
O.MEM_ACCESS require the TOE to implement exactly the same specific security
functionality as required by P.Add-Func, the organizational security policy P.Add-Func is
covered by the security objectives. Additionally, the security objectives O.Leak-Inherent,
O.Phys-Probing, O.Malfunction, O.Phys-Manipulation and O.Leak-Forced define how to
implement the specific security functionality required by P.Add-Func and therefore
support P.Add-Func. These security objectives are also valid for the additional specific
security functionality since they must also avert the related threats for the components
added to the organisational security policy.
A.Key-Function
• Compared to [9] a clarification has been made for the security objective “Usage of
Hardware Platform (OE.Plat-Appl)”: If required the Smartcard Embedded Software
shall use the cryptographic services of the TOE and their interfaces as specified. In
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
40 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
addition, the Smartcard Embedded Software (i) must implement operations on keys
(if any) in such a manner that they do not disclose information about confidential data
and (ii) must configure the memory management in a way that different applications
are sufficiently separated. If the Smartcard Embedded Software uses random
numbers provided by the security functionality F.RNG these random numbers must
be tested as appropriate for the intended purpose. This addition ensures that the
assumption A.Key-Function is still covered by the objective OE.Plat-Appl although
additional functions are being supported according to P.Add-Components.
• Compared to [9] a clarification has been made for the security objective “Treatment
of User Data (OE.Resp-Appl)”: By definition cipher or plain text data and
cryptographic keys are User Data. So, the Smartcard Embedded Software will
protect such data if required and use keys and functions appropriately in order to
ensure the strength of cryptographic operation. Quality and confidentiality must be
maintained for keys that are imported and/or derived from other keys. This implies
that appropriate key management has to be realised in the environment. In addition
the treatment of User Data comprises the implementation of a multi-application
operating system that does not disclose security relevant User Data of one
application to another one. These measures make sure that the assumption A.KeyFunction is still covered by the security objective OE.Resp-Appl although additional
functions are being supported according to P.Add-Func.
A.Check-Init
Since OE.Check-Init requires the Smartcard Embedded Software developer to implement
a function assumed in A.Check-Init, the assumption is covered by the security objective.
The justification of the additional policy and the additional assumptions show that they do
not contradict with the rationale already given in the Protection Profile for the
assumptions, policy and threats defined there.
A.RSA-Key-Gen
Since OE.RSA-Key-Gen requires the insecure mode of the RSA Key Generation to be
executed in a secure environment, where side-channel attacks are not possible, the
assumption is covered by this objective.
6.2 Security Requirements Rationale
6.2.1 Rationale for the security functional requirements
Section 7.2 of the Protection Profile [9] provides a rationale for the mapping between
security functional requirements and security objectives defined in the Protection Profile.
The mapping is reproduced in the following table.
Table 14.
Mapping of Security Requirements to Security Objectives in the PP
Objective
TOE Security Functional Requirements
O.Leak-Inherent
FDP_ITT.1 “Basic internal transfer protection”
FPT_ITT.1 “Basic internal TSF data transfer protection”
FDP_IFC.1 “Subset information flow control”
O.Phys-Probing
FPT_PHP.3 “Resistance to physical attack”
O.Malfunction
FRU_FLT.2 “Limited fault tolerance
FPT_FLS.1 “Failure with preservation of secure state”
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
41 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
Objective
TOE Security Functional Requirements
O.Phys-Manipulation
FPT_PHP.3 “Resistance to physical attack”
O.Leak-Forced
All requirements listed for O.Leak-Inherent
FDP_ITT.1, FPT_ITT.1, FDP_IFC.1
plus those listed for O.Malfunction and O.Phys-Manipulation
FRU_FLT.2, FPT_FLS.1, FPT_PHP.3
O.Abuse-Func
FMT_LIM.1 “Limited capabilities”
FMT_LIM.2 “Limited availability”
plus those for O.Leak-Inherent, O.Phys-Probing, O.Malfunction,
O.Phys-Manipulation, O.Leak-Forced
FDP_ITT.1, FPT_ITT.1, FDP_IFC.1, FPT_PHP.3, FRU_FLT.2,
FPT_FLS.1
O.Identification
FAU_SAS.1
“Audit storage”
O.RND
FCS_RNG.1 “Quality metric for random numbers” for the hardware
RNG
plus those for O.Leak-Inherent, O.Phys-Probing, O.Malfunction,
O.Phys-Manipulation, O.Leak-Forced
FDP_ITT.1, FPT_ITT.1, FDP_IFC.1, FPT_PHP.3, FRU_FLT.2,
FPT_FLS.1
plus: see Note 14 below (for aspects concerning the software RNG)
Note 14. O.RND has been extended if compared to the PP [9] to include also a software
RNG (see also Note 3). The rationale given in the PP only covers the part of
O.RND dealing with the hardware RNG. For O.RND additional functionality
(software RNG) and additional requirements (FCS_RNG.1[DET]) have been
added. The explanation following Table 16 describes this in more detail.
The Hardware Security Target [10] lists a number of security objectives and SFRs that
are additional to the Security Objectives and SFRs in the Protection Profile. These are
listed in the following table.
Table 15.
Mapping of SFRs to Security Objectives in the Hardware ST
Objectives
TOE Security Functional Requirements
O.HW_DES3
FCS_COP.1[DES]
O.HW_AES
FCS_COP.1[AES]
O.MF_FW
FDP_ACC.1[MEM]
FDP_ACF.1[MEM]
FMT_MSA.3[MEM]
O.MEM_ACCESS
FDP_ACC.1[MEM]
FDP_ACF.1[MEM]
FMT_MSA.3[MEM]
FMT_MSA.1[MEM]
FMT_MSA.1[SFR]
FMT_SMF.1
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
42 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
Objectives
TOE Security Functional Requirements
O.SFR_ACCESS
FDP_ACC.1[SFR]
FDP_ACF.1[SFR]
FMT_MSA.3[SFR]
FMT_MSA.1[SFR]
FMT_SMF.1
OE.Check-Init
Not applicable
The rationales for the mappings in Table 15 may be found in the Hardware ST [10].
Finally, this ST lists a number of security objectives and SFRs additional to both the PP
and the Hardware ST. These are listed in the following table.
Table 16.
Mapping of SFRs to Security Objectives in this ST
Objectives
TOE Security Functional Requirements
O.AES
FCS_COP.1[SW-AES]
FDP_IFC.1
FDP_ITT.1
FPT_ITT.1
FPT_FLS.1
FRU_FLT.2
O.DES3
FCS_COP.1[SW-DES]
FDP_IFC.1
FDP_ITT.1
FPT_ITT.1
FPT_FLS.1
FRU_FLT.2
O.RSA
FCS_COP.1[RSA_encrypt]
FCS_COP.1[RSA_sign]
FDP_IFC.1
FDP_ITT.1
FPT_ITT.1
FPT_FLS.1
FRU_FLT.2
O.RSA_PubKey
FCS_COP.1[RSA_public]
FDP_IFC.1
FDP_ITT.1
FPT_ITT.1
FPT_FLS.1
FRU_FLT.2
O.RSA_KeyGen
FCS_CKM.1[RSA]
FDP_IFC.1
FDP_ITT.1
FPT_ITT.1
FPT_FLS.1
FRU_FLT.2
O.ECC
FCS_COP.1[ECC_GF_p]
FCS_COP.1[ECC_ADD]
FDP_IFC.1
FDP_ITT.1
FPT_ITT.1
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
43 of 55
NXP Semiconductors
Crypto Library on SmartMX
Security Target Lite
PUBLIC INFORMATION
Objectives
TOE Security Functional Requirements
FPT_FLS.1
FRU_FLT.2
O.ECC_DHKE
FCS_COP.1[ECC_DHKE]
FDP_IFC.1
FDP_ITT.1
FPT_ITT.1
FPT_FLS.1
FRU_FLT.2
O.ECC_KeyGen
FCS_CKM.1[ECC_GF_p]
FDP_IFC.1
FDP_ITT.1
FPT_ITT.1
FPT_FLS.1
FRU_FLT.2
O.SHA
FCS_COP.1[SHA]
FDP_IFC.1
FDP_ITT.1
FPT_ITT.1
FPT_FLS.1
FRU_FLT.2
O.COPY
FDP_ITT.1[COPY]
FPT_ITT.1[COPY]
O.REUSE
FDP_RIP.1
FCS_CKM.4
O.RND
FCS_RNG.1[DET]
plus those for O.Leak-Inherent, O.Phys-Probing, O.Malfunction, O.PhysManipulation and O.Leak-Forced:
FDP_ITT.1
FPT_ITT.1
FDP_IFC.1
FPT_PHP.3
FRU_FLT.2
FPT_FLS.1
OE.Plat-Appl
Not applicable
OE.Resp-Appl
Not applicable
OE-Process-Sec-IC
Not applicable
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
44 of 55
NXP Semiconductors
Crypto Library on SmartMX
Security Target Lite
PUBLIC INFORMATION
The justification of the security objectives O.AES, O.DES3, O.RSA, O.RSA_PubKey,
O.RSA_KeyGen, O.ECC, O.ECC_DHKE, O.ECC_KeyGen and O.SHA are all as
follows:
• Each objective is directly implemented by a single SFR specifying the cryptographic
service that the objective wishes to achieve (see the above table for the mapping).
• In addition, some requirements that originally were taken from the Protection Profile
[9] and thus were also part of the Security Target of the hardware (chip) evaluation
support the objective:
− FRU_FLT.2 supports the objective by ensuring that the TOE works correctly (i.e.,
all of the TOE’s capabilities are ensured) within the specified operating conditions.
− If the TOE is used outside these specified operating conditions, FPT_FLS.1
ensures that the TSF preserve a secure state, thereby preventing attacks.
According to item (ii) of FPT_FLS.1, a secure state is also entered when DFA
attacks are detected.
− FDP_ITT.1 (for the User Data) and FPT_ITT.1 (for the TSF Data) ensure that no
User Data (plain text data, keys) or TSF Data are disclosed when they are
transmitted between different functional units of the TOE (i.e., the different
memories, the CPU, cryptographic co-processors), thereby supporting the
objective in keeping confidential data secret.
− Finally, FDP_IFC.1 also supports this aspect (confidentiality of User Data and
TSF Data) by ensuring that User Data and TSF Data are not accessible from the
TOE except when the Smartcard Embedded Software decides to communicate
them via an external interface.
The justification of the security objective O.COPY is as follows:
• According to O.COPY, the secure copy routine shall avert certain kinds of side
channel analysis that threaten data confidentiality by implementing countermeasures.
This applies to both user data and TSF data. The requirements FDP_ITT.1[COPY]
and FPT_ITT.1[COPY] exactly require this by enforcing, that the disclosure of user
data (FDP_ITT.1[COPY]) or TSF data (FPT_ITT.1[COPY]) is prevented during
transmission between separate parts of the TOE. Therefore these requirements are
suitable to meet the objective O.COPY.
The justification of the security objective O.REUSE is as follows:
• O.REUSE requires the TOE to provide procedural measures to prevent disclosure of
memory contents that was used by the TOE. This applies to the Crypto Library on
SmartMX and is met by the SFR FDP_RIP.1 and FCS_CKM.4, which requires the
library to make unavailable all memory contents that has been used by it. Note, that
the requirement for residual information protection applies to all functionality of the
Cryptographic Library.
The justification of the security objective O.RND is as follows:
• O.RND requires the TOE to generate random numbers with (a) ensured
cryptographic quality (i.e. not predictable and with sufficient entropy) such that (b)
information about the generated random numbers is not available to an attacker.
(a) Ensured cryptographic quality (sufficient entropy part) of generated random
numbers is met by FCS_RNG.1.1[DET] through the characteristic ‘deterministic’ and
the random number generator meeting ANSI X9.17 (FCS_RNG.1.2[DET]). Ensured
cryptographic quality (not predictable part) of generated random numbers is met by
FCS_RNG.1[DET] through the characteristic ‘chi-squared test of the seed generator’
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
45 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
and FCS_RNG.1 from the certified hardware platform.
(b) Information about the generated random numbers is not available to an attacker
is met through the security functional requirements (), which prevent physical
manipulation and malfunction of the TOE and support this objective because they
prevent attackers from manipulating or otherwise affecting the random number
generator.
6.2.2 Extended requirements
This Security Target does not define any extended requirements. The PP [9] contains
extended functional requirements, that are explained in the rationale of the PP (see [9],
section 5).
6.2.3 Dependencies of security requirements
The dependencies of all security requirements are met.
6.2.4 Rationale for the Assurance Requirements
The selection of assurance components is generally based on EAL5 and the underlying
Protection Profile [9]. The Security Target uses EAL5 and the same augmentations as
the PP.
EAL5 was chosen to provide an even stronger baseline of assurance than the EAL4 in
the Protection Profile. The rationale for the augmentations over and above EAL5 is the
same as in the PP.
6.3 Conformance Claim Rationale
According to chapter CC Conformance and Evaluation Assurance Level this Security
Target claims conformance to the Protection Profile [9].
As shown in 1.4 the composed TOE consists of hardware (Secure Smart Card Controller
IC) and software (Dedicated Test and Support Software). This is identical to the TOE as
defined in [9] and therefore the TOE type is consistent.
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
46 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
7. Annexes
7.1 Further Information contained in the PP
The Annex of the Protection Profile ([9], chapter 7) provides further information. Section
7.1 of the PP describes the development and production process of smartcards,
containing a detailed life-cycle description and a description of the assets of the
Integrated Circuits Designer/Manufacturer. Section 7.2 of the PP is concerned with
security aspects of the Smartcard Embedded Software (further information regarding
A.Resp-Appl and examples of specific Functional Requirements for the Smartcard
Embedded Software). Section 8.3 of the PP gives examples of Attack Scenarios.
7.2 Glossary and Vocabulary
Note: To ease understanding of the used terms the glossary of the Protection Profile [9]
is included here.
Application Data
All data managed by the Security IC Embedded
Software in the application context. Application data
comprise all data in the final Security IC.
Boot Mode
CPU mode of the TOE dedicated to the start-up of the
TOE after every reset. This mode is not accessible for
the Smartcard Embedded Software.
Composite Product Integrator
Role installing or finalising the IC Embedded Software
and the applications on platform transforming the TOE
into the unpersonalised Composite Product after TOE
delivery.
The TOE Manufacturer may implement IC Embedded
Software delivered by the Security IC Embedded
Software Developer before TOE delivery (e.g. if the IC
Embedded Software is implemented in ROM or is
stored in the non-volatile memory as service provided
by the IC Manufacturer or IC Packaging Manufacturer).
Composite Product Manufacturer The Composite Product Manufacturer has the following
roles (i) the Security IC Embedded Software Developer
(Phase 1), (ii) the Composite Product Integrator (Phase
5) and (iii) the Personaliser (Phase 6). If the TOE is
delivered after Phase 3 in form of wafers or sawn
wafers (dice) he has the role of the IC Packaging
Manufacturer (Phase 4) in addition.
The customer of the TOE Manufacturer who receives
the TOE during TOE Delivery. The Composite Product
Manufacturer includes the Security IC Embedded
Software developer and all roles after TOE Delivery up
to Phase 6 (refer to Figure 2 on page 10 and Section
7.1.1).
CPU mode
Mode in which the CPU operates. The TOE supports
five modes, the Boot Mode, Test Mode, Mifare Mode,
System Mode and User Mode.
End-consumer
User of the Composite Product in Phase 7.
Exceptions interrupts
Non-maskable interrupt of program execution starting
from fixed (depending on exception source)
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
47 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
addressees and enabling the System Mode. The
source of exceptions are: hardware breakpoints, single
fault injection detection, illegal instructions, stack
overflow, unauthorised system calls, User Mode
execution of RETI instruction and .
FabKey Area
A memory area in the EEPROM that contains data that
is programmed during testing by the IC Manufacturer.
The amount of data and the type of information can be
selected by the customer.
IC Dedicated Software
IC proprietary software embedded in a Security IC
(also known as IC firmware) and developed by the IC
Developer. Such software is required for testing
purpose (IC Dedicated Test Software) but may provide
additional services to facilitate usage of the hardware
and/or to provide additional services (IC Dedicated
Support Soft-ware).
That part of the IC Dedicated Software (refer to above)
which is used to test the TOE before TOE Delivery but
which does not provide any functionality thereafter.
That part of the IC Dedicated Software (refer to above)
which provides functions after TOE Delivery. The
usage of parts of the IC Dedicated Software might be
restricted to certain phases.
Initialisation Data defined by the TOE Manufacturer to
identify the TOE and to keep track of the Security IC’s
production and further life-cycle phases are considered
as belonging to the TSF data. These data are for
instance used for traceability and for TOE identification
(identification data).
Electronic component(s) designed to perform
processing and/or memory functions.
IC Dedicated Test Software
IC Dedicated Support Software
Initialisation Data
Integrated Circuit (IC)
Memory
The memory comprises of the RAM, ROM and the
EEPROM of the TOE.
Memory Management Unit
The MMU maps the virtual addresses used by the CPU
into the physical addresses of the RAM, ROM and
EEPROM. The mapping is determined by (a) the
memory partition and (b) the memory segments in
User Mode. Up to 64 memory segments are supported
for the User Mode, whereas the memory partition is
fixed. Each segment can be individually (i) positioned
and sized (ii) enabled or disabled, (iii) controlled by
access permissions for read, write and execute and (iv)
assigns access rights for “Special Function Registers
related to hardware components” for code executed in
User Mode from this segment.
Memory Segment
Address spaces provided by the Memory Management
Unit based on its configuration (the MMU segment
table). The memory segments define which memory
areas are accessible for code running in User Mode.
They are located in RAM, ROM and EEPROM.
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
48 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
MIFARE
Contact-less smart card interface standard, complying
with ISO14443A.
Mifare Mode
CPU mode of the TOE dedicated for the execution of
IC Dedicated Support Software, i.e. the MIFARE
Operating System. This mode is not accessible for the
Smartcard Embedded Software.
MMU segment table
This structure defines the segments that the Memory
Management Unit will used for code running in User
Mode. The structure can be located anywhere in the
available memory for System Mode code. It also
contains access rights for “Special Function Registers
related to hardware components” for User Mode code.
Pre-personalisation Data
Any data supplied by the Card Manufacturer that is
injected into the non-volatile memory by the Integrated
Circuits manufacturer (Phase 3). These data are for
instance used for traceability and/or to secure
shipment between phases.
Security IC
(as used in this Protection Profile) Composition of the
TOE, the Security IC Embedded Software, User Data
and the package (the Security IC carrier).
Security IC Embedded Software Software embedded in a Security IC and normally not
being developed by the IC Designer. The Security IC
Embedded Software is designed in Phase 1 and
embedded into the Security IC in Phase 3 or in later
phases of the Security IC product life-cycle.
Some part of that software may actually implement a
Security IC application others may provide standard
services. Nevertheless, this distinction doesn’t matter
here so that the Security IC Embedded Software can
beconsidered as being application dependent whereas
the IC Dedicated Software is definitely not.
Security IC Product
Composite product which includes the Security
Integrated Circuit (i.e. the TOE) and the Embedded
Software and is evaluated as composite target of
evaluation in the sense of the Supporting Document
Special Function Registers
Registers used to access and configure the functions
for the communication with an external interface
device, the cryptographic co-processor for Triple-DES,
the FameXE co-processor for basic arithmetic
functions to perform asymmetric cryptographic
algorithms, the random numbers generator and chip
configuration.
Security Row
Top-most 128 bytes of the EEPROM memory reserved
for configuration purposes as well as dedicated
memory area for the Smartcard Embedded Software to
store life-cycle information about the TOE.
Super System Mode
This mode represents either the Boot Mode, Test
Mode or Mifare Mode.
System Mode
The System Mode has unlimited access to the
hardware resources (with respect to the memory
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
49 of 55
NXP Semiconductors
Crypto Library on SmartMX
Security Target Lite
PUBLIC INFORMATION
partition). The Memory Management Unit can be
configured in this mode.
Test Features
All features and functions (implemented by the IC
Dedicated Test Software and/or hardware) which are
designed to be used before TOE Delivery only and
delivered as part of the TOE.
Test Mode
CPU mode for configuration of the TOE executing the
IC Dedicated Test Software. The Test Mode is
permanently and irreversible disabled after production
testing. In the Test Mode specific Special Function
Registers are accessible for test purposes.
TOE Delivery
The period when the TOE is delivered which is (refer to
Figure 2 on page 10) either (i) after Phase 3 (or before
Phase 4) if the TOE is delivered in form of wafers or
sawn wafers (dice) or (ii) after Phase 4 (or before
Phase 5) if the TOE is delivered in form of packaged
products.
The TOE Manufacturer must ensure that all
requirements for the TOE (as defined in Section 1.2.2)
and its development and production environment are
fulfilled (refer to Figure 2 on page 10).
The TOE Manufacturer has the following roles: (i) IC
Developer (Phase 2) and (ii) IC Manufacturer (Phase
3). If the TOE is delivered after Phase 4 in form of
packaged products, he has the role of the (iii) IC
Packaging Manufacturer (Phase 4) in addition.
Data created by and for the TOE, that might affect the
operation of the TOE. This includes information about
the TOE’s configuration, if any is coded in non-volatile
non-programmable memories (ROM), in specific
circuitry, in non-volatile programmable memories (for
instance E2PROM) or a combination thereof.
TOE Manufacturer
TSF data
User Mode
The User Mode has access to the memories under
control of the Memory Management Unit. The access
to the Special Function Registers is limited.
User Data
All data managed by the Smartcard Embedded
Software in the application context. User data comprise
all data in the final Smartcard IC except the TSF data.
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
50 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
8. Bibliography
8.1 CC + CEM
[1]
Common Criteria for Information Technology Security Evaluation – Part 1:
Introduction and general model, Version 3.1 Revision 1, September 2006, CCMB2006-09-001
[2]
Common Criteria for Information Technology Security Evaluation – Part 2:
Security functional components, Version 3.1 Revision 2, September 2007, CCMB2007-09-002
[3]
Common Criteria for Information Technology Security Evaluation – Part 3:
Security assurance components, Version 3.1 Revision 2, September 2007, CCMB2007-09-003
[4]
Common Criteria for Information Technology Security Evaluation – Evaluation
methodology, Version 3.1 Revision 2, September 2007, CCMB-2007-09-004
8.2 AIS
[5]
Bundesamt für Sicherheit in der Informationstechnik (BSI): AIS20:
Anwendungshinweise und Interpretationen zum Schema (AIS),
Funktionalitätsklassen und Evaluationsmethodologie für deterministische
nd
Zufallszahlengeneratoren (AIS20), Version 1, December 2 , 1999
[6]
Bundesamt für Sicherheit in der Informationstechnik (BSI): AIS31:
Funktionalitätsklassen und Evaluationsmethodologie für physikalische
th
Zufallszahlengeneratoren. (AIS31), Version 3.1, September 25 , 2001
[7]
Bundesamt für Sicherheit in der Informationstechnik (BSI): AIS34:
Anwendungshinweise und Interpretationen zum Schema, Evaluation Methodology
st
for CC assurance classes for EAL5+, Version 1, June 1 , 2004
[8]
Bundesamt für Sicherheit in der Informationstechnik (BSI): AIS37:
Anwendungshinweise und Interpretationen zum Schema: Terminologie und
th
Vorbereitung von Smartcard-Evaluierungen, Version 1.00, July, 29 , 2002
8.3 Hardware-related documents
[9]
Bundesamt für Sicherheit in der Informationstechnik (BSI): Security IC
Platform Protection Profile, Version 1.0, 15.06.2007; Registered and Certified by
Bundesamt für Sicherheit in der Informati-onstechnik (BSI) under the reference
BSI-PP-0035
[10] NXP Semiconductors Documentation: Security Target Lite –
P5CD080/P5CN080/P5CC080/P5CC073V0B, BSI-DSZ-CC-0410, Version 1.7,
th
September 28 , 2009
[11] NXP Semiconductors Guidance, Delivery and Operation Manual for the
P5Cx012/02x/040/073/080/144 family of Secure Smart Card Controller,
th
Revision 1.8, February 15 , 2010 Document-ID 129918
[12] NXP Semiconductors Data Sheet P5Cx012/02x/040/073/080/144 family; Secure
th
dual interface and contact PKI smart card controller, Revision 3.7, June 4 , 2010,
Document-ID 126537
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
51 of 55
NXP Semiconductors
Crypto Library on SmartMX
Security Target Lite
PUBLIC INFORMATION
[13] NXP Semiconductors Documentation: Instruction Set SmartMX-Family, Secure
th
Smart Card Controller, Objective Specification, Revision 1.1, July 4 , 2006,
Document Number: 084111
8.4 Documents related to the crypto library
[14] NXP Semiconductors User Guidance: Secured Crypto Library on the
th
P5Cx012/02x/040/080/144 Family, Revision 4.0, July 15 , 2010
[15] NXP Semiconductors User Guidance: Secured Crypto Library on the SmartMX –
Pseudo Random Number Generator & Chi-Squared Test Library, Revision 5.0,
th
August 24 , 2007
[16] NXP Semiconductors User Guidance: Secured Crypto Library on the SmartMX
th
– Secured AES Library, Revision 1.2, August 19 , 2010
[17] NXP Semiconductors User Guidance: Secured Crypto Library on the SmartMX
th
– Secured DES Library, Revision 3.0, August 24 , 2007
[18] NXP Semiconductors User Guidance: Secured Crypto Library on the SmartMX
th
– SHA Library, Revision 4.1, June 12 , 2008
[19] NXP Semiconductors User Guidance: Secured Crypto Library on the SmartMX –
th
Secured RSA Library, Revision 4.5, April 15 , 2010
[20] NXP Semiconductors User Guidance: Secured Crypto Library on the SmartMX
th
– Secured RSA Key Generation Library, Revision 4.3, March 30 , 2010
[21] NXP Semiconductors User Guidance: Secured Crypto Library on the SmartMX
th
– Secured ECC Library, Revision 1.4, March 30 , 2010
[22] NXP Semiconductors User Guidance: Secured Crypto Library on the SmartMX
th
– Utility Library, Revision 1.0, August 24 , 2007
8.5 Standards and text books
[23] Bruce Schneier: Applied Cryptography, Second Edition, John Wiley & Sons, Inc.,
1996
[24] Menezes, A; van Oorschot, P. and Vanstone, S.: Handbook of Applied
Cryptography, CRC Press, 1996, http://www.cacr.math.uwaterloo.ca/hac/
[25] ISO/IEC 9796-2: Information technology – Security techniques – Digital Signature
schemes giving message recovery – Part 2: Integer Factorization based
mechanisms, 2002
[26] ISO/IEC 9797-1: Information technology – Security techniques – Message
Authentication – Part 1: Mechanisms using a block cipher, 1999
[27] ISO/IEC 15946-1: Information technology – Security techniques – Cryptographic
techniques based on elliptic curves – Part 1: General, 2003
[28] ISO/IEC 14888-3: Information technology – Security techniques – Digital
signatures with appendix – Part 3: Discrete logarithm based mechanisms, 2008
[29] ISO/IEC 11770-3: Information technology – Security techniques – Key
management – Part 3: Mechanisms using asymmetric techniques, 2008
[30] FIPS PUB 46-3, Data Encryption Standard, Federal Information Processing
th
Standards Publication, October 25 , 1999, US Department of Commerce/National
Institute of Standards and Technology
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
52 of 55
NXP Semiconductors
Crypto Library on SmartMX
Security Target Lite
PUBLIC INFORMATION
[31] FIPS PUB 81, DES modes of operation, Federal Information Processing Standards
nd
Publication, December 2 , 1980, US Department of Commerce/National Institute of
Standards and Technology
[32] American National Standard: Triple data encryption algorithm modes of
th
operation, ANSI X9.52, November 9 , 1998
[33] FIPS PUB 180-3, Secure Hash Standard, Federal Information Processing
Standards Publication, October 2008, US Department of Commerce/National
Institute of Standards and Technology
[34] FIPS PUB 197, Advanced Encryption Standard (AES), Federal Information
th
Processing Standards Publication 197, November 26 , 2001, US Department of
Commerce/National Institute of Standards and Technology
[35] Bundesnetzagentur für Elektrizität, Gas, Telekommunikation, Post und
Eisenbahnen: Bekanntmachung zur elektronischen Signatur nach dem
Signaturgesetz und der Signaturverordnung (Übersicht über geeignete
th
Algorithmen), German “Bundesanzeiger Nr. 19“, p. 426, February 4 , 2010
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
53 of 55
Crypto Library on SmartMX
NXP Semiconductors
Security Target Lite
PUBLIC INFORMATION
9. Legal information
damage. NXP Semiconductors accepts no liability for inclusion and/or use of
NXP Semiconductors products in such equipment or applications and
therefore such inclusion and/or use is at the customer’s own risk.
9.1 Definitions
Draft — The document is a draft version only. The content is still under
internal review and subject to formal approval, which may result in
modifications or additions. NXP Semiconductors does not give any
representations or warranties as to the accuracy or completeness of
information included herein and shall have no liability for the consequences
of use of such information.
9.2 Disclaimers
Limited warranty and liability — Information in this document is believed to
be accurate and reliable. However, NXP Semiconductors does not give any
representations or warranties, expressed or implied, as to the accuracy or
completeness of such information and shall have no liability for the
consequences of use of such information.
Applications — Applications that are described herein for any of these
products are for illustrative purposes only. NXP Semiconductors makes no
representation or warranty that such applications will be suitable for the
specified use without further testing or modification.
NXP Semiconductors does not accept any liability related to any default,
damage, costs or problem which is based on a weakness or default in the
customer application/use or the application/use of customer’s third party
customer(s) (hereinafter both referred to as “Application”). It is customer’s
sole responsibility to check whether the NXP Semiconductors product is
suitable and fit for the Application planned. Customer has to do all necessary
testing for the Application in order to avoid a default of the Application and
the product. NXP Semiconductors does not accept any liability in this
respect.
In no event shall NXP Semiconductors be liable for any indirect, incidental,
punitive, special or consequential damages (including - without limitation lost profits, lost savings, business interruption, costs related to the removal
or replacement of any products or rework charges) whether or not such
damages are based on tort (including negligence), warranty, breach of
contract or any other legal theory.
Export control — This document as well as the item(s) described herein
may be subject to export control regulations. Export might require a prior
authorization from national authorities.
Notwithstanding any damages that customer might incur for any reason
whatsoever, NXP Semiconductors’ aggregate and cumulative liability
towards customer for the products described herein shall be limited in
accordance with the Terms and conditions of commercial sale of NXP
Semiconductors.
ICs with DPA Countermeasures functionality
9.3 Licenses
NXP ICs containing functionality
implementing countermeasures to
Differential Power Analysis and Simple
Power Analysis are produced and sold
under applicable license from
Cryptography Research, Inc.
Right to make changes — NXP Semiconductors reserves the right to make
changes to information published in this document, including without
limitation specifications and product descriptions, at any time and without
notice. This document supersedes and replaces all information supplied prior
to the publication hereof.
Suitability for use — NXP Semiconductors products are not designed,
authorized or warranted to be suitable for use in medical, military, aircraft,
space or life support equipment, nor in applications where failure or
malfunction of a NXP Semiconductors product can reasonably be expected
to result in personal injury, death or severe property or environmental
9.4 Trademarks
Notice: All referenced brands, product names, service names and
trademarks are property of their respective owners.
accepted
Evaluation documentation
© NXP B.V. 2010. All rights reserved.
Rev. 2.3 — 12 November 2010
54 of 55
NXP Semiconductors
Crypto Library on SmartMX
Security Target Lite
PUBLIC INFORMATION
10. Contents
1.
1.1
1.2
1.2.1
1.2.2
1.2.3
1.3
1.4
1.4.1
1.4.2
1.4.3
1.4.4
1.4.5
1.4.6
1.4.7
1.4.8
1.5
2.
2.1
2.2
2.3
2.4
3.
3.1
3.2
4.
4.1
4.1.1
4.1.2
4.2
4.2.1
5.
5.1
5.1.1
5.1.2
5.1.3
5.1.4
5.1.5
5.1.6
5.1.7
ST Introduction .................................................... 4
ST Identification ................................................. 4
TOE overview..................................................... 4
Introduction ........................................................ 4
Life-Cycle ........................................................... 6
Specific Issues of Smartcard Hardware and the
Common Criteria ................................................ 6
CC Conformance and Evaluation Assurance
Level .................................................................. 6
TOE Description ................................................. 7
Hardware Description ......................................... 8
Software Description .......................................... 8
Documentation ................................................... 9
Interface of the TOE ........................................... 9
Life Cycle and Delivery of the TOE .................... 9
TOE Intended Usage ......................................... 9
TOE User Environment .................................... 10
General IT features of the TOE ........................ 10
Further Definitions and Explanations ............... 10
Security Problem Definition ............................. 11
Description of Assets ....................................... 11
Assumptions..................................................... 11
Threats ............................................................. 11
Organisational Security Policies ....................... 12
Security Objectives ........................................... 14
Security Objectives for the TOE ....................... 14
Security Objectives for the Operational
environment ..................................................... 15
Security Requirements ..................................... 17
Security Functional Requirements ................... 17
SFRs of the Protection Profile and the Security
Target of the platform ....................................... 17
Additional SFRs ............................................... 21
Security Assurance Requirements ................... 29
Refinements of the TOE Security Assurance
Requirements ................................................... 30
TOE Summary Specification ............................ 31
IT Security Functionality ................................... 31
F.AES ............................................................... 31
F.DES .............................................................. 32
F.RSA_encrypt ................................................. 32
F.RSA_sign ...................................................... 33
F.RSA_public ................................................... 33
F.ECC_GF_p_ECDSA ..................................... 33
F.ECC_GF_p_DH_KeyExch ............................ 34
5.1.8
F.RSA_KeyGen ................................................34
5.1.9
F.ECC_GF_p_KeyGen .....................................34
5.1.10
F.SHA ...............................................................35
5.1.11
F.RNG_Access.................................................35
5.1.12
F.Object_Reuse ...............................................35
5.1.13
F.COPY ............................................................35
5.1.14
F.LOG...............................................................36
6.
Rationale ............................................................39
6.1
Security Objectives Rationale...........................39
6.2
Security Requirements Rationale .....................41
6.2.1
Rationale for the security functional requirements
.........................................................................41
6.2.2
Extended requirements ....................................46
6.2.3
Dependencies of security requirements ...........46
6.2.4
Rationale for the Assurance Requirements ......46
6.3
Conformance Claim Rationale..........................46
7.
Annexes..............................................................47
7.1
Further Information contained in the PP ...........47
7.2
Glossary and Vocabulary .................................47
8.
Bibliography.......................................................51
8.1
CC + CEM ........................................................51
8.2
AIS ...................................................................51
8.3
Hardware-related documents ...........................51
8.4
Documents related to the crypto library ............52
8.5
Standards and text books .................................52
9.
Legal information ..............................................54
9.1
Definitions.........................................................54
9.2
Disclaimers .......................................................54
9.3
Licenses ...........................................................54
9.4
Trademarks ......................................................54
10.
Contents .............................................................55
Please be aware that important notices concerning this document and the product(s)
described herein, have been included in the section 'Legal information'.
© NXP B.V. 2010. All rights reserved.
For more information, please visit: http://www.nxp.com
For sales office addresses, email to: [email protected]
Date of release: 12 November 2010
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
