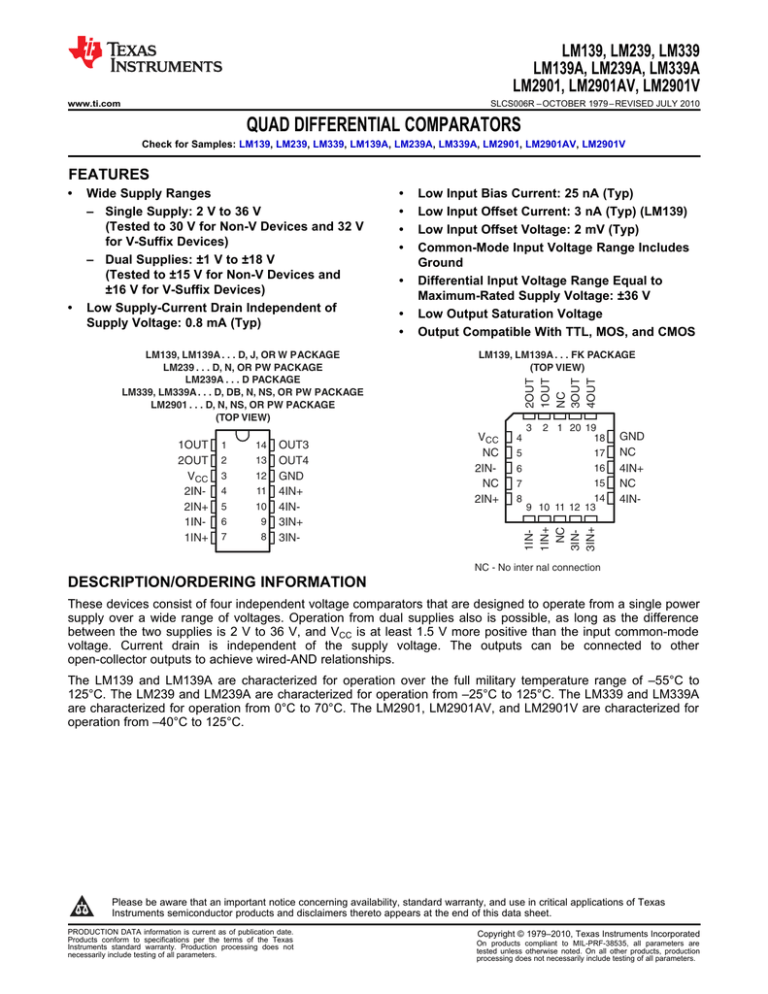

LM139, LM239, LM339
LM139A, LM239A, LM339A
LM2901, LM2901AV, LM2901V
www.ti.com
SLCS006R – OCTOBER 1979 – REVISED JULY 2010
QUAD DIFFERENTIAL COMPARATORS
Check for Samples: LM139, LM239, LM339, LM139A, LM239A, LM339A, LM2901, LM2901AV, LM2901V
FEATURES
1
•
Wide Supply Ranges
– Single Supply: 2 V to 36 V
(Tested to 30 V for Non-V Devices and 32 V
for V-Suffix Devices)
– Dual Supplies: ±1 V to ±18 V
(Tested to ±15 V for Non-V Devices and
±16 V for V-Suffix Devices)
Low Supply-Current Drain Independent of
Supply Voltage: 0.8 mA (Typ)
LM139, LM139A . . . D, J, OR W PACKAGE
LM239 . . . D, N, OR PW PACKAGE
LM239A . . . D PACKAGE
LM339, LM339A . . . D, DB, N, NS, OR PW PACKAGE
LM2901 . . . D, N, NS, OR PW PACKAGE
(TOP VIEW)
•
•
•
•
•
•
•
Low Input Bias Current: 25 nA (Typ)
Low Input Offset Current: 3 nA (Typ) (LM139)
Low Input Offset Voltage: 2 mV (Typ)
Common-Mode Input Voltage Range Includes
Ground
Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage: ±36 V
Low Output Saturation Voltage
Output Compatible With TTL, MOS, and CMOS
LM139, LM139A . . . FK PACKAGE
(TOP VIEW)
2OUT
1OUT
NC
3OUT
4OUT
•
3
1
14
2
13
3
12
4
11
5
10
6
9
7
8
OUT3
OUT4
GND
4IN+
4IN3IN+
3IN-
VCC
NC
2INNC
2IN+
4
5
6
7
8
2 1 20 19
18
17
16
15
14
9 10 11 12 13
GND
NC
4IN+
NC
4IN-
1IN1IN+
NC
3IN3IN+
1OUT
2OUT
VCC
2IN2IN+
1IN1IN+
NC - No inter nal connection
DESCRIPTION/ORDERING INFORMATION
These devices consist of four independent voltage comparators that are designed to operate from a single power
supply over a wide range of voltages. Operation from dual supplies also is possible, as long as the difference
between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode
voltage. Current drain is independent of the supply voltage. The outputs can be connected to other
open-collector outputs to achieve wired-AND relationships.
The LM139 and LM139A are characterized for operation over the full military temperature range of –55°C to
125°C. The LM239 and LM239A are characterized for operation from –25°C to 125°C. The LM339 and LM339A
are characterized for operation from 0°C to 70°C. The LM2901, LM2901AV, and LM2901V are characterized for
operation from –40°C to 125°C.
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
Copyright © 1979–2010, Texas Instruments Incorporated
On products compliant to MIL-PRF-38535, all parameters are
tested unless otherwise noted. On all other products, production
processing does not necessarily include testing of all parameters.
LM139, LM239, LM339
LM139A, LM239A, LM339A
LM2901, LM2901AV, LM2901V
SLCS006R – OCTOBER 1979 – REVISED JULY 2010
www.ti.com
Table 1. ORDERING INFORMATION (1)
VIOmax
AT 25°C
TA
PACKAGE (2)
MAX VCC
PDIP – N
SOIC – D
5 mV
30 V
LM339
Tube of 90
LM339PW
Reel of 2000
LM339PWR
Tube of 25
LM339AN
Tube of 50
LM339AD
Reel of 2500
LM339ADR
SOP – NS
Reel of 2000
LM339ANSR
LM339A
SSOP – DB
Reel of 2000
LM339ADBR
L339A
Tube of 90
LM339APW
Reel of 2000
LM339APWR
Tube of 25
LM239N
Tube of 50
LM239D
SOIC – D
–40°C to 125°C
32 V
2 mV
32 V
5 mV
30 V
2 mV
30 V
(2)
2
LM239N
LM239
LM239DRG3
Tube of 50
LM239AD
Reel of 2500
LM239ADR
Tube of 25
LM2901N
Tube of 50
LM2901D
Reel of 2500
LM2901DR
Reel of 2000
LM2901NSR
Tube of 90
LM2901PW
Reel of 2000
LM2901PWR
SOIC – D
Reel of 2500
LM2901VQDR
L2901V
TSSOP – PW
Reel of 2000
LM2901VQPWR
L2901V
SOIC – D
Reel of 2500
LM2901AVQDR
L2901AV
TSSOP – PW
Reel of 2000
LM2901AVQPWR
L2901AV
CFP – W
Tube of 25
LM139W
LM139W
CDIP – J
Tube of 25
LM139J
LM139J
LCCC – FK
Tube of 55
LM139FK
LM139FK
Tube of 50
LM139D
Reel of 2500
LM139DR
CFP – W
Tube of 25
LM139AW
LM139AW
CDIP – J
Tube of 25
LM139AJ
LM139AJ
LCCC – FK
Tube of 55
LM139AFK
LM139AFK
Tube of 50
LM139AD
Reel of 2500
LM139ADR
SOIC – D
SOP – NS
SOIC – D
(1)
L339A
LM239PWR
SOIC – D
–55°C to 125°C
LM339A
LM239PW
TSSOP – PW
7 mV
LM239DR
LM339AN
Reel of 2000
SOIC – D
30 V
Reel of 2500
L339
Tube of 90
PDIP – N
7 mV
LM339
LM339DRG3
LM339
TSSOP – PW
30 V
LM339DR
LM339DBR
–25°C to 85°C
2 mV
Reel of 2500
LM339NSR
PDIP – N
30 V
LM339D
Reel of 2000
TSSOP – PW
5 mV
Tube of 50
LM339N
Reel of 2000
SOIC – D
30 V
LM339N
SSOP – DB
PDIP – N
2 mV
Tube of 25
TOP-SIDE
MARKING
SOP – NS
TSSOP – PW
0°C to 70°C
ORDERABLE
PART NUMBER
L239
LM239A
LM2901N
LM2901
LM2901
L2901
LM139D
LM139AD
For the most current package and ordering information, see the Package Option Addendum at the end of this document, or see the TI
web site at www.ti.com.
Package drawings, thermal data, and symbolization are available at www.ti.com/packaging.
Submit Documentation Feedback
Copyright © 1979–2010, Texas Instruments Incorporated
Product Folder Link(s): LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
LM139, LM239, LM339
LM139A, LM239A, LM339A
LM2901, LM2901AV, LM2901V
www.ti.com
SLCS006R – OCTOBER 1979 – REVISED JULY 2010
SYMBOL (EACH COMPARATOR)
IN+
OUT
IN−
SCHEMATIC (EACH COMPARATOR)
VCC
80-µA
Current
Regulator
10 µA
60 µA
10 µA
80 µA
IN+
OUT
IN−
GND
All current values shown are nominal.
Copyright © 1979–2010, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Link(s): LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
3
LM139, LM239, LM339
LM139A, LM239A, LM339A
LM2901, LM2901AV, LM2901V
SLCS006R – OCTOBER 1979 – REVISED JULY 2010
www.ti.com
ABSOLUTE MAXIMUM RATINGS (1)
over operating free-air temperature range (unless otherwise noted)
MIN
VCC
Supply voltage
VID
Differential input voltage (3)
VI
Input voltage range (either input)
VO
Output voltage
IO
Output current
–0.3
Duration of output short circuit to ground (4)
qJA
qJC
TJ
Tstg
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
4
MAX
(2)
36
V
±36
V
36
V
36
V
20
mA
Unlimited
Package thermal impedance, junction to free air (5)
Package thermal impedance, junction to case (7)
UNIT
(6)
(8)
D package
86
DB package
96
N package
80
NS package
76
PW package
113
FK package
5.61
J package
15.05
W package
14.65
Operating virtual-junction temperature
°C/W
°C/W
150
°C
Case temperature for 60 s
FK package
260
°C
Lead temperature 1,6 mm (1/16 in) from case for 60 s
J package
300
°C
150
°C
Storage temperature range
–65
Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating
conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
All voltage values, except differential voltages, are with respect to network ground.
Differential voltages are at IN+ with respect to IN–.
Short circuits from outputs to VCC can cause excessive heating and eventual destruction.
Maximum power dissipation is a function of TJ (max), qJA, and TA. The maximum allowable power dissipation at any allowable ambient
temperature is PD = (TJ (max) – TA)/qJA. Operating at the absolute maximum TJ of 150°C can affect reliability.
The package thermal impedance is calculated in accordance with JESD 51-7.
Maximum power dissipation is a function of TJ (max), qJC, and TC. The maximum allowable power dissipation at any allowable case
temperature is PD = (TJ (max) – TC)/qJC. Operating at the absolute maximum TJ of 150°C can affect reliability.
The package thermal impedance is calculated in accordance with MIL-STD-883.
Submit Documentation Feedback
Copyright © 1979–2010, Texas Instruments Incorporated
Product Folder Link(s): LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
LM139, LM239, LM339
LM139A, LM239A, LM339A
LM2901, LM2901AV, LM2901V
www.ti.com
SLCS006R – OCTOBER 1979 – REVISED JULY 2010
ELECTRICAL CHARACTERISTICS
at specified free-air temperature, VCC = 5 V (unless otherwise noted)
TEST CONDITIONS (1)
PARAMETER
VIO
Input offset voltage
VCC = 5 V to 30 V,
VIC = VICR min,
VO = 1.4 V
IIO
Input offset current
VO = 1.4 V
IIB
Input bias current
VO = 1.4 V
VICR
Common-mode
input-voltage range (3)
TA
MIN
2
Full range
25°C
3
25°C
Full range
VCC+ = ±7.5 V,
VO = –5 V to 5 V
IOH
High-level output current
VID = 1 V
VOL
Low-level output voltage
VID = –1 V,
IOL = 4 mA
IOL
Low-level output current
VID = –1 V,
VOL = 1.5 V
25°C
ICC
Supply current
(four comparators)
VO = 2.5 V,
No load
25°C
5
TYP MAX
1
4
25
3
–25 –100
–25 –100
–300
–300
0 to
VCC – 1.5
0 to
–2
0 to
–2
VCC
25
100
0 to
VCC – 1.5
VCC
25°C
200
VOH = 5 V
25°C
0.1
VOH = 30 V
Full range
50
150
200
Full range
16
150
0.8
2
400
700
6
nA
nA
1
700
6
nA
V/mV
0.1
400
mV
V
1
25°C
UNIT
2
100
Full range
25°C
MIN
9
Full range
AVD
(3)
LM139A
TYP MAX
25°C
Large-signal
differential-voltage
amplification
(1)
(2)
LM139
(2)
16
0.8
mA
mV
mA
2
mA
All characteristics are measured with zero common-mode input voltage, unless otherwise specified.
Full range (MIN to MAX) for LM139 and LM139A is –55°C to 125°C. All characteristics are measured with zero common-mode input
voltage, unless otherwise specified.
The voltage at either input or common-mode should not be allowed to go negative by more than 0.3 V. The upper end of the
common-mode voltage range is VCC+ – 1.5 V; however, one input can exceed VCC, and the comparator will provide a proper output
state as long as the other input remains in the common-mode range. Either or both inputs can go to 30 V without damage.
SWITCHING CHARACTERISTICS
VCC = 5 V, TA = 25°C
PARAMETER
LM139
LM139A
TEST CONDITIONS
UNIT
TYP
Response time
(1)
(2)
RL connected to 5 V through 5.1 kΩ,
CL = 15 pF (1) (2)
100-mV input step with 5-mV overdrive
1.3
TTL-level input step
0.3
ms
CL includes probe and jig capacitance.
The response time specified is the interval between the input step function and the instant when the output crosses 1.4 V.
Copyright © 1979–2010, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Link(s): LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
5
LM139, LM239, LM339
LM139A, LM239A, LM339A
LM2901, LM2901AV, LM2901V
SLCS006R – OCTOBER 1979 – REVISED JULY 2010
www.ti.com
ELECTRICAL CHARACTERISTICS
at specified free-air temperature, VCC = 5 V (unless otherwise noted)
TEST CONDITIONS (1)
PARAMETER
TA
LM239
LM339
(2)
MIN
VIO
Input offset voltage
VCC = 5 V to 30 V,
VIC = VICR min,
VO = 1.4 V
IIO
Input offset current
VO = 1.4 V
IIB
Input bias current
VO = 1.4 V
VICR
Common-mode
input-voltage range (3)
2
Full range
25°C
5
25°C
IOH
High-level output current
VID = 1 V
VOL
Low-level output voltage
VID = –1 V,
IOL = 4 mA
IOL
Low-level output current
VID = –1 V,
VOL = 1.5 V
25°C
ICC
Supply current
(four comparators)
VO = 2.5 V,
No load
25°C
25°C
VOH = 30 V
Full range
3
4
50
5
–25 –250
–25 –250
–400
–400
0 to
–2
0 to
–2
VCC
VCC
50
50
150
0 to
VCC – 1.5
25°C
VOH = 5 V
1
0 to
VCC – 1.5
Full range
AVD
5
UNIT
TYP MAX
150
Full range
25°C
MIN
9
Full range
VCC = 15 V,
VO = 1.4 V to 11.4 V,
RL ≥ 15 kΩ to VCC
(3)
TYP MAX
25°C
Large-signal
differential-voltage
amplification
(1)
(2)
LM239A
LM339A
200
0.1
50
50
25°C
150
200
0.1
400
150
700
6
16
0.8
2
nA
V/mV
50
nA
1
mA
400
700
6
nA
V
1
Full range
mV
16
0.8
mV
mA
2
mA
All characteristics are measured with zero common-mode input voltage, unless otherwise specified.
Full range (MIN to MAX) for LM239/LM239A is –25°C to 85°C, and for LM339/LM339A is 0°C to 70°C. All characteristics are measured
with zero common-mode input voltage, unless otherwise specified.
The voltage at either input or common-mode should not be allowed to go negative by more than 0.3 V. The upper end of the
common-mode voltage range is VCC+ – 1.5 V; however, one input can exceed VCC, and the comparator will provide a proper output
state as long as the other input remains in the common-mode range. Either or both inputs can go to 30 V without damage.
SWITCHING CHARACTERISTICS
VCC = 5 V, TA = 25°C
PARAMETER
LM239
LM239A
LM339
LM339A
TEST CONDITIONS
UNIT
TYP
Response time
(1)
(2)
6
RL connected to 5 V through 5.1 kΩ,
CL = 15 pF (1) (2)
100-mV input step with 5-mV overdrive
1.3
TTL-level input step
0.3
ms
CL includes probe and jig capacitance.
The response time specified is the interval between the input step function and the instant when the output crosses 1.4 V.
Submit Documentation Feedback
Copyright © 1979–2010, Texas Instruments Incorporated
Product Folder Link(s): LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
LM139, LM239, LM339
LM139A, LM239A, LM339A
LM2901, LM2901AV, LM2901V
www.ti.com
SLCS006R – OCTOBER 1979 – REVISED JULY 2010
ELECTRICAL CHARACTERISTICS
at specified free-air temperature, VCC = 5 V (unless otherwise noted)
TEST CONDITIONS (1)
PARAMETER
VIO
Input offset voltage
Non-A devices
VIC = VICR min,
VO = 1.4 V,
VCC = 5 V to MAX (3)
IIO
Input offset current
VO = 1.4 V
IIB
Input bias current
VO = 1.4 V
VICR
Common-mode
input-voltage range (4)
TA
A-suffix devices
25°C
TYP
MAX
2
15
25°C
1
2
5
50
Full range
200
25°C
Full range
VCC = 15 V, VO = 1.4 V to 11.4 V,
RL ≥ 15 kΩ to VCC
IOH
High-level output current
VID = 1 V
VOL
Low-level output voltage
VID = –1 V,
IOL = 4 mA
25°C
VOH = 5 V
VOH = VCC MAX (3)
Non-V devices
V-suffix devices
–25
VID = –1 V,
VOL = 1.5 V
ICC
Supply current
(four comparators)
VO = 2.5 V,
No load
VCC = 5 V
VCC = MAX (3)
0 to
VCC – 1.5
VCC
25
nA
nA
V
0 to
–2
100
V/mV
0.1
25°C
25°C
Low-level output current
–500
25°C
Full range
IOL
–250
50
nA
1
mA
Full range
All devices
mV
4
Full range
25°C
UNIT
7
Full range
Full range
AVD
(3)
(4)
MIN
25°C
Large-signal
differential-voltage
amplification
(1)
(2)
LM2901
(2)
150
500
150
400
mV
700
6
25°C
16
mA
0.8
2
1
2.5
mA
All characteristics are measured with zero common-mode input voltage, unless otherwise specified.
Full range (MIN to MAX) for LM2901 is –40°C to 125°C. All characteristics are measured with zero common-mode input voltage, unless
otherwise specified.
VCC MAX = 30 V for non-V devices, and 32 V for V-suffix devices
The voltage at either input or common-mode should not be allowed to go negative by more than 0.3 V. The upper end of the
common-mode voltage range is VCC+ – 1.5 V; however, one input can exceed VCC, and the comparator will provide a proper output
state as long as the other input remains in the common-mode range. Either or both inputs can go to VCC MAX without damage.
SWITCHING CHARACTERISTICS
VCC = 5 V, TA = 25°C
PARAMETER
Response time
(1)
(2)
LM2901
TEST CONDITIONS
RL connected to 5 V through 5.1 kΩ,
CL = 15 pF (1) (2)
TYP
100-mV input step with 5-mV overdrive
1.3
TTL-level input step
0.3
UNIT
ms
CL includes probe and jig capacitance.
The response time specified is the interval between the input step function and the instant when the output crosses 1.4 V.
Copyright © 1979–2010, Texas Instruments Incorporated
Submit Documentation Feedback
Product Folder Link(s): LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
7
LM139, LM239, LM339
LM139A, LM239A, LM339A
LM2901, LM2901AV, LM2901V
SLCS006R – OCTOBER 1979 – REVISED JULY 2010
www.ti.com
TYPICAL CHARACTERISTICS
SUPPLY CURRENT
vs
SUPPLY VOLTAGE
INPUT BIAS CURRENT
vs
SUPPLY VOLTAGE
80
1.8
1.6
IIN – Input Bias Current – nA
1.4
ICC – Supply Current – mA
70
TA = –55°C
TA = 25°C
TA = 0°C
1.2
1
TA = 70°C
0.8
TA = 125°C
0.6
0.4
TA = –55°C
60
TA = 0°C
50
TA = 25°C
40
TA = 70°C
30
TA = 125°C
20
10
0.2
0
0
0
5
10
15
20
25
30
35
0
5
VCC – Supply Voltage – V
10
15
20
25
30
35
VCC – Supply Voltage – V
OUTPUT SATURATION VOLTAGE
VO – Saturation Voltage – V
10
1
TA = 125°C
TA = 25°C
0.1
TA = –55°C
0.01
0.001
0.01
0.1
1
10
100
IO – Output Sink Current – mA
8
Submit Documentation Feedback
Copyright © 1979–2010, Texas Instruments Incorporated
Product Folder Link(s): LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
LM139, LM239, LM339
LM139A, LM239A, LM339A
LM2901, LM2901AV, LM2901V
www.ti.com
SLCS006R – OCTOBER 1979 – REVISED JULY 2010
TYPICAL CHARACTERISTICS (continued)
RESPONSE TIME FOR VARIOUS OVERDRIVES
NEGATIVE TRANSITION
RESPONSE TIME FOR VARIOUS OVERDRIVES
POSITIVE TRANSITION
6
6
5
5
VO – Output Voltage – V
VO – Output Voltage – V
Overdrive = 5 mV
4
Overdrive = 20 mV
3
Overdrive = 100 mV
2
1
0
-1
-0.3
Overdrive = 5 mV
4
Overdrive = 20 mV
3
Overdrive = 100 mV
2
1
0
0
0.25 0.5 0.75
1
1.25 1.5 1.75
t – Time – µs
Copyright © 1979–2010, Texas Instruments Incorporated
2
2.25
-1
-0.3
0
0.25 0.5 0.75
1
1.25 1.5 1.75
2
2.25
t – Time – µs
Submit Documentation Feedback
Product Folder Link(s): LM139 LM239 LM339 LM139A LM239A LM339A LM2901 LM2901AV LM2901V
9
PACKAGE OPTION ADDENDUM
www.ti.com
7-Apr-2011
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package
Drawing
Pins
Package Qty
Eco Plan
(2)
Lead/
Ball Finish
A42
MSL Peak Temp
(3)
(Requires Login)
5962-7700801VCA
ACTIVE
CDIP
J
14
1
TBD
5962-87739012A
ACTIVE
LCCC
FK
20
1
TBD
5962-8773901CA
ACTIVE
CDIP
J
14
1
TBD
A42
N / A for Pkg Type
5962-8773901DA
ACTIVE
CFP
W
14
1
TBD
A42
N / A for Pkg Type
5962-9673802V9B
ACTIVE
XCEPT
KGD
0
1
TBD
Call TI
N / A for Pkg Type
5962-9673802VCA
ACTIVE
CDIP
J
14
1
TBD
A42
N / A for Pkg Type
77008012A
ACTIVE
LCCC
FK
20
1
TBD
7700801CA
ACTIVE
CDIP
J
14
1
TBD
A42
N / A for Pkg Type
7700801DA
ACTIVE
CFP
W
14
1
TBD
A42
N / A for Pkg Type
JM38510/11201BCA
ACTIVE
CDIP
J
14
1
TBD
A42
N / A for Pkg Type
N / A for Pkg Type
POST-PLATE N / A for Pkg Type
POST-PLATE N / A for Pkg Type
LM139AD
ACTIVE
SOIC
D
14
50
TBD
CU NIPDAU Level-3-245C-168 HR
LM139ADG4
ACTIVE
SOIC
D
14
50
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM139ADR
ACTIVE
SOIC
D
14
2500
Pb-Free (RoHS)
LM139ADRG4
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
LM139AFKB
ACTIVE
LCCC
FK
20
1
TBD
LM139AJ
ACTIVE
CDIP
J
14
1
TBD
A42
N / A for Pkg Type
LM139AJB
ACTIVE
CDIP
J
14
1
TBD
A42
N / A for Pkg Type
LM139AN
OBSOLETE
PDIP
N
14
LM139AW
ACTIVE
CFP
W
14
LM139AWB
ACTIVE
CFP
W
LM139D
ACTIVE
SOIC
D
LM139DG4
ACTIVE
SOIC
LM139DR
ACTIVE
LM139DRG4
CU NIPDAU Level-2-250C-1
YEAR/
Level-1-235C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
POST-PLATE N / A for Pkg Type
TBD
Call TI
1
TBD
A42
N / A for Pkg Type
14
1
TBD
A42
N / A for Pkg Type
14
50
TBD
CU NIPDAU Level-1-220C-UNLIM
D
14
50
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
SOIC
D
14
2500
TBD
CU NIPDAU Level-1-220C-UNLIM
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM139FK
ACTIVE
LCCC
FK
20
1
TBD
POST-PLATE N / A for Pkg Type
LM139FKB
ACTIVE
LCCC
FK
20
1
TBD
POST-PLATE N / A for Pkg Type
Addendum-Page 1
Samples
Call TI
PACKAGE OPTION ADDENDUM
www.ti.com
7-Apr-2011
Orderable Device
LM139J
Status
(1)
Package Type Package
Drawing
ACTIVE
CDIP
LM139JB
ACTIVE
LM139N
OBSOLETE
Pins
Package Qty
Eco Plan
J
14
1
TBD
CDIP
J
14
1
PDIP
N
14
(2)
Lead/
Ball Finish
MSL Peak Temp
N / A for Pkg Type
TBD
A42
N / A for Pkg Type
TBD
Call TI
Call TI
LM139W
ACTIVE
CFP
W
14
1
TBD
A42
N / A for Pkg Type
LM139WB
ACTIVE
CFP
W
14
1
TBD
A42
N / A for Pkg Type
LM239AD
ACTIVE
SOIC
D
14
50
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM239ADE4
ACTIVE
SOIC
D
14
50
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM239ADG4
ACTIVE
SOIC
D
14
50
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM239ADR
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM239ADRE4
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM239ADRG4
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM239AN
OBSOLETE
PDIP
N
14
LM239D
ACTIVE
SOIC
D
14
50
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM239DE4
ACTIVE
SOIC
D
14
50
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM239DG4
ACTIVE
SOIC
D
14
50
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM239DR
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM239DRE4
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM239DRG3
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
LM239DRG4
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
LM239N
ACTIVE
PDIP
N
14
25
Pb-Free (RoHS)
CU NIPDAU N / A for Pkg Type
LM239NE4
ACTIVE
PDIP
N
14
25
Pb-Free (RoHS)
CU NIPDAU N / A for Pkg Type
Addendum-Page 2
Call TI
CU SN
Samples
(Requires Login)
A42
TBD
(3)
Call TI
Level-1-260C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
PACKAGE OPTION ADDENDUM
www.ti.com
7-Apr-2011
Orderable Device
Status
(1)
Package Type Package
Drawing
Pins
Package Qty
Eco Plan
(2)
Lead/
Ball Finish
MSL Peak Temp
ACTIVE
TSSOP
PW
14
90
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM239PWE4
ACTIVE
TSSOP
PW
14
90
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM239PWG4
ACTIVE
TSSOP
PW
14
90
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM239PWR
ACTIVE
TSSOP
PW
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM239PWRE4
ACTIVE
TSSOP
PW
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM239PWRG4
ACTIVE
TSSOP
PW
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM2901AVQDR
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM2901AVQDRG4
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM2901AVQPWR
ACTIVE
TSSOP
PW
14
2000
TBD
CU NIPDAU Level-1-250C-UNLIM
LM2901AVQPWRG4
ACTIVE
TSSOP
PW
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM2901D
ACTIVE
SOIC
D
14
50
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM2901DE4
ACTIVE
SOIC
D
14
50
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM2901DG4
ACTIVE
SOIC
D
14
50
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM2901DR
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM2901DRE4
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM2901DRG3
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
LM2901DRG4
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
LM2901N
ACTIVE
PDIP
N
14
25
Pb-Free (RoHS)
CU NIPDAU N / A for Pkg Type
LM2901NE4
ACTIVE
PDIP
N
14
25
Pb-Free (RoHS)
CU NIPDAU N / A for Pkg Type
Addendum-Page 3
Samples
(Requires Login)
LM239PW
CU SN
(3)
Level-1-260C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
PACKAGE OPTION ADDENDUM
www.ti.com
7-Apr-2011
Orderable Device
Status
(1)
Package Type Package
Drawing
Pins
Package Qty
Eco Plan
(2)
Lead/
Ball Finish
MSL Peak Temp
ACTIVE
SO
NS
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM2901NSRE4
ACTIVE
SO
NS
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM2901NSRG4
ACTIVE
SO
NS
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM2901PW
ACTIVE
TSSOP
PW
14
90
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM2901PWE4
ACTIVE
TSSOP
PW
14
90
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM2901PWG4
ACTIVE
TSSOP
PW
14
90
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM2901PWLE
OBSOLETE
TSSOP
PW
14
LM2901PWR
ACTIVE
TSSOP
PW
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM2901PWRE4
ACTIVE
TSSOP
PW
14
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM2901PWRG3
ACTIVE
TSSOP
PW
14
2000
Green (RoHS
& no Sb/Br)
LM2901PWRG4
ACTIVE
TSSOP
PW
14
2000
Green (RoHS
& no Sb/Br)
LM2901QD
OBSOLETE
SOIC
D
14
TBD
Call TI
Call TI
LM2901QN
OBSOLETE
PDIP
N
14
TBD
Call TI
Call TI
LM2901VQDR
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM2901VQDRG4
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
Call TI
CU SN
Call TI
Level-1-260C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
LM2901VQPWR
ACTIVE
TSSOP
PW
14
2000
TBD
CU NIPDAU Level-1-250C-UNLIM
LM2901VQPWRG4
ACTIVE
TSSOP
PW
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339AD
ACTIVE
SOIC
D
14
50
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339ADBR
ACTIVE
SSOP
DB
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
Addendum-Page 4
Samples
(Requires Login)
LM2901NSR
TBD
(3)
PACKAGE OPTION ADDENDUM
www.ti.com
7-Apr-2011
Orderable Device
Status
(1)
Package Type Package
Drawing
Pins
Package Qty
Eco Plan
(2)
Lead/
Ball Finish
MSL Peak Temp
ACTIVE
SSOP
DB
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339ADE4
ACTIVE
SOIC
D
14
50
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339ADG4
ACTIVE
SOIC
D
14
50
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339ADR
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339ADRE4
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339ADRG4
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339AN
ACTIVE
PDIP
N
14
25
Pb-Free (RoHS)
CU NIPDAU N / A for Pkg Type
LM339ANE4
ACTIVE
PDIP
N
14
25
Pb-Free (RoHS)
CU NIPDAU N / A for Pkg Type
LM339ANSR
ACTIVE
SO
NS
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339ANSRG4
ACTIVE
SO
NS
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339APW
ACTIVE
TSSOP
PW
14
90
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339APWE4
ACTIVE
TSSOP
PW
14
90
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339APWG4
ACTIVE
TSSOP
PW
14
90
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339APWR
ACTIVE
TSSOP
PW
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339APWRE4
ACTIVE
TSSOP
PW
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339APWRG4
ACTIVE
TSSOP
PW
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339D
ACTIVE
SOIC
D
14
50
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339DBLE
OBSOLETE
SSOP
DB
14
LM339DBR
ACTIVE
SSOP
DB
14
2000
Green (RoHS
& no Sb/Br)
Addendum-Page 5
Call TI
Samples
(Requires Login)
LM339ADBRG4
TBD
(3)
Call TI
CU NIPDAU Level-1-260C-UNLIM
PACKAGE OPTION ADDENDUM
www.ti.com
7-Apr-2011
Orderable Device
Status
(1)
Package Type Package
Drawing
Pins
Package Qty
Eco Plan
(2)
Lead/
Ball Finish
MSL Peak Temp
ACTIVE
SSOP
DB
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339DBRG4
ACTIVE
SSOP
DB
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339DE4
ACTIVE
SOIC
D
14
50
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339DG4
ACTIVE
SOIC
D
14
50
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339DR
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339DRE4
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339DRG3
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
LM339DRG4
ACTIVE
SOIC
D
14
2500
Green (RoHS
& no Sb/Br)
LM339N
ACTIVE
PDIP
N
14
25
Pb-Free (RoHS)
LM339NE3
ACTIVE
PDIP
N
14
25
Pb-Free (RoHS)
LM339NE4
ACTIVE
PDIP
N
14
25
Pb-Free (RoHS)
LM339NSLE
OBSOLETE
SO
NS
14
LM339NSR
ACTIVE
SO
NS
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339NSRG4
ACTIVE
SO
NS
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339PW
ACTIVE
TSSOP
PW
14
90
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339PWE4
ACTIVE
TSSOP
PW
14
90
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339PWG4
ACTIVE
TSSOP
PW
14
90
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339PWLE
OBSOLETE
TSSOP
PW
14
LM339PWR
ACTIVE
TSSOP
PW
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
LM339PWRE4
ACTIVE
TSSOP
PW
14
2000
Green (RoHS
& no Sb/Br)
CU NIPDAU Level-1-260C-UNLIM
TBD
TBD
Addendum-Page 6
Level-1-260C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
CU NIPDAU N / A for Pkg Type
CU SN
N / A for Pkg Type
CU NIPDAU N / A for Pkg Type
Call TI
Call TI
Samples
(Requires Login)
LM339DBRE4
CU SN
(3)
Call TI
Call TI
PACKAGE OPTION ADDENDUM
www.ti.com
7-Apr-2011
Orderable Device
Status
(1)
Package Type Package
Drawing
Pins
Package Qty
Eco Plan
(2)
LM339PWRG3
ACTIVE
TSSOP
PW
14
2000
Green (RoHS
& no Sb/Br)
LM339PWRG4
ACTIVE
TSSOP
PW
14
2000
Green (RoHS
& no Sb/Br)
LM339Y
OBSOLETE
0
TBD
Lead/
Ball Finish
CU SN
MSL Peak Temp
(3)
Samples
(Requires Login)
Level-1-260C-UNLIM
CU NIPDAU Level-1-260C-UNLIM
Call TI
Call TI
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability
information and additional product content details.
TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that
lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between
the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight
in homogeneous material)
(3)
MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
OTHER QUALIFIED VERSIONS OF LM139, LM139-SP, LM239A, LM2901, LM2901AV, LM2901V :
• Catalog: LM139
• Automotive: LM239A-Q1, LM2901-Q1, LM2901AV-Q1, LM2901V-Q1
Addendum-Page 7
PACKAGE OPTION ADDENDUM
www.ti.com
7-Apr-2011
• Enhanced Product: LM239A-EP
• Space: LM139-SP
NOTE: Qualified Version Definitions:
• Catalog - TI's standard catalog product
• Automotive - Q100 devices qualified for high-reliability automotive applications targeting zero defects
• Enhanced Product - Supports Defense, Aerospace and Medical Applications
• Space - Radiation tolerant, ceramic packaging and qualified for use in Space-based application
Addendum-Page 8
PACKAGE MATERIALS INFORMATION
www.ti.com
9-Mar-2011
TAPE AND REEL INFORMATION
*All dimensions are nominal
Device
Package Package Pins
Type Drawing
SPQ
Reel
Reel
A0
Diameter Width (mm)
(mm) W1 (mm)
B0
(mm)
K0
(mm)
P1
(mm)
W
Pin1
(mm) Quadrant
LM139ADR
SOIC
D
14
2500
330.0
16.4
6.5
9.0
2.1
8.0
16.0
Q1
LM139DR
SOIC
D
14
2500
330.0
16.4
6.5
9.0
2.1
8.0
16.0
Q1
LM239ADR
SOIC
D
14
2500
330.0
16.4
6.5
9.0
2.1
8.0
16.0
Q1
LM239ADR
SOIC
D
14
2500
330.0
16.4
6.5
9.0
2.1
8.0
16.0
Q1
LM239DR
SOIC
D
14
2500
330.0
16.4
6.5
9.0
2.1
8.0
16.0
Q1
LM239DR
SOIC
D
14
2500
330.0
16.4
6.5
9.0
2.1
8.0
16.0
Q1
LM239PWR
TSSOP
PW
14
2000
330.0
12.4
6.9
5.6
1.6
8.0
12.0
Q1
LM2901AVQPWR
TSSOP
PW
14
2000
330.0
12.4
6.9
5.6
1.6
8.0
12.0
Q1
LM2901DR
SOIC
D
14
2500
330.0
16.4
6.5
9.0
2.1
8.0
16.0
Q1
LM2901DR
SOIC
D
14
2500
330.0
16.4
6.5
9.0
2.1
8.0
16.0
Q1
LM2901DRG4
SOIC
D
14
2500
330.0
16.4
6.5
9.0
2.1
8.0
16.0
Q1
LM2901NSR
SO
NS
14
2000
330.0
16.4
8.2
10.5
2.5
12.0
16.0
Q1
LM2901PWR
TSSOP
PW
14
2000
330.0
12.4
6.9
5.6
1.6
8.0
12.0
Q1
LM2901PWRG3
TSSOP
PW
14
2000
330.0
12.4
7.0
5.6
1.6
8.0
12.0
Q1
LM2901VQPWR
TSSOP
PW
14
2000
330.0
12.4
6.9
5.6
1.6
8.0
12.0
Q1
LM339ADBR
SSOP
DB
14
2000
330.0
16.4
8.2
6.6
2.5
12.0
16.0
Q1
LM339ADR
SOIC
D
14
2500
330.0
16.4
6.5
9.0
2.1
8.0
16.0
Q1
LM339ADR
SOIC
D
14
2500
330.0
16.4
6.5
9.0
2.1
8.0
16.0
Q1
Pack Materials-Page 1
PACKAGE MATERIALS INFORMATION
www.ti.com
9-Mar-2011
Device
Package Package Pins
Type Drawing
SPQ
Reel
Reel
A0
Diameter Width (mm)
(mm) W1 (mm)
B0
(mm)
K0
(mm)
P1
(mm)
W
Pin1
(mm) Quadrant
LM339ANSR
SO
NS
14
2000
330.0
16.4
8.2
10.5
2.5
12.0
16.0
Q1
LM339APWR
TSSOP
PW
14
2000
330.0
12.4
6.9
5.6
1.6
8.0
12.0
Q1
LM339DBR
SSOP
DB
14
2000
330.0
16.4
8.2
6.6
2.5
12.0
16.0
Q1
LM339DR
SOIC
D
14
2500
330.0
16.4
6.5
9.0
2.1
8.0
16.0
Q1
LM339DR
SOIC
D
14
2500
330.0
16.4
6.5
9.0
2.1
8.0
16.0
Q1
LM339DRG4
SOIC
D
14
2500
330.0
16.4
6.5
9.0
2.1
8.0
16.0
Q1
LM339NSR
SO
NS
14
2000
330.0
16.4
8.2
10.5
2.5
12.0
16.0
Q1
LM339PWR
TSSOP
PW
14
2000
330.0
12.4
6.9
5.6
1.6
8.0
12.0
Q1
LM339PWRG3
TSSOP
PW
14
2000
330.0
12.4
7.0
5.6
1.6
8.0
12.0
Q1
*All dimensions are nominal
Device
Package Type
Package Drawing
Pins
SPQ
Length (mm)
Width (mm)
Height (mm)
LM139ADR
SOIC
D
14
2500
346.0
346.0
33.0
LM139DR
SOIC
D
14
2500
346.0
346.0
33.0
LM239ADR
SOIC
D
14
2500
346.0
346.0
33.0
LM239ADR
SOIC
D
14
2500
333.2
345.9
28.6
LM239DR
SOIC
D
14
2500
346.0
346.0
33.0
LM239DR
SOIC
D
14
2500
333.2
345.9
28.6
LM239PWR
TSSOP
PW
14
2000
346.0
346.0
29.0
LM2901AVQPWR
TSSOP
PW
14
2000
346.0
346.0
29.0
Pack Materials-Page 2
PACKAGE MATERIALS INFORMATION
www.ti.com
9-Mar-2011
Device
Package Type
Package Drawing
Pins
SPQ
Length (mm)
Width (mm)
Height (mm)
LM2901DR
SOIC
D
14
2500
346.0
346.0
33.0
LM2901DR
SOIC
D
14
2500
333.2
345.9
28.6
LM2901DRG4
SOIC
D
14
2500
346.0
346.0
33.0
LM2901NSR
SO
NS
14
2000
346.0
346.0
33.0
LM2901PWR
TSSOP
PW
14
2000
346.0
346.0
29.0
LM2901PWRG3
TSSOP
PW
14
2000
364.0
364.0
27.0
LM2901VQPWR
TSSOP
PW
14
2000
346.0
346.0
29.0
LM339ADBR
SSOP
DB
14
2000
346.0
346.0
33.0
LM339ADR
SOIC
D
14
2500
333.2
345.9
28.6
LM339ADR
SOIC
D
14
2500
346.0
346.0
33.0
LM339ANSR
SO
NS
14
2000
346.0
346.0
33.0
LM339APWR
TSSOP
PW
14
2000
346.0
346.0
29.0
LM339DBR
SSOP
DB
14
2000
346.0
346.0
33.0
LM339DR
SOIC
D
14
2500
346.0
346.0
33.0
LM339DR
SOIC
D
14
2500
333.2
345.9
28.6
LM339DRG4
SOIC
D
14
2500
346.0
346.0
33.0
LM339NSR
SO
NS
14
2000
346.0
346.0
33.0
LM339PWR
TSSOP
PW
14
2000
346.0
346.0
29.0
LM339PWRG3
TSSOP
PW
14
2000
364.0
364.0
27.0
Pack Materials-Page 3
MECHANICAL DATA
MSSO002E – JANUARY 1995 – REVISED DECEMBER 2001
DB (R-PDSO-G**)
PLASTIC SMALL-OUTLINE
28 PINS SHOWN
0,38
0,22
0,65
28
0,15 M
15
0,25
0,09
8,20
7,40
5,60
5,00
Gage Plane
1
14
0,25
A
0°–ā8°
0,95
0,55
Seating Plane
2,00 MAX
0,10
0,05 MIN
PINS **
14
16
20
24
28
30
38
A MAX
6,50
6,50
7,50
8,50
10,50
10,50
12,90
A MIN
5,90
5,90
6,90
7,90
9,90
9,90
12,30
DIM
4040065 /E 12/01
NOTES: A.
B.
C.
D.
All linear dimensions are in millimeters.
This drawing is subject to change without notice.
Body dimensions do not include mold flash or protrusion not to exceed 0,15.
Falls within JEDEC MO-150
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements,
and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should
obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are
sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard
warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where
mandated by government requirements, testing of all parameters of each product is not necessarily performed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and
applications using TI components. To minimize the risks associated with customer products and applications, customers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right,
or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a
warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual
property of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied
by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive
business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional
restrictions.
Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all
express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not
responsible or liable for any such statements.
TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably
be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing
such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products
and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be
provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in
such safety-critical applications.
TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are
specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military
specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at
the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.
TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are
designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated
products in automotive applications, TI will not be responsible for any failure to meet such requirements.
Following are URLs where you can obtain information on other Texas Instruments products and application solutions:
Products
Applications
Audio
www.ti.com/audio
Communications and Telecom www.ti.com/communications
Amplifiers
amplifier.ti.com
Computers and Peripherals
www.ti.com/computers
Data Converters
dataconverter.ti.com
Consumer Electronics
www.ti.com/consumer-apps
DLP® Products
www.dlp.com
Energy and Lighting
www.ti.com/energy
DSP
dsp.ti.com
Industrial
www.ti.com/industrial
Clocks and Timers
www.ti.com/clocks
Medical
www.ti.com/medical
Interface
interface.ti.com
Security
www.ti.com/security
Logic
logic.ti.com
Space, Avionics and Defense
www.ti.com/space-avionics-defense
Power Mgmt
power.ti.com
Transportation and
Automotive
www.ti.com/automotive
Microcontrollers
microcontroller.ti.com
Video and Imaging
www.ti.com/video
RFID
www.ti-rfid.com
Wireless
www.ti.com/wireless-apps
RF/IF and ZigBee® Solutions
www.ti.com/lprf
TI E2E Community Home Page
e2e.ti.com
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2011, Texas Instruments Incorporated
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
