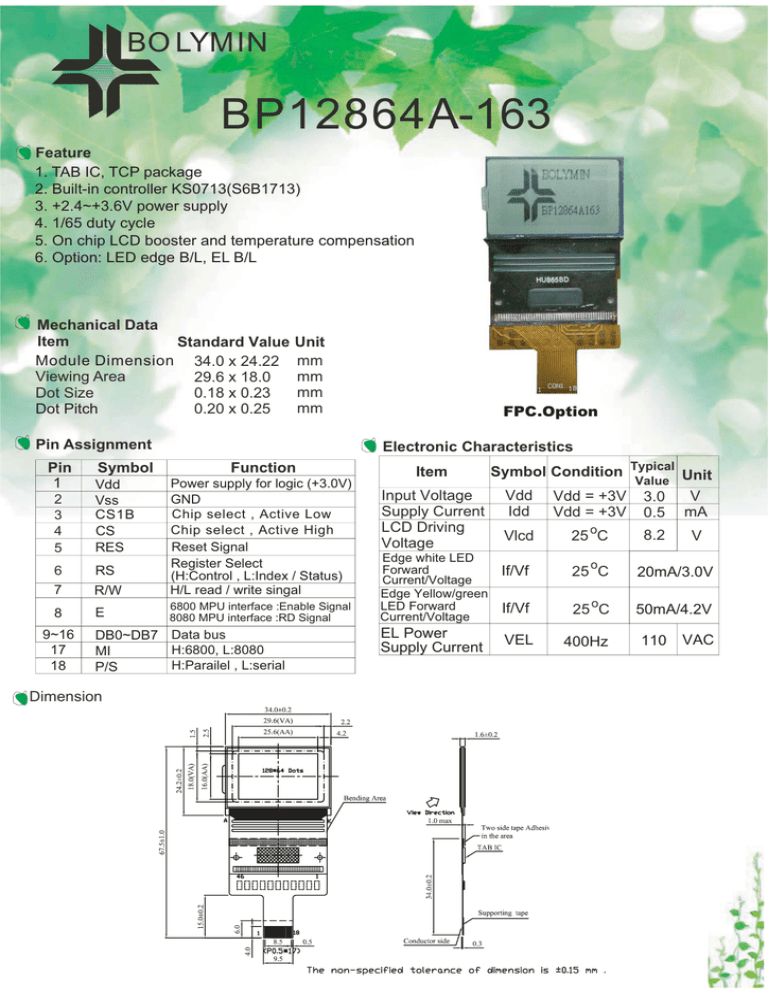

BP12864A-163

BP12864A-163
BO LYMIN
BP12864A-163
Feature
1. TAB IC, TCP package
2. Built-in controller KS0713(S6B1713)
3. +2.4~+3.6V power supply
4. 1/65 duty cycle
5. On chip LCD booster and temperature compens tion
6. Option: LED edge B/L, EL B/L
Mechanical Data
Item
Standard Value
Module Dimension 34.0 x 24.22
Viewing Area
29.6 x 18.0
Dot Size
0.18 x 0.23
Dot Pitch
0.20 x 0.25
Unit
mm
mm
mm
mm
Pin Assignment
Pin
1
Symbol
Electronic Characteristics
Function
6
7
R/W
Power supply for logic (+3.0V)
GND
Chip select , Active Low
Chip select , Active High
Reset Signal
Register Select
(H:Control , L:Index / Status)
H/L read / write singal
8
E
6800 MPU interface :Enable Signal
8080 MPU interface :RD Signal
2
3
4
5
9~16
17
18
Vdd
Vss
CS1B
CS
RES
RS
DB0~DB7 Data bus
H:6800, L:8080
MI
H:Parailel , L:serial
P/S
Dimension
FPC.Option
Symbol Condition Typical Unit
Value
Input Voltage
Vdd Vdd = +3V 3.0
V
Supply Current
Idd
Vdd = +3V 0.5 mA
LCD Driving
8.2
Vlcd
V
25 oC
Voltage
Item
Edge white LED
Forward
Current/Voltage
Edge Yellow/green
LED Forward
Current/Voltage
EL Power
Supply Current
If/Vf
25 oC
20mA/3.0V
If/Vf
25 oC
50mA/4.2V
VEL
400Hz
110
VAC
