TM-9-6115-584-24P

TM-9-6115-584-24P
*ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4

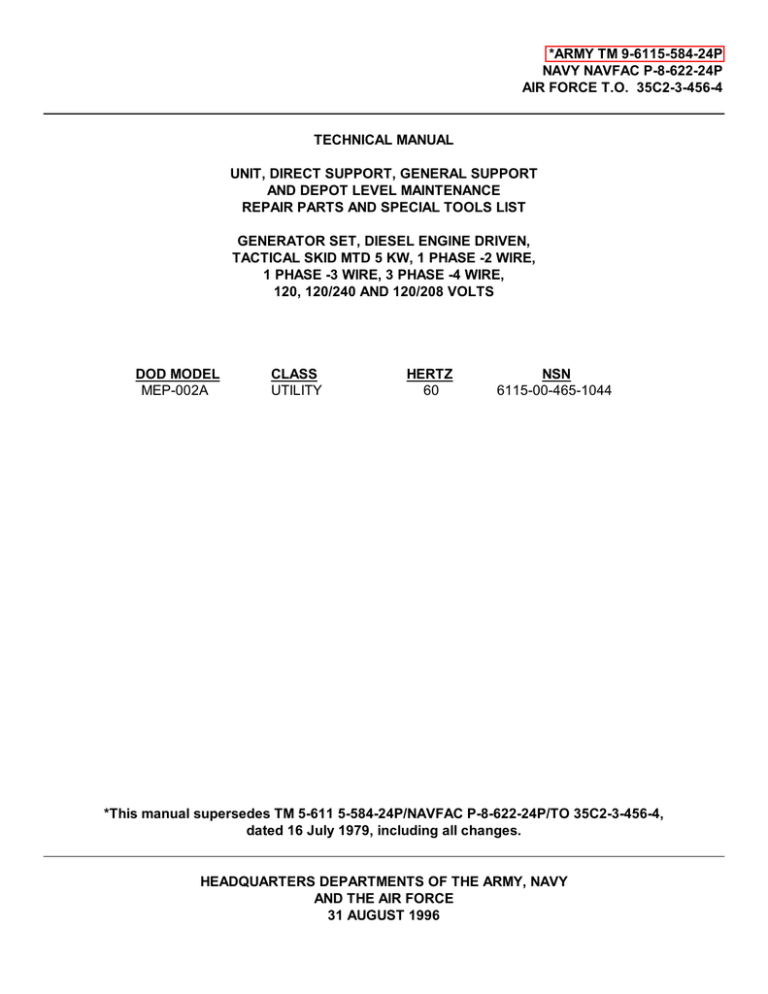

TECHNICAL MANUAL
UNIT, DIRECT SUPPORT, GENERAL SUPPORT
AND DEPOT LEVEL MAINTENANCE
REPAIR PARTS AND SPECIAL TOOLS LIST
GENERATOR SET, DIESEL ENGINE DRIVEN,
TACTICAL SKID MTD 5 KW, 1 PHASE -2 WIRE,
1 PHASE -3 WIRE, 3 PHASE -4 WIRE,
120, 120/240 AND 120/208 VOLTS
DOD MODEL
MEP-002A
CLASS
UTILITY
HERTZ
60
NSN
6115-00-465-1044
*This manual supersedes TM 5-611 5-584-24P/NAVFAC P-8-622-24P/TO 35C2-3-456-4,
dated 16 July 1979, including all changes.
HEADQUARTERS DEPARTMENTS OF THE ARMY, NAVY
AND THE AIR FORCE
31 AUGUST 1996
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
C1
CHANGE
HEADQUARTERS DEPARTMENTS OF
THE ARMY, THE NAVY, AND THE AIR FORCE
WASHINGTON, D.C., 31 JANUARY 1997
NO. 1
UNIT, DIRECT SUPPORT, GENERAL SUPPORT, AND
DEPOT LEVEL MAINTENANCE REPAIR PARTS AND
SPECIAL TOOLS LIST
GENERATOR SET, DIESEL ENGINE DRIVEN, TACTICAL SKID MTD
5 KW, 1 PHASE -2 WIRE, 1 PHASE -3 WIRE, 3 PHASE -4 WIRE,
120, 120/240 AND 120/208 VOLTS
DOD MODEL
MEP-002A
CLASS
UTILITY
HERTZ
60
NSN
6115-00-465-1044
DISTRIBUTION STATEMENT A: Approved for public release; distribution is unlimited
TM 9-6115-584-24PINAVFAC P-8-622-24P/T.O. 35C2-3-456-4, 31 AUGUST 1996, is changed as follows:
1. Remove and insert pages as indicated below. New or changed text material is indicated by a vertical bar in the
margin. An illustration change is indicated by a miniature pointing hand.
Remove pages
115 and 116/(117 blank)
217 and 218
221 and 222
231 and 232
2. Retain this sheet in front of manual for reference purposes.
Insert pages
115 and 116/(117 blank)
217 and 218
221 and 222
231 and 232
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
C1
By Order of the Secretaries of the Army, Navy, and Air Force:
Official:
DENNIS J. REIMER
General, United States Army
Chief of Staff
JOEL B. HUDSON
Administrative Assistant to the
Secretary of the Army
03420
RONALD R. FOGELMAN
General, USAF
Chief of Staff
HENRY VICCELLIO, JR.
General, USAF
Commander, Air Force Materiel Command
DISTRIBUTION:
To be distributed in accordance with DA Form 12-25-E, block no. 0857, requirements for TM 9-6115-584-24P.
*ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
TECHNICAL MANUAL
HEADQUARTERS DEPARTMENTS OF THE ARMY,
NAVY AND THE AIR FORCE
WASHINGTON, D.C., 31 AUGUST 1996
NO. 9-6115-584-24P
UNIT, DIRECT SUPPORT, GENERAL SUPPORT,
AND DEPOT LEVEL MAINTENANCE
REPAIR PARTS AND SPECIAL TOOLS LIST
GENERATOR SET, DIESEL ENGINE DRIVEN, TACTICAL SKID
MTD 5kW, 1 PHASE, 2 WIRE; 1 PHASE, 3 WIRE, 3 PHASE,
4 WIRE; 120, 120/240 AND 120/208 VOLTS
DOD MODEL
MEP-002A
CLASS
UTILITY
HERTZ
60
NSN
6115-00-465-1044
Current as of 31 August 1996
REPORTING ERRORS AND RECOMMENDING IMPROVEMENTS
You can help improve this manual. If you find any mistakes, or if you know of a way to improve these procedures,
please let us know. Mail your letter or DA Form 2028 (Recommended Changesto Publications and Blank Forms),
or DA Form 2028-2 located in the back of this manual directly to: Commander, US Army Aviation and Troop
Command, ATTN: AMSAT-I-MP, 4300 Goodfellow Blvd., St. Louis, MO 63120-1798. You may also submit your
recommended changes by E-mail directly to <mpmt%/[email protected]>. A reply will be
fumished directly to you.
For NAVY send letter directly to: Commanding Officer, Naval Construction Battalion Center, ATTN: Code 15 Port
Hueneme, CA 93043.
For Air Force, submit AFTO Form 22 (Technical Order System Publication Improvement Report and Reply) in
accordance with paragraph 6-5, Section VI, T.O. 00-5-1. Forward to Commader, Sacramento Air Logistics
Center. ATTN: TILBA, McClellan AFB, CA 95652-5990
DISTRIBUTION STATEMENT A: Approved for public release; distribution is unlimited.
*This manual supersedes TM 5-6115-584-24P/NAVFAC P-8-622-24P/TO 35C2-3-456-4,
dated 16 July 1979, including all changes.
i
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
TABLE OF CONTENTS
Page
SECTION I
SECTION II.
Group
INTRODUCTION
Scope .........................................................................................
General .....................................................................................
Explanation of Columns .............................................................
Special Information ....................................................................
How to Locate Repair Parts ........................................................
Abbreviations .............................................................................
Federal Supply Codes for Manufacturers ....................................
REPAIR PARTS LIST
01
Battery Assembly .......................................................................
02
Ground Rod Assembly................................................................
03
Fuel Tank Assembly ...................................................................
04
Control Cubicle Assembly...........................................................
Control Cubicle Front Panel-Exploded View ...............................
Control Cubicle Wiring Harness .................................................
Relay Panel Assembly-Exploded View........................................
Voltage Regulator ......................................................................
05
Wiring Harness and Speed Control Assembly.............................
06
Control Box Assembly, AC Output ..............................................
AC Control-Access Cover, Load Terminals and
Current Transformers ..........................................................
AC Control- Circuit Breakers, Rotary Switch and
Duplex Receptacle ..............................................................
AC Control-Wiring Harness, Rectifier Bridge and
Identification Plates .............................................................
Bridge Rectifier Assembly ..........................................................
07
Fuel System - Less Tank ............................................................
Fuel Filter Assembly ..................................................................
Fuel Filter - Exploded View.........................................................
Fuel Strainer - Exploded View ...................................................
Fuel Pump Assembly-Exploded View ........................................
08
Air Cleaner Assembly ................................................................
Air Cleaner- Exploded View ........................................................
09
Generator Assembly ..................................................................
Generator Assembly - Exploded View.........................................
Rotor Assembly - Exploded View ................................................
10
Shutter Assembly ......................................................................
Shutter Assembly - Exploded View ............................................
11
Exhaust Muffler Assembly ..........................................................
12
Engine Cooling System .............................................................
13
Electric Starter ...........................................................................
Starter - Exploded View .............................................................
ii
Illus.
Figure
1
1
1
5
5
5
6
8
11
13
16
18
24
26
29
37
41
1
2
3
4
5
6
7
8
10
11
43
12
47
13
53
57
59
61
63
65
67
70
72
74
77
82
87
89
93
95
98
101
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
28
30
31 &32
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
SECTION II.
SECTION III.
SECTION IV.
SECTION V.
REPAIR PARTS (Continued)
14
Engine - External Assembly........................................................
Flywheel and Housing.................................................................
Intake Manifold and Heater.........................................................
Blower Wheel, Alternator Stator, Regulator, Fuse and
Terminal Block .....................................................................
Blower Wheel - Exploded View...................................................
Oil Cooler, Oil Lines and Fittings, Oil Pressure Gauge ...............
Governor Assembly ...................................................................
Fuel Lines, Pump To and From Injector Nozzles.........................
Start Control Assembly - Exploded View ....................................
Fuel Stop Solenoid ....................................................................
15
Engine - Internal Assembly - Rocker Cover,
Rocker Arms And Push-rods.................................................
Cylinder Head Assembly - Exploded View .................................
Nozzle And Holder Assembly - Exploded View ..........................
Oil Fill Tube Assembly And Oil Drain Hose ................................
Oil Filter Assembly - Exploded View ..........................................
Fuel Injector Pump ....................................................................
Fuel Injector Pump - Exploded View ..........................................
Oil Base, Oil Pump ....................................................................
Gearcase Assembly - Exploded View ........................................
Camshaft Assembly, Cam And Oil Pump Gears ........................
Piston And Connecting Rod - Exploded View .............................
Rear Bearing Plate, Crankshaft, Bearing And Cylinder Block .....
16
Skid Base Assembly - Exploded View.........................................
Slave Receptacle Assembly ......................................................
5kw Acoustical Kit ......................................................................
17
Acoustical Suppression Kit .........................................................
18
Bulk Material .............................................................................
SPECIAL TOOLS LIST ..........................................................................
NATIONAL STOCK NUMBER AND REFERENCE NUMBER INDEX .....
REFERENCE DESIGNATOR INDEX .....................................................
iii/(iv blank)
Page
Illus.
Figure
108
111
113
33
34
35
115
118
121
124
126
128
131
36
37
38
39
40
41
42
134
137
140
142
144
147
149
153
156
158
161
163
172
177
179
189
198
99
201
219
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
BULK
58
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
UNIT, DIRECT SUPPORT AND GENERAL SUPPORT
MAINTENANCE REPAIR PARTS AND SPECIAL TOOLS LIST
SECTION I. INTRODUCTION
1. SCOPE. This RPSTL lists and authorizes spares and repair parts; special tools; special test, measurement, and
diagnostic equipment (TMDE); and other special support equipment required for performance of unit, direct support and
general support maintenance of the generator set. It authorizes the requisitioning, issue, and disposition of spares, repair
parts and special tools as indicated by the source, maintenance and recoverability (SMR) codes.
2. GENERAL. In addition to this section, Introduction, this Repair Parts and Special Tools List is divided into the
following sections:
a. Section II.Repair Parts List. A list of spares and repair parts authorized by this RPSTL for use in the
performance of maintenance. This list also includes parts which must be removed for replacement of the authorized
parts. Parts lists are composed of functional groups in ascending alphanumeric sequence, with the parts in each group
listed in ascending figure and item number sequence. Bulk materials are listed in item name sequence. Items are
shown in the associated illustration(s)/figure(s).
b. Section Ill. Special Tools List. A list of special tools, special TMDE, and other special support equipment
authorized by this RPSTL (as indicated by Basis of Issue (BOI) information in DESCRIPTION AND USABLE ON CODE
column) for the performance of maintenance.
c. Section IV. Cross-Reference Index. A list, in National Item Identification Number (NIIN) sequence, of all
National stock numbered items appearing in the listing, followed by a list in alphanumeric sequence of all part numbers
appearing in the listings. National stock numbers and part numbers are cross referenced to each illustration figure and
item number appearance. The figure and item number index lists figure and item numbers in alphanumeric sequence
and cross references NSN, CAGEC and part number.
3.
EXPLANATION OF COLUMNS (Section II AND Section III).
a.
ITEM NO. (Column (1)). Indicates the number used to identify items called out in the illustration.
b. SMR Code (Column (2)). The Source, Maintenance, and Recoverability (SMR) code is a 5-position code
containing supply/requisitioning information, maintenance category authorization criteria, and disposition instruction, as
shown in the following breakout:
* Complete Repair: Maintenance capacity, capability, and authority to perform all corrective maintenance tasks of the
"Repair" function in a use/user environment in order to restore serviceability to a failed item.
(1) Source Code. The source code tells you how to get an item needed for maintenance, repair, or overhaul
of an end item/equipment. Explanations of source codes follows:
1
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Source
Code
PA
PB
PC**
PD
PE
Explanation
}
Stocked items; use the applicable NSN to request/requisition items with these source codes.
They are authorized to the category indicated by the code entered in the 3rd position of the SMR
code.
**NOTE: Items coded PC are subject to deterioration.
PF
PG
KD
KF
Items with these codes are not to be requested/requisitioned individually. They are part of a kit
which is authorized to the maintenance category indicated in the 3rd position of the SMR code.
The complete kit must be requisitioned and applied.
KB
}
MO
MF
(Made at Unit/AVUM Level)
(Made DS/AVIM Level)
}
}
MH (Made at GS Level)
ML (Made at Specialized Repair
Activity (SRA))
MD
(Made at Depot)
AO (Assembled by Unit/AVUM
Level)
AF (Assembled by DS/AVIM
Level)
AH
AL
AD
XA
XB
XC
XD
Items with these codes are not to be requested/requisitioned
individually. They must be made from bulk material Which is
identified by the part number in the DESCRIPTION and
USABLE ON CODE (UOC) column and listed in the Bulk
Material group of the repair parts list in this RPSTL. If the item
is authorized to you by the 3rd position code of the SMR code,
but the source code indicates it is made at a higher level, order
the item from the higher level of maintenance.
(Assembled by GS Category)
(Assembled by SRA)
(Assembled by Depot)
Items with these Codes arenot to be r-este requisitioned
individually. The parts that make up the assembled item must be
requisitioned orfabricated and assembled at the level of maintenance indicated by the source code. If the3rd position code of
the SMR code authorizes you to replace the item, but the source
code indicates the items are assembled at a higher level, order
the item from the higher level of maintenance.
Do not requisition "XA"-coded item. Order its next higher assembly. (Refer to the NOTE below.)
If an "XB" item is not available from salvage, order it using the CAGEC and part number given.
Installation drawing, diagram, instruction sheet, field service drawing, that is identified manufacturer's part
number.
Item is not stocked. Order an XD"-coded item through normal supply channels using the CAGEC and part
number given, if no NSN is available.
NOTE
Cannibalization or controlled exchange, when authorized, may be used as a source of
supply for items with the above source codes, except for those source coded "XA" or
those aircraft support items restricted by requirements of AR 750-1.
(2) Maintenance Code. Maintenance codes tell you the level(s) of maintenance authorized to USE and
REPAIR support items. The maintenance codes are entered in the third and fourth positions of the SMR code as follows:
(a) The maintenance code entered in the third position tells you the lowest maintenance level authorized to
remove, replace, and use an item. The maintenance code entered in the third position will indicate authorization to
the following levels of maintenance.
2
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Maintenance
Code
C
O F
H
L
D
-
Application/Explanation
Crew or operator maintenance done within unit/AVUM maintenance.
Unit level/AVUM maintenance can remove, replace, and use the item.
Direct support/AVIM maintenance can remove, replace, and use the item.
General support maintenance can remove, replace, and use the item.
Specialized repair activity can remove, replace, and use the item.
Depot can remove, replace, and use the item.
(b) The maintenance code entered in the fourth position tells whether or not the item is to be repaired and
identifies the lowest maintenance level with the capability to do complete repair (i.e., perform all authorized repair
functions.)
NOTE
Some limited repair may be done on an item at a lower level of maintenance, if
authorized by the Maintenance Allocation Chart and SMR codes.
Maintenance
Code
O F
H
L
D
Z
B
-
Application/Explanation
Unit/AVUM is the lowest level that can do complete repair of the item.
Direct support/AVIM is the lowest level that can do complete repair of the item.
General Support is the lowest level that can do complete repair of the item.
Specialized repair activity is the lowest level that can do complete repair of the item.
Depot is the lowest level that can do complete repair of the item.
Nonreparable. No repair is authorized.
No repair is authorized. No parts or special tools are authorized for the maintenance of a "B" coded item.
However, the item may be reconditioned by adjusting, lubricating, etc., at the user level.
(3) Recoverability Code. Recoverability codes are assigned to items to indicate the disposition action on
unserviceable items. The recoverability code is entered in the fifth position of the SMR Code as follows:
Recoverability
Application/Explanation
Codes
Z
- Nonreparable item. When unserviceable, condemn and dispose of the item at the level of maintenance
shown in 3d position of SMR Code.
O - Reparable item. When not economically reparable, condemn and dispose of the item at unit or AVUM
level.
F
- Reparable item. When uneconomically reparable, condemn and dispose of the item at the direct support
or AVIM level.
H
- Reparable item. When uneconomically reparable, condemn and dispose of the item at the general support
level.
D
- Reparable item. When beyond lower level repair capability, return to depot. Condemnation and disposal
of item not authorized below depot level.
L
Reparable item. Condemnation and disposal not authorized below specialized repair activity (SRA).
A
-
Item requires special handling or condemnation procedures because of specific reasons (e.g., precious
metal content, high dollar value, critical material, or hazardous material). Refer to appropriate
manuals/directives for specific instructions.
3
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
c. CAGEC (Column (3)). The Commercial andG0ovemment Entity Code (CAGEC) is a 5-digit numeric code
which is used to identify the manufacturer, distributor, or Government agency/activity that supplies the item.
d. PART NUMBER (Column (4)). Indicates the primary number used by the manufacturer, (individual, company,
firm, corporation, or Govemment activity), which controls the design and characteristics of the item by means of its
engineering drawings, specifications, standards, and inspection requirements to identify an item or range of items.
NOTE
When you use an NSN to requisition an item, the item you receive may have a different
part number from the number listed.
e.
DESCRIPTION AND USABLE ON CODE (UOC) (Column (5). This column includes the following information:
(1) The Federal item name and, when required, a minimum description to identify the item.
(2) Part numbers of bulk materials are referenced in this column in the line entry to be
manufactured/fabricated.
(3) The statement "END OF FIGURE" appears just below the last item description in Column (5) for a given
figure in both Section II and Section III.
f.
QTY (Column (6)). The QTY (quantity per figure) column indicates the quantity of the item used in the
breakout shown on the illustration/figure, which is prepared for a functional group, subfunctional group, or an assembly. A
"V" appearing in this column instead of a quantity indicates that the quantity is variable and may vary from application to
application.
4.
EXPLANATION OF INDEX FORMAT AND COLUMNS (SECTION IV).
a.
NATIONAL STOCK NUMBER (NSN) INDEX.
(1) STOCK NUMBER Column. This column lists the NSN in national item identification number (NIIN)
sequence. The NIIN consists of the last nine digits of the NSN, i.e.
NSN
5305-01-574-1467
NIIN
When using this column to locate an item, ignore the first four digits of the NSN. Use the complete NSN (13 digits) when
requisitioning items by stock number.
(2) FIG. Column. This column lists the number of the figure where the item is identified/located. The figures
are in numerical order in Section II and Section III.
(3) ITEM Column. The item number identifies the item associated with the figure listed in the adjacent FIG.
column. This item is also identified by the NSN listed on the same line.
b. PART NUMBER INDEX. Part numbers in this index are listed by part number in ascending alphanumeric
sequence (i e., vertical arrangement of letter and number combination which places the first letter or digit of each group
in order A through Z, followed by the numbers 0 through 9, and each following letter or digit in like order).
(1) CAGEC Column. The Commercial and Government Entity Code (CAGEC) is a 5-digit numeric code used
to identify the manufacturer, distributor, or Government agency/activity that supplies the item.
(2) PART NUMBER Column. Indicates the primary number used by the manufacturer (individual, firm,
corporation, or Government activity), which controls the design and characteristics of the item by means of its
engineering drawings, specifications, standards, and inspection requirements to identify an item or range of items.
(3) STOCKNUMBER Column. This column lists the NSN for the associated part number and manufacturer
identified in the PART NUMBER and CAGEC columns to the left.
4
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(4) FIG. Column. This column lists the number of the figure where the item is identified/located in Section II
and Section III.
(5) ITEM Column. The item number is that number assigned to the item as it appears in the figure referenced
in adjacent figure number column.
c.
FIGURE AND ITEM NUMBER INDEX.
(1) FIG. Column. This column lists the number of the figure where the item is identified/located in Section II
and Section III.
(2) ITEM Column. The item number is that number assigned to the item as it appears in the figure referenced
in the adjacent figure number column.
(3) STOCK NUMBER Column. This column lists the NSN for the item.
(4) CAGEC Column. The Commercial and Government Entity Code (CAGEC) is a 5-digit numeric code
used to identify the manufacturer, distributor, or Government agency/activity that supplies the item.
(5) PART NUMBER Column. Indicates the primary number used by the manufacturer (individual, firm,
corporation, or Government activity), which controls the design and characteristics of the item by means of its
engineering drawings, specifications, standards, and inspection requirements to identify an item or range of items.
5.
SPECIAL INFORMATION.
a. USABLE ON CODE. The usable on code appears in the lower left corner of the Description Column heading.
Usable on codes are shown as "UOC:.." in the Description Column (justified left) on the last line of the applicable item
description/nomenclature. Uncoded items are applicable to all models.
b. INDEX NUMBERS. Items which have the word BULK in the figure column will have an index number shown in
the item number column. This index number is a cross-reference between the National Stock Number/Part Number
Index and the bulk material list in Section II.
c. ASSOCIATED PUBLICATIONS. The publications listed below pertain to the 5kW generator set and model
MEP-002A and its components.
Publication
DMWR 5-6115-584
TM 9-6115-584-12-HR
TM 9-6115-584-34
6.
Short Title
Depot Maintenance Work Requirement for 5kW Generator Set,
Diesel Engine Driven
TB 9-6115-584-34-3 Technical Bulletin, 5kW Generator Set
Hand Receipt Manual, Generator Set, Diesel Engine Driven,
Tactical Skid MTD 5kW
Direct and General Support Maintenance Manual,
5kW Generator Set
HOW TO LOCATE REPAIR PARTS.
a.
When National Stock Numbers or Part Numbers are NOT Known.
(1) First. Using the table of contents, determine the assembly or subassembly group to which the item
belongs. This is necessary since figures are prepared for assembly groups and subassembly groups, and listings are
divided into the same groups.
(2) Second. Find the figure covering the assembly group or subassembly group to which the item belongs.
(3) Third. Identify the item on the figure and use the Figure and Item Number Index to find the NSN.
b. When National Stock Number or Part Number is Known.
(1) First. Using the of National Stock Number and Part Number Indexes find the pertinent National Stock
Number or Part Number. The NSN index is in National Item Identification Number (NIIN) sequence (see paragraph 4.a.).
The part numbers in the Part Number index are listed in ascending alphanumeric sequence (see paragraph 4.b.). Both
indexes cross-reference you to the illustration/figure and item number of the item you are looking for.
5
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(2) Second. Turn to the figure and item number, verify that the item is the one you are looking for, then locate
the item number in the repair parts list for the figure.
7.
ABBREVIATIONS. Abbreviations used in this manual are listed in MIL-STD-12.
1.
Federal Supply Codes for Manufacturers.
Code
Manufacturer
Code
Manufacturer
00671
Specialty Products Corp.
29980 Lakeland Blvd.
Wickliffe, OH 44092
Amp Inc.
P.O. Box 3608
Harrisburg, PA 17105
Aeroquip Corp Industrial Division
1225 W Main St.
Van Wert, OH 45891
18620
Allenite Mfg.
Co.
1809 Milwaukee Ave.
Chicago, IL 60647
Federal Bearings Co. Inc.
Fairview Ave.
Poughkeepsie, NY 12602
Imperial-Eastman Corp.
Imperial Division
6300 W. Howard St.
Chicago, IL 60648
00779
01276
01843
04009
04713
05083
07860
08805
16024
16717
18265
21760
30327
American Bosch Marketing Division
of Ambac Industries, Inc.
3664 Main St.
Springfield, MA 01107
30554
Arrowhart Inc.
103 Hawthorne St.
Hartford, CT 06106
Motorola Semiconductor Products,
Inc.
5005 East McDowell Road
Phoenix, AZ 85008
Bacharach Instrument Co.
Division of Ambac Industries, Inc.
200 N. Braddock Ave.
Pittsburg, PA 15208
Bogue Electric Mfg Co.
100 Pennsylvania Ave.
Paterson NJ 07509
General Electric Co. Lamp Dept.
Nela Park
Cleveland, OH 44112
Glauber Valve Co.
4520 South 36 St.
Omaha, NE 68107
Aeroquip Corp.
300 S. East Ave.
Jackson, MI 49203
5001
44940
55026
59730
66295
70411
72850
Donaldson Co. Inc.
1400 West 94th St.
Minneapolis, MN 55431
73370
6
Project Manager
Mobile Electric Power
U.S. Development and Readiness
Command
Eisenhower Ave
Alexandria, VA 22333
Onan Division
Onan Corporation
1400 73rd Ave. N.E.
Minneapolis, MN 55432
Simpson Electric Co. Division
American Gage & Machine Co.
53 Dundee Ave.
Elgin, IL 60120
Thomas and Betts Co.
36 Butler St.
Elizabeth, NJ 07207
Wittek Mfg. Co.
4309 W. 24th
Chicago, IL 60623
Anderson Brass Co.
100 S. Campbell Ave.
Detroit, Ml 48209
Bendix Corp.,:
Motor Components Division
18th St. and Oakwood Ave.
Elmira, NY 14903
Fram Corp.
105 Pawtucket Ave.
Providence, RI 02916
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Code
74400
Manufacturer
Hobbs Division
Stewart-Warner Corp.
Yale Blvd and Ash St.
Springfield, IL 62705
75382
Kulka Electric Corp.
520 S.Fulton Ave.
Mt.Vernon, NY 10550
76530
United Carr, Inc.
Cinchmonadnock Division
City of Industry, CA 91744
Illinois Tool Works, Inc.
Shakeproof Division
St. Charles Road
Elgin, IL 60126
78189
79470
81348
81349
Code
97403
Manufacturer
Army Engineer Research and
Development Laboratories
Fort Belvoir, VA 22060
98620
Midwest Rubber Co.
3525 Range Road
Deckerville, Ml 48427
98623
Metallics Inc.
Route 2
Onalaska, WI 54650
Olympic Screw and Rivet Corp.
11441 S. Dolan St.
Downey, CA 90241
98996
05693
Weatherhead Co.
300 East 131st St.
Cleveland, OH 44108
Federal Specifications
Promulgated by General Services
Washington, DC 20001
Military Specifications Promulgated
by Standardization Div.
Directorate of Logistic
Services DSA
3B287
76385
81346
82121
88044
96906
Elero Switch CorpA.
King Ave.
Weymouth, MA 01288
Aeronautical Standards Group
Dept of the Navy and Air Force
Silver Springs, MD 20901
Miliary Standards Promulged by
Standardization Div.
Directorate of Logistics Services
DSA Washington DC 20001
89032
8700
98003
7
Cherry-Textroninc, Inc.
Fasteners Product Div.
1224 E. Warner St.
Santa Anna, CA 92707-3149
AGM Industries, Inc.
110 Shawmut Rd.
Canton, MA 02021-1412
1405 16th St.
Racine, WI 53403
Minor Rubber Co.
Inc.
49 Ackerman St.
Washington, DC 20001
Bloomfield, NJ 07003
American Society for
Testing & Materials
1916 Ray St.
Philadelphia, PA 19103
Eaton Corp.-Engineered
Fastener Div.
Brookpark Rd.
Cleveland, OH 44101
Nielsen Hardware Corp.
770 Wethersfield Ave.
Hartford, CT 06141
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 1. Battery Assembly
8
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
(4)
(5)
DESCRIPTION
1
1
MOOO
1
2
PAOZZ PAOZZ
XB
5940-00-549-6581
1
3
PAOZZ PAOZZ
XB
70063
5940-00-606-4969
1
4
PAOZZ PAOZZ
XB
6145-01-047-0530
1
5
1
6
PAOZZ PAOZZ
XB
5940-00-606-4969
1
7
PAOZZ PAOZZ
XB
5940-01-054-6954
1
8
PAOZZ PAOZZ
XB
6145-01-047-0530
1
9
1
10
PAOZZ PAOZZ
XB
5940-00-549-6581
1
11
PAOZZ PAOZZ
XB
5940-00-686-6880
1
12
PAOZZ PAOZZ
XB
6145-01-047-0530
1
13
PAOZZ PAOZZ
XB
5970-00-914-3117
1
14
PAOZZ PAOZZ PAZZZ
MOOOO AOO
MOOOO AOO
REPL
FACTOR
NATIONAL
STOCK
NUMBER
ITEM
NO.
AOO
(7)
b.
FIG.
NO.
SSI
(6)
XB
XB
XB
5310-00-767-0445
9
REF NUMBER & MFR NUMBER
NUT, PLAIN.
CRES BATTERY FRAME
MOUNTING
MS51971-2
870-0153
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
2
EA
1
2
FT
9
11.4
EA
1
1
EA
1
2
EA
1
1
FT
1.2
11.4
EA
1
1
1
2
EA
1
2
FT
2.5
11.4
FT
5
5
EA
4
6
USABLE
ON CODE U.M.
GROUP 01 BATTERY ASSEMBLY
LEAD, ELECTRICAL; STORAGE
BATTERY JUMPER
72-5084
30554
416-0624
44940
TERMINAL, LUG: POSITIVE
72-5099
30554
79550
TERMINAL, LUG: NEGATIVE
72-5098
30554
70076
79550
CABLE, POWER 2 AWG SINGE
CONDUCTOR BLACK
MIL-C-5756
81349
334-1320
44940
LEAD, ELECTRICAL: STORAGE
BATTERY
NEGATIVE
72-5082
30554
416-0626
44940
TERMINAL, LUG: NEGATIVE
72-5098
30554
70076
79550
TERMINAL.
LUG: NO.2 WIRE,
5/16 STUD
72-5319
30554
326896
00779
CABLE, POWER 2 AWG SINGE
CONDUCTOR, BLACK
MIL-C-5756
81349
334-1320
44940
LEAD, ELECTRICAL: STORAGE
BATTERY POSITIVE
72-5083
30554
416-0625
44940
TERMINAL, LUG: POSITIVE EA
72-5099
30554
70063
79550
TERMINAL, LUG: NO.
2 WIRE.
5/16 STUD
MS25189-119
96906
332-1449
44940
CABLE, POWER 2 AWG SINGE
CONDUCTOR, BLACK
MIL-C-5756
81349
334-1320
44940
SLEEVING, INSULATION
MIL123053-5-1RED/3-4
81349
898-0880
44940
HEX: 5/16-18,
96906
44940
(8)
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
4
4
EA
2
2
EA
2
2
EA
4
4
EA
4
4
EA
1
USABLE
ON CODE U.M.
GROUP 01 BATTERY ASSEMBLY
1
1
1
1
1
1
15
16
17
18
19
20
PAOZZ PAOZZ PAZZZ
PBOZZ
XB
XB
PAOZZ PAOZZ PAGZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAOZZ
PAOZZ
5310-00-802-4701
6
140-01-051-7558
6140-00-057-2553
5306-01-049-9127
5940-00-738-6272
5430-00-988-1162
10
WASHER, FLAT: 5/16
BATTERY FRAME MOUNTING
MS15795-813
526-0188
96906
44940
FRAME, BATTERY: TOP
72-5093
416-0560
30554
44940
BATTERY, STORAGE: 12 VOLT,
LEAD ACID
MS35000-1
96906
BOLT, HOOK: BATTERY FRAME
MOUNTING
72-5094
416-0513
30554
44940
BATTERY, TERMINAL COVER
10942521
19207
CLAMP, STEEL LOOP
MS21333-113
96906
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 2. Ground Rod Assembly
12
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
USABLE
ON CODE U.M.
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
GROUP 02 ROD ASSEMBLY, GROUND
2
1
PAOZZ PAOZZ PAZZ
5306-00-225-8504
BOLT.
UNC-2A.
MS90725-40
800-1033
2
2
PAOZZ PAOZZ
5310-00-407-9566
WASHER.
HELICAL, 5/16 CLAMP
MOUNTING
MS35338-45
850-1045
2
2
2
2
2
2
2
2 10
3
4
5
6
7
8
9
PAOZZ
PBOZZ
MOO
PAOZZ PAOZZ
XB
XB
XB
5340-01-049-9556
5975-00-878-3791
PAOZZ PAOZZ PAOZZ
PAOZZ PAOZZ PAOZZ
PAOZZ PAOZZ PAOZZ
PAOZZ PAOZZ PAOZZ
PAOZZ PAOZZ PAOZZ
PAOZZ PAOZZ
5975-00-794-2523
5975-00-249-9927
5999-00-186-3912
5940-02-271-9504
6145-01-226-9164
13
MACHINE: 5/16-18 X 2
CLAMP MOUNTING
96906
44940
EA
2
4
LOCK: SPLIT,
EA
2
49
EA
2
2
EA
1
1
EA
3
3
EA
3
3
EA
1
1
EA
1
1
EA
1
1
FT
1
CLAMP, RETAINING: GROUND
ROD AND FUEL PIPE,
EXTENSION
72-5057
403-0949
96906
44940
30554
44940
ROD, GROUND: WITH
ATTACHMENTS
W-R-550
332-1370
81349
44940
ROD, GROUND
HLP1053A
6253S
56681
81790
COUPLING, GROUND ROD
GRC 58 KNURLED
360154
73616
98242
DRIVE HEAD
ORB58
P60DS
73616
74159
CLAMP, ELECTRICAL
70-801074
J-AB 5/8 H
04655
81790
TERMINAL LUG
CBA-70
332-142
01667
44940
WIRE, ELECTRICAL
GQ-W-343C06B1B
81348
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 3. Fuel Tank Assembly
14
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
(4)
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
FIG.
NO.
ITEM
NO.
3
1
PAOZZ PAOZZ PAZZZ
5310-00-807-1469
3
2
PAOZZ PAOZZ
XB
5310-00-081-4219
3
3
PBOZZ PBOZZ
XB
5340-01-049-0398
3
4
PAOZZ PAOZZ
XB
5306-01-049-9128
3
5
PBOFD
AOO AHHHH
2910-01-048-5560
3
6
PAOZZ PAOZZ AOOOO
4730-00-812-1333
3
7
PAOZZ PAOZZ
XB
4730-00-136-3153
3
8
PAOZZ PAOZZ
XB
4010-00-809-2719
3
9
PAOZZ PAOZZ
XB
4030-00-270-5436
3
10
PAOZZ PAOZZ
XB
4820-00-595-3191
3
11
PAOZZ PAOZZ PAZZZ
4730-00-301-7470
3
12
PAOZZ PAOZZ
XB
4710-01-048-9626
3
13
PAOZZ PAOZZ
XB
4730-00-121-0138
3
14
PAOZZ PAOZZ
XB
4730-00-278-4673
3
15
PAOZZ PAOZZ PAHZZ
5930-01-062-0690
3
16
PAOZZ PAOZZ PAHZZ
6680-01-038-3719
SSI
(5)
DESCRIPTION
15
REF NUMBER & MFR NUMBER
GAGE, LIQUID QUANTITY
72-5078
8680L14
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
4
4
EA
4
13
2
2
EA
2
4
EA
1
1
EA
1
2
EA
1
2
IN
4.5
9
EA
2
4
EA
1
1
EA
1
2
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 03 TANK ASSEMBLY, FUEL
NUT.SELF-LOCKING, HEX:
5/16-24, FUEL TANK
MOUNTING
MS21042-5
96906
870-0219
44940
WASHER, FLAT: 5/16, FUEL
TANK MOUNTING
MS27183-12
96906
526-1115
44940
STRAP, RETAINING: FUEL
EA
TANK MOUNTING
72-5066
30554
159-0972
44940
BOLT, TEE HEAD: 5/16-24
UNF-2A
815-0317
44940
31-2-1
00671
TANK, ASSEMBLY, FUEL
72-5080
30554
159-0992
44940
CAP, TUBE
502-0318
44940
SP2272FM
70441
CAP
8129X4
79470
CHAIN
RRC271-2-3-25
81348
HOOK
MS87006-3
96906
COCK.
SHUTOFF: FUEL TANK
DRAIN
72-5101
30554
695
79470
ADAPTER, PIPE: 1/4 NPTF.
BRASS
3200X4
79470
502-0176
44940
TUBE ASSEMBLY, FUEL
PICKUP
72-5079
30554
159-0975
44940
ELBOW, PIPE: 90 DEG MALE,
1/2-20 THD, 1/4 NPTF
C5405X5X4
79470
502-0287
44940
ELBOW, PIPE: 90 DEG MALE,
7/16-20 THD, 1/4 NPTF
MS20822-4-4B
96906
502-0251
44940
SWITCH, FLOAT: LIQUID LEVEL
72-5081
30554
LS29385
94034
30554
09393
(8)
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
2
2
EA
1
1
EA
2
2
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
1
1
USABLE
ON CODE U.M.
REF NUMBER & MFR NUMBER
(8)
GROUP 03 TANK ASSEMBLY, FUEL
3
3
17
18
PAOZZ PAOZZ PAOZZ
PBOFF PBOOO
XB
2910-00-141-9758
2910-01-048-5561
CAP, FUEL TANK
MS35645-1
159-0900
96906
44940
TANK, FUEL: ENGINE
MS35645-1
159-0900
30554
44940
3
19
PAOZZ PAOZZ
XB
2910-00-752-9138
STRAINER.
MS90908-1
FUEL
96906
3
20
PAOOO PAOOO
XB
2910-00-066-1235
ADAPTER, FUEL DRUM
13211E7541
0754-1
97403
18620
FUEL
97403
3
21
PAOZZ PAOZZ
XB
4710-00-185-6948
PIPE.
13211E7543
3
22
PAOZZ PAOZZ
XB
5305-00-841-2681
SCREW, SHOULDER: FUEL
ADAPTER
13211 E7545
97403
CLAMP, ADAPTER
13200E6363
97403
3
3
23
24
XAOZZ
XB
XB
PAOZZ PAOZZ PAZZZ
3
25
PAOZZ PAOZZ PAZZZ
3
26
XAOZZ
3
3
3
3
3
27
28
29
30
31
XB
PAOZZ PAOZZ
XAOZZ
XAOZZ
XAOZZ
XB
XB
XB
PAOZZ PAOZZ
5310-00-209-1239
4730-00-277-5115
XB
XB
NIPPLE.
AN916-5-4
MILF18866-1-1
WASHER, FLAT: STEEL, FUEL
ADAPTER
13200E6361
5325-00-408-2561
XB
XB
XB
XB
WASHER.
ADAPTER
MS35335-60
4710-01-048-9169
LOCK: FUEL
96906
PIPE: HEX
88044
81349
97403
WASHER, RUBBER: FUEL
ADAPTER
13211E7547
97403
SEAL, RING: FUEL ADAPTER
13211E7546
97403
WASHER, FLAT: BRASS, FUEL
ADAPTER
13211E7544
97403
HEAD.FUEL ADAPTER
13211E7548
97403
PIPE, EXTENSION: FUEL
ADAPTER
72-5302
159-1021
16/(17 blank)
EA
30554
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 4. Control Cubicle Assembly
18
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
4
30
EA
1
1
EA
4
7
EA
4
52
EA
4
4
EA
1
8
EA
1
24
USABLE
ON CODE U.M.
GROUP 04 CONTROL CUBICLE
ASSEMBLY
4
1
PAOZZ PAOZZ
XB
5320-01-049-8263
RIVET.
818-0076
RV630-4-2
4
2
MDOZZ MDO
XB
9905-01-203-1489
PLATE, IDENTIFICATION:
GENERATOR SET
73-0506-14
99-1324
4
4
4
4
4
3
4
5
6
7
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
XB-
XB
5305-00-068-0506
5310-00-582-5985
5310-01-049-4076
5305-00-036-6906
5310-00-094-3421
19
SCREW, CAP.
1/4-28 X 3/4 UNF-2A
MS90726-6
801-1005
SOLID
44940
98996
30554
98623
HEX HEAD:
96906
44940
WASHER, LOCK: 1/4 IN.
MS35338-44
850-1040
96906
44940
WASHER, FLAT: 1/4 IN.
72-5217-2
526-1130
30554
44940
SCREW.
WASHER: PAN HEAD, 10-24 X
112 UNC-2A, GROUND STRAP
MOUNTING
69-662-50
61-100841-40-0142B0542B
ASSEMBLED
30554
78189
NUT.
ASSEMBLED WASHER,
HEX: 10-24 UNC-2B, GROUND
STRAP MOUNTING
69-561-4
30554
511-101800-00
78189
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 5. Control Cubical Front Panel-Exploded View
20
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
ITEM
NO.
-
1
2
3
4
S
6
7
8
9
10
11
12
13
14
15
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
PBOHH
AOO AHHHH
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
MOOOO AOO
PAOZZ PAOZZ
XB
XB
PAOZZ PAOZZ PAOZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ
SSI
XB
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAOZZ
PAOZZ PAOZZ PAZZZ
PAFZZ PAOZZ PBHZZ
PAOZZ PAOZZ PAOZZ
PAOZZ PAOZZ PAZZZ
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
6110-01-051-0178
5305-00-984-6193
5310-00-052-3632
XB
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ
a.
(4)
5940-00-115-2677
4030-00-780-9350
4020-00-618-0261
5305-00-984-6193
5310-00-052-3632
5340-00-724-7038
5315-00-449-2945
5325-00-099-8827
5325-00-599-8854
6625-01-086-9580
6240-00-155-7878
6120-00-935-6919
21
REF NUMBER & MFR NUMBER
GROUP 04 CONTROL CUBICLE
ASSEMBLY
CONTROL BOX ASSEMBLY
72-5000
300-0760
SCREW, MACHINE: PAN HEAD,
8-32 X 1t2 UNC-2A
MS35206-245
822-1048
NUT, ASSEMBLED WASHER,
HEX: 8-32 UNC-2B
870-1221
511-081800-00
HOLDER, DOOR
72-5003
406-0336
TERMINAL, LUG
MS20659-144
HOOK, CHAIN: DOOR HOLDER
M587006-13
406-0309
ROPE, NYLON: DOOR
HOLDER, 114 IN.
MILR17343-1-4
192-0369
SCREW, MACHINE: PAN HEAD,
8-32 X 1/2 UNC-2A
MS35206-245
822-1048
NUT, ASSEMBLED WASHER,
HEX: 8-32 UNC-2A
870-1221
511-081800-00
CLAMP, LOOP
MS21333-76
332-1116
PIN, CROSS: DOOR LATCH
406-0306
99836
GROMMET: DOOR LATCH
406-0371
295901-2
STUD: DOOR LATCH
98292-3-290
69-694-8
VOLTMETER, DC
MS24532-2-REVG
302-0830
LAMP, INCANDESCENT: PANEL
69-594
626-30V
LAMPHOLDER
322-0099
69-593
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
6
EA
1
30
EA
1
1
EA
2
2
EA
1
1
FT
1.2
1.2
EA
1
6
EA
1
30
EA
1
2
EA
3
4
EA
3
3
EA
3
3
EA
1
1
EA
2
2
EA
2
2
USABLE
ON CODE U.M.
30554
44940
96906
44940
44940
78189
30554
44940
96906
96906
44940
DIA
81349
44940
96906
44940
44940
78189
96906
44940
44940
76530
44940
76530
60119
30554
96906
44940
30554
08805
44940
30554
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
5
ITEM
NO.
16
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
PAOZZ PAOZZ PBHZZ
a.
SSI
(4)
REPL
FACTOR
NATIONAL
STOCK
NUMBER
6645-00-089-8842
17
PAFZZ PAOZZ PBHZZ
6625-01-038-6869
5
18
PAFZZ PAOZZ PBHZZ
6625-01-038-6829
5
19
PAFZZ PAOZZ PBHZZ
6625-01-038-6826
5
20
PAOZZ PAOZZ PAZZZ
5355-00-899-9014
MS91528-2K4B
5
21
XBOZZ
5
5
5
5
5
22
23
24
25
26
XB
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAHZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAHZZ
PAOZZ PAOZZ
XB
5
27
PAOZZ PAOZZ
5
28
PAOZZ PAOZZ PAZZZ
5
5
29
30
PAOZZ PAOZZ
PBOZZ PBOZZ
XB
XB-
XB
(6)
(7)
b.
5
XB
(5)
DESCRIPTION
5905-00-051-7677
5930-01-046-6949
5930-00-655-1514
5930-01-055-9251
5305-00-036-6968
5925-01-070-4487
5305-00-984-6210
5310-00-094-3421
5975-01-225-0460
22
REF NUMBER & MFR NUMBER
GROUP 04 CONTROL CUBICLE
ASSEMBLY
METER, TIME TOTALIZING
72-5321
56181-4
METER, FREQUENCY
72-5015
25RS10586
AMMETER
72-5007-1
55R510585
VOLTMETER.
72-5008
55R510584
KNOB
96906
STRAP, BOND: METER
13211E6934-1
332-0817
RHEOSTAT
72-5314
RP111FD102KK
SWITCH, ROTARY
72-5009
32905LE
SWITCH, TOGGLE
MS35058-22
308-0250
SWITCH, ROTARY
72-5011
76902LA
SCREW, ASSEMBLED
WASHER: PAN HEAD 6-32 X
3/8 UNC-2A, CIRCUIT
BREAKER MOUNTING
69-662-18
61-060641-40-0142B0542B
CIRCUIT BREAKER
MS25244-P-7-1-2
320-0303
SCREW, MACHINE: PAN HEAD,
10-24 X 1/2 UNC-2A, PANEL.
MOUNTING
M535206-263
822-1067
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
1
1
EA
1
1
EA
1
1
EA
3
3
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
2
12
1
1
EA
4
13
EA
4
25
EA
1
1
USABLE
ON CODE U.M.
30554
16476
EA
30554
55026
30554
55026
AC
30554
55026
(8)
97403
44940
30554
81349
3055
02121
96906
44940
30554
02121
30554
78189
EA
96906
44940
96906
44940
NUT, ASSEMBLED WASHER,
HEX: 10-24 UNC-2B PANEL
MOUNTING
69-561-4
511-101800-00
30554
78189
PANEL, METER
72-5002
301-3308
30554
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
REPL
FACTOR
NATIONAL
STOCK
NUMBER
31
PAOZZ PAOZZ
XB
5305-00-036-6906
5
32
PAOZZ PAOZZ
XB
5310-00-094-3421
5
33
PAOZZ PBOZZ
XB
5340-01-233-8305
5
34
PAOZZ PAOZZ PAZZZ
5305-00-984-6191
5
35
PAOZZ PAOZZ
XB
5310-00-052-3632
5
36
PAOZZ PAOZZ
XB
5950-01-052-9854
5
37
PAOZZ PAOZZ PAZZZ
5305-00-984-6191
5
38
PAOZZ PAOZZ
XB
5310-00-052-3632
5
39
PAOZZ PAOZZ
XB
5950-01-055-1266
5
5
40
41
42
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ
XB
(6)
(7)
b.
5
5
(5)
DESCRIPTION
6150-00-632-7234
530500-984-6191
5310-00-052-3632
23
REF NUMBER & MFR NUMBER
TRANSFORMER, POWER
STEPDOWN
72-5005
P8093
30554
83325
LINK, TERMINAL CONNECTING
SM-A-57192-53
600J
80063
75382
SCREW, MACHINE: PAN HEAD,
8-32 X 3/8 UNC-2A.
MOUNTING
MS35206-243
822-1046
NUT, ASSEMBLED WASHER,
HEX: 8-32 UNC-2B.
MOUNTING
69-561-3
511-081800-00
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
8
EA
1
25
EA
1
1
EA
2
14
EA
2
30
EA
1
1
EA
4
14
EA
4
30
EA
1
1
EA
4
4
EA
2
14
EA
2
30
USABLE
ON CODE U.M.
GROUP 04 CONTROL CUBICLE
ASSEMBLY
SCREW, ASSEMBLED
WASHER: PAN HEAD.
10-24 X
1/2 UNC-2A.
GROUND STRAP
MOUNTING
69-662-50
30554
61-100841-40-0142B0542B
78189
NUT, ASSEMBLED WASHER:
HEX
10-24 UNC-2B.
GROUND
STRAP MOUNTING
69-561-4
30554
511-101800-00
78189
STRAP.
GROUND
72-5006-1
30554
337-0033
44940
SCREW.
MACHINE: PAN HEAD,
8-32 X 3/8 UNC-2A,
TRANSFORMER MOUNTING
MS35206-243
96906
822-1046
44940
NUT, ASSEMBLED WASHER,
HEX: 8-32 UNC-2B,
TRANSFORMER MOUNTING
69-561-3
30554
511-Q8180000
78189
TRANSFORMER, POWER
STEPDOWN
72-5004
30554
P8202
83325
SCREW, MACHINE: PAN HEAD.
8-32 X 3/8 UNC-2A.
TRANSFORMER MOUNTING
MS25206-243
96906
822-1046
44940
NUT. ASSEMBLED WASHER,
HEX: 8-32 UNC-2B
TRANSFORMER MOUNTING
69-561-3
30554
511-081800-00
78189
(8)
RELAY
96906
44940
RELAY.
30554
78189
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
5
5
5
5
5
5
5
5
5
5
5
5
5
5
ITEM
NO.
43
44
45
46
47
48
49
50
51
52
53
54
55
56
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
PAOZZ PAOZZ PAHZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PBFHH PBFFF
PAOZZ PAFZZ
MOOZZ MOO
PAOZZ PAFZZ
MOOZZ MOO
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
PAFZZ PAOZZ
XB
XB
XB
XB
XB
XB
XB
XB
XB
XB
XB
PAFZZ PAOZZ PAZZZ
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
594500-686-6877
5305-00-984-6191
5310-00-052-3632
5895-01-046-5763
6110-01-051-0348
5320-01-049-8263
9905-01-047-5580
5320-01-049-8263
9905-01-047-8351
5320-00-241-6020
5325-00-449-2967
5320-00-994-7076
5340-01-053-7130
5305-00-984-6195
24
REF NUMBER & MFR NUMBER
GROUP 04 CONTROL CUBICLE
ASSEMBLY
RELAY, ARMATURE; 50 AMP
MS24166D1
307-0959
SCREW. MACHINE: PAN HEAD.
8-32 X 3/8 UNC-2A.
FREQUENCY CONVERTER
MOUNTING
MS35206-243
822-1046
NUT, ASSEMBLED WASHER
HEX: 8-32 UNC-2B,
FREQUENCY CONVERTER
MOUNTING
69-561-3
511-081800-00
CONVERTER, FREQUENCY
72-5019
5-116444
CONTROL BOX
72-5001
301-3297
RIVET, SOLID
72-5018
RV630-4-2
'PLATE, INSTRUCTION
72-5012
99-1191
RIVET, SOLID
72-5018
RV630-4-2
PLATE. INFORMATION
72-5305
99-1200
RIVET. SOLID: RECEPTACLE
MOUNTING
MS20427-4C4
818-1133
RECEPTACLE, FLOATING
STUD
69-693-2
99947P130
RIVET. SOLID: HINGE
MOUNTING
MS20613-4P4
818-1136
HINGE, BUTT: CONTINUOUS
MS35823-6C
406-0311
SCREW, MACHINE: PAN HEAD,
8-32 X 3/4 UNC-2A, WIRING
HARNESS MOUNTING
MS35206-247
822-1050
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
2
2
EA
4
14
EA
4
30
EA
1
1
EA
1
1
EA
4
30
EA
1
1
EA
6
30
EA
1
1
EA
6
8
EA
3
4
EA
5
5
FT
1.7
2.4
EA
4
10
USABLE
ON CODE U.M.
96906
44940
96906
44940
:
30554
78189
30554
55026
30554
44940
30554
98996
30554
98620
30554
98996
30554
98620
96906
44940
30554
76530
96906
44940
96906
44940
96906
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
4
30
EA
4
20
EA
4
12
EA
4
6
EA
4
30
EA
1
EA
1
USABLE
ON CODE U.M.
GROUP 04 CONTROL CUBICLE
ASSEMBLY
5
5
5
5
5
5
5
57
58
59
60
61
62
63
PAFZZ PAOZZ
XB
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZ
XB-
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
PBOZZ PBOZZ
PBOZZ PBOZZ
XB
XB
XB
5310-00-052-3632
5305-00-889-2997
5310-00-836-3520
5305-00-984-6193
5310-00-052-3632
9905-01-121-4988
9905-01-108-0529
25
NUT, ASSEMBLED WASHER,'
HEX: 8-32 UNC-2B.
HARNESS MOUNTING
69-561-3
511-081800-00
SCREW. MACHINE: PAN HEAD,
4-40 X 3/8 UNC-2A.
HARNESS MOUNTING
MS35206-215
822-1016
NUT, ASSEMBLED WASHER,
HEX: 4-40 UNC-2B.
HARNESS MOUNTING
69-561-1
511-041800-00
SCREW. MACHINE: PAN HEAD.
8-32 X 1/2 UNC-2A, WIRING
HARNESS MOUNTING
MS35206-245
822-1048
NUT. ASSEMBLED WASHER.
HEX: 8-32 UNC-2B.
HARNESS MOUNTING
69-561-3
511-081800-00
DECAL, SCHEMATIC, FIELD
FLASHING CIRCUIT
77-5003
USED ON SERIAL NO.
THRU EZ01099 PRODUCED ON
CONTRACT NO.
F04606-74-C-1133
DECAL, SCHEMATIC, REVERSE
POLARITY MODULE
77-5004
USED ON SERIAL NO.
THRU EZ01009 PRODUCED ON
CONTRACT NO.
F04606-74-C-1133
WIRING
30554
78189
WIRING
96906
44940
WIRING
30554
78189
96906
44940
WIRING
30554
78189
EZODOO1
30554
EZ00001
30554
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 6. Control Cubicle Wiring Harness
26
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
6
6
6
6
6
6
ITEM
NO.
-
1
2
3
4
5
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
PAFFF PAOOO
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
XB
XB
XB
XB
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
a.
SSI
(4)
REPL
FACTOR
NATIONAL
STOCK
NUMBER
6110-01-049-0429
6145-00-578-7513
6145-00-578-7514
6145-00-578-6605
5935-00-115-2307
5935-01-172-6470
6
PAFZZ PAOZZ PAZZZ
5935-01-219-4205
6
7
PAFZZ PAOZZ PAZZZ
5940-00-143-4794
6
6
6
6
6
6
6
6
8
9
10
11
12
13
14
15
16
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAFZZ
PAFZZ PAOZZ
XB
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
XB
PAFZZ PAOZZ PAFZZ
PAFZZ PAOZZ PAZZZ
(6)
(7)
b.
6
6
(5)
DESCRIPTION
5940-00-113-8179
5940-00-143-4774
5940-00-230-0515
5940-00-283-5280
5940-00-204-8990
6150-00-519-2714
5940-00-988-0317
5961-01-092-9505
5975-00-074-2072
27
REF NUMBER & MFR NUMBER
GROUP 04 CONTROL CUBICLE
ASSEMBLY
WIRING HARNESS, CONTROL
BOX
72-5013
338-0568
WIRE, ELECTRICAL: 10 AWG.
WHITE M50B6-2-10-9
334-1286
WIRE, ELECTRICAL: 12 AWG,
WHITE M5086-2-12-9
334-1285
WIRE, ELECTRICAL: 16 AWG.
WHITE M5086-2-16-9
334-1283
CONNECTOR. PLUG
ELECTRICAL
72-5017
323-0705
CONNECTOR, RECEPTACLE,
ELECTRICAL
MS3450W20-22P
323-0784
CONNECTOR, RECEPTACLE
ELECTRICAL
MS3450W32-7P
TERMINAL LUG
MS25036-112
332-0350
TERMINAL LUG
MS25036-107
332-1886
TERMINAL LUG
MS25036-153
332-0806
TERMINAL LUG
MS25036-154
332-0897
TERMINAL LUG
MS25036-106
TERMINAL LUG
72-5320
35149
LINK, TERMINAL
69-651-2
601J
TERMINAL BOARD
MILT55164-2-38TB14
332-1444
REVERSE POLARITY MODULE
77-5001
B686
STRAP, TIEDOWN
MS3367-1-9
332-0941
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
FT
2.3
8.6
FT
8
30
FT
184
370
EA
1
4
EA
1
1
EA
1
1
EA
4
12
EA
92
138
EA
13
50
EA
6
6
EA
23
34
EA
7
-
EA
6
-
EA
2
2
EA
1
1
EA
46
120
USABLE
ON CODE U.M.
30554
44940
96906
44940
81349
44940
81349
44940
30554
44940
96906
44940
96906
96906
44940
96906
44940
96906
44940
96906
44940
96906
30554
00779
30554
75382
81349
44940
30554
06288
96906
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2.-3456.4
Figure 7. Relay Panel Assembly - Exploded View
28
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
7
7
7
7
7
7
7
7
ITEM
NO.
1
2
-
3
4
5
6
7
7
7
7
7
7
7
9
10
11
12
13
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ
XB
PBOOO PBOOO AHOHH
PAOZZ PAOZZ
XB
PAOZZ PAOZZ PAHZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
XB
XB
a.
SSI
(4)
PAOZZ PAOZZ XB
PAOZZ PAOZZ
XB
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
XBOZZ
XB
XB
XB
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
5305-00-984-6191
5310-00-052-3632
6115-01-049-0966
5305-00-036-6967
5945-00-435-1833
6145-00-578-6602
5935-00-210-8648
PAOZZ PAOZZ PAGZZ
8
(5)
DESCRIPTION
5940-00-915-9201
5305-00-224-1095
5305-00-889-3001
5310-00-063-7360
5940-00-983-6065
XB
29
REF NUMBER & MFR NUMBER
GROUP 04 CONTROL CUBICLE
ASSEMBLY - CONT
SCREW, MACHINE: PAN HEAD,
8-32 X 3/8 UNC-2A, RELAY
PANEL MOUNTING
MS35206-243
822-1046
NUT. ASSEMBLED WASHER,
HEX: 8-32 UNC-2B, RELAY
PANEL MOUNTING
69-561-3
511-081800-00
PANEL ASSEMBLY, RELAY
72-5010
300-0752
SCREW, ASSEMBLED
WASHER: PAN HEAD, 6-32 X
1/4 UNC-2A, RELAY MOUNTING
69-662-16
61-060441-400142B0542B
RELAY, ARMATURE:
10 AMP
M5757-23-003
307-1206
WIRE, ELECTRICAL: 18 AWG,
WHITE
M5086-2-18-9
334-1282
SOCKET, RELAY
69-547
323-0780
SEMICONDUCTOR DEVICE,
DIODE
MIL-S-195001420 TYPE IN5554
357-0007
TERMINAL, STUD: WITH
INSULATOR STANDOFF
M55155/209G02
332-0814
SCREW, ASSEMBLED
WASHER: PAN HEAD, 4-40 X
1/4 UNC-2A
69-662-1
61-040441-400142B0542B
SCREW, MACHINE: PAN HEAD,
6-32 X 5/8 UNC-2A.
BOARD MOUNTING
MS35206-231
822-1033
NUT, ASSEMBLED WASHER,
HEX: 6-32 UNC-2B, TERMINAL
BOARD MOUNTING
69-561-2
511-061800-00
TERMINAL BOARD
MILT55164-4-40TB4
332-1441
BRACKET, RELAY
72-5014
301-3310
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
2
14
EA
2
30
EA
1
1
EA
2
2
EA
1
1
FT
3
3
EA
1
1
EA
2
2
EA
4
4
EA
4
4
EA
4
8
EA
4
50
EA
2
2
EA
1
1
USABLE
ON CODE U.M.
96906
44940
30554
78189
30554
44940
30554
78189
81349
44940
81349
44940
30554
44940
81349
44940
81349
44940
30554
78189
TERMINAL
96906
44940
30554
78189
81349
44940
30554
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 8. Voltage Regulator
30
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
8
8
8
8
8
8
8
8
8
ITEM
NO.
1
2
3
4
5
6
7
8
9
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
PAFZZ PAOZZ
a.
SSI
(4)
REPL
FACTOR
XB
5305-00-984-6221
5305-00-543-2188
XB
5940-00-983-6079
PAFZZ PAOZZ PAZZZ
PAHZZ PAOZZ
PAHZZ PAOZZ
PAHZZ PAOZZ
NATIONAL
STOCK
NUMBER
5310-00-063-7360
PAHZZ PAOZZ PAZZZ
PAHZZ PAOZZ
5305-00-984-4988
XB
5310-00-063-7360
XB
5961-00-468-2765
XB
5905-00-139-1833
XB
5905-01-061-5551
8
10
PAHZZ PAOZZ
XB
5905-00-106-9344
8
11
PAHZZ PAOZZ
XB
5905-00-108-6922
B
8
12
13
PAHZZ PAOZZ
PAHZZ PAOZZ
XB
XB
(6)
(7)
b.
PAHZZ PAOZZ PAZZZ
PAFZZ PAOZZ
(5)
DESCRIPTION
5905-00-104-8334
--
5905-00-141-1168
31
REF NUMBER & MFR NUMBER
GROUP 04 CONTROL CUBICLE
ASSEMBLY- CONT
NUT, ASSEMBLED WASHER.
HEX: 6-32 UNC-2B VOLTAGE
REGULATOR MOUNTING
69-561-2
511-061800-00
SCREW. MACHINE: PAN HEAD.
6-32 X 1 UNC-2A, VOLTAGE
REGULATOR MOUNTING
MS35206-234
822-1036
SCREW, MACHINE: PAN HEAD,
6-32 X 3/4
MS35223-32
822-1034
TERMINAL BOARD
MILT55164-4-40TB19
332-1369
SCREW, MACHINE: PAN HEAD,
6-32 X 3/8 UNC-2A
TRANSISTOR MOUNTING
MS35206-228
822-1030
NUT, ASSEMBLED WASHER,
HEX: 6-32 UNC-2B
TRANSISTOR MOUNTING
69-561-2511-061800-00 78189
TRANSISTOR: NPN
JAN2N3584
362-0038
RESISTOR, VARIABLE: 2K
OHMS, 1 WATT
RT12C2Y202
303-0184
RESISTOR, VARIABLE: 1K
OHMS, 1 WATT
RTR12DY102P
303-0188
RESISTOR.
COMPOSITION; 100 OHMS.
WATT
RCR20G101JS
RESISTOR, FIXED.
COMPOSITION; 150 OHMS, 1/2
WATT
RCR2OG151JS
350-0367
RESISTOR, FIXED,
COMPOSITION; 330 OHMS.
WATT
RCR20G331JS
RESISTOR, FIXED.
COMPOSITION; 2.2K OHMS, 1/2
WATT
RCR20G222JS
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
4
50
EA
2
2
EA
2
4
EA
2
2
EA
2
50
EA
1
1
EA
1
EA
1
EA
1
EA
1
EA
1
EA
2
EA
1
USABLE
ON CODE U.M.
30554
78189
96906
44940
96906
44940
81349
44940
96906
44940
30554
81349
44940
81349
44940
81349
44940
FIXED,
1/2
81349
81349
44940
112
81349
81349
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
USABLE
ON CODE U.M.
QTY
INC IN
UNITS
(8)
USMC
QTY
PER
EQUIP
GROUP 04 CONTROL CUBICLE
ASSEMBLY - CONT
8
14
PAHZZ PAOZZ
XB
5905-00-141-1165
8
15
PAHZZ PAOZZ
XB
5905-00-106-1282
8
16
PAHZZ PAOZZ
XB
5905-00-141-0599
8
17
PAHZZ PAOZZ
XB
5905-00-141-0596
8
18
PAHZZ PAOZZ
XB
5905-00-104-8336
8
19
PAHZZ PAOZZ
XB
5905-00-121-9861
8
20
PAHZZ PAOZZ
XB
5905-00-434-3013
8
21
PAHZZ PAOZZ
XB
5905-01-008-6666
8
22
PAHZZ PAOZZ PAGZZ
8
23
PAHZZ PAOZZ PAGZZ
5110-01-115-0197
8
24
PAHZZ PAOZZ PAGZZ
5110-00-312-4433
8
25
PAHZZ PAOZZ PAGZZ
5910-01-239-4408
32
RESISTOR, FIXED,
COMPOSITION; 6.8K OHMS, 1/2
WATT
RCR20G682JR
81349
350-0407
44940
RESISTOR, FIXED,
COMPOSITION; 22K OHMS.
1/2
WATT
RCR20G223JS
81349
350-0419
44940
RESISTOR, FIXED,
COMPOSITION; 39K OHMS, 1/2
WATT
RCR20G393JS
81349
RESISTOR, FIXED,
COMPOSITION; 47K OHMS.
1/2
WATT
RCR20G473JS
81349
350-0427
44940
RESISTOR, FIXED,
COMPOSITION; 100K OHMS,
1/2 WATT
RCR20G104JS
81349
RESISTOR, FIXED,
EA
COMPOSITION; 1K OHMS.
112
WATT
RCR2OG1O2JS
81349
350-0687
44940
RESISTOR, FIXED, FILM: 1690
OHMS, 1/2 WATT
MILR55182-6
81349
351-1048
44940
RESISTOR, FIXED, FILM: 2490
OHMS, 1/2 WATT
RNC70H2491FS
81349
351-1056
44940
CAPACITOR, FIXED.
PLASTIC
DIELECTRIC: .22 MFD.
50
VOLT.
PORM 10 PCT
M83421/01-2204M
81349
355-0021
44940
CAPACITOR, FIXED.
PLASTIC
DIELECTRIC: .47 MFD.
200
VOLT, PORM 10 PCT
M39022/22-1347
81349
355-0002
44940
CAPACITOR, FIXED, PLASTIC
DIELECTRIC: .22 MRD, 200
VOLT, PORM 10 PCT
M83421/01-4204M
81349
355-0024
44940
CAPACITOR.
ELECTROLYTIC:
3.3 MFD, 50 VOLT
M39003101-8209
356-0041
FIXED,
81349
44940
EA
1
EA
1
EA
2
2
EA
1
1
EA
1
2
2
EA
1
1
EA
1
1
EA
4
4
EA
2
2
EA
1
1
EA
1
1
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
7
13
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 04 CONTROL CUBICLE
ASSEMBLY - CONT
8
8
8
8
8
8
8
8
8
26
27
28
29
30
31
32
33
34
PAHZZ PAOZZ PAGZZ
PAHZZ PAOZZ PAGZZ
PAHZZ PAOZZ PAGZZ
PAHZZ PAOZZ PAGZZ
PAHZZ PAOZZ PAGZZ
PAHZZ PAOZZ
PAHZZ PAOZZ
XB
XB
5910-01-270-4000
5910-00-172-2941
5961-00-458-5813
5961-00-853-1065
5961-01-096-3191
5961-00-054-0046
5961-01-187-8836
PAHZZ PAOZZ PAGZZ
XAHZZ
XA
CAPACITOR.
ELECTROLYTIC:
12 MFD.
M39003101-8227
356-0042
CAPACITOR, FIXED,
ELECTROLYTIC:
150 MFD, 50 VOLT
M39006-01-3104
356-0043
SEMICONDUCTOR DEVICE,
DIODE
JAN1N4245
357-0015
SEMICONDUCTOR DEVICE,
DIODE
JAN1N3026B
359-0030
81349
44940
81349
44940
81349
44940
81349
TRANSISTOR: NPN
JAN2N1711
362-0037
81349
44940
TRANSISTOR: PNP
JAN2N2905A
81349
PRINTED WIRING BOARD
72-5158
332-1367
8
50 VOLT
81349
44940
SEMICONDUCTOR DEVICE,
DIODE
JAN1N754A-1
CAPACITOR, FIXED.
DIELECTRIC: .68 MFD.
VOLT, PORM 10 PCT
M83421/m1-4246M
355-0023
XB
FIXED.
PLASTIC
200
81349
44940
30554
44940
THIS ILLUSTRATION IS FOR REPAIR OF
REGULATOR.
VOLTAGE PN 725020
(30554) ONLY.
FOR REPLACEMENT OF
REGULATOR, REFER TO FIG.9
33
ARMY TM 9-6115-58424P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 9. Voltage Regulator
34
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
9
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
REPL
FACTOR
NATIONAL
STOCK
NUMBER
6110-01-095-7440
5310-00-063-7360
9
1
PAFZZ PAOZZ
9
2
PAFZZ PAFZZ PAFZZ
5305-00-984-6221
9
3
PAFZZ PAFZZ PAFZZ
5305-00-984-4992
9
4
PAFZZ PAFZZ
5940-00-983-6079
9
5
PAFZZ PAFZZ PAZZZ
5305-00-984-4988
9
6
PAFZZ PAFZZ
XB
5310-00-063-7360
9
7
PAHZZ PAFZZ
XB
5961-00-468-2765
9
8
PAHZZ PAFZZ
XB
5905-01-062-5861
9
9
PAHZZ PAFZZ PAFZZ
9
10
PAHZZ PAFZZ
XB
5905-00-106-9344
9
11
PAHZZ PAFZZ
XB
5905-00-108-6922
9
12
PAHZZ PAFZZ
XB
9
13
PAHZZ PAFZZ
XB
5905-00-141-1168
9
14
PAHZZ PAFZZ
XB
5905-00-141-1165
9
15
PAHZZ PAFZZ
XB
5905-00-106-1282
XB
(6)
(7)
b.
PAFHH PAFFF PDDGG
XB
(5)
DESCRIPTION
35
REF NUMBER & MFR NUMBER
RESISTOR, FIXED,
COMPOSITION:
22K OHMS, 112 WATT
RCR20G223JS
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
4
50
EA
2
4
EA
2
6
EA
1
1
EA
2
2
EA
2
50
EA
1
1
EA
2
2
EA
4
4
EA
1
1
EA
1
1
EA
2
2
EA
1
1
EA
1
1
1
1
USABLE
ON CODE U.M.
GROUP 04 CONTROL CUBICLE
ASSEMBLY - CONT
REGULATOR, VOLTAGE
72-5338
30554
332-2285
44940
NUT, ASSEMBLED WASHER,
HEX: 6-32 UNC-2B VOLTAGE
REG MTG
69-561-2
30554
511-061800-00
78189
SCREW, MACHINE: PAN HEAD,
6-32 X 1 UNC-2A, VOLTAGE
REG MTG
MS35206-234
96906
SCREW, MACHINE: PAN HEAD,
6-32 X 3/4
MS35206-232
96906
TERMINAL BOARD
MILT55164-4-40TB19
81349
SCREW, MACHINE: PAN HEAD,
6-32 X 3/8 UNC-2A, TRANS
MTG
MS35206-228
96906
NUT, ASSEMBLED WASHER,
HEX: 6-32 UNC-2B TRANS MTG
69-561-2
30554
511-061800-00
78189
TRANSISTOR: NPN
JAN2N3584
81349
RESISTOR, VARIABLE 2K
OHMS, 3/4 WATT
M39015/1-005YP
81349
SEMICONDUCTOR
DEVICE DIODE
JAN1N4245
81349
RESISTOR, FIXED,
COMPOSITION:
100 OHMS, 1/2 WATT
RCR20G101JS
81349
RESISTOR, FIXED,
COMPOSITION:
150 OHMS, 1/2 WATT
RCR20G151JS
81349
5905-00-104-8334
RESISTOR, FIXED,
COMPOSITION:
330 OHMS, 1/2 WATT
RCR20G331JS
81349
RESISTOR, FIXED.
COMPOSITION:
2.2K OHMS.
1/2 WATT
RCR20G222JS
81349
RESISTOR, FIXED,
COMPOSITION:
6.8K OHMS, 1/2 WATT
RCR20G882JS
81349
EA
81349
(8)
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
2
2
EA
1
EA
1
1
EA
4
4
EA
1
1
EA
1
1
PLASTIC
EA
4
4
50 VOLT
81349
PLASTIC
EA
2
2
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
5
5
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 04 CONTROL CUBICLE
ASSEMBLY - CONT
9
16
PAHZZ PAFZZ
XB
5905-00-141-0599
9
17
PAHZZ PAFZZ
XB
5905-00-141-0596
9
18
PAHZZ PAFZZ
XB
5905-00-104-8336
9
19
PAHZZ PAFZZ
XB
5905-00-763-9752
9
20
PAHZZ PAFZZ
XB
5905-00-434-3013
9
21
PAHZZ PAFZZ
XB
5905-01-008-6666
9
9
22
23
PAHZZ PAFZZ PAGZZ
PAHZZ PAFZZ PAGZZ
5910-00-267-1767
5910-01-115-0197
9
24
PAHZZ PAFZZ PAGZZ
5910-00-312-4433
9
25
PAHZZ PAFZZ PAGZZ
5910-00-211-1261
9
26
PAHZZ PAFZZ PAGZZ
5910-00-189-2444
9
27
PAHZZ PAFZZ PAGZZ
5910-00-175-4631
9
28
PAHZZ PAFZZ PAGZZ
5961-00-914-9740
9
29
PAHZZ PAFZZ PAGZZ
5961-00-853-1065
9
30
PAHZZ PAFZZ PAGZ
5961-00-852-7549
9
31
PAHZZ PAFZZ
5961-00-054-0046
XB
36
RESISTOR.
COMPOSITION:
39K OHMS.
RCR20G393JS
RESISTOR, FIXED.
COMPOSITION:
47K OHMS, 1/2 WATT
RCR20G473JS
RESISTOR.
COMPOSITION:
100K OHMS.
RCR20G104JS
RESISTOR, FIXED,
COMPOSITION:
2K OHMS.
RCR42G202JS
RESISTOR, FIXED, FILM:
1690 OHMS, 1/2 WATT
RNC70H1691FS
RESISTOR, FIXED, FILM:
2490 OHMS.
RNR70H2491FS
CAPACITOR, FIXED.
DIELECTRIC:
.22 MFD,.
M39022-01-1573
CAPACITOR, FIXED.
DIELECTRIC:
.47 MFD.
M39022-02-1347
CAPACITOR, FIXED, PLASTIC
DIELECTRIC:
.22 MFD, 200 VOLT
M39022-02-1229
CAPACITOR, FIXED
ELECTROLYTIC:
3.3 MFD.
M39003-01-3085
CAPACITOR, FIXED
ELECTROLYTIC:
12 MFD, 50 VOLT
M39003-01-3096
CAPACITOR, FIXED
ELECTROLYTIC:
150 MFD.
M39006-01-3075
SEMICONDUCTOR
DEVICE, DIODE
JAN1N4246
SEMICONDUCTOR
DEVICE, DIODE
JAN1N3026B
SEMICONDUCTOR
DEVICE, DIODE
1N754A
TRANSISTOR: NPN
JAN2N1711
FIXED,
1/2 WATT
81349
81349
FIXED.
112 WATT
81349
2 WATT
81349
1/2 WATT
200 VOLT
81349
81349
50 VOLT
81349
81349
50 VOLT
81349
81349
81349
81349
81349
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 04 CONTROL CUBICLE
ASSEMBLY - CONT
9
9
9
32
33
34
PAHZZ PAFZZ
XB---
PAHZZ PAFZZ PAHZZ
XAHZZ
XA
5961-00-949-1440
5910-01-023-8228
XB---
37
TRANSISTOR:
PNP JAN2N2905
81349
CAPACITOR, FIXED, PLASTIC
DIELECTRIC:
.68 MFD. 200 VOLT
M39022-02-1241
81349
PRINTED WIRING BOARD
72-5237
30554
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 10. Wiring Harness and Speed Control Assembly
38
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
(4)
10
1
PAOZZ PAOZZ PAZZZ
5305-00-984-6210
10
2
PAOZZ PAOZZ
5310-00-094-3421
10
3
PAOZZ PAOZZ PAZZZ
5340-00-091-3790
10
4
PAOZZ PAOZZ
5305-00-036-6906
10
5
PAOZZ PAOZZ PAZZZ
5340-00-764-7051
10
6
PAOZZ PAOZZ
5305-00-036-6906
10
7
PAOZZ PAOZZ PAZZZ
5340-00-724-7038
10
8
PAOZZ PAOZZ PAZZZ
5340-00-988-1162
10
9
PBFFF PBOOO XB---
5935-01-050-9812
10
10
PAFZZ PAOZZ PAZZZ
5935-00-823-5322
10
11
PAFZZ PAOZZ PAZZZ
5935-00-565-9503
10
12
PAFZZ PAOZZ PAZZZ
5935-00-565-9497
10
13
PAFZZ PAOZZ PAZZZ
5975-00-074-2072
10
14
PAFZZ PAOZZ PAZZZ
XB---
XB--
REPL
FACTOR
NATIONAL
STOCK
NUMBER
ITEM
NO.
XB---
(6)
(7)
b.
FIG.
NO.
SSI
(5)
DESCRIPTION
39
REF NUMBER & MFR NUMBER
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
13
EA
1
24
EA
1
1
EA
2
8
EA
2
2
EA
2
8
EA
1
2
EA
1
1
EA
1
1
EA
11
14
EA
5
6
EA
1
2
EA
35
120
EA
1
1
USABLE
ON CODE U.M.
GROUP 05 CONTROL ASSEMBLY
SCREW, MACHINE: PAN HEAD.
10-24 X 1½ UNC-2A, WIRING
HARNESS MOUNTING
MS35206-263
96906
822-1067
44940
NUT, ASSEMBLED WASHER.
HEX: 10-24 UNC-2B, WIRING
HARNESS MOUNTING
69-561-4
30554
511-101800-00
78189
CLAMP, LOOP
MS21333-72
96906
332-1115
44940
SCREW, ASSEMBLED
WASHER: PAN HEAD, 10-24 X
½ UNC-2A, WIRING HARNESS
MOUNTING
69-662-50
30554
61-100841-40-0142B0542B
78189
CLAMP. LOOP
MS21333-69
96906
332-1458
44940
SCREW, ASSEMBLED
WASHER: PAN HEAD, 10-24 X
½ UNC-2A, WIRING HARNESS
MOUNTING
69-662-50
61-100841-4030554
0142B0542B
78189
CLAMP. LOOP
MS21333-76
96906
332;1116
44940
CLAMP LOOP
MS21333-113
96906
332-1459
44940
WIRING HARNESS,
GENERATOR SET
72-5156
30554
338-0575
44940
PLUG. END SEAL
MS25251-16
96906
323-070144940
PLUG, END SEAL
MS25251-12
96906
323-0830
44940
PLUG, END SEAL
MS25251-8
96906
323-0831
44940
STRAP, TIEDOWN
MS3367-1-9
96906
332-0941
44940
5935-01-077-2628 CONNECTOR, PLUG,
ELECTRICAL
MS3456W22-14P
96906
323-0827
44940
(8)
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
10
15
10
10
10
10
10
10
10
10
10
10
10
10
10
10
16
17
18
19
20
21
22
23
24
25
26
27
28
29
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
XB
XB
XB
XB
XB
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
5935-00-115-2307
5935-00-813-4716
5935-00-754-8711
5935-01-005-2328
5935-01-070-3681
5935-01-176-6588
5940-00-143-4794
5940-00-113-8183
5940-00-143-4774
5935-01-149-2540
6145-00-578-7513
6145-00-578-7514
6145-00-578-6605
5905-00-036-9606
5310-00-094-3421
40
REF NUMBER & MFR NUMBER
GROUP 05 CONTROL ASSEMBLY
CONNECTOR, PLUG,
ELECTRICAL
72-5017
MS27144-2
CONNECTOR, PLUG,
ELECTRICAL
MS3106R10SL35
323-0719
CONNECTOR, PLUG,
ELECTRICAL
MS3108R10SL3S
323-0828
CONNECTOR, PLUG,
ELECTRICAL
MS3456W20-18S
323-0826
CONNECTOR, PLUG,
ELECTRICAL
MS3456W32-7S
323-0825
CONNECTOR, PLUG,
ELECTRICAL
MS3456W20-22S
323-0785
TERMINAL, LUG
MS25036-112
332-0350
TERMINAL, LUG
MS25036-113
332-1362
TERMINAL, LUG
MS25036-153
332-0806
CLAMP, CABLE
M85049/41-4A
WIRE, ELECTRICAL
NO. 10 AWG, WHITE
MS5086-2-10-9
334-1286
WIRE, ELECTRICAL
NO. 12 AWG. WHITE
MS5086-2-12-9
334-1285
WIRE, ELECTRICAL
NO. 16 AWG. WHITE
MS5086-2-16-9
334-1283
SCREW MACHINE: ROUND
HEAD, 10-24 X ½ UNC-2A
69-662-50
61-100841-40- 0142B0542B
NUT, ASSEMBLED WASHER,
HEX: 10-24 UNC-2B
69-561-4
511-10800
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
3
4
EA
3
3
EA
t
1
EA
1
1
EA
1
1
EA
1
1
EA
1
12
EA
2
2
EA
2
50
EA
1
1
FT
6.3
8.6
FT
12
30
FT
89
370
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
30554
96906
96906
44940
96906
44940
96906
44940
96906
44940
96906
44940
96906
44940
96906
44940
96906
44940
81349
96906
44940
81349
44940
81349
44940
30554
78189
30554
78189
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
1
2
EA
1
1
USABLE
ON CODE U.M.
GROUP 05 CONTROL ASSEMBLY
10
10
10
10
30
31
32
33
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
XB---
XB---
XB---
XB---
5340-01-102-8417
2990-01-046-5864
5315-00-839-2325
5315-00-087-8226
41
CLAMP, LOOP
518-0299
44940
CABLE, GOVERNOR CONTROL
72-5091
152-0180
30554
44940
PIN. COTTER
MS24665-132
96906
PIN, CLEVIS
MS20392-2C21
96906
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 11. Control Box Assembly, AC Output
42
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
2
23
EA
2
2
EA
2
7
EA
2
78
EA
2
43
EA
4
18
EA
8
11
USABLE
ON CODE U.M.
GROUP 06 OUTPUT CONTROL BOX
ASSEMBLY
11
11
11
11
11
11
11
1
2
3
4
5
6
7
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
XB---
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
5305-00-725-2317
5310-01-049-9173
5310-00-038-9854
5310-00-637-9541
5310-00-732-0558
5305-00-269-3211
5310-00-061-1258
43
SCREW, CAP, HEX HEAD:
3/8-16 X 1-½ UNC-2A
MS90725-64
B1821BH0386C150N
96906
80204
WASHER, FLAT. MODIFIED
72-5159
526-0253
30554
44940
WASHER, BEVELED
70-1531-1
526-0267
30554
44940
WASHER, LOCK: 3/8
MS35338-46
850-1050
96906
44940
NUT. PLAIN, HEX: 3/8-16
UNC-2A
MS51967-8
862-1003
96906
44940
SCREW, CAP, HEX HEAD:
3/8-16 X 1 UNC-2A
MS90725-60
800-1050
96906
44940
WASHER, LOCK: 3/8
MS45904-76
856-1010
96906
44940
ARMY TM 9-6115-58424P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 12. AC Control - Access Cover, Load Terminals and Current Transformers
44
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
12
12
12
12
12
12
12
12
12
12
12
12
12
12
ITEM
NO.
-
1
2
3
4
5
6
7
8
9
10
11
12
13
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
PBFHH
AOO AHOHA
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ
PBOZZ PSOZZ
PAOZZ PAOZZ
MDOZZ MDO
PAOZZ PAOZZ
PBOZZ PBOZZ
XB--
XB--
XB---
XB---
XB--XB--
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAFZZ
PAOZZ PAOZZ
XB---
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ XBE--
PAOZZ PAOZZ
XB---
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
6110-01-050-0654
5305-00-889-3000
5310-00-063-7360
5340-01-193-7673
5305-00-253-5615
9905-01-047-5581
5340-01-046-0134
5970-01-049-0961
5305-00-068-0502
5310-00-582-5965
5340-01-215-7197
5305-00-984-6210
5310-00-094-3421
5340-00-158-0223
45
REF NUMBER & MFR NUMBER
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
6
18
EA
6
50
EA
1
1
EA
4
4
EA
1
1
EA
1
1
EA
1
1
EA
4
16
EA
4
52
EA
1
1
EA
4
13
EA
4
24
EA
2
4
USABLE
ON CODE U.M.
GROUP 06 OUTPUT CONTROL BOX
ASSEMBLY OUTPUT CONTROL BOX
ASSEMBLY
72-5160
300-0762
SCREW, MACHINE: PAN HEAD,
6-32 X 1/UNC-2A, COVER
MOUNTING
MS35206-230
e22-1032
NUT, ASSEMBLED WASHER.
HEX: 6-32 UNC-2B, COVER
MOUNTING
69-561-2
511-061800-00
COVER, LOAD TERMINAL
72-5165
301-3475
SCREW, DRIVE: INSTRUCTION
PLATE MOUNTING
MS21318-21
815-1289
PLATE, INSTRUCTION
72-5168
99-1184
HINGE, BUTT: CONTINUOUS
72-5166
INSULATOR, PLATE
72-5164
332-1384
SCREW, CAP, HEX HEAD:
¼-20 X ¾ UNC-2A, ACCESS
COVER MOUNTING
MS90725-6
800-1005
WASHER, LOCK: ¼, ACCESS
COVER MOUNTING
MS35338-44
850-1040
COVER, ACCESS: AC OUTPUT
CONTROL
72-5163
301-3473
SCREW, MACHINE: PAN HEAD,
10-24 X ½ UNC-2A, LATCH
MOUNTING
MS35206-263
822-1067
NUT, ASSEMBLED WASHER,
HEX: 10-24 UNC-2B, LATCH
MOUNTING
69-561-3
511-101800-00
LATCH, DOOR
72-5103
HR5
(8)
30554
44940
96906
44940
30554
78189
30554
44940
96906
44940
30554
98623
30554
30554
44940
96906
44940
96906
44940
30554
44940
96906
44940
30554
78189
30554
06004
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
REPL
FACTOR
NATIONAL
STOCK
NUMBER
12
14
PAOZZ PAOZZ PAZZZ
5305-00-068-0502
12
15
PAOZZ PAOZZ PAZZZ
5310-00-582-5965
12
16
MDOZZ
12
17
PAOZZ PAOZZ
XB---
5320-01-049-8263
12
18
MDOZZ MDO
XB---
9905-01-048-1370
12
19
MDOZZ MDO
XB---
9905-01-047-5582
12
20
PAOZZ PAOZZ
XB---
5310-01-049-8238
12
21
PAOZZ PAOZZ PAZZZ
5310-00-042-4229
12
22
PAOZZ PAOZZ
XB---
5310-01-051-0658
12
23
PAOZZ PAOZZ
XB---
5940-00-958-1214
12
24
PAOZZ PAOZZ PAZZZ
5305-00-95&5246
12
25
PAOZZ PAOZZ PAZZZ
5310-00-194-9211
12
26
XBOFF
XB
(6)
(7)
b.
12
XB
(5)
DESCRIPTION
XB--
XB
46
REF NUMBER & MFR NUMBER
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
4
16
EA
4
52
EA
1
1
EA
8
30
EA
1
1
EA
1
1
EA
8
8
EA
8
8
EA
8
8
EA
4
4
EA
6
6
EA
6
6
EA
1
1
USABLE
ON CODE U.M.
GROUP 06 OUTPUT CONTROL BOX
ASSEMBLY ASSY - CONT
SCREW, CAP. HEX HEAD:
¼-20 X ¾ UNC-2A, ACCESS
PANEL MOUNTING
MS90725-6
96906
800-1005
44940
WASHER, LOCK: ¼, ACCESS
PANEL MOUNTING
MS35338-44
96906
850-1040
44940
PANEL, ACCESS: AC OUTPUT
CONTROL
72-5162
30554
301-3479
44940
RIVET, TUBULAR:
INFORMATION PLATE,
MOUNTING
72-5018
30554
RV630-4-2
98996
PLATE, INFORMATION
72-5072
30554
99-1192
98623
PLATE, INFORMATION
72-5073
30554
99-1197
98623
NUT, PLAIN. HEX: ½ -13
UNC-2B, LOAD TERMINAL
MOUNTING
72-5106
30554
FFN836-2-5
81348
WASHER, LOCK: ½ , LOAD
TERMINAL MOUNTING
MS35333-113
96906
851-0020
44940
WASHER, FLAT: ½ , LOAD
TERMINAL MOUNTING
FFW92AIE2-2
81348
526-0218
44940
TERMINAL, LOAD
DC-93M6F-8-RPC
82168
13208E5820-1
97403
SCREW, MACHINE: FLAT
HEAD, COUNTERSUNK, ¼ X
¾ UNC-2A
MS35190-289
96906
814-1340
44940
WASHER, LOCK: ¼
MS35336-27
968906
855-1011
44940
BOARD.
TERMINAL
72-5167
30554
332-1359
44940
(8)
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
12
12
12
12
12
12
12
12
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
12
12
(5)
DESCRIPTION
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
4
4
EA
1
1
EA
4
21
EA
4
16
EA
4
52
EA
2
2
EA
2
24
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 06 OUTPUT CONTROL BOX
ASSEMBLY ASSY - CONT
27
28
29
30
31
32
33
34
35
PAFZZ PAOZZ
PAFZZ PAOZZ
XS---
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
XB---
XS---
XB---
XB---
5305-00-036-6978
5950-01-051-0124
5310-00-761-6882
5305-00-068-0502
5310-00-582-5965
5305-01-056-2108
5310-00-094-3421
5950-01-050-0576
5935-01-049-9850
47
SCREW, ASSEMBLED
WASHER: PAN HEAD, 10-24 X
3/8 UNC-2A, REACTOR
MOUNTING
69-662-48
61-100641-40-0142B0542B
30554
78189
REACTOR
72-5178
67060860
30554
80023
NUT, PLAIN, HEX: 1!4-20
UNC-2B
MS51967-2
862-1001
96906
44940
SCREW, CAP, HEX HEAD:
¼-20 X ¾ UNC-2A
MS90725-6
800-1005
96906
44940
WASHER, LOCK: ¼
MS35338-44
850-1040
96906
44940
SCREW, MACHINE: ROUND
HEAD, 10-24 X 4 UNC-2A
812-1115
44940
NUT, ASSEMBLED WASHER,
HEX: 10-24 UNC-2B
69-561-4
511-101800-00
30554
78189
TRANSFORMER, CURRENT
72-5176
68060970
30554
80023
TRANSFORMER, CURRENT
72-5177
68060980
30554
80023
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 13. AC Control - Circuit Breakers, Rotary Switch and Duplex Receptacle
48
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
13
13
13
13
13
13
13
13
13
13
13
13
13
ITEM
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
XB---
XB---
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
XB---
XB--XB---
XB--
XB--
PAFZZ PAOZZ PAZZZ
PAOZZ PAOZZ
XB---
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
5905-01-046-6851
5305-00-036-6968
5925-01-067-2928
5305-00-889-3000
5310-00-063-7360
5975-00-879-7234
5330-00-240-0834
5305-00-036-6968
5310-00-063-7360
5935-01-012-3080
5325-00-432-9899
5315-00-449-2945
5305-00-984-6210
49
REF NUMBER & MFR NUMBER
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
2
12
EA
1
1
EA
4
18
EA
4
50
EA
1
1
EA
1
1
EA
2
12
EA
2
50
EA
1
1
EA
1
1
EA
1
4
EA
3
13
USABLE
ON CODE U.M.
GROUP 06 OUTPUT CONTROL BOX
ASSEMBLY
RESISTOR. VARIABLE:
10 OHMS, 5 WATT
72-5194
303-185137
SCREW, ASSEMBLED
WASHER: PAN HEAD 6-32X3/8
UNC-2A 69-662-18
61-060641-40- 0142B0542B
CIRCUIT BREAKER:
15 AMPERE
MS25244-P-15
320-0410
SCREW, MACHINE: PAN HEAD.
6-32X½ UNC-2A.
RECEPTACLE COVER
MOUNTING
MS35206-230
822-1032
NUT, ASSEMBLED WASHER,
HEX: 6-32 UNC-2B,
RECEPTACLE COVER
MOUNTING
69-561-2
511-061800-00
COVER. RECEPTACLE
5211
GASKET
69-669
04306-0244
SCREW, ASSEMBLED
WASHER: PAN.HEAD
6-32X3/8 UNC-2A
69-662-18
61-06041-0142B0542B
NUT, ASSEMBLED WASHER,
HEX: 6-32 UNC-2B
69-561-2
511-061800-00
CONNECTOR RECEPTACLE,
ELECTRICAL: DUPLEX
WC596/12-4
80965D
STUD, FASTENER: SWITCH
COVER
3797
98292-2-220
PIN, CROSS, STUD FASTENER
69-695
99836
SCREW, MACHINE: PAN HEAD,
10-24X½ UNC-2A, SWITCH
COVER MOUNTING
MS35206-263
822-1067
(8)
30554
10582
30554
78189
96906
44940
96906
44940
30554
78189
74545
30554
93568
30554
78189
30554
78189
81348
04009
92878
76530
30554
76530
96908
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
13
13
13
13
13
13
13
13
13
13
13
REPL
FACTOR
NATIONAL
STOCK
NUMBER
(7)
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
3
24
EA
1
1
EA
3
3
FT
V
V
EA
4
16
EA
4
52
EA
2
16
EA
2
52
EA
2
21
EA
2
2
EA
4
5
EA
35
35
EA
36
57
EA
35
53
USABLE
ON CODE U.M.
GROUP 06 OUTPUT CONTROL BOX
ASSEMBLY ASSY - CONT
14
15
16
17
18
19
20
21
22
23
24
25
PAOZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
XB--
XB---
XB---
XB--
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
XBFZZ
XB
PAFZZ PAOZZ
XDFFF
AOO
5310-00-094-3421
5930-01-056-8339
5320-00-753-3830
5340-01-153-7130
5305-00-068-0502
5310-00-582-5965
5305-00-068-0509
5310-00-582-5965
5310-00-761-6882
XB---
XB---
5310-00-809-4058
XB---
13
26
PAFZZ PAOZZ
XB---
5306-00-722-0393
13
27
PAFZZ PAOZZ
XB---
5310-00-045-3296
13
(6)
b.
13
13
(5)
DESCRIPTION
28
PAFZZ PAOZZ
XB---
5310-00-014-5850
50
NUT. ASSEMBLED WASHER,
HEX: 10-24 UNC-2B, SWITCH
COVER MOUNTING
69-561-4
511-101800-00
30554
78189
COVER, SWITCH
72-5182
301-3525
30554
44940
RIVET. SOLID: HINGE
MOUNTING
MS20613-4P5
818-1125
96906
44940
HINGE, BUTT: CONTINUOUS
MS35823-6C
96906
SCREW, CAP, HEX HEAD:
¼-20 X ¾ UNC-2A, ROTARY
SWITCH MOUNTING
MS90725-6
800-1005
WASHER, LOCK: ¼, ROTARY
SWITCH MOUNTING
MS35338-44
850-1040
SCREW. CAP, HEX HEAD:
¼-20 X 1-114 UNC-2A,
ROTARY SWITCH MOUNTING
MS90728-10
600-1008
WASHER, LOCK: ¼, ROTARY
SWITCH MOUNTING
MS35338-44
850-1040
NUT PLAIN, HEX: ¼-20
UNC-2B, ROTARY SWITCH
MOUNTING
MS51967-2
862-1001
SPACER, SLEEVE
72-5189
301-3480
WASHER, FLAT
MS27183-10
72-5345
308-0590
SWITCH ASSEMBLY, ROTARY
72-5346
SCREW, CAP, HEX, HEAD:
10-32 X ½
AN3-4A
WASHER, LOCK: NO. 10
MS35338-43
WASHER, FLAT
MS27183-42
96906
44940
96906
44940
96906
44940
96906
44940
96906
44940
30554
44940
96908
30554
44940
EA
30554
88044
96906
96906
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
13
13
13
29
30
31
32
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
XB---
XB--XB--XB--
REPL
FACTOR
NATIONAL
STOCK
NUMBER
5310-01-012-3595
5940-00-143-4774
5940-00-143-4780
5940-00-143-4794
13
33
PAFZZ PAOZZ
XB---
6145-00-284-0657
13
34
PAFZZ PAOZZ
XB--
6145-00-578-6605
13
35
PAOZZ PAOZZ PAZZZ
5305-00-226-7223
13
36
PAOZZ PAOZZ PAZZZ
5310-00-274-8707
13
13
37
38
PAOZZ PAOZZ
XB---
PAFZZ PAOZZ PAHZZ
5355-00-281-6244
5930-01-153-2304
13
39
PAFZZ PAOZZ
XB---
5305-00-059-8263
13
40
PAFZZ PAOZZ
XB---
5310-00-809-4058
13
41
PAFZZ PAOZZ
XB--
5305-00-036-6968
13
13
13
13
13
42
43
44
45
46
PBFFF
AOO
PAFZZ PAOZZ
MFFFF
AOO
PAFZZ PAOZZ
PAFZZ
AOO
XB---
XB---
5925-01-214-5416
5975-00-727-5153
XB--
XB--XB--
(6)
(7)
b.
13
13
(5)
DESCRIPTION
5940-00-557-4341
5940-00-557-4341
51
REF NUMBER & MFR NUMBER
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
35
75
EA
1
51
EA
1
21
EA
28
28
FT
V
V
FT
V
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
13
13
4
5
6
12
EA
1
1
EA
1
13
EA
1
1
EA
1
6
EA
1
4
USABLE
ON CODE U.M.
GROUP 06 OUTPUT CONTROL BOX
ASSEMBLY ASSY - CONT
NUT, ASSEMBLED WASHER,
HEX: 10-32 UNF-2B
69-561-6
511-101800-50
TERMINAL, LUG
MS25036-153
TERMINAL, LUG
MS25036-106
TERMINAL, LUG
MS25036-112
WIRE, ELECTRICAL: 8 AWG,
WHITE
M5086/2-8-9
WIRE, ELECTRICAL: 16 AWG,
WHITE
M5086/2-16-9
SCREW, MACHINE: FILLISTER
HEAD. 8-32 X 112 UNC-2A
MS35273-45
WASHER, LOCK: NO. 8
MS35338-61
KNOB
03524-2
SWITCH, ROTARY
72-5345
308-0590
SCREW, MACHINE: 8-32 X ¼
UNC-2A
MS35214-38
WASHER
MS27183-10
SCREW, ASSEMBLED
WASHER: PAN HEAD, 6-32 X
3/8 UNC-2A, CIRCUIT
BREAKER ASSY MTG
69-662-18
61-06041-40-0142B0542B
CIRCUIT BREAKER ASSEMBLY
72-5196
320-0461
STRAP, TIEDOWN
MS3367-4-9
332-0492
LEAD, ELECTRICAL
72-5175-1
336-2101
TERMINAL, LUG
MS25036-123
TERMINAL, LUG
MS25036-123
(8)
30554
78189
96906
96906
96906
81349
81349
96906
96906
82121
30554
44940
1 96906
EA
96906
EA
30554
78189
30554
44940
96906
44940
30554
44940
96906
96906
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
PAFZZ PAOZZ
MFFFF
AOO
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
MFFFF
AOO
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
MFFFF
AOO
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
MFFFF
AOO
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
MFFFF
AOO
XB---
REPL
FACTOR
NATIONAL
STOCK
NUMBER
6145-00-578-6595
XB---
XB--XB--XB---
5940-00-557-4341
5940-00-557-4341
6145-00-578-6595
XB---
XB--XB-XS---
5940-00-557-4341
5940-00-557-4341
6145-00-578-6595
XB---
XB---
XB--XB---
5940-00-941-0948
5940-00-557-4341
6145-00-578-6595
XB---
XB--.
XB---
XB---
(6)
(7)
b.
13
13
(5)
DESCRIPTION
5940-00-557-4341
5940-00-941-0948
6145-00-578-6595
XB---
52
REF NUMBER & MFR NUMBER
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
5
EA
1
4
FT
V
EA
1
1
EA
1
6
EA
1
4
FT
V
EA
1
1
EA
1
4
EA
1
4
FT
V
EA
1
1
EA
1
6
EA
1
4
FT
V
EA
1
USABLE
ON CODE U.M.
GROUP 06 OUTPUT CONTROL BOX
ASSEMBLY ASSY - CONT
WIRE, ELECTRICAL: 4 AWG,
WHITE
M5086/2-4-9
334-1289
LEAD, ELECTRICAL
72-5175-2
336-2102
TERMINAL, LUG
MS25036-123
TERMINAL. LUG
MS25036-123
WIRE, ELECTRICAL: 4 AWG.
WHITE
M5086-2-4-9
334-1289
LEAD, ELECTRICAL
72-5175-3
336-2103
TERMINAL, LUG
MS25036-123
TERMINAL, LUG
M825036-123
WIRE, ELECTRICAL: 4 AWG.
WHITE
M5086-2-4-9
334-1289
LEAD, ELECTRICAL
72-5175-4
336-2104
TERMINAL, LUG
76-11297
AE04CL5
TERMINAL
MS25036-123
WIRE, ELECTRICAL: 4 AWG,
WHITE
M5086-2-4-9
334-1289
LEAD. ELECTRICAL
72-5175-5
336-2105
TERMINAL, LUG
MS25036-123
TERMINAL, LUG
76-11297
YAEV4CL5
WIRE, ELECTRICAL: 4 AWG,
WHITE
M5086-2-4-9
334-1289
LEAD, ELECTRICAL
72-5175-6
336-2106
(8)
FT
81349
44940
30554
44940
96906
96906
81349
44940
30554
44940
96906
96906
81349
44940
30554
44940
30554
09922
96906
81349
44940
30554
44940
96906
30554
09922
81349
44940
30554
44940
1
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
13
13
13
13
13
13
13
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
13
13
(5)
DESCRIPTION
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
6
EA
1
4
FT
V
EA
1
1
EA
1
6
EA
1
4
FT
V
EA
1
USABLE
ON CODE U.M.
GROUP 06 OUTPUT CONTROL BOX
ASSEMBLY ASSY - CONT
65
66
67
68
69
70
71
72
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
MFFFF
AOO
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
XB---
XB--
XB---
5940-00-557-4341
5940-00-941-0948
6145-00-578-6595
XB--
XB---
XB--
XB---
XB---
5940-00-577-4341
5940-00-941-0948
6145-00-576-6595
5925-01-050-0484
53
TERMINAL, LUG
MS25036-123
96906
TERMINAL, LUG
76-11297
YAEV4CL5
30554
09922
WIRE, ELECTRICAL: 4 AWG,
WHITE
M5086-2-4-9
334-1289
81349
44940
LEAD, ELECTRICAL
72-5175-7
336-2107
30554
44940
TERMINAL. LUG
MS25036-123
YAEV4CL
96906
09922
TERMINAL, LUG
76-11297
YAEV4CL5
30554
09922
WIRE, ELECTRICAL, 4 AWG,
WHITE
M5086-2-4-9
334-1289
81349
44940
CIRCUIT BREAKER
72-5173
CD3Z142-1
30554
74193
1
ARMY TM 96115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 14. AC Control - Wiring Harness, Rectifier Bridge and Identification Plates
54
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
14
14
14
14
14
14
14
14
14
14
14
14
14
14
ITEM
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
XB---
PAFZZ PAOZZ PAFZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
MFFFF
AOO
XB---
XB---
PAFZZ PAOZZ
PAFZZ PAOZZ
XB--
XB---
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
SSI
XB---
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
5305-00-889-3000
5310-00-063-7360
5305-00-889-3000
5310-00-063-7360
5975-00-727-5153
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
a.
(4)
5935-01-038-9639
5975-00-727-5153
5940-00-143-5284
6145-00-284-0657
5305-00-543-2188
5310-00-063-7360
5305-00-889-2997
5310-00-052-3632
55
REF NUMBER & MFR NUMBER
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
4
18
EA
4
50
EA
4
18
EA
4
50
EA
10
13
EA
1
1
EA
1
2
EA
1
13
EA
6
15
FT
33
76.5
EA
2
4
EA
2
50
EA
8
20
EA
8
16
USABLE
ON CODE U.M.
GROUP 06 OUTPUT CONTROL BOX
ASSEMBLY - CONT
SCREW, MACHINE, PAN HEAD,
6-32 X ½ UNC-2A
MS35206-230
822-1032
NUT, ASSEMBLED WASHER,
HEX: 6-32 UNC-2B
69-561-2
511-061800-00
SCREW, MACHINE, PAN HEAD,
6-32 X ½ UNC-2A
MS35206-230
822-1032
NUT. ASSEMBLED WASHER,
HEX: 6-32 UNC-2B
69-561-2
511-061800-00
STRAP. TIEDOWN
MS3367-4-9
332-0942
HARNESS, WIRING: AC
OUTPUT
72-5185
338-0577
CONNECTOR, RECEPTACLE,
ELECTRICAL
MS3456W24-10P
323-0795
STRAP, TIEDOWN
MS3367-4-9
332-0942
TERMINAL, LUG
M$25036-115
332-0913
WIRE, ELECTRICAL: 8 AWG.
WHITE
M5086-2-8-9
334-1287
SCREW, MACHINE: PAN HEAD,
6-32 X ¾ UNC-2A
M35223-32
822-1034
NUT, ASSEMBLED WASHER,
HEX: 6-32 UNC-2B
69-561-2
511-061800-00
SCREW, MACHINE; PAN HEAD,
4-40 X 3/8 UNC-2A
M35206-215
822-1016
NUT, ASSEMBLED WASHER,
HEX: 4-40 UNC-2B
69-561-3
511-081800-00
(8)
96906
44940
30554
78189
96906
44940
30554
78189
96906
44940
30554
44940
96906
44940
96906
44940
96906
44940
81349
44940
96906
44940
30554
78189
96906
44940
30554
78189
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
14
14
14
14
14
14
14
14
14
14
14
14
ITEM
NO.
15
16
17
18
19
20
21
22
23
24
25
26
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
MFFFF
AOO
PAFZZ PAOZZ
XB--
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
SSI
XB---
XB---
XB---
PAFZZ PAOZZ PAZZZ
REPL
FACTOR
NATIONAL
STOCK
NUMBER
5305-00-984-6195
5310-00-052-3632
5975-00-074-2072
5935-01-035-5157
5935-00-834-2008
5935-01-038-9639
5940-00-578-3482
5940-00-727-5364
5940-00-949-3161
5940-00-983-6084
5940-00-143-4775
14
27
PAFZZ PAOZZ PAZZZ
5940-00-143-5284
14
28
PAFZZ PAOZZ PAZZZ
5940-00-143-4780
14
14
29
30
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
(5)
DESCRIPTION
(6)
(7)
b.
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
a.
(4)
5940-00-143-4774
5940-00-113-8179
56
REF NUMBER & MFR NUMBER
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
4
10
EA
4
30
EA
1
1
EA
23
120
EA
1
1
EA
1
1
EA
1
2
EA
1
7
EA
2
2
EA
1
1
EA
1
1
EA
4
4
19
25
EA
17
20
EA
35
50
EA
25
138
USABLE
ON CODE U.M.
GROUP 06 OUTPUT CONTROL BOX
ASSEMBLY - CONT
SCREW, MACHINE: PAN HEAD,
8-32 X ¾ UNC-2A
MS35206-247
822-1050
NUT. ASSEMBLED WASHER,
HEX: 8-32 UNC-2B
69-561-3
511-081800-00
HARNESS, WIRING: OUTPUT
CONTROL BOX
72-5187
338-0580
STRAP, TIEDOWN
MS3367-1-9
332-0941
CONNECTOR, RECEPTACLE,
ELECTRICAL
MS3450WLOS13S
323-0940
CONNECTOR, RECEPTACLE.
ELECTRICAL
MS3100R22-14S
323-0824
CONNECTOR. RECEPTACLE.
ELECTRICAL
MS3450W24-10P
323-0795
LINK, TERMINAL
69-651-2
601J
LINK, TERMINAL
69-651-4
603J
TERMINAL BOARD
72-5157
603JJ8
TERMINAL BOARD
MILT55164-2-38TB6
332-1452
TERMINAL, LUG
MS25036-156
332-1120
TERMINAL, LUG
MS25036-115
332-0913
TERMINAL, LUG
MS25036-108
332-0807
TERMINAL, LUG
MS25036-153
332-0806
TERMINAL, LUG
MS25036-107
332-1886
(8)
96906
44940
30554
78189
30554
44940
96906
44940
96906
44940
96906
44940
96906
44940
30554
26405
30554
75382
30554
75382
81349
44940
96906
44940
EA
96906
44940
96906
44940
96906
44940
96906
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
2
12
FT
18
76.5
FT
6
30
FT
87
370
EA
1
1
EA
2
30
EA
1
1
EA
4
30
EA
1
1
EA
2
30
EA
1
1
EA
2
8
EA
1
4
EA
14
14
USABLE
ON CODE U.M.
GROUP 06 OUTPUT CONTROL BOX
ASSEMBLY - CONT
14
31
PAFZZ PAOZZ PAZZZ
14
32
PAFZZ PAOZZ
14
14
14
14
14
14
14
14
14
14
14
14
33
34
35
36
37
38
39
40
41
42
43
44
PAFZZ PAOZZ
PAFZZ PAOZZ
PBFFF
XB
PAFZZ PAOZZ
MD
MDO
PAFZZ PAOZZ
MD
MDO
PAFZZ PAOZZ
MDF
MDO
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZ
XB--
XB--
XB--
XB---
XB---
XB--
XB---
XB--
XB---
XB--
XB---
XB---
XB---
5940-00-143-4794
MS25036-112
332-0350
6145-00-284-0657
6145-00-578-7514
6145-00-578-6605
5975-01-238-3280
5320-01-049-8263
9905-01-047-8347
5320-01-049-8263
9905-01-047-8348
5320-01-049-8263
9905-01-047-8349
5320-00-241-6020
5325-00-449-2967
5310-01-088-3528
57
WIRE, ELECTRICAL:
8 AWG, WHITE
M5086-2-8-9
334-1287
WIRE, ELECTRICAL:
12 AWG, WHITE
M5086-2-12-9
334-1285
TERMINAL, LUG
96906
44940
81349
44940
81349
44940
WIRE. ELECTRICAL:
16 AWG, WHITE
M5086-2-16-9
334-1283
81349
44940
BOX, CONTROL
72-5161
301-3472
30554
44940
RIVET, TUBULAR
72-5018
RV630-4-2
30554
98996
PLATE, IDENTIFICATION
72-5172
99-1182
30554
98623
RIVET, TUBULAR
72-5018
RV630-4-2
30554
98996
PLATE, IDENTIFICATION
72-5169
99-1238
30554
98623
RIVET, TUBULAR
72-5018
RV630-4-2
30554
98996
PLATE, IDENTIFICATION
72-5171
99-1237
30554
98623
RIVET, SOLID
MS20427-4C4
818-1133
96906
44940
RECEPTACLE, STUD
FASTENER
69-693-2
99947P130
30554
76530
NUT, CAPTIVE
72-5102-1
C7956-1420-3B
30554
78553
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 15. Bridge Rectifier Assembly
58
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
2
2
EA
4
8
EA
4
50
EA
1
2
EA
1
1
EA
6
13
EA
2
2
EA
1
1
USABLE
ON CODE U.M.
GROUP 06 OUTPUT CONTROL BOX
ASSEMBLY
15
15
15
15
15
15
15
15
15
-
1
2
3
4
5
6
7
8
PAFFF PAOZZ PAGZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ
PAFZZ
PAFZZ
XA
XA
XA
PAFZZ PAOZZ
XAFZZ
XA
XB--
XB---
XB---
5998-01-054-9637
5305-00-984-4993
530500-889-3001
5310-00-063-7360
XB--
XB--
PAGZZ
XB--
5905-00-081-7350
5961-00-914-9740
5940-00-082-4861
XA--
59
RECTIFIER ASSEMBLY,
BRIDGE: EXCITER
72-5179
332-1371
SCREW, MACHINE: PAN HEAD.
6-32 X 7/8 UNC-2A
MS35206-233
822-1035
SCREW. MACHINE: PAN HEAD.
6-32 X 5/8 UNC-2A
MS35206-231
822-1033
30554
44940
96906
44940
96906
44940
NUT, ASSEMBLED WASHER,
HEX: 6-32 UNC-2B
69-561-2
511-061800-00
30554
78189
TERMINAL, BOARD
MILT55164-4-40TB6
20A06
81349
75382
RESISTOR. FIXED,
WIREWOUND
RW67V560
353-0056
81349
44940
SEMICONDUCTOR
DEVICE DIODE
JAN1N4246
357-0016
81349
44940
TERMINAL, STUD
M55155/12XH02
332-1861
81349
44940
PRINTED WIRING BOARD
72-5181
332-1365
30554
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 16. Fuel System - Less Tank
60
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
2
2
EA
1
1
EA
1
1
FT
5
1
EA
1
1
EA
2
10
FT
25
32
EA
1
1
FT
2
4
FT
4.1
133
EA
3
18
EA
3
43
EA
3
78
USABLE
ON CODE U.M.
GROUP 07 FUEL SYSTEM-LESS TANK
16
16
16
16
16
16
16
16
16
16
16
16
16
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
AOOOO AOO AHOHH
PAOZZ PAOZZ
XBOZZ
XB
PAOZZ PAOZZ
PAOZZ PAOZZ
XB---
5340-01-086-2049
XB---
XB---
XB--
4730-00-421-3209
4010-00-554-8661
MOOOO AOO AGGGG
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
4730-00-842-2201
4720-00-289-9197
MOOOO AQO AGGGG
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
4730-00-842-2200
4720-00-639-9907
5305-00-269-3211
5310-00-732-0558
5310-00-637-9541
61
LINE. FUEL AUXILIARY
69-668
FA1493FFF3000
30554
01276
PLUG, PROTECTIVE
M5501/8-F6
81349
RING, RETAINING
518-0369
44940
UNION
842HFB08
502-1452
30327
44940
CHAIN
42C16550
10601
HOSE ASSEMBLY, FUEL
MS28741-5-2992
96906
FITTING, HOSE
MS24587-5
96906
HOSE, RUBBER
MILH8794-5
81349
HOSE ASSEMBLY. FUEL
MS28741-4-0490
501-0192
96906
44940
FITTING, HOSE
MS24587-4
96906
HOSE, RUBBER
MILH8794-4
81349
SCREW, CAP, HEX HEAD:
3.8-16 X 1 UNC-2A
MS90725-60
800-1050
96906
44940
NUT, PLAIN, HEX: 3/8-16 UNCG2B
MS51967-8
862-1003
96906
44940
WASHER, LOCK: 3/8
MS35338-46
850-1050
96906
44940
ARMY TM 9-6115-58424P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 17. Fuel Filter Assembly
62
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
2
10
FT
1.5
32
EA
3
3
EA
2
10
FT
1.2
32
EA
6
6
EA
9
17
EA
9
78
EA
1
1
USABLE
ON CODE U.M.
GROUP 07 FUEL SYSTEM - LESS TANK CONT
17
17
17
17
17
17
17
17
17
17
17
-
1
2
3
4
5
6
7
8
9
10
AOOOO AOO AOOOO
MOOOO MOO AGGGG
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
4730-00-842-2201
4720-00-289-9197
MOOOO MOO AGGGO
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ 'PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
XBOZZ
XB
4730-00-842-2201
4720-00-289-9197
4730-01-096-3170
5305-00-269-3206
5310-00-637-9541
XB--
FILTER, ASSEMBLY, FUEL
72-5070
149-1269
30554
44940
HOSE ASSEMBLY, FUEL
MS28741-5-0170
501-0175
96906
44940
FITTING, HOSE
MS24587-5
96906
HOSE, RUBBER
MILH8794-5
81349
HOSE ASSEMBLY, FUEL
MS28741-5-0122
72-5109
96906
30554
FITTING, HOSE
MS24587-5
96906
HOSE, RUBBER
MILH8794-5
81349
ELBOW, PIPE: 90 DEG
MS51504A5-4
96906
SCREW, CAP, HEX HEAD:
3/8-16 X ¾ UNC-2A
MS90725-55
800-1048
96906
44940
WASHER, LOCK: 3/8
MS3533846
850-1050
91349
44940
BRACKET, ANGLE: FILTER
MOUNTING
72-5062
149-1262
63
30554
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 18. Fuel Filter - Exploded View
64
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
3
EA
1
3
EA
1
3
EA
1
3
EA
1
3
EA
1
3
EA
1
3
EA
1
3
EA
1
3
USABLE
ON CODE U.M.
GROUP 07 FUEL SYSTEM - LESS TANK
CONT
18
18
18
18
18
18
18
18
18
-
1
2
3
4
5
6
7
8
PBOOO PAOOO XB---
PAOZZ PAOZZ
PAOZZ PAOZZ
XB---
XB---
PAOZZ PAOZZ PAOZZ
PBOZZ PBOZZ
XB---
PAOZZ PAOZZ PAOZZ
PAOZZ PAOZZ PAOZZ
PAOZZ PAOZZ
XBOZZ
XB
XB---
2910-01-053-5233
4730-00-537-1192
4730-00-861-6890
5310-00-595-6398
2910-00-830-0154
5330-00-663-4773
2910-00-287-1930
4820-00-752-9040
XB--
65
FILTER, FUEL, SECONDARY
72-5063
F1125-ON
30554
73370
PLUG. PIPE
104018
73370
BOLT, FILTER
104071
73370
WASHER, FLAT
101487
149-1480
73370
44940
HEAD, FILTER
10148B
149-1481
73370
44940
GASKET, HEAD: FILTER
101489
149-1482
73370
44940
CARTRIDGE, FILTER
C1125PL
149-1483
73370
44940
COCK, DRAIN
106498
149-1465
73370
44940
BODY AND CENTRALIZER
244351
149-1484
73370
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 19. Fuel Strainer- Exploded View
66
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
3
EA
1
1
USABLE
ON CODE U.M.
GROUP 07 FUEL SYSTEM - LESS TANK CONT
19
19
19
19
19
19
19
19
19
19
19
-
1
2
3
4
5
6
7
8
9
10
PBOOO PAOOO
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZ
PAOZZ PAOZZ
XBOZZ
XB
PBOZZ PBOZZ
XB--
XB---
XB--
XB---
XB---
XB--
XB---
PAOZZ PAOZZ PAOZZ
XBOZZ
XB
5310-00-784-0033
5310-00-639-6385
5307-00-784-0015
4820-00-752-9040
XB---
PAOZZ PAOZZ PAOZZ
PAOZZ PAOZZ
2910-01-046-8845
2910-00-036-3612
2910-20-374-6020
5310-01-048-9981
5330-00-663-4773
XB---
67
STRAINER. FUEL
72-5064
244344
30554
73370
NUT, CROWN
102458
149-1476
73370
44940
WASHER, FLAT
151328
149-1475
73370
44940
STUD. PLAIN
106933
149-1467
73370
44940
COCK. DRAIN
106498
149-1465
73370
44940
BODY, ASSEMBLY, STRAINER
244609
149-1471
73370
44940
RETAINER, CARTRIDGE
35066
149-1470
73370
44940
CARTRIDGE, STRAINER
1752002-01
149-1469
90005
44940
NUT. PLAIN, HEX
244608
149-1468
73370
44940
GASKET, HEAD: STRAINER
101489
149-1482
73370
44940
HEAD, STRAINER
149-1464
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 20. Fuel Pump Assembly - Exploded View
68
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
20
XBOOO
AOO AGGGG
20
1
MOOOO MOO AGGGG
20
2
PAOZZ PAOZZ PAZZZ
4730-00-842-2201
20
3
PAOZZ PAOZZ PAZZZ
4720-00-289-9197
20
4
MOOOO MOO AGGGG
20
5
PAOZZ PAOZZ PAZZZ
4730-00-842-2201
20
6
PAOZZ PAOZZ PAZZZ
4720-00-289-9197
20
7
PAOZZ PAOZZ
XB---
4730-00-287-0548
20
8
PAOZZ PAOZZ
XB---
4810-01-053-5337
20
9
PAOZZ PAOZZ
XB---
4730-00-301-7470
20
10
PAOZZ PAOZZ
XB---
4730-01-240-6108
20
11
PAOZZ PAOZZ
XB---
4730-00-812-1333
20
12
XAOZZ
XA---
20
13
PAOZZ PAOZZ
XB---
4010-00-809-2719
20
14
PAOZZ PAOZZ
XB---
4030-00-270-5436
20
: 15
PAOZZ PAOZZ
XB---
4730-01-049-0746
20
16
PAOZZ PAOZZ PAZZZ
5305-00-071-2505
20
17
PAOZZ PAOZZ PAZZZ
5310-00-761-6882
20
18
PAOZZ PAOZZ PAZZZ
5310-00-582-5965
XA-
(5)
DESCRIPTION
69
REF NUMBER & MFR NUMBER
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
2
10
FT
1.2
32
EA
2
2
EA
2
10
FT
3
32
EA
1
1
EA
1
1
EA
1
2
EA
1
1
EA
1
2
EA
1
2
IN
4.5
9
EA
2
4
EA
5
6
EA
4
4
EA
4
21
EA
4
52
USABLE
ON CODE U.M.
GROUP 07 FUEL SYSTEM - LESS TANK CONT
PUMP ASSEMBLY. FUEL
72-5090
30554
149-1274
44940
HOSE ASSEMBLY, FUEL
MS28741-5-0130
96906
501-0140
44940
FITTING, HOSE
MS24587-5
96906
HOSE. RUBBER
MILH8794-5
81349
HOSE, ASSEMBLY. FUEL
MS28741-5-0354
96906
501-0113
44940
FITTING, HOSE
MS24587-5
96906
HOSE. RUBBER
MILH8794-5
81349
CONNECTOR, HOSE
AN 816-5-4B
88044
502-0359
44940
VALVE. SOLENOID
72-5069
30554
203X1 60
02288
ADAPTER, PIPE:
¼ NPTF BRASS
3200X4
79470
502-0176
44940
ELBOW. PIPE: 90 DEG
3400X4
79470
502-0054
44940
CAP. TUBE
69-539-2
30554
SP2272FM
70411
CAP
8129X4
79470
CHAIN
NAS1455-8-17C
80205
HOOK
MS87006-3
96906
ELBOW. PIPE: 90 DEG
2025-4-5B
01276
502-0380
44940
SCREW, CAP, HEX HEAD:
¼-20 X 7/8 UNC-2A
B1821BH025C088N
80204
NUT, PLAIN, HEX:
¼-20 UNC-2B
MS51967-2
96906
862-1001
44940
WASHER. LOCK: ¼
MS35338-44
96906
850-1040
44940
(8)
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
4
14
EA
3
3
EA
1
3
EA
1
3
EA
1
3
EA
1
3
EA
4
EA
4
23
EA
8
8
EA
1
1
USABLE
ON CODE U.M.
GROUP 07 FUEL SYSTEM - LESS TANK CONT
20
20
20
20
20
20
20
20
20
20
19
20
21
22
23
24
25
26
27
28
PAOZZ PAOZZ PAZZZ
PAOOO PAOOO PAGGG
XAOZZ
XB
PAOZZ PAOZZ
XB---
XB--
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
XBOZZ
XB
2910-01-0957595
XA--
PAOZZ PAOZZ PAOZZ
PAOZZ PAOZZ
5310-00-889-2528
XB---
2910-00-893-6402
5330-00-763-9322
2910-00-483-5176
530600-225-8498
5310-00-880-7744
5310-00-889-2527
WASHER, LOCK: ¼, EXTIINT
TOOTH
MS45904-68
856-1006
96906
44940
PUMP. FUEL: ELECTRIC, 24
VOLT
72-5313
480517
30554
72850
COVER, PUMP
479130
149-1453
72850
44940
STRAINER, FUEL
479135
149-1445
72850
44940
GASKET, PUMP COVER
479136
149-1446
72850
44940
DISC MAGNET
479012
149-1447
72850
44940
BOLT, MACHINE: 5/16-18 7/8
UNC-2A
MS90725-33
800-1027
96906
44940
NUT. PLAIN, HEX: 5/16-18
UNC-2B
MS51967-5
862-1015
96906
44940
WASHER. LOCK: 5/16
MS45904-72
856-1008
96906
44940
BRACKET. ANGLE: PUMP
MOUNTING
72-5065
149-1270
70/(71 blank)
30554
44940
ARMY TM 96115-584-24P
NAVY NAVFAC P-8622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 21. Air Cleaner Assembly
72
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
2
4
EA
1
1
EA
2
4
EA
1
1
EA
4
17
EA
4
78
EA
4
23
EA
6
25
EA
6
49
EA
3
3
EA
1
1
USABLE
ON CODE U.M.
GROUP 08 AIR CLEANER ASSEMBLY
21
21
21
1
2
3
.21
21
21
21
21
21
21
21
21
21
PAOZZ PAOZZ PBHZZ
PAOZZ PAOZZ PAZZZ
5685-00-179-8632
4730-00-909-8627
MOOZZ MOO MOZZZ
PAOZZ PAOZZ PAZZZ
4
5
6
7
8
9
10
11
12
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
XBOZZ
XBOZZ
XB
XB
INDICATOR, AIR QUALITY
69-788
RBX00-2280
30554
18265
CLAMP, HOSE
72-5096-1
36H
30554
66295
HOSE, PREFORMED
72-5301
4169A
30554
24161
4720-00-809-8802 MADE FROM: HOSE
PREFORMED
MS521302B119R
4730-00-909-8627
4720-01-154-7116
5305-00-115-9526
5310-00-637-9541
5310-00-732-0558
5306-01-075-8519
5310-00-407-9566
XB--
XB---
CLAMP, HOSE
72-5096-1
36H
30554
66295
HOSE, AIR: DUCT
72-5076
4663-1403
30554
24161
SCREW, CAP, HEX HEAD:
3/8-16 X ¾ UNC-2A
B1821BH038C0750
800-1048
80204
44940
WASHER, LOCK: 3/8
MS35338-46
850-1050
96906
44940
NUT, PLAIN, HEX: 3/8-16
UNC-2B
MS51967-8
862-1003
96906
44940
SCREW, CAP, HEX HEAD:
5/16-18 X ¼
MS90725-36
800-1030
96906
44940
WASHER, LOCK: 5/16
MS35338-45
850-1045
96908
44940
SPACER PLATE
72-5056
140-1172
96908
44940
BRACKET MOUNTING: AIR
CLEANER
72-5061
140-1170
73
FT
30554
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 22. Air Cleaner - Exploded View
74
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
2
2
EA
2
2
EA
2
2
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 08 AIR CLEANER ASSEMBLY CONT
22
22
22
22
22
22
22
22
22
22
22
22
PBOOO
1
2
3
4
5
6
7
8
9
10
11
AOO AGGGG
PBOZZ PBOZZ
XB---
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PBOZZ PBOZZ
PBOOO PBOZZ
PAOZZ PAOZZ
PBOZZ PBOZZ
PBOZZ PBOZZ
PAOZZ PAOZZ
XB---
XB---
XB---
XB---
XA---
XB---
PAOZZ PAOZZ PAOZZ
XAOZZ
XB
2940-01-179-4145
2940-01-244-1526
5305-00-988-1171
5310-00-982-4938
5340-01-199-2193
5340-01-188-8200
2940-00-009-5294
4320-00-019-2992
4320-00-019-2991
5310-01-190-4614
1040-00-019-2984
XB--
AIR CLEANER ASSEMBLY
72-5067
KAX00-3851
30554
18265
CAP, AIR CLEANER
GAH00-1068
140-1445
18265
44940
SCREW, MACHINE: PAN HEAD.
1/4-20 X 1-1/2 UNC-2A
MS35206-285
822-1091
96906
44940
NUT, SQUARE: 1/4-20 UNC-2B
MS27040-10
863-0002
96906
44940
BAND, AIR CLEANER
P00-7191
140-1446
18265
44940
AIR CLEANER SUBASSEMBLY
FWG06-5128
140-1440
18265
44940
CLAMP, AIR CLEANER
P00-2940
140-1437
18265
44940
CUP, AIR CLEANER
P 10-2805
140-1438
18265
44940
BAFFLE, AIR CLEANER
P10-2510
140-1439
18265
44940
NUT, ASSEMBLY, WING
P10-1870
140-1436
18265
44940
ELEMENT, AIR CLEANER
P18-1052
140-1204
18265
44940
SHUTTER ASSEMBLY, AIR
CLEANER
KYX00-4504
140-1443
75
18265
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 23. Generator Assembly
76
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
8
23
EA
8
43
EA
8
78
EA
8
22
EA
4
4
EA
4
13
EA
4
4
EA
2
2
EA
1
1
EA
2
2
EA
1
1
EA
1
1
EA
2
4
EA
2
3
EA
2
13
EA
4
8
USABLE
ON CODE U.M.
GROUP 09 GENERATOR ASSEMBLY
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
23
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
XBFZZ
XBFZZ
XB
XB
XBFZZ
XB
5310-00-732-0558
5310-00-637-9541
5310-00-080-6004
5305-00-071-2056
5310-00-209-0965
5310-00-809-5997
XB---
5315-00-843-7986
XB---
AOO AHHHH
PAFZZ PAOZZ
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
SCREW, CAP, HEX HEAD:
3/8-16 X 1-1/2 UNC-2A
B1821BH038C150N
800-1052
96906
44940
WASHER, LOCK: 3/8
MS35338-46
850-1050
96906
44940
WASHER, FLAT: 3/8
MS27183-14
526-1516
96906
44940
SCREW, CAP, HEX HEAD:
7/16-14 X 1-3/4 UNC-2A
B1821BH044C175N
800-1074
80204
44940
WASHER, LOCK: 7/16
MS35338-47
850-1055
96906
44940
WASHER, FLAT: 7/16
MS27183-17
526-1519
96906
44940
5310-00-926-5916
5310-00-209-0965
5310-00-809-4085
77
30554
44940
SPACER, ASSEMBLY,
MOUNTING: GENERATOR
72-5088
402-0399
30554
44940
PIN, STRAIGHT, HEADLESS
MS16562-33
516-0164
96906
44940
BAR, SPACER
402-0392
44940
MOUNT, ASSEMBLY,
GENERATOR
72-5060
402-0378
5305-00-638-2938
80204
44940
NUT, PLAIN HEX: 3/8-16
UNC-2B
MS51967-8
862-1003
SPACER, MOUNTING:
GENERATOR
72-5055
402-0376
XB---
PAFZZ PAOZZ PAZZZ
XBFZZ
5305-00-725-2317
30554
44940
SCREW, CAP, HEX HEAD:
7/16-20 X 6 UNF-2A
801-0503
44940
NUT, PLAIN, HEX: 7/16-20
M851968182
8867-1004
96906
44940
WASHER, LOCK: 7/16
MS35338-47
850-1055
96906
44940
WASHER, FLAT: 7/16
MS27183-16
528-1518
96906
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
4
6
EA
4
8
EA
2
3
EA
2
3
EA
1
1
EA
2
19
EA
2
21
EA
2
52
EA
1
1
EA
12
12
EA
12
78
EA
8
8
EA
4
4
EA
4
4
USABLE
ON CODE U.M.
GROUP 09 GENERATOR ASSEMBLY CONT
23
23
23
23
23
23
23
23
23
23
23
23
23
23
17
18
19
20
21
22
23
24
25
26
27
28
26
30
XBFZZ
XB
PAFZZ PAOZZ
XBFZZ
XB
XB---
XB---
XB---
PAFZZ PAOZZ PAZZZ
XBFZZ
XB
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
PBFZZ PAOZZ
5315-00-297-1745
XB--
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ
5340-01-045-7119
XB--
XB---
5305-00-225-3843
5310-00-761-6882
5310-00-582-5965
6115-01-049-2866
5310-00-732-0559
5310-00-637-9541
5306-01-303-2815
5340-01-049-0889
5340-01-050-6188
BRACKET, MOUNTING
72-5054
232-2202
30554
44940
MOUNT, RESILIENT
72-5051-3
J12021-5
30554
76005
SPACER, SLEEVE
72-5052
J7766-10
30554
76005
PIN, STRAIGHT, HEADLESS
M5171537
96906
SUPPORT, GENERATOR
72-5071
30554
SCREW, CAP, HEX HEAD:
1/4-20 X 1 UNC-2A
B1821BH025C100N
800-1007
80204
44940
NUT, PLAIN, HEX: 1/4-20
UNC-2B
MS51967-2
862-1001
96906
44940
WASHER, LOCK: 1/4
MS35338-44
850-1040
96906
44940
SCREEN, GENERATOR
72-5202
234-0382
30554
44940
NUT, PLAIN, HEX: 3/8-24
UNC-2B
MS51968-8
867-0027
96906
44940
WASHER, LOCK: 3/8
MS35338-46
850-1050
96906
44940
SCREW, CAP, HEX HEAD;
1/4-20 X 1-3/4 UNC-2A
MS90725-13
800-1010
96906
44940
LOCKPLATE
72-5219
232-2176
30554
44940
PLATE, PRESSURE, FAN
72-5218
232-2175
30554
44940
78(79 blank)
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 24. Generator Assembly - Exploded View.
80
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
4
4
EA
4
52
EA
1
1
EA
4
4
EA
4
52
EA
8
19
EA
8
52
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
2
5
FT
5
370
EA
4
16
EA
4
52
USABLE
ON CODE U.M.
GROUP 09 GENERATOR ASSEMBLY CONT
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
PAFHD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PAOFF PDDOH
6115-01-038-6728
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
XBFZZ
XB
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
MFFFF
AOO
5310-00-582-5965
XB--
PAFZZ PAOZZ PAZZZ
AFFFF
5305-00-068-0501
5305-00-071-2237
5310-00-582-5965
5305-00-225-3843
5310-00-582-5965
5330-00-579-3166
XB---
AOO AGGGG
PAFZZ PAOZZ
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
XB---
PAFZZ PAOZZ PAFZZ
PAFZZ PAOZZ PAZZZ
5935-01-047-7975
5940-00-283-5280
6145-00-655-2562
5305-00-068-0509
5310-00-582-5965
81
GENERATOR ASSEMBLY
72-5200
200-1148
30554
44940
SCREW, CAP, HEX HEAD:
1/4-20 X 5/8 UNC-2A
MS90725-5
800-1004
96906
44940
WASHER, LOCK: 1/4
MS35338-44
850-1040
30554
44940
COVER, END BELL
72-5201
237-0376
96906
44940
SCREW, CAP, HEX HEAD:
1/4-20 X 2 UNC-2A
MS90725-14
800-1011
96906
44940
WASHER, LOCK: 1/4
MS35338-44
850-1040
80204
44940
SCREW, CAP, HEX HEAD:
1/4-20 X UNC-2A
B1821BH025C100N
800-1007
80204
44940
WASHER, LOCK; 114
MS35338-44
850-1040
96906
44940
PACKING PREFORMED
MS28775-233
509-0099
96906
44940
END BELL ASSEMBLY
72-5205
211-0195
30554
44940
WIRING HARNESS
72-5237
338-0584
30554
44940
CONNECTOR, PLUG,
ELECTRICAL
MS3456W10SL-3P
323-0787
96906
44940
TERMINAL, LUG
MS25036-106
332-0805
96906
44940
WIRE, ELECTRICAL: 16 AWG,
WHITE
M5086/3-16-9
334-1283
81349
44940
SCREW, CAP., HEX HEAD: 1/4 X
1-1/4 UNC-2A
B1821BH025125N
800-1008
80204
44940
WASHER, LOCK: 1/4
MS35338-44
850-1040
96906
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
2
2
EA
2
50
EA
1
1
EA
V
FT
.7
.7
EA
2
2
EA
8
8
FT
V
EA
V
EA
8
FT
V
EA
1
1
EA
16
16
EA
V
EA
1
USABLE
ON CODE U.M.
GROUP 09 GENERATOR ASSEMBLY CONT
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
PAFFH PAOOO PDDOH
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
XAOZZ
XA
PAOZZ PAOZZ
XAOZZ
XAOZZ
XAOZZ
XAOZZ
XAOZZ
XAOZZ
XAOZZ
XAOZZ
XAOZZ
XA
XA
XA
XA
XA
XA
XA
XA
XA
XBFZZ XBOZZ
XB--
XB--
6115-01-038-6730
5305-00-984-6223
5310-00-063-7360
5940-00-983-6043
XA---
XA---
5975-00-553-0830
XA---
XA---
XA---
XA--
XA---
XA---
XA---
XA--
XA---
XB---
82
STATOR, EXCITER,
GENERATOR
72-5240
220-1540
SCREW, MACHINE: PAN HEAD,
6-32 X 1-1/2 UNC-2A
MS35206-236
822-1038
30554
44940
96906
44940
NUT, ASSEMBLED WASHER:
HEX, 6-32 UNC-2B
69-561-2
511-061800-00
30554
78189
TERMINAL BOARD
37TB2
332-1293
81349
44940
STRAP, TIEDOWN
MS3367-4-9
332-0942
96906
44940
WIRE, ELECTRICAL
M525471-18
226-0895
96906
44940
TERMINAL, STUD
MS25036-102
226-1323
96906
44940
WEDGE, SLOT
72-5241
233-0622
30554
44940
WIRE, MAGNET
MlLW583-155L2-22
334-1979
81349
44940
SPLICE, PARALLEL,
ELECTRICAL
72-5244-6
34130
30554
00779
INSULATION, SLOT
72-5242
MIL122834D100-535
30554
81349
INSULATION, SLEEVING,
ELECTRICAL
MIL1003190-1-130A46
898-0365
81349
44940
LAMINATION ASSEMBLY
72-5235
220-1531
30554
44940
RIVET, TUBULAR
72-5232-2
FFR556-12-3E15271-2
30554
81348
LAMINATION
72-5236
230-0267
30554
44940
END BELL
72-5206
211-0193
30554
44940
8
1
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
24
32
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
PAFHH PAOFF
PAFZZ PAOZZ
MFFFF
AOO
XB---
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
PBFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
XADZZ
XB
XADZZ PAFZZ
XADZZ
XB
SSI
XB---
XB---
XB--
XB---
XB---
XB---
XB---
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
6115-01-048-0458
5935-00-565-9497
AHHZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
a.
(4)
5940-00-114-1306
6145-00-284-0657
5935-01-039-6228
6145-00-284-0657
5325-01-050-6669
5970-00-088-8764
5940-00-636-5537
5970-00-912-8789
5940-00-500-8722
XB---
XB---
XB---
XB---
83
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
1
1
EA
1
1
FT
1.5
76.5
EA
2
2
FT
24
76.5
EA
1
1
FT
V
EA
12
FT
V
EA
6
FT
V
EA
60
FT
V
EA
60
USABLE
REF NUMBER & MFR NUMBER
ON CODE U.M.
GROUP 09 GENERATOR ASSEMBLY CONT
STATOR, GENERATOR
72-5250
220-1545
30554
44940
PLUG, END SEAL
MS25251-8
323-0831
96906
44940
LEAD, ELECTRICAL
72-5258
226-1099
30554
44940
TERMINAL, LUG
MS25036-117
332-1302
96906
44940
WIRE, ELECTRICAL: 8 AWG.
WHITE
M5086-2-8-9
334-1287
81349
44940
CONNECTOR, PLUG,
ELECTRICAL
MS3456W24-10S
323-0796
96906
44940
WIRE, ELECTRICAL: 8 AWG,
WHITE M5086-2-8-9
334-1287
81349
44940
GROMMET
72-5204
508-0157
30554
44940
INSULATION, SLEEVING,
ELECTRICAL
898-0043
SPLICE, PARALLEL,
ELECTRICAL
72-5244-3
34319
INSULATION, SLEEVING.
ELECTRICAL
MIL-I-3190
898-0634
SPLICE, PARALLEL,
ELECTRICAL
72-5244-1
34318
(8)
44940
12
30554
00779
81349
44940
6
30554
00779
INSULATION, SLEEVING,
ELECTRICAL
8034660-1438
18876
WEDGE, FORMED
72-5209-4
223-0636
30554
44940
WIRE, MAGNET
MILW583-220M2-18
334-1978
81349
44940
WEDGE, FORMED
72-5209-1
233-0637
30554
44940
60
60
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
24
24
EA
60
60
FT
V
EA
1
EA
V
USABLE
ON CODE U.M.
GROUP 09 GENERATOR ASSEMBLY CONT
24
24
24
24
24
48
49
50
51
52
XADZZ
XADZZ
XB
XB
XADZZ PAFZZ
XADZZ
XADZZ
XA
XA
XB--
XB---
XB---
XA---
XA---
84
INSULATION, PHASE, STATOR
72-5239
877-0014
30554
44940
INSULATION, SLOT, STATOR
72-5238-1
233-0639
30554
44940
YARD, CORD SLEEVING,
CLOTH AND TAPE, GLASS
MILY1140C3ECCA-1-4
898-0516
81349
44940
FRAME, GENERATOR
72-5251-1
220-1533
30554
44940
LAMINATION, STATOR
72-5252
230-0262
30554
44940
1
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 25. Rotor Assembly-Exploded View
86
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
8
16
EA
1
1
EA
1
1
EA
3
3
EA
1
1
EA
V
EA
V
EA
V
EA
1
18
EA
1
78
EA
1
1
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 09 GENERATOR ASSEMBLY CONT
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
PAFHH PAOZZ
XB---
PAFZZ PAOZZ PAZZZ
PBFZZ PBOZZ
PBFZZ PBOZZ
PBFZZ
XB
XB--
XB--
XB---
PBFZZ PAOZZ PBHZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PBFZZ PAOZZ
XB---
PAFZZ PAOZZ PAFZZ
PBFZZ PAOZZ
XBFZZ
XB
XB---
6115-01-055-0389
5305-00-068-0509
5310-01-050-0489
5365-01-051-0588
6114-01-049-0973
6115-01-049-9074
5305-00-984-6195
5310-00-807-1466
5310-00-765-3197
5305-00-269-3211
5310-00-637-9541
5310-01-049-4077
3110-00-277-0420
3110-01-049-4379
XB---
87
ROTOR ASSEMBLY,
GENERATOR
72-5210
201-1754
30554
44940
SCREW, CAP, HEX HEAD:
1/4-20 X 1/4 UNC-2A
B1821BH025C125N
800-1008
80204
44940
LOCKPLATE, ROTOR
72-5213
232-2173
30554
44940
RING, RETAINING
72-5212
232-2166
30554
44940
DISK, COUPLING
72-5211
232-2160
30554
44940
FAN, CENTRIFUGAL,
GENERATOR
72-5214
205-0097
SCREW, MACHINE: PAN HEAD,
8-32 X 5/8 UNC-2A, FAN
BALANCING
MS35206-247
822-1049
NUT SELF LOCKING, HEX:
8-32 UNC-2B, FAN BALANCING
MS21042-08
870-0235
WASHER, FLAT: NO.8, FAN
BALANCING
MS27183-41
526-1707
30554
44940
96906
44940
96906
44940
96906
44940
SCREW, CAP, HEX HEAD:
3/8-16X1, UNC-2A
MS90725-60
800-1050
96906
44940
WASHER, LOCK: 3/8
MS35338-46
850-1050
96906
44940
WASHER, FLAT: 3t8
72-5217-1
526-0240
30554
44940
BEARING, BALL, ANNULAR
Z99606XR1E
43334
RETAINER, BEARING
72-5215
232-2174
30554
44940
COLLAR, SHAFT
72-5216
232-2165
30554
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
25
15
25
25
25
25
25
25
25
25
25
25
25
25
25
25
16
17
18
19
20
21
22
23
24
25
26
27
28
29
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
PAFZZ PAOZZ
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
PBFZZ PAOZZ
XB---
XB--
PAFHH PAOFF PAFHH
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
PBFZZ PAOZZ
XB--
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAOZZ
PAFZZ PAOZZ PAOZZ
PAFZZ PAOZZ PAZZZ
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
5305-01-051-3197
5310-00-014-5850
5310-00-094-3421
5315-01-050-1614
6115-01-038-6279
5305-00-984-6216
5310-00-094-3421
5310-00-014-5850
5970-00-466-2118
5970-01-049-0960
5310-00-934-9751
5310-00-045-3296
5961-01-050-7048
5961-01054-4151
532500-185-0003
88
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
2
2
EA
2
6
EA
2
24
EA
1
1
EA
1
1
EA
4
4
EA
4
21
EA
4
6
EA
4
4
EA
4
4
EA
6
8
EA
6
10
EA
3
3
EA
3
3
EA
2
2
USABLE
REF NUMBER & MFR NUMBER
ON CODE U.M.
GROUP 09 GENERATOR ASSEMBLY CONT
SCREW, MACHINE: HEX HEAD,
10-24 X 1/2
UNC-2A, LEAD MOUNTING
FF-S-92
815-1435
WASHER, FLAT: NO. 10, LEAD
MOUNTING
M527183-42
526-1009
81349
44940
96906
44940
NUT, ASSEMBLED WASHER.
HEX: 10-24 UNC-2B, LEAD
MOUNTING
69-561-4
511-101800-00
30554
78189
KEY, MACHINE
72-5233-1
515-0201
30554
44940
ROTOR ASSEMBLY, EXCITER
72-5220
201-1748
30554
44940
SCREW, MACHINE: PAN HEAD,
10-24 X 1-1/2 UNC-2A
MS35206-269
822-1073
96906
44940
NUT ASSEMBLED WASHER,
HEX: 10-24 UNC-2B
69-561-4
511-101800-00
30554
44940
WASHER, FLAT: NO. 10
M527183-42
526-1009
96906
44940
BUSHING, INSULATION
JHP114-23
02032
INSULATOR, HEAT SINK
72-5222
508-0163
30554
44940
NUT, PLAIN, HEX: 10-32
UNF-28
MS35650-302
870-1053
96906
44940
WASHER, LOCK: NO. 10
MS35338-43
850-1030
96906
44940
SEMICONDUCTOR DEVICE,
DIODE
72-5273-2
SR6248R
(8)
30554
51589
SEMICONDUCTOR DEVICE.
DIODE
72-5273-2
S6248
30554
51589
GROMMET, RUBBER
MS35489-42
508-0182
96906
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
1
1
EA
2
2
EA
2
2
EA
1
20
FT
.5
1
EA
2
7
FT
V
FT
V
FT
V
FT
V
EA
16
120
EA
1
1
FT
V
LB
V
USABLE
ON CODE U.M.
GROUP 09 GENERATOR ASSEMBLY CONT
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
PBFZZ PAOZZ PAOZZ
PBFZZ PAOZZ PAOZZ
PBFHD PBOFF
PAFZZ PAOZZ
MFFFF
AOO
XB---
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
XADZZ
XADZZ
XADZZ
XB
XB
XB
5999-01-043-7902
6115-01-048-0458
5975-01-049-2927
AHHZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
5999-01-043-9111
XB---
XB---
XB---
XB---
XB---
XB---
5940-00-143-4780
6145-00-553-0828
5940-00-230-9911
5970-00-221-5283
5970-00-857-3335
5970-01-049-9571
5970-00-059-7346
5975-00-074-2072
XB---
XB---
XB---
89
HEAT SINK, DIODE
72-5221-1
363-0051
30554
44940
HEAT SINK, DIODE
72-5221-2
363-0052
30554
44940
ROTOR, GENERATOR
72-5230
201-1749
30554
44940
STRAP, TIEDOWN
72-5264
696-40380
30554
59730
LEAD, ELECTRICAL
72-5234-1
226-0937
30554
44940
TERMINAL, LUG
MS25036-108
332-0807
96906
44940
WIRE, ELECTRICAL
MS25471-14
334-0955
96906
44940
SPLICE,PARALLEL,
ELECTRICAL
72-5244-5
34138
INSULATION, SLEEVING,
ELECTRICAL
8034660-1459
898-0618
30554
00779
18876
44940
INSULATION, SLEEVING,
ELECTRICAL
898-0612
44940
TAPE, INSULATION
MIL11916611NWD007THK
895-0117
81349
44940
INSULATION, SLEEVING.
ELECTRICAL
8034660-1321
898-0637
18876
44940
STRAP, TIEDOWN
MS3367-1-9
332-0941
96906
44940
KEY, MACHINE
72-5233-2
515-0011
30554
44940
INSULATION, SLEEVING,
ELECTRICAL
MIL1003190-1CL130
TYACATASZ4
898-0634
81349
44940
WIRE,MAGNET
MILW583-220M2-15
334-1976
81349
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
8
8
EA
2
2
FT
V
EA
V
EA
1
1
EA
36
36
EA
2
2
EA
V
EA
1
USABLE
ON CODE U.M.
GROUP 09 GENERATOR ASSEMBLY CONT
25
25
25
25
25
25
25
25
25
46
47
48
49
50
51
52
53
54
XADZZ
XADZZ
XB
XB
PAHZZ PAFZZ
XADZZ PAFZZ
XADZZ
XADZZ
XADZZ
XADZZ
XADZZ
XB
XA
XA
XA
XB
XB--
XB---
XB---
XB---
XB---
XA---
XA---
XA---
XB--
5970-00-478-0045
INSULATION, SIDE ROTOR
72-5254-1
233-0624
30554
44940
INSULATION, ROTOR
72-5253
233-0626
30554
44940
TAPE, INSULATION
MILI5126MFT3-53-4
895-0133
81349
44940
WEIGHT, BALANCE
72-5263
232-2194
30554
44940
LAMINATION ASSEMBLY
72-5245-1
201-1741
30554
44940
ROD, ROTOR
232-2161
44940
LAMINATION, END
72-5247
230-0268
30554
44940
LAMINATION, ROTOR
72-5246
230-0263
30554
44940
SHAFT,ROTOR
72-5231-1
202-0576
30554
44940
90/(91 blank)
1
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 26. Shutter Assembly
92
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
6
92
EA
1
1
EA
6
92
USABLE
ON CODE U.M.
GROUP 10 SHUTTER ASSEMBLY
26
26
26
26
26
1
2
3
4
5
PAOZZ PAOZZ
XB--
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ
XBOZZ
XB
PAOZZ PAOZZ
XB---
5306-00-050-0347
5310-00-768-0318
5305-01-050-3733
XB---
XB--
5305-01-050-3733
93
BOLT, EYE
403-0622
MS51937-5
44940
96906
NUT, PLAIN, HEX
862-1016
44940
SCREW, SELF-LOCKING: HEX
HEAD. 1/4-20 X 1/2 UNC-2A
821-0010
44940
COVER, AIR DUCT
134-2903
44940
SCREW, SELF-LOCKING: HEX
HEAD, 1/4-20 X 1/2 UNC-2A
821-0010
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 27. Shutter Assembly - Exploded View
94
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
a.
(2)
SMR CODE
b.
c.
(3)
d.
27
-
PBOFF PBOOO XB---
2930-01-074-4165
27
1
PAOZZ PAOZZ
5340-01-198-2240
27
27
27
27
27
27
27
27
27
27
27
27
27
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PAOZZ PAOZZ
PAOZZ PAOZZ
XBOZZ
XB
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
PBOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
27
16
XBOFF
27
17
PAOZZ PAOZZ
27
27
27
27
18
19
20
21
XB
PAOZZ PAOZZ
XBOZZ
XBOZZ
XBOZZ
XB
XB
XB
XB---
XB---
XB--
REPL
FACTOR
NATIONAL
STOCK
NUMBER
ITEM
NO.
SSI
5340-01-064-1482
5340-01-198-2240
XB--
XB---
XB---
XB--
XB---
XB---
XB---
XB---
XB---
XB---
XB---
XB---
(5)
DESCRIPTION
(6)
5310-01-012-3595
2910-00-829-5701
5310-01-049-3957
2930-00-163-0314
5310-01-049-2745
5310-01-051-8089
5360-01-049-0383
5360-01-072-8832
5305-01-050-3733
5310-00-889-2528
3981-01-086-3942
CLIP, RETAINING
HS99417
83058
CLIP, RETAINING
518-0004
44940
CLIP, RETAINING
HS99417
83058
ROD SHUTTER
134-1607
44940
NUT, ASSEMBLED WASHER.
HEX: 10-32
2740-0003
69-561-6
81205
30554
BALL JOINT
150-1358
44940
NUT, PLAIN HEX: 10-32 UNF-1B
870-0053
44940
ROD, UPPER SHUTTER
134-1606
44940
NUT,ASSEMBLED WASHER.
HEX: 10-32
870-0131
44940
WASHER, FLAT, SPECIAL
526-0006
44940
SPRING, SHUTTER
134-2473
44940
SPRING, SHUTTER
134-3432
44940
SCREW, SELF-LOCKING: HEX
HEAD, 1/4 X 1/2 UNC-2A
821-0010
44940
WASHER, LOCK 1/4
MS45904-68
856-1006
96906
44940
BEARING, SHUTTER
134-3431
REPLACEMENT FOR P/N
134-3246
XB---
5305-01-049-9126
5310-01-051-8089
XB---
XB---
XB---
95
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
1
1
EA
1
2
EA
1
1
EA
1
2
EA
1
1
EA
1
5
EA
1
2
EA
1
1
EA
1
1
EA
4
4
EA
4
12
EA
2
2
EA
2
2
EA
4
92
EA
4
14
EA
4
4
EA
1
1
EA
4
8
EA
4
10
EA
1
1
EA
1
1
EA
1
2
USABLE
REF NUMBER & MFR NUMBER
ON CODE U.M.
GROUP 10 SHUTTER ASSEMBLY - CONT
DUCT AND SHUTTER
EA
ASSEMBLY
134-3437
44940
44940
XB-XB---
(7)
b.
FIG.
NO.
27
AIR
ARMY FORCE NAVY USMC
a.
(4)
LIFT
815-0361
44940
WASHER, FLAT, SPECIAL
526-0008
44940
SHUTTER, AIR OUTLET
134-2902
44940
BRACKET,SHUTTER
134-3429
44940
BRACKET, SHUTTER
134-3428
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
27
22
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
27
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
XBOFF
XBOZZ
XB
XB
PAOZZ PAOZZ
XBOZZ
XBOZZ
XBOZZ
XB
XB
XB
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
XBOZZ
XB
PAOZZ PAOZZ
PAOZZ PAOZZ
XAOZZ
XAOZZ
XA
XA
PAOZZ PAOZZ
XBOZZ
XB
PAOZZ PAOZZ
REPL
FACTOR
NATIONAL
STOCK
NUMBER
XB---
5310-01-051-8089
XB---
XB--
XB--
XB---
XB---
XB---
XB---
2930-00-158-3600
5310-00-880-7744
5310-01-050-1309
5310-00-576-5495
5310-00-165-2015
XB---
XB---
XA---
XA---
XA---
3120-01-057-9398
2990-01-038-5251
5360-01-051-9813
2815-00-972-7173
5310-01-053-6931
XA---
XB--
5305-01-050-3794
XB---
XB--
(6)
(7)
5305-00-889-2997
96
USMC
QTY
PER
EQUIP
EA
1
1
EA
4
8
EA
4
10
EA
1
1
EA
1
2
EA
1
1
EA
1
1
EA
1
23
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
2
2
EA
1
1
EA
1
1
EA
1
1
EA
2
2
EA
1
1
EA
2
2
EA
1
1
EA
4
20
44940
SCREW, TAPPING: THREAD
CUTTING 10-32 X 5/16
815-0361
44940
WASHER, FLAT, SPECIAL
526-0008
44940
SHUTTER, AIR
134-2901
44940
BRACKET, SHUTTER
134-3428
44940
BRACKET, SHUTTER
134-3430
44940
BOLT, SHOULDER
134-1605
30554
NUT, PLAIN, HEX: 5/16-18
MS51967-5
862-1015
96906
44940
WASHER, LOCK: EXT/INT
TOOTH, 5116
853-0016
44940
WASHER, FLAT: SPECIAL
526-0113
44940
WASHER, FLAT: SPECIAL
526-0213
44940
ARM, PIVOT, SHUTTER
134-1604
44940
BEARING, ACTUATING ARM
134-1248
44940
POWER ELEMENT ASSEMBLY
134-2474
44940
SPRING, HELICAL,
COMPRESSION
134-0656
44940
ELEMENT, POWER
309-0085
44940
WASHER, FLAT: SPECIAL
526-0175
44940
GUIDE, ASSEMBLY
134-2475
44940
SCREW, TAPPING: THREAD
FORMING, 10-32 X 3/8
815-0340
44940
BRACKET, VERNATHERM
134-2478
44940
SCREW, MACHINE: PAN HEAD,
4-40 X 3/8 UNC-2A
MS35206-215
822-1016
(8)
QTY
INC IN
UNITS
USABLE
REF NUMBER & MFR NUMBER
ON CODE U.M.
GROUP 10 SHUTTER ASSEMBLY - CONT
BLADE ASSEMBLY, SHUTTER,
LOWER
134-3252
XB---
PAOOO PAOZZ PAGZZ
PAOZZ PAOZZ
SSI
(5)
DESCRIPTION
b.
XB---
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ
a.
(4)
96906
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
4
16
EA
1
1
EA
1
1
EA
2
2
FT
1.8
370
FT
.8
.8
EA
1
1
USABLE
ON CODE U.M.
GROUP 10 SHUTTER ASSEMBLY - CONT
27
27
27
27
27
27
27
43
44
45
46
47
48
49
PAOZZ PAOZZ
MFFFF
XB--
AOO AGGGG
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
XBOZZ
5310-00-836-3520
XB
XB--
XB---
XB---
5935-00-626-3122
5940-01-049-0533
6145-00-578-6605
5970-01-080-9542
XB--
97
NUT, ASSEMBLED WASHER,
HEX: 4-40 UNC-2B
501-040800-00
69-561-1
78189
30554
WIRING HARNESS
338-0653
44940
CONNECTOR, PLUG,
ELECTRICAL
MS3450W10SL3P
96906
TERMINAL, LUG
332-1678
44940
WIRE, ELECTRICAL
M5086-2-16-9
81349
SLEEVING, INSULATION
898-0016
44940
DUCT, AIR
134-2907
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 28. Exhaust Muffler Assembly
98
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
4
4
EA
2
2
EA
1
1
EA
2
2
EA
2
2
EA
2
2
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 11 EXHAUST MUFFLER
ASSEMBLY
28
28
28
28
28
28
28
1
2
3
4
5
6
7
28
KFOZZ
KFOZZ
KF
KF
XB---
XB---
PAOZZ PAOZZ PBHZZ
KFOZZ
KF
PBOZZ PBOZZ
KFOZZ
KF
2990-01-038-5275
KFGZZ
XB---
2815-01-048-8866
KFGZZ
PAOZZ PAOZZ
PAOZZ PAOZZ PAOZZ
4730-00-137-9218
2990-01-048-7646
NUT, PLAIN, HEX: SPECIAL,
5/16-24 UNF-2A
867-0025
PART OF KIT 155-1473
44940
44940
TAB, LOCK
154-1366
PART OF KIT 155-1473
44940
44940
MUFFLER, EXHAUST
6V75
155-1129
76700
44940
GASKET, EXHAUST MANIFOLD
154-1478
PART OF KITS 155-1473,
168-0136
44940
44940
SPACER, EXHAUST
154-1477
44940
GASKET, EXHAUST SPACER
154-0463
PART OF KITS
155-1473,168-0136
44940
44940
ELBOW, PIPE-STREET
MS39231-7
96906
KIT, EXHAUST MUFFLER
INSTALLATION
155-1473
PART OF KIT 110-2460
44940
44940
28
1
NUT, PLAIN, HEX: SPECIAL,
5/16-24 UNF-2A
EA
4
4
28
2
TAB, LOCK
EA
2
2
28
4
GASKET, EXHAUST MANIFOLD
EA
2
2
28
6
GASKET, EXHAUST SPACER
EA
2
2
99
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 29. Engine Cooling System
100
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
29
1
29
29
29
29
29
29
29
29
29
29
29
29
29
29
29
29
29
29
29
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
PAOZZ PAOZZ
PAOZZ PAOZZ
XBOFF
XB
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
XBOFF
XB
PAOZZ PAOZZ
PAOZZ PAOZZ
XB---
XB---
PAOZZ PAOZZ
PBOZZ PBOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
XBOZZ
XB
PAOZZ PAOZZ
SSI
XB---
XB---
XB--
XB--
REPL
FACTOR
NATIONAL
STOCK
NUMBER
5305-01-050-3733
5310-00-809-3078
5305-01-049-5437
5340-00-158-0223
5305-01-050-6086
5340-01-296-6584
XB---
XB---
XB---
5340-01-129-8955
5305-01-050-1105
2805-00-158-2906
XB---
XB--
XB---
XB--
XB---
XB---
XB---
5305-01-050-1106
6115-01-250-7722
5305-01-050-3733
5340-01-165-2811
2805-01-262-5253
5305-01-050-3733
XB---
XB---
(5)
DESCRIPTION
(6)
(7)
b.
XB---
PBOZZ PAOZZ PAZZZ
XBOZZ XBOZZ
a.
(4)
5305-01-050-3733
101
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
4
92
EA
4
4
EA
1
1
EA
4
4
EA
2
4
EA
3
3
EA
1
1
EA
1
1
EA
1
1
EA
3
3
EA
3
3
EA
1
1
EA
9
11
EA
1
1
EA
1
92
EA
1
1
EA
1
1
EA
1
92
EA
1
1
EA
1
92
USABLE
REF NUMBER & MFR NUMBER
ON CODE U.M.
GROUP 12 ENGINE COOLING SYSTEM
SCREW, SELF-LOCKING: HEX
HEAD, 1/4 X 1/2 UNC-2A
821-0010
44940
WASHER, FLAT: NO. 10
MS27183-11
526-1513
96906
44940
DOOR AND COVER ASSEMBLY
134-2880
44940
SCREW, SELF-LOCKING: HEX
HEAD, 1/4-20 X 5/16 UNC-2A
821-0004
44940
LATCH, DOOR
HR5
406-0324
06004
44940
SCREW, ASSEMBLED
WASHER: PAN HEAD, 10-24 X
1/4 UNC-2A
822-2063
44940
DOOR, ACCESS: ENGINE
134-2190
44940
COVER, CYLINDER SHROUD
134-2182
44940
PLUG, PROTECTIVE
517-0108
44940
SCREW, SELF-LOCKING: HEX
HEAD, 5/16-18 X 2/3 UNC-2A
821-0016
44940
RETAINER, GRILL
134-1092
44940
GRILL
134-2183
44940
SCREW, SELF-LOCKING: HEX
HEAD, 5/16-18 X 12 UNC-2A
821-0014
44940
HOUSING, BLOWER
134-2167
44940
SCREW, SELF-LOCKING: HEX
HEAD, 1/4-20 X 1/2 UNC-2A
821-0010
44940
CLIP, SHEET SPRING
C40484-017-1
518-0330
78553
44940
SHROUD, CYLINDER
134-2168
44940
SCREW, SELF-LOCKING: HEX
HEAD, 1/4 X 1/2 UNC-2A
821-0010
44940
BAR, CONNECTING
134-28661
44940
SCREW, SELF-LOCKING: HEX
HEAD, 1/4-20 X 1/2 UNC-2A
821-0010
44940
(8)
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
29
29
29
29
29
29
29
29
29
29
29
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
29
29
(5)
DESCRIPTION
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
2
9
EA
1
1
EA
3
92
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
3
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 12 ENGINE COOLING SYSTEM CONT
21
22
23
24
25
26
27
28
29
30
31
32
XBOZZ
XB
PAOZZ PAOZZ
XBOZZ
XB
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
XBOZZ
XB
PAOZZ PAOZZ
PAOZZ PAOZZ
XBOZZ XBOZZ
PAOZZ PAOZZ
XB---
XB---
BAR, CONNECTING
134-2660
5305-01-050-3733
XB---
XB---
XB---
XB---
5305-01-050-3733
6115-01-255-8154
5305-01-087-1082
XB---
XB---
5306-01-050-1490
XB---
XB---
XB---
PAOZZ PAOZZ PAGZZ
5310-01-012-3595
5340-01-050-6189
5930-01-039-6721
102
44940
SCREW, SELF-LOCKING: HEX
HEAD, 1/4-20 X 112 UNC-2A
821-0010
44940
BAR, CONNECTING
134-2773
44940
SCREW, SELF-LOCKING: HEX
HEAD, 1/4-20 X 1/2 UNC-2A
821-0010
PANEL ASSEMBLY, CYLINDER
SHROUD: REAR
134-2185
44940
44940
SCREW, SELF-LOCKING: HEX
HEAD, 1/4-20 X 3/8 UNC-2A
821-0009
44940
BRACKET, ANGLE
134-1233
44940
BOLT, HOOK
134-3084
44940
NUT, ASSEMBLED WASHER,
HEX: 10-32 UNF-2B
041A0000011000E
2740-0003
77250
81205
BAFFLE, AIR
134-3085
44940
TAB, LOCK
309-0275
44940
SWITCH, THERMOSTATIC:
HIGH TEMPERATURE
309-0277
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 30. Electric Starter
104
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
30
1
30
30
30
30
30
30
30
30
30
2
3
4
5
6
7
8
9
10
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
MOOOO AOO
PAOZZ PAOZZ
PAOZZ PAOZZ
XB---
XB---
PAOZZ PAOZZ PAFZZ
PAOZZ PAOZZ PAFZZ
PAOZZ PAOZZ PAFZZ
PAOZZ PAOZZ PAFZZ
PAOZZ PAOZZ PAFZZ
XB
SSI
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
XB---
PAOZZ PAOZZ PAFZZ
XBOZZ
a.
(4)
6145-00-578-6596
5940-00-113-8191
5305-00-071-1788
5310-00-209-0965
5305-00-115-9256
5310-00-637-9541
5310-00-851-2682
5310-01-049-4076
XB---
30
REF NUMBER & MFR NUMBER
GROUP 13 ELECTRIC STARTER
ASSEMBLY
44940
WIRE ELECTRICAL: 2 AWG.
WHITE M5086/2-2-9
81349
TERMINAL, LUG: NO. 2
WIRE/3/8 STUD
MS25036-127
SCREW CAP, HEX HEAD:
7/16-14 X 1-1/4 UNC-2A
MS90728-87
96906
WASHER, LOCK: 7/16
MS35338-47
96906
SCREW, CAP HEX HEAD:
3/8-16 X 3/4 UNC-2A
MS18154-58
96906
WASHER LOCK: 3/8
MS35338-46
96906
NUT, PLAIN, HEX: 3/8-16
UNC-2B
MS35691-17
96906
WASHER, FLAT:
72-5217-2
526-1130
30554
44940
BRACKET, SUPPORT, STARTER
191-0834
44940
1. NEW STYLE "II" STARTER INSTALLED
ON ENGINES MANUFACTURED IN 1990.
COMPLETELY INTERCHANGEABLE WITH
STYLE -"1 STARTER EXCEPT SUPPORT
BRACKET NOT USED. THE SUPPORT
BRACKET AND ATTACHING HARDWARE
IS SUPPLIED ON ALL NEW ENGINES TO
PROVIDE FOR PROPER INSTALLATION
OF STYLE "I" STARTERS WHEN USED AS
A REPLACEMENT COMPONENT PARTS
ARE NOT INTERCHANGEABLE BETWEEN
STARTERS.
CAUTION: SUPPORT BRACKET AND THE
ATTACHING HARDWARE MUST REMAIN
ON THE ENGINE TO INSURE PROPER
INSTALLATION OF STYLE "1" STARTERS!
30
2. STYLE "I'" STARTERS INSTALLED ON
ENGINES MANUFACTURED THROUGH
1989 AND ON SOME ENGINES MANUFACTURED DURING 1990. COMPONENT
PARTS ARE NOT INTERCHANGEABLE
BETWEEN STARTERS.
CAUTION: WHEN STYLE "I" STARTER IS
SUPPLIED AS A REPLACEMENT USE THE
SUPPORT BRACKET AND ATTACHING
HARDWARE TO PROVIDE FOR PROPER
STARTER INSTALLATION.
105
USMC
QTY
PER
EQUIP
EA
1
1
FT
V
EA
2
3
EA
2
2
EA
2
21
EA
2
19
EA
2
78
EA
1
1
EA
1
5
EA
1
1
96906
NOTES:
30
QTY
INC IN
UNITS
USABLE
ON CODE U.M.
LEAD, ELECTRICAL: STARTER
TO GROUND
336-2097
(8)
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 31. Starter - Exploded View
106
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
1
2
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
4
4
EA
4
52
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 13 ELECTRIC STARTER
ASSEMBLY - CONT
31
31
31
31
31
31
31
31
31
31
31
31
-
1
2
3
4
5
6
7
8
9
10
11
PAOHH PAOFF PAHOH
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
XAFZZ
XAFZZ
XAFZZ
XA---
XA---
XA---
PAOZZ PAOZZ
PAOZZ PAOZZ
PAFZZ PAFZZ
PAFZZ PAFZZ
12
KFFZZ
31
13
PBOZZ PBOZZ
31
31
31
14
15
16
17
XA--
XA---
KFFZZ
KF
KF
PAHHH PAFFF
KFHZZ
KF
PAHZZ PAFZZ
2920-01-048-5969
5315-00-839-2325
5315-00-812-3766
XA---
XA---
XA--
XB---
XB---
PAOZZ PAOZZ PAHZZ
31
31
XB---
2920-01-040-5546
XB---
XB---
5305-01-049-9054
5310-00-582-5965
2920-01-048-8661
5306-01-049-6461
2920-00-454-9802
XB---
XB---
6150-01-049-0968
XB---
XB---
2920-01-054-3829
PAHZZ
XB---
5977-01-053-7982
107
STARTER
MHP7101T
191-0828
68505
44940
PACKAGE, YOKE ASSEMBLY
90-2209
191-1132
68505
44940
PIN, COTTER
112726
24617
PIN, CLEVIS
MS20392-2C15
96906
CLIP, RETAINING
191-1195
44940
COVER, YOKE
191-1196
44940
PIN, YOKE
191-1197
44940
SCREW, CAP, HEX HEAD:
1/4-20 X 3/8 UNC-2A
800-1002
44940
WASHER, LOCK: 1/4
MS35338-44
850-1040
96906
44940
SOLENOID ASSEMBLY
191-1194
44940
PACKAGE, THROUGH BOLT
MEX20AS
191-1138
68505
44940
YOKE, STARTER
MCH1074A
191-1140
68505
44940
PLATE, END MDT1052A
191-1128
PART OF KIT 191-1185
68505
44940
44940
LEAD, ELECTRICAL
MCZ101
191-1131
68505
44940
PACKAGE, THRUST WASHER
90-503
191-1139
PART OF KIT 191-1185
68505
44940
44940
FRAME AND FIELD ASSEMBLY
MHP2037S
191-1123
68505
44940
BRUSH SET, ELECTRIC
MDL2021JS
191-1124
PART OF KIT 191-1185
68505
44940
44940
PLATE ASSEMBLY, BRUSH
MHN1064A
191-1125
68505
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 13 ELECTRIC STARTER
ASSEMBLY - CONT
31
31
31
31
31
31
31
18
19
20
21
22
23
24
31
KFHZZ
XAHZZ
XAFZZ
KFFZZ
KFFZZ
KF
XA
XA
KF
KF
PAFZZ PAFZZ
XB--
XB--
XB--
XB--
XB--
XB--
PAFFF PAFFF PAFFF
PAFZZ PAFZZ PAFZZ
2920-01-48-6577
2920-01-048-6022
2920-01-049-1905
SPRING SET, BRUSH
191-1126
PART OF KIT 191-1185
44940
44940
CONNECTOR AND GROMMET
90-884
191-1127
68505
44940
HOUSING ASSEMBLY, PINION
PS1391A
191-1129
68505
44940
BEARING, SLEEVE
MP41A
191-1130
PART OF KIT 191-1185
68505
44940
44940
LOCK RING AND STOP: PINION
90-502
191-1135
PART OF KIT 191-1185
68505
44940
44940
CLUTCH, STARTER
MDL3130A
191-1122
68505
44940
ARMATURE
MHJ2133
191-1121
68505
44940
KIT, SERVICE: ELECTRIC
STARTER
191-1185
44940
31
12
END PLATE
EA
1
31
14
PACKAGE, THRUST WASHER
EA
1
31
16
BRUSH SET, ELECTRIC
EA
1
31
18
SPRING SET, BRUSH
EA
1
31
21
BEARING, SLEEVE
EA
1
31
22
LOCK RING AND STOP: PINION
EA
1
108
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 32. Starter - Exploded View
110
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
32
-
32
32
1
2
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
XA
PAOZZ PAOZZ
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
PAOFZ PAOFF PAHOH
XAOZZ
(5)
DESCRIPTION
REF NUMBER & MFR NUMBER
GROUP 13 ELECTRIC STARTER
ASSEMBLY - CONT
STARTERM
191-1948-01
XA---
SCREW, MACHINE, ROUND
HD, FLANGED: M6 X 42MM
PART OF SCREW SET
191-1450
XA--
SWITCH ASSEMBLY
(SOLENOID)
191-1974
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
2
2
EA
1
1
USABLE
ON CODE U.M.
44940
44940
44940
32
3
XAOZZ
XA
XA--
SPACER
EA
2
2
32
4
XAOZZ
XA
XA---
SWITCH, SOLENOID
EA
1
1
32
5
XAOZZ
XA
XA---
NUT, HEX
PART OF TERMINAL
ASSEMBLY
191-1975
EA
2
2
EA
2
2
EA
1
1
32
32
6
7
XAOZZ
XA
PAOZZ PAOZZ
XA---
WASHER, FLAT
PART OF TERMINAL
ASSEMBLY
191-1975
XB---
TERMINAL AND BRACKET
ASSEMBLY
191-1975
44940
44940
44940
32
8
PAOZZ PAOZZ
XB---
BOLT SET-TERMINAL
191-1976
EA
1
1
32
9
XAOZZ
XA
XA--
NUT, HEX: M8
EA
2
2
32
10
XAOZZ
XA
XA---
TERMINAL, THREADED.
SQUARE HEAD: M8
EA
1
1
32
11
XAOZZ
XA
XA---
BRACKET TERMINAL
SUPPORT
EA
1
1
32
12
PAOZZ PAOZZ
XB--
STUD, THROUGH
191-1973
EA
2
2
EA
2
2
EA
1
1
EA
1
I
EA
4
4
EA
2
4
EA
1
1
EA
2
4
32
32
32
32
13
14
15
16
32
17
32
18
32
19
XAOZZ
XA
PAOZZ PAOZZ
XA---
XB---
PAOZZ PAOZZ PAHZZ
PAOZZ PAOZZ
XAOZZ
XA
XB---
2920-01-215-2927
5977-01-224-2917
5360-01-227-3195
XB---
PAOZ PAOZZ PAHZZ
XAOZZ
XA
XB---
SCREW, MACHINE, ROUND
HD, FLANGED: M6 X 12MM
PART OF SCREW SET
191-1450
44940
COVER, REAR
191-1432
44940
HOLDER ASSEMBLY, BRUSH
(INCLUDES NEG. BRUSHES)
191-1608
SPRING, BRUSH
191-1433
BRUSH., ELECTRICAL
CONTACT (NEGATIVE)
191-1945
STATOR, ENGINE STARTER
(INCLUDES POS. BRUSHES)
191-1972
BRUSH, ELECTRICAL
CONTACT (POSITIVE)
191-1945
111
44940
44940
44940
44940
44940
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
REPL
FACTOR
NATIONAL
STOCK
NUMBER
20
PAOZZ PAOZZ PAHZZ
2815-01-212-4008
32
21
PAOZZ PAOZZ
3110-01-236-6408
32
22
PAOZZ PAOZZ
32
23
XAOZZ
XA
32
24
PAOZZ PAOZZ
XB---
3110-01-218-0623
XA--XE---
(6)
(7)
b.
32
XB---
(5)
DESCRIPTION
REF NUMBER & MFR NUMBER
44940
BEARING, BALL, REAR
191-1436
44940
BEARING, BALL, FRONT
191-1437
44940
ARMATURE, ENGINE STARTER
2920-01-224-6246
COVER ASSEMBLY SET
191-1444
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 13 ELECTRIC STARTER
ASSEMBLY - CONT
ARMATURE ASSEMBLY,
ENGINE STARTER
191-1606
(8)
44940
32
25
XAOZZ
XA
XA---
SCREW, MACHINE, ROUND HD
EA
2
1
32
26
XAOZZ
XA
XA--
COVER, SHAFT
EA
1
1
32
27
XAOZZ
XA
XA---
RING, RETAINING
EA
1
1
32
28
XAOZZ
XA
XA--
WASHER, FLAT
EA
1
1
32
29
XAOZZ
XA
XA--
PLATE, SPACER
EA
1
1
32
30
XAOZZ
XA
XA---
SCREW, CAP, HEX HEAD: M6 X
30MM
PART OF SCREW SET
191-1450
EA
1
1
44940
BRACKET, CENTER
191-1439
EA
1
1
44940
EA
2
2
EA
1
1
EA
1
1
32
32
32
32
31
32
33
34
PAOZZ PAOZZ
XAOZZ
XA
PAOZZ PAOZZ
PAOZZ PAOZZ
XB---
2920-01-225-8726
XA---
XB---
XB---
3020-01-225-6988
5360-01-227-6302
WASHER, FLAT
PART OF COVER ASSEMBLY
191-1444
44940
GEAR, HELICAL
191-1446
44940
SPRING SET (PACKAGE)
191-1440
44940
32
35
XAOZZ
XA
XA---
PACKING, SPRING,
NON-METALLIC
EA
1
1
32
36
XAOZZ
XA
XA---
SPRING, COMPRESSION,
OUTER
EA
1
1
32
37
XAOZZ
XA
XA---
SPRING, COMPRESSION,
INNER
EA
1
1
32
38
PAOZZ PAOZZ
EA
1
1
EA
1
1
EA
1
1
32
32
39
40
PAOZZ PAOZZ
PAOZZ PAOZZ
2920-01-223-8730
XB--
XB---
2920-01-224-5247
XB---
LEVER
191-1441
44940
PINION SET
191-1443
44940
STOPPER SET
191-1442
44940
32
41
XAOZZ
XA
XA---
RING, RETAINING
EA
1
1
32
42
XAOZZ
XA
XA---
STOPPER, RETAINING RING
EA
1
1
32
43
XAOZZ
XA
XA---
GEAR, HELICAL PINION
EA
1
1
32
44
XAOZZ
XA
XA---
SPRING, COMPRESSION,
PINION
EA
1
1
32
45
PAOZZ PAOZZ
XB---
CLUTCH
191-1445
EA
1
1
112
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
USABLE
ON CODE U.M.
GROUP 13 ELECTRIC STARTER
ASSEMBLY - CONT
32
46
PAOZZ PAOZZ
XB--
BRACKET ASSEMBLY, FRONT
191-1971
44940
32
47
XAOZZ
XA
XA---
BEARING, SLEEVE
EA
1
1
32
48
XAOZZ
XA
XA--
BRACKET, FRONT
EA
1
1
32
49
PAOZZ PAOZZ
EA
1
1
XB--
5305-01-212-3371
SCREW SET (PACKAGE)
191-1450
44940
32
1
SCREW, MACHINE, ROUND
HD. FLANGED: M6 X 42MM
EA
2
32
13
SCREW, MACHINE, ROUND
HD. FLANGED: M6 X 12MM
EA
2
32
30
SCREW, CAP, HEX HEAD: M6 X
30MM
EA
1
32
NOTE: NEW STYLE “II" STARTER
INSTALLED ON ENGINES MANUFACTURED IN 1990. COMPLETELY INTERCHANGEABLE WITH STYLE "I” STARTER
EXCEPT SUPPORT BRACKET NOT USED.
THE SUPPORT BRACKET AND
ATTACHING HARDWARE IS SUPPLIED ON
ALL NEW ENGINES TO PROVIDE FOR
PROPER INSTALLATION OF STYLE "I'
STARTERS WHEN USED AS A REPLACEMENT. PARTS ARE NOT INTERCHANGEABLE BETWEEN STARTERS.
CAUTION: SUPPORT BRACKET AND THE
ATTACHING HARDWARE MUST REMAIN
ON THE ENGINE TO INSURE PROPER
INSTALLATION OF STYLE “I” STARTERS!
113
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 33. Engine - External Assembly
114
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
FIG
NO.
33
33
33
33
33
33
33
33
33
33
33
b.
ITEM
NO.
1
2
3
4
5
6
7
8
9
10
11
(2)
SMR CODE
a.
ARMY
b.
AIR
FORCE
c.
NAVY
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAFZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ XB---
PAOFF PAOOO XB---
(3)
d.
USMC
a.
SSI
(4)
RPL
FACTOR
NATIONAL
STOCK
NUMBER
5305-01-325-8387
5310-00-732-0558
5310-00-637-9541
5310-00-080-6004
5310-00-061-1258
5305-00-068-0511
5310-00-637-9541
5310-00-080-6004
5310-00-061-1258
6150-01-051-0145
5340-01-289-4391
12
PAOZZ PAOZZ XB---
5305-00-177-5677
33
13
PAOZZ PAOZZ PAZZZ
5310-00-926-5916
33
14
15
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
(6)
(7)
(8)
UM
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
8
23
EA
8
43
EA
7
78
EA
7
22
EA
2
11
EA
8
14
EA
7
78
EA
7
22
EA
1
11
EA
1
1
EA
2
2
EA
1
4
EA
1
3
EA
1
13
EA
2
6
b
33
33
(5)
DESCRIPTION
5310-00-209-0965
5310-00-809-4085
REF NUMBER & MFR NUMBER
GROUP 14 EXTERNAL ENGINE
ASSEMBLY
SCREW, CAP, HEX HEAD
3/8-16 X 1-1/2 UNC-2A
MS90725-64
FF-S-85
NUT, PLAIN, HEX 3/816
UNC-2B
MS51967-8
862-1003
WASHER, LOCK 3/8
MS35338-46
850-1050
WASHER, FLAT 3/8
MS27183-14
526-1516
WASHER, LOCK EXTERNA/
INTERNAL TOOTH, 3/8
MS45904-76
856-1010
SCREW, CAP, HEX HEAD
3/8-16 X 1-1/4 UNC-2A
81821BH038C125N
800-1051
WASHER, LOCK 3/8
MS35338-46
850-1050
WASHER, FLAT 3/8
MS27183-14
526-1516
WASHER, LOCK EXTERNA/
INTERNAL TOOTH, 3/8
MS45904-76
856-1010
STRAP, GROUND
72-5006-2
337-0098
MOUNT ASSEMBLY, VIBRATION, ENGINE
72-5050
402-0377
SCREW, CAP, HEX HEAD
7/16-20 X 6 UNF-2A
AN7-57A
NUT, PLAIN, HEX 7/16-20
UNF-2B
MS51968-12
867-1004
WASHER, LOCK 7/16
MS3533847
850-1055
WASHER, FLAT 7/16
MS27183-16
526-1518
USABLE
ON CODE
96906
81348
96906
44940
96906
44940
96906
44940
96906
44940
80204
44940
96906
44940
96906
44940
96906
44940
30554
44940
30554
44940
88044
96906
44940
96906
44940
96906
44940
Change 1 115
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG
ITEM
NO.
NO.
(2)
SMR CODE
a.
b.
c.
(3)
d.
a.
AIR
ARMY
FORCE
NAVY
USMC
SSI
(4)
33
33
33
33
16
17
18
19
20
XBOZZ XB---
RPL
NATIONAL
STOCK
FACTOR
NUMBER
XB---
PAOZZ PAOZZ XB---
PAOZZ PAOZZ XB---
XEOZZ XB---
XBOZZ XB---
5340-01-059-5483
5315-00-297-1745
XB---
XB---
33
21
PAOZZ PAOZZ PAZZZ
5305-00-071-2069
33
22
PAOZZ PAOZZ PAZZZ
5310-00-584-5272
33
33
33
33
33
33
116
23
24
25
26
27
28
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ XB---
PAOZZ PAOZZ XB---
PAFHH PAOFF PDDGG
(6)
(7)
(8)
QTY
INC IN
USMC
QTY
PER
UM
UNITS
EQUIP
EA
2
6
EA
2
4
EA
1
3
EA
1
3
EA
1
2
EA
4
6
EA
4
8
EA
2
6
EA
2
4
EA
2
8
EA
1
1
EA
1
1
EA
1
1
b.
33
33
(5)
DESCRIPTION
5305-00-071-2069
5310-00-768-0318
5310-00-584-5272
5306-01-280-7357
5340-01-278-7728
2815-01-046-5861
USABLE
REF NUMBER & MFR NUMBER
ON CODE
GROUP 14 EXTERNAL ENGINE
ASSEMBLY - CONT
BRACKET, SUPPORT
72-5054
232-2202
MOUNT, RESILIENT
72-5051-2
J12021-4
PIN, STRAIGHT, HEADLESS
MS171537
N0533P01322
SPACER, SLEEVE
72-5052
J7766-10
BRACKET, MOUNTING
72-5053
403-0939
SCREW, CAP, HEX HEAD:
1/2-13 X 1-1/2 UNC-2A
B1821BH050C150N
800-1092
WASHER, LOCK: 1/2
MS35338-48
850-1060
SCREW, CAP, HEX HEAD
1/2-13 X 1-1/2 UNC-2A
B1821BH050C150N
800-1092
NUT, PLAIN, HEX 1/2-13
UNC-2B
MS51967-14
862-1016
WASHER, LOCK 1/2
MS35338-48
850-1060
LIFTING EYE
72-5059
403-0945
BRACKET, ANGLE
72-5058
403-0995
ENGINE, DIESEL: 2 CYL
72-5306
100-1344
30554
44940
30554
44940
96906
03538
30554
76005
30554
44940
80204
96906
44940
80204
44940
96906
44940
96906
44940
30554
44940
30554
44940
30554
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 34. Flywheel and Housing
118
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
5
EA
1
1
EA
1
1
EA
1
17
EA
1
78
EA
2
8
EA
1
1
EA
12
12
EA
4
14
EA
4
78
EA
4
5
EA
1
1
USABLE
ON CODE U.M.
GROUP 14 EXTERNAL ENGINE
ASSEMBLY - CONT
34
34
34
34
34
34
34
34
34
34
34
34
1
2
3
4
5
6
7
8
9
10
11
12
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
XB---
XB---
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
XB---
XB---
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
XBFZZ
XB
5305-00-071-2055
5310-01-049-9170
2815-01-049-0823
5305-00-1159526
5310-00-637-9541
5305-00-036-6906
5355-01-287-7994
5307-01-049-0716
5305-00-068-0511
5310-00-637-9541
5310-00-543-5060
XB---
119
SCREW, CAP. HEX HEAD:
7/16-14 X 1-1/2 UNC-2A GRADE
8 HARDENED
MS90728-89
800-1507
96906
44940
WASHER. FLAT: SPECIAL. 7/16
526-1243
44940
FLYWHEEL
104-0748
44940
SCREW, CAP, HEX HEAD:
3/8-16 X 3/4 UNC-2A
MS90725-58
B1821BH038C075D
96906
80204
WASHER. LOCK: 3/8
MS35338-46
850-1050
96906
44940
SCREW, ASSEMBLED WASHER: PAN HEAD, 10-24 X 1/12
UNC-2A
69-662-50
61-100841-40-0142B0542B
30554
78189
POINTER TIMING
104-0749
44940
STUD, PLAIN
520-1742
44940
SCREW, CAP, HEX HEAD:
3/8-16 X 1-1/4 UNC-2A
B1821BH038C125N
800-1051
80204
44940
WASHER. LOCK: 3/8
MS35338-46
850-1050
96906
44940
WASHER, FLAT: 3/8
MS35338-39
526-1030
96906
44940
ADAPTER, GENERATOR
231-0155
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 35. Intake Manifold and Heater
120
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
35
ITEM
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
XB---
PAOZZ PAOZZ KFGZZ
XBOOO
XB
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
PBOZZ PAOZZ
XB---
XB---
XB---
XB---
PAOZZ PAOZZ KFGZZ
XB---
PAOZZ PAOZZ KFGZZ
XBOZZ
XB
PBOZZ PBOZZ
REPL
FACTOR
NATIONAL
STOCK
NUMBER
5306-00-226-4831
5340-01-050-6087
5330-00-871-6098
2920-01-040-0308
5305-00-068-0509
5310-00-582-5965
XB---
PAOZZ PAOZZ KFGZZ
PBOZZ PBOZZ
SSI
5940-00-143-4773
5940-01-057-9594
6145-01-049-0118
5310-01-050-3803
5970-00-351-8052
2940-01-008-3007
2940-01-048-6721
5330-00-725-2452
XB--XB---
(5)
DESCRIPTION
(6)
(7)
b.
XB---
PAOZZ PAOZZ PAOZZ
MOOOO AOO
a.
(4)
2815-01-048-6576
121
REF NUMBER & MFR NUMBER
GROUP 14 EXTERNAL ENGINE
ASSEMBLY - CONT
SCREW, CAP. HEX HEAD:
5/16-18 1-1/2 UNC-2A
B1821BH031C150N
800-1031
TAB. LOCK
154-1772
GASKET MANIFOLD
154-0733
PART OF KIT 110-2460
MANIFOLD AND HEATER
ASSEMBLY
154-1397
GLOW PLUG
CH49
154-1487
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
2
2
EA
2
2
EA
1
1
EA
1
1
EA
2
2
EA
2
16
EA
2
52
EA
1
1
EA
1
1
EA
1
1
FT
1
1
EA
2
2
EA
2
2
EA
2
2
EA
1
1
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
80204
44940
44940
44940
44940
44940
11587
44940
SCREW, CAP. HEX HEAD:
1/4-20 X 1-1/4 UNC-2A
B1821BH025C125N
800-1008
80204
44940
WASHER, LOCK: 1/4
MS35338-44
850-1040
96906
44940
LEAD, ELECTRICAL
336-1408
44940
TERMINAL, LUG
MS25036-105
332-0808
96906
44940
TERMINAL, LUG
41124
332-0152
00779
44940
WIRE, ELECTRICAL
334-0761
44940
WASHER, FLAT: SPECIAL
526-1271
44940
WASHER. INSULATING
508-0102
PART OF KIT 168-0135
44940
44940
SLEEVE: INSULATING
508-0103
PART OF KIT 168-0135
44940
44940
ADAPTER. HEATER
140-0705
44940
GASKET. HEATER ADAPTER
140-0706
PART OF KIT 169-0135
TUBE, BREATHER
123-1177
MANIFOLD, INTAKE
154-1357
(8)
44940
44940
44940
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 36. Blower Wheel, Alternator Stator, Regulator, Fuse and Terminal Block
122
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
1
PAFZZ PAOZZ
36
2
PAFZZ PAOZZ PAZZZ
36
36
36
36
36
36 9
36 10
36 11
36 12
36
36
36
36
3
4
5
6
7
8
PAOZZ
PAOZZ
PAOZZ
PAOZZ
13
14
15
16
d.
AIR
ARMY FORCE NAVY USMC
36
36
(3)
PAFZZ PAOZZ
XB---
XB---
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAHGO
PAOZZ PAOZZ PAZZZ
PAOZZ PAZZZ
2815-00-833-0658
5310-00-209-0965
5310-00-165-2014
5305-00-225-3839
5310-00-761-6882
5310-00-889-2528
2920-01-038-5252
5305-00-984-6210
5340-00-057-3037
PAOZZ PAZZZ
5305-00-984-6195
XB---
XB---
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ
REPL
FACTOR
NATIONAL
STOCK
NUMBER
5310-01-050-3804
PAOZZ PAZZZ
PAOZZ PAOZZ
SSI
XB---
(5)
DESCRIPTION
(6)
(7)
b.
5310-00-094-3421
PAOZZ PAZZZ
PAOZZ PAOZZ
a.
(4)
5310-00-052-3632
5940-00-983-6114
5920-00-012-0151
5920-00-892-9311
123
REF NUMBER & MFR NUMBER
GROUP 14 EXTERNAL ENGINE
ASSEMBLY - CONT
SCREW, CAP, HEX HEAD:
7/16-14 X 5-1/2 UNC-2A
800-0500
WASHER. LOCK: 7/16
MS35338-47
850-1055
WASHER, FLAT: SPECIAL, 7/16
526-0185
SCREW, CAP, HEX HEAD:
1/4-20 X 1 UNC-2A
MS90725-8:
800-1007
1
1
EA
1
7
EA
1
1
EA
3
19
EA
3
21
EA
6
14
EA
1
1
EA
1
13
EA
1
24
EA
1
1
EA
1
1
EA
2
10
EA
2
27
EA
1
1
EA
1
1
EA
1
1
44940
96906
44940
96906
44940
REGULATOR AND RECTIFIER
FVR4006-19728
305-0512
19728
44940
96906
87308
30554
78189
44940
96906
44940
96906
44940
NUT. ASSEMBLED WASHER.
HEX: 8-32 UNC-2B
69-561-3
511-081800-00
30554
78189
TERMINAL BOARD
38TB3
332-1500
81349
44940
FUSE, CARTRIDGE
F02A32V15A
321-0127
FUSEHOLDER
FHN26G1
321-0179
EA
96906
44940
WASHER. LOCK: 1/4
MS45904-68
856-1006
CLAMP, LOOP
MS21333-111
332-1019
SCREW, MACHINE: PAN HEAD:
8-32 X 3/4 UNC-2A
MS35206-247
822-1050
USMC
QTY
PER
EQUIP
44940
96906
44940
NUT, ASSEMBLED WASHER,
HEX: 10-24 UNC-2B
69-561-4
511-101800-00
WASHER, FLAT: 1/4 E:
526-0179
QTY
INC IN
UNITS
USABLE
ON CODE U.M.
NUT PLAIN, HEX: 1/4-20
UNC-2B
MS51967-2
862-1001
SCREW, MACHINE: PAN HEAD:
10-24 X 1/2 UNC-2A
MS35206-263
10-1-0465-016
(8)
81349
44940
81349
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
2
2
FT
.3
3
EA
1
1
EA
4
4
EA
4
4
EA
1
1
EA
2
5
FT
2.2
370
FT
.9
.9
EA
2
2
USABLE
ON CODE U.M.
GROUP 14 EXTERNAL ENGINE
ASSEMBLY - CONT
36
36
36
36
36
36
36
36
36
36
36
17
18
19
20
21
22
23
24
25
26
27
MFFZZ
AOO
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZ~- PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAOZZ PAOZZ
XB---
XB---
XB---
XB---
XB---
XB---
XB.--
XB---
XB---
XB---
XB---
5940-01-049-0537
5970-00-954-0561
5910-00-114-0838
5305-01-050-3787
5310-00-045-3296
2920-01-048-9075
5940-00-283-5280
5145-00-578-6605
5970-01-183 5430
5340-00-809-1490
124
CAPACITOR: ASSEMBLY OF
356-0064
44940
TERMINAL, LUG
332-1301
44940
INSULATION SLEEVING,
ELECTRICAL HYGRADE VF
18AWG BLACK
B-A-1
08890
CAPACITOR, ELECTROLYTIC
M39006/02-1295
356-0052
81349
44940
SCREW, MACHINE: PAN HEAD,
10-32 X 1-1/4 UNF-2A
820-1072
44940
WASHER, LOCK: NO. 10
MS35338-43
850-1030
96906
44940
STATOR, ALTERNATOR
FWA3001
191-0895
79575
44940
TERMINAL, LUG
MS25036-106
332-0805
96906
44940
WIRE, ELECTRICAL
M5086-2-16-9
334-1283
81349
44940
INSULATION SLEEVING.
ELECTRICAL
MIL-1-003190/1
81349
CLAMP. LOOP
MS21333-98
332-1877
96906
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 37. Blower Wheel - Exploded View
126
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
SSI
REPL
FACTOR
NATIONAL
STOCK
NUMBER
-
XBFFF
37
1
PAFZZ PAOZZ
XB---
5305-01-050-1107
37
2
PAFZZ PAOZZ
XB---
5310-01-050-1311
37
3
PAFZZ PAOZZ
XB---
2990-01-048-9694
37
4
XBFFF
XB---
37
37
37
37
37
37
37
5
6
7
8
9
10
11
12
AOO
PAFZZ PAOZZ
PAFZZ PAOZZ
KFFZZ PAOZZ
XAFZZ
XAFZZ
XAFZZ
KFFZZ
KFFZZ
XA
XA
XA
KF
KF
XB---
XB---
XB---
5305-01-049-6237
5310-01-196-6624
XB---
XB---
XB---
5310-00-432-7980
XB---
37
13
PAFZZ PAOZZ
XB---
5305-01-049-6238
37
14
PAFZZ PAOZZ
XB---
5310-00-880-7744
37
37
37
37
37
15
16
17
18
19
PAFZZ PAOZZ
XB---
PAFZZ PAOZZ PAZZZ
PBFZZ PBOZZ
PAFZZ PAOZZ
PBFZZ PAOZZ
XB--XB---
XB---
REF NUMBER & MFR NUMBER
GROUP 14 EXTERNAL ENGINE
ASSEMBLY - CONT
BLOWER WHEEL AND ROTOR
ASSEMBLY
134-3043
SCREW, MACHINE: ROUND
HEAD, 12-24 X 1-3/4 UNC-2A,
CAD PL
812-1134
WASHER, LOCK: NO.
850-0035
ROTOR, ALTERNATOR:
BATTERY CHARGING
191-0896
WHEEL ASSEMBLY, BLOWER
134-2512
SCREW, CAP, HEX HEAD:
3/8-24 X 2-1/2 UNF-2A
801-0505
PART OF KIT 134-3361
NUT, SELF-LOCKING, HEX:
3/8-24 UNF-2B
870-0352
PART OF KIT 134-3361
SPACER ASSEMBLY
134-2516
PART OF KIT 134-3361
RING, RETAINING
150-0437
WASHER, CONVEX
104-0540
XB--XB---
(5)
DESCRIPTION
(6)
(7)
b.
37
37
AOO
a.
(4)
5310-01-050-3801
5310-00-407-9566
2990-01-049-1186
2990-01-049-0518
2990-01-049-1187
127
SPACER, STEPPED
134-2517
WASHER, FLAT: 9/16.
HARDENED
526-0187
PART OF KIT 134-3361
INSERT, BLOWER WHEEL
104-0757
PART OF KIT 134-3361
SCREW, MACHINE: HEX HEAD,
5/16-18 X 1-1/2 UNF-2A,
HARDENED
800-1529
NUT PLAIN, HEX: 5/16-18
UNF-2A
MS51967-5
862-1015
WASHER, LOCK: 5/16
526-0246
WASHER, FLAT: 5/16
MS35338-45
850-1045
HUB,. BLOWER
134-2515
ADAPTER, HUB
134-2514
WHEEL, BLOWER
134-2513
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
6
6
EA
6
6
EA
1
1
EA
1
1
EA
3
3
EA
3
7
EA
3
3
EA
1
3
EA
5
15
EA
1
3
EA
6
6
EA
3
3
EA
3
3
EA
3
23
EA
3
3
EA
3
49
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
44940
44940
12
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
96906
44940
44940
96906
44940
44940
44940
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 38. Oil Cooler, Oil Lines and Fitting, Pressure Gauge
128
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
REPL
FACTOR
NATIONAL
STOCK
NUMBER
1
PAOZZ PAOZZ
XB---
5975-00-727-5153
38
2
PAOZZ PAOZZ
XB---
4720-01-048-9074
38
3
PAOZZ PAOZZ
XB---
4730-00-254-6215
38
4
PAOZZ PAOZZ PAOZZ
4720-01-048-8805
38
5
PAOZZ PAOZZ
4730-00-254-6215
38
6
PAOZZ PAOZZ PAZZZ
5306-00-226-4825
38
7
PAOZZ PAOZZ PAZZZ
5310-00-407-9566
38
8
XBOZZ
38
9
PAOZZ PAOZZ
XB---
530501-050-3733
38
10
PAOZZ PAOZZ
XB---
5340-01-049-3958
38
38
38
38
38
38
38
38
38
11
12
13
14
15
16
17
18
19
XB
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
XBOZZ
XB
XB---
XB---
XB---
XS---
XB---
281501-049-1189
2930-01-081-0591
5330-01-073-0856
5305-01-050-1106
XB---
XBOOO AOO AHHHH
MOOOO AOO AHHHH
PAOZZ PAOZZ PAHZZ
PAOZZ PAOZZ PAHZZ
(6)
(7)
b.
38
XB---
(5)
DESCRIPTION
4730-00-842-2200
4720-00-639-9907
129
REF NUMBER & MFR NUMBER
CLIP, RETAINING
102-0819
44940
COOLER ASSEMBLY. OIL
412290-3
102-0939
70210
44940
COOLER, OIL
102-0843
44940
SEAL. OIL COOLER
102-0845
44940
SCREW, SELF-LOCKING: HEX
HEAD. 5/16-18 X 1/2 UNC-2A
821-0014
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
13
EA
1
1
EA
1
2
EA
1
1
EA
1
2
EA
1
3
EA
1
49
EA
1
1
EA
4
92
EA
4
4
EA
1
1
EA
1
1
EA
1
1
EA
2
11
EA
1
1
EA
1
1
EA
1
1
EA
2
4
FT
9.2
13.3
USABLE
ON CODE U.M.
GROUP 14 EXTERNAL ENGINE
ASSEMBLY - CONT
STRAP, TIEDOWN
MS3367-4-9
96906
332-0942
44940
HOSE, OIL
FA3112HHH0227
00624
501-0173
44940
ELBOW, PIPE
64951-2X3-8
30327
502-0277
44940
HOSE. OIL
FA1774HHH0192
01276
501-0109
44940
ELBOW, PIPE
649F1-2X3-8
30327
502-0277
44940
BOLT, MACHINE: 5/16-18 X 3/4
UNC-2A
B1821BH031C075N
80204
800-1026
44940
WASHER, LOCK: 5/16
MS35338-45
96906
850-1045
44940
BRACKET HOSE
102-0701
44940
SCREW, SELF-LOCKING: HEX
HEAD.
1/4-20 X 1/2 UNC-2A
821-0010
44940
(8)
44940
PLATE, MOUNTING: OIL
COOLER
102-0838
44940
GAUGE ASSEMBLY
193-0237
44940
HOSE ASSEMBLY. OIL
MS27741-4-0092
501-0191
9690
44940
FITTING, HOSE
MS24587-4
96906
HOSE, RUBBER
MILH8794-4
81349
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
2
3
EA
2
8
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 14 EXTERNAL ENGINE
ASSEMBLY - CONT
38
38
38
38
38
38
38
38
38
38
38
38
38
20
21
22
23
24
25
26
27
28
29
30
31
32
PAOZZ PAOZZ
PAOZZ PAOZZ
XB---
XB---
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PBHZZ
XBOZZ
XB
XB---
XB---
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
5310-00-934-9751
6620-01-037-9601
4710-01-158-4051
PAOZZ PAOZZ PAZZZ
PAOFF PAOZZ
5310-01-012-3595
XB---
PAOZZ
PAOZZ PAOZZ
4730-00-277-7910
XB---
XB---
XB---
4730-01-048-8641
4730-00-277-8269
4710-01-048-9697
2815-00-480-7390
4730-00-165-0967
4730-00-287-1614
4730-00-278-3721
CONNECTOR, HOSE
4GBTX-B
502-0405
NUT, ASSEMBLED WASHER.
HEX: 10-32 UNF-2B
2740-0003
69-561-6
30780
44940
81205
30554
NUT. PLAIN, HEX: 10-32
UNF-2B
MS35650-302
870-1053
96906
44940
GAUGE, OIL PRESSURE
193-0225
44940
BRACKET. MOUNTING: OIL
GAUGE
193-0214
44940
TUBE OIL
120-0622
44940
CONNECTOR, PIPE
502-0281
44940
ELBOW. PIPE
400X3
502-0037
79470
44940
TUBE. OIL
120-0700
44940
CONNECTOR, PIPE
502-0274
44940
TEE, PIPE, MODIFIED
502-0242
44940
CONNECTOR, PIPE
3300X2
502-0051
79470
44940
NIPPLE. PIPE
1-8FFB
502-0082
45681
44940
130/(131 blank)
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 39. Governor Assembly
132
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
2
2
EA
2
52
EA
1
1
EA
1
1
EA
1
1
EA
1
3
EA
2
3
EA
1
2
EA
1
4
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 14 EXTERNAL ENGINE
ASSEMBLY - CONT
39
39
39
1
2
3
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
XBFZZ
XB
-
PAFFF PAOOO
XB---
39
4
XAFZZ
XA--
39
39
39
39
39
39
5
6
7
8
9
10
PAFZZ PAOZZ
PAFZZ PAOZZ
XAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
XB---
XB---
2910-01-049-4412
5310-00-064-3590
5310-00-064-3590
XB---
XB---
XB---
XB---
5310-01-012-3595
2910-01-050-2829
5360-01-049-0546
39
11
PAFFF
XB---
2990-01-049-6402
39
12
PAFZZ PAOZZ PAZZZ
5310-01-061-4478
39
13
AOO
5310-00-582-5965
XB---
39
XA
5305-00-068-0502
PAFZZ PAOZZ
XB---
39
14
XAFZZ
XB
XB---
39
15
XOFZZ
XB
XB---
39
39
16
17
PAFZZ PAOZZ
XAFZZ
XB
XB---
5310-004809-4058
5305-00-515-9090
XB---
133
SCREW, CAP, HEX HEAD:
1/4-20 X 3/4 UNC-2A
MS90725-6
800-1005
WASHER, LOCK: 1/4
MS35338-44
850-1040
SUPPORT, CABLE
150-1306
LINKAGE ASSEMBLY,
GOVERNOR
150-1132
LINKAGE, GOVERNOR
150-1131
NUT, PLAIN, HEX: 10-32
UNF-2B
CPP2025B001-105C
96906
44940
96906
44940
44940
44940
44940
09017
NUT PLAIN, HEX: 10-32
UNF-2B
CPP2025B001-105C
09017
BALL JOINT
150-1358
44940
NUT, ASSEMBLED WASHER,
HEX 10-32 UNF-2A
69-561-6
2740-0003
30554
81205
ARM ASSEMBLY, GOVERNOR
150-1312
44940
SPRING. GOVERNOR
150-1309
44940
CONTROL ASSEMBLY,
GOVERNOR
150-1307
NUT, SELF-LOCKING, HEX:
1/4-20 UNC-2B
870-0218
F52N7582-420
WASHER, FLAT: 1/4, CAD PL
MS27183-10
526-1512
LEVER, ADJUSTING,
GOVERNOR
150-1304
BUSHING, SLEEVE
150-1305
SETSCREW
AN565A428H20
815-0349
BRACKET, GOVERNOR
CONTROL
150-1301
44940
44940
75237
96906
44940
44940
44940
88044
44940
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 40. Fuel Lines, Pump to and from Injector Nozzles
134
ARMY TM 9-6115-58424P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
2
2
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
6
EA
1
1
USABLE
ON CODE U.M.
GROUP 14 EXTERNAL ENGINE
ASSEMBLY - CONT
40
40
40
40
40
40
40
40
40
40
40
40
40
1
2
3
4
5
6
7
8
9
10
11
12
13
PAFZZ PAOZZ PAHZZ
4710-00-995-1477
PAFZZ PAOZZ PAHZZ
4710-00-996-8666
PAFZZ PAOZZ PAHZZ
4730-00-496-7511
PAFZZ PAOZZ PAHZZ
PAFZZ PAOZZ
4710-00-491-3219
XB---
4730-01-008-6347
PAFZZ PAOZZ PAHZZ
4710-01-038-5289
PAFZZ PAOZZ PAHZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
4710-01-008-2859
XB---
4720-01-009-1615
XB---
XB---
XB---
XB---
XB---
5340-01-049-6946
'
4730-00-277-5553
4730-01-049-5820
4730-01-049-0746
4820-01-049-1322
135
TUBE, FUEL RETURN:
CYLINDER NO. 2
149-1057
TUBE, FUEL RETURN:
CYLINDER NO. 1
149-1056
44940
44940
ELBOW, PIPE
CERNG224
502-0065
44940
TUBE, FUEL
149-1058
44940
TEE, PIPE
502-0102
44940
TUBE. FUEL SUPPLY:
CYLINDER NO. 2
149-1102
44940
TUBE, FUEL SUPPLY:
CYLINDER NO. 1
149-1101
44940
HROSE, FUEL
501-0129
44940
CLAMP, LOOP
518-0346
44940
ELBOW. PIPE
MS51952-2
502-0054
96906
44940
COUPLING, PIPE
505-0803
44940
ELBOW, PIPE
2025-4-5B
502-0380
00624
44940
VALVE, CHECK: FUEL
22962B
147-0270
14834
44940
ARMY TM 9-6115-58424P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 41. Start Control Assembly - Exploded View
136
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
2
EA
1
1
EA
2
14
EA
2
78
EA
1
1
EA
2
2
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
2
2
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
3
GROUP 14 EXTERNAL ENGINE
ASSEMBLY - CONT
41
41
41
41
41
41
1
2
3
4
5
-
PAOZZ PAOZZ XB---
PAOZZ PAOZZ XB---
PBOZZ PAOZZ XB---
PAOZZ PAOZZ PAZZZ
PAOOO PAOOO XB---
6
PAOZZ PAOZZ XB---
41
7
XAOZZ XAOZZ PAOZZ
41
8
9
5310-00-045-3296
2920-01-049-3216
5305-00-068-0511
PAOZZ PAOZZ PAZZZ
41
41
5305-01-049-6234
KFOZZ
XAOZZ
KF
XA
5305-01-050-3786
KFGZZ
PAOZZ
41
10
XAOZZ
41
11
PAOZZ PAOZZ XB---
2920-00-491-3254
41
12
PAOZZ PAOZZ XB---
2920-00-491-3253
41
41
41
41
41
41
41
13
14
15
16
17
18
19
XA
2920-01-048-9790
XB---
PAOZZ PAOZZ PAZZZ
XBOZZ
XB
PAZZZ
PAOZZ PAOZZ XB--XAOZZ
XDOZZ
XAOZZ
XAOZZ
XA
XA
XA
XA
5360-00-419-6675
2920-01-048-9386
XB--XB--XB---
XB---
SCREW, MACHINE: ROUND
HEAD, 10-32 X 1-1/4 UNC-2A
813-0107
44940
WASHER, LOCK: NO. 10
MS35338-43
96906
COVER. START CONTROL
191-0392
44940
SCREW, CAP, HEX HEAD:
3/8-16 X 1-114 UNC-2A
B1821BH038C125N
80204
WASHER. LOCK: 3/8
850-1050
44940
SWITCH ASSEMBLY, START
CONTROL
191-0924
SCREW, ASSEMBLED
WASHER: ROUND HEAD.
BRASS, 8-32 X 318 UNC-2A
815-0201
SWITCH ASSEMBLY WITH
CONNECTOR
309-0278
44940
44940
DIAPHRAGM, PLUNGER
160-0382
PART OF KIT 168-0135
44940
44940
PLUNGER, SWITCH
309-0152
44940
PLATE, MOUNTING: START
CONTROL SWITCH
191-0364
DISK, THRUST: SWITCH
PLUNGER
160-0806
PLUNGER, SWITCH
160A0774
SPRING, PLUNGER
160-0773
SPACER. SLEEVE
160-0720
CONTROL ASSEMBLY, START
191-0903
SPRING, TIMING: IGNITION
160-0711
CAM, THRUST
191-0363
SPRING, CAM
160-0713
GEAR AND WEIGHT
ASSEMBLY
191-0904
137
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
2
2
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 14 EXTERNAL ENGINE
ASSEMBLY - CONT
41
41
41
41
41
20
21
22
23
24
XAOZZ
XAOZZ
XAOZZ
XAOZZ
XDOZZ
XA
XA
XA
XA
XA
XB---
XB---
XB---
XB---
XB---
PIN, STRAIGHT, HEADLESS
160-0712
44940
PIN, STRAIGHT, HEADLESS
516-0151
44940
WEIGHT. TIMING
160-0703
44940
PIVOT, WEIGHT
160-0710
44940
GEAR AND SHAFT ASSEMBLY
191-0902
44940
41
25
XAOZZ
XA
XB---
GEAR, HELICAL
160-1156
41
26
XAOZZ
XA
XB---
SHAFT, SHOULDERED
191-0360
44940
GASKET: START CONTROL
160-0721
PART OF KIT 168-0135
44940
44940
41
27
PAOZZ PAOZZ KFGZZ
5330-00-145-2429
138
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 42. Fuel Stop Solenoid .
140
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
USABLE
ON CODE U.M.
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
GROUP 14 EXTERNAL ENGINE
ASSEMBLY- CONT
42
1
PAOZZ PAOZZ XB---
5305-01-050-3812
SCREW. MACHINE: ROUND
HEAD.
1/4-20 X 5/8 UNC-2A
812-0150
44940
EA
2
2
42
2
PAOZZ PAOZZ XB---
5310-00-209-0786
WASHER. LOCK: EXTERNAL
TOOTH, 114
MS35335-33
853-1013
EA
2
2
96906
44940
SOLENOID. STOP: ENGINE
307-1101
EA
1
1
44940
SCREW, BRASS 1/4-20X1
306-0242
EA
1
1
44940
NUT. BRASS 114-20
862-0001
EA
1
1
44940
EA
2
92
EA
1
1
EA
4
20
EA
4
16
EA
1
1
EA
3
14
EA
1
EA
1
EA
1
EA
1
EA
2
EA
1
42
42
42
42
42
42
42
42
42
42
42
42
42
42
42
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
PAOZZ PAOZZ PAHZZ
PAOZZ PAOZZ PAOZZ
PAOZZ PAOZZ PAOZZ
PAOZZ PAOZZ XB---
XBFFF
XB
MFFFF
5305-00-549-8388
5310-01-061-7919
5305-01-050-3733
AGGGG
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
2920-01-048-9774
XB---
PANEL AND HARNESS
ASSEMBLY
134-3268
5305-00-889-2997
5310-00-836-3520
AOO AGGGG
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
XB---
SCREW, SELF-LOCKING: HEX
HEAD, 1/4-20 X 112 UNC-2A
821-0010
5340-00-823-5322
5935-00-565-9503
5935-01-012-6231
5940-00-143-4794
5940-00-283-5280
5940-00-143-4780
5975-00-074-2072
141
SCREW. MACHINE: PAN HEAD,
4-40 X 3/8 UNC-2A
MS35206-215
822-1016
NUT, ASSEMBLED WASHER,
HEX: 4-40 UNC-2B
501-040800-00
69-561-1
WIRING HARNESS
338-0573
PLUG, END SEAL
MS25251-16
323-0701
PLUG, END SEAL
MS25251-12
323-0830
CONNECTOR, RECEPTACLE,
ELECTRICAL
MS3450W20-18P
323-0823
TERMINAL. LUG
MS25036-112
332-0350
TERMINAL, LUG
MS25036-106
332-0805
TERMINAL. LUG
MS25036-108
332-0807
STRAP. RETAINING
MS3367-1-9
44940
44940
96906
44940
78189
30554
44940
96906
44940
96906
44940
96906
44940
96906
44940
96906
44940
96906
44940
96906
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
USABLE
ON CODE U.M.
QTY
INC IN
UNITS
(8)
USMC
QTY
PER
EQUIP
GROUP 14 EXTERNAL ENGINE
ASSEMBLY - CONT
42
42
42
42
42
42
42
18
19
20
21
22
23
24
PAFZZ PAOZZ
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
PAFZZ PAOZZ
XBOZZ
XB
PAOZZ PAOZZ
XBOZZ
XB
XB---
XB---
5940-01-140-8678
5940-01-049-0536
6145-00-578-7514
6145-00-578-6605
XB---
XB---
XB---
5305-01-050-3733
ADAPTER, TERMINAL
332-1571
44940
TERMINAL, LUG
322-0684
44940
WIRE. ELECTRICAL
M5086-2-12-9
334-1285
81349
44940
WIRE, ELECTRICAL
M5086-2-16-9
334-1283
81349
44940
PANEL. CYLINDER SHROUND
134-2186
44940
1
EA
1
FT
43
FT
SCREW, SELF-LOCKING: HEX
HEAD, 1/4-20 X 1/2 UNC-2A
821-0010
44940
BRACKET. CYLINDER SHROUD
134-2915
44940
142/(143 blank)
EA
EA
1
1
EA
2
92
EA
1
1
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 43. Engine - Internal Assembly - Rocker Cover, Rocker Arms and Push Rods
144
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
4
25
EA
4
49
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
4
7
EA
4
4
EA
2
2
EA
2
2
EA
4
4
EA
1
2
EA
5
5
EA
6
6
EA
7
7
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 15 INTERNAL ENGINE ASSEMBLY
43
43
43
43
43
12
43
43
43
43
43
43
43
43
43
43
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOOO PAOOO XB---
XAOZZ
XAOZZ
XAOZZ
XBOZZ
XA
XA
XA
XB
PAFZZ PAOZZ
KFFZZ
KF
PAFZZ PAOZZ
PAFZZ PAOZZ
2805-00-484-7493
XB---
XB---
XB--KFGZZ
XB---
XB---
5330-00-871-9486
5310-00-994-1670
2815-00-972-8917
2805-00-793-1657
2805-00-790-4934
2815-00-470-7191
4730-00-287-3281
5306-00-009-6556
43
16
PAFZZ PAOZZ
XB---
5306-00-932-1886
43
17
PAFZZ PAOZZ
XB---
5310-01-010-2261
43
43
18
19
KFFZZ
KF
KFGZZ
PAFZZ PAOZZ KAFZZ
96906
44940
WASHER, LOCK: 5/16
MS35338-45
850-1045
96906
44940
COVER ASSEMBLY, ROCKER
115-0134
4494
44940
WASHER, FLAT: SPECIAL, NO.
PAZZZ
XB---
SCREW, CAP, HEX HEAD:
5/16-18 X 1-1/4 UNC-2A
MS90725-36
800-1030
SCREW, TAPPING, ROUND
HEAD: NO. 12 X 1/2
809-0042
XB---
PAFZZ PAOZZ PAFZZ
PAFZZ PAOZZ
5310-00-407-9566
XB---
PAOZZ PAOZZ PAOZZ
PAFZZ PAOZZ
5306-01-075-8519
5330-01-049-6263
145
526-0130
44940
TUBE. OIL
120-0628
44940
COVER, ROCKER
115-0197
44940
GASKET ROCKER COVER
115-0130
PART OF KT 110-2460,
168-0135
NUT, SELF-LOCKING, HEX:
3/8-24 UNF-2B
115-0150
BALL, ROCKER ARM
115-0127
ROCKER ARM: EXHAUST
115-0128
ROCKER, ARM: INTAKE
115-0129
CAP, VALVE STEM
110-0859
PART OF KIT 110-2460
PLUG, PIPE
502-0028
P341
BOLT, MACHINE; HEX HEAD
110-1264
BOLT. MACHINE: 3/8-16 X 1-3/4
UNC-2A GRADE8. HARDENED
800-0503
WASHER, FLAT: SPECIAL
526-0174
GUIDE, PUSHROD
115-0200
PART OF KIT 110-2460
GASKET, CYLINDER HEAD
110-1836
PART OF KIT 110-2460,
168-0135
44940
44940
44940
44940
44940
44940
44940
44940
44940
79172
44940
44940
44940
44940
44940
.
44940
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
43
43
43
43
43
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
43
43
(5)
DESCRIPTION
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
4
4
EA
8
8
EA
4
4
EA
4
4
EA
8
8
EA
4
4
USABLE
ON CODE U.M.
GROUP 15 INTERNAL ENGINE ASSEMBLY
- CONT
20
21
22
23
24
25
PAFZZ PAOZZ
KFFZZ
KF
XB---
KFGZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
2805-00-459-7066
XB---
2815-00-829-5320
5360-00-829-5304
5340-00-829-0210
2815-00-996-8105
146
PUSHROD
1150149
44940
PACKING. PREFORMED
509-0084
PART OF KIT
110-2460,168-0135
44940
44940
SHIELD, PROTECTIVE
115-0151
44940
SPRING, PROTECTIVE SHIELD
1150146
44940
WASHER, THRUST: PROTECTIVE SHIELD
115-0155
44940
TAPPET, VALVE
1150195
44940
ARMY TM 96115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-4564
Figure 44. Cylinder Head Assembly - Exploded View
148
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
4
4
EA
4
4
EA
2
2
EA
1
1
EA
1
1
EA
2
2
EA
2
2
EA
2
2
EA
2
2
EA
2
2
EA
1
1
EA
8
8
EA
4
4
EA
4
4
EA
2
2
EA
2
2
EA
2
2
USABLE
ON CODE U.M.
GROUP 15 INTERNAL ENGINE ASSEMBLY
- CONT
44
44
44
44
44
44
44
44
44
44
44
44
XBFHH
1
2
3
4
5
6
7
8
9
10
11
XB
AGGGG
CYLINDER HEAD ASSEMBLY.
ENGINE
110-1873
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
XB---
PAFZZ PAOZZ PAFZZ
XBFZZ
XBFZZ
KFFZZ
KFHZZ
KFFZZ
XB
XB
KF
KF
KF
5306-01-158-1154
5310-01-050-3805
2815-00-833-0610
XB---
5365-00-790-9338
KFGZZ
PAOZZ PAOZZ PAOZZ
PAOZZ PAOZZ PAOZZ
PAFHH PAFFF PDDOG
2920-01-048-8867
5310-00-199-5761
2815-01-048-0329
44
12
PAFZZ PAFZZ PAHZZ
2815-00-930-2860
44
13
PAFZZ PAFZZ PAHZZ
2815-00-972-8871
44
44
14
15
PAFZZ PAFZZ PAHZZ
KFFZZ
KF
96906
80204
WASHER, FLAT: 5116
526-1122
44940
FLANGE, RETAINING: NOZZLE
147-0141
44940
ADAPTER, NOZZLE: FINNED,
RH
147-0133
KFGZZ
KFGZZ
BOLT, MACHINE: 5/16-18 X
2-3/4 UNC-2A, GRADE 8,.
HARDENED
MS18154-41
B1821BH031C275D
ADAPTER, NOZZLE: FINNED,
LH
147-0132
XB---
5360-00-571-9698
KFGZZ
44
16
PAFZZ PAFZZ PAHGG
2815-00-930-2861
44
17
PAFZZ PAFZZ PAHGG
2815-01-038-5281
149
44940
GASKET, INSULATING
147-0043
PART OF KIT 147-0304,
147-0307
SPACER, PLATE
147-0044
PART OF KIT 147-0307
GASKET: HEATSHIELD
110-0419
PART OF KIT 147-0304,
147-0307
GLOW PLUG AND PARTS
333-0104
WASHER, FLAT
8078
HEAD ASSEMBLY, CYLINDER
110-2477
LOCK, VALVE SPRING RETAINER
110-0858
VALVE SPRING
110-1220
SPRING, VALVE
110-1221
PACKING, PREFORMED
509-0132
PART OF KIT 110-2460
VALVE, POPPET, ENGINE: EXHAUST
110-1278
VALVE, POPPET ENGINE: INTAKE
110-1871
44940
44940
44940
44940
44940
44940
44940
44940
44940
15434
44940
44940
44940
44940
44940
44940
44940
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
4
4
EA
4
4
EA
1
1
EA
2
2
EA
2
2
EA
4
4
USABLE
ON CODE U.M.
GROUP 15 INTERNAL ENGINE ASSEMBLY
- CONT
44
44
44
44
44
44
18
19
20
21
22
23
PAFZZ PAFZZ PAZZZ
PAOZZ PAOZZ
PAFHH PAFFF
PAFZZ PAFZZ
PAFZZ PAFZZ
XB---
XB---
XB---
XB---
PAHZZ PAFZZ PAZZZ
2815-00-829-5363
5307-00-166-1907
2815-01-048-5579
2815-01-048-9604
2815-01-048-8667
2815-00-939-7341
150/(151 blank)
STUD. ROCKER ARM
115-0152
STUD, EXHAUST MANIFOLD
MOUNTING
520-0608
44940
44940
HEAD SUBASSEMBLY. CYLINDER
110-1874
44940
GUIDE. VALVE: EXHAUST
110-1870
44940
GUIDE, VALVE: INTAKE
110-1869
44940
SEAT, VALVE
110-1268
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 45. Nozzle and Holder Assembly - Exploded View
152
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
2
4
EA
1
4
EA
1
4
EA
1
4
EA
1
4
EA
1
4
EA
1
4
EA
1
4
EA
1
4
EA
1
4
EA
1
4
EA
1
4
EA
1
4
EA
1
4
USABLE
ON CODE U.M.
GROUP 15 INTERNAL ENGINE ASSEMBLY
- CONT
45
45
45
1
2
3
PAFHH PAFFF PAGOG
XDHZZ
XB
PAFZZ PAFZZ
PAGZZ
XB---
45
4
XAHZZ
XA
XB---
45
5
XDHHH
XB
PAGZZ
5
45
45
45
45
45
45
45
45
6
7
8
9
10
11
12
13
14
XAHZZ
XA
PAFZZ PAFZZ
PAFZZ PAFZZ
XAHZZ
XB
PAHZZ PAFZZ
XDHZZ
XAHZZ
XDHZZ
XAHZZ
XB
XA
XA
XA
2910-00-869-5668
5330-00-281-3342
XB---
4730-01-048-3951
4730-00-018-9566
XB---
XB---
44940
NOZZLE PACKAGE
147-0268
44940
GASKET NOZZLE
WMR204117X
147-0243
PART OF KIT 147-0304
01843
44940
44940
NOZZLE ASSEMBLY
(MATCHED SET PARTS)
XB---
XB---
INJECTION NOZZLE AND
HOLDER ASSEMBLY
147-0136
5330-00-599-4848
XB---
XB---
XB---
XB---
153
HOLDER ASSEMBLY, NOZZLE
147-0135
44940
CAP, NOZZLE
147-0300
44940
CONNECTOR, FUEL LINE
147-0298
44940
PLUG. PIPE
WW-P-471AASBCA
147-0292
81348
44940
CAP, PROTECTIVE
147-0293
CP7829
44940
01843
GASKET, CAP: COPPER
WMR2041-409X
147-0295
01843
44940
SCREW. PRESSURE
147-0294
SE7845
44940
01843
SPRING, HELICAL, COMPRESSION
147-0296
WSF2044A1X
44940
01843
SPINDLE. INJECTION
147-0297
WBO2057-429
44340
01843
HOLDER, NOZZLE
147-0299
AH78408
44940
01843
ARMY TM 9-6115-58424P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 46. Oil Fill Tube Assembly and Oil Drain Hose
154
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
2
3
EA
2
49
EA
1
1
EA
1
1
EA
2
2
EA
2
2
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
FT
11
11
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 15 INTERNAL ENGINE ASSEMBLY
- CONT
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
PAOZZ PAOZZ PAOZZ
KFOZZ
KF
KFGZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ
XB---
PAOZZ PAOZZ KFGZZ
PAOZZ PAFZZ PAZZZ
PAOZZ PAFZZ
XBOZZ
XB
XB---
2815-01-038-5296
5330-00-641-7571
5306-00-226-4825
5310-00-407-9566
2910-01-286-2043
5330-00-932-1853
5306-00-225-8496
5310-00-167-0703
XB---
PAOZZ PAFZZ KFGZZ
5330-00-971-5750
MOOOO AOO AGGGG
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ
XB---
4730-00-068-9641
4730-01-114-8326
4720-00-235-4131
4820-00-482-3614
4730-00-196-1468
155
INDICATOR, OIL LEVEL
123-1145
44940
GASKET, OIL INDICATOR
123-0191
PART OF KIT 168-0135
44940
44940
BOLT, MACHINE
B1821BHO31C075N
800-1026
80204
44940
WASHER, LOCK: 5/16
MS35338-45
850-1045
96906
44940
TUBE, OIL FILL
123-1144
44940
GASKET OIL FILL TUBE
123-0667
PART OF KIT 168-0135
44940
44940
BOLT, MACHINE
MS90725-31
800-1025
96906
44940
WASHER, FLAT: 5/16
AN960B516
526-0065
88044
44940
COVER PLATE
149-1279
44940
GASKET: FUEL PUMP MOUNTING
149-0792
PART OF FIT 168-0135
44940
44940
HOSE ASSEMBLY, OIL DRAIN
72-5087-1
501-0189
30554
44940
FITTING, HOSE
4738-12-12B
01276
FITTING, HOSE
KA12-12NJ
97112
HOSE, RUBBER
MILH13444TYPE3-4
81349
COCK. SHUTOFF
72-5095-2
83-515
30554
61512
NIPPLE. PIPE: CLOSE, 3/4
NPT.SST
MS51953-97
003248
96906
05415
ARMY TM 96115-584-24P
NAVY NAVFAC P-8622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 47. Oil Filter Assembly - Exploded View
156
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
2
2
EA
3
49
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 15 INTERNAL ENGINE ASSEMBLY
- CONT
47
47
47
47
47
47
47
47
47
47
47
1
2
3
4
5
6
7
8
9
10
11
PBOOO PBOOO XB---
PAOZZ PAOZZ PAOZZ
PAOZZ PAOZZ PAOZZ
PAOZZ PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
PBOZZ PAOZZ
XB---
XB---
XB---
PAOZZ PAOZZ PAOZZ
PAOZZ PAOZZ
XBOZZ
XB
PAOZZ PAOZZ
XB---
XB---
12
PAOZZ PAOZZ
47
13
PAOZZ PAOZZ PAZZZ
XB---
47
14
XBFFF
47
15
PAOZZ PAOZZ PAHZZ
47
18
PAOZZ PAOZZ
5330-00-351-6377
2940-00-580-6304
5310-00-297-2278
2940-00-793-1056
5360-00-224-9730
2940-01-005-6012
5330-00-297-2275
5365-01-027-4982
XB---
47
AOO
4920-01-052-6280
5306-00-225-8503
5305-01-049-6239
5310-00-407-9566
5930-01-039-3140
4730-00-289-1930
157
44940
GASKET, OIL FILTER ASSEMBLY
585937
122-0404
11083
44940
CARTRIDGE, OIL FILTER
MS35802-2
CH6PL
96906
73370
GASKET, OIL FILTER CARTRIDGE
101978
122-0401
73370
44940
RETAINER, SPRING
101977
122-0400
73370
44940
SPRING, HELICAL, COMPRESSION: OIL FILTER
101976
122-0399
BOLT, TUBULAR, VALVE
143863
122-0385
GASKET, VALVE BOLT
101979
122-0395
PLUG, PIPE: OIL FILTER
151728
122-0403
BODY SHELL, OIL FILTER
X170430
122-0396
XB---
XB---
OIL FILTER ASSEMBLY
122-0295
BOLT, MACHINE
MS90725-39
800-1512
SCREW,CAP, HEX HEAD:
5/16-18 X 1-3/4 UNC-2A,
GRADE 8, HARDENED, CAD PL
800-0522
WASHER, LOCK: 5/18
MS35338-45
850-104-5
ADAPTER ASSEMBLY, OIL FILTER
122-0358
SWITCH, PRESSURE
M-1423-14
309-0177
ADAPTER, STRAIGHT
MS51875-3
502-0097
73370
44940
73370
44940
73370
44940
73370
44940
73370
44940
96906
44940
44940
96906
44940
44940
74400
44940
96906
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
2
EA
1
1
EA
1
2
EA
3
7
EA
3
52
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
2
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 15 INTERNAL ENGINE ASSEMBLY
- CONT
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
47
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
PAOZZ PAOZZ
XB---
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ
XDFFF
XB
PAFZZ PAOZZ
PBFZZ PAOZZ
XB---
XE--
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
KFFZZ
XB
KF
PAFZZ PAOZZ
XAFZZ
KFFZZ
XA
KF
4730-00-263-2733
4730-01-048-9731
5360-01-049-0381
2815-00-833-0655
5305-00-068-0508
5310-00-582-5965
XB---
KFGZZ
XB---
PAFZZ PAOZZ PAHZZ
PAFZZ PAOZZ
4730-00-833-0638
XB---
PAFZZ PAOZZ PAZZZ
XBFZZ
4730-00-647-3207
XB---
5360-01-009-6942
6620-00-010-0319
4730-00-287-3281
XB---
KFGZZ
5330-01-053-2917
158
ELBOW, PIPE
C5405X4
502-0404
79470
44940
ELBOW, PIPE: 45 DEG
502-0053
44940
TEE. PIPE
3750X2
502-0058
79470
44940
ADAPTER SUBASSEMBLY, OIL
FILTER
122-0309
44940
PLUG. PIPE
505-0718
44940
SPRING. HELICAL, COMPRESSION: OIL BYPASS
122-0302
44940
BALL, BEARING
510-0043
44940
SCREW, CAP, HEX HEAD:
1/4-20 X 3/4 UNC-2A, GRADE 8,
HARDENED
MS90728-6
800-0533
WASHER, LOCK: 1/4
MS35338-44
850-1040
COVER, ACCESS: OIL THERMOSTAT
122-0244
GASKET: OIL THERMOSTAT
ACCESS COVER
122-0243
PART OF KIT 168-0135
SPRING HELICAL. COMPRESSION
122-0242
96906
44940
96906
44940
44940
44940
44940
44940
THERMOSTAT
309-0130
44940
PLUG, PIPE
3152X2
502-0028
79470
44940
ADAPTER, OIL FILTER
122-0308
44940
GASKET. OIL FILTER ADAPTER
122-0303
PART OF KIT 168-0135
448940
44940
ARMY TM 96115-58424P
NAVY NAVFAC P-8622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 48. Fuel Injector Pump
160
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
4
4
EA
4
49
EA
4
13
EA
1
1
EA
1
1
EA
1
1
EA
V
EA
V
EA
V
EA
V
EA
4
USABLE
ON CODE U.M.
GROUP 15 INTERNAL ENGINE ASSEMBLY
- CONT
48
48
1
2
PAOZZ PAOZZ
PAOZZ PAOZZ
XB
XB---
4730-01-049-3083
4730-00-278-0155
ADAPTER., PIPE
502-0385
44940
ELBOW, PIPE: 45 DEG
352X6
502-0199
79470
44940
48
3
PAFZZ PAOZZ PAZZZ
5310-00-880-7746
NUT, PLAIN.
UNF-2B.
MS51968-5
867-1002
48
4
PAFZZ PAOZZ PAZZZ
5310-00-407-9566
WASHER, LOCK: 5/16, CAD PL
MS35338-45
850-1045
48
5
PAFZZ PAOZZ PAZZZ
48
6
KFFZZ
48
7
KFFZZ
KF
KF
5310-00-081-4219
KFG7Z
KFHZZ
WASHER.
MS27183-12
526-1115
RING, RETAINING
RG100281
147-0259
PART OF KIT 147-0305
01843
44940
44940
TIMING, PLUNGER
44940
44940
KFFZZ
KF
KFGZZ
BUTTON.
147-0147
PART OF KIT 147-0305
48
9
KFFZZ
KF
KFGZZ
SHIM
147-0137
PART OF KIT 147-0145,
147-0305
48
48
48
9
9
10
KFFZZ
KFFZZ
KFFZZ
KF
KF
KF
PAFZZ PAOZZ
KFHZZ
SHIM
147-0138
PART OF KIT 1470145,
147-0305
KFHZZ
SHIM
147-0139
PART OF KIT 147-0145.
147-0305
KFGZZ
XB---
FLAT: 5/16, CAD PL
96906
44940
44940
44940
8
9
SHIM
147-0140
PART OF KIT 147-0145.
147-0305
5307-01-0498118
161
96906
44940
PACKING, PREFORMED
509-0094
PART OF KIT 147-0305
48
48
HEX: 5/16-24
CAD PL
96906
44940
STUD, PLAIN: 5/16-18 UNC-2A
X 5/16-24 UNF-2A
520-1129
44940
44940
44940
44940
44940
4
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 49. Fuel Injection Pump - Exploded View
162
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
FIG.
NO.
b.
ITEM
NO.
(2)
SMR CODE
a.
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
1
3
EA
1
3
EA
1
1
EA
2
2
EA
2
2
EA
1
1
EA
1
3
EA
1
3
EA
1
1
EA
1
EA
1
EA
1
EA
1
EA
1
USABLE
ON CODE U.M.
GROUP 15 INTERNAL ENGINE ASSEMBLY
- CONT
49
49
49
49
49
49
49
49
49
49
49
49
49
49
49
49
49
PAFHH PAOFF PBHGH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
PAHZZ PAFZZ
PAHZZ PAFZZ
PAHZZ PAFZZ
PAHZZ PAFZZ
PAHZZ PAFZZ
PAHZZ PAFZZ
PAHZZ PAFZZ
PAHZZ PAFZZ
PAHZZ PAFZZ
XBHZZ
XB
PAHZZ PAFZZ
PAHZZ PAFZZ
PAFZZ PAFZZ
XAHZZ
KFHZZ
KFHZZ
AFF
KF
KF
XB---
XB---
XB---
XB---
XB---
XB---
XB---
XB---
XB---
2910-01-171-6792
5315-01-053-9489
5310-01-053-1762
5310-00-045-3296
5310-01-050-1307
5305-00-470-3321
5340-01-056-0033
5305-01-054-4517
5310-01-053-1762
5310-00-045-3296
XB---
XB---
XB---
XB---
5310-01-053-1762
5310-00-045-3296
2990-01-049-0578
XB---
KFHZZ
5330-01-022-8874
XB---
163
PUMP, FUEL INJECTION
50-2/4A-80A-9540A
01843
PIN, CONTROL UNIT
PN8552-2
147-0279
01843
44940
NUT, PLAIN, HEX
NT1293
147-0286
01843
44940
WASHER, LOCK
MS35338-43
147-0277
96906
44940
WASHER, FLAT
WA2001
147-0278
01843
44940
SCREW, CAP, HEX HEAD
M51849-74
147-0280
96906
44940
TAB, LOCK
WA1993
147-0281
PART OF KIT 147-0306
01843
44940
44940
SCREW, MACHINE: SPECIAL
SC2119-2
147-0282
01843
44940
NUT, PLAIN, HEX
NT1293
147-0286
01843
44940
WASHER, LOCK
MS35338-43
147-0277
96906
44940
PLATE, RETAINING
PL85108-2
147-0275
10843
44940
NUT, PLAIN, HEX
NT1293
147-0286
01843
44940
WASHER, LOCK
MS35338-43
147-0277
96906
44940
BALL JOINT
LK859
150-0939
01843
44940
CONTROL UNIT, FUEL
147-0312
44940
PACKING, PREFORMED
GA407743
147-0247
147-0308
PART OF KIT 147-0308
01843
44940
44940
CONTROL, FUEL
CU8513A
147-031
PART OF KIT 147-0306
01843
44940
44940
EA
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
4
4
EA
4
4
EA
1
1
EA
1
1
EA
1
1
EA
2
2
EA
2
2
EA
4
4
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 15 INTERNAL ENGINE ASSEMBLY
- CONT
49
49
49
49
49
49
49
49
49
49
49
17
18
19
20
21
22
23
24
25
26
27
PAHZZ PAFZZ
XDHZZ
XB
PAHZZ PAFZZ
KFHZZ
XAHHH
XBHZZ
XBHZZ
XBHZZ
KFHZZ
KFHZZ
KF
XA
XA
XA
XB
KF
KF
PBHZZ PBFZZ
XB---
XB---
XB---
XB---
XA---
XA---
XB---
KFHZZ
XB---
PBHZZ PBFZZ
XB---
49
29
KFHZZ
XB---
49
49
49
30
31
32
33
KFHZZ
KFHZZ
KF
KF
PAHZZ PAFZZ
XBHZZ
XB
5340-01-024-1726
3120-01-050-3800
XB--
XB---
XB---
SCREW, MACHINE: SOCKET
HEAD
SC2057
147-0284
3020-01-048-9988
XB---
164
01843
44940
CLAMP, RETAINING: HEAD ASSEMBLY
HP8549
147-0283
01843
44940
TAPPET, FUEL
147-0182
44940
PACKING, PREFORMED
GA1194
147-0196
PART OF KIT 147-0306,
147-0308
01843
44940
44940
44940
HEAD ASSEMBLY, HYDRAULIC
147-0323
44940
CAP NUT
147-0274
44940
PLUG
147-0290
44940
CONNECTOR. FUEL LINE
147-0287
44940
PACKING, PREFORMED
GA100282
147-0248
PART OF KIT 147-0306,
147-0308
KFHZZ
28
49
2910-00-484-8511
KFHZZ
49
KF
5305-01-024-2251
PACKING, PREFORMED
GA1145
147-0249
PART OF KIT 147-0306,
147-0308
SEAT, LOCK
GH201024
WASHER.
147-0310
01843
44940
44940
01843
44940
44940
44940
THRUST
44940
SPRING
147-0309
PART OF KIT 147-0306
44940
44940
RING, RETAINING
147-0324
PART OF KIT 147-0306
44940
44940
WASHER, THRUST
WA100279
PART OF KIT 147-0306
01834
44940
GEAR, THRUST
GE851
147-0252
01843
44940
CAP NUT
147-0326
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 15 INTERNAL ENGINE ASSEMBLY
- CONT
49
49
49
34
35
36
KFHZZ
XBHZZ
KFHZZ
KF
XB
KF
XB---
XB--
XB---
GASKET, COPPER
147-0327
PART OF KIT 147-0306
44940
44940
HOLDER, VALVE
147-0315
44940
SPRING
147-0328
PART OF KIT 1470306
44940
44940
49
37
KFHZZ
KF
XB---
VALVE.
147-0329
PART OF KIT 147-0306
FLOW
44940
44940
49
38
XBHZZ
X
XB--
SPACER, VALVE
147-0314
44940
PIN, PLUNGER
147-0330
PART OF KIT 147-0306
44940
44940
49
49
49
39
40
41
KFHZZ
XAHZZ
KF
XA
PAHZZ PAFZZ
XB---
XA---
XB--
5305-01-049-3973
HEAD SUBASSEMBLY, HYDRAULIC
147-0331
44940
SCREW, MACHINE: PAN HEAD
SC2136
147-0288:
01843
44940
49
42
PAHZZ PAFZZ
XB---
5330-01-051-9996
GASKET.
GA7615
147-0203
PART OF KIT 147-0306
49
43
PAHZZ PAFZZ
XB--
5305-01-050-6088
SCREW, MACHINE: SPECIAL
SC8541
147-0273
49
44
PAHZZ PAFZZ KFHZZ
49
45
PAHZZ PAFZZ
XB---
49
46
XDHZZ
XB---
XB
5330-00-424-3072
4820-00-480-5622
GASKET, COPPER
GA7617
147-0289
PART OF KIT 147-0306.
147-0308
01843
44940
01843
44940
44940
VALVE, CHECK
VA9031A 01843
HOUSING, PUMP
147-0334
165
COPPER
01843
44940
44940
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 50. Oil Base, Oil Pump
166
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
(2)
SMR CODE
a.
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
4
5
USABLE
ON CODE U.M.
REF NUMBER & MFR NUMBER
(8)
GROUP 15 INTERNAL ENGINE ASSEMBLY
- CONT
50
1
PAFZZ PAFZZ PAZZZ
5305-00-071-2058
SCREW, CAP, HEX HEAD:
7/16-14 X 1-112 UNC-2A
B1821BH044C225N
800-1076
80204
44940
50
2
PAFZZ PAFZZ PAZZZ
5310-00-209-0965
WASHER.
MS35338-47
850-1055
LOCK: 7/16
96906
44940
EA
4
13
50
3
PAFZZ PAFZZ
XB---
5310-01-050-3807
WASHER.
526-1186
FLAT: 7/16
44940
EA
4
4
50
4
XBFZZ
XB---
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
2
25
EA
2
49
EA
1
1
EA
4
25
EA
1
3
EA
5
49
EA
5
13
EA
1
1
EA
1
2
EA
1
1
EA
1
1
EA
2
92
EA
1
1
50
50
50
5
8
-
XB
PAFZZ PAFZZ KFGZZ
XBFZZ
XB
5330-00-972-8867
XB---
PAFFZ PAOFF PDDOH
2815-01-048-5575
BASE, OIL ENGINE
102-0670
44940
GASKET: ENGINE OIL BASE
102-0451
PART OF KIT 168-0135
44940
44940
CUP, OIL PICKUP
120-0551
44940
BLOCK ASSEMBLY, SHORT
110-2326
44940
50
7
PAFZZ PAFZZ PAZZZ
5306-01-075-8519
SCREW, CAP, HEX HEAD:
5/16-18 X 1-1/4 UNC-2A
MS90725-36
50
8
PAFZZ PAFZZ PAZZZ
5310-00-407-9566
WASHER.
MS35338-45
850-1045
50
9
PAFZZ PAFZZ PAZZZ
2805-00-478-8207
PUMP, OIL ENGINE
120-0547
44940
SCREW, CAP, HEX HEAD
5/16-18 X 1-1/4 UNC-2A
MS90725-36
96906
44940
50
50
50
50
50
50
50
50
10
11
12
13
14
15
16
17
PAFZZ PAFZZ PAZZZ
PAFZZ PAFZZ PAZZZ
PAFZZ PAFZZ PAZZZ
PAFZZ PAFZZ PAZZZ
KFFZZ
KF
PAFZZ PAFZZ
PAFZZ PAFZZ
KFGZZ
XB---
XB---
PAFZZ PAFZZ PAZZZ
50
18
PAOZZ PAOZZ PAZZZ
50
19
XBOZZ
XB
5306-01-075-8519
5306-00-225-8499
5310-00-407-9566
5310-00-081-4219
5330-00-145-2430
4730-01-048-9731
5360-00-972-8977
281500-833-0599
5305-01-050-3733
XB---
167
96906
LOCK: 5/16
96906
44940
BOLT, MACHINE: 5/16-18 X 1
UNC-2A
MS90725-34
800-1028
96906
44940
WASHER, LOCK: 5/16
MS35338-45
850-1045
96906
44940
WASHER, FLAT: 5/16
MS27183-12
526-1115
96906
44940
GASKET, GEARCASE
103-0251
PART OF KIT 168-0135
44940
44940
PLUG, PIPE
505-0718
44940
SPRING, HELICAL, COMPRES SION
120-0555
44940
VALVE, OIL
120-0539
44940
SCREW.
SELF-LOCKING, HEX
HEAD: 1/14-20 X 1/2 UNC-2A
821-0010
44940
DEFLECTOR, OIL DRAIN
122-0353
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 51. Gearcase Assembly - Exploded View
168
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
2
EA
1
1
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 15 INTERNAL ENGINE ASSEMBLY
- CONT
51
51
51
51
51
51
51
51
51
51
51
51
51
51
-
1
2
3
4
5
6
7
8
9
10
11
12
13
XBFFF
XB
PAFZZ PAFZZ
XB---
XB---
PAFZZ PAFZZ PAZZZ
PAFZZ PAFZZ
PAFZZ PAFZZ
XBFZZ
XB
XB---
XB--
PAFZZ PAFZZ PAZZZ
XB--
PAFZZ PAFZZ PAZZZ
PAFZZ PAFZZ
KFFZZ
XBFZZ
XBFZZ
KF
XB
XB
2990-00-829-5696
5305-01-050-4979
5310-00-624-0442
XB--
PAFZZ PAFZZ KFGZZ
PAFZZ PAFZZ
5360-01-061-9027
XB--
KFGZZ
5330-00-973-8611
3110-00-277-0141
3110-00-183-6715
3110-00-833-0655
5315-00-058-5088
5330-01-052-0042
XB---
XB--
169
GEARCASE ASSEMBLY, ENGINE
103-0531
44940
RING, RETAINING
518-0129
44940
YOKE
150-0777
44940
SCREW, MACHINE: HEX HEAD,
8-32 X 1/2 UNC-2A, GRADE 5,
HARDENED, ZN PL
815-0176
44940
WASHER, LOCK NO. 8
850-0025
44940
SHAFT, GOVERNOR
150-0838
44940
PACKING, PREFORMED
509-0088
PART OF KIT 168-0136
44940
44940
BEARING. NEEDLE
510-0048
44940
BEARING, NEEDLE
MS17131-5
96906
BALL, BEARING
510-0043
44940
PIN, SPRING
NAS561 C6-13
80205
SEAL. OIL: CRANKSHAFT,
FRONT
509-0130
PART OF KIT 168-0135
44940
44940
CUP, RESTRICTIVE
146-0083
44940
GEARCASE
103-0312
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-456-4
Figure 52. Camshaft Assembly, Cam and Oil Pump Gears
170
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
SSI
REPL
FACTOR
NATIONAL
STOCK
NUMBER
1
PAFZZ PAFZZ
52
2
PAFZZ PAFZZ PAZZZ
5365-00-166-1245
52
3
PAFZZ PAFZZ
XB---
5310-00-833-0589
52
4
PAFZZ PAFZZ
XB---
3020-00-871-6094
52
52
52
52
5
6
7
8
9
PAFZZ PAFZZ
PAFFF PAFZZ
PAFZZ PAFZZ
XB--XB---
XB---
PAFZZ PAFZZ PAZZZ
PAFZZ PAFZZ PAZZZ
5315-00-652-8675
5315-01-049-3923
2815-00-409-8725
5365-00-598-6312
2910-00-829-5702
2990-00-932-4903
52
10
PAFZZ PAFZZ PAZZZ
2815-00-790-4930
52
11
PAFZZ PAFZZ
5315-00-652-8675
52
52
52
52
52
52
12
13
14
15
16
17
XB---
PAFZZ PAFZZ PAZZZ
PAFZZ PAFZZ
PAFZZ PAFZZ
PAFZZ PAFZZ
PAFZZ PAFZZ
PAFZZ PAFZZ
XB---
XB--XE---
XB---
XB---
5365-00-281-6623
3020-00-481-5786
5315-00-652-8675
2815-00-409-8725
5315-00-624-0435
3120-00-828-4728
52
18
PAFZZ PAFZZ
XB---
5305-01-050-3792
52
19
PAFZZ PAFZZ PAZZZ
5305-00-269-3206
52
20
PAFZZ PAFZZ PAZZZ
52
21
PAFZZ PAFZZ
52
22
KFFZZ
KF
XB---
(5)
DESCRIPTION
(6)
(7)
b.
52
52
XB--
a.
(4)
5310-00-637-9541
5340-01-052-9678
KFGZZ
171
REF NUMBER & MFR NUMBER
EAR, CRANKSHAFT
104-0418
KEY, WOODRUFF
515-0153
CAMSHAFT ASSEMBLY
105-0271
RING. RETAINING
150-0078
CUP, GOVERNOR FLYBALL
150-0775
FLYBALL, GOVERNOR
510-0046
GEAR, CAMSHAFT WITH FLYBALL SPACER
105-0218
KEY, WOODRUFF
515-1
1
3
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
10
10
EA
1
1
EA
1
3
EA
1
1
EA
1
1
EA
1
3
EA
1
1
EA
1
1
EA
1
1
EA
2
2
EA
3
17
EA
3
18
EA
1
1
EA
1
1
44940
44940
44940
44940
44940
44940
GEAR, DRIVE: INJECTION PUMP
147-0142
44940
WASHER, THRUST
105-0205
SCREW, SELF-LOCKING, FLAT
HEAD: SOCKET DRIVE, 1/4-20
X 1/2 UNC-2A, CAS PL
815-1347
SCREW, CAP, HEX HEAD:
3/8-16 X 3/4 UNC-2A
MS90725-55
800-1048
WASHER, LOOK; 3/8
M535338-46
850-1050
EA
44940
44940
PIN. CENTER: GOVERNOR
FLYBALL CUP, NSS
150A75
7739593
USMC
QTY
PER
EQUIP
44940
RING, RETAINING
518-0195
KEY, WOODRUFF
515-1
CAMSHAFT
105-0271
QTY
INC IN
UNITS
USABLE
ON CODE U.M.
GROUP 15 INTERNAL ENGINE ASSEMBLY
- CONT
KEY. WOODRUFF
515-1
44940
RING, RETAINING
518-0188
44940
WASHER. GEAR RETAINING
104-0416
44940
(8)
44940
44940
44940
19207
44940
44940
96906
44940
96906
44940
PLATE, MOUNTING, GEARCASE: ENGINE
103-0359
44940
GASKET GEARCASE MOUNT ING PLATE
103-0218
44940
PART OF KIT 188-0135
44940
ARMY TM 9-6115-58424P
NAVY NAVFAC P-8622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 53. Piston and Connecting Rod - Exploded View
172
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
2
2
EA
1
2
EA
2
4
EA
1
2
EA
1
1
EA
1
2
EA
2
4
EA
1
2
EA
1
2
EA
2
4
EA
1
2
EA
2
4
EA
2
2
USABLE
ON CODE U.M.
GROUP 15 INTERNAL ENGINE ASSEMBLY
- CONT
53
53
53
53
53
-
1
2
3
4
AFFZZ
AFF
AHHHD
PAFZZ PAFZZ PAHZZ
XAFZZ
XAFZZ
XAFZZ
XA
XA
XA
XA--
XA--
XA--
53
5
XAFZZ
53
6
PAFZZ PAFZZ PDDZZ
53
53
53
53
53
53
7
8
9
10
11
12
XA
XA---
PAFZZ PAFZZ PDDZZ
PAFFF PAFFF PDDZZ
PAFZZ PAFZZ PAHZZ
PAFZZ PAFZZ PAZZZ
PAFZZ PAFZZ PAZZZ
PAFZZ PAFZZ
2815-01-165-1211
XB---
PISTON AND CONNECTING
ROD ASSEMBLY
114-0215
44940
RING SET, PISTON: STANDARD
113-0167
44940
RING, COMPRESSION: PISTON
113-0151
44940
RING, COMPRESSION: PISTON
113-0134
44940
RING, OIL: PISTON
113-0132
44940
EXPANDER.
113-0135
2815-00-950-8406
2815-01-038-5282
2815-00-998-7275
3120-00-956-5998
2815-00-933-0799
5306-00-983-9476
3120-00-241-0278
173
OIL RING: PISTON
44940
RING, RETAINING
112-0085
44940
PISTON WITH PIN; STANDARD
112-0125
44940
CONNECTING ROD ASSEMBLY:
STANDARD
114-0169
44940
BEARING, HALF SLEEVE:
STANDARD
114-0164
44940
CONNECTING ROD
114-0168
44940
BOLT, PLACE: CONNECTING
ROD
805-0012
BUSHING, SLEEVE: CONNECTING ROD
114-0170
44940
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 54. Rear Bearing Plate, Crankshaft, Bearing and Cylinder Block
174
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
2
2
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
2
2
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
2
2
EA
1
1
EA
1
1
EA
6
6
EA
6
6
USABLE
ON CODE U.M.
GROUP 15 INTERNAL ENGINE ASSEMBLY
- CONT
54
54
54
54
54
54
54
54
54
54
54
54
54
54
1
2
3
4
5
6
7
8
9
10
11
12
13
14
KFOZZ
KF
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
PAOZZ PAOZZ
KFOZZ
KF
XB--
XB--XB--XB---
XB---
KFGZZ
PAOOO PAOZZ PAOZZ
PAOZZ PAOZZ
KFOZZ
XAOZZ
KF
XA
PAOZZ PAOZZ
KFOZZ
XBOZZ
KF
XB
XB--XB---
4720-01-049-1218
5305-01-050-3734
5340-01-151-5053
5330-01-052-2218
2990-01-048-7649
5365-01-051-0976
2815-01-053-5153
XA--XB--XB---
54
15
KFFZZ
KFGZZ
54
16
PAFZZ PAFZZ PAZZZ
44940
44940
INSULATOR, HOSE
503-0559
44940
TUBE, PREFORMED
503-0557
44940
SCREW, TAPPING, HEX HEAD:
NO. 8 X 3/4
809-0035
44940
CLAMP, HOSE
518-0268
44940
PACKING, PREFORMED
509-0117
PART OF KIT 123-1303,
168-0135
44940
44940
VALVE ASSEMBLY, BREATHER
123-1203
44940
RETAINER, SCREEN
123-1201
44940
SCREEN, BREATHER
123-1202
PART OF KIT 123-1303
44940
44940
BREATHER
123-0954:
44940
2815-01-048-7716 INSULATOR, BREATHER, HALF SHELL
123-0998
2940-01-052-4953
XB---
PAFZZ PAFZZ PAZZZ
KF
4720-01-158-8203
CLAMP, HOSE
503-0170
PART OF KIT 123-1303
1055-00-699-0822
44940
FILTER, BREATHER
123-1283
PART OF KIT 123-1303
44940
44940
CUP AND HOLDER
123-1153
44940
KEY, WOODRUFF
515-0006
44940
5330-01-51-8118
SEAL, OIL: CRANKSHAFT, REAR
509-0131
PART OF KIT 168-0135
44940
3120-00-868-6241
WASHER, THRUST
104-0420
44940
44940
44940
54
17
PAFDD PAFFF
XB--
2815-00-972-8920
CRANKSHAFT
104-1285
54
18
PAFHD PAFFF
XB---
2815-01-048-5581
BLOCK, BARE, ENGINE: WITH
BEARINGS, END PLATE,
SHIMS, ETC.
110-2468
54
19
PAFZZ PAFZZ PAZZZ
5306-00-827-7623
BOLT, PLACE, HEX HEAD:
3/8-16 X 1-7/16 UNC-2A,
GRADE 8, HARDENED
805-0019
44940
54
20
PAFZZ PAFZZ
5310-01-014-4167
WASHER, FLAT: SPECIAL
526-0245
44940
XB---
175
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
2
4
EA
2
2
EA
1
1
EA
1
1
EA
2
2
EA
V
EA
V
EA
V
EA
V
USABLE
ON CODE U.M.
GROUP 15 INTERNAL ENGINE ASSEMBLY
- CONT
54
54
54
54
54
54
54
54
54
21
22
23
24
25
26
26
26
26
PAFZZ PAFZZ PAZZZ
PAFZZ PAFZZ
5315-00-695-4758
XB--
5315-00-831-6576
PAFZZ PAFZZ PAZZZ
XBFZZ
KFFZZ
KFFZZ
KFFZZ
KFFZZ
KFFZZ
XB
KF
KF
KF
KF
KF
5340-00-829-0157
XB--
KFGZZ
5330-01-051-8129
XB--
5365-01-066-9659
XB--
5365-01-066-9658
XB--
SCREW, DRIVE
516-0072
44940
PIN, STRAIGHT, HEADLESS
516-0141
44940
PLUG, EXPANSION
517-0053
PART OF KIT 168-0135
44940
44940
TUBE, OIL
120-0553
44940
GASKET: REAR BEARING
PLATE, .005 IN THK
101-0336
PART OF KIT 101-0426,
168-0135
44940
44940
SHIM: .005 IN THK
101-0383
PART OF KIT 101-0426
44940
44940
SHIM: .010 IN THK
101-0382
PART OF KIT 101-0426
SHIM: .015 IN THK
101-0424
PART OF KIT 101-0426
XB---
5365-01-020-8637
SHIM: .020 IN THK
101-0425
PART OF KIT 101-0426
44940
44940
44940
54
27
XAFHD
XA
XA---
BLOCK. CYLINDER: WITH BEARINGS
110-1842
44940
EA
1
1
54
28
XBFZZ
XB
XB---
PLATE, BEARING: REAR
101-0453
EA
1
1
44940
SCREW, DRIVE
516-0072
EA
2
4
44940
EA
2
2
EA
1
1
EA
1
1
EA
1
1
54
54
54
54
54
29
30
31
32
33
PAFZZ PAFZZ PAZZZ
5315-00-695-4758
PAFZZ PAFZZ PDDZZ
PAFZZ PAFZZ
PAFZZ PAFZZ
XBFZZ
XB
3120-00-871-6088
XB--
XB--
3120-00-871-6090
3
120-00-871-6092
XB--
176
BEARING, SLEEVE: REPLACEMENT,
CRANKSHAFT. STANDARD
101-0359
BEARING. SLEEVE: REPLACEMENT,
CAMSHAFT, FRONT
101-0363
44940
44940
BEARING, SLEEVE: REPLACEMENT,
CAMSHAFT, REAR
101-0365
44940
TUBE, BREATHER
123-0952
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
USABLE
ON CODE U.M.
QTY
INC IN
UNITS
OVERSIZE/UNDERSIZE REPLACEMENT
PARTS & KITS
53
1
XDFZZ
XB
XB---
53
1
XDFZZ
XB
XB---
53
1
XDFZZ
XB
XB---
53
1
XDFZZ
XB
XB---
53
1
XDFZZ
XB
XB--
53
7
XBFZZ
XB
XB---
53
7
XBFZZ
XB
XB---
53
7
XBFZZ
XB
XB---
53
7
XBFZZ
XB
XB---
53
7
XBFZZ
XB
XB---
53
9
XBFZZ
XB
XB---
53
9
XBFZZ
XB
XB---
53
9
XBFZZ
XB
XB---
53
9
XBFZZ
XB
XB---
54
30
XBFZZ
XB
XB---
54
30
XBFZZ
XB
XB--
RING SET, PISTON: .005 IN
OVERSIZE
113-0137-05
RING SET, PISTON: .010 IN
OVERSIZE
113-0137-10
RING SET, PISTON: .020 IN
OVERSIZE
113-0137-20
RING SET PISTON: .030 IN
OVERSIZE
113-0137-30
RING SET, PISTON: .040 IN
OVERSIZE
113-0137-40
PISTON WITH PIN: .005 IN
OVERSIZE
112-0125-05
PISTON WITH PIN: .010 IN
OVERSIZE
112-0125-10
PISTON WITH PIN: .020 IN
OVERSIZE
112-0125-20
PISTON WITH PIN: .030 IN
OVERSIZE
112-0125-30
PISTON WITH PIN: .040 IN
OVERSIZE
112-0125-40
BEARING. HALF SLEEVE: .002
IN UNDERSIZE
114-0164-02
BEARING, HALF SLEEVE: .010
IN UNDERSIZE
114-0164-10
BEARING. HALF SLEEVE: .020
IN UNDERSIZE
114-0164-20
BEARING, HALF SLEEVE: .030
IN UNDERSIZE
114-0164-30
BEARING, SLEEVE REPLACEMENT,
CRANKSHAFT, .002 IN UNDERSIZE
101-0359-02
BEARING, SLEEVE REPLACEMENT,
CRANKSHAFT, .010 IN UNDERSIZE
101-0359-10
177
EA
V
EA
V
EA
V
EA
V
EA
V
EA
V
EA
V
EA
V
EA
V
EA
V
EA
V
EA
V
EA
V
EA
V
EA
V
EA
V
(8)
USMC
QTY
PER
EQUIP
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
USABLE
ON CODE U.M.
QTY
INC IN
UNITS
(8)
USMC
QTY
PER
EQUIP
OVERSIZE/UNDERSIZE REPLACEMENT
PARTS & KITS - CONT
54
30
XBFZZ
XB
XB--
BEARING, SLEEVE REPLACEMENT,
CRANKSHAFT, .020 11N UNDERSIZE
101-0359-20
EA
V
54
30
XBFZZ
XB
XB---
BEARING, SLEEVE REPLACEMENT.CRANKSHAFT, .030 IN UNDERSIZE
101-0359-30
EA
V
KIT, GASKET. ENGINE
168-0135
EA
1
54
PAOZZ PAOZZ PAGZZ
5330-01-039-6599
28
4
GASKET EXHAUST MANIFOLD
EA
2
28
6
GASKET EXHAUST SPACER
EA
2
35
13
WASHER, INSULATING. AIR HEATER
EA
2
35
14
SPACER, SLEEVE: INSULATING
EA
2
35
16
GASKET: AIR HEATER ADAPTER
EA
1
41
8
DIAPHRAGM. PLUNGER
EA
1
41
27
GASKET START CONTROL
EA
1
43
8
GASKET: ROCKER COVER
EA
1
43
19
GASKET: CYLINDER HEAD
EA
1
43
21
PACKING, PREFORMED
EA
8
46
2
GASKET: OIL INDICATOR CAP
EA
1
46
6
GASKET: OIL FILL TUBE MOUNTING
EA
1
46
10
GASKET: FUEL PUMP MOUNTING HOLE
EA
1
47
27
GASKET. THERMOSTAT COVER
EA
1
47
32
GASKET: OIL FILTER ADAPTER
EA
1
50
5
GASKET ENGINE OIL BASE
EA
1
50
9
GASKET. OIL PUMP..003 IN THICK
EA
1
50
9
GASKET. OIL PUMP, .005 IN THICK
EA
1
50
9
GASKET. OIL PUMP, .009 IN THICK
EA
1
50
14
GASKET: GEARCASE
EA
1
51
6
PACKING, PREFORMED
EA
1
51
11
SEAL, OIL: CRANKSHAFT, FRONT
EA
1
52
22
GASKET GEARCASE MOUNTING
PLATE
EA
1
54
6
PACKING. PREFORMED
EA
2
54
15
SEAL, OIL: CRANKSHAFT. REAR
EA
1
178
1
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
USABLE
ON CODE U.M.
QTY
INC IN
UNITS
(8)
USMC
QTY
PER
EQUIP
OVERSIZEIUNDERSIZE REPLACEMENT
PARTS & KITS - CONT
54
23
PLUG, EXPANSION
EA
1
54
25
GASKET: REAR BEARING PLATE
EA
1
54
-
KIT, SERVICE: CYLINDER
HEAD VALVE GRINDING
110-2460
EA
1
28
1
NUT, PLAIN, HEX: SPECIAL,
5/16 X 24 UNF-2A
EA
4
28
2
TAB, LOCK
EA
2
28
4
GASKET: EXHAUST MANIFOLD
EA
2
28
6
GASKET: EXHAUST SPACER
EA
2
35
3
GASKET INTAKE MANIFOLD
EA
1
43
8
GASKET: ROCKER COVER
EA
1
43
13
CAP. VALVESTEM
EA
4
43
15
PACKING, PREFORMED
EA
2
43
18
GUIDE. PUSHROD
EA
1
43
19
GASKET: CYLINDER HEAD
EA
1
43
21
PACKING, PREFORMED
EA
8
44
6
GASKET INSULATING, COPPER
EA
2
44
8
GASKET HEATSHIELD
EA
2
45
8
GASKET NOZZLE
EA
2
54
--
KIT. INSTALLATION: FUEL IN-
EA
1
PAFZZ PAFZZ PAGZZ
PAFZZ PAFZZ
XB---
5330-01-040-3834
2910-01-049-1192
JECTION NOZZLE
147-0304
44940
44940
44
6
GASKET INSULATING, COPPER
EA
1
44
8
GASKET: HEATSHIELD
EA
1
45
8
GASKET NOZZLE
EA
1
54
PAFZZ
KIT, SERVICE: FUEL INJECTION NOZZLE
147-0307
EA
2
44
6
GASKET INSULATING, COPPER
EA
1
44
7
HEATSHIELD, NOZZLE
EA
1
54
8
GASKET HEATSHIELD
EA
1
45
6
SPINDLE, INJECTION NOZZLE
EA
1
45
8
GASKET NOZZLE
EA
1
45
10
NOZZLE, FUEL INJECTION
EA
1
54
-
KIT, INSTALLATION: FUEL INJECTION NOZZLE
147-0305
EA
1
PAFZZ PAGZZ
PAFZZ PAFZ PAGZZ
2910-01-038-7815
2910-01-038-5250
2
44940
44940
48
6
PACKING, PREFORMED
EA
1
48
7
RING, RETAINING
EA
1
179
1
1
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
USABLE
ON CODE U.M.
QTY
INC IN
UNITS
(8)
USMC
QTY
PER
EQUIP
OVERSIZE/UNDERSIZE REPLACEMENT
PARTS & KITS - CONT
48
8
BUTTON, TIMING, PLUNGER -
EA
1
48
8
BUTTON, TIMING, PLUNGER - CODE 2
EA
1
48
8
BUTTON, TIMING, PLUNGER - CODE 3
EA
1
48
8
BUTTON, TIMING, PLUNGER - CODE 4
EA
1
48
8
BUTTON, TIMING, PLUNGER - CODE 5
EA
1
48
8
BUTTON. TIMING, PLUNGER - CODE 6
EA
1
48
8
BUTTON, TIMING, PLUNGEFI - CODE 7
EA
1
48
8
BUTTON, TIMING, PLUNGER - CODE 8
EA
1
48
8
BUTTON, TIMING, PLUNGER - CODE 9
EA
1
48
8
BUTTON, TIMING, PLUNGER- CODE 10
EA
1
48
8
BUTTON, TIMING, PLUNGER- CODE 11
EA
1
48
8
BUTTON, TIMING, PLUNGER - CODE 12
EA
1
48
8
BUTTON, TIMING, PLUNGER - CODE 13
EA
1
48
8
BUTTON, TIMING, PLUNGER - CODE 14
EA
1
48
8
BUTTON, TIMING, PLUNGER- CODE 15
EA
1
48
8
BUTTON, TIMING, PLUNGER- CODE 16
EA
1
48
9
SHIM: .002 IN THICK
EA
1
48
9
SHIM: .003 IN THICK
EA
1
48
9
SHIM: .004 IN THICK
EA
1
48
9
SHIM: .005 IN THICK
EA
1
54
-
KIT. SHIM: FUEL INJECTION
PUMP MOUNTING
147-0145
EA
1
PAFZZ PAFZZ
XB--
5365-00-421-9922
44940
48
9
SHIM: .002 IN THICK
EA
1
48
9
SHIM: .003 IN THICK
EA
1
48
9
SHIM: .004 IN THICK
EA
1
48
9
SHIM: .005 IN THICK
EA
1
54
-
KIT, OVERHAUL: FUEL INJECTION PUMP
147-0306
EA
1
EA
2
49
PAHZZ PAFZZ
XB--
2910-01-048-7100
6
TAB, LOCK
180
1
44940
1
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
USABLE
ON CODE U.M.
QTY
INC IN
UNITS
(8)
USMC
QTY
PER
EQUIP
OVERSIZEIUNDERSIZE REPLACEMENT
PARTS & KITS - CONT
49
15
PACKING, PREFORMED
EA
1
49
16
CONTROL, FUEL
EA
1
49
20
PACKING, PREFORMED
EA
1
49
25
PACKING, PREFORMED
EA
1
49
26
PACKING, PREFORMED
EA
1
49
49
29
30
SPRING
RING, RETAINING
EA
EA
1
1
49
49
31
34
WASHER, THRUST
GASKET COPPER
EA
EA
1
1
49
49
49
36
37
39
SPRING
VALVE, FLOW
PIN. PLUNGER
EA
EA
EA
1
1
1
49
49
42
44
GASKET COPPER
PACKING, PREFORMED
EA
EA
1
1
54
-
KIT, GASKET FUEL INJECTION PUMP
147-0308
44940
EA
1
1
49
49
49
49
49
54
15
20
25
26
44
EA
EA
EA
EA
EA
EA
1
1
1
1
1
1
1
54
25
PACKING, PREFORMED
PACKING, PREFORMED
PACKING, PREFORMED
PACKING, PREFORMED
PACKING, PREFORMED
KIT. SHIM: REAR BEARING
PLATE MTG
101-0426
GASKET REAR BEARING PLATE
EA
2
54
26
SHIM: .005 IN THK
EA
1
54
26
SHIM: .010 IN THK
EA
1
54
26
SHIM: .015 IN THK
EA
1
54
26
SHIM: .020 IN THK
EA
1
EA
1
EA
2
PAHZZ PAFZZ PBHZZ
PAFZZ PAFZZ
54
PAOZZ PAOZZ
XB---
2815-01-048-6550
54
1
54
6
PACKING. PREFORMED
EA
1
54
9
SCREEN, BREATHER
EA
1
54
12
FILTER, BREATHER
EA
1
54
-
KIT, SERVICE: BLOWER TORSIONAL DAMPER
134-3361
EA
1
37
5
SCREW CAP. HEX HEAD:
3/8-24 X 2-1/2
EA
3
XB---
2518-01-049-1190
44940
KIT, SERVICE: BREATHER
123-1303
CLAMP, HOSE
PAFZZ PAFZZ
XB--
5330-01-038-8618
2815-01-048-6551
181
1
44940
1
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
USABLE
ON CODE U.M.
QTY
INC IN
UNITS
OVERSIZE/UNDERSIZE REPLACEMENT
PARTS & KITS - CONT
37
6
NUT, SELF-LOCKING, HEX:
3/8-24 UNF-2B
EA
3
37
7
SPACER ASSEMBLY
EA
3
37
11
WASHER, FLAT: 9/16, HARDENED
EA
6
37
12
INSERT, BLOWER WHEEL
EA
3
182/(183 blank)
(8)
USMC
QTY
PER
EQUIP
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8622-24P
AIR FORCE T.O. 35C2-3456-4
Figure 55. Skid Base Assembly - Exploded View
184
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
2
43
EA
1
1
EA
1
23
EA
1
1
EA
2
3
EA
1
1
EA
1
25
EA
1
49
EA
1
3
EA
1
1
EA
4
4
EA
8
18
EA
8
43
EA
8
78
EA
4
4
EA
16
16
USABLE
ON CODE U.M.
REF NUMBER & MFR NUMBER
(8)
GROUP 16 SKID BASE ASSEMBLY
55
1
PAOZZ PAOZZ
55
2
PAOZZ PAOZZ PAZZZ
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
-
3
4
5
6
7
8
9
10
11
12
13
14
15
16
XBFFF
AOO
XB---
XB--
PAOZZ PAOZZ PAZZZ
PAFZZ PAOZZ
XB---
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ
XB---
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ
XBFZZ
XB
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
XB
5310-00-880-7744
5310-00-903-3996
5310-00-514-6674
5940-00-234-3383
5306-01-075-8519
5310-00-407-9566
5310-00-514-6674
4730-01-056-6202
XB---
PAFZZ PAOZZ PAZZZ
XBFZZ
5310-00-732-0558
5305-00-269-3211
5310-00-732-0558
5310-00-637-9541
XB---
PAOZZ PAOZZ PAZZZ
305-00-984-7352
185
5306-00-411-2405
13211E6765
403-0779
BOLT, EYE
97403
44940
NUT, PLAIN, HEX
MS51967-8
862-1003
96906
44940
BASE ASSEMBLY, SKID
72-5030
403-0940
3055
44940
NUT, PLAIN, HEX
MS51967-5
862-1015
96906
44940
NUT, PLAIN, HEX
MS51969-2
871-0025
96906
44940
WASHER, LOCK
MS35335-34
853-1016
96906
44940
TERMINAL, LOAD
332-1291
13212E1837-6
44940
97403
SCREW. CAP. HEX HEAD
MS90725-36
96906
WASHER, LOCK
MS35338-45
850-1045
96906
44940
WASHER. LOCK
MS35335-34
853-1016
96906
44940
PLUG, HOSE
72-5038
102-0671
30554
44940
RING. TIEDOWN
MS21236-2
403-0982
96906
44940
SCREW, CAP, HEX HEAD
MS90725-60
800-1050
96906
44940
NUT, PLAIN, HEX
MS51967862-1003
96906
44940
WASHER. LOCK
MS3533846
850-1050
96906
44940
PLATE. TIEDOWN RING
72-5047
403-0983
30554
44940
SCREW, MACHINE, COUNTERSUNK HEAD
MS35191-278
814-1574
96906
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
16
16
EA
4
4
EA
8
25
EA
8
23
EA
8
49
EA
1
1
EA
1
1
EA
2
18
EA
2
43
EA
4
4
EA
5
23
EA
5
43
EA
5
78
EA
5
7
USABLE
ON CODE U.M.
GROUP 16 SKID BASE ASSEMBLY - CONT
55
55
55
55
55
55
55
55
55
55
55
55
55
55
17
18
19
20
21
22
23
24
25
26
27
28
29
30
PAOZZ PAOZZ
PAOZZ PAOZZ
XB--
XB---
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
PAOZZ PAOZZ PAZZZ
XBFZZ
XBFZZ
XB
XB
5340-00-682-1878
5306-01-015-8519
5310-00-880-7744
5310-00-407-9566
XB---
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ PAZZZ
XB---
NUT, ASSEMBLED WASHER,
HEX
69-561-6
511-101800-50
30554
78189
MOUNT, VIBRATION
72-5045
HT1-20
30554
76005
SCREW, CAP, HEX HEAD
MS90725-36
96906
NUT, PLAIN, HEX
MS51967-5
862-1015
96906
44940
WASHER, LOCK
MS35338-45
850-1045
96906
44940
BRACKET. MOUNTING CONTROL BOX, LH
72-5033
301-3446
XB--
PAFZZ PAOZZ PAZZZ
PAFZZ PAOZZ
5310-01-012-3595
5305-00-269-3211
5310-00-732-0558
5310-00-627-6128
5305-00-269-3214
5310-00-732-0558
5310-00-637-9541
5310-00-038-9854
186
30554
44940
BRACKET, MOUNTING CONTROL BOX, RH
72-5034
301-3447
30554
44940
SCREW, CAP HEX, HEAD
MS90725-60
800-1050
96906
44940
NUT, PLAIN, HEX
MS51967-8
862-1003
96906
44940
WASHER, LOCK
MS35335-35
858-1010
96906
44940
SCREW, CAP. HEX HEAD
MS90725-64
800-1052
96906
44940
NUT, PLAIN. HEX
MS51967-8
862-1003
96906
44940
WASHER, LOCK
MS35338-46
850-1050
96906
44940
WASHER, BEVEL
70-1531-1
526-0267
30554
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
55
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
55
55
(5)
DESCRIPTION
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
4
12
EA
1
1
EA
6
6
EA
6
23
EA
6
49
EA
3
3
EA
1
1
EA
1
1
EA
1
1
EA
1
43
EA
2
19
EA
2
21
EA
2
52
EA
1
1
EA
1
1
EA
6
8
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 16 SKID BASE ASSEMBLY - CONT
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
XBFZZ
XB
XB---
PAOZZ PAOZZ PAZZZ
XDOZZ
XC
5305-00-175-3230
XB---
9905-01-047-5578
PAOZZ PAOZZ PAZZZ
5306-00-226-4830
PAOZZ PAOZZ PAZZZ
5310-00-880-7744
XDOZZ PAOZZ PAZZZ
PAOZZ PAOZZ
PBOZZ PBOZZ
XBOZZ
XB
XB---
5310-00-608-6454
XB---
XB---
PAOZZ PAOZZ PAZZZ
5305-01-049-9137
PAOZZ PAOZZ PAZZZ
5310-00-732-0558
PAOZZ PAOZZ PAZZZ
5305-00-225-3839
PAOZZ PAOZZ PAZZZ
5310-00-761-6882
PAOZZ PAOZZ PAZZZ
XBOZZ
XBFFF
XB
XB
XB---
5310-00-582-5965
B
XB---
PAOZZ PAOZZ PAZZZ
XBOZZ
XBOZZ
XC
XC
XB---
XB---
9905-01-047-5579
9905-01-047-5583
187
SUPPORT, CONTROL BOX
72-5032
301-3311
30554
44940
SCREW. DRIVE
MS21318-14
96906
PLATE, IDENTIFICATION
72-5074
99-1180
30554
98623
BOLT. MACHINE
B1821BH031C138N
80204
NUT, PLAIN, HEX
MS51967-5
862-1015
96906
44940
WASHER, LOCK
MS35338-45
850-1045
96906
44940
WASHER. BEVEL
NAS1099-5
80205
RACK, BATTERY
72-5043
416-0559
30554
44940
TRAY, BATTERY
72-5044
416-0561
30554
44940
SCREW, CAP, HEX HEAD
72-5027
800-0531
30554
44940
NUT PLAIN. HEX
MS51967-8
662-1003
96906
44940
SCREW, CAP, HEX HEAD
MS90725-8
800-1007
96906
44940
NUT. PLAIN, HEX
MS51967-2
96906
WASHER, LOCK
MS35338-44
850-1040
96906
44940
RACKET, ANGLE
72-5039
403-0999
30554
44940
BASE. SKID
72-5031
403-0937
30554
44940
5305-00-175-3230SCREW, DRIVE
MS21318-14
96906
PLATE, IDENTIFICATION
72-5036
99-1178
30554
98623
PLATE, INSTRUCTION
72-5075
99-1179
30554
986623
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
55
55
55
55
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
55
55
(5)
DESCRIPTION
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
2
4
EA
2
8
EA
1
1
EA
1
1
EA
V
USABLE
ON CODE U.M.
GROUP 16 SKID BASE ASSEMBLY - CONT
50D
51
52
53
54
PAFZZ PAOZZ PAZZZ
XBFZZ PAOZZ PAZZZ
XBFZZ PAOZZ
XBFZZ PAOZZ
XBFZZ
XB
XB---
XB---
XB--
5310-00-768-0318
5310-00-584-5272
NUT,. PLAIN, HEX
MS51967-14
862-1016
96906
44940
WASHER., LOCK
MS35338-48
850-1060
96906
44940
BUMPER
72-5193
402-0400
30554
44940
BUMPER
72-5192
402-0401
30554
44940
SPACER
72-5191-3
402-0404
30554
44940
188/(189 blank)
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 56. Slave Receptacle Assembly
190
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
4
19
EA
4
21
EA
4
52
EA
1
1
USABLE
ON CODE U.M.
GROUP 16 SKID BASE ASSEMBLY - CONT
56
56
56
56
1
2
3
AOOOO AOO
AFFFF
PAOZZ PAOZZ PAFZZ
PAOZZ PAOZZ PAFZZ
PAOZZ PAOZZ PAFZZ
5310-00-761-6882
5310-00-582-5965
96906
44940
NUT, PLAIN, HEX: 114-20 UNC-2B
MS51967-2
862-1001
96906
44940
WASHER, LOCK: 114
MS35338-44
850-1044
96906
44940
56
4
PAOZZ PAOZZ PAFZZ
5940-00-686-6880
TERMINAL. LUG: FLAG TYPE, 5/16 STUD
72-5326
30554
321064
00779
EA
1
1
56
5
PAOZZ PAOZZ PAFZZ
5940-00-113-8191
TERMINAL, LUG
MS25036-127
332-1050
EA
1
3
EA
5
8.8
EA
1
1
EA
2
2
EA
2
3
EA
2
6
EA
2
49
EA
1
1
EA
2
8
EA
1
1
56
56
56
56
56
56
56
56
7
8
9
10
11
12
13
14
PAFZZ
SCREW, CAP, HEX HEAD:
1/4-20 X 1 UNC-2A
MS90725-8
800-1007
-
6
AOO
5305-00-225-3839
30554
56
56
AOOOO
SLAVE RECEPTACLE ASSEMBLY
72-5984
PAOZZ PAOZZ PAFZZ
PAOZZ PAOZZ PAFZZ
PAOZZ PAOZZ PAFZZ
PAOZZ PAOZZ PAFPZZ
PAOZZ PAOZZ PAFZZ
PAOZZ PAOZZ PAFZZ
CONNECTOR, RECEPTACLE:
ASSEMBLY OF
72-5042
6145-00-578-6596
5935-00-295-6403
5999-00-409-3751
5306-00-225-8499
5310-00-767-0445
5310-00-407-9566
XBOZZ PAOZZ PAFZZ
PAOZZ PAOZZ PAFZZ
MOOZZ
MDO
XC--
5305-00-175-3230
WIRE, ELECTRICAL: AWG 2.
600 VOLT
M5086-2-2-9
334-1290
30554
96906
44940
81349
44940
CONNECTOR, RECEPTACLE.
ELECTRICAL
MS75058-1
323-0337
96906
44940
CONTACT, ELECTRICAL: SOCKET
7716082
323-0364
19207
44940
BOLT, MACHINE UNC-2A
MS90725-34
800-1028
96906
44940
NUT, PLAIN, HEX: 5/16-18
UNC-2B
MS51971-2
870-0153
96906
44940
WASHER, LOCK: 5/16
MS35338-45
850-1045
96906
44940
BRACKET, CONNECTOR
MOUNTING
72-5048
332-0338
30554
44940
SCREW. DRIVE
MS21318-14
96906
PLATE, IDENTIFICATION
72-5029
99-1177
30554
98623
191/(192 blank)
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 57. 5kW Acoustical Kit (Sheet 1 of 10)
193
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 57. 5kW Acoustical Kit (Sheet 2 of 10)
194
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 57. 5kW Acoustical Kit (Sheet 3 of 10)
195
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 57. 5kW Acoustical Kit (Sheet 4 of 10)
196
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 57. 5kW Acoustical Kit (Sheet 5 of 10)
197
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 57. 5 kW Acoustical Kit (Sheet 6 of 10)
198
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 57. 5kW Acoustical Kit (Sheet 7 of 10)
199
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 57. 5kW Acoustical Kit (Sheet 8 of 10)
200
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3456-4
Figure 57. 5kW Acoustical Kit (Sheet 9 of 10)
201
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 57. 5kW Acoustical Kit (Sheet 10 of 10)
202
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
a.
(2)
SMR CODE
b.
c.
(3)
d.
57
1
PDOFF
6115-01-273-7377
57
2
PAOZZ
5305-00-942-5213
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
PAOZZ
PAOZZ
PAOZZ
REPL
FACTOR
NATIONAL
STOCK
NUMBER
ITEM
NO.
SSI
(5)
DESCRIPTION
(6)
(7)
b.
FIG.
NO.
57
AIR
ARMY FORCE NAVY USMC
a.
(4)
5310-00-081-4219
5310-00-809-3078
5310-00-061-4650
XDOOO
PAOZZ
PAOZZ
XDOOO
PAOZZ
XDOZZ
REF NUMBER & MFR NUMBER
SCREW, SHOULDER. 313
MS51975-11
96906
WASHER, FLAT, .344 NOM DIA
MS27183-12
96906
WASHER, FLAT .312 NOM DIA
MS27183-11
96906
NUT. SELF-LOCKING, HEX,
.250-20
MS51943-31
96906
PANEL ASSY, TOP
89-36061
30554
RIVET. PROTRUDING HD
SSPQ-64
89-36029-03
05693
30554
CATCH, PULL-DOWN
HC209ZEI/HS205ZE
89-36014
98003
30554
DOOR ASSY, PANEL
89-36107
30554
RIVET, PROTRUDING HD
SSPQ-62
89-36029-01
05693
30554
HINGE, CONTINUOUS
89-36018
DOOR
89-36039
XAOZZ
XAOZZ
INSULATION, DOOR
89-36046-05
XAOZZ
DOOR, PERFORATED
89-36038
PANEL ASSEMBLY
89-36051
XDOOO
PAOZZ
XDOZZ
XDOZZ
XDOZZ
XDOZZ
XAOZZ
XAOZZ
203
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
31
31
EA
31
31
EA
54
54
EA
29
29
EA
1
1
EA
11
40
EA
2
8
EA
1
1
EA
3
75
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
20
75
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
6
22
EA
1
1
USABLE
ON CODE U.M.
GROUP 17 ACOUSTIC SUPPRESSION KIT
KIT, ACOUSTIC, 5KW SUPPRESSION, GENERATOR SET,
60 HZ,
89-36001
30554
(8)
30554
30554
30554
30554
30554
RIVET, PROTRUDING HD
SSPQ-62
89-36029-01
05693
30554
ANGLE FRAME, PANEL
89-36117
30554
ANGLE FRAME, PANEL
89-36118
30554
CHANNEL, PANEL
89-36098
30554
CHANNEL, PANEL
89-36101
30554
PIN, WELD, CUPPED HD
MC-14-0875
89-36009
3S287
30554
INSULATION, PANEL
89-36071
30554
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
REPL
FACTOR
NATIONAL
STOCK
NUMBER
23
XAOZZ
24
PAOZZ
4730-00-137-9218
57
25
PAOZZ
4730-01-005-6335
57
26
MOOZZ
57
27
PAOZZ
57
28
XDOOO
57
29
PAOZZ
57
30
PAOZZ
57
57
57
57
57
31
32
33
34
35
36
XDOZZ
XDOZZ
XAOZZ
XAOZZ
XAOZZ
37
MOOZZ
57
38
MOOZZ
57
39
MOOZZ
57
40
XDOOO
41
5305-00-068-0502
XDOZZ
57
57
(7)
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
1
1
FT
2
2
EA
25
25
EA
1
1
EA
1
1
EA
14
38
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
1
1
RO
AR
AR
RO
AR
AR
RO
AR
AR
EA
1
1
EA
4
75
USABLE
ON CODE U.M.
GROUP 17 ACOUSTIC SUPPRESSION KIT
- CONT
57
57
(6)
b.
57
57
(5)
DESCRIPTION
PAOZZ
204
PANEL
89-36084
ELBOW, STREET
ELBOW 45 DEG, STREET, 1.25
MS39231-7B
CLAMP. SPRING. 875 NOM DIA
MS39326-14
HOSE, 89-36001-24
MAKE FROM HOSE .875 OD,
.625 ID P/N M2EA712F17, 18 IN
REQ
SCREW, CAP, HEX, HD, .250-20
X .75 LG.
MS90725-6
PLENUM ASSY. EXHAUST
89-36058
NUT. BLIND, RIVET .500-13
UNC
MS27130-A151
RIVET, PROTRUDING HD
APPO-62
89-36024-01
BRACE, PLENUM
89-36094-03
PLENUM, SIDE
89-36059-01
PLENUM, SIDE
89-36059-02
SUPPORT, INSULATION, PLENUM
89-36093-03
INSULATION, PLENUM
89-36028-03
PLENUM, FRONT
89-36095
INSULATION TAPE, TFL
CUT TO 30 IN (2X), 1 IN WIDE
MIL-I-23594, TYICL4
INSULATION TAPE, TFL
CUT TO 8 IN (2X). 1 IN WIDE
MIL-I-23594, TYICL4
INSULATION TAPE, TFL
CUT TO 15 IN (2X), 1 IN WIDE
MIL-I-23594, TYICL4
CLOSURE ASSY, SIDE
89-36085
RIVET, PROTRUDING HD
SSPQ-62
89-36029-01
30554
96906
96906
30554
96906
30554
96906
05693
30554
30554
30554
30554
30554
30554
30554
81349
81349
81349
30554
05693
30554
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
42
PAOZZ
57
43
XDOZZ
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
44
45
46
47
REPL
FACTOR
NATIONAL
STOCK
NUMBER
48
49
50
51
52
53
54
55
56
57
58
59
60
61
REF NUMBER & MFR NUMBER
(7)
COVER, HINGED
89-36078
HINGE, COVER
WELDED PART
89-36104
MOOZZ
XAOZZ
5320-01-083-3255
XDOZZ
MOOZZ
MOOZZ
XDOZZ
XDOOO
PAOZZ
PAOZZ
XDOOO
PAOZZ
XAOZZ
XAOZZ
XAOZZ
XDOOO
PAOZZ
205
USMC
QTY
PER
EQUIP
EA
2
2
EA
1
1
EA
1
1
RO
AR
AR
EA
1
1
EA
2
8
EA
1
1
EA
1
1
RL
AR
AR
EA
1
1
EA
1
1
EA
8
12
EA
2
8
EA
EA
1
3
1
75
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
3
75
30554
30554
INSULATION TAPE, TFL CUT
TO 9 IN (2X), 1 IN WIDE
MIL-I-23594, TYICL4
81349
COVER, CLOSURE
89-36048
30554
RIVET, PROTRUDING HD
AAPO-64
89-36024-03
05693
30554
RETAINER. CLOSURE SIDE
89-36054
30554
FLAP, CLOSURE, SIDE
89-36055
MAKE FROM PIN M2BA410F17,
CAGE 81346,
8.00 IN X 3.50 IN REQ
(8)
QTY
INC IN
UNITS
USABLE
ON CODE U.M.
GROUP 17 ACOUSTIC SUPPRESSION KIT
- CONT
LATCH, SNAP
A-17
55661
89-36015
30554
XAOZZ
PAOZZ
(6)
b.
57
57
(5)
DESCRIPTION
30554
U-CHANNEL
89-36085-6
MAKE FROM P/N ZX-4878, 1
PC. 22 IN., 1 PC. 6 IN.
30554
CLOSURE
89-36086
30554
PANEL ASSY, LEFT
89-36063
30554
RIVET, PROTRUDING HD
SSPQ-64
89-36029-03
05693
30554
CATCH, PULL-DOWN
HC209ZE/HS205ZE
89-36014
98003
30554
DOOR ASSY. PANEL 89-36109
RIVET, PROTRUDING
HDSSPQ-62
89-36029-01
30554
05693
30554
DOOR
89-36132-07
30554
INSULATION, DOOR
89-36046-09
30554
DOOR, PERFORATED
89-36131-07
30554
PANEL ASSEMBLY
89-36053
30554
RIVET, PROTRUDING HD
SSPO-62
89-36029-01
05693
30554
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
62
XDOZZ
57
63
XAOZZ
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
57
57
(5)
DESCRIPTION
REF NUMBER & MFR NUMBER
XAOZZ
XAOZZ
XAOZZ
PAOZZ
XDOOO
PAOZZ
XDOOO
XAOZZ
XAOZZ
PAOZZ
XDOZZ
XAOZZ
XAOZZ
MOOZZ
CHANNEL, PANEL
WELDED PART
89-36120
30554
PIN, WELD, CUPPED HD
MC-14-0875
89-36009
3B287
30554
INSULATION, PANEL
89-36073
30554
PANEL
89-36091
30554
NUT, LOCK, CAPTIVE
C30968-1420-3B
89-36017
89032
30554
PANEL ASSY, FRONT
89-36064
30554
RIVET, PROTRUDING HD
SSPO-62
89-36029-01
05693
30554
SILENCER ASSEMBLY
89-36049
30554
CAP, DOME
ADC-12-1
89-36010
3B287
30554
PIN, WELD
AL-1100-12-5
89-36011
3B287
30554
RIVET, PROTRUDING HD
AAPQ-62
89-36024-01
05693
30554
ANGLE, SILENCER
89-36114
30554
INSULATION, SILENCER
89-36026
30554
SILENCER, INLET 89-36069
INSULATION TAPE, TFL
CUT TO 32 IN (2X), 1 IN WIDE
MIL-1-23594, TYICL4
MOOZZ
INSULATION TAPE TFL
CUT TO 31 IN (2X). 1 IN WIDE
MIL-1-23594, TYICL4
MOOZZ
PAOZZ
PAOZZ
206
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
4
22
EA
1
1
EA
1
1
EA
9
27
EA
1
1
EA
9
75
EA
1
1
EA
6
6
EA
6
6
EA
12
38
EA
4
4
EA
1
1
EA
RO
1
AR
1
AR
RO
AR
AR
RO
AR
AR
EA
5
40
EA
5
17
USABLE
ON CODE U.M.
GROUP 17 ACOUSTIC SUPPRESSION KIT
- CONT
ANGLE FRAME. PANEL
89-36119-03
30554
30554
(8)
81349
81349
INSULATION TAPE TFL
CUT TO 33 IN (2X), 1 IN WIDE
MIL-1-23594, TYICL4
81349
RIVET. PROTRUDING HD
SSPO-64
89-36029-03
05693
30554
RETAINER
89-36067
30554
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
82
MOOZZ
57
83
XDOOO
57
57
57
57
57
57
57
57
57
57
57
57
57
84
85
86
87
88
89
90
91
92
93
94
95
96
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
57
57
(5)
DESCRIPTION
REF NUMBER & MFR NUMBER
PANEL ASSEMBLY
USED ON S/N 0001 TO 0700,
INTERCHANGEABLE WITH PIN
89-36050,SH2
89-36050,SH1
XDOOO
PANEL ASSEMBLY
USED ON SIN 0701 TO 6095.
INTERCHANGEABLE WITH P/N
89-36050,SH1
89-36050,SH2
MOOZZ
U-CHANNEL
89-36050. SH1-7
MAKE FROM P/N ZX-4878,
CAGE 76385, CUT TO 36 IN.
PAOZZ
RIVET, PROTRUDING HD ONLY
USE ON P/N 89-36050, 'SH1
SSPO-62
89-36029-01
XDOZZ
XAOZZ
PAOZZ
XAOZZ
XAOZZ
XAOZZ
XDOOO
PAOZZ
PAOZZ
XDOOO
207
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
1
1
RL
AR
AR
EA
6
75
EA
1
1
EA
6
22
EA
4
27
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
16
40
EA
4
8
EA
1
1
30554
30554
30554
05693
30554
BELLMOUTH, PANEL
ONLY USE ON P/N 89-36050,
SH1
89-36070
30554
PIN, WELD, CUPPED HD
MC-14-0875
89-36009.
3B287
30554
NUT, LOCK, CAPTIVE
C30968-1420-3B
89-36017
89032
30554
INSULATION. PANEL
89-36043
30554
PANEL
ONLY USE ON PIN 89-36050,
SH1
89-36081
QTY
INC IN
UNITS
USABLE
ON CODE U.M.
GROUP 17 ACOUSTIC SUPPRESSION KIT
-CONT
FLAP, FRONT
89-36068
MAKE FROM P/N M2BA410F17,
CAGE 81346
32.25 IN X 6.75 IN REQ
30554
(8)
30554
PANEL
ONLY USE ON P/N 89-36050,
SH2
89-36096
30554
PANEL ASSY, RIGHT
89-36062
30554
RIVET, PROTRUDING HD
SSPO-64
89-36029-03
05693
30554
CATCH, PULL-DOWN
HC209ZEI/HS205ZE
89-36014
98003
30554
DOOR ASSY. PANEL
89-36106
30554
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
97
PAOZZ
57
98
XAOZZ
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
57
57
(5)
DESCRIPTION
REF NUMBER & MFR NUMBER
XAOZZ
XAOZZ
XDOOO
PAOZZ
XAOZZ
XAOZZ
XAOZZ
XDOOO
PAOZZ
PAOZZ
XDOZZ
XDOZZ
XDOZZ
XAOZZ
XAOZZ
XAOZZ
MOOZZ
DOOR
89-36132-03
30554
INSULATION, DOOR
89-36046-03
30554
DOOR, PERFORATED
89-36131-03
30554
DOOR ASSY, PANEL
89-36105
30554
RIVET, PROTRUDING HD
SSPQ-662
89-36029-01
05693
30554
DOOR
89-36132-01
30554
INSULATION, DOOR
89-36046-01
30554
DOOR, PERFORATED
89-36131-01
30554
PANEL ASSEMBLY
89-36052
30554
NUT, LOCK, CAPTIVE
C30968-1420-3B
89-36017
89032
30554
RIVET, PROTRUDING HD
SSPQ-62
89-36029-01
05693
30554
ANGLE FRAME, PANEL
89-36115
30554
ANGLE FRAME, PANEL
89-36116
30554
CHANNEL, PANEL
89-36102
30554
PIN, WELD. CUPPED HD
MC-14-0875
89-36009
3B287
30554
INSULATION, PANEL
89-36072
30554
PANEL
89-36079
30554
INSULATION TAPE, TFL
CUT TO 23 IN (2X). 1 IN WIDE
MIL-I-23594, TYICL4
MOOZZ
XDOOO
208
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
3
75
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
3
75
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
12
27
EA
21
75
EA
1
1
EA
1
1
EA
1
1
EA
6
22
EA
1
1
EA
1
1
RO
AR
AR
RO
AR
AR
EA
1
1
USABLE
ON CODE U.M.
GROUP 17 ACOUSTIC SUPPRESSION KIT
- CONT
RIVET, PROTRUDING HD
SSPQ-62
05693
89-36029-01
30554
(8)
81349
INSULATION TAPE. TFL
CUT TO 14 IN (2X). 1 IN WIDE
MIL-I-23594, TYICL4
81349
CLOSURE ASSY, REAR
89-36087
30554
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
118
PAOZZ
57
119
XDOZZ
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
57
57
(5)
DESCRIPTION
REF NUMBER & MFR NUMBER
XAOZZ
XAOZZ
XAOZZ
MOOZZ
XDOOO
PAOZZ
XDOZZ
MOOZZ
XDOZZ
MOOZZ
CLIP, CLOSURE
89-36009
30554
ANGLE, CLOSURE
89-36090
30554
ANGLE, CLOSURE
89-36089
30554
CLOSURE
89-36088
30554
INSULATION TAPE, TFL
CUT TO 12 IN (2X), 1 IN WIDE
MIL-I-23594, TYICL4
81349
PANEL ASSY, REAR
89-36025
30554
RIVET, PROTRUDING HD
AAPO-64
89-36024-03
05693
30554
RETAINER, REAR
89-36113
30554
FLAP, UPPER, REAR
89-36111
MAKE FORM P/N M2BA410F17,
CAGE 81346, 6.50 IN X 8.00 IN
REQ
30554
RETAINER. REAR
89-36112
30554
FLAP. LOWER, REAR
89-36110
MAKE FORM P/N M2BA410F17,
CAGE 81346. 20.85 IN X 6.25 IN
REQ
MOOZZ
PAOZZ
XDOZZ
XDOOO
MOOZZ
XDOZZ
209
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
12
38
EA
2
2
EA
1
1
EA
1
1
EA
1
1
RO
AR
AR
EA
1
1
EA
6
8
EA
1
1
EA
1
1
EA
1
1
EA
1
1
RL
AR
AR
EA
2
27
EA
1
1
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
GROUP 17 ACOUSTIC SUPPRESSION KIT
- CONT
RIVET, PROTRUDING HD
AAPO-62
05693
89-36024-01
30554
(8)
30554
U-CHANNEL.
89-36025-1
MAKE FROM P/N ZX-4878,
CAGE 76385, CUT TO 20 IN.
30554
NUT, LOCK, CAPTIVE
C30968-1420-3B
89-36017
89032
30554
PANEL, REAR
89-36076
30554
FLAP ASSY, REAR
89-36037
30554
FLAP, REAR
89-36074
MAKE FROM P/N M2BA410F17,
CAGE 81346. 32.00 IN X 8.00 IN
REQ
30554
ANGLE. REAR
89-36075
30554
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
136
MOOZZ
57
137
XDOOO
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
138
139
140
141
142
REPL
FACTOR
NATIONAL
STOCK
NUMBER
143
144
145
146
147
148
149
150
151
152
153
PAOZZ
MOOZZ
XDOZZ
PAOZZ
PAOZZ
5310-00-732-0558
5310-00-637-9541
5310-00-038-9854
PAOZZ
PAOZZ
REF NUMBER & MFR NUMBER
(7)
5310-00-080-6004
MOOZZ
XDOOO
PAOZZ
PAOZZ
MOOZZ
XDOZZ
PAOZZ
SUPPORT ASSY, LEFT
89-36066
30554
RIVET, CSK HEAD
SSCQ-64
89-36022
05693
30554
RETAINER
89-36067
30554
FLAP. SUPPORT
89-36060
MAKE FROM P/N M2BA410F17,
CAGE 81346, 51.25 IN X 8.00 IN
REQ
30554
SUPPORT, LEFT
89-36056
30554
NUT, HEX .375-16 UNC-2B
MS51967-8
96906
WASHER, LOCK-SPRING, .375
NOM SIZE
MS35338-46
96906
WASHER, BEVEL, .375
70-1531-1
30554
SCREW, CAP, HEX HD, .375-16
X 1.25 LG
MS90725-62
96906
WASHER, FLAT
MS27183-13
96906
INSULATION TAPE, TFL
CUT TO 50 IN (2X). 1 IN WIDE
MIL-I-23594, TYICL4
81349
SUPPORT ASSY, RIGHT
89-36065
30554
RIVET, CSK HEAD
SSCa-64
89-36022
05693
30554
RETAINER
89-36067
30554
FLAP, SUPPORT
89-36060
MAKE FROM P/N M2BA410F17,
CAGE 81346, 62.25 IN X 8.00 IN
REQ
30554
SUPPORT, RIGHT
89-36057
30554
COVER, BATTERY
TERMINAL, NEGATIVE, BLACK
10942521
210
19207
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
RO
AR
AR
EA
1
1
EA
6
12
EA
6
17
EA
1
2
EA
1
1
EA
2
2
EA
2
2
EA
2
2
EA
2
2
EA
2
2
RO
AR
AR
EA
1
1
EA
6
12
EA
6
17
EA
1
2
EA
1
1
EA
2
2
USABLE
ON CODE U.M.
GROUP 17 ACOUSTIC SUPPRESSION KIT
- CONT
INSULATION TAPE, TFL
CUT TO 50 IN (2X). 1 IN WIDE
MIL-1-23594, TYICL4
81349
PAOZZ
PAOZZ
(6)
b.
57
57
(5)
DESCRIPTION
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
57
57
57
57
57
57
57
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
57
57
(5)
DESCRIPTION
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
2
2
EA
1
1
EA
36
36
EA
1
1
EA
1
1
EA
1
1
EA
1
1
EA
5
5
USABLE
ON CODE U.M.
GROUP 17 ACOUSTIC SUPPRESSION KIT
-CONT
154
155
156
157
158
159
160
161
PAOZZ
XCOZZ
PAOZZ
MDOZZ
MDOZZ
MDOZZ
MDOZZ
MDOZZ
211
COVER, BATTERY TERMINAL.
POSITIVE, RED
10942521
89-36133
19207
30554
INSTALLATION, PLATES
89-36003
30554
RIVET. BLIND. OPEN-END,
NOM DIA .125
M24243/1B402
81349
PLATE, ID
89-36034
30554
PLATE, RATING
89-36127
30554
PLATE, LIFT/TIE DWN
89-36128
30554
PLATE, OPERATING
89-36129
30554
PLATE, DOOR WARNING
89-36130
30554
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
BULK
BULK
BULK
BULK
BULK
BULK
BULK
BULK
BULK
BULK
BULK
BULK
BULK
BULK
BULK
BULK
BULK
BULK
BULK
BULK
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
PAOZZ PAFZZ PAFZZPAFZZ
PAOZZ PAFZZ PAFZZPAFZZ
PAOZZ PAFZZ PAFZZPAFZZ
PAOZZ PAFZZ PAFZZPAFZZ
PAOZZ PAFZZ
PADZZ PAFZZ
PAFZZ PAFZZ
XB--- PAFZZ
XB--- PAFZZ
PAFZZ PAFZZ
PAFZZ PAFZZ
PAOZZ PAOZZ
PAOZZ PAFZZ
PAFZZ PAFZZ
PAFZZ PAFZZ
PAOZZ
PAOZZ
PAOZZ
PAOZZ
PAOZZ
SSI
XB--- PAFZZ
XB--- PAFZZ
XB--- PAFZZ
REPL
FACTOR
NATIONAL
STOCK
NUMBER
4010-00-554-8661
4720-00-235-4131
4720-00-639-9907
4720-00-289-9197
5970-00-914-3117
5970-00-810-4054
6145-00-553-0828
6145-00-578-6596
6145-00-578-6595
6145-00-284-0657
XB--- PAFZZ
XB--- PAFZZ
XB-- PAFZZ
XB--- PAFZZ
(5)
DESCRIPTION
(6)
(7)
b.
XB--- PAFZZ
PAFZZ PAFZZ PAFZZPAFZZ
PAFZZ PAFZZ
a.
(4)
REF NUMBER & MFR NUMBER
GROUP 18 BULK MATERIAL
CHAIN
42C16550
10001
HOSE. RUBBER
MILH13444-1-3-4
81349
HOSE, RUBBER
MILH8794-4
81349
HOSE, RUBBER
MILH8794-5
81349
SLEEVING, INSULATION.
ELECTRICAL
MIL123053-5-IRED3-4
SLEEVING, INSULATION,
ELECTRICAL
MIL-121557
6145-00-578-6605
6145-00-578-7514
IN
FT
FT
FT
FT
81349
FT
81349
SLEEVING., INSULATION,
ELECTRICAL
898-0016
44940
WIRE, ELECTRICAL: 14 AWG
MS25471-14
96906
WIRE. ELECTRICAL: 12 AWG,
WHITE
M5086-2-2-9
WIRE. ELECTRICAL: 14 AWG,
WHITE
M5086-2-4-9
WIRE, ELECTRICAL: 18 AWG,
WHITE
M5086-2-86-9
WIRE. ELECTRICAL: 12 AWG,
BLACK
M5756-2-1
6145-01-049-0118
USABLE
ON CODE U.M.
WIRE, ELECTRICAL: 10 AWG,
WHITE
334-0761
WIRE, ELECTRICAL: 16 AWG,
WHITE
M5086-2-16-9
FT
FT
FT
81349
FT
81349
FT
81349
FT
81349
FT
44940
FT
81349
WIRE, ELECTRICAL: 12 AWG,
WHITE
M5086-2-12-9
334-1285
FT
81349
44940
ADHESIVE
MMM-A-121
81348
FLAP, EPDM. ASTM D-2000
M2BA410F17
81346
HOSE, .875 OD, .625 ID
M2BA712F17
81346
TU
FT
FT
INSULATION TAPE, TFL 1 INCH
WIDE
MIL-I-23594, TY I, CL 4
81349
U-CHANNEL
ZX-4878
76385
212/(213 blank)
RO
RL
QTY
INC IN
UNITS
(8)
USMC
QTY
PER
EQUIP
ARMY TM 96115-584-24P
NAVY NAVFAC P-8622-24P
AIR FORCE T.O. 35C2-3-456-4
Figure 58. Special Tools
214
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
(1)
ILLUSTRATION
a.
b.
FIG.
NO.
ITEM
NO.
a.
(2)
SMR CODE
b.
c.
(3)
d.
AIR
ARMY FORCE NAVY USMC
a.
SSI
(4)
(5)
DESCRIPTION
(6)
(7)
b.
REPL
FACTOR
NATIONAL
STOCK
NUMBER
REF NUMBER & MFR NUMBER
(8)
QTY
INC IN
UNITS
USMC
QTY
PER
EQUIP
EA
1
1
EA
1
1
EA
1
1
USABLE
ON CODE U.M.
SPECIAL TOOLS
58
58
58
1
2
3
PEHZZ PAFZZ PAFZZPAFZZ
PEHZZ PAFZZ PAFZZPAFZZ
PEHZZ PAFZZ PAFZZPAFZZ
5120-00-971-5478
5180-01-048-8602
5120-01-008-3729
215
TOOL, CENTERING: INJECTION
NOZZLE
TSE773
420-0321
FIXTURE, TEST: DELIVERY
VALVE
TSE76226
420-0322
PLUNGER, SPRING
COMPRESSION
TSE76215
420-0210
01843
44940
01843
44940
01843
44940
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
SECTION IV - NATIONAL STOCK NUMBER AND REFERENCE NUMBER INDEX
National
Stock Number
5340-00-009-5294
6620-00-010-0319
5920-00-012-0151
5310-00-014-5850
5310-00-014-5850
5310-00-014-5850
4730-00-018-9566
5310-00-019-0672
1040-00-019-2984
4320-00-019-2991
4320-00-019-2992
4720-00-021-3320
2910-00-036-3612
5305-00-036-6906
5305-00-036-6906
5305-00-036-6906
5305-00-036-6906
5305-00-036-6906
5305-00-036-6906
5305-00-036-6967
5305-00-036-6968
5305-00-036-6968
5305-00-036-6968
5305-00-036-6968
5305-00-036-6978
5310-00-038-9854
5310-00-038-9854
5310-00-042-4229
5305-00-045-1988
5310-00-045-3296
5310-00-045-3296
5310-00-045-3296
5310-00-045-3296
5310-00-045-3296
5306-00-050-0347
5905-00-051-7677
5310-00-052-3632
Figure
Number
Item
Number
22
47
36
13
25
25
45
13
22
22
22
16
19
4
5
10
10
10
34
7
5
13
13
13
12
11
55
12
30
13
35
48
48
48
26
5
5
6
29
15
69
16
22
8
40
10
8
7
1
6
6
31
4
6
28
6
3
26
2
8
41
27
3
30
21
4
27
26
12
9
3
1
22
2
National
Stock Number
5310-00-052-3632
5310-00-052-3632
5310-00-052-3632
5310-00-052-3632
5310-00-052-3632
5310-00-052-3632
5310-00-052-3632
5310-00-052-3632
5310-00-052-3632
5310-00-052-3632
5310-00-052-3632
5961-00-054-0046
5340-00-057-2553
5340-00-057-3037
5315-00-058-5088
5305-00-059-8263
5310-00-061-1258
5310-00-061-1258
5310-00-061-1258
5310-00-063-7360
5310-00-063-7360
5310-00-063-7360
5310-00-063-7360
5310-00-063-7360
5310-00-063-7360
5310-00-063-7360
5310-00-063-7360
5310-00-063-7360
5310-00-063-7360
5310-00-063-7360
5310-00-064-3590
5310-00-064-3590
2910-00-066-1235
5305-00-068-0501
5305-00-068-0502
5305-00-068-0502
5305-00-068-0502
216
Figure
Number
Item
Number
5
5
5
5
5
5
5
7
14
14
36
8
1
36
51
13
11
33
33
7
8
8
12
13
13
14
14
14
15
24
39
39
3
24
12
12
12
8
35
38
42
45
57
61
2
14
16
13
31
17
11
10
39
7
5
9
11
1
6
2
5
9
2
4
12
3
18
5
6
20
1
8
14
30
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
National
Stock Number
5305-00-068-0502
5305-00-068-0502
5305-00-068-0506
5305-00-068-0508
5305-00-068-0509
5305-00-068-0509
5305-00-068-0509
5355-00-068-0509
5305-00-068-0511
4730-00-068-9641
5305-00-069-5576
5305-00-071-2055
5305-00-071-2056
5305-00-071-2069
5305-00-071-2069
5305-00-071-2237
5305-00-071-2238
5305-00-071-2505
5975-00-074-2072
5975-00-074-2072
5975-00-074-2072
5975-00-074-2072
5975-00-074-2072
5310-00-080-6004
5310-00-080-6004
5310-00-080-6004
5310-00-081-4219
5310-00-081-4219
5310-00-081-4219
5905-00-081-7350
5940-00-082-4861
5315-00-087-8226
5970-00-088-8764
6645-00-089-8842
5340-00-091-3790
5310-00-094-3421
5310-00-094-3421
5310-00-094-3421
Figure
Number
Item
Number
13
39
4
47
13
24
25
33
33
46
50
34
23
33
33
24
23
20
6
10
14
25
42
23
33
33
3
48
50
15
15
10
24
5
10
4
5
5
18
1
3
24
20
14
2
6
6
12
1
1
5
21
23
4
28
16
11
13
18
42
17
4
4
8
2
5
13
5
7
33
40
16
3
7
29
32
National
Stock Number
Figure
Number
Item
Number
5310-00-094-3421
5310-00-094-3421
10
12
2
12
5310-00-094-3421
5310-00-094-3421
5310-00-094-3421
12
13
25
33
14
17
5310-00-094-3421
5310-00-094-3421
5325-00-099-8827
25
36
5
21
9
11
5905-00-104-8334
5905-00-104-8336
5905-00-106-1282
8
8
8
12
18
15
5905-00-106-9344
5905-00-108-6922
5940-00-113-8179
8
8
6
10
11
8
5940-00-113-8179
5940-00-113-8183
5940-00-113-8191
14
10
30
30
22
3
5940-00-113-8191
5910-00-114-0838
5940-00-114-1306
56
36
24
5
20
35
5935-00-115-2307
5935-00-115-2307
5940-00-115-2677
6
10
5
4
15
4
4730-00-121-0138
5905-00-121-9861
4730-00-137-9218
3
8
28
13
19
7
5905-00-139-1833
5905-00-141-0596
5905-00-141-0599
8
8
8
8
17
16
5905-00-141-1165
5905-00-141-1168
2910-00-141-9758
8
8
-3
14
13
17
5940-00-143-4773
5940-00-143-4774
5940-00-143-4774
35
6
6
9
8
9
5940-00-143-4774
10,
23
217
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
National
Stock Number
Figure
Number
Item
Number
5940-00-143-4774
13
30
5940-00-143-4774
5940-00-143-4775
5940-00-143-4780
14
14
13
5940-00-143-4780
5940-00-143-4780
5940-00-143-4780
Figure
Number
Item
Number
5999-00-186-3912
2
8
29
26
31
5310-00-194-9211
4730-00-196-1468
5810-00-199-5761
12
46
44
25
16
10
14
25
42
28
35
16
5940-00-204-8990
5310-00-209-0786
5310-00-209-0965
6
42
23
12
2
6
5940-00-143-4794
5940-00-143-4794
5940-00-143-4794
6
10
13
7
21
32
5310-00-209-0965
5310-00-209-0965
5310-00-209-0965
23
30
33
15
5
14
5940-00-143-4794
5940-00-143-4794
5940-00-143-5284
14
42
13
31
14
32
5310-00-209-0965
5310-00-209-0965
5310-00-209-1239
36
50
3
2
2
24
5940-00-143-5284
5940-00-143-5284
5330-00-145-2429
14
14
41
9
27
27
5935-00-210-8648
5970-00-221-5283
2910-00-222-2216
7
25
19
6
38
7
5330-00-145-2430
6240-00-155-7878
5340-00-158-0223
50
5
12
14
14
13
5305-00-224-1095
5306-00-224-9730
5305-00-225-3839
7
47
36
9
6
4
5340-00-158-0223
2805-00-158-2906
2930-00-158-3606
29
29
27
5
11
28
5305-00-225-3839
5305-00-225-3839
5305-00-225-3843
55
56
23
42
1
22
2930-00-163-0314
4730-00-165-0967
5310-00-165-2014
27
35
36
8
30
3
5305-00-225-3843
5305-00-225-8496
5305-00-225-8498
24
46
20
6
7
25
5310-00-165-2015
5365-00-166-1245
5307-00-166-1906
27
52
44
32
2
19
5305-00-225-8499
5305-00-225-8499
5305-00-225-8503
50
56
47
11
9
11
5310-00-167-0703
5910-00-172-2941
5305-00-175-3230
46
8
55
8
27
32
5305-00-225-8504
5305-00-225-9081
5306-00-226-4825
2
21
38
1
9
6
5305-00-175-3230
5305-00-175-3230
5306-00-177-5677
55
56
33
47
13
12
5306-00-226-4831
5306-00-226-4825
5306-00-226-4830
35
46
55
1
34
6685-00-179-8632
3110-00-183-6715
5325-00-185-0003
21
51
25
1
8
29
5305-00-226-7223
5940-00-230-0515
5940-00-230-9911
13
6
25
35
10
37
4710-00-185-6948
3
21
5940-00-234-3383
55
6
218 Change 1
Nati onal
Stock Number
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE TO. 35C2-3-456-4
National
Stock Number
Figure
Number
Item
Number
4720-00-235-4131
4720-00-235-4131
5330-00-240-0834
3120-00-241-0278
5320-00-241-6020
5320-00-241-6020
5975-00-249-9927
5305-00-253-5615
4730-00-254-6215
4730-00-254-6215
46
Bulk
13
53
5
14
2
12
38
38
14
4730-00-263-2733
5305-00-269-3209
5305-00-269-3209
5305-00-269-3209
5305-00-269-3206
47
17
21
30
52
19
8
6
6
19
7
12
52
42
7
4
3
5
5305-00-269-3211
11
6
5305-00-269-3211
16
12
5305-00-269-3211
25
9
5305-00-269-3211
55
12
5305-00-269-3211
55
National
Stock Number
Figure
Number
Item
Number
5940-00-283-5280
5940-00-283-5280
5940-00-283-5280
5940-00-283-5280
6145-00-284-0657
6145-00-284-0657
6145-00-284-0657
6145-00-284-0657
6145-00-284-0657
6145-00-284-0657
4730-00-287-0548
6
24
36
42
13
14
14
24
24
Bulk
20
11
12
24
15
33
10
32
36
38
4730-00-287-1614
2910-00-287-1930
38
18
31
6
4730-00-287-3281
4730-00-287-3281
4730-00-289-1930
43
47
47
14
30
16
4720-00-289-9197
16
8
4720-00-289-9197
17
3
4720-00-289-9197
17
6
4720-00-289-9197
4720-00-289-9197
20
20
3
6
4720-00-289-9197
5935-00-295-6403
5315-00-297-1745
Bulk
56
23
7
20
5330-00-297-6377
5310-00-297-2278
5330-00-297-2275
4730-00-301-7470
4730-00-301-7470
5910-00-312-4433
5330-00-351-6377
5330-00-351-6377
5970-00-351-8052
2910-00-374-6020
5310-00-407-9566
5310-00-407-9566
5310-00-407-9566
5310-00-407-9566
33
47
47
3
20
8
48
47
35
19
2
21
37
38
18
4
8
11
9
24
1
2
13
7
2
10
16
7
7
24
4030-00-270-5436
4030-00-270-5436
3
20
9
14
5310-00-274-8707
3110-00-277-0141
3110-00-277-0420
4730-00-277-5115
4730-00-277-5553
4730-00-277-7910
4730-00-277-8269
4730-00-278-0155
4730-00-278-3721
5330-00-281-3342
5355-00-281-6244
5365-00-281-6623
13
51
25
3
40
38
38
48
38
45
13
52
36
7
12
25
10
20
27
2
32
3
37
12
219
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
National
Stock Number
5310-00-407-9566
5310-00-407-9566
5310-00-407-9566
5310-00-407-9566
5310-00-407-9566
5310-00-407-9566
5310-00-407-9566
5310-00-407-9566
5310-00-407-9566
5325-00-408-2561
2815-00-409-8725
2815-00-409-8725
5306-00-411-2405
5306-00-419-6675
4730-00-421-3209
5365-00-421-9922
5310-00-432-7980
5325-00-432-9899
5905-00-434-3013
5945-00-435-1833
5315-00-449-2945
5315-00-449-2945
5325-00-449-2967
5325-00-449-2967
2920-00-454-9802
5961-00-458-5813
2805-00-459-7056
5970-00-466-2118
5961-00-468-2765
5961-00-469-2189
5305-00-470-3321
2815-00-470-7191
2805-00-478-8207
2815-00-480-7390
3020-00-481-5786
4820-00-482-3614
2910-00-483-5176
2805-00-484-7493
Figure
Number
Item
Number
43
46
47
48
50
50
55
55
56
3
52
52
55
41
16
54
37
13
8
7
5
13
5
14
31
8
43
25
8
7
49
43
50
38
52
46
20
43
2
4
13
4
8
12
8
21
11
27
6
15
1
13
4
11
11
20
4
10
12
53
43
11
28
20
23
7
7
5
13
9
29
13
15
24
3
National
Stock Number
2910-00-484-8511
4710-00-491-3219
2920-00-491-3253
2920-00-491-3254
4730-00-496-7511
5940-00-500-8722
5310-00-514-6674
5310-00-514-6674
5305-00-515-9090
6150-00-519-2714
4730-00-537-1192
5305-00-543-2188
5305-00-543-2188
5315-00-543-3716
5315-00-543-3716
5310-00-543-5060
5940-00-549-6581
5940-00-549-6581
5305-00-549-8388
6145-00-553-0828
6145-00-553-0828
5975-00-553-0830
5940-00-557-4341
5940-00-557-4341
5940-00-557-4341
5940-00-557-4341
5940-00-557-4341
5940-00-557-4341
5940-00-557-4341
5940-00-557-4341
5940-00-557-4341
5940-00-557-4341
5935-00-565-9497
5935-00-565-9497
5935-00-565-9503
5935-00-565-9503
5360-00-571-9698
5310-00-576-5495
220
Figure
Number
Item
Number
49
40
41
41
40
24
55
55
39
6
18
8
14
23
33
34
1
1
42
25
Bulk
24
13
13
13
13
13
13
13
13
13
13
10
24
10
42
44
27
19
4
12
11
3
43
5
9
16
13
1
3
11
20
18
11
2
10
4
36
21
45
46
49
50
53
54
58
61
65
69
12
33
11
12
14
31
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
National
Stock Number
Figure
Number
Item
Number
5940-00-578-3482
14
22
6145-00-578-6595
6145-00-578-6595
6145-00-578-6595
13
13
13
6145-00-578-6595
6145-00-578-6595
6145-00-578-6595
Figure
Number
Item
Number
5310-00-582-5965
12
31
47
51
55
5310-00-582-5965
5310-00-582-5965
5310-00-582-5965
13
13
20
19
21
18
13
13
13
59
63
67
5310-00-582-5965
5310-00-582-5965
5310-00-582-5965
23
24
24
24
2
5
6145-00-578-6595
6145-00-578-6595
6145-00-578-6596
13
Bulk
30
71
5310-00-582-5965
5310-00-582-5965
5310-00-582-5965
24
24
31
7
15
8
6145-00-578-6596
6145-00-578-6596
6145-00-578-6602
56
Bulk
7
6
5
5310-00-582-5965
5310-00-582-5965
5310-00-582-5965
35
39
47
7
2
25
6145-00-578-6605
6145-00-578-6605
6145-00-578-6605
6
10
13
3
27
34
5310-00-582-5965
5310-00-582-5965
5310-00-584-5272
55
56
33
44
3
22
6145-00-578-6605
6145-00-578-6605
6145-00-578-6605
14
27
36
34
47
25
5310-00-584-5272
5310-00-584-5272
4820-00-595-3191
33
55
3
25
51
10
6145-00-578-6605
6145-00-578-6605
6145-00-578-7513
42
Bulk
13
21
64
5310-00-595-6398
5365-00-598-6312
5330-00-599-4848
18
52
45
3
7
10
6145-00-578-7513
6145-00-578-7513
6145-00-578-7514
6
10
6
1
25
2
5325-00-599-8854
5940-00-606-4969
5940-00-606-4969
5
1
1
12
3
6
6145-00-578-7514
6145-00-578-7514
6145-00-578-7514
10
14
42
26
33
20
4020-00-618-0261
5315-00-264-0435
5310-00-624-0442
5
52
51
6
16
4
6145-00-578-7514
5330-00-579-3166
5940-00-578-9467
Bulk
24
12
8
46
5935-00-626-3122
5310-00-627-6128
6150-00-632-7234
27
55
5
45
26
40
5940-00-578-9467
5940-00-578-9467
5940-00-578-9467
13
13
13
50
54
58
5940-00-636-5537
5310-00-637-9541
5310-00-637-9541
24
11
16
41
4
14
2940-00-580-6304
5310-00-582-5965
5310-00-582-5965
47
4
12
3
4
9
5310-00-637-9541
5310-00-637-9541
5310-00-637-9541
17
21
23
9
7
3
5310-00-582-5965
12
15
5310-00-637-9541
23
27
2
National
Stock Number
221
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
National
Stock Number
Figure
Number
Item
Number
5310-00-637-9541
5310-00-637-9541
25
30
10
7
5310-00-637-9541
5310-00-637-9541
5310-00-637-9541
33
33
34
5310-00-637-9541
5310-00-637-9541
5310-00-637-9541
Figure
Number
Item
Number
5975-00-727-5153
5940-00-272-5364
38
14
1
23
3
7
5
5310-00-732-0558
5310-00-732-0558
5310-00-732-0558
11
16
21
5
13
8
34
52
55
10
20
14
5310-00-732-0558
5310-00-732-0558
5310-00-732-0558
23
33
55
2
2
2
5310-00-637-9541
5305-00-638-2938
5310-00-639-6385
55
23
19
29
17
2
5310-00-732-0558
5310-00-732-0558
5310-00-732-0558
55
55
55
13
25
28
4720-00-639-9907
4720-00-639-9907
4720-00-639-9907
16
38
Bulk
11
19
5310-00-732-0558
5310-00-732-0559
5310-00-735-5344
55
23
22
41
26
9
5330-00-641-7571
4730-00-647-3207
5315-00-652-8675
46
47
52
2
17
1
5940-00-738-6272
4820-00-752-9040
4820-00-752-9040
1
18
19
19
7
4
5315-00-652-8675
5315-00-652-8675
5930-00-655-1514
52
52
5
11
14
24
5935-00-754-8711
5310-00-761-6882
5310-00-761-6882
10
12
13
17
29
22
6145-00-655-2562
5330-00-663-4773
5330-00-663-4773
24
18
19
13
5
9
5310-00-761-6882
5310-00-761-6882
5310-00-761-6882
20
23
36
17
23
5
5340-00-682-1878
5945-00-686-6877
5940-00-686-6880
55
5
1
18
43
11
5310-00-761-6882
5310-00-761-6882
5330-00-763-9322
55
56
20
43
2
23
5315-00-695-4758
5315-00-695-4758
1055-00-699-0822
54
54
54
21
29
14
5340-00-764-7051
5310-00-765-3197
5310-00-767-0445
10
25
1
5
8
14
5306-00-722-0393
5340-00-724-7038
5340-00-724-7038
13
5
10
67
9
7
5310-00-767-0445
5310-00-768-0318
5310-00-768-0318
56
26
33
10
2
24
5305-00-725-2317
5330-00-725-2452
5975-00-727-5153
23
35
13
1
16
43
5310-00-768-0318
4030-00-780-9350
5307-00-784-0015
55
5
19
50
5
3
5975-00-727-5153
5975-00-727-5153
14
14
5
8
5310-00-784-0033
3815-00-790-4930
2805-00-790-4934
19
52
43
1
10
12
222 Change 1
National
Stock Number
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
National
Stock Number
5365-00-790-9338
5310-00-792-7081
2940-00-793-1056
2805-00-793-1657
5975-00-794-2523
5310-00-802-4701
5310-00-807-1466
5310-00-807-1469
5310-00-808-6154
5340-00-809-1490
4010-00-809-2719
4010-00-809-2719
5310-00-809-3078
5310-00-809-4058
5310-00-809-4058
5310-00-809-4058
5310-00-809-4085
5310-00-809-4085
5310-00-809-5997
4720-00-809-8802
5970-00-810-4054
4730-00-812-1333
4730-00-812-1333
5315-00-812-3766
5935-00-813-4716
5935-00-823-5322
5340-00-823-5322
5306-00-827-7623
3120-00-828-4728
5340-00-829-0157
5340-00-829-0210
5360-00-289-5304
2815-00-829-5320
2815-00-829-5353
2990-00-829-5696
2910-00-829-5701
2910-00-829-5702
5315-00-831-6576
Figure
Number
Item
Number
44
14
47
43
2
1
25
3
55
36
3
20
29
13
13
39
23
33
23
Bulk
Bulk
3
20
31
10
10
42
54
52
54
43
43
43
44
51
27
52
54
7
44
5
11
6
15
7
1
37
27
8
13
2
24
40
13
16
15
7
6
11
3
16
10
11
19
17
23
24
23
22
18
2
6
8
22
National
Stock Number
5310-00-833-0589
2815-00-833-0610
2815-00-833-0638
2815-00-833-0655
3110-00-833-0655
2815-00-833-0658
5935-00-834-2008
5310-00-836-3520
5310-00-836-3520
5310-00-836-3520
5315-00-839-2325
5315-00-839-2325
2910-00-830-0154
5305-00-841-2681
4720-00-842-2200
4730-00-842-2200
4730-00-842-2201
4730-00-842-2201
4730-00-842-2201
4730-00-842-2201
4730-00-842-2201
5315-00-843-7987
5935-00-850-5584
5310-00-851-2682
5961-00-853-1065
5970-00-857-3335
4730-00-861-6890
3120-00-868-6241
2910-00-869-5668
3120-00-871-6088
3120-00-871-6090
3120-00-871-6092
3020-00-871-6094
3020-00-871-6097
3020-00-871-6098
3020-00-871-9486
5975-00-878-3791
5975-00-879-7234
223
Figure
Number
Item
Number
52
44
47
45
51
36
14
5
42
27
10
31
18
3
16
38
16
17
17
20
20
23
24
30
8
25
18
54
45
54
54
54
52
28
35
44
2
13
3
3
18
23
9
1
20
59
9
43
32
2
4
22
10
18
7
2
5
2
5
10
37
8
29
39
2
16
1
30
31
32
4
6
3
8
4
6
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
National
Stock Number
5310-00-880-7744
5310-00-880-7744
5310-00-880-7744
5310-00-880-7744
5310-00-880-7744
5310-00-880-7744
5310-00-880-7746
5310-00-889-2527
5310-00-889-2528
5310-00-889-2528
5310-00-889-2528
5310-00-889-2997
5310-00-889-2997
5310-00-889-2997
5310-00-889-2997
5310-00-889-3000
5310-00-889-3000
5310-00-889-3000
5305-00-889-3000
5305-00-889-3001
5305-00-889-3001
5920-00-892-9311
2910-00-893-6402
5355-00-899-9014
5310-00-903-3996
5999-00-909-3751
4730-00-909-8627
4730-00-909-8627
5970-00-912-8789
5970-00-914-3117
5970-00-914-3117
5961 '-00-914-9740
5940-00-915-9201
5310-00-926-5916
5310-00-926-5916
2815-00-930-2860
2815-00-930-2861
2910-00-930-9367
Figure
Number
Item
Number
20
27
37
55
55
55
48
20
20
28
45
5
14
27
2
12
13
14
14
7
15
36
20
5
55
56
21
21
24
1
Bulk
15
7
23
33
44
44
20
26
29
14
3
20
35
3
27
19
14
6
58
13
42
8
1
4
1
3
10
2
16
22
20
4
8
2
4
42
13
6
8
14
13
12
16
20
National
Stock Number
5330-00-932-1853
5306-00-932-1886
2990-00-932-4903
2815-00-933-0799
5310-00-934-9751
5310-00-934-9751
6210-00-935-6919
5310-00-939-2655
2815-00-939-7341
5940-00-941-0948
5940-00-941-0948
5940-00-941-0948
5940-00-941 -0948
5961-00-949-1440
5940-00-949-3161
2815-00-950-8406
5970-00-954-0561
3120-00-956-5998
5940-00-958-1214
5305-00-958-5246
5310-00-971-1467
5120-00-971-5478
5330-00-971-5750
2815-00-972-7173
5330-00-972-8867
2815-00-972-8871
2815-00-972-8917
2815-00-972-8920
5310-00-982-4938
5940-00-983-6043
5940-00-983-6065
5940-00-983-6079
5940-00-983-6084
5940-00-983-6114
5306-00-983-9476
5305-00-984-4988
5305-00-984-4493
5305-00-984-6191
224
Figure
Number
Item
Number
46
43
52
53
25
38
5
28
44
13
13
13
13
8
14
53
36
53
12
12
19
58
46
27
50
44
43
54
22
24
7
8
14
36
53
8
15
5
6
16
9
10
25
22
15
1
23
57
62
66
70
32
24
6
19
9
23
24
10
1
10
37
5
13
10
17
3
19
12
4
25
14
11
5
1
34
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
National
Stock Number.
5305-00-984-6191
5305-00-984-6191
5305-00-984-6191
5305-00-984-6191
5305-00-984-6193
5305-00-984-6193
5305-00-984-6193
5305-00-984-6195
5305-00-984-6195
5305-00-984-6195
5305-00-984-6195
5305-00-984-6210
5305-00-984-6210
5305-00-984-6210
5305-00-984-6210
5305-00-984-6210
5305-00-984-6216
5305-00-984-6221
5305-00-984-6223
5305-00-984-7352
5940-00-988-0317
5340-00-988-1162
5305-00-988-1171
5310-00-994-1670
5320-00-994-7076
4710-00-995-1477
2815-00-996-8105
4710-00-996-8666
2815-00-998-7275
5935-01-005-2328
2940-00-005-6012
4710-01-008-2859
2940-01-008-3007
5120-01-008-3729
4730-01-008-6347
5905-01-008-6666
4720-01-009-1615
5306-01-009-6556
Figure
Number
Item
Number
5
5
5
7
5
5
5
5
14
24
36
5
10
12
13
36
25
8
24
55
6
10
22
12
5
40
43
40
53
10
47
40
35
58
40
8
40
43
37
41
44
1
1
7
60
56
15
6
12
28
1
11
13
8
20
2
17
16
14
8
2
9
54
1
25
2
8
18
7
7
14
3
5
21
8
15
National
Stock Number
5360-01-009-6942
5310-00-010-2261
5935-01-012-3080
5310-00-012-3595
5310-01-012-3595
5310-01-012-3595
5310-01-012-3595
5935-01-012-6231
5310-01-014-4167
5330-01-022-8874
5910-01-023-8228
5340-01-024-1726
5305-01-024-2251
5365-01-027-4982
5935-01-035-5157
6620-00-037-9601
6680-01-038-3719
2910-01-038-5250
2990-01-038-5251
2920-01-038-5252
2990-01-038-5275
2815-01-038-5281
2815-01-038-5282
4710-01-038-5289
2815-01-038-5296
6115-01-038-6728
6115-01-038-6729
6115-01-038-6730
6625-01-038-6826
6625-01-038-6829
6625-01-038-6869
5330-01-038-8618
5935-01-038-9639
5935-01-038-9639
5930-01-039-3140
5935-01-039-6228
5330-01-039-6599
5930-01-039-6721
225
Figure
Number
Item
Number
47
43
13
13
38
39
55
42
54
49
8
49
49
47
14
38
3
54
27
36
28
44
53
40
46
24
25
24
5
5
5
54
14
14
44
24
54
29
28
17
10
29
21
8
17
13
20
15
33
27
17
9
19
23
16
35
7
3
17
7
6
1
19
16
19
18
17
7
21
15
37
32
ARMY TM 96115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
National
Stock Number
2920-01-040-0308
5330-01-040-3834
2920-01-040-5546
5999-01-043-7902
5999-01-043-9111
5340-01-045-7119
5340-01-046-0134
5895-01-046-5763
2815-01-046-5861
2990-01-046-5864
5905-01-046-6851
5930-01-046-6949
6145-01-047-0530
6145-01-047-0530
6145-01-047-0530
9905-01-047-5578
5905-01-047-5579
9905-01-047-5580
9905-01-047-5581
9905-01-047-5582
9905-01-047-5583
5935-01-047-7975
9905-01-047-8347
5905-01-047-8348
5905-01-047-8349
5905-01-047-8351
2815-01-048-0329
6115-01-048-0458
9905-01-048-1370
4730-01-048-3951
2910-01-048-5560
2910-01-048-5561
2815-01-048-5575
2815-01-048-5579
2815-01-048-5581
2920-01-048-5969
2920-01-048-6022
2815-01-048-6550
Figure
Number
Item
Number
35
54
31
25
25
24
12
5
33
10
13
5
1
1
1
55
55
5
12
12
55
24
14
14
14
5
44
24
12
45
3
3
50
44
54
31
31
54
5
31
30
18
6
46
28
31
1
23
4
8
12
33
48
49
5
19
49
11
37
39
41
51
11
32
18
7
5
18
20
18
1
24
National
Stock Number
2815-01-048-6551
2815-01-048-6576
2920-01-048-6577
2940-01-048-6721
2910-01-048-7100
2990-01-048-7646
2990-01-048-7649
2815-01-048-7716
5180-01-048-8602
4730-01-048-8641
2920-01-048-8661
2815-01-048-8667
4720-01-048-8805
2815-01-048-8866
2920-01-048-8867
4720-01-048-9074
2920-01-048-9075
4710-01-048-9169
2920-01-048-9386
2815-01-048-9604
4710-01-048-9626
2990-01-048-9694
4710-01-048-9697
4730-01-048-9731
4730-01-048-9731
2920-01-048-9774
2920-01-048-9790
3020-01-048-9968
5310-00-048-9981
6145-01-049-0118
6145-01-049-0118
5360-01-049-0381
5360-01-049-0383
5340-01-049-0398
6110-01-049-2429
2990-01-049-0518
5940-01-049-0533
5940-01-049-0536
226
Figure
Number
54
35
31
35
54
28
54
54
58
38
31
44
38
28
44
38
36
3
41
44
3
37
38
47
50
42
41
49
19
35
Bulk
47
27
3
6
37
27
42
Item
Number
18
23
15
7
11
2
26
9
22
4
5
9
2
23
31
15
21
12
3
28
21
15
3
32
8
11
22
11
3
18
46
19
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
National
Stock Number
5940-01-049-0537
5360-01-049-0546
2990-01-049-0578
5340-01-049-0689
5307-01-049-0716
4730-01-049-0746
4730-01-049-0746
2815-01-049-0823
5970-01-049-0960
5970-01-049-0961
6115-01-049-0966
6150-01-049-0968
6115-01-049-0973
6115-01-049-0974
2990-01-049-1186
2990-01-049-1187
2815-01-049-1189
2815-01-049-1190
2910-01-049-1192
4720-01-049-1218
4820-01-049-1322
2920-01-049-1905
5315-01-049-1926
6115-01-049-2866
5975-01-049-2927
4730-01-049-3083
2920-01-049-3216
5315-01-049-3923
5310-01-049-3957
5340-01-049-3958
5305-01-049-3973
5310-01-049-4076
5310-01-049-4077
3110-01-049-4379
2910-01-049-4412
5305-01-049-5437
4730-01-049-5820
5305-01-049-6234
Figure
Number
Item
Number
36
39
49
23
34
20
40
34
25
12
7
32
25
25
37
37
38
54
54
54
40
31
51
23
25
48
41
52
27
38
49
4
25
25
39
29
40
41
18
10
13
29
8
15
12
3
24
7
13
4
5
17
19
11
3
13
10
25
33
1
3
5
7
10
41
5
11
13
4
11
1
National
Stock Number
5305-01-049-6237
5305-01-049-6238
5305-01-049-6239
5330-01-049-6263
2990-01-049-6402
5306-01-049-6461
5340-01-049-9646
5307-01-049-8118
5310-01-049-8238
5320-01-049-8263
5320-01-049-8263
5320-01-049-8263
5320-01-049-8263
5320-01-049-8263
5320-01-049-8263
5320-01-049-8263
5305-01-049-9054
5305-01-049-9126
5305-01-049-9127
5305-01-049-9128
5305-01-049-9137
5310-01-049-9170
5310-01-049-9173
5340-01-049-9556
5970-01-049-9571
5935-01-049-9889
5925-01-050-0484
5310-01-050-0489
5950-01-050-0576
6110-01-050-0654
5305-01-050-1105
5305-01-050-1106
5305-01-050-1106
5305-01-050-1107
5310-01-050-1307
5310-01-050-1309
5310-01-050-1311
5310-01-050-1313
227
Figure
Number
Item
Number
37
37
47
43
39
31
40
48
12
4
5
5
12
14
14
14
31
27
1
3
55
34
11
2
25
12
13
25
12
12
29
29
38
37
49
27
37
36
5
13
12
19
11
10
9
10
20
1
48
50
17
36
38
40
7
17
18
4
40
2
2
3
40
35
72
2
34
10
13
14
1
4
30
2
22
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
National
Stock Number
5306-01-050-1490
5315-01-050-1614
2910-01-050-2829
5305-01-050-3733
5305-01-050-3733
5305-01-050-3733
5305-01-050-3733
5305-01-050-3733
5305-01-050-3733
5305-01-050-3733
5305-01-050-3733
5305-01-050-3733
5305-01-050-3733
5305-01-050-3733
5305-01-050-3733
5305-01-050-3733
5305-01-050-3734
5305-01-050-3786
5305-01-050-3787
5305-01-050-3792
5305-01-050-3794
3120-01-050-3800
5310-01-050-3801
5310-01-050-3803
5310-01-050-3804
5310-01-050-3805
5310-01-050-3807
5310-01-050-3812
5305-01-050-4979
6115-01-050-5486
5305-01-050-6086
5340-01-050-6087
5305-01 -050-6088
5340-01-050-6188
5340-01-050-6189
5325-01-050-6669
5961 -01-050-7048
8995-01-050-9812
Figure
Number
Item
Number
29
25
39
26
26
27
29
29
29
29
29
29
38
42
42
50
54
41
36
52
27
49
37
35
36
44
50
42
51
25
29
35
49
23
29
24
25
10
28
18
9
3
5
13
1
15
18
20
22
24
9
6
23
18
4
6
21
18
40
28
15
12
10
2
3
1
3
32
6
2
43
30
31
39
27
9
National
Stock Number
5306-01-075-8519
5306-01-075-8519
5950-01-051-0124
6150-01-051-0145
6110-01-051-0178
5110-01-051-0348
2910-01-051-3976
5365-01-051-0588
5310-01-051-0658
5365-01-051-0976
5930-01-051-2775
5305-01-051-3197
5310-01-051-8089
5310-01-051-8089
5310-01-051-8089
5330-01-051-8118
5330-01-051-8129
5360-01-051-9813
5330-01-051-9996
5330-01-052-0042
2910-01-052-1086
5330-01-052-1209
5330-01-052-2218
2940-01-052-4953
2910-01-052-5666
2940-01-052-6280
5340-01-052-9678
5950-01-052-9854
5360-01-072-8332
5330-01-052-9995
2910-01-053-0129
5340-01-053-1201
5310-01-053-1762
5310-01-053-1762
5310-01-053-1762
5330-01-053-2917
2815-01-053-5153
2815-01-053-5177
228
Figure
Number
Item
Number
55
55
12
33
5
5
18
25
12
54
13
25
27
27
27
54
54
27
49
51
49
28
54
54
48
47
52
5
27
45
45
28
49
49
49
47
54
52
7
19
28
10
47
3
22
8
62
15
10
18
24
15
25
36
42
11
37
4
6
12
16
1
21
36
12
3
6
2
2
8
11
32
9
6
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
National
Stock Number
4810-01-053-5337
5310-01-053-6931
5340-01-053-7130
5340-01-053-7130
5977-01-053-7982
5315-01-053-9489
2920-01-054-3829
5961-01-054-4151
5305-01-054-4517
5940-01-054-6954
5340-01-165-2611
5998-01-054-9637
6115-01-055-0389
5950-01-055-1266
5940-01-055-8403
5310-01-012-3595
5310-01-049-2745
5330-01-073-0856
2930-01-081-0591
5940-01-140-8678
3981-01-086-3942
5930-01-055-9251
5340-01-056-0033
5305-01-056-2108
4730-01-056-6202
5930-01-056-8339
5310-01-061-4478
5905-01-061-5551
5310-01-061-7919
5360-01-061-9027
5925-01-067-2928
4720-01-070-2484
5935-01-070-3681
5925-01-070-4487
6625-01-086-4580
5961-01-096-3191
5961-01-092-9505
Figure
Number
Item
Number
20
27
5
13
31
49
31
25
49
1
29
15
25
5
13
27
27
38
38
42
8
38
55
17
17
1
15
28
7
7
16
5
49
12
55
13
39
8
42
51
13
21
9
5
5
8
6
25
6
32
10
15
12
9
5
1
3
3
19
27
13
30
15
39
70
5
9
13
12
18
National
Stock Number
Figure
Number
Item
Number
9905-01-108-0529
9905-01-120-8728
4905-01-121-4988
6115-01-122-9566
5340-01-129-8955
5935-01-149-2540
5930-01-153-2304
5340-01-153-7130
4710-01-158-4051
4720-01-154-7116
5
56
5
56
29
10
13
13
38
21
63
14
62
-9
24
38
16
25
5
5935-01-165-6777
2910-01-171-6792
5935-01-172-6470
5935-01-176-6588
2940-01-179-4145
5970-01-183-5430
2940-01-188-8200
5310-01-190-4614
5340-01-193-7673
5310-01-196-6624
5430-01-199-2193
9905-01-203-1489
5935-01-207-7213
5925-01-214-5416
5935-01-219-4205
5975-01-225-0460
6115-01-255-8154
6145-01-226-9164
5340-01-233-8305
5930-01-238-3788
5910-01-239-4408
5910-01-270-4000
5940-01-271-9504
6115-01-250-7722
6115-01-262-5253
5340-01-296-6584
56
49
6
10
22
36
22
22
12
37
22
4
56
13
6
5
29
2
5
13
8
8
2
29
29
29
12
229
5
20
-26
5
9
3
6
4
2
-42
6
30
25
10
33
25
25
26
9
14
17
7
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
National
Stock Number
5340-01-289-4391
2930-01-074-4165
Figure
Number
Item
Number
33
27
11
-
National
Stock Number
5340-01-198-2240
5340-01-064-1482
Figure
Number
Item
Number
27
27
1
2
SUPPLEMENTAL INDICES
SECTION IV - NATIONAL STOCK NUMBER SUPPLEMENTAL LIST
National
Stock Number
5310-00-094-3421
4730-00-121-0138
5970-00-188-5754
5970-00-478-0045
5310-00-543-5060
4010-00-554-8661
4010-00-554-8661
5940-00-686-6880
2910-00-752-9138
5310-00-903-3996
5330-00-973-8611
2910-01-046-8845
2910-01-095-1595
5305-01-087-1082
5310-01-012-3595
3340-01-278-7728
5340-01-280-7357
5306-01-158-1154
2910-01-286-2043
4730-01-114-8326
2815-01-165-1211
5340-01-151-5023
4720-01-158-8203
3120-01-057-9348
5940-01-049-0536
2910-01-049-3040
5940-01-055-8403
5940-01-055-8403
5940-01-055-8403
5940-01-057-9594
Figure
Number
Item
Number
10
17
24
25
30
16
Bulk
56
3
55
51
19
20
29
29
33
33
44
46
46
53
54
5
27
42
49
13
13
13
35
29
7
50
48
9
5
4
19
4
6
20
26
29
26
27
1
5
13
1
5
2
34
17
57
62
66
56
National
Stock Number
5340-01-059-5483
5930-01-062-0690
5365-01-066-9658
5365-01-066-9659
5365-01-070-8637
5306-01-075-8519
5935-01-077-2628
5110-01-115-0197
5110-01-115-0197
5340-01-102-8417
5340-01-215-7197
3975-01-238-3280
5310-01-088-3528
4750-01-240-6108
2940-01-179-4145
2940-01-244-1526
5306-01-303-2815
5305-01-325-8387
5970-01-080-9572
5310-00-038-9854
5310-00-061-4650
5305-00-068-0502
5310-00-080-6004
5310-00-081-4219
4730-00-137-9218
5310-00-637-9541
5310-00-732-0558
5310-00-809-3078
5305-00-942-5213
4730-01-005-6335
230
Figure
Number
Item
Number
33
3
54
54
54
21
10
8
9
10
12
14
14
20
22
22
23
33
27
57
57
57
57
57
57
57
57
57
57
57
10
17
26
26
26
9
14
23
23
30
10
35
44
10
-1
28
1
48
44
5
27
46
3
24
43
42
4
2
25
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
SECTION IV - NATIONAL STOCK NUMBER AND PART NUMBER INDEX
Reference
Number
FSCM
Fig.
No.
Item
No.
AN3-4A
AN565A428H20
AN816-5-4
88044
88044
88044
13
29
3
26
16
25
AN816-5-4B
AN7-57A
AN960B516
88044
88044
88044
20
33
46
ANB1821BH025C088N
B1821BH038C150N
B1821BH038C075D
80204
80402
80402
B1821BH031C075N
B1821BH038C125N
B1821BH031C375D
Reference
Number
FSCM
Fig.
No.
Item
No.
C40484-017-1
C5405X4
C5405X5X4
78553
79420
79420
29
47
3
16
17
13
7
12
8
DC93M6F-8-RPC
ERNG224
FA1493FFF3000
82168
81336
01276
12
40
16
23
3
1
20
11
20
16
1
6
FA1776HHH0192
FA3112HHH0227
FFN836-2-5
00624
00624
81348
38
38
12
4
2
20
80204
80204
80204
38
41
44
6
4
1
FFR556-12-3E15271-2
FF-S-85
FF-S-92
81348
81348
81348
24
33
35
29
1
15
B1821BH031C075N
B1821BH044C225N
B1821BH031C138D
80204
80204
80204
46
50
55
3
1
34
FFW91A1E1-2
FHN26G1
FVR4006-19728
81348
81349
19728
12
36
36
22
16
7
B1821BH038C150N
B1821BH044C125N
B1821BH025C100N
80204
80204
80204
23
23
23
1
5
22
FWA3001
FWG06-5128
F02432V15A
79575
18265
81349
36
22
36
23
5
15
B1821BH025C100N
B1821BH025C125N
B1821BH025C125N
80204
80204
80204
24
24
25
6
14
1
F1125-ON
F52N7582-420
GAH00-1068
73370
75237
18265
18
39
22
12
1
B1821BH038C125N
B1821BH050C150N
B1821BH050C150N
80204
80204
80204
33
33
33
6
21
21
GA100282
GA1085
GA1145
01843
01843
01843
49
49
49
25
15
26
B1821BH038C075D
B1821BH038C125N
B1821BH031C150N
80204
80204
80204
34
34
35
4
9
2
GA1194
GA407743
GA7615
01843
01843
01843
49
49
49
20
15
42
B1821BH025C125N
CBA-70
CD3Z142-1
80204
01667
74193
35
2
13
6
9
72
GA7617
GE851
GH201024
01843
01843
01843
49
49
49
44
32
27
CH49
CH6PL
CPP2025B001-105C
11587
73370
09017
35
47
39
6
3
8
FRB58
FRC58KNURLE
FLP1053A
73616
73616
56881
2
2
2
7
6
5
CPP2025B001-105C
CP7829
CU8513A
09017
01843
01843
39
45
49
6
2
16
HP8549
HR5
HR5
01843
06004
06004
49
12
29
18
13
5
C1125PL
73370
18
6
Change 1 231
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
FSCM
Fig.
No.
Item
No.
HS99417
HS99417
61864
61864
27
27
1
3
HT1-20
HYGRADEVF18AWG
BLACKB-A-2
76005
05890
55
36
J-AB518H
JAN1N3026B
JAN1N4245
81790
81349
81349
JAN1N4245
JAN1N4246
JAN1N75A-1
FSCM
Fig.
No.
Item
No.
MILV52078-1-8
MILC5756
81349
81349
16
1
2
4
18
19
MILC5756
MILC5756
MILF8866-1-1
81349
81349
81349
1
1
3
8
12
25
2
8
8
8
29
28
MILH13444TYPE3-4
MILH13444-1-3-4
MILH8794-4
81349
81349
81349
46
Bulk
16
14
81349
81349
81349
9
15
8
9
6
30
MILH8794-4
MILH8794-4
MILH8794-5
81349
81349
81349
38
Bulk
16
19
JAN2N1711
JAN2N2905A
JAN2N3584
81349
81349
81349
8
8
8
31
32
7
MILH8794-5
MILH8794-5
MILH8794-5
81349
81349
81349
17
17
20
3
6
3
JHP114-23
J12021-3
J12021-5
02033
76005
76005
25
33
23
23
17
18
MILH8794-5MIL-I-003190/2 81349
MILI003190-1CL130TYAC 81349
ATASZ4
81349
20
26
26
6
44
44
J7766-10
J7766-10
KAX00-3851
76005
76005
18265
23
33
22
19
19
MILI15126MFT3-53-4
MILI191661INWD007THK
MILI21557
81349
81349
81349
25
25.
Bulk
48
40
KA12-12NJ
KYX00-4504
LK859
97112
18265
01843
46
22
49
13
11
13
MILI22834D100-535
MIL123053-5-1RED3-4
MIL123053-5-1RED3-4
81349
81349
81349
24
1
Bulk
26
13
LS29385
MCH1074A
MCZ101
94034
68505
68505
3
31
31
15
11
13
MIL13190
MIL13190
MILR11461-2-2
81349
81349
81349
24
24
2
42
44
4
MDL2021JS
MDL3130A
MDT1052A
68505
68505
68505
31
31
31
16
23
12
MILR17343-1-4
MILR55182-6
MILT55164-2-38TB14
81349
81349
81349
56
8
6
6
20
14
MEC20AS
MHJ2133
MHN1064A
68505
68505
68505
31
31
31
10
24
17
MILT55164-238TB6
MILT55164-4-40TB4
MILT55164-4-40TB19
81349
81349
81349
14
7
8
25
12
4
MHP2037
MHP7101T
MIL-I-003190/2
68505
19728
81349
31
31
36
15
MILT55164-4-40TB6
MILW583-155L2-22
MILW583-220M2-15
81349
81349
81349
15
24
25
4
24
45
MIL-S-19500/420,TYPE
IN5554
MIL-T-55155-20
81349
7
7
81349
7
8
MILW583-220M2-18
MILY1140C3ECCA-1-4
MIL100033190-1-130AA6
81349
81349
81349
24
24
24
46
50
27
232
26
Reference
Number
11
8
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
FSCM
Fig.
No.
Item
No.
MP41A
MS15795-813
MS16562-33
MS17131-5
MS171537
MS171537
MS18154-41
MS20392-2C15
MS20392-2C21
MS20427-4C4
MS20427-4C4
MS2061 3-4P4
MS20613-4P5
MS20659-144
MS20822-4-4B
MS21042-08
MS21042-5
MS21236-2
MS21318-14
MS21318-14
MS21318-14
MS21318-21
MS21333-111
MS21333-113
MS21333-69
MS1333-72
MS21333-76
MS21333-76
MS21333-98
MS24166D1
MS24532-2-REVG
MS24587-4
MS24587-4
MS24587-5
MS24587-5
MS24587-5
MS24587-5
MS24587-5
68505
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
31
1
23
51
23
33
44
31
10
5
14
5
13
5
3
25
3
55
55
55
56
12
36
10
10
10
5
10
36
5
5
16
38
16
17
17
20
20
21
15
10
8
20
18
1
3
33
52
42
54
16
4
14
7
1
11
32
47
13
4
11
8
5
3
9
7
27
43
13
10
18
7
2
5
2
5
Reference
Number
MS24665-132
MS25036-102
MS25036-105
MS25036-106
MS25036-106
MS25036-107
MS25036-107
MS25036-108
MS25036-108
MS25036-108
MS25036-108
MS25036-112
MS25036-112
MS25036-112
MS25036-112
MS25036-112
MS25036-112
MS25036-112
MS25036-113
MS25036-115
MS25036-115
MS25036-115
MS25036-117
MS25036-123
MS25036-123
MS25036-123
MS25036-123
MS25036-123
MS25036-123
MS25036-123
MS25036-127
MS25036-127
MS25036-15
MS25036-153
MS25036-153
MS25036-153
MS25036-154
MS25036-156
233
FSCM
Fig.
No.
Item
No.
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
10
24
35
24
36
42
6
14
13
14
25
42
6
10
13
13
14
42
10
13
14
14
24
13
13
13
13
13
13
13
30
56
10
6
13
14
6
14
32
22
9
12
24
15
8
30
31
28
35
16
7
21
32
63
31
14
22
32
9
27
35
46
40
50
53
54
58
61
3
5
23
9
30
29
10
26
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
FSCM
Fig.
No.
Item
No.
MS25189-119
MS25206-243
MS25244-P-7-1-2
MS25244P-15
MS25251-12
MS25251-12
MS25251-16
MS25251-16
MS25251-8
MS25251-8
MS25251-14
MS25251-14
MS25251-18
MS27040-10
MS27144-2
MS27183-10
MS27183-10
MS27183-10
MS27183-11
MS27183-12
MS27183-12
MS27183-12
MS27183-14
MS27183-14
MS27183-14
MS27183-16
MS27183-16
MS27183-17
MS27183-41
MS27183-42
MS27183-42
MS27183-42
MS28741-4-0092
MS28741-4-0490
MS28741-5-0122
MS28741-5-0130
MS28741-5-0170
MS28741-5-0354
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
1
5
5
13
10
42
9
42
9
24
25
Bulk
24
22
10
13
13
39
29
3
8
50
23
33
33
23
33
23
25
13
25
25
38
16
17
20
17
20
11
37
27
3
11
12
10
11
12
33
36
21
3
15
24
40
13
2
2
5
13
4
4
8
16
15
7
8
28
16
22
17
9
4
1
1
4
Reference
Number
MS28741-5-2992
MS28775-233
MS3100R20-18P
MS3100R20-22P
MS3100R22-14S
MS3106R10SL3S
MS3106R20-18S
MS3106R20-22S
MS3106R32-7S
MS3108R10SL3S
MS3367-1-9
MS3367-1-9
MS3367-1-9
MS3367-1-9
MS3367-1-9
MS3367-4-9
MS3367-4-9
MS3367-4-9
MS3367-4-9
MS3367-4-9
MS3450W10SL3P
MS3450W10SL3S
MS3450W24-10P
MS3450W20-18P
MS3450W32-7P
MS3456W10SL-3P
MS3456W22-14P
MS3456W20-18S
MS3456W20-22S
MS3456W32-7S
MS3456W24-10P
MS3456W24-10S
MS35000-1
MS35058-22
MS35190-289
MS35191-278
MS35206-215
MS35206-215
234
FSCM
Fig.
No.
Item
No.
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
16
24
42
6
14
10
10
10
10
10
6
10
14
25
42
13
15
15
24
38
27
14
14
42
6
24
10
10
10
10
14
24
1
5
12
55
5
14
6
8
13
5
20
16
18
20
19
17
11
13
18
42
17
29
5
8
20
1
45
19
21
13
6
11
14
18
20
19
7
37
17
24
24
16
58
13
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
MS35206-215
MS35206-215
MS35206-228
MS35206-230
MS35206-230
MS35206-230
MS35206-230
MS35206-231
MS35206-231
MS35206-233
MS35206-234
MS35206-236
MS35206-243
MS35206-243
MS35206-243
MS35206-243
MS35206-245
MS35206-245
MS35206-245
MS35206-247
MS35206-247
MS35206-247
MS35206-247
MS35206-263
MS35206-263
MS35206-263
MS35206-263
MS35206-263
MS35206-269
MS35206-285
MS35214-38
MS35223-32
MS35223-32
MS35223-45
MS35333-107
MS35333-113
MS35335-33
MS35335-34
FSCM
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
Fig.
No.
27
42
8
12
13
14
14
7
15
15
8
24
5
5
5
7
5
5
5
5
14
25
36
5
10
12
13
36
25
22
13
8
14
13
13
12
42
55
Item
No.
42
8
5
1
4
1
3
10
2
1
2
17
34
41
44
1
1
7
60
56
15
6
12
28
1
11
13
8
20
2
39
3
11
35
40
21
2
5
Reference
Number
MS35335-34
MS35335-35
MS35335-60
MS35336-27
MS35338-39
MS35338-43
MS35338-43
MS35338-43
MS35338-43
MS35338-43
MS35338-43
MS35338-44
MS35338-44
MS35338-44
MS35338-44
MS35338-44
MS35338-44
MS35338-44
MS35338-44
MS35338-44
MS35338-44
MS35338-44
MS35338-44
MS35338-44
MS35338-44
MS35338-44
MS35338-44
MS35338-44
MS35338-44
MS35338-45
MS35338-45
MS35338-45
MS35338-45
MS35338-45
MS35338-45
MS35338-45
MS35338-45
MS35338-45
235
FSCM
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
Fig.
No.
55
55
3
12
34
13
25
36
19
49
49
4
12
12
12
13
13
20
23
24
24
24
24
31
35
39
47
55
56
2
21
37
38
43
46
47
48
50
Item
No.
9
26
24
25
11
27
26
22
3
9
12
4
9
15
31
19
21
18
24
2
5
7
15
8
7
2
25
44
3
2
10
16
7
2
4
13
4
8
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
Fig.
FSCM
Item
No.
Reference
No.
MS35338-45
MS35338-45
MS35338-45
MS35338-45
MS35338-45
MS35338-46
MS35338-46
MS35338-46
MS35338-46
MS35338-46
MS35338-46
MS35338-46
MS35338-46
MS35338-46
MS35338-46
MS35338-46
MS35338-46
MS35338-46
MS35338-46
MS35338-46
MS35338-47
MS35338-47
MS35338-47
MS35338-47
MS35338-47
MS35338-47
MS35338-48
MS35338-48
MS35338-48
MS35338-61
MS35489-42
MS35645-1
MS35650-302
MS35650-302
MS35691-17
MS535802-2
MS35823-2C
MS35823-6C
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
50
55
55
55
56
11
16
17
21
23
23
25
30
33
33
34
34
52
55
55
23
36
23
30
33
50
33
33
55
13
25
3
25
38
30
47
5
13
12
8
21
36
11
4
14
9
7
3
27
10
7
3
7
5
10
20
14
29
6
2
15
5
14
2
22
25
51
36
29
17
25
22
8
3
55
17
Fig.
Number
MS39231-7
MS45904-68
MS45904-68
MS45904-68
MS45904-72
MS45904-76
MS45904-76
MS51849-74
MS45904-76
MS51 504A5-4
MS51 931-3
MS51952-2
MS51953-97
MS51967-14
MS51967-14
MS51967-2
MS51967-2
MS51967-2
MS51967-2
MS51967-2
MS51967-2
MS51967-2
MS51967-5
MS51967-5
MS51967-5
MS51967-5
MS51967-5
MS51967-5
MS51967-8
MS51967-8
MS51967-8
MS51967-8
MS51967-8
MS51967-8
MS51967-8
MS51967-8
MS51967-8
MS51967-8
236
Item
FSCM
No.
No.
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
28
20
27
36
20
11
33
49
33
17
26
40
46
33
55
12
13
20
23
36
55
56
20
27
37
55
55
55
11
16
21
23
33
55
55
55
55
55
7
19
14
6
27
7
5
5
9
7
1
10
16
24
50
29
22
17
23
5
43
2
26
29
14
3
20
35
5
13
8
2
2
2
13
25
28
41
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
MS51968-12
MS51968-12
MS51968-5
MS51968-8
MS51969-2
MS51971-2
MS51 971-2
MS521302B119R
MS75058-1
MS87006-13
MS87006-3
MS87006-3
MS90725-13
MS90725-14
MS90725-31
MS90725-33
MS90725-34
MS90725-34
MS90725-36
MS90725-36
MS90725-36
MS90725-36
MS90725-36
MS90725-36
MS90725-39
MS90725-40
MS90725-5
MS90725-55
MS90725-55
MS90725-58
MS90725-58
MS90725-6
MS90725-6
MS90725-6
MS90725-6
MS90725-6
MS90725-60
MS90725-60
FSCM
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
Fig.
No.
Item
No.
23
33
48
23
55
1
56
21
56
5
3
20
23
24
46
20
50
56
21
43
50
50
55
55
47
2
24
30
17
34
52
12
12
12
13
39
11
15
14
13
3
26
4
14
10
3
7
5
9
14
28
4
7
25
11
9
9
1
7
10
7
19
11
1
1
6
8
4
19
8
14
30
18
1
6
12
Reference
Number
MS90725-60
MS90725-60
MS90725-60
MS90725-64
MS90725-64
MS90725-64
MS90725-64
MS90725-8
MS90725-8
MS90725-8
MS90725-55
MS90728-87
MS90725-90
MS90725-92
MS90726-6
MS90725-6
MS590728-10
MS90728-89
MS90908-1
MS91528-2K4B
M-1423-14
M39006-01-3104
M39003/01-8209
M39003/01-8227
M39006/02-1275
M39022-02-1241
M39022-02-1347
M5086-2-10-9
M5086-2-10-9
M50862-12-9
M5086-2-12-9
M5086-2-12-9
M5086-2-12-9
M5086-2-12-9
M5086-2-16-9
M5086-2-16-9
M5086-2-16-9
237
FSCM
Fig.
No.
Item
No.
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
81349
81349
81349
81349
81349
81349
81349
81349
96906
81349
81349
81349
81349
81349
81349
81349
81349
81349
25
55
55
11
23
33
55
36
55
56
17
30
23
50
4
7
13
34
3
5
47
8
8
8
36
8
8
9
6
10
6
10
14
42
Bulk
6
10
14
9
12
24
1
1
1
27
4
42
1
8
4
5
1
3
24
12
1
19
20
15
27
25
26
20
33
23
23
1
25
2
26
33
20
3
27
34
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
FSCM
Fig.
No.
Item
No.
M5086-2-16-9
M5086-2-16-9
M5086-2-16-9
M5086-2-16-9
M5086-2-16-9
M5086-2-18-9
M5086-2-2-9
M5086-2-2-9
M5086-2-2-9
M5086-2-4-9
M5086-2-4-9
M5086-2-4-9
M5086-2-4-9
M5086-2-4-9
M5086-2-4-9
M5086-2-4-9
M5086-2-4-9
M5086-2-8-9
M5086-2-8-9
M5086-2-8-9
M5086-2-8-9
M5086-2-8-9
M5062-2-16-9
M508613-16-9
M5515/12XH02
M55155/209G02
M5757-23-003
M83421/01-2204M
M83421/01-4204M
M83421/01-4246M
M85049/41-4A
MAS14555-8-17C
NAS561C6-13
NT1293
NT1293
NT1293
N0533P01322
PG1126
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
80205
80205
01843
01843
01843
03538
01843
24
27
36
42
Bulk
7
30
56
Bulk
13
13
13
13
13
13
Bulk
13
13
14
24
24
Bulk
13
24
15
7
7
8
8
8
10
20
51
49
49
49
33
45
13
47
25
21
5
2
6
47
51
55
59
63
67
71
10
32
36
38
34
13
7
8
4
22
24
33
24
14
10
2
8
11
18
1
Reference
Number
FSCM
Fig.
No.
Item
No.
PL85108-2
PN8552-2
PS1391A
P00-2940
P00-7191
P10-1870
P10-2510
P10-2805
P18-1052
P341
P6ODS
P8093
P8202
QQ-W-343C06B/B
RBX00-2280
RCR20G101JS
RCR20G104JS
RCR20G151JS
RCR20G222JS
RCR20G223JS
RCR20G331JS
RCR20G393JS
RCR20G473JS
RCR20G682JS
RCR20G102JS
RG100181
RNC70H2491 FS
RP111FD102KK
RRC271-2-3-25
RT12DY102P
RT12C2Y202
RV630-4-2
RV630-4-2
RV630-4-2
RV630-4-2
RV630-4-2
RV630-4-2
RV630-4-2
10843
01843
68505
18265
18265
18265
18265
18265
18265
79172
74159
83325
83325
81348
18265
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
01843
81349
81349
81349
81349
81349
98996
98996
98996
98996
98996
98996
98996
49
49
31
22
22
22
22
22
22
43
2
5
5
2
21
8
8
8
8
8
8
8
8
8
8
48
8
5
3
8
8
4
5
5
12
14
14
14
10
1
20
6
4
9
8
7
10
14
7
39
36
10
1
10
18
11
13
15
12
16
17
14
19
7
21
22
8
9
8
1
48
50
17
36
38
40
238
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
FSCM
Fig.
No.
Item
No.
RW67V560
SC2057
NAS1099-5
SC2119-2
SC2136
SC8541
SE7845
SP2272FM
SP2272FM
SM-A-57192-53
S6248
S6248R
TSE76215
TSE76226
TSE773
UNF-2B
VA9031A
W-R-550
WA100279
WA1993
WA2001
WB02057-4292
WC596/12-4
X170430
YAEV4CL5
YAEV4CL5
YAEV4CL5
YAEV4CL5
YAEV4CL5
Z99606XR1 E
03524-2
04306-0244
07541
1-8FFB
10-1-04-65-016
101-1344
101-0336
101-0382
81349
01843
80205
01843
01843
01843
01843
70441
70411
80063
51589
51589
01843
01843
01843
01843
01843
81349
01843
01843
01843
01843
81349
73370
09922
09922
09922
09922
09922
43334
82121
93568
18620
45681
87308
44940
44940
44940
15
49
55
49
49
49
45
3
20
5
25
25
57
57
57
49
13
2
49
49
49
45
13
47
13
13
13
13
13
25
13
13
3
38
36
33
54
54
5
17
37
7
41
43
4
6
11
40
28
27
3
2
1
45
29
4
31
6
4
6
10
10
57
62
66
69
70
12
37
7
20
34
8
28
25
26
Reference
Number
101-0383
101-0424
101-0425
101-0426
101-0253
101-0359
101-0359-02
101-0359-10
101-0359-20
101-0359-30
101-0363
101-0365
101458
101478
101488
101489
101489
101976
101977
101978
101979
102-0451
041A0000011000E
003248
102-0670
102-0671
102-0701
102-0819
102-0838
102-0843
102-0845
102-0939
10248
103-0218
103-0251
103-0312
103-0359
103-0531
239
FSCM
Fig.
No.
Item
No.
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
73370
73370
73370
73370
73370
73370
73370
73370
73370
44940
77250
05415
44940
44940
44940
44940
44940
44940
44940
44940
73370
44940
44940
44940
44940
44940
54
54
54
54
54
54
54
54
54
54
54
54
18
18
18
18
19
47
47
47
47
50
29
46
50
55
38
38
38
38
38
38
19
52
50
51
52
51
26
26
26
28
30
30
30
30
30
31
32
7
3
4
5
9
6
5
4
8
5
29
16
4
10
8
10
15
12
13
11
1
22
14
13
21
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
Fig.
FSCM
Item
No.
Reference
No.
104-0416
104-0418
104-0420
104-0540
104-0748
104-0749
104-0757
104018
104071
104-1285
105-0205
105-0218
105-0271
105-0271
106499
106933
10942521
110-0419
110-0546
110-0858
110-0859
110-1220
110-1221
110-1264
110-1268
110-1278
110-1836
110-1842
110-1869
110-1870
110-1871
110-1873
110-1874
110-2326
110-2460
110-2468
110-2477
112-0085
44940
44940
44940
44940
44940
44940
44940
73370
73370
44940
44940
44940
44940
44940
73370
73370
19207
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
52
52
54
37
34
34
37
18
18
54
52
52
52
52
19
19
1
44
44
44
43
44
44
46
44
44
43
54
44
44
44
44
44
50
54
54
44
53
3
4
16
9
3
7
12
1
2
17
17
10
6
15
4
3
19
8
11
12
13
13
14
15
23
16
19
27
22
21
17
20
18
11
6
Fig.
Number
112-0125
112726
113-0132
113-0134
113-0135
113-0137-05
113-0137-10
113-0137-20
113-0137-30
113-0137-40
113-0151
113-0167
114-0164
114-0164-02
114-0164-10
114-0164-20
114-0164-30
114-0168
114-0169
114-0170
114-0215
115-0127
115-0128
115-0129
115-0130
115-0134
115-0146
115-0149
115-0150
115-0151
115-0152
115-0155
115-0195
240
Item
FSCM
No.
44940
44940
44940
44940
44940
44940
24617
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
53
53
53
53
53
53
31
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
53
43
43
43
43
43
43
43
43
43
44
43
43
No.
2
4
3
5
1
1
1
1
1
2
1
9
9
9
9
9
10
8
12
10
11
12
8
3
23
20
9
22
18
24
25
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
115-0197
115-0200
120-0539
120-0547
120-0551
120-0553
120-0555
120-0622
120-0628
120-0770
122-0242
122-0243
122-0244
122-0295
122-0302
122-0303
122-0308
122-0309
122-0353
122-0358
122-0358
122-0395
122-0396
122-0399
122-0400
122-0401
122-0403
122-0404
123-0191
123-0667
123-0952
123-0954
123-0998
123-1144
123-1145
123-1153
123-1177
123-1201
FSCM
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
Fig.
No.
43
43
50
50
50
54
50
38
43
38
47
47
47
47
47
47
47
47
50
47
47
47
47
47
47
47
47
47
46
46
54
54
54
46
46
54
35
54
Item
No.
7
18
17
9
6
24
16
25
6
30
28
27
26
1
22
32
31
20
19
14
7
8
.10
6
5
4
9
2
2
6
33
10
11
5
1
13
17
8
Reference
Number
123-1202
123-1203
123-1283
123-1303
126458
13200E6361
13200E6363
13208E5820-1
13211 E6765
13211E6934-1
13211 E7541
13211 E7543
13211E7544
13211 E7545
13211E7546
13211 E7547
13211 E7548
13212E1 837-6
134-0656
134-1092
134-1233
134-1248
134-1604
134-1605
134-1606
134-1607
134-2167
134-2168
134-2182
134-2183
134-2185
134-2186
134-2190
134-2473
134-2474
134-2475
134-2478
134-2512
241
FSCM
44940
44940
44940
44940
73370
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
97403
44940
44940
44940
44940
44940
30554
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
Fig.
No.
54
54
54
54
19
3
3
12
55
5
3
3
3
3
3
3
3
55
27
29
29
27
27
27
27
27
29
29
29
29
29
41
29
27
27
27
27
37
Item
No.
9
7
12
10
26
23
23
1
21
20
21
29
22
28
27
30
6
36
11
27
34
33
28
8
4
14
17
8
12
25
20
7
11
35
39
41
4
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
134-2513
134-2514
134-2515
134-2516
134-2517
134-2660
134-2661
134-2773
134-2880
134-2901
134-2902
134-2903
134-2907
134-2915
134-3043
134-3084
134-3085
134-3246
134-3251
134-3252
134-3268
134-3361
134-3428
134-3428
134-3429
134-3430
134-3431
134-3432
134-3437
140-0705
140-0706
140-1170
140-1172
140-1204
140-1436
140-1437
140-1438
140-1439
FSCM
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
Fig.
No.
37
37
37
37
37
29
29
29
29
27
27
26
27
42
37
29
29
27
27
27
42
54
27
27
27
27
-27
27
27
35
35
21
21
22
22
22
22
22
Item
No.
19
18
17
7
10
21
19
23
3
25
19
4
49
24
Reference
Number
140-1440
140-1443
140-1445
140-1446
143863
146-0083
147-0043
147-0044
147-0132
147-0133
147-0137
47-0138
147-0139
147-0140
147-0141
147-0142
147-0145
147-0147
147-0182
147-0196
147-0203
147-0243
147-0247
147-0248
147-0249
147-0252
147-0259
147-0268
147-0269
147-0270
147-0273
147-0274
147-0275
147-0277
147-0277
147-0277
147-0278
147-0279
28
30
15
16
22
7
21
26
20
27
15
121
15
16
12
11
10
9
6
7
8
242
FSCM
44940
44940
44940
44940
73370
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
Fig.
No.
22
22
22
22
47
51
44
44
44
44
48
48
48
48
44
52
54
48
49
49
49
45
49
49
49
49
48
45
45
40
49
49
49
49
49
49
49
49
Item
No.
5
11
1
4
7
12
6
7
4
5
9
9
9
9
3
13
8
19
20
42
8
15
25
26
32
7
10
13
43
22
10
3
9
12
4
1
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
147-0280
147-0281
147-0282 :
147-0283
147-0284
.
147-0286
147-0286
147-0287
147-0288
147-0289
147-0290
147-0292
147-0293
147-0294
147-0295
147-0296
147-0297
147-0298
147-0299
147-0300
147-0304
147-0305
147-0306
147-0307
147-0308
147-0309
147-0310
147-0311
147-0312
147-0314
147-0315
147-0323
147-0324
147-0326
147-0327
147-0328
147-0329
147-0330
FSCM
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
Fig.
No.
49
49
49
49
49
49
49
49
49
49
49
45
45
45
45
45
45
45
45
45
54.
54
54
54
54
49
49
49
49
49
49
49
49
49
49
49
49
49
Item
No.
5
6
7
18
17
8
11
24
41
44
23
1
2
4
3
5
6
7
11
9
29
28
16
14
38
35
21
30
33
34
36
37
39
Reference
Number
147-0331
147-0333
147-0334
149-0792
149-1056
149-1057
149-1058
149-1101
149-1102
149-1262
149-1269
149-1270
149-1274
149-1279
149-1445
149-1446
149-1447
149-1453
149-1464
149-1465
149-1465
149-1467
149-1468
149-1469
149-1470
149-1471
149-1475
149-1476
149-1480
149-1481
149-1482
149-1482
149-1483
149-1484
150A75
150-0078
150-0437
150-0775
243
FSCM
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
Fig.
No.
49
49
49
46
40
40
40
40
40
17
17
20
20
46
20
20
20
20
19
18
19
19
19
19
19
19
19
19
18
18
18
19
18
19
52
52
37
52
Item
No.
40
46
10
2
1
4
7
6
10
28
9
22
23
24
21
10
7
4
3
8
7
6
5
2
1
3
4
5
9
6
8
16
8
8
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
150-0777
150-0838
150-0939
150-1131
150-1132
150-1301
150-1304
150-1305
150-1306
150-1307
150-1309
150-1312
150-1358
150-1358
151328
151728
152-0180
154-0463
154-0733
154-1357
154-1366
154-1397
154-1477
154-1478
154-1487
154-1772
155-1129
155-1473
159-0900
159-0972
159-0975.
159-0990
159-0992
159-1021
160A0074
160-0382
160-0703
160-0710
FSCM
Fig.
No.
Item
No.
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
73370
73370
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
51
51
49
39
39
39
39
39
39
39
39
39
27
39
19
47
10
28
35
35
28
35
28
28
35
35
28
28
3
3
3
3
3
3
41
41
41
41
2
5
13
4
Reference
Number
160-0711
160-0712
160-0713
160-0720
160-0721
160-0773
160-0806
160-1156
160-0135
1752002-01
191-0360
191-0363
191-0364
191-0392
191-0827
191-0828
191-0895
191-0896
191-0902
191-0903
191-0904
191-0924
191-1121
191-1122
191-1123
191-1124
191-125
191-1126
191-1127
191-1128
191-1129
191-1130
191-1131
191-1132
191-1135
191-1138
191-1139
191-1140
17
14
15
3
11
10
9
6
7
2
9
31
6
3
18
2
4
5
4
5
2
3
17
3
12
18
5
31
12
8
22
23
244
FSCM
Fig.
No.
Item
No.
44940
44940
44940
44940
44940
44940
44940
44940
44940
90005
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
41
41
41
41
41
41
41
41
54
19
41
41
41
41
30
31
36
37
41
41
41
41
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
31
16
20
18
14
27
13
11
25
7
26
17
10
3
10
23
3
24
1
19
24
23
15
16
17
18
19
12
20
21
13
1
22
10
14
11
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
191-1185
191-1194
191-1195
191-1196
191-1197
191-1432
191-1433
191-1436
191-1437
191-1439
191-1440
191-1441
191-1442
191-1443
191-1444
191-1445
191-1446
191-1450
191-1606
191-1608
191-1945
191-1945
191-1972
191-1973
191-1974
191-1975
191-1976
192-0639
193-0214
193-0225
193-0237
20A06
200-1148
200X3
201-1741
201-1748
201-1749
201-1754
FSCM
Fig.
No.
Item
No.
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
75382
44940
79470
44940
44940
44940
44940
31
31
31
31
31
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
5
38
38
38
15
24
47
25
25
25
25
9
4
5
6
14
16
21
22
31
34
38
40
39
24
45
33
49
20
15
17
19
18
12
2
7
8
6
24
23
16
4
16
50
-1-9
32
Reference
Number
202-0576
2025-4-5B
2025-4-5B
203X160
205-0097
211-0193
211-0195
220-1531
220-1533
220-1540
220-1545
223-0636
226-0895
226-0937
226-1099
226-1323
22962B
230-0262
230-0263
230-0267
230-0268
231 -0155
232-2160
232-2161
232-2165
232-2166
232-2173
232-2174
232-2175
232-2176
232-2194
232-2202
232-2202
233-0622
233-0624
233-0626
233-0637
233-0639
245
FSCM
Fig.
No.
Item
No.
44940
01276
00624
02288
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
14834
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
25
20
40
20
25
24
24
24
24
24
24
24
24
25
24
24
40
24
25
24
25
34
25
25
25
25
25
25
23
23
25
23
33
24
25
25
24
24
54
15
12
8
5
31
9
28
51
16
32
45
21
34
34
22
13
52
53
30
52
12
4
51
14
3
2
13
30
29
49
17
16
23
46
47
47
49
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
234-0382
237-0376
244344
244350
244351
244608
244609
25RS1 0586
2740-0003
2740-0003
2740-0003
295901-2
300-0752
300-0760
300-0762
301-3297
301-3308
301-3310
301-3311
301-3446
301-3447
301-3472
301-3473
301-3475
301-3479
301-3480
301-3525
302-0830
303-0184
303-0188
303-185137
305-0512
306-0242
307-0959
307-1101
307-1206
308-0250
308-0590
FSCM
Fig.
No.
Item
No.
44940
44940
73370
73370
73370
73370
73370
55026
81205
81205
81205
76530
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
10582
44940
44940
44940
44940
44940
44940
44940
23
24
19
18
18
19
19
5
27
29
39
5
7
5
12
5
5
7
55
55
55
14
12
12
12
13
13
5
8
8
13
36
42
5
42
7
5
13
25
3
Reference
Number
309-0085
309-0130
309-0152
309-0177
309-0275
309-0277
309-0278
31-2-1
3152X2
320-0303
320-0410
320-0461
3200X4
3200X4
321-0127
321-0179
321064
322-0099
232-0337
323-0364
323-0701
323-0701
323-0705
323-0719
323-0780
323-0784
323-0785
323-0787
323-0795
323-0795
323-0796
323-0823
323-0824
323-0825
323-0826
323-0827
323-0828
323-0830
8
5
17
5
29
8
11
47
30
13
31
22
23
35
10
3
16
23
15
13
8
9
1
7
4
43
3
4
24
24
246
FSCM
Fig.
No.
Item
No.
44940
44940
44940
44940
44940
44940
44940
00671
79470
44940
44940
44940
79740
79740
44940
44940
00779
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
27
47
41
47
29
29
41
3
47
5
13
13
3
20
36
36
56
5
56
56
10
42
6
10
7
6
10
24
14
14
24
42
14.
10
10
10
10
10
37
29
9
15
31
32
7
4
30
27
3
42
11
9
15
16
4
15
7
8
10
11
4
16
6
5
20
11
7
21
37
13
20
19
18
14
17
11
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
323-0830
323-0831
323-0831
323-0940
326896
32905LE
3300X2
332-0152
332-0338
332-0350
332-0350
332-0350
332-0350
332-0492
332-0684
332-0805
332-0805
332-0805
332-0806
332-0806
332-0806
332-0807
332-0807
332-0807
332-0808
332-0814
332-0817
332-0820
332-0897
332-0913
332-0913
332-0941
332-0941
332-0941
332-0941
332-0942
332-0942
332-0942
FSCM
44940
44940
44940
44940
00779
01212
79470
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
Fig.
No.
Item
No.
Reference
Number
42
12
10
12
24
33
14
19
1
7
5
23
38
33
35
10
56
12
6
7
10
21
14
31
42
14
13
43
42
19
24
12
36
24
42
15
6
9
10
23
14
29
14
28
25
35
42
16
35
9
7
8
5
21
42
17
6
10
14
9
14
27
6
11
104
13
14
18
25 - 42
14
5
14
8
25
20
332-0942
332-1019
332-1050
332-1050
332-1115
332-1116
332-1116
332-1120
332-1291
332-1293
332-1301
332-1302
332-1359
332-1362
332-1365
332-1367
332-1369
332-1370
332-1371
332-1384
332-142
332-1441
332-1444
332-1452
332-1458
332-1459
332-1500
332-1471
332-1678
332-1861
332-1877
332-1886
332-1886
333-0104
334-0761
334-0761
334-0955
334-1282
247
FSCM
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
Fig.
No.
Item
No.
38
36
30
56
10
5
10
14
1
11
3
5
3
9
7
26
6
1
18
35
26
22
8
34
4
4
24
36
24
12
10
15
8
8
2
15
12
2
7
6
14
10
10
36
42
27
15
36
6
14
44
35
Bulk
25
7
7
9
12
14
25
5
8
14
18
46
7
27
8
30
9
11
36
5
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
334-1283
334-1283
334-1283
334-1283
334-1283
334-1283
334-1285
334-1285
334-1285
334-1285
334-1285
334-1286
334-1286
334-1287
334-1287
334-1287
334-1287
334-1289
334-1289
334-1289
334-1289
334-1289
334-1289
334-1289
334-1289
334-1290
334-1290
334-1320
334-1320
334-1320
334-1976
334-1978
334-1979
336-1408
336-2097
336-2101
336-2102
336-2103
.
FSCM
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
Fig.
No.
6
10
14
24
36
42
6
10
14
42
Bulk
6
10
14
14
24
24
13
13
13
13
13
13
13
13
30
56
1
1
1
25
24
24
35
30
13
13
13
Item
No.
Reference
Number
3
27
34
13
25
21
2
26
33
20
336-2104
336-2105
336-2106
336-2107
337-0033
337-0098
338-0568
338-0573
338-0575
338-0577
338-0580
338-0584
338-0653
3400X4
34130
34138
34318
34319
350-0367
350-0407
350-0419
350-0427
350-0687
35066
351-1048
351-1056
35149
352X6
352-0056
355-0021
355-0022
355-0023
355-0024
356-0041
356-0042
356-0043
356-0052
356-0064
1
25
10
32
36
38
47
51
52
55
59
63
67
71
2
6
4
8
12
45
46
24
8
1
44
48
52
248
FSCM
Fig.
No.
Item
No.
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
79470
00779
00779
00779
00779
44940
44940
44940
44940
44940
73370
44940
44940
00779
79470
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
13
13
13
13
5
33
6
42
10
14
14
24
27
20
24
25
24
24
8
8
8
8
8
19
8
8
6
48
15
8
8
8
8
8
8
8
36
36
56
60
64
68
33
10
10
9
6
17
10
44
10
25
37
43
41
11
14
15
17
19
6
20
21
12
2
5
22
23
33
24
25
26
27
20
17
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
357-0007
357-0015
357-0016
359-0030
36H
36H
360154
362-0037
362-0038
363-0051
363-0052
37TB2
3750X2
3797
38TB3
4GBTXB
400X3
402-0376
402-0377
402-0378
402-0392
402-0399
402-0400
402-0401
402-0404
403-0622
403-0779
403-0937
403-0939
403-0940
403-0945
403-0949
403-0982
403-0983
403-0995
403-0999
406-0306
406-0309
FSCM
44940
44940
44940
44940
66295
66295
98242
44940
44940
44940
44940
81349
79470
92878
81349
30780
79470
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
Fig.
No.
7
8
15
8
21
21
2
8
8
25
25
24
47
13
36
38
38
23
33
23
23
23
55
55
55
26
55
55
33
55
33
2
55
55
33
55
5
5
Item
No.
7
28
6
29
2
4
6
31
7
30
31
19
19
11
14
20
29
8
11
12
11
9
52
53
54
1
1
46
20
Reference
Number
406-0311
406-0324
406-0336
406-0371
41124
412290-3
416-0513
416-0559
416-0560
416-0561
416-0624
416-0625
416-0626
4169A
420-0210
420-0321
420-0322
466-1403
4738-12-12B
479012
479130
479135
479136
480517
5B5937
150-2/4A80A-9540A
5-116444
501-0109
501-0113
501-0129
501-0140
501-0173
501-0175
501-0189
501-0191
501-0192
501-040800-00
502-0028
26
3
11
15
27
45
10
5
249
FSCM
44940
44940
44940
44940
00779
70210
44940
44940
44940
44940
44940
44940
44940
24161
44940
44940
44940
24161
01276
72850
72850
72850
72850
72859
11083
01843
55026
44940
44940
44940
44940
44940
44940
44940
44940
44940
78189
44940
Fig.
No.
5
29
5
5
35
38
1
55
1
55
1
1
1
21
58
58
58
21
46
20
20
20
20
20
47
49
5
38
20
40
20
33
17
46
38
16
27
43
Item
No.
55
5
3
11
10
11
18
38
16
39
1
9
5
3
3
1
2
5
12
24
21
22
23
20
2
46
4
4
8
1
2
1
11
17
9
43
14
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
502-0028
502-0037
502-0051
502-0053
502-0054
502-0054
502-0058
502-0065
502-0082
502-0097
502-0102
502-0176
502-0176
502-0199
502-0242
502-0251
502-0274
502-0277
502-0277
502-0281
502-0287
502-0318
502-0359
502-0380
502-0380
502-0385
502-0404
502-0405
502-1452
503-0170
503-0559
503-0557
505-0718
505-0718
505-0803
508-0102
508-0103
508-0157
FSCM
Fig.
No.
Item
No.
Reference
Number
FSCM
Fig.
No.
Item
No.
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
47
38
38
47
20
40
47
40
38
47
40
3
20
48
38
3
38
38
38
38
3
3
20
20
40
48
47
38
16
54
54
54
50
47
40
35
35
24
30
29
33
1810
10
19
3
34
16
5
11
9
2
22
14
31
4
5
26
13
6
7
15
12
1
17
20
4
1
2
3
15
21
11
13
14
39
508-0163
508-0182
509-0084
509-0088
509-0094
509-0099
509-0117
509-0130
509-0131
509-0132
510-0043
510-0043
510-0046
510-0048
511-041800-00
511-041800-00
511-061800-00
511-061800-00
511-061800-00
511-061800-00
511-061800-00
511-061800-00
511-061800-00
511-061800-00
511-061800-00
511-061800-00
511-061800-00
511-081800-00
511-081800-00
511-081800-00
511-081800-00
51 1-081 800-00
511-081800-00
511 -081800-00
511-081800-00
511-081800-00
511-081800-00
511-081800-00
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
78189
78189
78189
78189
78189
78189
78189
78189
78189
78189
78189
78189
78189
78189
78189
78189
78189
78189
78189
78189
78189
78189
78189
78189
25
25
43
51
48
24
54
51
54
44
47
51
52
51
5
42
7
8
8
12
13
13
14
14
14
15
24
5
5
5
5
5
5
5
5
7
14
14
24
29
21
6
6
8
6
11
15
15
23
9
9
7
59
9
11
1
6
2
5
9
2
4
12
3
18
2
8
35
38
42
45
57
61
2
14
16
250
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
511-081800-00
511-101800-00
511-101800-00
511-101800-00
511-101800-00
511-101800-00
511-101800-00
511-101800-00
511-101800-00
511-101800-00
511-101800-00
511-101800-50
511-101800-50
511-10800
515-1
515-1
515-1
515-0006
515-0011
515-0153
515-0201
516-0072
516-0072
516-0141
516-0151
516-0164
516-0180
517-0053
517-0108
518-0004
518-0129
518-0188
518-0195
518-0268
518-0299
518-0330
518-0346
518-0369
FSCM
Fig.
No.
Item
No.
78189
78189
78189
78189
78189
78189
78189
78189
44940
78189
78189
78189
78189
78189
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
36
4
5
5
10
12
12
13
25
25
36
13
55
10
52
52
52
54
25
58
25
54
54
54
41
23
33
54
29
27
51
52
52
54
10
20
40
16
13
7
29
32
2
12
33
14
21
17
9
70
17
29
1
11
14
14
43
5
18
21
29
22
21
10
18
23
9
2
1
2
12
5
30
16
9
3
Reference
Number
520-0608
520-1129
520-1742
5211
526-0008
526-0008
526-0008
526-0065
526-0113
526-0130
526-0174
526-0175
526-0179
526-0185
526-0187
526-0188
526-0213
526-0218
526-0240
526-0245
526-0246
526-0253
526-0267
526-0267
526-1030
526-1009
526-1009
526-1030
526-1115
526-1115
526-1115
526-1122
526-1130
526-1186
526-1243
526-1271
526-1512
526-1513
251
FSCM
Fig.
No.
Item
No.
44940
44940
44940
74545
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44
48
34
13
27
27
27
46
27
43
43
27
35
35
37
1
27
12
25
54
37
11
11
55
34
25
25
30
3
48
50
44
4
50
34
35
39
29
19
10
8
6
10
18
24
8
31
5
17
38
10
3
11
15
32
22
11
20
15
2
3
30
11
16
22
9
2
5
13
2
5
3
2
12
13
2
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
526-1516
526-1516
526-1516
526-1518
526-1518
526-1519
526-1707
55RS10584
55RS10585
6S6-40V
6V75
600J
601J
601J
603J
603JJ8
61-040441-40-0142B0542B
61-060441-40-0142BO542B
61-060641-40-0142130542B
61-060641-40-0142B0542B
61-060641-40-0142B0542B
61-060641-40-0142B0542B
61-100641-40-0142B0542B
61-100841-40-0142B0542B
61-100841-40-0142B0542B
61-100841-40-0142B0542B
61-100841-40-0142B0542B
61-100841-40-0142B0542B
61-100841-40-0142B0542B
62535
349F1 -2X3-8
349F1 -2X3-8
67Q60860
68Q60970
68Q60980
69-539-2
69-547
69-561-1
FSCM
44940
44940
44940
44940
44940
44940
44940
55026
55026
08805
74700
75382
75382
75382
75382
75382
78189
78189
78189
78189
78189
78189
78189
78189
78189
78189
78189
78189
78189
81790
30327
30327
80023
80023
80023
30554
30554
30554
Fig.
No.
Item
No.
23
33
33
23
33
23
25
5
5
5
28
5
6
14
14
14
4
4
8
16
15
7
8
19
18
14
3
40
13
22
23
24
79
3
26
2
8
41
27
6
31
4
6
28
6
5
3
5
28
34
35
11
6
59
7
5
13
13
13
12
4
5
10
10
10
34
2
38
38
12
12
12
20
7
5
Reference
Number
69-561-1
69-561-1
69-561-2
69-561 -2
69-561-2
69-561-2
69-561-2
69-561-2
69-561-2
69-561-2
69-561-2
69-561-2
69-561-2
69-561-2
69-561-3
69-561-3
69-561-3
69-561-3
69-561-3
69-561-3
69-561-3
69-561-3
69-561-3
69-561-3
69-561-4
69-561-4
69-561-4
69-561-4
69-561-4
69-561-4
69-561-4
69-561-4
69-561-4
69-561-4
69-561-4
69-561-6
69-561-6
69-561-6
252
FSCM
Fig.
No.
Item
No.
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
27
42
7
8
8
12
13
13
14
14
14
14
15
24
5
5
5
5
5
5
7
14
14
36
4
5
5
10
10
12
12
13
25
25
35
38
27
39
43
9
11
1
6
2
5
9
2
4
12
22
3
18
35
38
42
45
57
61
2
14
16
13
7
29
32
2
29
12
33
14
17
21
9
21
5
8
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
69-561-6
69-593
69-594
69-651-2
69-651-4
69-662-1
69-662-16
69-662-18
69-662-18
69-662-18
69-662-18
69-662-48
69-662-50
69-662-50
69-662-50
69-662-50
69-662-50
69-662-50
69-668
69-669
69-693-2
69-693-2
69-694-8
69-695
69-788
695
696-40380
70-1531-1
70-1531-1
70-801074
72-5000
72-5001
72-5002
72-5003
72-5004
72-5005
72-5006-1
72-5006-2
FSCM
Fig.
No.
Item
No.
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
79470
59730
30554
30554
04655
30554
30554
30554
30554
30554
30554
30554
30554
53
5
5
6
14
7
7
5
13
13
13
12
4
5
10
10
10
34
16
13
14
5
5
13
21
3
25
11
55
2
5
5
5
5
5
5
5
33
17
16
14
13
23
9
3
26
2
8
41
27
6
31
4
6
28
6
1
_7
43
53
12
12
1
10
33
3
30
8
Reference
Number
72-5007-1
72-5008
72-5009
72-5010
72-5011
72-5012
72-5013
72-5014
72-5015
72-5017
72-5017
72-5018
72-5018
72-5018
72-5018
72-5018
72-5018
72-5019
72-5027
72-5029
72-5030
72-5031
72-5032
72-5033
72-5034
72-5036
72-5038
72-5039
72-5042
72-5043
72-5044
72-5045
72-5047
72-5048
72-5050
72-5051-1
72-5051-3
72-5052
47
30
3
36
39
33
10
253
FSCM
Fig.
No.
Item
No.
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
5
5
5
7
5
5
6
7
5
6
10
5
5
12
14
14
14
5
55
56
55
55
55
55
55
55
55
55
56
55
55
55
55
56
33
33
23
23
18
19
23
25
49
13
17
4
15
48
50
17
36
38
40
46
40
14
46
31
22
23
48
10
45
38
39
18
15
12
11
17
18
19
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
72-5052
72-5053
72-5054
72-5054
72-5055
72-5056
72-5057
72-5058
72-5059
72-5060
72-5061
72-5062
72-5063
72-5064
72-5065
72-5066
72-5067
72-5069
72-5070
72-5071
72-5072
72-5073
72-5074
72-5075
72-5076
72-5077
72-5078
72-5079
72-5080
72-5081
72-5082
72-5083
72-5084
72-5087-1
72-5088
72-5090
72-5091
72-5093
FSCM
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
Fig.
No.
33
33
23
33
23
21
2
33
33
23
21
17
18
19
20
3
22
20
17
23
12
12
55
55
21
3
3
3
3
3
1
1
1
46
23
20
10
1
Item
No.
19
20
17
16
8
11
3
27
26
12
12
10
Reference
Number
72-5094
72-5095-2
72-5096-1
72-5096-1
72-5098
72-5098
72-5099
72-5099
72-5101
72-5102-1
72-5103
72-5106
72-5109
72-5156
72-5157
72-5158
72-5159
72-5160
72-5161
72-5162
72-5163
72-5163
72-5165
72-5166
72-5167
72-5168
72-5169
72-5171
72-5172
72-5173
72-5175-1
72-5175-2
72-5175-3
72-5175-4
72-5175-5
72-5175-6
72-5175-7
72-5176
28
3
8
21
18
19
33
49
5
18
16
12
5
15
5
9
1
11
9
31
16
254
FSCM
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
Fig.
No.
1
46
21
21
1
1
1
1
3
14
12
12
17
10
14
8
11
12
14
12
12
12
12
12
12
12
14
14
14
13
13
13
13
13
13
13
13
12
Item
No.
18
15
2
4
3
6
2
10
10
44
13
20
4
9
24
34
2
35
16
10
7
3
6
26
5
39
41
37
72
44
48
52
56
60
64
68
34
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
72-5177
72-5178
72-5179
72-5181
72-5182
72-5185
72-5187
72-5189
72-5191-3
72-5192
72-5193
72-5194
72-5196
72-5200
72-5201
72-5202
72-5203
72-5204
72-5205
72-5206
72-5209-1
72-5209-4
72-5210
72-5211
72-5212
72-5213
72-5214
72-5215
72-5216
72-5217-1
72-5217-2
72-5218
72-5219
72-5220
72-5221-1
72-5221-2
72-5222
72-5230
FSCM
Fig.
No.
Item
No.
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
12
12
15
15
13
14
14
13
55
55
55
13
13
24
24
23
25
24
24
24
24
24
25
25
25
25
25
25
25
25
4
23:
23
25
5
25
25
25
35
28
Reference
Number
72-5231-1
72-5232-2
72-5233-1
72-5233-2
72-5234-1
72-5235
72-5236
72-5237
72-5238-1
72-5239
72-5240
72-5241
72-5242
72-5244-1
72-5244-3
72-5244-5
72-524-6
72-5245-1
72-5246
72-5247
72-5250
72-5251-1
72-5252
72-5253
72-5254-1
72-5258 .
72-5263
72-5264
72-5273-1
72-5273-2
72-5301
72-5302
72-5305
72-5306
72-5313
72-5314
72-5319
72-5320
8
15
6
17
23
54
53
52
1
42
3
25
12
39
9
31
47
45
4
3
2
5
13
14
11
5
30
29
19
30
31
24
32
255
FSCM
Fig.
No.
Item
No.
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
25
24
25
25
25
25
25
25
25
25
25
25
25
25
25
25
24
25
25
25
24
24
24
25
25
24
25
25
25
25
21
3
5
33
20
5
1
6
54
29
18
43
34
28
30
10
49
48
26
23
26
43
41
37
25
50
53
52
32
51
52
47
46
34
49
33
28
27
3
31
51
28
20
22
7
12
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
72-5321
72-5323
72-5323
72-5323
72-5323
72-5345
72-5984
72-0506-14
76902LA
76-11297
76-11297
76-11297
77-5001
77-5003
77-5004
7716082
800-0500
800-0503
800-0522
800-0531
800-0533
800-1002
800-1004
800-1005
800-1005
800-1005
800-1005
800-1005
800-1007
800-1007
800-1007
800-1007
800-1007
800-1008
800-1008
800-1008
800-1008
800-1010
FSCM
Fig.
No.
Item
No.
30554
30554
30554
30554
30554
30554
30554
30554
02121
30554
30554
30554
30554
30554
30554
19207
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
5
13
13
13
13
13
56
4
5
13
13
13
6
5
5
56
36
43
47
55
47
31
24
12
12
12
13
39
23
24
36
55
56
13
24
25
35
23
16
46
50
54
58
24
Reference
Number
800-1011
800-1025
800-1026
800-1026
800-1027
800-1028
800-1028
800-1030
800-1030
800-1031
800-1033
800-1048
800-1048
800-1048
800-1048
800-1050
800-1050
800-1050
800-1050
800-1050
800-1051
800-1051
800-1052
800-1052
800-1072
800-1073
800-1074
800-1076
800-1092
800-1092
800-1507
800-1512
800-1529
801-0503
801-0503
801-0505
801-1005
8034660-1459
2
25
57
62
66
15
63
64
8
1
16
12
40
24
7
1
8
30
14
18
1
22
6
4
42
1
20
14
1
6
28
256
FSCM
Fig.
No.
Item
No.
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
96906
44940
44940
44940
44940
44940
96906
44940
44940
44940
44940
44940
44940
44940
44940
18876
24
46
38
46
20
50
56
21
43
35
2
17
21
30
52
11
16
25
55
55
33
34
23
55
30
50
23
50
33
33
33
47
37
23
33
37
4
25
4
7
6
3
25
11
9
9
1
1
1
8
6
6
19
6
12
9
12
24
6
9
1
27
4
1
5
1
21
23
1
11
13
13
12
5
3
38
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
8034660-1321
805-0012
805-0019
8078
809-0035
809-0042
80965D
812-0150
812-1115
812-1134
8129X4
8129X4
813-0107
814-1340
814-1574
815-0176
815-0201
815-0317
815-0340
815-0349
815-0361
815-0361
815-1289
815-1347
815-1435
818-0076
818-1125
818-1133
818-1133
818-1136
820-1072
821-0004
821-0009
821-0010
821-0010
821-0010
821-0010
821-0010
FSCM
18876
44940
44940
15434
44940
44940
04009
44940
44940
44940
7970
79470
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
Fig.
No.
25
53
54
44
54
43
13
42
12
37
3
20
40
12
55
51
41
3
27
39
27
27
12
52
25
4
13
5
14
5
26
29
29
26
26.
27
29
29
Item
No.
41
11
19
10
4
4
9
1
32
1
7
12
1
24
16
3
6
4
40
16
17
23
4
18
15
1
15
52
42
54
21
4
26
3
5
13
1
15
Reference
Number
821-0010
821-0010
821-0010
821-0010
821-0010
821-0010
821-0010
821-0010
821-0014
821-0014
821-0016
822-1016
822-1016
822-1016
822-1016
822-1030
822-1032
822-1032
822-1032
822-1032
822-1033
822-1033
822-1034
822-1034
822-1035
822-1036
822-1038
822-1046
822-1046
822-1046
822-1046
822-1046
822-1048
822-1048
822-1048
822-1049
822-1050
822-105
257
FSCM
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
Fig.
No.
29
29
29
29
38
42
42
50
29
38
29
5
14
27
42
8
12
13
14
14
7
15
8
14
15
8
24
5
5
5
5
7
5
5
5
25
5
14
Item
No.
18
20
22
24
9
6
23
18
13
14
10
58
13
42
8
5
1
4
1
3
10
2
3
11
1
2
17
34
37
41
44
1
1
7
60
6
56
15
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
822-1050
822-1067
822-1067
822-1067
822-1067
822-1073
822-1091
822-1063.
83-515
842HFB08
850-0025
850-0035
850-1030
850-1030
850-1040
850-1040
850-1040
850-1040
850-1040
850-1040
850-1040
850-1040
850-1040
850-1040
850-1040
850-1040
850-1040
850-1040
850-1040
850-1040
850-1040
850-1045
850-1045
850-1045
850-1045
850-1045
850-1045
850-1045
FSCM
Fig.
No.
Item
No.
44940
44940
44940
44940
44940
44940
44940
44940
61512
30327
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
38
5
10
12
13
25
22
29
46
16
51
37
25
36
4
12
12
12
13
13
20
23
24
24
24
24
31
35
39
47
55
56
2
21
37
38
43
46
12
28
1
11
13
20
2
6
15
4
4
2
26
22
4
9
15
31
19
21
18
24
2
5
7
15
8
7
2
25
44
3
2
10
16
7
2
4
Reference
Number
850-1045
850-1045
850-1045
850-1045
850-1045
850-1045
850-1045
850-1045
850-1050
850-1050
850-1050
850-1050
850-1050
850-1050
850-1050
850-1050
850-1050
850-1050
850-1050
850-1050
850-1050
850-1050
850-1050
850-1050
850-1055
850-1055
850-1055
850-1055
850-1055
850-1055
850-1060
850-1060
850-1060
851-0020
853-0016
853-1013
853-1016
853-1016
258
FSCM
Fig.
No.
Item
No.
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
96906
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
47
48
50
50
55
55
55
56
11
16
17
21
23
23
25
30
33
33
34
34
41
52
55
55
23
23
30
33
36
50
33
33
55
12
27
42
55
55
13
8
12
8
21
36
11
4
14
9
7
3
27
10
7
3
7
5
10
5
20
14
29
6
15
5
14
2
2
22
25
51
21
30
2
5
9
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
853-1011
856-1006
856-1006
856-1006
856-1008
856-1010
856-1010
856-1010
856-1010
862-1001
862-1001
862-1001
862-1001
862-1001
862-1001
862-1001
862-1003
862-1003
862-1003
862-1003
862-1003
862-1003
862-1003
862-1003
862-1003
862-1003
862-1015
862-1015
862-1015
862-1015
862-1015
862-1015
862-1016
862-1016
862-1016
863-0002
864-1003
867-0025
FSCM
Fig.
No.
Item
No.
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
12
20
27
36
20
11
33
33
55
42
12
13
20
23
36
56
11
16
21
23
33
55
55
55
55
55
20
27
37
55
55
55
26
33
55
22
30
28
25
19
14
6
27
7
5
9
26
5
29
22
17
23
5
2
5
13
8
2
2
2
13
25
28
41
26
29
14
3
20
35
2
24
50
3
8
1
Reference
Number
867-0027
867-1002
867-1004
867-1004
8680L14
870-0053
870-0131
870-0131
870-0153
870-0153
870-0218
870-0219
870-0235
870-0352
870-1053
870-1053
870-1131
870-1221
870-1221
871-0010
871-0010
871-0025
877-0014
895-0117
898-0016
898-0016
898-0043
898-0365
898-0516
898-0612
898-0617
898-0618
898-0634
898-0634
898-0637
898-0880
90-502
90-503
259
FSCM
Fig.
No.
Item
No.
44940
44940
44940
44940
09393
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
30554
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
44940
68505
68505
23
48
23
33
3
27
27
39
1
56
37
3
25
37
25
38
38
5
5
39
39
55
24
25
Bulk
27
24
24
24
25
24
25
24
25
25
1
31
31
26
3
14
13
16
7
9
8
14
10
12
1
7
6
25
22
21
2
8
5
6
4
48
40
48
40
27
50
39
44
38
42
44
41
13
22
14
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
90-884
90-2209
98292-2-220
98292-3290
99-1177
99-1178
99-1179
99-1180
99-1182
99-1184
99-1191
99-1192
99-1197
99-1200
99-1237
99-1238
99-1324
99836
99836
99947P130
99947P130
MS35338-39
RCR2G101JS
321064
42C16550
42C16550
56181-4
72-5326
72-5345
A-17
AAPQ-62
AAPQ-62
AAPQ-62
AAPQ-64
AAPQ-64
ADC-12-1
AL-1100-12-5
C30968-1420-3B
FSCM
68505
19728
76530
60119
98623
98623
98623
98623
98623
98623
98620
98623
98623
98620
98623
98623
98623
76530
76530
76530
76530
96906
81349
00779
10001
10001
16476
30554
30554
55661
05693
05693
05693
05693
05693
3B287
3B287
89032
Fig.
No.
Item
No.
Reference
Number
31
19
31
1
13
11
5
12
56
14
55
48
55
49
55
33
14
27
12
5
5
49
12
18
12
19
5
51
14
41
14
39
4
2
5
10
13
12
5
53
14
43
30
9
8
10
1
11
16
5
BULK
5
16
56
4
13
24
57
42
57
30
57
73
57
118
57
47
57
125
57
71
57
72
57
67
C30968-1420-3B
C30968-1420-3B
C30968-1420-3B
HC209ZE/HS205ZE
HC209ZE/HS205ZE
HC209ZE/HS205ZE
MC-1 4-0875
MC-1 4-0875
MC-1 4-0875
MC-1 4-0875
MIL-I-23594,TYICL4
MIL-I-23594,TYICL4
MIL-I-23594,TYICL4
MIL-I-23594,TYICL4
MIL-I-23594,TYICL4
MIL-I-23594,TYICL4
MIL-I-23594,TYICL4
MIL-I-23594,TYICL4
MIL-I-23594,TYICL4
MIL-I-23594,TYICL4
MIL-I-23594,TYICL4
MIL-I-23594,TYICL4
MIL-I-23594,TYICL4
MMM-A-121
MS27130-A151
MS27183-11
MS27183-12
MS27183-13
MS35338-46
MS39231-7B
MS39326-14
MS51943-31
MS51967-8
MS51975-11
MS90725-6
MS90725-62
M2BA410F17
M2BA712F17
260
FSCM
Fig.
No.
89032
89032
89032
98003
98003
98003
3B287
3B287
3B287
3B287
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
81349
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
96906
81346
81346
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
BULK
BULK
57
57
57
57
57
57
57
57
57
57
57
57
BULK
BULK
Item
No.
89
107
131
8
54
95
21
64
88
112
37
38
39
45
77
78
79
115
116
123
136
147
29
4
3
146
143
24
25
5
142
2
27
145
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
M24243/1 B402
SSPQ-64
SSPQ-64
SSPQ-62
SSPQ-62
SSPQ-62
SSPQ-62
SSPQ-62
SSPQ-62
SSPQ-62
SSPQ-62
SSPQ-62
SSPQ-62
SSPQ-64
SSPQ-64
SSPQ-64
SSPQ-64
ZX-4878
10942521
10942521
70-1531-1
89-36001
89-36001-24
89-36003
89-36009
89-36009
89-36009
89-36009
89-36010
89-36011
89-36014
89-36014
89-36014
89-36015
89-36017
89-36017
89-36017
89-36017
FSCM
81346
05693
05693
05693
05693
05693
05693
05693
05693
05693
05693
05693
05693
05693
05693
05693
05693
76385
19207
19207
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
Fig.
No.
Item
No.
Reference
Number
57
156
57
138
57
149
57
10
57
16
57
41
57
56
57
61
57
69
57
86
57
97
57
102
57
108
57
7
57
53
57
80
57
94
BULK
57
153
57
154
57
144
57
57
26
57
155
57
21
57
64
57
88
57
112
57
71
57
72
57
8
57
54
57
95
57
42
57
67
57
89
57
107
57
131
89-36018
89-36022
89-36022
89-36024-01
89-36024-01
89-36024-01
89-36024-03
89-36024-03
89-36025
89-36025-01
89-36026
89-36028-03
89-36029-01
89-36029-01
89-36029-01
89-36029-01
89-36029-01
89-36029-01
89-36029-01
89-36029-01
89-36029-01
189-36029-01
89-36029-03
89-36029-03
89-36029-03
89-36029-03
89-36034
89-36037
89-36038
89-36039
89-36043
89-36046-01
89-36046-03
89-36046-05
89-36046-09
89-36048
89-36049
89-36050,SH1
261
FSCM
Fig.
No.
Item
No.
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
11
138
149
30
73
118
47
125
124
130
75
35
10
16
41
56
61
69
86
97
102
108
7
53
80
94
157
133
14
12
90
104
99
13
58
46
70
83
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
89-36050,SH2
89-36050,SH1-7
89-36051
89-36052
89-36053
89-36054
89-36055
89-36056
89-36057
89-36058
89-36059-01
89-36059-02
89-36060
89-36060
89-36061
89-36062
89-36063
89-36064
89-36065
89-36066
89-36067
89-36067
89-36067
89-36068
89-36069
89-36070
89-36071
89-36072
89-36073
89-36074
89-36075
89-36076
89-36078
89-36079
89-36081
89-36084
89-36085
89-36085-6
FSCM
Fig.
No.
Item
No.
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
84
85
15
106
60
48
49
141
152
28
32
33
140
151
6
93
52
68
148
137
81
139
150
82
76
87
22
113
65
134
135
132
43
114
91
23
40
50
262
Reference
Number
FSCM
Fig.
No.
89-36086
89-36087
83-6088
89-36089
89-36090
89-36091
89-36093-03
89-36094-03
89-36095
89-36096
89-36097
89-36098
89-36101
89-36102
89-36104
89-36105
89-36106
89-36107
89-36109
89-36110
89-36111
89-36112
89-36113
89-36114
89-36115
89-36116
89-36117
89-36118
89-36119-03
89-36120
89-36127
89-36128
89-36129
89-36130
89-361-31 01
89-36131-03
89-36131-07
89-36132-01
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
30554
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
57
Item
No.
51
117
122
121
120
66
34
31
36
92
19
119
20
111
44
101
96
9
55
129
127
128
126
74
109
110
17
18
62
63
158
159
160
161 105
100
59
103
ARMY TM 9-6115-584-24P
NAVY NAVFAC P-8-622-24P
AIR FORCE T.O. 35C2-3-456-4
Reference
Number
89-36132-03
89-36132-07
89-36133
FSCM
Fig.
No.
Item
No.
30554
30554
30554
57
57
57
98
57
154
263/(264 blank)
TM 9-6115-584-24P
NAVFAC P-8622-24P
TO 35C2-3-456-4
By Order of the Secretaries of the Army, Navy and Air Force:
DENNIS J. REIMER
General, United States Army
Chief of Staff
Official:
JOEL B. HUDSON
Administrative Assistant to the
Secretary of the Army
02643
RONALD R. FOGELMAN
General, USAF
Chief of Staff
HENRY VICCELLIO, JR.
General, USAF
Commander, Air Force Materiel Command
J.E. BUFFINGTON
Rear Admiral, CEC, US Navy
Commander
Navy Facilities Engineering
Command
DISTRIBUTION:
To be distributed in accordance with DA Form 12-25-E, block no. 0857, requirements for
TM 9-6115-584-24P.
These are the instructions for sending an electronic 2028
The following format must be used if submitting an electronic 2028. The subject line must be exactly the
same and all fields must be included; however only the following fields are mandatory: 1, 3, 4, 5, 6, 7, 8,
9, 10, 13, 15, 16, 17, and 27.
From:
"Whomever" <[email protected] mil>
To:
mpmt%[email protected]
Subject:: DA Form 2028
1. From: Joe Smith
2. Unit: home
3. Address:4300 Park
4. City: Hometown
5. St: MO
6.
7.
Zip: 77777
Date Sent: 19-OCT-93
8.
9.
10.
11.
Pub no: 55-2840-229-23
Pub Title: TM
Publication Date: 04-JUL-85
Change Number: 7
12. Submitter Rank: MSG
13.
14.
15.
16.
17.
18.
19.
20.
21.
Submitter FName: Joe
Submitter MName: T
Submitter LName: Smith
Submitter Phone: 123-123-1234
Problem: 1
Page: 2
Paragraph: 3
Line: 4
NSN: 5
22. Reference: 6
23. Figure: 7
24. Table: 8
25. Item: 9
26. Total: 123
27. Text:
This is the text for the problem below line 27.
*U.S. GOVERNMENT PRINTING OFFICE: 1996-755-119/40102
The Metric System and Equivalents
Linear Measure
Liquid Measure
1 centiliter = 10 milliliters = .34 fl. ounce
1 deciliter = 10 centiliters = 3.38 fl. ounces
1 liter = 10 deciliters = 33.81 fl. ounces
1 deciliter = 10 liters = 2.64 gallons
1 hectoliter = 10 dekaliters = 26.42 gallons
1 kiloliter = 10 hectoliters = 264.18 gallons
1 centimeter = 10 millimeters = .39 inch
1 decimeter = 10 centimeters = 3.94 inches
1 meter = 10 decimeters = 39.37 inches
1 dekameter = 10 meters = 32.8 feet
1 hectometer = 10 dekameters = 328.08 feet
1 kilometer = 10 hectometers = 3,280.8 feet
Square Measure
Weights
1 sq. centimeter = 100 sq. millimeters = .155 sq. inch
1 sq. decimeter = 100 sq. centimeters = 15.5 sq. inches
1 sq. meter (centare) = 100 sq. decimeters = 10.76 sq. feet
1 sq. dekameter (are) = 100 sq. meters = 1,076.4 sq. feet
1 sq. hectometer (hectare) = 100 sq. dekameters = 2.47 acres
1 sq. kilometer = 100 sq. hectometers = .386 sq. mile
1 centigram = 10 milligrams = .15 grain
1 decigram = 10 centigrams = 1.54 grains
1 gram = 10 decigram = .035 ounce
1 decagram = 10 grams = .35 ounce
1 hectogram = 10 decagrams = 3.52 ounces
1 kilogram = 10 hectograms = 2.2 pounds
1 quintal = 100 kilograms = 220.46 pounds
1 metric ton = 10 quintals = 1.1 short tons
Cubic Measure
1 cu. centimeter = 1000 cu. millimeters = .06 cu. inch
1 cu. decimeter = 1000 cu. centimeters = 61.02 cu. inches
1 cu. meter = 1000 cu. decimeters = 35.31 cu. feet
Approximate Conversion Factors
To change
To
inches
feet
yards
miles
square inches
square feet
square yards
square miles
acres
cubic feet
cubic yards
fluid ounces
pints
quarts
gallons
ounces
pounds
short tons
pound-feet
pound-inches
Multiply by
centimeters
meters
meters
kilometers
square centimeters
square meters
square meters
square kilometers
square hectometers
cubic meters
cubic meters
milliliters
liters
liters
liters
grams
kilograms
metric tons
Newton-meters
Newton-meters
2.540
.305
.914
1.609
6.451
.093
.836
2.590
.405
.028
.765
29,573
.473
.946
3.785
28.349
.454
.907
1.356
.11296
To change
ounce-inches
centimeters
meters
meters
kilometers
square centimeters
square meters
square meters
square kilometers
square hectometers
cubic meters
cubic meters
milliliters
liters
liters
liters
grams
kilograms
metric tons
To
Newton-meters
inches
feet
yards
miles
square inches
square feet
square yards
square miles
acres
cubic feet
cubic yards
fluid ounces
pints
quarts
gallons
ounces
pounds
short tons
Temperature (Exact)
°F
Fahrenheit
temperature
5/9 (after
subtracting 32)
Celsius
temperature
°C
Multiply by
.007062
.394
3.280
1.094
.621
.155
10.764
1.196
.386
2.471
35.315
1.308
.034
2.113
1.057
.264
.035
2.205
1.102
PIN: 075027-001
This fine document...
Was brought to you by me:
Liberated Manuals -- free army and government manuals
Why do I do it? I am tired of sleazy CD-ROM sellers, who take publicly
available information, slap “watermarks” and other junk on it, and sell it.
Those masters of search engine manipulation make sure that their sites that
sell free information, come up first in search engines. They did not create it...
They did not even scan it... Why should they get your money? Why are not
letting you give those free manuals to your friends?
I am setting this document FREE. This document was made by the US
Government and is NOT protected by Copyright. Feel free to share,
republish, sell and so on.
I am not asking you for donations, fees or handouts. If you can, please
provide a link to liberatedmanuals.com, so that free manuals come up first in
search engines:
<A HREF=http://www.liberatedmanuals.com/>Free Military and Government Manuals</A>
– Sincerely
Igor Chudov
http://igor.chudov.com/
– Chicago Machinery Movers
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
