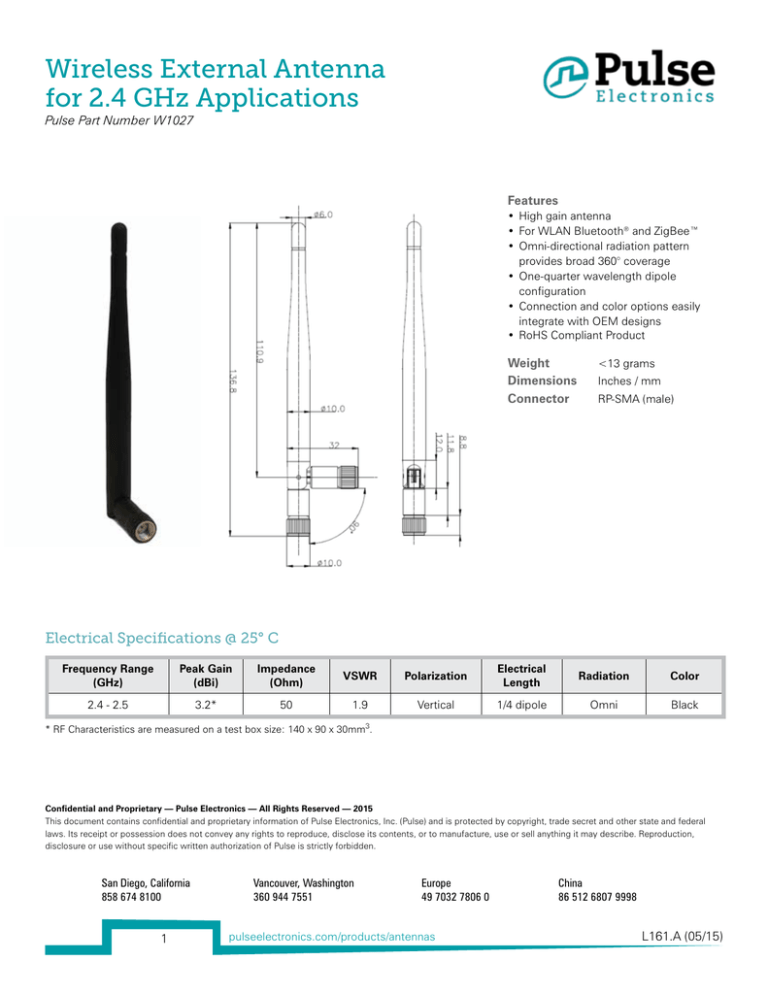

Wireless External Antenna
for 2.4 GHz Applications
Pulse Part Number W1027
Features
• High gain antenna
• For WLAN Bluetooth® and ZigBee™
• Omni-directional radiation pattern
provides broad 360° coverage
• One-quarter wavelength dipole
configuration
• Connection and color options easily
integrate with OEM designs
• RoHS Compliant Product
Weight Dimensions Connector <13 grams
Inches / mm
RP-SMA (male)
Electrical Specifications @ 25° C
Frequency Range
(GHz)
Peak Gain
(dBi)
Impedance
(Ohm)
VSWR
Polarization
Electrical
Length
Radiation
Color
2.4 - 2.5
3.2*
50
1.9
Vertical
1/4 dipole
Omni
Black
* RF Characteristics are measured on a test box size: 140 x 90 x 30mm3.
Confidential and Proprietary — Pulse Electronics — All Rights Reserved — 2015
This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal
laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction,
disclosure or use without specific written authorization of Pulse is strictly forbidden.
San Diego, California
858 674 8100
1
Vancouver, Washington
360 944 7551
Europe
49 7032 7806 0
pulseelectronics.com/products/antennas
China
86 512 6807 9998
L161.A (05/15)
Wireless External Antenna
for 2.4 GHz Applications
Pulse Part Number W1027
Application Notes
Omni-directional antennas provide a uniform, donut-shaped,
360˚ radiation pattern. The omni-directional pattern is suitable for point-to-multipoint broadcasting in all directions.
This antenna can be used for a variety of other applications
within the specified frequency range. When used as an
access point, the antenna is ideally located at the center
of the coverage area.
VERTICAL PLANE
Radiation Pattern
HORIZONTAL PLANE
Radiation Pattern
0
0
2450
-5
2500
60
-15
300
20
-20
-25
-30
90
-35
Power (dBm)
Power (dBm)
2500
60
-15
270
2450
-5
-10
-10
300
30
0
330
30
0
330
2400
5
2400
5
-25
-30
120
120
240
240
180
150
210
150
210
90
-35
270
180
Phi Angle (˚)
Theta Angle (°)
For More Information
Pulse Worldwide Headquarters
12220 World Trade Drive
San Diego, CA 92128
U.S.A.
Larsen Brand Antennas
3611 NE 112th Avenue
Vancouver, WA 98682
USA
Europe Headquarters
Pulse GmbH & Do, KG
Zeppelinstrasse 15
Herrenberg, Germany
Tel: 858 674 8100
Fax: 858 674 8262
Tel: 360 944 7551
Fax: 369 944 7556
Tel: 49 7032 7806 0
Fax: 49 7032 7806 135
2
Pulse (Suzhou) Wireless Products Co, Inc.
99 Huo Ju Road, (#29 Bldg, 4th Phase)
Suzhou New District
Science & Tech Industrial Park
Jiangsu Province, Suzhou 215009 PR China
Tel: 86 512 6807 9998
Fax: 86 512 6809 8023
pulseelectronics.com/products/antennas
Performance warranty of products offered on this data
sheet is limited to the parameters specified. Data is
subject to change without notice. Other brand and
product names mentioned herein may be trademarks
or registered trademarks of their respective owners.
© Copyright, 2015. Pulse Electronics, Inc. All rights
reserved.
L161.A (05/15)
