RV-4F-Q/7F-Q/13F-Q/20F-Q Series Standard Specification Manual (CR750

RV-4F-Q/7F-Q/13F-Q/20F-Q Series Standard Specification Manual (CR750

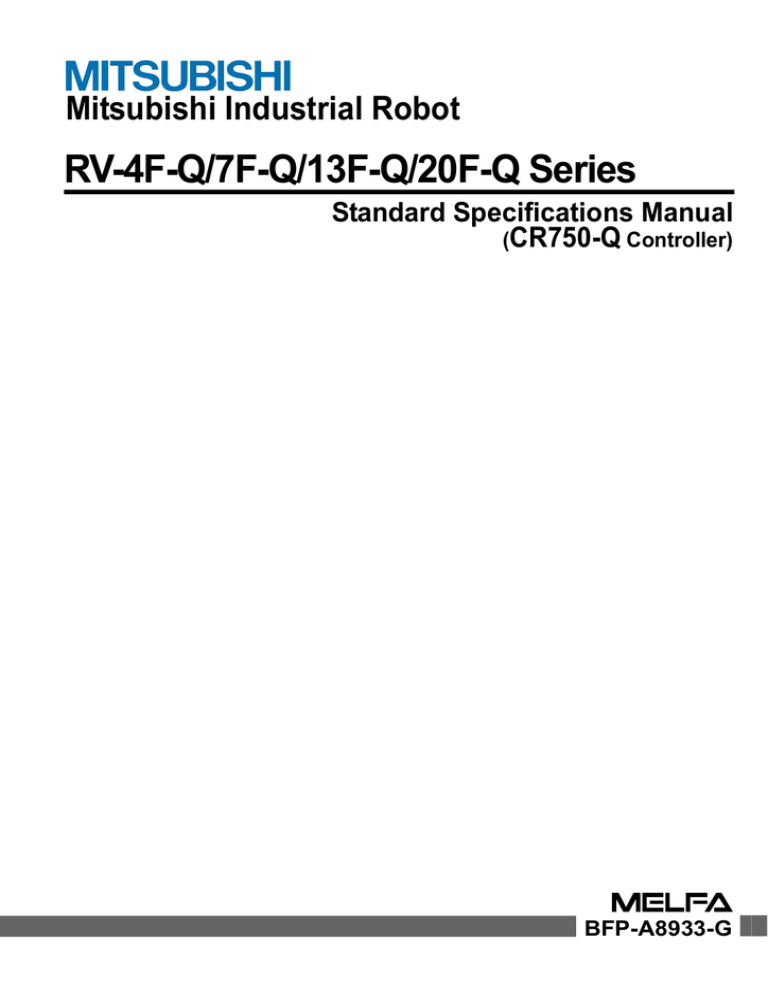

Mitsubishi Industrial Robot

RV-4F-Q/7F-Q/13F-Q/20F-Q Series

Standard Specifications Manual

(

CR750-Q

Controller)

BFP-A8933-G

Safety Precautions

Always read the following precautions and the separate "Safety

Manual" before starting use of the robot to learn the required measures to be taken.

CAUTION

CAUTION

WARNING

CAUTION

WARNING

CAUTION

CAUTION

CAUTION

All teaching work must be carried out by an operator who has received special training. (This also applies to maintenance work with the power source turned

ON.)

Enforcement of safety training

For teaching work, prepare a work plan related to the methods and procedures of operating the robot, and to the measures to be taken when an error occurs or when restarting. Carry out work following this plan. (This also applies to maintenance work with the power source turned ON.)

Preparation of work plan

Prepare a device that allows operation to be stopped immediately during teaching work. (This also applies to maintenance work with the power source turned ON.)

Setting of emergency stop switch

During teaching work, place a sign indicating that teaching work is in progress on the start switch, etc. (This also applies to maintenance work with the power source turned ON.)

Indication of teaching work in progress

Provide a fence or enclosure during operation to prevent contact of the operator and robot.

Installation of safety fence

Establish a set signaling method to the related operators for starting work, and follow this method.

Signaling of operation start

As a principle turn the power OFF during maintenance work. Place a sign indicating that maintenance work is in progress on the start switch, etc.

Indication of maintenance work in progress

Before starting work, inspect the robot, emergency stop switch and other related devices, etc., and confirm that there are no errors.

Inspection before starting work

The points of the precautions given in the separate "Safety Manual" are given below.

Refer to the actual "Safety Manual" for details.

CAUTION

Use the robot within the environment given in the specifications. Failure to do so could lead to a drop or reliability or faults. (Temperature, humidity, atmosphere, noise environment, etc.)

CAUTION

Transport the robot with the designated transportation posture. Transporting the robot in a non-designated posture could lead to personal injuries or faults from dropping.

CAUTION

Always use the robot installed on a secure table. Use in an instable posture could lead to positional deviation and vibration.

CAUTION

Wire the cable as far away from noise sources as possible. If placed near a noise source, positional deviation or malfunction could occur.

CAUTION

Do not apply excessive force on the connector or excessively bend the cable.

Failure to observe this could lead to contact defects or wire breakage.

CAUTION

Make sure that the workpiece weight, including the hand, does not exceed the rated load or tolerable torque. Exceeding these values could lead to alarms or faults.

WARNING

Securely install the hand and tool, and securely grasp the workpiece. Failure to observe this could lead to personal injuries or damage if the object comes off or flies off during operation.

WARNING

Securely ground the robot and controller. Failure to observe this could lead to malfunctioning by noise or to electric shock accidents.

CAUTION

Indicate the operation state during robot operation. Failure to indicate the state could lead to operators approaching the robot or to incorrect operation.

WARNING

When carrying out teaching work in the robot's movement range, always secure the priority right for the robot control. Failure to observe this could lead to personal injuries or damage if the robot is started with external commands.

CAUTION

Keep the jog speed as low as possible, and always watch the robot. Failure to do so could lead to interference with the workpiece or peripheral devices.

CAUTION

After editing the program, always confirm the operation with step operation before starting automatic operation. Failure to do so could lead to interference with peripheral devices because of programming mistakes, etc.

CAUTION

Make sure that if the safety fence entrance door is opened during automatic operation, the door is locked or that the robot will automatically stop. Failure to do so could lead to personal injuries.

CAUTION

Never carry out modifications based on personal judgments, or use nondesignated maintenance parts.

Failure to observe this could lead to faults or failures.

WARNING

When the robot arm has to be moved by hand from an external area, do not place hands or fingers in the openings. Failure to observe this could lead to hands or fingers catching depending on the posture.

CAUTION

CAUTION

Do not stop the robot or apply emergency stop by turning the robot controller's main power OFF. If the robot controller main power is turned OFF during automatic operation, the robot accuracy could be adversely affected. Moreover, it may interfere with the peripheral device by drop or move by inertia of the arm.

Do not turn off the main power to the robot controller while rewriting the internal information of the robot controller such as the program or parameters.

If the main power to the robot controller is turned off while in automatic operation or rewriting the program or parameters, the internal information of the robot controller may be damaged.

■Revision history

Date of print Specifications No.

2012-10-09

2012-10-18

2012-11-20

BFP-A8933

BFP-A8933-A

BFP-A8933-B

2012-12-05

2013-01-17

2013-03-22

2013-04-04

2013-07-19

BFP-A8933-C

BFP-A8933-D

BFP-A8933-E

BFP-A8933-F

BFP-A8933-G

Details of revisions

・ First print.

・ The user's guide of KC mark was added.

・ "1.3 CE marking specifications" was added.

・ The statement about trademark registration was added.

・ The notes of "set the Optimization of overload detection level parameter OLTMX" were added. (Environmental temperature in the table of Standard specifications of robot)

・ The notes about the input-output connected to the controller were added. (do not ground the + side of 24V power supply prepared by customer)

・ ”Declaration of Incorporation” was added.

・ ”Fig. 2-18: Outline dimensional drawing” was added.

・The terminal name to connect when using the three phase specification by the single phase power supply was added.

・ EC-Statement of Compliance was added.

・ Note of the external emergency stop were added (opens the connector terminal at factory shipping).

・ J1 axis operating range change (option) was added.

・ The connector name and pin assignment were added to Wiring and piping system diagram for hand.

・ The description of SH04 and SH05 of Internal wiring and piping specification types was added.

・ ”Table 2-23: Pin assign of hand input cable” and “Table 2-26: Pin assign of hand output cable” were added.

・ The specification description of CR750-MB was added.

・ The outside dimensions and operating ranges of RV-4F/4FL, RV-7F/7FL were changed.

・ The specification description of RV-7FLL, RV-13F and RV-20F were added.

・ The metal plate which fixes CR750 controller vertically was changed. (upward compatibility)

・ ”Table 3-2: Robot CPU unit standard specification” was added.

・ The mass of the controller was shown which was divided by each robot type.

・ The type name of “J1 axis operating range change” for RV-7F series was corrected.

(formerly: 1F-DH-04)

・ The diameter of A/B ports on the optional solenoid valve set for RV-13F/20F series were corrected. (formerly: φ4)

・ The values of "Allowable moment load" and "Allowable inertia" of RV-20F were corrected.

・ ”Table 2-4: Position of center of gravity for loads (for loads with comparatively small volume): RV-20F” was added.

・ The length of the machine cable of a RV-13F series standard configuration equipment was added.

・ ”Declaration of Incorporation” and “EC-Statement of Compliance” were updated.

・ ”Table 2-28 : Pin assign of hand input cable” was corrected.

・ The variations of an optional hand curl tube for RV-13F/13FL/20F were added.

・ ”6.4 EMC installation guideline” was added.

・ Outside dimensions and operating range diagrams of RV-7FLL, RV-13F/20F and RV-13FL were changed.

・ The values of RV-4F series in "Table 2-5: Value of each counter-force" were corrected.

・ The outside dimension and shape of the optional solenoid valve set for RV-13F series was changed.

・ The color of wires of GR2 connector in "2.5.6 Wiring and piping system diagram for hand" was corrected.

・ The cautions of operating in a low temperature environment or after a prolonged stop in

6.3 Precautions for handling” were modified.

・ The caution about fumigation of wood packing was added to ”6.3 Precautions for handling”.

・ The caution about reduction gear of J1 to J3 axes of the RV-13F series was added.

・ The cable length of Forearm external wiring set/Base external wiring set were added.

■ Introduction

This series is a full-scale industrial vertical multi-joint type robot that is designed for use in machining processes and assembling. This series supports varied environments, offering a variety of specifications including clean specification, oil mist specification and long-arm specification.

However, to comply with the target application, a work system having a well-balanced robot arm, periph

eral devices or robot and hand section must be structured.

When creating these standard specifications, we have edited them so that the Mitsubishi robot's charac

teristics and specifications can be easily understood by users considering the implementation of robots.

However, if there are any unclear points, please contact your nearest Mitsubishi branch or dealer.

Mitsubishi hopes that you will consider these standard specifications and use our robots.

Note that in this specification document the specifications related to the robot arm is described

Page 9,

"2 Robot arm" , the specifications related to the controller

Page 77, "3 Controller" , and software functions

and a command list

Page 117, "4 Software"

separately.

This document has indicated the specification of the following types robot.

*RV-4F-Q/RV-4FL-Q (CR750-Q controller) series

Note) Indicates it as RV-4F series.

*RV-7F-Q/RV-7FL-Q (CR750-Q controller) series

Note) Indicates it as RV-7F series.

*RV-7FLL-Q (CR750-Q controller) series

*1)

*RV-13F-Q (CR750-Q controller) series

*1)

*RV-20F-Q (CR750-Q controller) series

*1)

Note) *1) Indicates it as "RV-13F series" for a general name of these robots.

・ No part of this manual may be reproduced by any means or in any form, without prior consent from

Mitsubishi.

・ The contents of this manual are subject to change without notice.

・ The specifications values are based on Mitsubishi standard testing methods.

・ The information contained in this document has been written to be accurate as much as possible.

Please interpret that items not described in this document "cannot be performed." or "alarm may occur".

Please contact your nearest dealer if you find any doubtful, wrong or skipped point.

・ This specifications is original.

・ Microsoft, Windows, Microsoft Windows NT are either registered trademarks or trademarks of

Microsoft Corporation in the United States and/or other countries.

・ The ETHERNET is a registered trademark of the Xerox Corp.

・All other company names and production names in this document are the trademarks or registered trademarks of their respective owners.

Copyright(C) 2012-2013 MITSUBISHI ELECTRIC CORPORATION

i
