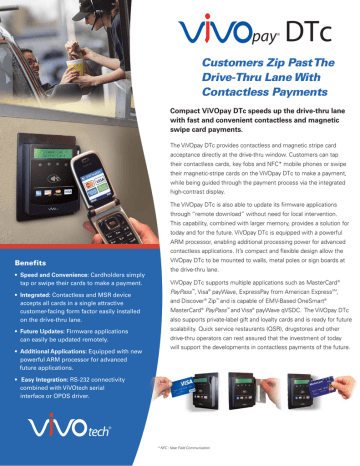

pay
®
DTc
Customers Zip Past The
Drive-Thru Lane With
Contactless Payments
Compact ViVOpay DTc speeds up the drive-thru lane
with fast and convenient contactless and magnetic
swipe card payments.
The ViVOpay DTc provides contactless and magnetic stripe card
acceptance directly at the drive-thru window. Customers can tap
their contactless cards, key fobs and NFC* mobile phones or swipe
their magnetic-stripe cards on the ViVOpay DTc to make a payment,
while being guided through the payment process via the integrated
high-contrast display.
The ViVOpay DTc is also able to update its firmware applications
through “remote download” without need for local intervention.
This capability, combined with larger memory, provides a solution for
today and for the future. ViVOpay DTc is equipped with a powerful
ARM processor, enabling additional processing power for advanced
contactless applications. It’s compact and flexible design allow the
ViVOpay DTc to be mounted to walls, metal poles or sign boards at
Benefits
the drive-thru lane.
• Speed and Convenience: Cardholders simply
tap or swipe their cards to make a payment.
• Integrated: Contactless and MSR device
accepts all cards in a single attractive
customer-facing form factor easily installed
on the drive-thru lane.
• Future Updates: Firmware applications
can easily be updated remotely.
• Additional Applications: Equipped with new
powerful ARM processor for advanced
future applications.
ViVOpay DTc supports multiple applications such as MasterCard ®
PayPass™, Visa® payWave, ExpressPay from American ExpressSM,
and Discover ® Zip™ and is capable of EMV-Based OneSmart®
MasterCard ® PayPass™ and Visa® payWave qVSDC. The ViVOpay DTc
also supports private-label gift and loyalty cards and is ready for future
scalability. Quick service restaurants (QSR), drugstores and other
drive-thru operators can rest assured that the investment of today
will support the developments in contactless payments of the future.
• Easy Integration: RS-232 connectivity
combined with ViVOtech serial
interface or OPOS driver.
®
Single point of acceptance for all major contactless payment cards, key fobs and NFC
phones as well as existing magnetic-stripe cards.
* NFC : Near Field Communication
pay
®
DTc
Features
• Contactless: Accepts transactions from consumers using ISO/IEC 14443
Type A and B, NFC, and MiFare cards and key fobs.
• Compatibility: Interfaces to a variety of POS and ECR machines.
• Remote Download: Post-deployment firmware updates via remote
download without requiring additional hardware or device resetting
• Easy Integration: RS-232 connectivity combined with ViVOtech serial
interface.
Specifications
Hardware
ARM processor
2-line, 64-Character
high-contrast display
2-track bi-directional
Beeper and LEDs
7.5-45VDC, 700mA-1A
Processor:
Display:
MSR:
Audio-Visual:
Input Voltage:
Contactless Transactions
• Speed: Enables quick transactions improving vending machine-based sales
Interface:
• Consumer Intuitive: Equipped with LEDs and sound to provide visual and
audible cues to enable smooth and seamless transactions.
Payment Applications*:
• Secure: Secure Transactions with ISO/IEC 14443 Type A/B chip cards in
conjunction with dynamic CVV/CVC.
• Intellectual Property: Protected by several patent-pending applications.
* ViVOtech, ViVOfob, ViVOcard, ViVOpay, ViVOplatform and ViVOpay DTc are trademarks or registered trademarks of
ViVOtech Corporation. All other trademarks or brand names are the properties of their respective holders.
Features and specifications are subject to change without notice.
Other Contactless
Applications:
13.56MHz ISO 14443
Type A/Type B and MiFare
American Express ExpressPay
Discover Zip
Mastercard PayPass Mstripe
(M/Chip capable)
Visa payWave MSD and
(qVSDC capable)
JCB/Jspeedy
ViVOcard
Pass-Through mode
Connectivity
Interface:
Firmware upgrades:
Serial RS-232
Remote firmware download
Physical Dimensions
(excluding mounting frame)
Height (X):
Length (Y):
Width (Z):
108 mm
85.4 mm
53.5mm
Environmental
Contactless saves 12-18 seconds per transaction and the card never
leaves the consumer’s hands.1
(1) "Results of the PayPass Orlando trial verify that most significat time savings have been recognized in the drive-thru
environment which shaved between 12-18 seconds off the purchase time as compared to cash." - MasterCard International
Domestic offices:
International offices:
ViVOtech
Corporate Headquarters
451 El Camino Real,
Santa Clara, CA 95050
Phone: (408) 248-7001
Singapore
152 Beach Road #02-08
Gateway East Singapore 189721
Phone: (65) 6334-9045
Japan
Shinagawa Intercity
Tower A, Level 28
2-15-1, Konan, Minato-ku
Tokyo 1086028 Japan
Phone: +81 3 6717 4223
P/N: 620-1021-00
Operating Temp.:
Storage Temp.:
Operating Humidity:
Other:
-10F to +150F (-25C to +70C)
-10F to +150F (-25C to +70C)
5% to 95% non condensing
Weather-proofed UV-rated
plastic enclosure
*Specific product specification will depend on hardware and software
configuration.
