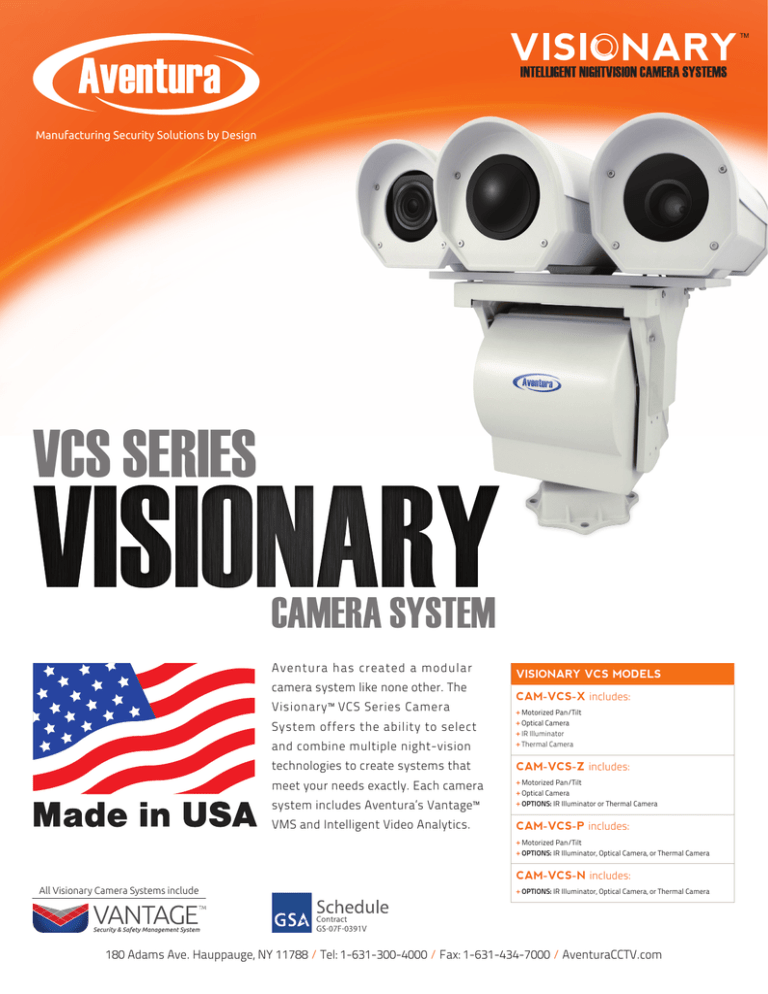

Visionary VCS
Manufacturing Security Solutions by Design
VCS SERIES
CAMERA SYSTEM
Aventura has created a modular
camera system like none other. The
Visionary™ VCS Series Camera
System offers the ability to select
and combine multiple night-vision
VISIONARY VCS MODELS
CAM-VCS-X includes:
+ Motorized Pan/Tilt
+ Optical Camera
+ IR Illuminator
+ Thermal Camera
technologies to create systems that
CAM-VCS-Z includes:
meet your needs exactly. Each camera
+ Motorized Pan/Tilt
+ Optical Camera
+ OPTIONS: IR Illuminator or Thermal Camera
system includes Aventura’s Vantage™
VMS and Intelligent Video Analytics.
CAM-VCS-P includes:
+ Motorized Pan/Tilt
+ OPTIONS: IR Illuminator, Optical Camera, or Thermal Camera
CAM-VCS-N includes:
All Visionary Camera Systems include
+ OPTIONS: IR Illuminator, Optical Camera, or Thermal Camera
180 Adams Ave. Hauppauge, NY 11788 / Tel: 1-631-300-4000 / Fax: 1-631-434-7000 / AventuraCCTV.com
VCS SERIES
CAMERA SYSTEM
THERMAL CAMERA
Detector
Pixel Pitch
Lens Type
Effective Focal Length
Spectral Response
Sensitivity
Framerate
Uncooled VOx Microbolometer
17 µm
Athermalized Fixed Focus
320 x 240 Resolution
7.5 mm @ f/1.2, 40° HFOV
19 mm @ f/1.1, 16° HFOV
35 mm @ f/1.2, 9° HFOV
640 x 480 Resolution
14.25 mm @ f/1.2, 44° HFOV
16.7 mm @ f/1.25, 37° HFOV
25 mm @ f/1.2, 25° HFOV
35 mm @ f/1.2, 18° HFOV
50 mm @ f/1.2, 12° HFOV
65 mm @ f/1.25, 9° HFOV
8 – 14 µm (LWIR)
≤50 mK
30 fps (NTSC) or 25 fps (PAL), 9Hz also available
OPTICAL CAMERA
Signal System
Imaging Device
Resolution
Effective Pixels
Lens
Field of View (H)
Min. Illumination
Mechanical IR Cut Filter
Wide Dynamic Range
Video Out
36x Analog Camera
NTSC or PAL
1/4” High Sensitivity CCD
Color: 600 TVL / B/W: 650 TVL
NTSC: 768 x 494 / PAL: 752 x 582
3.43-122.4mm, f/1.6 (W) ~ f/4.5 (T)
1.7° ~ 57.8°
Day Mode: 0.1 Lux
Night Mode: 0.02 Lux
Sense-Up Mode: 0.0002 Lux


1Vp-p, 75 Ohm, BNC (Composite Video Signal)
20x IP Camera
IP Ethernet
1/3” CMOS
2 Megapixel - 1080p / 1080i / 720p
1920 x 1080
4.7m ~ 94.0mm, f/1.6 (W) ~ f/3.5 (T)
2.9° ~ 55.2°
Day Mode: 1.8 Lux
Night Mode: 0.02 Lux

H.264 Dual Stream
ILLUMINATOR
Spectrum
Effective Range
IR LED
Infrared 810nm
100m
IR Laser
Infrared 810nm
300m
ADDITIONAL FEATURES
Digital Zoom
Back Light Compensation
Auto White Balance
On-Screen Display
36x Analog Camera
12x



20x IP Camera
12x



PAN / TILT
Pan Range
Pan Speed
Tilt Range
Tilt Speed
Accuracy
Presets
Protocol
Comm. Speed
Serial Communication
360º Continuous
.01º ~ 60º/S
VCS-P, VCS-X: -75º ~ +40º / VCS-Z: -90º ~ +90º
.01º ~ 30º/S
≤0.2º
80
Pelco-D (Pelco-P available)
2,400 / 4,800 / 9,600 / 19,200 bps
RS-485
ENVIRONMENT
Operating Temperature
Operating Humidity
Operating Environment
Heater
Blower
Ingress Protection
-20°C ~ +65°C / -35°C ~ +65°C (w/ heater)
≤90% (non-condensing)
Indoor/Outdoor
Optional
Optional
IP66
ELECTRICAL
Input Voltage
Power Consumption
AC24V ± 10%
VCS-N: ≤36W / VCS-P: ≤135 W / VCS-Z: ≤170 W / VCS-X: ≤205 W (w/ heater and blower)
GENERAL
Material
Weight
Dimensions
Regulatory Type
Warranty
Aluminum alloy
VCS-N: 3 Kg - VCS-P: 16 Kg - VCS-Z: 19 Kg - VCS-X: 22 Kg
VCS-N: 322mm (L) x 90mm (W) x 72.5mm (H)
VCS-P: 322mm (L) x 230mm (W) x 375mm (H)
VCS-Z: 322mm (L) x 470mm (W) x 269mm (H)
VCS-X: 322mm (L) x 295mm (W) x 375mm (H)
FCC, CE, UL
1 Year
All product, product specifications and data are subject to change without notice to improve Reliability, function or design or otherwise.
180 Adams Ave. Hauppauge, NY 11788 / Tel: 1-631-300-4000 / Fax: 1-631-434-7000 / AventuraCCTV.com
