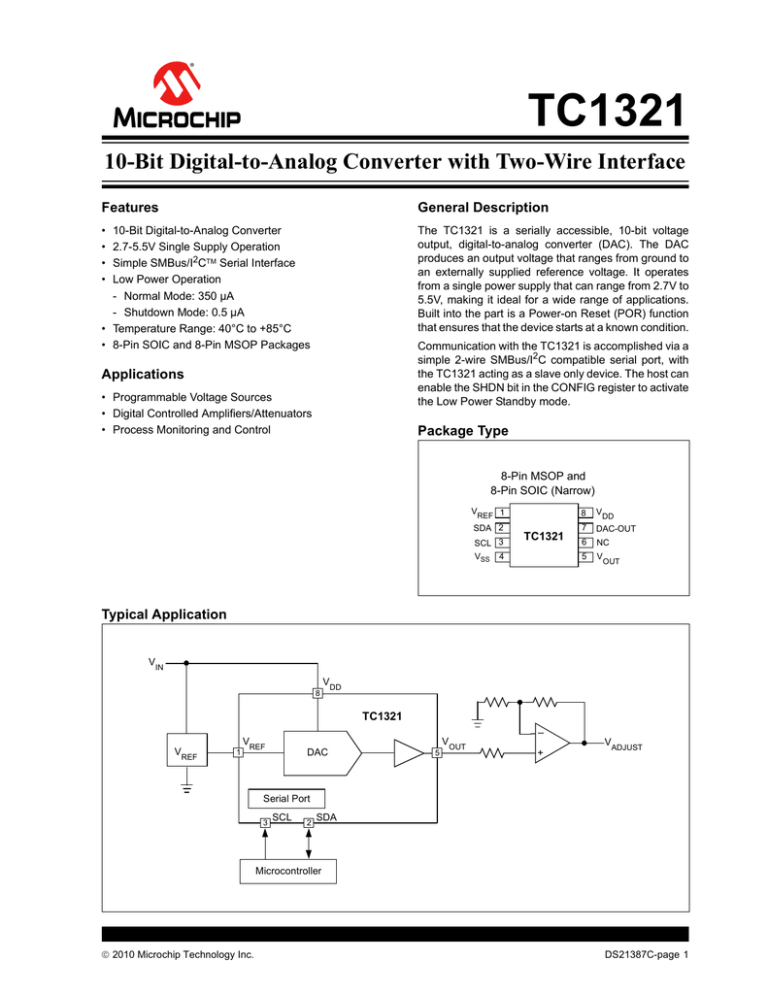

TC1321
10-Bit Digital-to-Analog Converter with Two-Wire Interface
Features
General Description
•
•
•
•
The TC1321 is a serially accessible, 10-bit voltage
output, digital-to-analog converter (DAC). The DAC
produces an output voltage that ranges from ground to
an externally supplied reference voltage. It operates
from a single power supply that can range from 2.7V to
5.5V, making it ideal for a wide range of applications.
Built into the part is a Power-on Reset (POR) function
that ensures that the device starts at a known condition.
10-Bit Digital-to-Analog Converter
2.7-5.5V Single Supply Operation
Simple SMBus/I2CTM Serial Interface
Low Power Operation
- Normal Mode: 350 µA
- Shutdown Mode: 0.5 µA
• Temperature Range: 40°C to +85°C
• 8-Pin SOIC and 8-Pin MSOP Packages
Communication with the TC1321 is accomplished via a
simple 2-wire SMBus/I2C compatible serial port, with
the TC1321 acting as a slave only device. The host can
enable the SHDN bit in the CONFIG register to activate
the Low Power Standby mode.
Applications
• Programmable Voltage Sources
• Digital Controlled Amplifiers/Attenuators
• Process Monitoring and Control
Package Type
8-Pin MSOP and
8-Pin SOIC (Narrow)
V
REF 1
8
V
SDA 2
7
DAC-OUT
6
NC
5
V
SCL 3
VSS
TC1321
4
DD
OUT
Typical Application
VIN
8
VDD
TC1321
VREF
1
VREF
DAC
5
V OUT
–
+
VADJUST
Serial Port
3
SCL
2
SDA
Microcontroller
 2010 Microchip Technology Inc.
DS21387C-page 1
TC1321
Functional Block Diagram
VDD
SDA
SCL
TC1321
Configuration Register
Serial Port
Interface
Data Register
Control
Circuit
DAC-OUT
VREF
DS21387C-page 2
V
DAC
OUT
VSS
 2010 Microchip Technology Inc.
TC1321
1.0
ELECTRICAL
CHARACTERISTICS
Absolute Maximum Ratings*
Supply Voltage (VDD) ........................................................+6V
Voltage on any Pin ....................(VSS – 0.3V) to (VDD + 0.3V)
Current on any Pin ......................................................±50 mA
Package Thermal Resistance (JA)....................... 330°C C/W
Operating Temperature (TA)................................... See Below
Storage Temperature (TSTG) .........................-65°C to +150°C
*Stresses above those listed under “Absolute Maximum
Ratings” may cause permanent damage to the device. These
are stress ratings only and functional operation of the device
at these or any other conditions above those indicated in the
operation sections of the specifications is not implied.
Exposure to Absolute Maximum Rating conditions for
extended periods may affect device reliability.
ELECTRICAL SPECIFICATIONS
Electrical Characteristics: VDD = 2.7V to 5.5V, -40°C  TA  +85°C, VREF = 1.2 V unless otherwise noted.
Symbol
Parameter
Min
Typ
Max
Unit
Test Conditions
Power Supply
VDD
Supply Voltage
2.7
—
5.5
V
IDD
Operating Current
—
350
500
µA
VDD = 5.5V, VREF = 1.2V
Serial Port Inactive (Note 1)
IDD-
Standby Supply Current
—
0.1
1
µA
VDD = 3.3V
Serial Port Inactive (Note 1)
Resolution
—
—
10
Bits
Integral Non-Linearity at FS, TA = +25°C
—
—
±4.0
LSB
FSE
Full Scale Error
—
—
±3
%FS
DNL
Differential Non-Linearity, TA = +25°C
-1
—
+2
LSB
All Codes (Note 2)
VOS
Offset Error at VOUT
—
±0.3
±8
mV
(Note 2)
TCVOS
Offset Error Tempco at VOUT
—
10
—
µv/°C
PSRR
Power Supply Rejection Ratio
—
80
—
dB
VREF
Voltage Reference Range
0
—
VDD – 1.2
V
IREF
Reference Input Leakage Current
—
—
±1.0
µA
VSW
Voltage Swing
0
—
VREF
V
VREF  (VDD – 1.2V)
ROUT ()
STANDBY
Static Performance - Analog Section
INL
ROUT
Output Resistance @ VOUT
—
5.0
—

IOUT
Output Current (Source or Sink)
—
2
—
mA
ISC
Output Short-Circuit Current
VDD = 5.5V
—
—
30
20
50
50
mA
mA
(Note 2)
VDD at DC
Source
Sink
Dynamic Performance
SR
Voltage Output Slew Rate
—
0.8
—
V/µs
tSETTLE
Output Voltage Full Scale Settling Time
—
10
—
µs
tWU
Wake-up Time
—
20
—
µs
Digital Feed Through and Crosstalk
—
5
—
nV-s
SDA = VDD, SCL = 100 kHz
Serial Port Interface
VIH
Logic Input High
2.4
—
VDD
V
VIL
Logic Input Low
—
—
0.6
—
VOL
SDA Output Low
—
—
—
—
0.4
0.6
V
V
IOL = 3 mA (Sinking Current)
IOL = 6 mA
Note 1: SDA and SCL must be connected to VDD or VSS.
2: Measured at VOUT 50 mV referred to VSS to avoid output buffer clipping.
 2010 Microchip Technology Inc.
DS21387C-page 3
TC1321
ELECTRICAL SPECIFICATIONS (CONTINUED)
Electrical Characteristics: VDD = 2.7V to 5.5V, -40°C  TA  +85°C, VREF = 1.2 V unless otherwise noted.
Parameter
Min
Typ
Max
Unit
CIN
Symbol
Input Capacitance (SDA and SCL pins)
—
5
0.4
pF
ILEAK
I/O Leakage
—
—
±1.0
µA
Test Conditions
Serial Port AC Timing
fSMB
SMBus Clock Frequency
10
—
100
kHz
tIDLE
Bus Free Time Prior to New Transition
4.7
—
—
µs
tH(START)
START Condition Hold Time
4.0
—
—
µs
tSU(START)
START Condition Setup Time
4.7
—
—
µs
tSU(STOP)
STOP Condition Setup Time
4.0
—
—
µs
tH-DATA
Data In Hold Time
100
—
—
ns
90% SCL to 10% SDA
(for Repeated START
Condition)
tSU-DATA
Data In Setup Time
100
—
—
ns
tLOW
Low Clock Period
4.7
—
—
µs
10% to 10%
tHIGH
High Clock Period
4
—
—
µs
90% to 90%
tF
SMBus Fall Time
—
—
300
ns
90% to 10%
tR
SMBus Rise Time
—
—
1000
ns
10% to 90%
tPOR
Power-on Reset Delay
—
500
—
µs
VDD VPOR (Rising Edge)
Note 1: SDA and SCL must be connected to VDD or VSS.
2: Measured at VOUT 50 mV referred to VSS to avoid output buffer clipping.
TEMPERATURE CHARACTERISTICS
Electrical Specifications: VDD = 2.7V to 5.5V, -40°C  TA  +85°C, VREF = 1.2V unless otherwise noted.
Parameters
Symbol
Min
Typ
Max
Units
Operating Temperature Range
TA
-40
—
+85
°C
Storage Temperature Range
TA
-65
—
150
°C
Thermal Resistance, 8L SOIC
JA
—
149.5
—
°C/W
Thermal Resistance, 8L MSOP
JA
—
211
—
°C/W
Conditions
Temperature Ranges
Thermal Package Resistances
DS21387C-page 4
 2010 Microchip Technology Inc.
TC1321
2.0
PIN DESCRIPTIONS
The descriptions of the pins are listed in Table 2-1.
TABLE 2-1:
Pin Number
2.1
PIN FUNCTION TABLE
Pin Name
Type
Description
1
VREF
Input
Voltage Reference Input Pin
2
SDA
Bi-Directional
Serial Data Input/Output Pin
3
SCL
Input
Serial Clock Input Pin
4
VSS
Power
Ground Reference Pin
5
VOUT
Output
Buffered Analog Voltage Output Pin
6
NC
None
No connection
7
DAC-OUT
Output
Unbuffered Analog Voltage Output Pin
8
VDD
Power
Positive Power Supply Input Pin
External Voltage Reference Input
(VREF)
Voltage Reference Input can range from 0V to 1.2V
below VDD.
2.6
No Connection (NC)
There is not a connection at this pin.
2.7
Output (DAC-OUT)
Serial data is transferred on the SMBus in both
directions using this pin.
Unbuffered DAC output voltage. This voltage is a
function of the reference voltage and the contents of
the DATA register. This output is unbuffered and care
must be taken that the pin is connected only to a
high-impedance node.
2.3
2.8
2.2
Bi-Directional Serial Data Input
and Output (SDA)
Serial Clock Input (SCL)
SMBus/I2C serial clock. Clocks data into and out of the
TC1321.
2.4
Positive Power Supply Input (VDD)
See the Electrical Specifications table.
Supply Power Ground (VSS)
The ground reference pin.
2.5
Output (VOUT)
Buffered DAC output voltage. This voltage is a function
of the reference voltage and the contents of the DATA
register.
 2010 Microchip Technology Inc.
DS21387C-page 5
TC1321
NOTES:
DS21387C-page 6
 2010 Microchip Technology Inc.
TC1321
3.0
DETAILED DESCRIPTION
3.2
Output Amplifier
The TC1321 is a monolithic 10-bit digital-to-analog
converter that is designed to operate from a single
supply that can range from 2.7V to 5.5V. The DAC
consists of a data register (DATA), a configuration
register (CONF), and a current output amplifier. The
TC1321 uses an external reference which also
determines the maximum output voltage.
The TC1321 DAC output is buffered with an internal
unity gain rail-to-rail input/output amplifier with a typical
slew rate of 0.8V/µs. Maximum full scale transition
settling time is 10 µsec to within ±1/2LSB when loaded
with 1 k in parallel with 100 pF.
The TC1321 uses a current steering DAC based on an
array of matched current sources. This current, along
with a precision resistor, converts the contents of the
DATA Register and VREF into an output voltage, VOUT,
that is given by:
The TC1321 allows the host to put it into a Low Power
(IDD = 0.5 µA, typically) Standby mode.
DATA
V OUT = VREF  ---------------1024
3.1
3.3
In this mode, the D/A conversion is halted. The SMBus
port operates normally. Standby mode is enabled by
setting the SHDN bit in the CONFIG register. Table 3-1
summarizes this operation.
TABLE 3-1:
Reference Input
The reference pin, VREF, is a buffered high-impedance
input. Because of this, the load regulation of the
reference source needs only to be able to tolerate
leakage levels of current (less than 1 µA). VREF
accepts a voltage range from 0 to (VDD – 1.2V). Input
capacitance is typically 10 pF.
 2010 Microchip Technology Inc.
Standby Mode
3.4
STANDBY MODE OPERATION
SHDN Bit
Operating Mode
0
Normal
1
Standby
SMBus Slave Address
The TC1321 is internally programmed to have a default
SMBus address value of 1001 000b. Seven other
addresses are available by custom order (contact
Microchip Worldwide Sales and Service). See
Figure 3-1 for the location of address bits in SMBus
protocol.
DS21387C-page 7
TC1321
Write 1-Byte Format
S
Address
R/W
7-Bits
0
Command
ACK
ACK
8-Bits
Slave Address
Data
ACK
P
8-Bits
Command Byte: selects
which register you are
writing to.
Data Byte: data goes
into the register set
by the command byte.
Write 2-Byte Format
S
Address
R/W
7-Bits
0
Command
ACK
ACK
8-Bits
Slave Address
Data
ACK
8-Bits
Command Byte: selects
which register you are
writing to.
Data
ACK
P
NACK
P
8-Bits
Data Byte: data goes
into the register set
by the command byte.
Read 1-Byte Format
S
Address
7-Bits
R/W ACK Command
0
ACK
R/W ACK Data
Address
S
8-Bits
1
7-Bits
NACK
P
8-Bits
Command Byte: selects Slave Address: repeated Data Byte: reads from
which register you are
due to change in data
the register set by the
reading from.
flow direction.
command byte.
Slave Address
Read 2-Byte Format
S
Address
7-Bits
R/W ACK Command
0
ACK
Slave Address
R/W ACK Data
Address
S
8-Bits
1
7-Bits
Command Byte: selects
which register you are
reading from.
8-Bits
ACK
Data
8-Bits
Slave Address: repeated Data Byte: reads from
due to change in data
the register set by the
flow direction.
command byte.
Receive 1-Byte Format
S
Address
7-Bits
R/W ACK
1
Data
NACK P
8-Bits
S = START Condition
Data Byte: reads data from
P = STOP Condition
the register commanded by
Shaded = Slave Transmission the last read-byte or writebyte transmission.
Receive 1-Byte Format
S
Address
7-Bits
R/W ACK
1
Data
ACK
8-Bits
Data
NACK
P
8-Bits
Data Byte: reads data from
S = START Condition
the register commanded by
P = STOP Condition
Shaded = Slave Transmission the last read-byte or writebyte transmission.
FIGURE 3-1:
DS21387C-page 8
SMBus/I2C Protocols.
 2010 Microchip Technology Inc.
TC1321
4.0
SERIAL PORT OPERATION
4.1
START Condition (START)
The Serial Clock input (SCL) and bi-directional data
port (SDA) form a 2-wire bi-directional serial port for
programming and interrogating the TC1321. The
following conventions are used in this bus architecture.
The TC1321 continuously monitors the SDA and SCL
lines for a START condition (a HIGH to LOW transition
of SDA while SCL is HIGH), and will not respond until
this condition is met.
TABLE 4-1:
4.2
Term
TC1321 SERIAL BUS
CONVENTIONS
Explanation
Transmitter The device sending data to the bus.
Receiver
The device receiving data from the bus.
Master
The device that controls the bus: initiating
transfers (START), generating the clock, and
terminating transfers (STOP)
Slave
The device addressed by the master.
START
A unique condition signaling the beginning of
a transfer, indicated by SDA falling (High Low) while SCL is high.
STOP
A unique condition signaling the end of a
transfer, indicated by SDA rising (Low - High)
while SCL is high.
Address Byte
Immediately following the START condition, the host
must transmit the address byte to the TC1321. The
7-bit SMBus address for the TC1321 is 1001000. The
7-bit address transmitted in the serial bit stream must
match for the TC1321 to respond with an Acknowledge
(indicating the TC1321 is on the bus and ready to
accept data). The eighth bit in the Address Byte is a
Read-Write bit. This bit is a 1 for a read operation or 0
for a write operation. During the first phase of any
transfer, this bit will be set = 0 to indicate that the
command byte is being written.
4.3
Acknowledge (ACK)
ACK
A receiver acknowledges the receipt of each
byte with this unique condition. The receiver
drives SDA low during SCL, high of the ACK
clock pulse.The master provides the clock
pulse for the ACK cycle.
Acknowledge (ACK) provides a positive handshake
between the host and the TC1321. The host releases
SDA after transmitting eight bits, then generates a ninth
clock cycle to allow the TC1321 to pull the SDA line
LOW to Acknowledge that it successfully received the
previous eight bits of data or address.
Busy
Communication is not possible because the
bus is in use.
4.4
Not Busy
When the bus is IDLE, both SDA and SCL will
remain high.
Data Valid
The state of SDA must remain stable during
the High period of SCL in order for a data bit
to be considered valid. SDA only changes
state while SCL is low during normal data
transfers. See START and STOP conditions.
All transfers take place under control of a host, usually
a CPU or microcontroller, acting as the master, which
provides the clock signal for all transfers. The TC1321
always operates as a slave. The serial protocol is
illustrated in Figure 4-1. All data transfers have two
phases; all bytes are transferred MSB first. Accesses
are initiated by a START condition (START), followed
by a device-address byte and one or more data bytes.
The device-address byte includes a Read/Write
selection bit. Each access must be terminated by a
STOP Condition (STOP). A convention called
Acknowledge (ACK) confirms receipt of each byte.
Note that SDA can change only during periods when
SCL is LOW (SDA changes while SCL is HIGH are
reserved for START and STOP conditions).
 2010 Microchip Technology Inc.
Data Byte
After a successful ACK of the address byte, the host
must transmit the data byte to be written or clock out
the data to be read. (See the appropriate timing
diagrams.) ACK will be generated after a successful
write of a data byte into the TC1321.
4.5
Stop Condition (STOP)
Communications must be terminated by a STOP
condition (a LOW to HIGH transition of SDA while SCL
is HIGH). The STOP condition must be communicated
by the transmitter to the TC1321. Refer to Figure 4-1,
for serial bus timing.
DS21387C-page 9
TC1321
Write Timing Diagram
A
B
ILOW I
HIGH
C
D
E F
G
H
K
J
I
SCL
SDA
tSU(START) tH(START)
tSU(STOP)
tSU-DATA
E = Slave Pulls SDA Line Low
F = Acknowledge Bit Clocked into Master
G = MSB of Data Clocked into Master
H = LSB of Data Clocked into Master
A = START Condition
B = MSB of Address Clocked into Slave
C = LSB of Address Clocked into Slave
D = R/W Bit Clocked into Slave
tIDLE
I = Acknowledge Clock Pulse
J = STOP Condition
K = New START Condition
Read Timing Diagram
A
B
ILOW IHIGH
C
D
E F
G
H
I
J
K
L
M
SCL
SDA
tSU(START) tH(START)
A = START Condition
B = MSB of Address Clocked into Slave
C = LSB of Address Clocked into Slave
D = R/W Bit Clocked into Slave
E = Slave Pulls SDA Line Low
FIGURE 4-1:
DS21387C-page 10
tSU-DATA
tH-DATA
F = Acknowledge Bit Clocked into Master
G = MSB of Data Clocked into Slave
H = LSB of Data Clocked into Slave
I = Slave Pulls SDA Line Low
tSU(STOP) tIDLE
J = Acknowledge Clocked into Master
K = Acknowledge Clock Pulse
L = STOP Condition, Data Executed by Slave
M = New START Condition
SMBus/I2CTiming Diagrams.
 2010 Microchip Technology Inc.
TC1321
4.6
Register Set and Programmer’s Model
TABLE 4-2:
TC1321 COMMAND SET (READ_BYTE AND WRITE_BYTE)
Command Byte Description
Command
Code
RWD
00h
Read/Write Data (DATA)
RWCR
01h
Read/Write Configuration (CONFIG)
TABLE 4-3:
Function
CONFIGURATION REGISTER (CONFIG), 8-BIT, READ/WRITE
Configuration Register (CONFIG)
Bit
Name
D[7]
D[6]
D[5]
D[4]
D[3]
D[2]
D[1]
D[0]
Reserved
(Note 1)
Bit
Function
SHDN
(Note 2)
Note 1: Always returns ‘0’ when reading
2: 1 = Standby (Shut down) mode
0 = Normal mode
TABLE 4-4:
DATA REGISTER (DATA), 10-BIT, READ/WRITE
Data Register (DATA) for 2nd Byte
Data Register (DATA) for 1st Byte
D[9]
D[8]
D[7]
D[6]
D[5]
D[4]
D[3]
D[2]
D[1]
D[0]
X
X
X
X
X
X
MSB
X
X
X
X
X
X
X
X
LSB
X
X
X
X
X
X
The DAC output voltage is a function of reference
voltage and the binary value of the contents of the
register DATA. The transfer function is given by the
expression:
EQUATION 4-1:
DATA
V OUT = VREF  ---------------1024
4.7
Register Set Summary
The register set for the TC1321 is summarized in
Table 4-5.
TABLE 4-5:
Name
Data
Config
TC1321 REGISTER SET SUMMARY
Description
POR State
Read
Write
DATA Register
(2-Byte Format)
0000000000b
X
X
CONFIG Register
0000 0000b
X
X
 2010 Microchip Technology Inc.
DS21387C-page 11
TC1321
NOTES:
DS21387C-page 12
 2010 Microchip Technology Inc.
TC1321
5.0
PACKAGING INFORMATION
5.1
Package Marking Information
8-Lead SOIC (150 mil)
TC1321E
e3
OA^^1029
256
XXXXXXXX
XXXXYYWW
NNN
8-Lead MSOP
Example
XXXXXX
1321E
YWWNNN
029256
Legend: XX...X
Y
YY
WW
NNN
e3
*
Note:
Example
Customer-specific information
Year code (last digit of calendar year)
Year code (last 2 digits of calendar year)
Week code (week of January 1 is week ‘01’)
Alphanumeric traceability code
Pb-free JEDEC designator for Matte Tin (Sn)
This package is Pb-free. The Pb-free JEDEC designator ( e3 )
can be found on the outer packaging for this package.
In the event the full Microchip part number cannot be marked on one line, it will
be carried over to the next line, thus limiting the number of available
characters for customer-specific information.
 2010 Microchip Technology Inc.
DS21387C-page 13
TC1321
Note:
For the most current package drawings, please see the Microchip Packaging Specification located at
http://www.microchip.com/packaging
DS21387C-page 14
 2010 Microchip Technology Inc.
TC1321
Note:
For the most current package drawings, please see the Microchip Packaging Specification located at
http://www.microchip.com/packaging
 2010 Microchip Technology Inc.
DS21387C-page 15
TC1321
/HDG3ODVWLF6PDOO2XWOLQH2$±1DUURZPP%RG\>62,&@
1RWH
!
"#$%&"'""
($)
%
*++&&&!
!+$
DS21387C-page 16
 2010 Microchip Technology Inc.
TC1321
/HDG3ODVWLF0LFUR6PDOO2XWOLQH3DFNDJH8$>[email protected]
1RWH
!
"#$%&"'""
($)
%
*++&&&!
!+$
D
N
E
E1
NOTE 1
1
2
e
b
A2
A
c
φ
L
L1
A1
A"
!"
E!"
G#!8
)("
EE;;
G
G
GH
J
(
H5L
N
K<[email protected]
N
%%($$""
<
<
<
%
))
1
N
1<
H5O%
;
%%($O%
;1
[email protected]
H5E
[email protected]
E
E
E1
11
[email protected]
K
<;
Q
N
Q
E%$""
N
=
E%O%
8
N
1RWHV
1 (15"#%7)#!5'8#!#"8
%&%
!"
"%;1%
#%!
%)"
#"
"
%)"
#"
""
7%1<!!"%
= !"
%
;>1<
[email protected]* ?"!"
75#"
&&
#
"
;* )!"
'#"#&
#
')
)
!
#
""
& @111?
 2010 Microchip Technology Inc.
DS21387C-page 17
TC1321
8-Lead Plastic Micro Small Outline Package (UA) [MSOP]
Note:
For the most current package drawings, please see the Microchip Packaging Specification located at
http://www.microchip.com/packaging
DS21387C-page 18
 2010 Microchip Technology Inc.
TC1321
APPENDIX A:
REVISION HISTORY
Revision C (November 2010)
The following is the list of modifications:
1.
2.
3.
4.
Updated the Electrical Specifications table.
Updated Section 5.0 “Packaging Information”. Replaced the older package drawings
with current drawings from the Microchip Packaging Specification (DS00049BF).
Added the Revision History section.
Updated the Product Identification System
section.
Revision B (May 2008)
• Undocumented changes.
Revision A (November 2007)
• Original Release of this Document.
 2010 Microchip Technology Inc.
DS21387C-page 19
TC1321
NOTES:
DS21387C-page 20
 2010 Microchip Technology Inc.
TC1321
PRODUCT IDENTIFICATION SYSTEM
To order or obtain information, e.g., on pricing or delivery, refer to the factory or the listed sales office.
PART NO.
X
/XX
XXX
Device
Temperature
Range
Package
Pattern
Device
Tape and Reel
TC1321: 10-Bit Digital-to-Analog Converter with Two-Wire
Interface
TR
=
Examples:
a)
b)
TC1321VUA:
TC1321VUATR:
c)
d)
TC1321EUA:
TC1321EUATR:
e)
f)
TC1321EOA:
TC1321EOATR:
g)
h)
TC1321VOA:
TC1321VOATR:
Tape and Reel
Temperature Range
I
= -40C to
Package
OA
UA
=
=
+85C
(Industrial)
8LD MSOP package.
Tape and Reel
8LD MSOP package.
8LD MSOP package.
Tape and Reel,
8LD MSOP package.
8LD SOIC package.
Tape and Reel
8LD SOIC package.
8LD SOIC package.
Tape and Reel
8LD SOIC package.
Small Outline Package (SOIC), (3,90 mm) 8-lead
Micro Small Outline Package (MSOP), 8-lead
 2010 Microchip Technology Inc.
DS21387C-page 21
TC1321
NOTES:
DS21387C-page 22
 2010 Microchip Technology Inc.
Note the following details of the code protection feature on Microchip devices:
•
Microchip products meet the specification contained in their particular Microchip Data Sheet.
•
Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the
intended manner and under normal conditions.
•
There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our
knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip’s Data
Sheets. Most likely, the person doing so is engaged in theft of intellectual property.
•
Microchip is willing to work with the customer who is concerned about the integrity of their code.
•
Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not
mean that we are guaranteeing the product as “unbreakable.”
Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our
products. Attempts to break Microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts
allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.
Information contained in this publication regarding device
applications and the like is provided only for your convenience
and may be superseded by updates. It is your responsibility to
ensure that your application meets with your specifications.
MICROCHIP MAKES NO REPRESENTATIONS OR
WARRANTIES OF ANY KIND WHETHER EXPRESS OR
IMPLIED, WRITTEN OR ORAL, STATUTORY OR
OTHERWISE, RELATED TO THE INFORMATION,
INCLUDING BUT NOT LIMITED TO ITS CONDITION,
QUALITY, PERFORMANCE, MERCHANTABILITY OR
FITNESS FOR PURPOSE. Microchip disclaims all liability
arising from this information and its use. Use of Microchip
devices in life support and/or safety applications is entirely at
the buyer’s risk, and the buyer agrees to defend, indemnify and
hold harmless Microchip from any and all damages, claims,
suits, or expenses resulting from such use. No licenses are
conveyed, implicitly or otherwise, under any Microchip
intellectual property rights.
Trademarks
The Microchip name and logo, the Microchip logo, dsPIC,
KEELOQ, KEELOQ logo, MPLAB, PIC, PICmicro, PICSTART,
PIC32 logo, rfPIC and UNI/O are registered trademarks of
Microchip Technology Incorporated in the U.S.A. and other
countries.
FilterLab, Hampshire, HI-TECH C, Linear Active Thermistor,
MXDEV, MXLAB, SEEVAL and The Embedded Control
Solutions Company are registered trademarks of Microchip
Technology Incorporated in the U.S.A.
Analog-for-the-Digital Age, Application Maestro, CodeGuard,
dsPICDEM, dsPICDEM.net, dsPICworks, dsSPEAK, ECAN,
ECONOMONITOR, FanSense, HI-TIDE, In-Circuit Serial
Programming, ICSP, Mindi, MiWi, MPASM, MPLAB Certified
logo, MPLIB, MPLINK, mTouch, Omniscient Code
Generation, PICC, PICC-18, PICDEM, PICDEM.net, PICkit,
PICtail, REAL ICE, rfLAB, Select Mode, Total Endurance,
TSHARC, UniWinDriver, WiperLock and ZENA are
trademarks of Microchip Technology Incorporated in the
U.S.A. and other countries.
SQTP is a service mark of Microchip Technology Incorporated
in the U.S.A.
All other trademarks mentioned herein are property of their
respective companies.
© 2010, Microchip Technology Incorporated, Printed in the
U.S.A., All Rights Reserved.
Printed on recycled paper.
ISBN: 978-1-60932-567-1
Microchip received ISO/TS-16949:2002 certification for its worldwide
headquarters, design and wafer fabrication facilities in Chandler and
Tempe, Arizona; Gresham, Oregon and design centers in California
and India. The Company’s quality system processes and procedures
are for its PIC® MCUs and dsPIC® DSCs, KEELOQ® code hopping
devices, Serial EEPROMs, microperipherals, nonvolatile memory and
analog products. In addition, Microchip’s quality system for the design
and manufacture of development systems is ISO 9001:2000 certified.
 2010 Microchip Technology Inc.
DS21387C-page 23
Worldwide Sales and Service
AMERICAS
ASIA/PACIFIC
ASIA/PACIFIC
EUROPE
Corporate Office
2355 West Chandler Blvd.
Chandler, AZ 85224-6199
Tel: 480-792-7200
Fax: 480-792-7277
Technical Support:
http://support.microchip.com
Web Address:
www.microchip.com
Asia Pacific Office
Suites 3707-14, 37th Floor
Tower 6, The Gateway
Harbour City, Kowloon
Hong Kong
Tel: 852-2401-1200
Fax: 852-2401-3431
India - Bangalore
Tel: 91-80-3090-4444
Fax: 91-80-3090-4123
India - New Delhi
Tel: 91-11-4160-8631
Fax: 91-11-4160-8632
Austria - Wels
Tel: 43-7242-2244-39
Fax: 43-7242-2244-393
Denmark - Copenhagen
Tel: 45-4450-2828
Fax: 45-4485-2829
India - Pune
Tel: 91-20-2566-1512
Fax: 91-20-2566-1513
France - Paris
Tel: 33-1-69-53-63-20
Fax: 33-1-69-30-90-79
Japan - Yokohama
Tel: 81-45-471- 6166
Fax: 81-45-471-6122
Germany - Munich
Tel: 49-89-627-144-0
Fax: 49-89-627-144-44
Atlanta
Duluth, GA
Tel: 678-957-9614
Fax: 678-957-1455
Boston
Westborough, MA
Tel: 774-760-0087
Fax: 774-760-0088
Chicago
Itasca, IL
Tel: 630-285-0071
Fax: 630-285-0075
Cleveland
Independence, OH
Tel: 216-447-0464
Fax: 216-447-0643
Dallas
Addison, TX
Tel: 972-818-7423
Fax: 972-818-2924
Detroit
Farmington Hills, MI
Tel: 248-538-2250
Fax: 248-538-2260
Kokomo
Kokomo, IN
Tel: 765-864-8360
Fax: 765-864-8387
Los Angeles
Mission Viejo, CA
Tel: 949-462-9523
Fax: 949-462-9608
Santa Clara
Santa Clara, CA
Tel: 408-961-6444
Fax: 408-961-6445
Toronto
Mississauga, Ontario,
Canada
Tel: 905-673-0699
Fax: 905-673-6509
Australia - Sydney
Tel: 61-2-9868-6733
Fax: 61-2-9868-6755
China - Beijing
Tel: 86-10-8528-2100
Fax: 86-10-8528-2104
China - Chengdu
Tel: 86-28-8665-5511
Fax: 86-28-8665-7889
Korea - Daegu
Tel: 82-53-744-4301
Fax: 82-53-744-4302
China - Chongqing
Tel: 86-23-8980-9588
Fax: 86-23-8980-9500
Korea - Seoul
Tel: 82-2-554-7200
Fax: 82-2-558-5932 or
82-2-558-5934
China - Hong Kong SAR
Tel: 852-2401-1200
Fax: 852-2401-3431
Malaysia - Kuala Lumpur
Tel: 60-3-6201-9857
Fax: 60-3-6201-9859
China - Nanjing
Tel: 86-25-8473-2460
Fax: 86-25-8473-2470
Malaysia - Penang
Tel: 60-4-227-8870
Fax: 60-4-227-4068
China - Qingdao
Tel: 86-532-8502-7355
Fax: 86-532-8502-7205
Philippines - Manila
Tel: 63-2-634-9065
Fax: 63-2-634-9069
China - Shanghai
Tel: 86-21-5407-5533
Fax: 86-21-5407-5066
Singapore
Tel: 65-6334-8870
Fax: 65-6334-8850
China - Shenyang
Tel: 86-24-2334-2829
Fax: 86-24-2334-2393
Taiwan - Hsin Chu
Tel: 886-3-6578-300
Fax: 886-3-6578-370
China - Shenzhen
Tel: 86-755-8203-2660
Fax: 86-755-8203-1760
Taiwan - Kaohsiung
Tel: 886-7-213-7830
Fax: 886-7-330-9305
China - Wuhan
Tel: 86-27-5980-5300
Fax: 86-27-5980-5118
Taiwan - Taipei
Tel: 886-2-2500-6610
Fax: 886-2-2508-0102
China - Xian
Tel: 86-29-8833-7252
Fax: 86-29-8833-7256
Thailand - Bangkok
Tel: 66-2-694-1351
Fax: 66-2-694-1350
Italy - Milan
Tel: 39-0331-742611
Fax: 39-0331-466781
Netherlands - Drunen
Tel: 31-416-690399
Fax: 31-416-690340
Spain - Madrid
Tel: 34-91-708-08-90
Fax: 34-91-708-08-91
UK - Wokingham
Tel: 44-118-921-5869
Fax: 44-118-921-5820
China - Xiamen
Tel: 86-592-2388138
Fax: 86-592-2388130
China - Zhuhai
Tel: 86-756-3210040
Fax: 86-756-3210049
08/04/10
DS21387C-page 24
 2010 Microchip Technology Inc.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
