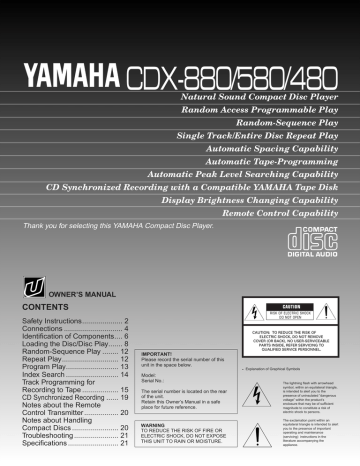

CDX-880/580/480
Natural Sound Compact Disc Player
Random Access Programmable Play
Random-Sequence Play
Single Track/Entire Disc Repeat Play
Automatic Spacing Capability
Automatic Tape-Programming
Automatic Peak Level Searching Capability
CD Synchronized Recording with a Compatible YAMAHA Tape Disk
Display Brightness Changing Capability
Remote Control Capability
Thank you for selecting this YAMAHA Compact Disc Player.
OWNER’S MANUAL
CONTENTS
Safety Instructions.................... 2
Connections ............................. 4
Identification of Components.... 6
Loading the Disc/Disc Play....... 8
Random-Sequence Play ........ 12
Repeat Play............................ 12
Program Play.......................... 13
Index Search .......................... 14
Track Programming for
Recording to Tape .................. 15
CD Synchronized Recording ...... 19
Notes about the Remote
Control Transmitter ................. 20
Notes about Handling
Compact Discs ....................... 20
Troubleshooting ...................... 21
Specifications ......................... 21
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK), NO USER-SERVICEABLE
PARTS INSIDE, REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
IMPORTANT!
Please record the serial number of this
unit in the space below.
• Explanation of Graphical Symbols
Model:
Serial No.:
The serial number is located on the rear
of the unit.
Retain this Owner’s Manual in a safe
place for future reference.
WARNING
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE
THIS UNIT TO RAIN OR MOISTURE.
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert you to the
presence of uninsulated “dangerous
voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert
you to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
SAFETY INSTRUCTIONS
10 Power Sources – The unit should be connected to a
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
• Explanation of Graphical Symbols
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert you to the
presence of uninsulated “dangerous
voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert
you to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
WARNING
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
UNIT TO RAIN OR MOISTURE.
1
Read Instructions – All the safety and operating
instructions should be read before the unit is operated.
2
Retain Instructions – The safety and operating instructions
should be retained for future reference.
3
Heed Warnings – All warnings on the unit and in the
operating instructions should be adhered to.
4
Follow Instructions – All operating and other instructions
should be followed.
5
Water and Moisture – The unit should not be used near
water – for example, near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming
pool, etc.
6
Carts and Stands – The unit should be used only with a
cart or stand that is recommended by the manufacturer.
6A A unit and cart combination should be
moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the unit and cart combination
to overturn.
7
Wall or Ceiling Mounting – The unit should be mounted to
a wall or ceiling only as recommended by the
manufacturer.
8
Ventilation – The unit should be situated so that its
location or position does not interfere with its proper
ventilation. For example, the unit should not be situated
on a bed, sofa, rug, or similar surface, that may block the
ventilation openings; or placed in a built-in installation,
such as a bookcase or cabinet that may impede the flow
of air through the ventilation openings.
9
2
Heat – The unit should be situated away from heat
sources such as radiators, stoves, or other appliances that
produce heat.
power supply only of the type described in the operating
instructions or as marked on the unit.
11 Power-Cord Protection – Power-supply cords should be
routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the unit.
12 Cleaning – The unit should be cleaned only as
recommended by the manufacturer.
13 Nonuse Periods – The power cord of the unit should be
unplugged from the outlet when left unused for a long
period of time.
14 Object and Liquid Entry – Care should be taken so that
objects do not fall into and liquids are not spilled into the
inside of the unit.
15 Damage Requiring Service – The unit should be serviced
by qualified service personnel when:
A. The power-supply cord or the plug has been
damaged; or
B. Objects have fallen, or liquid has been spilled into the
unit; or
C. The unit has been exposed to rain; or
D. The unit does not appear to operate normally or
exhibits a marked change in performance; or
E. The unit has been dropped, or the cabinet damaged.
16 Servicing – The user should not attempt to service the unit
beyond those means described in the operating
instructions. All other servicing should be referred to
qualified service personnel.
17 Power Lines – An outdoor antenna should be located
away from power lines.
18 Grounding or Polarization – Precautions should be taken
so that the grounding or polarization is not defeated.
We Want You Listening For A Lifetime
(for US customers only)
YAMAHA and the Electronic Industries Association’s
Consumer Electronics Group want you to get the most out of
your equipment by playing it at a safe level. One that lets the
sound come through loud and clear without annoying blaring
or distortion – and, most importantly, without
affecting your sensitive hearing. Since hearing
damage from loud sounds is often undetectable
until it is too late, YAMAHA and the Electronic
Industries Association’s Consumer Electronics
Group recommend you to avoid prolonged
IMPORTANT!
Please record the serial number of this unit in the space
below.
Model:
Serial No.:
The serial number is located on the rear of the unit.
Retain this Owner’s Manual in a safe place for future
reference
CAUTION: READ THIS BEFORE OPERATING YOUR UNIT
1
To ensure the finest performance, please read this manual
carefully. Keep it in a safe place for future reference.
2
Install your unit in a cool, dry, clean place – away from
windows, heat sources, and too much vibration, dust,
moisture or cold. Avoid sources of hum (transformers,
motors). To prevent fire or electrical shock, do not expose
to rain and water.
7
Be sure to read the “TROUBLESHOOTING” section on
common operating errors before concluding that your unit
is faulty.
8. Do not place another component on top of this unit,
because to do so will discolor or damage the surface of
the unit.
9. To prevent damage by lightning, disconnect the power
3
Do not operate the unit upside-down. It may overheat,
possibly causing damage.
4
Never open the cabinet. If a foreign object drops into the
set, contact your dealer.
10. When disconnecting the power cord from the household
Do not use force on switches, knobs or cords. When
moving the set, first turn the unit off. Then gently
disconnect the power plug and the cords connecting to
other equipment. Never pull the cord itself.
11. When moving the unit, be sure to first disconnect the
5
6
cord from the household AC outlet during an electrical
storm.
AC outlet, grasp the plug; do not pull the cord.
power cord from the household AC outlet, and disconnect
cords connected to other equipment.
The apparatus is not disconnected from the AC power
source as long as it is connected to the wall outlet, even if
the apparatus itself is turned off.
Do not attempt to clean the unit with chemical solvents;
this might damage the finish. Use a clean, dry cloth.
WARNING
CAUTION
Use of controls or adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
To avoid electrical shock, do not open the unit. Refer
servicing to qualified personnel only.
DANGER
Invisible laser radiation when open and interlock failed or
defeated.
Avoid direct exposure to beam.
Laser Diode Properties
• Material: GaAlAs
• Wavelength: 780nm
• Emission Duration: continuous
• Laser Output: max. 44.6µW*
* This output is the value measured at a distance of about
200mm from the objective lens surface on the Optical Pickup Block.
As the laser beam used in this compact disc player is harmful
to the eyes, do not attempt to disassemble the cabinet. Refer
servicing to qualified personel only.
DANGER: The use of optical instrument with this product will
increase eye hazard.
FCC INFORMATION (for US customers only)
1. IMPORTANT NOTICE : DO NOT MODIFY THIS UNIT!
This product, when installed as indicated in the
instructions contained in this manual, meets FCC
requirements. Modifications not expressly approved by
Yamaha may void your authority, granted by the FCC, to
use the product.
Compliance with FCC regulations does not guarantee that
interference will not occur in all installations. If this product
is found to be the source of interference, which can be
determined by turning the unit “OFF” and “ON”, please try
to eliminate the problem by using one of the following
measures:
2. IMPORTANT : When connecting this product to
accessories and/or another product use only high quality
shielded cables. Cable/s supplied with this product
MUST be used. Follow all installation instructions.
Failure to follow instructions could void your FCC
authorization to use this product in the USA.
Relocate either this product or the device that is being
affected by the interference.
3. NOTE : This product has been tested and found to
comply with the requirements listed in FCC Regulations,
Part 15 for Class “B” digital devices. Compliance with
these requirements provides a reasonable level of
assurance that your use of this product in a residential
environment will not result in harmful interference with
other electronic devices.
This equipment generates/uses radio frequencies and, if
not installed and used according to the instructions
found in the users manual, may cause interference
harmful to the operation of other electronic devices.
Utilize power outlets that are on different branch (circuit
breaker or fuse) circuits or install AC line filter/s.
In the case of radio or TV interference, relocate/reorient the
antenna. If the antenna lead-in is 300 ohm ribbon lead,
change the lead-in to coaxial type cable.
If these corrective measures do not produce satisfactory
results, please contact the local retailer authorized to
distribute this type of product. If you can not locate the
appropriate retailer, please contact Yamaha Electronics
Corp., U.S.A. 6660 Orangethorpe Ave, Buena Park, CA
90620.
The above statements apply ONLY to those products
distributed by Yamaha Corporation of America or its
subsidiaries.
3
CONNECTIONS
•
•
•
Before making any connections, switch OFF the power to
the unit and the amplifier or other component.
Connections should be made to the correct input terminals of
the amplifier or other component.
If the placement of this unit causes noise to other equipment,
such as a tuner, separate them from each other.
CDX-880
LINE OUT
CDX-880
DIGITAL OUT
VARIABLE FIXED
OPTICAL COAXIAL
To AC outlet
➌
➋
Connection cord
(not included)
Optical fiber cable
(not included)
➊
Connection cord
(included)
Amplifier
OPTICAL COAXIAL
CD
DIGITAL IN
CDX-580
LINE OUT
CDX-580
DIGITAL OUT
To AC outlet
➌
Connection cord
(not included)
➊
Connection cord
(included)
Amplifier
COAXIAL
CD
4
DIGITAL IN
CDX-480
CDX-480
LINE OUT
To AC outlet
➊
Connection cord
(included)
Amplifier
CD
Choose one of the ways listed below to connect this unit to your amplifier.
When the LINE OUT (analog) terminals of this
unit are used ( ➊ )
•
•
•
Be sure that the left (“L”) and right (“R”) LINE OUT terminals
are connected to the corresponding (left and right) terminals
of the amplifier or other component.
Connect the “LINE OUT” terminals to the “CD” (or “AUX”)
terminals of the amplifier. If the amplifier does not have such
terminals, use the “TAPE PB” terminals. For additional
details concerning these connections, refer to the operation
instructions for the amplifier being used.
CDX-880 only
Connect to either the VARIABLE terminals or the FIXED
terminals. (As a general rule, connect to the FIXED
terminals.)
VARIABLE:
The output level of these terminals can be
adjusted by using the OUTPUT LEVEL
buttons.
FIXED:
The output level of these terminals is not
variable.
CDX-880 only
When the DIGITAL OUT (OPTICAL) terminal of
this unit is used ( ➋ )
•
•
•
•
Before using this terminal, remove the terminal’s cover by
pulling it.
Make the connection from this terminal to the optical input
terminal of an amplifier by using a commercially available
optical fiber cable.
* Use an optical fiber cable that conforms to EIAJ
standards. Other cables might not function correctly.
Be sure to attach the terminal’s cover when this terminal is
not being used, in order to protect the terminal from dust.
The level of signals output into an amplifier is fixed to max.
and cannot be adjusted.
CDX-880 and CDX-580 only
When the DIGITAL OUT (COAXIAL) terminal of
this unit is used ( ➌ )
•
•
•
Make the connection from this terminal to the digital input
terminal of an amplifier or D/A (digital-to-analog) converter
by using a connection cord.
CDX-880 only
The level of signals output into an amplifier is fixed to max.
and cannot be adjusted.
CDX-580 only
Adjust the level of signals output into an amplifier to max. by
using the OUTPUT LEVEL buttons.
5
IDENTIFICATION OF COMPONENTS
* (
) indicates the page number on which the control part is best described.
FRONT PANEL
* The PLAY/PAUSE button on the main unit has both the
functions of the PLAY button and the PAUSE button on the
remote control transmitter.
* The control functions on the main unit and on the remote
control transmitter are virtually identical, with the exceptions
below.
CDX-880
POWER switch (p. 8)
AUTO DISPLAY OFF indicator (p. 11)
OUTPUT LEVEL control (p. 11)
POWER switch (p. 8)
POWER
OPEN/CLOSE
PROG
TAPE
STOP
PEAK
SPACE
INDEX
3
4
REPEAT RANDOM
SKIP
SEARCH
AUTO
DISPLAY OFF
PHONES
+10
1
2
5
6
7
PLAY/PAUSE
8
9
0
OUTPUT LEVEL
TIME
Display panel
PHONES jack (p. 11)
Remote control sensor (p. 20)
CDX-580, CDX-480
* The SKIP/SEARCH button on the main unit has both the
functions of the SKIP buttons and the SEARCH buttons on
the remote control transmitter.
POWER switch (p. 8)
OUTPUT LEVEL control (p. 11)
CDX-580 only (p. 11)
AUTO DISPLAY OFF indicator (p. 11)
POWER switch (p. 8)
POWER
OPEN/CLOSE
AUTO
DISPLAY OFF
+10
SKIP/SEARCH
STOP
PLAY/PAUSE
OUTPUT LEVEL
1
2
3
4
5
6
7
8
9
0
DOWN
PHONES
UP
Display panel
PHONES jack (p. 11)
Remote control sensor (p. 20)
6
* (
) indicates the page number on which the control part is best described.
REMOTE CONTROL TRANSMITTER
DIMMER button (p. 11)
CLEAR button (p. 14)
TAPE button (p. 15)
OPEN/CLOSE button (p. 8)
OPEN/CLOSE
DIMMER
TIME
TIME button (p. 10)
PROG button (p. 13)
PROG
TAPE
CLEAR
PEAK
PEAK button (p. 18)
SPACE
S/F
SPACE button (p. 10)
REPEAT button (p. 10)
RANDOM
RANDOM button (p. 12)
REPEAT
+10
1
2
3
4
5
6
7
8
9
0
PAUSE
PLAY
SKIP
Numeric buttons (p. 9)
PAUSE button (p. 9)
PLAY button (p. 8)
SKIP buttons (p. 9)
SEARCH
INDEX
STOP
STOP button (p. 9)
SEARCH buttons (p. 10)
– OUTPUT LEVEL +
SYNCHRO button (p. 19)
SYNCHRO
INDEX button (p. 14)
OUTPUT LEVEL buttons (p. 11)
7
This manual describes how to operate this unit by using the remote control transmitter.
To operate this unit on the front panel, use the corresponding buttons on the front panel.
BASIC OPERATION
2, 3
OPEN/CLOSE
PROG
TAPE
SPACE
S/F
POWER
1
DIMMER
TIME
CLEAR
PEAK
RANDOM
REPEAT
AUTO
DISPLAY OFF
+10
1
2
3
4
5
6
7
8
9
0
SKIP
PAUSE
PLAY
SEARCH
INDEX
STOP
4
– OUTPUT LEVEL +
SYNCHRO
1
3 Close the disc tray.
POWER
OPEN/CLOSE
2
Label side
upward
4
OPEN/CLOSE
PLAY
Disc tray
Play will begin from the first track of the disc.
Display information at disc play
➀
Notes
➁
➂
•
After closing the disc tray by pressing the OPEN/CLOSE
button, the display shows the total number of tracks and the
total recorded time of the disc for a few seconds.
SINGLE
TOTAL
3 4 5 6 7 8 9 10 11 12
1 2 3 4 5 6 7 8 9 10 11 12
➃
➀
➁
➂
➃
Shows the track number selected or being played.
Shows the time displays. (Refer to “Selecting time
displays” on page 10.)
CDX-580 and CDX-480 only
Shows the level of signals output into an amplifier or the
headphone level adjusted by using the OUTPUT LEVEL
buttons.
Displays the numbers that correspond to the numbers of
tracks (as high as number 20) on the disc. After each
track is played, its corresponding number disappears so
the number of remaining tracks (and their numbers) can
be seen at a glance.
To turn off the power
8
Press the POWER button again.
•
Additionally, you can close the disc tray by pressing the
PLAY (PLAY/PAUSE) button, a numeric button or the
RANDOM button, or by pressing the front edge of the disc
tray gently. If the tray is closed in these ways, play will begin
automatically, however, the display will not show the total
number of tracks and the total recorded time of the disc.
To stop play temporarily
To stop play completely
STOP
PAUSE
To resume play, press the PAUSE button again (or press the
PLAY button).
* The PLAY/PAUSE button on the front panel can also be
used to stop play temporarily or to resume play.
To play a desired track on the disc
DIRECT PLAY
SKIP PLAY
Select a desired track using the numeric button.
To play from the beginning of the track following the one now
playing
SKIP
5
To play from the beginning of the track now playing
SKIP
The selected track
number is displayed
To play from the beginning of the track before the one now
playing
1 2 3 4 5 6 7 8 9
Example: To select track 25
Press ➀ twice, then immediately press ➁ once.
10
➀
SKIP
(twice)
5
➁
•
•
*
If a track number higher than the highest track number on
the disc is selected, the last track on the disc will be
played.
•
These operations can also be performed when the unit is in
the pause or stop mode.
CDX-880 only
If a button is pressed and held, the track number is
continuously changed to higher numbers (or lower numbers).
CDX-580 and CDX-480 only
When using the SKIP buttons on the remote control
transmitter:
If a button is pressed and held, the track number is
continuously changed to higher numbers (or lower
numbers).
When using the SKIP/SEARCH button on the front panel:
Be careful not to press and hold the button, otherwise the
selected track is played forward (or backward) rapidly.
9
To advance or reverse play rapidly (MANUAL SEARCH)
•
To advance rapidly
SEARCH
(Press and hold.)
•
•
To reverse rapidly
SEARCH
The sound can be heard (although slightly garbled) during
manual search in either direction. This is convenient for
locating a precise position within a track, or for reviewing the
contents quickly.
Manual search can also be performed while disc play is
paused, though no sound will be heard.
CDX-580 and CDX-480 only
When using the SKIP/SEARCH button on the front panel:
Be careful not to release the button just after it is pressed,
otherwise the play is skipped to the beginning of the next
track or returned to the beginning of the track.
(Press and hold.)
Automatic spacing
When you are recording a disc onto tape, and if the tracks on
the disc are recorded with an insufficient time space between
them, the tape deck will not be able to perform blank search
operations correctly. In this case, a deck search mistake can
be prevented by pressing the auto-SPACE button to insert
spaces of about 4 seconds between the recorded tracks.
Note
When the automatic spacing function is in effect, the display of
the total time and of the total remaining time will include each
of the 4 second non-recorded intervals placed between tracks.
To cancel the automatic spacing function
SPACE
SPACE
“SPACE” goes off
from the display.
SPACE
Selecting time displays
You can select any of the four time displays by pressing the TIME display mode-select button.
➀
➃
Elapsed time of the track now playing
Total remaining time on the disc
TOTAL
REMAIN
2 3 4 5 6 7 8 9 10 11 12
2 3 4 5 6 7 8 9 10 11 12
TIME
➁
➂
Remaining time of the track now playing
Total disc play time
TOTAL
REMAIN
2 3 4 5 6 7 8 9 10 11 12
2 3 4 5 6 7 8 9 10 11 12
Note
The remaining time ➁ will not be displayed if the track number
is 25 or higher.
10
Changing brightness of the display
CDX-880, CDX-580
You can change the brightness of the display (or turn off the illumination) by pressing the DIMMER button.
During play
During stopped or paused
Normal illumination
Normal illumination
DIMMER
Dim
Dim
Dim
(The AUTO DISPLAY OFF indicator lights up.
In this state, if a disc is played, the display
illumination will be turned off.)
“OFF”
* While the display illumination is off,
the AUTO DISPLAY OFF indicator
on the front panel is illuminated.
AUTO
DISPLAY OFF
Normal illumination
CDX-480
If desired, you can change brightness of the display
in three degrees by pressing the DIMMER button.
DIMMER
Slightly dim
Dim
When you listen with headphones
Connect the headphones to the PHONES jack and adjust the
volume by using the OUTPUT LEVEL buttons. At that time,
note that this adjustment will also vary the signal level output to
the amplifier.
PHONES
– OUTPUT LEVEL +
CDX-880 only
* If the FIXED (LINE OUT) terminals on the rear of this unit
are connected to the amplifier etc., the use of the OUTPUT
LEVEL buttons does not vary the signal level output to the
amplifier.
Open/close the control door CDX-880 only
When it is not necessary to operate controls inside the control
door, close the door.
To close the door
To open the door
11
RANDOM-SEQUENCE PLAY
You can have the unit play the tracks on a disc in a random sequence selected by the unit’s microcomputer.
Notes
• This feature will not function during programming, or during
programmed play.
To perform random-sequence play
•
If the POWER is switched off when the random-sequence
play mode is functioning, when the POWER is switched on
again, the unit will begin the random-sequence play
automatically. (This feature is available for timer play.)
•
If the SKIP
button is pressed during random-sequence
play, the next randomly programmed track will be played. If
the SKIP
button is pressed, play will return to the
beginning of the track now being played.
RANDOM
To cancel random-sequence play
•
This indication appears while the unit is mixing
up tracks.
STOP
RANDOM
•
or
Total remaining time on the disc will not be displayed during
random-sequence play.
REPEAT PLAY
You can play any desired track or the entire disc repeatedly by pressing the REPEAT button. The repeat play mode will change
whenever you press the REPEAT button.
(OFF)
S/F
REPEAT
SINGLE
REPEAT
FULL
REPEAT
12
SINGLE (S) REPEAT
A single track is repeatedly played.
* This is also available in the programmed-play mode and the
random-sequence play mode.
(If the repeat play mode is switched off, the programmedplay mode or the random-sequence play mode will be
resumed.
FULL (F) REPEAT
All tracks (the entire disc) are played repeatedly.
* In the programmed-play mode, all programmed tracks are
repeatedly played.
* In the random-sequence play mode, all randomly sequenced
tracks are repeatedly played in the same order.
PROGRAM PLAY
You can enjoy listening to your favorite tracks in any desired order using programmed play. As many as 25 tracks can be
programmed.
OPEN/CLOSE
2
PROG
TAPE
SPACE
S/F
DIMMER
TIME
CLEAR
PEAK
RANDOM
REPEAT
+10
1
2
3
4
5
6
7
8
9
0
SKIP
PAUSE
PLAY
SEARCH
INDEX
STOP
– OUTPUT LEVEL +
3
4
1
SYNCHRO
1
3 Select the desired track.
Stop the unit.
5
STOP
* Repeat this operation to program more tracks. You can
select the same track again.
2
4
PLAY
PROG
PROGRAM
TOTAL
Display information during program play
PROGRAM
TOTAL
➀
➁
➂
PROGRAM
TOTAL
1 2 3 4 5 6
➃
➀
➁
➂
➃
Notes
• In step 2, if “P-01” does not appear in the display, press the
TIME display mode-select button.
• If, during programming, the TIME display mode-select button
is pressed, the program number display can be changed to
display the total time of the programmed tracks. To return to
the previous display, press the TIME display mode-select
button once again.
and
) button can be used during
• The SKIP (
playing, but only within the range of the programmed tracks.
and
) button can be used during
• The SEARCH (
playing to search through all tracks, including
unprogrammed tracks.
• The PAUSE mode can also be programmed (one time only),
if so desired, by pressing the TAPE button instead of a
numeric button. (In this case, “
B” is illuminated in the
display.)
• If, for a compact disc with 25 tracks or more, track number
25 or higher is programmed, the total time will disappear
from the display.
Shows the program number for the track to be set next.
Shows the selected track number.
Shows the total time of the tracks currently programmed.
Shows only the numbers of programmed tracks.
* If the total time becomes 100 minutes or more, the highest
position of the figure will not be displayed.
13
To stop program play
To check programmed data
Press the STOP button. The first programmed track number
will be displayed.
To resume play, press the PLAY button. Play will begin from
the beginning of the program.
1.
2.
3.
If during program play, press the STOP button.
Press the PROG button.
Each time the SKIP
button is pressed, the track
numbers and sequential order of the programmed tracks
can be checked one after another. The display of the
track number can be returned (sequentially in reverse
order) by pressing the SKIP
button.
To cancel a programmed setting
There are several methods, as described below.
• Press the STOP button or the CLEAR button while the unit
is stopped.
• Open the disc tray.
• Switch off the power.
To correct programmed data
1.
Follow the procedure described in “To check programmed
data”.
Display the track number to be corrected by pressing the
SKIP button.
Press a numeric button to select a track to replace the one
displayed. The previously programmed track will be
cleared from the memory and the new one will be
programmed.
After the correction has been completed, once again press
the PROG button or the PLAY button.
2.
3.
4.
INDEX SEARCH
If the disc includes index numbers, play can be started from any desired index number.
CLEAR
PROG
TAPE
PEAK
SPACE
S/F
1
2
3
4
5
6
7
8
9
0
SKIP
PAUSE
PLAY
SEARCH
INDEX
STOP
RANDOM
REPEAT
1 Select a track which has index numbers.
3
2
INDEX
3 Select the desired index number.
3
14
+10
1, 3
2
To cancel the index search function
Press the INDEX button.
Notes
• Not all discs have index numbers. The index system is a
method for sub-dividing tracks into smaller divisions (such
as, for example, the movements within classical
symphonies) for easier location of those parts. The liner
notes with the disc usually tell if such index numbers are
included.
• If an index number is selected that is higher than any index
number on that disc, play will start from the last index
number point on the disc.
• For some discs, play may begin slightly prior to the actual
designated index point.
• If the disc has no encoded index points, play will begin from
the start of the selected track.
• The index number can be designated only while the INDEX
number display is illuminated.
TRACK PROGRAMMING FOR RECORDING TO TAPE
This convenient feature can be used to program tracks on a disc for recording to tape. By only memorizing the tape’s total possible
recording time, the unit will automatically program tracks or help you to program tracks so they will fit onto the tape with the least
amount of unrecorded space remaining at each end of the tape.
Automatic tape-programming
n
This is for recording only the tracks which best fit onto a tape.
OPEN/CLOSE
3
2
DIMMER
CLEAR
TIME
PROG
TAPE
SPACE
S/F
PEAK
1
2
3
4
5
6
7
8
9
0
SKIP
PAUSE
PLAY
SEARCH
INDEX
STOP
RANDOM
REPEAT
7
+10
– OUTPUT LEVEL +
SYNCHRO
1
5
4
6, 7
1
5
Stop the unit.
S/F
REPEAT
STOP
* By pressing the REPEAT button, the unit automatically
programs tracks for side A and side B separately
considering the tape’s total time.
* The peak level searching function of this unit is useful for
adjusting recording level on the tape deck. (Refer to
page 18.)
6 Begin
recording on the tape deck and press the
PLAY button on this unit at the same time.
2 Ifspace
desired, you can automatically insert additional time
between tracks. (Refer to page 10.)
7 The
unit will pause at the end of side A of the tape.
Turn the tape over to side B. Resume recording and, at
the same time, press the PLAY or PAUSE button on
this unit.
SPACE
SPACE
Notes
• All tracks may not be programmed if the tape’s length is not
enough. To program all tracks, use a longer tape.
• In step 5, you can check the program data for side A and
side B.
3 Enter the tape’s total possible recording time.
TAPE
➀
➁
PROGRAM
A
You can select any of four tape lengths by pressing
the TAPE button.
TAPE
➂
(off)
➀
4 Otherwise,
you can also enter the tape’s total possible
recording time manually.
Example: For a C-64 tape (32 minutes on each side)
6
4
TOTAL
1 2 3 4 5
➁
➂
➃
•
➃
Shows the number of programmed tracks for each side in
turn just after the automatic programming is finished, and
then it is replaced by the number of the first programmed
track for side A.
Shows the total time of programmed tracks for each side.
Shows the side of the tape.
Shows the programmed track numbers for each side.
CD synchronized recording function can be used if your
tape deck is compatible with it. In this case, in step 6 and 7,
press the SYNCHRO button and then press the PLAY
button on this unit’s remote control transmitter. Recording
automatically begins. (For details, refer to page 19.)
15
n Manual tape-programming
This is for recording desired tracks in any desired order onto a tape.
OPEN/CLOSE
2
DIMMER
TIME
CLEAR
PEAK
PROG
TAPE
SPACE
S/F
1
2
3
4
5
6
7
8
9
0
SKIP
PAUSE
PLAY
SEARCH
INDEX
STOP
4
RANDOM
REPEAT
7
+10
3, 5
6, 7
– OUTPUT LEVEL +
SYNCHRO
1
5 Select
the track numbers (to be recorded on side B) in
the desired order.
Follow steps 1 – 4 on page 15.
2
1
2
3
4
5
6
7
8
9
+
10
0
PROG
PROGRAM
TOTAL
REMAIN
A
6 Begin
recording on the tape deck and press the PLAY
button on this unit at the same time.
1 2 3 4 5 6 7 8 9 10 11 12
3 Select
the track numbers (to be recorded on side A) in
the desired order.
1
2
3
4
5
6
7
8
9
+
7 The
unit will pause at the end of side A of the tape.
Turn the tape over to side B. Resume recording and,
10
at the same time, press the PLAY or PAUSE button on
this unit.
0
* Programmed track numbers are illuminated on the
display. You can select a track which can be
programmed for the remaining time of (the side of) the
tape from track numbers flashing on the display, but you
cannot select any darkened track number.
4 When
track selection for side A is finished, press the
TAPE button.
TAPE
Notes
• If, in step 3 or 5, “E rr” appears in the display, the track
number just selected cannot be programmed because there
is not enough time remaining on the tape. However, at this
time, if any other track number is flashing continuously in the
display, you can program it instead of the unprogrammable
one.
• In step 3 or 5, each time a selection is made, the track
number and the tape’s remaining time will be displayed, and
then the display will change to indicate the number of the
next program.
• CD synchronized recording function can be used if your tape
deck is compatible with it. In this case, in step 6 and 7, press
the SYNCHRO button and then press the PLAY button on
this unit’s remote control transmitter. Recording
automatically begins. (For details, refer to page 19.)
A pause mode is programmed.
Notes on tape programming
• To check, cancel or correct program data, refer to page 14.
* In checking the program data, note that “Pu” appears
between track numbers for side A and side B.
• Up to a maximum of 25 tracks can be programmed. If,
however, the PAUSE mode is inserted, it is counted as one
track.
16
•
This function can be used to program up to track number 24.
If the disc has more than 24 tracks, track number 25 and
thereafter will not be programmed.
n Random sequential tape-programming
The unit will automatically program tracks in random sequential order for recording to tape.
OPEN/CLOSE
DIMMER
TIME
CLEAR
PEAK
PROG
TAPE
SPACE
S/F
1
2
3
4
5
6
7
8
9
0
SKIP
PAUSE
PLAY
SEARCH
INDEX
STOP
RANDOM
2
REPEAT
4
+10
3, 4
– OUTPUT LEVEL +
SYNCHRO
1
Follow steps 1 – 4 on page 15.
2
RANDOM
Notes
• Because the programmed data changes every time the
RANDOM button is pressed, the amount of time remaining
at the end of the tape also changes accordingly.
• If the tape’s length is not enough, all tracks cannot be
programmed. In this case, exchange the tape for a longer
one.
• In step 2, you can check the program data for side A and
side B.
➀
* The unit will automatically program tracks for side A and
side B separately considering the tape’s total time.
PROGRAM
A
the same time, press the PLAY or PAUSE button on
this unit.
TOTAL
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
3 Begin
recording on the tape deck and press the PLAY
button on this unit at the same time.
4 The
unit will pause at the end of side A of the tape.
Turn the tape over to side B. Resume recording and, at
➁
➀
➁
➂
➃
•
➂
➃
Shows the number of programmed tracks for each side in
turn just after the automatic programming is finished, and
then it is replaced by the number of the first programmed
track for side A.
Shows the total time of programmed tracks for each side.
Shows the side of the tape.
Shows the programmed track numbers for each side.
CD synchronized recording function can be used if your
tape deck is compatible with it. In this case, in step 3 and 4,
press the SYNCHRO button and then press the PLAY
button on this unit’s remote control transmitter. Recording
automatically begins. (For details, refer to page 19.)
17
Automatic searching of the peak level on a disc
This convenient feature automatically searches for the part on a disc where the source level peaks, and next plays the part
repeatedly. For recording to tape, this feature is very helpful to adjust the recording level on the tape deck.
OPEN/CLOSE
PROG
TAPE
SPACE
S/F
DIMMER
TIME
CLEAR
PEAK
RANDOM
2
REPEAT
+10
1
2
3
4
5
6
7
8
9
0
SKIP
PAUSE
PLAY
SEARCH
INDEX
STOP
– OUTPUT LEVEL +
1
SYNCHRO
1
To cancel this function
Press the STOP button. (Some other buttons can also be
used to cancel this function.)
Stop the unit.
STOP
Notes
• Even if the peak level searching is performed twice or more
on the same disc, the same part will not be always selected,
because this unit will search for the peak level among parts
on the disc that are randomly selected by the internal
microcomputer.
• In the program play mode, this feature will function among
the programmed tracks only. If program play is being
performed, first press the STOP button, and then press the
PEAK button. If program play is not being performed, only
press the PEAK button.
2
PEAK
PEAK
The peak level searching is performed through the disc.
PEAK
REPEAT
1 2 3 4 5 6 7 8 9 10 11 12
PEAK
REPEAT
1 2 3 4 5 6 7 8 9 10 11 12
Next, the part where the source level peaks is repeatedly
played. Adjust the recording level on the tape deck
listening to this repeat play.
18
CD SYNCHRONIZED RECORDING
This unit can make a tape deck’s recording synchronized with CD play automatically. With this function, you can record a CD on
tape very easily and more precisely.
This recording method needs a YAMAHA tape deck compatible with this function. (Refer to the tape deck’s operation manual to
know whether it is compatible or not.)
* This unit and the tape deck must be placed close to each other so that both of them can receive the signals from this unit’s
remote control transmitter at the same time.
1
OPEN/CLOSE
DIMMER
TIME
CLEAR
PEAK
PROG
TAPE
SPACE
S/F
1
2
3
4
5
6
7
8
9
0
SKIP
PAUSE
PLAY
SEARCH
INDEX
STOP
RANDOM
REPEAT
4
3
1
+10
4
5
– OUTPUT LEVEL +
SYNCHRO
4
Load the disc.
If necessary, select the desired track.
SKIP
OPEN/CLOSE
5
or
2
5
Load a tape on the tape deck.
* The peak level searching function of this unit is useful
for adjusting recording level on the tape deck. (Refer
to page 18.)
PLAY
3
Both CD play and tape deck recording begin.
* CD play begins a little later than recording.
6
SYNCHRO
If you want to stop recording temporarily and restart
recording from a desired track, follow steps 3–5 again.
To cancel this function
This unit enters into the pause mode, and the tape deck
enters into the REC/PAUSE mode.
* In this mode, the time display on this unit flashes on and
off.
Press the STOP button.
Notes
• To finish or stop the recording, make proper operations on
the tape deck.
• Programmed sequence of tracks can also be recorded with
this function, instead of recording an entire disc. (Refer to
page 13–14 for the programming procedure.)
•
This function can also be used together with the automatic
tape-programming function. (Refer to page 15–17.)
19
NOTES ABOUT THE REMOTE CONTROL TRANSMITTER
Remote control transmitter operation range
Battery installation
1
3
Remote control
sensor
2
Within approximately
7 m (23 feet)
Battery replacement
If you find that the remote control transmitter must be used
closer to the main unit, the batteries are weak. Replace both
batteries with new ones.
Notes
• Use only AA, R6, UM-3 batteries for replacement.
• Be sure the polarities are correct. (See the illustration inside
the battery compartment.)
• Remove the batteries if the remote control transmitter will not
be used for an extended period of time.
• If batteries leak, dispose of them immediately. Avoid
touching the leaked material or letting it come in contact with
clothing, etc. Clean the battery compartment thoroughly
before installing new batteries.
30°
30°
Notes
• There should be no large obstacles between the remote
control transmitter and the main unit.
• If the remote control sensor is directly illuminated by strong
lighting (especially an inverter type of fluorescent lamp etc.),
it might cause the remote control transmitter not to work
correctly. In this case, reposition the main unit to avoid direct
lighting.
NOTES ABOUT HANDLING COMPACT DISCS
•
This compact disc player is designed only for playing
compact discs bearing the
mark. Never attempt to load
any other type of disc into the unit.
The unit will also play 8-cm (3-inch) compact discs.
•
To remove a disc from its storage case, open the case and
then press down at the center; with a finger through the
center hole and the outer edges held as shown in the
illustration, lift the disc out carefully.
•
Always handle the disc with care so that its surface is not
scratched.
•
Compact discs are not affected by small particles of dust or
fingerprints on their playing surface, but even so they should
be kept clean. Wipe by using a clean, dry cloth. Do not
wipe with a circular motion; wipe straight outward from the
center.
,,,
, ,
•
Do not try to clean the disc’s surface by using any type of
disc cleaner, record spray, anti-static spray or liquid, or any
other chemical-based liquid, because such substances might
irreparably damage the disc’s surface.
•
Do not expose discs to direct sunlight, high temperature or
high humidity for a long period of time, because these might
warp or otherwise damage the disc.
No!
•
Compact discs are not subjected to wear during play, but
damage to the disc surface when the disc is being handled
can adversely affect the disc’s play.
To play a 8-cm (3-inch) CD
Place it in the inner recessed area of the disc tray. Do not put
a normal (12-cm/5-inch) CD on top of a 8-cm CD.
20
TROUBLESHOOTING
If the unit fails to operate normally, check the following points to determine whether the fault can be corrected by the simple
measures suggested. If it cannot be corrected, or if the fault is not listed in the SYMPTOM column, disconnect the power cord and
contact your authorized YAMAHA dealer or service center for help.
SYMPTOM
The player does not switch ON when the
POWER switch is pressed.
The disc tray does not close completely.
PROBABLE CAUSE
The power cord is not connected or not
completely connected.
A foreign object is obstructing the tray.
REMEDY
Securely connect the power cord.
Play does not begin.
The disc is damaged.
Check the disc carefully; replace it if
necessary.
Wait 20 to 30 minutes after switching the unit
ON before trying to play a disc.
There is moisture on the laser pickup.
Play is delayed, or begins at the wrong
place.
No sound.
The disc has been loaded upside down.
The disc is dirty.
Reload the disc with the label side up.
Clean the disc.
The disc may be scratched or damaged.
Check the disc carefully; replace it if
necessary.
Connect the cables properly. If the problem
persists, the cables may be defective.
Set the amplifier controls to the correct input
selection.
Relocate the player.
Improper output cable connections.
Improper amplifier operation.
Sound “skips”.
Sound “hums”.
Noise from a nearby tuner.
Noise from inside of the disc tray.
The remote control transmitter does not
work.
Carefully check the disc tray and remove the
foreign object.
The player is being subjected to vibrations or
impacts.
The disc is dirty.
Improper cable connections.
The tuner is too close to the player.
The disc may be warped.
The batteries of this remote control transmitter
are too weak.
Direct sunlight or lighting (of an inverter type
of flourescent lamp etc.) is striking the remote
control sensor of the main unit.
Clean the disc.
Securely connect the audio cables. If the
problem persists, the cables may be defective.
Move the tuner and player farther apart.
Replace the disc.
Replace the batteries with new ones.
Change position of the main unit.
SPECIFICATIONS
AUDIO SECTION
GENERAL
Frequency response
<CDX-880> .................................. 2 Hz 1 20 kHz, 50.3 dB
<CDX-580, CDX-480> .................. 2 Hz 1 20 kHz, 50.5 dB
Harmonic distortion + noise
<CDX-880> .................................................. 0.002% (1 kHz)
<CDX-580> ................................................ 0.0025% (1 kHz)
<CDX-480> .................................................. 0.003% (1 kHz)
S/N ratio
<CDX-880> ............................................................... 118 dB
<CDX-580> ............................................................... 115 dB
<CDX-480> ............................................................... 105 dB
Dynamic range
<CDX-880, CDX-580> ................................................ 98 dB
<CDX-480> ................................................................. 95 dB
Wow & flutter ................................................... Unmeasurable
Output voltage
<CDX-880>
VARIABLE ............................................... 2.0 50.5V max.
FIXED ................................................................ 2.0 50.5V
<CDX-580, CDX-480>
VARIABLE ............................................... 2.0 50.5V max.
Headphones output (120 dB) ........... 200540 mV/150 ohms
Power requirements
U.S.A. and Canada models ........................... 120V, 60 Hz
Australia and U.K. models ............................ 240V, 50 Hz
Europe model .................................................230V, 50 Hz
General model ..................... 110/120/220/240V, 50/60 Hz
Power consumption ........................................................ 20W
Dimensions (W x H x D)
<CDX-880> ............................................ 435 x 96 x 281 mm
(17-1/8” x 3-3/4” x 11-1/16”)
<CDX-580, CDX-480> ........................... 435 x 96 x 270 mm
(17-1/8” x 3-3/4” x 10-5/8”)
Weight
<CDX-880> ............................................. 4 kg (8 lbs. 13 oz.)
<CDX-580, CDX-480> ........................... 3.8 kg (8 lbs. 6 oz.)
Accessories ................................................... Connection cord
Remote control transmitter
Batteries (size AA, R6, UM-3)
Please note that all specifications are subject to change
without notice.
21
YAMAHA
YAMAHA
YAMAHA
YAMAHA
YAMAHA
YAMAHA
YAMAHA
ELECTRONICS CORPORATION, USA 6660 ORANGETHORPE AVE., BUENA PARK, CALIF. 90620, U.S.A.
CANADA MUSIC LTD. 135 MILNER AVE., SCARBOROUGH, ONTARIO M1S 3R1, CANADA
ELECTRONIK EUROPA G.m.b.H. SIEMENSSTR. 22-34, 25462 RELLINGEN BEI HAMBURG, F.R. OF GERMANY
ELECTRONIQUE FRANCE S.A. RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE
ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD1 7JS, ENGLAND
SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN
MUSIC AUSTRALIA PTY, LTD. 17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA
VR 10040
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
