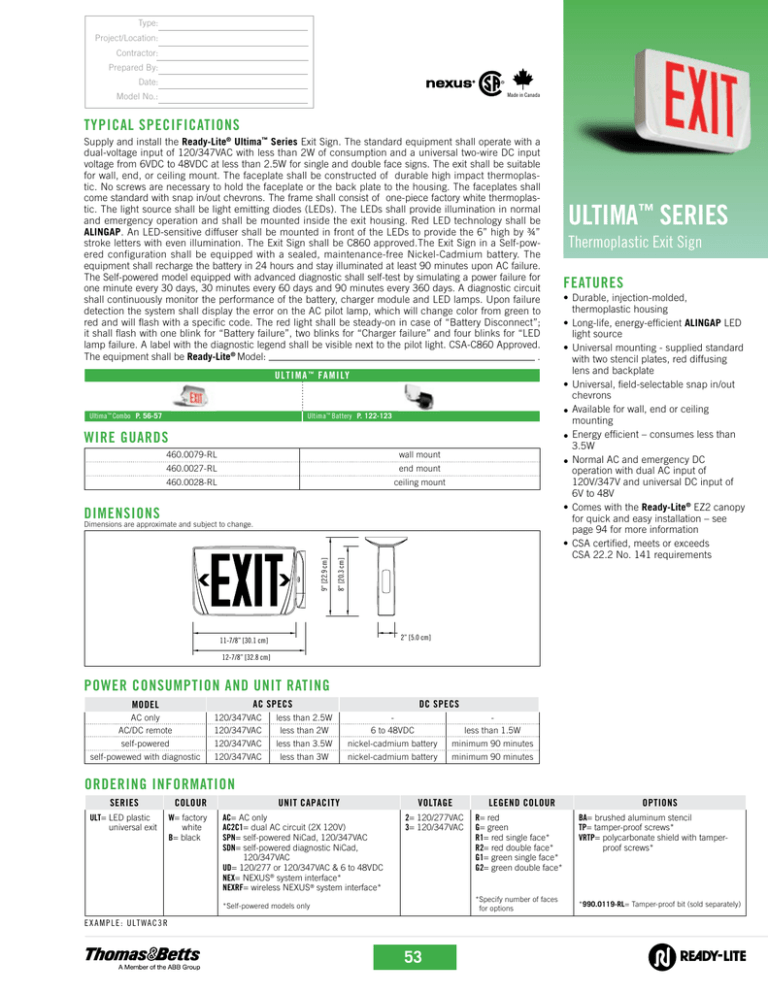

Catalogue Sheet: Ultima™ Series

Catalogue Sheet: Ultima™ Series
Type:
Project/Location:
Contractor:
Prepared By:
Date:
Model No.:
Made in Canada
TYPICAL SPECIFICATIONS
Supply and install the Ready-Lite® Ultima™ Series Exit Sign. The standard equipment shall operate with a
dual-voltage input of 120/347VAC with less than 2W of consumption and a universal two-wire DC input
voltage from 6VDC to 48VDC at less than 2.5W for single and double face signs. The exit shall be suitable
for wall, end, or ceiling mount. The faceplate shall be constructed of durable high impact thermoplastic. No screws are necessary to hold the faceplate or the back plate to the housing. The faceplates shall
come standard with snap in/out chevrons. The frame shall consist of one-piece factory white thermoplastic. The light source shall be light emitting diodes (LEDs). The LEDs shall provide illumination in normal
and emergency operation and shall be mounted inside the exit housing. Red LED technology shall be
ALINGAP. An LED-sensitive diffuser shall be mounted in front of the LEDs to provide the 6” high by ¾”
stroke letters with even illumination. The Exit Sign shall be C860 approved.The Exit Sign in a Self-powered configuration shall be equipped with a sealed, maintenance-free Nickel-Cadmium battery. The
equipment shall recharge the battery in 24 hours and stay illuminated at least 90 minutes upon AC failure.
The Self-powered model equipped with advanced diagnostic shall self-test by simulating a power failure for
one minute every 30 days, 30 minutes every 60 days and 90 minutes every 360 days. A diagnostic circuit
shall continuously monitor the performance of the battery, charger module and LED lamps. Upon failure
detection the system shall display the error on the AC pilot lamp, which will change color from green to
red and will flash with a specific code. The red light shall be steady-on in case of “Battery Disconnect”;
it shall flash with one blink for “Battery failure”, two blinks for “Charger failure” and four blinks for “LED
lamp failure. A label with the diagnostic legend shall be visible next to the pilot light. CSA-C860 Approved.
The equipment shall be Ready-Lite® Model:
.
U L T I M A ™ FA M I LY
Ultima™ Combo P. 56-57
Ultima™ Battery P. 122-123
WIRE GUARDS
460.0079-RL
wall mount
460.0027-RL
end mount
460.0028-RL
ceiling mount
DIMENSIONS
8” [20.3 cm]
9” [22.9 cm]
Dimensions are approximate and subject to change.
ULTIMA™ SERIES
Thermoplastic Exit Sign
FEATURES
• Durable, injection-molded,
thermoplastic housing
• Long-life, energy-efficient ALINGAP LED
light source
• Universal mounting - supplied standard
with two stencil plates, red diffusing
lens and backplate
• Universal, field-selectable snap in/out
chevrons
• Available for wall, end or ceiling
mounting
• Energy efficient – consumes less than
3.5W
• Normal AC and emergency DC
operation with dual AC input of
120V/347V and universal DC input of
6V to 48V
• Comes with the Ready-Lite® EZ2 canopy
for quick and easy installation – see
page 94 for more information
• C
SA certified, meets or exceeds
CSA 22.2 No. 141 requirements
2” [5.0 cm]
11-7/8” [30.1 cm]
12-7/8” [32.8 cm]
POWER CONSUMPTION AND UNIT RATING
AC SPECS
MODEL
DC SPECS
AC only
AC/DC remote
self-powered
120/347VAC
120/347VAC
120/347VAC
less than 2.5W
less than 2W
less than 3.5W
6 to 48VDC
nickel-cadmium battery
less than 1.5W
minimum 90 minutes
self-powewed with diagnostic
120/347VAC
less than 3W
nickel-cadmium battery
minimum 90 minutes
ORDERING INFORMATION
SERIES
ULT= LED plastic
universal exit
COLOUR
W= factory
white
B= black
UNIT CAPACITY
AC= AC only
AC2C1= dual AC circuit (2X 120V)
SPN= self-powered NiCad, 120/347VAC
SDN= self-powered diagnostic NiCad,
120/347VAC
UD= 120/277 or 120/347VAC & 6 to 48VDC
NEX= NEXUS® system interface*
NEXRF= wireless NEXUS® system interface*
VOLTAGE
2= 120/277VAC
3= 120/347VAC
LEGEND COLOUR
R= red
G= green
R1= red single face*
R2= red double face*
G1= green single face*
G2= green double face*
*Specify number of faces
for options
*Self-powered models only
E X A M P L E : U LT W A C 3 R
53
OPTIONS
BA= brushed aluminum stencil
TP= tamper-proof screws*
VRTP= polycarbonate shield with tamperproof screws*
*990.0119-RL= Tamper-proof bit (sold separately)
