Eizo LA-131-D Owner's manual

Eizo LA-131-D Owner's manual
Thank you very much for choosing the EIZO product.
Please read this User’s Manual carefully to familiarize yourself with safe and effective usage procedures.
Please retain this manual for future reference.
[Location of the Caution Statements]

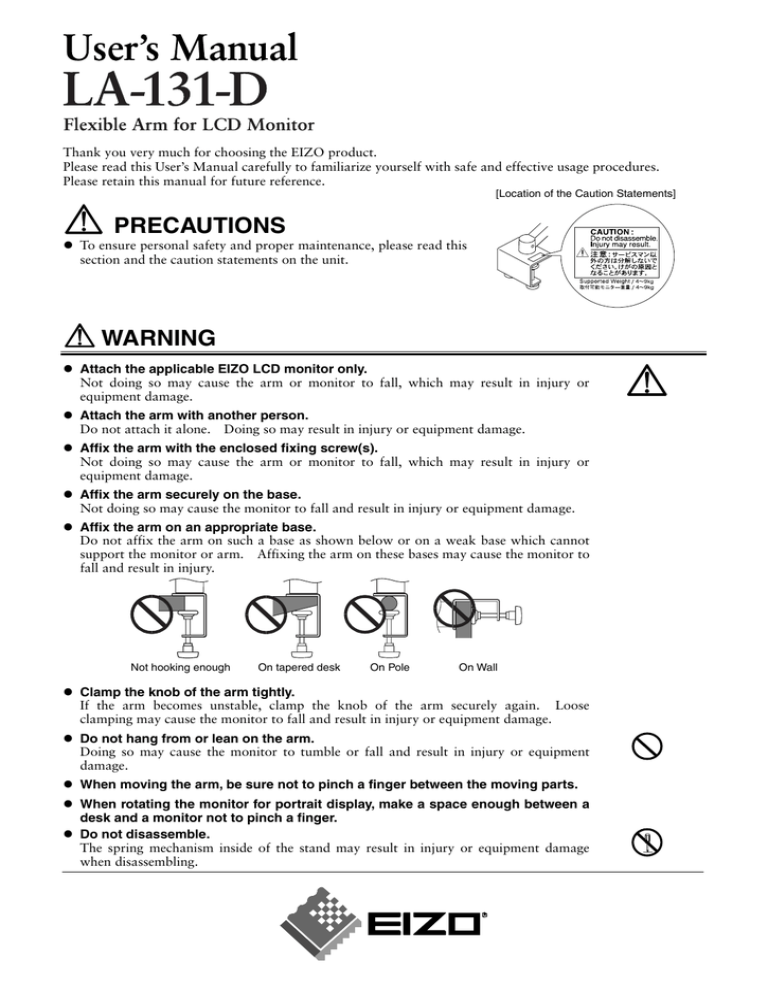

PRECAUTIONS
To ensure personal safety and proper maintenance, please read this
section and the caution statements on the unit.
WARNING
Attach the applicable EIZO LCD monitor only.
Not doing so may cause the arm or monitor to fall, which may result in injury or
equipment damage.
Attach the arm with another person.
Do not attach it alone. Doing so may result in injury or equipment damage.
Affix the arm with the enclosed fixing screw(s).
Not doing so may cause the arm or monitor to fall, which may result in injury or
equipment damage.
Affix the arm securely on the base.
Not doing so may cause the monitor to fall and result in injury or equipment damage.
Affix the arm on an appropriate base.
Do not affix the arm on such a base as shown below or on a weak base which cannot
support the monitor or arm. Affixing the arm on these bases may cause the monitor to
fall and result in injury.
Not hooking enough
On tapered desk
On Pole
On Wall
Clamp the knob of the arm tightly.
If the arm becomes unstable, clamp the knob of the arm securely again. Loose
clamping may cause the monitor to fall and result in injury or equipment damage.
Do not hang from or lean on the arm.
Doing so may cause the monitor to tumble or fall and result in injury or equipment
damage.
When moving the arm, be sure not to pinch a finger between the moving parts.
When rotating the monitor for portrait display, make a space enough between a
desk and a monitor not to pinch a finger.
Do not disassemble.
The spring mechanism inside of the stand may result in injury or equipment damage
when disassembling.
Package Contents ________________________________
Please contact your local dealer for assistance if any of the listed items are missing or damaged.
Arm Unit (Clamping Part / Arm Part / Attaching-monitor Part)Arm Cover, 2 pcs
User's Manual
Sheet (Compatible Screws List)
Mounting Screws, 4 pcs each (For the compatible screw and monitors, refer to the ‘Compatible Screws List’)
Fixing Screws M4 x 16, 2 pcs
Fixing screws are put into the different bag from the bag which the mounting screws (8 pcs) are into.
Compatible Monitors and Desks ____________________
Monitors
Supported Weight*
Hole Spacing
4.0 kg to 9.0 kg
100 mm x 100 mm (VESA compatible)
*Weight : Total weight of the monitor including the weight of the
cables and optional peripherals.
Desks
Thickness and Refer to right figure
Depth
Weight
Capability
25~60mm
Desk
60 kg min. (recommended)
More than 50mm
How to attach the monitor _________________________
1.
Clamp the Clamping Part to the edge of the desk.
Press the fitting against the edge of the desk and clamp with turning the
knob counter-clockwise.
Press against
the desk
Clamping Part
2.
Knob
Attach the Arm Part to the Clamping Part.
(1) Connect the Arm Part to the Clamping Part.
(2) Fix with the enclosed fixing screw.
(2)
(1)
Arm Part
Fixing Screw
Clamping Part
3.
Attach the Attaching-monitor Part to the monitor.
Use specified screws for tightening up referring to the ‘Compatible Screws List’.
(1)
(2)
Attach the Attaching-monitor Part of the unit to the monitor with specific screws (4 points).
Put in the arm covers to the shield plate with sliding them rightward or leftward.
(1)
(2)
Arm Covers
Mounting Screws (4 pcs)
4.
Attach the monitor to the Arm Part.
(1) Draw the arm to one side. Connect the concave portion of the Attaching-monitor Part (below
figure A) to the salient of the Arm Part (below figure B).
NOTE
¯
{
Check the Attaching-monitor Part is connected firmly.
Connect firmly
(2)
Fix with the enclosed fixing screw.
(1)
(2)
Fixing Screw
A
Concave portion of the
Attaching-monitor Part
B
Salient of the Arm Part
Specifications____________________________________
Dimension (W) x (H) x (D) 150 (5.9) x 220.5 ~ 472.2 (8.7 ~ 18.6) x 445.2 ~ 645.2 (17.5 ~ 25.4) mm (inch)
Weight
4.9 kg (10.8 lbs)
„Dimensions
Unit: mm (inch)
NOTE
The value within the dimensions drawing is only for reference, and range of motion differs according
to the installed condition.
