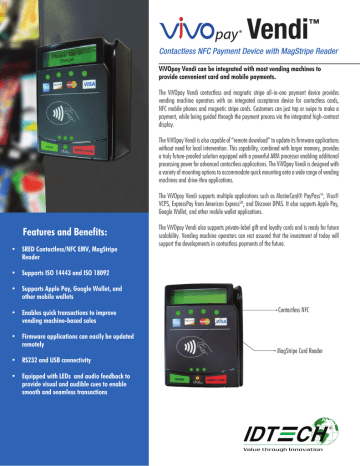

Vendi ™ Contactless NFC Payment Device with MagStripe Reader

Vendi ™ Contactless NFC Payment Device with MagStripe Reader
Vendi
™
Contactless NFC Payment Device with MagStripe Reader
ViVOpay Vendi can be integrated with most vending machines to
provide convenient card and mobile payments.
The ViVOpay Vendi contactless and magnetic stripe all-in-one payment device provides
vending machine operators with an integrated acceptance device for contactless cards,
NFC mobile phones and magnetic stripe cards. Customers can just tap or swipe to make a
payment, while being guided through the payment process via the integrated high-contrast
display.
The ViVOpay Vendi is also capable of “remote download” to update its firmware applications
without need for local intervention. This capability, combined with larger memory, provides
a truly future-proofed solution equipped with a powerful ARM processor enabling additional
processing power for advanced contactless applications. The ViVOpay Vendi is designed with
a variety of mounting options to accommodate quick mounting onto a wide range of vending
machines and drive-thru applications.
The ViVOpay Vendi supports multiple applications such as MasterCard® PayPass™, Visa®
VCPS, ExpressPay from American ExpressSM, and Discover DPAS. It also supports Apple Pay,
Google Wallet, and other mobile wallet applications.
Features and Benefits:
• SRED Contactless/NFC EMV, MagStripe
Reader
The ViVOpay Vendi also supports private-label gift and loyalty cards and is ready for future
scalability. Vending machine operators can rest assured that the investment of today will
support the developments in contactless payments of the future.
• Supports ISO 14443 and ISO 18092
• Supports Apple Pay, Google Wallet, and
other mobile wallets
• Enables quick transactions to improve
vending machine-based sales
• Firmware applications can easily be updated
remotely
• RS232 and USB connectivity
• Equipped with LEDs and audio feedback to
provide visual and audible cues to enable
smooth and seamless transactions
Contactless NFC
MagStripe Card Reader
Vendi ™
Hardware
United States Sales Office
Processor:
ARM Cortex M4 Processor
Display: 16 x 2 Characters
MSR: Up to 3-track bidirectional
Audio-Visual: Beeper and LEDs
Input Voltage: +7.5V to 45 VDC
Corporate Headquarters
10721 Walker Street
Cypress, CA 90630
Phone: (714) 761-6368
Toll Free:(800) 984-1010
Fax: (714) 761-8880
[email protected]
Contactless Transactions
Interface: 13.56MHz ISO 14443 Type A and B Mifare & ISO 18092 NFC enabaled phones
Payment Applications*:
MasterCard PayPass, Visa VCPS, American Express ExpressPay, Discover DPAS,
Interac Flash, EMV Level 1 & 2
Mobile Wallets:
Apple Pay, Google Wallet, and more
International Sales Offices
Connectivity
Canada
+450-465-5261
[email protected]
Interface:
Firmware upgrades: Serial RS232 and USB
Remote firmware download
South America
+55-11-3079-2255
[email protected]
Physical Dimensions (excluding mounting frame)
Height (X):
108 mm
Width (Y): 85.4 mm
Depth (Z):
50.8 mm
Environmental
Operating Temp:
Storage Temp:
Operating Humidity:
Environment Operating:
IK Rating:
Asia
+866-3-496-6988 (Taiwan)
[email protected]
Europe
Germany & United Kingdom
[email protected]
-4 F to 158 F (-20 C to 70 C)
-22 F to 176 F (-30 C to 80 C)
10% to 95% non condensing
Water resistant for IP65 rating
IK8
ISO 9001 Certified
www.idtechproducts.com
©2015 International Technologies & Systems Corporation. ID TECH & ViVOpay are registered trademarks of International Technologies & Systems Corporation.
ViVOpay Vendi and Value through Innovation are trademarks of International Technologies & Systems Corporation. All specifications subject to change without notice.
80134501-001 R4/15
