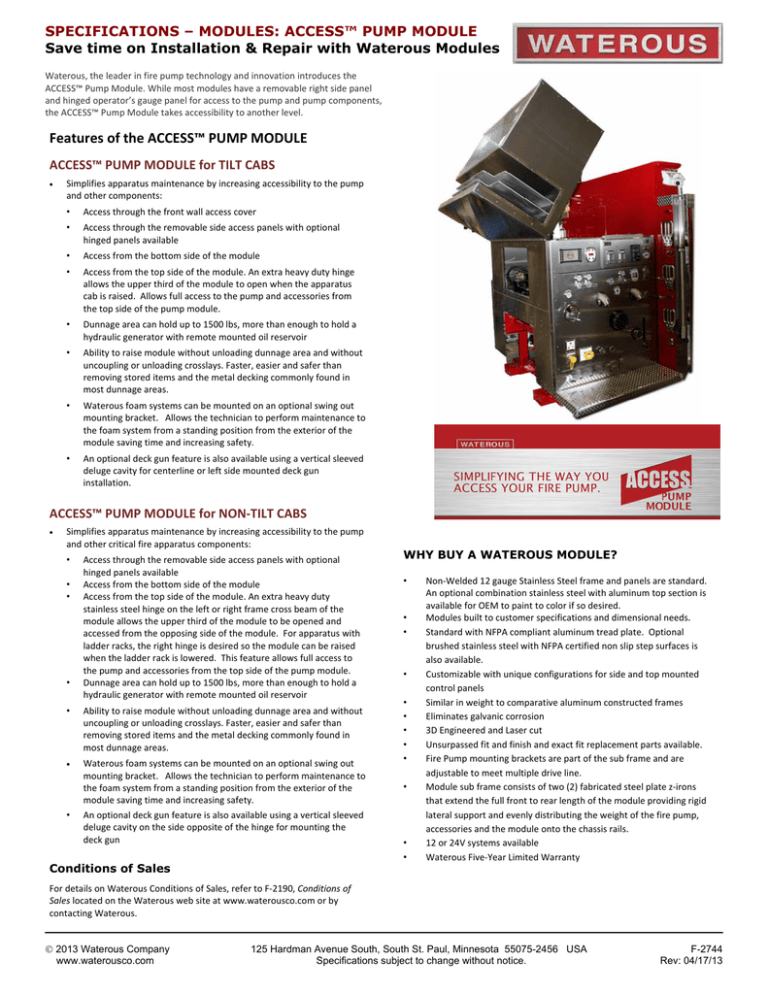

SPECIFICATIONS – MODULES: ACCESS™ PUMP MODULE
Save time on Installation & Repair with Waterous Modules
Waterous, the leader in fire pump technology and innovation introduces the ACCESS™ Pump Module. While most modules have a removable right side panel and hinged operator’s gauge panel for access to the pump and pump components, the ACCESS™ Pump Module takes accessibility to another level. Features of the ACCESS™ PUMP MODULE ACCESS™ PUMP MODULE for TILT CABS 
Simplifies apparatus maintenance by increasing accessibility to the pump and other components: •
Access through the front wall access cover •
Access through the removable side access panels with optional hinged panels available •
Access from the bottom side of the module •
Access from the top side of the module. An extra heavy duty hinge allows the upper third of the module to open when the apparatus cab is raised. Allows full access to the pump and accessories from the top side of the pump module. •
Dunnage area can hold up to 1500 lbs, more than enough to hold a hydraulic generator with remote mounted oil reservoir •
Ability to raise module without unloading dunnage area and without uncoupling or unloading crosslays. Faster, easier and safer than removing stored items and the metal decking commonly found in most dunnage areas. •
Waterous foam systems can be mounted on an optional swing out mounting bracket. Allows the technician to perform maintenance to the foam system from a standing position from the exterior of the module saving time and increasing safety. •
An optional deck gun feature is also available using a vertical sleeved deluge cavity for centerline or left side mounted deck gun installation. ACCESS™ PUMP MODULE for NON‐TILT CABS 
Simplifies apparatus maintenance by increasing accessibility to the pump and other critical fire apparatus components: •
•
•
•
Access through the removable side access panels with optional hinged panels available Access from the bottom side of the module Access from the top side of the module. An extra heavy duty stainless steel hinge on the left or right frame cross beam of the module allows the upper third of the module to be opened and accessed from the opposing side of the module. For apparatus with ladder racks, the right hinge is desired so the module can be raised when the ladder rack is lowered. This feature allows full access to the pump and accessories from the top side of the pump module. Dunnage area can hold up to 1500 lbs, more than enough to hold a hydraulic generator with remote mounted oil reservoir •
Ability to raise module without unloading dunnage area and without uncoupling or unloading crosslays. Faster, easier and safer than removing stored items and the metal decking commonly found in most dunnage areas. 
Waterous foam systems can be mounted on an optional swing out mounting bracket. Allows the technician to perform maintenance to the foam system from a standing position from the exterior of the module saving time and increasing safety. An optional deck gun feature is also available using a vertical sleeved deluge cavity on the side opposite of the hinge for mounting the deck gun •
Conditions of Sales
WHY BUY A WATEROUS MODULE?
•
•
•
•
•
•
•
•
•
•
•
•
Non‐Welded 12 gauge Stainless Steel frame and panels are standard. An optional combination stainless steel with aluminum top section is available for OEM to paint to color if so desired. Modules built to customer specifications and dimensional needs. Standard with NFPA compliant aluminum tread plate. Optional brushed stainless steel with NFPA certified non slip step surfaces is also available. Customizable with unique configurations for side and top mounted control panels Similar in weight to comparative aluminum constructed frames Eliminates galvanic corrosion 3D Engineered and Laser cut Unsurpassed fit and finish and exact fit replacement parts available. Fire Pump mounting brackets are part of the sub frame and are adjustable to meet multiple drive line. Module sub frame consists of two (2) fabricated steel plate z‐irons that extend the full front to rear length of the module providing rigid lateral support and evenly distributing the weight of the fire pump, accessories and the module onto the chassis rails. 12 or 24V systems available Waterous Five‐Year Limited Warranty For details on Waterous Conditions of Sales, refer to F‐2190, Conditions of Sales located on the Waterous web site at www.waterousco.com or by contacting Waterous.  2013 Waterous Company
www.waterousco.com
125 Hardman Avenue South, South St. Paul, Minnesota 55075-2456 USA
Specifications subject to change without notice.
F-2744
Rev: 04/17/13
