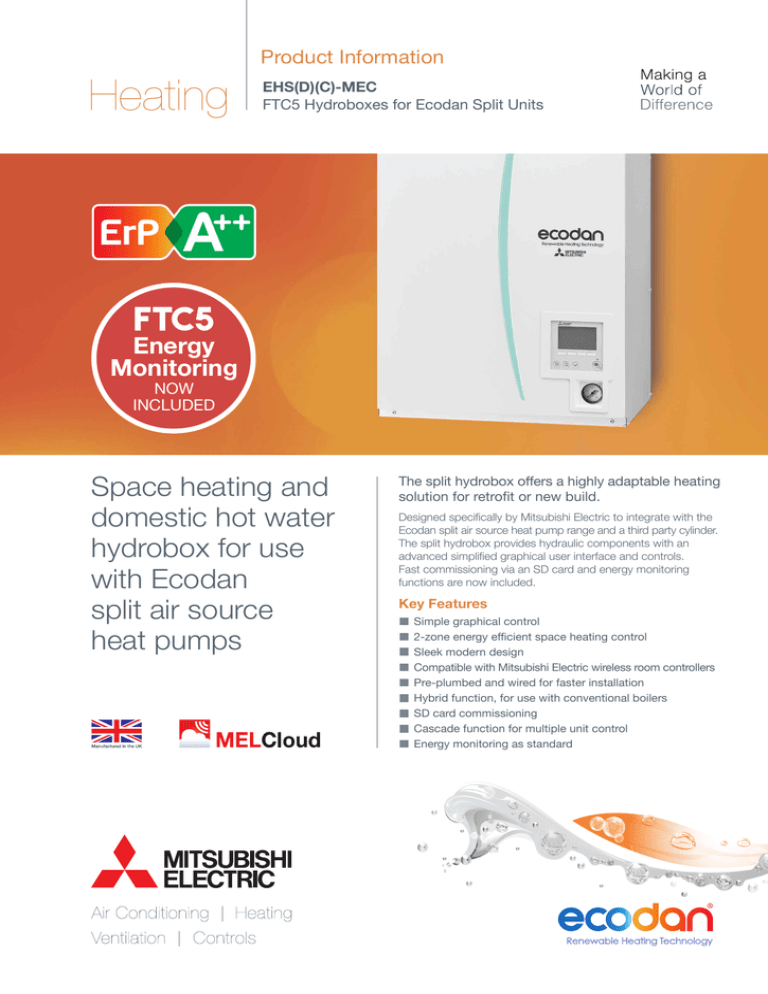

EHS(D)(C)-MEC
FTC5 Hydroboxes for Ecodan Split Units
Energy
Monitoring
NOW
INCLUDED
Space heating and
domestic hot water
hydrobox for use
with Ecodan
split air source
heat pumps
The split hydrobox offers a highly adaptable heating
solution for retrofit or new build.
Designed specifically by Mitsubishi Electric to integrate with the
Ecodan split air source heat pump range and a third party cylinder.
The split hydrobox provides hydraulic components with an
advanced simplified graphical user interface and controls.
Fast commissioning via an SD card and energy monitoring
functions are now included.
Key Features
Simple graphical control
2-zone energy efficient space heating control
Sleek modern design
Compatible with Mitsubishi Electric wireless room controllers
Pre-plumbed and wired for faster installation
Hybrid function, for use with conventional boilers
SD card commissioning
Cascade function for multiple unit control
Energy monitoring as standard
Product Information
Heating
EHS(D)(C)-MEC
FTC5 Hydroboxes for Ecodan Split Units
ADvANCED CoNTroLLEr – wITH ENErgy MoNITorINg
Mitsubishi Electric’s fifth generation controller (FTC5) includes intelligent room
temperature control as standard. This together with advanced weather compensation
ensures the system delivers efficient, comfortable heating regardless of the season.
FTC5 now also includes energy monitoring showing consumed and produced energy.
HyDrobox
HEAT PUMP SPACE HEATER - 55˚C
HEAT PUMP SPACE HEATER - 35˚C
OPERATING AMBIENT TEMPERATURE (°C DB)
APPLICABLE OUTDOOR UNITS
SOUND PRESSURE LEVEL AT 1M (dBA)
WATER DATA
WATER SAFETY DEVICES
DIMENSIONS (mm)
WEIGHT EMPTY / FULL (kg)
REFRIGERANT
ELECTRICAL DATA
Control Board optionally powered
by outdoor unit
ErP Rating
ErP Rating
Flow Rate (l/min)
Pump
Connection Size (mm)
Charge Pressure (MPa (Bar))
Control Thermistor (°C)
Pressure Relief Valve (MPa (Bar))
Flow Switch
Width
Depth
Height
Type
Connection Size - Gas/Liquid (mm (in)
Connection Type
Electrical Supply
Phase
Fuse Rating - MCB Sizes (A)*1
EHSD-MEC
EHSC-MEC
A++
A++
0 ~ +35°C (RH<80%)
PUHZ-SW50VKA(-BS)
28
11.8 (SW50)
Grundfos UPM2 15 70 - 130
28
0.1 (1)
1 - 80
0.3 (3)
Supplied
530
360
800
38 / 44
R410A
12.7 (1/2") / 6.35 (1/4")
Flared
220-240v, 50Hz
Single
10
A++ / A++
A++ / A++
0 ~ +35°C (RH<80%)
PUHZ-SW75VHA(-BS) / PUHZ-SW120VHA(-BS)
28
22.9 (SW75) / 45.9 (SW120)
Grundfos UPM2 15 70 - 130
28
0.1 (1)
1 - 80
0.3 (3)
Supplied
530
360
800
42 / 49
R410A
15.88 (5/8") / 9.52 (3/8")
Flared
220-240v, 50Hz
Single
10
PAR-WT50-E Controller and PAR-WR51-E Receiver
OPTIONAL SIMPLIFIED WIRELESS ROOM THERMOSTAT AND WIRELESS RECEIVER
Hydrobox includes: Flow Temperature Controller (FTC5) with Main Controller and Temperature Sensors, Water Circulation Pump and Flow Sensor.
*1 MCB Sizes BS EN60898-2 & BS EN60947-2
DIMENSIoNS
Rear View
Lower View
F
A
E
C
D
58
291
263
242
164
B
357
Right View
530
(348)
Front View
800
48
260
592
86
124
163
100±5
110
Letter
(242)
310
353
395
410 461
Pipe Description
Connection Size/Type
A
Space heating/ Indirect DHW
cylinder (primary) return connection
28mm/Compression
B
Space heating/ Indirect DHW
cylinder (primary) flow connection
28mm/Compression
C
Refrigerant (Liquid)
6.35mm/Flare (EHSD-MEC)
D
Refrigerant (Gas)
12.7mm/Flare (EHSD-MEC)
E
Discharge pipe (by installer)
from pressure relief valve
G1/2” female (valve port
within hydrobox casing)
F
Electrical cable inlets
-
9.52mm/Flare (EHSC-MEC)
15.88mm/Flare (EHSC-MEC)
