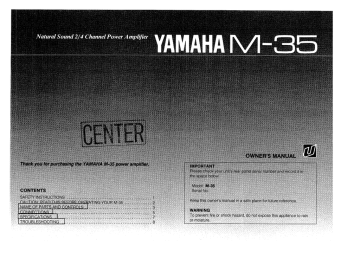

Yamaha M-35 Owner's manual

Yamaha M-35 Owner's manual
 te OF ELECTRIC ET
DO NOT OPEN
SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
e Explanation of Graphical Symbols
A
The lightning flash with arrowhead -
symbol, within an equilateral triangle,
is intended to alert YOU to the presence
of uninsulated “dangerous voltage”
within the product's enclosure that
may be of sufficient magnitude to
constitute a risk of electric shock to
persons. |
The exclamation point within an
equilateral triangle is intended to alert
you to the presence of important
operating and maintenance (servicing)
instructions in the literature accom-
panying the appliance.
1 Read Instructions — All the safety and operating
instructions should be read before the appliance is
operated.
2 Retain Instructions — The safety and operating
instructions should be retained for future reference.
3 Heed Warnings — All warnings on the appliance
and in the operating instructions should be adhered
to.
4 Follow Instructions — All operating and other
instructions should be followed.
5 - Water and Moisture — The appliance should not
be used near water — for example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool, etc.
6 Carts and Stands — The appliance should be
used only with a cart or stand that is recommended
by the manufacturer.
7 Wall or Ceiling Mounting — The appliance should
be mounted to a wall or ceiling only as recommended
by the manufacturer.
8 Ventilation — The appliance should be situated
so that its location or position does not interfere with
its proper ventilation. For example, the appliance
should not be situated on a bed, sofa, rug, or similar
surface, that may block the ventilation openings; or
cabinet that may impede the flow of air through the
ventilation openings.
9 Heat — The appliance should be situated away
from heat sources such as radiators, stoves, or other
appliances that produce heat.
10 Power Sources — The appliance should be
connected to a power supply only of the type
described in the operating instructions or as marked
on the appliance.
11 Power-Cord Protection — Power-supply cords
should be routed so that they are not likely to be
walked on or pinched by items placed upon or against
them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they
exit from the appliance.
12 Cleaning — The appliance should be cleaned
only as recommended by the manufacturer.
13 Nonuse Periods — The power cord of the
appliance should be unplugged from the outlet when
left unused for a long period of time.
14 Object and Liquid Entry — Care should be
taken so that objects do not fall into and liquids are
not spilled into the inside of the appliance.
15 Damage Requiring Service — The appliance
- should be serviced by qualified service personnel
when:
A. The power-supply cord or the plug has been
damaged; or
B. Objects have fallen, or liquid has been spilled into
the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate
normally or exhibits a marked change in
performance; or
E. The appliance has been dropped, or the cabinet
damaged.
16 Servicing — The user should not attempt to
service the appliance beyond those means described
in the operating instructions. All other servicing should
be referred to qualified service personnel.
17 Power Lines — An outdoor antenna should be
located away from power lines.
18 Grounding or Polarization — The precautions
that should be taken so that the grounding or
polarization of an appliance is not defeated.
1
To ensure the finest performance, please read this
manual carefully. Keep it in a safe place for future
reference.
2
Install your unit in a cool, dry, clean place—away from
windows, heat sources, and too much vibration, dust,
moisture or cold. Avoid sources of hum (transformers,
motors). To prevent fire or electrical shock, do not
expose to rain and water. |
3
Do not operate the amplifier upside-down. It may
overheat, possibly causing damage.
4 |
Never open the cabinet. If a foreign object drops into
the set, contact your dealer. |
5
Do not place records or other objects on top of the
amplifier; this will block the ventilation holes, cause
the internal temperature to rise and may result in a
failure.
6 |
Do not use force on switches, knobs or cords. When
moving the set, first turn the unit off. Then gently
disconnect the power plug and the cords connecting
to other equipment. Never pull the cord itself.
M-5
7
Do not attempt to clean the unit with chemical
solvents; this might damage the finish. Use a clean,
dry cloth.
8
Be sure to read the “troubleshooting” section on
common operating errors before concluding that your
unit is faulty.
9
Do not connect audio equipment to the AC outlets on
the rear panel if that equipment requires more power
than the outlets are rated to provide.
FRONT PANEL
POWER SPEAKERS
J CFF
a ON
||
YAMAHA NATURAL SOUND 2/4 CHANNEL POWER AMPLIFIER M-55
. SPEAKER LEVEL
LEFT эс RIGHT
ACH
o O
© POWER switch
Press the switch to turn the power on, and the
indicator above it will light. Pressing it again turns
power Off. | |
* Before turning power on, be sure to set the volume
control of the controi amplifier, surround processor,
etc. to the minimum position in order to prevent pop
noise. |
With the function of the speaker protection circuit,
sound is not produced for a few seconds after
turning the power оп.
+
@) SPEAKERS switch | -
Press to turn on-off the speaker system connected to
the M-35. Sound is produced when this switch is ON
(-=-) and muted when it is OFF (JL).
© SPEAKER LEVEL controls
These adjust the speaker volumes. Sound from the
speakers increases when the controls are turned
clockwise. The function of these controls varies in the
2 CH and 4 CH operations as described below.
e ? CH operation:
The control on the right adjusts the volume of the
RIGHT speaker, and the control on the left adjusts
the volume of the LEFT speaker.
e 4 CH operation:
The control on the right adjusts the volume of the
FRONT speakers, and the control on the left adjusts
the volume of the REAR speakers.
With 4 CH operation, the left and right balance
cannot be adjusted with this power amplifier. Adjust
it on the control amplifier.
* Normally set the controls to the fully clockwise
(0 dB) position, and turn the left control
counterclockwise when it is necessary to adjust the
front and rear balance. The overall volume should
be adjusted with the volume controls of the control
amplifier. |
*
REAR PANEL
© CAUTION cossecrion METHOD DIFFERS FOR 2-CHANNEL AND NT OPERATION. ©
MISE EN GARDE 4 METHODE DE CORMEXION EST DIFFERENTE LORS DE UTILISATION DE 2-CANAUX OU DE 4-CANAUX,
PUPA SU = wn wom mm mom en er о 2cH/acH ee]
; } - - Ez | a
| © ® |
i pe
o zo | | Bj I20VOLTS 7) WATTS o
© © Si | = les 3 NIPPON GAKK 0.,LTD. ATTENTION : nique DE CHOC ELECTRIQUE
FRONT REAR + = Ce + - F H
4 ems ee SANTA EA leo
© © o O
@ INPUT jacks (O 2 CH/4 CH SELECTOR switch @ AC OUTLET
Connect the control amplifier or surround processor, Place the switch to “2 CH” for 2-channel operation This is the supplementary power outlet that can
etc., to these jacks. The connection methods for the 2 and to “4 CH" for 4-channel operation. supply power to other audio equipment. It is not
CH and 4 CH operations are different. | | controlled the setting of the M-35’s POWER switch
" Refer to “CONNECTIONS” on page 5. | | | and can supply a maximum power of 200W.
© SPEAKERS terminals
Conncet speakers to these terminals. Similarly to the
INPUT jacks, the connection methods for the 2 CH
and 4 CH operations are different.
* Refer to “CONNECTIONS” on page 5.
Turn off the power of the equipment before connecting them, and connect correctly by confirming FRONT, REAR, LEFT and RIGHT.
* The connection methods and operation methods are different in 2-channei (2 CH) and 4-channel (4 CH) operations.
a CONNECTION FOR 4-CHANNEL OPERATION
1. Set the 2 CH/4 CH SELECTOR switch to “4 CH”.
2. Connect the control amplifiers PRE OUT jacks to the M-35 INPUT jacks.
3. Connect speakers to the SPEAKERS terminals of the M-35.
Control Amplifier (Optional)
O
L _ В
front | © 0900000 30 Ca = oe
peaker INPUT o e) — | |
; | | 0000 00 | 30 |
(Optional) O Surround Processor e © SL Q E EE,
В (Optional) J нии | | | —
o | ÎPRE OUT
_ FRONT | REAR * For the connections of the control amplifier and other
output output equipment, also refer to the instruction Manuais of
I them. - |
© | e Polarity indication on power cord
Front Rear Toman
Left Channe! Left Channel! a о ао sion
nd © — ——
© YAMAHA 12" 4 METE
@ | I20VOATS 170 WATTS Fe her" I - .
NIPPON GARNI £0.10. ATTENTION soot cm © cord after matching the polarity.
1 I gma TTT ma mas
Pa a aa Een à оо D 40008 TUNE ‚
Front Rear | Front
Right Channel Right Channe: Left Speaker
| m - > R
Rear }
Speaker lo
(Optional) O a
о
i i
Po 1 == i
i + FRONT ——- ack] VE AR 3
Bums me "45 run es = da a amo md
Front Rear
Right Speaker Right Speaker
Polarity indication
The polarity indication is marked
on the socket connected to the
stant of power transformer winding.
Up to 200W can be supplied to
other equipment.
The supply is not controlled by the
M-35's POWER switch.
Front
Speaker
(Optional)
The power cord of the M-35 is provided with the polarity
indication (the cord connected to the start of power tran-
sformer winding is indicated by “—' marking) so that the
polarities of the equipment in the system can be matched.
hen the AC OUTLET of your amplifier, etc. is also
provided with the polarity indication, connect the power
Rear
Speaker
(Optional)
Ш CONNECTION FOR 2-CHANNEL OPERATION
1. Set the 2 CH/4 CH SELECTOR switch to “2 CH”.
2. Connect the control amplifier's PRE QUT jacks to the M-35 INPUT jacks.
3. Connect speakers to the SPEAKERS terminals of the M-35.
Left Speaker (Optional)
О
O
* For the connections of the control amplifier and
other equipment, also refer to the Instruction
Manual of them.
Control Amplifier (Optional)
Right Speaker (Optional)
O
O
|
i i
: © CAUTION; comectión : WEL CPÉRAION
Right Channel Left Channel MISE ENSGARDE la 2.CARME OÙ OX 4.CANADI
© ©) ©
GRO YAMAHA Wie o. er] A
IZOVOLTS — 170 WATTS
BD Hz
NIPPON GAKKECO..LID. ATIENTION moos ox oem wc
MACE I JAPAN WARNING IET EE A SU
RA, @ ma mv
Right Speaker Left Speaker
Polarity indication
BOMN. SPEAKER BORN ~ALT-DARELR The olarity indication is marked
: on the socket connected to the
start of power transformer winding.
switch.
Polarity indication on power cord
The power cord of the M-35 is provided with the polarity
indication (the cord connected to the start of power
transformer winding is indicated by “~" marking) so that
the polarities of the equipment in the system can be
matched. When the AC QUTLET of your amplifier, etc. is
also provided with the polarity indication, connect the
power cord after matching the polarity.
= Up to 200W can be supplied to
other equipment. The supply is not
controlled by the M-35's POWER
Ш SPEAKER CONNECTION
*
Peel off the insulation on the end of each speaker
cord by around 10 mm.
As shown in the illustration, insert the conductor of
the speaker into the terminal hole while pushing
the lever above it. After inserting, the code is
locked by releasing the lever.
Red: +
Black: —
ES
The speaker cord distances should
be as short as possible.
Take care for the polarity of connection. If it is inverse,
the reproduced sound will be unnatural, with lack of
stereo effect, sound localization on the center and
spoiled bass tones. |
Use speakers having the impedances within the
specified range.
When connecting, be careful that the exposed speaker
conductor does not contact other terminals.
Rated Output
Minimum RMS output power per channel
2 CH (20 Hz — 20 kHz)
0.05% THD,80hms .................... 40W
— 0.06% THD, 6 ohms ........ eee, 43W
4 CH (20 Hz ~ 20 kHz) | |
0.07% THD, 8 ohms ........... PU 20W
0.08% THD, 6 ohms .................... 22W
Dynamic Power
2 CH (1 kHz, 8 ohms/6 ohms) ....... 57W/70W
4 CH (1 kHz, 8 ohms/6 ohms) ....... 32W/37W
Dynamic Headroom
‚2 CH (8 ohms) ................... ne... 1.54 dB
4 CH (8 ohms) ......................... 2.04 dB
Power Bandwidth |
2 CH (0.18% THD, | |
20W/8 ohms) ........ SR 10 Hz ~ 50 kHz
4 CH (0.18% THD,
10W/8 ohms) ................... 10 Hz ~ 40 kHz
‘Damping Factor (1 kHz, 8ohms) ............. 70
Input Sensitivity/Input Impedance
2CH ..... encon. 1.0V/20 k-ohms
4CH ................. PU 0.7V/20 k-ohms
Frequency Response |
(20 Hz to 20 kHz) .................. +0/-0.3 dB
Total Harmonic Distortion
2 CH (1 kHz, 20W/8 ohms) ............ .. 0.008%
4 CH (1 kHz, 10W/8 ohms) .............. 0.015%
Signal-to-Noise Ratio (IHF-A-Network, input
shori-circuited) В
2 СН ie 120 dB
ACH .. 113 dB
Residual noise (IHF-A-Network) 18 UV
Channel Separation (1 kHz, Vol. — 30 dB,
5.1 k-ohms terminated)
2CH Ll eee ... 70dB
4 CH eas 55 dB
Rated Supply Consumption nen... AC 120V, 60 Hz
Rated Power Consumption ................ 170W
AC Outlet (UNSWITCHED X 1) ....... 200W max.
Dimensions (Wx H x D) ... 435 x 92.5 x 286.7 mm
| (17-1/8"x3-11/16"x 11- -5/16")
Weight ......................... e... 5.0 kg (11 №)
* Design and specifications subject to change
without notice.
When malfunction occurs in the operation of the M-35 power amplifier, first check the followings. If the malfunction still persists after checking or if it is a malfunction which is not
listed below, turn the POWER switch off, disconnect the power cord from the power supply outlet, and consult your dealer or nearest YAMAHA audio products service agent.
Power cannot be turned ON by
pressing the POWER switch.
® The power plug is not connected securely to the
power outlet. |
Insert the power plug securely into the power outlet.
Sound is not heard at all. :
The SPEAKERS switch is OFF.
Press the SPEAKERS switch to ON.
The SPEAKER LEVEL controls are in the fully —eo
positions. - ©
Turn the SPEAKER LEVEL controls clockwise.
Pin plugs are not connected securely to the
INPUT jacks.
Insert the pin plugs securely into the jacks.
Speakers are not connected properly to the amplifier.
Check the connection,
Sound is not produced from the front
and/or rear speakers or left and/or
ight speakers. |
Speakers are not connected properly to the amplifier.
Check the connection.
One of the SPEAKER LEVEL controls is in the fully
counterclockwise position.
Turn the SPEAKER LEVEL control clockwise.
The 2 CH/4 CH SELECTOR switch is not set
correctly. |
Set the 2 CH/4 CH SELECTOR switch correctly.
The balance between the left and
right cannot be adjusted in the
4 CH operation.
In the 4 CH operation, the left and right balance
cannot be adjusted from the M-35 power amplifier.
Adjust the left and right balance from the control amplifier.
The acoustic image is unstable, with
unnatural sound lacking bass tone.
The phases (+ & —) of the amplifier and speakers
are not matched. |
Connect the speakers to the amplifier again by matching
the phases (+ & -).
Hum noise is heard from the speakers.
Pin plugs are not connected properly.
Insert the pin plugs securely into the jacks.
SINCE 1887
YAMAHA
NIPPON GAKK! CO., LTD. HAMAMATSU, JAPAN
VB57830-0 | _ | BWgb,b, @ Printed in Japan
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
