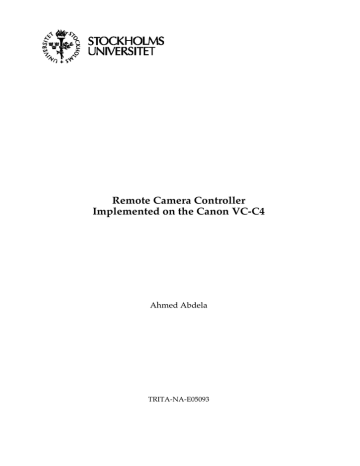

Remote Camera Controller

Implemented on the Canon VC-C4

Ahmed Abdela

TRITA-NA-E05093

Bachelor’s Thesis in Computer Science (10 credits)

Single Subject Courses,

Stockholm University 2005

Supervisor at Nada was Alex Jonsson

Examiner was Stefan Arnborg

Abstract

This thesis presents the design and implementation of a remote camera controlling application for Canon VC-C4 and VC-C4R, The application is implemented in low level programming language for MS Windows 95 and above.

The project consists of two programs, a Client and a Server.

Remote VCC4 uses a simple interface on both Client and Server. The enduser can control the camera from a remote computer, change focus, zoom, flicker, speed et cetera.

Sammanfattning

95 och senare.

zoom, flimmer, hastighet osv.

DEDICATED TO MY BELOVED FAMILY

Acknowledgments

I would like to thank my teachers for helping me achieve what I have achieved, also I like to thank the Staff at KTH, NADA(The Royal Institute of Technology, Department of Numerical Analysis and Computer Science) for helping me out with my project and for being so kind and patient.

Special thanks goes to Mr. Mats Erixson at KTH, AMT(Advanced Media

Technology) and Dr. Alex Jonsson at KTH, GT (Graphic Arts Technology and Management).

Organization of the Master’s thesis

Chapter 1

Is a basic description of the problem at hand, followed by an outline of the solution to be implemented.

Chapter 2

Is about the planning phase and a review of tools, on which this project will be implemented.

Chapter 3

Is the heart of the thesis, where the implementation method is carried out, and where the user interface is decided. In a nutshell this chapter is about the implementation in detail.

Chapter 4

Is the testing phase, where test equipment is presented and test results are given.

Chapter 5

Is a conclusion of the whole project.

Contents

1 Introduction 1

1.1

Description of the problem . . . . . . . . . . . . . . . . . . . .

1

1.2

Overview of the client . . . . . . . . . . . . . . . . . . . . . .

1

1.3

Overview of the server . . . . . . . . . . . . . . . . . . . . . .

3

2 Planning phase 4

2.1

Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6

2.1.1

Compiler MASM32 . . . . . . . . . . . . . . . . . . . .

6

2.1.2

IDE RADasm . . . . . . . . . . . . . . . . . . . . . . .

7

3 Implementation phase 8

3.1

TCP/IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8

3.2

Serial port . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10

3.3

Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11

3.4

Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12

4 Test phase 14

5 Conclusion

References

15

16

Appendix: Control Command Tables 17

Pedestal Control Command Table . . . . . . . . . . . . . . . . . .

17

Camera Control Command Table . . . . . . . . . . . . . . . . . . .

18

System control Command Table . . . . . . . . . . . . . . . . . . .

19

1 Introduction

The idea is to control a camera connected to a computer serial port, from a remote client computer, connected via any IP based network.

The hardware equipment are a Canon VC-C4/VC-C4R Camera, a PC acting as server and another one acting as client, see figure 1.

The VC-C4 is a desktop camera, while VC-C4R is a reverse model suited for ceiling mount. Both cameras have the ability to connect to a computer via serial port. The VC-C4 and VC-C4R handles a set of commands received by the serial port, through which we can control pan, tilt, zoom and more, see figure 2. A list of all available commands are described in the appendix.

Figure 1: Connection schema.

1.1

Description of the problem

The aim of the project is to control the Camera in real time, in other words the application is time-critical, so we have to look into the factors that are time consuming. We can easily locate time-critical parts of the application into three different parts, serial communication, network latency and data processing. Serial communication is limited by hardware and the amount of data sent to an received from the camera is pre-programmed by the manufacturer, so there is not much we can do about it.

Figure 2: Tilt and Pan.

1.2

Overview of the client

The network-latency depends on distance and speed, outside the LAN (Local Area Network), IP packets travel through gateways and routers on the

1

Internet, which introduce transit delays, by reducing the amount of data, we can reduce overall latency. Now the last part which is data processing depends fully on the algorithms in our application, we have to use fast algorithms and process as little data as possible.

The client application can be implemented in any programming language, as long as it communicates using TCP/IP. A Friendly user-interface makes it easy for the user to navigate, and attaching a joystick, steering pad or any input device is no problem at all.

Following is the client list of functions:

Command Type

Connect Menu

Disconnect

Exit

Help

North east

North

North east

Menu

Menu

Menu

Button

Button

Button

Description

Connect to server

Disconnect from server

Release resources and Exit

Show About dialog box

Tilt and pan north east

Tilt north

Tilt and pan north west

East

Home

West

Button

Button

Button

South east

South

Button

Button

South west Button

Pan east

Center

Pan west

Tilt and pan to south east

Tilt south

Tilt and pan to south west

Zoom

Focus

Slider

Slider

Zoom in and out

Set manual focus

Auto Focus Check box Set auto focus

Save Check box Save camera position

P1-P9

Set Time

Buttons

Button

Disp. Time Button

Nine saved positions

Adjust time

Display time

Remote

Power

IP address

Port Nr.

Button

Button

Activate remote control

Turn camera on and off

Edit box Server IP address

Edit box Set network port

2

We also have three command groups placed in boxes, to control exposure and white balance:

Command

Black light adjust

AE reference

Flickerless

Type

AE auto

Description

Check box Auto adjust light

Slider Adjust brightness in AE mode

Check box Flicker less AE see appendix 1

AE manual

Iris

Gain

Shutter

Slide

Slider

Slider

Adjust iris

Adjust gain

Adjust shutter

White balance

Auto White Balance Check box Set Auto white balance

White Balance Slider Adjust white balance

1.3

Overview of the server

The Interface of our server is less sophisticated, in fact the user has only two options, either the server is running and the user has the option to stop it, or the server is not running and the user can start it by pressing the (Run

Server ) button.

For security reason the server can be set to accept only one particular IPaddress, the computer with this IP then will be the only one allowed to send control commands to the server. We also bind it to a specific network port of our choice.

The Server can only connect one client at a time, if one client is connected the next connection will be rejected. On the other hand sending control signals to the server from two different clients simultaneously is not what we want to achieve, this will only lead to unpredictable results.

Following is the server list of functions:

Command Type Description

Run Server Button initialize network

Disconnect Button Disconnect and release resources

IP address Edit box Client IP address

Port Nr.

Edit box Set network port

3

2 Planning phase

The project goal is to be able to control a camera in real time, thus the loss of any performance will result in the loss of the desired effect. Therefor we have to be careful in choosing the proper tools and using them in the right way.

First we start by looking at some programs addressing similar problem, one of these programs is VCC4VCSample. The drawback of this program is that it did not implement most of the camera features, the user-interface has only nine buttons to control directions and power on/off. The second drawback is that it has no network support, in other words you can not control the camera remotely.

Another program is VCC4CONT. This one is much better than the previous mentioned one, it has a nice user-interface and more features of the camera is used, but unfortunately still no network support.

Next step is to gather all the information about technical parts involved in the project, and choose the most suitable solutions for it.

In my search I found out the following :

1. We have to use communication with the camera via a serial port, that is the way this camera is intended to be used see figure 3. A serial port

Figure 3: Connection schema.

is an interface, with which information is transferred in or out one bit at a time, this is accomplished using the RS-232 standard over simple cables connecting the computer to a device.

4

The three most important abbreviations are, CTS (Clear To Send),

TxD (Transmitted Data),RxD (Received Data) and GND (Ground).

2. In choosing the Internet Protocol I did not have the same limitation as in choosing an Interface to the camera, in this case the camera had no knowledge where the commands were coming from. I evaluated two different protocols namely TCP (Transmission Control Protocol) and

UDP (User Datagram Protocol), at the end I chose TCP/IP for the following reasons:

With only 4 header fields of which two are optional, UDP provides a faster transfer of data. UDP provides no error recovery, for this reason it is sometimes expanded to Unreliable Datagram Protocol. UDP applications must generally be willing to accept some loss, errors or duplication. UDP is connectionless, it means that a datagram can be sent at any moment without prior advertising, negotiation or preparation. Just send the datagram and hope the receiver is able to handle it.

On the other hand being connection-oriented with TCP means that before actually transmitting data, you must open the connection between the two end points. The data can be transferred in full duplex

(send and receive on a single connection). When the transfer is done, you have to close the connection to free up system resources. Both ends know when the session is opened (begin) and is closed (end). The data transfer cannot take place before both ends have negotiated the connection. The connection can be closed by either side; the other side is notified. Provision is made to either close gracefully or just to abort the connection.

5

2.1

Tools

In choosing the development tools, we have to take in to consideration the availability of documentation, because when we need help the more popular tool we choose, the easer it is to get help, from mailing lists, web sites, books and examples.

The second issue to consider in choosing our tool is the tool’s ability to help us achieve our goal.

With these points in mind, I began my searching for the proper tools, by comparing different assemblers and found MASM32 (Microsoft assembler) to be the most common implementation, it has been used since the 1980’s and has so many enthusiasts around the world.

When it came to the IDE(Integrated Development Environment) it did not make any difference, because the project is not dependent on the it, meaning that it could be replaced in mid-project without effecting project functionality. So I decided to use RADasm, because it has code highlighting for

MASM32 and visual resource editor to build a user-interface.

2.1.1

Compiler MASM32

MASM32 is an assembler developed by Microsoft easy to use, with support for some high level structure, like if-, while-statements et cetera.

Since MASM32 is a 32 bit compiler it supports windows programming, hence a programmer can invoke or call a windows routine.

The compiler includes a 32 bit linker(link) and a resource compiler (rc), to help build the final application.

A typical make file could look like this:

@echo off if exist #1.obj del #1.obj

if exist #2.rc del #2.rc

\backslash masm32\backslash bin\backslash ml /c /coff #1.asm

if errorlevel 1 goto error1

\backslash masm32\backslash bin\backslash rc /c /coff #2.asm

if errorlevel 1 goto error2

\backslash masm32\backslash bin\backslash Link /SUBSYSTEM:WINDOWS #1.obj #2.obj

if errorlevel 1 goto error3 goto next

:error1

6

echo error in creating resource file goto next

:error2 echo error in assembling source file

:error3 echo error in linking the object files

:next pause

2.1.2

IDE RADasm

RADasm is an Editor with support for highlight of code and indentation, it also has a very nice visual resource editor to help build the user-interface, se figure 4.

RADasm has many features like building a project file for all the different code files involved in a project, it also hooks to a compiler to build and run the program from with in the IDE.

Figure 4: Connection schema.

7

3 Implementation phase

In our implementation we build every part as a unit, and then connect all units together.

First we built a small network consisting of two computers, the first computer would be our server, where the target camera is connected to. The second computer is a client, which will request the connection.

3.1

TCP/IP

TCP/IP protocol is connection-oriented between two sides, each has its own

IP and port number. One side is called the server, the other side the client.

We use Winsock (Windows Sockets) in the Windows API (Application Programming Interface) that deals with networking. A socket is our handle to a connection, both client and server has a handle to a connection. A socket is a two-way connection, and they are not platform-specific, that is how a

Windows and a Unix machine can communicate with each other.

In our project we use the API function bind to bind a socket in our server to a specific IP and port, a combination of bind IP and port by the server is the only one granted connection, se figure 5.

Figure 5: Bind IP and port.

8

The following code sample shows how to create a connection to the server:

;-----------------------------------------------------------------------

; <SetServerSockAddr>

;-----------------------------------------------------------------------

; Parameters

; pSockAddr pointer to the sockaddr_in structure to fill

; portNumber server port number

; Return value

; Nothing

SetServerSockAddr proc pSockAddr:dword, portNumber:dword mov edx, [pSockAddr] mov ecx, [portNumber] xchg cl, ch ; convert to network byte order mov [edx][sockaddr_in.sin_family], AF_INET mov [edx][sockaddr_in.sin_port], cx mov [edx][sockaddr_in.sin_addr.S_un.S_addr], INADDR_ANY ret

SetServerSockAddr endp

9

3.2

Serial port

For serial communication we use API functions CreateFile, ReadFile and

WriteFile, they open a port as if it is a file, and gives us a handle to the buffert where we can send data to or receive data from. Data we place in the buffer using WriteFile will be received by the camera, and by using ReadFile we receive response.

The following code sample shows how the server connects to the camera:

OpenPort proc comX:dword invoke CreateFile,addr comX,GENERIC_READ or GENERIC_WRITE,0,0,OPEN_EXISTING,0,0 mov hcomm,eax

.IF eax==INVALID_HANDLE_VALUE mov eax,1 mov herror, offset g_SPErorr

.ELSE

mov eax,0

.ENDIF

ret

OpenPort endp

By calling function CreateFile we recive a handel in hcomm, this handle can be used later communicate with the camera.

The following code sample shows how to read from and write to the camera:

WriteF proc invoke WriteFile,hcomm,addr Header,sizeof Header-1,addr n,NULL ret

WriteF endp

ReadF proc invoke ReadFile,hcomm,addr data,sizeof data-1,addr n,NULL ret

ReadF endp

The serial port converts each byte to a stream of ones and zeroes before sending and back again to byte when receiving data. An electronic chip called a UART (Universal Asynchronous Receiver/Transmitter) is actually the one that does the conversion.

10

3.3

Server

The server application has a very simple interface, two buttons one for putting the server online and the other one for taking it of line, as well as two edit boxes to specify the IP address of the remote client and the port to be used, se figure 6.

When a user presses the Run server button, we check for the camera via serial port, if camera exist we initialize it by adjusting the head to be centered, then we start a new socket, the socket is bind to the IP and port numbers specified in the edit boxes, finally the program gets into a standby position, waiting for a client to connect. As soon as connection is request by a client, we verify the client IP and port used to connect , if the IP and port matches the one entered into the edit boxes, access is granted by the server and connection is established.

The server receives single character from the client, each character corresponds to a command that is recognized by the camera, the server then sends the command to the camera. After the command has been issued, the camera sends a verification signal to the server.

Figure 6: Server.

Following code shows one sample out of 40 implemented commands:

.if al=="T" ; letter corresponding to command mov eax,0EF313260h ; command for pan right tilt down mov [esi+4],eax ; we put it in buffer invoke WriteF

...

; and send it to the serial buffer

11

3.4

Client

The client program has a more complicated user-interface, to give the user control over as many functions as possible. The client program has nine direction buttons, for directional head movements, two sliders for adjusting zoom and focus, buttons to save nine different positions, sliders to control light, brightness and some buttons for time and power, se figure 7.

When the User presses Connect from the menu, a connection request is sent to the server which IP address is in the edit box. If the server accepts the client IP, connection will be established and access to the device is granted by the server. Now the client program is ready to send commands to the camera.

Every command is saved as a single character in order to save band-width and to achieve a fast transfer rate. Pressing “Disconnect” or “Exit” will terminate the connection and give control back to the server, “Exit” will terminate the client application as well.

Figure 7: Client.

Following code sample shows how the decoding of commands is done: c_Power db "A",0 ;Define Char A to turn camera on and off c_Home db "H",0 ;Define Char H to position set position home c_UL db "T",0 ;Define Char T to move UP and LEFT

...

.if eax == B1 ; Is button B1 pressed?

12

mov eax,offset c_UL ; Bring the definition of command mov ebx, sizeof c_UL ; and the size invoke WriteData,eax,ebx ; send it to server

...

13

4 Test phase

I divided the whole project into small units, test was made in the same fashion, each and every module was tested individually.

First of all I wrote a small application to communicate with the camera, using serial port we send commands to and receiving response from the camera. After analyzing the results I found out that receiving response take more time then sending, so I decided to receive the response in a different thread. This way I could cut the time spent by send and receive to less then half.

I moved next to the internet protocol, I wrote a small application that generated random data, then send it back and forth between two computers, and at the end the data is been analyzed by the application, analysis showed that looking for received data took more time then working with it, so I moved this part as well to a different thread.

Both threads will notify the main thread when data is available, this way our main thread will have more time to work on data received.

I merged the two applications, after correcting some bugs I run the test a few more times, to compeer sent and received data.

From this point I began to build the final application, of course I hade to optimize every module for speed and minimize the use of CPU and the size of data transfer.

Finally I run some more tests using my test applications, and more analysis of data is made to the final application, at this point the program was ready and needed only a friendly user-interface.

After building the user-interface, test had to be done manually to all the components in both server user-interface and Client user-interface, and the application was ready to be used.

14

5 Conclusion

In building such a time critical application, we need to consider using a low level programming language.

In this project there are three time critical moments:

1. The serial communication with the camera.

2. The network communication.

3. The data encoding and decoding done by the application.

The Remote Camera Controller system can be useful where we need to monitor several geographically separated areas from one place, by placing a camera in every location and remotely controlling them. It can also be used to stream pictures from hazardous areas, like areas contaminated with toxic gas or high degree of pollution.

15

References

Janet L. Axelson

2000

Serial Port Complete, lakeview research llc

ISBN: 0-9650819-2-3

Bob Quinn and Dave Shute

1995

Windows Sockets Network Programming, Addison-Wesley.

ISBN: 0-201-63372-8

Kip R. Irvine

2003

Assembly Language for Intel-Based Computers 4th ed., Prentice-Hall Inc.

ISBN: 0-13-091013-9

Charles Petzold

1999

Programming Windows 5th ed., Microsoft Press

ISBN: 1-57231-995-X

Forum For Assembler Language Programmers http://www.masmforum.com

Last visited 20 May 2005

The Microsoft Developer Network http://msdn.microsoft.com

Last visited 23 May 2005

Serial port (RS-232) Interfacing http://www.beyondlogic.org/index.html

Last visited 10 May 2005

Winsock Programmer’s FAQ http://tangentsoft.net/wskfaq

Last visited 1 April 2005

16

Appendix: Control Command Tables

Following tables describes all the commands for communicating with Canon

VC-C4 camera, via the serial port RS-232C interface:

Pedestal Control Command Table

Function

Pan Speed Assignment

Tilt Speed Assignment

Pan Speed Request

Tilt Speed Request

Pan Tilt Stop

Pan Right Start

Pan Left Start

Tilt Up Start

Tilt Down Start

Home Position

Pedestal Initialize 1

Pedestal Initialize 2

Meaning

To set running speed for Pan

To set running speed for Tilt

To return present running speed for Pan

To return present running speed for Tilt

To stop running of Pan/Tilt

To start Pan running to right

To start Pan running to left

To start Tilt running to up

To start Tilt running to down

To move Home position

After Initialization, to move home position

After Initialized, to move the origin position

Pan Slowest Speed Request

Pan Fastest Speed Request

Tilt Slowest Speed request

Tilt Fastest Speed request

Pan Angle Pulse Ratio Request

Tilt Angle Pulse Ratio Request

Pan Minimum Angle Request

Pan Maximum Angle Request

To return the slowest speed of Pan

To return the fastest speed of Pan

To return the slowest speed for Tilt

To return the fastest speed for Tilt

To return coefficient of Pan angle conversion

To return coefficient of Tilt angle conversion

To return minimum angle of Pan

To return maximum angle of Pan

Tilt Minimum Angle Request

Tilt Maximum Angle Request

Pan/Tilt Stop

Pan/Tilt Start Stop

Pan/Tilt Angle Assignment

Pan/Tilt Angle Request

Pan Movable Range Assignment

Tilt Movable Range Assignment

Pan Movable Range Request

To return minimum angle of Tilt

To return maximum angle of Tilt

To stop Pan/tilt running

To start and stop Pan/tilt running

To move assign position of Pan/Tilt

To return present position of Pan/Tilt

To assign movable limit for Pan

To assign movable limit for Tilt

To return present position of Pan

Tilt Movable Range Request To return present position of Tilt

Note: XXXX, YYYY means Pan angel, Tilt angle In Hexadecimal

PMIN, PMAX means Pan min. movable range, max. movable range in Hexadecimal

TMIN, TMAX means Tilt mini. movable range, max. movable range in Hexadecimal

Command

0050h

0051h

0052h

0052h

0053h

0053h

0053h

0053h

0053h

0057h

0058h

0058h

0059h

0059h

0059h

0059h

005Bh

005Bh

005Ch

005Ch

005Ch

005Ch

0060h

0060h

0062h

0063h

0064h

0064h

0065h

0065h

The value inside ( ) means status value in the inverse mount type

Parameter

008h 320h

008h 26Eh

0h

1h

0h

1h

2h

3h

4h

None

0h

1h

0h

1h

0h

1h

0h

1h

2h

3h

2h

3h

00h

01h 22h

XXXX, YYYYh

None

0h, PMIN, PMAX

1h, TMIN, TMAX

0h

1h

Status

None

None

008h 320h

008h 26Eh

None

None

None

None

None

Non

None

None

008h

320h

008h

26Eh

2BF2h

2BF2h

7C87h (7A19h)

8379h (85F7h)

7EF5h (7CF0h)

8320h (8059h)

None

None

None

XXXX, YYYYh

None

None

PMIN, PMAX

TMIN, TMAX

17

Camera Control Command Table

Function

Camera OFF

Camera ON

Focus Auto

Focus Manual

Focus Near

Focus Far

Focus Position Assignment

Focus Position Request

One Push AF

Focus Range Request

Zoom Stop

Zoom Wide

Zoom Tele

Zoom Hi Wide

Zoom Hi Tele

Zoom Position 1 Assignment

Zoom Position 1 Request

Zoom Position 2 Assignment

Zoom Position 2 Request

Zoom Speed Assignment

Zoom Speed Request

Zoom Maximum Request

Backlight Compensation OFF

Backlight Compensation ON

Exposure Auto

Exposure Manual

AE Lock OFF

AE Lock ON

Shutter Speed Program

Shutter Speed 1/60 (PAL: 1/50)

Shutter Speed1/100 (PAL: 1/120)

Shutter Speed Assignment

Meaning

To turn OFF power for Camera section

To turn ON power for Camera section

To change mode of focus to AF

To stop and change of focus to Manual

To move to near focus

To move to far focus

To move to focus position assigned

To return present focus position

After adjustment of focus, change to AF

To return movable range of focus

To stop zoom operation

To zooming to wide

To zooming to tele

To zooming to wide high speed

To zooming to tele high speed

To move to zoom position assigned

To return present zoom position

To move to zoom position assigned

To return present zoom position

To assign running speed of zoom

To return present running speed

To return maximum movable position

To eliminate compensation of backlight

To compensate backlight

To control exposure automatically

To control exposure manually

To cancel AE lock ON

To lock the exposure of AE mode

To change shutter speed to program mode

To change shutter speed to 1/60 (PAL: 1/50)

To change shutter speed to 1/12 (0PAL: 1/100)

To assign shutter speed

00A2h

00A3h

00A4h

00B3h

00B4h

00B4h

00B4h

00B4h

00A5h

00A5h

00A5h

00A5h

00A5h

00A5h

00A8h

00A8h

00A8h

00A5h

Command

00A0h

00A0h

00A1h

00A1h

00A1h

00A1h

00B0h

00B1h

00B1h

00B1h

00A2h

00A2h

00A2h

00A2h

Parameter

0h

1h

0h

1h

2h

3h

XXXXh *1

0h

1h

2h

0h

1h

2h

3h

4h

00h 80h

None

0000h Max

0h

”31h”, 0h˜7h

2h

3h

0h

1h

2h

3h

40h

41h

0h

1h

2h

”35h”, 00h˜19h

Status

None

None

None

None

None

None

None

XXXXh *1

None

XXXXXXXXh *2

None

None

None

None

None

None

00h 80h

None

0000h Min

None

0h 7h

XXXXh *3

None

None

None

None

None

None

None

None

None

None

1.

4 figures Hexadecimal value within the request of focus limit

2.

The focus range changes according to the zoom position. The value indicates Max/Min 4 figures in

Hexadecimal

3.

The zoom value is to set individually inherent value within 0000h FFFFh

18

System control Command Table

Function

Remote Control ON

Remote Control OFF

Operation Status Request

Extended Operation Status Request

Product Name Request

ROM Version Request

Preset Set

Preset Move

Preset Status Request

Extended Preset Status Request

Remote Controller Through Setting

LED Normal Display

LED Forced Control

Cascade OFF

Cascade ON

Host Control Mode

Local Control Mode

Screen Control

Display Character Data Assignment

Display Character Data Request

Display Date Setting

Display Date Request

Display Time Setting

Display Time Request

Turning On Time Request

Default Setting

Command Termination Notification

Setting

Global Notification Setting

Pedestal Model Request

Camera Model Request

Meaning

To available remote controller

To inhibited remote controller

To return information of operate status

To return extended information of operate status

To return product name

To return ROM version of VC-C4

To memory preset position

To move preset position

To request preset status

To request extended preset status

To set ON/OFF of remote controller through

To set normal display of LED

To set forced ON/OFF of LED

To release cascade connection OFF

To connect cascade connection ON

To control by host computer

To control by remote controller

To set screen display of date, time, characters

To assign character data of display

To request character data of display

To set display date (yy/mm/dd)

To request display date (yy/mm/dd)

To set display time (hh/mm/ss)

To request display time (hh/mm/ss)

To request total accumulated turn on time

To initialize in status of factory setting

To set termination notification on/off

To set global notification on/off

To return pedestal model (normal/inverse)

To return camera model (NTSC/PAL)

Command

0080h

0080h

0086h

0086h

0087h

0088h

0089h

008Ah

008Bh

008Bh

008Dh

008Eh

008Eh

008Fh

008Fh

0090h

0090h

0091h

0091h

0091h

0091h

0091h

0091h

0091h

0092h

0093h

0094h

0095h

009Ah

009Ah

Parameter

0h

1h

None

0h

None

None

1h 9h

1h 9h

None

0h

0h 1h

0h

1h 4h

0h

1h

0h

1h

00h 09h

1h XX,Y,DD

2h XX,Y

3h YY,MM,DD

4h

5h,HH,MM,SS

6h

0h 1h

None

0h 1h

0h 1h

0h

1h

Status

None

None

3 byte

5 byte

VC-C4

V5-16

None

None

2 byte

3 byte

None

None

None

None

Non

None

None

None

None

2 byte

None

YY,MM,DD

None

HH,MM,SS

0000h FFFFh

None

None

None

0h 1h

0h 1h

1.

XX, Y, DD indicate X address, Y address, ,Character Data of Display in Hexadecimal

2.

YY, MM, DD indicate Year, Month, Day in Hexadecimal

3.

HH, MM, SS indicate Hour, Minute, Second in Hexadecimal

19

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
