This technology enables you to save on energy and operate on a three-phases power supply, whatever the heat pump’s output, by avoiding heavy intensities on start-up.

COP (coefficient of performance) : This is the relationship between the energy transmitted to the heating circuit and electrical energy consumed.

Energy from the air

Ev

Dt

Cn

PAC

4 kW

Heat produced

20 °C

energy consumed

1 kW

COP 4

PAC - Heat pump.

Ev - Evaporator.

Cp - Compressor.

Cn - Condenser.

Dt - Expansion valve.

Installation and operating manual "1364 - EN"

Figure 1 - Heat pump operating principle

- 5 -

Split system (3-phase)

1 3 Specifications

Nominal heating performances (outdoor temperature/ initial temperature)

Heat output

+7 °C / +35 °C - Floor heating system . . . . . . . . . . . . . . . . . . . .kW . . . . . . . . . . 10,80 . . . . . . . . . . . 13,50 . . . . . . . . . . . . . . . .15,17

-7 °C / +35 °C - Floor heating system . . . . . . . . . . . . . . . . . . . .kW . . . . . . . . . . 10,80 . . . . . . . . . . . 13,00 . . . . . . . . . . . . . . . .13,50

+7 °C / +45 °C - Low temperature radiator . . . . . . . . . . . . . . . .kW . . . . . . . . . . 10,10 . . . . . . . . . . . 12,60 . . . . . . . . . . . . . . . .13,00

-7 °C / +45 °C - Low temperature radiator . . . . . . . . . . . . . . . .kW . . . . . . . . . . 10,02 . . . . . . . . . . . 12,50 . . . . . . . . . . . . . . . .13,00

+7 °C / +55 °C - Radiator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .kW . . . . . . . . . . 9,48 . . . . . . . . . . . 11,80 . . . . . . . . . . . . . . . .12,96

-7 °C / +55 °C - Radiator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .kW . . . . . . . . . . 9,20 . . . . . . . . . . . 10,60 . . . . . . . . . . . . . . . .11,90

Power absorbed

+7 °C / +35 °C - Floor heating system . . . . . . . . . . . . . . . . . . . .kW . . . . . . . . . . 2,51 . . . . . . . . . . . 3,20 . . . . . . . . . . . . . . . . . 3,70

-7 °C / +35 °C - Floor heating system . . . . . . . . . . . . . . . . . . . .kW . . . . . . . . . . 4,28 . . . . . . . . . . . 5,18 . . . . . . . . . . . . . . . . . 5,40

+7 °C / +45 °C - Low temperature radiator . . . . . . . . . . . . . . . .kW . . . . . . . . . . 3,01 . . . . . . . . . . . 3,81 . . . . . . . . . . . . . . . . . 4,00

-7 °C / +45 °C - Low temperature radiator . . . . . . . . . . . . . . . . .kW . . . . . . . . . . 4,63 . . . . . . . . . . . 6,00 . . . . . . . . . . . . . . . . . 6,37

+7 °C / +55 °C - Radiator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .kW . . . . . . . . . . 3,60 . . . . . . . . . . . 4,61 . . . . . . . . . . . . . . . . . 5,14

-7 °C / +55 °C - Radiator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .kW . . . . . . . . . . 5,08 . . . . . . . . . . . 6,04 . . . . . . . . . . . . . . . . . 6,88

Nominal coefficient of performance (COP) . . . . . . . .(+7 °C / + 35 °C) . . . . . . . . . . 4,30 . . . . . . . . . . . 4,22 . . . . . . . . . . . . . . . . . 4,10

Electrical characteristics

3-Phase electrical voltage (50 HZ) . . . . . . . . . . . . . . . . . . . . . . . . . . V . . . . . . . . . . .400 . . . . . . . . . . . 400 . . . . . . . . . . . . . . . . . 400

Maximum current of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . A . . . . . . . . . . 10,5 . . . . . . . . . . . 10,5 . . . . . . . . . . . . . . . . . 10,5

Nominal current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A . . . . . . . . . . .3,6 . . . . . . . . . . . .4,8 . . . . . . . . . . . . . . . . . .5,5

Nominal current of the electrical back-ups . . . . . . . . . . . . . . . . . . . . A . . . . . . . . . . . 13 . . . . . . . . . . . . .13 . . . . . . . . . . . . . . . . . . 13

Power of the electrical back-ups . . . . . . . . . . . . . . . . . . . . . . . . . . .kW . . . . . . . . . . . 9 . . . . . . . . . . . . . 9 . . . . . . . . . . . . . . . . . . . 9

Real power absorbed

- By the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .W . . . . . . . . . . 2x104 . . . . . . . . . . .2x104 . . . . . . . . . . . . . . . .2x104

- By the circulation pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .W . . . . . . . . . . .151 . . . . . . . . . . . 151 . . . . . . . . . . . . . . . . . 151

Maximum power absorption by the outdoor unit . . . . . . . . . . . . . . . .W . . . . . . . . . . 5865 . . . . . . . . . . . 6555 . . . . . . . . . . . . . . . . 7245

Hydraulic circuit

Maximum operating pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . .bar . . . . . . . . . . . 3 . . . . . . . . . . . . . 3 . . . . . . . . . . . . . . . . . . . 3

Hydraulic system flow rate 4°C<Δt<8°C (nominal conditions)

- minimum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . l/h . . . . . . . . . . 1200 . . . . . . . . . . . 1500 . . . . . . . . . . . . . . . . 1700

- maximum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . l/h . . . . . . . . . . 2400 . . . . . . . . . . . 3000 . . . . . . . . . . . . . . . . 3400

Various

Weight of outdoor unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . kg . . . . . . . . . . . 99 . . . . . . . . . . . . .99 . . . . . . . . . . . . . . . . . . 99

Noise level at 1 m / 5 m(outdoor unit)

(3)

. . . . . . . . . . . . . . . . . . . . . dB . . . . . . . . . .53 / 39 . . . . . . . . . .55 / 41 . . . . . . . . . . . . . . . 56 / 42

Weight of hydraulic unit (empty/full of water) . . . . . . . . . . . . . . . . . kg . . . . . . . . . .53 / 78 . . . . . . . . . .53 / 78 . . . . . . . . . . . . . . . 53 / 78

Water capacity of the hydraulic unit . . . . . . . . . . . . . . . . . . . . . . . . . . . l . . . . . . . . . . . 25 . . . . . . . . . . . . .25 . . . . . . . . . . . . . . . . . . 25

Heating system operating limits

Outdoor temp mini/maxi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . °C . . . . . . . . . -25 / +35 . . . . . . . . . -25 / +35 . . . . . . . . . . . . . -25 / +35

Initial max . heating water temperature

- Floor heating system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . °C . . . . . . . . . . . 45 . . . . . . . . . . . . .45 . . . . . . . . . . . . . . . . . . 45

- Temperature radiator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . °C . . . . . . . . . . . 60 . . . . . . . . . . . . .60 . . . . . . . . . . . . . . . . . . 60

Flow min . heating water temperature . . . . . . . . . . . . . . . . . . . . . . . °C . . . . . . . . . . . 8 . . . . . . . . . . . . . 8 . . . . . . . . . . . . . . . . . . . 8

Refrigeration circuit

Diameter of gas pipes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . inches . . . . . . . . . . .5/8 . . . . . . . . . . . .5/8 . . . . . . . . . . . . . . . . . .5/8

Diameter of liquid pipes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . inches . . . . . . . . . . .3/8 . . . . . . . . . . . .3/8 . . . . . . . . . . . . . . . . . .3/8

Factory charge of refrigerant R410A . . . . . . . . . . . . . . . . . . . . . . . . g . . . . . . . . . . 2500 . . . . . . . . . . . 2500 . . . . . . . . . . . . . . . . 2500

Maximum operating pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . .bar . . . . . . . . . . . 42 . . . . . . . . . . . . .42 . . . . . . . . . . . . . . . . . . 42

Minimum length of pipes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .m . . . . . . . . . . . 5 . . . . . . . . . . . . . 5 . . . . . . . . . . . . . . . . . . . 5

Maximum length of pipes

(1)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .m . . . . . . . . . . . 15 . . . . . . . . . . . . .15 . . . . . . . . . . . . . . . . . . 15

Maximum length of pipes

(2)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .m . . . . . . . . . . . 20 . . . . . . . . . . . . .20 . . . . . . . . . . . . . . . . . . 20

Maximum level difference

(2)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .m . . . . . . . . . . . 20 . . . . . . . . . . . . .20 . . . . . . . . . . . . . . . . . . 20

(1)

Factory charge of refrigerant R410A.

(2)

Taking into account the possible additional load of refrigerant R410A (see page 20 ).

(3)

Acoustic noise information : The maximum sound pressure level is less than 70 dB(A) for both hydraulic unit and outdoor unit.

According to IEC 704-1 and ISO 3744.

- 6 Installation and operating manual "1364 - EN"

Split system (3-phase)

Outdoor unit

650

Air

31 330

Overflow hole (ø 20)

Bottom view

900

Air

4 holes (ø 10)

1290

Air

400

Side view

Front view

Hydraulic unit

Top view

Figure 2 - Dimensions in mm

450

1034

1000

235

Heating flow

ø M 26x34

Heating return

ø M 26x34

Front view

Figure 3 - Dimensions in mm

Installation and operating manual "1364 - EN"

480

Side view

- 7 -

Split system (3-phase) mbar

600

500

400

300

200

100

1mbar = 10 mmCE = 100 Pa

0,4 0,6 0,8 1 1,2 1,4 1,6 1,8 m

Figure 4 - Hydraulic pressures and flow rates available

10000

1000

- Compressor casing

- Discharge

- Condensation

100

- Outdoor

- Evaporator outlet

- Evaporator center

-20 -10 0 10 20 30 40 50 60 70 80 90 100 110 120 130

Temperature °C

Figure 6 - Ohmic values of the sensors (outdoor unit)

Outdoor sensor QAC34

43907

10000

2490

1000

338

-50 -25 0 25 50 75

° C

Heat pump return sensor

Heat pump flow sensor

32500

30000

27500

25000

22500

20000

17500

15000

12500

10000

7500

5000

2500

0 10 20 30 40 50 60 70 80 90 100

°C

Figure 5 - Ohmic values of the sensors

(Hydraulic unit)

- 8 Installation and operating manual "1364 - EN"

Split system (3-phase)

1 4 Heating power curve

112

Values according to standard EN 14511, for which it is necessary to add the power absorbed by the heating circulation pump .

-20

Floor heating system (35°C)

Low temperature radiator (45°C)

Classic radiator (60°C)

-15 -10 -5 0

Outside temperature (°C)

Heat output

Power absorbed

15 20

140

-20

Floor heating system (35°C)

Low temperature radiator (45°C)

Classic radiator (60°C)

-15

-10

-5

Outside temperature (°C)

160

-20

Floor heating system (35°C)

Low temperature radiator (45°C)

Classic radiator (60°C)

-15 -10 -5 0

Outside temperature (°C)

Installation and operating manual "1364 - EN"

Heat output

Power absorbed

15 20

Heat output

Power absorbed

15 20

- 9 -

Split system (3-phase)

1 5 Description

WO*K1**LCT

Legend :

1 - Low-noise, high-output propeller fan.

2 - Electric variable speed "inverter" motor.

3 - "Inverter" control module.

4 - Control lights and buttons.

5 - Connection terminal blocks

(power and interconnection).

6 - Refrigerant accumulator bottle.

7 - Four way valve.

8 - Anti-corrosion treated bodywork.

9 - (Hidden behind the inverter control module) Electric expansion valve for main circuit.

10 - Noise and temperature insulated "inverter" compressor with liquid injection port.

11 - Refrigeration connection valves (flared connectors) with protective caps.

12 - Holding tank with condensate drain hole.

13 - High-performance exchange surface evaporator; anti-corrosion treated hydrophilic aluminium fins and grooved copper tubes.

14 - Solenoid valve for liquid injection.

15 - Electric expansion valve for liquid injection.

Figure 7 - Outdoor unit components

13 14

16 15

Legend :

1 - Electric box.

2 - Regulator / User interface.

3 - Start/stop switch.

4 - Heating circulation pump.

5 - Heating flow.

6 - Gas refrigeration connection.

7 - Liquid refrigeration connection.

8 - Heating return.

9 - Drain valve.

10 - Safety valve.

11 - Manometer.

12 - Safety thermostat.

13 - Manual drainer.

14 - Expansion vessel.

15 - Condenser.

16 - Electric back-ups.

6 7

- 10 -

Figure 8 - Hydraulic unit components

Installation and operating manual "1364 - EN"

Split system (3-phase)

1 6 Operating principle

The heat pump transmits the energy contained in the surrounding air into the dwelling to be heated.

The heat pump consists of four main elements, in which a refrigerant (R410A) circulates.

-In the evaporator (ref.

13, figure 7, page 10 ) :

The energy is taken from the surrounding air and is transmitted to the refrigerant. Because it has a low boiling point, it changes from the liquid state to the vapour state, even in cold weather (down to -20 °C outdoor temperature).

-In the compressor (ref. 10, fig 7 , page 10 ) :

The vaporised refrigerant brought to high pressure and takes on more calories.

-In the condenser (ref. 15, figure 8, page 10 ) :

The energy in the refrigerant is transmitted to the heating circuit. The refrigerant returns to liquid state.

-In the expansion valve (ref. 9, figure 7, page 10 ) :

The liquefied refrigerant is brought back to low pressure and returns to its initial temperature and pressure.

The heat pump is equipped with a controller, which controls the room temperature based on the outdoor temperature measurement and governed by the temperature control.

The room thermostat (option) provides a corrective action for the temperature control.

The hydraulic unit is equipped with an electric back-ups system, which is triggered to provide additional heat during the coldest periods.

• Regulation functions

-The heating circuit’s initial temperature is controlled by the temperature control.

-The power of the outdoor unit is modulated according to initial heating temperature via the “inverter” compressor.

-Possibility to set the setpoint of maximun heating initial temperature.

-Control of the electric back-up heating.

-The daily timer program enables you to define the periods for comfortable or reduced ambient temperature.

-Summer/winter mode switchover is automatic.

-Control of the supplementary boiler* (the electric backups are deactivated).

-The room thermostat* (option) provides a corrective action for the temperature control

-Control of a second heating circuit*.

-Domestic hot water : Heating time programme, control of the operation of the DHW circulation pump*.

-Control of swimming pool heating*.

-Managing the cooling*.

• Domestic hot water (DHW) operating principle

Two domestic hot water (DHW) temperatures can be parametered: comfort temperature (line 1610 to 50 °C) and reduced temperature (line 1612 to 25 °C).

The default heat pump program (line 560, 561 and 562) is set for comfort temperature from 0.00 to 5.00h and for reduced temperature for the rest of the day.

This optimises electrical consumption while ensuring comfortable availability of hot water.

Setting for reduced temperature can be useful to prevent the DHW from switching on too often and for too long during the day.

The production of domestic hot water (DHW) is triggered when the temperature in the tank falls 7°C (setting from line 5024) below the set temperature.

The heat pump produces the domestic hot water, which is then supplemented, if required, by electrical backup heating from the tank.

To ensure a DHW setting over 45°C, the electrical backup heating or the boiler must be left on.

Depending on how the parameter (1620) is set, comfort temperature can be reached 24h/day or only at night or depending on the heat pump programme.

If the contract concluded with the energy provider includes a subscription to day/night tariff, the electrical backup is subordinate to the supplier’s power tariff and the comfort temperature may only be reached at night.

If no particular contract is concluded, the comfort temperature can be reached at any time, including during the day

The production of DHW takes priority over heating; nevertheless the production of DHW is controlled by cycles that control the times assigned to the heating and the production of DHW in the event of simultaneous demand.

A function to switch from "reduced" to "comfort" is provided on the front of the user interface (see ref. 1, figure 39, page 29 ).

If the heating installation is equipped with a DHW circulation pump, the pump’s operation during DHW cycles can be parametered.

Anti-legionella cycles can be programmed.

• Fan convectors with integrated control system

Do not use a room sensor in the area.

• Protection functions

-Anti-legionella cycle for domestic hot water.

If the heat pump is equipped with optional equipment and the associated kits.

Installation and operating manual "1364 - EN" - 11 -

Split system (3-phase)

2 Installation

2 1 Regulation installation and maintenance conditions

The appliance must be installed and the maintained by an approved professional in accordance with the prevailing regulations and code of practice, in particular:

The legislation on the handling of refrigerants.

2 2 Unpacking and reservations

2 2 1 Receipt

Carefully check, in the carrier’s presence, the general appearance of the appliances and check that the outdoor unit is not laid on its side or back.

In the case of any dispute, state any appropriate reservations to the carrier in writing within 48 hours and send a copy of this letter to the After-Sales service.

2 2 2 Handling

The outdoor unit should not be laid on its side or back during transport.

Laying the unit down during transport is likely to damage the internal tubes and the compressor suspensions.

Any damage caused by transportation of the unit lying down is not covered by the warranty.

If necessary the outdoor unit may be tilted only during manual handling (to go through a door or use a staircase).

This operation must be conducted very carefully and the appliance must be immediately restored to upright position.

2 2 3 Containment of refrigerant circuits

All refrigerant circuits fear contamination from dust and moisture. If such pollutants introduced into refrigeration circuit, they can contribute to degrade the reliability of the heat pump.

It’s necessary to ensure correct containment connections and refrigerant circuits (hydraulic unit, outdoor unit).

In case of subsequent failure and expertise, the finding of the presence of moisture or foreign objects into the compressor oil would lead to systematic exclusion of warranty.

-Check upon receipt that the fittings and the refrigeration circuit caps mounted on hydraulic unit and outdoor unit are properly seated and locked (impossible to loosen bare hands). If this’s not the case, tighten them using an against wrench.

-Check also that the refrigerant connections are sealed

(plastic caps or tubes crushed at the ends and soldered).

If the caps must be removed during installation (tubes cut by example), put back them as soon as possible.

2 2 4 Accessories provided

-Accessories provided with the outdoor unit ( figure 10 ).

-Accessories provided with the hydraulic unit

( figure 9 )

2 3 Installation position

The choice of the position for installation is particularly important insofar as any later movement is a delicate operation requiring the intervention of a qualified person.

Choose the site of the outdoor unit and the hydraulic unit after discussion with the customer.

Observe the maximum and minimum distances between the hydraulic unit and the outdoor unit

( figure 17, page 16 ) ; the guarantee of the performances and the system’s service life depend on this.

5 6

- 12 -

Bracket

Outdoor sensor

To secure the hydraulic model

To monitor the outdoor temp

Figure 9 - Accessories provided with the hydraulic unit

Elbow

Plug (x 2)

For draining away the condensates

Figure 10 - Accessories provided with the outdoor unit

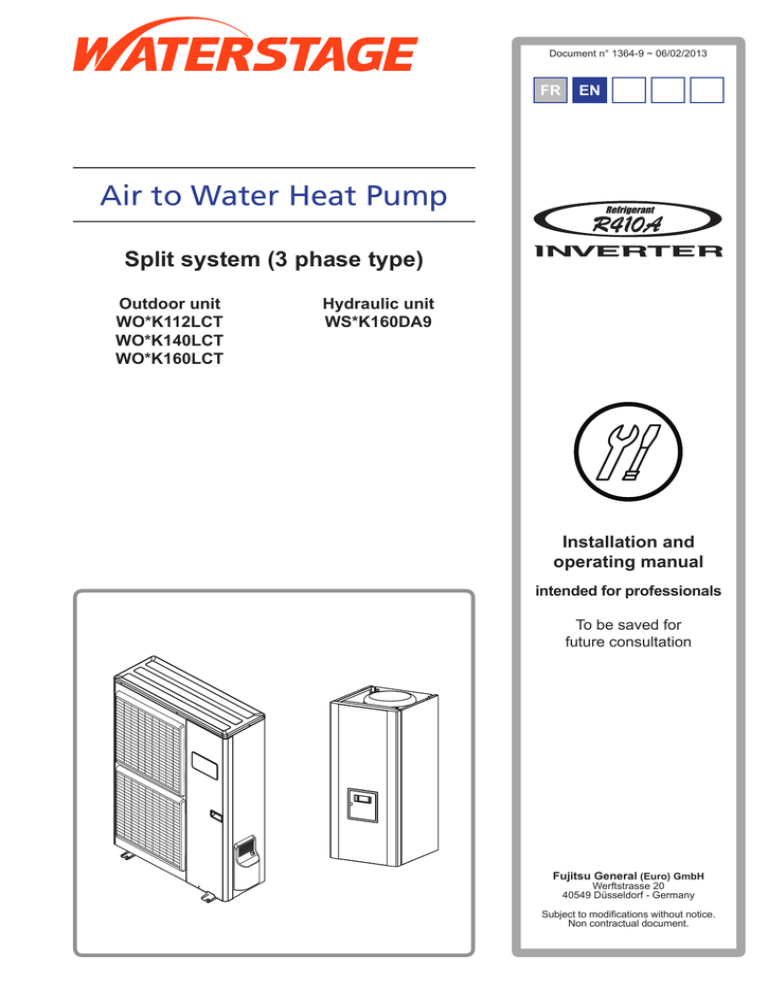

Installation and operating manual "1364 - EN"

Split system (3-phase)

2 4 Installation of the outdoor unit

2 4 1 Installation precautions

The outdoor unit must only be installed outside

(outdoors). If a shelter is required, it must have broad openings on the 4 walls and observe the installation clearances ( figure 11 ).

• Choose a site that is preferably sunny and sheltered from strong cold predominant winds (mistral, tramontana, etc…).

• The unit must be easily accessible for future installation and maintenance work.

• Ensure that it is possible to make the connections to the hydraulic unit easily.

• The outdoor unit is able to withstand bad weather but avoid installing in a position where it is likely to be exposed to significant dirt or flowing water (under a defective gutter for example).

• Water may drain away from the outdoor unit when it is operating. Do not install the appliance on a paved terrace ; choose a well-drained place (e.g. gravel or sand). If the installation is in an area where the temperature can be lower than 0°C for a long period, check that the presence of ice does not present any danger. A drainage pipe can also be connected to the outdoor unit (see figure 12, page 14 ).

• Nothing should obstruct the air circulation through the evaporator and from the fan.

• Keep the outdoor unit away from heat sources and inflammable products.

• Make sure the appliance not disturb the surrounding area or users (noise level, draught generated, low

150 mm

200 mm

300 mm or more ou plus

1500 mm

1000 mm

300 mm

Max. 500 mm

250 mm

500 mm

Max. 500 mm

1000 mm ou plus

300 mm or more

1500 mm ou plus

1500 mm

500 mm

Max. 300 mm

Figure 11 - Minimum installation clearances around outdoor unit

Installation and operating manual "1364 - EN" - 13 -

Split system (3-phase) temperature of the air being blown out, with the risk of freezing plants in its path).

• The surface supporting the outdoor unit should:

- be permeable (soil, gravel, etc),

-support its weight easily,

-provide a solid fixing and

-not transmit any vibration to the dwelling.

(Anti-vibratory blocks are available as an option).

• The wall bracket can not be used in conditions likely to transmit vibrations, ground position is preferred.

2 4 2 Outdoor unit positioning

The outdoor unit must be raised at least 50 mm above ground level. In areas prone to snow, this height should be increased but should not exceed 1,5 m ( figure 12 ).

-Fasten the outdoor unit by means of screws and rubber tightening or toothed lock washers to avoid their coming loose.

2 4 3 Condensate drain hose

(see figure 12 ).

If the use of a discharge pipe is imperative:

-Use the elbow provided (

C) to connect a 16 mm diameter hose for draining away the condensate.

-Use the stopper or stoppers provided ( B) to block the opening of the condensate tank.

Allow for the condensate to flow away under the force of gravity (waste water, rain water, gravel bed).

If the installation is made in an area where the temperature can be lower than 0°C for a long period, provide the drain pipe with a trace resistance to avoid it icing up The trace resistance must heat not only the pipe but also the bottom of the appliance’s condensate collection tank

H* ≥ 50mm

* In regions subject to frequent snow,

(H) must be greater than the average snow layer.

4 holes

(ø 12 mm)

Figure 12 - Positioning of the outdoor unit, draining away the condensate

- 14 Installation and operating manual "1364 - EN"

Split system (3-phase)

2 5 Installing the hydraulic unit

2 5 1 Installation precautions

• The room in which the appliance operates must comply with the prevailing regulations.

• To facilitate maintenance and to allow access to the various components, we recommend that you provide sufficient space all around the hydraulic unit

( figure 13 ).

• Be careful not to bring inflammable gas near to the heat pump during its installation, in particular when it requires brazing. The appliances are not fireproof and should not therefore be installed in a potentially explosive atmosphere.

-To avoid condensation inside the condenser, remove the refrigerant circuit caps

only when building the

refrigerant connections

-If the refrigerant connection only occurs at the end of the installation, be sure that the refrigerant circuit caps* remain in place and tight throughout the installation duration.

* (hydraulic unit side and outdoor unit side)

-After every intervention on the refrigeration circuit and before final connection, take care to replace the plugs in order to avoid any pollution from the refrigeration circuit (The sealing with tape is prohibited).

2 5 2 Positioning the hydraulic unit

-Remove the front panel (2 screws A, figure 14 )

-Remove the sides (4 screws

B, figure 15 ).

-Fix the support solidly (3 screws and plugs) to a flat, hard-wearing wall (not a light partition) ensuring that it is correctly levelled.

-Hook the appliance onto its support.

-Refit the sides. Refit the front panel.

150 mm

200 mm

150 mm

1000 mm

Figure 14 - Removing the front panel

Figure 13 - Minimum installation clearances around the hydraulic unit and distances to the combustible partitions

505 mm

200 mm

(S)

150 mm 90 mm

240 mm

305 mm

(S)

Figure 15 - Removing the sides and fixing the support

Installation and operating manual "1364 - EN" - 15 -

Split system (3-phase)

2 6 Refrigeration connections

This appliance uses refrigerant R410A

Comply with the legislation for handling refrigerants.

2 6 1 Rules and precautions

• After every intervention on the refrigeration circuit and before final connection, take care to replace the plugs in order to avoid any pollution from the refrigeration circuit.

• Minimum necessary tools

-Set of manometers (Manifold) with hoses exclusively reserved for HFCs (Hydrofluorocarbons).

-Vacuum gauge whith isolation valves.

-Vacuum pump specially for HFCs (use of a traditional vacuum pump is authorized if, and only if, it is fitted with a non-return valve on the suction side).

-Flaring tool, Pipe-cutter.

-Deburring tool.

-Wrenches.

-Refrigerant gas leak detector certified (sensitivity 5g/year).

Provision on using tools that have been in contact with HCFCs (R22 for example) or CFCs.

The manufacturer declines any liability with regard to the guarantee if the above instructions are not observed

• Flared connections

Lubrication with mineral oil (for R12, R22) is forbidden

-Only lubricate with polyolester refrigeration oil (POE).

If POE is not available, fit without lubrication.

• Brazing on the refrigeration circuit (if necessary)

-Silver brazing (40% minimum recommended).

-Brazing only under dry nitrogen internal flux.

Coat the flared surface with

POE refrigeration oil

Do not use mineral oil

Figure 16 - Prevention of gas leaks

• To eliminate any filings in the pipes, use dry nitrogen to avoid introducing any humidity that may adversely affect the appliances operation. In general, take every precaution to avoid humidity penetrating into the appliance.

• Proceed to insulate the gas and liquid pipes to avoid any condensation. Use insulating sleeves resistant to temperatures over 90 °C. In addition if the humidity level in the areas where the refrigeration pipes pass risks exceeding 70%, protect the pipes with insulating sleeves. Use a sleeve thicker than 15mm if the humidity reaches 70~80%, and a sleeve thicker than 20 mm if the humidity exceeds 80%. If the recommended thicknesses are not observed under the conditions described above, condensation will form on the surface of the insulation material. Lastly, take care to use insulating sleeves whose thermal conductivity is 0.045

W/mK or less when the temperature is 20 °C. The insulation must be impermeable to resist the passage of steam during the defrosting cycles (fibreglass wool is prohibited).

2 6 2 Refrigeration connections

The outdoor unit must be connected to the hydraulic unit with copper pipes and connections (refrigeration quality), insulated separately.

Comply with the pipe diameters and the permitted pipe lengths ( figure 17 ).

The minimum length of the refrigeration connections

is 5 m for correct operation

The appliance will be excluded from guarantee if it is used with refrigeration connections less than 5 m long.

If the refrigeration connections are exposed to weathering or UV- and the insulation is not strong, it is necessary to provide protection.

Manipulate the pipes and take them through walls with protective plugs in place.

If the distance between the outdoor unit and the hydraulic unit exceeds the length of the maximum conduits indicated in the table, an additional charge of

R410A must be loaded.

The quantity of R410A added must be adapted to the length of the refrigeration circuit in order to the heat pump’s performance without damaging the compressor

(See para. "Additionnal charge" , page 20 ).

Heat pump

PAC

mini

5 m

L D

Gas

5/8"

Liquid

3/8"

Gas and liquid conduits

5 15 15

* : Without additional charge of R410A.

** : Taking into account the possible additional load of refrigerant R410A

(see para. 2.7.3

, page 20 ).

- 16 -

Figure 17 - Pipe diameters (in inches) and permissible lengths (in meters)

Installation and operating manual "1364 - EN"

Split system (3-phase)

2 6 3 Creating the flarings

-Cut the pipe to an appropriate length with a pipe-cutter without deforming it.

-Carefully deburr it, holding the pipe towards the bottom to avoid introducing filings into the pipe.

-Remove the flared connection nut situated on the valve to be connected and slip the pipe into the nut.

-Proceed to flare, letting the pipe overflow the flaring tool.

-After flaring, check the condition of the working radius

( L). This must not show any scratch or trace of any fracturing. Also check the dimension (

B).

Flaring tool

ø Hose

9,52 (3/8")

15,88 (5/8")

Hose

2,5 to 2,7

Dimensions in mm

-0,4

13,2

2,9 to 3,1 19,7

Figure 18 - Flaring for flare connections

Flare nut

2 6 4 Shaping the refrigeration pipes

The refrigeration pipes must be shaped only on a bending machine or with a bending spring in order to avoid any risk of crushing or breaking them.

Warning

• Remove the insulation material locally to bend the pipes.

• Do not bend the copper to any angle over 90°.

• Never bend pipes more than 3 times in the same position otherwise traces of fracturing may appear

(from strain-hardening the metal).

2 6 5 Connecting the flared connections

Connections must be made the day of the filling the installation with gas (see § 2 7, page 19 ).

Take particular care positioning the tube opposite its connector so as not to risk damaging the threads A carefully aligned connector can be fitted easily by hand without much force being required

The refrigeration circuit is very sensitive to dust and humidity: check that the area around the connection is clean and dry before removing the plugs protecting the refrigeration connectors

-Remove the plugs from the pipes and the refrigeration connections.

-Present the pipe to the flared connector and screw the nut by hand while holding the connector with a wrench until contact.

-Comply with the recommended tightening torques.

Holding wrench

Torque wrench

Designation

Flare nut 9,52 mm (3/8")

Flare nut 15,88 mm (5/8")

Plug (A) 3/8"

Plug (A) 5/8"

Plug (B) 3/8", 5/8"

Tightening torque

32 to 42 Nm

63 to 75 Nm

20 to 25 Nm

30 to 35 Nm

10 to 12 Nm

Figure 19 - Tightening torque

Installation and operating manual "1364 - EN" - 17 -

Split system (3-phase)

Gas

Liquid

Outdoor unit connections

5/8"

3/8"

Diameter of refrigeration connections

(D1) 5/8"

(D2) 3/8"

Hydraulic unit connections

5/8"

3/8"

Liquid valve

Gas valve

Flare nut

Liquid refrigeration connection diameter D2

Flare nut

Gas refrigeration connection diameter D1

Figure 20 - Connecting the flared connections

Flare nut

- 18 Installation and operating manual "1364 - EN"

Split system (3-phase)

2 7 Filling the installation with gas

This operation is reserved for installers familiar with the legislation for handling refrigerants.

Creating a vacuum with a vacuum pump is essential (see ANNEX 1).

Never use equipment used beforehand with any refrigerant other than a HFC

Remove the refrigerant circuit caps only when building the refrigerant connections

Unfavorables conditions :

- If the outdoor temperature is between +5 and

+10 °C, it’s obliged to have a vacuum gauge for validate the pump down operation and use method

3 empty. (

see ANNEX 2).

- If the outdoor temperature is below +5 °C, it’s strongly not recommended to do the filling the installation with gas.

ANNEX 2

Method 3 empty

-Connect the high pressure hose to the Manifold,

("Gas" connection). A valve must be mounted on the flexible hose from the vacuum pump in order to isolate it.

a) Pump down to the desired value (see table ANNEX 1),

Manometer kit

(Manifold)

Low pressure

Lo Hi

High pressure

Liaison...

liquide

b) Stop the vacuum pump, close the valve end of the service hose (yellow). Connect the hose to the expansion valve of the nitrogen bottle, inject 2 bars, close the flexible hose valve,

Lo Hi

Haute pression

ANNEX 1

Method for calibration and control of a vacuum pump

-Check the oil level of the vacuum pump.

-Connect the vacuum pump with the vacuum gauge according to the scheme.

Clogged flexible hose

Vacuum

Vacuum pump

à vide

-Pump down during 3 minutes.

-After 3 minutes, the pump reaches its threshold value and the vacuum gauge needle does not move.

-Compare the obtained pressure with the value of the table. Depending on the temperature, this pressure must be less than the value indicated in the table.

=> If it’s not the case, replace the gasket, flexible hose or the pump.

T °C

Pmax

- bar

- mbar

5°C<T<10°C 10°C<T<15°C

0 009

0 015

15°C < T

0 020

Liaison...

liquide

Haute pression

Liaison...

liquide

c) Reconnect the flexible hose to the vacuum pump, turn on and gradually open the hose valve.

d) Repeat this at least three times.

Reminder : It’s strictly forbidden to perform these operations with refrigerant.

2 7 1 Commissioning procedure

• Check before connecting

"Gas" connection control (large diameter)

-Connect the "Gas" connection to the outdoor unit.

-Blow dry nitrogen into the "Gas" connection and observe this end:



If water or impurities emerge, use a new refrigerant connection.



Otherwise, perform the flare and connect immediately the refrigerant connection to the hydraulic unit.

Installation and operating manual "1364 - EN"

"Liquid" connection control (small diameter)

-Connect the "Liquid" connection to the outdoor unit.

-Blow dry nitrogen into

"Gas" connection – condensor

- "Liquid" connection assembly and Observe this end (Outdoor unit side).



If water or impurities emerge, use a new refrigerant connection.



Otherwise, perform the flare and connect immediately the refrigerant connection to the outdoor unit.

- 19 -

Split system (3-phase)

• First seal test

-Remove the protective plugs ( B) from the charging hole (Schrader) in the "Gas" valve (large diameter).

-Connect the high pressure hose to the Manifold (figure 21).

-Connect the bottle of nitrogen to the Manifold

(Use only dry nitrogen type U)

-Pressurize the refrigerant circuit with nitrogen (10 bar maximum) ("Gas" connection – condensor - "Liquid" connection assembly).

-Let the circuit under pressure for 30 minutes.

Lo Hi

Haute pression

Azote

10 bars max.

30 mn mini

Liaison...

liquide

High pressure hose (red)

Plug ( A)

Plug ( B)

Load orifice

3-way valve

Hex / Allen key of 4 mm

Refrigeration connection (gas)

figure 21 - Connexion of the hose on the "Gaz" valve

-Search for leaks with a leak detector product, repair and repeat the test.

Lo Hi

Haute pression

Liaison...

liquide gaz

Vanne fermée,

Contrôle pression

Contrôle

d’étanchéité

-When the pressure is stable and leakage is excluded, drain nitrogen letting a pressure above atmospheric pressure (0,2 to 0,4 bar).

• Creating a vacuum and filling the refrigeration connections with gas

-If necessary, calibrate the Manifold gauge to 0 bar.

Adjust the vacuum gauge to the atmospheric pressure

(around 1013 mbar)

-Connect the vacuum pump to the Manifold. Connect a vacuum gauge if the vacuum pump is not equipped.

Haute pression

Liaison...

liquide

Pompe à vide

-Create a vacuum until the residual pressure* in the circuit falls below the value given in the following table.

(* measured with the vacuum gauge)

T °C

Pmax

- mbar

5°C<T<10°C 10°C<T<15°C

0 009

0 015

15°C < T

0 020

- 20 -

-Let the pump continue to operate for another

30 minutes minimum after reaching the vacuum.

-Close the Manifold valve and then stop the vacuum pump

without disconnecting any of the hoses in

place

If the outdoor temperature is between +5 and

+10 °C, use method 3 empty (see ANNEX 2)

-Remove the access plugs ( A) from the valve controls.

-If an additional charge is requires, add the additional charge before filling the hydraulic unit with gas. Please refer to the section ("Additional charge", page 20 ).

-First of all fully open the "Liquid" valve (small) and then the "Gaz" valve (large) using a hex key

(counterclockwise direction) without forcing excessively against the stop.

-Remove the hose rapidly to the Manifold

-Refit the 2 original caps (be sure they are clean) and tighten them to the recommended tightening torque

(see figure 19, page 17 ). The sealing is performed in the caps only metal to metal.

The outdoor unit does not contain any additional refrigerant, enabling the installation to be purged.

Flushing is strictly forbidden.

2 7 2 Sealing test

Once the refrigeration circuit has been gassed as described above, check that all the refrigeration connectors are gas-tigh (4 connectors).

The sealing test must be performed with an approved gas detector. If the flarings have been made correctly, there should be no leaks.

If there is a leak:

-Bring the gas into the outdoor unit (pump down).

The pressure should not drop below atmospheric pressure (0 bar to read on Manifold) so as not to contaminate the recovered gas with air or moisture.

-Make the connection again.

-Repeat the commissioning procedure.

Installation and operating manual "1364 - EN"

Split system (3-phase)

2 7 3 Additional charge

Length of the connections

Additional charge engineer.

• Example for a heat pump model 160

require an additional charge of :

Additional charge = (17 - 15) x 50 = 100 g.

as follows :

extraction position

-Open the bottle’s valve.

manifold side.

10 g. Note the weight.

value shown on the scales.

bottle and disconnect it.

Warning

• Only use R410A !

15 m none

50 g of R410A per additional meter

20 m ( maxi.)

250 g

The charge in the outdoor units corresponds to the maximum distances between the outdoor unit and the hydraulic unit defined in figure 17 . If the distances are greater, an additional charge of R410A is required. The additional charge depends on the distance between the outdoor unit and the hydraulic unit for each type of appliance. The additional charge of R410A must necessarily be made by an approved refrigeration

An outdoor unit 17 m away from the hydraulic unit will

The charge must be introduced after creating the vacuum and before the hydraulic unit is filled with gas,

-Disconnect the vacuum pump (yellow hose) and connect a bottle of R410A instead

in the liquid

-Bleed the yellow hose by loosening it slightly on the

-Place the bottle on scales with a minimum accuracy of

-Carefully open the blue valve slightly and check the

-As soon as the value displayed has dropped by the value for the calculated additional charge, close the

-Then rapidly disconnect the hose connected to the appliance.

-Proceed to fill the hydraulic unit with gas.

• Only use tools suitable for R410A

(set of manometers).

• Always charge in the liquid phase.

• Never exceed the length or the maximum difference in level.

2 7 4 Pump down

(Refrigerant collecting operation)

Perform the following procedures to collect the refrigerant.

1 Turn OFF the start/stop switch (ref.

3, Figure 8,

page 10)

2 Remove the front panel. Then turn ON the DIP SW

1 on the interface card.

3 Turn ON the start/stop switch.

(Green and Red LED on the board start flashing ;

1 sec. on / 1 sec. off repeated)

4 The outdoor unit begins cooling operation about 3 minutes after switching ON.

Close the liquid valve on the outdoor unit 1 minute after operation starts.

5 Close the gas valve on the outdoor unit 1-2 minutes after closing the liquid valve, while the outdoor unit keeps running.

6 Disconnect the power supply.

Remarks :

-Make sure to turn OFF the start/stop switch before touching DIP SW.

-The pump down operation cannot be activated even if

DIP SW is changed while heat pump's power is on.

-Do not forget to turn back DIP SW 1 on the interface card to OFF, after the pump down operation has been completed.

-When the pump down operation is repeated, temporarily turn OFF the start/stop switch after opening the closed valves (both liquid and gas).

-Then turn ON the start/stop switch again after

2 - 3 minutes and perform the pump down operation.

Interface card

Gas

(green)

LED1

R410A

ON OFF

DIP SW 1

Liquid

Figure 22 - Gas bottle R410A

Installation and operating manual "1364 - EN"

Figure 23 - Location of DIP switches and diodes on the hydraulic unit interface card

- 21 -

Split system (3-phase)

2 8 Connecting the heating circuit hydraulically

2 8 1 General

The connection must comply with good trade practice according to local building regulations.

The heating circulating pump is built into the hydraulic unit.

Connect the central heating pipes to the hydraulic unit, complying with the direction of circulation.

The diameter of the pipes between the hydraulic unit and the heating collector must be at least 1 inch

(26x34mm).

Calculate the diameter of the pipes according to the flow rates and the lengths of the hydraulic systems.

Tightening torque : 15 to 35 N.m

Use union connectors to facilitate removing the hydraulic unit.

Preferentially use connection hoses to avoid transmitting noise and vibrations to the building.

Connect the drains from the drain valve and the safety valve to the main sewer system.

Reminder: Seal everything when fitting in accordance with prevailing trade practice for plumbing work :

-Use suitable seals (fibre seals, o-rings).

-Use Teflon tape or hemp.

-Use sealing paste (synthetic depending on the case).

The use of glycol is not necessary. If you are using a glycol/water mix, provide for an annual check on the quantity of glycol.

In certain installations, the presence of different metals can cause corrosion problems ; the formation of metal particles and sludge in the hydraulic circuit is then seen.

In this case, it is advisable to use a corrosion inhibitor in the proportions indicated by its manufacturer.

It is also necessary to ensure that the treated water does not become aggressive.

2 8 2 Rinsing out the installation

Before connecting the hydraulic unit to the installation, rinse out the heating system correctly to eliminate any particles that may affect the appliance’s correct operation.

Do not use solvents or aromatic hydrocarbons (petrol, paraffin, etc.).

In the case of an old installation, provide a sufficiently large decanting pot with a drain on the return from the boiler and at the lowest point in the system in order to collect and remove the impurities.

Add an alkaline product to the water and a dispersant.

Rinse the installation several times before filling it definitively.

2 8 3 Filling and purging the installation

Check the pipe fixings, the tightness of the connectors and the stability of the hydraulic unit.

Check the direction in which the water is circulating and that all the valves open.

Proceed to fill the installation.

Do not operate the circulating pump while filling. Open all the drain valves in the installation and the bleeder valve for the hydraulic unit to remove the air contained in the conduits.

Close the drain and bleeder valves and add water until the pressure in the hydraulic circuit reaches 1,5 bar.

Check that the hydraulic circuit has been purged correctly.

Check that there are no leaks and that the circulating pumps are not seized (if need be, release them).

After the "Start-up" stage (see page 28 ), once the machine has started, purge the hydraulic unit again

(2 liters of water).

2 8 4 Connecting the Fan convector circuit

Heat pump > 11 kW: It must be installed on this circuit a buffer tank (minimum capacity: 50 liters).

(P)

- 22 -

Figure 24 - Release of the circulation pump

Figure 25 - Recommended circulation speed (for radiator)

Figure 26 - Hydraulic unit bleeder valve

Installation and operating manual "1364 - EN"

Split system (3-phase)



Installation and operating manual "1364 - EN" - 23 -

Split system (3-phase)

2 9 Electrical connections

Ensure that the general electrical power supply has been cut off before starting any repair work.

2 9 1 Characteristic of the electrical supply

The electrical installation must be conducted in accordance with the prevailing regulations.

The electrical connections must only be made when all the other fitting operations have been completed (fixing, assembly, etc.).

Warning

The contract concluded with the energy provider must be sufficient not only to cover the heat pump’s power but also the combined sum of all the appliances likely to be operating at the same time.

When the power is too low, check with your energy provider the value subscribed to in your contract.

Never use a socket for the power supply.

The heat pump must be supplied with power by special protected leads from the electric panel via 2-pole circuit breakers specially dedicated to the heat pump :

Curve D for the outdoor unit, curve C for the electric heating and domestic water back-ups (see tables on page 23 ).

The electrical installation must necessarily be equipped with a 30mA differential protection.

This appliance is designed to operate under a nominal voltage of 400 V, +/- 10%, 50 Hz.

2 9 2 General remarks on electrical connections

It is essential to maintain the live-neutral polarity when making the electrical connections.

Tighten the screws on the terminal blocks perfectly.

Unsufficient tightening can cause overheating, leading to breakdown or even a fire.

Use cable clamps to prevent the conductors from being disconnected accidentally.

Connection to Earth and Earth bonding continuity are essential.

• Connecting to screw terminals

Rigid wires (A, figure 27 ).

Rigid wires are always preferable for fixed installations, particularly in a building.

-Always select a wire that complies with the prevailing standards.

-Strip away around 25 mm from the end of the wire.

-With round end pliers, form a loop with a diameter corresponding to the tightening screws on the terminal.

-Tighten the terminal screw firmly onto the loop created.

Flexible wires (B, figure 27 )

H07RNF type (or superior quality) flexible wire can be used with certain precautions :

-Strip away around 10 mm from the end of the wire.

-With tightening pliers, fit a round tag with a diameter corresponding to the terminal screw’s diameter on the end of the wire.

-Tighten the tag firmly onto the terminal with a screwdriver.

-We strongly advise against using flexible wires without round tags.

-Always protect the cables when passing them through cable clamps with PVC protective conduit 0,5 to 1 mm thick.

• Connecting to regulation cards

-Remove the corresponding connector and make the connection.

• Connecting to spring terminals :

Rigid wires

Figure 28 - Regulation connector

-Strip away around 10 mm from the end of the wire.

-Slide the wire into the opening provided for this purpose.

-Push the spring with a screwdriver so that the wire enters the cage.

-Remove the screwdriver and then check that the wire is jammed in the cage by pulling on it.

Flexible wires

-Use the ends and proceed as before.

A : Rigid wires

Loop

25 mm

B : Flexible wires

Round terminal tightened

10 mm

Special screw and washer

Terminal block

Figure 27 - Outdoor unit terminal block

- 24 -

Figure 29 - Hydraulic unit terminal block

Installation and operating manual "1364 - EN"

Split system (3-phase)

2 9 3 Overview of all the electrical connections

The wiring diagram for the hydraulic unit is shown in detail on figure 46, page 51

Outdoor sensor : cable 2 x 0,75 mm²

Interconnection between the outdoor unit and the hydraulic unit

Phase, neutral, earth, communication cable 4 x 1,5 mm²

Room control unit (option) : cable 3 x 0,5 mm²

Room thermostat (option) : cable 2 x 0,5 mm²

Power supply to the electrical back-ups

(See table)

Electric panel

General electrical supply :

(See table)

Figure 30 - Overall layout of the electrical connections for a simple installation (1 heating circuit)

2 9 4 Cable section and protection rating

The cable sections are given for information purposes only and do not exempt the installer from checking that these sections correspond to the requirements and comply with the prevailing standards.

• Power supply to outdoor unit

Heat pump

Model

112

140

160

Maximal power

5865 W

6555 W

7245 W

Electricity supply 400 V - 50 Hz

Cable connection

(3 Phase, Neutral, Earth)

Curve D circuit breaker size

5 x 2,5 mm² 20 A

• Interconnection between the outdoor unit and the hydraulic unit. The hydraulic unit is powered by the outdoor unit by means of a 4 x 1,5 mm² cable (Phase, Neutral, Earth, Communication bus).

• Power supply to the electrical back-ups

The hydraulic unit contains two stages of electrical back-ups installed in a heat exchange cylinder.

Electric back-ups

Power Nominal intensity

13 A

Power supply to the electrical back-ups

Cable connection

(3 Phase, Earth)

Curve C circuit breaker size

4 x 2,5 mm² 20 A

• Outdoor sensor, room thermostat and room control unit

For the outdoor sensor, use a 2 x 0,75 mm² cable.

For the room thermostat, use a 2 x 0,5 mm² telephone type cable.

For the room control unit, use a 3 x 0,5 mm² telephone type cable.

Installation and operating manual "1364 - EN" - 25 -

Split system (3-phase)

2 9 5 Electrical connections on the outdoor unit side

Access to the connection terminals.

-Remove the front panel. Remove the screws and the front panel.

Remove the screws and push downwards

-Use cable clamps to prevent the conductors from being disconnected accidentally.

-Fill in the space where the cables enter the outdoor unit with the insulating plate.

Terminal block

Cable clamps

Front panel

Figure 31 - Access to outdoor unit’s terminal block

-Make the connections in accordance with the diagram(s) ( figure 37, page 26 ).

Cables

(supply and interconnection)

Figure 32 - Finalisation of connection to outdoor unit

Terminal block

1 2 3 L1 L2 L3 N

INDOOR UNIT POWER

Lateral side Back

Interconnection between the outdoor unit and the hydraulic unit

General electrical supply

Figure 34 - Connections to outdoor unit’s terminal block

- 26 -

Front Underneath

Figure 33 - Location of electrical cables and refrigeration connections to outdoor unit

Installation and operating manual "1364 - EN"

Split system (3-phase)

2 9 6 Electrical connections on the hydraulic unit side

Access to the connection terminals.

-Remove the front panel (2 screws)

( figure 14, page 15 ).

-Remove the cover of the electric box.

-Make the connections in accordance with the diagram(s) figure 37, page 26

Do not place the sensor lines and the sector supply lines in parallel in order to avoid causing inadvertent interference due to voltage points in the sector supply.

Ensure that all the electrical cables are housed in the spaces provided for this purpose inside the lifting handles.

Interface card

Heat pump regulator

Cable grommet (Sensors)

Terminal blocks

Safety thermostat

Power relay

(Electrical back-ups)

Cable grommet (Power)

Power relay

(DHW)

Figure 35 - Access to hydraulic unit electric box and description

Safety thermostat

Rearmament

Figure 36 - Access to reset the safety thermostat

Ensure that the general electrical power supply has been cut off before starting any repair work.

The rearmament of safety thermostat should be done by a professional

Installation and operating manual "1364 - EN" - 27 -

Split system (3-phase)

Outdoor unit

1 2 3 L1 L2 L3 N

Hydraulic unit

1 2 3 4 5 6 7 8 20 21 22 23 12 1314 15 16 17 18 19

L N COM L L N N L1 L2 L3 L N L N

OUTDOOR

UNIT

SECOND

CIRCUIT

ELECTRIC

BACK UP SUPPLY

BOILER

CONNECT.

BOILER

VALVE

DHW

BACK UP SUPPLY

A1+

1 3 5 13

RP DHW

2 4 6 14

A2-

L1 L2 L3 N

Electricity supply

3-phase 400V red blue brown green/yellow

Interconnection between the outdoor unit and the hydraulic unit

N L1 L2 L3

L N

L N L N

DHW

Figure 37 - Connection to terminal block and power relays

• Interconnection between the outdoor unit and the hydraulic unit :

Comply with the correspondence between the markings on the hydraulic unit’s terminals and those on the outdoor unit when connecting the interconnection cables.

A connection error could cause the destruction of one or other of the units.

• Electric back-ups :

If the heat pump is not installed with a boiler connection :

-Connect the electrical supply for the back-ups

(terminals 20, 21, 22 and 23) to the electrical panel.

• Boiler connection :

-Please refer to the instructions supplied with the boiler connection kit.

-Please refer to the instructions supplied with the boiler.

• Domectic hot water tank :

If the installation is fitted with a DHW tank with electrical back-up heating :

-Please refer to the instructions supplied with the DHW kit.

-Please refer to the instructions supplied with the DHW tank.

• Second heating circuit :

-Please refer to the instructions supplied with the second circuit kit.

• Contract with the power provider :

The heat pump’s operation can be controlled to suit special contracts (e.g. off-peak, day/night).

In particular, domestic hot water (DHW) at Nominal temperature will be produced during the off-peak hours when electricity is cheaper.

-Connect the "Power Provider” contact to input EX5.

-Set the parameter (1620) to "Off-peak hours".

• 230V on input EX5 = "Peak hours" information activated

(Basic setting / Modification possible line 5989, menu Configuration).

• Power limitation or EJP (peak day removal) :

Power limitation is intended to reduce electrical consumption when this is too high compared to the contract with the power provider.

-Connect the power limiting device to input EX4, the back-ups for the heat pump and the DHW stop in the event of over-consumption by the dwelling.

• 230 V on input EX4 = power limitation in progress.

(Basic setting / Modification possible line 5987, menu Configuration). (Operating line 2920)

• External faults the heat pump :

Any component of carryforward of information

(thermostat, pressure switch, etc.) may signal an external problem and stop the heat pump.

-Connect the external component to input EX6.

• 230 V on input EX6 = stoppage of heat pump

(the system displays Error 369).

-In the case of a heated floor, Connect the floor heating safety device into the connector of the floor heating pump (QX3 - circuit 1, QX23 - circuits 2).

- 28 Installation and operating manual "1364 - EN" iangle (∆)

Split system (3-phase)

Outdoor sensor

Room thermostat circuit 1

Room thermostat circuit 2

1 or

Room control unit

T75

G+

CL-

CL+

CL-

CL+

CL-

CL+

EX6

EX5

EX4

External fault

Tariffs, day / night, peak times/off-peak times

Power shedding or EJP (peak day removal)

5 7

External component contact*

(faults, load shedder, power meter)

* If the control device does not provide a potential-free contact, the contact must be relayed to create equivalent wiring.

In all cases, please refer to the instruction manuals for the external components (load limiting device, power meters) to create the wiring.

Figure 38 - Connections to the heat pump regulator (accessories and options)

2 10 Outdoor sensor

The outdoor sensor is required for the heat pump to operate correctly.

Consult the fitting instructions on the sensor’s packaging.

Place the sensor on the coldest part, generally the northern or north-eastern side.

In any case, it must not be exposed to the morning sun.

It must be installed so as to be easily accessible but at least 2,5 m from the floor.

It is essential that it avoid any sources of heat such as flues, the upper parts of doors and windows, proximity to extraction vents, the underneath of balconies and under-eave areas which would isolate the sensor from variations in the outdoor air temperature.

-Connect the outdoor sensor to the M and B9 terminals on the heat pump control board.

2 11 Room thermostat and/or room control unit

The room thermostat (room control unit) is optional.

Consult the fitting instructions on the sensor’s packaging.

The sensor must be installed in the living room area on a very uncluttered wall. It must be installed so as to be easily accessible.

Avoid direct sources of heat (chimney/flue, television, cooking hobs), draughty areas (ventilation, door, etc.).

Air leaks in the seals in the constructions are often translated into cold air blowing through the electrical conduits. Lag the electrical conduits if there is a cold draught on the back of the IR sensor.

• Installation equipped with two room thermostats.

-Connect each of the sensors to one of the CL+ or CL- terminals on the heat pump control board using the connector supplied.

• Installation equipped with a room thermostat and a room control unit.

-Connect the sensor to one of the CL+ or CL- terminals on the heat pump control board.

-Connect the room control unit to the other CL+, CL- terminals and to G+.

Installation and operating manual "1364 - EN" - 29 -

Split system (3-phase)

2 12 Start-up

-Make sure that ALL DIP SW are OFF before starting up. DIP SW shuold be set OFF for normal operation.

Power supply to the hydraulic unit must be turned off while toching DIP SW.

-Close the installation’s main circuit breaker.

On first commissioning (or in winter), in order to allow the compressor to pre-heat, engage the installation’s main circuit breaker (power supply to the outdoor unit) some hours before starting up the tests.

-Engage the start/stop switch.

To ensure that inputs EX4, EX5 and EX6 operate correctly : Check that the live-neutral polarity of the electrical supply is correct.

When the power is switched on and every time that the

ON/OFF button is switched off and then switched on again, the outdoor unit will take approximately 4 minutes to start up, even if the setting is requesting heating.

The display can show error 370 when the appliance (re)starts. Do not be concerned, the communication between the outdoor and hydraulic unit will re-establish itself in a few moments.

During the regulator initialisation phase, the display shows all the symbols and then "Data, update" and then

"State heat pump".

-Make all the specific adjustments to the setting

(configuring the installation).

-Press the key

-Hold down the key for 3s and select the level of

access used with the aid of the knob

-Confirm with the key

Parameter the heat pump’s setting (consult the settings’ list page 32 ).

On commissioning (or the case of error 10), the electrical backup heaters are liable to start up even if the outdoor temperature at the time is above the heaters’ trigger temperature.

The regulating system uses an average initial outdoor temperature of 0°C and requires some time to update this temperature.

To mitigate this situation, the sensor must be connected correctly. Re-initialise parameter 8703 (implementation level, consumer diagnostic menu).

2 13 Configuring the room thermostat

To configure the room thermostat and connect it to the appropriate heating zone :

-Hold down the presence key for more than 3 seconds.

The room thermostat displays RU and a number flashes.

-Turn the wheel to choose the zone (1, 2).

If the installation is fitted with 2 room thermostats,

- First connect one room thermostat and configure it in zone 2

- Then connect the other room thermostat and configure it as default in zone 1.

-Hold down the presence key ; the room thermostat displays P1 and a flashing number.

1 : Automatic recording : a correction of the setting with the button is adopted without any particular confirmation (timeout) or by pressing the regime key.

2 : Recording with confirmation : a correction of the setting with the button is not adopted until the regime key is pressed.

-Press the presence key again ; the room thermostat displays P2 and a flashing number.

0 : OFF : all the operating elements are engaged.

1 : ON : the following operating elements are locked :

Switching over the heating circuit’s operating mode.

Adjusting the comfort setting.

Changing the operating level.

The room thermostat displays OFF for 3 seconds when a locked button is pressed.

2 14 Configuring room control unit

During commissioning, after an initialisation period of approx. 3 minutes, the user’s language must be set :

-Press the key

-Choose menu "User interface".

-Choose language.

-Select the language ( english, français, nederlands, español, etc).

- 30 Installation and operating manual "1364 - EN"

Split system (3-phase)

3 Regulation system

3 1 User interface and room control unit (option)

Auto

0 4 8 12 16 20 24

ESC

RESET

Auto

0 4 8 12 16 20 24

ESC

Figure 39 -

Ref.

Function

Selecting of the DHW operating mode

(Domestic hot water).

Off

- Definitions

-If the installation is fitted with a DHW tank.

-On : Production of DHW according to the time program.

-Off : Preparing the domestic hot water for stopping with the anti-frost function active.

-Manual start button : Hold down the DHW key for 3 seconds. Switch from

"reduced" to "comfort" until the next time the DHW timer switches over.

Digital display.

Exit "ESC".

Navigation and setting.

Selecting the heating mode.

Information display.

Confirm "OK".

Selecting cooling mode.

RESET button

(Hold down the "RESET" key for 3 sec).

-Operating control. Readout of the current temperature, of the heating mode and of any faults

-View the settings.

-Quit the menu.

-Selecting the menu.

-Setting parameters.

-Adjusting the ambient temperature setpoint.

Auto

Heating operating according to the heating programme

(Summer/winter mode switchover is automatic).

Constant comfort temperature.

Constant reduced temperature.

Stand-by mode with anti-frost protection

(Provided that the heat pump's electrical power supply is not interrupted).

-Various data (please see page 52 ).

Reading error codes (please see page 53 ).

Information concerning maintenance, special mode.

-Input into the selected menu.

-Confirmation of the parameter settings.

-Confirmation of the adjustment to the comfort temperature setting.

-If the installation is fitted with the cooling kit :

Cooling operating according to the heating programme

(Summer/winter mode switchover is automatic).

-Reinitialising the parameters and cancelling error messages.

Do not use during normal operation

Installation and operating manual "1364 - EN" - 31 -

Split system (3-phase)

3 2 Room thermostat (option)

Auto

°C

Ref.

Function

Selecting the heating mode.

Digital display.

Control knob.

Presence key.

Figure 40 - Room thermostat (option)

- Definitions

Auto

Heating operating according to the heating programme

(Summer/winter mode switchover is automatic).

Constant comfort temperature.

Constant reduced temperature.

Stand-by mode with anti-frost protection

(Provided that the heat pump's electrical power supply is not interrupted).

-Operating control. Readout of the current temperature, of the heating mode and of any faults

-Adjusting the ambient temperature setpoint.

-Comfort / Reduced switchover.

3 3 Temperature control

The heat pump’s operation is subject to the temperature control.

The set temperature for the water in the heating circuit is adjusted according to the outdoor temperature.

The temperature control may be chosen automatically by the machine (self-adaptation) or set manually by the installer (Parameters 720, 721 and 726).

If there are thermostatic valves on the installation, these must be fully open or adjusted for higher than the normal set temperature.

3 3 1 Manual adjustment

During installation, the temperature control must be parametered according to the heat emitters and the dwelling’s insulation.

The temperature control’ curves ( figure 41 ) refer to an ambient setting of 20°C.

The slope of the temperature control (parameter 720) determines the impact of the variations in the outdoor temperature on the initial heating temperature variations.

The higher the slope, the more a slight reduction in the outdoor temperature causes a significant increase in the initial water temperature in the heating circuit.

The off-set in the temperature control (parameter 721) alters the initial temperature of all the curves, without altering the slope ( figure 42 ).

The corrective actions in the case of any inconvenience are detailed in the table ( figure 43 ).

- 32 -

3 3 2 Self-adaptation

When this function is active (parameter 726), the temperature control are automatically adjusted ; it is therefore futile to alter the slope or the off-set in the temperature control (parameters 720 and 721).

When this function is first activated, the end user may experience some inconvenience for a few days.

This period of no more than a week is required by the regulator to determine the slope and off-set in the temperature control.

We advise against changing the temperature settings during this period.

The following instructions must be observed for the selfadaptation system to operate correctly :

-A room thermostat must be connected.

-The influence of the ambient temperature (parameter

750) must be set between 1 and 100%.

-Depending on the installation, the room thermostat may have a greater or lesser influence on the temperature control.

-The room in which the room thermostat is installed must not contain any thermostatic valves. If this is the case, the valves must be open fully.

Installation and operating manual "1364 - EN"

Split system (3-phase)

° C

100

Boiler connection application

Heat pump application only

20 10

Outdoor temperature °C

-10

Figure 41 - Heating curve slope (line 720)

+4,5

Curve off-set

-4,5

10 5 0

-5 -10 -15

Outdoor temperature °C

Figure 42 - Off-set of the heating curve (line 721)

2,75

0,75

0,5

0,25

2,5

2,25

1,75

1,5

1,25

-20 ° C

Heating curve slope

Classic temperature radiator

Low temperature radiator

Floor heating system

-20

Heating curve slope

0,5

Corrective actions on the temperature control :

Curve slope

(line 720)

Curve off-set

(line 721)

No correction No correction

Sensations...

...in mild weather

...in cold weather

OK OK

Cold

Hot

Cold

Hot

Cold

Hot

Cold

No correction

Figure 43 - Corrective actions in the case of discomfort

Installation and operating manual "1364 - EN" - 33 -

Split system (3-phase)

3 4 Parametering the setting

3 4 1 General

Only the parameters accessible to levels :

U - End user.

I - Commissioning level.

S - Engineer level.

Are described in this document.

The access levels are specified in the second column of the table by means of the letters

U, I and S

The OEM parameters are not described and require a manufacturer’s access code.

3 4 2 Setting parameters

-Choose the desired level.

-Scroll the menu list.

-Choose the desired menu.

-Scroll the function lines.

-Choose the desired line.

-Adjust the parameter.

-Check the setting by pressing OK

-To return the menu, press ESC

If no setting is made for 8 minutes, the screen returns automatically to the basic display.

Basic display

Brief press

End user

OK OK OK

Time of day and date

Operator section

Time prog heating circuit 1

Hours / minutes

Day / month

Year

Hours

Minutes

1...24 h

0...60 min

Press for

3 seconds

End user Commissioning

Engineer

OEM

Time of day and date

Operator section

Time prog heating circuit 1

Hours / minutes

Day / Month

Year

Start of summer time

End of summer time

01 01 31 12

3 4 3 List of function lines (settings, diagnosis, status)

Line Function Setting range or display

Date and time

U Hours / Minutes

U Day / Month

U Year

S Start of summer time (Day / Month)

00:00... 23:59

01 01 31 12

1900 2099

01 01 31 12

User interface

U Language

S End of summer time (Day / Month) 01 01 31 12

The change of hour will appear at 3:00 am first Sunday after the regulated date.

S Info

English, Français, Italiano,

Nederlands...

Temporary | Permanent

S Operation locking

S Programming locking

I Direct adjustment

On | Off

Off | On

Automatic storage...

Storage with confirmation

- 34 -

Setting increment

Base setting

25 03

25 10

English

Temporary

Off

Storage with confirmation

I Operation HC2 (command HC2) Commonly with HC1,

Independent

Commonly with

HC1

Commonly with HC1 or Independent : This function enables you to choose whether you wish the room thermostat

(as an option) to act on both zones or just a single zone.

Installation and operating manual "1364 - EN"

Split system (3-phase)

Line

Function

Setting range or display

I Operation HCP (domestic hot water pump command, output QX2)

Setting increment

Basic setting

Commonly with

HC1

501

Commonly with HC1 or Independent (if independent, see timer program 3 / HCP)

70 S Software version (Display)

Heating time programme, circuit 1

500

U Pre-selection (Day / Week)

Mon-Sun Mon-Fri Sat-Sun

Monday Tuesday…

00:00... --:--

502

503

504

505

U 1 st

phase On (start)

U 1 st

phase Off (end)

U 2 nd

phase On (start)

U 2 nd

phase Off (end)

U 3 rd

phase On (start)

00:00... --:--

10 min

Mon-Sun

6:00

22:00

--:--

506

516

U 3 rd

phase Off (end)

U Default values, Circuit 1

00:00... --:--

No, Yes

10 min

--:--

Yes + OK : The Default values memorised in the regulator replace and cancel the customised heating programmes.

Your customised settings are therefore lost.

Heating time programme, circuit 2

Only with the 2nd circuit kit option

520 U Pre-selection (Day / Week) Mon-Sun Mon-Fri Sat-Sun

Monday Tuesday…

Mon-Sun

521

522

523

524

U 1 st

phase On (start)

U 1 st

phase Off (end)

U 2 nd

phase On (start)

U 2 nd

phase Off (end)

00:00... --:--

10 min

6:00

22:00

--:--

525

526

536

U 3 rd

phase On (start)

U 3 rd

phase Off (end)

U Default values, Circuit 2

00:00... --:--

No, Yes

10 min

--:--

Yes + OK : The Default values memorised in the regulator replace and cancel the customised heating programmes.

Your customised settings are therefore lost.

Programme 3/ HCP

Domestic hot water pump program, lines 540 to 556.

Time programme 4 / DHW

If the installation is fitted with a DHW tank. (Only with the DHW kit option).

560

561

562

563

564

565

566

576

U Pre-selection (Day / Week)

U 1 st

phase On (start)

U 1 st

phase Off (end)

U 2 nd

phase On (start)

U 2 nd

phase Off (end)

U 3 rd

phase On (start)

Mon-Sun Mon-Fri Sat-Sun

Monday Tuesday…

00:00... --:--

10 min

Mon-Sun

00:00

05:00

--:--

U 3 rd

phase Off (end)

U Default values

00:00... --:--

No, Yes

10 min

--:--

Yes + OK : The Default values memorised in the regulator replace and cancel the customised heating programmes.

Your customised settings are therefore lost.

Installation and operating manual "1364 - EN" - 35 -

Split system (3-phase)

716

720

721

726

730

Line Function

Setting range or display

Time programme 5 / Cooling

If the installation is fitted with the cooling kit (Only with the cooling kit option).

600

601

U Pre-selection (Day / Week)

U 1 st

phase On (start)

Mon-Sun Mon-Fri Sat-Sun

Monday Tuesday…

00:00... --:--

642

643

648

U Start (Day / Month)

U End (Day / Month)

U Operating level (during the holidays)

01 01 31 12

Frost protection, Reduced

Setting increment

10 min

Basic setting

Mon-Sun

8:00

602

603

604

605

606

U 1 st

phase Off (end)

U 2 nd

phase On (start)

U 2 nd

phase Off (end)

U 3 rd

phase On (start)

00:00... --:--

10 min

20:00

--:--

616

Holidays, heating circuit 1

641 U Preselection

00:00... --:--

U 3 rd

phase Off (end)

U Default values

00:00... --:--

No, Yes

10 min

--:--

Yes + OK : The Default values memorised in the regulator replace and cancel the customised heating programmes. Your customised settings are therefore lost.

Period 1 to 8

10 min

Period 1

Frost protection

Holidays, heating circuit 2

If the installation consists of 2 heating circuits (Only with the 2 nd

circuit kit option)

651

652

653

658

U Preselection

U Start (Day / Month)

U End (Day / Month)

U Operating level (during the holidays)

Period 1 to 8

01 01 31 12

Frost protection, Reduced

Period 1

Frost protection

Heating, circuit 1

710

712

U Comfort heating setpoint

U Reduced setpoint from reduced setpoint to 35°C from frost protection setpoint… to comfort setpoint

0,5 °C

20 °C

18 °C

714

732

740

U Frost protection setpoint from 4°C… to reduced setpoint

0,5 °C

8 °C

S Comfort setpoint max

I Heating curve slope (See figure 41 ).

I Heating curve displacement

I Heating curve adaption ( see § 3.3.2

)

20 °C... 35 °C

0,1... 4

-4,5 °C... 4,5 °C

Off, On

1 °C

0,02

0,5 °C

28 °C

0,5

Off

I Summer / Winter heating limits 8 °C... 30 °C 0,5 °C

18 °C

When the average of the outdoor temperatures over the past 24 hours reaches 18°C, the regulator switches off the heating (as an economy measure).

During summer mode, the display shows "Eco". This function is only active in automatic mode.

S 24-hour heating limit

-10 °C... 10 °C 1 °C

-3 °C

This function enables you partially to offset the automatic summer / winter switchover during the intermediate seasons.

Increasing the value delays the switchover to summer regime.

Decreasing the value advances the switchover to summer regime.

This function is only active in automatic mode.

S Flow temp setpoint min (for fan convectors) 8... 95 °C 1 °C

8 °C

- 36 Installation and operating manual "1364 - EN"

Split system (3-phase)

Line

741

750

790

791

800

801

830

834

850

851

856

857

900

Function

S Flow temp setpoint max

Setting range or display

8... 95 °C

Floor heating system = 50 °C / Higher temperature radiator = 65 °C

S Room influence

S Optimum start control max

(Early start to switch to the comfort setting.).

1%... 100%

If the installation is fitted with a room thermostat :

This function enables you to choose the ambient temperature's influence on the setting.

If no value is entered, the setting is made based on the temperature control.

If the parameter is set at 100%, the setting is only based on the ambient temperature.

0... 360 min

Setting increment

1 °C

10 min

Basic setting

55 °C

20%

120 min

S Optimum stop control max

(Early stop to switch from the comfort setting to the reduced setting.).

0... 360 min

S Reduced setp increase start

S Reduced setp increase end

S Mixer valve boost

S Actuator running time

-30... 10 °C

0... 50 °C

30... 873 s

10 min

1 °C

1 s

120 min

-5 °C

240 s

I Floor curing function ( figure 44 )

Off

-Off : Early interruption of the current programme, programme inactive

-Functional heating

-Heating ready for occupation

-Functional heating + curing heating

-Curing heating + Functional heating

-Manually

Manual mode enables you to programme your own concrete slab drying time.The function ends automatically after

25 days.

I Floor curing setp manually

(if line 850 = manual)

This function enables you to set the custom concrete slab drying temperature. This temperature remains fixed.

The concrete slab-drying programme stops automatically after running for 25 days.

I Floor curing day current

I Days complete.current

S Operating mode changeover

0... 95 °C

0 32

None, Protection mode,

Reduced, Comfort, Automatic

1 °C

25 °C

Protection mode

Operating mode at end of concrete slab drying period

0 1 5 7 1 5 10 15 18

Functional heating

Heating ready for occupation

Functional heating + Heating ready for occupation

Figure 44 - Diagram of the concrete slab drying programmes

Installation and operating manual "1364 - EN"

Day

Please comply with the standards and instructions of the manufacturer of the building! A good performance of this function is only possible with an installation correctly implemented (hydraulic, electricity and adjustments)!

This function can be stopped by anticipation when setting the adjustment on "Stop"

- 37 -

Split system (3-phase)

Line Function

Setting range or display

Setting increment

Cooling circuit 1

901

902

907

U Operating mode

U Comfort cooling setpoint

U Release

Off, Automatic

17... 40 °C 0,5 °C

24h/day, Time program HC,

Time program 5 / Refresh

If the installation is fitted with a DHW tank, set the parameter 907 to " Time program 5 / Cooling"

(In order to activate cooling only during the day and leave the DHW system to operate during the night).

Basic setting

Off

24 °C

Time program 5

908

909

6... 35 °C

0,5 °C

912

913

918

919

I Flow temp setp at OT° 25°C

I Flow temp setp at OT° 35°C

I Cooling limit at OT°

S Lock time at end of heating

S Summer comp start at OT°

S Summer comp end at OT°

--, 8... 35 °C

--, 8... 100

20... 50 °C

0,5 °C

1 h

1 °C

20 °C

16 °C

24 °C

24 h

26 °C

40 °C

920

923

924

928

1 °C

0,5 °C

1 %

4 °C

18 °C

80 %

932

938

941

945

946

963

969

S Summer comp setp increase

S Flow temp setp min OT° 25°C

S Flow temp setp min OT° 35°C

S Room influence

--, 1... 10 °C

6... 35 °C

--, 1... 100 %

If the installation is fitted with an room sensor :

This function enables you to choose the ambient temperature's influence on the setting.

If no value is entered, the setting is made based on the temperature control.

If the parameter is set at 100%, the setting is only based on the ambient temperature.

S Room temp limitation --, 0,5... 4 °C

S Mixing valve decrease

S Actuator running time

S Mixing valve in heating mode

S Lock time dewpoint limiter

S With prim contr / system pump

*Basic setting : 1 circuit = No ; 2 circuits = Yes

S Operating mode changeover

0... 20 °C

30... 873 s

Control, Open

--, 10... 600 min

No, Yes

No, Off, Automatic

0,5 °C

1 °C

1 s

10 min

0,5 °C

0 °C

240 s

Control

60 min

No*

Off

Heating, Circuit 2 (Only with the 2 nd

circuit kit option)

If the installation consists of 2 heating circuits

1010

1012

U Comfort heating setpoint

U Reduced setpoint

1014 from reduced setpoint to 35°C from frost protection setpoint… to comfort setpoint from 4°C… to reduced setpoint

0,5 °C

20 °C

18 °C

1016

1020

1021

1026

U Frost protection setpoint

S Comfort setpoint max

I Heating curve slope ( figure 41)

I Heating curve displacement

S Heating curve adaption (see

§ 3.3.2

)

20... 35 °C

0,1... 4

-4,5... 4,5 °C

Off, On

1 °C

0,02

0,5 °C

8 °C

28 °C

0,5

Off

- 38 Installation and operating manual "1364 - EN"

Split system (3-phase)

1090

1091

1100

1101

1130

1134

1150

Line

1030

1032

1040

1041

1050

1151

1156

1157

1200

Function

I Summer / Winter heating limits

Setting range or display

8... 30 °C

Setting increment

0,5 °C

Basic setting

18 °C

When the average of the outdoor temperatures over the past 24 hours reaches 18°C, the regulator switches off the heating (as an economy measure).

During summer mode, the display shows "Eco". This function is only active in automatic mode.

S 24-hour heating limit -10... 10 °C 1 °C

-3 °C

This function enables you partially to offset the automatic summer/winter switchover during the intermediate seasons.

Increasing the value delays the switchover to summer regime.

Decreasing the value advances the switchover to summer regime.

This function is only active in automatic mode.

S Flow temp setpoint min (for fan convectors)

S Flow temp setpoint max

8... 95 °C

Floor heating system = 50 °C / Higher temperature radiator = 65 °C

1 °C

8 °C

55 °C

1 %

20 %

S Room influence 1 %... 100 %

If the installation is fitted with a room thermostat:

This function enables you to choose the ambient temperature's influence on the setting.

If no value is entered, the setting is made based on the temperature control.

If the parameter is set at 100%, the setting is only based on the ambient temperature.

S Optimum start control max

S Optimum stop control max

S Reduced setp increase start

0... 360 min

-30... 10 °C, --°C

10 min

1 °C

120 min

S Reduced setp increase end

S Mixing valve boost

S Actuator running time

I Floor curing function ( figure 44 )

-30... 10 °C, --°C

0... 50 °C

30... 873 s

1 °C

1 s

-5 °C

240 s

Off

-Off : Early interruption of the current programme, programme inactive

-Functional heating

-Heating ready for occupation

-Functional heating + curing heating

-Curing heating + Functional heating

-Manually

Manual mode enables you to programme your own concrete slab drying time.The function ends automatically after 25 days.

I Floor curing setp manually

(if line 1150 = manual)

0... 95 °C 1 °C

25 °C

This function enables you to set the custom concrete slab drying temperature. This temperature remains fixed.

The concrete slab-drying programme stops automatically after running for 25 days.

I Floor curing day current

I Days complete.current

S Operating mode changeover

Operating mode at end of concrete slab drying period

0 32

None, Protection mode,

Reduced, Comfort, Automatic

Protection mode

Domestic Hot Water (Only with the DHW kit option)

1610

1612

U Nominal setpoint Reduced setting (line 1612)… to

65 °C setpoint

The backup electrical system is required to reach this level.

U Reduced setpoint 8 °C... to Nominal setpoint (line 1610)

50 °C

25 °C

Installation and operating manual "1364 - EN" - 39 -

Split system (3-phase)

Line

1620

1640

1641

1642

1644

1645

1646

1647

1660

Swimming pool (Only with swimming pool kit option)

2056

Heat pump

U Setpoint source heating

2843 S Compressor off time min

2844

2862

2873

2882

2884

8... 35 °C

0... 60 min

S Switch-off temp max 8... 100 °C

Floor heating system = 55 °C / Higher temperature radiator = 65 °C

S Locking time stage 2

S Compressor mod run time

0... 40 min

10... 240 s

0... 500 °Cmin S Release integr electric flow

S Release el flow below OT

Electrical release - start-up with outside temperature

-30... 30 °C

2886 S Compensation heat deficit Off, On,

Only with floor curing fct

2910

2920

Function

I Release (of DHW load)

Setting range or display

24h / day

Time programs HCs

Time program 4/DHW

Low-tariff

T'prog 4/DHW or low-tariff

Setting increment

Basic setting

Time program

4/DHW

24h / day : The temperature of the DHW is constantly maintained at the DHW comfort setting.

Time programs HCs : The DHW is produced according to the programming for the ambient temperature (with 1 hour in advance when switched on).

Time program 4/DHW : The DHW programme is separate form the heating circuit programme.

Low-tariff * : The electrical backup heating is only authorised to operate during the off-peak period.

T'prog 4/DHW or low-tariff * : The electrical backup heating is authorised to operate during the comfort period or off peak.

* - Connect the "Power Provider" contact to input EX5 or EX4. (See figure 39 page 29 ). In the case of a day /night contract, the electric back-ups for the DHW tank are subject to the power supplier's tariffs. Switching on the electric back-up for the DHW tank is only authorised during off-peak hours

Off

I Legionella function Off,

Periodic (depending line setting 1641)

Set day of the week (depending line setting 1642)

1 to 7 I Legionella funct periodically

I Legionella funct weekday

Monday, Tuesday,...

I Legionella funct time --:--, 00:00... 23:50

If no value is entered, no anti-legionella cycle has been run.

I Legionella funct setpoint 55 °C... 95 °C

1 day

Saturday

--:--

65 °C

I Legionella funct duration

I Legionella funct circ pump

I Release of circulating pump

--:--, 10 min... 360 min

On... Off

Time program 3/HCP,

DHW release,

Time program 4/DHW

30 min

DHW release

1 min

1 °C

1 min

1 s

1 °Cmin

22 °C

20 min

55 °C

5 min

240 s

100 °Cmin

2 °C

Off

S Release above outside temp

S With electrical utility lock (EX4)

-30... 30 °C

Locked (Blocked on standby),

Released

Released

Released : HP = ON _ Back-up DHW = off _ 1st back-up HP = off _ 2nd back-up HP = off _ Boiler = ON

Locked (Blocked on standby) : HP = off _ Back-up DHW = off _ 1st back-up HP = off _ 2nd back-up HP = off _

Boiler = ON

- 40 Installation and operating manual "1364 - EN"

Split system (3-phase)

Line Function

Setting range or display

Setting increment

Basic setting

Additional generator (Boiler connection)

3700 S Release under outdoor temperature

3705 S Overrun time

3720 S Switching integral (for boiler relief)

3723 S Locking time

Domestic hot water (DHW) (Only with the DHW kit option)

5020

S Flow setpoint boost

5024

5030

5060

S Switching diff

S Charging time limitation

S Electrical resistance regime

--, -50... 50 °C

0... 120 min

0... 500 °Cmin

1... 120 min

0... 30 °C

0... 20 °C

10... 600 min

Substitute, Summer, Always,

Cooling mode

0,5 °C

1 min

1 °Cmin

1 min

1 °C

10 min

2 °C

20 min

100 °Cmin

30 min

5 °C

7 °C

90 min

Substitute

5061 S Electrical resistance release 24h / day, Release of DHW,

Programme 4 / DHW

Release of

DHW

Installation configuration

5700

5711

5870

5987

I Pre-setting

This control enables you to choose one of the 8 pre-selected installation configurations. The hydraulic layouts for the various configurations are detailed in the section : "Installation Configurations".

-Pre-setting 1 : 1 heating circuit

-Pre-setting 2 : 1 heating circuit and DHW tank.

-Pre-setting 3 : 2 heating circuits.

-Pre-setting 4 : 2 heating circuits and DHW tank.

-Pre-setting 5 : Boiler connection and 1 heating circuit.

-Pre-setting 6 : Boiler connection and 2 heating circuits

-Pre-setting 7 : Boiler connection, 1 heating circuit and DHW tank.

-Pre-setting 8 : Boiler connection, 2 heating circuits and DHW tank.

-Pre-setting 9 to 12 : Do not use for heat pump single service. Reserved only for heat pump 2 services.

S Cooling circuit 1

S Combi storage tank

S Cont type input EX4

1,2,3,... 12

Off, System with 4 tubes,

System with 2 tubes

No, Yes

Off

5989

6046

S Cont type input EX5

Normally-closed contact (NC)

Normally-opened contact (NO)

Normally-closed contact (NC)

Normally-opened contact (NO)

1 16 1

I Function input H2

1 - Operating mode change HCs + DHW

2 - Operating mode change HCs

3 - Operating mode change HC1

4 - Operating mode change HC2

6 - Error/alarm message

9 - Dew point monitoring

16 - Swimming pool release

6047 I Contact type H2

6048

6100

6120

6205

6220

S Function value contact H2

S Readjustm outside sensor

S Frost protection plant

S Reset to default parameters

S Software version (RVS)

NC - Normally-closed,

NO - Normally-opened

0... 130 °C

-3... 3 °C

On, Off

No, Yes

0 99

1 °C

0,1 °C

45 °C

0 °C

Installation and operating manual "1364 - EN" - 41 -

Split system (3-phase)

Line Function

Setting range or display

Setting increment

Basic setting

Error

6711

6740

6741

6745

6746

6800

6802

6804

6806

6808

6810

6812

6814

U Reset HP

S Flow temp HC1 alarm

S Flow temp HC2 alarm

S DHW charging alarm

S Flow temp cooling 1 alarm

S History 1

S History 2

S History 3

S History 4

S History 5

S History 6

S History 7

S History 8

6816

6818

S History 9

S History 10

Service / Special operation

7070

S HP interval

7071

7072

7073

S HP time since maint

Reset ? (no, yes)

S Max starts compr1/hrs run

S Cur starts compr1/hrs run (since the 6 last weeks)

Reset ? (no, yes)

7076

7077

7078

7079

7090

7091

7141

7142

7150

7181

7183

No, Yes

--, 10... 240 min

--, 1... 48 h

--, 10... 240 min

Time, Date, Error code

--, 1... 240

0 240

--, 0,1... 12

0 12

10 min

1 h

10 min

1 month

0,1

S Diff condens max/week

S Cur diff condens max/week

Reset ? (no, yes)

--, 1... 250

0 250

S Diff condens min/week

S Cur diff condens min/week

Reset ? (no, yes)

S DHW storage tank interval

S DHW stor tank since maint

Reset ? (no, yes)

--, 1... 250

0 250

--, 1... 240

0 240

1 month

---

U Emergency operation Off, On

Off

Off : The heat pump does not use the backup electrical heating system or the boiler connection when a fault occurs (error 370)

On : The heat pump uses the backup electrical system or the boiler connection when a fault occurs (error 370).

In the "On" position, the energy costs can be onerous if the error is not eliminated.

Manual

S Emergency operating function type

Manual : Emergency mode is not active when a fault occurs. (Emergency mode = OFF)

Automatic : Emergency mode is active when a fault occurs. (Emergency mode = ON)

In "Automatic" position, the energy cost can be onerous if the error is not detected and eliminated.

I Simulation outside temp

I Phone no. responsibility 1

Manual, Automatic

---, -50... 50 °C

0 255

0,5

I Phone no. responsibility 2 0 255

- 42 Installation and operating manual "1364 - EN"

Split system (3-phase)

8004

8006

8011

8022

8050

8052

8054

8056

8058

7830

7831

7832

7833

7841

7846

7855

7722

7730

7820

7823

7824

7914

7915

7916

State

8000

8001

8003

Line Function

Setting range or display

Setting increment

Basic setting

Inputs / outputs test

7700 I Relay test

No test

This consists of instructing the regulator's relays one by one and checking their outputs. This enables you to check that the relays are working and that the cabling is correct. Check that each appliance in the installation is operating correctly.

No test _ Everything is on STOP _ Relay output QX23, QX22, QX21 module 1 _ Relay output QX1 to QX6 _ Relay output QX23, QX21, QX22 module 2 _ Relay output QX7.

7710

7711

7720

7721

The display shows the "Key" symbol. Pressing the Info button displays "Error 368".

Warning : The component being tested is receiving electrical power throughout the test.

I Output (Ux) test

I Voltage (Ux) value

I Digital outputs test

--, 0... 100%

0... 10 Volt

0 = No test 1 = Everything is on STOP

2 = Digital output DO1 3 = Digital output DO2

I Digital output DO1 Cooling regime,

Heating regime

Off, On

-50... 50 °C

I Digital output DO2

I Outdoor temperature (B9)

I Sensor temperature BX1

I Sensor temperature BX4

I Sensor temperature BX5

I Sensor temperature BX21 module 1

-28... 350 °C

I Sensor temperature BX22 module 1

I Sensor temperature BX21 module 2

I Sensor temperature BX22 module 2

I Contact status H1

I Contact status H2

I Contact status H3

I Input EX4

I Input EX5

I Input EX6

-28... 350 °C

Open, Closed

0, 230 V

No test

Open

Heating regime

Off

I State heating circuit 1

I State heating circuit 2

I State DHW

I State cooling circuit 1

I State heat pump

I State swimming pool

I State supplementary source

I History 1

I History 2

I History 3

I History 4

I History 5

Time, Date, State code

Installation and operating manual "1364 - EN" - 43 -

Split system (3-phase)

Line Function

8060

8062

8064

I History 6

I History 7

I History 8

8066

8068

I History 9

I History 10

Diagnostics heat generation

8402

8403

8406

8410

8412

I Electrical resistance flow 1

I Electrical resistance flow 2

I Condenser pump

U Return temp HP

Setpoint (flow) HP

U Flow temp HP

Setpoint (flow) HP

8413

8425

8454

8455

8456

U Compressor modulation

I Temp diff condensor

S Locking time Heat Pump

Reset ? (no, yes)

S Counter number of locks HP

Reset ? (no, yes)

S Hours run electrical flow

Reset ? (no, yes)

Setting range or display

Time, Date, State code

Off, On

0... 140 °C

0... 100%

-50... 140 °C

0... 2730 h

0 65535

0... 2730 h

Setting increment

Basic setting

Off

8457

Diagnostics consumers

8700

8701

U Outdside temperature

U Outside temp min

Reset ? (no, yes)

8702

S Start counter electrical flow

Reset ? (no, yes)

U Outside temp max

Reset ? (no, yes)

8703

8704

8730

8731

8732

8740

8743

8756

0 65535

-50... 50 °C

I Outside temp attenuated

Reset ? (no, yes)

-50... 50 °C

This is the average of the outdoor temperature over a 24-hour period. This value is used for automatic Summer / Winter switchover (line 730).

I Outside temp composite -50... 50 °C

The mixed outdoor temperature is a combination of the current outdoor temperature and the average outdoor temperature calculated by the regulator. This value is used for calculating the initial temperature.

I Heating circuit pump, circuit 1

I Mixer valve HC1 open

I Mixer valve HC1 closed

U Room temperature 1

Room setpoint 1

U Flow temperature 1

Flow temperature setpoint 1

U Flow temp cooling 1

Flow temp setpoint cooling 1

Off, On

0... 50 °C

4... 35 °C

0... 140 °C

Off

20 °C

50 °C

- 44 Installation and operating manual "1364 - EN"

Split system (3-phase)

Line

8760

8761

8762

8770

8773

8820

8821

8830

8840

8841

8842

8843

8900

8950

9037

9050

9051

9052

9053

9054

9055

8957

9031

9032

9033

9034

9035

9036

Function

I Heating circuit pump, circuit 2

I Mixer valve HC2 open

I Mixer valve HC2 closed

U Room temperature 2

Room setpoint 2

U Flow temperature 2

Flow temperature setpoint 2

I DHW pump

I DHW electrical resistance K6

U DHW (domestic hot water) temperature

DHW temperature setpoint

S Time counter DHW pump

S Start counter DHW pump

S Hours run electric DHW

S Start counter electric DHW

U Swimming pool temperature

Swimming pool temperature setpoint

I Common flow temperature

Common flow temperature setpoint

I Common flow setpoint, refrigeration

I Relay output QX1

I Relay output QX2

I Relay output QX3

I Relay output QX4

I Relay output QX5

I Relay output QX6

I Relay output QX7

I Relay output QX21 module 1

I Relay output QX22 module 1

I Relay output QX23 module 1

I Relay output QX21 module 2

I Relay output QX22 module 2

I Relay output QX23 module 2

Off, On

0... 2730 h

0 65535

0... 140 °C

0... 35 °C

0... 140 °C

Off, On

Setting range or display

Off, On

0... 50 °C

4... 35 °C

0... 140 °C

Off, On

0... 140 °C

5... 80 °C

0... 2730 h

Setting increment

Basic setting

Off

20 °C

50 °C

Off

50 °C

22 °C

Off

Installation and operating manual "1364 - EN" - 45 -

Split system (3-phase)

4 Configuring the installation

Optional DHW kit

DHW tank control (with electrical back-up) requires the use of the DHW kit.

Warning ! The tank must be fitted with an electric back-up, particularly for anti-legionella cycles.

Please refer to section "Operating principle", page 11

Optional 2nd circuit kit

The control of 2 heating circuits requires the installation of the 2 nd

circuit.

If the installation consists of radiators (or fan-convectors) and a heated floor, zone 2 will correspond to the radiator

(or fan-convectors) zone and

zone 1 to the heated floor zone.

Optional boiler connection kit

The connection of an oil or gas boiler to the heat pump requires the installation of the boiler connection kit.

Swimming pool kit option

Please refer to the instructions supplied with the swimming pool kit.

Configuration

(Parameter 5700)

Pre-setting 1

Pre-setting 2

Pre-setting 3

Pre-setting 4

Pre-setting 5

Pre-setting 6

Pre-setting 7

Pre-setting 8

Pre-setting 9

Pre-setting 10

Pre-setting 11

Pre-setting 12

Type of installation

1 heating circuit.

1 heating circuit and DHW tank.

2 heating circuits.

2 heating circuits and DHW tank.

Boiler connection and 1 heating circuit.

Boiler connection and 2 heating circuits.

Boiler connection, 1 heating circuit and DHW tank.

Boiler connection, 2 heating circuits and DHW tank.

Do not use for heat pump single service Reserved only for heat pump 2 services

Page

Please refer to the instructions supplied with the boiler connection kit.

Please consult us regarding any other installation configuration.

- 46 Installation and operating manual "1364 - EN"

Split system (3-phase)

4 1 Configuration 1, 2, 3 or 4: heat pumps with electric back-ups

Parameter 5700

Configuration 1 : 1 heating circuit (see figure page 45 ).

Configuration 2 : 1 heating circuit and DHW tank. (see figure page 46 ).

Configuration 3 : 2 heating circuits (see figure page 47 ).

Configuration 4 : 2 heating circuits and DHW tank. (see figure page 48 ).

DHW tank control (with electrical back-up) requires the use of the DHW kit.

The control of 2 heating circuits requires the installation of the 2 nd

circuit.

4 1 1 Hydraulic connections

In the case of a mixed DHW tank.

Install the directional valve on the heating circuit

(on circuit 2 if it exists).

In the case of 2 heating circuits

With the 2 nd

circuit kit, the hydraulic unit's circulation pump (CC1) must be moved and installed in a box of the 2 nd

circuit kit (CC1).

4 1 2 Electrical connections

• 1 - Power supply to the outdoor unit.

Please refer to section (Electrical connections on the outdoor unit side page 24 ).

• 2 - Interconnection between the outdoor unit and the hydraulic unit (see figure 37 , page 26 ).

• 3 - Power supply to the electrical back-ups :

-Connect the electrical supply for the back-ups

(terminals 20, 21, 22 and 23) to the electrical panel.

(see figure 37, page 26 ).

• 4 - Outdoor sensor (see figure 38, page 27 ).

• 5 - Room thermostat and/or room control unit (Option, see figure 38, page 27 ).

• 6 - Contract with the power provider :

-Connect the "Power Provider" contact to input EX5 or

EX4 (see figure 38, page 27 ).

In the case of a mixed DHW tank.

Please refer to the instructions supplied with the DHW kit.

• 7 - Connect the directional valve to connector QX4,

(see figure 38, page 27 ).

• 8 - Connect the domestic water sensor to terminal

BX1 on the heat pump’s control panel (see figure 38, page 27 ).

• 9 - Connect the back-up resistance to terminal 19

(Earth) and relay RP EPS to terminals 2 (L) and 4 (N)

(see figure 37, page 26 ).

• 10 - Connect the electrical power supply for the domestic water back-up (terminals 17, 18 and 19) to the electric panel (see figure 37, page 26 ).

In the case of 2 heating circuits

Please refer to the instructions supplied with the second circuit kit.

• 11 - Circulation pump CC2.

• 12 - Circulation pump CC1.

• 13 - Mixer valve.

• 14 - Initial sensor.

• () - Interconnection between RVS / AVS.

In the case of a heated floor.

Heated floor thermal safety fuse.

• 20 - The installer is responsible for connecting the heated floor’s safety system. Thermal safety will stop the heat pump if the temperature in the floor is too high.

4 1 3 Parametering the setting

• Adjust the configuration: 1, 2, 3 or 4, Line 5700

• Adjust the DHW programme (Line 1610 to 1661).

• 1 heating circuit.

Adjust the heating curve slope.

Line

720

• 2 heating circuits.

Adjust the heating curve slope.

Line 720 (Circuit 1).

Line

1020 (Circuit 2).

4 1 4 Higher temperature radiators

• Possibility to adjust the temperature setpoint of the radiator circuits.

Line 741 (Circuit 1).

Line

1041 (Circuit 2).

• First, adjust the value of the Switch-off temperature max line

2844

4 1 5 Special cases

Please consult us regarding any other installation configuration.

Installation and operating manual "1364 - EN" - 47 -

Split system (3-phase)

Configuration 1 :

1 heating circuit

Overall hydraulic layout

Overview of all the electrical connections

Legend

CC - Heating circulation pump.

R - Radiators (or fan convectors).

SA - Room thermostat (option).

SE - Outdoor sensor.

SP - Heated floor thermal safety fuse.

- 48 -

See detailed instructions on page 44

Installation and operating manual "1364 - EN"

Split system (3-phase)

Configuration 2 :

1 heating circuit and DHW tank

Overall hydraulic layout

Overview of all the electrical connections

Legend

CAR - Non-return valve.

AE - Electric back-up.

CC - Heating circulation pump.

KS - DHW kit.

R - Radiators (or fan convectors).

Installation and operating manual "1364 - EN"

See detailed instructions on page 44

KS SSa

CAR

SSa

SA - Room thermostat (option).

SE - Outdoor sensor.

SP - Heated floor thermal safety fuse.

SSa - DHW sensor.

VD - Distribution valve.

- 49 -

Split system (3-phase)

Configuration 3 :

2 heating circuits

Overall hydraulic layout

See detailed instructions on page 44

SA2

SA1

CAR

CC2

VM1

CC1

SDp1

K2c

CAR

Overview of all the electrical connections

SA2

CC2

VM1

CC1

AVS

SDp1

K2c

SA1

Legend

CAR - Non-return valve.

CC1 - Heating circulation pump, Circuit 1

(Remote heat pump circulation pump).

CC2 - Heating circulation pump, Circuit 2.

- 50 -

K2c - 2 nd

circuit kit.

R - Radiators (or fan convectors).

SA1 - Room thermostat, Circuit 1 (option).

SA2 - Room thermostat, Circuit 2 (option).

SE - Outdoor sensor.

SDp1 - Flow sensor, Circuit 1.

SP - Heated floor thermal safety fuse.

VM1 - Mixer valve, Circuit 1.

Installation and operating manual "1364 - EN"

Split system (3-phase)

Configuration 4 :

2 heating circuits and DHW tank

Overall hydraulic layout

See detailed instructions on page 44

SSa

SA2

SA1

CAR

K2c

CC2

VM1

CC1

SDp1

CAR

Overview of all the electrical connections

SSa

K2c

CC2

AVS

VM1

CC1

SDp1

SA2

SA1

Legend

AE - Electric back-up.

CAR - Non-return valve.

CC1 - Heating circulation pump, Circuit 1

(Remote heat pump circulation pump).

CC2 - Heating circulation pump, Circuit 2.

Installation and operating manual "1364 - EN"

KS - DHW kit.

K2c - 2 nd

circuit kit.

R - Radiators (or fan convectors).

SA1 - Room thermostat, Circuit 1 (option).

SA2 - Room thermostat, Circuit 2 (option).

SE - Outdoor sensor.

SDp1 - Flow sensor, Circuit 1.

SSa - DHW sensor.

SP - Heated floor thermal safety fuse.

VD - Distribution valve.

VM1 - Mixer valve, Circuit.

- 51 -

Split system (3-phase)

5 Electrical wiring diagrams

- 52 -

Compressor

Interconnection between the outdoor unit and the hydraulic unit.

Filter

PCB assy

1 2 3 L1 L2 L3 N

Power source

3 phase 400 V.

Inverter PCB assy

P F C

PCB assy

Capacitor

PCB assy

Fuse

Reactors

Reactor fan

Terminal

10A - 250 V

3,15A - 250 V

5A - 250 V

Controller PCB assy (Main PCB)

WOYK 112 LAT / WOYK 112 LCT

WOYK 140 LAT / WOYK 140 LCT

WOYK 160 LAT / WOYK 160 LCT

Color Codes

BK Black

BN Brown

BU Blue

GN Green

GY Grey

OG Orange

RD Red

VT Purple

WH White

YE Yellow

Figure 45 - Electrical wiring of outdoor unit

Installation and operating manual "1364 - EN"

Split system (3-phase)

CN7

CN30

LED 2

LED 1

CN6

CN1

Condensation sensor

CN18

CN16 CN22

Return sensor

BX5

Flow sensor

Connections to the heat pump regulator

(accessories and options)

(see figure 38, page 27 )

QX7

QX5

QX3

Uref

Heating circulation pump

X-30

Timed fuse

3,15 A - 250V

REL2

1A2 2A2

REL1

214 114

211 121 111

A1 B1

A2 B2

A3 B3

Safety thermostat

Start/stop switch

1 2 3 4 5 6 7 8

RpECS

Connection to terminal block

(see figure 37, page 26 )

BU1

WH1

RD1

RD2

WH2

BU2

Resistance

Figure 46 - Electrical wiring, Hydraulic unit (Except installer's connections)

Installation and operating manual "1364 - EN" - 53 -

Split system (3-phase)

6 Troubleshooting

Depending on whether the fault comes from the outdoor unit or the hydraulic unit, the fault may be indicated by the digital display or the diode on the interface cards.

6 1 Information display

Various data can be displayed by pressing the info button.

Depending on the type of unit, configuration and operating state, some of the info lines listed below may not appear.

-Possible error messages from the error code list

(see table, page 53 ).

-Possible service messages from the maintenance code list.

-Possible special mode messages.

-Various data (see below).

Designation

Floor drying current setpoint .

Current drying day.

Terminated drying days.

State heat pump.

State supplementary source.

State DHW.

State swimming pool.

State heating circuit 1.

State heating circuit 2.

State cooling circuit 1.

Outdoor temperature.

Room temperature 1.

Room setpoint 1.

Flow temperature 1.

Flow temperature setpoint1.

Room temperature 2.

Room setpoint 2.

Flow temperature 2.

Flow temperature setpoint 2.

DHW (domestic hot water) temperature.

Heat pump return temperature.

Setpoint (return) HP.

Heat pump flow temperature.

Setpoint (flow) HP.

Swimming pool temperature.

Swimming pool temperature setpoint.

8770

8773

8830

8410

Line

8006

8022

8003

8011

8000

8001

8004

8700

8740

8743

8412

8900

Ensure that the general electrical power supply has been cut off before starting any repair work.

When the HP is not under tension, protection frost-free is not assured.

- 54 Installation and operating manual "1364 - EN"

Split system (3-phase)

6 2 Faults displayed on hydraulic unit

Faults or breakdowns on the hydraulic mode are indicated by the display on the user interface.

The display shows the “Bell” symbol

Press the Info key for more details on the origin of the fault.

When the error has been resolved, the faults are re-initialised at zero automatically.

Hydraulic unit : Fault visible on the digital display.

Error number Error contents

105

121

122

127

369

370

No connection.

Outdoor sensor.

Heat pump initial temperature sensor error.

Heat pump return temperature sensor error.

DHW temperature sensor.

Ambient temperature sensor 1.

Ambient temperature sensor 2.

Maintenance message.

Flow temperature for (HC1) not reached.

Flow temperature for (HC2) not reached.

Anti-legionella temperature not reached.

External fault (safety component).

Outdoor unit connection error

(In the start phase, see the para. “Start-up”).

Error location

Failure to comply with room thermostat's polarity.

B21

B71

See page 54

Hydraulic unit : Flashing of the diode visible on the interface card.

Diodes display

LED 2 (green)

1 Flash

4 Flashes

6 Flashes

7 Flashes

8 Flashes

9 Flashes

LED 1 (red)

1 Flash

2 Flashes

3 Flashes

4 Flashes

1 Flash

2 Flashes

3 Flashes

4 Flashes

7 Flashes

8 Flashes

4 Flashes

6 Flashes

4 Flashes

5 Flashes

9 Flashes

10 Flashes

7 Flashes

1 Flashes

3 Flashes

5 Flashes

Continuous flashing (1 sec On / 1 sec Off)

Continuous lighting Off

Error contents

Communication error between Hydraulic unit and Outdoor unit.

Heat pump capacity signal error (Open or short).

Hydraulic unit heat-exchange thermistor Error.

Inverter error.

Active filter error.

PFC error.

Discharge thermistor error.

Compressor thermistor error.

Heat-exchange thermistor (outlet) error.

Heat-exchange thermistor (intermediate) error.

Outdoor thermistor error.

Heat sink thermistor (inverter) error.

Heat sink thermistor (P.F.C.) error.

Expansion valve thermistor error.

Current sensor error.

Pressure sensor error.

Pressure switch error.

Current trip.

Detection of compressor position error.

Compressor start up error.

Outdoor unit fan motor error.

Discharge temperature protection.

Compressor temperature protection.

Low pressure abnormal.

Pump down operation.

Defrosting.

Installation and operating manual "1364 - EN"

Heat pump operation despite the error

Yes

Yes with OT = 0 °C

Yes

- 55 -

Split system (3-phase)

6 3 Faults displayed on the outdoor unit

To access the electronic board, you must remove the front (right-hand) facing from the outdoor unit.

Faults are coded by diode flashes.

Outdoor unit :

When an error occurs :

-The diode " ERROR" (2) blinks.

• Press once on the switch "

ENTER" (SW4).

-The " ERROR" (2) diode blinks several times depending on the error's type (see below).

Diodes and switches

(1)

(2)

(3) (4)

Terminal block

SW2

SW3 SW4 SW5

Figure 47 - Location of switches and diodes on outdoor unit

Diode display

1 Flash

2 Flashes

3 Flashes

4 Flashes

5 Flashes

6 Flashes

7 Flashes

8 Flashes

9 Flashes

10 Flashes

11 Flashes

12 Flashes

13 Flashes

14 Flashes

15 Flashes

16 Flashes

17 Flashes

18 Flashes

19 Flashes

20 Flashes

21 Flashes

22 Flashes

Figure 48 - LED display on the outdoor unit

Error contents

Serial forward transfer error.

Discharge thermistor error.

Pressure sensor error.

Heat-exchange thermistor (outlet) error.

Heat-exchange thermistor (intermediate) error.

Expansion valve thermistor error.

Outdoor temperature thermistor error.

Compressor thermistor error.

Heat sink thermistor (inverter) error.

Heat sink thermistor (P.F.C.) error.

Discharge temperature protection (permanent stoppage).

Compressor temperature protection (permanent stoppage).

Current trip (permanent stoppage).

Detection of compressor position error (permanent stoppage).

Compressor start up error (permanent stoppage).

Fan motor (1) error (permanent stoppage).

Fan motor (2) error (permanent stoppage).

Inverter error.

P.F.C. error.

Low pressure abnormal.

Connection with hydraulic unit error.

Hydraulic unit abnormality condition.

- 56 Installation and operating manual "1364 - EN"

Split system (3-phase)

7 Quick-start procedure

Before switching on the hydraulic unit :

• Check the electric wiring.

• Check the refrigeration circuit and make sure the gas supply has been performed.

• Check the pressure of the hydraulic circuit (1-2 bar), check that the heat pump is purged, and the rest of the installation.

• Make sure that ALL DIP SW are OFF before starting up. (figure 23 page 20 ).

7 1 Start-up check-list

7 1 1 Before starting-up

• Sight checks

Outdoor unit (see chapiter "Installation of the outdoor unit" page 12 )

Location and fittings, condensate evacuation.

Compliance with distances from obstacles.

• Hydraulic checks

Hydraulic unit (see chapiter "Installing the hydraulic unit" page 15 )

Connection of pipes, valves and pumps (1 or 2 circuits, DHW).

Installation water volume (expansion vessel of adequate capacity ?).

No leaks.

Main system pressure and degassing (0,3bar > expansion vessel pre-loading).

• Refrigeration connections and checks

(see chapiters "Refrigeration connections" page 16 and "filling the installation with gas" page 19 )

Refrigerant circuits control (Sealing respected, no dust and moisture)

Connections between units (pipe length, flare tightening torque...).

Installation of HP, LP pressure switches on "Gas" line (large pipe).

Pump down required.

Nitrogen leak test (~ 25 bar).

Refrigerant filling of hydraulic unit and pipes.

Opening of refrigeration valves to outdoor unit.

• Electrical checks

Outdoor unit (see chapiter "Electrical connections" page 22 )

Main power supply 400v .

Protection by rated circuit breaker.

Cable cross-section.

Earth connection.

Hydraulic unit (see chapiter "Electrical connections on the hydraulic unit side" page 25 )

Connection with outdoor unit (3 + Eath).

Sensors connection (positioning and connections).

3 way valve and circulators connections.

Power supply and protection of electric auxiliary.

OK Non compliant

OK Non compliant Value

OK Non compliant

OK Non compliant Value

OK Non compliant

Installation and operating manual "1364 - EN" - 57 -

Split system (3-phase)

7 2 Start-up

-Turn ON the start/stop switch.

-Configure the hydraulic circuit (setting 5700) :

Presettings :

1 1 heating circuit (by default).

2 1 heating circuit and DHW tank.

3 2 heating circuits.

4 2 heating circuits and DHW tank.

5 Boiler backup and 1 heating circuit.

6 Boiler backup and 2 heating circuits.

7 Boiler backup, 1 heating circuit and DHW tank.

8 Boiler backup, 2 heating circuits and DHW tank.

7 2 1 Starting-up

• Switching On

(see chapiter "Star-up" page 28 )

Switching On

Initialisation for a few seconds.

Operation of the pumps.

Outdoor unit starts after 3 mins.

• Outdoor unit checks

Operation of fan(s), compressor.

Current measurement.

After a few minutes, measurement of air temp. delta.

Check condensation and evaporation pressure/temperature.

• Hydraulic unit checks

After 15 mins of operation.

Primary water temp. delta.

DHW priority (switching of selection valve).

Operation of heating, mixing valve, boiler backup, …

Control settings.

• Room control

(see chapiter "Configuring the room thermostat" page 28 )

Settings, manipulations, checks.

Setpoint display.

Explanations on use.

-Time, Date and time programs for HC1, HC2, DHW if different than default values (settings 500 – 576).

-Ajust the heating curve slope (720; 1020) and curve off-set (721; 1021).

The heat pump is ready for operation !

You can also :

1 Adjust the heating circuit setpoints if different than default values (710 – 714; 1010-1014).

2 Adjust the DHW setpoints if different than default values (1610-1612).

3 Start a legionella cycle (1640-1647).

4 Perform floor drying (850-857).

OK Non compliant

OK Non compliant Value

OK Non compliant

- 58 Installation and operating manual "1364 - EN"

Split system (3-phase)

7 3 Settings sheet

Setting Description

Preliminary settings

20 language

1 hour / minutes day / month year

Set to .

712

720

741

750

5700 installation config.

Heating circuit No. 1 if 2 circuits = the least warm one (e.g.: floor)

710 comfort setpoint reduced setpoint heating curve slope flow temp setpoint max room influence

790 / 791

834

850 / 851 optimis . at switch-on / off servomotor travel time floor drying

501 to 516 time programs

642 to 648 holiday programs

Heating circuit No. 2 (with 2 nd

circuit option)

= the warmest one (e.g.: radiators)

1010 comfort setpoint

1012 reduced setpoint

1020

1041 heating curve slope flow temp setpoint max

1050 room influence

1090 / 1091 optimis . at switch-on / off

1134 servomotor travel time

1150 / 1151 floor drying

521 to 536 time programs

652 to 658 holiday programs

Domestic Hot Water (if DHW kit)

1610 nominal DHW temp . setpoint

1612

1620 reduced DWH temp . setpoint

DHW release

1640 to 1647 legionella cycle

1660 release DHW circulation

5020 flow temp. increase

5024

5030

5060

5061

DHW switch-on differ .

charging time limitation heater operation mode heater release

5870 tank present (if DHW kit)

561 to 576 time programs fill.

Menus operator section time & date time & date time & date configuration

HC1 adjust .

HC1 program .

HC1 hol pgm .

HC2 adjust .

HC2 program .

HC1 hol pgm .

DHW

DHW tank

DHW tank configuration prog .4 DHW

Setting Description

Boiler backup

3700 OT.switch-on authoris.

3705 swith-off delay

Miscellaneous

6046 input H2 function

6100 OT sensor correction

6120

6205 frost protection on/off reset settings

6220

6711 software version reset heat pump

7070 to 7183 maintenance

7700 to 7916 input / output testing

8402 to 8457 generator diagnosis

8700 to 9055 consumer diagnosis

Cooling

5711 cooling unit

901 to 969 cooling settings

Set to .

Menus addit . gen .

addit . gen .

configuration configuration configuration configuration configuration error maintenance

I/O testing gen . diagn .

cons . diagn .

2 pipes configuration cooling circuit 1

Faults (if a fault occurs, press"Info" key)

No . 10 outdoor sensor

No . 33

No . 44 flow temp. sensor return temp . sensor

No . 50

No . 60

No . 65

No . 105

DHW temp . sensor room sensor 1 room sensor 2 maintenance message

No . 121

No . 122

No . 127

No . 369

No . 370

HC1 flow T not reached

HC2 flow T not reached leg . prot . T not reached external fault (EX6) outdoor unit connect error

6740 to 6746 alarm timeout

6800 to 6818 last 10 alarms history

6711 reset heat pump

Heat pump

2844

2884 switch-off temp max

OT auth. to start elec. aux.

Pk day clear (EX4) rel / lock 2920

Swimming pool (with "swimming pool" kit option)

2056 generator setpoint error error error heat pump heat pump heat pump

Sw pool

Outdoor unit faults (see page 54 )

Installation and operating manual "1364 - EN" - 59 -

Split system (3-phase)

7 4 Start-up data sheet

Site

Outdoor unit

serial No.

model

Refrigerant type

Checks

Compliance with positioning distances

Condensate evacuation correct

Electric connections / connections tightnees

No GAS leaks (unit ID No . : )

Installation of refrigeration connection correct (lenght : m)

Reading in HEATING operating mode

Compressor discharge temperature

Liquid line temperature

Condensation temperature

Tank water output temperature

HP = bar

Tank water input temperature

Evaporation temperature

Suction temperature

Battery air input temperature

LP = bar

Battery air output temperature

Hydraulic system of hydraulic unit

Low temp. heating floor

Secondary system LT Radiators fan coils

Domestic hot water ; tank type

Estimated water volume of secondary system

Options & accessories :

Power supply for connected electric auxiliary

Operation in cooling mode possible

Location of room sensor correct

Cooling kit

DHW kit

2 zone kit

Control settings

Configuration type

Essential settings

}

Installer

Hydraulic unit

serial No.

model

Refrigerant charge

°C

}

Operating voltage & current on outdoor unit

L1/N V

L2/N V

L3/N

L1/E

L2/E

L3/E

N/E

Icomp sub-cooling

ΔT condensation

ΔT secondary

Overheating

ΔT evaporation

ΔT battery

Circulator brand

Type

Boiler kit

Details

Room thermostat C55

Room control unit C75 kg

°C

- 60 Installation and operating manual "1364 - EN"

Split system (3-phase)

8 Instructions for the user

Explain to the user how his installation operates, in particular the functions of the room thermostat and the programmes accessible to him from the user interface.

Emphasise that a heated floor has significant inertia and that therefore any adjustments must be made progressively.

Also explain to the user how to check the filling of the heating circuit.

Installation and operating manual "1364 - EN" - 61 -

Split system (3-phase)



- 62 Installation and operating manual "1364 - EN"

Split system (3-phase)



Installation and operating manual "1364 - EN" - 63 -

Complies with :

-Low voltage directive 2006/95/EC, under standard EN 60335-1.

-Electromagnetic compatibility Diretive 2004/108/EC,

-Directive 2006/42/EC Machinery,

-Directive for pressurised equipment 97/23/EC.

This appliance also conforms to:

-Regulation 842/2006 of the european parliament on certain fluorinated greenhouse gases

-The standards relating to the product and the testing methods used: Air-conditioners, refrigeration units and heat pumps with compressor driven by electric motor for heating and refrigeration EN 14511-1, 14511-2, 14511-3, and 14511-4

-To standard XP ENV 12102: Air-conditioners, heat pumps and dehumidifiers with compressor driven by electric motor. Measurement of airborne noise. Determination of acoustic power level.

This appliance is marked with this symbol. This means that electrical and electronic products shall not be mixed with general household waste.

European Community countries(*), Norway, Iceland and Liechtenstein should have a dedicated collection system for these products.

Do not try to dismantle the system yourself as this could have harmful effects on your health and on the environment.

The dismantling and treatment of refrigerant, oil and other parts must be done by a qualified installer in accordance with relevant local and national regulations.

This appliance must be treated at a specialized treatment facility for re-use, recycling and other forms of recovery and shall not be disposed of in the municipal waste stream.

Please contact the installer or local authority for more information.

* subject to the national law of each member state

Date of installation :

Contact of your heating technician or your after-sales service.

Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
