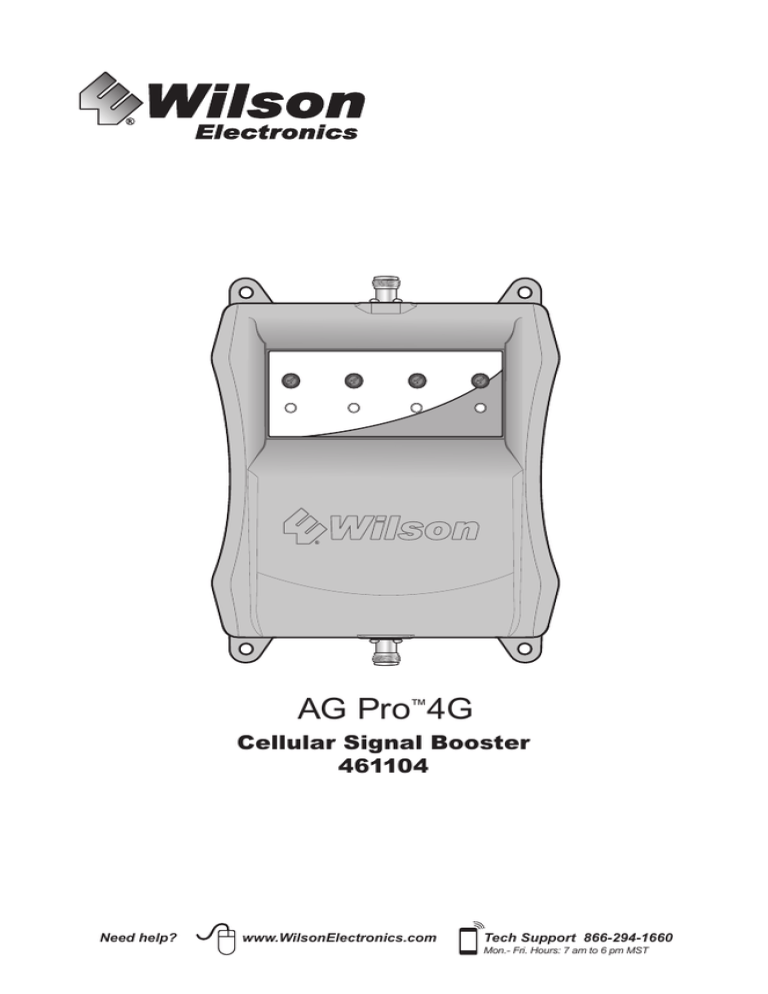

AG Pro 4G Cellular Signal Booster 461104

AG Pro

4G

Cellular Signal Booster

461104

Need help?

www.WilsonElectronics.com

Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Model # 460004 FCC ID: PWO460004

!

IT IS VERY IMPORTANT

TO POWER YOUR SIGNAL

BOOSTER USING A SURGE

PROTECTED AC POWER

STRIP WITH AT LEAST A

1000

JOULE RATING.

FAILURE TO DO THIS WILL VOID YOUR WARRANTY

IN THE EVENT OF A POWER SURGE OR LIGHTNING

STRIKE.

!

THE SIGNAL BOOSTER UNIT IS DESIGNED

FOR USE IN AN INDOOR, TEMPERATURE-

CONTROLLED ENVIRONMENT (LESS

THAN 150 DEGREES FAHRENHEIT). IT IS

NOT INTENDED FOR USE IN ATTICS OR SIMILAR

LOCATIONS SUBJECT TO TEMPERATURES IN

EXCESS OF 150°F.

Installation Instructions for the Following Wilson Electronics Signal Booster:

AG Pro

4G Band 12/17 & 13 (700 MHz), Band 5 (800 MHz), Band 4 (1700/2100 MHz),

Band 25/2 (1900 MHz) In-Building Wireless SmarTech

Signal Booster

Model # 460004 FCC ID: PWO460004

Contents

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Before Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Find the Strongest Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installation Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Quick Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Outside Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Signal Booster Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Inside Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Powering Up the Signal Booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Troubleshooting & Understanding Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Additional FAQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Signal Booster Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Guarantee and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

2

Need help?

www.WilsonElectronics.com

Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Package Contents

AG Pro

4G 12V / 3A, AC/DC Power

Supply (859900)

Panel Antenna

(311135-40060)

Appearance of device and accessories may vary.

60’ LMR Cable

(952360)

75’ LMR Cable

(952375)

Wide Band Directional Antenna

(314411-40075)

Pole Mount Bracket Wall Mount Bracket

Tools Required for Installation:

(depending on your particular installation, you will need the following tools)

1. Pole mount - 10 mm open-end wrench or adjustable wrench

2. Wall mount or Rafter mount - Drill and 3/16 inch bit, Phillips-head screwdriver

Before Getting Started

Before you install your AG Pro 4G and start enjoying improved cellular reception in your facility, please do the following:

1. Read through all the installation steps. This will help you know what to expect from start to finish.

2. Watch the YouTube video demonstrating the AG Pro 4G installation at wilsonelectronics.com/

AGPro4Gvideo.

3. Familiarize yourself with all materials in your product package. This will allow you to know which pieces we reference in the instructions.

4. Identify the location of your best available cellular signal. See instructions that follow.

5. Determine the best installation locations for your Outside Antenna,

Signal Boost, and Inside Antenna.

Connect all cables and test the function of your AG Pro 4G system before finalizing installation.

Need help?

Find the Strongest Cellular Signal

Before you install your AG Pro 4G signal booster, you must determine the location of the best available cellular signal. This will affect the location of your Outside Antenna and will help you get the best performance from your AG Pro 4G. You can find the strongest signal outside your building, typically at the highest point available, using any of the following methods:

1. Best method:

After connecting power the power supply to your surge protected power strip, connect the Outside Antenna to the AG Pro 4G signal booster, and the

AG Pro 4G to the Inside Antenna. Have one person outside (on the roof for best results) rotate the Outside Antenna with a second person inside the building near the Inside Antenna watching the signal strength on a phone. This allows you to read the signal strength from nearby cell towers.

www.WilsonElectronics.com

a. The person inside should have the phone in test mode so the numerical signal strength can be read. This is more accurate than

Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

3

the bar indicator. Go to www.

wilsonelectronics.com/test-modeinstructions for help in finding the test mode for your phone. b. The person on the roof should turn the Outside Antenna 45 degrees at a time. Allow 30 seconds for the phone to register with each turn.

Acceptable method: Check the bar indicator on your cell phone display and note where the signal appears the strongest. (Note: cell phone bars are only an approximation of signal strength and vary from phone to phone.) Phones can take up to 30 seconds to reset to a new reading. Be patient and repeat your signal check several times.

Cell Tower

Outside Directional

Antenna

ta te

WAIT 30

SECONDS

c. The person inside should note the readings on the phone with each turn. Signal readings usually appear as a negative number. The closer the number gets to zero, the stronger the signal (for example, -86 dB would be a moderately good reading while -55 dB would be an excellent reading, and -110 dB would be a weak, or unusable signal).

Outside Directional

Antenna

For additional instructions on finding the strongest cellular signal, watch the installation video at: wilsonelectronics.com/

AGPro4Gvideo.

Installation Details

As you plan your installation, keep the following guidelines in mind to maximize your signal strength:

1. Maintain a vertical distance of at least

20 feet or a horizontal distance of at least 50 feet between the Outside

Antenna to the Inside Antenna.

2. If possible, place the Inside Antenna directly beneath the placement of the Outside Antenna location. This creates a maximized signal zone within the room where the Inside

Antenna is located.

Cell Tower

ta te d. Once you have determined which direction provides the strongest outside signal, you can install the

Outside Antenna in that general direction.

Outside Directional

Antenna

a. Place calls from several locations outside your building. As you move to different locations, note where you get the best reception.

b. If you have a smart phone, you can download apps that help you identify locations of cell phone towers or the strongest signal. Go to the App Store and search for

“cell signal” to find available apps for your device.

4

Need help?

Place the inside antenna directly beneath the placement of the Outside

Antenna location

At least 20 feet of vertical or

50 horizontal separation

Inside Panel Antenna

3. Be sure the Inside Antenna is NOT facing toward the Outside Antenna.

This creates potential oscillation

www.WilsonElectronics.com

Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

or feedback and reduces the effectiveness of the AG Pro 4G.

4. If you do not know how to mount hardware or run coax cable through walls, ceilings and floors, get help from a Wilson Certified Installer at www.wilsonelectronics.com/wci or from a qualified contractor or electrician.

We recommend you install the Lightning

Surge Protector (859902). Attach the cable from the Outside Directional Antenna to the surge protector and ground the surge protector. The LSP is sold separately.

Quick Install

For more detailed instructions on installation, read the description later in this guide or watch the video at wilsonelectronics.com/AGPro4Gvideo.

NOTE: Create a “soft” install first by testing components in your proposed locations before securing them with hardware.

1. Select a location on the roof of the building to install the Outside

Antenna. Make sure the antenna is clear of obstructions that could block the signal from the nearest cellular tower.

2. Select a location to install the AG

Pro 4G Signal Booster that is well ventilated and away from excessive heat, moisture, and direct sunlight.

3. Select a location for the Inside

Antenna that is in the center of the area where the signal needs to be amplified and a minimum of 20 vertical feet or 50 horizontal feet from the Outside Antenna.

Outside Directional

Antenna

Inside Panel

Antenna

4. Run the coax cable from the Outside

Antenna to the Signal Booster and attach it to the connector labeled

“Outside Antenna.” Connect another coax cable to the connector labeled

“Inside Antenna” and run it to the

Inside Antenna. NOTE: Be careful not to bend the center pins on the connectors when securing connections.

5. Once you have ensured all connections are tight, connect the

Signal Booster to a surge protected power strip with at least a 1000 Joule rating to protect your equipment from power surges and lightning strikes.

(See page 11 for information on lightning protection)

6. If your AG Pro 4G is working correctly, the lights will be green. If the lights are orange or red, see the

“Troubleshooting” starting on page 7.

Outside Antenna Installation

1. Select a location on the roof or an outside wall where the Outside

Antenna can be mounted without obstruction (at least three feet of clearance in all directions) and with at least 20 feet of vertical or 50 feet of horizontal separation from the Internal

Antenna.

2. After connecting the coax cable to the antenna, run it underneath the down side of your roof’s flashing if mounted on the roof. Tip: Often you can follow the route used by satellite TV cables.

If you attach the Outside Antenna to a wall, run the cable along the outside of the wall to the area where you want the cable to appear on the inside of the building, then drill a hole through the wall where the cable will enter the building. Caution: Before drilling holes for the cable, be sure there are no electrical outlets, wiring, or sewer or water pipes you could puncture or sever.

3. Seal any holes with silicone, cable bushings or other waterproof sealant.

AG Pro 4G

Need help?

www.WilsonElectronics.com

Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

5

Signal Booster Installation

1. Select a location for the Signal

Booster that is away from excessive heat, direct sunlight, moisture and well ventilated. The enclosure must

NOT be air tight. Also, be sure the location is near a power source.

2. Connect the LMR cables to the

Signal Booster from the Outside

Antenna and Inside Antenna at the designated ports.

3. Do NOT connect the Signal Booster to the power source until all cables are connected.

Inside Antenna Installation

1. Select a location in the center of the area where you want cellular signals improved to mount the Inside

Antenna. If you have multiple rooms with poor signal, you may need multiple Inside Antennas. These can attach to the Signal Boost by using a splitter (sold separately).

Contact Wilson Electronics for more information.

2. Ensure a minimum of 20 feet vertical or 50 horizontal feet separation from the Outside Antenna.

Outside Directional

Antenna

Place the inside antenna directly beneath the placement of the Outside

Antenna location

At least 20 feet of vertical or

50 horizontal separation

Inside Panel Antenna

3. Inside Antennas can be mounted above ceiling drywall, on a ceiling inside a room, or on a wall inside a room. Ensure the Inside

Antenna is facing AWAY from the Outside Antenna to avoid oscillation (feedback) and reduced performance..

Face inside antenna away from the outside antenna.

Outside

Antenna

Inside

Antenna

4. Use the mounting hardware included in the package to secure the Inside

Antenna to the selected location.

Powering Up The Signal

Booster

1. Ensure the cables to both the Outside

Antenna and Inside Antenna are securely connected before powering up the Signal Booster.

2. Plug the power supply into the Signal

Booster input marked “POWER” and then into a surge protector power strip with a minimum 1000 Joule rating.

!

3. The lights on the Signal Booster should remain green . If the lights are red or orange, see the “Troubleshooting” section starting on page 7.

4. If you know that only one frequency band (700 MHz, 800 MHz, 1900

MHz, or 1700/2100 MHz) is available in your coverage area, reduce the gain control on the AG Pro 4G of the frequency bands that are NOT in use to the lowest setting. This will reduce power consumption of the Signal

Booster.

For illustrations of these installation steps, view the install video at wilsonelectronics.

com/AGPro4Gvideo.

6

Need help?

www.WilsonElectronics.com

Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Troubleshooting

The AG Pro 4G Signal Boost includes four indicator lights, one each for the 700 MHz band, the 800 MHz band, the 1900 MHz band, and the 1700/2100 MHz band. This covers virtually any type of voice and data cellular communications channel. Indicator lights will be green, orange or red.

Green indicates the unit is powered and working properly. You always want the lights to be green on the bands you plan to use.

Red indicates the AG Pro 4G has shut down to prevent oscillation

(feedback).

Orange indicates the AG Pro 4G is overloaded because it is too close to a cell tower.

Note: All red light issues must be resolved

before orange light issues.

Fixing Red Light Issues

If one or more lights on the Signal Booster are red:

1. Make sure all connections are tight.

2. Reduce the gain of the Signal Booster by rotating the gain control knob corresponding with the red light. This is done by turning the knob counterclockwise in small increments, waiting

5 seconds between each adjustment for the Signal Booster to reset.

Continue this adjustment until the light turns green.

IMPORTANT NOTE: Reducing the gain decreases the inside coverage area. If the amount of coverage area is sufficient when the green light comes on, your installation is complete.

3. If the coverage area is not large enough with a reduced gain, you need to increase the distance between the Outside Antenna and the Inside Antenna by moving them horizontally and/or vertically farther apart. If the light is green after separating the antennas, increase the gain until the red light comes on.

Then slightly decrease the gain until the green light appears. This ensures maximum coverage.

4. If your coverage area is still too small after separating the antennas contact the Wilson Electronics Technical

Support Team for assistance: 866-

294-1660.

Fixing Orange Light Issues

If one or more lights on the Signal Booster are orange:

1. Turn down the gain control (described in the red light instructions above) until you get a green light.

2. If the gain is not adequate for good coverage, move the Outside Antenna away from the strongest cellular signal in small increments until the light turns green. If the Signal Booster will not respond, turn the gain down in 5 dB increments and move the

Outside Antenna. Continue to adjust the gain and antenna positions until the light turns green.

Move the outside antenna away from the strongest cellular signal in small increments

Wait 5 seconds between each adjustment

3. If the light remains orange, contact the Wilson Electronics Technical

Support Team for assistance:

866-294-1660.

Need help?

www.WilsonElectronics.com

Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

7

Fixing Blinking Red & Orange Light Issues

If one or more of the lights on Signal

Booster are blinking red and orange, it indicates that the Signal Booster is experiencing extreme receiver overload and has shutoff.

a) Turn away Outside Antenna from the cell tower until lights no longer flash.

Contact Wilson Electronics Technical

Support Team for assistance.

Fixing Blinking Red Light Issues

If one or more of the lights on Signal

Booster are blinking red, this means that the Signal Booster has shutoff. a) Increase the distance between the cellular device and the Inside

Antenna.

8

Increase the distance

Need help?

Additional FAQ:

What hours can I contact tech support?

Technical Support can be reached from 7:00am to 6:00pm MST, by calling

(866-294-1660), or by email, at [email protected] wilsonelectronics.com.

How does weather affect the performance of my Outside Antenna?

Water vapor (e.g. rain, fog, snow or other precipitation) creates an effective filter to cellular signal. In times of heavy precipitation, you may see less performance.

What’s the difference between the 800

MHz and the 1900 MHz bands? How do

I know which MHz band my cell phone uses?

The AG Pro 4G works with all major

North American cellular providers.

Traditionally, 800/1900MHz are associated with voice and 3G data; while 700MHz and 1700/2100MHz are associated with 4G data. For more detail, refer to wirelessadvisor.com.

Lights Off

If one or more of the lights on Signal

Booster are off verify power to your surge protected power strip. If power and lights are still off this means that the gain has been turned all the way down and the band is in Power Save Mode. Increase the gain until the light turns on. If there are bands that are not being used in the local coverage area, we recommend turning these frequencies off. This will reduce enegy consumption.

NOTE: The Signal Booster can be reset by disconnecting and reconnecting the power supply.

For additional descriptions on troubleshooting, see the install video at wilsonelectronics.com/AGPro4Gvideo .

Inside Antenna Expansion Kit

Kit 309900-50N

• 2 - Wall Panel antennas

• 1 - 50 ohm 3-Way Splitter

Kit 309905-50N

• 3 - Wall Panel Antennas

• 3 - 2-Way 50 Ohm Splitters

Kit 309902-75F

• 2 - Wall Panel Antennas

• 1 - 3-Way 75Ohm Splitter

Kit 309903-75F

• 3 - Wall Panel Antennas

• 3 - 2-Way 75Ohm Splitters

Kit 309904-75F

• 1 - Wall Panel Antenna

• 1 - 2-Way 75 Ohm Splitter

Inside Antenna Kits

Kit 301211 - Desktop Antenna w/ 5’ RG174

Kit 301121-40010

• 50 Ohm Dome Antenna

• 10’ LMR400

Kit 311135-40060

• 50 Ohm Wall Panel Antenna

• 60’ LMR400

www.WilsonElectronics.com

Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Kit 301151-0610

• 75 Ohm Dome Antenna

• 10’ RG6 Cable

Kit 311135-5820

• 50 Ohm Wall mount Panel Antenna

• 20’ RG58 Cable

Kit 311135-40060

• 50 Ohm Wall Mount Panel Antenna

• 60’ LMR400 Cable

Kit 301151-1110

• 75 Ohm Dome Antenna

• 10’ RG11 cable

Kit 311155-1150

• 75 Ohm Wall mount Panel Antenna

• 50’ RG11 Cable

50 Ohm Outside Antenna Kits

Kit 314453-5825

• 50 Ohm Pole Mount Panel Antenna

• 25’ RG58 Cable

Kit 314411-5825

• 50 Ohm Wide Band Directional

• 25’ RG58 Cable

Kit 301111-5850

• Yagi Directional Antenna

• 50’ RG58 Cable

Kit 311129-5840

• 800 MHz Yagi Directional

• 40’ RG58 Cable

Kit 311203-5820

• Omni-Directional antenna

• 20’ RG58 Cable

Kit 311124-5830

• 1900 MHz Yagi antenna

• 30’ RG58 Cable

Kit 311203-40020

• Omni-Directional antenna

• 20’ LMR400 Cable

Kit 301111-400170

• Yagi Directional w/ N-Female

• 170’ LMR400

Kit 311124-400100

• 1900 MHz Yagi Directional

• 100’ LMR400 Cable

Kit 311129-400100

• 800 MHz Yagi Antenna

• 100’ LMR400 Cable

Kit 314411-40075

• 50 Ohm Wide Band Directional Antenna

• 75’ LMR400 Cable

Kit 314453-40075

• 50 Ohm Pole Mount Panel Antenna

• 75’ LMR400 Cable

75 Ohm Outside Antenna Kits

Kit 301111-0675

• Yagi Directional Antenna

• 75’ RG6 Cable

• N-Male to F-Female adapter

Kit 311201-0620

• Omni Directional w/ F-Female

• 20’ RG6 Cable

Kit 311129-0660

• 800 MHz Yagi Directional

• 60’ RG6 Cable

• N-Male to F-Female adapter

Kit 311124-0650

• 1900 MHz Yagi Directional

• 500’ RG6 Cable

• N-Male to F-Female adapter

Kit 314473-0640

• 75 Ohm Pole Mount Panel Antenna

• 40’ RG6 Cable

Kit 311141-0620

• 75 Ohm Grey Brick Antenna

• 20’ RG6 Cable

Kit 301111-11140

• Yagi Directional Antenna

• 140’ RG11 Cable

• N-Male to F-Female adapter

Kit 311201-1120

• Omni Directional w/ F-Female

• 20’ RG11 Cable

Kit 311129-11110

• 800 MHz Yagi Directional

• 110’ RG11 Cable

• N-Male to F-Female adapter

Kit 311124-1180

• 1900 MHz Yagi Directional

• 80’ RG11 Cable

• N-Male to F-Female adapter

Kit 314473-1175

• 75 Ohm Pole Mount Panel Antenna

• 75’ RG11 Cable

Kit 314475-0630

• 75 Ohm Wide Band Directional

• 30’ RG6 Cable

Kit 314475-1175

• 75 Ohm Wide Band Directional

• 75’ RG11 Cable

Kit 311141-1120

• 75 Ohm Grey Brick Antenna

• 20’ RG11 Cable

Mini-Mag Outside Antenna

301126 w/12.5 RG174 cable-SMA

Need help?

www.WilsonElectronics.com

Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

9

Safety Guidelines

WARNING: To uphold compliance with network protection standards, all active cellular devices must maintain at least 6 feet of separation distance from Panel and Dome antennas.

WARNING: Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the cell phone.

WARNING: Use only the power supply provided in this package. Use of a non-Wilson Electronics product may damage your equipment.

WARNING: The Signal Booster unit is designed for use in an indoor, temperature-controlled environment

(less than 150 degrees Fahrenheit). It is not intended for use in attics or similar locations subject to temperatures in excess of that range.

WARNING: Take care to ensure that neither you nor the pole comes near any power lines during installation.

RF SAFETY WARNING: Any antenna used with this device must be located at least 8 inches from all persons.

This is a CONSUMER device.

BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.

You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.

You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.

WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.

This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Wilson Electronics could void the authority to operate this equipment.

10

Need help?

www.WilsonElectronics.com

Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Signal Booster Specifications

3

Model Number

Antenna connectors

Antenna Impedance

Dimensions

Weight

Frequency

Power output for single cell phone (dBm)

Uplink

Downlink

AG Pro

460004

4G

N-Female

50 Ohms

23.2

-0.4

8.875 x 6.0 x 1.5 inch (22.5 x 15.2 x 3.8 cm)

2.8 lbs (1.270 kg)

698-746 MHz, 746-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz

700 MHz

Band 12/17

700 MHz

Band 13

800 MHz

Band 5

1900 MHz

Band 25/2

1700/2100 MHz

Band 4

23.8

-2.1

25.2

-2.0

7 dB nominal

> 90 dB

22.1

-1.4

22.5

0.9

Noise Figure (typical downlink/uplink)

Isolation

Power Requirements

110-240 V AC, 50-60 Hz, 20 W

Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot be adjusted without factory reprogramming or disabling the hardware. The Signal Booster will amplify, but not alter incoming and outgoing signals in order to increase coverage of authorized frequency bands only. If the Signal

Booster is not in use for five minutes, it will reduce gain until a signal is detected. If a detected signal is too high in a frequency band, or if the Signal Booster detects an oscillation, the Signal Booster will automatically turn the power off on that band. For a detected oscillation the Signal Booster will automatically resume normal operation after a minimum of 1 minute. After 5 (five) such automatic restarts, any problematic bands are permanently shut off until the Signal Booster has been manually restarted by momentarily removing power from the Signal Booster. Noise power, gain, and linearity are maintained by the Signal Booster’s microprocessor.

!

Lightning

Surge Protector

(sold separately)

To Outside

Antenna

Ground Wire

(not included)

To Signal Booster

RECOMMENDED: INSTALLING THE LIGHTNING SURGE PROTECTOR

(SOLD SEPARATELY)

INSTALL THE LIGHTNING SURGE PROTECTOR (LSP) CLOSE TO THE SIGNAL

BOOSTER. ATTACH THE CABLE FROM THE OUTSIDE ANTENNA TO THE

SURGE PROTECTOR. ENSURE THE LSP IS PROPERLY GROUNDED.

#859902-50 OHM MAY BE PURCHASED AT WWW.WILSONELECTRONICS.COM

OR BY CALLING 800-204-4104.

Need help?

www.WilsonElectronics.com

Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

11

30-Day Money-Back Guarantee

All Wilson Electronics products are protected by Wilson Electronics 30-day money-back guarantee. If for any reason the performance of any product is not acceptable, simply return the product directly to the reseller with a dated proof of purchase.

2-Year Warranty

Wilson Electronics Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials.

Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase.

Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by Wilson Electronics. Wilson Electronics shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the repaired or replaced product back to the original consumer if located within the continental U.S.

This warranty does not apply to any Signal Boosters determined by Wilson Electronics to have been subjected to misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties.

Failure to use a surge protected AC Power Strip with at least a 1000 Joule rating will void your warranty.

RMA numbers may be obtained by contacting Technical Support at 866-294-1660.

Disclaimer:

The information provided by Wilson Electronics, LLC is believed to be complete and accurate. However, no responsibility is assumed by Wilson Electronics, LLC for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use.

Copyright © 2014 Wilson Electronics, LLC All rights reserved.

U.S. Patent Nos.– 7,221,967; 7,729,669; 7,486,929; 7,409,186; 7,783,318; 8,583,033; 8,583,034; 8,639,180

3301 East Deseret Drive, St. George, UT 84790

web: www.WilsonElectronics.com email: [email protected]

phone: 866-294-1660 local: 435-673-5021 fax: 435-656-2432

111257_AGPro4G_Rev02_05.01.14

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
