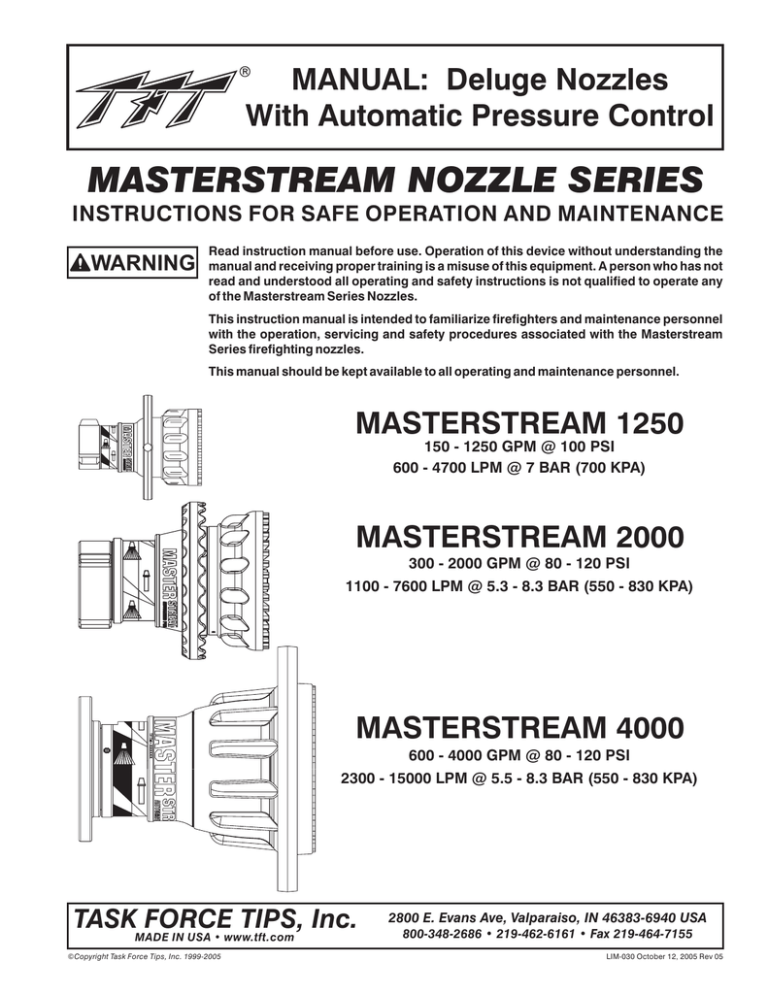

MANUAL: Deluge Nozzles

With Automatic Pressure Control

MASTERSTREAM NOZZLE SERIES

INSTRUCTIONS FOR SAFE OPERATION AND MAINTENANCE

WARNING

Read instruction manual before use. Operation of this device without understanding the manual and receiving proper training is a misuse of this equipment. A person who has not read and understood all operating and safety instructions is not qualified to operate any of the Masterstream Series Nozzles.

This instruction manual is intended to familiarize firefighters and maintenance personnel with the operation, servicing and safety procedures associated with the Masterstream

Series firefighting nozzles.

This manual should be kept available to all operating and maintenance personnel.

MASTERSTREAM 1250

150 - 1250 GPM @ 100 PSI

600 - 4700 LPM @ 7 BAR (700 KPA)

MASTERSTREAM 2000

300 - 2000 GPM @ 80 - 120 PSI

1100 - 7600 LPM @ 5.3 - 8.3 BAR (550 - 830 KPA)

MASTERSTREAM 4000

600 - 4000 GPM @ 80 - 120 PSI

2300 - 15000 LPM @ 5.5 - 8.3 BAR (550 - 830 KPA)

TASK FORCE TIPS, Inc.

MADE IN USA • www.tft.com

2800 E. Evans Ave, Valparaiso, IN 46383-6940 USA

800-348-2686 • 219-462-6161 • Fax 219-464-7155

©Copyright Task Force Tips, Inc. 1999-2005

LIM-030 October 12, 2005 Rev 05

1.0

2.0

2.1

2.2

2.3

2.4

2.5

2.6

3.0

3.1

3.2

3.3

3.4

4.0

5.0

6.0

TABLE OF CONTENTS

MEANING OF SIGNAL WORDS

GENERAL INFORMATION

USE WITH SALT WATER

VARIOUS MODELS AND TERMS

HYDRAULIC INSTALLATION

ELECTRIC INSTALLATION

PATTERN CONTROL

USE WITH FOAM

2.6.1

FOAMJET LX WITH MASTERSTREAM 1250 NOZZLE

AUTOMATIC NOZZLE OPERATION

FLOW CHARACTERISTICS OF MASTERSTREAM 1250

FLOW CHARACTERISTICS OF MASTERSTREAM 2000 &

MASTERSTREAM 4000

DETERMINING FLOW WITH PRE-PIPED MONITORS

STREAM TRAJECTORY DATA

FLUSHING DEBRIS

MAINTENANCE

WARRANTY

1.0 MEANING OF SIGNAL WORDS

A safety related message is identified by a safety alert symbol and a signal word to indicate the level of risk involved with a particular hazard. Per ANSI standard Z535.4-1998 the definitions of the three signal words are as follows:

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

2

©Copyright Task Force Tips, Inc. 1999-2005

LIM-030 October 12, 2005 Rev 05

2.0 GENERAL INFORMATION

The Task Force Tips Masterstream Series Nozzles are automatic pressure control deluge nozzles. These automatic nozzles operate by sensing the pressure at the nozzle's inlet and adjusting the discharge opening to maintain a constant pressure throughout the flow range of the nozzle. While flowing, the stream pattern can be varied from wide fog to straight stream. Trapped debris can be removed without the use of tools.

These nozzles are constructed of hardcoat anodized aluminum and UV resistant rubber. Their rugged construction is compatible with the use of fresh water as well as firefighting foam solutions. A summary of each nozzle's characteristics is shown in the table below.

SERIES

MASTERSTREAM 1250

MASTERSTREAM 2000

MASTERSTREAM 4000

FLOW

(GPM)

150-1250

300-2000

600-4000

FLOW

(LPM)

600-4700

1100-7600

2300-15000

PRESSURE

(PSI)

100

80-120

80-120

PRESSURE

(BAR, KPA/100)

7

5.5-8.3

5.5-8.3

STANDARD

COUPLING

2.5" NH FEMALE

3.5" NH FEMALE

6" ANSI 150 FLANGE

NOTES ON ABOVE TABLE:

!

!

!

!

Other threads, coupling sizes or connector styles can be specified at time of order.

Masterstream 1250 nozzle is also available in selectable gallonage or fixed orifice models. See catalog for details.

Masterstream 2000 and 4000 nozzles are field adjustable within the range of pressures shown.

For long term installations, it is recommended that the threads be greased before installing the nozzle.

OPERATING NOTE ABOUT AUTOMATIC NOZZLES: The automatic nozzle is considerably different than "conventional" nozzles because of basic changes in the operating principle. These differences not only assure the most effective operation under a variety of conditions, but will also utilize the available water supply most efficiently. It is important that nozzle operators, pump operators, and officers be fully aware of these differences. Therefore, proper instruction is required for safe and effective operations.

WARNING This equipment is intended for use by trained personnel for firefighting. Their use for other purposes may involve hazards not addressed by this manual. Seek appropriate guidance and training to reduce risk of injury.

CAUTION

CAUTION

Nozzle must be properly connected. Mismatched or damaged threads may cause nozzle to leak or uncouple under pressure and could cause injury.

Do not couple aluminum to brass. Dissimilar metals coupled together can cause galvanic corrosion that can result in inability to unscrew threads or complete loss of thread engagement.

WARNING

Injury can occur from an inadequately supported nozzle. The mounting must be capable of supporting the nozzle reaction force which can be in excess of 2300 lbs (4000 GPM at 120 PSI).

WARNING Some volatile liquids can be ignited by static discharge.

Static build-up can occur from:

&

Electrochemical separation of charge as water drains through low conductivity, refined products.

&

Applying foam over a low conductivity liquid of sufficient depth to retain the charge created as the foam blanket drains.

&

Streaming currents as water or foam is introduced into the storage tank.

1

WARNING Water is a conductor of electricity. Application of water solutions on high voltage equipment can cause injury or death by electrocution. The amount of current that may be carried back to the nozzle will depend on the following factors:

&

&

&

&

&

Voltage of the line or equipment

Distance from the nozzle to the line or equipment

Size of the stream

Whether the stream is solid or broken

Purity of the water

2

1 Electrostatic Hazards of Foam Blanketing Operations by Peter Howels. Industrial Fire Safety July/August 1993

2 The Fire Fighter and Electrical Equipment, The University of Michigan Extension Service, Fourth Printing 1983. Page 47.

3

LIM-030 October 12, 2005 Rev 05

©Copyright Task Force Tips, Inc. 1999-2005

2.1 USE WITH SALT WATER

Use with salt water is permissible provided nozzle is thoroughly cleaned with fresh water after each use. The service life of the nozzle may be shortened due to the effects of corrosion and is not covered under warranty.

2.2 VARIOUS MODELS AND TERMS

The spray pattern is changed from wide fog to straight stream by means of the "stream shaper". Models are available with five different methods to move the stream shaper as shown in figures 1A - 1E. See catalog for model numbers and details.

Halo Ring

Coupling Stream Shaper

Serial Number Bumper

Fig 1A Stream Shaper moved manually by rotating "halo ring"

Hydraulic Ports

Fig 1B Stream Shaper moved manually by rotating "bumper"

Fig 1C Stream Shaper moved remotely by hydraulics

Manual Override Knob

(Masterstream 1250 &

Masterstream 2000 Only)

Lever

Hold lever down and turn knob for manual override.

Fig 1D Stream Shaper moved remotely by electricity (12-24 volts)

Fig 1E Stream Shaper moved by linear (push/pull) motion from user's mechanism

FIG 1 - Methods for Moving Stream Shaper

4

©Copyright Task Force Tips, Inc. 1999-2005

LIM-030 October 12, 2005 Rev 05

2.3 HYDRAULIC INSTALLATION

On nozzles with hydraulic stream shaper actuation, the hydraulic system is connected to the nozzle with two 1/8"-27 NPT (1/4”-18 NPT on Masterstream 4000) female ports on the filter block located on the nozzle's stream shaper. When the port on the left of the filter block

(as seen from behind the nozzle) is pressurized, the shaper moves back into the wide fog position. Pressurizing the right port moves the shaper forward into straight stream. Hydraulic lines must be flexible to allow for movement of the stream shaper.

Use only clean fluid compatible with Buna N Compound (Nitrile). System must be free from all dirt, chips and contaminants.

Replacement filter elements are available from TFT (item #M160). Maximum hydraulic pressure is 1000 psi (70 bar, 7000 Kpa) for

Masterstream 1250 or Masterstream 2000 Nozzles. (1500 psi, 105 bar, 10500 Kpa for Masterstream 4000 Nozzle).

2.4 ELECTRIC INSTALLATION

Nozzles with electric stream shaper actuation are shipped with a wiring diagram (TFT item #LIM-040). Other documentation is available on request. The actuator is not rated as ignition proof, explosion proof, or intrinsically safe. NOTE: Masterstream 1250 and

Masterstream 2000 nozzles are equipped with manual override in case of electrical power failure. Refer to figure 1D for manual override instructions.

WARNING The electric motor and other components are ignition sources. The electric stream shaper should be operated only in areas where there is adequate ventilation and no hazard of flammable vapor buildup.

2.5 PATTERN CONTROL

TFT's Masterstream Series nozzles have full pattern control from straight stream to wide fog. On models with manual shapers, turning the stream shaper clockwise (as seen from the operating position behind the nozzle) moves the shaper to the straight stream position.

Turning the stream shaper counterclockwise will result in an increasingly wider pattern.

Since the stream trim point varies with flow, the nozzle should be "trimmed" after changing the flow to obtain the straightest and farthest reaching stream. To properly trim a stream, first open the pattern to narrow fog. Then close the stream to parallel to give maximum reach. Note: Turning the shaper further forward will cause stream crossover and reduce the effective reach of the nozzle.

2.6 USE WITH FOAM

The Masterstream Series nozzles may be used with foam solutions. Refer to fire service training for the proper use of foam.

WARNING

For Class B fires, lack of foam or interruption in the foam stream can cause a break in the foam blanket and greatly increase the risk of injury or death.

Assure that application rate is sufficient (see NFPA 11 or foam manufacturer's recommendations); Enough concentrate is on hand to complete task (see NFPA for minimum duration time requirements); Foam logistics have been carefully planned.

Allow for such things as storage of foam in a location not exposed to the hazard it protects; Personnel, equipment and technique to deliver foam at a rapid enough rate; Removal of empty foam containers; Clear path to deliver foam, as hoses and other equipment and vehicles are deployed.

WARNING

Improper use of foam can result in injury or damage to the environment. Follow foam manufacturer's instructions and fire service training.

Avoid using wrong type of foam on a fire, i.e. Class A foam on a Class B fire; Plunging foam into pools of burning liquid fuels; Causing environmental damage; Directing stream at personnel.

WARNING There is a wide variety of foam concentrates. Each user is responsible for verifying that any foam concentrate chosen to be used with this unit has been tested to assure that the foam obtained is suitable for the purpose intended.

2.6.1 FOAMJET LX WITH MASTERSTREAM 1250 NOZZLE

To increase the expansion ratio, Task Force Tips "Foamjet LX" (model FJ-LX-M) may be used with the Masterstream 1250 nozzle. This low expansion foam tube attaches and detaches quickly from the nozzle. Adjust nozzle spray pattern to give best foam quality. Note:

As expansion ratio is increased, the reach of the nozzle will be decreased due to the greater amount of bubbles in the stream and their inability to penetrate the air. Generally the reach with foam is approximately 10% less than with water only. Actual results will vary based on brand of foam, hardness of water, temperature, etc.

3.0 AUTOMATIC NOZZLE OPERATION

Automatic nozzles operate by sensing the pressure at the nozzle's inlet and adjusting the discharge opening to maintain a constant pressure throughout the flow range of the nozzle. For example, when the pressure at the inlet increases, the exit area is automatically increased until the inlet pressure returns to the nominal pressure of the nozzle.

Note: Inlet pressure of a Masterstream Series nozzle will stabilize at the nominal pressure (within 5%). This stabilization may take as long as half a minute after a change in inlet pressure.

©Copyright Task Force Tips, Inc. 1999-2005

5

LIM-030 October 12, 2005 Rev 05

3.1 FLOW CHARACTERISTICS OF MASTERSTREAM 1250

Within its flow range, the Masterstream 1250 automatic nozzles operate at the nominal pressure of 100 PSI (7 BAR, 700 KPA).

Figures 2 shows typical performance of this nozzle.

2000 4000 6000

FLOW (L/MIN)

WARNING

An inadequate supply of nozzle pressure and/or flow will cause an ineffective stream and can result in injury, death or loss of property.

0

160

140

120

100

80

60

40

20

0

0 200

OPERATING ENVELOPE

PER NFPA 1964

10

8

6

4

2

400 600 800 1000 1200 1400 1600 FLOW (GPM)

0

FIG 2 - Masterstream 1250 Pressure Performance

3.2 FLOW CHARACTERISTICS OF MASTERSTREAM 2000 and MASTERSTREAM 4000

The Masterstream 2000 and 4000's nozzle pressure is user adjustable from 80 to 120 PSI (5.5-8.3 BAR,

5 5 0 - 8 3 0 K P A ) .

P r e s s u r e adjustment is made by turning a knob, on the front of the nozzle, to the desired pressure setting. The

Masterstream 2000 will operate at the set pressure anywhere within its flow range of 300 to 2000 GPM

(1100 to 7600 LPM). Figure 3A shows typical performance of the

Masterstream 2000 nozzle. The

Masterstream 4000 will operate at the set pressure anywhere within its flow range of 600 to 4000 GPM

(2300-15000 LPM). Figure 3B shows typical performance of the

Masterstream 4000 nozzle.

160

140

120

100

80

60

40

20

0

0

0

2000

400

FLOW RANGE

800

4000

120 PSI SETTING

110 PSI SETTING

1200

6000

1600

8000

2000

100 PSI SETTING

90 PSI SETTING

80 PSI SETTING

10

8

6

4

2

2400

FLOW (GPM)

0

FIG 3A - Masterstream 2000 Pressure Performance

FLOW (L/MIN)

5000 10000 15000 20000

FLOW (L/MIN)

6

©Copyright Task Force Tips, Inc. 1999-2005

0

160

140

120

100

80

60

40

20

0

0

120 PSI SETTING

110 PSI SETTING

FLOW RANGE

100 PSI SETTING

90 PSI SETTING

80 PSI SETTING

10

8

6

4

2

1000 2000 3000 4000

0

5000

FLOW (GPM)

FIG 3B - Masterstream 4000 Pressure Performance

LIM-030 October 12, 2005 Rev 05

3.3 DETERMINING FLOW WITH PRE-PIPED MONITORS

The simplest procedure to determine flow with automatic nozzles is with a flow meter. If a flow meter is unavailable, then the flow may be estimated using pressure loss data between the nozzle and an in-line pressure gauge at the pump or considerably upstream from the nozzle. Data is taken with a smooth bore nozzle and handheld pitot gauge. Note: Equations assume no substantial change in elevation between in-line pressure gauge and nozzle.

Step1: Determine flow of smooth bore nozzle.

Flow water with a smooth bore nozzle and record the nozzle's size, pitot pressure and in-line pressure gauge reading. The smooth bore nozzle's flow is calculated from the Freeman formula:

Where:

F

= 29.71 for English units (GPM, INCHES, PSI)

F

= .667 for metric units (LPM, MM, BAR) Note: 1 BAR=100 KPA

Q smooth

D

P pitot

flow in GPM (or LPM) exit diameter in INCHES (or MM) pitot pressure in PSI (or BAR)

Q smooth

2

= F x D P pitot

Step 2: Find pressure loss constant.

Using the results from step 1, use the following equation to calculate the pressure loss constant between the in-line pressure gauge and the nozzle:

Where:

C

P inline

2 2 piping pressure loss constant in GPM /PSI (or LPM /BAR) in-line pressure gauge reading in PSI (or BAR)

Step 3: Calculate flow with automatic nozzle.

Using the pressure loss constant from step 2 and the following equation, the flow with an automatic nozzle can be calculated for your particular installation.

Where:

Q auto

P auto

automatic nozzle flow in GPM (or LPM) nominal nozzle operating pressure in PSI (or BAR)

C =

Q

2 smooth

P - P in-line pitot

Q = (P - P )C auto in-line auto

Mount a graph or table of the results adjacent to the in-line pressure gauge.

Deliver any desired flow by adjustment of pump pressure.

3.4 STREAM TRAJECTORY DATA

Figures 4A, 4B and 4C give the stream trajectory for the Masterstream Series nozzles at various flows.

Notes on trajectory graphs:

• Graphs show approximate effective stream trajectory at 30 degrees elevation in no wind conditions. Distance to last water drops approximately 10% farther.

• Trajectories shown are for water. The addition of foam is expected to decrease the reach by 10%.

• Tail or head winds of 20 MPH (30 KPH) may increase or decrease the range approximately 30%.

• Stream trajectory of Masterstream 4000 based on "The Trajectories of Large Fire Fighting Jets" by A.P. Hatton and M.J. Osborne, Reference: "The International Journal of Heat and Fluid Flow", Vol 1 No 1.

0

80

70

60

50

40

30

20

10

0

0

10 20 30 40

METERS

50 60 70 80 90

20 40 60 80

20

MASTERSTREAM 1250, 100 PSI (7 BAR, 700 KPA )

D

A

E

B

C

100 120 140 160 180 200 220 240 260 280 300

HORIZONTAL DISTANCE (FEET)

10

0

FIG 4A - Masterstream 1250 Stream Trajectory

CURVE

A

B

C

D

E

GPM

FLOW

300

400

500

800

1000

CURVE

A

B

C

D

E

LPM

FLOW

1100

1500

1900

3000

3800

LBS

REACTION

150

200

260

400

510

KGF

REACTION

70

90

120

180

230

©Copyright Task Force Tips, Inc. 1999-2005

7

LIM-030 October 12, 2005 Rev 05

80

70

60

50

40

30

20

10

0

0

0

10 20 30 40

METERS

50 60 70 80 90

MASTERSTREAM 2000, 80 PSI (5.5 BAR, 55 KPA)

20 40 60

D

20

15

E

10

A B

C

5

80 100 120 140 160 180 200 220 240 260 280 300

0

HORIZONTAL DISTANCE (FEET)

CURVE

A

B

C

D

E

GPM

FLOW

300

600

1000

1500

2000

LBS

REACTION

140

270

450

680

900

CURVE

A

B

C

D

E

LPM

FLOW

1100

2300

3800

5700

7500

KGF

REACTION

60

120

200

300

400

80

70

60

50

40

30

20

10

0

0

0

10 20 30 40

METERS

50 60 70 80 90

MASTERSTREAM 2000, 100 PSI (7 BAR, 700 KPA)

20 40 60

20

D

15

E

10

A B

C

5

80 100 120 140 160 180 200 220 240 260 280 300

0

HORIZONTAL DISTANCE (FEET)

CURVE

A

B

C

D

E

GPM

FLOW

300

600

1000

1500

2000

LBS

REACTION

160

300

510

760

1000

CURVE

A

B

C

D

E

LPM

FLOW

1100

2300

3800

5700

7500

KGF

REACTION

70

140

230

340

450

80

70

60

50

40

30

20

10

0

0

0

10 20 30 40

METERS

50 60 70 80 90

MASTERSTREAM 2000, 120 PSI (8.3 BAR, 830 KPA)

20 40

20

60

CURVE

A

B

C

D

E

15

D

E

10

A

B C

5

80 100 120 140 160 180 200 220 240 260 280 300

0

HORIZONTAL DISTANCE (FEET)

GPM

FLOW

300

600

1000

1500

2000

LBS

REACTION

170

330

550

830

1100

CURVE

A

B

C

D

E

LPM

FLOW

1100

2300

3800

5700

7500

KGF

REACTION

70

150

250

370

490

FIG 4B - Masterstream 2000 Stream Trajectory

8

©Copyright Task Force Tips, Inc. 1999-2005

LIM-030 October 12, 2005 Rev 05

100

0

80

20 40

METERS

60 80 100

MASTERSTREAM 4000, 80 PSI (5.5 BAR, 550 KPA)

D

60

40

20

0

0 40 80

CURVE

A

B

C

D

E

100

0

80

60

20 40

METERS

60 80

MASTERSTREAM 4000, 100 PSI (7 BAR, 700 KPA)

C

D

40

A

20

B

0

0 40 80 120 160 200 240

HORIZONTAL DISTANCE (FEET)

280

100

E

320

CURVE

A

B

C

D

E

GPM

FLOW

600

1000

2000

3000

4000

A E

B

C

120 160 200 240

HORIZONTAL DISTANCE (FEET)

280

GPM

FLOW

600

1000

2000

3000

4000

LBS

REACTION

280

470

950

1400

1900

CURVE

A

B

C

D

E

LPM

FLOW

2300

3800

7600

11000

15000

320

KGF

REACTION

130

210

430

640

860

LBS

REACTION

320

530

1100

1600

2100

CURVE

A

B

C

D

E

LPM

FLOW

2300

3800

7600

11000

15000

KGF

REACTION

150

240

500

730

950

360

360

0

100

90

80

70

60

50

40

30

20

10

0

0 40

20

80 120

40

A

METERS

60

B

80

MASTERSTREAM 4000, 120 PSI (8.3 BAR, 830 KPA)

C

CURVE

A

B

C

D

E

GPM

FLOW

600

1000

2000

3000

4000

100

160 200 240 280

HORIZONTAL DISTANCE (FEET)

LBS

REACTION

350

580

1200

1700

2300

CURVE

A

B

C

D

E

LPM

FLOW

2300

3800

7600

11000

15000

320

KGF

REACTION

160

260

550

770

1000

D

E

360

120

400

0

120

400

0

120

30

20

10

30

20

10

30

20

10

400

0

©Copyright Task Force Tips, Inc. 1999-2005

FIG 4C - Masterstream 4000 Trajectory

9

LIM-030 October 12, 2005 Rev 05

4.0 FLUSHING DEBRIS

Debris in the water may get caught inside the nozzle. This trapped material will cause poor stream quality, shortened reach and reduced flow. To remove debris trapped in the nozzle:

1.

Shut off flow to the nozzle.

2.

Move the stream shaper to the wide fog position.

3.

Carefully unscrew and remove the nozzle's piston/cylinder.

Notes on Masterstream 1250 Nozzle:

• The cylinder is under about 25 lbs (11Kgf) of spring force. The spring must be compressed to reinstall.

• A long white push rod is part of the cylinder assembly. Pull cylinder straight out until push rod clears shaft.

Notes for Masterstream 2000 & Masterstream 4000 Nozzles:

4.

Remove debris.

• The cylinder and piston will come out as a unit.

• Remove the small spring and stainless steel poppet from the center of the shaft.

5.

Reassemble the nozzle.

Figures 5A, 5B & 5C show the pieces that are removed during the flush procedure.

WARNING

Large amounts of debris may be unflushable and can reduce the flow of the nozzle resulting in an ineffective flow. In the event of a blockage, it may be necessary to retreat to a safe area.

SPRAY LUBE

SHAFT

LUBE

PISTON

RETURN SPRING

PUSH ROD CYLINDER

LUBE LUBE

FIG 5A - Masterstream 1250 Front End Parts

10

©Copyright Task Force Tips, Inc. 1999-2005

LIM-030 October 12, 2005 Rev 05

LUBE LUBE LUBE

SHAFT

LUBE

POPPET

CONTROL

SPRING

CYLINDER

RETURN

SPRING

PISTON

FIG 5B - Masterstream 2000 Nozzle Front End Parts

SHAFT

LUBE

LUBE

LUBE

LUBE

POPPET

CONTROL

SPRING

CYLINDER

RETURN

SPRING

PISTON

©Copyright Task Force Tips, Inc. 1999-2005

FIG 5C - Masterstream 4000 Nozzle Front End Parts

11

LIM-030 October 12, 2005 Rev 05

5.0 MAINTENANCE

When reassembling the nozzle after repairs or for preventive maintenance, coat the seal on the piston, the inner bore of the cylinder and the shaft slide surface with a waterproof lubricant such as Dow Corning #44 Silicone Grease. Lubrication is required to assure continued smooth operation. The frequency of lubrication will depend on frequency of usage and storage conditions. Nozzles must be checked regularly to assure proper operation. See figures 5A, 5B and 5C for the nozzle lubrication points.

STORAGE:

Store the Masterstream 4000 Hydraulic Nozzle in the Full Fog (retracted) position.

Contact factory for parts lists and exploded views for particular models. Each nozzle is identified by a serial number located on the nozzle's stream shaper (see figure 1).

6.0 WARRANTY

Task Force Tips, Inc., 2800 East Evans Avenue, Valparaiso, Indiana 46383-6940 ("TFT") warrants to the original purchaser of its

Masterstream Series nozzles ("equipment"), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the five (5) year period from the date of purchase.

TFT's obligation under this warranty is specifically limited to replacing or repairing the equipment (or its parts) which are shown by

TFT's examination to be in a defective condition attributable to TFT. To qualify for this limited warranty, the claimant must return the equipment to TFT, at 2800 East Evans Avenue, Valparaiso, Indiana 46383-6940, within a reasonable time after discovery of the defect.

TFT will examine the equipment. If TFT determines that there is a defect attributable to it, TFT will correct the problem within a reasonable time. If the equipment is covered by this limited warranty, TFT will assume the expenses of repair.

If any defect attributable to TFT under this limited warranty cannot be reasonably cured by repair or replacement, TFT may elect to refund the purchase price of the equipment, less reasonable depreciation, in complete discharge of its obligations under this limited warranty. If TFT makes this election, claimant shall return the equipment to TFT free and clear of any liens and encumbrances.

This is a limited warranty. The original purchaser of the equipment, any person to whom it is transferred, and any person who is an intended or unintended beneficiary of the equipment, shall not be entitled to recover from TFT any consequential or incidental damages for injury to person and/or property resulting from any defective equipment manufactured or assembled by TFT. It is agreed and understood that the price stated for the equipment is in part consideration for limiting TFT's liability. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.

TFT shall have no obligation under this limited warranty if the equipment is, or has been, misused or neglected (including failure to provide reasonable maintenance) or if there have been accidents to the equipment or if it has been repaired or altered by someone else.

THIS IS A LIMITED EXPRESS WARRANTY ONLY. TFT EXPRESSLY DISCLAIMS WITH RESPECT TO THE EQUIPMENT ALL

IMPLIED WARRANTIES OF MERCHANTABILITY AND ALL IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR

PURPOSE. THERE IS NO WARRANTY OF ANY NATURE MADE BY TFT BEYOND THAT STATED IN THIS DOCUMENT.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

TASK FORCE TIPS, Inc.

MADE IN USA • www.tft.com

2800 E. Evans Ave, Valparaiso, IN 46383-6940 USA

800-348-2686 • 219-462-6161 • Fax 219-464-7155

©Copyright Task Force Tips, Inc. 1999-2005

LIM-030 October 12, 2005 Rev 05

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
