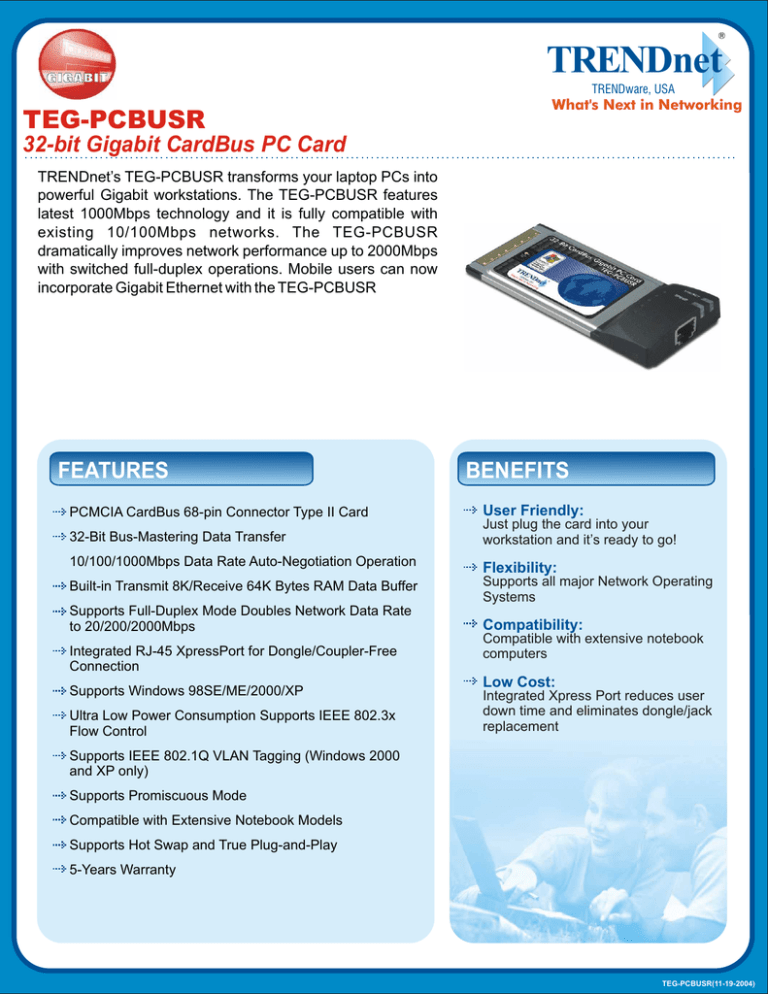

Trendnet TEG-PCBUSR Gigabit PC Card Datasheet

TRENDnet
TRENDware, USA
TEG-PCBUSR
What's Next in Networking
32-bit Gigabit CardBus PC Card
TRENDnet’s TEG-PCBUSR transforms your laptop PCs into
powerful Gigabit workstations. The TEG-PCBUSR features
latest 1000Mbps technology and it is fully compatible with
existing 10/100Mbps networks. The TEG-PCBUSR
dramatically improves network performance up to 2000Mbps
with switched full-duplex operations. Mobile users can now
incorporate Gigabit Ethernet with the TEG-PCBUSR
FEATURES
PCMCIA CardBus 68-pin Connector Type II Card
BENEFITS
User Friendly:
32-Bit Bus-Mastering Data Transfer
Just plug the card into your
workstation and it’s ready to go!
10/100/1000Mbps Data Rate Auto-Negotiation Operation
Flexibility:
Built-in Transmit 8K/Receive 64K Bytes RAM Data Buffer
Supports all major Network Operating
Systems
Supports Full-Duplex Mode Doubles Network Data Rate
to 20/200/2000Mbps
Compatibility:
Integrated RJ-45 XpressPort for Dongle/Coupler-Free
Connection
Supports Windows 98SE/ME/2000/XP
Ultra Low Power Consumption Supports IEEE 802.3x
Flow Control
Compatible with extensive notebook
computers
Low Cost:
Integrated Xpress Port reduces user
down time and eliminates dongle/jack
replacement
Supports IEEE 802.1Q VLAN Tagging (Windows 2000
and XP only)
Supports Promiscuous Mode
Compatible with Extensive Notebook Models
Supports Hot Swap and True Plug-and-Play
5-Years Warranty
TEG-PCBUSR(11-19-2004)
TEG-PCBUSR
32-bit Gigabit CardBus PC Card
SPECIFICATIONS
Standards:
• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast
Ethernet
• IEEE 802.3ab 1000Base-T Gigabit
• ANSI/IEEE 802.3 Auto-Negotiation
• PCMCIA 2.x 32-Bit CardBus
Dimension:
• 120 x 53 x 3mm (4.7 x 2 x 0.1 inches)
Power Consumption:
• 3.3V DC
Humidity:
• Operating: 10%~90% (Non-Condensing)
• Storage: 5%~90% (Non-Condensing)
Diagnostic LED:
• Link/Activity
• Speed
Network Media:
• Ethernet: UTP Cat. 3, 4, 5, EIA/TIA-568
100-ohm STP
• Fast Ethernet: UTP Cat. 5, EIA/TIA-568
100-ohm STP
• Gigabit: UTP Cat. 5, 5E, 6 EIA/TIA-568
100-ohm STP
Temperature:
• Operating: 0° ~ 40° C (32° ~ 104° F)
• Storage: -10° ~ 70° C (14° ~ 158° F)
Certifications:
• FCC, CE
Supported Drivers:
• Windows 98SE/ME/2000/XP
Data Rates:
• Ethernet: 10Mbps/20Mbps
(Half/Full-Duplex)
• Fast Ethernet: 100Mbps/200Mbps
(Half/Full-Duplex)
• Gigabit: 2000Mbps(Full Duplex)
Protocol:
• CSMA/CD
Interface:
• 32-Bit CardBus Type II
NETWORKING SOLUTIONS
RELATED PRODUCT
TEG-S50TXE:
5-Port 10/100/1000Mbps Copper Gigabit Switch
32-Bit Gigabit Cardbus PC Card
(TEG-PCBUSR)
TEG-S80TXE:
8-Port 10/100/1000Mbps Copper Gigabit Switch
TEG-PCITXR:
32-bit 10/100/1000Mbps Copper Gigabit PCI Adapter
5-Port 10/100/1000Mbps
Copper Gigabit Switch
(TEG-S50TXE)
32-bit 10/100/1000Mbps
Copper Gigabit PCI Adapter
(TEG-PCITXR)
32-bit 10/100/1000Mbps
Copper Gigabit PCI Adapter
(TEG-PCITXR)
1000Mbps
To Order Please Call:
1-888-326-6061
ORDERING INFORMATION
TRENDware International, Inc.
3135 Kashiwa Street
Torrance, CA. 90505. USA
Tel: 310-891-1100
Fax: 310-891-1111
Web: www.TRENDNET.com
Email: [email protected]
