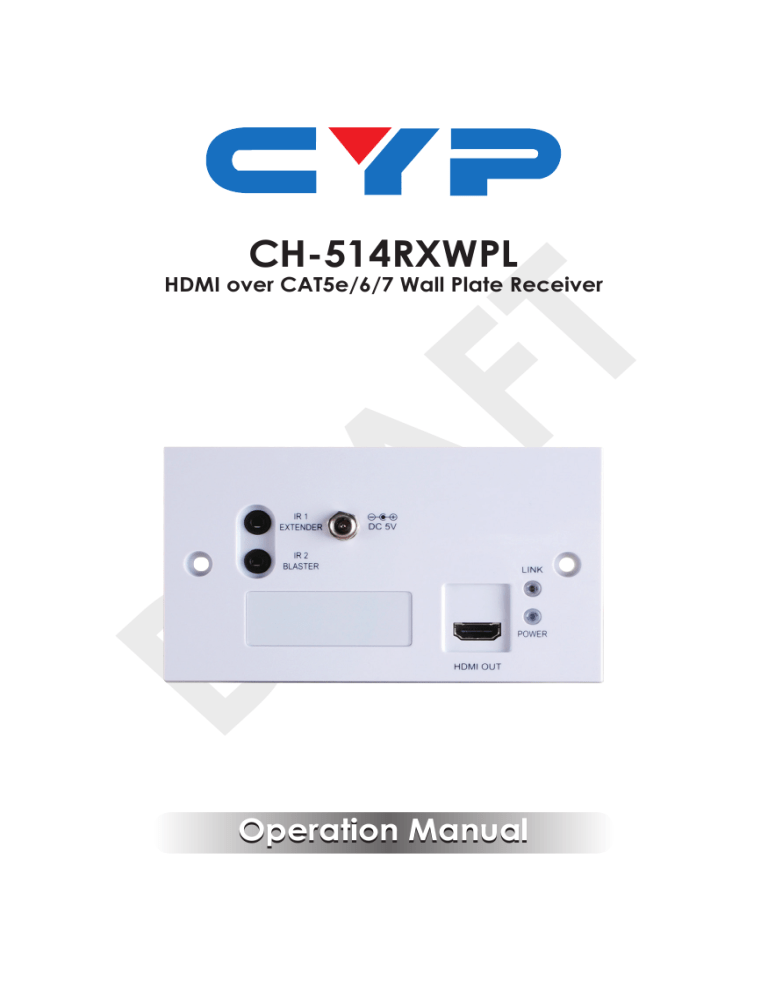

DRAFT CH-514RXWPL Operation Manual HDMI over CAT5e/6/7 Wall Plate Receiver

DRAFT CH-514RXWPL Operation Manual HDMI over CAT5e/6/7 Wall Plate Receiver

CH-514RXWPL

HDMI over CAT5e/6/7 Wall Plate Receiver

DRAFT

DRAFT

DISCLAIMERS

The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.

Cypress Technology reserves the right to make improvements to this document and/or product at any time and without notice.

COPYRIGHT NOTICE

No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its part translated into any language or computer file, in any form or by any means— electronic, mechanical, magnetic, optical, chemical, manual, or otherwise—without express written permission and consent from

Cypress Technology.

© Copyright 2011 by Cypress Technology.

All Rights Reserved.

Version 1.0 September 2011

DRAFT

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

• To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.

• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sufficient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO.

RDV1

DRAFT

CONTENTS

1. Introduction ............................................ 1

2. Applications ........................................... 1

3. Package Contents ................................ 1

4. System Requirements ............................ 1

5. Features .................................................. 2

6. Operation Controls and Functions ....... 3

6.1 Front Panel ........................................3

6.2 Rear Panel .........................................4

6.3 IR Cable Pin Assignment..................4

7. Connection Diagram ............................ 5

8. Specifications ........................................ 6

8.1 CAT5e/6/7 Cable Specification .....7

9. Acronyms ............................................... 7

DRAFT

1

1. INTRODUCTION

The HDMI over CAT5e/6/7 Wall plate Receiver make your home or office more efficient. This Receiver can receive uncompressed Video/

Audio and Bi-directional IR over 60 meters from Transmitter. It is freely to connect with compatible Transmitter through CAT5e/6/7 for data transmission.

2. APPLICATIONS

• Household entertainment sharing and control

• Showroom/Meeting room/Classroom display and control

3. PACKAGE CONTENTS

• HDMI over Cat5e/6/7 Receiver

• IR Blaster x 1

• IR Receiver x 1

• 5V DC Power Adaptor

• Operation Manual

4. SYSTEM REQUIREMENTS

Input HDMI over CAT5e/6/7 Transmitter and output with HDMI TV/ display

DRAFT

5. FEATURES

• HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant

• Supports data rate from 250Mbps up to 3Gbps

• Supports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4Kx2K ([email protected] and

[email protected])

• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD

• Master Audio transmission (32-192kHz sample rate)

• Supports distance up to 60 meters through HDMI to CAT5e/6/7

Transmitter

• Supports Bi-directional IR control

• Wall plate design and installation friendly

Note:

1. This system was tested with CAT6/23AWG cables, results may vary

with cables of a different specification.

2. Displaying HDMI 4Kx2K resolution require the standard 4Kx2K HDMI

cable and display in order for proper image displaying.

DRAFT

2

3

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

1 3 4

IR 1

Digital Eye

IR 2

Emitter

DC 5V

LINK

HDMI OUT

POWER

2 4 6

1

2

3

4

5

6

IR 1 EXTENDER:

Connect to the supplied IR Extender cable for IR signal reception. Ensure that remote controller being used is within the direct line-of-sight of the IR Extender.

IR2 BLASTER:

Connect to the supplied IR Blaster cable for IR signal transmission. Place the IR Blaster in direct line-of sight of the equipment to be controlled.

DC 5V:

HDMI OUT:

LINK LED:

DRAFT

POWER LED:

This LED will illuminate when the device is connected to a power supply.

6.2 Rear Panel

1

1

CAT5e/6/7:

Connect this port to HDMI to CAT5e/6/7 Transmitter

(without PoE function) with CAT5e/6/7 cable to extend the signal up to 60 meters.

6.3 IR Cable Pin Assignment

IR Blaster

IR Extender

DRAFT

1

1

3

Power 5 V

IR Blaster Signal

NC

IR Signal

2

Power 5 V

Grounding

3

4

7. CONNECTION DIAGRAM

DC DC

CONTROL

ALL

IR OUT

IR IN

IR OUT

A

CAT5e/6 OUT

IR IN

IR OUT

IR IN

B

CAT5e/6 OUT

IR OUT

C

CAT5e/6 OUT

IR IN

IR OUT

IR IN

D

CAT5e/6 OUT

IR OUT

E

CAT5e/6 OUT

IR IN

IR OUT

IR IN

F

CAT5e/6 OUT

IR OUT

G

CAT5e/6 OUT

IR IN

IR OUT

IR IN

H

CAT5e/6 OUT

GND

V+

GND

POE 24V

GND

RS232

SERVICE

MAIN 24V

CAT5e/6/7(60M)

IR 1

Digital Eye

IR 2

Emitter

DC 5V

LINK

HDMI OUT

POWER

HDMI Cable

IR1 Blaster

IR2 Receiver

1.5m

60°

Blu-ray

60°

TV/HD Monitor's

Remote

HDMI Cable

IR2 Blaster

IR1 Receiver

1.5m

60°

3m

HD Monitor or TV or Projector

60°

3m

Blu-ray's

Remote

5

8. SPECIFICATIONS

Video Bandwidth

Input ports

300Mbps/10.2Gbps

1 x CAT5e/6/7

1 x IR Extender

Up to 60 meters

CAT5e/6/7 Input Cable

Distance

Output port

1 x HDMI,

1 x IR Blaster

HDMI Output Cable

Distance

Resolution

IR Frequency

Power Supply

Up to 4Kx2K

([email protected]/[email protected])

30 ~50kHz

5V / 2.6A DC (US/EU standards, CE/FCC/

UL certified)

Human-body Model:

ESD Protection

IR Frequency

Dimensions (mm)

Weight (g)

Chassis Material

Silkscreen Color

Operating Temperature

±8kV (air-gap discharge)

±4kV (contact discharge)

30~50 kHz

DRAFT

Storage Temperature

Relative Humidity

Power Consumption

−20 °C ~ 60 °C/−4 °F~140 °F

20~90 % RH (non-condensing)

5W

6

7

8.1 CAT5e/6/7 Cable Specification

Cable Range Pixel clock Video Data

Type rate Rate

CAT5e/6/7 60 m <=225 MHz <=5.3 Gbps

(HD Video)

40 m >225 MHz > 5.3 Gbps

(Ultra HD

Video)

Supported Video

Up to 1080p, 60 Hz, 36 bits, 3D (data rates lower than 5.3 Gbps or below 225 MHz

TMDS clock).

4K2K, 30Hz video formats

9. ACRONYMS

ACRONYM

4Kx2K

DTS

HDMI

DVI

HDCP

HDTV

PoE

COMPLETE TERM

3840x2160 / 4096x2160

Digital Theater System

High-Definition Multimedia Interface

Digital Visual Interface

DRAFT

DRAFT

DRAFT

DRAFT

DRAFT

CYPRESS TECHNOLOGY CO., LTD

Home page: http://www.cypress.com.tw

20130708 MPM-CH514RXWP
