AV-S7(E)(E/F)1-16
9/11/0
9:36 AM
Page 1
UCA

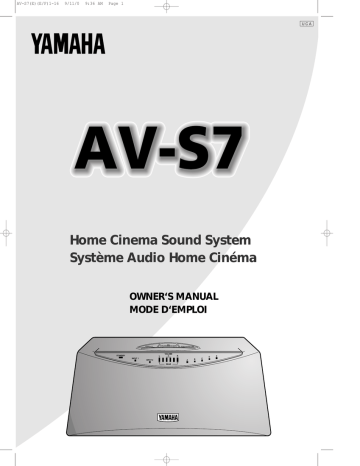

Home Cinema Sound System
Système Audio Home Cinéma
OWNER‘S MANUAL
MODE D‘EMPLOI
STANDBY/ON
INPUT
STANDBY
L
INPUT 1
VOLUME
C
INPUT 2
PROGRAM
R
A
REAR
B
C
D
E
AV-S7(E)(E/F)1-16
9/11/0
9:36 AM
Page 2
SAFETY INSTRUCTIONS
7
Wall or Ceiling Mounting – The unit should be mounted to
a wall or ceiling only as recommended by the
manufacturer.
8
Ventilation – The unit should be situated so that its
location or position does not interfere with its proper
ventilation. For example, the unit should not be situated
on a bed, sofa, rug, or similar surface that may block the
ventilation openings; or placed in a built-in installation,
such as a bookcase or cabinet that may impede the flow
of air through the ventilation openings.
9
Heat – The unit should be situated away from heat
sources such as radiators, stoves, or other appliances
that produce heat.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
• Explanation of Graphical Symbols
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert you to the
presence of uninsulated “dangerous
voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
10 Power Sources – The unit should be connected to a
power supply only of the type described in the operating
instructions or as marked on the unit.
11 Power-Cord Protection – Power-supply cords should be
The exclamation point within an
equilateral triangle is intended to alert
you to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the unit.
12 Cleaning – The unit should be cleaned only as
recommended by the manufacturer.
WARNING
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
UNIT TO RAIN OR MOISTURE.
1
Read Instructions – All the safety and operating
instructions should be read before the unit is operated.
2
Retain Instructions – The safety and operating instructions
should be retained for future reference.
3
Heed Warnings – All warnings on the unit and in the
operating instructions should be adhered to.
4
Follow Instructions – All operating and other instructions
should be followed.
5
Water and Moisture – The unit should not be used near
water – for example, near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming
pool.
6
13 Nonuse Periods – The power cord of the unit should be
unplugged from the outlet when left unused for a long
period of time.
14 Object and Liquid Entry – Care should be taken so that
objects do not fall into and liquids are not spilled into the
inside of the unit.
15 Damage Requiring Service – The unit should be serviced
by qualified service personnel when:
A. The power-supply cord or the plug has been
damaged; or
B. Objects have fallen, or liquid has been spilled into the
unit; or
C. The unit has been exposed to rain; or
D. The unit does not appear to operate normally or
exhibits a marked change in performance; or
E. The unit has been dropped, or the cabinet damaged.
16 Servicing – The user should not attempt to service the unit
beyond those means described in the operating
instructions. All other servicing should be referred to
qualified service personnel.
Carts and Stands – The unit should be used only with a
cart or stand that is recommended by the manufacturer.
17 Power Lines – An outdoor antenna should be located
6A A unit and cart combination should be
away from power lines.
moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the unit and
cart combination to overturn.
18 Grounding or Polarization – Precautions should be taken
so that the grounding or polarization is not defeated.
@
AV-S7(E)(E/F)1-16
9/11/0
9:36 AM
Page 3
FCC INFORMATION (for US customers only)
Compliance with FCC regulations does not guarantee that
interference will not occur in all installations. If this product
is found to be the source of interference, which can be
determined by turning the unit “OFF” and “ON”, please try
to eliminate the problem by using one of the following
measures:
1. IMPORTANT NOTICE : DO NOT MODIFY THIS UNIT!
This product, when installed as indicated in the
instructions contained in this manual, meets FCC
requirements. Modifications not expressly approved by
Yamaha may void your authority, granted by the FCC, to
use the product.
2. IMPORTANT : When connecting this product to
accessories and/or another product use only high quality
shielded cables. Cable/s supplied with this product
MUST be used. Follow all installation instructions.
Failure to follow instructions could void your FCC
authorization to use this product in the USA.
3. NOTE : This product has been tested and found to
comply with the requirements listed in FCC Regulations,
Part 15 for Class “B” digital devices. Compliance with
these requirements provides a reasonable level of
assurance that your use of this product in a residential
environment will not result in harmful interference with
other electronic devices.
This equipment generates/uses radio frequencies and, if
not installed and used according to the instructions
found in the users manual, may cause interference
harmful to the operation of other electronic devices.
Relocate either this product or the device that is being
affected by the interference.
Utilize power outlets that are on different branch (circuit
breaker or fuse) circuits or install AC line filter/s.
In the case of radio or TV interference, relocate/reorient the
antenna. If the antenna lead-in is 300 ohm ribbon lead,
change the lead-in to coaxial type cable.
If these corrective measures do not produce satisfactory
results, please contact the local retailer authorized to
distribute this type of product. If you can not locate the
appropriate retailer, please contact Yamaha Electronics
Corp., U.S.A. 6660 Orangethorpe Ave, Buena Park, CA
90620.
The above statements apply ONLY to those products
distributed by Yamaha Corporation of America or its
subsidiaries.
We Want You Listening For A Lifetime (for US customers only)
YAMAHA and the Electronic Industries Association’s
Consumer Electronics Group want you to get the most out of
your equipment by playing it at a safe level. One that lets the
sound come through loud and clear without annoying blaring
or distortion – and, most importantly, without affecting your
sensitive hearing.
Since hearing damage from loud sounds is often
undetectable until it is too late, YAMAHA and the
Electronic Industries Association’s Consumer
Electronics Group recommend you to avoid
prolonged exposure from excessive volume levels.
#
AV-S7(E)(E/F)1-16
9/11/0
9:36 AM
Page 4
SUPPLIED ACCESSORIES
ACCESSOIRES FOURNIS
●
●
●
●
After unpacking, check that the following parts are included.
Après le déballage, vérifier que les pièces suivantes sont incluses.
Remote control transmitter
Télécommande
●
●
Speaker cords
Câbles d’enceintes
ENHANCED
A
OFF
PROLOGIC
CONCENT
B
C
SPORTS
MONO MOVIE
E
D
DSP
CENTER
TEST
REAR
SUBWOOFER
INPUT
1/2
POWER
AMP
VOLUME
SYS8
V004550
●
●
●
●
Mounting brackets
Supports de montage
(A)
Batteries (size AA, UM/SUM-3, R6, HP-7)
Piles (format AA, UM/SUM-3, R6, HP-7)
x2
(C)
(B)
x4
●
●
Audio connection cord
Câble de connexion audio
●
●
Screws
Vis
(A)
(B)
●
●
●
System connector cable
Câble de connexion du système
●
$
Velcro strips
Bandes Velcro
AV-S7(E)(E/F)1-16
9/11/0
9:36 AM
Page E-1
Page
Page
USING THE AV-S7
PRECAUTIONS
PRECAUTIONS ........................................................2-3
USING THE AV-S7 ...............................................20-22
NOTES ABOUT THE REMOTE CONTROL
TRANSMITTER............................................................4
TROUBLESHOOTING
TROUBLESHOOTING ...............................................23
OUTLINE OF THIS SYSTEM
SPECIFICATIONS
SYSTEM CONFIGURATION .......................................5
SPECIFICATIONS .....................................................24
FEATURES ..................................................................6
DIGITAL SOUND FIELD PROCESSOR (DSP) ...........7
SETTING UP THE SPEAKERS
SETTING UP THE SPEAKERS..............................8-11
CONNECTIONS
CONNECTIONS....................................................12-15
CONTROLS AND THEIR FUNCTIONS
CONTROLS AND THEIR FUNCTIONS................16-17
TURNING ON THIS SYSTEM OR SETTING IT TO
SYANDBY MODE
TURNING ON THIS SYSTEM OR SETTING IT TO
STANDBY MODE ......................................................18
ADJUSTMENTS BEFORE LISTENING OPERATIONS
SPEAKER BALANCE ADJUSTMENT ......................19
E-1
English
CONTENTS
AV-S7(E)(E/F)1-16
9/11/0
9:36 AM
Page E-2
PRECAUTIONS
PRECAUTIONS: READ THIS BEFORE OPERATING THIS SYSTEM
■ To assure the finest performance, please read this
manual carefully. Keep it in a safe place for future
reference.
■ To prevent lightning damage, disconnect the AC
power plug and the antenna cable when there is an
electrical storm.
■ Choose the installation location of this system
carefully. Avoid placing it in direct sunlight or close to
a source of heat. Also avoid locations subject to
vibration and excessive dust, heat, cold or moisture.
Keep it away from sources of humming such as
transformers and electric motors.
■ Do not plug the AC power plug into the wall outlet
before you finish all connections.
■ The voltage to be used must be the same as that
specified on this system. Using this unit with a higher
voltage than that which is specified is dangerous and
may result in a fire or other type of accident causing
damage. YAMAHA will not be held responsible for
any damage resulting from use of this system with a
voltage other than that which is specified.
■ Do not operate this system upside-down. It may
overheat, possibly causing damage.
■ Never open the cabinet. If something drops into the
set, contact your dealer.
■ The sound level at a given volume setting depends
on the speaker location and other factors. Care
should be taken to avoid exposure to sudden high
levels of sound which may occur when turning on the
system with the volume setting at high, and to
continuous high levels of sound.
■ The openings on the surface of the power
amplifier/subwoofer unit assure proper ventilation of
the unit. If these openings are obstructed, the
temperature inside the unit will rise rapidly.
Therefore, avoid placing objects against these
openings, and install the unit in a well-ventilated
place. Make sure to allow a space of at least
10 cm behind, 10 cm on the both sides and 20 cm
above the top panel of the unit, and never use the
unit with the unit laid down on the floor. Doing so
may not only damage the unit, but also cause a fire.
■ Sudden temperature changes and storage or
operation in an extremely humid environment may
cause condensation inside the system.
Condensation can cause the system to malfunction.
To eliminate condensation:
• Remote control
Wipe off condensation on the transmitter window
with a soft cloth before operating the system.
■ Always set the volume setting to minimum before
starting play of an audio source. Increase the volume
gradually to an appropriate level.
■ Secure placement or installation is the owner’s
responsibility.
YAMAHA shall not be liable for any accident
caused by improper placement or installation of
this system.
■ When not planning to use this system for long
periods of time (such as during vacation), disconnect
the AC power plug from the wall outlet.
■ Do not use excessive force on the switches, controls
or connection wires. When moving the unit, first
disconnect the power plug and the wires connected
to other equipment. Never pull the wire itself.
IMPORTANT
Please record the serial number of this system in
the space below.
■ Do not attempt to clean the system with chemical
solvents; this might damage the finish. Use a clean,
dry cloth.
Serial No.:
The serial number is located on the rear of the
power amplifier/subwoofer (SW-AVS7).
Retain this Owner’s Manual in a safe place for future
reference.
■ Be sure to read the “TROUBLESHOOTING” section
regarding common operating errors before
concluding that the system is faulty.
E-2
AV-S7(E)(E/F)1-16
9/11/0
9:36 AM
Page E-3
PRECAUTIONS
VOLTAGE SELECTOR (FOR GENERAL AND
CHINA MODELS ONLY)
The voltage selector on the bottom of the power
amplifier/subwoofer (SW-AVS7) must be set for
your local main voltage BEFORE plugging into
the AC main supply.
Voltages are 110/120/220/240V AC, 50/60 Hz.
FOR CANADIAN CUSTOMER
THIS CLASS B DIGITAL APPARATUS MEETS ALL
REQUIREMENTS OF THE CANADIAN
INTERFERENCE-CAUSING EQUIPMENT
REGULATIONS.
VOLTAGE
SELECTOR
For U.K. customers
If the socket outlets in the home are not suitable for the
plug supplied with this appliance, it should be cut off
and an appropriate 3 pin plug fitted. For details, refer to
the instructions described below.
Note: The plug severed from the mains lead must be
destroyed, as a plug with bared flexible cord is
hazardous if engaged in a live socket outlet.
This system is still connected to the AC power
source as long as it is connected to the wall outlet,
even if the system itself is turned off.
In this state, this system is designed to consume a
very small quantity of power. Pressing the
STANDBY/ON button (or POWER button) lights up
the STANDBY indicator and puts the system into
standby. This is called STANDBY mode.
SPECIAL INSTRUCTIONS FOR U.K. MODEL
IMPORTANT
THE WIRES IN THE MAINS LEAD ARE COLOURED
IN ACCORDANCE WITH THE FOLLOWING CODE:
Blue: NEUTRAL
Brown: LIVE
WARNING
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured
markings identifying the terminals in your plug,
proceed as follows:
The wire which is coloured BLUE must be
connected to the terminal which is marked with the
letter N or coloured BLACK. The wire which is
coloured BROWN must be connected to the terminal
which is marked with the letter L or coloured RED.
Make sure that neither core is connected to the
earth terminal of the three pin plug.
To reduce the risk of fire or electric shock, do not
expose this system to rain or moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
FOR U.K. AND EUROPE MODELS ONLY
MAIN POWER switch
The U.K. and Europe models are equipped with a
MAIN POWER switch on the rear bottom panel of
the power amplifier/subwoofer (SW-AVS7).
Setting this to ON switches the AV-S7 system to
STANDBY mode. To power on the system, press
the STANDBY/ON button on the center speaker or
the POWER button on the remote control
transmitter.
E-3
English
CAUTION (FOR CANADA MODEL)
TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT AND FULLY
INSERT.
AV-S7(E)(E/F)1-16
9/11/0
9:36 AM
Page E-4
PRECAUTIONS
NOTES ABOUT THE REMOTE CONTROL TRANSMITTER
Loading the batteries for the
remote control transmitter
Proper use of the remote control
transmitter
1
STANDBY/ON
INPUT
STANDBY
L
INPUT 1
VOLUME
C
INPUT 2
PROGRAM
R
A
B
C
D
E
REAR
3
2
Within approximately
6 m (19.7 feet)
Remote control
sensor
30°
1 Remove the battery compartment cover.
30°
(Slide the cover in the direction of the arrow.)
2 Insert 2 “AA” size batteries (UM/SUM-3, R6, HP-7 or
equivalent) into the battery compartment.
* Installing the batteries improperly may cause
failure.
Aim the remote control transmitter at the remote control
sensor (within a 60° range with no obstacles) and
operate as shown.
3 Replace the battery compartment cover.
Notes concerning use
• Replace the batteries if the control distance
decreases or operation becomes unstable.
• Periodically clean the transmitter window on the
remote control transmitter and the sensor on the
center speaker with a soft cloth.
• Exposing the sensor on the center speaker to strong
light (such as an inverter-type fluorescent lamp) may
interfere with operation. In this case, reposition the
center speaker to avoid direct light.
• Keep the remote control transmitter away from
moisture, excessive heat, shock and vibrations.
• The remote control transmitter’s range is from 0.2m
(8”) to 6m (20’) from the sensor.
Precautions for battery use
• Insert the batteries according to the direction
indicated in the battery compartment.
• Replace all batteries with new ones at the same
time.
• Remove the batteries if they are weak or if the unit
will not be used for a long period of time.
• Do not mix normal batteries with rechargeable
batteries.
E-4
AV-S7(E)(E/F)1-16
9/11/0
9:36 AM
Page E-5
OUTLINE OF THIS SYSTEM
• The AV-S7 system consists of the SW-AVS7, NX-AVS7 and the NX-AV1.
This system is a multi-channel audio system which consists of the units shown below.
By driving 6 speakers, the built-in digital sound field processor (DSP) creates various kinds of Yamaha original digital
sound fields simulating an actual concert hall, live house and other venues. When watching a movie source, the builtin Dolby Pro Logic Surround decoder and the digital sound field processor turn your room into a movie theater with
tremendous impact.
Ultra-low bass reproduced by the subwoofer (SW-AVS7) makes sound more real and powerful.
This system will give you great enjoyment in watching TV and playing various audio sources.
SW-AVS7
(6-channel power amplifier
and Active Servo Processing
Subwoofer system)
6CH POWER AMPLIFIER
ACTIVE SERVO PROCESSING SUBWOOFER
Active Servo
Technology
NX-AV1
Front and Rear Speakers
(Full-range speakers)
NX-AVS7
Center Speaker
(Full-range speaker with builtin control unit)
STANDBY/ON
INPUT
STANDBY
L
INPUT 1
VOLUME
C
INPUT 2
A
REAR
E-5
PROGRAM
R
B
C
D
E
English
SYSTEM CONFIGURATION
AV-S7(E)(E/F)1-16
9/11/0
9:36 AM
Page E-6
OUTLINE OF THIS SYSTEM
FEATURES
The System
Sound Field Processor Including
Dolby Pro Logic Surround
Decoder
● 6-Speaker Multi-Channel Audio
System Including Two Front
Speakers, One Center Speaker, Two
Rear Speakers and One Subwoofer
● Digital Sound Field Processor
(Programs: CONCERT, SPORTS,
MONO MOVIE)
● Minimum RMS Output Power per
Channel
● Dolby Pro Logic Surround Decoder
(Program: DOLBY PRO LOGIC)
Front L, R: 30W + 30W (6Ω) RMS
Output Power, 10% THD,
1 kHz
25W + 25W (6Ω) RMS
Output Power, 0.9% THD,
1 kHz
Center:
● CINEMA DSP:
Theater-like Sound Experience by a
Combination of Dolby Pro Logic and
YAMAHA DSP Technology
(Program: DOLBY PRO LOGIC
ENHANCED)
30W (6Ω) RMS Output
Power, 10% THD, 1 kHz
25W (6Ω) RMS Output
Power, 0.9% THD, 1 kHz
● Automatic Input Balance Control for
Dolby Pro Logic Surround
● Test Tone Generator for Easier
Speaker Balance Adjustment
Rear L, R: 30W + 30W (6Ω) RMS
Output Power, 10% THD,
1 kHz
25W + 25W (6Ω) RMS
Output Power, 0.9% THD,
1 kHz
Subwoofer: 50W (4Ω) RMS Output
Power, 10% THD, 100 Hz
40W (4Ω) RMS Output
Power, 0.9% THD, 100 Hz
● Active Servo Processing Subwoofer
System for Ultra-low Bass
Reproduction (SW-AVS7)
● Center Speaker (NX-AVS7) with Builtin Control Unit Equipped with
STANDBY, INPUT 1/2, VOLUME, and
PROGRAM Indicators
● Simple and Easy Operating
Procedures
● Remote Control Capability
E-6
AV-S7(E)(E/F)1-16
9/11/0
9:36 AM
Page E-7
OUTLINE OF THIS SYSTEM
The Digital Sound Field Processor (DSP) built into this system takes advantage of Yamaha’s undisputed leadership in
the field of digital audio processing to bring you a whole new world of listening experiences. Follow the instructions in
this manual carefully when setting up your system, and this unit will sonically transform your room into a wide range of
listening environments –movie theater, concert hall, and so on. In addition, you get incredible realism from sources
encoded with Dolby Surround using the built-in Dolby Pro Logic Surround Decoder.
Please read this operation manual carefully and store it in a safe place for later reference.
Digital Sound Field Processing
What is it that makes live music so good? Today’s
advanced sound reproduction technology lets you get
extremely close to the sound of a live performance, but
chances are you’ll still notice something missing: the
acoustic environment of the live concert hall. Extensive
research into the exact nature of the sonic reflections
that create the ambience of a large hall has made it
possible for Yamaha engineers to bring you this same
sound in your own listening room, so you’ll feel all the
sound of a live concert.
Furthermore, our technicians, armed with sophisticated
measuring equipment, have even made it possible to
capture the acoustics of a variety of venues such as an
actual concert hall and theater to allow you to accurately
recreate one of several actual live performance
environments, all in your own home.
Dolby Pro Logic Surround
This unit employs a Dolby Pro Logic Surround decoder
similar to professional Dolby Stereo decoders used in
many movie theaters. By using the Dolby Pro Logic
Surround decoder, you can experience the dramatic
realism and impact of Dolby Surround movie theater
sound in your own home. Dolby Pro Logic employs a
four-channel five-speaker system. The Pro Logic
Surround system divides the input signal into four levels:
the left and right main channels, the center channel
(used for dialog), and the rear surround sound channels
(used for sound effects, background noise, and other
ambient noises). The center channel allows listeners
seated in even less-than-ideal positions to hear the
dialog originating from the action on the screen while
experiencing good stereo imaging.
Dolby Surround is encoded on the sound track of prerecorded video tapes, laser discs, and some TV/cable
broadcasts. When you play a source encoded with Dolby
Surround on this unit, the Dolby Pro Logic Surround
decoder decodes the signal and distributes the
surround-sound effects.
This Dolby Pro Logic Surround Decoder employs a
digital signal processing system. This system improves
the stability of sound at each channel and minimizes
crosstalk between channels, so that positioning of
sounds around the room is more accurate compared
with conventional analog signal processing systems.
In addition, this unit features a built-in automatic input
balance control. This always assures you the best
performance without manual adjustment.
Manufactured under license from Dolby Laboratories
Licensing Corporation. “Dolby”, “Pro Logic”, and the
double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
Dolby Pro Logic Surround + DSP
Dolby Surround sound system shows its full ability in a
large movie theater, because movie sounds are
originally designed to be reproduced in a large movie
theater using many speakers. It is difficult to create a
sound environment similar to that of a movie theater in
your listening room, because the room size, materials of
inside walls, the number of speakers, and other factors
of your listening room are much different from those of a
movie theater.
Yamaha DSP technology made it possible to present
you with nearly the same sound experience as that of a
large movie theater in your listening room by
compensating for lack of presence and dynamics in your
listening room with its original digital sound fields
combined with Dolby Surround sound field.
The combination of Dolby Pro Logic Surround and DSP
is used on the sound field program “ PRO LOGIC
ENHANCED”.
CINEMA DSP
The YAMAHA “CINEMA DSP” logo indicates these
programs are created by the combination of Dolby Pro
Logic and YAMAHA DSP technology.
E-7
English
DIGITAL SOUND FIELD PROCESSOR (DSP)
AV-S7(E)(E/F)1-16
9/11/0
9:36 AM
Page E-8
SETTING UP THE SPEAKERS
SETTING UP THE SPEAKERS
Before you make connections, place all units in this system in their proper positions. Above all, the positioning of the
speakers is important because it controls the whole sound quality of this system.
Position the speakers on the basis of your listening position by following the instructions in this section.
Front L
Center
Speaker configuration
Front R
This system employs a 6-speaker configuration: 2 front
speakers, 2 rear speakers, a center speaker and a
subwoofer.
The front speakers are used for the main source sound
plus the effect sounds. The rear speakers are used for
the effect and surround sounds, and the center speaker
is for the center sounds (such as dialog.). The
subwoofer is for reinforcing low frequencies of the main
source sound and the center sound.
Subwoofer
Rear L
Rear R
Placing speakers
Front speakers:
On both sides of the TV and at
almost the same height as the TV.
Rear speakers: Behind your listening position,
facing slightly inward. Nearly six
feet (approx. 1.8 m) up from the
floor.
Center speaker: Precisely between the front
speakers.
Subwoofer:
The position of the subwoofer is not
so critical because low bass tones
are not highly directional.
Front R
Center
Subwoofer
Front L
TV set
Rear R
Rear L
Note
Although FRONT, REAR, and CENTER speakers are
magnetically shielded, there may be some
influence on the TV picture depending on the type
of TV or the placement of the speakers. In such a
case, place the speakers far enough from the TV so
that there is no influence on the TV picture.
E-8
AV-S7(E)(E/F)1-16
9/11/0
9:36 AM
Page E-9
SETTING UP THE SPEAKERS
When installing the center speaker on the TV, be sure to
secure the center speaker to the TV using the velcro strips
provided so that it does not fall.
INPUT
STAND BY
STANDBY/ON
L
INPUT 1
VOLUME
C
INPUT 2
PROGRAM
R
A
B
C
D
E
REAR
Notes
• Do not place the center speaker on top of a TV
whose area is smaller than the bottom area of the
center speaker, as the center speaker may drop and
cause personal injury.
• Although this center speaker is a magnetically
shielded type, there may be some influence on the
TV picture depending on the type of TV or the
placement of the center speaker. In such a case,
place the center speaker apart from the TV so that
there is no influence on the TV picture.
• Be sure to remove all dust, debris, oil, and other
substances adhering to the section where the velcro
strip is affixed. If this section is dirty, the velcro strip
will not affix properly, and the center speaker may
move or fall.
• When peeling off the backing paper of the velcro
strips, be careful not to touch the adhesive surface.
Doing so harms the adhesion strength.
• If there is a gap between the center speaker and TV,
turn and extend the adjuster on the bottom rear
section of the center speaker so that the center
speaker is stable.
Rough surface
Smooth surface
1
2
Bottom of the center speaker
Affix to the bottom of the center speaker (2 locations)
Adjuster
Adjust as necessary
E-9
English
Center Speaker Installation
AV-S7(E)(E/F)1-16
9/11/0
9:36 AM
Page E-10
SETTING UP THE SPEAKERS
■ Mounting the front speakers
1
Mounting
bracket
(type A)
2
To mount speakers on the mounting
brackets (type A)
1
Attach the bracket to the bottom of the speaker using
the provided screw (type A).
2
Turn and/or slide the speaker on the bracket to the
desired position, and then tighten the screw.
Screw
(type A)
■ Mounting the rear speakers
1
Mounting
bracket
(type B)
Screw
(type B)
2
Place the front speakers on a rack or on a shelf, so that
they are stabilized.
To obtain more stability and usefulness, we recommend
that you mount the speakers on the provided mounting
brackets (type A).
Mount the rear speakers on a shelf, rack or put them
directly on the floor, or hang them on the wall.
To mount the rear speakers on a wall using
the provided mounting brackets (type B)
Note
It is recommended that you connect the speaker cords
to the speaker’s terminals before attaching the bracket
to the speaker.
1
Attach the bracket to the bottom of the speaker using
the provided screw (type B).
2
Turn and/or slide the speaker on the bracket to the
desired position, and then tighten the screw.
E-10
AV-S7(E)(E/F)1-16
9/11/0
9:36 AM
Page E-11
SETTING UP THE SPEAKERS
Tapping screw
(Available at a
hardware store)
Note
If desired, you can hang the speaker on the protruding
screws on the wall without using the bracket.
WARNING:
● Each speaker weighs 0.7 kg (1 lbs. 9 oz.). Do not
mount them on thin plywood or a soft wall
surface material, as the screws may come out of
the flimsy surface, causing the speakers to fall
down and be damaged, or cause personal injury.
● Do not fasten the speakers to the wall with nails,
adhesives, or other unstable hardware. Longterm use and vibrations may cause them to fall
down.
● To avoid accidents resulting from tripping over
loose speaker cords, fix them to the wall.
● Select a proper position on the wall to mount the
speaker and the bracket so that no one will hit
his head or face on the protruding part of the
bracket and be injured.
Min.
12 mm
65 mm
Wall/ wall
support
Fasten the screws into a firm wall or wall support as
shown in the figure, and hang the holes of the
mounting bracket on the protruding screws.
* Make sure that the screws are held firmly in the
holes.
Mounting
bracket
(type B)
■ Mounting the speaker on a
commercially available speaker
stand
Mounting
bracket
(type C)
The provided mounting bracket (type C) has one pair of
screw holes (spaced 60 mm apart) available to mount
the speaker on a speaker stand.
* These screw holes use only M4 screws.
Screw
(type A)
1
Attach the bracket to the bottom of the speaker
using the provided screw (type A) so that the convex
part of the bracket fits in the grooved part on the
bottom of the speaker as shown on the left.
2
Mount the speaker on the speaker stand using the
screw holes on the bracket.
Note
Mounting brackets (type C) are provided for each
speaker (4).
60 mm
E-11
English
3
3
AV-S7(E)(E/F)1-16
9/11/0
9:36 AM
Page E-12
CONNECTIONS
CONNECTIONS
When you have finished placing or installing all units in this system, begin making connections by following the
instructions in this section.
This system requires three connections: system connection, speaker connection and AC supply connection.
However, the order of these connections is not important.
Never plug the AC supply lead of this system into the outlet until all connections are
completed.
■ Making a system connection between the center speaker (NX-AVS7) and the
power amplifier/subwoofer (SW-AVS7)
1
2
Connect the SYSTEM CONNECTOR terminals on
both units with each other using the provided system
connector cable.
* When connecting the system connector cable to
both terminals, note the directions of each
SYSTEM CONNECTOR terminal’s face.
3
Connect the INPUT 2 terminals to the AUDIO output
terminals of a CD, MD, laser disc player or DVD
player.
Caution
Be careful not to damage the system connector
cable by placing something heavy on the cable,
putting metal fittings on the cable, or tugging the
cable. Damaging the cable may cause the system
to break down.
Connect the AUDIO OUTPUT terminals on the TV to
the INPUT1 terminals on the SW-AVS7 using the
provided connection cord.
* Be sure to connect the red plug of the connection
cord to the “R” (right) terminal and the white plug
to the “L” (left) terminal.
Connection to a TV with an AUDIO OUT terminal
System connector cable (provided)
Center speaker
(NX-AVS7)
SYSTEM
CONNECTOR
MARK
System
connector
SYSTEM
CONNECTOR
MARK
Power amplifier/subwoofer
(SW-AVS7)
TV
L
VIDEO
INPUT
AUDIO AUDIO
INPUT OUTPUT
L
L
R
R
MARK
1
THROUGH
INPUT
2
SYSTEM
CONNECTOR
R
L
FRONT
R
L
FRONT
MARK
1
R
THROUGH
2
INPUT
Set the volume control of the
TV to the minimum setting.
VCR
*1
Audio connection
cord (provided)
*2
L
R
SYSTEM
CONNECTOR
*3
L
CD or MD
player
VIDEO
AUDIO
OUTPUT OUTPUT
R
AUDIO
OUTPUT
E-12
*1 : Video connection cable (optional)
*2,3 : Audio connection cable (optional)
AV-S7(E)(E/F)1-16
9/11/0
9:36 AM
Page E-13
CONNECTIONS
1
Connect the SYSTEM CONNECTOR (Refer to page
12).
2
Connect the AUDIO OUTPUT terminals on the VCR
to the INPUT1 terminals on the SW-AVS7.
3
Connect the THROUGH terminals of INPUT 1 to the
AUDIO INPUT terminals on the TV using connector
cable (optional).
* A signal is applied to INPUT 1 at the THROUGH
terminals only when the AV-S7 is off.
4
Connect the INPUT 2 terminals (Refer to page 12).
System connector cable (provided)
Center speaker
(NX-AVS7)
SYSTEM
CONNECTOR
MARK
System
connector
SYSTEM
CONNECTOR
MARK
Power amplifier/subwoofer
(SW-AVS7)
*2
TV
L
L
L
THROUGH
2
SYSTEM
CONNECTOR
R
L
FRONT
R
L
FRONT
R
MARK
1
AUDIO
INPUT
THROUGH
2 *3
INPUT
Audio connection
cord (provided)
*1
VCR
MARK
1
INPUT
R
VIDEO
INPUT
R
L
R
SYSTEM
CONNECTOR
*3
L
CD or MD
player
VIDEO
AUDIO
OUTPUT OUTPUT
R
AUDIO
OUTPUT
*1 : Video connection cable (optional)
*2,3 : Audio connection cable (optional)
• If the AV-S7 system is set to STANDBY or the turned off, the signal applied to INPUT 1 is sent to the THROUGH terminal of
INPUT 1.
• Use the volume control of the TV when playing back sound from the TV or VCR without using the AV-S7.
E-13
English
Connection to a TV without an AUDIO OUT terminal
AV-S7(E)(E/F)1-16
9/11/0
9:36 AM
Page E-14
CONNECTIONS
■ Connecting the speakers to the power amplifier/subwoofer (SW-AVS7)
Right front
speaker
Left front
speaker
Right rear
speaker
Left rear
speaker
Power amplifier/subwoofer
(SW-AVS7)
L
R
MARK
1
THROUGH
INPUT
2
SYSTEM
CONNECTOR
R
L
FRONT
R
L
REAR
R
L
R
FRONT
L
REAR
■ Connecting the AC supply lead
• Unplug the AC supply lead from the outlet if this
system is not to be used for a long period of time.
• After completing all connections, plug the AC supply
lead into a convenient outlet.
VOLTAGE SELECTOR
For General and China models only
The voltage selector on the bottom of the power
amplifier/subwoofer (SW-AVS7) must be set for
your local main voltage BEFORE plugging it into
the AC main supply.
Voltages are 110/120/220/240V AC, 50/60 Hz.
L
R
MARK
1
THROUGH
INPUT
SYSTEM
CONNECTOR
R
L
FRONT
R
L
REAR
O
F
F
O
P
N
O
W
E
R
VOLTAGE
SELECTOR
2
MAIN POWER switch
For U.K. and Europe
models only
Setting this to ON switches
the AV-S7 system to
STANDBY mode. To start
the system, press the
STANDBY/ON button on the
center speaker or the
POWER button on the
remote control transmitter.
To outlet
E-14
AV-S7(E)(E/F)1-16
9/11/0
9:36 AM
Page E-15
CONNECTIONS
How to Connect:
Connect the provided speaker cords between the
SPEAKERS terminals on the power
amplifier/subwoofer (SW-AVS7) and the speaker
terminals on each speaker as shown below. If the
connections are incorrect, no sound will be heard from
the speakers. Make sure that the polarity of the
speaker wires is correct with reference to the + and –
markings. If these wires are reversed, the sound will
be unnatural and lack bass.
All of the speakers are identical.
The speakers connected to the FRONT R and L
terminals should be used as the right and left front
speakers.
The speakers connected to the REAR R and L
terminals should be used as the right and left rear
speakers.
To avoid mistakes, connect the wire with a line to the +
terminals on both the power amplifier/subwoofer (SWAVS7) and speaker, and connect the wire with no line
to the – terminals on both of them.
Notes
● Do not connect speakers to the SW-AVS7 other than
the provided ones.
● Use the provided speaker cords for the connections.
Normally, use the short cords to connect to the front
speakers, and use the long ones to connect to the
rear speakers. The four cords are marked FRONT L,
FRONT R, REAR L and REAR R for your reference.
Caution
Do not let the bare speaker wires touch each other
as this could damage the SW-AVS7 and/or the
speakers.
On the SW-AVS7:
Red: positive (+)
Black: negative (–)
➀
➀ Lift up the tab.
➁ Insert the bare wire.
➂
Label
➁
[Remove approx.
5mm (1/4”)
insulation from the
speaker wires.]
➂ Press down the tab
and secure the
wire.
On the FRONT and REAR speakers (NX-AV1):
Red: positive (+)
Black: negative (–)
➀ Press the tab.
➁ Insert the bare wire.
[Remove approx.
5mm (1/4”)
insulation from the
speaker wires.]
➂ Release the tab and
secure the wire.
E-15
English
Connect the provided speakers to the SPEAKERS
terminals on the rear of the SW-AVS7.
AV-S7(E)(E/F)1-16
9/11/0
9:36 AM
Page E-16
CONTROLS AND THEIR FUNCTIONS
CONTROLS AND THEIR FUNCTIONS
CENTER SPEAKER (WITH CONTROL UNIT)
1
INPUT
Remote control
sensor
2
3
STANDBY/ON
PROGRAM
2
3
1
STANDBY
L
INPUT 1
VOLUME
C
INPUT 2
R
A
B
C
D
E
REAR
4
6
5
1 INPUT selector button
D: Sports
E: Mono Movie
Check the PROGRAM indicator 7 when making the
selection.
This button switches between INPUT 1 and INPUT 2
each time it is pressed. Check the INPUT 1/2 indicator
5 to see which is in use.
4 STANDBY indicator
2 STANDBY/ON (Switch) button
This button switches between power-on and standby
each time it is pressed.
When standby mode is activated, the STANDBY
indicator 4 lights up.
When the power-on is activated, the STANDBY
indicator 4 is off. You can tell that the power is on since
the INPUT 1/2 indicator 5 and other indicators are lit
up.
Standby mode
In this state, this unit consumes a very small
quantity of power to receive infrared signals from
the remote control transmitter.
3 PROGRAM selector button
This button is used for selecting the DSP program. The
selections cycle through A→B→C→D→E→OFF→A
when pressed.
A: Dolby Pro Logic Enhanced
B: Dolby Pro Logic
C: Concert
7
This indicator lights up when in standby mode.
5 INPUT 1/2 indicators
These indicators light up to show whether INPUT 1 or 2
is selected.
6 VOLUME indicators
These indicators light up according to the setting of the
VOLUME buttons 9 on the remote control transmitter.
7 PROGRAM indicators
These indicators light up to show the selected DSP
program.
Remote control sensor
The sensor is a window for receiving the signal from the
remote control transmitter.
E-16
AV-S7(E)(E/F)1-16
9/11/0
9:36 AM
Page E-17
CONTROLS AND THEIR FUNCTIONS
English
REMOTE CONTROL TRANSMITTER
4
ENHANCED
A
OFF
PROLOGIC
CONCERT
B
C
SPORTS
5
MONO MOVIE
E
D
DSP
3
CENTER
TEST
REAR
2
6
7
SUBWOOFER
INPUT
8
1/2
AMP
POWER
VOLUME
1
9
C: Concert
D: Sports
E: Mono Movie
Check the PROGRAM indicators 7 of the center
speaker when making the selection.
1 POWER button
This button turns on the power to this system and
switches this system to standby mode alternately.
2 INPUT selector button
This button switches between INPUT 1 and INPUT 2
each time it is pressed. Check the INPUT 1/2 indicator
5 of the center speaker to see which is activated.
6 CENTER level (+/–) buttons
Pressing the “+” button raises and pressing the “–”
button lowers the volume level of the center speaker.
3 TEST button
7 REAR level (+/–) buttons
This button is used for speaker balance adjustment.
(For details, refer to page 19.)
Pressing the “+” button raises and pressing the “–”
button lowers the volume level of the rear speakers.
4 DSP OFF button
8 SUBWOOFER level (+/–) buttons
This button switches off the digital sound field
processor (including the Dolby Pro Logic Surround
decoder).
Pressing the “+” button raises and pressing the “–”
button lowers the volume level of the subwoofer.
9 VOLUME (+/–) buttons
5 PROGRAM selector buttons
Pressing the “+” button raises and pressing the “–”
button lowers the volume of the whole system.
These buttons are used for selecting the DSP program.
A: Dolby Pro Logic Enhanced
B: Dolby Pro Logic
E-17
AV-S7(E)17-24
9/11/0
9:07 AM
Page E-18
TURNING 0N THE POWER TO THIS SYSTEM OR SETTING IT TO THE STANDBY MODE
TURNING ON THE POWER TO THIS SYSTEM OR SETTING IT TO THE STANDBY MODE
If the AC supply lead is connected to an outlet, this
system can be turned on or switched to the standby
mode by pressing the STANDBY/ON button on the
front panel of the center speaker or the POWER button
on the remote control transmitter.
INPUT
STANDBY/ON
PROGRAM
Standby mode
While the power is on, pressing the STANDBY/ON
button (or the POWER button on the remote control
transmitter) switches the system to standby mode.
In this mode, the main voltage still flows through the
system. If you want to turn off the system
completely, remove the AC power plug from the
outlet.
ENHANCED
A
OFF
PROLOGIC
CONCERT
B
C
SPORTS
MONO MOVIE
E
D
DSP
CENTER
TEST
REAR
SUBWOOFER
INPUT
1/2
AMP
POWER
VOLUME
Note: When the power is turned on by pressing the
STANDBY/ON button (or the POWER button on
the remote control transmitter), the volume
indicator flashes and no sound is emitted from the
speakers for several seconds.
E-18
AV-S7(E)17-24
9/11/0
9:07 AM
Page E-19
ADJUSTMENTS BEFORE LISTENING OPERATIONS
INPUT
This procedure lets you adjust the sound balance
between the front, center, and rear speakers using the
built-in test tone generator. When this adjustment is
performed, the sound output level heard at the listening
position will be the same from each speaker. This is
important for the best performance of the built-in Dolby
Pro Logic surround decoder.
The adjustment of each speaker output level
should be done at your listening position with the
remote control transmitter. Otherwise, the result
may not be satisfactory.
PROGRAM
STANDBY/ON
1 Press the STANDBY/ON button (or the POWER
1
button on the remote control transmitter) to turn the
power on.
2 Press the VOLUME “–”
button to reduce the volume
to minimum.
3 Press the TEST button. Make sure that B of the
PROGRAM indicators light up.
4 Press the VOLUME “+” button to increase the
volume.
ENHANCED
A
OFF
PROLOGIC
CONCERT
B
C
SPORTS
MONO MOVIE
E
D
DSP
3, 7
5
6
CENTER
TEST
REAR
INPUT
• You will hear a test tone from the left front
speaker, the center speaker, the right front
speaker, and then the rear speakers, for about
two seconds each.
• The test tone from the left rear speaker and the
right rear speaker will be heard at the same time.
5 Press the CENTER level (+/–) buttons to adjust the
SUBWOOFER
1/2
AMP
POWER
volume of the center speaker to the same level as
the front speakers.
Be sure to always press the CENTER level buttons
while a test tone is being emitted from the center
speaker.
VOLUME
1
4
6 Press the REAR level (+/–) buttons to adjust the
2
volume of the rear speakers to the same level as the
front speakers.
Be sure to always press the REAR level buttons
while a test tone is being emitted from the rear
speakers.
7 When all the speakers are adjusted, press the TEST
button to stop the test signal.
Note
Once each speaker is adjusted, the system volume can
be adjusted to the desired level using the VOLUME
(+/–) buttons on the remote control transmitter.
The test tone is emitted.
The indicators shown in the figure blink.
L
C
R
L
C
R
L
C
R
L
C
R
Left front
Center
Right front
Rear (L, R)
REAR
E-19
English
SPEAKER BALANCE ADJUSTMENT
AV-S7(E)17-24
9/11/0
9:07 AM
Page E-20
USING THE AV-S7
USING THE AV-S7
This system incorporates a sophisticated, multiprogram digital sound field processor. The processor
allows you to electronically expand and change the
shape of the audio sound field from both audio and
video sources, creating a theater-like experience in
your listening room. You can create an excellent audio
sound field by selecting a suitable sound field program
(this will, of course, depend on what you will be
listening to) and adding desired adjustments.
Brief Overview of Digital Sound Field
Programs
The following list gives you a brief description of the
sound fields produced by each DSP program. Keep in
mind that most of these are precise digital recreations
of actual acoustic environments. The data for these
sound fields was recorded at actual locations using
sophisticated sound field measurement equipment.
In addition, this unit incorporates a Dolby Pro Logic
Surround decoder for multi-channel sound reproduction
of sources encoded with Dolby Surround.
The operation of the Dolby Pro Logic Surround decoder
can be controlled by selecting the DSP program,
PRO LOGIC or
PRO LOGIC ENHANCED.
Note
The channel level balance between the left and
right rear effect speakers may vary depending on
the sound field you are listening to. This is because
most of these sound field recreations are actual
acoustic environments.
PROGRAM
PRO LOGIC
ENHANCED
PRO LOGIC
CONCERT
SPORTS
MONO MOVIE
FEATURE
This program is used for playing of sources encoded with Dolby Surround.
Enhancing the “Normal” Dolby Pro Logic, the DSP technology simulates the multi-surround
speaker systems of a 35 mm movie theater. This effect creates a wide surround sound field,
and expands the sound stage with an improved presence image. This program is used for
musical based movies, as well as drama and comedy based movies.
This program is also used for playing of sources encoded with Dolby Surround.
The application of a sophisticated digital signal processing system reduces crosstalk and
directs or steers the sound source more smoothly and precisely, as compared to conventional
types.
This program is effective for music videos and gives excellent depth and clarity for vocals.
For opera, the orchestra and stage are ideally recreated, making you feel as if you were in an
actual concert hall.
This program is ideal for enjoying sports programs which take place in arenas, indoor
stadiums, or other venues.
This program is designed specifically to enhance mono source programs. Compared to a
strictly mono setting, the sound image created in this mode is wider and slightly forward of the
speaker pair, lending an immediacy to the overall sound. It is particularly effective when used
with old mono movies, news broadcasts and dialog.
E-20
AV-S7(E)17-24
9/11/0
9:07 AM
Page E-21
USING THE AV-S7
1 Press the POWER button.
When the system is turned on, the STANDBY
indicator turns off, and INPUT indicator 1 or 2 lights
up.
ENHANCED
A
OFF
PROLOGIC
CONCERT
B
C
SPORTS
2 Press the VOLUME “–” button to lower the volume.
6
3 Use the INPUT selector button to select the listening
MONO MOVIE
E
D
DSP
CENTER
source.
INPUT 1:
INPUT 2:
TEST
REAR
3
INPUT
SUBWOOFER
1/2
AMP
POWER
4 Play the source.
VOLUME
1
For playing a TV or VCR
For playing audio signals from a
CD player or MD player connected to
INPUT 2
5
2
5 Press the VOLUME “+” button to adjust the volume
to the desired level.
6 Use the PROGRAM selector button to select the
DSP program (A, B, C, D, or E) matching the play
source.
* The PROGRAM selector button on the center
speaker cycles through
A→B→C→D→E→OFF→A when pressed.
* Check the program settings at the PROGRAM
indicator.
7 The volume for all speakers can be adjusted
simultaneously with the VOLUME button.
Press the PROGRAM selector button on the center
speaker to select the programs shown below.
Notes
Program selection can be made for individual input
sources. Once you select a program, it is linked with
the input source selected at that time. So, when you
select the input source next time, the same program
is automatically called.
● If you prefer to cancel the DSP, press the DSP OFF
button. The sound will be the normal 2-channel
stereo without the surround sound effect.
● When CONCERT, SPORTS or MONO MOVIE is
selected, no sound is heard from the center
speaker.
● When a monaural sound source is played with
DOLBY PRO LOGIC or DOLBY PRO LOGIC
ENHANCED, sound is heard from the center
speaker and subwoofer.
● If the AV-S7 system is set to STANDBY or turned
off, the signal applied to INPUT 1 is sent to the
THROUGH terminals of INPUT 1.
●
PRO LOGIC ENHANCED
PRO LOGIC
CONCERT
SPORTS
MONO MOVIE
OFF
E-21
English
Listening to a source with sound
effects by digital sound field
processing (including Dolby Pro
Logic Surround decoding)
AV-S7(E)17-24
9/11/0
9:07 AM
Page E-22
USING THE AV-S7
Adjusting the center speaker volume
If desired, you can adjust the volume level of the center
speaker even if the volume is already set in “SPEAKER
BALANCE ADJUSTMENT” on page 19.
INPUT
By continuously pressing the CENTER (+ or –) button,
the volume value changes continuously.
PROGRAM
STANDBY/ON
Notes
● This adjustment can be made only when the digital
sound field program DOLBY PRO LOGIC or DOLBY
PRO LOGIC ENHANCED is selected.
● Once the volume level is adjusted, the volume value
will be the same in all the digital sound field
programs mentioned above.
3
Adjusting the rear speaker volume
If desired, you can adjust the volume level of the rear
speakers even if the volume is already set in
“SPEAKER BALANCE ADJUSTMENT” on page 19.
By continuously pressing the REAR level (+ or –)
button, the volume value changes continuously.
ENHANCED
Notes
● This adjustment can be made only when the built-in
digital sound field processor is on.
● Once the volume level is adjusted, the volume value
will be the same in all the digital sound field
programs.
A
OFF
PROLOGIC
CONCERT
B
C
SPORTS
MONO MOVIE
E
D
DSP
CENTER
TEST
REAR
INPUT
REAR LEVEL
SUBWOOFER
SUBWOOFER
1/2
AMP
POWER
CENTER LEVEL
Adjusting the subwoofer output volume
VOLUME
3
Adjust the subwoofer output volume to the desired level
by pressing the SUBWOOFER level (+ or –) button.
2
If you feel that the bass tone is insufficient, increase the
volume, or if you feel it is overly emphasized, reduce
the volume.
To finish listening to a source
1 Stop playing a source.
2 Press the VOLUME “ –” button to decrease the
volume to the minimum.
3 Press the STANDBY/ON button (or the POWER
button on the remote control transmitter) to switch
the system to standby mode.
E-22
AV-S7(E)17-24
9/11/0
9:07 AM
Page E-23
TROUBLESHOOTING
GENERAL
SYMPTOM
REMEDY
The power cord is not connected.
Connect the power cord.
(U.K. and Europe models)
The MAIN POWER switch is set to OFF.
Set the MAIN POWER switch to ON.
This unit will not operate properly.
The internal microcomputer has been
frozen by an external electric shock
(lightning, excessive static electricity, etc.)
or a low-voltage power supply .
Unplug the AC supply lead from the wall outlet, and
then plug it in again after about one minute.
No sound from a speaker.
Loose speaker connections.
Connect properly.
No sound from speakers.
Internal protection circuit is functioning.
Unplug the AC supply lead from the wall outlet, and
then plug it in again.
No sound from the rear speakers.
One rear speaker connection is loose or
bad.
Connect it properly.
The volume level of the rear speakers is
set to minimum.
Raise the volume level of the rear speakers.
No DSP program is selected.
Select the appropriate program.
The volume level of the center speaker is
set to minimum.
Raise the volume level of the center speaker.
Incorrect DSP program selection.
No DSP program is selected.
Select the appropriate program.
Incorrect cord connections.
Connect the cords correctly. If the problem persists,
the cords may be defective.
Input source selection is not correct.
Make a proper input source selection.
Batteries are dead.
Replace batteries.
Remote control transmitter is too far away
or is being used at an incorrect angle.
Use within 6 m and 60° of the sensor.
Direct sunlight or lighting (an inverter type
flourescent lamp) is striking the remote
control sensor of the center speaker.
Change the position of the center speaker.
No sound from the center speaker.
No sound from an external unit
connected with this system.
REMOTE CONTROL
CAUSE
The system does not turn on even
when the STANDBY/ON button (or the
POWER button on the remote control
transmitter) is pressed.
The remote control transmitter does not
work.
E-23
English
If your unit fails to operate normally, check the following points to determine whether the fault can be corrected by the simple
measures suggested. If it cannot, or if the fault is not listed in the SYMPTOM column, unplug the power cord and contact your
authorized YAMAHA dealer or service center for help.
AV-S7(E)17-24
9/11/0
9:07 AM
Page E-24
SPECIFICATIONS
As a part of its policy of continued product improvement, YAMAHA reserves the right to make design and
specification changes without prior notice. The performance specification figures indicated are the nominal
values for production units.
■ Amplifier Section
Impedance
Front, Rear ..................................................... 6 ohms
Center............................................................ 6 ohms
Subwoofer...................................................... 4 ohms
Minimum RMS Output Power per Channel
Front L, R
6 ohms, 1 kHz, 10% THD ...................... 30W+30W
6 ohms, 1 kHz, 0.9% THD ..................... 25W+25W
Center
6 ohms, 1 kHz, 10% THD ................................ 30W
6 ohms, 1 kHz, 0.9% THD ............................... 25W
Rear L, R
6 ohms, 1 kHz, 10% THD ...................... 30W+30W
6 ohms, 1 kHz, 0.9% THD ..................... 25W+25W
Subwoofer
4 ohms, 100 Hz, 10% THD .............................. 50W
4 ohms, 100 Hz, 0.9% THD ............................. 40W
■ General
Power Supply
[U.S.A. and Canada models] ......... AC 120V, 60 Hz
[U.K. and Europe models] ...............AC 230V, 50 Hz
[Australia model] ............................ AC 240V, 50 Hz
[General and China models]
.................................AC 110/120/220/240V, 60/50 Hz
Power consumption ......................................... 155W
Dimensions (W x H x D)
SW-AVS7 ............... 250 (W) x 425 (H) x 418 (D) mm
(9-13/16” x 16-3/4” x 16-7/16”)
NX-AVS7 ................ 280 (W) x 117 (H) x 125 (D) mm
(11” x 4-10/16” x 4-14/16”)
NX-AV1 ..................... 94 (W) x 117 (H) x 108 (D) mm
(3-11/16” x 4-10/16” x 4-1/4”)
DIN Standard Output Power per Channel
[Europe model only]
6 ohms, 1 kHz, 1% THD ..................................... 25W
IEC Power [Europe model only]
6 ohms, 1 kHz, 0.1% THD .................................. 20W
Input Sensitivity/Impedance
INPUT 1 ....................................... 100 mV/20 k-ohms
Weight
SW-AVS7 .............................. 14.5 kg (31 lbs. 15 oz.)
NX-AVS7 ................................... 1.3 kg (2 lbs. 14 oz.)
NX-AV1 ...................................... 0.7 kg (1 lbs. 9 oz.)
Total Harmonic Distortion (1 kHz)
INPUT 1 (12.5W/6 ohms)................................. 0.08%
Signal-to-Noise Ratio (IHF-A Network)
INPUT 1 ............................................................ 85 dB
■ Speaker Section
Type
Front, Rear, Center ..................... 1-Way, 1-Speaker,
Acoustic-Suspension Type
(Magnetically-Shielded Type)
Subwoofer .......................... Active Servo Processing
Speaker System
(Magnetically-Shielded Type)
Speakers
Front, Rear ............................................ 8 cm (3-1/8”)
Center .................................................... 8 cm (3-1/8”)
Subwoofer ................................................. 20 cm (8”)
Maximum Power Handling Capacity
Front, Rear............................................. 40W (15.5V)
Center .................................................... 40W (15.5V)
Subwoofer ............................................. 60W (15.5V)
E-24
(F)E/F-AV7p18-24
9/7/0
2:27 PM
Page F-24
CARACTERISTIQUES TECHNIQUES
YAMAHA se réserve le droit d’apporter des modifications sans préavis à la présentation et aux caractéristiques
des appareils à fin d’amélioration. Les valeurs indiquées dans ce document sont les valeurs nominales des
appareils de série.
■ Amplificateur
Puissance de sortie minimum RMS par canal
Enceinte avant G, D
6 ohms, 1 kHz, 10% de DHT ...................30W+30W
6 ohms, 1 kHz, 0.9% de DHT ..................25W+25W
Enceinte centrale
6 ohms, 1 kHz, 10% de DHT.............................30W
6 ohms, 1 kHz, 0.9% de DHT............................25W
Enceinte arrière G, D
6 ohms, 1 kHz, 10% de DHT ...................30W+30W
6 ohms, 1 kHz, 0.9% de DHT ..................25W+25W
Subwoofer
4 ohms, 100 Hz, 10% de DHT...........................50W
4 ohms, 100 Hz, 0.9% de DHT..........................40W
Impédance
Enceintes avant, arrière ............................... 6 ohms
Enceinte centrale ...........................................6 ohms
Subwoofer...................................................... 4 ohms
■ Général
Alimentation
[Modèles pour les Etats-Unis et le Canada]
.........................................................CA 120V, 60 Hz
[Modèles pour le Royaume-Uni et l’Europe]
.........................................................CA 230V, 50 Hz
[Modèle pour l’Australie]...............CA 240V, 50 Hz
[Modèle général et Modèle pour la Chine]
...............................CA 110/120/220/240V, 50/60 Hz
Puissance de sortie standard DIN par canal
[Modèle pour l’Europe seulement]
6 ohms, 1 kHz, 1% de DHT.................................25W
Consommation ................................................. 155W
Puissance IEC [Modèle pour l’Europe seulement]
6 ohms, 1 kHz, 0,1% de DHT..............................20W
Dimensions (L x H x P)
SW-AVS7..................................250 x 425 x 418 mm
NX-AVS7...................................280 x 117 x 125 mm
NX-AV1 .......................................94 x 117 x 108 mm
Sensibilité d’entrée/impédance
INPUT 1 .........................................100 mV/20 k-ohms
Distorsion harmonique totale (1 kHz)
INPUT 1 (12,5W/6 ohms)..................................0,08%
Poids
SW-AVS7.......................................................14,5 kg
NX-AVS7 .........................................................1,3 kg
NX-AV1............................................................0,7 kg
Rapport signal/bruit (IHF réseau A)
INPUT 1..............................................................85 dB
■ Enceintes
Type
Enceintes avant, arrière, enceinte centrale
....................................Type à suspension acoustique
à 1 voie, 1 enceinte
(Type blindage magnétique)
Subwoofer ................................Système d’enceinte à
traitement servo-actif
(Type blindage magnétique)
Enceintes
Enceintes avant, arrière ....................................8 cm
Enceinte centrale ...............................................8 cm
Subwoofer.........................................................20 cm
Puissance nominale maximale
Enceintes avant, arrière ....................... 40W (15,5V)
Enceinte centrale ...................................40W (15,5V)
Subwoofer ..............................................60W (15,5V)
YAMAHA
YAMAHA
YAMAHA
YAMAHA
YAMAHA
YAMAHA
YAMAHA
ELECTRONICS CORPORATION, USA 6660 ORANGETHORPE AVE., BUENA PARK, CALIF. 90620, U.S.A.
CANADA MUSIC LTD. 135 MILNER AVE., SCARBOROUGH, ONTARIO M1S 3R1, CANADA
ELECTRONIK EUROPA G.m.b.H. SIEMENSSTR. 22-34, 25462 RELLINGEN BEI HAMBURG, F.R. OF GERMANY
ELECTRONIQUE FRANCE S.A. RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE
ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD1 7JS, ENGLAND
SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN
MUSIC AUSTRALIA PTY, LTD. 17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA
V214790-1 Printed in Malaysia
