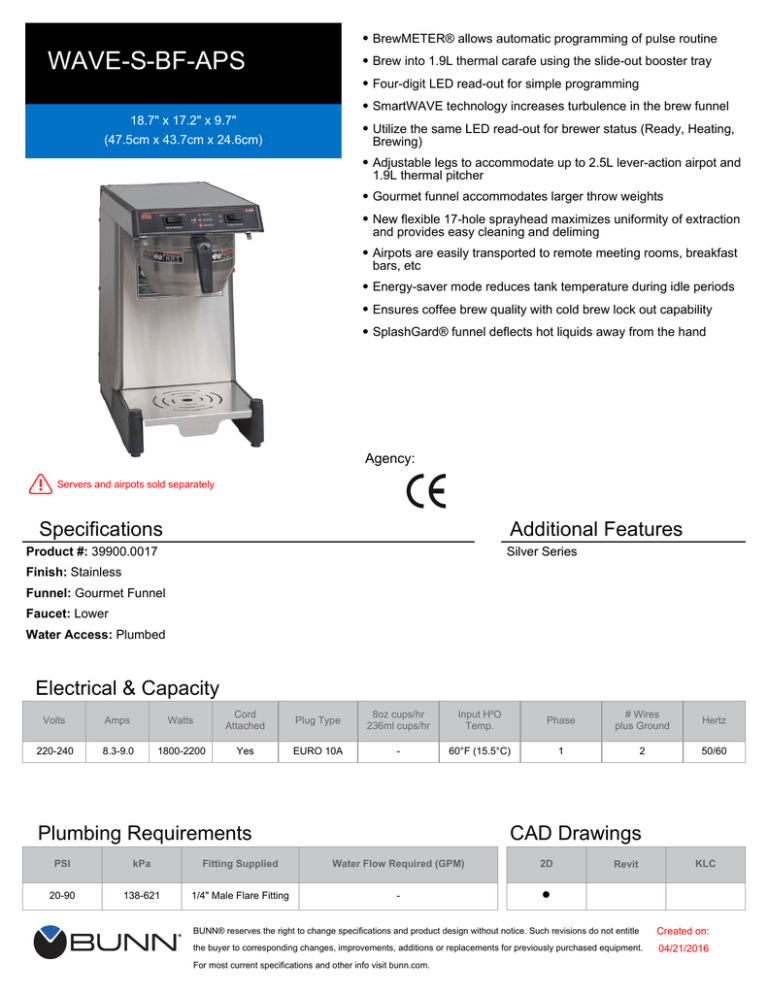

WAVE-S-BF-APS

WAVE-S-BF-APS
BrewMETER® allows automatic programming of pulse routine
WAVE-S-BF-APS
Brew into 1.9L thermal carafe using the slide-out booster tray
Four-digit LED read-out for simple programming
SmartWAVE technology increases turbulence in the brew funnel
18.7" x 17.2" x 9.7"
Utilize the same LED read-out for brewer status (Ready, Heating,
Brewing)
(47.5cm x 43.7cm x 24.6cm)
Adjustable legs to accommodate up to 2.5L lever-action airpot and
1.9L thermal pitcher
Gourmet funnel accommodates larger throw weights
New flexible 17-hole sprayhead maximizes uniformity of extraction
and provides easy cleaning and deliming
Airpots are easily transported to remote meeting rooms, breakfast
bars, etc
Energy-saver mode reduces tank temperature during idle periods
Ensures coffee brew quality with cold brew lock out capability
SplashGard® funnel deflects hot liquids away from the hand
Agency:
Servers and airpots sold separately
Specifications
Additional Features
Product #: 39900.0017
Silver Series
Finish: Stainless
Funnel: Gourmet Funnel
Faucet: Lower
Water Access: Plumbed
Electrical & Capacity
Volts
Amps
Watts
Cord
Attached
Plug Type
8oz cups/hr
236ml cups/hr
Input H²O
Temp.
Phase
# Wires
plus Ground
Hertz
220-240
8.3-9.0
1800-2200
Yes
EURO 10A
-
60°F (15.5°C)
1
2
50/60
Plumbing Requirements
CAD Drawings
PSI
kPa
Fitting Supplied
Water Flow Required (GPM)
2D
20-90
138-621
1/4" Male Flare Fitting
-
•
Revit
KLC
BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle
Created on:
the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
04/21/2016
For most current specifications and other info visit bunn.com.
Unit
Shipping
Width
Height
Depth
Width
Height
Depth
Weight
Volume
English
9.7 in.
18.7 in.
17.2 in.
-
-
-
25.500 lbs
2.531 ft³
Metric
24.6 cm
47.5 cm
43.7 cm
-
-
-
11.567 kgs
0.072 m³
BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle
Created on:
the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
04/21/2016
For most current specifications and other info visit bunn.com.
Related Products & Accessories:WAVE-S-BF-APS(39900.0017)
WATER FILTER
SYSTEM, EQ-17-TL
Product #: 30200.1000
WATER FILTER,IN LINE
ED-17-TL
Product #: 30201.1001
SPRAYHEAD ASSY,
FLEX 17 HOLE
Product #: 41160.1000
BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle
Created on:
the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
04/21/2016
For most current specifications and other info visit bunn.com.
Serving & Holding Options: WAVE-S-BF-APS(39900.0017)
AIRPOT, 2.5L GL PB
SINGLE PK
Product #:13041.0001
AIRPOT, 2.5L SST LA
SINGLE PK
AIRPOT, 2.5L GL PB 6/
CASE
Product #:13041.0101
AIRPOT, 2.5L SST LA 6/
CASE
TSR-1,THERMAL SRVR
RACK-1 POSN
Product #:18008.6001
AIRPOT, 3.0L SST LA
SINGLE PK
AIRPOT, 2.2L GL PB
SINGLE PK
AIRPOT, 2.2L GL PB 6/
CASE
Product #:28696.0002
Product #:28696.0006
AIRPOT, 3.0L SST LA 6/
CASE
THERMAL CARAFE, BLK
1.9L 1PK
Product #:32130.0100
Product #:36029.0001
Product #:32125.0000
Product #:32125.0100
Product #:32130.0000
THERMAL CARAFE,ORN
1.9L 12PK
THERMAL CARAFE,ORN
1.9L 1PK
PITCHER,SST 1.9L TALLSNGL PK
Product #:36252.0000
Product #:36252.0001
Product #:39430.0000
Product #:39430.0100
CARAFE,SST 1.9L SHRT
ORN 1/
CARAFE,SST 1.9L SHRT
BLK 12/
CARAFE,SST 1.9L SHRT
ORN 12/
THERMAL SRVR, 2.5L 6/
CS NO BASE GL LINR
Product #:40163.0001
Product #:40163.0100
Product #:40163.0101
Product #:45882.0001
PITCHER,SST 1.9L
TALL-6/CASE
CARAFE,SST 1.9L SHRT
BLK 1/
Product #:40163.0000
THERMAL SRVR, 2.5L
NO BASE GL LINER
Product #:45882.0003
BUNN® reserves the right to change specifications and product design without notice. Such revisions do not entitle
Created on:
the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
04/21/2016
For most current specifications and other info visit bunn.com.
