Vizia RF+ Dimmers VRM10 Installation Instructions

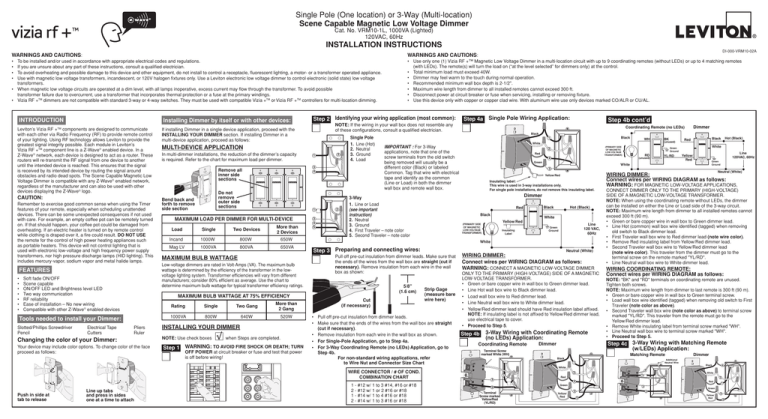

Single Pole (One location) or 3-Way (Multi-location) Scene Capable Magnetic Low Voltage Dimmer Cat. No. VRM10-1L, 1000VA (Lighted) 120VAC, 60Hz Installation Instructions DI-000-VRM10-02A WARNINGS AND CAUTIONS: WARNINGS AND CAUTIONS: • • • • • Use only one (1) Vizia RF +™ Magnetic Low Voltage Dimmer in a multi-location circuit with up to 9 coordinating remotes (without LEDs) or up to 4 matching remotes (with LEDs). The remote(s) will turn the load on (“at the level selected” for dimmers only) at the control. • Total minimum load must exceed 40W. • Dimmer may feel warm to the touch during normal operation. • Recommended minimum wall box depth is 2-1/2". • Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft. • Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture. • Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL. To be installed and/or used in accordance with appropriate electrical codes and regulations. If you are unsure about any part of these instructions, consult a qualified electrician. To avoid overheating and possible damage to this device and other equipment, do not install to control a receptacle, fluorescent lighting, a motor- or a transformer operated appliance. Use with magnetic low voltage transformers, incandescent, or 120V halogen fixtures only. Use a Leviton electronic low voltage dimmer to control electronic (solid state) low voltage transformers. • When magnetic low voltage circuits are operated at a dim level, with all lamps inoperative, excess current may flow through the transformer. To avoid possible transformer failure due to overcurrent, use a transformer that incorporates thermal protection or a fuse at the primary windings. • Vizia RF +TM dimmers are not compatible with standard 3-way or 4-way switches. They must be used with compatible Vizia +TM or Vizia RF +TM controllers for multi-location dimming. INTRODUCTION Installing Dimmer by itself or with other devices: Leviton’s Vizia RF +TM components are designed to communicate with each other via Radio Frequency (RF) to provide remote control of your lighting. Using RF technology allows Leviton to provide the greatest signal integrity possible. Each module in Leviton’s Vizia RF +TM component line is a Z-Wave® enabled device. In a Z-Wave® network, each device is designed to act as a router. These routers will re-transmit the RF signal from one device to another until the intended device is reached. This ensures that the signal is received by its intended device by routing the signal around obstacles and radio dead spots. The Scene Capable Magnetic Low Voltage Dimmer is compatible with any Z-Wave® enabled network, regardless of the manufacturer and can also be used with other devices displaying the Z-Wave® logo. CAUTION: Remember to exercise good common sense when using the Timer features of your remote, especially when scheduling unattended devices. There can be some unexpected consequences if not used with care. For example, an empty coffee pot can be remotely turned on. If that should happen, your coffee pot could be damaged from overheating. If an electric heater is turned on by remote control while clothing is draped over it, a fire could result. DO NOT USE the remote for the control of high power heating appliances such as portable heaters. This device will not control lighting that is used with electronic low-voltage and high frequency power supply transformers, nor high pressure discharge lamps (HID lighting). This includes mercury-vapor, sodium vapor and metal halide lamps. FEATURES • • • • • • • Soft fade ON/OFF Scene capable ON/OFF LED and Brightness level LED Two way communication RF reliability Ease of installation – No new wiring Compatible with other Z-Wave® enabled devices Slotted/Phillips Screwdriver Pencil Electrical Tape Cutters MULTI-DEVICE APPLICATION In multi-dimmer installations, the reduction of the dimmer’s capacity is required. Refer to the chart for maximum load per dimmer. Do not remove outer side sections Bend back and forth to remove side section Pliers Ruler 1 2 Single Pole 1. Line (Hot) 2. Neutral 3. Ground 4. Load 3 4 Remove all inner side sections 1 MAXIMUM LOAD PER DIMMER FOR MULTI-DEVICE Load Single Two Devices More than 2 Devices Incand 1000W 800W 650W Mag LV 1000VA 800VA 650VA MAXIMUM BULB WATTAGE Low-voltage dimmers are rated in Volt-Amps (VA). The maximum bulb wattage is determined by the efficiency of the transformer in the lowvoltage lighting system. Transformer efficiencies will vary from different manufacturers; consider 80% efficient as average. Use the chart to determine maximum bulb wattage for typical transformer efficiency ratings. Rating Single Two Gang More than 2 Gang 1000VA 800W 640W 520W INSTALLING YOUR DIMMER Changing the color of your Dimmer: NOTE: Use check boxes when Steps are completed. Your device may include color options. To change color of the face proceed as follows: Step 1 WARNING: TO AVOID FIRE SHOCK OR DEATH; TURN OFF POWER at circuit breaker or fuse and test that power is off before wiring! Step 4a Single Pole Wiring Application: NOTE: If the wiring in your wall box does not resemble any of these configurations, consult a qualified electrician. If installing Dimmer in a single device application, proceed with the INSTALLING YOUR DIMMER section. If installing Dimmer in a multi-device application, proceed as follows: MAXIMUM BULB WATTAGE AT 75% EFFICIENCY Tools needed to install your Dimmer: Step 2 Identifying your wiring application (most common): 3 4 5 2 Step 4b cont’d Coordinating Remote (no LEDs) Black 1 (PRIMARY SIDE OF MAGNETIC LOW-VOLTAGE TRANSFORMER) 2 Red Cut (if necessary) Black Hot (Black) White Yellow/Red Insulating Label Line 120 VAC, 60Hz Green Ground Neutral (White) • Pull off pre-cut insulation from dimmer leads. • Make sure that the ends of the wires from the wall box are straight (cut if necessary). • Remove insulation from each wire in the wall box as shown. • For Single-Pole Application, go to Step 4a. • For 3-Way Coordinating Remote (no LEDs) Application, go to Step 4b. For non-standard wiring applications, refer to Wire Nut and Connector Size Chart Push in side at tab to release Line up tabs and press in sides one at a time to attach /. /&& /. /&& /. /&& /. /&& /. /&& /. /&& /. /&& /. WIRING DIMMER: Connect wires per WIRING DIAGRAM as follows: WARNING: CONNECT A MAGNETIC LOW-VOLTAGE DIMMER ONLY TO THE PRIMARY (HIGH-VOLTAGE) SIDE OF A MAGNETIC LOW-VOLTAGE TRANSFORMER. • Green or bare copper wire in wall box to Green dimmer lead. • Line Hot wall box wire to Black dimmer lead. • Load wall box wire to Red dimmer lead. • Line Neutral wall box wire to White dimmer lead. • Yellow/Red dimmer lead should have Red insulation label affixed. NOTE: If insulating label is not affixed to Yellow/Red dimmer lead, use electrical tape to cover. • Proceed to Step 5. 3-Way Wiring with Coordinating Remote (no LEDs) Application: Step 4b Coordinating Remote Dimmer Terminal Screw marked White (WH) CONNECT DIMMER ONLY TO THE PRIMARY (HIGH-VOLTAGE) SIDE OF A MAGNETIC LOW-VOLTAGE TRANSFORMER. NOTE: When using the coordinating remote without LEDs, the dimmer can be installed on either the Line or Load side of the 3-way circuit. NOTE: Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft (90 m). • Green or bare copper wire in wall box to Green dimmer lead. • Line Hot (common) wall box wire identified (tagged) when removing old switch to Black dimmer lead. • First Traveler wall box wire to Red dimmer lead (note wire color). • Remove Red insulating label from Yellow/Red dimmer lead. • Second Traveler wall box wire to Yellow/Red dimmer lead (note wire color). This traveler from the dimmer must go to the terminal screw on the remote marked "YL/RD". • Line Neutral wall box wire to White dimmer lead. WIRING COORDINATING REMOTE: Connect wires per WIRING DIAGRAM as follows: NOTE: "BK" and "RD" terminals on coordinating remote are unused. Tighten both screws. NOTE: Maximum wire length from dimmer to last remote is 300 ft (90 m). • Green or bare copper wire in wall box to Green terminal screw. • Load wall box wire identified (tagged) when removing old switch to First Traveler (note color as above). • Second Traveler wall box wire (note color as above) to terminal screw marked "YL/RD". This traveler from the remote must go to the Yellow/Red dimmer lead. • Remove White insulating label from terminal screw marked "WH". • Line Neutral wall box wire to terminal screw marked "WH". • Proceed to Step 5. Step 4c 3-Way Wiring with Matching Remote (w/LEDs) Application: Matching Remote Black Additional Neutral Wire 1 BK /&& /. /&& /. /&& /. /&& /. WIRE CONNECTOR / # OF COND. COMBINATION CHART 1 - #12 w/ 1 to 3 #14, #16 or #18 2 - #12 w/ 1 or 2 #16 or #18 1 - #14 w/ 1 to 4 #16 or #18 2 - #14 w/ 1 to 3 #16 or #18 Line 120VAC, 60Hz Green Ground WIRING DIMMER: Connect wires per WIRING DIAGRAM as follows: WARNING: FOR MAGNETIC LOW-VOLTAGE APPLICATIONS, White /&& White Yellow/ Red Neutral (White) Insulating label: This wire is used in 3-way installations only. For single pole installations, do not remove this insulating label. (PRIMARY SIDE OF MAGNETIC LOW-VOLTAGE TRANSFORMER) 3 YL/RD RD 5 Terminal Screw marked Yellow/Red (YL/RD) 1 2 2 BK 2 1 Red 4 Hot (Black) Black Red White Yellow/Red Red Strip Gage (measure bare wire here) YL/RD (unused) 3 White 5/8" (1.6 cm) RD (unused) Green Black Pull off pre-cut insulation from dimmer leads. Make sure that the ends of the wires from the wall box are straight (cut if necessary). Remove insulation from each wire in the wall box as shown: BK Green Ground 4 Dimmer Step 3 Preparing and connecting wires: WH White IMPORTANT : For 3-Way applications, note that one of the screw terminals from the old switch being removed will usually be a different color (Black) or labeled Common. Tag that wire with electrical tape and identify as the common (Line or Load) in both the dimmer wall box and remote wall box. 3-Way 1. Line or Load (see important instruction) 2. Neutral 3. Ground 4. First Traveler – note color 5. Second Traveler – note color Dimmer Black Black 2 Red Green 3 3 YL/RD 5 RD 4 White 4 4 Yellow/ Red Dimmer 1 Green 5 Yellow/ Red 3 5 Dimmer WH Black BK Green Ground YL/RD Line 120VAC, 60Hz Definition of LEDs Leftmost LED = LED 1 If your dimmer is not responding, or you are unable to control it after Rightmost LED = LED 7 you have tried to Include/Exclude it multiple times, it may be necessary 1 2 3 4 5 6 7 NOTES: to reset the dimmer to its original factory settings. To accomplish this, • The device will exit programming mode Step 8 Including Scene Capable Magnetic Low proceed as follows: after 3 minutes of inactivity. Voltage Dimmer into Z-Wave® Network: •On the dimmer, engage the air-gap switch (refer to Operation LED Brightness section) and wait 5 seconds. Press the push pad back into the frame • Pressing the push pad at any time NOTES: Display during programming will advance the and hold push pad until the locator LED turns Amber and then turns • If using a non-Leviton Programmer/Controller, refer to the device to the next programming mode. Red. The dimmer is now reset. Once the dimmer is reset, it will be Programmer/Controller instruction sheet for Including a device. necessary to Re-Include it to a network before it can be used. Program Mode A • If using VRCPG's install checklist go directly to step B. To enter Program Mode A: Programmer/Controller CAUTION: SETTING A DEVICE TO A FACTORY DEFAULT DOES A) If using a Leviton Z-Wave® NOT EXCLUDE THAT DEVICE FROM A NETWORK. THE EXCLUSION Press and hold the Push Pad and then the right half of the Cat. No. VRCPG Programmer/Controller, Cat. No. VRCPG, PROCEDURE MUST STILL BE FOLLOWED TO REMOVE THE DEVICE DIM/BRIGHT Bar ( ) for 5 seconds until the Locator LED and leftmost press the Menu button and scroll down to System ^ FROM THE PRIMARY CONTROLLER’S INFORMATION TABLE. LED (LED 1) begin to blink. Setup. Press the center button to select System FAILURE TO DO SO MAY RESULT IN SYSTEM THAT IS SLOW TO Setup Menu. Choose Advanced Setting. Press the A-1) Upon releasing the Push Pad and the right half of the DIM/BRIGHT RESPOND, OR MAY FAIL TO RESPOND TO SOME DEVICES. center button to select Network. Menu Button Bar (^), the Locator LED will continue to blink once per second LED Brightness and the rightmost LED will illuminate to display the device is in Center Button B) While standing close to the OPERATION Display Program Mode A-1, Energy Save. The default energy save mode dimmer (approximately 1 foot), press the center NOTE: The locator light will illuminate when the load is 100% i.e. full bright. To change the Energy Save level, use the button to <Include> device in the network. DIM/BRIGHT is in the OFF position to facilitate access in the dark. DIM/BRIGHT Bar to move the corresponding LED to the desired NOTE: Only one device may be Bar 1 discrete preset level according to Chart A. By tapping the Push NOTE: If using the dimmer in a 3-wayapplication, the included at a time. DO NOT put multiple Pad this setting will automatically be saved and the device will lights will turn ON at brightness set on dimmer’s 2 devices into the Inclusion mode at any time. advance to the next programming mode, A-2. DIM/BRIGHT bar. The lighting can be controlled C) While the Programmer/Controller is in the Inclusion 3 from either the dimmer or the remote location. mode and the Locator LED is ON on the dimmer, Chart A 4 press the push pad to turn on the dimmer. The Push Pad (Default settings) When indicator Energy consumption Programmer/Controller will verify inclusion and the Turn ON from OFF position: Light output is at light is at LED # savings amounts to Locator LED will turn OFF. Tap – Lights turn ON to preset level. If the dimmer is flashing Amber while in the Inclusion mode, the 7 0% 100% Press and Hold – Lights turn ON to full bright. Programmer/Controller is still trying to communicate with the dimmer. 6 5% 97% Turn OFF from ON position: Wait until the device stops flashing, then press the push pad. 5 8% 95% Tap – Lights turn OFF. NOTE: If the Locator LED on the dimmer turns solid Red while 4 11% 90% DIM/BRIGHT Bar including, there has been a communication error. Refer to 3 14% 85% BRIGHTEN: Troubleshooting section. 2 17% 80% Press the right half of the DIM/BRIGHT Bar – Lights D) The Primary Programmer/Controller will assign a node ID number Push Locator 1 20% 75% brighten to desired level. Pad Light (Name) for this device. NOTE: This ID number (Name) will be stored in the controller to be DIM: A-2) The Locator LED will blink 2 times per second to indicate the device used for future reference. Press the left half of the DIM/BRIGHT Bar – Lights dim to desired level. is in Program Mode A-2, Minimum Brightness Level. The default NOTE: You may edit the device name at this time. If you continue to hold, the lights will DIM to Gently press top of Minimum Brightness Level is LED 2. To change the Minimum E) The dimmer is now installed in the network. push pad minimum level and then turn OFF. Brightness Level from 1-50%, use the DIM/BRIGHT Bar. The light Note: If the dimmer has been successfully Included in the network and NOTE: When lights are OFF you can change the output will reflect the minimum brightness level selected. By tapping the user tries to Include it again without first excluding it from the network, light level that the lights will turn ON to using the the Push Pad this setting will automatically be saved and the device the dimmer will retain the first node ID it DIM/BRIGHT Bar. Programmer/Controller will advance to the next programming mode, A-3. had received and ignore the second. If there is a power outage, when the power is Cat. No. VRCPG A-3) The Locator LED will blink 3 times per second to indicate Program restored, the lights will return to the last setting NOTE: Programmer/Controller Mode A-3, Preset ON Level. To change the current Preset ON before the power interruption. must be in close proximity to dimmer Level from 1-100%, use the DIM/BRIGHT Bar. If this feature is not Air-Gap Switch: On the dimmer only, engage the airwhen including in the network. desired, press and hold the left half of the DIM/BRIGHT Bar (v) until gap switch by gently pressing the top of the push pad no LED is lit (default setting). By tapping the Push Pad this setting will until the bottom lifts completely out of the frame and ® automatically be saved and the device will exit Programming Mode A. Step 9 Excluding Dimmer from Z-Wave Network: a click is heard (refer to Figure). LED's will turn OFF. Program Mode B This will stop power to the fixture to replace the bulb. NOTE: It is very important to accurately Exclude devices from To enter Program Mode B: After servicing is complete, press the push pad back the network when moving or removing a device from a Z-Wave® Press and hold the Push Pad and then the left half of the into place for normal operation. network. This ensures that all information has been removed from your DIM/BRIGHT Bar (v) for 5 seconds until the Locator LED and rightmost Primary Programmer/Controller's information table and is not counted on Cleaning: Clean with a damp cloth. DO NOT use chemical cleaners. LED (LED 7) begin to blink. to be part of the mesh network. ADVANCED PROGRAMMING FEATURES B-1) Upon releasing the Push Pad and the left half of the ® A) If using a Leviton Z-Wave Programmer/Controller, Cat. No. VRCPG, DIM/BRIGHT Bar (v), the Locator LED will continue to blink once Definition of A Modes press the Menu button and scroll down to System Setup. Press per second indicating the dimmer is in Program Mode B-1, ON Fade A-1)Energy Save: Sets the maximum brightness level for energy savings. the center button to select System Setup Menu. Choose Advanced Rate. To change the ON Fade Rate, use the DIM/BRIGHT Bar to A-2) Minimum Brightness Level: Sets the minimum dimming level. Setting. Press the center button to select Network. move the LED to the desired preset level according to Chart B. By B) While standing close to the dimmer (approximately 1 foot), press the A-3)Preset ON Level: Sets the turn on brightness level regardless of the tapping the Push Pad this setting will automatically be saved and the previous set light level (formerly Dim Lock). center button to <Exclude> device from the network. device will advance to the next programming mode, B-2. Definition of B Modes C) While the Programmer/Controller is in the Exclusion mode and the B-2) The Locator LED will blink 2 times per second to indicate Program B-1)ON Fade Rate: Sets the amount of time in seconds it takes the locator LED is ON on the Dimmer, press the push pad to turn on the Mode B-2, OFF Fade Rate. To change the OFF Fade Rate, use lights to turn ON to maximum brightness. Dimmer. The Programmer/Controller will verify Exclusion and the the DIM/BRIGHT Bar to move the LED to the desired preset level B-2)OFF Fade Rate: Sets the amount of time in seconds it takes the locator LED will turn OFF. according to Chart B. By tapping the Push Pad this setting will lights to turn OFF from maximum brightness. If the Dimmer is flashing Amber while in the Exclusion mode, the automatically be saved and the device will advance to the next Programmer/Controller is still trying to communicate with the Dimmer. B-3)LED Options: Sets the time period in seconds the Locator LED and programming mode, B-3. Brightness display will stay on before extinguishing. Wait until the device stops flashing, then press the push pad. Restore power at circuit breaker or fuse. Installation is complete. Green Ground Yellow/ Red Red Ballast Black Primary Side White White Neutral (White) NOTE: The dimmer must be installed in a wall box that has a Load connection. The matching remote must be installed in a wall box with a Line Hot connection and a Neutral connection. A Neutral wire to the matching remote needs to be added as shown. If you are unsure about any part of these instructions, consult a qualified electrician. NOTE: Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft (90 m). Wiring Matching Remote (wall box with line hot connection): Connect wires per WIRING DIAGRAM as follows: • Green or bare copper wire in wall box to Green terminal screw. • Line Hot (common) wall box wire identified (tagged) when removing old switch and First Traveler to Remote terminal marked BK. • Second Traveler wall box wire from dimmer to remote terminal screw marked "YL/RD" (note wire color). This traveler from the remote must go to Yellow/Red dimmer lead. • Line Neutral wall box to remote terminal screw marked "WH". Wiring Dimmer (wall box with load connection): Connect wires per WIRING DIAGRAM as follows: • Green or bare copper wire in wall box to Green dimmer lead. • Load wall box wire identified (tagged) when removing old switch to Red dimmer lead. • First Traveler Line Hot to Black dimmer lead. • Remove Red insulating label from Yellow/Red dimmer lead. • Second Traveler wall box wire (note color as above) to Yellow/Red dimmer lead. This traveler from the dimmer must go to the terminal screw on the remote marked "YL/RD". • Line neutral wall box wire to White dimmer lead. • Proceed to Step 5. Step 5 Testing your Dimmer prior to mounting in wall box: • Position all wires to provide room in outlet wall box for device. • Ensure that the word “TOP” is facing up on device strap. • Partially screw in mounting screws in wall box mounting holes. NOTE: Dress wires with a bend as shown in diagram in order to relieve stress when mounting device. • Restore power at circuit breaker or fuse. • Press pad until locator light is OFF. Lights should turn ON. If lights do not turn ON, press the right half of the DIM/BRIGHT Bar until the lights brighten. If lights still do not turn ON, refer to the TROUBLESHOOTING section. Step 6 Dimmer Mounting: TURN OFF POWER AT CIRCUIT BREAKER OR FUSE. Installation may now be completed by tightening mounting screws into wall box. Attach wallplate. ON OFF ON OFF ON OFF ON OFF Chart B LED FADE ON FADE OFF LED 1 0 seconds (instant) 0 seconds (instant) LED 2 (Default) 0.5 seconds 0.5 seconds LED 3 1.5 seconds 1.5 seconds LED 4 3.0 seconds 3.0 seconds LED 5 6.0 seconds 6.0 seconds LED 6 10 seconds 10 seconds LED 7 25 seconds 25 seconds B-3) The Locator LED will blink 3 times per second to indicate Program Mode B-3, LED Options. To change the LED Options settings, use the DIM/BRIGHT Bar to move the LED to the desired preset setting according to the Chart B-3. By tapping the Push Pad this setting will automatically be saved and the device will exit Programming Mode B. Chart B-3 LED LOCATOR LED TIMEOUT LED BRIGHTNESS DISPLAY OPTIONS LED 1 Active Active LED 2 Active Turns off 5 sec. after use LED 3 Turns off 5 sec. after use Active LED 4 Turns off 5 sec. after use Turns off 5 sec. after use LED 5 Active LED Bar active LED 6 Active LED Bar turns off 5 sec. after use LED 7 Turns off 5 sec. after use LED Bar turns off 5 sec. after use TROUBLESHOOTING • Lights Flickering - Lamp has a bad connection. - Wires not secured firmly with wire connectors of dimmer or terminal screws of remote. •Light does not turn ON and Locator LED does not turn ON - Circuit breaker or fuse has tripped. - Lamp is burned out. - Neutral not wired to Dimmer (White wire). - Confirm that the device is being supplied from a 120V, 60 Hz AC source ONLY. - Confirm that unit is programmed properly. Repeat "TO INSTALL" section to verify that it has been included in the Z-Wave® network. •Intermittent dimmer operation - Minimum load is under 40W. - Confirm that the Load being controlled does not exceed the 1000VA dimmer limit. •Remote does not operate lights - Ensure that total wire length does not exceed 300 ft. - Ensure wiring is correct. For additional information, contact Leviton’s Techline at 1-800-824-3005 or visit Leviton’s website at www.ViziaRF+.com Protected under U.S. Patent Number 6,388,399 and patents pending and licensed under U.S. Patents Numbers 5,905,442, and 5,982,103 FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving Antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/tv technician for help. DI-000-VRM10-02A Matching Remote (with LEDs) Hot (Black) Factory Default: Step 7 Restore Power: Step 4c cont’d LIMITED 5 YEAR WARRANTY AND EXCLUSIONS Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option, if within such five year period the product is returned prepaid, with proof of purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att: Quality Assurance Department, 59-25 Little Neck Parkway, Little Neck, New York 11362-2591. This warranty excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied warranties of any kind, including merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for a particular purpose, is limited to five years. Leviton is not liable for incidental, indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
