Quick Start Guide •

Quick Start Guide •

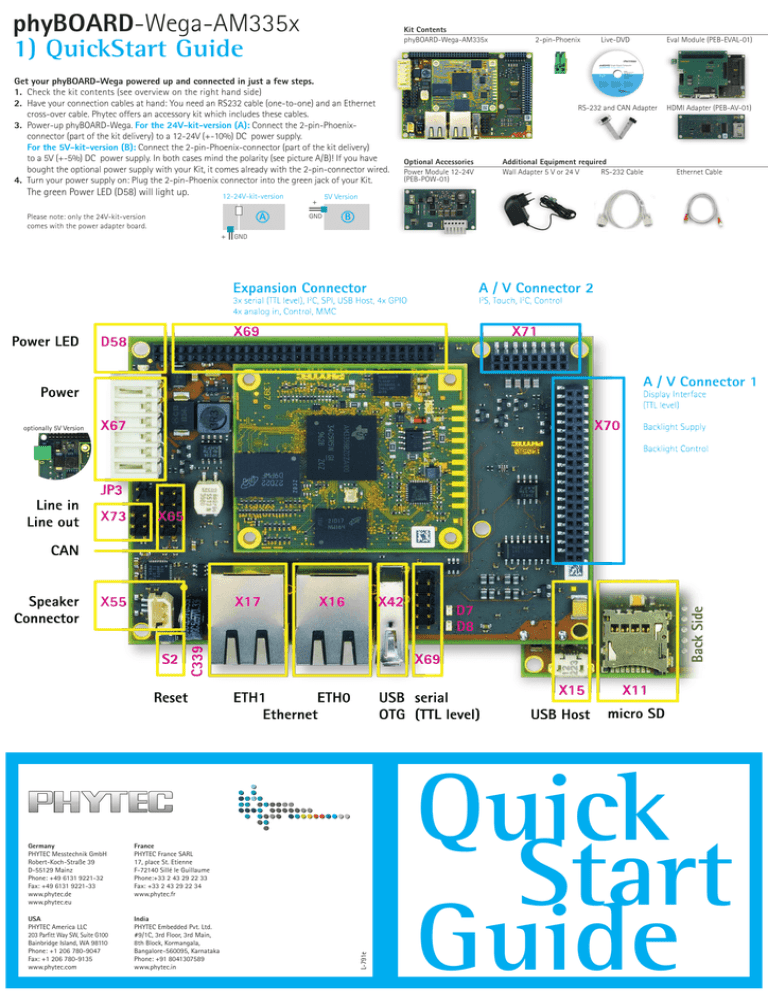

phyBOARD-Wega-AM335x
1)QuickStart Guide
Kit Contents
phyBOARD-Wega-AM335x
2-pin-Phoenix
Live-DVD
Eval Module (PEB-EVAL-01)
phyBOARD Single Board Computer
phyBOARD-Wega-AM335x
embedded modules
Get your phyBOARD-Wega powered up and connected in just a few steps.
1. Check the kit contents (see overview on the right hand side)
2. Have your connection cables at hand: You need an RS232 cable (one-to-one) and an Ethernet
cross-over cable. Phytec offers an accessory kit which includes these cables.
3. Power-up phyBOARD-Wega. For the 24V-kit-version (A): Connect the 2-pin-Phoenix connector (part of the kit delivery) to a 12-24V (+-10%) DC power supply.
For the 5V-kit-version (B): Connect the 2-pin-Phoenix-connector (part of the kit delivery)
to a 5V (+-5%) DC power supply. In both cases mind the polarity (see picture A/B)! If you have
bought the optional power supply with your Kit, it comes already with the 2-pin-connector wired.
4. Turn your power supply on: Plug the 2-pin-Phoenix connector into the green jack of your Kit.
The green Power LED (D58) will light up.
Please note: only the 24V-kit-version
A
comes with the power adapter board.
+
+
GND
USA
PHYTEC America LLC
203 Parfitt Way SW
Bainbridge Island, WA 98110
Phone: +1 206 780-9047
Fax: +1 206 780-9135
www.phytec.com
India
PHYTEC Embedded Pvt. Ltd.
#9/1, 1st Floor, 3rd Main,
8th Block, Opp: Police station,
Kormangala, Bangalore-560095
Phone: +91 8041307589
www.phytec.in
France
PHYTEC France SARL,
17, place St. Etienne
F-72140 Sillé le Guillaume
Phone:+33 2 43 29 22 33
Fax: +33 2 43 29 22 34
www.phytec.fr
•••••
••
•• ••••••
••••
•••••••
• ••••
••• ••••••••••
• ••
••••
•• ••••••
••••
•••••••
• ••••
••••••••••
•••
•
• •
••••
••
••••••
•••• •••••••
• ••••
••• ••••••••••
RS-232 and CAN Adapter HDMI Adapter (PEB-AV-01)
Optional Accessories
Power Module 12-24V
(PEB-POW-01)
Additional Equipment required
Wall Adapter 5 V or 24 V
RS-232 Cable
Ethernet Cable
5V Version
B
GND
optionally 5V Version
Germany
PHYTEC Messtechnik GmbH
Robert-Koch-Straße 39
D-55129 Mainz
Phone: +49 6131 9221-32
Fax: +49 6131 9221-33
www.phytec.de
www.phytec.eu
France
PHYTEC France SARL
17, place St. Etienne
F-72140 Sillé le Guillaume
Phone:+33 2 43 29 22 33
Fax: +33 2 43 29 22 34
www.phytec.fr
USA
PHYTEC America LLC
203 Parfitt Way SW, Suite G100
Bainbridge Island, WA 98110
Phone: +1 206 780-9047
Fax: +1 206 780-9135
www.phytec.com
India
PHYTEC Embedded Pvt. Ltd.
#9/1C, 3rd Floor, 3rd Main,
8th Block, Kormangala,
Bangalore-560095, Karnataka
Phone: +91 8041307589
www.phytec.in
•••••
••
••
••••••
••••
•••••••
• ••••
••• ••••••••••
• ••
••••
••
••••••••••
•••••••
• ••••
•• ••••••••••
•
• ••
••••
••
••••••••••
•••••••
• ••••
•• ••••••••••
•
L-791e
12-24V-kit-version
Germany
PHYTEC Messtechnik GmbH
Robert-Koch-Straße 39
D-55129 Mainz
Phone: +49 6131 9221-32
Fax: +49 6131 9221-33
www.phytec.de
www.phytec.eu
TOOL DVD
SO-530
Quick
Start
Guide
A
2)Starting the Live DVD
1.
2.
3.
4.
B
Verify the boot priorities of your PC-system to support booting from DVD.
Insert the LiveDVD (part of the kit delivery) and restart your PC-system
The install / welcome-screen, shown on the right hand side, appears (A)
Choose your desired language
Click on Try PHYLiveDVD
The desktop from Ubuntu appears. (B)
Now you are ready to connect your PC with the phyBOARD-Wega.
3)Getting Connected
Serial connection
1. Connect one end of the serial cable to the DB9 connector on the Eval Module
(PEB-EVAL-01).
2. Connect the other end to the first serial interface of your PC (or to an USB-to-DB9
dongle, connected to your host).
3. Click the Microcom_ttyS0 icon (C) on the Ubuntu desktop (for direct serial interface connection) or click the Microcom_ttyUSB0 if you are using an USB-to-DB9-dongle.
4. Click the reset button (S2) on the Wega board (or power off-and-on the Wega board).
C
D
E
F
A serial console has been started from your LiveDVD. You should see a boot message and
the login-prompt on this console. Congratulations! (D)
5.
6.
G
Use “root” as the log-in-name on the serial console (and press enter).
As a good example (and helpful for understanding the next step) you might enter the
command ifconfig. This shows you especially the configuration of the two Ethernet interfaces on the Wega module. (E)
Ethernet connection
H
We recommend disconnecting your host-PC from any other network, because a peerto-peer connection from your PC to the Wega module will be established.
1. Connect your preferred Ethernet-interface on your PC with ETH0 (X16) on the Wega
module using the Ethernet-cross-over cable.
2. Configure the IP-settings on your host platform in Ubuntu:
•In the Unity-panel (left side of your desktop) click on the Dash Home icon (F)
•A new windows opens; enter System Settings in the search field (you will see the corres-ponding icon showing up already during typing of the search string).
•Open System Settings (G) and Click on the Network icon
•Select the physical interface to which you have connected the Ethernet (H) cable
(if you have more than one network in the list) and click on Options
•
Select the IPv4Settings tab (I) and choose Manual (K) in the Method drop down box
•Click Add (L) and enter the IP address 192.168.3.10, 255.255.255.0 as subnet mask and 192.168.3.10 as Gateway.
• At last click on Save (M) to save this connection settings and close the windows.
I
K
L
M
You are now ready to test the Ethernet network connection
3. Click on the Telnet for Target icon (N) on your desktop. A console window will open and you will see the login prompt (Remember: login-name is “root”). (O)
Congratulations.
Miscellaneous
Concerning software support for the HDMI module, please read the appropriate FAQentries on the PHYTEC-web.
Your possible next steps
•Read our in-depth documentation provided on the DVD
•Check out the FAQ pages on the PHYTEC web
•Contact our support team if you have any questions getting Wega up and running
Enjoy!
N
O
