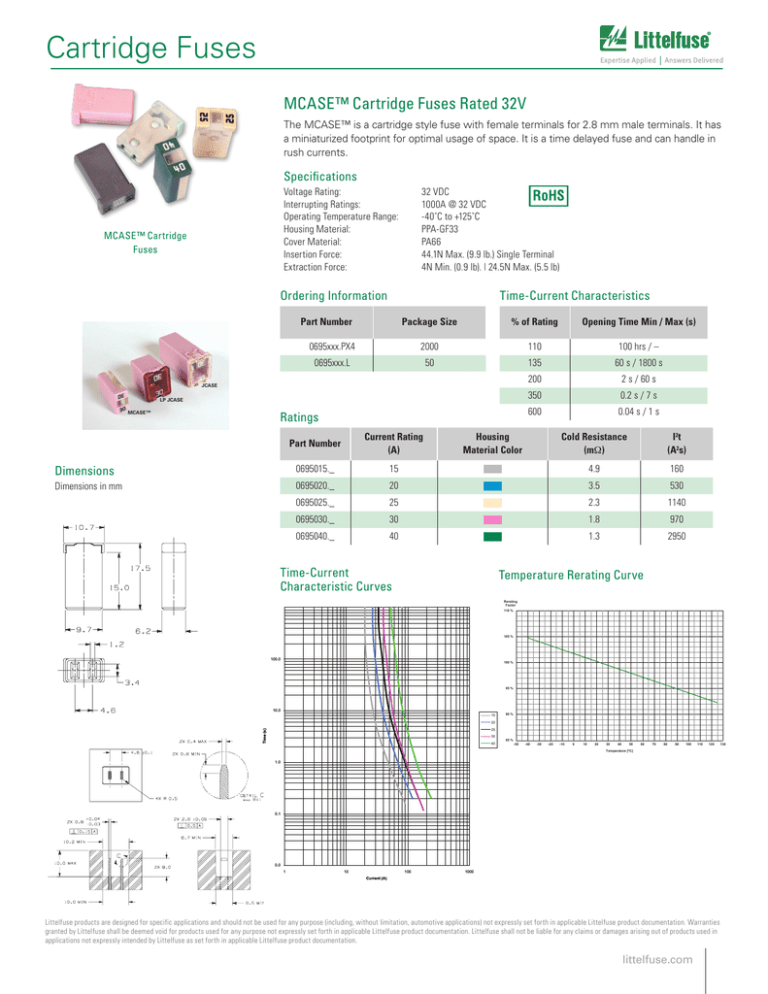

Cartridge Fuses MCASE™ Cartridge Fuses Rated 32V

Cartridge Fuses MCASE™ Cartridge Fuses Rated 32V
Cartridge Fuses
MCASE™ Cartridge Fuses Rated 32V
The MCASE™ is a cartridge style fuse with female terminals for 2.8 mm male terminals. It has
a miniaturized footprint for optimal usage of space. It is a time delayed fuse and can handle in
rush currents.
Specifications
Voltage Rating:
Interrupting Ratings:
Operating Temperature Range:
Housing Material:
Cover Material:
Insertion Force:
Extraction Force:
MCASE™ Cartridge
Fuses
32 VDC
1000A @ 32 VDC
-40˚C to +125˚C
PPA-GF33
PA66
44.1N Max. (9.9 lb.) Single Terminal
4N Min. (0.9 lb). | 24.5N Max. (5.5 lb)
Ordering Information
Time-Current Characteristics
Part Number
Package Size
% of Rating
Opening Time Min / Max (s)
0695xxx.PX4
2000
110
100 hrs / –
0695xxx.L
50
135
60 s / 1800 s
JCASE
LP JCASE
Ratings
MCASE™
Part Number
Current Rating
(A)
Dimensions
0695015._
Dimensions in mm
0695020._
200
2 s / 60 s
350
0.2 s / 7 s
600
0.04 s / 1 s
Housing
Material Color
Cold Resistance
(mΩ)
I2t
(A2s)
15
4.9
160
20
3.5
530
0695025._
25
2.3
1140
0695030._
30
1.8
970
0695040._
40
1.3
2950
Time-Current
Characteristic Curves
Temperature Rerating Curve
Rerating
Factor
110 %
105 %
100.0
100 %
95 %
10.0
15
90 %
20
Time (s)
25
30
40
85 %
-50
-40
-30
-20
-10
0
10
20
30
40
50
60
70
80
90
100
110
120
Temperature [oC]
1.0
0.1
0.0
1
10
100
1000
Current (A)
Littelfuse products are designed for specific applications and should not be used for any purpose (including, without limitation, automotive applications) not expressly set forth in applicable Littelfuse product documentation. Warranties
granted by Littelfuse shall be deemed void for products used for any purpose not expressly set forth in applicable Littelfuse product documentation. Littelfuse shall not be liable for any claims or damages arising out of products used in
applications not expressly intended by Littelfuse as set forth in applicable Littelfuse product documentation.
