250 0323

250 0323

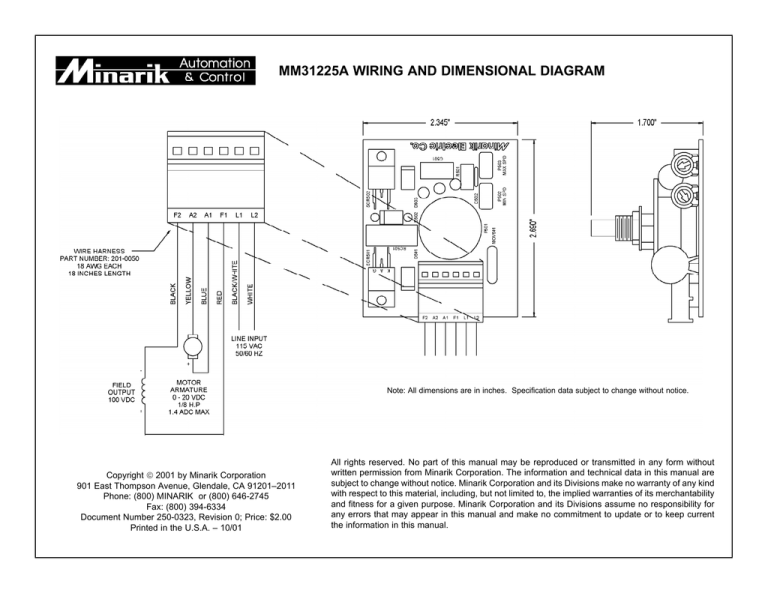

MM31225A WIRING AND DIMENSIONAL DIAGRAM
Note: All dimensions are in inches. Specification data subject to change without notice.
Copyright  2001 by Minarik Corporation
901 East Thompson Avenue, Glendale, CA 91201–2011
Phone: (800) MINARIK or (800) 646-2745
Fax: (800) 394-6334
Document Number 250-0323, Revision 0; Price: $2.00
Printed in the U.S.A. – 10/01
All rights reserved. No part of this manual may be reproduced or transmitted in any form without
written permission from Minarik Corporation. The information and technical data in this manual are
subject to change without notice. Minarik Corporation and its Divisions make no warranty of any kind
with respect to this material, including, but not limited to, the implied warranties of its merchantability
and fitness for a given purpose. Minarik Corporation and its Divisions assume no responsibility for
any errors that may appear in this manual and make no commitment to update or to keep current
the information in this manual.
