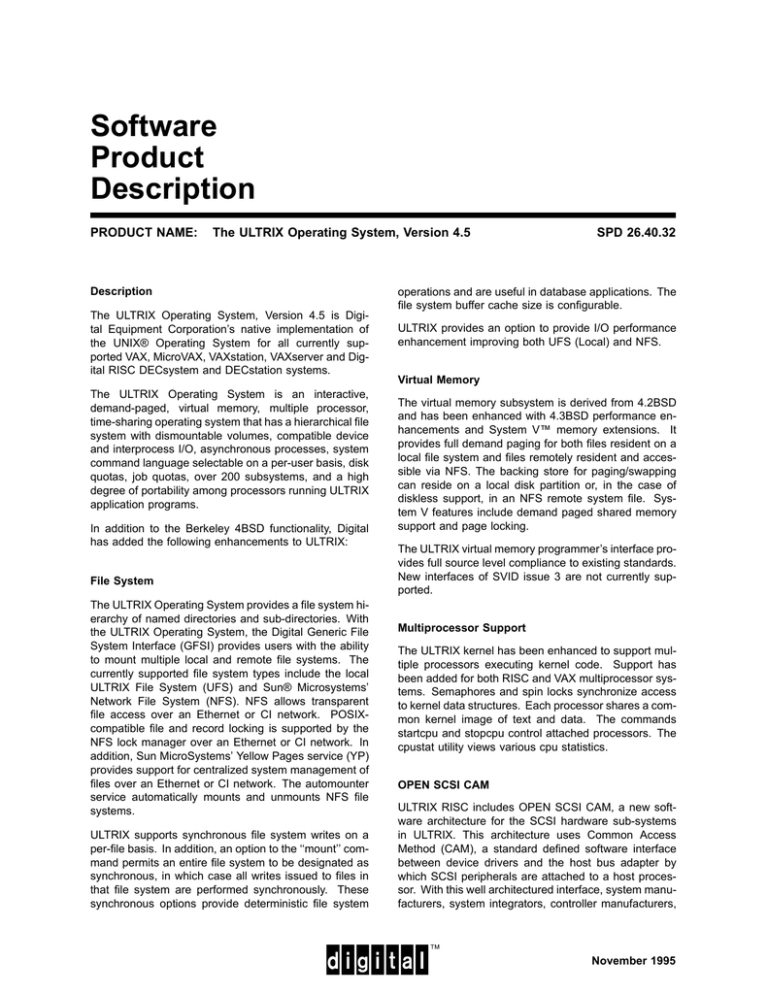

Software
Product
Description
PRODUCT NAME:
The ULTRIX Operating System, Version 4.5
Description
The ULTRIX Operating System, Version 4.5 is Digital Equipment Corporation’s native implementation of
the UNIX® Operating System for all currently supported VAX, MicroVAX, VAXstation, VAXserver and Digital RISC DECsystem and DECstation systems.
The ULTRIX Operating System is an interactive,
demand-paged, virtual memory, multiple processor,
time-sharing operating system that has a hierarchical file
system with dismountable volumes, compatible device
and interprocess I/O, asynchronous processes, system
command language selectable on a per-user basis, disk
quotas, job quotas, over 200 subsystems, and a high
degree of portability among processors running ULTRIX
application programs.
In addition to the Berkeley 4BSD functionality, Digital
has added the following enhancements to ULTRIX:
File System
The ULTRIX Operating System provides a file system hierarchy of named directories and sub-directories. With
the ULTRIX Operating System, the Digital Generic File
System Interface (GFSI) provides users with the ability
to mount multiple local and remote file systems. The
currently supported file system types include the local
ULTRIX File System (UFS) and Sun® Microsystems’
Network File System (NFS). NFS allows transparent
file access over an Ethernet or CI network. POSIXcompatible file and record locking is supported by the
NFS lock manager over an Ethernet or CI network. In
addition, Sun MicroSystems’ Yellow Pages service (YP)
provides support for centralized system management of
files over an Ethernet or CI network. The automounter
service automatically mounts and unmounts NFS file
systems.
operations and are useful in database applications. The
file system buffer cache size is configurable.
ULTRIX provides an option to provide I/O performance
enhancement improving both UFS (Local) and NFS.
Virtual Memory
The virtual memory subsystem is derived from 4.2BSD
and has been enhanced with 4.3BSD performance enhancements and System V™ memory extensions. It
provides full demand paging for both files resident on a
local file system and files remotely resident and accessible via NFS. The backing store for paging/swapping
can reside on a local disk partition or, in the case of
diskless support, in an NFS remote system file. System V features include demand paged shared memory
support and page locking.
The ULTRIX virtual memory programmer’s interface provides full source level compliance to existing standards.
New interfaces of SVID issue 3 are not currently supported.
Multiprocessor Support
The ULTRIX kernel has been enhanced to support multiple processors executing kernel code. Support has
been added for both RISC and VAX multiprocessor systems. Semaphores and spin locks synchronize access
to kernel data structures. Each processor shares a common kernel image of text and data. The commands
startcpu and stopcpu control attached processors. The
cpustat utility views various cpu statistics.
OPEN SCSI CAM
dt
ULTRIX supports synchronous file system writes on a
per-file basis. In addition, an option to the ‘‘mount’’ command permits an entire file system to be designated as
synchronous, in which case all writes issued to files in
that file system are performed synchronously. These
synchronous options provide deterministic file system
SPD 26.40.32
ULTRIX RISC includes OPEN SCSI CAM, a new software architecture for the SCSI hardware sub-systems
in ULTRIX. This architecture uses Common Access
Method (CAM), a standard defined software interface
between device drivers and the host bus adapter by
which SCSI peripherals are attached to a host processor. With this well architectured interface, system manufacturers, system integrators, controller manufacturers,
November 1995
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
and other suppliers of intelligent peripheral are able to
more easily write the necessary drivers and support
code for other third party devices.
• Security auditing subsystem and audit trail reduction facility which tracks and records all the security
relevant actions occurring on the system along with
who performed the action. This includes an audstyle
(audit) option to control how much information is included in audit records for execv (2) and execve (2)
events.
OPEN SCSI CAM is not available on VAX ULTRIX systems. ULTRIX RISC does not support the use of SCSI
devices on DECsystem 5800 systems.
• Gateway packet screening. An ULTRIX system may
be used as a gateway (packet router) to connect several IP networks. The Gateway packet screening
facility allows the system manager to control which
packets are forwarded, as one part of a comprehensive network security policy. The facility consists of a
kernel-resident mechanism and a user-level daemon,
/usr/etc/screend. When a packet is ready to be forwarded, the kernel mechanism submits the packet’s
headers to the daemon. The screend daemon examines the headers and tells the kernel to forward
or reject the packet, based on a set of rules defined
in the configuration file, /etc/screend.conf. Optionally, some or all decisions can be logged allowing a
manager to detect improper configurations or potential security problems.
System Administration Enhancements
• Graphical User Account Manager
• Integral bad block replacement for DSA/MSCP and
SCSI disks
• System diagnostics
• Error logging
• Streaming tape
• Remote backup
• Gateway Screen Facility
• Network installation for MicroVAX, VAXstation, and
RISC-based systems
For reasonable security and performance using screend,
Gateway packet screening should be used on a system
dedicated only to packet routing and related support activities.
• Magnetic tape facilities including labeled tape facility for single-volume ANSI tape interchange between
ULTRIX and non-ULTRIX systems
• Kerberos Authentication. Kerberos is a third-party
authentication service. The authentication of an application X to another application Y depends upon
the trust both X and Y have in Kerberos. The BIND
/HESIOD daemon named has been enhanced to optionally use Kerberos. ULTRIX also provides the Kerberos V4 programming interface so that application
developers can use this service. ULTRIX does not
provide the routines to send encrypted (safe) messages.
• Line printer setup automation
• Documented error messages
• Support for up to 256 simultaneous users, available
through the use of user capacity upgrades
• Support for more than 64 file descriptors
Security Enhancements
• Data Encryption/Decryption Facilities. The object
code distribution for the ULTRIX Operating System
includes no forms of encryption or decryption other
than one-way password encryption and Kerberos encryption algorithm. Data encryption/decryption software is available as an option under a separate order
number. Refer to the SOFTWARE OPTIONS section
for ordering information.
The ULTRIX Operating System offers security features
designed to be compliant with the C2 security level as
specified by the Trusted Computing Security Evaluation
Criteria (Orange Book) and the Password Management
Guidelines (Green Book).
• Protection of the memory interface and terminals via
pre-assigned group identifiers.
ULTRIX includes a set of intersystem facilities for communication and networking of multiple systems.
• Trusted Path facility which allows users, logging into
a system via either LAT or a terminal multiplexer, to
ensure that no other process is running on that line.
• Asynchronous Lines
Dynamic reassignment of asynchronous lines allows
use of the same modems for dialing in and out of a system without user intervention. Terminal drivers support
7-bit and 8-bit characters.
• Administrator option to configure enhanced login and
password functionality, which includes a shadow authentication database, configurable minimum password length (up to 16 characters), password aging
and expiration.
• Synchronous Lines
2
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
ULTRIX VAX supports communication over full- and
half-duplex point-to-point DDCMP synchronous lines.
DMC mode is provided for backwards compatibility. This
feature is not available on ULTRIX RISC systems.
• Name Services
ULTRIX supports the BIND V4.8 and HESIOD name services. The BIND service provides a host name and address lookup service for the Internet network. HESIOD
is layered on top of BIND and provides a more generic
name service. The user can use HESIOD/BIND to replace or supplement the hosts, aliases, auth, group, networks, passwd, protocols, rpc, and services databases.
• Ethernet Support
Ethernet Support allows for Ethernet communication using the TCP/IP network protocols, ThinWire, baseband
and, optionally, the Digital DNA network protocol, if
either DECnet–ULTRIX or DECnet/OSI for ULTRIX is
present (refer to SPDs 26.83.xx and 34.97.xx, respectively). All protocols can operate concurrently on a single physical Ethernet link.
• XTI
XTI is a UNIX® version independent (BSD or System
V) network application programming interface. Most
networking applications are written to sockets since it
is available on most UNIX® systems. Over time, this
trend would shift to the System V interface. With XTI,
customers can write to a standard interface which will
use either streams or sockets.
• CI Network Support
CI Network Support allows for Computer Interconnect
(CI) host to host communication using the network support TCP/IP network protocols. The CI network is well
suited for Network File System (NFS®) traffic and can
be used to offload the Ethernet of NFS traffic.
• The Packet Filter
The packet filter is a software-driven network traffic monitor which provides demultiplexing of networking packet
headers, as well as reception and transmission of packets containing user defined network protocols on an Ethernet LAN. The packet filter functions as an Ethernet
Monitor and can be used to filter specific network protocols. The packet filter can also be used to send and
receive packets using protocols not currently supported
in the ULTRIX kernel.
• X.25 Driver Support
X.25 Driver Support allows for X.25 wide area network
device support.
ULTRIX VAX supports uucp and tip operations over
an X.25 public packet switching network using a MICOM Micro 800/X.25 Concentrator PAD device attached
to one of the supported asynchronous communications
multiplexers. This feature is not available on ULTRIX
RISC systems.
• SNMP
• FDDI Support
Simple Network Management (SNMP) protocol manages TCP/IP networks. ULTRIX supports the SNMP
Agent on both ULTRIX VAX and ULTRIX RISC systems.
FDDI Support provides fiber optic support for the DECsystem and DECstation 5000 systems.
• IBM® 2780/3780 Terminal Emulator
The IBM® 2780/3780 Terminal Emulator is an ULTRIX
software package that allows the user’s system to emulate a 2780 or 3780 IBM terminal. The 2780/3780 Terminal Emulator uses the Binary Synchronous Communications (BSC) protocol to send and receive files across
a communication line connected to an IBM system that
supports 2780/3780 devices.
The Digital devices that must be used on the VAX and
MicroVAX based systems for the ULTRIX 2780/3780
Terminal Emulator are noted in the OPTIONAL HARDWARE section of this Software Product Description.
This package is not available on ULTRIX RISC systems.
• Local Area Transport Support
The Local Area Transport (LAT) protocol supports communication with service nodes on the same Ethernet.
Software that runs on local area terminal servers isdownloaded over the Ethernet network from either a
Phase IV or Phase V loadhost or any valid ULTRIX load
host. A single ULTRIX host may support up to 256 simultaneous LAT sessions.
3
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
Program Development Enhancements
The host-initiated connection feature of LAT allows the
manager of an ULTRIX system to associate a named
port on a named terminal server with a specific tty device
special file. As a result, users can code applications that
connect to the port through LAT.
ULTRIX provides a variety of tools for program development. These tools include R4000 MIPS-ANSI C 3.0,
VAX C/ULTRIX, portable C compiler, Pascal compilers
and Source Code Control System (SCCS). MIPS-ANSI
C 3.0 is only available on VAX RISC systems. VAX C
is only available on ULTRIX VAX systems. Pascal for
RISC and FORTRAN for RISC are available as a layered product.
The LAT/TELNET Gateway feature allows an ULTRIX
system to be configured for users on a LAT terminal to
connect to remote hosts via Telnet, without first having
to log in to the local ULTRIX system.
• MIPS-ANSI C 3.0 Compiler
• Remote Procedure Call Facility
ULTRIX RISC includes the MIPS-ANSI C 3.0 compiler
and related development tools and libraries. This compiler is not available on ULTRIX VAX systems.
The Digital Remote Procedure Call (DECrpc) facility is based on Apollo®’s Network Computing System
(NCS®) Remote Procedure Call (RPC) facility. DECrpc
allows application developers to partition their applications along subroutine interfaces, and have those subroutines execute on remote hosts. It provides a transport independent interface to applications using the Internet UDP/IP protocols. DECrpc includes the following
set of components:
The MIPS-ANSI C 3.0 compiler supports a -std0 K&R1
mode with ANSI extensions, a -std1 mode which provides strict ANSI adherence, and a -std (default) mode
which is ANSI C with popular extensions.
The compiler also supports a -mips1 mode which generates code executable on any supported MIPS RISC processor (R2000, R3000 or R4000 series), and a -mips3
mode which generates code specific to and optimized
for the MIPS R4000 series processors.
• Remote Procedure Call (RPC) runtime library
• VAX C/ULTRIX
• Network Interface Definition Language (NIDL)
compiler
VAX C/ULTRIX is a K&R1 implementation of the C
programming language for all ULTRIX VAX systems.
VAX C/ULTRIX is not supported or available on ULTRIX
RISC systems.
• Local and Global Location Brokers
VAX C
/ULTRIX includes extensions as defined by the proposed ANSI Standard for C. Many compute-bound C
applications compiled with VAX C/ULTRIX will run significantly faster than when compiled with the Portable
C Compiler (pcc) on ULTRIX. VAX C/ULTRIX cannot
be used for system level programs requiring the ASM
pseudo function, or where undocumented or nonstandard C features of pcc are used. If necessary, an application can be linked using some object modules compiled with both VAX C/ULTRIX and pcc. VAX C/ULTRIX
uses the native runtime and system libraries on ULTRIX.
It also uses the native header files. It supports the pcc
command line with the exception of the following options: -go,-p,-t,-R,-S,-B. VAX C/ULTRIX is compatible
with VAX C, Version 2.3 for VMS systems, except for
VMS specific options.
DECrpc does not include other components of Apollo’s
Network Computing Architecture such as the Concurrent Programming Support or the replicated Global Location Broker.
RPC Applications are written in a high-level language
(NIDL) which in turn generates calls to the RPC runtime procedures. The stub files generated by the NIDL
compiler are C source files.
DECrpc has been tested and found compatible with the
NCS V1.5 product from Apollo.
• Network Time Protocol
• DEC C for ULTRIX
ULTRIX provides users the ability to synchronize and
distribute time for all machines in a network environment. The Network Time Protocol (NTP) is used to
synchronize time. The University of Maryland developed the NTP daemon. The University of California at
Berkeley time synchronization daemon, timed, is used
to distribute time to all machines in a network.
DEC C for ULTRIX Version 1.0 is a Digital ANSIcompliant C compiler currently available for the RISC
architecture running the ULTRIX Operating System V4.1
or later.
1 Kernighan, Brian W., Ritchie, Dennis M., ‘‘The C Programming Language,’’ Copyright 1988, Prentice-Hall.
4
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
DEC C provides support for the American National Standards (ANSI) definition of the C programming language,
ANSI X3J11/88-159. DEC C has passed the Plum Hall
test suite.
CDA routines determines the structure of the documents
created by supporting applications.
CDA routines perform multiple operations including file,
stream, and aggregate management; item storage and
access; and reading, writing, and conversion of CDA
data structures. Calls to the CDA routines are encoded
within an application source file.
Using the command line options, DEC C is compatible with older dialects of C, including common (K&R1 )
C and VAX C. The compiler also provides support for
function inlining to eliminate call overhead and source
code checking features such as those found in the lint(1)
utility for assistance in identifying nonportable or unintended coding practices.
Converters bundled with the CDA Toolkit are: the
DDIF, DTIF, and Text input and output converters; a
PostScript® output converter; and an Analysis output
converter which is a debugging tool that produces text
output of CDA in-memory data structures.
In addition to the language, the ANSI C standard also
defines the contents of the C library and defining header
files.
Digital encourages independent software vendors to use
the CDA Toolkit and its converter architecture to write
new converters. The CDA Converter Architecture provides the advantage of a standard hub of interchange
so all CDA-compliant converters, whether developed by
Digital or independent software vendors, can participate
in data exchange.
The documentation for DEC C is provided in hardcopy
form and online via the Bookreader. The online man(1)
command provides access to the c89 and cpp89 manpages for the compiler and preprocessor, respectively.
The documents are provided in hardcopy form with the
Media kit and in online form on the ULTRIX Online Documentation (OLD) disc.
The CDA Viewer, also bundled with the CDA Toolkit,
displays the contents of all CDA-supported documents
on a UWS workstation or character-cell terminal.
ULTRIX and ULTRIX Worksystem Software (UWS) include a license for DEC C. The binaries and documentation are not included in the operating system media,
and must be ordered as a separate DEC C Media and
Documentation package. Refer to the SOFTWARE OPTIONS section for ordering information.
Callable DECwindows and character-cell viewer routines are used to write portable viewer widgets.
• DECthreads
• CDA Toolkit
ULTRIX includes a user-mode multi-threading capability referred to as DECthreads. DECthreads provides
an implementation of draft 4 of the proposed POSIX
1003.4a Standard. DECthreads is a library of run-time
routines callable from a C program that allows the user
to create multiple threads of execution within a single
address space. Multi-threading capability allows computation activity to be overlapped with I/O activity. Synchronization elements, such as mutexes and condition
variables, are provided to help ensure that shared resources are accessed correctly. DECthreads also provides multiple scheduling policies for scheduling and prioritizing threads.
The CDA Toolkit is an object library that provides the
data structures and routines used to create, store, and
interchange the revisable file formats supported by CDA
(Compound Document Architecture). The CDA Toolkit
is used to create CDA-compliant applications, or to write
converters that will interchange existing file formats using CDA data structures as the intermediate format.
Migration to and from the CDA environment includes
portability across the ULTRIX RISC, ULTRIX VAX and
VMS Operating Systems. Electronic mailing and copying of revisable CDA documents provide support for
hardware- and system-independent display and printing.
User Features
CDA data structures are predefined aggregate types
that store, in memory, all the items needed to encode
DDIF and DTIF documents. DDIF (Digital Data Interchange Format) aggregates are used to create CDAcompliant compound documents, graphics and image
documents, or converters. DTIF (Digital Table Interchange Format) aggregates are used to create CDAcompliant table data documents or converters for use
by spreadsheet and database applications.
User Interfaces
• Shells. ULTRIX provides the following shells:
- C Shell
- BSD™ Bourne Shell
- System V Bourne Shell
- Korn Shell
CDA data structures are used by supplying the appropriate information for all the items stored in each aggregate. The way the data structures are linked using the
All shells are programmable and allow for a tailorable
user environment.
5
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
• MH Mail System. MH (from RAND Corporation) is
the User Agent supplied with the ULTRIX Operating
System. A user agent is the interface with the mail
system. It provides the commands that allow the user
to send, read and handle mail, as well as determine
the form of all drafts and mail messages that are sent.
— Source programs written for the Portable C Compiler (pcc) language that follow programming
guidelines contained in Issue 2, Volume 1, Parts II
and III of System V Interface Definition are highly
compatible.
— System V Interprocess Communication (IPC)Shared Memory, Semaphores, Message Queues,
and Named Pipes.
MH can be used for sending memos and personal messages, sending files to other people, exchanging documents, forwarding messages to other people, and replying to messages that have been received.
— System V C Runtime and Math libraries are compatible.
Unlike some other systems, the user does not have to
go into a separate mail utility or program to send and
read messages. With MH, the user can type a mail command at any time. MH commands and other ULTRIX
commands may be interspersed and even combined on
one line.
Note: Under ULTRIX, source programs which conform
to the SVID, Issue 1, may require recompilation.
• Sun Network File System (NFS), Version 2.0
ULTRIX supports the Sun network services NFS, Mount,
Yellow Pages, Automount and Lock manager/Status
monitor. These services have been tested and found
compatible with the corresponding SunOS™ services
of the following Sun Operating Releases: V3.0, V3.2,
V3.4, V3.5 and V4.0. The Automounter has been tested
and found compatible with the automount service provided in SunOS Release V4.0.
• PrintServer Software. ULTRIX incorporates client
software providing support for the PrintServer range
of printers.
The software includes ANSI to
PostScript®, ReGIS to PostScript and TEK to
PostScript filters. The ReGIS to PostScript and TEK
to PostScript filters are only available on ULTRIX VAX
systems.
Named pipes accessed using NFS are not compatible
between ULTRIX-32 V3.2 and ULTRIX V4.0 systems. A
patch is available for ULTRIX-32 V3.1 systems.
Compatibility with Other UNIX® Offerings
• Commands
The ULTRIX Operating System is compatible with other
software system implementations which include:
The following ULTRIX commands meet specifications
for POSIX 1003.2, Draft 8:
• 4BSD
diff
id
ln
tr
env
find
getopts
date
mkdir
— File system formats are interchangeable provided
disk partitions are compatible.
mkfifo
mktemp
bc
chgrp
chmod
chown
— The Bourne Version 7 script shell and the C Shell
script syntax are highly compatible.
tee
cp
join
ar
nawk
cmp
make
basename
dirname
fold
sort
uniq
ULTRIX is based on the 4th Berkeley Software Distribution (4BSD), Version 4.2 and Version 4.3, and provides
the following compatibility features:
— Source code programs written for the Portable C
Compiler (pcc) and object file formats are highly
compatible.
• POSIX nawk(1)
— 4.2 BSD C Runtime and Math libraries are compatible.
In anticipation of POSIX 1003.2 final acceptance, a
POSIX convergent awk utility, now called nawk(1), is
available. nawk includes a change in the order of operator precedence. This may affect some existing awk
programs that do not explicitly define precedence with
the use of parentheses. Therefore, nawk will not replace the current awk, but will be introduced as the current awk is retired. ULTRIX 4.0 was the first release for
planning the retirement of current awk.
• SVID
ULTRIX provides SVID support based on SVID Issue 2,
Volume 1. SVID offers the following compatibility features:
— Bourne System V Shell (Issue 1) script syntax is
highly compatible.
6
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
The migration towards full compliancy with POSIX
1003.2 will result in the retirement of the current awk
utility when the next major release of ULTRIX becomes
available. That release will continue to deliver a version
of nawk(1) modified to reflect a POSIX 1003.2 compatible utility.
DOMAIN
Domain Name System
1034,
1035
TELNET
Telnet Protocol
854
FTP
File Transfer Protocol
959
SUN-NFS
Network File System Protocol
1094
nawk introduces a number of new features: \ -
SMTP
Simple Mail Transfer Protocol
821
MAIL
Format of Electronic Mail
Messages
822
• New keywords: delete, do, function, return
• New built-in functions: atan2, cos, sin, rand,
srand, gsub, sub, match, close, system
• New predefined variables: FNR, ARGC, ARGV,
RSTART, RLENGTH, SUBSEP
• New expression operators: ? : , ^
ARP
Address Resolution Protocol
826
IP-E
Internet Protocol on Ethernet
Networks
894
IP-FDDI
Transmission of IP over FDDI
1188
TIME
Time Protocol
868
FINGER
Finger Protocol
1196
• The FS variable and the third argument to split
are now treated as extended regular expressions.
• Internet Non-RFC Standards
• The operator precedence has changed to more
closely match C
ULTRIX also supports the following Internet non-RFC
standards:
• The escape characters have been added to the
extended regular expression
4.3BSD Socket Interface
4.2BSD inetd
4.3BSD lpd
4.3BSD netstat
4.3BSD ping
4.3BSD rcp
4.3BSD rexecd
4.3BSD rlogin
4.3BSD rmt
4.3BSD rsh
4.2BSD uucp
ATHENA: Kerberos Version 4
X/Open’s Transport Interface (XTI)
Network Computing System (NCS) V1.5
SUN Network Information Service (Yellow Pages)
SUN NFS Lock Manager and Status Monitor
Note that nawk does not support internationalized capabilities.
Industry Standards
ULTRIX fully supports a number of UNIX® industry standards:
• Internet RFC Protocols
The ULTRIX Operating System implements the following
internet RFC (Request for Comment) protocols:
Protocol
Name
RFC
IP
Internet Protocol as amended
by:
791
- IP Subnet Extension
950
-IP Broadcost Datagrams
919
— Level 2 of Interchange
- IP Broadcast Datagrams with
Subnets
922
— Level 1 of Implementation.
ICMP
Internet Control Message
Protocol
792
UDP
User Datagram Protocol
768
TCP
Transmission Control Protocol
793
SMI
Structure of Management
Information
1155
MIB
Management Information Base
1156
SNMP
Simple Network Management
Protocol
1157
• ISO 9660
ISO 9660 is an ISO standard for a volume and file structure for the interchange of information using CDROM.
ULTRIX is based on the following levels of ISO 9660:
This implementation enables the user to:
• Mount single volume ISO 9660 formatted CDROMs as a local file system
• List and examine files using standard UNIX®
utilities and programs
• Read files and directories using the standard
POSIX system interface
— NFS export mounted ISO 9660 file systems
— Execute local and remote non-interleaved files
7
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
— Execute interleaved files remotely through NFS
Standard C library functions handle 8-bit characters
properly in accordance with XPG3.
The routines setlocale, strxfrm, strcoll, and strftime
are in libc. The setlocale routine allows users to select a specific instance of localization such as dictionary or telephone ordering instead of character ordering
(@modifier syntax).
Internationalization
ULTRIX Operating System includes a comprehensive
set of library routines, commands and utilities to support
the development of internationalized application software.
• Kernel
• Native Language System (NLS)
The kernel provides support for the use of Digital’s MCS
character set as well as ISO 8859/1 (e.g., 8-bit coded
character sets).
The internationalized environment is based on the definition of the NLS interface in XPG3. This includes
language support databases, an announcement mechanism (setlocale), and a message catalog system.
• Networking
The base system includes language support databases
for French, English, and German for each of three codesets: Digital’s MCS, ISO 8859/1, and ISO 646. A compiler, ic, is provided for users to define new language
support databases.
Networking commands provide full 8-bit character support. Mail is not 8-bit transparent since the U.S. government RFC 822 specifically states that the high order
bit is to be stripped. X/Open has recognized this as a
problem and will likely withdraw the requirement for 8-bit
transparent Mail.
The default locale is called the C locale and is American
English/ASCII.
DECnet is 8-bit transparent.
• Filesystem
The message catalog system includes the gencat utility
and related library functions that are used to access a
message catalog from a C language application at run
time.
The ULTRIX filesystem provides full 8-bit transparency.
Data interchange routines, such as tar and cpio, support
8-bit filenames. This can potentially cause an interoperability problem with UNIX® systems that only provide
7-bit ASCII support.
• I18N Tools
A set of tools is provided to assist engineers with the
process of extracting message text from C programs
and generating message catalogs. Message text source
files can be translated using the utility trans or with any
8-bit transparent text editor. These tools (extract, strextract, strmerge) are designed to work with the XPG3
message catalog system and are Digital enhancements
to the NLS environment.
• System Administration
Usernames with 8-bit characters are fully supported and
tools, such as adduser, have been updated to reflect
this.
Architectural Differences
• Commands and Utilities
The following differences exist between ULTRIX VAX cc
and ULTRIX RISC cc:
There are 71 8-bit transparent commands as specified
in XPG3. Several other commands are also 8-bit transparent including editors (vi, ex, ed, sed) and networking
commands (rlogin, ftp, tip, uucp).
• Hardware architectural differences exist.
• ULTRIX RISC pointers are unsigned; VAX pointers
are signed.
All NLS commands are provided and conform to the
XPG3 specification. Refer to I18N Tools.
• Cannot dereference NULL ptrs on ULTRIX RISC; includes arg to strlen.
The utility iconv provides a mechanism for codeset conversion that may be necessary in a heterogeneous network.
• asm( ) is not supported with ULTRIX RISC in any
form.
• Libraries
• MIPS-ANSI C is not avaliable on ULTRIX VAX systems.
A library of internationalization routines that conform to
XPG3 is provided (libi) as well as modifications to the
standard C library. These changes meet both the XPG3
and POSIX specifications.
• VAX C is not available on ULTRIX RISC systems.
• The MIPS R2000, R3000 and R4000 series systems
uses the COFF format (Common Object File Format)
in its object files and load modules.
ctype library routines have been modified to make use
of locale/culture specific information.
8
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
-W (phase, opt).
• The ULTRIX RISC compiler does not allow ‘‘oldfashioned’’ initialization. An example of this, which
works on VAX but gives a warning on ULTRIX RISC,
is: int i 0;.
-v (print commands).
• varargs is different. Any program that tries to walk
the argument list by taking the address of an argument and incrementing it will not be successful, especially for double precision arguments. Programs
using the macros in varargs.h will work. Compiling
with the -varargs option on ULTRIX RISC will attempt
to detect non-portable code.
-cpp, -nocpp: Most useful for languages other
than C.
-G: Relevant only to MIPS architecture.
-j, -k, -ko: Relevant only to ULTRIX RISC compiler
design.
• The setjmp/longjmp buffer is larger on ULTRIX RISC.
Programs with a hard-coded ten-word buffer will
fail; programs that correctly include the header file
setjmp.h and declare a jmp_buf will work correctly.
-std, -std0, -std1 (warn nonstandard usage): vcc
has -V standard=portable.
• ULTRIX RISC has boundary alignment rules. User
programs should only see this as a performance issue (the kernel does fix-ups). It is better, however, to
align double-words, words and half-words on natural
boundaries. The setsysinfo system call or uac command can be used to turn off the fixup messages.
-volatile, -varargs: Modify compiler behavior in
certain areas.
-V (print versions).
• ULTRIX RISC pointers cannot be used as the var on
switch statements.
• ULTRIX RISC has big/little endian options -EB and
-EL.
• ULTRIX RISC will not allow the same .c or .o file to
be listed twice. ULTRIX RISC will generate doubly
defined symbol errors. VAX pcc allows this.
• -unsigned indicates that variables of type char are to
be treated as unsigned quantities. The default is to
treat chars as signed.
• -L flag: On VAX pcc, -L flags on the line collectively
affect -l flags. On ULTRIX RISC, -L flags are seen
strictly left to right, so that a -l must come first.
• ULTRIX RISC recognizes the environ variables
ROOTDIR and TMPDIR.
• Profiling: On VAX, there are two levels selected with
-p and -pg. On ULTRIX RISC, there are also two
levels, selected with the -p option or by running the
post-processor program pixie(1). The ULTRIX RISC
compiler is not affected by either option; all work is
done in the assembler or loader (or postprocessor).
• ULTRIX RISC global symbols do not have an extra
leading underscore added to them. This difference
affects assembler programmers and users of nlist(3).
• The -R (read-only text) option is not yet supported
with ULTRIX RISC.
• -Md, -Mg options: Not needed on ULTRIX RISC; the
hardware has only one double precision format.
• Optimization: On ULTRIX VAX, there is one level
of optimization, off by default and enabled with -O.
On ULTRIX RISC, there are five levels. By default,
the second level is used; the -O0 option disables
this, -O or -O2 invokes global optimization. More
complex processes can be invoked with -O3 and -O4.
ULTRIX RISC also has the -Olimit switch that allows
optimization to be bypassed with overly complicated
code sections.
• ULTRIX RISC defines a macro (LANGUAGE_C, for
instance) for the preprocessor that makes it possible
to write multilingual include files.
• cpp predefined symbols: Both VAX and ULTRIX
RISC define ultrix, unix, and bsd4_2. On ULTRIX
RISC, the equivalent predefined symbol of vax is
mips. On ULTRIX RISC, MIPSEL and host_mips are
also defined.
• Selecting alternate compilers: On both architectures,
the -t and -B options specify passes and paths; however, the pass names for -t differ (there are more on
ULTRIX RISC), and the semantics of -B belong to
the -h option; -B is used to specify a command suffix instead. ULTRIX RISC also has -H, -K, and -#
arguments designed for compiler development work.
• Some ULTRIX options on the RISC R2000/R3000
/R4000 series hardware are not available on the VAX
hardware:
-I (no dirname).
-P (preprocess, produce .i file).
• Debugging information: ULTRIX RISC offers four levels, where VAX has only two (on and off).
9
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
Hardware Requirements
• FORTRAN and Pascal: FORTRAN and Pascal are
sold separately as layered products. Certain portions
of the unsupported code which are architecture dependent on VAX is not available on ULTRIX RISC.
The ULTRIX Operating System can execute on valid
VAX, MicroVAX or Digital RISC based systems and must
include the following minimum system configuration.
The actual amount of work supported at one time, with
good performance, depends on the types of processing
performed as well as on the physical memory and secondary storage available. (Refer to ULTRIX Worksystem Software Product Description (SPD 28.22.xx) for
minimum hardware and device hardware requirements
for all worksystems.)
• Supported ULTRIX processor at appropriate hardware revision level.
• Minimum component of main memory (refer to the
OPTIONAL HARDWARE section).
• Supported ULTRIX system device capable of holding the supported subsets (refer to the OPTIONAL
HARDWARE section).
• For local (non-network) distribution, supported ULTRIX
software load and backup device.
• A valid load device for diagnostics.
• One console terminal with ASCII capability.
• The minimum memory configuration is 6MB for VAX
and 8MB for RISC.
• Amount of memory supported is maximum supported
by hardware configurations or 512MB, whichever is
less.
• No more than ten terminal multiplexers per ULTRIX
driver type may be configured. The actual number of
terminal lines supported at one time, with good performance, depends on the types of processing performed as well as on the physical memory and CPU
type.
• LAT and DECnet traffic is restricted to one Ethernet interface/controller. Each Ethernet interface
/controller must be connected to a separate network
or subnetwork in a routing configuration. Diskless
activity requires the ability to communicate via mop.
Therefore, diskless clients are also restricted to one
Ethernet.
• TK50 media can be read but not written on a TK70
drive.
• To support an RL02 disk subsystem along with a
UDA50 DSA disk subsystem under ULTRIX, the
RL02 controller should be placed on a second
UNIBUS. When both controllers are on a single
UNIBUS the system will experience Data Lates, Hard
disk errors and sometimes file corruption.
ULTRIX/CI Support
10
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
ULTRIX supports configurations that utilize the Computer Interconnect (CI) hardware. A configuration can
consist of a single node or up to a maximum of 16
nodes, where a node is defined as being either an
ULTRIX supported processor or a mass storage server.
A maximum of four mass storage servers are permitted
in a CI environment. Support is provided for homogeneous CI (ULTRIX) environment only.
The mass storage server is a free-standing, high speed,
intelligent service designed to the specifications of the
Digital Storage Architecture; it is known as the Hierarchical Storage Controller (HSC).
Network Remote Installation
RIS (Remote Installation Service) performs a remote
installation through a local area network. The RIS is
structured to install remotely both VAX and RISC workstations from a VAX or RISC server. To manage a large
number of workstation installations, the RIS is capable
of installing through a database file.
11
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
Diskless Workstations
ULTRIX supports a local area network of diskless workstations (clients) managed from a central host equipped
with the necessary mass storage (the server). Centralizing the workstation’s disk resources reduces the overall system cost and simplifies the administration of the
network.
DMS (Diskless Management Service) performs diskless
workstations setup. The DMS is structured to set up
both VAX and RISC workstations from a VAX or RISC
server. To manage a large number of diskless workstations, the DMS is capable of installing through a
database file.
The following configuration guidelines apply to diskless
workstations and servers:
• All the ULTRIX supported VAXstation and Digital
RISC worksystems are supported diskless clients.
• The minimum memory configuration is 6MB for a VAX
diskless client or 8MB for a RISC diskless client.
• The minimum memory is 16MB for a VAX diskless
server or 16MB for a RISC diskless server.
• The MicroVAX 2000, VAXstation 2000, and any
MicroVAX or VAXstation server with an RQDX1,
RQDX2, or RQDX3 disk controller is limited to the
support of three diskless clients.
• If multiple network segments are present, the DMS
clients and server must be on the same segment of
the network.
The minimum hardware requirements for any future version of this product may be different from the requirements for the current version.
Optional Hardware
Additional memory and/or secondary storage may be
required depending upon the need for ULTRIX software
or optional software products and usage of the ULTRIX
Operating System.
Note: Combinations of hardware options are subject to
limitations such as bandwidth, physical configuration restraints, thermal dissipation, and electrical loads/power.
(System configuration details are described in the VAX
Systems and Options Catalog.)
The following tables list hardware options that are supported by the ULTRIX Operating System. All device
drivers for these hardware units contained in The ULTRIX Operating System are warranted by Digital.
12
The ULTRIX Operating System, Version 4.5
Processor
DECstation 3100
DECstation 3100s
SPD 26.40.32
DECsystem 5100
DECsystem 5400
DECsystem 5500
Memory
-Prestoserve
Disk Drives
1
7 Maximum2
1
7 Maximum2
Controller
32 Maximum
32 Maximum
DSSI
DSSI
SCSI3
KDA50
KDA50
KFQSA
KFQSA
KRQ50
KRQ50
KZQSA4
Drives
ESE20D
ESE20D
RA60
RA60
RA70
RA70
RA71
RA72
RA73
RA81
RA81
RA82
RA82
RA90
RA90
RA92
RA92
RF30
RF30
RD31
RF31
RF71
RF71
RF72
L
Magnetic Tapes
L
RF72
L
RRD40
RRD40L
RRD40
RRD40
RRD42L
RRD42L
RRD42L
RX23D
RX23D
RX23D
D
RX33
D
RX33
RX33D
RZ23D
RZ23D
RZ23D
RZ23LD
RZ23LD
RZ23LD
RZ24
RZ24
RZ24
RZ24L
RZ24L
RZ24L
RZ25
RZ25
RZ25
RZ26
RZ26
RZ26
RZ55
RZ55
RZ55
RZ56
RZ56
RZ56
RZ57
RZ57
RZ57
RZ58
RZ58
RZ58
2 Maximum
2 Maximum
Controller
13
4 Maximum
4 Maximum
DSSI
DSSI/SCSI
The ULTRIX Operating System, Version 4.5
Processor
DECstation 3100
DECstation 3100s
SPD 26.40.32
DECsystem 5100
Drives
L;8
TK50Z
DECsystem 5400
DECsystem 5500
KLESI-SA
KLESI-SA
L;8
TQK70
TQK70L;8
TSV05
TSV05
RV20
RV20
L;8
TK50ZL;8
TK50Z
TK70L;8
TKZ08D
TKZ08
TKZ08
D
TKZ09
TKZ09
TKZ09
D
TLZ04
TLZ06
D
TLZ04
TLZ04D
TLZ06
TLZ06
TS05
D
TSZ05
TSZ05
TSZ05D
TSZ07D
TSZ07D
TSZ07D
L;8
TZ30
L;8
TZ30
TZ30L;8
TZK10D
TZK10D
TZK10D
L;8
L;8
TU81E
TZ85
TZ85
TZ85L;8
TZ857L;8;9
TZ857L;8;9
TZ857L;8;9
1 Line Asynch5
1 Line Asych
Modem/Pad
Devices
Line Printers
TS05
D
TU81E
Communication
Devices
TK70L;8
CXA16
CXA16
CXB16
CXB16
CXY08
CXY08
DELQA/DESQA
DELQA/DESQA
DESTA
DESTA
DFA01
DFA01
DF02
DF02
2 Full Modems
Maximum
DF036
DF03
DF03
DF03
DF1126
DF112
DF112
DF112
DF2126
DF212
DF212
DF212
DF2246
DF224
DF224
DF224
DF2426
DF242
1 Maximum
1 Maximum
14
DF242
DF242
DF296
DF296
Micom Micro
Micom Micro
800/X.25
800/x.25
1 Maximum
1 Maximum
The ULTRIX Operating System, Version 4.5
Processor
DECstation 3100
DECstation 3100s
SPD 26.40.32
DECsystem 5100
Controller
Serial Printers
Asynchronous
Terminals
DECsystem 5400
DECsystem 5500
LPV11
LPV11
LPV16
LPV16
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LCG01
LCG01
LCG01
LCG01
LG02
LG02
LG02
LG02
LG31
LG31
LG31
LG31
LJ250
LJ250
LJ250
LJ250
LN03
LN03R
LN03S
LN03
LN03R
LN03S
LN03
LN03R
LN03S
LN03
LN03R
LN03S
LQP02
LQP03
LQP02
LQP03
LQP02
LQP03
LQP02
LQP03
LVP16
LVP16
LVP16
LVP16
DEClaser 1100
/1150 7
DEClaser 1100
/1150 7
DEClaser 1100
/1150 7
DEClaser
1100/1150
7
DEClaser 2100
/2150 7
DEClaser 2100
/2150 7
DEClaser 2100
/2150 7
DEClaser
2100/2150
7
DEClaser 2200
/2250 7
DEClaser 2200
/2250 7
DEClaser 2200
/2250 7
DEClaser
2200/2250
7
DEClaser 3200
/3250 7
DEClaser 3200
/3250 7
DEClaser 3200
/3250 7
DEClaser
3200/3250
7
VT100 Series
VT100 Series
VT100 Series
VT100 Series
VT200 Series
VT200 Series
VT200 Series
VT200 Series
VT300 Series
VT300 Series
VT300 Series
VT300 Series
VT420
VT420
VT420
VT420
DECmate II/III
DECmate II/III
DECmate II/III
DECmate II/III
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
PRO 350/380
PRO 350/380
PRO 350/380
PRO 350/380
VAXmate
VAXmate
VAXmate
VAXmate
15
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
Notes:
1
Letter D = Data device only.
Letter L = Valid ULTRIX load device.
2
Disk and tape devices are connected to the DECsystem and DECstation via SCSI (Small Computer System Interface). There
is one integral SCSI controller. The SCSI controller will support up to seven devices in any combination. The controller has
an identifier which can be set via the DS5000 Console Interface (the factory default is id6). Each added device must have its
own unique identifier which must not conflict with any other device, including the SCSI controller. The SCSI controller should
always have the highest id.
3
The DECsystem 5400 and 5500 pprovide by default, a DSSI bus for RF disk support and an Ethernet interface. RF disks are
also supported by the KFQSA contoller. The DECsystem 5500 also provides by default a SCSI interface for RZ disk and TZ
tape support. RZ disks and TZ tapes are also supported on the 5500 by the KZQSA controller.
4
Two KZQSAs are supported on the DECsystem 5500. All SCSI disks and tapes listed in this SPD under the DECsystem
5500 are supported on the KZQSA. The KZQSA supports data devices only and not boot devices.
5
Although there are 4 ports, ports 1 and 2 are not available. Port 3 is a system console. Port 4 is available for printer or
modem.
6
The modems must be configured such that the Forced DSR attribute is NOT set on the modem. If the Forced DSR attribute
is set, the modem will be unable to recognize loss of connection, and may incorrectly assume that a connection has been
established. Consult the modem’s Owner’s Manual for specific information on clearing the Forced DSR option.
7
DEClaser support is equivalent to that which is available for the LN03, LN03R, and LN03S printers.
8
Accepts TK50 distribution media.
9
Automatic stack loader tape drives are supported only by the dump, restore and cpio system utilities.
16
The ULTRIX Operating System, Version 4.5
Processor
DECsystem 5000
Models 25/33/50
SPD 26.40.32
DECsystem 5000
Models 133/150
DECsystem 5000
Models 200/240/260
DECsystem 5900
DECsystem 5900-260
1
1
1
Memory
-Prestoserve
I/O Adapters
2 DEFZA
3 DEFZA
3 DEFZA
3 DEFZA
-VME
1
1
1
1
-TURBOchannel
Extender
1
1
1
1
-SCSI
2 PMAZ
3 PMAZ
3 PMAZ
3 PMAZ
-Ethernet (Thick)
2 PMAD
3 PMAD
-CI
Disk Drives4
21 Maximum
5
28 Maximum
5
3 PMAD
3 PMAD
1 CITCA10
1 CITCA10
28 Maximum
5
28 Maximum
Controllers
Drives
RRD40L
RRD40L
RRD40L
RRD40L
L
L
L
RRD42
RRD42
RRD42
RRD42L
RX23D
RX23D
RX23D
RX23D
D;6
RX26D;6
RX26
RX33D
RX33D
D
D
RX33D
D;9
RX33D
RZ23D;9
RZ23
RZ23
RZ23
RZ23LD;9
RZ23LD;9
RZ23LD;9
RZ23LD;9
RZ24
RZ24
RZ249
RZ249
RZ24L
RZ24L
RZ24L9
RZ24L9
RZ25
RZ25
RZ25
RZ25
RZ26
RZ26
RZ26
RZ26
RZ55
RZ55
RZ55
RZ55
RZ56
RZ56
RZ56
RZ56
RZ57
RZ57
RZ57
RZ57
RZ58
RZ58
RZ58
RZ58
Magnetic Tape4
1 Maximum5
2 Maximum5
2 Maximum5
2 Maximum5
Controllers
TK50ZL;11
TK50ZL;11
TK50ZL;11
TK50ZL;11
TKZ08
TKZ08
TKZ08
TKZ08
TKZ09
TKZ09
TKZ09
TKZ09
TLZ04
TLZ04
TLZ04
TLZ04
TLZ06
TLZ06
TLZ06
TLZ06
TSZ05
TSZ05
TSZ05
TSZ05
TSZ07
TSZ07
TSZ07
TSZ07
L;11
L;11
L;11
TZ30
TZ30
TZ30
TZK10
TZK10
TZK10
L;11
L;11
L;11
TZ85
TZ85
TZ85
TZ857L;11;12
TZ857L;11;12
TZ857L;11;12
17
TZ30L;11
TZK10
TZ85L;11
TZ857L;11;12
5
The ULTRIX Operating System, Version 4.5
Processor
DECsystem 5000
Models 25/33/50
Communication
Devices
0 Line Async
Modem/Pad
Devices
DF03
7
SPD 26.40.32
DECsystem 5000
Models 133/150
DECsystem 5000
Models 200/240/260
DECsystem 5900
DECsystem 5900-260
1 Line Async
1 Line Async
1 Line Async
DF03
DF03
DF03
DF112
DF112
DF112
DF112
DF212
DF212
DF212
DF212
DF224
DF224
DF224
DF224
DF242
DF242
DF242
DF242
DF296
DF296
DF296
DF296
Line Printers
2 Maximum7
2 Maximum
2 Maximum
2 Maximum
Serial Printers
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LCG01
LCG01
LCG01
LCG01
LG02
LG02
LG02
LG02
LG31
LG31
LG31
LG31
Asynchronous
Terminals
LJ250
LJ250
LJ250
LJ250
LN03
LN03R
LN03S
LN03
LN03R
LN03S
LN03
LN03R
LN03S
LN03
LN03R
LN03S
LQP02
LQP03
LQP02
LQP03
LQP02
LQP03
LQP02
LQP03
LVP16
LVP16
LVP16
LVP16
DEClaser 1100/1150
DEClaser 1100/1150
DEClaser 1100/1150
DEClaser 1100/1150
8
8
8
8
DEClaser 2100/2150
DEClaser 2100/2150
DEClaser 2100/2150
DEClaser 2100/2150
8
8
8
8
DEClaser 2200/2250
DEClaser 2200/2250
DEClaser 2200/2250
DEClaser 2200/2250
8
8
8
8
DEClaser 3200/3250
DEClaser 3200/3250
DEClaser 3200/3250
DEClaser 3200/3250
8
8
8
8
2 Maximum
2 Maximum
2 Maximum
VT100 Series
VT100 Series
VT100 Series
VT100 Series
VT200 Series
VT200 Series
VT200 Series
VT200 Series
VT300 Series
VT300 Series
VT300 Series
VT300 Series
2 Maximum
7
18
The ULTRIX Operating System, Version 4.5
Processor
SPD 26.40.32
DECsystem 5000
Models 25/33/50
DECsystem 5000
Models 133/150
DECsystem 5000
Models 200/240/260
DECsystem 5900
DECsystem 5900-260
VT420
VT420
VT420
VT420
DECmate II/III
DECmate II/III
DECmate II/III
DECmate II/III
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
PRO 350/380
PRO 350/380
PRO 350/380
PRO 350/380
VAXmate
VAXmate
VAXmate
VAXmate
Notes:
1
Letter D = Data device only.
Letter L = Valid ULTRIX load device.
2
Although there are four ports, ports 1 and 2 are not available. Port 3 is system console. Port 4 is available for printer or
modem.
3
The modems must be configured such that the Forced DSR attribute is NOT set on the modem. If the Forced DSR attribute
is set, the modem will be unable to recognize loss of connection, and may incorrectly assume that a connection has been
established. Consult the modem’s Owner’s Manual for specific information on clearing the Forced DSR option.
4
The SCSI (Small Computer System Interface) cable length is limited to six meters, thereby limiting the number of external
devices (tapes and disk) that can actually be attached to the system per bus.
5
Disk and tape devices are connected to the DECsystem and DECstation via SCSI (Small Computer System Interface). There
is one integral SCSI controller and, optionally, up to three more SCSI controllers may be added. Each SCSI controller will
support up to seven devices in any combination. Each controller has an identifier which can be set via the DS5000 Console
Interface (the factory default is id6). Each added device must have its own unique identifier which must not conflict with any
other device on its bus including the SCSI controller. The SCSI controller should always have the highest id.
6
On the DECsytem 5000 Model 25/33/50, the RX26 device may either be FDI-based, in which case it is integral in the system;
or SCSI-based, in which case it is a separate device. On the DECsystem 5900, the RX26 is SCSI-based.
7
The DECsystem 5000 Model 25/33/50 has one general purpose asynchronous/synchronous serial interface on the system
module. A TURBOchannel-based serial connector would be needed if more serial lines are required.
8
DEClaser support is equivalent to that which is available for the LN03, LN03R, and LN03S printers.
9
The RZ23, RZ23L, RZ24 and RZ24L devices are supported via the TURBOchannel Extender (TcE) box.
10
Disks and tapes supported on the CITCA are those CI devices already supported on the DECsystem 5800 series platforms,
e.g. ESE20, TAxx tapes, RAxx disks and HSCxx controllers. Devices connected to CITCA are supported as data devices
only.
11
Accepts TK50 distribution media.
12
Automatic stack loader tape drives are supported only by the dump, restore and cpio system utilities.
19
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
Processor
MicroVAX II
VAXserver 100
MicroVAX 2000
VAXserver 2000
MicroVAX 3100
VAXserver 3100
MicroVAX 3300/3400
VAXserver 3300/3400
Disk Drives
7 Maximum
3 Maximum
8 Maximum
3 Maximum
Controller
1 RQDX2
1 RQDX3
1 KDA503
DSSI14
1 KFQSA
KFQSA
1 KRQ40
1 KRQ50
Drives
RA60
RA80
RA81
RA82
RA90
RA92
RD32D
D
RD51
RD52D
RD53D;5
RD53D;15
RD546
RD546
RF30
RF30
RF31
RF31
RF71
RF71
RF72
RF72
D;11
RRD40
RRD40
D
RRD42L
RRD50D;11
RX33D
RX33D
RX50D
RX23D
RX33D
RZ2316
RZ24
RZ55
RZ56
RZ57
RZ58
Magnetic Tapes
Controller
4 Maximum
1 Maximum
2 Maximum
TQK50
KRQ50L;18
TQK70L;18
TKQ70L;18
KLESI-Q
KLESI-Q
TSV05
Drives
4 Maximum
L;18
TSV05
TZK10
20
The ULTRIX Operating System, Version 4.5
Processor
MicroVAX II
VAXserver 100
MicroVAX 2000
VAXserver 2000
SPD 26.40.32
MicroVAX 3100
VAXserver 3100
MicroVAX 3300/3400
VAXserver 3300/3400
TZ30L;18
RV20
TSZ05
L;18
TK50Z
TK70
L;18
TK50Z
L;18
TLZ04
TU81E
RV20
RRD40
TK70L;18
TS05
TS05
TKZ08
TKZ09
Communication
DEQNA7
DESVA9
CXA16
Devices
DMV1112
DHT32
CXY08
DPV1110
DSH32
DSH32
DELQA/DESQA13
DHQ11
DMV1112
DHV11
DPV1110
DZQ112
DRV1W
DZV112
CXF32
DELQA
CXB16
Modem/Pad
DFA01
DFA01
Devices
DF02
DF02
DF02
DF02
DF03
DF03
DF03
DF03
DF112
DF112
DF112
DF112
DF1268
DF1268
DF212
DF212
DF212
DF212
DF224
DF224
DF224
DF224
DF242
DF242
DF242
DF242
DF296
DF296
DF296
DF296
Micom Micro
Micom Micro
Micom Micro
Micom Micro
800/X.25
800/X.25
800/X.25
800/X.25
Line Printers
1 Maximum
1 Maximum
1 Maximum
1 Maximum
Controller
LPV11
LVP16
LPV11
LVP16
Printers
LG01
LG01
LG02
LG02
LP27
LP27
LPS20
LPS20
LPS40
LPS40
Serial
Printers4
LA36
LA36
LA36
la36
LA50
LA50
LA50
LA50
LA75
LA75
LA75
LA75
21
The ULTRIX Operating System, Version 4.5
Processor
Asynchronous
Terminals
4
SPD 26.40.32
MicroVAX II
VAXserver 100
MicroVAX 2000
VAXserver 2000
MicroVAX 3100
VAXserver 3100
MicroVAX 3300/3400
VAXserver 3300/3400
LA100
LA100
LA100
LA100
LA120
LA120
LA120
LA120
LA100
LA100
LA100
LA100
LA210
LA210
LA210
LA210
LA324
LA324
LA324
LA324
LCG01
LCG01
LCG01
LCG01
LG02
LG02
LG02
LG02
LG31
LG31
LG31
LG31
LJ250
LJ250
LJ250
LJ250
LN03
LN03
LN03
LN03
LN03R
LN03R
LN03R
LN03R
LN03S
LN03S
LN03S
LN03S
LQP02
LQP02
LQP02
LQP02
LQP03
LQP03
LQP03
LQP03
LVP16
LVP16
LVP16
LVP16
DEClaser 1100
/115017
DEClaser 1100
/1150 17
DEClaser 1100
/1150 17
DEClaser
1100/1150
17
DEClaser 2100
/2150 17
DEClaser 2100
/2150 17
DEClaser 2100
/2150 17
DEClaser
2100/2150
17
DEClaser 2200
/2250 17
DEClaser 2200
/2250 17
DEClaser 2200
/2250 17
DEClaser
2200/2250
17
DEClaser 3200
/3250 17
DEClaser 3200
/3250 17
DEClaser 3200
/3250 17
DEClaser
3200/3250
17
VT100 Series
VT100 Series
VT100 Series
VT100 Series
VT200 Series
VT200 Series
VT200 Series
VT200 Series
VT300 Series
VT300 Series
VT300 Series
VT300 Series
VT420
VT420
VT420
VT420
DECmate II/III
DECmate II/III
DECmate II/III
DECmate II/III
Rainbow 100B
Rainbow 100B
Rainbow 100B
Rainbow 100B
Rainbow 100+
Rainbow 100+
Rainbow 100+
Rainbow 100+
Rainbow 190
Rainbow 190
Rainbow 190
Rainbow 190
PRO 350/380
PRO 350/380
PRO 350/380
PRO 350/380
VAXmate
VAXmate
VAXmate
VAXmate
Notes:
1
Letter D = Data device only.
Letter L = Valid ULTRIX load device.
2
DZV11 and DZQ11 are supported only up to 9600 baud. This also applies to the MicroVAX 2000 serial asynchronous lines.
3
KDA50 for the MicroVAX II must be at least at Rev Level C5.
4
All terminals and serial printers are supported in 7-bit and 8-bit ASCII.
5
The RD53 requires an RQDX2 or RQDX3 controller.
6
The RD54 requires an RQDX3 controller at least at Rev Level 2.8.
22
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
7
The DEQNA must be at least at Revision E1.
8
The DF126 can only be used with the DPV11 (IBM 2780/3780 Emulator); maximum baud rate is 2400.
9
The DESVA is the ThinWire Ethernet controller for the MicroVAX 2000.
10
The DPV11 can only be used in conjunction with the 2780/3780 Emulator.
11
The RRD50/40 is available with controller and drive, and two drives are supported per controller. The RRD50/40 is supported
as a read-only device.
12
The DMV11 is supported using TCP/IP and DECnet over full and half duplex point-to-point DDCMP sync lines. DMC mode is
provided for backwards compatibility.
13
Two controllers are allowed with an expansion cabinet.
14
The MicroVAX 3300 and MicroVAX 3400 provide, by default, a DSSI Bus Interface for RF disk support, or by the KFQSA
controller and Ethernet interface DELQA/DESQA, by default, which are supported by ULTRIX device drivers.
15
The RD53 can be used as a system disk only if a second disk of equal or greater size is available on the system.
16
Two drives (RZ23L) are required for system disks for a standalone system.
17
DEClaser support is equivalent to that which is available for the LN03, LN03R, and LN03S printers.
18
Accepts TK50 distribution media.
23
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
MicroVAX 3500
VAXserver 3500
MicroVAX 3600
VAXserver 3600
VAXserver 3602
MicroVAX 3800
VAXserver 3800
MicroVAX 3900
VAXserver 3900
Disk Drives
7 Maximum
7 Maximum
7 Maximum
7 Maximum
Controller
1 RQDX3
1 RQDX3
1 KDA508
1 KDA508
1 KDA508
1 KDA508
1 KFQSA
1 KFQSA
1 KFQSA
1 KFQSA
1 KRQ40
1 KRQ40
1 KRQ40
1 KRQ50
1 KRQ50
1 KRQ5010
RA60
RA60
RA60
RA70
RA70
RA70
RA70
RA71
RA71
RA71
RA71
RA72
RA72
RA72
RA72
RA73
RA73
RA73
RA73
RA80
RA80
RA80
RA81
RA81
RA81
RA82
RA82
RA82
RA90
RA90
RA90
Processor
1 KRQ50
Drives
1 RQDX3
RA92
RA92
RA92
RD51D
RD52D
RD53D;3
RD544;9
RD51D
RD52D
RD53D;3
RD544;9
RD51D
RD52D
RD53D;3
RD544;9
RD51D
RD52D
RD53D;3
RD544;9
RF30
RF30
RF30
RF30
RF31
RF31
RF31
RF31
RF71
RF71
RF71
RF71
RF72
RF72
RF72
RF72
RRD40D;7
RRD40D;7
RRD40D;7
RRD40D;7
RRD50D;7
RRD50D;7
RRD50D;7
RRD50D;7
Magnetic Tapes
4 Maximum
4 Maximum
4 Maximum
4 Maximum
Controller
TQK50L;12
TQK50L;12
TQK50L;12
TQK50L;12
TQK70L;12
TQK70L;12
TQK70L;12
TQK70L;12
KLESI-Q
KLESI-Q
KLESI-Q
KLESI-Q
TSV05
TSV05
TSV05
TSV05
RV20
RV20
RV20
RV20
Drives
L;12
L;12
L;12
TK50L;12
TK50
TK50
TK50
TK70L;12
TK70L;12
TK70L;12
TK70L;12
TS05
TS05
TS05
TS05
TU81E
TU81E
TU81E
TU81E
Communication
CXA16
CXA16
CXA16
CXA16
Devices
CXB16
CXB16
CXB16
CXB16
CXF32
24
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
MicroVAX 3500
VAXserver 3500
MicroVAX 3600
VAXserver 3600
VAXserver 3602
MicroVAX 3800
VAXserver 3800
MicroVAX 3900
VAXserver 3900
CXY08
CXY08
CXY08
CXY08
DELQA/DESQA
DELQA/DESQA
DELQA/DESQA
DELQA/DESQA
DPV116
DPV116
DPV116
DPV116
DZQ112
DZQ112
DZQ112
DZQ112
DFA01
DFA01
DFA01
DFA01
DF02
DF02
DF02
DF02
DF03
DF03
DF03
DF03
DF112
DF112
DF112
DF112
DF1265
DF1265
DF1265
DF1265
DF212
DF212
DF212
DF212
DF224
DF224
DF224
DF224
DF242
DF242
DF242
DF242
DF296
DF296
DF296
DF296
Micom Micro
Micom Micro
Micom Micro
Micom Micro
800/X.25
800/X.25
800/X.25
800/X.25
Line Printers
1 Maximum
1 Maximum
1 Maximum
1 Maximum
Controller
LPV11
LPV11
LPV11
LPV11
Processor
Modem/Pad
Devices
Printers
Serial Printers
LPV16
LPV16
LPV16
LPV16
LG01
LG01
LG01
LG01
LG02
LG02
LG02
LG02
LP27
LP27
LP27
LP27
LPS20
LPS40
LPS20
LPS40
LPS20
LPS40
LPS20
LPS40
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LCG01
LCG01
LCG01
LCG01
LG02
LG02
LG02
LG02
LG31
LG31
LG31
LG31
LJ250
LJ250
LJ250
LJ250
LN03
LN03R
LN03S
LN03
LN03R
LN03S
LN03
LN03R
LN03S
LN03
LN03R
LN03S
25
The ULTRIX Operating System, Version 4.5
MicroVAX 3500
VAXserver 3500
MicroVAX 3600
VAXserver 3600
VAXserver 3602
MicroVAX 3800
VAXserver 3800
MicroVAX 3900
VAXserver 3900
LQP02
LQP03
LQP02
LQP03
LQP02
LQP03
LQP02
LQP03
Processor
Asynchronous
Terminals
SPD 26.40.32
LVP16
LVP16
LVP16
LVP16
DEClaser 1100
/1150 11
DEClaser 1100
/1150 11
DEClaser 1100
/1150 11
DEClaser
1100/1150
11
DEClaser 2100
/2150 11
DEClaser 2100
/2150 11
DEClaser 2100
/2150 11
DEClaser
2100/2150
11
DEClaser 2200
/2250 11
DEClaser 2200
/2250 11
DEClaser 2200
/2250 11
DEClaser
2200/2250
11
DEClaser 3200
/3250 11
DEClaser 3200
/3250 11
DEClaser 3200
/3250 11
DEClaser
3200/3250
11
VT100 Series
VT100 Series
VT100 Series
VT100 Series
VT200 Series
VT200 Series
VT200 Series
VT200 Series
VT300 Series
VT300 Series
VT300 Series
VT300 Series
VT420
VT420
VT420
VT420
DECmate II/III
DECmate II/III
DECmate II/III
DECmate II/III
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
PRO 350/380
PRO 350/380
PRO 350/380
PRO 350/380
VAXmate
VAXmate
VAXmate
VAXmate
Notes:
1
Letter D = Data device only.
Letter L = Valid ULTRIX load device.
2
DZV11 and DZQ11 are supported only up to 9600 baud. This also applies to the MicroVAX 2000 serial asynchronous lines.
3
The RD53 requires an RQDX2 or RQDX3 controller.
4
The RD54 requires an RQDX3 controller at least at Rev Level 2.8.
5
The DF126 can only be used with the DPV11 (IBM 2780/3780 Emulator); maximum baud rate is 2400.
6
The DPV11 can only be used in conjunction with the 2780/3780 Emulator.
7
The RRD50/40 is available with controller and drive, and two drives are supported per controller. The RRD50/40 is supported
as a read-only device.
8
KDA50 for the MicroVAX 3000 systems must be at Rev Level E1 or greater.
9
The MicroVAX 3500 with RD54s is supported as a timesharing system only.
10
Two controllers are allowed with an expansion cabinet.
11
DEClaser support is equivalent to that which is available for the LN03, LN03R, and LN03S printers.
12
Accepts TK50 distribution media.
26
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
Processor
VAX–11/750
VAX–11/780
VAX–11/785
Floating Point
FP750
FP780/785
I/O Adapters
-SBI
1
-UNIBUS
2 DW750
4 DW780
-MASSBUS
2 RH750
4 RH780
-Memory
1 MS750 Controller
2 MS780 Controllers
CI Adapters
1 CI750
1 CI780
Disk Drives
48 Maximum
64 Maximum
UNIBUS Disks
20 Maximum
28 Maximum
Controller
2 UDA505;6
4 UDA505;6
HSC12
HSC12
RL11
RL11
RA60L
RA60L
RA70
RA70
RA71
RA71
RA72
RA72
RA73
RA73
RA80
RA80
RA81
RA81
RA82
RA82
RA90
RA90
RA92
RA92
Drives
D
MASSBUS Disks
RL02
RL02D
32 Maximum
32 Maximum
RM05
RM05
RP07D
RP07D
Magnetic Tapes
4 Maximum
4 Maximum
CI Tapes
TA78
TA78
TA79
TA79
TA81
TA81
27
The ULTRIX Operating System, Version 4.5
Processor
VAX–11/750
Console Tapes
TU584;8
UNIBUS
SPD 26.40.32
VAX–11/780
VAX–11/785
Tapes7
Controller
Tapes
KLESI-U
KLESI-U
TS11
TS11
TSU05
TSU05
RV20
RV20
TS05
TS05
TU80L
TU80L
TU81L
TU81L
TU81EL
TU81EL
TUK50L;14
TUK50L;14
TM03
TM03
MASSBUS Tapes
Controller
Tapes
TM78
TM78
TE16L
TE16L
TU77L
TU77L
TU78L
TU78L
TU79L
TU79L
DELUA11
DELUA11
DEUNA11
DEUNA11
DHU11
DHU11
DMF322
DMF322
DMR113
DMR113
DMZ32
DMZ32
DUP1110
DUP1110
Communication Devices
UNIBUS
Communication
Devices
Modem/Pad
Devices
DZ11
DZ11
DZ32
DZ32
DF02
DF02
DF03
DF03
DF112
DF112
DF1269
DF1269
DF212
DF212
28
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
VAX–11/750
VAX–11/780
VAX–11/785
DF224
DF224
DF242
DF242
DF296
DF296
Micom Micro
Micom Micro
800/X.25
800/X.25
Line Printers
5 Maximum
5 Maximum
Controller
LP11
LP11
LP32
LP32
LG01
LG02
LG01
LG02
LN01
LN01S
LN01
LN01S
LP27
LP29
LP27
LP29
LPS20
LPS40
LPS20
LPS40
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LCG01
LCG01
LG02
LG02
LG31
LG31
LJ250
LJ250
LN03
LN03R
LN03S
LN03
LN03R
LN03S
LQP02
LQP03
LQP02
LQP03
Processor
Printer
Serial Printers
LVP16
DEClaser 1100/115013
DEClaser 2100/215013
DEClaser 2100/215013
DEClaser 2200/225013
DEClaser 2200/225013
DEClaser 3200/325013
DEClaser 3200/325013
VT100 Series
VT100 Series
VT200 Series
VT200 Series
VT300 Series
VT300 Series
DEClaser
Asynchronous
Terminals8
LVP16
1100/115013
29
The ULTRIX Operating System, Version 4.5
Processor
SPD 26.40.32
VAX–11/750
VAX–11/780
VAX–11/785
VT420
VT420
DECmate II/III
DECmate II/III
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
PRO 350/380
PRO 350/380
VAXmate
VAXmate
Notes:
1
Letter D = Data device only.
Letter L = Valid ULTRIX load device.
2
The asynchronous and the general purpose parallel interfaces as a printer port in DMA mode of the DMF32 are supported.
3
The DMR11 is supported using TCP/IP and DECnet over full- and half-duplex point-to-point DDCMP sync lines. DMC mode
is used for backwards compatibility.
4
The TU58 console tape on the VAX–11/750 is supported in single-user mode only.
5
The UDA50 must be at microcode Revision Level 4 or higher.
6
Each UDA50 must be configured on a separate UNIBUS adapter.
7
A maximum of one UNIBUS tape controller per UBA.
8
The TU58-XB must be at minimum Rev K or F2 for the VAX–11/750.
9
The DF126 can only be used with the DUP11 device (IBM 2780/3780 emulation); maximum baud rate 2400.
10
The DUP11 can only be used in conjunction with 2780/3780 terminal emulation.
11
Either one DELUA or one DEUNA controller can be configured on any UNIBUS adapter. LAT and DECnet traffic is restricted
to one Ethernet. Each Ethernet must be connected to a separate network or subnetwork in a routing configuration.
12
The HSC must be running V370 microcode or higher. A maximum of four are supported. HSC40, HSC50, HSC70 and
HSC90 only.
13
DEClaser support is equivalent to that which is available for the LN03, LN03R, and LN03S printers.
14
Accepts TK50 distribution media.
30
The ULTRIX Operating System, Version 4.5
Processor
Floating Point
Unit
DECsystem
DECsystem
DECsystem
DECsystem
Integral
5810
5820
5830
5840
SPD 26.40.32
VAX 6000-210
VAX 6000-220
VAX 6000-230
VAX 6000-240
VAXserver 6000-210
VAXserver 6000-220
VAX 6000-310
VAX 6000-320
VAX 6000-330
VAX 6000-340
VAX 6000-350
VAX 6000-360
VAXserver 6000-310
VAXserver 6000-320
VAX 6000-410
VAX 6000-420
VAX 6000-430
VAX 6000-440
VAX 6000-450
VAX 6000-460
VAXserver 6000-410
VAXserver 6000-420
Integral
Integral
Integral
Vectors
Yes (13)
I/O Adapters
- MIPS VAXCI
1
1
1
2
- VAXBI
4
6
6
6
CIBCA-BA
CIBCA-AA, BA
CIBCA-AA, BA
1 CIBCA-AA, BA
- SBI
- UNIBUS
- MASSBUS
CI Adapters6
1 CIXCD12
Disk Drives
96 Maximum
96 Maximum
96 Maximum
96 Maximum
Controller
KDB50
12 KDB503
12 KDB503
12 KDB503
KDM70
KDM70
KDM70
HSC15
HSC15
HSC15
HSC15
Drives
ESE20D
ESE20D
ESE20D
ESE20D
Drives
D
D
D
ESE56
ESE56
ESE56
ESE56D
RA60
RA60
RA60
RA60
RA70
RA70
RA70
RA70
RA71
RA71
RA71
RA71
RA72
RA72
RA72
RA72
RA73
RA73
RA73
RA73
RA80
RA80
RA80
RA81
RA81
RA81
RA81
RA82
RA82
RA82
RA82
RA90
RA90
RA90
RA90
RA92
RA92
RA92
RA92
Magnetic Tapes
6 Maximum
6 Maximum
6 Maximum
6 Maximum
CI Tapes
TA78
TA78
TA78
TA78
31
The ULTRIX Operating System, Version 4.5
Processor
VAXBI Tapes
SPD 26.40.32
VAX 6000-210
VAX 6000-220
VAX 6000-230
VAX 6000-240
VAXserver 6000-210
VAXserver 6000-220
VAX 6000-310
VAX 6000-320
VAX 6000-330
VAX 6000-340
VAX 6000-350
VAX 6000-360
VAXserver 6000-310
VAXserver 6000-320
VAX 6000-410
VAX 6000-420
VAX 6000-430
VAX 6000-440
VAX 6000-450
VAX 6000-460
VAXserver 6000-410
VAXserver 6000-420
TA79
TA79
TA79
TA79
TA81
TA81
TA81
TA81
TA908;17
TA908;17
TA908;17
TA908;17
TA90E9;17
TA90E9;17
TA90E9;17
TA90E9;17
TA9110;11
TA9110;11
TA9110;11
RV20D
RV20D
RV20D
DECsystem
DECsystem
DECsystem
DECsystem
RV20D
L;16
5810
5820
5830
5840
L;16
L;16
TK70L;16
TK70
TK70
TK70
TU81E
TU81E
TU81E
TU81E
4 Maximum
4 Maximum
4 Maximum
4 Maximum
DEMNA5
DEMNA5
DEMNA5
DEBNI5;7
DEBNI5;7
DEBNI5;7
DEBNA5
DEBNA5
DEBNA5
DMB322
DMB322
DMB322
DMB322
DHB32
DHB32
DHB32
DHB32
Modem/Pad
DF02
DF02
DF02
DF02
Devices
DF03
DF03
DF03
DF03
DF112
DF112
DF112
DF112
DF212
DF212
DF212
DF212
DF224
DF224
DF224
DF224
DF242
DF242
DF242
DF242
Communication
Devices
DEBNI5;7
VAXBI
Communication
Devices
UNIBUS
Communication
Devices
DF296
DF296
DF296
DF296
Micom Micro
Micom Micro
Micom Micro
800/X.25
800/X.25
800/X.25
Line Printers
1 Maximum
5 Maximum
5 Maximum
5 Maximum
Controller
DMB32
DMB32
DMB32
DMB32
LP11
LP32
32
The ULTRIX Operating System, Version 4.5
Processor
Printer
Serial Printers8
Asynchronous
Terminals8
SPD 26.40.32
VAX 6000-210
VAX 6000-220
VAX 6000-230
VAX 6000-240
VAXserver 6000-210
VAXserver 6000-220
VAX 6000-310
VAX 6000-320
VAX 6000-330
VAX 6000-340
VAX 6000-350
VAX 6000-360
VAXserver 6000-310
VAXserver 6000-320
VAX 6000-410
VAX 6000-420
VAX 6000-430
VAX 6000-440
VAX 6000-450
VAX 6000-460
VAXserver 6000-410
VAXserver 6000-420
LG01
LG02
LG01
LG02
LG01
LG02
LG01
LG02
LN01
LN01S
LN01
LN01S
LN01
LN01S
LN01
LN01S
LP27
LP29
LP27
LP29
LP27
LP29
LP27
LP29
LPS20
LPS40
LPS20
LPS40
LPS20
LPS40
LPS20
LPS40
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LCG01
LCG01
LCG01
LCG01
LG02
LG02
LG02
LG02
LG31
LG31
LG31
LG31
LJ250
LJ250
LJ250
LJ250
LN03
LN03R
LN03S
LN03
LN03R
LN03S
LN03
LN03R
LN03S
LN03
LN03R
LN03S
LQP02
LQP03
LQP02
LQP03
LQP02
LQP03
LQP02
LQP03
LVP16
LVP16
LVP16
LVP16
DEClaser 1100/1150
DEClaser 1100/1150
DEClaser 1100/1150
DEClaser 1100/1150
14
14
14
14
DEClaser 2100/2150
DEClaser 2100/2150
DEClaser 2100/2150
DEClaser 2100/2150
14
14
14
14
DEClaser 2200/2250
DEClaser 2200/2250
DEClaser 2200/2250
DEClaser 2200/2250
14
14
14
14
DEClaser 3200/3250
DEClaser 3200/3250
DEClaser 3200/3250
DEClaser 3200/3250
14
14
14
14
VT100 Series
VT100 Series
VT100 Series
VT100 Series
VT200 Series
VT200 Series
VT200 Series
VT200 Series
VT300 Series
VT300 Series
VT300 Series
VT300 Series
VT420
VT420
VT420
VT420
DECmate II/III
DECmate II/III
DECmate II/III
DECmate II/III
DECsystem
DECsystem
DECsystem
DECsystem
5810
5820
5830
5840
33
The ULTRIX Operating System, Version 4.5
Processor
SPD 26.40.32
VAX 6000-210
VAX 6000-220
VAX 6000-230
VAX 6000-240
VAXserver 6000-210
VAXserver 6000-220
VAX 6000-310
VAX 6000-320
VAX 6000-330
VAX 6000-340
VAX 6000-350
VAX 6000-360
VAXserver 6000-310
VAXserver 6000-320
VAX 6000-410
VAX 6000-420
VAX 6000-430
VAX 6000-440
VAX 6000-450
VAX 6000-460
VAXserver 6000-410
VAXserver 6000-420
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
PRO 350/380
PRO 350/380
PRO 350/380
PRO 350/380
VAXmate
VAXmate
VAXmate
VAXmate
DECsystem
DECsystem
DECsystem
DECsystem
5810
5820
5830
5840
Notes:
1
Letter D = Data device only.
Letter L = Valid ULTRIX load device.
2
The asynchronous and the general purpose parallel interfaces as a printer port in DMA mode of the DMB32 are supported.
3
The KDB50 must be at microcode Revision Level K or greater.
4
A maximum of one UNIBUS tape controller per UBA.
5
Either one DELUA or one DEUNA controller can be configured on any UNIBUS adapter. VAX 8700 and VAX 8800 systems
can have two UNIBUS adapters. All other systems are limited to one UNIBUS adapter. The maximum number of Ethernet
adapters includes both BI and UNIBUS devices. LAT and DECnet traffic is restricted to one Ethernet. Each Ethernet must be
connected to a separate network or subnetwork in a routing configuration.
6
A maximum of one CI interface per system is supported.
7
The DEBNI is a high-speed BI-to-Ethernet adapter intended as a replacement for the existing DEBNA. The DEBNI is available
as either a new module or firmware upgrade option to an existing DEBNA.
8
The TA90 must be connected to an HSC running V3.90A or later.
9
The TA90E must be connected to an HSC running V5.0 or later.
10
The TA91 must be connected to an HSC running V4.0 or later.
11
The TA91 is supported in KDM70 Software V3.0.
12
The CIXCD must be at revision 2.2 or higher.
13
Supported configurations are:
VAX 6000-410 with 1 attached vector processor
VAX 6000-420 with 1 attached vector processor
VAX 6000-420 with 2 attached vector processors
14
DEClaser support is equivalent to that which is available for the LN03, LN03R, and LN03S printers.
15
HSC40, HSC50, HSC70, HSC90 only.
16
Accepts TK50 distribution media.
17
Automatic stack loader tape drives are supported only by the dump, restore and cpio system utilities.
34
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
VAX 6000-510
VAX 6000-520
VAX 6000-530
VAX 6000-540
VAX 6000-550
VAX 6000-560
VAXserver 6000-510
VAXserver 6000-520
VAX 8200
VAX 8250
VAX 8300
VAX 8350
Floating Point
Unit
Integral
Integral
Integral
Vectors
Yes (19)
Processor
VAX 850018
VAX 853018
I/O Adapters
- VAXCI
2
1
1
1
- VAXBI
6
1
1
2
1 DWBUA
1 DWBUA
1 DWBUA
- SBI
- UNIBUS
- MASSBUS
CI Adapters
CIBCA-BA12
CIXCD12
CIBCI12
CIBCI12
CIBCA-AA
CIBCA-BA12
CIBCI12
CIBCA-AA
CIBCA-BA12
Disk Drives
96 Maximum
96 Maximum
96 Maximum
96 Maximum
Controller
12 KDB505
4 KDB505
4 KDB505
4 KDB505
HSC21
HSC21
HSC21
HSC21
ESE20D
ESE20D
ESE20D
ESE20D
RA60
RA60
RA60
RA60
RA70
RA70
RA70
RA70
RA71
RA71
RA71
RA71
RA72
RA72
RA72
RA72
RA73
RA73
RA73
RA73
RA80
RA80
RA80
RA80
RA81
RA81
RA81
RA81
RA82
RA82
RA82
RA82
RA90
RA90
RA90
RA90
RA92
RA92
RA92
RA92
4 Maximum
4 Maximum
4 Maximum
UDA506
UDA506
1 UDA50D;6
KDM70
Drives
UNIBUS Disks
Controller
1
Drives
RA60
1
RA60
35
RA60
The ULTRIX Operating System, Version 4.5
Processor
VAX 6000-510
VAX 6000-520
VAX 6000-530
VAX 6000-540
VAX 6000-550
VAX 6000-560
VAXserver 6000-510
VAXserver 6000-520
SPD 26.40.32
VAX 8200
VAX 8250
VAX 8300
VAX 8350
VAX 850018
VAX 853018
RA70
RA70
RA70
RA71
RA71
RA71
RA72
RA72
RA72
RA73
RA73
RA73
RA80
RA80
RA80
RA81
RA81
RA81
RA82
RA82
RA82
RA90
RA90
RA90
RA92
RA92
RA92
Magnetic Tapes
6 Maximum
6 Maximum
6 Maximum
6 Maximum
CI Tapes
TA78
TA78
TA78
TA78
TA79
TA79
TA79
TA79
TA81
TA81
TA81
TA81
TA9014;23
TA9014;23
TA90E15;23
TA90E15;23
TA9116;17
VAXBI Tapes
RV20D
RV20D
RV20D
RV20D
TU81EL
TU81EL
TU81EL
TS11L
TS11L
TS05
TS05
TK70L;22
TU81E
UNIBUS Tapes7
Tapes
L
TU80L
TU81L
TU81L
TU81EL
TU81EL
TUK50
TUK50
4 Maximum
3 Maximum
4 Maximum
4 Maximum
DEBNI11;13
DEBNI11;13
DEBNI11;13
DEBNI11;13
DEBNA11
DEBNA11
DEBNA11
TU80
Communication
Devices
DEMNA11
VAXBI
DEBNA11
36
The ULTRIX Operating System, Version 4.5
Processor
Communication
Devices
SPD 26.40.32
VAX 6000-510
VAX 6000-520
VAX 6000-530
VAX 6000-540
VAX 6000-550
VAX 6000-560
VAXserver 6000-510
VAXserver 6000-520
VAX 8200
VAX 8250
VAX 8300
VAX 8350
VAX 850018
VAX 853018
DMB323
DMB323
DMB323
DMB323
DHB32
DHB32
DHB32
UNIBUS
DHB32
DELUA11
DELUA11
DELUA11
Communication
Devices
DEUNA11
DEUNA11
DEUNA11
DMR114
DMR114
DMR114
DHU11
DHU11
DHU11
DMF322
DMF322
DMF322
DMZ32
DMZ32
DMZ32
DUP1110
DUP1110
DUP1110
DZ11
DZ11
DZ11
DF02
DF02
DF02
DF02
DF03
DF03
DF03
DF03
DF112
DF112
DF112
DF112
DF1269
DF1269
DF1269
DF1269
DF212
DF212
DF212
DF212
DF224
DF224
DF224
DF224
DF242
DF242
DF242
DF242
Modem/Pad
Devices
DF296
DF296
DF296
DF296
Micom Micro
Micom Micro
Micom Micro
Micom Micro
800/X.25
800/X.25
800/X.25
800/X.25
Line Printers
5 Maximum
5 Maximum
5 Maximum
5 Maximum
Controller
DMB32
DMB32
DMB32
DMB32
LP11
LP11
LP11
LP11
LP32
LP32
LP32
LP32
LG01
LG02
LG01
LG02
LG01
LG02
LG01
LG02
LN01
LN01S
LN01
LN01S
LN01
LN01S
LN01
LN01S
LP27
LP29
LP27
LP29
LP27
LP29
LP27
LP29
LPS20
LPS40
LPS20
LPS40
LPS20
LPS40
LPS20
LPS40
Printer
37
The ULTRIX Operating System, Version 4.5
Processor
Serial Printers8
Asynchronous
Terminals8
SPD 26.40.32
VAX 6000-510
VAX 6000-520
VAX 6000-530
VAX 6000-540
VAX 6000-550
VAX 6000-560
VAXserver 6000-510
VAXserver 6000-520
VAX 8200
VAX 8250
VAX 8300
VAX 8350
VAX 850018
VAX 853018
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LCG01
LCG01
LCG01
LCG01
LG02
LG02
LG02
LG02
LG31
LG31
LG31
LG31
LJ250
LJ250
LJ250
LJ250
LN03
LN03R
LN03S
LN03
LN03R
LN03S
LN03
LN03R
LN03S
LN03
LN03R
LN03S
LQP02
LQP03
LQP02
LQP03
LQP02
LQP03
LQP02
LQP03
LVP16
LVP16
LVP16
LVP16
DEClaser
1100/1150
DEClaser 1100
/1150 20
DEClaser 1100/1150
20
20
DEClaser 1100
/1150 20
DEClaser
2100/2150
DEClaser 2100
/2150 20
DEClaser 2100
/2150 20
DEClaser 2100/2150
20
20
DEClaser
2200/2250
DEClaser 2200
/2250 20
DEClaser 2200
/2250 20
DEClaser 2200/2250
20
20
DEClaser
3200/3250
DEClaser 3200
/3250 20
DEClaser 3200
/3250 20
DEClaser 3200/3250
20
20
VT100 Series
VT100 Series
VT100 Series
VT100 Series
VT200 Series
VT200 Series
VT200 Series
VT200 Series
VT300 Series
VT300 Series
VT300 Series
VT300 Series
VT420
VT420
VT420
VT420
DECmate II/III
DECmate II/III
DECmate II/III
DECmate II/III
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
PRO 350/380
PRO 350/380
PRO 350/380
PRO 350/380
VAXmate
VAXmate
VAXmate
VAXmate
Notes:
1
Letter D = Data device only.
Letter L = Valid ULTRIX load device.
2
The asynchronous and the general purpose parallel interfaces as a printer port in DMA mode of the DMF32 are supported.
38
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
3
The asynchronous and the general purpose parallel interfaces as a printer port in DMA mode of the DMB32 are supported.
4
The DMR11 is supported using TCP/IP and DECnet over full- and half-duplex point-to-point DDCMP sync lines. DMC mode
is used for backwards compatibility.
5
The KDB50 must be at microcode Revision Level K or greater.
6
UDA50 must be at microcode Revision Level 4 or greater.
7
A maximum of one UNIBUS tape controller per UBA.
9
The DF126 can only be used with the DUP11 device (IBM 2780/3780 emulation); maximum baud rate 2400.
10
The DUP11 can only be used for 2780/3780 emulation.
11
Either one DELUA or one DEUNA controller can be configured on any UNIBUS adapter. VAX 8700 and VAX 8800 systems
can have two UNIBUS adapters. All other systems are limited to one UNIBUS adapter. The maximum number of Ethernet
adapters includes both BI and UNIBUS devices. LAT and DECnet traffic is restricted to one Ethernet. Each Ethernet must be
connected to a separate network or subnetwork in a routing configuration.
12
A maximum of two CI interfaces per system is supported. Configurations include two CIXCDs on the XMI or one CIXCD on
the XMI and one CIBCA-BA on the VAXBI. The CIXCD must be at revision 2.2.
13
The DEBNI is a high-speed BI-to-Ethernet adapter intended as a replacement for the existing DEBNA. The DEBNI is available
as either a new module or firmware upgrade option to an existing DEBNA.
14
The TA90 must be connected to an HSC running V3.90A or later.
15
The TA90E must be connected to an HSC running V5.0 or later.
16
The TA91 must connect to an HSC running V4.0 or later.
17
The TA91 is supported in KDM70 Software V3.0.
18
Console software for the VAX 8530, VAX 8550, VAX 8700 and VAX 8800 must be at Version 4.0 or greater.
19
Supported configurations are:
VAX 6000-510 with 1 attached vector processor
VAX 6000-520 with 1 attached vector processor
VAX 6000-520 with 2 attached vector processors
20
DEClaser support is equivalent to that which is available for the LN03, LN03R, and LN03S printers.
21
HSC40, HSC50, HSC70, HSC90 only.
22
Accepts TK50 distribution media.
23
Automatic stack loader tape drives are supported only by the dump, restore and cpio system utilities.
39
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
VAX 8700
VAX 8800
VAX 8810
VAX 8820
VAX 8830
VAX 8840
Processor
VAX 855011
VAX 86005;12
VAX 86506
Floating Point
Unit
Integral
FP86
Integral
Integral
Integral
- VAXCI
1
1
1
1
1
- VAXBI
2
4
4
6
2 DWBUA9
2 DWBUA9
I/O Adapters
- SBI
- UNIBUS
1 DB86
1 DWBUA
- MASSBUS
Disk Drives
6 DW780
4 RH780
96 Maximum
96 Maximum
96 Maximum
96 Maximum
96 Maximum
4 KDB507
6 UDA50
8 KDB507
9 KDB507
12 KDB507
RA60
RA60
RA60
RA60
RA60
RA70
RA70
RA70
RA70
RA70
RA71
RA71
RA71
RA71
RA71
RA72
RA72
RA72
RA72
RA72
RA73
RA73
RA73
RA73
RA73
RA80
RA80
RA80
RA80
RA80
RA81
RA81
RA81
RA81
RA81
RA82
RA82
RA82
RA82
RA82
RA90
RA90
RA90
RA90
RA90
RA92
RA92
RA92
RA92
RA92
1 UDA50D;8
8 UDA508;9;10
2 UDA50D;8;9
2 UDA50D;8;9
RA60
RA60
RA60
RA60
RA70
RA70
RA70
RA70
RA71
RA71
RA71
RA71
RA72
RA72
RA72
RA72
RA73
RA73
RA73
RA73
RA80
RA80
RA80
RA80
RA81
RA81
RA81
RA81
RA82
RA82
RA82
RA82
RA90
RA90
RA90
RA90
RA92
RA92
RA92
RA92
VAXBI Disks
Controller
UNIBUS Disks
Controller Drives
MASSBUS Disks
32 Maximum
40
The ULTRIX Operating System, Version 4.5
Processor
VAX 855011
VAX 86005;12
VAX 86506
SPD 26.40.32
VAX 8700
VAX 8800
VAX 8810
VAX 8820
VAX 8830
VAX 8840
RM05
RP07D
Magnetic Tapes
6 Maximum
6 Maximum
6 Maximum
6 Maximum
6 Maximum
CI Adapters
CIBCA-AA
CIBCA-BA
CI780
CIBCI
CIBCA-AA
CIBCA-BA
CIBCI
CIBCA-AA
CIBCA-BA
CIBCI
CIBCA-AA
CIBCA-BA
CI Tapes
TA78
TA78
TA78
TA78
TA78
TA79
TA79
TA79
TA79
TA79
TA81
TA81
TA81
TA81
TA81
TA9018;23
TA9018;23
TA9018;23
TA9018;23
TA9018;23
TA90E19;23
TA90E19;23
TA90E19;23
TA90E19;23
TA90E19;23
TU81EL
TU81EL
TU81EL
TU81EL
RV20
RV20
RV20
RV20
4 Maximum
3 Maximum
DEBNI15;17
DEBNI15;17
VAXBI Tapes
UNIBUS Tapes
Controller
TSU05
Tapes
TS11L
TS05
TU80L
TU81L
TU81EL
TUK50L;22
MASSBUS Tapes
Controller
TM03
TM78
TE16L
Tapes
TU77L
TU78L
TU79L
Communication
Devices13
4 Maximum
VAXBI
Communication
Devices
DEBNI15;17
4 Maximum
41
DEBNI15;17
The ULTRIX Operating System, Version 4.5
Processor
VAX 855011
VAX 86005;12
VAX 86506
DEBNA15
DMB3213
DMB323
DHB32
SPD 26.40.32
VAX 8700
VAX 8800
VAX 8810
VAX 8820
VAX 8830
VAX 8840
DEBNA15
DEBNA15
DEBNA15
DMB323
DMB323
DMB323
DHB32
DHB32
DHB32
DELUA15
DELUA15
DELUA15
DELUA15
DEUNA15
DEUNA15
DEUNA15
DEUNA15
DMR114
DMR114
DMR114
DMR114
DHU11
DHU11
DHU11
DHU11
DMF322
DMF322
DMF322
DMF322
DMZ32
DMZ32
DMZ32
DMZ32
DUP1114
DUP1114
DUP1114
DUP1114
DZ11
DZ11
DZ11
DZ11
DF02
DF02
DF02
DF02
DF02
DF03
DF03
DF03
DF03
DF03
DF112
DF112
DF112
DF112
DF112
DF12613
DF12613
DF12613
DF12613
DF12613
DF212
DF212
DF212
DF212
DF212
DF224
DF224
DF224
DF224
DF224
DF242
DF242
DF242
DF242
DF242
DF296
DF296
DF296
DF296
DF296
Micom Micro
Micom Micro
Micom Micro
Micom Micro
Micom Micro
800/X.25
800/X.25
800/X.25
800/X.25
800/X.25
Line Printers
5 Maximum
5 Maximum
5 Maximum
5 Maximum
5 Maximum
Controller
DMB32
DMB32
DMB32
DMB32
UNIBUS
Communication
Devices
Modem/Pad
Devices
Printer
LP11
LP11
LP11
LP11
LP32
LP32
LP32
LP32
LG01
LG02
LG01
LG02
LG01
LG02
LG01
LG02
LG01
LG02
LN01
LN01S
LN01
LN01S
LN01
LN01S
LN01
LN01S
LN01
LN01S
LP27
LP29
LP27
LP29
LP27
LP29
LP27
LP29
LP27
LP29
LPS20
LPS40
LPS20
LPS40
LPS20
LPS40
LPS20
LPS40
LPS20
LPS40
42
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
VAX 8700
VAX 8800
VAX 8810
VAX 8820
VAX 8830
VAX 8840
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LA36
LA50
LA75
LA100
LA120
LA210
LA324
Processor
VAX 855011
VAX 86005;12
VAX 86506
Serial Printers
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LCG01
LCG01
LCG01
LCG01
LCG01
LG02
LG02
LG02
LG02
LG02
LG31
LG31
LG31
LG31
LG31
LJ250
LJ250
LJ250
LJ250
LJ250
LN03
LN03R
LN03S
LN03
LN03R
LN03S
LN03
LN03R
LN03S
LN03
LN03R
LN03S
LN03
LN03R
LN03S
LQP02
LQP03
LQP02
LQP03
LQP02
LQP03
LQP02
LQP03
LQP02
LQP03
LVP16
LVP16
LVP16
LVP16
LVP16
DEClaser 1100
/1150 20
DEClaser 1100
/1150 20
DEClaser 1100
/1150 20
DEClaser 1100
/1150 20
DEClaser 1100/1150
20
DEClaser 2100
/2150 20
DEClaser 2100
/2150 20
DEClaser 2100
/2150 20
DEClaser 2100
/2150 20
DEClaser 2100/2150
20
DEClaser 2200
/2250 20
DEClaser 2200
/2250 20
DEClaser 2200
/2250 20
DEClaser 2200
/2250 20
DEClaser 2200/2250
20
DEClaser 3200
/3250 20
DEClaser 3200
/3250 20
DEClaser 3200
/3250 20
DEClaser 3200
/3250 20
DEClaser 3200/3250
20
VT100 Series
VT100 Series
VT100 Series
VT100 Series
VT100 Series
VT200 Series
VT200 Series
VT200 Series
VT200 Series
VT200 Series
VT300 Series
VT300 Series
VT300 Series
VT300 Series
VT300 Series
Asynchronous
Terminals
VT420
VT420
VT420
VT420
VT420
DECmate II
DECmate II
DECmate II
DECmate II
DECmate II
DECmate III
DECmate III
DECmate III
DECmate III
DECmate III
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
PRO 350/380
PRO 350/380
PRO 350/380
PRO 350/380
PRO 350/380
VAXmate
VAXmate
VAXmate
VAXmate
VAXmate
Notes:
1
Letter D = Data device only.
Letter L = Valid ULTRIX load device.
2
The asynchronous and the general purpose parallel interfaces as a printer port in DMA mode of the DMF32 are supported.
3
The asynchronous and the general purpose parallel interfaces as a printer port in DMA mode of the DMB32 are supported.
4
The DMR11 is supported using TCP/IP and DECnet over full- and half-duplex point-to-point DDCMP sync lines. DMC mode
is used for backwards compatibility.
43
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
5
The VAX 8600 CPU must be at hardware Revision Level K or greater.
6
The VAX 8650 CPU must be at hardware Revision Level A1 or greater.
7
The KDB50 must be at microcode Revision Level K or greater.
8
UDA50 must be at microcode Revision Level 4 or greater.
9
Each UDA50 must be configured on a different UNIBUS adapter.
10
On the VAX 8600 and VAX 8650, the eighth UDA50 can only be configured on the last UNIBUS adapter.
11
Console software for the VAX 8530, VAX 8550, VAX 8700 and VAX 8800 must be at Version 4.0 or greater.
12
Console software for the VAX 8600 and VAX 8650 must be at Version 2.0 or greater.
13
The DF126 can only be used with the DUP11 device (IBM 2780/3780 emulation); maximum baud rate 2400.
14
The DUP11 can only be used for 2780/3780 emulation.
15
Either one DELUA or one DEUNA controller can be configured on any UNIBUS adapter. VAX 8700 and VAX 8800 systems
can have two UNIBUS adapters. All other systems are limited to one UNIBUS adapter. The maximum number of Ethernet
adapters includes both BI and UNIBUS devices. LAT and DECnet traffic is restricted to one Ethernet. Each Ethernet must be
connected to a separate network or subnetwork in a routing configuration.
17
The DEBNI is a high-speed BI-to-Ethernet adapter intended as a replacement for the existing DEBNA. The DEBNI is available
as either a new module or firmware upgrade option to an existing DEBNA.
18
The TA90 must be connected to an HSC running V3.90A or later.
19
The TA90E must be connected to an HSC running V5.0 or later.
20
DEClaser support is equivalent to that which is available for the LN03, LN03R, and LN03S printers.
21
HSC40, HSC50, HSC70, HSC90 only.
22
Accepts TK50 distribution media.
23
Automatic stack loader tape drives are supported only by the dump, restore and cpio system utilities.
44
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
Processor
VAX 9000-1102
VAX 9000-210
VAX 9000-410
(single XMI)
VAX 9000-3102
VAX 9000-410
(2 XMIs)
VAX 9000-320
VAX 9000-420
Floating Point
Integral
Integral
Integral
Vectors
Yes (16)
Yes (16)
Yes (16)
- VAXCI
4
4
4
- VAXBI
6
6
6
CI Adapters12
CIXCD12
CIXCD12
CIXCD12
Disk Drives
96 Maximum
96 Maximum
96 Maximum
Controller
12 KDB503
12 KDB503
12 KDB503
HSC11
HSC11
HSC11
KDM7015
KDM7015
KDM7015
ESE20D
ESE20D
ESE20
RA60
RA60
RA60
RA70
RA70
RA70
RA71
RA71
RA71
RA72
RA72
RA72
RA73
RA73
RA73
RA80
RA80
RA80
RA81
RA81
RA81
RA82
RA82
RA82
RA90
RA90
RA90
RA92
RA92
RA92
Magnetic Tapes
6 Maximum
6 Maximum
6 Maximum
CI Tapes
TA78
TA78
TA78
TA79
TA79
TA79
I/O Adapters
Drives
VAXBI Tapes
D
TA81
TA81
TA81
TA906;19
TA906;19
TA906;19
TA90E4;19
TA90E4;19
TA90E4;19
TA9113;14
TA9113;14
TA9113;14
RV20
D
RV20
TU81E
TK70
D
TU81E
L;18
TK70
45
L;18
RV20
D
TU81E
TK70
L;18
2
The ULTRIX Operating System, Version 4.5
Processor
Communication
Devices
Modem/Pad
Devices
SPD 26.40.32
VAX 9000-1102
VAX 9000-210
VAX 9000-410
(single XMI)
VAX 9000-3102
VAX 9000-410
(2 XMIs)
VAX 9000-320
VAX 9000-420
4 Maximum
4 Maximum
4 Maximum
DEMNA
DEMNA
DEMNA
DEBNI5
DEBNI5
DEBNI5
DEBNA
DEBNA
DEBNA
DMB329
DMB329
DMB329
DHB32
DHB32
DHB32
DF02
DF02
DF02
DF03
DF03
DF03
DF112
DF112
DF112
DF212
DF212
DF212
DF224
DF224
DF224
DF242
DF242
DF242
DF296
DF296
DF296
Micom Micro
Micom Micro
Micom Micro
800/X.25
800/X.25
800/X.25
Line Printers
5 Maximum
5 Maximum
5 Maximum
Controller
DMB32
DMB32
DMB32
LP11
LP11
LP11
LP32
LP32
LP32
LG01
LG02
LG01
LG02
LG01
LG02
LN01
LN01S
LN01
LN01S
LN01
LN01S
LP27
LP29
LP27
LP29
LP27
LP29
LPS20
LPS40
LPS20
LPS40
LPS20
LPS40
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LA36
LA50
LA75
LA100
LA120
LA210
LA324
LCG01
LCG01
LCG01
LG02
LG02
LG02
Serial Printers
46
2
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
VAX 9000-1102
VAX 9000-210
VAX 9000-410
(single XMI)
VAX 9000-3102
VAX 9000-410
(2 XMIs)
VAX 9000-320
VAX 9000-420
LG31
LG31
LG31
LJ250
LJ250
LJ250
LN03
LN03R
LN03S
LN03
LN03R
LN03S
LN03
LN03R
LN03S
LQP02
LQP03
LQP02
LQP03
LQP02
LQP03
LVP16
LVP16
LVP16
DEClaser 1100
/1150 17
DEClaser 1100
/1150 17
DEClaser 1100/1150
17
DEClaser 2100
/2150 17
DEClaser 2100
/2150 17
DEClaser 2100/2150
17
DEClaser 2200
/2250 17
DEClaser 2200
/2250 17
DEClaser 2200/2250
17
DEClaser 3200
/3250 17
DEClaser 3200
/3250 17
DEClaser 3200/3250
17
Asynchronous
VT100 Series
VT100 Series
VT100 Series
Terminals
VT200 Series
VT200 Series
VT200 Series
VT300 Series
VT300 Series
VT300 Series
VT420
VT420
VT420
Processor
DECmate II/III
DECmate II/III
DECmate II/III
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
Rainbow 100B
Rainbow 100+
Rainbow 190
PRO 350/380
PRO 350/380
PRO 350/80
VAXmate
VAXmate
VAXmate
2
Notes:
1
Letter D = Data device only.
Letter L = Valid ULTRIX load device.
2
The VAX 9000 CPU must be at hardware Revision Level K or greater.
3
The KDB50 must be at microcode Revision Level K or greater.
5
The DEBNI is a high-speed BI-to-Ethernet adapter intended as a replacement for the existing DEBNA.
6
The TA90 must be connected to an HSC running V3.90A or later.
7
The TA90E must be connected to an HSC running V5.0 or later.
9
The asynchronous and general purpose parallel interfaces as a printer port in DMA mode of the DMB32 are supported.
11
Four HSCs per CI star couplers are supported.
12
Supported configurations are four CIXCDs on one XMI or two CIXCDs on each of the two XMIs. The CIXCD must be at
revision 2.2
13
The TA91 must be connected to an HSC running V4.0 or later.
14
The TA91 is supported in KDM70 Software V3.0.
15
A maximum of three KDM70s is supported on one XMI system. For a dual XMI system, the supported configuration is two
KDM70s on one XMI, and three KDM70s on the second XMI.
47
The ULTRIX Operating System, Version 4.5
16
SPD 26.40.32
Supported configurations are:
VAX 9000-110 with 1 attached vector processor
VAX 9000-210 with 1 attached vector processor
VAX 9000-310 with 1 attached vector processor
VAX 9000-320 with 1 attached vector processor
VAX 9000-320 with 2 attached vector processors
VAX 9000-410 with 1 attached vector processor
VAX 9000-420 with 1 attached vector processor
VAX 9000-420 with 2 attached vector processors
17
DEClaser support is equivalent to that which is available for the LN03, LN03R, and LN03S printers.
18
Accepts TK50 distribution media.
19
Automatic stack loader tape drives are supported only by the dump, restore and cpio system utilities.
48
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
PACKAGING
SOFTWARE OPTIONS
• For VAX Systems:
• Supported Subsets
The definition of mandatory and optional subsets can be
found in the Guide to Installing ULTRIX. Subsets with
names that begin with UDT (ULTRIX RISC) and ULT
(ULTRIX VAX) contain supported components.
• Unsupported Subsets
QL-VEYA*-**
VAX Software Licenses
QA-VEYA*-H*
VAX Software Media
QL-0BJA9-BA
VAX Software Licenses for Encryption
QA-0BJAA-H*
VAX Software Media for Encryption
QB-0JQAA-E*
VAX Software License/Media for
Sources
• For RISC Systems:
QL-VYVA*-**
In addition to the supported components of ULTRIX, Digital provides components provided by 4.2BSD on an as
is basis. This software is not warranted by Digital and
no Software Performance Reports will be acknowledged
or answered on any component of these subsets. Support service cannot be purchased for this software. The
unsupported component software is provided on a separate distribution media, with the exception of the RA60
distribution and CDROM distribution, in which case the
unsupported subset is contained in a separate partition on the disk. Subsets with names that begin with
UDX (ULTRIX RISC) and ULX (ULTRIX VAX) are unsupported components.
RISC Software Licenses
QA-VYVAA*-H*
RISC Software Media
QA-YSJAA-H*
RISC Software Media for DEC C
QA-YSJAA-GZ
RISC Software Documentation for
DEC C
QA-UP2AA-H5
RISC Software Media and Documentation for DEC LMF License Usage
Monitor for ULTRIX
QT-VYVA*-**
RISC Software Services
QL-VV3A8-BA
RISC Software Licenses for Encryption
QA-VV3AA-H*
RISC Software Media for Encryption
Note: * denotes variant fields. For additional information
on available licenses, services, and media, refer to the
appropriate price book.
• Optional Encryption Software
The option to include cryptographic software for the
ULTRIX product is provided in binary format. This code
permits the encryption and decryption of the contents of
user files.
The above information is valid at time of release. Please
contact your local Digital office for the most up-to-date
information.
DOCUMENTATION
Note: This software is not included in the base operating system because of U.S. State Department
regulations regarding the shipment of cryptographic
code outside the United States and Canada. Refer
to the SOFTWARE OPTIONS section for ordering information.
• ULTRIX RISC/VAX Full Documentation Kit —
QA-VEYAA-GZ
The ULTRIX Full Documentation Kit contains documents
describing the VAX and RISC operating systems. The
ULTRIX Full Documentation Kit is divided into three
subkits. The three kit division addresses the needs of
three different audiences. Each subkit is orderable separately.
PREREQUISITE SOFTWARE
QA-VEYAB-GZ — Software Developers
QA-VEYAD-GZ — General Users
QA-VEYAE-GZ — System Administrators
None.
• Software Development Tools Documentation Kit: —
QA-VEYAB-GZ
INSTALLATION
This kit, designed for software developers and programmers contains three subkits. Each subkit is orderable
separately.
ULTRIX is classified as Customer Installed; however,
Installation Services are available for those customers
who desire installation of the software product by an
experienced Digital Software Specialist.
QA-VEYAC-GZ — Supplementary Documents Kit
QA-VEYAG-GZ — Software Development Kit
49
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
QA-VEYAH-GZ — CDA Documentation Kit
A UWS Server License is required to run an X application from a host system such as a timesharing
VAX, VAXserver or DECsystem. Please refer to SPD
28.22.xx for ordering information.
• General Information Kit: — QA-VEYAD-GZ
This kit contains introductory and advanced user information, and one separately orderable subkit:
LICENSE MANAGEMENT
QA-VEYAF-GZ — ULTRIX Release Notes Kit
• System and Network Management Documentation
Kit — QA-VEYAE-GZ
• License Management Facility (LMF)
ULTRIX supports Digital’s License Management Facility
(LMF), which is a component of the overall Digital Distributed Software Licensing Architecture (DDSLA). The
LMF provides on-line checking of software licenses and
enables easier software management. The facility incorporates support for two types of licenses, availability
and activity. The first version of LMF in ULTRIX V4.0 is
limited to single node capability.
This kit contains manuals that describe how to configure
systems, maintain disks, and set up and use system
administration tools.
SOFTWARE LICENSING
This software is furnished under the licensing provisions
of Digital Equipment Corporation’s Standard Terms and
Conditions. For more information about Digital’s licensing terms and policies, contact your local Digital office.
• DEC LMF License Usage Monitor for ULTRIX
DEC LMF License Usage Monitor for ULTRIX Version
1.0 is a license management tool that complements
the ULTRIX License Management Facility (LMF) Version 1.0.
You must have a separate license for each CPU on
which you will be using the software product (except as
otherwise specified by Digital). Each CPU must first be
licensed regardless of whether the software distribution
is installed from a local load device or from a remote
ULTRIX system via an Ethernet network.
It is for system managers that want an application designed to assign names to RISC ULTRIX Personal Use
Licensed products and to monitor the usage of those
licenses. Please refer to SPD 41.68.xx for more information.
The right to use DEC LMF License Usage Monitor for
ULTRIX is included with the ULTRIX Operating System
License. The binaries and documentation are not included in the operating system media and must be ordered as a separate media and documentation package.
Refer to the SOFTWARE OPTIONS section for ordering
information.
LICENSE OPTIONS
• Extending User Login Limitation
To increase the login user limit beyond the base system
initial limit of two users, you must purchase the appropriate capacity license. The capacity limits as depicted
by the various options do not necessarily reflect system
performance. The capacity licenses are a legal requirement.
SOFTWARE PRODUCT SERVICES
The option to entend the initial two-user login limit is provided through LMF Product Authorization Keys (PAKS).
A variety of service options are available from Digital.
For more information, please contact your local Digital
office.
The ability of a system to support the licensed number
of users will depend in part upon the hardware configuration of the system and the user application. (Refer
to the SOFTWARE OPTIONS section for ordering information.)
SOURCE MATERIALS OPTIONS
• Source Code Distribution
An ULTRIX source kit is available for users who wish to
retrieve and modify selected source modules. Although
every attempt is made to include accurate source modules, Digital does not warrant the ability to build a binary
kit. Limited supporting documentation is provided. Digital does not warrant the results of using the source kit
to change selected portions of the system.
• Encryption License Option
To use the DES cryptographic software, you must purchase the appropriate encryption license. This license
provides the legal ability to run the encryption and decryption algorithms on the system. U.S. State Department regulations govern the shipment of the cryptographic code outside the United States and Canada.
Customers who are already licensed by AT&T® may
obtain optional source material for this software product.
• UWS Server License Option
50
The ULTRIX Operating System, Version 4.5
SPD 26.40.32
Most users do not require source materials. Sources
are used primarily by users with an in-depth knowledge
of operating system internals to make highly specialized
modifications to the software product.
display product whether in a DECwindows/X Windows™ environment or otherwise.
• The number of interactive terminals supported on a
CPU system by this software product must not exceed the User Capacity for which the system is licensed.
The following minimum conditions must be satisfied
prior to each and every distribution (initial distribution
or revision) of source materials:
• REVERSE COMPILATION AND/OR DISASSEMBLY
OF THIS SOFTWARE PRODUCT IS STRICTLY
PROHIBITED.
— Users must be currently licensed by AT&T Technologies, Inc., to use UNIX® source code on the
CPU for which source materials are to be ordered.
AT&T must verify that the license with AT&T and
Digital’s license with AT&T is valid for UNIX System V, (Release 2.0 or later).
• The UNIX trademark may not be used as or in the
name of any customer product. Any use of the trademark in advertising, publicity, packaging, labeling or
otherwise must state that UNIX is a registered trademark of UNIX Systems Laboratories, Inc. in the U.S.
and other countries.
— Users must have signed Digital’s Software Program Sources License Agreement for the facility
or site where the CPU is located.
• Proper credit and recognition for both Digital and
non-Digital contributions to this software product
must be maintained. Any copies of the software
product (or portions thereof) and any related documentation must include any copyright notices, proprietary notices, and acknowledgments on or in the
software product and its documentation.
Source kits provided by Digital do not necessarily contain all source files used by Digital to build object code
kits. Digital provides these source kits on a referenceonly basis. Digital does not provide support for source
code as part of the standard SPS offerings. These
sources are distributed on an as is basis.
• Source License and Sources Distribution Option
Note: The ULTRIX license also licenses ‘‘executable
only’’ images created with the System Building Utility in
VAX/LISP ULTRIX.
This option provides users with a source license and the
machine-readable source code for this software product. Subject to the terms and conditions of the UNIX
source license from AT&T, it gives users the right to use
this source code on any CPU at the facility/location (as
specified in the above mentioned agreements with Digital) which has a Single-Use License for the object code.
For academic use only in educational accounts, SingleUse ULTRIX Licenses are offered in a special, discounted educational form.
• Source Update Distribution Option
SOFTWARE WARRANTY
This option provides users with the machine-readable
source code for a revised version of this software product. Subject to the terms and conditions of your UNIX
source license from AT&T, it gives users the right to
use this revised source code on any CPU at the facility
/location (as specified in the above mentioned agreements with Digital) which has a Single-Use License for
the object code, and is also listed on the Sources License for this product.
Warranty for this software product is provided by Digital
with the purchase of a license for the product as defined
in the Software Warranty Addendum of this SPD.
The following are trademarks of Digital Equipment Corporation:
The DIGITAL Logo
CDA
DDIF
DECmate
LA
MASSBUS
PDP
ReGIS
ThinWire
UNIBUS
VAXBI
VAXstation
VAX FORTRAN
RX
RRD50
KDA
LEGAL CONSIDERATIONS
This software is distributed by Digital under licenses
granted to Digital by other entities. Those licenses impose the following conditions on the use of this software:
• The Operating System User License provides the
customer with the right to use the operating system
up to the limit of users specified in the license. An
Operating System User is a person who is logged
onto the system and is using the system interactively.
Interactive use of the operating system includes the
display of information upon any video or hardcopy
51
CI
DEC
DECsystem
LAT
MicroVAX
PrintServer
Rdb/VMS
ULTRIX
VAX
VAXmate
VMS
VAX C
RRD42
KRQ50
RQDX3
The ULTRIX Operating System, Version 4.5
RQDX2
UDA
TK
DECthreads
DNA
DECwindows
DDCMP
TQK50
TU
RV20
DEQNA
LP27
LA324
LQP02
VT100
VT420
RX33
TURBOchannel
MS780
RP
TM03
TE
DEUNA
DHB32
®
SPD 26.40.32
RQDX1
RL
Bookreader
DECnet
DTIF
RA
DECstation
KLESI
TS05
TS
LVP16
LA50
LN03
DEClaser
VT300
DECmate
DESTA
MS750
RM
TA
TM78
DELUA
HSC
VAX LISP
®
®
AT&T is a registered trademark of American Telephone
& Telegraph Company.
52
UNIX is a registered trademark of UNIX System Laboratories, Inc.
IBM is a registered trademark of International Business
Machines, Inc.
®
FTP is a registered trademark of Schere Laboratories,
Inc.
®
Apollo is a registered trademark of Apollo Computer, Inc.
®
NCS is a registered trademark of National Computer
Systems, Inc.
®
PostScript is a registered trademark of Adobe Systems,
Inc.
®
NFS is a registered trademark of Sun Microsystems, Inc.
™
Sun Microsystems, Sun, and SunOS are trademarks of
Sun Microsystems, Inc.
™
Windows is a trademark of Microsoft Corporation.
™
BSD is a trademark of Uunet Technologies.
™
X/Open is a trademark of X/Open Company Limited.
™
System V is a trademark of American Telephone &
Telegraph Company.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
