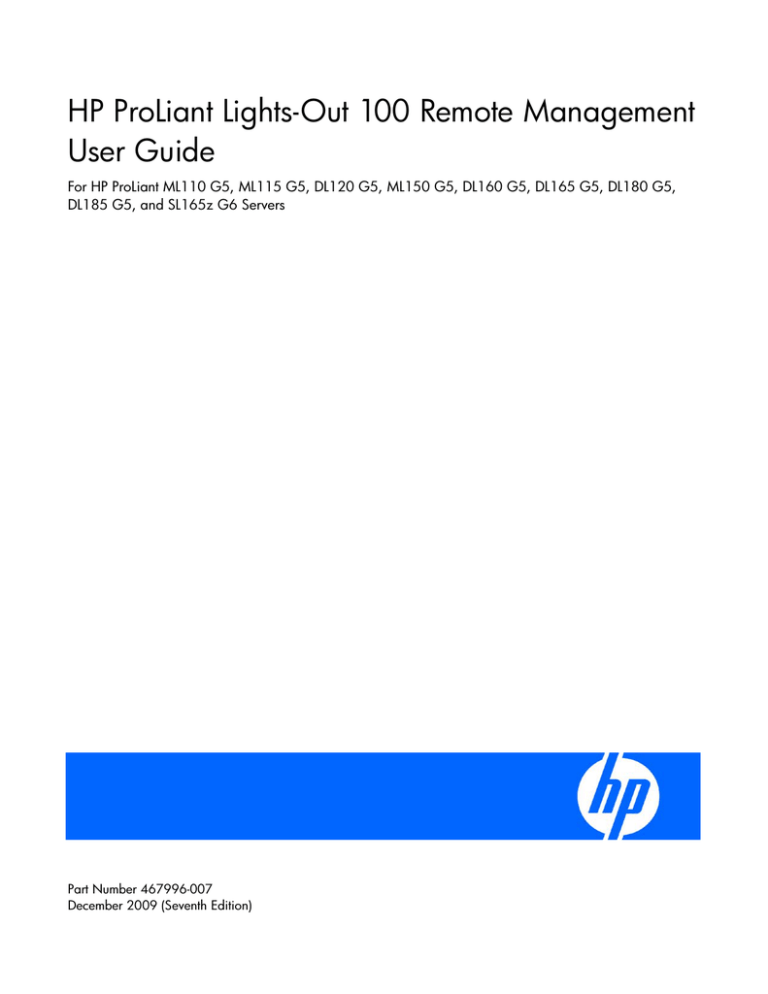

HP ProLiant Lights-Out 100 Remote Management
User Guide
For HP ProLiant ML110 G5, ML115 G5, DL120 G5, ML150 G5, DL160 G5, DL165 G5, DL180 G5,
DL185 G5, and SL165z G6 Servers
Part Number 467996-007
December 2009 (Seventh Edition)
© Copyright 2007, 2009 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP
shall not be liable for technical or editorial errors or omissions contained herein.
Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with FAR 12.211 and 12.212,
Commercial Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S.
Government under vendor’s standard commercial license.
Microsoft, Windows, and Windows Server are U.S. registered trademarks of Microsoft Corporation. Java is a US trademark of Sun
Microsystems, Inc.
Intended audience
This document is for the person who installs, administers, and troubleshoots servers and storage systems.
HP assumes you are qualified in the servicing of computer equipment and trained in recognizing hazards
in products with hazardous energy levels.
Contents
Operational overview ................................................................................................................... 5
Overview .................................................................................................................................................... 5
New features ............................................................................................................................................... 5
Server management...................................................................................................................................... 5
Server management features ......................................................................................................................... 5
LO100 standard features .................................................................................................................... 6
LO100 optional features ..................................................................................................................... 6
Installation of the HP Lights-Out 100c Remote Management Card ....................................................... 8
Remote management card kit contents ............................................................................................................ 8
Preinstallation procedures ............................................................................................................................. 8
Installing the remote management card .......................................................................................................... 9
Post-installation procedures............................................................................................................................ 9
Configuration ............................................................................................................................. 10
Configuring network access ........................................................................................................................ 10
Configuring user accounts ........................................................................................................................... 10
Accessing BIOS Setup Utility and using function keys ..................................................................................... 11
Using the serial port ................................................................................................................................... 11
Enabling serial access to LO100 ....................................................................................................... 11
Configuring LO100 serial port........................................................................................................... 12
Using TCP/IP over Ethernet management port ............................................................................................... 12
Selecting a shared Ethernet management port ..................................................................................... 12
Obtaining a DHCP IP address from the BIOS Setup Utility .................................................................... 13
Using the DNS naming feature .......................................................................................................... 14
Setting up a static IP address from the BIOS Setup Utility ...................................................................... 14
Enabling telnet and HTTP services ...................................................................................................... 15
TCP and UDP port numbers used by LO100 ........................................................................................ 16
Updating the firmware ................................................................................................................................ 16
Remotely updating the firmware......................................................................................................... 16
Using LO100 ............................................................................................................................. 19
Using SSL .................................................................................................................................................. 19
Using SSH ................................................................................................................................................. 19
Using the SSH utility ......................................................................................................................... 19
Using the PuTTY utility ....................................................................................................................... 20
Using the OpenSSH utility ................................................................................................................. 20
Using CLP.................................................................................................................................................. 20
CLP syntax ....................................................................................................................................... 21
Base commands ............................................................................................................................... 22
Specific commands .......................................................................................................................... 25
IPMI 2.0 support ........................................................................................................................................ 26
Logging in to LO100 .................................................................................................................................. 26
Logging in through a web browser..................................................................................................... 26
Logging in through the CLP................................................................................................................ 27
Browser main menu options ........................................................................................................................ 27
Controlling server power remotely................................................................................................................ 28
Controlling server power from a browser ............................................................................................ 28
Controlling server power through the CLP ........................................................................................... 29
Monitoring sensors ..................................................................................................................................... 29
Viewing sensors data from a web browser ......................................................................................... 30
Viewing sensor data from the BIOS Setup Utility .................................................................................. 30
Platform event filtering configuration................................................................................................... 31
Platform event trap configuration ....................................................................................................... 32
Using Virtual KVM ...................................................................................................................................... 33
Using the remote graphic console ...................................................................................................... 34
Using the system event log ................................................................................................................ 37
System buttons ................................................................................................................................. 39
Using Virtual Media ......................................................................................................................... 39
Accessing the remote console through telnet.................................................................................................. 41
Redirecting BIOS console text through telnet........................................................................................ 42
Redirecting a Linux console ............................................................................................................... 44
Microsoft Windows EMS management ............................................................................................... 46
Hardware Inventory page ........................................................................................................................... 49
User administration .................................................................................................................................... 49
Changing user settings through a web browser ................................................................................... 50
Changing user settings through the CLP .............................................................................................. 50
Network settings ........................................................................................................................................ 51
Configuring network settings using a web browser .............................................................................. 52
Configuring network settings using the CLP ......................................................................................... 53
Configuring network settings using the BIOS Setup Utility ..................................................................... 53
Applying a license key ............................................................................................................................... 55
Importing a certificate ................................................................................................................................. 56
Creating a certificate ........................................................................................................................ 56
Installing a certificate or private key through a web browser................................................................. 57
Installing a certificate or private key through the CLP ............................................................................ 58
Installing firmware through a web browser ......................................................................................... 59
HP SIM support .......................................................................................................................................... 59
Resolving character and line feed issues ....................................................................................................... 59
Technical support ........................................................................................................................ 62
Software technical support and update service .............................................................................................. 62
HP contact information ................................................................................................................................ 62
Before you contact HP ................................................................................................................................ 62
Acronyms and abbreviations ........................................................................................................ 64
Index ......................................................................................................................................... 67
Operational overview
Overview
This guide explains the standard and optional operational features of the Lights-Out 100 available for the
following HP ProLiant server models:
•
ML110 G5 server
•
ML115 G5 server
•
DL120 G5 server
•
ML150 G5 server
•
DL160 G5 server
•
DL165 G5 server
•
DL180 G5 server
•
DL185 G5 server
•
SL165z G6 server
New features
This release of LO100 adds support for HP ProLiant SL165z G6 Server.
Server management
HP ProLiant Lights-Out 100 delivers basic remote control of vital server resources, supports IPMI 2.0, and
provides system administrators with access to the server at any time, even before an operating system is
installed on the server.
HP ProLiant Lights-Out 100 provides text mode console redirection, DMTF SMASH compliant command
line interface, and browser access to many of the same system management functions. You can access
LO100 through a dedicated Ethernet port or through the server serial port.
Server management features
With HP ProLiant Lights-Out 100, you can perform the following tasks:
•
Access a remote graphic console (Virtual KVM)
•
Access the serial console of the host operating system over the network using standards-based client
utilities
•
Switch between serial console redirection or the LO100 command line interface
•
Communicate securely using SSL and SSH
Operational overview 5
•
Remotely control the power button of the server (power on and off the server), or perform warm or
cold server reboots
•
Remotely monitor fan speed and system power state (S0 or S5)
•
Access the system event log
•
Access virtual media
•
Configure TCP/IP settings for the LO100 NIC
•
Control user access
•
Discover, identify, and launch LO100 from HP SIM
•
Access LO100 and server controls using a standard browser or new industry-standard SMASH CLP
command line interface
•
Access command line help
•
Manage the server with IPMI 2.0 compliant applications
•
Access telnet
Not all of the features displayed and described in the guide are available on all systems. To verify which
features are supported on your system, see "LO100 standard features (on page 6)" and "LO100 optional
features (on page 6)" for more information.
LO100 standard features
For HP ProLiant ML110 G5, DL120 G5, ML115 G5, ML150 G5, and DL180 G5 servers, LO100
standard features include in-band IPMI 2.0 elements available through the operating system.
For DL160 G5, DL165 G5, and DL185 G5 servers, LO100 standard features include:
•
In-band IPMI 2.0 elements available through the operating system
•
Web browser access (HTTP) to power control, system event log, hardware status, and license key
activation of optional features
•
SMASH CLP interface access to remote power control, system event log, hardware status, and
operating system serial console
This version of LO100 does not support DNS naming in G5 firmware through a shared NIC.
LO100 optional features
For HP ProLiant ML110 G5, ML115 G5, DL120 G5, ML150 G5, and DL180 G5 servers, LO100
optional features are activated with installation of the HP Lights-Out 100c Remote Management Card and
include the following:
•
Support for SSL, SSH, and IPMI 2.0 security with factory-default self-signed certificates and keys
•
Support for imported certificates
•
Virtual media access
•
Remote graphic console (Virtual KVM) access
For HP ProLiant DL160 G5, DL165 G5, and DL185 G5 servers, LO100 optional features are activated
with the purchase of an optional features package. The following features packages are available:
Operational overview 6
•
•
The Lights-Out 100i Select Pack includes:
o
Support for SSL, SSH, and IPMI 2.0 security with factory-default self-signed certificates and keys
o
Support for imported certificates
o
Virtual media access (available when using the dedicated LO100 NIC)
The Lights-Out 100i Advanced Pack includes:
o
All features in the Lights-Out 100i Select Pack
o
Virtual KVM (available when using the dedicated LO100 NIC)
o
Web browser access (HTTP) to power control, system event log, hardware status, and license key
activation of optional features
o
SMASH CLP interface access to remote power control, system event log, hardware status, and
operating system serial console
NOTE: Beginning December 30, 2008, Lights-Out 100i (LO100i) Select Pack licenses for
ProLiant 100 series G5 servers will go end-of-life. On March 30, 2009, these licenses will be
fully discontinued and no longer available for sale. Additionally, HP will not offer these
licenses on ProLiant 100 series G6 servers.
Operational overview 7
Installation of the HP Lights-Out 100c Remote
Management Card
Remote management card kit contents
For HP ProLiant ML110 G5, ML115 G5, DL120 G5, ML150 G5, and DL180 G5 servers, you must install
the HP Lights-Out 100c Remote Management Card to activate the LO100 optional features. For more
information, see "LO100 optional features (on page 6)."
The HP ProLiant Lights-Out 100c Remote Management Card Kit includes the following components:
•
HP Lights-Out 100c Remote Management Card
•
Spacer support
•
Remote management card installation instructions
Preinstallation procedures
The installation procedures in this document are intended for individuals who are qualified in the servicing
of computer equipment and trained in recognizing hazards in products with hazardous energy levels.
WARNING: Failure to properly turn off the server before you open the server may cause
serious damage to the equipment as well as bodily harm.
CAUTION: Follow the ESD precautions listed in your server guide when handling the remote
management card.
IMPORTANT: Observe the pre- and post-configuration procedures described in later sections
when installing the remote management card.
NOTE: The procedures described in this section assume that the server is positioned on a flat,
stable surface.
1.
Back up the server data.
2.
Shut down the operating system as outlined in the operation system instructions.
3.
Power off the server and all the connected peripherals.
4.
Unplug all power cords.
CAUTION: Failure to properly remove the power cord from the server before adding or
removing a LO100 card might cause serious damage to the equipment.
5.
Label each cable, if not already labeled, to expedite reassembly.
6.
Disconnect telecommunication cables to avoid exposure to shock hazard from ringing voltages.
7.
Open the server according to the instructions described in your server manual.
Installation of the HP Lights-Out 100c Remote Management Card 8
Installing the remote management card
1.
Remove the access panel.
2.
Carefully lay the server on its unexposed side to gain access to the system board.
3.
Locate the remote management card connectors on the system board.
4.
Install the remote management card in the connectors on the system board.
Post-installation procedures
1.
Be sure all components are installed according to the installation procedures.
2.
Be sure you have not left any loose tools or parts inside the server.
3.
Reinstall any expansion boards, peripherals, board covers, and system cables previously removed.
4.
Reinstall the system covers.
5.
Connect all external cables and the AC power cord to the system.
6.
Press the power button on the front panel to power on the server.
Installation of the HP Lights-Out 100c Remote Management Card 9
Configuration
Configuring network access
Through your server network connection, you can access the remote management CLP, verify POS
remotely, access the server through a web browser, and access the BIOS Setup Utility remotely.
To configure network access:
1.
2.
Connect a standard Ethernet cable from the LO100 to a network jack using one of the following
options:
o
On ProLiant ML110 G5, ML115 G5, DL120 G5, ML150 G5, and DL180 G5 servers, connect to
the NIC port on the remote management card.
o
On ProLiant DL160 G5, DL165 G5, DL185 G5, and SL165z G6 servers, connect to the onboard
LO100 NIC.
Obtain the DHCP IP address, by using either of the following methods:
o
Look at the DHCP clients table.
o
Press the F10 key during POST, and then obtain the IP address from BIOS Setup Utility under
Advanced/IPMI/LAN Setting. For more information, see "Obtaining a DHCP IP address from the
BIOS Setup Utility (on page 13)".
By default, LO100 has DHCP enabled and automatically negotiates an IP address.
3.
With the DHCP IP address, use one of the following options:
o
Telnet to log in to the remote management CLP
o
A web browser to access the HTML interface
To set up a static IP address, see "Setting up a static IP address from the BIOS Setup Utility (on page 14)
".
Configuring user accounts
LO100 supports four accounts types, with varying levels of permissions to view and control features. For
more information on user accounts, see the "User administration (on page 49)" section. Two accounts are
available by default, one of type administrator and one of type operator.
The administrator account enables the user to execute the full set of CLP commands and change
management processor configuration. The default administrator account user name is admin, and the
default password is admin.
The operator account enables the user to execute common commands and functions but restricts access to
specific functions, such as adding and changing user account information and changing the configuration
of the management processor. HP recommends logging in with the operator account to perform common
functions. The default user name is Operator, and the default password is Operator.
For more information on how to log in to LO100, see the "Logging in to LO100 (on page 26)" section.
Configuration
10
Accessing BIOS Setup Utility and using function keys
Throughout the document, the F10 key is listed as the standard method of accessing the BIOS Setup
Utility, saving changes, and exiting the utility. In some cases, the function keys (F keys) might not pass
through the telnet client correctly to the remote system. If this occurs, use the following ESC key
equivalents:
•
F8—ESC+8
•
F10—ESC+0
•
F12—ESC+@
Using the serial port
The server serial port provides basic serial port functionality and serves as an interface to LO100. You
can configure the system serial port for exclusive use with LO100.
CAUTION: After enabling the serial port for use with LO100, legacy serial devices might not
function correctly if attached to the serial port.
You must configure the LO100 serial port hardware parameters to work with your respective serial port
communications software. LO100 serial port configuration is controlled through the BIOS Setup Utility.
Enabling serial access to LO100
1.
Power up the server.
2.
When POST displays the message, ROM-Based Setup, press the F10 key. If the server has an
administrator password configured, the system prompts you to enter the password. If the server does
not have a password configured, the main screen of the BIOS Setup Utility appears.
3.
Press the right arrow (→) key to navigate to the Advanced menu.
4.
Choose one of these options:
NOTE: If you change the Serial Port Assignment, the BMC IP Address resets. The BMC IP
address might not be the same after reboot.
o
On ML110 G5 and DL120 G5 servers:
i.
Press the down arrow (↓) key to scroll to IO Device Configuration. Press the Enter key.
ii. Set Embedded Serial Port Mode to System.
iii. Set Embedded Serial Port to Enabled.
o
On ML115 G5, ML150 G5, DL160 G5, DL165 G5, DL180 G5, DL185 G6, and SL165z G6
servers:
i.
Press the down arrow (↓) key to scroll to IPMI Configuration. Press the Enter key.
ii. Press the down arrow (↓) key to scroll to the Serial Port Configuration menu. Press the Enter
key.
iii. Set Serial Port Assignment to BMC.
iv. Set Serial Port Switching to Enabled.
v. Set Serial Port Connection Mode to Direct.
Configuration
11
5.
Press the F10 key to save and exit.
Configuring LO100 serial port
1.
Power on the server by pressing the Power On/Off button on the front panel.
2.
When POST displays the message, ROM-Based Setup, press the F10 key. If the server has an
administrator password configured, the system prompts you to enter the password. If the server does
not have a password configured, the main screen of the BIOS Setup Utility appears.
3.
Press the right arrow (→) key to navigate to the Advanced menu.
4.
Choose one of these options:
o
On ML110 G5 and DL120 G5 servers:
i.
Press the down arrow (↓) key to scroll to IO Device Configuration. Press the Enter key.
ii. Set Base I/O address to 3F8.
iii. Set Interrupt to IRQ 4.
o
On ML115 G5, ML150 G5, DL160 G5, DL180 G5, and SL165z G6 servers:
i.
Press the down arrow (↓) key to scroll to IO Device Configuration. Press the Enter key.
ii. Set Embedded Serial Port to 3F8/IRQ4.
o
On DL165 G5 and DL185 G5 servers:
i.
Press the down arrow (↓) key to scroll to IO Device Configuration. Press the Enter key.
ii. Set Embedded Serial Port Address to 3F8.
iii. Set Embedded Serial Port IRQ to IRQ4.
5.
Review the serial port settings, and make sure the settings match the serial port communications
software settings used to connect to LO100.
6.
To return to the previous screen, press the Esc key, or to save the changes and exit Setup, press the
F10 key.
Using TCP/IP over Ethernet management port
You can configure LO100 LAN port access using two different Ethernet ports: the dedicated 10/100
LO100 management port or through a side-band connection using the server NIC. The side-band, shared,
or UMP options utilize one server Ethernet port for both server network traffic and LO100 network traffic
reducing the number of network cables that you must attach to the server.
Selecting a shared Ethernet management port
1.
Power on the server by pressing the Power On/Off button on the front panel.
2.
When POST displays the message, ROM-Based Setup, press the F10 key. If the server has an
administrator password configured, the system prompts you to enter the password. If the server does
not have a password configured, the main screen of the BIOS Setup Utility appears.
3.
Press the right arrow (→) key to navigate to the Advanced menu.
4.
Choose one of these options:
NOTE: Shared NIC or a shared Ethernet management port is not supported on HP ProLiant
ML110 G5, DL120 G5, ML150 G5, or DL180 G5 servers.
Configuration
12
o
On ML115 G5 servers:
i.
Press the down arrow (↓) key to scroll to IPMI Configuration. Press the Enter key.
ii. Scroll to the BMC LAN Configuration menu by pressing the down arrow (↓) key.
iii. Press the Enter key.
iv. Set Share NIC Mode to Enabled.
o
On DL160 G5, DL165 G5, and DL185 G5 servers:
i.
Press the down arrow (↓) key to scroll to IPMI Configuration. Press the Enter key.
ii. Scroll to the LAN Configuration menu by pressing the down arrow (↓) key.
iii. Press the Enter key.
iv. Set Share NIC Mode to Enabled.
o
On SL165z G6 servers:
i.
Press the down arrow (↓) key to scroll to IPMI Configuration. Press the Enter key.
ii. Set BMC NIC Allocation to Enabled.
5.
To return to the previous screen, press the Esc key, or to save the changes and exit Setup, press the
F10 key.
The dedicated TCP/IP over Ethernet management port, whether dedicated or shared, is a standard
Ethernet 10/100Mb interface that connects to the network using a standard Ethernet cable. Before using
the dedicated management port, you must determine the DHCP IP address, set a static IP address, or use
the default static IP address.
Obtaining a DHCP IP address from the BIOS Setup Utility
By default, LO100 has DHCP enabled and automatically negotiates an IP address. To view the DHCP IP
address, run the BIOS Setup Utility, or retrieve the DHCP IP address using CLP through the serial port
connection. To view the DHCP IP address using the BIOS Setup Utility:
1.
Power on the server by pressing the Power On/Off button on the front panel.
2.
When POST displays the message, ROM-Based Setup, press the F10 key. If the server has an
administrator password configured, the system prompts you to enter the password. If the server does
not have a password configured, the main screen of the BIOS Setup Utility appears.
3.
Press the right arrow (→) key to navigate to the Advanced menu.
4.
Press the down arrow (↓) key to scroll to IPMI. Press the Enter key.
5.
To obtain the DHCP IP address, choose one of these options:
o
On ML110 G5 and ML150 G5 servers:
i.
Press the down arrow (↓) key to scroll to the end of the menu to display the DHCP IP address.
ii. Note the DHCP assigned IP address for future reference.
o
On ML115 G5 servers:
i.
Press the down arrow (↓) key to scroll the BMC LAN Configuration menu. Press the Enter key.
ii. Press the down arrow (↓) key to scroll to the end of the menu to display the DHCP IP address.
iii. Note the DHCP assigned IP address for future reference.
o
On DL120 G5 servers:
i.
Press the down arrow (↓) key to scroll the LAN Settings menu. Press the Enter key.
Configuration
13
ii. Press the down arrow (↓) key to scroll to the end of the menu to display the DHCP IP address.
iii. Note the DHCP assigned IP address for future reference.
o
On DL160 G5, DL165 G5, DL180 G5, and DL185 G5 servers:
i.
Press the down arrow (↓) key to scroll to the LAN Configuration menu. Press the Enter key.
ii. Note the DHCP assigned IP address for future reference.
o
On SL165z G6 servers:
i.
Press the down arrow (↓) key to scroll to the IPMI Configuration menu. Press the Enter key.
ii. Scroll to LAN Configuration, and then scroll to DHCP IP Source.
iii. Select either of the following:
— To set BMC NIC to DHCP, scroll down to DHCP IP source, and then to enable, press the Enter
key.
— To save all changes and exit, press the F10 key.
6.
To return to the previous screen, press the Esc key, or to save the changes and exit Setup, press the
F10 key.
To configure or change your network settings, see "Network settings (on page 51)".
Using the DNS naming feature
The DNS naming feature enables you to reference the server name assigned to the server without having
to know the server IP address or obtaining the IP address for a given server. This ability to reference the
server name occurs after the server has registered its name with the DNS, using the default naming
sequence assigned by LO100, LO100 - {Server Serial Number} . (For example, LO100 CNQ123456.)
To obtain the serial number, look at the pull-out tab usually located in the front panel of the server.
You can change the server name through the Network Settings page of the LO100 web interface.
To retrieve a server IP address using the DNS naming feature, use a system connected to the same
network, open a DOS command prompt, and then type nslookup {server name}. (For example,
nslookup {CBQ123456}.)
Depending on your DNS server configuration, it might take up to 45 minutes for the DNS to register a
server name. For more DNS options in LO100, see "Configuring network settings using a web browser
(on page 52)".
Setting up a static IP address from the BIOS Setup Utility
By default, LO100 has DHCP enabled and automatically negotiates an IP address. To disable DHCP and
enable a static IP address:
1.
Press the F10 key during POST to enter the BIOS Setup Utility.
2.
Press the right arrow (→) key to navigate to the Advanced menu.
3.
Press the down arrow (↓) key to scroll to IPMI. Press the Enter key.
4.
To set your network BIOS settings, choose one of these options:
o
On ML110 G5 and ML150 G5 servers:
i.
Press the down arrow (↓) key to scroll to the end, and then select DHCP IP Source.
Configuration
14
ii. On DHCP IP Source, select Disabled.
iii. Press the down arrow (↓) key to scroll down and enter a valid IP address, subnet mask, and
gateway address (press the Tab key to move between address fields).
o
On ML115 G5 servers:
i.
Press the down arrow (↓) key to scroll to the BMC LAN Configuration menu. Press the Enter
key.
ii. Press the down arrow (↓) key to scroll to the end, and then select DHCP IP Source.
iii. On DHCP IP Source, select Disabled.
iv. Press the down arrow (↓) key to scroll down and enter a valid IP address, subnet mask, and
gateway address (press the Tab key to move between address fields).
o
On DL120 G5 servers:
i.
Press the down arrow (↓) key to scroll to the LAN Settings menu. Press the Enter key.
ii. On IP Address Assignment, select Static.
iii. Press the down arrow (↓) key to scroll down and enter a valid IP address, subnet mask, and
gateway address (press the Tab key to move between address fields).
o
On DL160 G5, DL165 G5, DL180 G5, and DL185 G5 servers:
i.
Press the down arrow (↓) key to scroll to the LAN Configuration menu. Press the Enter key.
ii. On DHCP IP Source, select Disabled.
iii. Press the down arrow (↓) key to scroll down and enter a valid IP address, subnet mask, and
gateway address (press the Tab or period (.) key to move between address fields).
o
On SL165z G6 servers:
i.
Press the down arrow (↓) key to scroll to IPMI Configuration. Press the Enter key.
ii. Press the down arrow (↓) key to scroll to the LAN Configuration menu. Press the Enter key.
iii. Press the down arrow (↓) key to scroll to the end, and then select DHCP IP Source.
iv. Select either of the following:
— To set BMC NIC to Disabled, press the Enter key.
— To save all changes and exit, press the F10 key.
5.
Press the F10 key to save and exit.
To restore DHCP, see "Configuring network settings using the BIOS Setup Utility (on page 53)."
Enabling telnet and HTTP services
On DL160 G5, DL165 G5, DL185 G5, and SL165z G6 servers, HTTP and telnet are enabled by default.
On ML110 G5 and ML115 G5 servers:
1.
Select Advanced>IPMI>LAN Configuration.
2.
Set the following:
o
BMC HTTP Service—Enabled
o
BMC Telnet Service—Enabled
On the DL120 G5:
1.
Select Advanced>IPMI>LAN Settings.
Configuration
15
2.
Set the following:
o
BMC HTTP Service—Enabled
o
BMC HTTPS Service—Enabled
o
BMC Telnet Service—Enabled
On ML150 G5 and DL180 G5 servers:
1.
Select Advanced>IPMI.
2.
Set the following:
o
BMC HTTP Service—Enabled
o
BMC Telnet Service—Enabled
TCP and UDP port numbers used by LO100
The following table lists the TCP and UDP port numbers used by the various LO100 network-accessible
features. You can use this information to configure networking infrastructure or security settings.
Port
number
Protocol
Support
Embedded
by default
22
SSH
Secure Shell connections
Yes
23
Telnet
Command line interface, Remote text console
Yes
80
HTTP
Web-based user interface for LO100
Yes
Virtual KVM
69
TFTP
Firmware upgrade
Yes
162
SNMP trap
HP SIM agent events
Yes
443
HTTPS
Secure access to the web-based user interface
Virtual KVM
Yes
623
IPMI RMCP+
IPMI-over-LAN connections
Yes
664
Secure IPMI RMCP+
IPMI-over-LAN connections
Yes
5901
Storage
Storage
Yes
Updating the firmware
To update the LO100 firmware, use the ROMPaq utility. Downloads for the ROMPaq utility are available
on the HP website (http://www.hp.com/support). For more information about using the ROMPaq utility,
refer to the HP website (http://www.hp.com/servers/manage).
NOTE: LO100 does not support ROMPAQ flashing from a virtual floppy.
After the ROMPaq utility flashes the selected device, cycle power manually to reboot the operating
system.
Remotely updating the firmware
Use the load command to remotely update the LO100 firmware. The firmware file must be an
uncompressed firmware image file created using the DOS ROMPAQ utility found on the Lights-Out 100
Configuration
16
Firmware Upgrade Diskette Utility, which is available for download from the HP website
(http://www.hp.com/servers/lights-out).
To create an uncompressed image file, enter the following command at the DOS prompt:
ROMPAQ /D <infile> <outfile>
where <infile> is the ROMPAQ firmware image file and <outfile> is the file name for the
uncompressed binary image file. For example:
ROMPAQ /D cpqq0801.D14 ldrImage.bin
ROMPAQ Firmware Upgrade Utility, Version 5.02 (R)
Copyright (c) Hewlett-Packard Corporation, 1994-2006
Input file:
Output file:
CPQQ0801.D14
LDRIMAGE.BIN
The load command is used to retrieve a binary image from a specific source location (specified as
a URL) and place it at the specified target address.
The load command can download and flash an ldr firmware image file using TFTP from the
specified location.
To flash the firmware using TFTP settings:
•
On Windows®:
a. Copy the BMC firmware into a directory on the server.
b. Run TFTP by launching the executable file tftpd32.exe.
c.
Navigate to TFTP configuration>Settings, and set Timeout to 4 seconds and Max Retransmit to
10.
d. Enter the Base Directory and TFTP Server IP Address. Base Directory is the path where the BMC
firmware is residing. TFTP Server IP Address is the IP address of the TFTP server (for example,
10.141.38.157).
•
On Linux:
a. Navigate to Applications>Systems Settings>Server Settings>Services and make sure that TFTP
and xinetd are running.
b. Open the /etc/xinetd.d/tftp file and modify the parameter server_args to include -T
4000000 and -s/<tftp root directory>. For example, server_args = -c -s
/tftpboot -T 4000000.
c.
If a firewall is enabled, disable it or modify the settings to allow the firewall to connect to the
TFTP port. To change the firewall settings, navigate to Applications>System Settings>Security
Level, and enter 69:udp in the parameter of the other port.
To update the firmware, log in to LO100 as the administrator through the CLP interface, and issue the
load command to upload and install the firmware from the map1/firmware directory.
1.
Start a CLP session. To access CLP:
a. Navigate to Start>All Programs>Accessories>Command Prompt.
b. At the command prompt, enter telnet <IP address>.
2.
At the CLP prompt, enter cd map1/firmware.
3.
At the CLP prompt, enter load -source <URI> -oemhpfiletype csr
where:
o
<URI> is the //<tftp server IP>/<path>/<filename> to be downloaded.
Configuration
17
o
<tftp server IP> is the URL or IP address of the TFTP server containing the firmware.
o
<path> is the path of the file relative to the TFTP server root.
o
<filename> is the file name of the image file (in this example, LdrImage.bin).
For example, enter load -source //10.141.38.157/LdrImage.bin -oemhpfiletype
csr.
For Linux CLP load command firmware updates, you must place the image file in the tftpboot
folder, which is located in the TFTP servers root directory.
The TFTP application might report an error in the early part of the firmware upload process, during
the firmware image validation process. An error does not necessarily indicate failure of the firmware
upload and does not prevent successful firmware uploads. A successful firmware upload typically
takes several minutes. After the firmware upgrade process is complete, verify that the new version of
the firmware is active.
If the firmware upgrade process fails after sufficient time (at least 5 minutes), reboot the server, and
verify that the previous version of the firmware is still active. Always reboot the server before retrying
the firmware upgrade process.
After installing the firmware, the IP address of the server might reset to the default value. You must
locally reset the IP address to the desired address.
NOTE: After using the load command LO100 will reset ending your CLP interface session.
You must reconnect to the CLP interface.
NOTE: When you use the CLP load command with TFTPD32, HP recommends using a 4second timeout and 10 retries.
Configuration
18
Using LO100
Using SSL
SSL is a protocol used to transmit private documents through the Internet and uses a private key or
certificate to encrypt data transferred over the SSL connection. The Lights-Out 100 provides security for
remote management in distributed IT environments by using an industry-standard encryption protocol for
data traveling on unsecured networks.
SSL is available by installing the Lights-Out 100c Remote Management Card or purchasing the Lights-Out
100i Select Pack or the Lights-Out 100i Advanced Pack. For more information, see "LO100 optional
features (on page 6)."
LO100 comes preinstalled with a certificate. To install a user-specific certificate, see the one-time
"Importing a certificate (on page 56)" setup procedure.
If you cannot access the login page, you must verify the SSL encryption level of your browser is set to 128
bits. The SSL encryption level within the management processor is set to 128 bits and cannot be changed.
The browser and management processor encryption levels must be the same.
To use the preinstalled certificate, enter https://ipaddress in the address line of the browser, which
uses SSL-encrypted communication. Enter http://ipaddress to use non-SSL encrypted communication.
Using SSH
SSH is a telnet-like program for logging in to and executing commands on a remote machine, which
includes security with authentication, encryption, and data integrity features. The Lights-Out 100 remote
management processor can support simultaneous access from two SSH clients. After SSH is connected
and authenticated, the command line interface is available. LO100 supports two simultaneous SSH
connections.
SSH is available by installing the Lights-Out 100c Remote Management Card or purchasing the Lights-Out
100i Select Pack or the Lights-Out 100i Advanced Pack. For more information, see "LO100 optional
features (on page 6)."
LO100 supports the SSH version 2 and the following client utilities:
•
PuTTY 0.54 or later.
•
OpenSSH
LO100 comes preinstalled with a certificate. To install a user-specific certificate, see the one-time
"Importing a certificate (on page 56)" setup procedure.
Using the SSH utility
When using a SSH utility to connect to a server for the first time, the utility prompts you to accept the
server public key, sometimes referred to as a host key. Accepting this key authorizes the utility to store a
copy of the public key in its own database. The utility recognizes the server when future connections are
attempted by comparing the public key to the one stored in its database.
Using LO100 19
NOTE: Logging in to an SSH session could take up to 90 seconds. Depending on the client
used, you might not see on-screen activity during this time.
To access the remote management processor using SSH:
1.
Open an SSH window.
2.
When prompted, enter the IP address, login name, and password.
Using the PuTTY utility
PuTTY 0.54 is a terminal emulation product that includes support for telnet and the SSH protocol. PuTTY
0.54 is available for download from the Internet.
•
To start a PuTTY session, double-click the PuTTY icon in the directory in which PuTTY is installed.
•
To start a PuTTY session from the command line:
o
To start a connection to a server called host, enter:
putty.exe [-ssh | -telnet | -rlogin | -raw] [user@]host
o
For telnet sessions, you can also enter the following alternative syntax:
putty.exe telnet://host[:port]/
o
To start an existing saved session called session name, enter:
putty.exe -load "session name"
When you press Enter using PuTTY versions earlier than 0.54, two line feeds might appear on a single
line feed. To avoid this issue and for best results, HP recommends using version 0.54 or later.
Using the OpenSSH utility
OpenSSH is a free version of the SSH protocol available for download on the Internet.
To start an OpenSSH client in Linux, at the command prompt enter:
ssh -l loginname ipaddress/dns name
Using CLP
HP has worked with key industry partners within Distributed Management Task Force, Inc. to define an
industry-standard set of commands. The SMASH suite will standardize manageability interfaces for
servers. The Lights-Out 100 remote management processor implements the command set defined in the
Server Management Command Line Protocol Specification, 1.00 Draft. The CLP replaces the simple CLI
that was released previously and is no longer supported.
The management processor functionality accessible from the SMASH CLP is a low-bandwidth interface
and provides similar functionality to the web interface. The CLP is designed for users who prefer a
nongraphical interface. The CLP is accessible through the following methods:
•
Telnet
•
SSH connection
•
Physical serial port
Using LO100 20
LO100 CLP supports two simultaneous SSH connections, two SSH connections and one telnet connection,
or one SSH connection and two telnet connections. You cannot have more than two simultaneous SSH
connections and up to three (telnet and SSH) connections at a time.
CLP syntax
The general syntax of CLP command is:
<verb> <target> <option> <property>
•
Verbs—The following verbs are supported:
o
o
o
o
o
o
o
o
o
o
cd
help
load
reset
set
show
start
stop
exit
version
•
Target—The default target is the /. The target can be changed by the cd command or by specifying
a target on the command line.
•
Options—The following options are valid:
o
o
-help/-h
-all/-a
•
Properties are the attributes of the target that can be modified.
•
Output—The output syntax is text.
The valid Boolean values for any command are true and false.
General notes
If the commands on the CLP command span more than one line, you cannot navigate between different
lines.
Operating system-specific notes
•
The Microsoft® Windows® 2000 telnet client does not support the Functions keys F1 through F12,
Insert, Home, and End keys. These keys will not work in a Lights-Out 100 command line session.
•
The Backspace key in the Lights-Out 100 CLP implementation is mapped to the value 0x8. Some
client operating systems, Novell Linux Desktop and Red Hat Enterprise Linux 4 Desktop, map the
Backspace key to the value 0x7f, which is used for the Delete key in the Windows® telnet client.
The Backspace key will not work from a client from which it has value of 0x7f. For the Linux clients,
using the Home or the End key enables the Lights-Out 100 CLP service to remap the Backspace key
to use the value 0x7f, making the key functional.
In the Windows® PuTTY client, the Backspace key can be mapped to a value of 0x8 by changing the
setting for Terminal Keyboard to Control-H.
Using LO100 21
Base commands
•
The help command displays context-sensitive help.
Entering help displays all the supported commands. Entering <command help/?> displays the
help message specific to that command.
o
Help for verbs
Calling help for a verb returns the general syntax and usage associated with issuing that verb.
Calling help for a verb that is not present in the current directory returns an Unsupported
Command message. The following examples are all valid ways to call help for a verb.
— /./-> help show
Usage: show [<target>][<options>][<properties>]
— /./-> show -h
Usage: show [<target>][<options>][<properties>]
— /./-> show -help
Usage: show [<target>][<options>][<properties>]
— /./->
o
Help for targets
Calling help for a target returns any information about the target and what it contains. You can
call help for any target that is not contained in the current directory (help map1 can be called
from system1).
— /./-> system1 -h
Invalid command
— /./-> system1 -help
Invalid command
— /./-> help system1
Host System Directory
— /./-> help map1
Management Service Processor Directory
— /./-> cd system1
— /./system1/-> help map1
Management Service Processor Directory
o
Help for properties
Calling help for a property or any other option for which there is no help information returns an
Unsupported Command or Invalid command message. For example:
/./system1/-> show
/./system1
Targets
log1
led1
Properties
Using LO100 22
name=Hewlett-Packard
enabledstate=enabled
Verbs
cd
version
exit
show
reset
start
stop
help
/./system1/-> help name
Unsupported Command
/./system1/-> help enabledstate
Unsupported Command
/./system1/-> help properties
Unsupported Command
/./system1/-> name -h
Invalid command
/./system1/->
•
The exit command terminates the CLP session.
•
The cd command sets the current default target. The context works similar to a directory path. The
root context for the server and the starting point for a CLP system is /. (forward slash period). By
changing the context, you can shorten commands.
For example:
•
o
The cd command changes the directory.
o
The cd .. command moves up the tree one directory.
o
The cd myfolder command moves to the myfolder folder if myfolder is in the current
directory.
The show command displays values of a property or contents of a collection target. For example:
/./> show
/.
Targets
system1
map1
Properties
Verbs
Using LO100 23
cd
version
exit
show
help
The first line of information returned by the show command is the current context. In the example, /.
is the current context. Following the context is a list of subtargets (Targets) and properties (Properties)
applicable to the current context. The verbs section (Verbs) shows which commands are available in
this context.
The show command can also be specified with an explicit or implicit context and a specific
property. An explicit context is /map1/firmware and is not dependent on the current context. An
implicit context assumes that the context specified is a child of the current context. If the current
context is /map1, then a show firmware command displays the /map1/firmware data. If a
property is not specified, then all properties are shown.
•
The load command moves a binary image from a URL to the map. The load command is used to
take a binary image from a specific source location (specified as a URL) and place it at the specified
target address. In a remote management processor implementation, the firmware downloads a full
image file using TFTP from the specified location and programs flash with the image.
In a remote management processor implementation, /map1/firmware is a valid target.
The load command supports usage only with the following options.
o
-source <location>—This option must be specified.
o
(h)elp—This option appears on the command line. The command ignores all options and
properties except -output (for terse or verbose output). These options are only valid for this
command when the -help option is used.
o
source <value>—This option specifies the target from which to transfer the binary image. The
value specified must be a valid URL. The format is //tftpserverip/path/filename. This
option is required in the command line when the load command is executed unless -help is
used. The file must be an uncompressed firmware image file that you create using the DOS
ROMPAQ utility found on the Lights-Out 100 Firmware Upgrade Diskette Utility available for
download from the HP website (http://www.hp.com/servers/lights-out).
To create the uncompressed image file, enter the following command from DOS:
ROMPAQ /D <infile> <outfile>
where <infile> is the ROMPAQ firmware image file, and <outfile> is the filename for the
uncompressed binary image file.
o
Specify one of the following:
— "-oemhpfiletype csr" for loading firmware
— "-oemhpfiletype key" for loading a key
— "-oemhpfiletype cer" for loading a certificate
The load command returns any status data on the first lines. After the status data appears, one of
the following lines of text appears on the next line:
— <URL> transferred to <target address> (if the file is transferred)
— <URL> not transferred (if the file is not transferred)
Example:
Using LO100 24
load -source //192.168.2.1/pub/firmwareimage.bin -oemhpfiletype csr
//192.168.2.1/pub/firmwareimage.bin transferred to
/map1/firmware/firmwareimage
•
The reset command causes a target to cycle from enabled to disabled and then to enabled again.
•
The set command assigns a specific value to a property or group of properties. The standard
syntax for the set command is set property=new value.
The set command is used to change any changeable property. If the current directory does not
contain the property you want to change, you must specify the target of the property before entering
the property you want to change.
•
The start command causes the system1 target to power on.
•
The stop command causes the system1 target to power off.
•
The version command queries the version of the CLP implementation or other CLP elements. For
example:
/./map1/-> version
Version 1.00
/./map1/-> cd firmware
/./map1/firmware/-> version
Version 1.00
/./map1/firmware/-> show
/./map1/firmware
Targets
Properties
fwversion=0.59
Verbs
cd
version
exit
show
reset
load
help
/./map1/firmware/-> show fwversion
fwversion=0.59
/./map1/firmware/-> fwversion
Invalid command
/./map1/firmware/->
Specific commands
CLP syntax for specific commands is found in the sections that also describe the functionality through the
Web interface.
Using LO100 25
IPMI 2.0 support
LO100 supports the industry-standard IPMI 2.0. The IPMI specification defines standardized, abstracted
interfaces that can be used for monitoring and control functions that are built in to the platform hardware.
In addition to supporting the mandatory commands for IPMI 2.0, the following additional IPMI 2.0
features are supported by LO100:
•
•
•
•
•
Additional IPMI 2.0 commands
o
Get Channel Cipher Suites
o
Set/Get Channel Security Keys
o
Suspend/Resume Payload Encryption
Payload types
o
IPMI Message
o
RMCP+ Open Session Request/Response
o
RAKP Message 1 / 2
o
RAKP Message 3 / 4
Authentication algorithms
o
RAKP-none
o
RAKP-HMAC-SHA1
Integrity algorithms
o
None
o
HMAC-SHA1-96
Confidentiality algorithms
o
None
o
AES-CBC-128
Logging in to LO100
You can log in to the remote management processor through a web browser ("Logging in through a web
browser" on page 26) or through the CLP ("Logging in through the CLP" on page 27). If you are unsure of
your DHCP IP address, refer to the "Configuring network access" section.
Logging in through a web browser
1.
Browse to the IP address of the remote management processor to access the login screen.
2.
Enter your user name and password. The default user name for the Administrator account is admin,
and the default password is admin. The default user name for the Operator account is Operator,
and the default password is Operator.
Using LO100 26
Logging in through the CLP
1.
Establish a connection to the remote management processor by launching a telnet session or an SSH
session.
2.
Enter the user name at the login prompt. The default user name for the Administrator account is
admin. The default user name for the Operator account is Operator.
3.
Enter the password at the password prompt. The default password for the Administrator account is
admin. The default password for the Operator account is Operator.
4.
To exit the CLP and enter Console mode, enter the exit command at the command prompt.
Browser main menu options
Using a web browser, you can access all of the basic remote management capabilities of LO100. Not all
of the features displayed and described in the guide are available on all systems. To verify which features
are supported on your system, see "LO100 standard features (on page 6)" and "LO100 optional features
(on page 6)" for more information.
Option
Description
Summary
Accesses or returns you to the main menu
navigation bar.
Virtual Power
Accesses system power and UID control
options.
Monitoring Sensors
Lists all sensor information, including type,
name, status, reading, and PEF settings.
System Event Log
Displays the system event log.
Virtual KVM/Media
Accesses virtual media or the remote
graphic console.
Hardware Inventory
Displays system hardware information.
Using LO100 27
Option
Description
User Administration
Accesses the user configuration screen.
Network Settings
Accesses the network parameter settings
screen.
IPMI PET
Configuration
Accesses the PET destinations and alert
policy table.
Application License
Key
Displays the licensing screen.
Security Settings
Accesses LO100 security, personal
certificate and key installation options.
Firmware Download
Enables you to flash firmware through the
web browser.
NOTE: The Virtual KVM / Media option is an advanced feature and not available on all
systems. This link may appear as Virtual Media or not at all depending on your system
implementation. To verify which features are supported on your system, see "LO100 standard
features (on page 6)" and "LO100 optional features (on page 6)" for more information.
Controlling server power remotely
LO100 enables you to remotely operate the power button of a host server using a web browser or the
CLP. LO100 virtual power support enables you to power on, power off, and power cycle the host server.
This virtual power support operates independently of the state of the operating system.
Controlling server power from a browser
The Virtual Power screen displays current power status, how long the server has been powered on, and
the reason for the last server restart. To display the Virtual Power screen, on the main menu navigation
bar, click Virtual Power.
Using LO100 28
To modify Chassis Actions, select a Power Control Option in the Chassis Actions section, and then click
Apply.
To identify the server in the rack and illuminate the UID (the LED on the front panel of the server), from the
UID list, select the length of time for the UID to illuminate, and then click Identify.
NOTE: The UID is not available on all LO100 servers. For more information, see your server
user guide.
A restore policy controls how the system responds when power is connected to the server. To set a restore
policy:
1.
2.
Select the Power Restore Policy by choosing one of the following options:
o
Always power up—Powers on the server immediately after power is supplied.
o
Restore to powered state prior to power loss—Powers on the system if the system was in the
powered on state before a loss of power.
o
Power pushbutton or command required to power on system—Causes the server to wait for
external action before powering on the system.
Click Set.
Controlling server power through the CLP
1.
Log in to LO100 CLP as described in the "Logging in to LO100 (on page 26)" section.
2.
Change to the system1 target by entering cd system1.
3.
To power on the server, enter start /system1. For example:
/./system1/> start /system1
System1 started.
4.
To power off the server, enter stop /system1. For example:
/./system1/> stop /system1
System1 stopped.
The -force option can also be used with the stop command. This option forces the
implementation to stop the target, ignoring any policy that might cause the implementation to
normally not execute the command. In remote management processor implementation, this process is
equivalent to a hard power down.
5.
To reset the server, enter reset /system1. For example:
/./system1/> reset
System1 reset.
Monitoring sensors
LO100 provides operating system-independent remote monitoring of the current status of major sensors of
a target server including system temperature, fans, and voltage. You can view the data for this feature on
the Monitoring Sensors Page through a web browser or through the BIOS Setup Utility.
Using LO100 29
Viewing sensors data from a web browser
The Monitoring Sensors screen displays a snapshot of the temperature, fans, and voltage sensor data,
including sensor type, name, status, and current reading. To access this page from a web browser, on the
main menu navigation bar, click Monitoring Sensor.
To update the display, click the Refresh button. To view or add a PEF action, click PEF. For more
information, see "Platform Event Filtering configuration (on page 31)."
Viewing sensor data from the BIOS Setup Utility
1.
Press the F10 key during POST to enter the BIOS Setup Utility.
2.
Press the right arrow (→) key to navigate to the Advanced menu.
3.
Choose one of these options:
o
On ML110 G5 and ML150 G5 servers:
i.
Press the down arrow (↓) key to scroll to IPMI. Press the Enter key.
ii. Scroll to Realtime Sensor Data by pressing the down arrow (↓) key. Press the Enter key.
o
On ML115 G5 servers:
i.
Press the down arrow (↓) key to scroll to IPMI. Press the Enter key.
ii. Scroll to the Hardware Health Information menu by pressing the down arrow (↓) key. Press
the Enter key.
o
On DL120 G5 servers:
i.
Press the down arrow (↓) key to scroll to IPMI. Press the Enter key.
ii. Scroll to Realtime Sensor Data by pressing the down arrow (↓) key. Press the Enter key.
o
On DL160 G5, DL165 G5, DL180 G5, and DL185 G5 servers:
i.
Press the down arrow (↓) key to scroll to IPMI Configuration. Press the Enter key.
ii. Scroll to the Hardware Health Information menu by pressing the down arrow (↓) key. Press
the Enter key.
Using LO100 30
o
On SL165z G6 servers:
i.
Press the down arrow (↓) key to scroll to IPMI. Press the Enter key.
ii. Scroll to the Hardware Health Information menu by pressing the down arrow (↓) key, and
then scroll to the ambient Sensor Health Information menu. Press the Enter key.
The Loading data. Please wait message appears. After this message disappears, the Temperature and
Voltage sensor data appears. This data is real-time data and is updated on a periodic basis.
Platform event filtering configuration
The PEF Configuration screen enables you to configure LO100 to take selected actions on received or
internally generated event messages. These actions include powering down the system, resetting the
system, and triggering the generation of an alert.
To enable PEF functionality you must issue the following commands in the CLP:
cd map1
oemhp i 20 10 D0 18 00 12 01 03 D2
oemhp i 20 10 D0 18 00 12 02 3F 95
To configure a PEF for a particular sensor, click the PEF button to the far right of that sensor on the
Monitoring Sensors screen. The PEF button adjacent to each sensor opens a PEF Configuration page for
that sensor.
The PEF Configuration screen contains two sections: Current PEF Entries and Add PEF Entry. The Current
PEF Entries section includes Sensor Type, Sensor Name, PEF Action, and PEF Control information. The
Add PEF Entry section enables you set an action.
Initially, no entries appear in the Current PEF Entries section because no PEFs are defined. When PEF
entries are defined, the PEF Control field becomes active. Then, you can set the individual entries to
enabled, disabled, or deleted.
To configure an action (PEF entry), select the desired Event Offsets, select the desired PEF Action settings,
and then click Add.
Using LO100 31
•
Event Offsets—Displays trip points (movements across thresholds) that define what type of sensor
event triggers an action. The information in the Events Offsets section varies with the type of sensor.
Not all options are available for all sensors. You can select any of the available options.
•
PEF Action—Displays the same information for all sensors:
o
Sensor Type—Displays the type of sensor selected.
o
Sensor Name—Displays the name of the sensor.
o
PEF Action—Enables you to select from Power Off, Power Cycle, Hard Reset, and Send Alert
(requires a systems management console supporting IPMI 1.5 or later).
o
PEF Control—Enables or disables the sensor.
o
Alert Policy (list adjacent to the Add button)—Enables you to select an alert policy (if defined).
Alert policies are defined on the PET Configuration screen. For information, see "Platform event
trap configuration (on page 32)."
If alert policies are not defined (default), the Alert Policy list displays No Alert Policy. The Alert
Policy list populates after alert policies are defined and configured. After configuring your alert
policies, you can select from the defined alert policies for this sensor and PEF.
o
Add—Adds the new entry to the PEF Current Entry table at the top of the page.
Platform event trap configuration
The IPMI PEF Configuration screen enables you to set an alarm or specified condition originating on the
server to alert an IPMI 2.0 supported systems management console. To display the IPMI PEF Configuration
screen, on the main menu navigation bar, click IPMI PEF Configuration.
The Global PEF Enable section enables you to set a global PEF action. To create a global PEF action,
select Enabled in the PEF Enable box, select the PEF action, and then click Apply.
The PET Destinations section indicates where LO100 sends the PET (if configured.) This section has up to
eight entries specifying IP and MAC addresses. In the PET Destinations section, enter either an IP address
or a MAC address, and then click Apply. If both the MAC and an IP address are entered, the IP address
is used.
Using LO100 32
To set a policy:
1.
Select the Policy Enable state.
2.
Enter the Policy Number and Destination Selector information.
3.
o
Policy Enable—Enables you to selectively enable and disable trap forwarding.
o
Policy Number—Enables you to select a policy that will be used in PEF configuration.
o
Destination Selector—Specifies where to send the PET trap from the destinations defined in the
PET Destinations section.
Click Apply.
Using Virtual KVM
The Virtual KVM feature of LO100 is a remote graphic console that turns a supported browser into a
virtual desktop and provides full control over the display, keyboard, and mouse of the host server. The
operating system-independent console supports graphic modes that display remote host server activities,
including shutdown and startup operations.
Virtual KVM is an advanced feature available by installing the Lights-Out 100c Remote Management
Card or purchasing the Lights-Out 100i Select Pack or the Lights-Out 100i Advanced Pack. For more
information, see the section, "LO100 optional features (on page 6)."
NOTE: This functionality is only available on systems using a dedicated LO100 NIC.
When connecting to the Virtual KVM applet for the first time, the applet reports an error. To clear the
error and connect to the Virtual KVM applet, close your browser session, and then reconnect to the Virtual
KVM applet.
The Virtual KVM applet is not compatible with standard VNC clients and does not implement standard
VNC protocols. You must use the supplied Java™ applet to connect to the server. The Virtual KVM applet
cannot pass the F10 key sequence to the target system. To work around this issue, use the virtual
keyboard on the remote server to transmit the F10 key.
If shared NIC mode is enabled through the BIOS Setup Utility, the KVMS option (link) does not appear or
function on HP ProLiant ML110 servers. If the HP Lights-Out 100c Remote Management Card is installed,
you must use the dedicated NIC port on the HP Lights-Out 100c Remote Management Card.
The remote graphic console requires JVM version 1.4.2 or later on the client system. To download the
recommended JVM for your system configuration, refer to the HP website
(http://www.hp.com/servers/manage/jvm).
To start the LO100 remote graphic console using a web browser:
1.
Log in to LO100.
2.
Click Virtual KVM / Media. The LO100 remote graphic console window appears.
NOTE: The Virtual KVM / Media option is an advanced feature and not available on all
systems. This link may appear as Virtual Media or not at all depending on your system
implementation. To verify which features are supported on your system, see "LO100 standard
features (on page 6)" and "LO100 optional features (on page 6)" for more information.
3.
To take full control of the system, click OK, or to access the system in a view-only mode, click Cancel.
Using LO100 33
Before using the mouse in LO100 remote graphic console, HP recommends synchronizing your local
mouse pointer and the remote mouse pointer. For more information, see "Mouse synchronization (on
page 36)."
Using the remote graphic console
The Remote KVM/Media Viewer displays a virtual desktop and provides full control over the display,
keyboard, and mouse of the host server. The following menus appear in the remote graphic console menu
bar:
•
Control—Enables you to access virtual media devices and the virtual keyboard, refresh the screen,
and exit the client.
•
Preferences—Enables you to set mouse, keyboard, and logging options. For more information, see
"Remote graphic console settings (on page 35)".
•
Help—Displays an About box, which specifies the LO100 remote graphic console version, build
date, and time.
The Control menu of the remote graphic console has the following options:
•
Virtual Media—Displays the Virtual Media Devices page. The Virtual Media Devices page displays
all accessible media drives of the storage server. Supported devices are CD-ROM, DVD-ROM floppy
disk, and mass storage devices. For more information, see "Using Virtual Media (on page 39)".
•
Virtual Keyboard—Opens a virtual keyboard enabling you to change the language of the virtual
keyboard. To change keyboard settings, see "Remote graphic console settings (on page 35)".
The Lock button on the Virtual Keyboard is added to each language. If you click the Lock button,
special keys that you press, such as Shift, Alt, Ctrl, context, and Windows® remain in a pressed
status. To release the special keys, click the Lock button and then click the pressed special keys.
NOTE: When entering any ESC key sequences, extra characters might be buffered, causing
the remote side to receive function key presses incorrectly. To avoid this issue and perform
function key or alternate key sequences, press and hold the ESC key, release it, and then
press the other key sequence.
•
Turn local monitor on—Powers on the local monitor.
•
Turn local monitor off—Powers off the local monitor.
When the Turn local monitor off setting is enabled, the local monitor (if connected) appears black
(blank/off) when Virtual KVM is invoked. This feature is a security enhancement. The local monitor
returns to normal operation after closing Virtual KVM.
The Virtual KVM applet is not compatible with standard VNC clients and does not implement
standard VNC protocols. You must use the supplied Java™ applet to connect to the server. The
Virtual KVM applet cannot pass the F10 key sequence to the target system. To work around this
issue, use the virtual keyboard on the remote server to transmit the F10 key.
•
The KVMS option (link)—Appears on HP ProLiant servers using the HP Lights-Out 100c Remote
Management Card only if shared NIC mode is enabled through the BIOS Setup Utility. If the HP
Lights-Out 100c Remote Management Card is installed, you must use the dedicated NIC port on the
HP Lights-Out 100c Remote Management Card.
•
Refresh Screen—Updates the information on the screen.
Using LO100 34
•
Take Full Control—Enables you to take control of the remote console if you are currently in view-only
mode. Only one remote console user can control the remote console at a time. Clicking Take Full
Control displays a dialog box that prompts you to click OK to take full control of the system or click
Cancel to access the system in a view-only mode.
•
Disconnect Session—Disconnects the selected user session.
•
Relinquish Full Control—Releases control of the session and remains in a view-only status.
•
Exit—Closes the remote session.
NOTE: The Keyboard, Refresh Screen, Take Full Control, Disconnect Session, and Relinquish
Full Control menu options are an advanced feature available with full Virtual KVM access
only.
Remote graphic console settings
To change the mouse, keyboard, and logging settings, select Preferences.
•
The Mouse tab enables you to set the Mouse mode. To display the Mouse Mode list, select Mouse,
which has the following options:
o
Hide Mode (Relative) causes the LO100 remote graphic console to change to Relative mode.
Relative mouse mode hides the local mouse cursor. Use Hide Mode (Relative) if you are running
a DOS-based program and the mouse is not tracking correctly.
When using Hide Mode (Relative), the local mouse is inaccessible. To access the local mouse
(normal mode), press Ctrl+Alt+0.
•
o
Absolute Mode causes the LO100 remote graphic console to send raw x and y coordinates to
the server.
o
Relative Mode sends the LO100 remote graphic console relative mouse position coordinates (+/previous mouse pointer position) to the server. This mode is the default for Linux and Windows®.
The Keyboard tab enables you to set the language of the virtual keyboard and the type of
connection you are using. English is the default language. To change the language of the virtual
keyboard, select a language from the dropdown menu.
The remote side server and local side server (the LO100 remote graphic console) must use the same
language for the virtual keyboard to function properly.
The following connection types are available:
•
o
VNC (port 5900)—Supports Virtual KVM and LO100 Virtual Media. Port 5900 is the default
setting.
o
Unsecured keyboard (port 5902)—Supports the keyboard.
o
Unsecured keyboard (port 5903)—Supports video, mouse, and LO100 Virtual Media.
o
Secure keyboard (port 5904)—Encrypts all keyboard data sent through this port. Port 5903 is a
unsecured port that supports video, mouse, and LO100 Virtual Media.
The Logging tab enables you to view log messages in a Java™ console.
Global Logging is disabled by default. If you enable this option, you can view log messages in a
Java™ console.
Do not run the console longer than 2 hours. The console uses all available memory and might cause
the LO100 remote graphic console and the user web browser to crash. You should periodically clear
the event log to prevent a slow connection or possible crash.
Using LO100 35
To record all log messages to the console from the Logging list, select Console.
To check log messages in the Java™ console window, from the list on the Tools menu of Internet
Explorer menu bar, select Sun Java Console.
To record all log messages to a file, select Log File from the Logging list, enabling the Console Log
File textbox.
To select a file in which log messages will be stored, click the Browse button, or enter the fully
qualified file name of the selected file in the textbox.
To send log messages to both a file of your choice and to the Java™ console, select Console and Log
File.
Mouse synchronization
To synchronize the local mouse pointer and the server mouse pointer, bring the local mouse to the top left
corner to attract the server mouse pointer to the top left corner. Both pointers become synchronized when
they overlap as one pointer.
For mouse synchronization to work correctly, you must change the Enhance Mouse pointer and Hardware
Acceleration options on the remote machine (server side) using the LO100 remote graphic console.
For Windows® operating systems, perform the following steps:
To change the Enhance Mouse pointer option:
1.
Select Start>Control Panel.
2.
Double-click Mouse. The Mouse Properties window appears.
3.
Select Pointer Options.
4.
In the Pointer Options window:
a. Set the Pointer speed bar in the middle.
b. Be sure the Enhance pointer precision option is not selected.
To change the Hardware Acceleration option:
1.
Right-click the desktop screen
2.
Select Properties. The Display Properties window appears.
3.
Click Settings>Advanced. The video card and monitor properties window appears.
4.
Click Troubleshoot.
5.
Set hardware acceleration to None to disable cursor and bitmap accelerations (one scale or option
below Full).
6.
Click Apply.
7.
Click OK to exit the Display Properties window.
For Linux operating systems, perform the following steps:
•
For SLES 9:
a. Determine which mouse device is the remote console mouse using the xsetpointer -l
command to list all mouse devices.
b. Determine which mouse to modify by cross-referencing the output of xsetpointer with the X
configuration (either /etc/X11/XF86Config or /etc/X11/xorg.conf.)
c.
Select the remote console mouse as the mouse to modify. For example:
xsetpointer Mouse[2]
Using LO100 36
d. Set the acceleration parameters. For example:
xset m 1/1 1
•
For Red Hat Enterprise Linux, set the acceleration parameters using:
xset m 1/1 1
Using the system event log
LO100 captures and stores the IPMI event log for access through a browser, CLP, BIOS Setup Utility, and
RBSU even when the server is not operational. The system event log displays a short description of each
system event. Recorded events include abnormal temperature, fan events, system resets, and system
power loss.
Accessing the system event log from a web browser
The System Event Log screen displays a brief description of the event, including event type, date, time,
source, description, and direction.
To access the System Event Log from a web browser, on the main menu navigation bar, click System
Event Log. To clear the system event log, click Clear Event Log.
Accessing the system event log from the CLP
1.
Log in to the CLP as described in the "Logging in to LO100 (on page 26)" section.
2.
Enter cd /./system1/log1
3.
Enter show to display the total number of system event records.
4.
Enter show record<n> to display the details of a specific record. For example:
/./map1/log1/-> show record1
record
Targets
Properties
Using LO100 37
number=1
date=05/07/2008
time=16:42:52
sensordescription=Identify
eventdescription=State Asserted
eventdirection=Assertion
Verbs
cd
version
exit
show
reset
oemhp
help
Accessing the system event log from the BIOS Setup Utility
1.
Press the F10 key during POST to enter the BIOS Setup Utility.
2.
Press the right arrow (→) key to navigate to the Advanced menu.
3.
Press the down arrow (↓) key to scroll to IPMI. Press the Enter key.
4.
Choose one of these options:
o
On ML110 G5 and ML150 G5 servers, scroll to the bottom of the IPMI page. The available
options include System Event Log and System Event Log (list mode).
o
On ML115 G5 servers:
i.
Scroll to the SEL Configuration menu by pressing the down arrow (↓) key. Press the Enter key.
ii. Press the down arrow (↓) key to scroll to the following available setup options:
— View BMC System Event Log
— Clear BMC System Event Log.
o
On DL120 G5 servers, select System Event Log.
o
On DL160 G5, DL165 G5, DL180 G5, DL185 G5, and SL165z G6 servers:
i.
Scroll to the Event Log Configuration menu by pressing the down arrow (↓) key. Press the
Enter key.
ii. Press the down arrow (↓) key to scroll to the following available setup options:
— Clear System Event Log
— View System Event Log
5.
Press the Enter key to view the highlighted setup item.
6.
Press the Esc key to return to the previous screen, or press the F10 key to save the changes and exit
Setup.
Using LO100 38
System buttons
On the virtual keyboard, there are eight different system buttons: LCtrl, LWin, LAlt, RAlt, RWin, RCtrl,
Context, and [Lock]. These buttons can be used as virtual keys and are similar to the keys the physical
keyboard of your local machine.
For example, when you press the Ctrl+Alt+Del keys on the physical keyboard, the Task Manager of your
local machine appears in addition to the task manager on the server, or the key combination unlocks the
server for login. To display the Task Manager of the remote server by pressing similar virtual keys, on the
LO 100 remote graphic console window, click LCtrl click LAlt, and then press the Del key on your physical
keyboard. Using this key combination displays the LO100 remote graphic console Task Manager. You
can use any combination of virtual and physical Alt, Ctrl, and Del keys.
•
Lock and special buttons, when pressed, remain in a pressed state until released. To release special
buttons, click [Lock], and press the system buttons.
•
Selecting or pairing LCtrl and RCtrl, LAlt and RAlt, LWin and RWin function as they would on an
English language keyboard. However, they might function differently on keyboards of other
languages.
•
Clicking Context is equivalent to right-clicking the LO100 remote graphic console window.
Using Virtual Media
LO100 Virtual Media enables you to add, browse, remove, and share media devices and refresh the
displayed virtual media devices list. LO100 Virtual Media is an advanced feature available by installing
the Lights-Out 100c Remote Management Card or purchasing the Lights-Out 100i Select Pack or the
Lights-Out 100i Advanced Pack. For more information, see the section, "LO100 optional features (on
page 6)."
To access LO100 Virtual Media:
1.
Click Virtual KVM / Media. The Virtual KVM screen appears.
2.
On the Virtual KVM menu, from the Control menu, select Virtual Media. The Virtual Media window
appears and has the following options:
o
Clicking Add adds a new virtual media device to the storage devices list. See "Adding a virtual
media device (on page 40)" for more information.
o
Clicking Connect shares the selected device. See "Shared virtual media devices (on page 40)"
for more information. Only one device can be shared at one time.
o
Selecting a device and clicking Remove removes devices from the virtual media devices list.
o
Clicking Refresh rescans and displays the current devices on your machine.
A CD-ROM, DVD-ROM, or ISO image mounted through the Virtual KVM or Virtual Media applet functions
and appears (in boot order) the same as a locally mounted media device.
Using LO100 39
Adding a virtual media device
The LO100 virtual media option provides you with a virtual media drive, which can direct a remote host
server to boot and use standard media from anywhere on the network. Virtual media devices are
available while the host system boots.
To add a new virtual media device, click Add on the Virtual Media page. The Add Virtual Media window
appears. This window has the following options:
•
The Look In list enables you to change your directory or drive.
•
The Virtual Media Type list enables you to specify the file type that you want to share. You must
declare a Virtual Media Type before LO100 recognizes they type of device it is sharing.
•
The File Name textbox is the shared name of the image.
•
Select a value from the Files of Type list to select the files you want to share.
Shared virtual media devices
You can share a virtual media device from the Storage Devices window. Only one device may be shared
at a time.
Using LO100 40
To share a virtual media device, do the following:
1.
On the Virtual KVM menu, from the Control menu, select Virtual Media. The Virtual Media window
appears.
2.
If the device you want to add is not in the list, click Remove.
3.
To add a device, see "Adding a virtual media device (on page 40)".
4.
Select the device and click Connect. A message box appears, indicating either the device has been
successfully connected or a problem has occurred.
5.
Click OK to close the Virtual Media window.
To remove a shared virtual media device, do the following:
Before removing a shared device, verify the device is safe to remove. If necessary, perform any required
steps to ensure the safe removal of removable media devices on the server.
1.
On the Virtual KVM menu, from the Control menu, select Virtual Media. The Virtual Media window
appears, displaying all currently available added devices.
2.
Select the device you want to remove, and click Remove. A dialog box appears, indicating that the
device has been successfully disconnected.
3.
Click OK to close the Virtual Media window.
Accessing the remote console through telnet
You can access the remote console through either the BIOS console text-redirection functionality or a
Windows Server® 2003 text-based console. You can open only one Remote Console window can be
open at a time.
To start a remote console session, press the Esc+Q keys. To end a remote console session and return to the
CLP, press the Esc+( keys.
NOTE: When entering any ESC key sequences, extra characters might be buffered, causing
the remote side to receive function key presses incorrectly. To avoid this issue and perform
function key or alternate key sequences, press and hold the ESC key, release it, and then
press the other key sequence.
To change the timeout settings for telnet and for the remote console, use Linux raw IPMI commands or an
oemhp command through telnet. The following examples disable timeout:
•
Linux IPMI tool raw command example:
ipmitool raw 0x0c 0x01 0x02 0xf6 0x00 0x00
•
Telnet example:
oemhp i 20 30 b0 18 00 01 02 f6 00 00 ef
The expected response is:
18 34 B4 20 00 01 00 DF
.4......
You can disable telnet timeout through the HTML option on the Network Settings screen.
NOTE: These commands only work in firmware versions 3.05 or later.
Using LO100 41
Redirecting BIOS console text through telnet
LO100 BIOS console text redirection enables you to view the entire boot process remotely and make
changes in the BIOS Setup Utility from a remote computer. This utility helps you troubleshoot and manage
servers remotely.
To configure the BIOS Setup Utility on the target system:
1.
Press the F10 key during POST to enter the BIOS Setup Utility.
2.
Press the right arrow (→) key to navigate to the Advanced menu.
3.
Choose one of these options:
o
On ML110 G5 servers:
i.
Press the down arrow (↓) key to scroll down to the Console Redirection option, and press the
Enter key.
ii. Verify the following settings:
— EMS Support (SPCR)—Enabled
— Serial Port Address—COM A
— Baud Rate—115.2k
— Console Type—VT100/PC
— Continue C.R. after POST—Off
o
On ML115 G5 servers:
i.
Press the down arrow (↓) key to scroll down to the Console Redirection option, and then press
the Enter key.
ii. Verify the following settings:
— Console Redirection—Enabled
— EMS Support (SPCR)—Enabled
— Serial Port Mode—09600 8,n,1
— Flow Control—None
— Redirection After BIOS POST—Always
— Terminal Type—VT100
— Sredir Memory Display Delay—No Delay
o
On DL120 G5 servers:
i.
Press the down arrow (↓) key to scroll down to the Console Redirection option, and then press
the Enter key.
ii. Verify the following settings:
— Console Redirection—Enabled
— EMS support—Enabled
— Baud Rate—115.2K
— Terminal Type—VT100
— Flow Control—None
— Continue C.R. after POST—Enabled
Using LO100 42
o
On ML150 G5 servers:
i.
Press the down arrow (↓) key to scroll down to the Console Redirection option, and press the
Enter key.
ii. Verify the following settings:
— Console Redirection—Enabled
— Baud Rate—115.2K
— Terminal Type—VT100+
— Flow Control—None
— Redirection after BIOS POST—On
o
On DL160 G5 servers:
i.
Press the down arrow (↓) key to scroll down to the Remote Access Configuration option, and
press the Enter key.
ii. Verify the following settings:
— Remote Access—Enabled
— EMS support(SPCR)—Enabled
o
On DL165 G5 and DL185 G5 servers:
i.
Press the down arrow (↓) key to scroll down to the Remote Access Configuration option, and
then press the Enter key.
ii. Verify the following settings:
— Console Redirection—Enabled
— EMS Support (SPCR)—Enabled
— Serial Port Mode—09600 8,n,1
— Flow Control—None
— Redirection After BIOS POST—Always
— Terminal Type—VT100
— Sredir Memory Display Delay—No Delay
o
On DL180 G5 servers:
i.
Press the down arrow (↓) key to scroll down to the Remote Access Configuration option, and
press the Enter key.
ii. Verify the following settings:
— Remote Access—Enabled
— EMS support(SPCR)—Enabled
— Terminal Type—VT100
— Flow Control—None
— Redirection after BIOS POST—Always
o
On SL165z G6 servers:
i.
Press the down arrow (↓) key to scroll down to the Remote Access Configuration option, and
press the Enter key.
ii. Verify the following settings:
Using LO100 43
— Remote Access—Enabled
— EMS support(SPCR)—Enabled
— Base Address—IRQ4/3F8
— Serial Port Mode—9600 8,n,1
— Flow Control—None
— Terminal Type—VT100
— Redirection after BIOS POST—Enabled
4.
Press the Esc key to return to the previous screen.
5.
Scroll to the I/O Device Configuration option, and press the Enter key.
6.
Verify that Serial Port is set to Shared.
7.
Follow the instructions in the "Network settings (on page 51)" section to set or obtain a valid IP
address.
8.
Press the F10 key to save and exit.
After completing the console redirection process, you can view the boot process remotely from a client PC
through an established telnet session to the IP address of LO100. See your operating system
documentation for instructions on establishing telnet sessions.
To redirect the console to the telnet session and view the boot process, press the Esc+Q keys in the telnet
session during server boot. If you reset the server using the telnet connection, and press the Esc+Q keys,
the boot process might not appear immediately. The boot process appears after the server resets. You can
end the session by pressing the Esc+( keys.
NOTE: If you encounter problems logging in to the remote console, be aware that some telnet
programs might require you to enable their send line feed at end of line option. If
the remote console does not respond to the Enter key, try setting this option in your telnet
program.
NOTE: You must follow the instructions in the "Network settings (on page 51)" section to
configure the network access properly.
Redirecting a Linux console
In the remote console and servers with the Linux operating system, you can enable a remote login on
ttyS0 by making the following changes to the BIOS Setup Utility and boot documents.
NOTE: The actual steps will vary depending on your version of Linux.
1.
Using the BIOS Setup Utility, verify your system configuration by choosing one of these options:
o
On HP ProLiant ML110 G5 servers, verify the following settings:
Configure Console Redirection
— Console Redirection—Enabled
— EMC Support (SPCR)—Enabled
— Flow Control—None
— Redirection After BIOS POST—Always
Using LO100 44
— Terminal Type—VT100
— Sredir Memory Display Delay—No Delay
I/O Device Configuration—Configure IO Port
— Serial Port 1 Address—3F8/IRQ4
o
On HP ProLiant ML115 G5, ProLiant DL165 G5, and ProLiant DL185 G5 servers, verify the
following settings:
Configure Console Redirection
— Console Redirection—Enabled
— EMS Support (SPCR)—Enabled
— Flow Control—None
— Redirection After BIOS POST—Always
— Terminal Type—VT100
— Sredir Memory Display Delay—No Delay
I/O Device Configuration-Configure IO Port
— Serial Port 1 Address—3F8/IRQ4
o
On HP ProLiant DL120 G5 servers, verify the following settings:
Console Redirection
— Console Redirection—Enabled
— EMS support—Enabled
— Baud Rate—115.2K
— Terminal Type—VT100
— Flow Control—None
— Continue C.R. after POST—Enabled
I/O Device Configuration
— Base I/O address—3F8
— Interrupt—IRQ 4
o
On HP ProLiant ML150 G5 servers, verify the following settings:
Console Redirection
— BIOS Serial console—Enabled
— EMC Support (SPCR)—Enabled
— Baud Rate—115.2K
— Console Type—VT100
— Continue C.R. after POST—On
I/O Device Configuration
— Serial Port A—Enabled
— Base I/O address—3F8
— Interrupt—IRQ 4
o
On HP ProLiant DL160 G5 servers, verify the following settings:
Using LO100 45
Remote Access Configuration
— Remote Access—Enabled
— EMS support(SPCR)—Enabled
o
On HP ProLiant DL180 G5 and SL165z G6 servers, verify the following settings:
Remote Access Configuration
— Remote Access—Enabled
— EMS support(SPCR)—Enabled
— Terminal Type—VT100
— Flow Control—None
— Redirection after BIOS POST—Always
SuperIO Configuration
— Serial Port Address—3F8
— Serial Port IRQ—IRQ 4
2.
In the /boot/grub/menu.lst file, append the following to the kernel startup line:
console=ttyS0 115200
Comment out the line GRAPHICAL DISPLAY LINE
# splashimage=(hd0,0)/grub/splash.xpm.gz
3.
Add an entry to allow serial console login in /etc/inittab. For example:
S0:12345:respawn:/sbin/agetty -L 115200 ttyS0 vt102
4.
In /etc/securetty enable root access to ttyS0 by adding ttyS0.
5.
In /etc/sysconfig/kudzu, set kudzu to not perform serial port probing during boot. For example:
SAFE=yes
6.
After modifying and saving the previous files, reboot the server. You can now log in to the operating
system through remote console.
After POST, in the remote console, the server prompts you with a login. Enter a valid login and use the
server as you normally would. Use the ESC+Q keys to start remote console through the telnet and the
ESC+( keys to exit the remote console in telnet.
Microsoft Windows EMS management
Microsoft® Windows Server® 2003 provides text-based console access. You can connect a notebook to
LO100 to perform basic management tasks on the target system. The Windows® EMS Console, if
enabled, displays the processes that are running and enables administrators to halt processes. This
capability is important when video, device drivers, or other operating system features have prevented
normal operation and normal corrective actions.
To enable Windows® EMS management on the target system:
1.
Press the F10 key during POST to enter the BIOS Setup Utility.
2.
Navigate to the Advanced>Console Redirection menu.
3.
Choose one of these options:
o
On ML110 G5 servers:
i.
Press the down arrow (↓) key to scroll down to the EMS Console option, and then press the
Enter key.
Using LO100 46
ii. Verify the following settings:
— Console Redirection—Enabled
— Baud Rate—115.2K
— Terminal Type—VT100+
— Flow Control—None
— Redirection after BIOS POST—On
o
On ML115 G5, DL165 G5, and DL185 G5 servers:
i.
o
Press the down arrow (↓) key to scroll down to the Console Redirection option, and then press
the Enter key.
Verify the following settings:
— Console Redirection—Enabled
— EMS Support (SPCR)—Enabled
— Serial Port Mode—09600 8,n,1
— Flow Control—None
— Redirection After BIOS POST—Always
— Terminal Type—VT100
— Sredir Memory Display Delay—No Delay
o
On DL120 G5 servers:
i.
Press the down arrow (↓) key to scroll down to the Console Redirection option, and then press
the Enter key.
ii. Verify the following settings:
— Console Redirection—Enabled
— EMS support—Enabled
— Baud Rate—115.2K
— Terminal Type—VT100
— Flow Control—None
— Continue C.R. after POST—Enabled
o
On ML150 G5 servers:
i.
Press the down arrow (↓) key to scroll down to the Remote Access Configuration option, and
then press the Enter key.
ii. Verify the following settings:
— Remote Access—Enabled
— EMS support(SPCR)—Enabled
— Serial Port Mode—115200 8,n,1
— Flow Control—None
— Console Type—VT100
— Continue C.R. after POST—Always
o
On ML160 G5 servers:
Using LO100 47
i.
Press the down arrow (↓) key to scroll down to the Remote Access Configuration option, and
then press the Enter key.
ii. Verify the following settings:
— Remote Access—Enabled
— EMS support(SPCR)—Enabled
o
On ML180 G5 servers:
i.
Press the down arrow (↓) key to scroll down to the Remote Access Configuration option, and
then press the Enter key.
ii. Verify the following settings:
— Remote Access—Enabled
— EMS support(SPCR)—Enabled
— Terminal Type—VT100
— Flow Control—None
— Redirection after BIOS POST—Always
o
On ML180 G5 servers:
i.
Press the down arrow (↓) key to scroll down to the Remote Access Configuration option, and
then press the Enter key.
ii. Verify the following settings:
— Remote Access—Enabled
— EMS support(SPCR)—Enabled
— Serial Port Mode—9600 8,n,1
— Terminal Type—VT100
— Flow Control—None
— Redirection after BIOS POST—Always
4.
Press the Esc key to return to the previous screen, or press the F10 key to save the changes and exit
setup.
After enabling Windows® EMS management, you can view the Windows® EMS management console
remotely from a client PC through an established telnet session to the IP address of the target server by
pressing the Esc+Q keys. You can end an EMS session by pressing the Esc+( keys. See your operating
system documentation for instructions on establishing telnet sessions.
NOTE: If you encounter problems logging in to the remote console, be aware that some telnet
programs might require you to enable their send line feed at end of line option. If
the remote console does not respond to the Enter key, try setting this option in your telnet
program.
Using LO100 48
Hardware Inventory page
The Hardware Inventory page enables you to remotely identify the presence of processors on a target
server. To access this page from a web browser on the main menu navigation bar, click Hardware
Inventory.
User administration
The User Administration option on the main menu navigation bar enables you (if authorized) to edit the
user name and password for existing users. You cannot create a new user. The user password is stored in
nonvolatile memory and can be changed through a web browser ("Changing user settings through a web
browser" on page 50) or through the CLP ("Changing user settings through the CLP" on page 50).
When using CLP, if you do not have the correct privileges a warning message appears. If you receive a
warning message, you must end the telnet connection and re-establish a connection. There are no
restrictions when logged in as either OEM or administrator. User and operator accounts have the
following access.
Option
User
Operator
Hardware Inventory
Yes
Yes
Virtual Power
No
Yes
Monitoring Sensors
View only
Yes
System Event Log
Yes
Yes
Network Settings
No
No
PET Configuration
No
No
User Configuration
No
No
Using LO100 49
Option
User
Operator
Virtual KVM
No
No
Application License Key
No
No
Security Settings
No
No
Changing user settings through a web browser
The User Administration screen enables you to view user information, modify user settings, and enable or
disable user accounts. The first user account is a fixed null value. You cannot change the properties of the
first user or use it to log in. Only the first two users (after the fixed null value) are enabled for login by
default. Users can only be enabled from the browser interface.
WARNING: Do not disable all user accounts. If you disable all user accounts you will not be
able to log in to LO100. HP recommends always leaving at least one user with administrative
privileges.
To modify user settings:
1.
On the main menu navigation bar, click User Administration.
2.
In the Password and Confirm Password fields, enter the password.
3.
Select the User Privilege level from the list. For more information on user privileges and access rights,
see "User administration (on page 49)."
4.
(Optional) Change the user name.
5.
To save the changes, click Set.
Changing user settings through the CLP
The first user is a fixed null value. Customizable users start at user2 and continue through user16. You can
only enable users for log in through the browser. However, you can change the values through any
connection.
Using LO100 50
1.
Log in to the CLP as described in the "Logging in to LO100 (on page 26)" section.
2.
At the command prompt, enter cd map1/accounts.
3.
Select a user by entering cd user1 or cd user#, where # is the user you want to modify and a
whole number between 2 and 16.
4.
To change the user name, enter set username=<new username>. For example:
/./map1/accounts/user2/> set username=testuser2
5.
To change the user password, enter set password=<new password>, and enter the new
password when prompted. For example:
/./map1/accounts/user2/> set password=testpswd2
Passwords are case-sensitive and can contain up to 16 characters.
IMPORTANT: LO100 does not support either an ampersand (&) or quotation marks (") in user
names or passwords.
6.
To change the group name enter, set group=<new group name>. Valid group settings are
administrator, user, oemhp, and operator. For example:
/./map1/accounts/user2/> set group=user
Network settings
You can view and modify network settings for LO100 using a web browser, CLP, or the BIOS Setup
Utility. If you change the IP address, the connection to the server terminates. You must reconnect to the
server using the new IP address.
Using LO100 51
Configuring network settings using a web browser
The Network Settings screen displays IP address, subnet mask, and other TCP/IP-related settings. From the
Network Settings screen, you can enable or disable DHCP and configure a static IP address for servers
not using DHCP. You can view and modify the network settings when logged in as either OEM or
administrator (admin).
To modify the network settings, from the browser main menu navigation bar, click Network Settings, enter
the new settings, and then click Apply.
The Network Settings page now lists the following information:
•
MAC AddressDisplays the MAC address.
•
IP AddressDisplays the current BMC IP address and enables you to set it to Static.
•
Subnet MaskDisplays the LO100 IP network subnet mask. If you are using DHCP, the subnet mask
is automatically supplied. If not, enter the network subnet mask.
•
GatewayDisplays the IP address of the network gateway. If you are using DHCP, the network
gateway IP address is automatically supplied. If not, enter the network gateway address.
For the static IP to work, all network settings must be correct.
•
DHCPEnables you to set the BMC IP to DHCP by selecting the Enabled box, or to Static by
clearing the Enabled box. For the changes to take effect, click Apply.
When setting the BMC IP to Static, to set a valid static IP, you must enter a static IP into the IP
Address field before clicking Apply.
•
DNS Server IP AddressDisplays IP address of the DNS server.
•
DNS Server Alternate IP AddressDisplays secondary DNS IP address.
•
DNS Host NameDisplays the host name set by user, defaulted to lo100<serial number>. This
name is the DNS name associated with the IP address. If DHCP and DNS are configured correctly,
this name can be used to connect to the LO100 subsystem instead of the IP address.
Using LO100 52
•
DNS Current Domain NameDisplays the current name of the domain where the LO100 subsystem
resides. DHCP assigns this name. This name would be what is currently registered, whether it was
returned through option 6, or it was configured locally as al default.
•
DNS Configured Domain NameDisplays the domain name set by user as default domain name.
•
Register this Connection's Addresses in DNSEnables you to register these server addresses to the
DNS Server on the network. DHCP option 81 is used to register the host name with the appropriate
DNS suffix to the DNS server through the DHCP server.
•
Use this connection's DNS suffix in the DNS RegistrationEnables you to register the DNS suffix
with the DNS server. Enables you to set and use a default domain name if the DHCP server does not
offer one through DHCP Option 6.
Disabling this option can result in the connection using its primary DNS suffix, which is usually the
DNS name of the active directory domain to which it is joined.
•
Telnet Inactivity TimeoutEnables you to set the total time limit allowed of inactivity (in seconds)
during a telnet connection before the connection is terminated.
To disable Telnet Inactivity timeout, set the field to 0.
If you are using Windows Vista or Windows Server 2008, from the Windows Features On/Off
option of the Programs and Features menu in the Control Panel, you must activate Telnet Server and
Telnet CIient.
LO100 enables you to register this connection's address in DNS, and to use this connection's DNS
registration. You can use this DNS registration feature only if you have enabled DHCP.
DNS registration does not work on G5 systems with low-speed NIC ports.
Configuring network settings using the CLP
1.
Log in to LO100 CLP as described in the "Logging in to LO100 (on page 26)" section.
2.
At the command prompt, enter cd map1/nic1.
3.
Configure the network settings by entering the following: set <network property>=<new
setting>. Configurable valid network properties are:
o
networkaddress specifies the IP address for the NIC. This setting is dynamic.
o
oemhp_nonvol_networkaddress specifies the IP address stored in non-volatile memory.
o
oemhp_mask specifies the subnet mask for NIC. This setting is dynamic.
o
oemhp_nonvol_mask specifies the subnet mask stored in non-volatile memory.
o
oemhp_gateway specifies the gateway IP address for the NIC. This setting is dynamic.
o
oemhp_nonvol_gateway specifies the gateway IP address stored in non-volatile memory.
o
oemhp_dhcp_enable specifies whether DHCP is enabled for the NIC. Boolean values are
accepted
o
oemhp_nonvol_dhcp_enable specifies whether DHCP is enabled for the NIC and address
stored in non-volatile memory.
Configuring network settings using the BIOS Setup Utility
To enable a static IP address:
1.
Press the F10 key during POST to enter the BIOS Setup Utility.
Using LO100 53
2.
Press the right arrow (→) key to navigate to the Advanced menu.
3.
Press the down arrow (↓) key to scroll to IPMI. Press the Enter key.
4.
To set your network BIOS settings, choose one of these options:
o
On ML110 G5 and ML150 G5 servers:
i.
Press the down arrow (↓) key to scroll to the end, and then select DHCP IP Source.
ii. On DHCP IP Source, select Disabled.
iii. Press the down arrow (↓) key to scroll down and enter a valid IP address, subnet mask, and
gateway address (press the Tab key to move between address fields).
o
On ML115 G5 servers:
i.
Press the down arrow (↓) key to scroll to the BMC LAN Configuration menu. Press the Enter
key.
ii. Press the down arrow (↓) key to scroll to the end, and then select DHCP IP Source.
iii. On DHCP IP Source, select Disabled.
iv. Press the down arrow (↓) key to scroll down and enter a valid IP address, subnet mask, and
gateway address (press the Tab key to move between address fields).
o
On DL120 G5 servers:
i.
Press the down arrow (↓) key to scroll to the LAN Settings menu. Press the Enter key.
ii. On IP Address Assignment, select Static.
iii. Press the down arrow (↓) key to scroll down and enter a valid IP address, subnet mask, and
gateway address (press the Tab key to move between address fields).
o
On DL160 G5, DL165 G5, DL180 G5, and DL185 G5 servers:
i.
Press the down arrow (↓) key to scroll to the LAN Configuration menu. Press the Enter key.
ii. On DHCP IP Source, select Disabled.
iii. Press the down arrow (↓) key to scroll down and enter a valid IP address, subnet mask, and
gateway address (press the Tab or period (.) key to move between address fields).
5.
Press the F10 key to save and exit.
To enable a DHCP assigned address:
1.
Press the F10 key during POST to enter the BIOS Setup Utility.
2.
Press the right arrow (→) key to navigate to the Advanced menu.
3.
Press the down arrow (↓) key to scroll to IPMI. Press the Enter key.
4.
BIOS settings for SL165z G6 server are set by default. To set your network BIOS settings, choose
one of these options:
o
On ML110 G5 and ML150 G5 servers:
i.
Press the down arrow (↓) key to scroll to the end, and select DHCP IP Source.
ii. Set DHCP IP Source to Enabled.
o
On ML115 G5 servers:
i.
Scroll to the BMC LAN Configuration menu by pressing the down arrow (↓) key. Press the
Enter key.
ii. Press the down arrow (↓) key to scroll to the end, and select DHCP IP Source.
iii. Set DHCP IP Source to Enabled.
Using LO100 54
o
On DL120 G5 servers, set IP Address Assignment to DHCP.
o
On DL160 G5, DL165 G5, DL180 G5, and DL185 G5 servers:
i.
Scroll to the LAN Configuration menu by pressing the down arrow (↓) key. Press the Enter
key.
ii. Set DHCP IP Source to Enabled.
5.
To save and exit, press the F10 key, or to view the new IP Address, allow the server to reset and
reenter the BIOS Setup Utility.
To enable telnet and HTTP services:
On DL160 G5, DL165 G5, and DL185 G5 servers, HTTP and telnet are enabled by default.
On the ML110 G5 and ML115 G5:
1.
Select Advanced>IPMI>LAN Configuration.
2.
Set the following:
o
BMC HTTP Service—Enabled
o
BMC Telnet Service—Enabled
On DL120 G5 servers:
1.
Select Advanced>IPMI>LAN Settings.
2.
Set the following:
o
BMC HTTP Service—Enabled
o
BMC HTTPS Service—Enabled
o
BMC Telnet Service—Enabled
On the ML150 G5 and DL180 G5 servers:
1.
Select Advanced>IPMI.
2.
Set the following:
o
BMC HTTP Service—Enabled
o
BMC Telnet Service—Enabled
Applying a license key
The Application License Key option and screen are available on ML110 G5, ML115 G5, DL120 G5,
ML150 G5, DL160 G5, DL165 G5, DL180 G5, DL185 G5, and SL165z G6 servers.
1.
Log in to LO100 through a supported browser.
Using LO100 55
2.
To display the license activation screen, click Application License Key. If the Application License Key
option is not available, you must update the LO100 firmware. For more information, see "Updating
the firmware (on page 16)."
3.
Enter the license key in the spaces provided. To move between fields, click inside a field or press the
Tab key. The Activation License Key field advances automatically as you enter data.
4.
Click Apply.
Importing a certificate
If you do not want to use the preinstalled public key (certificate), create and install your own private key
(certificate). Importing a key or certificate is a one-time procedure that supports both SSH and SSL. The
key must be generated using external third-party software, placed on a TFTP server, and uploaded to the
LO100. For Microsoft® Windows®, if you do not have a TFTP software package, use TFTPD32.EXE,
which is available on the Internet. Linux generally has a TFTP server installed with the operating system. If
it is not, see your Linux documentation for more information.
NOTE: When you use the CLP load command with TFTPD32, HP recommends using a 4second timeout and 10 retries.
NOTE: When using the CLP load command in Linux set the timeout to 4000000. The
firewall built into some Linux systems might not allow the TFTP server to send and receive
information. You might have to disable the firewall to allow these connections. If you are
experiencing firewall issues, change the firewall settings to allow connections on port 69 (the
default port for TFTP servers). See your firewall documentation for additional information.
Creating a certificate
LO100 requires a 1,024-bit DSA key stored in PEM (Base64-encoded) format to be located on a TFTP
server. For example, the following process uses Win32 OpenSSL, downloaded from the Shining Light
Using LO100 56
Productions website (http://www.slproweb.com/products/Win32OpenSSL.html), and the commands
issued in a DOS window to generate the certificate. To generate a certificate using Win32 OpenSSL:
1.
Download Win32 OpenSSL.
2.
Install and set up OpenSSL.
3.
Using OpenSSL, generate a DSA parameters file:
openssl dsaparam -out server_dsaparam.pem 1024
4.
Generate the DSA private key file, called server_privkey.pem:
openssl gendsa -out server_privkey.pem server_dsaparam.pem
5.
Generate the DSA certificate (public key) file, called server cacert.pem:
openssl req -new -x509 -key server_privkey.pem -out server_cacert.pem days 1095
6.
When prompted for a distinguished name, enter an appropriate domain name for the servers that
will be receiving the certificate.
7.
After creating the certificate, copy it to a TFTP server that is accessible on the same network as
LO100.
Before importing a certificate or key, you must disconnect from any remote KVMS sessions. Importing a
key or certificate will disconnect your session and reset the LO100 processor. After importing a key or
certificate and LO100 confirms a successful upload, you must log back into LO100.
Installing a certificate or private key through a web browser
The Security Settings page enables you to install new keys and certificates for SSL and SSH connections.
To install a certificate through the browser:
1.
Log in to LO100 as an administrator.
2.
On the browser main menu navigation bar, click Security Settings.
3.
In the TFTP server IP address field, enter the IP address of the TFTP server.
4.
On the menu under File type, select Certificate.
Using LO100 57
5.
In the File Name field, enter the file name of the certificate created (server_cacert.pem). Include the
path relative to the TFTP server root in the file name.
6.
Click Apply.
To install the private key through the browser:
1.
Log in to LO100 as an administrator.
2.
On the browser main menu navigation bar, click Security Settings.
3.
In the TFTP server IP address field, enter the IP address of the TFTP server.
4.
On the menu under File type, select Key.
5.
In the File Name field, enter the file name of the key created (server_privkey.pem). Include the path
relative to the TFTP server root in the file name.
6.
Click Apply.
Installing a certificate or private key through the CLP
To install a certificate, log in to LO100 as administrator through the CLP interface and issue the load
command to upload and install the certificate. For example:
load -source <URI> -oemhpfiletype cer
where:
o
<URI> is the //tftpserver IP/path/filename to be downloaded.
o
tftpserver is the URL or IP address of the TFTP server containing the certificate.
o
Path is the path of the file relative to the TFTP server root.
o
filename is the file name of the certificate file (server_cacert.pem in this example).
You can also find these commands in /map1/firmware directory.
NOTE: After using the load command LO100 will reset ending your CLP interface session.
You must reconnect to the CLP interface.
To install a private key, log in to LO100 as administrator through the CLP interface and issue the load
command to upload and install the certificate. For example:
load -source <URI> -oemhpfiletype key
where:
o
<URI> is the //tftpserver IP/path/filename to be downloaded.
o
tftpserver is the URL or IP address of the TFTP server containing the private key file.
o
Path is the path of the file relative to the TFTP server root.
o
filename is the file name of the private key file (server_privkey.pem in this example).
You can also find these commands in /map1/firmware directory.
NOTE: After using the load command LO100 will reset ending your CLP interface session.
You must reconnect to the CLP interface.
To successfully establish SSH/SSL connections after loading a key or certificate through the CLI or the
GUI, and after you click Apply, you must reset the BMC by choosing either of the following:
•
CLI (/./-> cd map1 a"resetmap1")
•
Physically pulling AUX power
Using LO100 58
Installing firmware through a web browser
The Firmware Download page enables you to install new firmware images. To install firmware through
the browser:
1.
Log in to LO100 as an administrator.
2.
On the browser main menu recognition box, click Firmware Download.
3.
In the TFTP server IP address field, enter the IP address of the TFTP server.
4.
Enter the file name of the firmware image in the File Name field. Include the path relative to the TFTP
server root in the file name.
5.
If you are using Linux to install the firmware:
a. Place the image file in the tftpboot file, which is in the TFTP servers root directory.
b. Enter the file name of the firmware image in the Firmware File name field. Include the path to the
TFTP server root in the file name.
6.
Click Apply.
After you click Apply, the BMC is reset. You must reconnect to the Web browser.
HP SIM support
HP SIM discovers LO100 and enables you to identify and launch LO100. See your HP SIM user guide for
more information on using HP SIM with LO100.
Resolving character and line feed issues
HP recommends using similar operating systems to communicate between the CMS and your applications
or workstations. For example, if you are running a Linux CMS, run Linux on your workstations, and use a
Using LO100 59
Linux telnet client. Likewise, if you are running a Windows® CMS, run Windows on your workstations,
and use a Windows® Telnet client.
If you run multiple operating systems in your environment, an application limitation issue might occur. For
example, running Linux on your servers and using a Windows® Telnet client or PuTTY might cause an end
of line character issue. If you experience issues, do one the following:
•
For a Windows® Telnet client to Linux console redirection configuration, make sure Windows®
Telnet sends a CR for the line feed. To set CR, use the following command for Windows® Telnet:
unset crlf
•
For applications such as PuTTY with Linux redirection:
a. Click Connection>Telnet.
b. Clear Return key sends Telnet New Line instead of ^M.
LO100 has a default of 0x08 (input) and 0x03 (output) filter setting that must not be changed. If the
default settings are changed, functionality issues might occur and you must restore the default settings.
After the defaults are reset, you must log out and back in to the shell to restore normal functionality. To
restore the default settings, use the following IPMI commands for your environment and operating system:
•
To set telnet inbound to 0x08:
o
CLP: oemhp I 20 c0 20 18 00 29 01 00 00 02 00 08 b4
Using LO100 60
•
•
•
o
DOS: ipmitool 20 c0 29 01 00 00 02 00 08
o
Linux: ipmitool raw 0x30 0x29 0x01 0x00 0x00 0x02 0x00 0x08
To set telnet outbound to 0x03:
o
CLP: oemhp I 20 c0 20 18 00 29 01 00 00 02 01 03 b8
o
DOS: ipmitool 20 c0 29 01 00 00 02 01 03
o
Linux: ipmitool raw 0x30 0x29 0x01 0x00 0x00 0x02 0x01 0x03
To set SSH inbound to 0x08:
o
CLP: oemhp I 20 c0 20 18 00 29 01 00 01 02 00 08 b3
o
DOS: ipmitool 20 c0 29 01 00 01 02 00 08
o
Linux: ipmitool raw 0x30 0x29 0x01 0x00 0x01 0x02 0x00 0x08
To set SSH outbound to 0x03:
o
CLP: oemhp I 20 c0 20 18 00 29 01 00 01 02 01 03 b7
o
DOS: ipmitool 20 c0 29 01 00 01 02 01 03
o
Linux: ipmitool raw 0x30 0x29 0x01 0x00 0x01 0x02 0x01 0x03
For example, to restore the default setting using telnet in Windows®:
1.
Log in to the CLP interface from a Windows® Telnet client.
2.
Change the directory to map1 using the command:
cd map1
3.
Set input default to 0x08 using the command:
oemhp I 20 c0 20 18 00 29 01 00 00 02 00 08 b4
4.
Set output default to 0x03 using the command:
oemhp I 20 c0 20 18 00 29 01 00 00 02 01 03 b8
5.
Log out.
Using LO100 61
Technical support
Software technical support and update service
With LO100i firmware version 3.0, HP LO100i Advanced Packs and HP LO100i Select Packs are
available with new licenses that provide for optional future upgrades. For more information about these
options, see the HP website (http://www.hp.com/servers/lights-out).
A license entitlement certificate is delivered in place of a license activation key. The license entitlement
certificate is delivered by physical shipment for existing product numbers (with the exception of tracking
licenses) and by e-mail for the new electronic license product numbers. The certificate contains information
needed to redeem license activation keys online or by fax. This new electronic redemption process
enables easier license management and better service and support tracking. For more information, see
the HP website (http://www.hp.com/go/ice-license).
HP contact information
For the name of the nearest HP authorized reseller:
•
See the Contact HP worldwide (in English) webpage
(http://welcome.hp.com/country/us/en/wwcontact.html).
For HP technical support:
•
•
In the United States, for contact options see the Contact HP United States webpage
(http://welcome.hp.com/country/us/en/contact_us.html). To contact HP by phone:
o
Call 1-800-HP-INVENT (1-800-474-6836). This service is available 24 hours a day, 7 days a
week. For continuous quality improvement, calls may be recorded or monitored.
o
If you have purchased a Care Pack (service upgrade), call 1-800-633-3600. For more
information about Care Packs, refer to the HP website (http://www.hp.com/hps).
In other locations, see the Contact HP worldwide (in English) webpage
(http://welcome.hp.com/country/us/en/wwcontact.html).
Before you contact HP
Be sure to have the following information available before you call HP:
•
Technical support registration number (if applicable)
•
Product serial number
•
Product model name and number
•
Product identification number
•
Applicable error messages
•
Add-on boards or hardware
Technical support
62
•
Third-party hardware or software
•
Operating system type and revision level
Technical support
63
Acronyms and abbreviations
BIOS
Basic Input/Output System
BMC
baseboard management controller
CLI
Command Line Interface
CLP
command line protocol
CMS
central management server
CR
carriage return
DHCP
Dynamic Host Configuration Protocol
DSA
Digital Signature Algorithm
EMS
Emergency Management Services
HTTP
hypertext transfer protocol
IP
Internet Protocol
IPMI
Intelligent Platform Management Interface
Acronyms and abbreviations
64
JVM
Java Virtual Machine
KVM
keyboard, video, and mouse
LO100
HP Lights-Out 100 Remote Management processors
MAC
Media Access Control
NIC
network interface card
OS
operating system
PEF
Platform Event Filtering
PEM
Privacy Enhanced Mail
PET
Platform Event Trap
POST
Power-On Self Test
RBSU
ROM-Based Setup Utility
SLES
SUSE Linux Enterprise Server
SMASH
System Management Architecture for Server Hardware
SSH
Secure Shell
Acronyms and abbreviations
65
SSL
Secure Sockets Layer
TCP/IP
Transmission Control Protocol/Internet Protocol
TFTP
Trivial File Transfer Protocol
UID
unit identification
URL
uniform resource locator
VNC
virtual network computing
Acronyms and abbreviations
66
Index
A
accessing software, browser 11, 26
administration 10
alert messages 32
authorized reseller 62
B
base management controller (BMC) 10, 13, 16, 38,
44, 53
BIOS configuration 11, 12, 13, 14
BIOS console, text redirection 42
BIOS Setup Utility 11, 13, 14, 16, 29, 38, 42, 44,
46
BIOS upgrade 16, 59
BMC (base management controller) 10, 13, 16, 38,
44, 53
browser-based setup 52
C
certificates 56, 57, 58
CLP (Command Line Protocol)
33, 37, 50, 51, 53, 58
CLP overview 20
CLP, commands 22, 25, 29,
CLP, connection options 20
CLP, general syntax 21, 22
Command Line Protocol (CLP)
33, 37, 50, 51, 53, 58
configuration 10
configuration settings 49
configuration, LOM processor
configuration, network 51
configuration, PET 32
connectors, illustrated 9
console redirection 12
contact information 62
CR/LF translation 59
defining hot keys 39
DHCP (Dynamic Host Configuration Protocol) 12,
13, 14, 32, 52, 53
DHCP addresses 13
DHCP, disabling 14
DHCP, enabling 13
DNS naming 14
DSA (Digital Signature Algorithm) 56
Dynamic Host Configuration Protocol (DHCP) 10,
13, 14, 52, 53
E
EMS (Emergency Management Services) 46
EMS Console 46
enabling HTTP 15
enabling serial access 11
enabling telnet 15
encryption 19
Ethernet connections 12
event logs 33, 37, 38
F
20, 22, 25, 27, 29,
37, 53
20, 22, 25, 27, 29,
features, CLP 20
features, IPMI 2.0 26
features, LO100 5, 6
features, SSL 19
firmware, updating 16, 59
flash ROM 16
function keys 11
H
10
hardware inventory 49
help resources 62
HP Systems Insight Manager, support 59
HP technical support 62
HP website 62
HP, contacting 62
HTTP (hypertext transfer protocol) 6, 11, 15, 53
D
I
data protection methods 19
dedicated management port 12
importing, certificates 56
installation 8, 9
Index 67
Intelligent Platform Management Interface (IPMI) 5,
26, 32, 33, 37
IP (Internet Protocol) 13, 14, 27, 53
IP address assignment 14
IPMI (Intelligent Platform Management Interface) 5,
26, 32, 33, 37
IPMI support 26
K
key, private 57, 58
keyboard, video, mouse (KVM) 5, 35, 49
keys, system 39
kit contents, LO100c management card 8
KVM, (keyboard, video, mouse) 5, 35, 49
L
Lights-Out 100c Remote Management Card 8
Linux procedures 44
Linux, console redirection 44
LO100, logging in through browser 26
logging in 26, 27
M
MAC (media access control) 32, 36, 39
main menu functions 27
management card 9
medium access control (MAC) 32, 36, 39
monitoring sensors 29
mouse settings 36
N
network access 10
network interface card (NIC) 5, 11, 12, 53
network settings 16, 51, 52, 53
NIC (network interface card) 5, 11, 12, 53
O
OpenSSH utility 20
operational overview 5
overview, CLP 20
overview, product 5
overview, server management 5
overview, SSH 19
overview, SSL 19
P
passwords 50
PEF (Platform Event Filtering) 31, 32
PEM (Privacy Enhanced Mail) 56, 57, 58
PET (Platform Event Trap) 56, 57, 58
Platform Event Filtering (PEF) 31, 32
Platform Event Trap (PET) 56, 57, 58
POST (Power-On Self Test) 10, 44
post-installation procedures 9
power control options 28, 29
Power-On Self Test (POST) 10, 44
preinstallation, guidelines 8
Privacy Enhanced Mail (PEM) 56, 57, 58
private key 57, 58
privileges, user 49
processors 49
PuTTY utility 20
R
RBSU (ROM-Based Setup Utility) 33, 37
remote console 41
remote console, applet settings 35
remote graphic console, applet 34
remote management card connectors 9
remote management processor, logging in through
CLP 27
remote management, browser main menu 27
remote server power, controlling 28
requirements, SSH 19
ROM-Based Setup Utility (RBSU) 33, 37
ROMPaq utility 16
S
safety considerations 8
Secure Shell (SSH) 5, 6, 19, 20, 27, 56, 57
Secure Sockets Layer (SSL) 5, 6, 19, 56, 57
sensor data 31
serial port 11
serial port, BIOS console configuration 12
serial port, enabling 11
settings, mouse 36
settings, network 51
settings, PEF 31
settings, power options 28, 29
shared storage devices, adding 40
shared storage devices, removing 40
side-band connection 12
SLES (SUSE Linux Enterprise Server) 36
SMASH (System Management Architecture for Server
Hardware) 5, 6, 20
SSH (Secure Shell) 5, 6, 19, 20, 27, 56, 57
Index 68
SSH keys, importing 56, 57
SSH utility 19
SSL, (Secure Sockets Layer) 5, 6, 19, 56, 57
SSL, importing key and certificate 56
SSL, overview 19
SSL, using 19
static IP addresses 14
storage devices, adding 40
storage devices, sharing 40
storage devices, using 39
support, HP Systems Insight Manager 59
support, IPMI 26
SUSE Linux Enterprise Server (SLES) 36
system buttons 39
system event log, access through the BIOS 38
system event log, access through the CLP 37
system event logs 37
System Management Architecture for Server
Hardware (SMASH) 5, 6, 20
Windows EMS Console, enabling 46
T
technical support 62
telephone numbers 62
telnet 15, 41, 42, 59
TFTP (Trivial File Transfer Protocol) 16, 22, 56, 57,
58, 59
Trivial File Transfer Protocol (TFTP) 16, 22, 56, 57,
58, 59
U
UID (unit identification) 6
uniform resource locator (URL) 16, 58
unit identification (UID) 6
update service 62
URL (uniform resource locator) 16, 58
user access 10, 49
user account, modifying 10, 49, 50
user settings 10, 49, 50
using, LO100 19
V
virtual devices 39
virtual network computing (VNC) 35
virtual power 28
VNC (virtual network computing) 35
W
website, HP 62
Index 69
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
