Siemens Gigaset A68H User guide
A680 (A380-L2) / PHL-TWN eng / A31008-M2005-Z401-1-7619 / Overview.fm / 14.05.2010
1

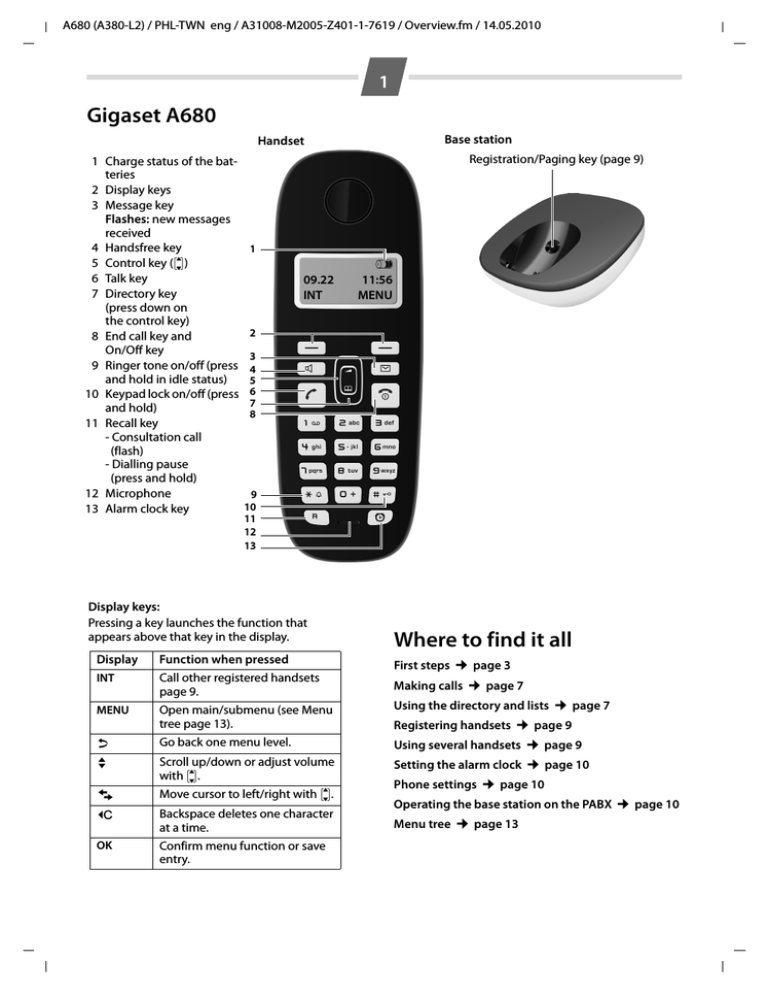

Gigaset A680
Base station
Handset
1 Charge status of the batteries
2 Display keys
3 Message key
Flashes: new messages
received
4 Handsfree key
5 Control key (u)
6 Talk key
7 Directory key
(press down on
the control key)
8 End call key and
On/Off key
9 Ringer tone on/off (press
and hold in idle status)
10 Keypad lock on/off (press
and hold)
11 Recall key
- Consultation call
(flash)
- Dialling pause
(press and hold)
12 Microphone
13 Alarm clock key
Registration/Paging key (page 9)
1
09.22
INT
2
3
4
5
6
7
8
9
10
11
12
13
Display keys:
Pressing a key launches the function that
appears above that key in the display.
Display
Function when pressed
INT
Call other registered handsets
page 9.
MENU
Open main/submenu (see Menu
tree page 13).
“
U
T
˜
OK
V
11:56
MENU
Go back one menu level.
Scroll up/down or adjust volume
with u.
Move cursor to left/right with u.
Backspace deletes one character
at a time.
Confirm menu function or save
entry.
Where to find it all
First steps ¢ page 3
Making calls ¢ page 7
Using the directory and lists ¢ page 7
Registering handsets ¢ page 9
Using several handsets ¢ page 9
Setting the alarm clock ¢ page 10
Phone settings ¢ page 10
Operating the base station on the PABX
Menu tree
¢ page 13
¢ page 10
A680 (A380-L2) / PHL-TWN eng / A31008-M2005-Z401-1-7619 / Overview.fm / 14.05.2010
2
Safety precautions
Read this user guide and the safety precautions carefully
before use. Explain their contents and the potential hazards
associated with using the telephone to your children.
$
Only use the mains unit supplied.
¢
Fit only the recommended, rechargeable
batteries (
page 11), i.e. never use a conventional (non-rechargeable) battery or other battery
types as this could result in significant health risks
and personal injury.
The operation of medical appliances may be
affected. Be aware of the technical conditions
in your particular environment, e.g. doctor's surgery.
Do not hold the rear of the handset to your ear
when it is ringing. Otherwise you risk serious and
permanent damage to your hearing.
The handset may cause an unpleasant humming
noise in hearing aids.
Do not install the phone in a bathroom or shower
room. The handset and base station are not
splashproof.
ƒ
Wipe down the base station and handset with a
damp cloth (no solvents) or an antistatic cloth. Never
use a dry cloth. This can cause static.
Contact with liquid
!
If the handset should come into contact with liquid:
◆ Switch the handset off and remove the batteries
immediately.
◆ Allow the liquid to drain from the handset.
◆ Pat all parts dry, then with the battery compartment open and the keypad facing down place the
handset in a dry, warm place for at least 72 hours
(not in a microwave, oven etc.).
◆ Do not switch on the handset again until it is
completely dry.
When it has fully dried out, you will normally be able
to use it again.
ECO WDCT
Do not use your phone in environments with a
potential explosion hazard, e.g. paint shops.
You are helping to protect the environment with
your Gigaset A680.
If you give your Gigaset to someone else, make
sure you also give them the user guide.
Reduced energy consumption
Please remove faulty base stations from use or
have them repaired by our service, as they could
interfere with other wireless services.
Disposal
Batteries should not be disposed of in general
household waste. Observe the local waste disposal regulations, details of which can be obtained
from your local authority.
All electrical and electronic equipment must be
disposed of separately from general household
waste using the sites designated by local authorities.
If a product displays this symbol of a crossed-out
rubbish bin, the product is subject to European
Directive 2002/96/EC.
The appropriate disposal and separate collection
of used equipment serve to prevent potential
harm to the environment and to health. They are a
precondition for the re-use and recycling of used
electrical and electronic equipment.
For further information on disposing of your used
equipment, please contact your local authority or
your refuse collection service.
¢
Care
Emergency numbers cannot be dialled if the keypad lock
(
page 1) is activated!
Not all of the functions described in this user guide are available in all countries.
Your telephone has an energy-saving adapter plug
and uses less energy.
Reduced transmission power
The transmission power of your telephone is
reduced automatically:
◆ The transmission power on the base station is
reduced to virtually zero when only one handset is registered and the handset is in the base
station.
A680 (A380-L2) / PHL-TWN eng / A31008-M2005-Z401-1-7619 / Version 4, / starting.fm / 14.05.2010
3
First steps
Check the pack contents
◆
◆
◆
◆
◆
◆
◆
One Gigaset A680 base station,
one mains adapter,
one Gigaset A68H handset,
one phone cord,
two batteries,
one battery cover,
one user guide.
If you have purchased a model with multiple handsets, the package should contain two batteries, a battery cover and a charging cradle with mains adapter for each additional handset.
Setting up the base station and charging cradle (if included)
The base station and charging cradle are designed for use in enclosed dry rooms with a temperature range of +5 °C to +45 °C.
Set up the base station at a central location on a flat, non-slip surface in your house or
apartment.
The phone's feet do not usually leave any marks on surfaces. However, due to the multitude of
different varnishes and polishes used on today's furnishings, the occurrence of marks on the
surfaces cannot be completely ruled out.
¤
Please note:
◆ Never expose the telephone to the influence of heat sources, direct sunlight or other electrical devices.
◆ Protect your Gigaset from moisture, dust, corrosive liquids and vapours.
Connecting the base station
¤ First connect the mains adapter 1.
¤ Then connect the telephone jack 2 and
insert the cables into the cable ducts.
Please note:
◆ The mains adapter must always be connected, as the phone will not operate
without mains connection.
◆ Only use the mains adapter and phone
cord supplied. Pin connections on telephone cables can vary.
2
1
1
1
A680 (A380-L2) / PHL-TWN eng / A31008-M2005-Z401-1-7619 / Version 4, / starting.fm / 14.05.2010
4
Connecting the charging cradle (if included)
2
1
¤ Connect the flat plug from
the power supply 1.
¤ Plug the mains adapter into
2
the plug socket 2.
1
If you need to disconnect the plug from the charging cradle,
press the release button 1 and disconnect the plug 2.
Setting up the handset for use
The display is protected by a plastic film.
Please remove the protective film!
Inserting the batteries and closing the battery cover
Warning
Use only the rechargeable batteries recommended by Gigaset Communications GmbH
(
page 11). Never use a conventional (non-rechargeable) battery or other battery types
as this could result in significant health risks and personal injury. For example, the batteries could explode. The phone could also malfunction or be damaged as a result of using
batteries that are not of the recommended type.
¢
¤ Insert the batteries the right way
round.
The polarity is indicated in/on
the battery compartment.
a
b
¤ First insert the battery cover at the
top a.
¤ Then press the cover b until it
clicks into place.
If you need to open the battery cover, for
instance to replace the batteries, place
your fingertip in the cavity on the casing
and pull the battery cover upwards.
A680 (A380-L2) / PHL-TWN eng / A31008-M2005-Z401-1-7619 / Version 4, / starting.fm / 14.05.2010
5
Placing the handset in the base station and registering
V
Register HS
MENU
Before you can use the phone, you must first register the handset
to the base station.
¤ Place the handset with
the display facing up
in the base station.
V
Registering
V
INT
MENU
The handset registers automatically. Registration can take up to 5 minutes.
Do not remove the handset from the
base station during this time.
After successful registration, the idle screen is displayed.
Charge status of the batteries:
– = e V U (flat to full)
– = flashes: batteries almost flat
– e V U flashes: charging
If you have purchased a model with multiple handsets, repeat the registration process for
each individual handset. Handsets are assigned the lowest available internal number (1-4). If
more than one handset is registered to the base station, the internal handset number appears
in the top left of the display, e.g. 2. If the internal numbers 1–4 are already assigned to other
devices, the number 4 will be overwritten.
Please note
◆ Each key press interrupts the automatic registration.
◆ If automatic registration does not work, the handset will have to be registered manually (
¢ page 9).
◆ Only place the handset in the base station or charging cradle that is intended for it.
Initial charging and discharging of the batteries
The correct charge level can only be displayed if the batteries are first fully charged and discharged.
8h
¤ Place the handset in the base station or charging cradle for eight hours.
¤ Then remove the handset from the base station or charging cradle and do
not replace it until the batteries are completely discharged.
A680 (A380-L2) / PHL-TWN eng / A31008-M2005-Z401-1-7619 / Version 4, / starting.fm / 14.05.2010
6
Please note
◆ After the first battery charge and discharge you may replace your handset in the base
station or charging cradle after every call.
◆ Always repeat the charging and discharging procedure if you remove the batteries
from the handset and reinsert them.
◆ The batteries may warm up during charging. This is not dangerous.
◆ After a while, the charge capacity of the batteries will decrease for technical reasons.
Setting the date and time
Set the date and time so that the correct date and time can be assigned to incoming calls, and
so that the alarm can be used.
¢
¢
¢
¢
¢
¢
¢ ¢
¢
¢
MENU
Settings
OK
Date/Time
OK
Date:
~ (enter the day, month and year in 6-digit format)
OK
Time:
~ (enter hours and minutes in 4-digit format)
OK (display message: Saved)
a (press and hold to return to idle status)
¢
Please note
When entering the time and date, you can move the position of an entry to the left or right
by pressing the control button up or down.
Display in idle status
V
Once the phone is registered and the time set, the idle display
is shown as in this example.
Activating/deactivating the handset
Press and hold the a key to activate or deactivate the handset.
11.12.
INT
11:56
MENU
If you place a deactivated handset in the base station or charging cradle, it will automatically activate.
Your phone is now ready for use.
If you have any questions about using your phone, please read the tips on troubleshooting
("Questions and answers"
page 12) or contact our Customer Care team page 13.
¢
A680 (A380-L2) / PHL-TWN eng / A31008-M2005-Z401-1-7619 / main.fm / 14.05.2010
7
Making calls
Using the directory and lists
Making external calls and ending
calls
Directory
External calls are calls using the public telephone network.
~ (Enter the phone number) c.
The phone number is dialled. (Or you can first press
and hold c [dial tone] and then enter the number.)
During the call you can adjust the earpiece volume
using t and set the volume with u.
End the call/cancel dialling:
Press the end call key a.
You can automatically insert a network provider dialling code before any phone number (see Menu tree
"Preselection"
page 13).
¢
¢
Accepting a call
The handset indicates an incoming call by ringing
and by a display on the screen.
Press the talk key c to accept the call.
When Auto Answer is activated (see Menu tree
page 13), simply remove the handset from the
base station/charging cradle.
In idle status, use t to activate the menu for setting
the call volume and use u to set the volume.
¢
Calling Line Identification
When you get a call, the caller's number will be displayed on your handset; the caller's name will be displayed if it is stored in the directory.
Preconditions:
1 You have asked your network provider for the caller's number (CLIP) to be displayed on your handset screen.
2 The caller has asked the network provider for his
number to be identified (CLI).
® appears in the display if you have not
requested Calling Line Identification, Withheld
appears if the caller has withheld CLI, and Unavailable
appears if CLI has not been requested.
Handsfree
Activating while dialling:
Enter the number ~ and press the handsfree key d.
Switching between earpiece and handsfree mode:
During a call and press the handsfree key d to activate or deactivate handsfree talking.
During a call, use t to activate the menu for setting
the handsfree volume and use u to set the volume.
To open the directory: press h.
You can save up to 50 phone numbers (max. 32 digits)
with corresponding names (max. 14 characters).
Enter letters/characters
page 11.
¢
Saving the first number in the directory
h ¢ New Entry? ¢ OK
¢ ~ (enter number) ¢ OK
¢ ~ (enter number) ¢ OK
Storing a number in the directory
h ¢ MENU ¢ New Entry ¢ OK
¢ ~ (enter number) ¢ OK
¢ ~ (enter number) ¢ OK
Selecting a directory entry
Open the directory with h. You have the following
options:
◆ Use u to scroll through the entries until the
required name is selected.
◆ Enter the first character of the name and scroll to
the entry with u, if required.
Dialling with the directory
h ¢ u (select entry) ¢ c
Using other functions
h ¢ u (select entry) ¢ MENU
The following functions can be selected with u:
New Entry
Save new phone number.
Show Number
Display the phone number.
Use Number
Edit Entry
Edit or add to the number. Then
dial or use other functions with
MENU.
Edit selected entry.
Delete Entry
Delete selected entry.
Send Entry
Send a single entry to another
handset (
page 8).
Delete all directory entries.
Delete List
Send List
Shortcut
¢
¢
Send the complete list to another
handset (
page 8).
For shortcuts, assign the current
entry to a key.
A680 (A380-L2) / PHL-TWN eng / A31008-M2005-Z401-1-7619 / main.fm / 14.05.2010
8
Setting the shortcut key
h ¢ MENU ¢ Scroll to u Shortcut ¢ Scroll u to
select a number (0,2-9), for example: Shortcut: 2
¢ OK
Using shortcut keys
To dial, press and hold the required shortcut key.
Sending the directory to another handset
Preconditions:
◆ The sending and receiving handsets must both be
registered to the same base station.
◆ The other handset and the base station can send
and receive directory entries.
h ¢ u (select entry) ¢ MENU ¢ Send Entry /
Send List ¢ OK ¢ ~ (enter the internal number of
the receiving handset)
¢ OK
Last number redial list
This list contains the ten last dialled numbers.
Dialling from the last number redial list
c (press briefly) ¢ u (select entry) ¢ c
Managing entries in the last number redial list
c (press briefly) ¢ u (select entry) ¢ MENU
You can select the following settings:
Calls list/network mailbox list
An advisory tone sounds and the message key
flashes as soon as a new entry appears in the calls
list/answer machine list. A message appears in the
display.
When you press the f key, all the lists are displayed.
If only one list contains new messages, this will be
opened automatically.
Please note:
If calls are saved in the network mailbox, you will
receive a message if the appropriate settings have
been made (depending on your network provider).
Calls list
¢
Precondition: CLIP (
page 7)
The call list contains all incoming calls.
The calls list is displayed as follows:
CallsList 01+02
Number of new entries + number of old, read entries
Open the calls list
f ¢ CallsList 01+02 ¢ OK
The last incoming call is displayed.
If necessary, use u to select another entry.
Using other functions
u (select entry) ¢ MENU
Copy to Dir.
Edit or add to the number.
Then dial or use other functions
with MENU.
Copy an entry to the directory.
Delete Entry
Delete current entry.
Delete Entry
Delete selected entry.
Copy to Dir.
Copy an entry to the directory.
Delete List
Delete all entries.
Date/Time
Call date and time (if set).
Status
New Call: new missed call.
Old Call: entry already read.
Answ.: call taken.
Delete List
Warning! All old and new entries
will be deleted.
Use Number
The following functions can be selected with u:
Calling back a caller from the calls list
f ¢ CallsList 01+02 ¢ OK ¢ u (select entry)
¢c
Assigning key 1 for fast access to the
network mailbox
Simply press and hold key 1 on the handset and you
will be connected directly to the network mailbox.
See Menu tree
page 13.
¢
A680 (A380-L2) / PHL-TWN eng / A31008-M2005-Z401-1-7619 / main.fm / 14.05.2010
9
Locating a handset
("paging")
You can locate your handset using the base station.
◆ Briefly press the registration/paging key on the
base station (
page 1).
◆ All handsets will ring simultaneously ("paging"),
even if the ringer tones are deactivated.
End paging: briefly press the register/paging key on
the base station (
page 1) or the talk key c on a
handset.
¢
¢
Registering handsets
You can register up to four handsets on your base station (Gigaset A68H) recommended).
Please note:
Each additional handset must be registered on the
base station in order for it to work properly!
¢
For automatic registration of handsets to
Gigaset A680, see
page 5.
Using several handsets
Making internal calls
Internal calls are no-cost calls to other handsets that
are registered to the same base.
Press the INT display key. All handsets are called.
When an internal participant answers you can speak
to them. To end the call, press a.
Internal consultation call/connecting
a call
You are in conversation with an external participant.
Press the INT key to call all handsets. The external participant hears the hold music.
◆ Before the internal participant has answered,
press the end call key a; the call is diverted to the
participant who answers the call.
◆ After the internal participant has answered, you
can talk to him. Press the end call key a; the call is
diverted, or press the display key ”; you are
reconnected to the external participant.
Manual registration of handsets to
Gigaset A680
Listening in to an external call
1. On the handset: MENU
You are conducting an external call. An internal participant can listen in on this call and take part in the
conversation (conference).
Precondition: The Listening in function must be activated.
¢ Settings ¢ OK
¢ Handset ¢ OK ¢ Register HS ¢ Enter the system PIN of the base station (default is 0000) ¢ OK.
Registering flashes in the display.
2. On the base station: within 60 sec. of entering the
system PIN, press and hold the registration/paging
key (
page 1) (min. 3 sec.).
Registration takes approx. 1 minute.
¢
Activating/deactivating listening in
¢
¢
¢ ¢
¢
MENU
Settings
OK
Base
Listening in
OK (‰ = on)
¢ OK
De-registering handsets
Internal listening in (conference)
Handsets can only be de-registered by resetting the
base station to its default settings. This will also reset
every other setting
page 10.
If you have only registered handsets for other GAPcompatible devices, these can only be de-registered
with a hardware reset
page 10.
You want to listen in to an existing external call.
Briefly press and hold the c key. You can listen in to
the call. All participants hear a signal tone.
To end: press the end call key a. All participants hear
a signal tone.
If the first internal participant presses the end call key
a, the handset that has "listened in" remains connected to the external participant.
¢
¢
A680 (A380-L2) / PHL-TWN eng / A31008-M2005-Z401-1-7619 / main.fm / 14.05.2010
10
Setting the alarm clock
Activating/deactivating the alarm clock
¢
¢
MENU
Alarm Clock
OK (‰ = on)
¢ OK ¢ Activation
or:
press the alarm clock key g
When activated:
¢ Set the wake-up time ¢ OK
When the alarm clock rings, press any key to switch it
off for 24 hours. If the alarm clock is set, the wake-up
icon l will appear on the screen and the wake-up
time will be displayed instead of the date.
Setting the wake-up time
¢
¢ Alarm Clock ¢ OK ¢ Wake-up time
MENU
OK
Enter the wake-up time in hours and minutes, then
press OK.
Phone settings
¢
Restoring the base station to the
factory settings
When restoring factory settings:
◆ All handsets are de-registered
◆ Individual settings are reset
◆ All lists are deleted
◆ The system PIN is reset to the original code 0000
Only the date and time are retained.
Software reset
¢
¢
¢
¢ ¢ Base ¢ OK
MENU
Settings
OK
Base Reset
OK
Hardware reset
Disconnect the power cord from the base station.
Hold down the registration/paging key (
page 1)
on the base station while reconnecting the power
cable to the base station. Release the key after
approximately 5 seconds.
¢
Operating the base station on
the PABX
For details on how to make audio settings, see Menu
tree
page 13.
For details on how to set the system PIN on the base
station, see the Menu tree
page 13.
The following settings are only necessary when your
PABX requires them, see the user guide for your PABX.
When entering the digits, enter them slowly one after
the other.
Resetting the handset
Changing the dialling mode
MENU ¢ I I O 1 1 ¢ The number for the set dial-
¢
You can reset individual settings and changes that
you have made. Entries in the directory, the calls list
and the handset's registration to the base station will
be retained.
¢
¢
MENU
Settings
Reset Handset
¢ OK ¢ Handset ¢ OK
¢ OK
Cancel the reset with a.
¢
¢
ling mode flashes: 0 = touch tone dialling (DTMF); 1 = dial
pulsing (DP)
enter number
OK.
Setting recall
MENU ¢ I I O 1 2 ¢ The number for the current
recall flashes: 0 = 80 ms; 1 = 100 ms; 2 = 120 ms;
¢
¢
3 = 400 ms; 4 = 250 ms; 5 = 300 ms; 6 = 600 ms;
enter number
OK.
7 = 800 ms
Changing pause after line seizure
You can set the length of the pause inserted between
pressing the talk key c and sending the phone
number.
¢
¢
¢
MENU
IIO1O
The number for the current
pause length flashes: 1 = 1 sec.; 2 = 3 sec.; 3 = 7 sec.
enter number
OK.
¢
Changing the pause after the recall key
MENU ¢ I I O 1 4 ¢ The number for the current
¢
¢
pause length flashes: 1 = 800 ms; 2 = 1600 ms; 3 = 3200
ms
enter number
OK.
A680 (A380-L2) / PHL-TWN eng / A31008-M2005-Z401-1-7619 / main.fm / 14.05.2010
11
Appendix
Specifications
Entering letters/characters
Recommended batteries
Press the relevant key the number of times indicated.
Briefly press the hash key # to switch from "Abc" to
"123" mode, from "123" to "abc"mode and from "abc"
to "Abc" mode.
Standard characters
1
2
I
4
5
L
M
N
O
Q
P
#
1x 2x
1)
1
a b
d e
g h
j k
m n
p q
t u
w x
. ,
* /
Abc
-->
123
1) Space
123
-->
abc
3x
£
c
f
i
l
o
r
v
y
?
(
#
4x
$
2
3
4
5
6
s
8
z
!
)
@
5x
¥
ä
ë
ï
6x 7x 8x 9x 10x 11x 12x 13x 14x
¤
á à â ã ç
é è ê
í ì î
ö
7
ü
9
0
<
\
ñ
ß
ú
ÿ
+
=
&
ó
ò
ô
ù û
ý æ ø
- : ¿
> %
§
Base station power consumption
õ
å
¡
Technology:
Nickel-metal-hydride (NiMH)
Size:
AAA (Micro, HR03)
Voltage:
1.2 V
Capacity:
400–800 mAh
We recommend the following types of battery:
◆ GP 550/700 mAh
◆ Yuasa Phone 700/800 mAh
◆ Peacebay 550/650 mAh
(Valid at the time of going to press)
The handset is supplied with recommended batteries.
In standby mode
– Handset in base station
– Handset outside base station
During a call
"
’
;
approx. 1.3 W
approx. 1.3 W
approx. 1.5 W
_
General specifications
WDCT standard
No. of channels
Radio frequency range
Duplex method
Bit rate
Modulation
Transmission power
Base station power supply
Environmental conditions
in operation
Dialling mode
is supported
80 duplex channels
2400-2483.5 Mhz
Time multiplex,
10 ms frame length
576 kbit/s
GFSK
25 mW, average power per
channel
230 V ~/50 Hz
+5 °C to +45 °C; 20% to
75% humidity
DTMF (touch tone dialling)/
DP (dial pulsing)
A680 (A380-L2) / PHL-TWN eng / A31008-M2005-Z401-1-7619 / main.fm / 14.05.2010
12
Service (Customer Care)
Questions and answers
We offer you support that is fast and tailored to your
specific needs!
Our Online Support on the Internet:
www.gigaset.com/customercare
For more information on aftersales service, please
refer to your local warranty card.
In some countries repair and replace services are
impossible where the products are not sold through
our authorised dealers.
If you have any queries about the use of your phone,
you can contact us any time at
www.gigaset.com/customercare.
The table below contains a list of common problems
and possible solutions.
Problem
Cause
Nothing
appears in
the display.
The handset is not Press the end call
switched on.
key a for approx.
5 seconds or place the
handset in the base
station.
The batteries are Charge or replace the
flat.
batteries.
The handset is out- Move the handset
side the range of closer to the base
station.
the base station.
The handset is not
registered.
Register the handset
The base station is
page 9.
not turned on.
Check the mains connector on the base station
page 3.
The phone cord
Please always use the
supplied has not phone cord supplied or
been used or has ensure that the
been replaced by a pin connections are
new cord with the correct when purchaswrong jack coning from a retailer:
nections.
3-4 assignment of
telephone leads/
EURO CTR37.
The system PIN you Reset the system PIN to
have entered is
the default 0000
incorrect.
page 10.
All handsets are
de-registered. All settings are reset. All lists
are deleted.
No wireless
connection
to the base station,
Base flashes in
the display.
You cannot
hear a ringer/
dialling tone
from the fixed
line network.
Error tone
sounds after
system PIN
prompt.
PIN forgotten.
Solution
¢
¢
¢
A680 (A380-L2) / PHL-TWN eng / A31008-M2005-Z401-1-7619 / main.fm / 14.05.2010
13
Menu tree
To return to idle status: press and hold the a key.
As an alternative to selecting functions using the
t and v buttons, you can also enter the digit combination that is in front of the function in the menu tree.
For setting the time and date, for example:
Your phone has an extensive range of features. These
are offered in the form of menus.
To select a function while the phone is in idle status,
press MENU (open menu), use the t and v keys to
scroll to the function you require and press OK to confirm.
1
MENU
Alarm Clock
1-1 Activation
Activating/deactivating the alarm clock
1-2 Wake-up time
Input format: HHMM
2
Audio Settings
2-1 Ringer Volume
2-2 Ringer Melody
2-3 Advis. Tones
2-4 Battery Low
3
5 levels + "crescendo" available
2-2-1 External Calls
10 ringer tones available for external calls
2-2-2 Internal Calls
10 ringer tones available for internal calls
2-2-3 Alarm Clock
10 ringer tones available for alarm clock
During a conversation
2-4-1 Off
Warning tone to indicate
battery is almost flat:
never
2-4-2 On
always
2-4-3 During Call
only during a call
Settings
3-1 Date/Time
3-2 Handset
3-3 Base
4
¢ 3 1 ¢ OK
Enter date (DDMMYY format), then time (HHMM format)
3-2-1 Language
Set the display language
3-2-2 Auto Answer
Automatically activate/deactivate auto answer
3-2-3 Register HS
Manually register the handset
3-2-4 Reset Handset
Reset the handset
3-3-1 System PIN
Change system PIN (default is 0000)
3-3-2 Base Reset
Restore factory settings
3-3-3 Listening in
Activate/deactivate the function
3-3-4 Preselection
3-3-4-1 Presel. Number
Network provider dialling code,
should be inserted automatically
before the dialled phone number.
3-3-4-2 With Preselect
First digits of the dialling codes,
should be dialled with preselection.
3-3-4-3 Without Presel
First digits of dialling codes, should be
dialled without preselection.
Voice Mail
4-1 Set Key 1
(all devices)
4-1-1 Netw. Mailbx
¢ page 9
¢ page 7
¢ page 10
¢ page 10
¢ page 9
Assign key 1 with network mailbox and enter the network mailbox
number (in idle status, press and hold key 1 to dial).
Netw. Mailbx: your network provider's answer machine; must be
requested separately. The network mailbox list can be displayed if your
network provider supports this function and if key 1 has been
assigned with the network mailbox.
A680 (A380-L2) / PHL-TWN eng / A31008-M2005-Z401-1-7619 / main.fm / 14.05.2010
14
A680 (A380-L2) / PHL-TWN eng / A31008-M2005-Z401-1-7619 / main.fm / 14.05.2010
15
A680 (A380-L2) / PHL-TWN eng / A31008-M2005-Z401-1-7619 / main.fm / 14.05.2010
16
Version: 18.05.2010
Issued by
Gigaset Communications GmbH
Frankenstr. 2a
D-46395 Bocholt
Manufactured by Gigaset Communications GmbH
under trademark license of Siemens AG. As of 1 Oct.
2011 Gigaset products bearing the trademark "Siemens" will exclusively use the trademark
"Gigaset".
© Gigaset Communications GmbH 2010
All rights reserved. Subject to availability.
Rights of modification reserved.
www.gigaset.com
This user guide is made from 100% recycled paper.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
