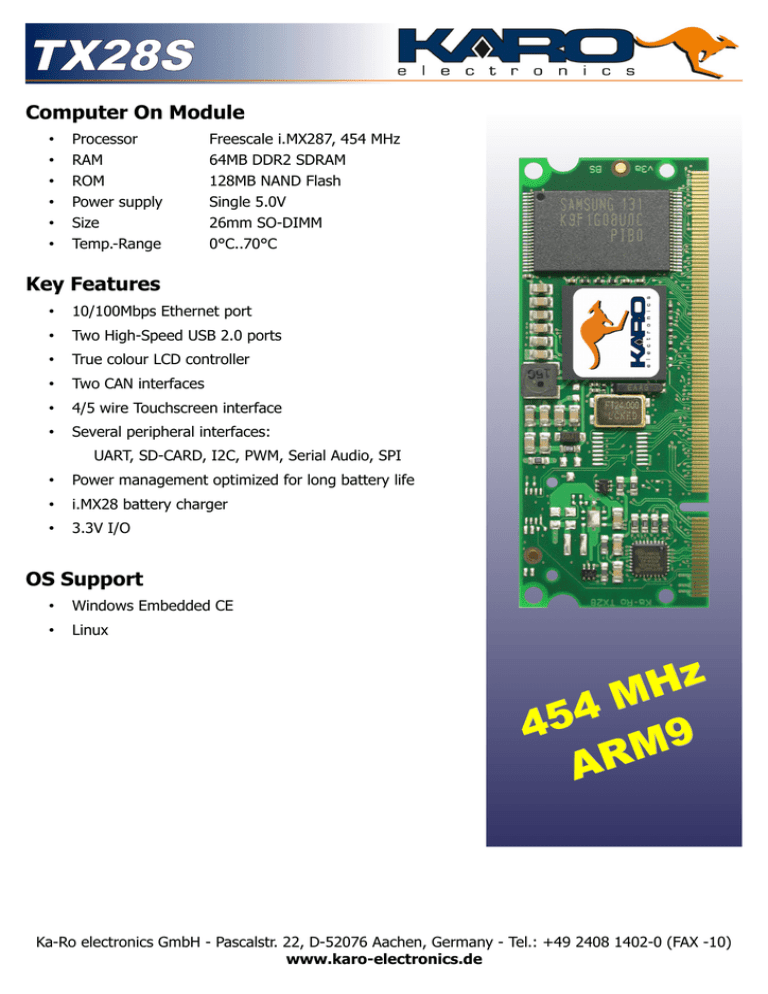

TX28S Computer On Module

TX28S Computer On Module
TX28S
Computer On Module
•
•
•
•
•
•
Processor
RAM
ROM
Power supply
Size
Temp.-Range
Freescale i.MX287, 454 MHz
64MB DDR2 SDRAM
128MB NAND Flash
Single 5.0V
26mm SO-DIMM
0°C..70°C
Key Features
•
10/100Mbps Ethernet port
•
Two High-Speed USB 2.0 ports
•
True colour LCD controller
•
Two CAN interfaces
•
4/5 wire Touchscreen interface
•
Several peripheral interfaces:
UART, SD-CARD, I2C, PWM, Serial Audio, SPI
•
Power management optimized for long battery life
•
i.MX28 battery charger
•
3.3V I/O
OS Support
•
Windows Embedded CE
•
Linux
z
H
M
4
45
9
M
AR
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX28S
Board highlights:
•
•
•
Standard TX-DIMM pinout:
Lowest cost 454MHz ARM9
Standard TX-DIMM pinout
as small as possible - only 26mm
•
•
•
•
•
•
One 4-wire UART
One 2-wire UART
LCD
I2C / PWM
Serial Audio Interface
4-wire SD-Card/SDIO
The TX28 is a member of a module series, specially designed for Freescales
i.MX multimedia processors. TX modules are complete computers,
implemented on a board smaller than a credit card, and ready to be designed
into your embedded system. TX modules includes a Freescale® i.MX
High-Speed communication interfaces incl. onboard Ethernet PHY / on-chip
processor, SDRAM and Flash memory. The integrated LCD-controller enables USB PHY allows direct use of connectors/magnetics on the baseboard without
direct connection of an LCD screen. The TX28 is specifically targeted at
the need for additional logic:
embedded applications where size, high cpu-performance and cost are critical
factors.
•
10/100 Mbps Ethernet
•
480 Mbps USB OTG
Computer on module
•
480 Mbps USB Host
•
•
•
•
•
Freescale® i.MX287, 454 MHz
64 MByte DDR2-400 SDRAM (16bit)
128 MByte NAND Flash memory
DIMM200-module (67,6mm x 26 mm x 3,6mm)
Operating temperature range 0..70°C
The i.MX28 family of multimedia applications processors is the latest
extension of Freescales ARM9 product portfolio. The i.MX28 family
integrates display, power management, and connectivity features
unmatched in ARM9-based devices, reducing system cost and
complexity for cost sensitive applications. And easy-to-use tools
and software help you design differentiated industrial and
consumer products in less time.
Additional interfaces like CAN, 4/5-wire resistive touch-screen, 2 UARTs and
external memory interface are available on TX28 specific pins. Some
interfaces are multiplexed with other functions.
Power Supply
The TX28 accepts a 5V input voltage:
•
5.0V USB supply or AC wall adapter
It's possible to use the battery charger feature of the processor on a custom
baseboard.
Read more in our TX-Guide:
With optimized performance and power
consumption, the i.MX283 is an ideal fit
for fanless systems or for portable
equipment that need to be battery
operated. The LCD controller with touch
screen capability makes it possible to
design creative and intuitive user
interfaces that are required by many
applications.
Ordering Information
Order Number
TX28S/454/64S/128F
CPU
454MHz i.MX283
SDRAM
64MB
Flash
128MB
Temp.
0°C..70°C
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
2015-01-08
The i.MX283 multimedia application
processor integrates display, power
management, USB, and Ethernet
connectivity. The combination of
advanced connectivity peripherals with a
454Mhz ARM9 processor core creates a
platform for gateway products that
bridge multiple networks. With attention
to overall system cost, i.MX28 integrates
physical USB interfaces (PHY), 10/100
Ethernet , power management, and a
resistive touch screen display controller.
TX28S
Differences between TX28 and TX28S
Module
Features
TX28
TX28S
SDRAM
128MB
64MB
Processor
i.MX287
i.MX283
RTC
DS1339
-
Temp. Range
-40°C..85°C
0..70°C
Qual.
Industrial
Consumer
Processor
Features
TX28
TX28S
Ethernet
x2
x1
L2 Switch
Yes
-
CAN
x2
-
PINOUT
differences
TX28
TX28S
Module power supply input connected to VDD5V (5V +/-5%)
Refer to i.MX28 datasheet for ratings.
3.3V power supply output driven by DCDC_VDDIO
Refer to i.MX28 datasheet for ratings.
1-4
Module power supply input (3.0V-5.5V)
5-7,
9-12
3.3V power supply output (up to 0.2A)
13
DS1339 RTC backup power supply.
NC
14
100K-PU to 3.3V / 47K-PD
47K-PU to VDDXTAL
15
FEC_RESET_B / i.MX28 pad: ENET0_RX_CLK
Connected to pin 115 / i.MX28 pad: PWM1
16
#POR, 10K-PU, turns off the module while active.
NC
27
USBH_VBUSEN / i.MX28 pad: SPDIF
NC / 10K-PU
34
USBOTG_VBUSEN / i.MX28 pad: GPMI_CE2N
NC / 10K-PU
36
#USBOTG_OC / i.MX28 pad: GPMI_CE3N
NC
44-49
CSPI – Configurable Serial Peripheral Interface
NC
nd
65-66
2 UART RTS/CTS
NC
67-70
3rd UART
NC
st
72-81
KEYPAD / 1 CAN
NC
89-93
Serial Audio Port 2
NC
101
ENET_CLK
NC
104-105
i.MX28 pads: SSP1_SCK / SSP1_CMD
NC
109-110
i.MX28 pads: SSP1_DATA0 / SSP1_DATA3
NC
115
PWM1
PWM1 / CONNECTED TO PIN 15
151
LCD_ENABLE
GPMI_RDY1 / CONNECTED TO PIN 159
152
ENET0_RXD2
NC
153
ENET0_RXD3
GPMI_CE1N / CONNECTED TO PIN 158
154-157
ENET0_TXD2 / ENET0_TXD3 / ENET0_COL / ENET0_CRS
NC
158
GPMI_CE1N
GPMI_CE1N / CONNECTED TO PIN 153
159
GPMI_RDY1
GPMI_RDY1 / CONNECTED TO PIN 151
193-196
NC
BATTERY
197
ENET0_TX_CLK
NC
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX28S
PINOUT
PIN
Marked yellow: Not connected
Type
Function
i.MX28 Pad Name
Alternate functions
GPIO
Description (refer to i.MX28 manuals for details)
POWER SUPPLY & RESET
1-4
8
5-7,
9-12
13
power VIN
3V3
Module power supply input (5V +/- 5%)
BOOTMODE
power VOUT
NC
VDD5V
47K-PU
DCDC_VDDIO
3.3V power supply output (keep as low as possible / up to ~20mA)
VBACKUP
14
special
15
3V3
FEC_RESET_B
16
NC
#POR
17
3V3
#RESETIN
18
GND
GND
Boot mode select H: Boot from NAND / L: Boot from UART/USB
not connected
PSWITCH
PWM1
CONNECTED TO PIN 115
Used for chip power on or recovery. PSWITCH is at MID LEVEL &
STARTUP by default. A 10kΩ resistor in series is used.
10K series Connect to GND for LOW LEVEL, connect to 3V3 for HIGH LEVEL,
leave unconnected (MID LEVEL) if not used.
=> i.MX28 Reference manual chap 11.4 “PSWITCH Pin Functions”
Ethernet PHY reset – active low output signal. This pin is hard wired
GPIO3_17
to the onboard Ethernet PHY and provides a fixed function.
not connected
This pin resets the chip if it is low. This pin is pulled up to VDDIO33
with an internal resistor. No external pull up resistors are needed
RESETN
Ethernet
19
20
3V3
#ETN_LED2
21
analog ETN_TXP
22
power ETN_3V3
23
analog ETN_RXN
24
25
26
Transmit Data Negative: 100Base-TX or 10Base-T differential
transmit output to magnetics.
Active low - output is driven active when the operating speed is
100Mbps. This LED will go inactive when the operating speed is
10Mbps or during line isolation.
Transmit Data Positive: 100Base-TX or 10Base-T differential transmit
output to magnetics.
analog ETN_TXN
3V3
+3.3V analog power supply output to magnetics
Receive Data Negative: 100Base-TX or 10Base-T differential receive
input from magnetics.
Active low - output is driven active whenever the device detects a
valid link, and blinks indicating activity.
Receive Data Positive: 100Base-TX or 10Base-T differential receive
input from magnetics.
#ETN_LED1
analog ETN_RXP
GND
GND
USB-HOST
27
28
29
30
31
32
3V3
3V3
USBH_VBUSEN
#USBH_OC
analog USBH_DM
47K-PU
JTAG_RTCK
USB1DM
D- pin of the USB cable
NC
not connected
analog USBH_DP
GND
not connected to any other pin
GPIO4_20
Active low over-current indicator input connected to a GPIO.
47K-PU
USB1DP
D+ pin of the USB cable
GND
USB-OTG / 2nd CAN
33
3V3
USBOTG_ID
34
3V3
USBOTG_VBUSEN
35
36
analog USBOTG_DM
NC
USB0ID
GPIO3_18
47K-PU
USB0DM
ID pin of the USB cable. For an A-Device ID is grounded. For a BDevice ID is floated.
not connected to any other pin
D- pin of the USB cable
#USBOTG_OC
not connected
37
analog USBOTG_DP
USB0DP
38
power USBOTG_VBUS
VDD5V
39
PWM2
USB1_OVERCURRENT
GND
GND
40
3V3
I2C_DATA
I2C0_SDA
41
3V3
I2C_CLK
I2C0_SCL
D+ pin of the USB cable
I2C
TIMROT_ROTARYB
DUART_TX
TIMROT_ROTARYA
DUART_RX
GPIO3_25
1K-PU
GPIO3_24
10K-PU
I2C Data
I2C Clock
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX28S
PIN
Type
Function
i.MX28 Pad Name
Alternate functions
GPIO
Description (refer to i.MX28 manuals for details)
PWM
42
3V3
PWM
PWM0
I2C1_SCL
DUART_RX
GPIO3_16
PWM Output
OWDAT
SSP0_DATA7
SSP2_SCK
GPIO2_7
The i.MX28 has no 1-Wire controller – a GPIO is used here instead.
1-Wire bus. Requires an external pull-up resistor. The recommended
resistor is specified by the generic 1-Wire device used in a given
system.
1-WIRE
43
3V3
CSPI – Configurable Serial Peripheral Interface
44
NC
not connected
45
NC
not connected
46
NC
not connected
47
NC
not connected
48
NC
not connected
49
NC
not connected
50
GND
GND
SD – Secure Digital Interface 1
51
3V3
SD1_CD
SSP0_DETECT
GPIO2_9
SD Card Detect – connected to a GPIO
52
3V3
SD1_D[0]
SSP0_DATA0
GPIO2_0
SD Data bidirectional signals—If the system designer does not want
to make use of the internal pull-up, via the Pull-up enable register, a
50 K–69 K external pull up resistor must be added.
53
3V3
SD1_D[1]
SSP0_DATA1
GPIO2_1
54
3V3
SD1_D[2]
SSP0_DATA2
GPIO2_2
55
3V3
SD1_D[3]
SSP0_DATA3
GPIO2_3
56
3V3
SD1_CMD
SSP0_CMD
GPIO2_8
SD Command bidirectional signal
57
3V3
SD1_CLK
SSP0_SCK
GPIO2_10
SD Output Clock.
58
GND
GND
GPIO3_3
Debug UART Transmit Data output signal
GPIO3_2
Debug UART Receive Data input signal
1st UART
59
3V3
TXD
AUART0_RTS
60
3V3
RXD
AUART0_CTS
61
3V3
RTS/CTS IN
AUART0_RX
62
3V3
CTS/RTS OUT
AUART0_TX
nd
2
AUART4_TX
DUART_TX
AUART4_RX
DUART_RX
I2C0_SCL
DUART_CTS
I2C0_SDA
DUART_RTS
GPIO3_0
GPIO3_1
Debug UART RTS/CTS handshake input signal
(not available on version 2 - TX28-4020 and TX28-4021)
Debug UART RTS/CTS handshake output signal
(not available on version 2 - TX28-4020 and TX28-4021)
UART
SSP3_CARD_DETECT
PWM_1
SSP2_CARD_DETECT
PWM_0
63
3V3
TXD
AUART1_TX
GPIO3_5
Application UART 1 Transmit Data output signal
64
3V3
RXD
AUART1_RX
GPIO3_4
Application UART 1 Receive Data input signal
65
NC
not connected
66
NC
not connected
3rd UART
67
NC
not connected
68
NC
not connected
69
NC
not connected
70
NC
not connected
71
GND
GND
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX28S
PIN
Type
Function
i.MX28 Pad Name
Alternate functions
GPIO
Description (refer to i.MX28 manuals for details)
KEYPAD / 1st CAN
72
NC
not connected
73
NC
not connected
74
NC
not connected
75
NC
not connected
76
NC
not connected
77
NC
not connected
78
NC
not connected
79
NC
not connected
80
NC
not connected
81
NC
not connected
82
GND
GND
SSI 1 - Serial Audio Port 1
83
3V3
SSI1_INT
SAIF0_MCLK
84
3V3
SSI1_RXD
SAIF1_SDATA0
85
3V3
SSI1_TXD
SAIF0_SDATA0
86
3V3
SSI1_CLK
SAIF0_BITCLK
87
3V3
SSI1_FS
SAIF0_LRCLK
88
GND
GND
PWM_3
AUART4_CTS
PWM_7
SAIF0_SDATA1
PWM_6
AUART4_TX
PWM_5
AUART4_RX
PWM_4
AUART4_RTS
GPIO3_20 GPIO
GPIO3_26
Serial Audio Interface 0 serial data line 1
GPIO3_23
Serial Audio Interface 0 serial data line 0
GPIO3_22
Serial Audio Interface 0 serial bit clock
GPIO3_21
Serial Audio Interface 0 left/right clock
SSI 2 - Serial Audio Port 2
89
NC
not connected
90
NC
not connected
91
NC
not connected
92
NC
not connected
93
NC
not connected
94
GND
GND
Secure Digital Interface 2
95
NC
not connected
96
NC
not connected
97
NC
not connected
98
NC
not connected
99
NC
not connected
100
NC
not connected
101
NC
not connected
102
GND
GND
Synchronous Serial Port 2 instead of the standard CMOS Sensor Interface
103
3V3
SSP0_DATA4
SSP2_D0
GPIO2_4
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX28S
PIN
Type
104
NC
105
NC
Function
i.MX28 Pad Name
Alternate functions
GPIO
Description (refer to i.MX28 manuals for details)
not connected
not connected
AUART3_TX
SAIF1_SDATA2
SSP2_D1
USB1_OVERCURRENT
SSP2_D2
USB0_OVERCURRENT
106
3V3
SSP2_SS0
GPIO2_19
107
3V3
SSP2_SS1
108
3V3
SSP2_SS2
109
NC
not connected
110
NC
not connected
111
GND
112
3V3
SSP2_MISO
113
3V3
SSP2_MOSI
114
3V3
SSP2_SCK
115
3V3
PWM1
116
GND
GPIO2_20
GPIO2_21
GND
AUART3_RX
SAIF1_SDATA1
AUART2_TX
SAIF0_SDATA2
AUART2_RX
SAIF0_SDATA1
CONNECTED TO PIN 15
GPIO2_18
GPIO2_17
GPIO2_16
GPIO3_17
Ethernet PHY reset – active low output signal. This pin is hard wired
to the onboard Ethernet PHY and provides a fixed function.
GND
LCD Controller and Smart LCD Controller
GPIO1_0
57K-PD
GPIO1_1
47K-PD
GPIO1_2
57K-PU
GPIO1_3
57K-PD
GPIO1_4
47K-PD
GPIO1_5
47K-PD
Boot mode selection
LCD Data Bus
Boot mode selection
LCD Data Bus
Boot mode selection
LCD Data Bus
Boot mode selection
LCD Data Bus
Boot mode selection
LCD Data Bus
Boot mode selection
LCD Data Bus
ETM_DA6
GPIO1_6
LCD Data Bus
ETM_DA7
GPIO1_7
LCD Data Bus
GPIO1_8
LCD Data Bus
GPIO1_9
LCD Data Bus
117
3V3
LD0
LCD_D00
ETM_DA0
118
3V3
LD1
LCD_D01
ETM_DA1
119
3V3
LD2
LCD_D02
ETM_DA2
120
3V3
LD3
LCD_D03
121
3V3
LD4
LCD_D04
122
3V3
LD5
LCD_D05
ETM_DA5
123
3V3
LD6
LCD_D06
124
3V3
LD7
LCD_D07
ETM_DA3
ETM_DA8
ETM_DA4
ETM_DA9
ETM_DA8
ETM_DA3
ETM_DA9
ETM_DA4
125
3V3
LD8
LCD_D08
126
3V3
LD9
LCD_D09
127
3V3
LD10
LCD_D10
ETM_DA10
GPIO1_10
LCD Data Bus
128
3V3
LD11
LCD_D11
ETM_DA11
GPIO1_11
LCD Data Bus
129
GND
GND
130
3V3
LD12
LCD_D12
ETM_DA12
GPIO1_12
LCD Data Bus
131
3V3
LD13
LCD_D13
ETM_DA13
GPIO1_13
LCD Data Bus
132
3V3
LD14
LCD_D14
ETM_DA14
GPIO1_14
LCD Data Bus
133
3V3
LD15
LCD_D15
ETM_DA15
GPIO1_15
LCD Data Bus
134
3V3
LD16
LCD_D16
ETM_DA7
GPIO1_16
LCD Data Bus
135
3V3
LD17
LCD_D17
ETM_DA6
GPIO1_17
LCD Data Bus
136
3V3
LD18
LCD_D18
ETM_DA5
GPIO1_18
LCD Data Bus
137
3V3
LD19
LCD_D19
ETM_DA4
GPIO1_19
LCD Data Bus
GPIO1_20
LCD Data Bus
GPIO1_21
LCD Data Bus
GPIO1_22
LCD Data Bus
GPIO1_23
LCD Data Bus
138
3V3
LD20
LCD_D20
139
3V3
LD21
LCD_D21
140
3V3
LD22
LCD_D22
141
3V3
LD23
LCD_D23
ENET1_1588_EVENT2_O
ETM_DA3
ENET1_1588_EVENT2_IN
ETM_DA2
ENET1_1588_EVENT3_O
ETM_DA1
ENET1_1588_EVENT3_IN
ETM_DA0
at startup: BM0 (47K-PU if BOOTMODE=L)
at startup: BM1
at startup: BM2 (10K-PD if BOOTMODE=L)
at startup: BM3 (47K-PU if BOOTMODE=L)
at startup: VOLTAGE SELECTOR
at startup: ETM ENABLE
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX28S
PIN
Type
Function
i.MX28 Pad Name
Alternate functions
142
GND
GND
143
3V3
HSYNC
LCD_WR_RWN
144
3V3
VSYNC
LCD_RD_E
145
3V3
OE_ACD
LCD_CS
LCD_ENABLE
GPIO1_27
146
3V3
LSCLK
LCD_RS
LCD_DOTCLK
GPIO1_26
47K-PU
147
GND
GND
LCD_HSYNC
ETM_TCLK
LCD_VSYNC
ETM_TCTL
GPIO
Description (refer to i.MX28 manuals for details)
GPIO1_25
GPIO1_24
Boot mode selection at startup: OTP / RESISTOR
LCD Dotclock
Module Specific Signals
148
3V3
GPIO
SSP0_DATA5
SSP2_D3
GPIO2_5
149
3V3
GPIO
SSP0_DATA6
SSP2_CMD
GPIO2_6
150
3V3
GPIO
LCD_RESET
LCD_VSYNC
GPIO3_30
151
3V3
GPIO
GPMI_RDY1
SSP1_CMD
GPIO0_21
152
NC
153
3V3
154
NC
not connected
155
NC
not connected
156
NC
not connected
157
NC
not connected
158
3V3
GPIO
GPMI_CE1N
SSP3_D3
GPIO0_17
CONNECTED TO PIN 153
159
3V3
GPIO
GPMI_RDY1
SSP1_CMD
GPIO0_21
CONNECTED TO PIN 151
160
GND
GND
161
3V3
D[0]
GPMI_D00
Fixed function used for NAND flash
162
3V3
D[1]
GPMI_D01
Fixed function used for NAND flash
163
3V3
D[2]
GPMI_D02
Fixed function used for NAND flash
164
3V3
D[3]
GPMI_D03
Fixed function used for NAND flash
165
3V3
D[4]
GPMI_D04
Fixed function used for NAND flash
166
3V3
D[5]
GPMI_D05
Fixed function used for NAND flash
167
3V3
D[6]
GPMI_D06
Fixed function used for NAND flash
168
3V3
D[7]
GPMI_D07
Fixed function used for NAND flash
169
NC
not connected
170
NC
not connected
171
GND
172
NC
not connected
173
NC
not connected
174
NC
not connected
175
NC
not connected
176
NC
not connected
177
NC
not connected
178
NC
not connected
179
3V3
CONNECTED TO PIN 159
not connected
GPIO
GPMI_CE1N
SSP3_D3
GPIO0_17
CONNECTED TO PIN 158
GND
GPMI_CLE
Fixed function GPMI_CLE used for NAND flash
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
TX28S
PIN
Type
Function
i.MX28 Pad Name
Alternate functions
GPIO
Description (refer to i.MX28 manuals for details)
180
3V3
GPMI_ALE
Fixed function GPMI_ALE used for NAND flash
181
3V3
GPMI_WRN
Fixed function GPMI_WRN used for NAND flash
182
3V3
GPMI_RDN
Fixed function GPMI_RDN used for NAND flash
183
GND
184
NC
GND
not connected
185
analog XN
LRADC4
186
analog XP
LRADC2
187
analog YN
LRADC5
188
analog YP
LRADC3
189
analog WIPER
LRADC6
190
analog
LRADC0
191
analog
LRADC1
192
analog
HSADC0
power
BATTERY
Touscreen ADC input channels
General purpose measurements channels
193
194
195
196
197
NC
not connected
198
3V3
ENET_MDC
199
3V3
ENET0_MDIO
200
GND
GND
Fixed function ENET_MDC used for Ethernet PHY
1K-PU
Fixed function ENET0_MDIO used for Ethernet PHY
GND
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
