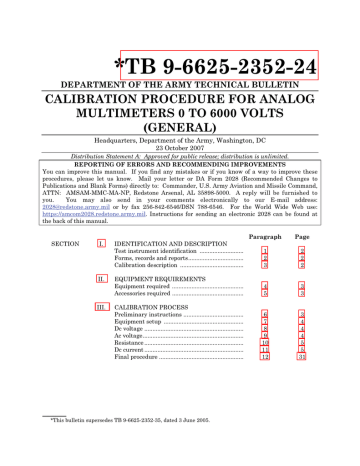

*TB 9-6625-2352-24
DEPARTMENT OF THE ARMY TECHNICAL BULLETIN
CALIBRATION PROCEDURE FOR ANALOG
MULTIMETERS 0 TO 6000 VOLTS
(GENERAL)
Headquarters, Department of the Army, Washington, DC
23 October 2007
Distribution Statement A: Approved for public release; distribution is unlimited.
REPORTING OF ERRORS AND RECOMMENDING IMPROVEMENTS
You can improve this manual. If you find any mistakes or if you know of a way to improve these
procedures, please let us know. Mail your letter or DA Form 2028 (Recommended Changes to
Publications and Blank Forms) directly to: Commander, U.S. Army Aviation and Missile Command,
ATTN: AMSAM-MMC-MA-NP, Redstone Arsenal, AL 35898-5000. A reply will be furnished to
you.
You may also send in your comments electronically to our E-mail address:
[email protected] or by fax 256-842-6546/DSN 788-6546. For the World Wide Web use:
https://amcom2028.redstone.army.mil. Instructions for sending an electronic 2028 can be found at
the back of this manual.
SECTION
I.
II.
III.
Paragraph
Page
IDENTIFICATION AND DESCRIPTION
Test instrument identification ...........................
Forms, records and reports..................................
Calibration description .......................................
1
2
3
2
2
2
EQUIPMENT REQUIREMENTS
Equipment required ............................................
Accessories required ............................................
4
5
3
3
CALIBRATION PROCESS
Preliminary instructions .....................................
Equipment setup .................................................
Dc voltage .............................................................
Ac voltage..............................................................
Resistance .............................................................
Dc current .............................................................
Final procedure ....................................................
6
7
8
9
10
11
12
3
4
4
4
5
5
31
_________
*This bulletin supersedes TB 9-6625-2352-35, dated 3 June 2005.
TB 9-6625-2352-24
SECTION I
IDENTIFICATION AND DESCRIPTION
1. Test Instrument Identification.
This bulletin provides instructions for the
calibration of Analog Multimeters 0 to 6000 Volts (General) listed in table 1. The
manufacturers' manuals or TMs were used as the prime data sources in compiling these
instructions. The equipment being calibrated will be referred to as the TI (test instrument)
throughout this bulletin.
a. Model Variations. Variations among models are described in text, tables and figures.
b. Time and Technique. The time required for each calibration is approximately 2
hours, using the dc and low frequency technique.
2. Forms, Records, and Reports
a. Forms, records, and reports required for calibration personnel at all levels are
prescribed by TB 750-25.
b. Adjustments to be reported are designated (R) at the end of the sentence in which
they appear. When adjustments are in tables, the (R) follows the designated adjustment.
Report only those adjustments made and designated with (R).
3. Calibration Description. TI parameters and performance specifications which
pertain to this calibration are listed in table 1.
Manufacturer
----Simpson
Simpson
Simpson
Simpson
Simpson
Simpson
Simpson
Triplett
Triplett
Triplett
Triplett
Triplett
2
Table 1. Test Instrument
Tables for specifications, calibration
Model or
performance limits, and figures for adjustments
military designator
Tables
Figures
ME-297//U
3
1
TS-352( )/U
4
2
260
5
--260-3
6
3
260-4
7
4
260-5
8
5
269
9
--269 Series III
10
6
270
11
7
310
12
--630
13
--630NA
14
8
630PL
15
--666R
16
---
TB 9-6625-2352-24
SECTION II
EQUIPMENT REQUIREMENTS
4. Equipment Required. Table 2 identifies the specific equipment to be used in this
calibration procedure. This equipment is issued with Secondary Transfer Calibration
Standards Set AN/GSM-286; AN/GSM-287; or AN/GSM-705. Alternate items may be used
by the calibrating activity. The items selected must be verified to perform satisfactorily
prior to use and must bear evidence of current calibration. The equipment must meet or
exceed the minimum use specifications listed in table 2. The accuracies listed in table 2
provide a four-to-one ratio between the standard and TI. Where the four-to-one ratio
cannot be met, the actual accuracy of the equipment selected is shown in parenthesis.
5. Accessories Required. The accessories required for this calibration are common
usage accessories issued as indicated in paragraph 4 above, and are not listed in this
calibration procedure.
Common name
CALIBRATOR
Table 2. Minimum Specifications of Equipment Required
Manufacturer and model
(part number)
Minimum use specifications1
Dc voltage:
Range: 0 to 1100 V
Fluke, Model 5720A (5720A) (p/o
MIS-35947); w amplifier, Fluke
Accuracy: r.375%
5725A/AR (5725A/AR)
Dc current:
Range: 50 ǍA to 10 A
Accuracy: r.25%
Ac voltage
POWER SUPPLY
Range: 0 to 1100 V
Frequency: 60 Hz to 100 Hz
Accuracy: r.625%
Range: 0 to 6300 V dc
Accuracy:
r0.25%
Fluke, Model 410B/AT (MIS-10230)
RESISTANCE
STANDARD NO. 1
Range: 0 to 1.1 M:
Accuracy:
r0.047%
Biddle-Gray, Model 71-631
(7910328)
RESISTANCE
STANDARD NO. 2
Range: 1 to 10 M:
Accuracy:
r0.047%
Beckman, Model CR10M (8598965)
RESISTANCE
STANDARD NO. 3
Range: 10 to 200 M:
Accuracy:
r0.047%
Beckman, Model CR100M
(8598966)
1The ranges and accuracies listed reflect the highest range required and the best accuracy required, respectively, in this
technical bulletin.
SECTION III
CALIBRATION PROCESS
6. Preliminary Instructions
a. The instructions outlined in paragraphs 6 and 7 are preparatory to the calibration
process. Personnel should become familiar with the entire bulletin before beginning the
calibration.
b. Items of equipment used in this procedure are referenced within the text by common
name as listed in table 2.
3
TB 9-6625-2352-24
c. Unless otherwise specified, verify the result of each test and, whenever the test
requirement is not met, take corrective action before continuing with the calibration.
Adjustments required to calibrate the TI are included in this procedure. Additional
maintenance information is contained in the manufacturers' manuals and/or technical
manuals for the TI.
d. This is a general procedure which provides instructions for the calibration of a
variety of multimeters.
e. Unless otherwise specified, all controls and control settings refer to the TI.
7. Equipment Setup
WARNING
HIGH VOLTAGE is used or exposed during the performance of
this calibration.
DEATH ON CONTACT may result if
personnel fail to observe safety precautions.
REDUCE
OUTPUT(S) to minimum after each step within the
performance check where applicable.
a. If necessary, mechanically zero meter pointer, using adjustment screw on
meter face.
b. Connect test leads to TI COM () and VOA (+) jacks.
8. Dc Voltage
a. Performance Check
(1) Set function switch to dc volts and range switch to first dc voltage range listed in
calibration performance specifications and adjustments table for TI being calibrated.
(2) Connect TI to calibrator OUTPUT HI and OUTPUT LO, observing polarity.
(3) Set calibrator to initial output as listed in table.
(4) Rotate calibrator knob, below EDIT FIELD pushbutton, for the required
indication on TI. If calibrator displayed output does not indicate within limits specified,
and an adjustment is listed, adjust calibrator for nominal value and then perform
adjustment for required indication on TI.
(5) Repeat technique of (1), (3) and (4) above for the remaining dc voltage ranges.
b. Adjustments. No further adjustments can be made.
9. Ac Voltage
a. Performance Check
(1) Set function switch to ac volts and range switch to first ac voltage range listed in
calibration performance limits and adjustments table for TI being calibrated.
(2) Set calibrator to initial output and frequency as listed in table.
(3) Rotate calibrator knob, below EDIT FIELD pushbutton, for the required
indication on TI. If calibrator err display does not indicate within limits specified, and an
4
TB 9-6625-2352-24
adjustment is listed, adjust calibrator for nominal value and then perform adjustment for
required indication on TI.
(4) Repeat technique of (1), (2) and (3) above for the remaining ac voltage ranges.
b. Adjustments. No further adjustments can be made.
10. Resistance
a. Performance Check
(1) Set function switch to ohms and range switch to first ohms range listed in
calibration performance limits and adjustments table for TI being calibrated.
(2) Short test leads together and adjust ohms adjust for a 0 indication on TI ohms scale.
NOTE
Perform (2) above for each range prior to making resistance
check on the range.
NOTE
Connect resistance standards no. 1, no. 2, and no. 3 in series,
as needed, to obtain required resistance values.
(3) Connect TI to resistance standard no. 1.
(4) Adjust resistance standard for required indication on TI as listed in table. If
resistance standard does not indicate within limits specified, and an adjustment is listed,
adjust resistance standard for nominal value and perform adjustment for required
indication on TI.
(5) Repeat technique of (1), (2) and (4) above for the remaining ohms ranges.
b. Adjustments. No further adjustments can be made.
11. Dc Current
a. Performance Check
(1) Set function switch to dc amps and range switch to the first dc current range
listed in the calibration performance specifications and adjustments table for the TI being
calibrated.
(2) Set calibrator to initial output as listed in table.
(3) Rotate calibrator knob, below EDIT FIELD pushbutton, for the required
indication on TI. If calibrator err display does not indicate within limits specified, and an
adjustment is listed, adjust calibrator for nominal value and then perform adjustment for
required indication on TI.
(4) Repeat technique of (1) through (3) above for the remaining dc current ranges.
b. Adjustments. No further adjustments can be made.
5
TB 9-6625-2352-24
NOTE
The sets of tables below for each instrument are setup as
follows; a = specifications, b = Dc volts, c = Ac volts, d =
resistance and e = Dc current.
Table 3a. ME-297/U Specifications
Test instrument parameters
Performance specifications
Dc voltage
Range:
0 to 2.5, 10, 50, 250, 500, 1000 V at 1000 : per V
0 to 5000 V at 1000 : per V
Accuracy: r3% FS from 0 to 500 V at 1000 and 20,000 : / V
r3% FS at 1000 V at 1000 : / V
r4% FS at 1000 V at 20,000 : / V
r6% FS at 5000 V at 20,000 : / V and 1 k:
Ac voltage
Range:
0 to 0.5, 2.5, 10, 50 250, 500, and 1000 V at 1000
or 20,000 : per V
0 to 5000 V at 1000 : and 20,000 : per V
Accuracy: ±4% FS from 0 to 500 V
±5% FS at 1000 V
±7% FS at 5000 V
Resistance
Range:
0 to 10 M: in 5 ranges
Accuracy: r3% FS of meter arc length
Dc current
Range:
0 to 0.25, 1.0, 2.5, 50, 100, 500, and 2500 mA
0 to 10 A
Accuracy: r3% of FS
Table 3b. ME-297/U Dc Volts
Calibration Performance Limits and Adjustments
Dc Voltage
Test instrument
Calibrator output
Dc volts
Indication
Initial
Limits
range
(V)
output (V)
Min
Max
2.51
2.5
2.5
2.425
2.575
10
10
10
9.7
10.3
10
7
7
6.7
7.3
10
3
3
2.7
3.3
50
50
50
48.5
51.5
250
250
250
242.5
257.5
500
500
500
485
515
10002
1000
1000
970
1030
50003
5000 (700)
5000 (700)
4700 (400)
5300 (1000)
50004
5000 (700)
5000 (700)
4700 (400)
5300 (1000)
1000
1000
1000
960
1040
5005
500
500
485
515
250
250
250
242.5
257.5
50
50
50
48.5
51.5
10
10
10
9.7
10.3
2.5
2.5
2.5
2.425
2.575
.5
.5
.5
.485
.515
Test instrument
Adjustments
None
Function switch to DC VOLTS 1 KŸ.
Reduce output to minimum and move positive lead from TI V-Ÿ-A input to TI AC/DC 1000 Ÿ/V 1000 V input.
3 Reduce output to minimum. Replace calibrator with power supply and move positive lead to TI V-Ÿ-A input to TI AC/DC
1000 Ÿ/V 5000 V input. Calibrate at 700 V if power supply is not available.
4 Reduce output to minimum and set TI function switch to DC VOLTS 20 KŸ and move positive lead from TI V-Ÿ-A input to
TI AC/DC 20000 Ÿ/V 5000 V input. After 5000V check is complete, replace power supply with calibrator and move positive
lead to TI AC/DC 20000 Ÿ/V 1000 V input.
5 Reduce output to minimum and move positive lead from TI AC/DC 20000 Ÿ/V 1000 V input to TI V-Ÿ-A input.
1
2
6
TB 9-6625-2352-24
Table 3c. ME-297/U Ac Volts
Calibration Performance Limits and Adjustments
Ac Voltage
Test instrument
Calibrator
Ac volts
Indication
Initial output
Frequency
err indication
range
(V)
(V)
(Hz)
± (%)
50
50
50
400
4
2.5
2.5
2.5
400
4
10
10
10
400
4
250
250
250
400
4
500
500
500
400
4
10002
1000
1000
400
5
50003
700
700
400
50
Test instrument
Adjustments
(fig. 1)
R42 (R)
R411 (R)
----------------
Recheck 50 V range and, if necessary, readjust R42 (fig. 1) and R41 (fig. 1) for best in-tolerance condition.
Reduce output to minimum and move positive lead from TI V-Ÿ-A input to TI AC/DC 1000 Ÿ/V 1000 V input.
3 Reduce output to minimum and move positive lead to TI AC/DC 1000 Ÿ/V 5000 V input.
1
2
Table 3d. ME-297/U Resistance
Calibration Performance Limits and Adjustments
Resistance
Resistance standard indications
Test instrument
(:)
Indications
ohms scale
Resistance
Min
Max
range1
(:)
X1
02
----X1
25
22.0
28.0
X10
25
220
280
X100
25
2200
2800
X1000
25
22,000
28,000
X10,000
25
220,000
280,000
Test instrument
Adjustments
Short leads, adjust
OHMS ZERO
for 0 indication.
Open leads, adjust
OHMS INF
for ’ indication.
1 Adjust
OHMS ZERO and OHMS INF controls for each range.
If 0 indication cannot be obtained, set OHMS ZERO control to mid-position, short leads, and adjust R36 (fig.1) for 0
indication.
2
Table 3e. ME-297/U Dc Current
Calibration Performance Limits and Adjustments
Dc Current
Test instrument
Calibrator
Indication
Initial output
err indication
Dc mA range
(mA)
(mA)
± (%)
.25
.25
.25
3
2.5
2.5
2.5
3
10
10
10
3
50
50
50
3
100
100
100
3
500
500
500
3
2500
2500
2500
3
10 A1
10 A
10 A
3
1
Test instrument
Adjustments
(fig. 1)
R50 (R)
----------------------
Reduce output to minimum and connect TI positive lead to +10A input.
7
TB 9-6625-2352-24
Figure 1. ME-297/U.
Test instrument parameters
Dc voltage
Ac voltage
Resistance
Dc current
Table 4a. TS-352/U Specifications
Performance specifications
Range:
0 to 1000 V at 1000 : per V
Accuracy: r3% of FS
Range:
0 to 1000 V at 20,000 : per V
Accuracy: r4% of FS
Range:
0 to 5000 V at 20,000 : per V
Accuracy: r6% of FS
Range:
0 to 500 V at 1000 : per V
Accuracy: r4% at 400 Hz, r7% at 10 kHz of FS
Range:
1000 V at 1000 : per V
Accuracy: r5% at 400 Hz, r8% at 10 kHz of FS
Range:
0 to 10,000,000 :
Accuracy: r3% (percent values are in terms of meter arc
length, not of : indicated by meter
Range:
0 to 10 A
Accuracy: r3% of FS
Table 4b. TS-352/U Dc Volts
Calibration Performance Limits and Adjustments
Dc Voltage
Test instrument
Calibrator output
Dc volts
Indication
Initial
Limits
range
(V)
output (V)
Min
Max
2.51
2.5
2.5
2.40
2.60
10
10
10
9.60
10.40
10
6
6
5.60
6.40
10
2
2
1.60
2.40
50
50
50
48.0
52.0
250
250
250
240.0
260.0
500
500
500
480.0
520.0
See footnote at the end of the table.
8
Test instrument
Adjustments
None
TB 9-6625-2352-24
Table 4b. TS-352/U Dc Volts Continued
Calibration Performance Limits and Adjustments
Dc Voltage
Test instrument
Calibrator output
Dc volts
Indication
Initial
Limits
range
(V)
output (V)
Min
Max
1000
1000
1000
960
1040
50002
5000 (700)
5000 (700)
4700 (400)
5300 (1000)
10003
1000
1000
970
1030
500
500
500
485
515.0
250
250
250
242.5
257.5
50
50
50
48.5
51.5
10
10
10
9.7
10.30
2.5
2.5
2.5
2.425
2.575
Test instrument
Adjustments
None
Set function switch to 20000 Ÿ/VDC.
Replace calibrator with power supply. Connect lead between TI 20000 OHMS PER VOLT DC 2.5 V input and TI
CONNECT TO 2.5 V JACK. Calibrate at 700 V if power supply is not available.
3 Set function switch to 1000 Ÿ/VDC. Replace power supply with calibrator and remove lead connected in 2 above.
1
2
Table 4c. TS-352/U Ac Volts
Calibration Performance Limits and Adjustments
Ac Voltage
Test instrument
Calibrator
Ac volts
Indication
Initial output
Frequency
err indication
range
(V)
(V)
(Hz)
± (%)
2.5
2.5
2.5
400
4
10
10
10
400
4
50
50
50
400
4
250
250
250
400
4
500
500
500
400
4
10001
1000
1000
400
5
Test instrument
Adjustments
(fig. 2)
Ac voltage adj. (R)
----------------
Reduce output to minimum and move positive lead from TI + input to TI 1000 V AC input. After 1000 V check is complete,
reduce output to minimum and move positive lead back to TI + input.
1
Table 4d. TS-352/U Resistance
Calibration Performance Limits and Adjustments
Resistance
Resistance standard indications
Test instrument
(:)
Indications
ohms scale
Resistance
Min
Max
range1
(:)
RX1
25
22
28
RX10
250
220
280
RX100
2.5 k
2200
2800
RX1K
25 k
22,000
28,000
RX10K
250 k
220,000
280,000
1Short
Test instrument
Adjustments
None
leads and adjust OHMS ZERO ADJ for 0 indication on ohms scale. Repeat for each range.
9
TB 9-6625-2352-24
Table 4e. TS-352/U Dc Current
Calibration Performance Limits and Adjustments
Dc Current
Test instrument
Calibrator
Indication
Initial output
err indication
Dc current range
(A)
(A)
± (%)
250 ǍA
250 ǍA
250 ǍA
3
2.5 mA
2.5 mA
2.5 mA
3
10 mA
10 mA
10 mA
3
50 mA
50 mA
50 mA
3
100 mA
100 mA
100 mA
3
500 mA
500 mA
500 mA
3
2.5 A
2.5 A
2.5 A
3
10 A1
10 A
10 A
3
1
Test instrument
Connect positive lead to TI +10 AMPS ONLY input.
Figure 2. TS-352( )/U.
Table 5a. Simpson, Model 260 Specifications
Test instrument parameter
Performance specification
Dc voltage
Range: 0 to 5000 V
Accuracy: r3% of FS
Ac voltage
Range: 0 to 5000 V
Accuracy: r5% of FS
Resistance
Range: 0 to 20 MŸ
Accuracy: r3° of arc
Dc current
Range: 0 to 10 A
Accuracy: r3% of FS
10
Adjustments
None
TB 9-6625-2352-24
Table 5b. Simpson, Model 260 Dc Voltage
Calibration Performance Limits and Adjustments
Dc Voltage
Test instrument1
Calibrator output
Dc volts
Indication
Initial
Limits
range
(V)
output (V)
Min
Max
2.5
2.5
2.5
2.425
2.575
10
10
10
9.7
10.3
50
50
50
48.5
51.5
250
250
250
242.5
257.5
1000
1000
1000
970
1030
50002
5000 (900)
5000 (900)
4850 (750)
5150 (1050)
Test instrument
Adjustments
None
TI must be calibrated in horizontal position.
Replace calibrator with power supply. Move positive lead to TI D.C. 5000 V input. Calibrate at 900 V if power supply not
available. After 5000 V test, replace power supply with calibrator and move positive lead to TI + input.
1
2
Table 5c. Simpson, Model 260 Ac Voltage
Calibration Performance Limits and Adjustments
Ac Voltage
Test instrument1
Calibrator
Ac volts
Indication
Initial output
Frequency
err indication
range
(V)
(V)
(Hz)
± (%)
2.5
2.5
2.5
60
5
10
10
10
60
5
50
50
50
60
5
250
250
250
60
5
1000
1000
1000
60
5
50002
800
800
60
31.25
Test instrument
Adjustments
None
TI must be calibrated in horizontal position.
Reduce output to minimum and move positive lead from TI + input to TI A.C. 5000 V input. After 5000V check is complete,
reduce output to minimum and move positive lead to TI + input.
1
2
Table 5d. Simpson, Model 260 Resistance
Calibration Performance Limits and Adjustments
Resistance
Test instrument 1
Resistance standard indications
(:)
Indications
Ohms scale
Resistance
Min
Max
range2
(:)
RX1
12
10.5
13.7
RX100
12
1050
1370
RX10,000
12
105,000
137,000
Test instrument
Adjustments
None
TI must be calibrated in horizontal position.
leads and adjust ZERO OHMS for a 0 indication on ohms scale. Repeat for each range.
1
2 Short
11
TB 9-6625-2352-24
Table 5e. Simpson, Model 260 Dc Current
Calibration Performance Limits and Adjustments
Dc Current
Test instrument1
Calibrator
Indication
Initial output
err indication
Dc current range
(A)
(A)
± (%)
50 ǍA2
50 ǍA
50 ǍA
3
100 ǍA
100 ǍA
100 ǍA
3
1 mA
1 mA
1 mA
3
1 mA
.6 mA
.6 mA
5
1 mA
.2 mA
.2 mA
15
10 mA
10 mA
10 mA
3
100 mA
100 mA
100 mA
3
500 mA
500 mA
500 mA
3
10 A3
10 A
10 A
3
Test instrument
Adjustments
None
TI must be calibrated in horizontal position.
Connect positive lead to TI +50 ǍA input. After 50 ǍA check is complete, reduce output to minimum and move positive lead
to TI + input.
3 Reduce output to minimum and connect TI negative lead to 10A input and connect TI positive lead to +10A input.
1
2
Table 6a. Simpson, Model 260-3 Specifications
Test instrument parameter
Performance specification
Dc voltage
Range: 0 to 5000 V
Accuracy: r3% of FS
Ac voltage
Range: 0 to 5000 V
Accuracy: r3% of FS
Resistance
Range: 0 to 20 MŸ
Accuracy: r3° of arc
Dc current
Range: 0 to 10 A
Accuracy: r3% of FS
Table 6b. Simpson, Model 260-3 Dc Voltage
Calibration Performance Limits and Adjustments
Dc Voltage
Test instrument1
Calibrator output
Dc volts
Indication
Initial
Limits
range
(V)
output (V)
Min
Max
2.5
2.5
2.5
2.425
2.575
10
10
10
9.7
10.3
50
50
50
48.5
51.5
250
250
250
242.5
257.5
1000
1000
1000
970
1030
50002
5000 (900)
5000 (900)
4850 (750)
5150 (1050)
Test instrument
Adjustments
None
TI must be calibrated in horizontal position.
Replace calibrator with power supply. Move positive lead to TI D.C. 5000 V input. Calibrate at 900 V if power supply not
available. After 5000 V check is complete, reduce output to minimum and move positive lead to TI + input.
1
2
12
TB 9-6625-2352-24
Table 6c. Simpson, Model 260-3 Ac Voltage
Calibration Performance Limits and Adjustments
Ac Voltage
Test instrument1
Calibrator
Ac volts
Indication
Initial output
Frequency
err indication
range
(V)
(V)
(Hz)
± (%)
250
250
250
60
3
2.5
2.5
2.5
60
3
10
10
10
60
3
50
50
50
60
3
1000
1000
1000
60
3
50003
900
900
60
16.67
Test instrument
Adjustments
(fig. 3)
R31 (R)
R282 (R)
-------------
TI must be calibrated in horizontal position.
Recheck 250 V range and, if necessary, readjust R31 (fig. 3) and R28 (fig. 3) for best in-tolerance condition.
3 Reduce output to minimum and move positive lead from TI + input to TI A.C. 5000 V input. After 5000 V check is complete,
reduce output to minimum and move positive lead to TI + input.
1
2
Table 6d. Simpson, Model 260-3 Resistance
Calibration Performance Limits and Adjustments
Resistance
Test instrument 1
Resistance standard indications
(:)
Indications
ohms scale
Resistance
Min
Max
range2
(:)
RX1
12
10.5
13.7
RX100
12
1050
1370
RX10,000
12
105,000
137,000
Test instrument
Adjustments
None
TI must be calibrated in horizontal position.
leads and adjust ZERO OHMS for a 0 indication on ohms scale. Repeat for each range.
1
2 Short
Table 6e. Simpson, Model 260-3 Dc Current
Calibration Performance Limits and Adjustments
Dc Current
Test instrument1
Calibrator
Indication
Initial output
err indication
Dc current range
(A)
(A)
± (%)
50 ǍA2
50 ǍA
50 ǍA
3
100 ǍA
100 ǍA
100 ǍA
3
1 mA
1 mA
1 mA
3
1 mA
.6 mA
.6 mA
5
1 mA
.2 mA
.2 mA
15
10 mA
10 mA
10 mA
3
100 mA
100 mA
100 mA
3
500 mA
500 mA
500 mA
3
10 A3
10 A
10 A
3
Test instrument
Adjustments
(fig. 3)
------R27 (R)
-------------R22 (R)
TI must be calibrated in horizontal position.
Connect positive lead to TI +50 ǍA input. After 50 ǍA check is complete, reduce output to minimum and move positive lead
to TI + input.
3 Reduce output to minimum and connect TI negative lead to 10A input and connect TI positive lead to +10A input.
1
2
13
TB 9-6625-2352-24
Figure 3. Simpson, Model 260-3.
Table 7a. Simpson, Model 260-4 Specifications
Test instrument parameter
Performance specification
Dc voltage
Range: 0 to 5000 V
Accuracy: r2% of FS
Ac voltage
Range: 0 to 5000 V
Accuracy: r3% of FS
Resistance
Range: 0 to 20 MŸ
Accuracy: r3° of arc
Dc current
Range: 0 to 10 A
Accuracy: r2% of FS
Table 7b. Simpson, Model 260-4 Dc Voltage
Calibration Performance Limits and Adjustments
Dc Voltage
Test instrument1
Calibrator output
Dc volts
Initial
Limits
range
Indication
output
Min
Max
2502
250
250
mV
245
mV
255
mV
2.5
2.5
2.5 V
2.45 V
2.55 V
10
10
10
V
9.8 V
10.2 V
50
50
50
V
49
V
51
V
250
250
250
V
245
V
255
V
1000
1000
1000
V
980
V
1020
V
50003
5000 (900)
5000 (900) V
4900 (800) V
5100 (1000) V
Test instrument
Adjustments
None
TI must be calibrated in horizontal position.
Connect TI positive lead to TI +50 ǍA/250mV input. After 250 mV check, move TI positive lead to TI + input.
3 Replace calibrator with power supply. Move positive lead to TI D.C. 5000 V input. Calibrate at 900 V if power supply not
available. After 5000 V check is complete, reduce output to minimum and move positive lead to TI + input.
1
2
14
TB 9-6625-2352-24
Table 7c. Simpson, Model 260-4 Ac Voltage
Calibration Performance Limits and Adjustments
Ac Voltage
Test instrument1
Calibrator
Ac volts
Indication
Initial output
Frequency
err indication
range
(V)
(V)
(Hz)
± (%)
250
250
250
60
3
2.5
2.5
2.5
60
3
10
10
10
60
3
50
50
50
60
3
1000
1000
1000
60
3
50002
900
900
60
16.67
Test instrument
Adjustments
(fig. 4)
R31 (R)
R28 (R)
-------------
TI must be calibrated in horizontal position.
Reduce output to minimum and move positive lead from TI + input to TI A.C. 5000 V input. After 5000 V check is complete,
reduce output to minimum and move positive lead to TI + input.
1
2
Table 7d. Simpson, Model 260-4 Resistance
Calibration Performance Limits and Adjustments
Resistance
Test instrument1
Resistance standard indications
(:)
Indications
ohms scale
Resistance
Min
Max
range2
(:)
RX1
12
10.5
13.7
RX100
12
1050
1370
RX10,000
12
105,000
137,000
Test instrument
Adjustments
None
TI must be calibrated in horizontal position.
leads and adjust ZERO OHMS for 0 indication on ohms scale. Repeat for each range.
1
2 Short
Table 7e. Simpson, Model 260-4 Dc Current
Calibration Performance Limits and Adjustments
Dc Current
Test instrument1
Calibrator
Indication
Initial output
err indication
Dc current range
(A)
(A)
± (%)
50 ǍA2
50 ǍA
50 ǍA
2
1 mA
1 mA
1 mA
2
10 mA
10 mA
10 mA
2
10 mA
6 mA
6 mA
3.33
10 mA
2 mA
2 mA
10
100 mA
100 mA
100 mA
2
500 mA
500 mA
500 mA
2
10 A3
10 A
10 A
2
Test instrument
Adjustments
(fig. 4)
R32 (R)
R27 (R)
---------------R22 (R)
TI must be calibrated in horizontal position.
Connect positive lead to TI +50 ǍA/250 mV input. After 50 ǍA check is complete, reduce output to minimum and move
positive lead to TI + input.
3 Reduce output to minimum and connect TI negative lead to 10A input and connect TI positive lead to +10A input.
1
2
15
TB 9-6625-2352-24
Figure 4. Simpson, Model 260-4.
Table 8a. Simpson, Model 260-5 Specifications
Test instrument parameter
Performance specification
Dc voltage
Range: 0 to 5000 V
Accuracy:
r2% of FS 0 to 1000 V range
±3% of FS 5000 V range
Ac voltage
Range: 0 to 1000 V
Accuracy:
r3% of FS 0 to 1000 V range
±4% of FS 5000 V range
Resistance
Range: 0 to 20 MŸ
Accuracy:
r2.5° of arc for RX1 range, ±2° of arc for
all other ranges
Dc current
Range: 0 to 10A
Accuracy:
r1.5% of FS for 50 ǍA range,
±2% of FS for all other ranges
Table 8b. Simpson, Model 260-5 Dc Voltage
Calibration Performance Limits and Adjustments
Dc Voltage
Test instrument1
Calibrator output
Dc volts
Initial
Limits
range
Indication
output
Min
Max
2502
250
250
mV
245
mV
255
mV
2.5
2.5
2.5 V
2.45 V
2.55 V
10
10
10 V
9.8 V
10.2 V
50
50
50 V
49
V
51
V
250
250
250 V
245
V
255
V
1000
1000
1000 V
980
V
1020
V
50003
5000 (900)
5000 (900) V
4850 (750) V
5150 (1050) V
Test instrument
Adjustments
None
TI must be calibrated in horizontal position.
Connect TI positive lead to TI +50 ǍA/250 mV input. After 250 mV check, move TI positive lead to TI + input.
3 Replace calibrator with power supply. Move positive lead to TI D.C. 5000 V input. Calibrate at 900 V if power supply not
available. After 5000 V check is complete, reduce output to minimum, replace power supply with calibrator and move positive
lead to TI + input.
1
2
16
TB 9-6625-2352-24
Table 8c. Simpson, Model 260-5 Ac Voltage
Calibration Performance Limits and Adjustments
Ac Voltage
Test instrument1
Calibrator
Ac volts
Indication
Initial output
Frequency
err indication
range
(V)
(V)
(Hz)
± (%)
250
250
250
60
3
2.5
2.5
2.5
60
3
10
10
10
60
3
50
50
50
60
3
1000
1000
1000
60
3
50002
900
900
60
22.2
Test instrument
Adjustments
(fig. 5)
R31 (R)
R28 (R)
-------------
TI must be calibrated in horizontal position.
Reduce output to minimum and move positive lead from TI + input to TI A.C. 5000 V input. After 5000 V check is complete,
reduce output to minimum and move positive lead to TI + input.
1
2
Table 8d. Simpson, Model 260-5 Resistance
Calibration Performance Limits and Adjustments
Resistance
Test instrument1
Resistance standard indications
(:)
Resistance
Indications
range2
Min
Max
ohms scale (:)
RX1
12
10.7
13.5
RX100
12
1110
1300
RX10K
12
111,000
130,000
1
2
Test instrument
Adjustments
None
TI must be calibrated in horizontal position.
Short leads and adjust OHMS ADJ control for a 0 indication on ohms scale. Repeat for each range.
Table 8e. Simpson, Model 260-5 Dc Current
Calibration Performance Limits and Adjustments
Dc Current
Test instrument1
Calibrator
Indication
Initial output
err indication
Dc current range
(A)
(A)
± (%)
50 ǍA2
50 ǍA
50 ǍA
1.5
1 mA
1 mA
1 mA
2
10 mA
10 mA
10 mA
2
10 mA
6 mA
6 mA
3.33
10 mA
2 mA
2 mA
10
100 mA
100 mA
100 mA
2
500 mA
500 mA
500 mA
2
10 A3
10 A
10 A
2
Test instrument
Adjustments
(fig. 5)
R32 (R)
R27 (R)
---------------R22 (R)
TI must be calibrated in horizontal position.
Connect positive lead to TI +50 ǍA/250 mV input. After 50 ǍA check is complete, reduce output to minimum and move
positive lead to TI + input.
3 Reduce output to minimum and connect TI negative lead to 10A input and connect TI positive lead to +10A input.
1
2
17
TB 9-6625-2352-24
Figure 5. Simpson, Model 260-5.
Table 9a. Simpson, Model 269 Specifications
Test instrument parameter
Performance specification
Dc voltage
Range: 0 to 4000 V
Accuracy:
r3% of FS
Ac voltage
Range: 0 to 800 V
Accuracy:
r5% of FS
Resistance
Range: 0 to 200 MŸ
Accuracy:
r3° of arc
Dc current
Range: 0 to 16A
Accuracy:
r3% of FS
Table 9b. Simpson, Model 269 Dc Voltage
Calibration Performance Limits and Adjustments
Dc Voltage
Test instrument
Calibrator output
Dc volts
Indication
Initial
Limits
range
(V)
output (V)
Min
Max
1.6
1.6
1.6
1.552
1.648
8
8
8
7.76
8.24
40
40
40
38.8
41.2
160
160
160
155.2
164.8
400
400
400
388
412
16001, 2
1600 (900)
1600 (900)
1552 (780)
1648 (1020)
40002, 3, 4
4000 (900)
4000 (900)
3880 (780)
4120 (1020)
Replace calibrator with power supply.
Calibrate at 900 V if power supply is not available.
3 Perform only if 4000 V probe is available.
4 Replace power supply with calibrator.
1
2
18
Test instrument
Adjustments
None
TB 9-6625-2352-24
Table 9c. Simpson, Model 269 Ac Voltage
Calibration Performance Limits and Adjustments
Ac Voltage
Test instrument
Calibrator
Ac volts
Indication
Initial output
Frequency
err indication
range
(V)
(V)
(Hz)
± (%)
3
3
3
60
3
8
8
8
60
3
40
40
40
60
3
160
160
160
60
3
800
800
800
60
3
Table 9d. Simpson, Model 269 Resistance
Calibration Performance Limits and Adjustments
Resistance
Test instrument
Resistance standard indications
(:)
Resistance
Indications
range1
Min
Max
ohms scale (:)
RX1
18
15.8
20.4
RX10
18
158
204
RX100
18
1.58 k
2.04 k
RX1K
18
15.8 k
20.4 k
RX10K
18
158 k
204 k
RX100K
6
495 k
715 k
1
Test instrument
Adjustments
None
Test instrument
Adjustments
None
Short leads and adjust ZERO OHMS for 0 indication on ohms scale. Repeat for each range.
Table 9e. Simpson, Model 269 Dc Current
Calibration Performance Limits and Adjustments
Dc Current
Test instrument
Calibrator
err indication
Dc current range
Indication
Initial output
± (%)
16 ǍA
16 ǍA
16 ǍA
3
16 ǍA
10 ǍA
10 ǍA
4.8
16 ǍA
4 ǍA
4 ǍA
12
160 ǍA
160 ǍA
160 ǍA
3
1.6 mA
1.6 mA
1.6 mA
3
16 mA
16 mA
16 mA
3
160 mA
160 mA
160 mA
3
1.6 A
1.6 A
1.6 A
3
16 A
9 A
9 A
3
Test instrument
Adjustments
None
Table 10a. Simpson, Model 269 Series III Specifications
Test instrument parameter
Performance specification
Dc voltage
Range: 0 to 4000 V
Accuracy:
r1.5% of FS, ±3.5% of FS on 4000 V range
Ac voltage
Range: 0 to 800 V
Accuracy:
r2.5% of FS
Resistance
Range: 0 to 200 MŸ
Accuracy:
r2° of arc
Dc current
Range: 0 to 8A
Accuracy:
r1.5% of FS
19
TB 9-6625-2352-24
Table 10b. Simpson, Model 269 Series III Dc Voltage
Calibration Performance Limits and Adjustments
Dc Voltage
Test instrument
Calibrator output
Dc volts
Indication
Initial
Limits
range
(V)
output (V)
Min
Max
.8
.8
.8
0.788
0.812
1.6
1.6
1.6
1.576
1.624
8
8
8
7.88
8.12
40
40
40
39.4
40.6
160
160
160
157.6
162.4
400
400
400
394
406
800
800
800
788
812
16001, 2
1600 (900)
1600 (900)
1576 (876)
1624 (924)
40002, 3, 4
4000 (900)
4000 (900)
3860 (760)
4140 (1040)
Test instrument
Adjustments
None
Replace calibrator with power supply.
Calibrate at 900 V if power supply is not available.
3 Perform only if 4000 V probe is available.
4 Replace power supply with calibrator.
1
2
Table 10c. Simpson, Model 269 Series III Ac Voltage
Calibration Performance Limits and Adjustments
Ac Voltage
Test instrument
Calibrator
Ac volts
Indication
Initial output
Frequency
err indication
range
(V)
(V)
(Hz)
± (%)
3
3
3
60
2.5
8
8
8
60
2.5
40
40
40
60
2.5
160
160
160
60
2.5
400
400
400
60
2.5
800
800
800
60
2.5
Table 10d. Simpson, Model 269 Series III Resistance
Calibration Performance Limits and Adjustments
Resistance
Test instrument
Resistance standard indications
(:)
Resistance
Indications
range1
Min
Max
ohms scale (:)
RX1
12
10.6
13.4
RX10
12
106
134
RX100
12
1.06 k
1.34 k
RX1K
12
10.6 k
13.4 k
RX10K
12
106 k
134 k
RX100K
4
340 k
460 k
1 Short
20
leads and adjust ZERO OHMS for a 0 indication on ohms scale. Repeat for each range.
Test instrument
Adjustments
(fig. 6)
R38 (R)
------R37 (R)
-------
Test instrument
Adjustments
None
TB 9-6625-2352-24
Table 10e. Simpson, Model 269 Series III Dc Current
Calibration Performance Limits and Adjustments
Dc Current
Test instrument
Calibrator
Indication
Initial output
err indication
Dc current range
(A)
(A)
± (%)
16 ǍA
16 ǍA
16 ǍA
1.5
16 ǍA
10 ǍA
10 ǍA
2.4
16 ǍA
4 ǍA
4 ǍA
6.0
160 ǍA
160 ǍA
160 ǍA
1.5
1.6 mA
1.6 mA
1.6 mA
1.5
16 mA
16 mA
16 mA
1.5
160 mA
160 mA
160 mA
1.5
1.6 A
1.6 A
1.6 A
1.5
8 A
8 A
8 A
1.5
Test instrument
Adjustments
(fig. 6)
R40 (R)
------------------R1 (R)
R35 (R)
Figure 6. Simpson, Model 269 series III.
Table 11a. Simpson, Model 270 Specifications
Test instrument parameter
Performance specification
Dc voltage
Range: 0 to 1000 V
Accuracy:
r2% of FS
Range: 0 to 5000 V
Accuracy:
r3% of FS
Ac voltage
Range: 0 to 1000 V
Accuracy:
r3% of FS
Range: 0 to 5000 V
Accuracy:
r4% of FS
Resistance
Range: 0 to 20 MŸ
Accuracy:
r2° of arc
Dc current
Range: 0 to 10A
Accuracy:
±2% of FS
21
TB 9-6625-2352-24
Table 11b. Simpson, Model 270 Dc Voltage
Calibration Performance Limits and Adjustments
Dc Voltage
Test instrument1
Calibrator output
Dc volts
Indication
Initial
Limits
range
(V)
output (V)
Min
Max
2.5
2.5
2.5
2.45
2.55
10
10
10
9.80
10.2
50
50
50
49
51
250
250
250
245
255
1000
1000
1000
970
1030
50002
5000 (900)
5000 (900)
4850 (750)
5150 (1050)
Test instrument
Adjustments
None
TI must be calibrated in horizontal position.
Replace calibrator with power supply. Move positive lead to TI D.C. 5000 V input. Calibrate at 900 V if power supply not
available. After 5000 V check is complete, reduce output to minimum replace power supply with calibrator and move positive
lead to TI + input.
1
2
Table 11c. Simpson, Model 270 Ac voltage
Calibration Performance Limits and Adjustments
Ac voltage
Test instrument1
Calibrator
Ac volts
Indication
Initial output
Frequency
err indication
range
(V)
(V)
(Hz)
± (%)
250
250
250
60
3
2.5
2.5
2.5
60
3
10
10
10
60
3
50
50
50
60
3
1000
1000
1000
60
3
50002
900
900
60
22.2
Test instrument
Adjustments
(Fig. 7)
R31 (R)
R28 (R)
-------------
TI must be calibrated in horizontal position.
Reduce output to minimum and move positive lead from TI + input to TI 5000 V DC/AC input. After 5000 V check is
complete, reduce output to minimum and move positive lead to TI + input.
1
2
Table 11d. Simpson, Model 270 Resistance
Calibration Performance Limits and Adjustments
Resistance
Test instrument1
Resistance standard indications
(:)
Indications
ohms scale
Resistance
Min
Max
range2
(:)
RX1
12
11.1
13.0
RX100
12
1110
1300
RX10,000
12
111,000
130,000
1
TI must be calibrated in horizontal position.
leads and adjust OHMS ADJ for a 0 indication on ohms scale. Repeat for each range.
2 Short
22
Test instrument
Adjustments
None
TB 9-6625-2352-24
Table 11e. Simpson, Model 270 Dc Current
Calibration Performance Limits and Adjustments
Dc Current
Test instrument1
Calibrator
Indication
Initial output
err indication
Dc current range
(A)
(A)
± (%)
50 ǍA2
50 ǍA
50 ǍA
2
1 mA
1 mA
1 mA
2
10 mA
10 mA
10 mA
2
10 mA
6 mA
6 mA
3.33
10 mA
2 mA
2 mA
10
100 mA
100 mA
100 mA
2
500 mA
500 mA
500 mA
2
10 A3
10 A
10 A
2
Test instrument
Adjustments
(fig. 7)
---R27 (R)
---------------R22 (R)
TI must be calibrated in horizontal position.
Connect positive lead to TI +50 ǍA input. After 50 ǍA check is complete, reduce output to minimum and move positive lead
to TI + input.
3 Reduce output to minimum and connect TI negative lead to 10A input and connect TI positive lead to +10A input.
1
2
Figure 7. Simpson, Model 270.
Table 12a. Triplett, Model 310 Specifications
Test instrument parameter
Performance specification
Dc voltage
Range: 0 to 1200 V
Accuracy:
r3% of FS
Ac voltage
Range: 0 to 1200 V
Accuracy:
r4% of FS
Resistance
Range: 0 to 20 MŸ of dc scale
Accuracy:
r3%
Dc current
Range: 0 to 600 mA
Accuracy:
r3% of FS
23
TB 9-6625-2352-24
Table 12b. Triplett, Model 310 Dc Voltage
Calibration Performance Limits and Adjustments
Dc Voltage
Test instrument
Calibrator output
Dc volts
Indication
Initial
Limits
range
(V)
output (V)
Min
Max
3
3
3
2.91
3.09
3
2
2
1.91
2.09
3
1
1
0.91
1.09
12
12
12
11.64
12.36
60
60
60
58.2
61.8
300
300
300
291
309
12001
1200 (1000)
1200 (1000)
1164 (964)
1236 (1036)
Test instrument
Adjustments
None
Replace calibrator with power supply. Move positive lead to TI 1200 V DC input. Calibrate at 1000 V if power supply not
available. After 1200 V check is complete, reduce output to minimum, replace power supply with calibrator and move positive
lead to TI V-Ÿ-M input.
1
Table 12c. Triplett, Model 310 Ac Voltage
Calibration Performance Limits and Adjustments
Ac Voltage
Test instrument
Calibrator
Ac volts
Indication
Initial output
Frequency
err indication
range
(V)
(V)
(Hz)
± (%)
3
3
3
60
4
12
12
12
60
4
60
60
60
60
4
300
300
300
60
4
12001
1000
1000
60
4.8
Test instrument
Adjustments
None
1 Reduce output to minimum and move positive lead from TI V-Ÿ-M input to TI 1200 V AC input. After 1200 V check is
complete, reduce output to minimum and move positive lead to TI V-Ÿ-M input.
Table 12d. Triplett, Model 310 Resistance
Calibration Performance Limits and Adjustments
Resistance
Test instrument
Meter indications
(0 to 300 dc scale)
Resistance
standard setting
Resistance
(Ÿ)
ranges1
Min
Max
200
X1
140
160
2000
X10
140
160
20,000
X100
140
160
200,000
X1K
140
160
1 Short leads and adjust OHMS ADJ for 0 indication on ohms scale. Repeat for each range.
24
Test instrument
Adjustments
None
TB 9-6625-2352-24
Table 12e. Triplett, Model 310 Dc Current
Calibration Performance Limits and Adjustments
Dc Current
Test instrument
Calibrator
Indication
Initial output
err indication
Dc current range
(mA)
(mA)
± (%)
.6
.6
.6
3
6
6
6
3
60
60
60
3
600
600
600
3
Test instrument
Adjustments
None
Table 13a. Triplett, Model 630 Specifications
Test instrument parameter
Performance specification1
Dc voltage
Range: 0 to 6000 V
Accuracy:
r3% of FS for SN 208038 and below, (±5%
of
FS on 6000 V range);
±2% of FS for SN 208039 and above or no
SN,
(±4% of FS on 6000 V range)
Ac voltage
Range: 0 to 6000 V
Accuracy:
r4% of FS for SN 208038 and below, (±5%
of
FS on 6000 V range);
±3% of FS for SN 208039 and above or no
SN,
(±4% of FS on 6000 V range)
Resistance
Range: 0 to 100 MŸ
Accuracy:
r3% of scale length for SN 208038 and
below
±2% of scale length for SN 208039 and
above
or no SN
Dc current
Range: 0 to 12 A
Accuracy:
r3% of FS for SN 208038 and below,
±2% of FS for SN 208039 and above or no
SN
1
Indications in parentheses are for models 630, SN 20839 and above, and for models with no SN.
Table 13b. Triplett, Model 630 Dc Voltage
Calibration Performance Limits and Adjustments
Dc Voltage
Test instrument
Calibrator output
Dc volts
Indication
Initial
Limits1
range
(V)
output (V)
Min
Max
3
3
3
2.91 (2.94)
3.09 (3.06)
12
12
12
11.64 (11.76)
12.36 (12.24)
12
8
8
7.64 (7.76)
8.36 (8.24)
12
4
4
3.64 (3.76)
4.36 (4.24)
60
60
60
58.2 (58.8)
61.8 (61.2)
300
300
300
291
(294)
309
(306)
60002
6000
6000
5700
(5760) 6300
(6240)
Test instrument
Adjustments
None
Indications in parentheses are for models 630, SN 20839 and above, and for models with no SN.
Move positive lead to TI 6000 V DC input. Calibrate at 800 V with limits of 500 (560) and 1100 (1040) if power supply is not
available. After 6000 V check is complete, reduce output to minimum, replace power supply with calibrator and move positive
lead to TI V-Ÿ-A input.
1
2
25
TB 9-6625-2352-24
Table 13c. Triplett, Model 630 Ac Voltage
Calibration Performance Limits and Adjustments
Ac Voltage
Test instrument
Calibrator
Ac volts
Indication
Initial output
Frequency
err indication1
range
(V)
(V)
(Hz)
± (%)
3
3
3
60
4 (3)
12
12
12
60
4 (3)
60
60
60
60
4 (3)
300
300
300
60
4 (3)
1200
1000
1000
60
4.8 (3.6)
60002
800
800
60
37.5 (30)
Test instrument
Adjustments
None
Indications in parentheses are for models 630, SN 20839 and above, and for models with no SN.
Move positive lead to TI 6000 V AC input. After 6000 V check is complete, reduce output to minimum and move positive lead
to TI V-Ÿ-A input.
1
2
Table 13d. Triplett, Model 630 Resistance
Calibration Performance Limits and Adjustments
Resistance
Resistance standard indications1
Test instrument
(:)
Indications
ohms scale
Resistance
Min
Max
range2
(:)
X1
4.4
3.88 (4.0)
4.90 (4.6)
X10
44
38.8 (40)
49.0
(46)
X1000
4.4 k
3880
(4000)
4900
(4600)
X100000
440 k
388 k (400 k)
490 k (460 k)
1
Test instrument
Adjustments
None
Indications in parentheses are for models 630, SN 20839 and above, and for models with no SN.
leads and adjust OHMS ADJ for a 0 indication on ohms scale. Repeat for each range.
2 Short
Table 13e. Triplett, Model 630 Dc Current
Calibration Performance Limits and Adjustments
Dc Current
Test instrument
Calibrator
Indication
Initial output
err indication1
Dc current range
(A)
(A)
± (%)
60
ǍA
60
ǍA
60
ǍA
3 (2)
1.2 mA
1.2 mA
1.2 mA
3 (2)
12 mA
12 mA
12 mA
3 (2)
120 mA
120 mA
120 mA
3 (2)
12 A
10 A
10 A
3.6 (2.4)
1
Test instrument
Adjustments
None
Indications in parentheses are for models 630, SN 20839 and above, and for models with no SN.
Table 14a. Triplett, Model 630NA Specifications
Test instrument parameter
Performance specification
Dc voltage
Range: 0 to 6000 V
Accuracy:
r1.5% of FS, ±3% of FS on 6000 V range
Ac voltage
Range: 0 to 6000 V
Accuracy:
r3% of FS, ±4% of FS on 6000 V range
Resistance
Range: 0 to 100 MŸ
Accuracy:
r1.5% of scale length
Dc current
Range: 0 to 12 A
Accuracy:
r1.5% of FS
26
TB 9-6625-2352-24
Table 14b. Triplett, Model 630NA Dc Voltage
Calibration Performance Limits and Adjustments
Dc Voltage
Test instrument
Calibrator output
Dc volts
Indication
Initial
Limits
range
(V)
output (V)
Min
Max
.6
.6
.6
.591
.609
3
3
3
2.955
3.045
3
2
2
1.955
2.045
3
1
1
0.955
1.045
12
12
12
11.82
12.18
60
60
60
59.1
60.9
300
300
300
295.5
304.5
12001
1200 (1000)
1200 (1000)
1182 (982)
1218 (1018)
60002
6000 (900)
6000 (900)
5820 (720)
6180 (1080)
Test instrument
Adjustments
None
Replace calibrator with power supply. Calibrate at 1000 V if power supply is not available.
Reduce output to minimum and move positive lead to TI 6000 V DC input. Calibrate at 900 V if power supply is not
available. After 6000 V check is complete, reduce output to minimum, replace power supply with calibrator and move positive
lead to TI V-Ÿ-A input.
1
2
Table 14c. Triplett, Model 630NA Ac Voltage
Calibration Performance Limits and Adjustments
Ac Voltage
Test instrument
Calibrator
Ac volts
Indication
Initial output
Frequency
err indication
range
(V)
(V)
(Hz)
± (%)
3
3
3
60
3
3
3
3
20 k
8
12
12
12
60
3
60
60
60
60
3
300
300
300
60
3
1200
1000
1000
60
3.6
60001
800
800
60
30
Test instrument
Adjustments
(Fig. 8)
---C3 (R)
----------------
1 Reduce output to minimum and move positive lead to TI 6000 V AC input. After 6000 V check is complete, reduce output to
minimum and move positive lead to TI V-Ÿ-A input.
Table 14d. Triplett, Model 630NA Resistance
Calibration Performance Limits and Adjustments
Resistance
Resistance standard indications
Test instrument
(:)
Indications
ohms scale
Resistance
Min
Max
range1
(:)
X1
4
3.7
4.4
X10
40
37
44
X100
400
370
440
X1K
4 k
3700
4400
X10K
40 k
37 k
44 k
X100K
400 k
370 k
440 k
1
Test instrument
Adjustments
None
Short leads and adjust OHMS ADJ for a 0 indication on ohms scale. Repeat for each range.
27
TB 9-6625-2352-24
Table 14e. Triplett, Model 630NA Dc Current
Calibration Performance Limits and Adjustments
Dc Current
Test instrument
Calibrator
Indication
Initial output
err indication
Dc current range
(A)
(A)
± (%)
60
ǍA
60
ǍA
60
ǍA
1.5
.12 mA
.12 mA
.12 mA
1.5
1.2 mA
1.2 mA
1.2 mA
1.5
12
mA
12
mA
12
mA
1.5
120
mA
120
mA
120
mA
1.5
12
A
10
A
10
A
1.8
Test instrument
Adjustments
None
Figure 8. Triplett, Model 630NA.
Table 15a. Triplett, Model 630PL Specifications
Test instrument parameter
Performance specification
Dc voltage
Range: 0 to 5000 V
Accuracy:
±3% of FS, ±5% of FS on 5000 V range
Ac voltage
Range: 0 to 6000 V
Accuracy:
r4% of FS, ±5% of FS on 5000 V range
Resistance
Range: 0 to 100 MŸ
Accuracy:
r3% of scale length
Dc current
Range: 0 to 12 A
Accuracy:
±3% of FS
28
TB 9-6625-2352-24
Table 15b. Triplett, Model 630PL Dc Voltage
Calibration Performance Limits and Adjustments
Dc Voltage
Test instrument
Calibrator output
Dc volts
Indication
Initial
Limits
range
(V)
output (V)
Min
Max
2.5
2.5
2.5
2.425
2.575
10
10
10
9.7
10.3
10
6
6
5.7
6.3
10
2
2
1.7
2.3
50
50
50
48.5
51.5
250
250
250
242.5
257.5
1000
1000
1000
970
1030
50001
5000 (800)
5000 (800)
4750 (550)
5250 (1050)
Test instrument
Adjustments
None
1Replace calibrator with power supply and move positive lead to TI 5000 V DC input. Calibrate at 800 V if power supply is not
available. After 5000 V check is complete, reduce output to minimum, replace power supply with calibrator and move positive
lead to TI V-Ÿ-A input.
Table 15c. Triplett, Model 630PL Ac Voltage
Calibration Performance Limits and Adjustments
A Voltage
Test instrument
Calibrator
Ac volts
Indication
Initial output
Frequency
err indication
range
(V)
(V)
(Hz)
± (%)
3
3
3
60
4
10
10
10
60
4
50
50
50
60
4
250
250
250
60
4
1000
1000
1000
60
4
50001
800
800
60
31.25
Test instrument
Adjustments
None
1Reduce output to minimum and move positive lead to TI 5000 V AC input. After 5000 V check is complete, reduce output to
minimum and move positive lead to TI V-Ÿ-A input.
Table 15d. Triplett, Model 630PL Resistance
Calibration Performance Limits and Adjustments
Resistance
Resistance standard indications
Test instrument
(:)
Indications
ohms scale
Resistance
Min
Max
Range1
(:)
X1
4
3.7
4.4
X10
40
37
44
X1K
4 K
3.7 k
4.4 k
X100K
400 K
370 k
440
k
Test instrument
Adjustments
None
Short leads and adjust Ÿ ADJ for a 0 indication on ohms scale. Repeat for each range.
1
29
TB 9-6625-2352-24
Table 15e. Triplett, Model 630PL Dc Current
Calibration Performance Limits and Adjustments
Dc Current
Test instrument
Calibrator
Indication
Initial output
err indication
Dc current range
(A)
(A)
± (%)
100 ǍA
100 ǍA
100 ǍA
3
10 mA
10 mA
10 mA
3
100 mA
100 mA
100 mA
3
1 A
1 A
1 A
3
10 A
10 A
10 A
3
Test instrument
Adjustments
None
Table 16a. Triplett, Model 666R Specifications
Test instrument parameter
Performance specification
Dc voltage
Range: 0 to 1000 V; 1000 to 5000 V
Accuracy:
±3% of FS, ±4% of FS on 5000 V range
Ac voltage
Range: 0 to 1000 V; 1000 to 5000 V
Accuracy:
r4% of FS, ±5% of FS on 5000 V range
Resistance
Range: 0 to 3 MŸ
Accuracy:
r3% of arc length (1.5 div on dc scale)
Dc current
Range: 0 to 1 A
Accuracy:
±3% of FS
Table 16b. Triplett, Model 666R Dc Voltage
Calibration Performance Limits and Adjustments
Dc Voltage
Test instrument
Calibrator output
Dc volts
Indication
Initial
Limits
range
(V)
output (V)
Min
Max
10
10
10
9.7
10.3
10
6
6
5.7
6.3
10
2
2
1.7
2.3
50
50
50
48.5
51.5
250
250
250
242.5
257.5
1000
1000
1000
970
1030
50001
5000 (900)
5000 (900)
4800 (700)
5200 (1100)
Test instrument
Adjustments
None
1 Replace calibrator with power supply and move positive lead to TI 5000 V input. Calibrate at 900 V if power supply is not
available. After 5000 V check is complete, reduce output to minimum, replace power supply with calibrator and move positive
lead to TI V-Ÿ-A input.
Table 16c. Triplett, Model 666R Ac Voltage
Calibration Performance Limits and Adjustments
Ac Voltage
Test instrument
Calibrator
Ac volts
Indication
Initial output
Frequency
err indication
range
(V)
(V)
(Hz)
± (%)
10
10
10
60
4
50
50
50
60
4
250
250
250
60
4
1000
1000
1000
60
4
50001
800
800
60
31.25
Test instrument
Adjustments
None
1Reduce output to minimum and move positive lead to TI 5000 V AC input. After 5000 V check is complete, reduce output to
minimum and move positive lead to TI V-Ÿ-A input.
30
TB 9-6625-2352-24
Table 16d. Triplett, Model 666R Resistance
Calibration Performance Limits and Adjustments
Resistance
Test instrument
Meter indications
(0 to 50 dc scale)
Resistance
standard setting
Resistance
(Ÿ)
ranges1
Min
Max
20
X1
23.5
26.5
2000
X100
23.5
26.5
20,000
X1000
23.5
26.5
1 Short leads and adjust OHMS ADJ for 0 indication on ohms scale. Repeat for each range.
Table 16e. Triplett, Model 666R Dc Current
Calibration Performance Limits and Adjustments
Dc Current
Test instrument
Calibrator
Indication
Initial output
err indication
Dc current range
(A)
(A)
± (%)
10 mA
10 mA
10 mA
3
100 mA
100 mA
100 mA
3
500 mA
500 mA
500 mA
3
1 A1
1A
1A
3
1
Test instrument
Adjustments
None
Test instrument
Adjustments
None
Reduce output to minimum and move positive lead to TI 1 AMP input.
12. Final Procedure
a. Deenergize and disconnect all equipment.
b. Annotate and affix DA label/form in accordance with TB 750-25.
31/(32 BLANK)
By Order of the Secretary of the Army:
Official:
GEORGE W. CASEY, JR.
General, United States Army
Chief of Staff
JOYCE E. MORROW
Administrative Assistant to the
Secretary of the Army
0724108
Distribution:
To be distributed in accordance with the initial distribution number (IDN) 344796,
requirements for calibration procedure TB 9-6625-2352-24.
Instructions for Submitting an Electronic 2028
The following format must be used if submitting an electronic 2028. The subject line must be exactly
the same and all fields must be included; however, only the following fields are mandatory: 1, 3, 4,
5, 6, 7, 8, 9, 10, 13, 15, 16, 17, and 27.
From: "Whomever" [email protected]
To:
<[email protected]
Subject:
DA Form 2028
1. From: Joe Smith
2. Unit: home
3. Address: 4300 Park
4. City: Hometown
5. St: MO
6. Zip: 77777
7. Date Sent: 19-OCT –93
8. Pub no: 55-2840-229-23
9. Pub Title: TM
10. Publication Date: 04-JUL-85
11. Change Number: 7
12. Submitter Rank: MSG
13. Submitter FName: Joe
14. Submitter MName: T
15. Submitter LName: Smith
16. Submitter Phone: 123-123-1234
17. Problem: 1
18. Page: 2
19. Paragraph: 3
20. Line: 4
21. NSN: 5
22. Reference: 6
23. Figure: 7
24. Table: 8
25. Item: 9
26. Total: 123
27. Text
This is the text for the problem below line 27.
PIN: 084276-000
This fine document...
Was brought to you by me:
Liberated Manuals -- free army and government manuals
Why do I do it? I am tired of sleazy CD-ROM sellers, who take publicly
available information, slap “watermarks” and other junk on it, and sell it.
Those masters of search engine manipulation make sure that their sites that
sell free information, come up first in search engines. They did not create it...
They did not even scan it... Why should they get your money? Why are not
letting you give those free manuals to your friends?
I am setting this document FREE. This document was made by the US
Government and is NOT protected by Copyright. Feel free to share,
republish, sell and so on.
I am not asking you for donations, fees or handouts. If you can, please
provide a link to liberatedmanuals.com, so that free manuals come up first in
search engines:
<A HREF=http://www.liberatedmanuals.com/>Free Military and Government Manuals</A>
– Sincerely
Igor Chudov
http://igor.chudov.com/
– Chicago Machinery Movers
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
