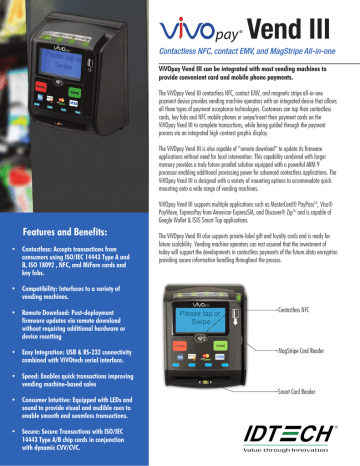

Vend III Contactless NFC, contact EMV, and MagStripe All-in-one

Vend III Contactless NFC, contact EMV, and MagStripe All-in-one
Vend III
Contactless NFC, contact EMV, and MagStripe All-in-one
ViVOpay Vend III can be integrated with most vending machines to
provide convenient card and mobile phone payments.
The ViVOpay Vend III contactless NFC, contact EMV, and magnetic stripe all-in-one
payment device provides vending machine operators with an integrated device that allows
all three types of payment acceptance technologies. Customers can tap their contactless
cards, key fobs and NFC mobile phones or swipe/insert their payment cards on the
ViVOpay Vend III to complete transactions, while being guided through the payment
process via an integrated high-contrast graphic display.
The ViVOpay Vend III is also capable of “remote download” to update its firmware
applications without need for local intervention. This capability combined with larger
memory provides a truly future-proofed solution equipped with a powerful ARM 9
processor enabling additional processing power for advanced contactless applications. The
ViVOpay Vend III is designed with a variety of mounting options to accommodate quick
mounting onto a wide range of vending machines.
ViVOpay Vend III supports multiple applications such as MasterCard® PayPass™, Visa®
PayWave, ExpressPay from American ExpressSM, and Discover® Zip™ and is capable of
Google Wallet & ISIS Smart Tap applications.
Features and Benefits:
• Contactless: Accepts transactions from
consumers using ISO/IEC 14443 Type A and
B, ISO 18092 , NFC, and MiFare cards and
key fobs.
The ViVOpay Vend III also supports private-label gift and loyalty cards and is ready for
future scalability. Vending machine operators can rest assured that the investment of
today will support the developments in contactless payments of the future.idata encryption
providing secure information handling throughout the process.
• Compatibility: Interfaces to a variety of
vending machines.
• Remote Download: Post-deployment
firmware updates via remote download
without requiring additional hardware or
device resetting
Contactless NFC
• Easy Integration: USB & RS-232 connectivity
combined with ViVOtech serial interface.
MagStripe Card Reader
• Speed: Enables quick transactions improving
vending machine-based sales
• Consumer Intuitive: Equipped with LEDs and
sound to provide visual and audible cues to
enable smooth and seamless transactions.
• Secure: Secure Transactions with ISO/IEC
14443 Type A/B chip cards in conjunction
with dynamic CVV/CVC.
Smart Card Reader
ViVOpay Vend III ™
Hardware
United States Sales Office
Processor:
ARM 9 Processor
Display: 122x64 high-contrast graphic display
MSR: 3-track bi-directional
Audio-Visual: Beeper and LEDs
Input Voltage: 5 - 45 VDC
Security: PCI PTS 3.1 SRED
SAM: 3 SAM module option
Corporate Headquarters
10721 Walker Street
Cypress, CA 90630
Phone: (714) 761-6368
Toll Free:(800) 984-1010
Fax: (714) 761-8880
[email protected]
International Sales Offices
Contactless Transactions
Asia
+866-3-496-6988 (Taiwan)
[email protected]
Interface: 13.56MHz ISO 14443 & ISO18092
Type A/Type Brand MiFare
Payment Applications*:
MasterCard PayPass, Visa PayWave, American ExpressPay, Discover Zip,
Interac Flash, FDC Star Certiflash, VisaWave, EMV Level 1 & 2
Applications: Google Wallet, ISIS SmartTap, Pass-Through mode
Connectivity
Interface:
Firmware upgrades: Ethernet:
Canada
+450-465-5261
[email protected]
South America
+55-11-3079-2255
[email protected]
USB and RS-232
Remote firmware download
IP based Ethernet Option
Europe
Germany & United Kingdom
[email protected]
Physical Dimensions (excluding mounting frame)
Height (X):
106.50 mm
Length (Y):83.93 mm
Width (Z):
54.83 mm
Weight: 280gm (0.6lbs)
Environmental
Operating Temp:
Storage Temp:
Operating Humidity:
Material:
IP Rating:
ISO 9001 Certified
-10F to +150F (-25C to +70C)
-10F to +150F (-25C to +70C)
5% to 95% non condensing
Weather-proofed UV-rated plastic enclosure
IP 65
Benefits:
•
Integrated Acceptance: Contactless NFC, MagStripe, and
Contact EMV payment in a single attractive customer-facing
form factor easily installed on a vending machine.
•
Future-Proof: Firmware applications can easily be updated
remotely.
•
Additional Applications: Equipped with new powerful ARM 9
processor for advanced contactless functionality.
•
Easy Integration: USB & RS-232 connectivity combined with
ViVOpay serial interface or OPOS driver.
•
Supports ISO 18092.
•
Weatherized design with IP 65 Rating.
©2013 International Technologies & Systems Corporation. ID TECH & ViVOpay is a registered trademark of International Technologies & Systems Corporation.
ViVOpay Vend III and Value through Innovation are trademarks of International Technologies & Systems Corporation. All specifications subject to change without notice.
www.idtechproducts.com
80134501-001 R06/13
