751-001 Page/Party® Speaker Amplifier
General Information

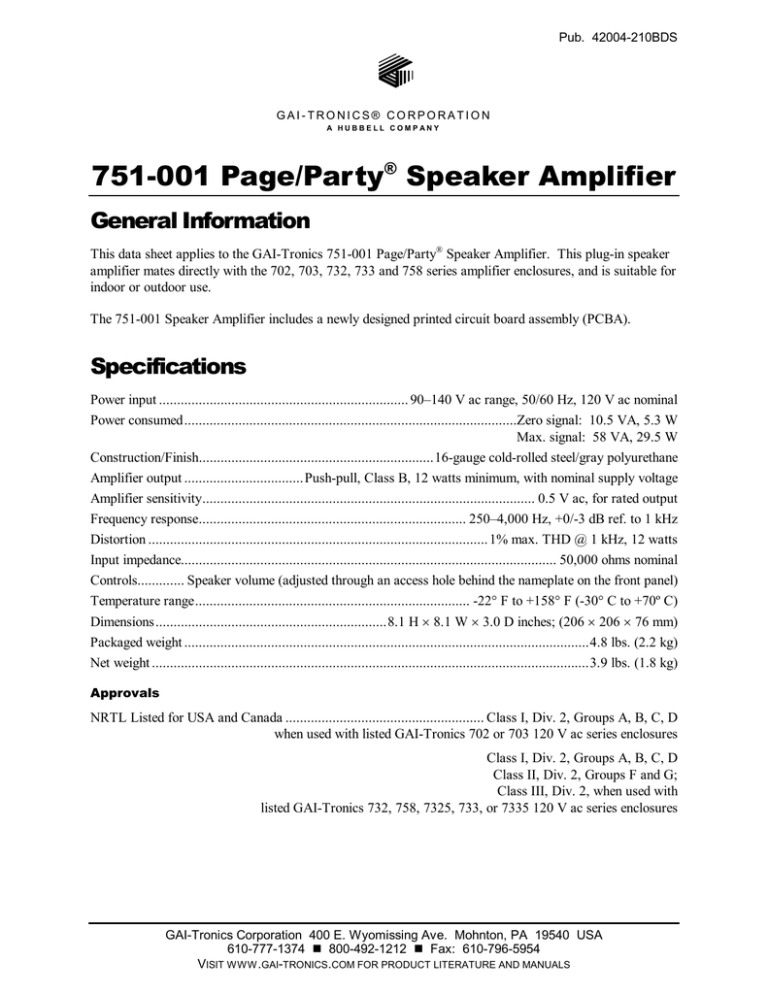

This data sheet applies to the GAI-Tronics 751-001 Page/Party® Speaker Amplifier. This plug-in speaker
amplifier mates directly with the 702, 703, 732, 733 and 758 series amplifier enclosures, and is suitable for
indoor or outdoor use.
The 751-001 Speaker Amplifier includes a newly designed printed circuit board assembly (PCBA).
Specifications
Power input ..................................................................... 90–140 V ac range, 50/60 Hz, 120 V ac nominal
Power consumed............................................................................................Zero signal: 10.5 VA, 5.3 W
Max. signal: 58 VA, 29.5 W
Construction/Finish.................................................................16-gauge cold-rolled steel/gray polyurethane
Amplifier output .................................Push-pull, Class B, 12 watts minimum, with nominal supply voltage
Amplifier sensitivity............................................................................................ 0.5 V ac, for rated output
Frequency response.......................................................................... 250–4,000 Hz, +0/-3 dB ref. to 1 kHz
Distortion .............................................................................................. 1% max. THD @ 1 kHz, 12 watts
Input impedance........................................................................................................ 50,000 ohms nominal
Controls............. Speaker volume (adjusted through an access hole behind the nameplate on the front panel)
Temperature range............................................................................ -22° F to +158° F (-30° C to +70º C)
Dimensions................................................................8.1 H × 8.1 W × 3.0 D inches; (206 × 206 × 76 mm)
Packaged weight ................................................................................................................4.8 lbs. (2.2 kg)
Net weight .........................................................................................................................3.9 lbs. (1.8 kg)
Approvals
NRTL Listed for USA and Canada ....................................................... Class I, Div. 2, Groups A, B, C, D
when used with listed GAI-Tronics 702 or 703 120 V ac series enclosures
Class I, Div. 2, Groups A, B, C, D
Class II, Div. 2, Groups F and G;
Class III, Div. 2, when used with
listed GAI-Tronics 732, 758, 7325, 733, or 7335 120 V ac series enclosures
GAI-Tronics Corporation 400 E. Wyomissing Ave. Mohnton, PA 19540 USA
610-777-1374 „ 800-492-1212 „ Fax: 610-796-5954
VISIT WWW .GAI-TRONICS.COM FOR PRODUCT LITERATURE AND MANUALS
Pub. 42004-210BDS
Page: 2 of 2
®
751-001 Page/Party Speaker Amplifier
Figure 1.
f:\standard ioms - current release\data sheets\42004-210bds\42004-210bds.doc
