QuickSpecs
HP Workstation xw5000

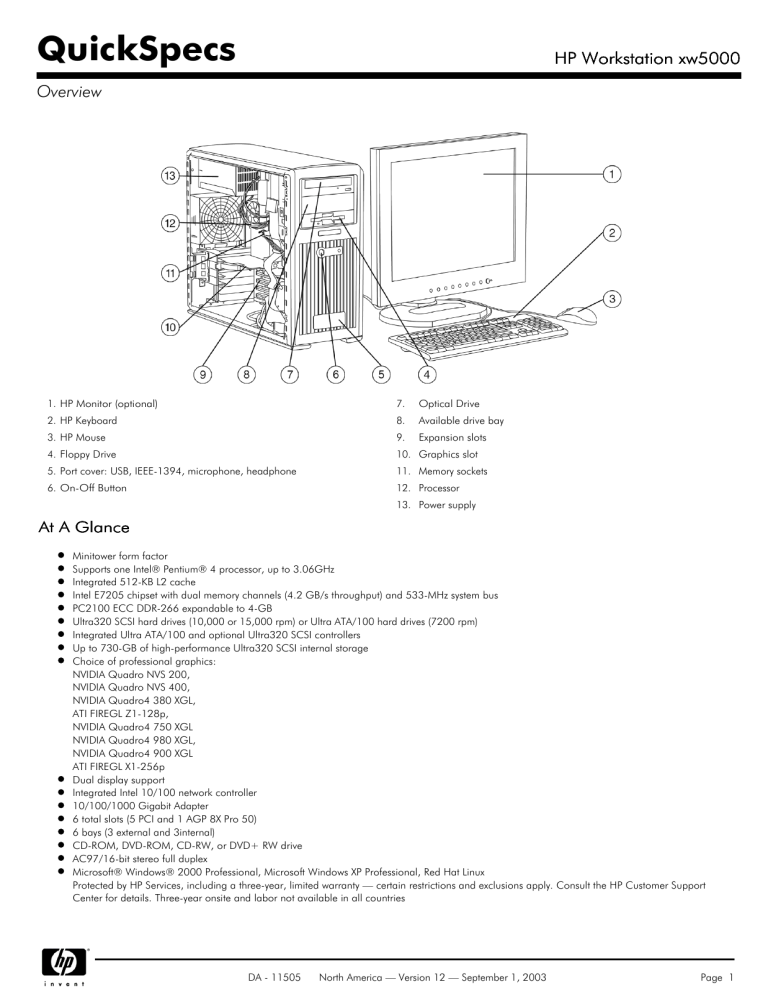

Overview
1. HP Monitor (optional)
7.
Optical Drive
2. HP Keyboard
8.
Available drive bay
3. HP Mouse
9.
Expansion slots
4. Floppy Drive
10. Graphics slot
5. Port cover: USB, IEEE-1394, microphone, headphone
11. Memory sockets
6. On-Off Button
12. Processor
13. Power supply
At A Glance
Minitower form factor
Supports one Intel® Pentium® 4 processor, up to 3.06GHz
Integrated 512-KB L2 cache
Intel E7205 chipset with dual memory channels (4.2 GB/s throughput) and 533-MHz system bus
PC2100 ECC DDR-266 expandable to 4-GB
Ultra320 SCSI hard drives (10,000 or 15,000 rpm) or Ultra ATA/100 hard drives (7200 rpm)
Integrated Ultra ATA/100 and optional Ultra320 SCSI controllers
Up to 730-GB of high-performance Ultra320 SCSI internal storage
Choice of professional graphics:
NVIDIA Quadro NVS 200,
NVIDIA Quadro NVS 400,
NVIDIA Quadro4 380 XGL,
ATI FIREGL Z1-128p,
NVIDIA Quadro4 750 XGL
NVIDIA Quadro4 980 XGL,
NVIDIA Quadro4 900 XGL
ATI FIREGL X1-256p
Dual display support
Integrated Intel 10/100 network controller
10/100/1000 Gigabit Adapter
6 total slots (5 PCI and 1 AGP 8X Pro 50)
6 bays (3 external and 3internal)
CD-ROM, DVD-ROM, CD-RW, or DVD+ RW drive
AC97/16-bit stereo full duplex
Microsoft® Windows® 2000 Professional, Microsoft Windows XP Professional, Red Hat Linux
Protected by HP Services, including a three-year, limited warranty — certain restrictions and exclusions apply. Consult the HP Customer Support
Center for details. Three-year onsite and labor not available in all countries
DA - 11505
North America — Version 12 — September 1, 2003
Page 1
QuickSpecs
HP Workstation xw5000
Standard Features
Processor
One of the following:
Intel Pentium 4 processor 2.4 GHz, 512-KB cache
Intel Pentium 4 processor 2.66 GHz, 512-KB cache
Intel Pentium 4 processor 2.8 GHz, 512-KB cache
Intel Pentium 4 processor 3.06 GHz, 512-KB cache
Cache Memory
512 KB integrated, full speed Level 2 cache
Upgradability
Uniprocessor
Memory
Standard
512-MB or 1-GB of PC2100 ECC DDR-266 (unbuffered)
Maximum
4-GB of PC2100 ECC DDR-266 (unbuffered)
Network Controller
Integrated Intel PRO/100+ Management Adapter
Broadcom NetXtreme 10/100/1000 Gigabit adapter
Expansion Slots
Expansion Bays
Storage
I/O (total/available)
6/5
32-bit/33-MHz PCI 2.2
5/5
AGP Pro 8X Pro 50
1/0 (choice of graphics card)
(Total/Available)
6 total / 3available
Internal 3.5 inch
3 bays / 2available
External 5.25 inch
2 bays / 1 available
External 3.5 inch
1 external floppy drive
Diskette Drive
1.44 MB 3.5 inch
Removable Media
CD-ROM, DVD-ROM, CD-RW, or DVD+ RW
Hard Drive
18-GB Ultra320 SCSI (15,000 rpm),
36-GB Ultra320 SCSI (10,000 rpm or 15,000),
73 GB-Ultra320 SCSI (10,000 or 15,000 rpm),
146-GB Ultra320 SCSI (10,000 rpm)
40-GB, 80-GB or 120-GB Ultra ATA/100 (7200 rpm)
DA - 11505
North America — Version 12 — September 1, 2003
Page 2
QuickSpecs
HP Workstation xw5000
Standard Features
Interfaces
Parallel
One 25-pin (rear)
USB 2.0
6 (2 front, 4 rear)
Serial
One 9-pin (rear)
Ultra160 SCSI (optional)
2 (68-pin internal)
Ultra ATA/100
2 (internal)
Keyboard (PS/2)
1 (rear)
Pointing Device
1 (rear)
Network
1 RJ-45 (rear)
Video
Choice of graphics controller
Microphone Jack
2 (1 front & 1 rear)
Headphone Jack
1 (front)
Line-In Jack
1 (rear)
Line-Out Jack
1 (rear)
Graphics
One of the following:
NVIDIA Quadro NVS 200 (AGP)
NVIDIA Quadro NVS 400 (AGP)
NVIDIA Quadro4 380 XGL (AGP)
ATI FIREGL Z1-128p (AGP)
NVIDIA Quadro4 750 XGL (AGP)
NVIDIA Quadro4 980 XGL (AGP)
NVIDIA Quadro4 9 XGL (AGP)
ATI FIREGL X1-256p (AGP)
Audio
AC97/16-bit stereo full duplex
Software
Windows XP Professional preinstalled
Windows 2000 Professional, service pack 3, preinstalled
Red Hat Linux 7.3 preinstalled, preconfigured, and supported
Red Hat 8.0 supported
Intelligent Manageability Bios Features
Security
Advanced Configuration and Power Interface (ACPI) 1.0b
Desktop Management Interface (DMI) 2.0
System Management (SM) Bios 2.3
NIC Hardware
Remote Wakeup
Wake on LAN (WoL)
Web downloads
System Software Manager
Insight Management Agent
Altiris Express
Remote ROM Flash
Remote Shut Down
Diskette write and boot control
Flash ROM lock
Network server mode
Parallel interface control
Power-on password
Serial interface control
Setup password
Cable lock provision
DA - 11505
North America — Version 12 — September 1, 2003
Page 3
QuickSpecs
HP Workstation xw5000
Standard Features
Power Supply
320 watts with Power Factor Correction
Service and Support
Protected by HP Services including a three-year, limited warranty with three-year parts coverage, three year, on-site service,
and three-year labor; 7 x 24 hardware technical phone support and on-line support through the Internet; Pre-Failure
Warranty coverage of hard drives and memory.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details. Three-year, onsite
and labor not available in all countries
DA - 11505
North America — Version 12 — September 1, 2003
Page 4
QuickSpecs
HP Workstation xw5000
Standard Features Pre-Configured Global Models
X5X/2.8/36S/512/Xd
Processor
Intel Pentium 4 processor 2.8-GHz
470047-868
Cache Memory
512-KB integrated L2
Memory
512-MB PC2100 ECC DDR-266 (unbuffered)
Optical Drive
16X/40X DVD-ROM Drive
Hard Drive
36-GB Ultra320 SCSI (10,000 rpm)
Graphics
Not included in base configuration – Please Choose a card option from below:
NVIDIA Quadro NVS 200
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FIREGL Z1-128p
NVIDIA Quardro4 750 XGL
NVIDIA Quadro4 980 XGL
NVIDIA Quadro4 900 XGL
ATI FIREGL X1-256p
NVIDIA Quadro FX2000
NOTE: Please see Part Numbers in After market options/Standalone accessories section
Mouse
3-button mouse
Operating System
Microsoft Windows XP Professional
DA - 11505
North America — Version 12 — September 1, 2003
Page 5
QuickSpecs
HP Workstation xw5000
Standard Features Pre-Configured Regional Models
X5K/2.4/40A/256/Xr
Processor
Intel Pentium 4 processor 2.4-GHz
470046-904
Cache Memory
512-KB integrated L2
Memory
256-MB PC2100 ECC DDR-266 (unbuffered)
Optical Drive
CD-RW Drive
Hard Drive
40-GB ATA/100
Graphics
Not included in base configuration – Please Choose a card option from below:
NVIDIA Quadro NVS 200
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FIREGL Z1-128p
NVIDIA Quardro4 750 XGL
NVIDIA Quadro4 980 XGL
NVIDIA Quadro4 900 XGL
ATI FIREGL X1-256p
NVIDIA Quadro FX2000
NOTE: Please see Part Numbers in After market options/Standalone accessories section
Mouse
3-button mouse
Operating System
Microsoft Windows 2000 Professional SP3
X5X/2.4/40A/256/Xr
Processor
Intel Pentium 4 processor 2.4-GHz
470047-883
Cache Memory
512-KB integrated L2
Memory
256-MB PC2100 ECC DDR-266 (unbuffered)
Optical Drive
CD-RW Drive
Hard Drive
40-GB ATA/100
Graphics
Not included in base configuration – Please Choose a card option from below:
NVIDIA Quadro NVS 200
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FIREGL Z1-128p
NVIDIA Quardro4 750 XGL
NVIDIA Quadro4 980 XGL
NVIDIA Quadro4 900 XGL
ATI FIREGL X1-256p
NVIDIA Quadro FX2000
NOTE: Please see Part Numbers in After market options/Standalone accessories section
Mouse
3-button mouse
Operating System
Microsoft Windows XP Professional
DA - 11505
North America — Version 12 — September 1, 2003
Page 6
QuickSpecs
HP Workstation xw5000
Standard Features Pre-Configured Regional Models
X5K/2.4/40A/256/Xr
Processor
Intel Pentium 4 processor 2.4-GHz
470046-905
Cache Memory
512-KB integrated L2
Memory
512-MB PC2100 ECC DDR-266 (unbuffered)
Optical Drive
CD-RW Drive
Hard Drive
80-GB ATA/100
Graphics
Not included in base configuration – Please Choose a card option from below:
NVIDIA Quadro NVS 200
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FIREGL Z1-128p
NVIDIA Quardro4 750 XGL
NVIDIA Quadro4 980 XGL
NVIDIA Quadro4 900 XGL
ATI FIREGL X1-256p
NVIDIA Quadro FX2000
NOTE: Please see Part Numbers in After market options/Standalone accessories section
Mouse
3-button mouse
Operating System
Microsoft Windows 2000 Professional SP3
X5K/2.4/18K/512/Xr
Processor
Intel Pentium 4 processor 2.4-GHz
470046-907
Cache Memory
512-KB integrated L2
Memory
512-MB PC2100 ECC DDR-266 (unbuffered)
Optical Drive
CD-RW Drive
Hard Drive
18-GB Ultra320 SCSI (15,000 rpm)
Graphics
Not included in base configuration – Please Choose a card option from below:
NVIDIA Quadro NVS 200
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FIREGL Z1-128p
NVIDIA Quardro4 750 XGL
NVIDIA Quadro4 980 XGL
NVIDIA Quadro4 900 XGL
ATI FIREGL X1-256p
NVIDIA Quadro FX2000
NOTE: Please see Part Numbers in After market options/Standalone accessories section
Mouse
3-button mouse
Operating System
Microsoft Windows 2000 Professional SP3
DA - 11505
North America — Version 12 — September 1, 2003
Page 7
QuickSpecs
HP Workstation xw5000
Standard Features Pre-Configured Regional Models
X5X/2.4/18K/512/Xr
Processor
Intel Pentium 4 processor 2.4-GHz
470046-908
Cache Memory
512-KB integrated L2
Memory
512-MB PC2100 ECC DDR-266 (unbuffered)
Optical Drive
CD-RW Drive
Hard Drive
18-GB Ultra320 SCSI (15,000 rpm)
Graphics
Not included in base configuration – Please Choose a card option from below:
NVIDIA Quadro NVS 200
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FIREGL Z1-128p
NVIDIA Quardro4 750 XGL
NVIDIA Quadro4 980 XGL
NVIDIA Quadro4 900 XGL
ATI FIREGL X1-256p
NVIDIA Quadro FX2000
NOTE: Please see Part Numbers in After market options/Standalone accessories section
Mouse
3-button mouse
Operating System
Microsoft Windows XP Professional
X5K/2.66/80A/512/Xr
Processor
Intel Pentium 4 processor 2.66-GHz
470046-919
Cache Memory
512-KB integrated L2
Memory
512-MB PC2100 ECC DDR-266 (unbuffered)
Optical Drive
CD-RW Drive
Hard Drive
80-GB ATA/100
Graphics
Not included in base configuration – Please Choose a card option from below:
NVIDIA Quadro NVS 200
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FIREGL Z1-128p
NVIDIA Quardro4 750 XGL
NVIDIA Quadro4 980 XGL
NVIDIA Quadro4 900 XGL
ATI FIREGL X1-256p
NVIDIA Quadro FX2000
NOTE: Please see Part Numbers in After market options/Standalone accessories section
Mouse
3-button mouse
Operating System
Microsoft Windows 2000 Professional SP3
DA - 11505
North America — Version 12 — September 1, 2003
Page 8
QuickSpecs
HP Workstation xw5000
Standard Features Pre-Configured Regional Models
X5X/2.66/80A/512/Xr
Processor
Intel Pentium 4 processor 2.66-GHz
470046-922
Cache Memory
512-KB integrated L2
Memory
512-MB PC2100 ECC DDR-266 (unbuffered)
Optical Drive
CD-RW Drive
Hard Drive
80-GB ATA/100
Graphics
Not included in base configuration – Please Choose a card option from below:
NVIDIA Quadro NVS 200
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FIREGL Z1-128p
NVIDIA Quardro4 750 XGL
NVIDIA Quadro4 980 XGL
NVIDIA Quadro4 900 XGL
ATI FIREGL X1-256p
NVIDIA Quadro FX2000
NOTE: Please see Part Numbers in After market options/Standalone accessories section
Mouse
3-button mouse
Operating System
Microsoft Windows XP Professional
X5X/2.66/36S/512/Xr
Processor
Intel Pentium 4 processor 2.66-GHz
470046-923
Cache Memory
512-KB integrated L2
Memory
512-MB PC2100 ECC DDR-266 (unbuffered)
Optical Drive
CD-RW Drive
Hard Drive
36-GB Ultra320 SCSI (10,000 rpm)
Graphics
Not included in base configuration – Please Choose a card option from below:
NVIDIA Quadro NVS 200
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FIREGL Z1-128p
NVIDIA Quardro4 750 XGL
NVIDIA Quadro4 980 XGL
NVIDIA Quadro4 900 XGL
ATI FIREGL X1-256p
NVIDIA Quadro FX2000
NOTE: Please see Part Numbers in After market options/Standalone accessories section
Mouse
3-button mouse
Operating System
Microsoft Windows XP Professional
X5K/2.66/36S/512/Xr
Processor
Intel Pentium 4 processor 2.66-GHz
470046-924
Cache Memory
512-KB integrated L2
Memory
512-MB PC2100 ECC DDR-266 (unbuffered)
Optical Drive
CD-RW Drive
Hard Drive
36-GB Ultra320 SCSI (10,000 rpm)
Graphics
NVIDIA Quardro4 750 XGL
Mouse
3-button mouse
Operating System
Microsoft Windows 2000 Professional SP3
DA - 11505
North America — Version 12 — September 1, 2003
Page 9
QuickSpecs
HP Workstation xw5000
Standard Features Pre-Configured Regional Models
X5K/2.8/80A/512/Xr
Processor
Intel Pentium 4 processor 2.8-GHz
470046-937
Cache Memory
512-KB integrated L2
Memory
512-MB PC2100 ECC DDR-266 (unbuffered)
Optical Drive
CD-RW Drive
Hard Drive
80-GB ATA/100
Graphics
Not included in base configuration – Please Choose a card option from below:
NVIDIA Quadro NVS 200
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FIREGL Z1-128p
NVIDIA Quardro4 750 XGL
NVIDIA Quadro4 980 XGL
NVIDIA Quadro4 900 XGL
ATI FIREGL X1-256p
NVIDIA Quadro FX2000
NOTE: Please see Part Numbers in After market options/Standalone accessories section
Mouse
3-button mouse
Operating System
Microsoft Windows 2000 Professional SP3
X5X/2.8/80A/512/Xr
Processor
Intel Pentium 4 processor 2.8-GHz
470046-938
Cache Memory
512-KB integrated L2
Memory
512-MB PC2100 ECC DDR-266 (unbuffered)
Optical Drive
CD-RW Drive
Hard Drive
80-GB ATA/100
Graphics
Not included in base configuration – Please Choose a card option from below:
NVIDIA Quadro NVS 200
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FIREGL Z1-128p
NVIDIA Quardro4 750 XGL
NVIDIA Quadro4 980 XGL
NVIDIA Quadro4 900 XGL
ATI FIREGL X1-256p
NVIDIA Quadro FX2000
NOTE: Please see Part Numbers in After market options/Standalone accessories section
Mouse
3-button mouse
Operating System
Microsoft Windows XP Professional
DA - 11505
North America — Version 12 — September 1, 2003
Page 10
QuickSpecs
HP Workstation xw5000
Standard Features Pre-Configured Regional Models
X5X/2.8/36S/256/Xr
Processor
Intel Pentium 4 processor 2.8-GHz
470046-939
Cache Memory
512-KB integrated L2
Memory
256-MB PC2100 ECC DDR-266 (unbuffered)
Optical Drive
CD-RW Drive
Hard Drive
36-GB Ultra320 SCSI (10,000 rpm)
Graphics
Not included in base configuration – Please Choose a card option from below:
NVIDIA Quadro NVS 200
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FIREGL Z1-128p
NVIDIA Quardro4 750 XGL
NVIDIA Quadro4 980 XGL
NVIDIA Quadro4 900 XGL
ATI FIREGL X1-256p
NVIDIA Quadro FX2000
NOTE: Please see Part Numbers in After market options/Standalone accessories section
Mouse
3-button mouse
Operating System
Microsoft Windows XPProfessional
X5X/2.8/36S/512/Xr
Processor
Intel Pentium 4 processor 2.8-GHz
470046-940
Cache Memory
512-KB integrated L2
Memory
512-MB PC2100 ECC DDR-266 (unbuffered)
Optical Drive
CD-RW Drive
Hard Drive
36-GB Ultra320 SCSI (10,000 rpm)
Graphics
Not included in base configuration – Please Choose a card option from below:
NVIDIA Quadro NVS 200
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FIREGL Z1-128p
NVIDIA Quardro4 750 XGL
NVIDIA Quadro4 980 XGL
NVIDIA Quadro4 900 XGL
ATI FIREGL X1-256p
NVIDIA Quadro FX2000
NOTE: Please see Part Numbers in After market options/Standalone accessories section
Mouse
3-button mouse
Operating System
Microsoft Windows 2000 Professional SP3
DA - 11505
North America — Version 12 — September 1, 2003
Page 11
QuickSpecs
HP Workstation xw5000
Standard Features Pre-Configured Regional Models
X5K/3.06/80A/512/Xr
Processor
Intel Pentium 4 processor 3.06-GHz
470046-964
Cache Memory
512-KB integrated L2
Memory
512-MB PC2100 ECC DDR-266 (unbuffered)
Optical Drive
CD-RW Drive
Hard Drive
80-GB ATA/100
Graphics
Not included in base configuration – Please Choose a card option from below:
NVIDIA Quadro NVS 200
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FIREGL Z1-128p
NVIDIA Quardro4 750 XGL
NVIDIA Quadro4 980 XGL
NVIDIA Quadro4 900 XGL
ATI FIREGL X1-256p
NVIDIA Quadro FX2000
NOTE: Please see Part Numbers in After market options/Standalone accessories section
Mouse
3-button mouse
Operating System
Microsoft Windows 2000 Professional SP3
X5X/3.06/80A/512/Xr
Processor
Intel Pentium 4 processor 3.06-GHz
470046-965
Cache Memory
512-KB integrated L2
Memory
512-MB PC2100 ECC DDR-266 (unbuffered)
Optical Drive
CD-RW Drive
Hard Drive
80-GB ATA/100
Graphics
Not included in base configuration – Please Choose a card option from below:
NVIDIA Quadro NVS 200
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FIREGL Z1-128p
NVIDIA Quardro4 750 XGL
NVIDIA Quadro4 980 XGL
NVIDIA Quadro4 900 XGL
ATI FIREGL X1-256p
NVIDIA Quadro FX2000
NOTE: Please see Part Numbers in After market options/Standalone accessories section
Mouse
3-button mouse
Operating System
Microsoft Windows XP Professional
DA - 11505
North America — Version 12 — September 1, 2003
Page 12
QuickSpecs
HP Workstation xw5000
Standard Features Pre-Configured Regional Models
X5K/3.06/36S/512/Xri
Processor
Intel Pentium 4 processor 3.06-GHz
470046-967
Cache Memory
512-KB integrated L2
Memory
512-MB PC2100 ECC DDR-266 (unbuffered)
Optical Drive
CD-RW Drive
Hard Drive
36-GB Ultra320 SCSI (10,000 rpm)
Graphics
Not included in base configuration – Please Choose a card option from below:
NVIDIA Quadro NVS 200
NVIDIA Quadro NVS 400
NVIDIA Quadro4 380 XGL
ATI FIREGL Z1-128p
NVIDIA Quardro4 750 XGL
NVIDIA Quadro4 980 XGL
NVIDIA Quadro4 900 XGL
ATI FIREGL X1-256p
NVIDIA Quadro FX2000
NOTE: Please see Part Numbers in After market options/Standalone accessories section
I/O Card
IEEE 1394 Firewire Card
Mouse
3-button mouse
Operating System
Microsoft Windows 2000 Professional SP3
DA - 11505
North America — Version 12 — September 1, 2003
Page 13
QuickSpecs
HP Workstation xw5000
Configure to order options
Processor
Intel Pentium 4 processor 2.4-GHz, 512-KB cache, 533-MHz system bus
Intel Pentium 4 processor 2.66-GHz, 512-KB cache, 533-MHz system bus
Intel Pentium 4 processor 2.8-GHz, 512-KB cache, 533-MHz system bus
Intel Pentium 4 processor 3.06-GHz, 512-KB cache, 533-MHz system bus
Graphics Card (Video Card) NVIDIA Quadro NVS 200 (AGP)
NVIDIA Quadro NVS 400 (AGP)
NVIDIA Quadro4 380 XGL (AGP)
ATI FIREGL Z1-128p (AGP)
NVIDIA Quadro4 750 XGL
NVIDIA Quadro4 980 XGL (AGP)
NVIDIA Quadro4 900 XGL
ATI FIREGL X1-256p (AGP)
Memory
256-MB (1X256-MB) PC2100 ECC DDR-266 (unbuffered)
256-MB (2X128-MB) PC2100 ECC DDR-266 (unbuffered)
512-MB (1X512-MB) PC2100 ECC DDR-266 (unbuffered)
512-MB (2x256-MB) PC2100 ECC DDR-266 (unbuffered)
1-GB (2x512-MB) PC2100 ECC DDR-266 (unbuffered)
1-GB (1X1-GB) PC2100 ECC DDR-266 (unbuffered)
2-GB (4x512-MB) PC2100 ECC DDR-266 (unbuffered)
2-GB (2x1-GB) PC2100 ECC DDR-266 (unbuffered)
3-GB (2x512-MB 2x1-GB) PC2100 ECC DDR-266 (unbuffered)
4-GB (4X1-GB) PC2100 ECC DDR-266 (unbuffered)
Monitors
HP L1825 Flat Panel Color Monitor (18-inch, Carbon/Silver)
HP L1925 Flat Panel Color Monitor (19-inch, Carbon/Silver)
HP L2025 Flat Panel Color Monitor (20-inch, Carbon/Silver)
HP p930 Flat screen CRT (19-inch, Carbon/Silver)
HP p1130 Flat screen CRT (21-inch, Carbon/Silver)
Primary hard disks
40-GB Ultra ATA/100 EIDE (7,200 rpm)
80-GB Ultra ATA/100 EIDE (7,200 rpm)
120-GB Ultra ATA/100 EIDE (7,200 rpm)
36-GB Ultra320 SCSI (10,000 rpm)
73-GB Ultra320 SCSI (10,000 rpm)
146-GB Ultra320 SCSI (10,000 rpm)
18-GB Ultra320 SCSI (15,000 rpm)
36-GB Ultra320 SCSI (15,000 rpm)
73-GB Ultra320 SCSI (15,000 rpm)
DA - 11505
North America — Version 12 — September 1, 2003
Page 14
QuickSpecs
HP Workstation xw5000
Configure to order options
Secondary hard disks
40-GB Ultra ATA/100 EIDE (7,200 rpm)
80-GB Ultra ATA/100 EIDE (7,200 rpm)
120-GB Ultra ATA/100 EIDE (7,200 rpm)
36-GB Ultra320 SCSI (10,000 rpm)
73-GB Ultra320 SCSI (10,000 rpm)
146-GB Ultra320 SCSI (10,000 rpm)
18-GB Ultra320 SCSI (15,000 rpm)
36-GB Ultra320 SCSI (15,000 rpm)
73-GB Ultra320 SCSI (15,000 rpm)
Third hard disks (SCSI
only)
36-GB Ultra320 SCSI (10,000 rpm)
73-GB Ultra320 SCSI (10,000 rpm)
146-GB Ultra320 SCSI (10,000 rpm)
18-GB Ultra320 SCSI (15,000 rpm)
36-GB Ultra320 SCSI (15,000 rpm)
73-GB Ultra320 SCSI (15,000 rpm)
SCSI Controller
LSI Logic single-channel Ultra160 SCSI controller
Optical Drives
48X CD-ROM
48X CD-RW
16X DVD-ROM
48X CD-RW/DVD-ROM combo
4.7-GB DVD+ RW
Input devices
Easy Access Keyboard (PS/2)
3-Button Mouse (PS/2)
Scroll Mouse (PS/2)
NICs
10/100/1000 Gigabit adapter
I/O Card
IEEE 1394 Firewire Card
Operating System
Windows XP Professional preloaded
Windows 2000 Professional SP3 preloaded
Red Hat Linux 8.0 preloaded (available early 2003)
DA - 11505
North America — Version 12 — September 1, 2003
Page 15
QuickSpecs
HP Workstation xw5000
After market options/Standalone accessories
Part #:
Memory
Graphics
256-MB PC-2100 ECC DDR-266 (unbuffered)
AA632A
512-MB PC-2100 ECC DDR-266 (unbuffered)
AA633A
1-GB PC-2100 ECC DDR-266 (unbuffered)
AA634A
NVIDIA Quadro NVS 200 (AGP)
AA603A
NVIDIA Quadro NVS 200 DVI Cables
AA604A
NVIDIA Quadro NVS 400 (PCI)
AA605A
NVIDIA Quadro NVS 400 DVI Cables
AA606A
NVIDIA Quadro4 380 XGL (AGP)
AA653A
ATI FIREGL Z1-128p
AA624A
NVIDIA Quadro4 750 XGL (AGP)
270731-B21
NVIDIA Quadro4 980 XGL (AGP)
AA623A
NVIDIA Quadro4 900 XGL (AGP)
284279-B21
ATI FIREGL X1-256p
Hard Drives
AA625A
Ultra320 SCSI Drives
36-GB Ultra320 SCSI (10,000 rpm)
AA612A
73-GB Ultra320 SCSI (10,000 rpm)
AA613A
146-GB Ultra320 SCSI (10,000 rpm)
18-GB rpm Ultra320 SCSI (15,000 rpm)
AA614A
310506-B21
36-GB Ultra320 SCSI (15,000 rpm)
AA616A
73-GB Ultra320 SCSI (15,000 rpm)
AA617A
Ultra ATA/100 Drives
Storage Controllers
Optical Drives
40 GB ATA/100 EIDE (7,200 rpm)
DC180A
80 GB ATA/100 EIDE (7,200 rpm)
DC181A
160 GB ATA/100 EIDE (7,200 rpm)
DC189A
LSI Logic single-channel Ultra160 SCSI controller
(cable sold separately)
AA601A
Ultra320 dual channel SCSI controller (cable sold separately)
AA611A
Ultra320 SCSI RAID controller (cable sold separately)
AA850A
5-device SCSI cable
AA818A
48X/24X/48X CD-RW Drive
DE205A
16X DVD +/- Drive with Windows DVD software
16X DVD +/- Drive with Power DVD Software
I/O cards
AA620A
310475-B21
4.7GB DVD+R/RW Drive – 300i
AA851A
IEEE 1394/Firewire Card (PCI)
AA638A
USB 2.0 PCI Card
AA639A
DA - 11505
North America — Version 12 — September 1, 2003
Page 16
QuickSpecs
HP Workstation xw5000
After market options/Standalone accessories
Communications
Input devices
Security
Rack options
V90 56K PCI WIN Modem
239137-B21
V90 56K International Soft WIN Modem
259032-B24
Easy Access keyboard - carbonite (PS/2)
DC167B
Three button mouse-carbon (PS/2)
AA778A
Two button Optical Mouse - carbonite/silver (USB)
DC172B
Two button Scroll Mouse - carbonite (PS/2)
DD440B
Spaceball 5000
DE934A
USB Fingerprint Identification
240238-B21
USB SmartCard Keyboard
267147-008
Corvadis USB Enhanced SmartCard Reader
240154-B21
StorageWorks Enclosure 4314R
190209-001
Rack mounting kits
Monitors
AA640A
Fixed shelf kit
253449-B21
Sliding Shelf Kit
234672-B21
Depth Adjustable Rails
332558-B21
HP L1825 Flat Panel Color Monitor (18-inch, Carbon/Silver)
303486-003
HP L1925 Flat Panel Color Monitor (19-inch, Carbon/Silver)
P9626A
HP L2025 Flat Panel Color Monitor (20-inch, Carbon/Silver)
303102-003
HP p930 Flat screen CRT Monitor (19-inch, Carbon/Silver)
302268-003
HP p1130 Flat screen CRT Monitor (21-inch, Carbon/Silver)
302270-003
DA - 11505
North America — Version 12 — September 1, 2003
Page 17
QuickSpecs
HP Workstation xw5000
Memory
Standard Memory
This system supports unbuffered PC2100 DDR-266 ECC DDR memory. The mainboard has 4 DIMM slots (2 pairs, 2 dual channel) and ships with
512-MB as standard. It can support a maximum of 4 GB of RAM when optional memory upgrades are included.
Part #
These memory options are available from HP:
256-MB Upgrade Kit PC-2100 ECC DDR-266 ECC (unbuffered)
AA632A
512-MB Upgrade Kit PC-2100 ECC DDR-266 (unbuffered)
AA633A
1-GB Upgrade Kit PC-2100 ECC DDR-266 ECC (unbuffered)
AA634A
DA - 11505
North America — Version 12 — September 1, 2003
Page 18
QuickSpecs
HP Workstation xw5000
Storage
Drive Bay Locations
Drive Support
Quantity
Supported
Position
Supported
Controller
1.44-MB Diskette Drive
Up to 1
3
Integrated
Optical Drives
Up to 2
CD-ROM Drive
1, 2
Integrated Ultra ATA/100
DVD-ROM Drive
1, 2
Integrated Ultra ATA/100
CD-RW Drive
1, 2
Integrated Ultra ATA/100
DVD+ RW
1,2
Integrated Ultra ATA/100
Up to 3
4, 5,6
Optional Ultra160 SCSI Controller
Up to 2
4, 5
Integrated EIDE
Removable Media
Hard Drives
Ultra320 SCSI Drives
1-inch
146-GB 10,000 rpm
73-GB 10,000 rpm
73-GB 15,000rpm
36-GB 15,000 rpm
18-GB 10,000 rpm
18-GB 15,000 rpm
Ultra ATA Drives
1-inch
160-GB 7200 rpm
80-GB 7200 rpm
40-GB 7200 rpm
Maximum Storage Capacity
Internal
SCSI: 438 GB (assumes three 146-GB SCSI drives installed)
IDE: 320 GB
DA - 11505
North America — Version 12 — September 1, 2003
Page 19
QuickSpecs
HP Workstation xw5000
TechSpecs
System Unit
HP Easy Access Keyboard
Tower Dimensions (HxWxD) 17.7 x 8.3 x 20.3 in/44.9 x 21 x 51.5 cm
Weight
(standard configuration)
38 lb/17 kg
Power Supply
Operating Voltage Range
100 VAC to 240 VAC
Rated Voltage Range
100 VAC to 120 VAC; 200 VAC to 240 VAC
Rated Line Frequency
50-Hz to 60-Hz
Rated Input Current
5.0-A @ 100 VAC; 2.5A @ 240 VAC
Maximum Rated Power
500-Watt input, 320-Watt output
Physical Dimensions
5.9 x 3.4 x 5.5 in/15x 8.6 x 14 cm
Weight
<5.7 lb/< 2.6kg
Temperature
(Values are subject to change)
Operating
50° to 95° F/10° to 35° C
Non-operating
-40° to 158° F/-40° to 70° C
Humidity
(non-condensing)
(Values are subject to change)
Operating
15 to 80% relative @ 95° F /35° C
Non-operating
0% to 90% @ 158° F/70° C
Maximum Altitude
(nonpressurized)
Operating
10000 ft/3100 m max
Non-operating
15000 ft/4600 m max
Dimensions (HxWxD)
18.3 x 6.3 x 1.4 in/46.48 x 16.0 x 3.56 cm
Weight
Approximately 2 lb/0.9 kg
Input Specifications
Operating Voltage
+ 5VDC ± 5%
Power Consumption
50 mA maximum (with 3 LEDs on)
System Interface
PS/2 mini-din connector
ESD
CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing device
PC98
Functionally compliant
Languages
18+ available
Keycaps
Low-profile design
Switch Actuation
55 g nominal peak force with tactile feedback
Switch Life
20 million keystrokes (using Hasco modified tester)
Switch Type
Contamination resistant membrane
Key Leveling Mechanism
For all double wide and greater length keys
Cable Length
6 ft/1.8 m
PC98-99
Mechanically compliant
Acoustics
50 dBA maximum sound pressure level
Operating Temperature
50° to 122° F/10° to 50° C
Non-operating Temperature
-22° to 140° F/-30° to 60° C
Operating Humidity
10% to 90% (non condensing at ambient)
Non-operating Humidity
20% to 80% (non condensing at ambient)
Operating Shock
40 g, 6 surfaces
Non-operating Shock
80 g, 6 surfaces
Operating Vibration
2 g peak acceleration
Non-operating Vibration
4 g peak acceleration
Mechanical
Environmental
DA - 11505
North America — Version 12 — September 1, 2003
Page 20
QuickSpecs
HP Workstation xw5000
TechSpecs
1.44-MB Diskette Drive
Size
3.5 in (8.89 cm)
LED Indicators (front panel) Green
HP 3-Button Mouse
Read/Write Capacity per
Diskette (high/low)
1.44 MB/720 KB
Drive Height
One-third
Drive Rotation
300 rpm
Transfer Rate (high/low)
500/250 KB/s
Bytes/Sector
512
Sectors/Track (high/low)
18/9
Tracks/Side (high/low)
80/80
Access Times
Track-to-Track (high/low)
3/6 ms
Average (high/low)
94/173 ms
Settling Time
15 ms
Latency Average
100 ms
Cylinders (high/low)
80/80
Read/Write Heads
Two
Dimensions/Weight
Height
1.42 in (3.6 cm)
Length
4.17 in (10.7 cm)
Width
2.87 in (7.4 cm)
Weight
5.20 oz (150 g)
Operating Temperature
32° to 104° F (0° to 40° C)
Non-operating Temperature
-4° to 140° F (-20° to 60° C)
Operating Humidity
10% to 90% (non condensing at ambient)
Resolution
400 ± 20% DPI
Tracking Speed
10 in/s Maximum
Switch Life
1,000,000 operations (using Hasco modified tester)
Switch Type
Micro-switches
Tracking Mechanism Life
155 miles (250 km) at average speed of 10 in/s
Cable Length
6 ft (1.8 m)
PC98-99
Mechanically compliant
Compliant
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, CTick
Environmental
Mechanical
Regulatory Approvals
DA - 11505
North America — Version 12 — September 1, 2003
Page 21
QuickSpecs
HP Workstation xw5000
TechSpecs
HP 2-Button Scroll Mouse Scroll Wheel
8 mm
Maximum Rotation Speed 30 mm/s
Switch Type
Light force micro-switch
Switch Life
1 million operations
Mechanical Life
Minimum 200,000 revolutions
Environmental
Operating Temperature
50° to 122° F (10° to 50° C)
Non-operating Temperature
-22° to 140° F (-30° to 60° C)
Operating Humidity
10% to 90% (non condensing at ambient)
Non-operating Humidity
20% to 80% (non condensing at ambient)
Operating Shock
40 g, 6 surfaces
Non-operating Shock
80 g, 6 surfaces
Operating Vibration
2 g peak acceleration
Non-operating Vibration
4 g peak acceleration
Operating Voltage
+ 5VDC ± 10%
Power Consumption
15mA
System Consumption
PS/2 mini-din connector
ESD
CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing device
PC98
Functionally compliant
Resolution
400 ± 20% DPI
Tracking Speed
10 in/s Maximum
Acceleration
100 in/s
Switch Actuation
85 g nominal peak force
Switch Life
1,000,000 operations (using Hasco modified tester)
Cable Length
2m
PC98-99
Mechanically compliant
Electrical
Mechanical
Regulatory Approvals
DA - 11505
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BCIQ, C -Tick
North America — Version 12 — September 1, 2003
Page 22
QuickSpecs
HP Workstation xw5000
TechSpecs
Ultra320 SCSI Hard
Drives
146 GB, 10K
73 GB, 15K
73 GB, 10K
36 GB, 15K
DA - 11505
Capacity
146,815,737,856 bytes
Height
1 in/2.54 cm
Width
3.5 in/8.89 cm
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track
0.55 ms
Average
4.9 ms
Full-stroke
9.2 ms
Rotational speed
10,000 rpm
Logical blocks
286,749,488
Operating temperature
41° to 131° F/5° to 55° C
Capacity
73,407,865,856 bytes
Height
1 in/2.54 cm
Width
3.5 in/8.89 cm
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track
0.4 ms
Average
3.8 ms
Full-stroke
6.7 ms
Rotational speed
15,000 rpm
Logical blocks
143,374,744
Operating temperature
41° to 131° F/5° to 55° C
Capacity
73,407,865,856 bytes
Height
1 in/2.54 cm
Width
3.5 in/8.89 cm
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track
0.55 ms
Average
4.90 ms
Full-stroke
9.20 ms
Rotational speed
10,000 rpm
Logical blocks
143,337,744
Operating temperature
41° to 131° F/5° to 55° C
Capacity
36,420,075,520 bytes
Height
1 in/2.54 cm
Width
3.5 in/8.89 cm
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track
0.4 ms
Average
3.8 ms
Full-stroke
6.7 ms
Rotational speed
15,000 rpm
North America — Version 12 — September 1, 2003
Page 23
QuickSpecs
HP Workstation xw5000
TechSpecs
36 GB, 10K
18 GB, 15K
DA - 11505
Logical blocks
71,631,920
Operating temperature
41° to 131° F/5° to 55° C
Capacity
36,420,075,520 bytes
Height
1 in/2.54 cm
Width
3.5 in/8.89 cm
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track
0.55 ms
Average
4.90 ms
Full-stroke
9.20 ms
Rotational speed
10,000 rpm
Logical blocks
71,132,960
Operating temperature
41° to 131° F/5° to 55° C
Capacity
18,209 MB
Height
1 in/2.54 cm
Width
3.5 in/8.89 cm
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
Seek time
(typical reads, including
settling)
Single track
0.4 ms
Average
3.8 ms
Full-stroke
6.7 ms
Rotational speed
15,000 rpm
Logical blocks
35,566,480
Operating temperature
41° to 131° F/5° to 55° C
North America — Version 12 — September 1, 2003
Page 24
QuickSpecs
HP Workstation xw5000
TechSpecs
Ultra ATA Hard Drives
160 GB
Capacity
160,000-MB
Height
1 in/2.54 cm
Width
4 in/10.16 cm
Interface
Ultra ATA/100
Synchronous Transfer Rate 100 MB/s
(Maximum)
80 GB
Seek time
(typical reads, including
settling)
Single track
0.8 ms
Average
9.0 ms
Full-stroke
17.0 ms
Rotational speed
7200 rpm
Logical blocks
122,942,324,736
Operating temperature
41° to 131° F/5° to 55° C
Capacity
81,964-MB
Height
1 in/2.54 cm
Width
4 in/10.16 cm
Interface
Ultra ATA/100
Synchronous Transfer Rate 100 MB/s
(Maximum)
40 GB
Seek time
(typical reads, including
settling)
Single track
0.8 ms
Average
9.0 ms
Full-stroke
17.0 ms
Rotational speed
7200 rpm
Logical blocks
81,964,302,336
Operating temperature
41° to 131° F/5° to 55° C
Capacity
80,293-MB
Height
1 in/2.54 cm
Width
4 in/10.16 cm
Interface
Ultra ATA/100
Synchronous Transfer Rate 100 MB/s
(Maximum)
DA - 11505
Seek time
(typical reads, including
settling)
Single track
0.8 ms
Average
9.0 ms
Full-stroke
17.0 ms
Rotational speed
7200 rpm
Logical blocks
80,293,248
Operating temperature
41° to 131° F/5° to 55° C
North America — Version 12 — September 1, 2003
Page 25
QuickSpecs
HP Workstation xw5000
TechSpecs
Adaptec SCSI RAID 2120S Dimensions (H x D)
Card
RAID Level
2.5 x 6.6 in (6.4 x 16.8 cm) Low profile card
0, 1, 10, 5, JBOD
Data Transfer Rate
Up to 320 MB/s
Cache Memory
64 MB (onboard)
Device Support
Up to 15 SCSI devices
Bus Type
64-bit/66MHz PCI
(Also support 32-bit/33MHz PCI)
Internal Connectors
One 68-pin high-density
External Connectors
One 68-pin VHDCI
System Requirements
Intel PC or equivalent with available PCI slot
Operating Temperature
32°to 131° F (0°to 55° C)
Power Requirements
4 amps @ +5V
Operating System Support Windows 2000 Professional, Windows XP Professional
48X CD-ROM Drive
Other
Optimized disk utilization
Online RAID Level Migration
Online capacity expansion
Immediate RAID availability (background initialization)
S.M.A.R.T. support
Height
5.25-inch, half-height
Interface type
EIDE/ATAPI
Dimensions– External,
Excluding Bezel (W x H)
5.74 x 1.62 in/14.6 x 4.13 cm
Weight
1.6 lb/0.75 kg
Disc diameter
5 in, 3 in (12 cm, 8 cm)
Disc thickness
0.05 inch/1.2 mm
Disk
Applicable Disk
Mixed Mode (Audio and Data Combined) CD-DA, Mode
1(basic format), Mode2 form1& form2 Photo-CD (MultiSession), CD-XA Ready CD-I Ready, CD-Plus/CD-Extra,
CD-RW
Capacity (yellow book)
2,048 bytes/block (Mode1&Mode2 Form 1)
2,340, 2,336 bytes/block (Mode2)
2,332 bytes/block (Mode2 Form2)
2,352 bytes/block (CD-DA)
Rotational Speed
22X~ 48X(CAV) 10,000 rpm maximum
Mode 1
2,048 bytes
Mode 2
2,340, 2,336 bytes
CD-DA
2,352 bytes
Block Size
CD-XA
2,328 bytes
Data Transfer Rate
Sustained
3,300 to 7,200 KB/s
Data buffer
128-KB
Access Times (typical)
Random
75 ms (typical)
Audio Output Level
Line-Out
0.7 VRMS
Start-up Time (typical)
< 3.3 s
Stop Time
< 3.6 s
Operating Conditions
Temperature
41° to 122° F/5° to 50° C
Humidity
10% to 80%
DA - 11505
North America — Version 12 — September 1, 2003
Page 26
QuickSpecs
HP Workstation xw5000
TechSpecs
48/24/48X CD-RW
Capacity
700 MB CD disc
Dimensions (HxWxD)
1.63 x 5.75 x 7.27 in/4.13 x 14.6 x 18.5 cm
Weight
2.0 lb/0.9 kg
Interface
ATAPI/EIDE
Mounting Orientation
Horizontal or vertical
Data Transfer Rates –
Read
Digital audio extraction (minimum) —1,800 KB/s (12X)
CD read — up to 7,200 KB/s (48X)
DVD read — up to 21,600 KB/s (16X)
Media and Formats Read
Formats:
Formats CD-DA, CD-ROM (Mode 1 and 2), CD-ROM XA (Mode 2, Form 1 and 2),
Mixed Mode, CD-Plus, CD-Extra, CD-I FMV, Video CD, CD-Text, Photo CD (single and
multisession);
Media:
Media stamped, CD-R, CD-RW
Data Transfer Rates Write
CD-R write — 1200 KB/s (8X)
CD-R write — 1800 KB/s (12X)
CD-R write — 2400 KB/s (16X)
CD-R write — 3000 KB/s (20X) to 6000 KB/s (40X)
CD-R write — 7200 KB/s (48X)
CD-RW write — 600 KB/s (4X)
CD-RW write —1500 KB/s (10X)
CD-RW write — 2400 KB/s (16X)
CD-RW write —3600 KB/s (24X)
Media and Formats Write
Formats:
Formats CD-DA, CD-ROM (Mode 1 and 2), CD-ROM XA (Mode 2, Form 1 and 2),
Mixed Mode, CD-Plus, CD-Extra, CD-I FMV, Video CD, CD-Text;
Media:
Media CD-R, CD-RW (including ultra-speed)
Write Methods
Disc-at-once, session-at-once,, track-at-once, incremental fixed and variable packet,
multisession
Data Transfer Modes
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode 2 (33.3
MB/s)
Access Times
(typical reads, including
settling)
CD-ROM Mode 1
100 ms
Full Stroke CD
160 ms (seek)
Start-up Time (typical)
<4 s (single session), <30 s (multisession)
Stop Time (typical)
<3 s
Write Buffer Size
2 MB
Audio Output
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
80 dB
Channel Separation
70 dB
Configuration Jumper
Block
Master, slave, and cable select modes
Operating Conditions
Temperature
41° to 113° F / 5° to 45° C
Humidity
10% to 80%
Approvals /
Environmental
MPC-3 compliant, multi-read requirements, UL 1950, ACA AS/NZS 3548, ANSI
C63.4–1992, ATAPI Spec SFF-8020, ATA Spec X3T9.2, CB Bulletin No. 92A, CSA C22.2
No. 950-1995, C.I.S.P.R. Pub 22, DHHS/FDA, EMKO-TSE 07/94, TUV, EN60825-1
Operating Systems
Supported
Microsoft Windows 2000, Windows XP
Supplied software
Roxio Easy CD Creator 5.3.4: Create or copy CDs and DVDs, including music and data
CDs, and data DVDs;
Dantz Retrospect Express 6.0: Back up systems to CD, DVD, or tape media.
DA - 11505
North America — Version 12 — September 1, 2003
Page 27
QuickSpecs
HP Workstation xw5000
TechSpecs
16X/40 DVD-ROM Read
Height
5.25-inch, half-height
Interface type
ATAPI
Dimensions–External,
Excluding Bezel
(W x H)
5.88 x 1.71 in/14.9 x 4.34 cm
Disc diameter
5 in, 3 in (12 cm, 8 cm)
Disc thickness
0.05 inch (1.2 mm)
Track pitch
1.6 µm (CD), 0.74 µm (DVD)
Disc center hole diametre 0.6 inch (15 mm)
Disc formats
DVD-ROM (single and dual layer); DVD-video; DVD-R version 1.0 and 2.0; DVD-RW
version 1.0 and 1.1; DVD-R/RW multi-border; DVD+RW; CD-ROM Mode 1 and 2; CDDA; CD-ROM XA Mode 2, Form 1 and 2; CD-extra; CD-text; CD-I Mode 2, Form 1 and 2;
CD-I ready; video CD, CD-bridge; PhotoCD (single and multi-session); CD-R; CD-RW
Disc capacity
DVD-ROM
4.7 GB (DVD-5), 8.54 GB (DVD-9), 9.4 GB (DVD-10),
3.95 GB (DVD-R version 1.0), 4.7 GB (DVD-R version
2.0), 4.7 GB (DVD-RW version 1.0 and 1.1), 4.7 GB
(DVD+ RW)
CD-ROM
540 MB (Mode 1, 12 cm), 640 MB (Mode 2, 12 cm), 700
MB (80 minimum CD-R and CD-RW), 180 MB (8 cm)
Block size (bytes)
DVD-ROM – 2048; CD-ROM Mode 0 – 2352; CD-ROM Mode 1 – 2352, 2340, 2336,
2048; CD-ROM Mode 2 – 2352, 2340, 2336, 2048
Access times (typical
reads, including settling)
DVD-ROM single layer
< 120 ms
CD-ROM Mode 1
< 90 ms
Full stroke DVD
< 240 ms (seek)
Full stroke CD
< 160 ms (seek)
Data transfer rates
2600 – 6000 KB/s (40X CAV CD-ROM mode)
8100 – 21,600 KB/s (16X CAV DVD-ROM mode)
Data transfer modes
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode 3 (44.4
MB/s)
Power
Source
Four-pin, DC power receptacle
DC power requirement
5 VDC ± 5%—100 mV ripple p-p
12 VDC ± 5%—200 mV ripple p-p
DC current
5 VDC - <800 mA typical, < 1000 mA maximum
12 VDC - < 870 mA typical
Audio Output Level
0.7 Vrms (typical)
Configuration Jumper
Block
Master, slave, and cable select
modes
Data interface connector
40-pin, shrouded and keyed,
flat ribbon
Environmental (all
conditions noncondensing)
Temperature (operating)
41° to 122° F/5° to 50° C
Relative humidity (operating)
10% to 85%
Maximum wet bulb temperature 86° F/30° C
(operating)
Certifications, approvals
MMC II support, multi-read certification, Microsoft WHQL certification, ACA AS/NZS
3548 class B, CNS 13438, C.I.S.P.R. Pub 22, TUV or VDE EN60950, EN 55022,
EN55024, SEMKO, NEMKO, DEMKO, FIMKO, EN 60825-1, UL 60950, CSA C22.2
60950-2000
Operating systems
supported
Microsoft Windows 98, Microsoft Windows NT® 4.0, Microsoft Windows 2000, Windows
XP Professional
DA - 11505
North America — Version 12 — September 1, 2003
Page 28
QuickSpecs
HP Workstation xw5000
TechSpecs
48/24/48+16X Combo
CD-RW/DVD-ROM
Capacity
4.7 and 9.4 GB DVD disc / 700 MB CD disc
Dimensions (HxWxD)
1.63 x 5.75 x 7.27 in/4.13 x 14.6 x 18.5 cm
Weight
2.0 lb/0.9 kg
Interface
ATAPI/EIDE
Mounting Orientation
Horizontal or vertical
Data Transfer Rates –
Read
Digital audio extraction (minimum) —1,200 KB/s (8X)
CD read — up to 7,200 KB/s (48X)
DVD read — up to 21,600 KB/s (16X)
Media and Formats Read
CD Formats:
Formats CD-DA, CD-ROM (Modes 1 and 2), CD-ROM XA (Mode 2, Form 1 and
2), Mixed mode, CD-Extra, CD-I FMV, Video CD, Photo CD (single and multi-session),
CD-Text, CD-Plus;
CD Media:
Media stamped, CD-R; CD-RW
DVD Formats:
Formats DVD-ROM, DVD-Video (with application support), DVD-R (version 1.0
and 2.0), DVD-RW (version 1.0 and 1.1), DVD-R multi-border;
DVD Media:
Media stamped (single or dual layer, single sided), DVD+ RW, DVD+ R, DVD-R,
DVD-RW
Data Transfer Rates Write
CD-R write — 600 KB/s (4X)
CD-R write — 1200 KB/s (8X)
CD-R write — 1800 KB/s (12X)
CD-R write — 2400 KB/s (16X)
CD-R write — 3600 KB/s (24X)
CD-R write — 4800 KB/s (32X)
CD-R write — 6000 KB/s (40X)
CD-R write — 7200 KB/s (48X)
CD-RW write — 600 KB/s (4X)
CD-RW write —1500 KB/s (10X)
CD-RW write — 2400 KB/s (16X)
CD-RW write —3600 KB/s (24X)
Media and Formats Write
CD Formats:
Formats CD-DA, CD-ROM (Mode 1), CD-ROM XA (Mode 2, Form 1 and 2), Mixed
mode, CD-Extra, CD-I FMV, Video CD, CD-Plus;
CD Media:
Media CD-R; CD-RW
Write Methods
Disc-at-once, session-at-once,, track-at-once, incremental fixed and variable packet,
multisession
Data Transfer Modes
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode 2 (33.3
MB/s)
Access Times
(typical reads, including
settling)
DVD-ROM Single Layer
Random
120 ms
CD-ROM Mode 1
110 ms
Full Stroke DVD
210 ms
Full Stroke CD
160 ms
Start-up Time (typical)
<4 seconds (single session), <30 seconds (multisession)
Stop Time (typical)
4s
Write Buffer Size
2 MB (minimum)
Audio Output
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
74 dB
Channel Separation
65 dB
Configuration Jumper
Block
Master, slave, and cable select modes
Operating Conditions
Temperature
41° to 122° F/5° to 50° C
Humidity
10% to 85%
Approvals /
Environmental
MPC-3 compliant, multi-read requirements, UL 1950, ACA AS/NZS 3548, ANSI
C63.4–1992, ATAPI Spec SFF-8020, ATA Spec X3T9.2, CB Bulletin No. 92A, CSA C22.2
No. 950-1995, C.I.S.P.R. Pub 22, DHHS/FDA, EMKO-TSE 07/94, TUV, EN60825-1
Operating Systems
Supported
Microsoft Windows 2000, Windows XP
DA - 11505
North America — Version 12 — September 1, 2003
Page 29
QuickSpecs
HP Workstation xw5000
TechSpecs
16/10/40+4/2.4/8x 4.7
GB DVD+ RW – 300i
Supplied software
Intervideo WInDVD 4.0: Play DVD movies;
Roxio Easy CD Creator 5.3.4: Create or copy CDs and DVDs, including music and data
CDs, and data DVDs;
Dantz Retrospect Express 6.0: Back up systems to CD, DVD, or tape media.
Capacity
4.7 GB DVD disc / 700 MB CD disc
Dimensions (HxWxD)
1.66 x 5.83 x 7.74 in/4.23 x 14.6 x 19.8 cm
Weight
2.3 lb/1.06 kg
Interface
ATAPI/EIDE
Mounting Orientation
Horizontal (80 or 120 mm discs) or vertical (120 mm discs only)
Data Transfer Rates –
Read
Digital audio extraction (minimum) —1,200 KB/s (8X)
CD read — up to 6,000 KB/s (40X)
DVD read — up to 10,800 KB/s (8X)
Media and Formats Read
CD formats:
formats CD-DA (Red Book), CD-ROM (Modes 1 and 2 - Yellow Book), CD-ROM
XA (Mode 2, Forms 1 and 2), CD-I (FMV), Photo CD (single and multi-session), Video CD,
CD-Text, CD Extra;
CD media:
media stamped, CD-R, CD-RW
DVD formats:
formats DVD-ROM, DVD-Video (with application support);
DVD media:
media stamped (single or dual layer, single sided), DVD+ RW, DVD+ R, DVD-R,
DVD-RW
Data Transfer Rates Write
DVD+R write — 5,412 KB/s (4X)
DVD+RW write or rewrite — 3,247 KB/s (2.4X)
CD-R write — 600 KB/s (4X)
CD-R write — 1200 KB/s (8X)
CD-R write — 2,400 KB/s (16X)
CD-RW write — 600 KB/s (4X)
CD-RW write —1500 KB/s (10X)
Media and Formats Write
CD formats:
formats CD-DA (Red Book), CD-ROM (Modes 1 and 2 - Yellow Book), CD-ROM
XA (Mode 2, Forms 1 and 2), CD-I (FMV), Photo CD (single and multi-session), Video CD,
CD-Text, CD Extra;
CD media:
media CD-R, CD-RW
DVD formats:
formats DVD-ROM, DVD-Video (with application support);
DVD media:
media DVD+ RW, DVD+ R
Write Methods
Disc-at-once, track-at-once, incremental fixed and variable packet, random access write
(DVD+RW only), sequential write (DVD +R, +RW)
Data Transfer Modes
ATA PIO mode 4—16.7-Mbps, ATA UltraDMA mode 2—33-Mbps (default)
Access Times
(typical reads, including
settling)
DVD-ROM Single Layer
Random
140 ms
CD-ROM Random
120 ms
CD-ROM Full stroke
200 ms
Start-up Time (typical)
<5s
Stop Time (typical)
<6s
Write Buffer Size
2 MB (minimum)
Audio Output
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
75 dB
Channel Separation
60 dB
Configuration Jumper
Block
Master, slave, and cable select modes
Operating Conditions
Temperature
32° to 122° F/0° to 50° C
Humidity
10% to 70% (non-condensing)
DA - 11505
North America — Version 12 — September 1, 2003
Page 30
QuickSpecs
HP Workstation xw5000
TechSpecs
Intel PRO/100 +
Management Adapter
Network Interface
10Base-T or 100Base-TX
Expansion Bus
Architecture
PCI 2.2
Network Transfer Rate
10Base-T (Half-Duplex)
10-Mb/s
10Base-T (Full-Duplex)
20-Mb/s
100Base-TX (Half-Duplex)
100-Mb/s
100Base-TX (Full-Duplex)
200-Mb/s
Connectors
RJ-45
Standards Compliance
10-Mb/s Ethernet
IEEE 802.3
100-Mb/s Ethernet
IEEE 802.3µ
I/O Address
Auto-configured
Remote Wakeup
Yes
Operating Temperature
0° to 55° F/10° to 35° C
Operating Humidity
(non-condensing)
85% at 131° F/55° C
Operating Altitude
10,000 ft/3,048 m
Communication Processor Intel 82559
OS Driver Support
Windows XP Pro Windows NT 4.0
NDIS 3.0, 4.0 Compliant
Windows 95, 98, 2000,
NDIS 3.0, 4.0, 5.0 Compliant
Novell®NetWare®Server v. 3.x, 4.x and 5.0 ODI Compliant
DA - 11505
SunSoft Solaris™
Not supported
SCO®UnixWare®, OpenDesktop,
OpenServer®
Supported
North America — Version 12 — September 1, 2003
Page 31
QuickSpecs
HP Workstation xw5000
TechSpecs
Broadcom Gigabit
Ethernet Adapter
Network Interface
10Base-T or 100Base-TX
Expansion Bus
Architecture
PCI 2.2
Network Transfer Rate
10Base-T (Half-Duplex)
10-Mb/s
10Base-T (Full-Duplex)
20-Mb/s
100Base-TX (Half-Duplex)
100-Mb/s
100Base-TX (Full-Duplex)
200-Mb/s
1000Base-TX (Half-Duplex)
1000-Mb/s
1000Base-TX (Full-Duplex)
2000-Mb/s
Connectors
RJ-45
Standards Compliance
10-Mb/s Ethernet
IEEE 802.3
100-Mb/s Ethernet
IEEE 802.3µ
1000-Mb/s Ethernet
IEEE 80
I/O Address
Auto-configured
Remote Wakeup
Yes
Operating Temperature
0° to 55° F/10° to 35° C
Operating Humidity
(non-condensing)
85% at 131° F/55° C
Operating Altitude
10,000 ft/3,048 m
Communication Processor Intel 82559
OS Driver Support
Windows XP Pro Windows NT 4.0
NDIS 3.0, 4.0 Compliant
Windows 95, 98, 2000,
NDIS 3.0, 4.0, 5.0 Compliant
Novell®NetWare®Server v. 3.x, 4.x and 5.0 ODI Compliant
DA - 11505
SunSoft Solaris™
Not supported
SCO®UnixWare®, OpenDesktop,
OpenServer®
Supported
North America — Version 12 — September 1, 2003
Page 32
QuickSpecs
HP Workstation xw5000
TechSpecs
NVIDIA Quadro NVS 200 Form Factor
Graphics Card
Graphics Controller
Low profile
Integrated Quadro4 2D/3D 128-bit graphics processor unit (GPU)
Bus Type
AGP 4x
RAMDAC
Dual 350 MHz
Memory
64 MB 166MHz 4 M x 16 SDR 6ns unified frame buffer
Connectors
Single LFH-60
Dimensions
low-profile form factor
Multi-monitor support
Dual monitors with NVIDIA's nView
nView Hardware
Architecture
Dual 350MHz RAMDACs
Integrated TMDS
Digital Vibrance Control (DVC)
32-bit color
2048 x 1536 @ 60 Hz maximum resolution
2D rendering engine optimized for 32-, 24-, 16-, 15-, and 8-bpp modes
Unified driver architecture (UDA) provides easy installation and manageability
High definition video
processor
Full-screen, full-frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
Supported graphics APIs
Fully compliant with OpenGL 1.3 and DirectX 8.1
Available graphics drivers Microsoft Windows XP and Microsoft Windows 2000, Linux
See: http://www.hp.com/workstations/support
NVIDIA Quadro NVS 200
display resolutions &
refresh rates
Single CRT display
Resolution
Maximum Refresh Rate
Bits per Pixel
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1600 x 1200
1600 x 1200
1920 x 1080
1920 x 1080
1920 x 1200
1920 x 1200
1920 x 1440
1920 x 1440
2048 x 1536
120 Hz
120 Hz
120 Hz
120 Hz
120 Hz
100 Hz
85 Hz
100 Hz
75 Hz
85 Hz
70 Hz
75Hz
60Hz
60Hz
8, 16, 24
8, 16, 24
8, 16, 24
8, 16, 24
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
DA - 11505
North America — Version 12 — September 1, 2003
Page 33
QuickSpecs
HP Workstation xw5000
TechSpecs
NVIDIA Quadro4 380
XGL Graphics Card
Form Factor
ATX
Graphics Controller
NVIDIA NV18GL GPU
Bus Type
AGP 8x Version 3.0 compliant AGP 4x/2x Version 2.0 compliant
RAMDAC
Dual 350MHz integrated
Memory
64MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
VGA DB-15 and DVI-I analog/digital monitor outputs,
4-pin mini DIN providing TV output
Dimensions
AGP full height ATX card. 4.25 x 6.875 in (10.795 x 17.463 cm)
Multi-monitor support
Dual monitor
Additional product
features
64 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
Hardware Overlay Planes
Hardware two-sided lighting
Hardware accelerated antialiased points and lines
TV Output
Diamond exit rule line rasterization for improved line quality
3D Texture support
Occlusion Culling
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support for Windows 2000 and Windows XP
ACPI Version 1.0b Power Management support (all modes)
AGP 8x Version 3.0
compliant and 2x/4x
Version 2.0 compliant
including
Sideband Addressing
AGP Texturing (Execute Mode)
Fast writes support
NV18GL GPU featuring:
275 MHz engine clock rate
250 MHz memory clock rate
128-bit memory interface
VGA controller
Dual integrated display controllers supporting up to 1920x1440 @ 85Hz and 2048x1536
@ 75Hz on both displays
4 parallel pixel pipelines
2 parallel geometry engines
nfiniteFX II programmable vertex shader technology and NVIDIA OpenGL extensions
Full hardware support for NVIDIA Cg shader programming language
Supported graphics APIs
OpenGL 1.3 (and OpenGL 2.0 when available) ICD with immediate mode support for all
OGL primitive types
DirectX 8 and above
Available graphics drivers HP-tested Windows 2000, HP-tested Windows XP, HP-tested Linux (1st Calendar Quarter
2003)
HP qualified drivers may be preloaded or available from the HP support web site:
http://www.hp.com/workstations/support
DA - 11505
North America — Version 12 — September 1, 2003
Page 34
QuickSpecs
HP Workstation xw5000
TechSpecs
NVIDIA Quadro4 380 XGL
Graphics Card display
resolutions & refresh rates Resolution
Monitor 1, 2
Analog/Digital
Maximum Refresh Rate
Bits per Pixel
640x480
240Hz/240Hz
8, 16, 24,32
800x600
240Hz/200Hz
8, 16, 24,32
1024x768
170Hz/140Hz
8, 16, 24,32,
1152x864
170Hz/100Hz
8, 16, 24,32
1280x720
150Hz/120Hz
8, 16, 24,32
1280x960
150Hz/85Hz
8, 16, 24,32
1280x1024
150Hz/75Hz
8, 16, 24,32
1600x900
120Hz/75Hz/
NoDigitalDisplaySupport (unbold)
8, 16, 24,32
1600x1024
100Hz/72Hz/
NoDigitalDisplaySupport
8, 16, 24,32
1600x1200
120Hz/60Hz/
NoDigitalDisplaySupport
8, 16
1600x1200
100Hz/60Hz/
NoDigitalDisplaySupport
24,32
1920x1080
100Hz/
NoDigitalDisplaySupport
8, 16
1920x1080
85Hz/
NoDigitalDisplaySupport
24,32
1920x1200
100Hz/
NoDigitalDisplaySupport
8, 16
1920x1200
85Hz/
NoDigitalDisplaySupport
24,32
1920x1440
85Hz/
NoDigitalDisplaySupport
8, 16
1920x1440
75Hz/
NoDigitalDisplaySupport
24,32
2048x1536
75Hz/
NoDigitalDisplaySupport
8, 16
2048x1536
60Hz/
NoDigitalDisplaySupport
24,32
DA - 11505
North America — Version 12 — September 1, 2003
Page 35
QuickSpecs
HP Workstation xw5000
TechSpecs
ATI FIREGL Z1-128p
Graphics Card
Form Factor
ATX
Graphics Controller
ATI FGL 9700 GPU
Bus Type
AGP-Pro50 1x/2x/4x/8x Version 3.0 compliant
RAMDAC
Dual 400MHz / 30-bit
Memory
256MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
Dual DVI-I analog/digital monitor outputs
Dimensions
Single AGP/ATX card. 230.28mm x 107.96mm
Multi-monitor support
Dual Screen output for resolutions up to 2x2048x1536x32 bit
Additional product
features
256MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
64-KB BIOS Serial Flash ROM, reprogrammable by SW, 3.3V only, no Jumpers
2D and 3D acceleration provided for 16-bit and 32-bit RGB? modes
Hardware cursor with full color alpha channel
16/32 bit Z buffer, 16/32 bit W-buffer, 8-bit stored alpha and 8-bit Stencil planes
Bus mastering support for 2D/3D display lists and local memory vertex list execution
Hardware lighting support for up to 8 lights
Bilinear, Trilinear and Anisotropic texturing
Cubic Environment and Perturbation Bump Mapping
Projective Texture, 3D Texture and Video Texture support
Full Scene Anti-Aliasing (FSAA) support with up to 6 subsamples
Video Engine supports YCrCb (4:2:2, 4:1:0, 4:2:0) to RGB conversion
Video scaling and up to 4x4 tap filtering supported for all YUV and RGB16/32 formats
Per pixel quad buffering on all screen resolutions
VESA compliant Stereoscopic Interface on MiniDin Connector
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
AGP1x/2x/4x/8x Version
3.0 compliant including
Sideband Addressing
AGP Texturing (Execute Mode)
AGP Read and AGP Write Support
8X Fast write support
FGL™ 9700 GPU
featuring:
2VGA controller supporting full standard feature set
2D Engine with 128-bit datapath processing multiple pixels per clock
PIXEL TAPESTRY III, 3D rendering engine utilizing 2 parallel pipelines with two texture
blending units each capable, of handling up to 8 texels in a single pass, delivering 2.4
Gigatexels/s fill rate
CHARISMA ENGINE III, geometry unit utilizing 4 vertex processing engines, capable of
executing two instructions per clock cycle each, thus yielding up to 200 million
transformed, clipped and lit triangles per second.
VIDEO IMMERSION III, industry leading video technology supporting MPEG 2
encode/decod
Dual independent display controllers with 4K x 4K address space each of up to 20 GB per
second
Supported graphics APIs
OpenGL 1.3 ICD with immediate mode support for all OGL primitive types
DirectX 8.1
Available graphics drivers Windows 2000
Windows XP
Linux
HP qualified drivers may be preloaded or available from the HP support web site:
See: http://h20000.www2.hp.com/bizsupport/TechSupport/Product.jsp?
prodTypeId=12454&prodCatId=296719&locale=en_US&taskId=135
DA - 11505
North America — Version 12 — September 1, 2003
Page 36
QuickSpecs
HP Workstation xw5000
TechSpecs
ATI FIREGL Z1-128p
Graphics Card display,
Resolution
resolutions & refresh rates
640x480
800x600
1024x768
1152x864
1280x960
1280x1024
1600x1000
1600x1024
1600x1200
1792x1344
1920x1080
1920x1200
2048x1536
CRT Display (Single or Dual)
Maximum Refresh Rate
Bits per Pixel
100Hz
100Hz
100Hz
100Hz
100Hz
100Hz
100Hz
76Hz
100Hz
100Hz
100Hz
100Hz
85Hz
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
Digital Display (Single or Dual)
NVIDIA Quadro4 750
XGL Graphics Card
Single CRT Display Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
800x600
1024x768
1280x1024
1600x1000
1600x1200
1920x1080
1920x1200
75Hz
75Hz
75Hz
75Hz
60Hz
60Hz
60Hz
60Hz
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
16, 24, 32
Form Factor
ATX
Graphics Controller
Integrated Quadro4 2D/3D 128-bit graphics processor unit
Bus Type
AGP4x
RAMDAC
350 MHz dual
Memory
128 MB 275 MHz 4Mx32DDR 5ns
Connectors
1 HD15 (VGA), 1 DVI-I
Dimensions (LxWxH)
9.75 x 6.50 x 2.00 in/24.77 x 16.51 x 5.08 cm
Multi-monitor support
Dual monitors supported through NVIDIA nView with 2048 x 1536 resolution per display
Additional product
features
Features hardware overlay planes and hardware antialiased lines
Offers two-sided lighting
Full-scene antialiasing
Provides second-generation occlusion culling
Delivers 2048 x 1536 resolution per display
OpenGL quad-buffered stereo
XGL GPU Special
Features:
Integrated Transformation & Lighting (T&L)
Fully programmable nfiniteFX II Graphics Engine
Lightspeed Memory
Architecture II
Supports 128 MB of DDR unified graphics memory
Uses memory at peak efficiency by dynamically allocating it among graphics subsystems,
increasing performance
Supported graphics APIs
OpenGL 1.3 ICD with immediate mode support for all OGL primitive types
DirectX 8
Available graphics drivers HP-tested Windows XP
HP-tested Windows 2000
HP qualified drivers may be preloaded or available from the HP support Web site:
http://www.hp.com/workstations/support
DA - 11505
North America — Version 12 — September 1, 2003
Page 37
QuickSpecs
HP Workstation xw5000
TechSpecs
NVIDIA Quadro4 750 XGL
display resolutions &
Resolution
refresh rates
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1600 x 1200
1600 x 1200
1920 x 1080
1920 x 1080
1920 x 1200
1920 x 1200
1920 x 1440
1920 x 1440
2048 x 1536
NVIDIA Quadro4 980
XGL Graphics Card
Single CRT display
Maximum Refresh Rate
Bits per Pixel
120 Hz
120 Hz
120 Hz
120 Hz
120 Hz
100 Hz
85 Hz
100 Hz
75 Hz
85 Hz
70 Hz
75 Hz
60 Hz
60 Hz
8, 16, 24
8, 16, 24
8, 16, 24
8, 16, 24
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
Form Factor
ATX
Graphics Controller
NVIDIA NV25GL GPU
Bus Type
AGP 8X
RAMDAC
Dual 350MHz integrated
Memory
128MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output
Dimensions
AGP full height ATX card. 4.25 x 8.55 in (10.795 x 21.59 cm)
Multi-monitor support
Dual integrated display controllers supporting up to 1920x1440 @ 85Hz on both displays
Additional product
features
128 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
Hardware Overlay Planes
Hardware two-sided lighting
Hardware accelerated antialiased points and lines
Quad-buffered Stereo
Diamond exit rule line rasterization for improved line quality
3D Texture support
Occlusion Culling
Frame synchronization
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
AGP1x/2x/4x Version 2.0
compliant including
Sideband Addressing
AGP Texturing (Execute Mode)
Fast writes support
NV25GL GPU featuring:
300 MHz engine clock rate
325 MHz memory clock rate
128-bit memory interface
VGA controller
4 parallel pixel pipelines
2 parallel geometry engines
nfiniteFX II programmable vertex and pixel shader technology
Supported graphics APIs
OpenGL 1.3 ICD with immediate mode support for all OGL primitive types
DirectX 8
Available graphics drivers HP-tested Windows 2000
HP-tested Windows XP
HP-tested Linux
HP qualified drivers may be preloaded or available from the HP support web site:
http://www.hp.com/workstations/support
DA - 11505
North America — Version 12 — September 1, 2003
Page 38
QuickSpecs
HP Workstation xw5000
TechSpecs
NVIDIA Quadro4 980 XGL
Graphics Card display
resolutions & refresh rates Resolution
Monitor 1, 2
Analog/Digital
Maximum Refresh Rate
Bits per Pixel
640x480
240Hz/240Hz
8, 16, 24,32
800x600
240Hz/200Hz
8, 16, 24,32
1024x768
170Hz/140Hz
8, 16, 24,32
1152x864
170Hz/100Hz
8, 16, 24,32
1280x720
150Hz/120Hz
8, 16, 24,32
1280x960
150Hz/85Hz
8, 16, 24,32
1280x1024
150Hz/75Hz
8, 16, 24,32
1600x900
120Hz/75Hz
8, 16, 24,32
1600x1024
100Hz/72Hz
8, 16, 24,32
1600x1200
120Hz/60Hz
8, 16
1600x1200
100Hz/60Hz
24,32
1920x1080
100Hz/
NoDigitalDisplaySupport
8, 16
1920x1080
85Hz/
NoDigitalDisplaySupport
24,32
1920x1200
100Hz/
NoDigitalDisplaySupport
8, 16
1920x1200
85Hz/
NoDigitalDisplaySupport
24,32
1920x1440
85Hz/
NoDigitalDisplaySupport
8, 16
1920x1440
75Hz/
NoDigitalDisplaySupport
24,32
2048x1536
75Hz/
NoDigitalDisplaySupport
8, 16
2048x1536
60Hz/
NoDigitalDisplaySupport
24,32
DA - 11505
North America — Version 12 — September 1, 2003
Page 39
QuickSpecs
HP Workstation xw5000
TechSpecs
NVIDIA Quadro4 900
XGL Graphics Card
Form Factor
ATX
Graphics Controller
NVIDIA NV25GL GPU
Bus Type
AGP 1x/2x/4x Version 2.0 compliant
RAMDAC
Dual 350MHz integrated
Memory
128MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output
Dimensions
AGP full height ATX card. 4.25 x 8.5 in/10.80 x 21.6 cm
Multi-monitor support
Dual integrated display controllers supporting up to 1920x1440 @ 85Hz on both displays
Additional product
features
128 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
Hardware Overlay Planes
Hardware two-sided lighting
Hardware accelerated antialiased points and lines
Quad-buffered Stereo
Diamond exit rule line rasterization for improved line quality
3D Texture support
Occlusion Culling
Frame synchronization
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
AGP1x/2x/4x Version 2.0
compliant including
Sideband Addressing
AGP Texturing (Execute Mode)
Fast writes support
NV25GL GPU featuring:
300 MHz engine clock rate
325 MHz memory clock rate
128-bit memory interface
VGA controller
4 parallel pixel pipelines
2 parallel geometry engines
nfiniteFX II programmable vertex and pixel shader technology
Supported graphics APIs
OpenGL 1.3 ICD with immediate mode support for all OGL primitive types
DirectX 8
Available graphics drivers HP-tested Windows XP
HP-tested Windows 2000
HP-tested Linux
HP qualified drivers may be preloaded or available from the HP support Web site:
http://www.hp.com/workstations/support
DA - 11505
North America — Version 12 — September 1, 2003
Page 40
QuickSpecs
HP Workstation xw5000
TechSpecs
NVIDIA Quadro4 900 XGL
Graphics Card display
resolutions & refresh rates Resolution
ATI FIR GL X1-256p
Graphics Card
Monitor 1, 2
Analog/Digital
Maximum Refresh Rate
Bits per Pixel
640x480
240Hz/240Hz
8, 16, 24
800x600
240Hz/200Hz
8, 16, 24
1024x768
170Hz/140Hz
8, 16, 24
1152x864
170Hz/100Hz
8, 16, 24
1280x720
150Hz/120Hz
8, 16, 24
1280x960
150Hz/85Hz
8, 16, 24
1280x1024
150Hz/75Hz
8, 16, 24
1600x900
120Hz/75Hz
8, 16, 24
1600x1024
100Hz/72Hz
8, 16, 24
1600x1200
120Hz/60Hz
8, 16
1600x1200
100Hz/60Hz
24
1920x1080
100Hz/
NoDigitalDisplaySupport
8, 16
1920x1080
85Hz/
NoDigitalDisplaySupport
24
1920x1200
100Hz/
NoDigitalDisplaySupport
8, 16
1920x1200
85Hz/
NoDigitalDisplaySupport
24
1920x1440
85Hz/
NoDigitalDisplaySupport
8, 16
1920x1440
75Hz/
NoDigitalDisplaySupport
24
2048x1536
75Hz/
NoDigitalDisplaySupport
8, 16
2048x1536
60Hz/
NoDigitalDisplaySupport
24
Form Factor
ATX
Graphics Controller
ATI FGL 9700 GPU
Bus Type
AGP-Pro50 1x/2x/4x/8x Version 3.0 compliant
RAMDAC
Dual 400MHz / 30-bit
Memory
256MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
Dual DVI-I analog/digital monitor outputs
Dimensions
Single AGP/ATX card. 230.28mm x 107.96mm
Multi-monitor support
Dual Screen output for resolutions up to 2x2048x1536x32 bit
Additional product
features
256MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
64 KB BIOS Serial Flash ROM, reprogrammable by SW, 3.3V only, no Jumpers
2D and 3D acceleration provided for 16-bit and 32-bit RGB? modes
Hardware cursor with full color alpha channel
16/32 bit Z buffer, 16/32 bit W-buffer, 8-bit stored alpha and 8-bit Stencil planes
Bus mastering support for 2D/3D display lists and local memory vertex list execution
Hardware lighting support for up to 8 lights
Bilinear, Trilinear and Anisotropic texturing
Cubic Environment and Perturbation Bump Mapping
Projective Texture, 3D Texture and Video Texture support
Full Scene Anti-Aliasing (FSAA) support with up to 6 subsamples
Video Engine supports YCrCb (4:2:2, 4:1:0, 4:2:0) to RGB conversion
Video scaling and up to 4x4 tap filtering supported for all YUV and RGB16/32 formats
DA - 11505
North America — Version 12 — September 1, 2003
Page 41
QuickSpecs
HP Workstation xw5000
TechSpecs
Per pixel quad buffering on all screen resolutions
VESA compliant Stereoscopic Interface on MiniDin Connector
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
AGP1x/2x/4x/8x Version
3.0 compliant including:
Sideband Addressing
AGP Texturing (Execute Mode)
AGP Read and AGP Write Support
8X Fast write support
FGL 9700 GPU featuring: VGA controller supporting full standard feature set
2D Engine with 128-bit datapath processing multiple pixels per clock
PIXEL TAPESTRY III, 3D rendering engine utilizing 2 parallel pipelines with two texture
blending units each capable, of handling up to 8 texels in a single pass, delivering 2.4
Gigatexels/s fill rate
CHARISMA ENGINE III, geometry unit utilizing 4 vertex processing engines, capable of
executing two instructions per clock cycle each, thus yielding up to 200 million
transformed, clipped and lit triangles per second.
VIDEO IMMERSION III, industry leading video technology supporting MPEG 2
encode/decode
Dual independent display controllers with 4K x 4K address space each
256-bit external frame buffer interface providing memory bandwidth of up to 20 GB per
second
Supported graphics APIs
OpenGL 1.3 ICD with immediate mode support for all OGL primitive types
DirectX 8.1
Available graphics drivers Windows 2000
Windows XP
Linux
HP qualified drivers may be preloaded or available from the HP support web site:
See: http://h20000.www2.hp.com/bizsupport/TechSupport/Product
.jsp?prodTypeId=12454&prodCatId=
296719&locale=en_US&taskId=135
ATI FIREGL X1-256p
Graphics Card display,
Resolution
resolutions & refresh rates
640x480
800x600
1024x768
1152x864
1280x960
1280x1024
1600x1000
1600x1024
1600x1200
1792x1344
1920x1080
1920x1200
2048x1536
CRT Display (Single or Dual)
DA - 11505
Maximum Refresh Rate
Bits per Pixel
100Hz
100Hz
100Hz
100Hz
100Hz
100Hz
100Hz
76Hz
100Hz
100Hz
100Hz
100Hz
85Hz
16, 24,32
16, 24,32
16, 24,32
16, 24,32
16, 24,32
16, 24,32
16, 24,32
16, 24,32
16, 24,32
16, 24,32
16, 24,32
16, 24,32
16, 24,32
North America — Version 12 — September 1, 2003
Page 42
QuickSpecs
HP Workstation xw5000
TechSpecs
Digital Display (Single or Dual)
NVIDIA Quadro FX2000
Single CRT Display Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
800x600
1024x768
1280x1024
1600x1000
1600x1200
1920x1080
1920x1200
75Hz
75Hz
75Hz
75Hz
60Hz
60Hz
60Hz
60Hz
16, 24,32
16, 24,32
16, 24,32
16, 24,32
16, 24,32
16, 24,32
16,24,32
16, 24,32
Form Factor
ATX
Graphics Controller
NVIDIA NV30GL GPU
Bus Type
AGP 8X Version 3.0 compliant
RAMDAC
Dual 400MHz integrated
Memory
128MB DDR2 SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output
Dimensions
AGP full height ATX card. 4.25 x 6.875 in (10.795 x 17.463 cm)
Multi-monitor support
Dual integrated display controllers supporting up to 2048x1536 @ 85Hz on both displays
Additional product
features
128 MB DDR2 SDRAM unified frame buffer, Z-buffer and Texture storage
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
Hardware Overlay Planes
Hardware two-sided lighting
Hardware accelerated antialiased points and lines
Quad-buffered Stereo
Diamond exit rule line rasterization for improved line quality
3D Texture support
Occlusion Culling
Dual Link DVI on one output enabling driving digital displays up to 2048x1536
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
AGP8xVersion 3.0
compliant including
Sideband Addressing
AGP Texturing (Execute Mode)
Fast write support
NV30GL GPU featuring
400 MHz engine clock rate
400 MHz memory clock rate
128-bit memory interface
VGA controller
8 parallel pixel pipelines
3 parallel geometry engines
nfiniteFX II programmable vertex and pixel shader technology
Supported graphics APIs
OpenGL 1.3 ICD with immediate mode support for all OGL primitive types
DirectX 8,9
Available graphics drivers Windows 2000
Windows XP
HP-tested Linux
HP qualified drivers may be preloaded or available from the HP support Web site:
See: http://h20000.www2.hp.com/bizsupport/TechSupport/Product.jsp?
prodTypeId=12454&prodCatId=296719&locale=en_US&taskId=135
See: http://www.hp.com/workstations/support
NOTE: These Web sites are available in English only.
DA - 11505
North America — Version 12 — September 1, 2003
Page 43
QuickSpecs
HP Workstation xw5000
TechSpecs
NVIDIA Quadro FX2000
Display Resolutions &
Refresh Rates
HP L1825 Flat Panel
Monitor (Carbon/Silver)
Monitor 1, 2 Analog/Digital
Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
240Hz/240Hz
8, 16, 32
800x600
240Hz/200Hz
8, 16, 32
1024x768
200Hz/140Hz
8, 16, 32
1152x864
170Hz/100Hz
8, 16, 32
1280x720
150Hz/120Hz
8, 16, 32
1280x960
150Hz/85Hz
8, 16, 32
1280x1024
150Hz/85Hz
8, 16, 32
1600x900
120Hz/75Hz
8, 16, 32
1600x1024
100Hz/72Hz
8, 16, 32
1600x1200
120Hz/60Hz
8, 16
1600x1200
100Hz/60Hz
32
1920x1080
100Hz/60Hz in Dual Link Mode
8, 16
1920x1080
85Hz/60Hz in Dual Link Mode
32
1920x1200
100Hz/60Hz in Dual Link Mode
8, 16
1920x1200
85Hz/60Hz in Dual Link Mode
32
1920x1440
85Hz/60Hz in Dual Link Mode
8,16, 32
2048x1536
85Hz/60Hz in Dual Link Mode
8, 16, 32
Display Type
TFT large viewing angle
Viewable Image Size
45.9 cm/18.1 in maximum viewable
Screen Opening (W x H)
14.2 x 11.4 in/36.2 x 28.9 cm
Viewing Angle
160 degrees horizontal/160 degrees vertical (10:1 minimum contrast ratio)
Pixel Pitch
0.281 mm
Pixel Clock Speed
135 MHz
Brightness
250 nits (cd/m2)
Contrast Ratio
350:1 (typical
Response Rate
30 ms (typical rise + fall)
Horizontal Frequency
(kHz)
30 to 82 kHz
Vertical Frequency (Hz)
56 to 75 Hz
Color Depth Support
16.7 million colors
Graphics Controller
Genesis gm5020
Factory Preset Modes
15
Graphic Preset Modes
(non-interlaced)
640 x 480 @ 60 Hz, 72 Hz, 75 Hz
800 x 600 @ 56 Hz, 60 Hz, 75Hz
1024 x 768 @ 60 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75 Hz
Mac Compatible Modes
(adapter required)
832 x 624 @ 75 Hz
1152 x 870 @75 Hz
Text Mode
720 x 400 @ 70 Hz
VGA Mode
640 x 480 @ 60 Hz, 72 Hz
User-Programmable
Modes
15
Anti-Glare/Anti-Static
Yes/Yes
Asset Control
Yes (accessible on HP desktops featuring Intelligent Manageability)
Plug and Play
Yes (supports VESA DDC2B; PC2001 compliant)
Protective Panel
No
DA - 11505
North America — Version 12 — September 1, 2003
Page 44
QuickSpecs
HP Workstation xw5000
TechSpecs
Kensington Lock-ready
Yes
Accessories Included
VGA cable, DVI-D cable
VESA Mounting
100 mm x 100 mm screw-mounting option; pedestal is attached
VESA External Mounting
Yes (standard 4-hole pattern, 100 mm)
Detachable Base
Yes
Tilt
Yes (–5° to + 35° )
Swivel
Yes (–35° to + 35° )
Height Adjustable
Yes (130 mm adjustment range)
Portrait Mode Supported
Yes
Touchscreen Option
No
Fail Safe Mode
Yes
Icon Based On-Screen
Controls
Yes
User Controls
Brightness, contrast
Yes
Positioning
Yes
Color temperature
Yes (6500k, 9300k, User)
Individual color control
Yes
Serial number display
Yes
Full screen resolutions
Yes (640 x 480, 800 x 600)
Clock
Yes
Clock phase
Yes
Monitor management
No
Recall
No
Audio recall
No
Input selection
Yes
Factory reset
Yes
English
Yes
Spanish
Yes
French
Yes
German
Yes
Simplified Chinese
Yes
Italian
Yes
Australian ACA Approval
Yes
Canadian Requirements/CSA
Yes
CE Marking
Yes
China CCIB/CCEE Approval
Yes
CISPR Requirements
Yes
Eastern European Approvals
Yes
Energy Star Compliant
Yes
FCC Approval
Yes
German Ergonomic
(TUV and GS Mark)
Yes
ISO 9241-3,7,8 VDT
Guidelines
Yes
ISO 13406-2 Compliant
(Pixel Defect Guidelines)
Yes
Mexican NOM Approval
Yes
MIC Requirements
(New Zealand)
Yes
MPR-II Compliant
Yes
Language Selection
Agency Approvals/
Certifications
DA - 11505
North America — Version 12 — September 1, 2003
Page 45
QuickSpecs
HP Workstation xw5000
TechSpecs
Nordic Approvals
(Nemko, Fimko, Demko,
Semko)
Yes
PC2001 Compliant
Yes
PC99 Certified
Yes
S. Korean MIC Approval
Yes
Taiwan BSMI Approval
Yes
TCO 99 (emissions,
ergonomics, environment)
Yes
TUV-Ergo
Yes
UL Listed
Yes
VCCI Approvals
Yes
Windows Certification
Microsoft Windows 98, Windows 2000, and Windows XP
Input Impedance
75 ohms ± 10%
Input Signal
Two connectors: one 15-pin mini D-sub analog VGA; and one DVI-I (VGA analog or
digital)
Sync Input
Separate sync (HSYNC/VSYNC); composite sync, Sync on Green
Power Supply ALS
Auto-ranging, 90 to 264 VAC; internal power supply, 60 Hz
Power Rating
Maximum Mode
< 60 W
Power Saving Mode
<5W
Off Mode
<5W
With stand - min height
14.8 x 15.8 x 8.2 in/37.6 x 40.2 x 20.8 cm
With stand - max height
19.9 x 15.8 x 8.2 in/50.6 x 40.2 x 20.8 cm
Without stand
13.5 x 15.8 x 2.9 in/34.2 x 40.2 x 7.3 cm
With height-adjustable stand
22.9 lb/10.4 kg
Without stand
13.6 lb/6.2 kg
Operating
32° to 95° F/0° to 35° C
Non-operating
–4° to 140° F/–20° to 60° C
Operating
20% to 80%
Non-operating
8% to 85%
Dimensions (H x W x D)
Approximate Weight
Temperature
Humidity
Warranty
Limited three years parts, labor, and on-site service, including backlight. Availability varies
by region. Consult HP Customer Service for details.
Graphic Controller
Compatibility
Compatible with "VESA Video Signal Standard (VSIS) Compliant" video cards.
NOTE: Features are subject to change without notice.
HP L1925 Flat Panel
Monitor (Carbon/Silver)
Panel
Video Input
DA - 11505
Type
Thin film transistor (TFT)
Viewable Image Area
(diagonal)
19 in (48.25 cm) maximum viewable
Screen Opening (WxH)
14.9 x 11.9 in (37.8 x 30.3 cm)
Viewing Angle (typical)
170 degrees horizontal/170 degrees vertical
(10:1 minimum contrast ratio)
Brightness (typical)
Up to 250 nits (cd/m2)
Contrast Ratio (typical)
Up to 500:1 (typical)
Response Rate (typical)
<20 ms (typical rise + fall)
Pixel Pitch
0.294 mm
Color Depth Support
16.7 million colors
Plug and Play
Yes (supports VESA DDC2B; PC2001 compliant)
Input Signal
Two connectors: one 15-pin mini D-sub analog VGA;
North America — Version 12 — September 1, 2003
Page 46
QuickSpecs
HP Workstation xw5000
TechSpecs
and one DVI-I (VGA analog or digital)
Signal Interface/
Performance
On Screen Display (OSD)
Controls
Power
DA - 11505
Input Impedance
75 ohms ± 2%
Sync Input
Separate sync (HSYNC/VSYNC); composite sync, Sync on
Green
Video Cable
VGA and DVI-D
Video Cable Length
78 in (2.0 m)
Horizontal Frequency
30 to 82 kHz
Vertical Frequency
56 to 75 Hz
Graphics Controller
Pixelworks 131
Native Resolution
[email protected] analog
1280x [email protected] digital
Maximum Resolution
(Analog)
[email protected] analog
Maximum Resolution
(Digital)
[email protected] analog
Preset VESA Graphic
Modes
(non-interlaced)
640 x 480 @ 60 Hz, 72 Hz, 75 Hz
800 x 600 @ 60 Hz, 72 Hz, 75 Hz
1024 x 768 @ 60 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75 Hz
Preset MAC Mode
832 x 624 @ 75 Hz
1152 x 870 @75 Hz
Preset VGA Mode
640 x 480 @ 60 Hz, 72 Hz
Preset SUN Mode
[email protected]
Fail Safe Mode
Yes (limits out of range signal messages)
Maximum Pixel Clock
Speed
140 MHz
User Programmable
Modes
Yes, 10
Anti-Glare
Yes
Anti-Static
Yes
AssetControl
Yes (accessible on HP/Compaq desktops featuring
Intelligent Manageability)
Default Color
Temperature
Yes (6500k, 9300k, Custom User)
Buttons or Switches
Power on/off; 4-button OSD; second level OSD buttons
include auto adjust and dual-input switch
Languages
English, Spanish, French, German, Dutch, Italian
User Controls
Size and Positioning
Contrast
Brightness
Clock, Clock Phase
Selectable Color Temperature
Input Selection
Factory Reset
Individual Color Contrast
Full-screen Resolution
Power Supply
Auto-ranging, 90 to 265 VAC; internal power supply,
47.5-63 Hz
Input Power
100 ~ 240 VAC
Nominal Current
1.5 A maximum
Frequency
50 ~ 60 Hz
Average
33 watts when displaying standard office software
Maximum
< 40 watts
North America — Version 12 — September 1, 2003
Page 47
QuickSpecs
HP Workstation xw5000
TechSpecs
Mechanical
Power Saving
< 2 watts
Off Mode
< 1 watts (switch off)
Power Cable Length
70 in (1.8 m); non-captive
Dimensions
(H x W x D)
Unpacked w/ stand
minimum height
14.8 x 16.4 x 8.2 in
(39.8 x 41.6 x 20.8 cm)
Unpacked w/ stand
maximum height
20 x 16.4 x 8.2 in
(50.8 x 41.6 x 20.8 cm)
Base Area (Footprint
d x w)
8.2 x 12.2 in
(20.8 x 30.9 cm)
Panel only (w/o stand)
(h x w x d)
13.5 x 16.4 x 2.6 in
(34.2 x 41.6 x 6.6 cm)
Packaged
26.0 x 26.0 x 26.0 in
(66.0 x 66.0 x 66.0 cm)
Unpacked w/ stand
17.6 lb (8 kg)
Unpacked w/o stand
12 lb (5.5 kg)
Packaged
23.5 l (10.7 kg)
Weight
Environmental
Tilt Range
-5 degrees to +20 degrees
Swivel Range
± 45 degrees horizontal swivel
Height Adjustable
Yes (4.3 in/110 mm adjustment range)
Pivot Rotation
Yes, 90 degrees
Base
Ships attached and is removable after installation
Temperature – Operating
41° to 95° F (5° to 35° C)
Temperature – Nonoperating
-4° to 140° F (-20° to 60° C)
Humidity – Operating
20% to 80%
Humidity – Non-operating 5% to 95%
Altitude – Operating
0 to 13,000 ft (0 to 4,000 m)
Altitude – Non-operating 0 to 40,000 ft (0 to 12,192 m)
Options
PC Comm Station
Communication/audio hub that includes two stereo
speakers (8 PMPO each), integrated microphone/dual
function headset (phone and PC support), and USB port.
Optional, part number 304251-008 (US) or P8814A
(EMEA).
Other
Accessories Included
VGA cable, DVI-D cable, user CD-ROM with Portrait
software
User Guide Languages
English
Warranty Languages
English
Color
Carbon/Silver
VESA Mounting
Yes (swing arm/ wall mount not included; base is shipped
attached and must be removed for mounting options)
VESA External Mounting
Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-ready
Yes
Certification and
Compliance
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China CCIB/CCEE
Approval, CISPR Requirements, Eastern European Approvals, Energy Star Compliant, FCC
Approval, German Ergonomic (TUV and GS Mark), ISO 9241-3,7,8 VDT Guidelines, ISO
13406-2 Compliant (Pixel Defect Guidelines), Mexican NOM Approval, MIC
Requirements (New Zealand), MPR-II Compliant, Nordic Approvals (Nemko, Fimko,
Demko, Semko), PC2001 Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan
BSMI Approval, TCO 03 (emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI
Approvals, Windows Certification
Compatibility
VESA Video Signal Standard (VSIS) Compliant video cards have been tested and proven
compatible for use with the HP Flat Panel Monitor L1925. The HP L1925 has been tested
for use with Compaq Evo PCs and Thin Clients and Compaq D315 Business PCs.
DA - 11505
North America — Version 12 — September 1, 2003
Page 48
QuickSpecs
HP Workstation xw5000
TechSpecs
NOTE: Features are subject to change without notice.
HP L2025 Flat Panel
Monitor (Carbon/Silver)
Service and Warranty
Limited three-year parts and repair labor, service provider labor, and on-site service. Next
Business Day advanced exchange direct replacement service available during warranty
period. Certain restrictions and exclusions apply. For details, contact HP Customer Support
at 970-635-1000 (USA) or 905-206-4663 (Canada).
Display Type
TFT large viewing angle
Viewable Image Size
20.1 in (51 cm) maximum viewable
Screen Opening (WxH)
16.2 x 22 in (41.1 x 30.9 cm)
Viewing Angle
170 degrees horizontal/170 degrees vertical (10:1 minimum contrast ratio)
Pixel Pitch
0.255 mm
Pixel Clock Speed
202 MHz
Brightness
250 nits (cd/m2) typical
Contrast Ratio
350:1 typical
Response Rate
25 ms typical (rise + fall)
Color Depth Support
16.7 million colors
Horizontal Frequency (kHz) 30 to 94 kHz (analog); 30 to 92 KHz (digital)
Vertical Frequency (Hz)
56 to 85 Hz
Graphics Controller
Pixelworks PW171
Factory Preset Modes
18
Graphic Preset Modes
(non-interlaced)
1600 x 1200 @ 60 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75Hz, 85 Hz
1280 x 960 @ 60 Hz
1152 x 900 @ 66 Hz
1024 x 768 @ 60 Hz, 75 Hz, 85 Hz
800 x 600 @ 60 Hz, 85Hz
640 x 480 @ 60 Hz, 75 Hz
Mac Compatible Modes
(adapter required)
832 x 624 @ 75 Hz
1152 x 870 @ 75 Hz
Text Mode
720 x 400 @ 70 Hz
VGA Mode
640 x 480 @ 60 Hz
User-Programmable
Modes
18
Anti-Glare/Anti-Static
Yes/Yes
Asset Control
Yes (accessible on HP desktops featuring Intelligent Manageability)
Plug and Play
Yes
Kensington Lock-ready
Yes
Accessories Included
VGA cable, DVI-D cable
Protective Panel
No
VESA Mounting
100 mm x 100 mm screw-mounting option; pedestal is attached
VESA External Mounting
Yes (Standard 4 hole pattern, 100 mm)
Portrait Mode Supported
No
Touchscreen Option
No
Detachable Base
Yes
Tilt
Yes (–5° to + 35° )
Swivel
Yes (–35° to + 35° )
Height Adjustable
Yes (130 mm adjustment range)
Fail Safe Mode
Yes
Icon Based On-Screen
Controls
Yes
DA - 11505
North America — Version 12 — September 1, 2003
Page 49
QuickSpecs
HP Workstation xw5000
TechSpecs
User Controls
Language Selection
Agency Approvals/
Certifications
DA - 11505
Brightness, contrast
Yes
Positioning
Yes
Color temperature
Yes (6500k, 9300k, User)
Individual color control
Yes
Serial number display
Yes
Full screen resolutions
Yes (640 x 480, 800 x 600)
Clock
Yes
Clock phase
Yes
Monitor management
No
Recall
No
Audio recall
No
Video PIP
Yes (size and position)
Input selection
Yes
(includes separate direct access key for dedicated swap
between inputs 1 and 2)
Factory reset
Yes
English
Yes
Spanish
Yes
French
Yes
German
Yes
Simplified Chinese
Yes
Italian
Yes
Australian ACA Approval
Yes
Canadian Requirements/CSA
Yes
CE Marking
Yes
China CCIB/CCEE Approval
Yes
CISPR Requirements
Yes
Eastern European Approvals
Yes
Energy Star Compliant
Yes
FCC Approval
Yes
German Ergonomic
(TUV and GS Mark)
Yes
ISO 9241-3,7,8 VDT
Guidelines
Yes
ISO 13406-2 Compliant
(Pixel Defect Guidelines)
Yes
Mexican NOM Approval
Yes
MIC Requirements
(New Zealand)
Yes
MPR-II Compliant
Yes
Nordic Approvals
(Nemko, Fimko, Demko,
Semko)
Yes
PC2001 Compliant
Yes
PC99 Certified
Yes
S. Korean MIC Approval
Yes
Taiwan BSMI Approval
Yes
TCO 99 (emissions,
ergonomics, environment)
Yes
TUV-Ergo
Yes
North America — Version 12 — September 1, 2003
Page 50
QuickSpecs
HP Workstation xw5000
TechSpecs
UL Listed
Yes
VCCI Approvals
Yes
Windows Certification
Microsoft Windows 98, Windows 2000, and Windows XP
Input Impedance
75 ohms ± 10%
Input Signal
Four connectors, including one 15-pin mini D-sub VGA; one DVI-I (VGA analog and
digital input), one composite video, and one s-video
Sync Input
Separate sync (HSYNC/VSYNC); composite sync, Sync on Green
Power Supply ALS
Auto-Ranging, 90 to 264 VAC; internal power supply, 60 Hz
Power Rating
Maximum Mode
< 70 W
Power Saving Mode
<5W
Off Mode
<5W
With stand - min height
16.3 x 19.2 x 8.2 in (41.4 x 48.8 x 20.8 cm)
With stand - max height
21.4 x 19.2 x 8.2 in (54.4 x 48.8 x 20.8 cm)
Without stand
16.1 x 19.2 x 3.0 in (40.8 x 48.8 x 7.6 cm)
With height-adjustable stand
26.4 lb (12 kg)
Without stand
17.2 lb (7.8 kg)
Operating
46° to 95° F (10° to 35° C)
Non-operating
6° to 140° F (-10° to 60° C)
Operating
20% to 80%
Non-operating
5% to 85%
Dimensions (HxWxD)
Approximate Weight
Temperature
Humidity
Warranty
Three-year limited warranty parts, including backlight and on-site labor or 48 hour direct
unit replacement. Certain restrictions apply. Some terms vary depending on sales region.
Consult HP Customer Service for details.
Compatibility
The following graphics controllers and chipsets have been tested and proven compatible for use with the HP L2025 Flat
Panel Monitor.
Graphic Controllers
Compatible with "VESA Video Signal Standard (VSIS) Compliant" video cards.
NOTE: Features are subject to change without notice.
HP p930 CRT Monitor
(Carbon/Silver)
Tube Type
Diamondtron Natural Flat (NF) aperture grille tube; anti-reflection, anti-static
Picture Tube Size (diagonal) 19 in (48.26 cm)
Viewable Image Area
(diagonal)
18 in (45.72 cm)
Aperture Grille Pitch
0.24 mm
Horizontal Frequency (kHz) 30 to 110 kHz
Vertical Frequency (Hz)
50 to 160 Hz
Maximum Resolution
1920 x 1440 @ 60 Hz
Preferred Flicker Free
Resolution
1280 x 1024 @ 85 Hz
Preset Graphic Modes
(non-interlaced)
1600 x 1200 @ 85 Hz and 75 Hz
1280 x 1024 @ 85 Hz and 75 Hz
1024 x 768 @ 85 Hz
800 x 600 @ 85 Hz
640 x 480 @ 85 Hz and 60 Hz
720 x 400 @ 70 Hz
User-Modes
Yes, 8 modes
Anti-Glare/Anti-Static
Yes/Yes
Asset Control
Yes
Plug and Play
VESA DDC2B; PC2001 compliant
Front Panel User Controls Power on/off; menu button; 4 OSD adjustment buttons; OSD exit button, information
DA - 11505
North America — Version 12 — September 1, 2003
Page 51
QuickSpecs
HP Workstation xw5000
TechSpecs
button
On-Screen User Controls
Approvals/
Certifications
Yes
Size and Positioning
Yes
Pincushion (barrel)
Yes
Trapezoid
Yes
Moiré Correction
Yes
Tilt (rotation)
Yes
Selectable Color Temperature
Yes
Factory Reset/Recall
Yes
Orthogonality
Yes
Current Display Mode
Yes
Degauss
Yes
Convergence
Yes
UL/CSA/CUL Approval
Yes
ISO9241-3, -7, -8 VDT
Guidelines Approval
Yes
MPR-II Compliant
Yes
TCO ‘99
Yes
FCC Approval
Yes
Microsoft WHQL Certified
Yes
Energy Star Compliant
Yes
CE Compliant
Yes
Signal Cable
Attached 15-pin D-sub connector, 5.9 ft (1.8 m)
Maximum Pixel Clock
Speed
290 MHz
Power Supply
Universal; 100–240 V (auto-ranging), 50–60 Hz
Maximum Power Rating
= 120 watts
Low Power Sleep Mode
< 3 watts
Off Mode
0 watts
Dimensions (HxWxD)
Unpacked
18.8 x 18.5 x 18.5 in (47.6 x 46.9 x 46.9 cm)
Packaged
22.0 x 22.3 x 22.8 in (55.9 x 56.5 x 57.8 cm)
Unpacked
55 lb (24.9 kg)
Packaged
61 lb (27.7 kg)
Weight
HP p1130 CRT Monitor
(Carbon/Silver)
Brightness, contrast
Tilt/Swivel Base
-5 to + 10 degrees vertical tilt; ± 45 degrees horizontal swivel
Operating Temperature
50° to 95° F (10° to 35° C) non-condensing
Operating Humidity
20% to 80% non-condensing
Warranty
Limited three-year parts and repair labor, three-year service provider labor, and three-year
on-site service warranty. Next Business Day advanced exchange direct replacement service
available during warranty period. Certain restrictions and exclusions apply. For details,
contact HP Customer Support at 970-635-1000 (USA) or 905-206-4663 (Canada).
Tube Type
FD Trinitron aperture grille tube
Picture Tube Size (diagonal) 21 in (53.3 cm)
Viewable Image Area
(diagonal)
19.8 in (50.3 cm)
Aperture Grille Pitch
0.24 mm
Horizontal Frequency (kHz) 30 to 130 kHz
Vertical Frequency (Hz)
50 to 170 Hz
Maximum Resolution
2048 x 1536 @ 75Hz
DA - 11505
North America — Version 12 — September 1, 2003
Page 52
QuickSpecs
HP Workstation xw5000
TechSpecs
Maximum Pixel Clock
Speed
< 370 MHz
Preferred Flicker Free
Resolution
1920 x 1440 @ 85 Hz
Preset Graphic Modes
(non-interlaced)
1920 x 1440 @85Hz
1800 x 1440 @80Hz
1600 x 1200 @75, 85Hz
1280 x 1024 @75, 85Hz
1024 x 768 @75, 85Hz
800 x 600 @75, 85Hz
640 x 480 @65, 75 and 85Hz
640 x 400 @ 70Hz
User-Modes
8 preset modes and 10 additional modes
Anti-Glare/Anti-Static
Yes/Yes
Asset Control
Yes
Front Panel User Controls Power on/off switch; 5-button OSD; dual-input switch
Languages
Nine
English, French, German, Spanish, Italian, Dutch,
Swedish, Russian, Japanese
On-Screen User Controls
Size and Positioning
Yes
Contrast
Yes
Brightness
Yes
Moiré Correction
Yes
Tilt (rotation)
Yes
Selectable Color temperature
Yes
Orthogonality
Yes
Degauss
Yes (automatic at power on; manual)
Convergence (h/v/pre-set)
Yes
Reset
Yes
UL/CSA/CUL Approval
Yes
ISO9241-3, -7, -8 VDT
Guidelines Approval
Yes
MPR-II Compliant
Yes
TCO ‘99
Yes
FCC Approval
Yes
Microsoft WHQL Certified
Yes
Energy Star Compliant
Yes
CE Compliant
Yes
Approvals/
Certifications
Plug and Play
VESA DDC2Bi and DDC2B. PC2001 compliant
Dual Input
Yes, two 15-pin D-sub connections
Signal Cable
Detachable 15-pin D-sub mini connector
Power Supply
Universal; 100–240 V (auto-ranging), 50–60 Hz
Maximum Power Rating
135 watts
Low Power Sleep Mode
< 3 watts
Off Mode
0 watts
Dimensions (HxWxD)
Unpacked
19.7 x 19.6 x 19.3 in (50.2 x 49.7 x 49.0 cm)
Packaged
26.0 x 26.0 x 26.0 in (66.0 x 66.0 x 66.0 cm)
Unpacked
67.2 lb (30.5 kg)
Packaged
72.5 lb (32.9 kg)
Weight
Tilt/Swivel Base
-5 to + 15 degrees vertical tilt; ± 45 degrees horizontal swivel
Operating Temperature
Non-condensing
50° to 104° F (10° to 40° C)
Operating Humidity
Non-condensing
10% to 80%
DA - 11505
North America — Version 12 — September 1, 2003
Page 53
QuickSpecs
HP Workstation xw5000
TechSpecs
Altitude
Warranty
Operating
0 to 13,000 ft (0 to 4,000 m)
Non-Operating
0 to 50,000 ft (0 to 15,250 m)
Limited three-year parts and repair labor, three-year service provider labor, and three-year
on-site service warranty. Next Business Day advanced exchange direct replacement service
available during warranty period. Certain restrictions and exclusions apply. For details,
contact HP Customer Support at 970-635-1000 (USA) or 905-206-4663 (Canada).
© Copyright 2003 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Hyper-Threading Technology requires a computer system with an Intel) Pentium) 4 processor supporting HT Technology and a Hyper-Threading Technology
enabled chipset, BIOS and operating system. Performance will vary depending on the specific hardware and software you use. See
http://www.intel.com/info/hyperthreading/ for more information including details on which processors support HT Technology.
Microsoft, Windows, and Windows NT are U.S. registered trademarks of Microsoft Corporation. Intel and Pentium are U.S. registered trademarks the Intel
Corporation. All other product names mentioned herein may be trademarks of their respective companies.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
DA - 11505
North America — Version 12 — September 1, 2003
Page 54
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
