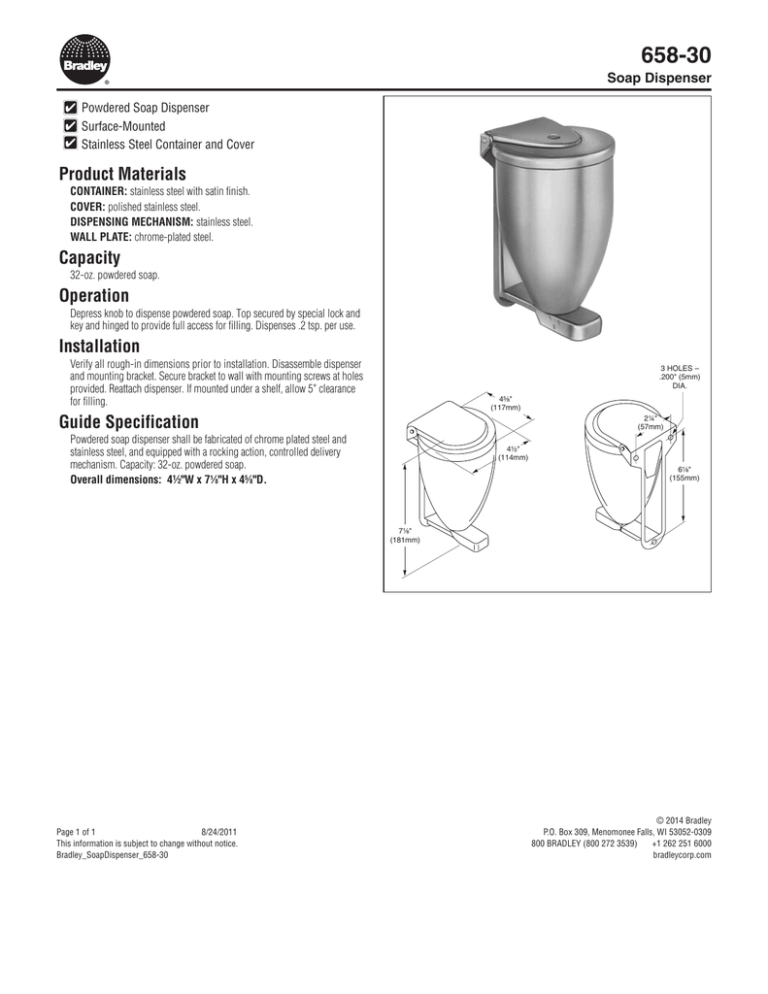

Soap Dispenser
Powdered Soap Dispenser
Surface-Mounted
Stainless Steel Container and Cover
Product Materials
ONTAINER: stainless steel with satin finish.
C
COVER: polished stainless steel.
DISPENSING MECHANISM: stainless steel.
WALL PLATE: chrome-plated steel.
Capacity
32-oz. powdered soap.
Operation
epress knob to dispense powdered soap. Top secured by special lock and
D
key and hinged to provide full access for filling. Dispenses .2 tsp. per use.
Installation
V erify all rough-in dimensions prior to installation. Disassemble dispenser
and mounting bracket. Secure bracket to wall with mounting screws at holes
provided. Reattach dispenser. If mounted under a shelf, allow 5" clearance
for filling.
3 HOLES –
.200" (5mm)
DIA.
4⁵⁄₈"
(117mm)
Guide Specification
2¼"
(57mm)
P owdered soap dispenser shall be fabricated of chrome plated steel and
stainless steel, and equipped with a rocking action, controlled delivery
mechanism. Capacity: 32-oz. powdered soap.
Overall dimensions: 4½"W x 71⁄8"H x 45⁄8"D.
4½"
(114mm)
6¹⁄₈"
(155mm)
7¹⁄₈"
(181mm)
Page 1 of 1
8/24/2011
This information is subject to change without notice.
Bradley_SoapDispenser_658-30
