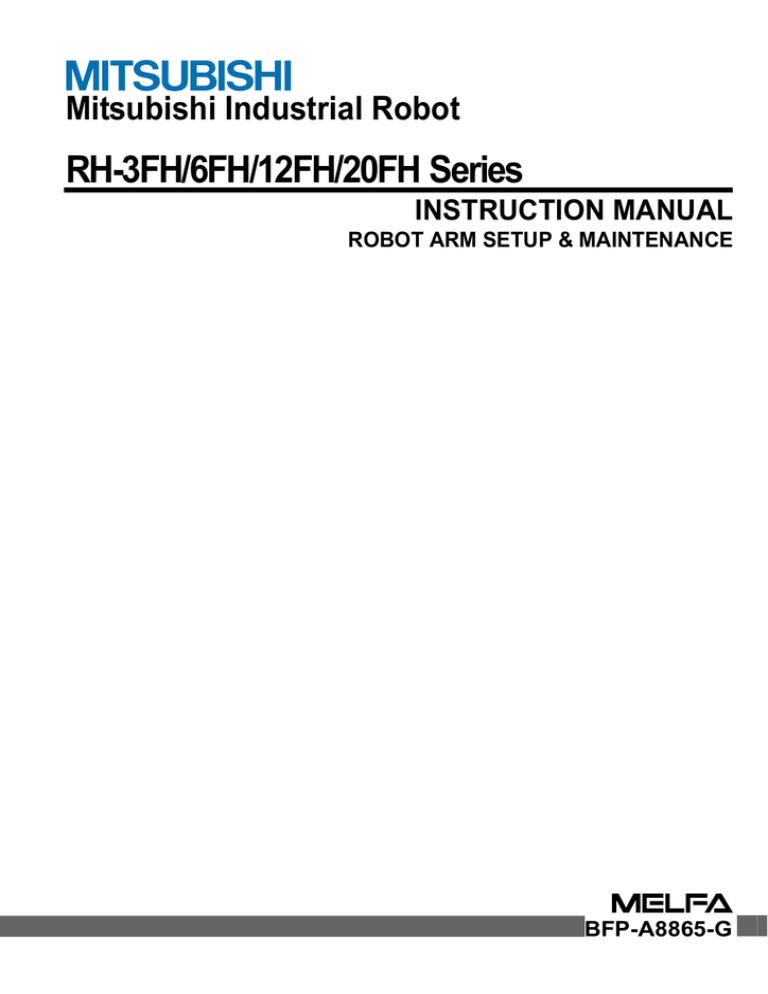

Mitsubishi Industrial Robot

RH-3FH/6FH/12FH/20FH Series

INSTRUCTION MANUAL

ROBOT ARM SETUP & MAINTENANCE

BFP-A8865-G

Safety Precautions

Always read the following precautions and the separate "Safety

Manual" before starting use of the robot to learn the required measures to be taken.

CAUTION

CAUTION

WARNING

CAUTION

WARNING

CAUTION

CAUTION

CAUTION

All teaching work must be carried out by an operator who has received special training. (This also applies to maintenance work with the power source turned

ON.)

Enforcement of safety training

For teaching work, prepare a work plan related to the methods and procedures of operating the robot, and to the measures to be taken when an error occurs or when restarting. Carry out work following this plan. (This also applies to maintenance work with the power source turned ON.)

Preparation of work plan

Prepare a device that allows operation to be stopped immediately during teaching work. (This also applies to maintenance work with the power source turned ON.)

Setting of emergency stop switch

During teaching work, place a sign indicating that teaching work is in progress on the start switch, etc. (This also applies to maintenance work with the power source turned ON.)

Indication of teaching work in progress

Provide a fence or enclosure during operation to prevent contact of the operator and robot.

Installation of safety fence

Establish a set signaling method to the related operators for starting work, and follow this method.

Signaling of operation start

As a principle turn the power OFF during maintenance work. Place a sign indicating that maintenance work is in progress on the start switch, etc.

Indication of maintenance work in progress

Before starting work, inspect the robot, emergency stop switch and other related devices, etc., and confirm that there are no errors.

Inspection before starting work

The points of the precautions given in the separate "Safety Manual" are given below.

Refer to the actual "Safety Manual" for details.

CAUTION

Use the robot within the environment given in the specifications. Failure to do so could lead to a drop or reliability or faults. (Temperature, humidity, atmosphere, noise environment, etc.)

CAUTION

Transport the robot with the designated transportation posture. Transporting the robot in a non-designated posture could lead to personal injuries or faults from dropping.

CAUTION

Always use the robot installed on a secure table. Use in an instable posture could lead to positional deviation and vibration.

CAUTION

Wire the cable as far away from noise sources as possible. If placed near a noise source, positional deviation or malfunction could occur.

CAUTION

Do not apply excessive force on the connector or excessively bend the cable.

Failure to observe this could lead to contact defects or wire breakage.

CAUTION

Make sure that the workpiece weight, including the hand, does not exceed the rated load or tolerable torque. Exceeding these values could lead to alarms or faults.

WARNING

Securely install the hand and tool, and securely grasp the workpiece. Failure to observe this could lead to personal injuries or damage if the object comes off or flies off during operation.

WARNING

Securely ground the robot and controller. Failure to observe this could lead to malfunctioning by noise or to electric shock accidents.

CAUTION

Indicate the operation state during robot operation. Failure to indicate the state could lead to operators approaching the robot or to incorrect operation.

WARNING

When carrying out teaching work in the robot's movement range, always secure the priority right for the robot control. Failure to observe this could lead to personal injuries or damage if the robot is started with external commands.

CAUTION

Keep the jog speed as low as possible, and always watch the robot. Failure to do so could lead to interference with the workpiece or peripheral devices.

CAUTION

After editing the program, always confirm the operation with step operation before starting automatic operation. Failure to do so could lead to interference with peripheral devices because of programming mistakes, etc.

CAUTION

Make sure that if the safety fence entrance door is opened during automatic operation, the door is locked or that the robot will automatically stop. Failure to do so could lead to personal injuries.

CAUTION

Never carry out modifications based on personal judgments, or use nondesignated maintenance parts.

Failure to observe this could lead to faults or failures.

WARNING

When the robot arm has to be moved by hand from an external area, do not place hands or fingers in the openings. Failure to observe this could lead to hands or fingers catching depending on the posture.

CAUTION

CAUTION

CAUTION

Do not stop the robot or apply emergency stop by turning the robot controller's main power OFF. If the robot controller main power is turned OFF during automatic operation, the robot accuracy could be adversely affected. Moreover, it may interfere with the peripheral device by drop or move by inertia of the arm.

Do not turn off the main power to the robot controller while rewriting the internal information of the robot controller such as the program or parameters.

If the main power to the robot controller is turned off while in automatic operation or rewriting the program or parameters, the internal information of the robot controller may be damaged.

Use the network equipments (personal computer, USB hub, LAN hub, etc) confirmed by manufacturer. The thing unsuitable for the FA environment

(related with conformity, temperature or noise) exists in the equipments connected to USB. When using network equipment, measures against the noise, such as measures against EMI and the addition of the ferrite core, may be necessary. Please fully confirm the operation by customer. Guarantee and maintenance of the equipment on the market (usual office automation equipment) cannot be performed.

*CR751-D or CR751-Q controller

Notes of the basic component are shown.

CAUTION

Please install the earth leakage breaker in the primary side supply power supply of the controller of CR751-D or CR751-Q because of leakage protection.

AC200V

Earth leakage breaker

(NV)

保護アース端子

(PE)

CAUTION

Be careful of interference with peripheral equipment.

Especially don't give a shock to the shaft (J3 axis). When you install the hand, be careful not to knock at the shaft end by the hammer etc. The shaft may be damaged.

Take care also of the following items.

(1)The robot's locus of movement may change with specified speed.

Especially as for the corner section, short cut distance may change. Therefore, when beginning automatic operation, moves at low speed at first, and you should gather speed slowly with being careful of interference with peripheral equipment.

Short cut

Arch movement (example)

(2)It can be confirmed whether the specified position exist in the defined area by using the instruction command "Zone". It can utilize as one of the methods for collision evasion. Refer to the

"detailed description of the instructions manual/function, and operation" of the separate volume for the details of the instruction command.

Revision history

Date of Point Instruction Manual No.

2012-03-13

2012-04-25

BFP-A8865

BFP-A8865-A

2012-05-28

2012-08-31

2012-10-04

2012-11-20

2013-01-21

2013-03-21

BFP-A8865-B

BFP-A8865-C

BFP-A8865-D

BFP-A8865-E

BFP-A8865-F

BFP-A8865-G

Revision Details

・ First print

・ RH-3FH series robot arm mass was corrected.

・ The attention seal illustration of the 2.2.2 transportation point was corrected.

・ The RH-6FH series transportation position was corrected.

・ The Note was added to Fig.5-4: Installing/removing the cover.

・ The CE marking specification was added.

・ RH-12FH/20FH series robot arm mass was added.

・ "Installation bolt for machine-cable"was added to Standard configuration of RH-3FH

・ The size of the ground cable was corrected. (error in writing, formerly

"AWG#11(3.5mm2) or more")

・ The grease for application to the shaft of CE specification was corrected. (RH-3FH/

6FH)

・ Removing the No.2 arm cover U was added, in J3 and J4 axis origin setting (mechanical stopper) of RH-3FH series.

・ The installing procedure of Hand internal wiring and piping set of RH-6FH series was changed.

・ "How to input symbols" was added to "(5) Inputting the origin data".

・ The notes about installation of the controller and the robot arm were added. (neither direct rays nor the heat of lighting)

・ The lithium battery type was corrected to "Table 5-9: Consumable part list".

・ The statement about trademark registration was added.

・ The metal plate which fixes "Hand internal wiring and piping set (option)" was changed to attachment of the robot arm in standard.

・The connectors of RH-3FH series machine cable (AMP1, AMP2, BRK) were combined as

CN1 connector.

・ ”Table 5-1: Inspection schedule” was corrected.

*Introduction

Thank you for purchasing the Mitsubishi industrial robot.

This instruction manual explains the method of unpacking, installation and maintenance and inspection of the robot arm.

Always read through this manual before starting use to ensure correct usage of the robot.

The information contained in this document has been written to be accurate as much as possible. Please interpret that items not described in this document "cannot be performed."

This document explains for the following robot type.

Robot type ・ RH-3FH series

・ RH-6FH series

・ RH-12FH series

・ RH-20FH series

・ No part of this manual may be reproduced by any means or in any form, without prior consent from

Mitsubishi.

・ The details of this manual are subject to change without notice.

・ The information contained in this document has been written to be accurate as much as possible.

Please interpret that items not described in this document "cannot be performed." or "alarm may occur".

Please contact your nearest dealer if you find any doubtful, wrong or skipped point.

・ This specifications is original.

・ Company names and production names in this document are the trademarks or registered trademarks of their respective owners.

Copyright(C) 2012-2013 MITSUBISHI ELECTRIC CORPORATION

CONTENTS

Page

1

Before starting use .......................................................................................................................... 1-1

1.1 Using the instruction manuals ................................................................................................... 1-1

1.1.1 The details of each instruction manuals ............................................................................... 1-1

1.1.2 Symbols used in instruction manual .................................................................................... 1-2

1.2 Safety Precautions .................................................................................................................... 1-3

1.2.1 Precautions given in the separate Safety Manual ................................................................ 1-4

2 Unpacking to Installation .............................................................................................................................................................. 2-6

2.1 Confirming the product ......................................................................................................................................................... 2-6

2.2 Installation .................................................................................................................................................................................. 2-7

2.2.1 Unpacking ............................................................................................................................................................................ 2-7

2.2.2 Transportation procedures (RH-3FH/6FH series) ............................................................................................ 2-8

2.2.3 :Transportation procedures (RH-12FH/20FH series) ...................................................................................... 2-9

2.2.4 Installation procedures ................................................................................................................................................ 2-10

2.2.5 Grounding procedures .................................................................................................................................................. 2-12

(1) Grounding methods ................................................................................................................................................... 2-12

(2) Grounding procedures ............................................................................................................................................. 2-12

2.2.6 Connecting with the controller ................................................................................................................................ 2-13

(1) RH-3FH series (No-CE specification) .............................................................................................................. 2-13

(2) RH-6FH/12FH/20FH series, and RH-3FH-S15 (CE specification) ..................................................... 2-15

2.2.7 Ethernet Cables .............................................................................................................................................................. 2-17

2.2.8 No.2 arm ............................................................................................................................................................................ 2-17

2.2.9 Base area .......................................................................................................................................................................... 2-18

2.2.10 About oil mist specification ..................................................................................................................................... 2-20

(1) Piping for pressurization inside robot arm ...................................................................................................... 2-20

2.2.11 About clean specification ......................................................................................................................................... 2-20

(1) Piping for suction inside robot arm .................................................................................................................... 2-20

(2) Duct installation ......................................................................................................................................................... 2-21

2.3 Setting the origin ................................................................................................................................................................... 2-22

2.3.1 Installing the teaching pendant (T/B) ................................................................................................................... 2-22

(1) Installing the T/B (CR750 controller) ............................................................................................................... 2-22

(2) Installing the T/B (CR751 controller) ............................................................................................................... 2-23

2.3.2 Setting the origin with the origin data input method ...................................................................................... 2-24

(1) Confirming the origin data ..................................................................................................................................... 2-24

(2) Turning ON the control power ............................................................................................................................. 2-24

(3) Preparing the T/B ..................................................................................................................................................... 2-25

(4) Selecting the origin setting method ................................................................................................................... 2-26

(5) Inputting the origin data ......................................................................................................................................... 2-27

(6) Installing the battery cover. .................................................................................................................................. 2-28

2.4 Confirming the operation .................................................................................................................................................... 2-29

(1) JOINT jog operation ................................................................................................................................................. 2-33

(2) XYZ jog operation ...................................................................................................................................................... 2-35

(3) TOOL jog operation .................................................................................................................................................. 2-37

(4) 3-axis XYZ jog operation ....................................................................................................................................... 2-39

(5) CYLNDER jog operation ......................................................................................................................................... 2-41

(6)

Work jog operation ......................................................................................................... 2-42

3 Installing the option devices ..................................................................................................................................................... 3-48

3.1 Installing the solenoid valve set ...................................................................................................................................... 3-48

(1) RH-3FH/6FH series ................................................................................................................................................. 3-48

(2) RH-12FH/20FH series ............................................................................................................................................ 3-50

(3) Hand number and solenoid valve ports (common to RH-FH series) ................................................... 3-51

3.2 Installing the hand input cable ......................................................................................................................................... 3-52

3.3 Installing the hand output cable ...................................................................................................................................... 3-53

3.4 Hand internal wiring and piping set ................................................................................................................................ 3-54

(1) RH-3FH/6FH series ................................................................................................................................................. 3-54

i

ii

CONTENTS

Page

(2) RH-12FH/20FH series ............................................................................................................................................ 3-57

3.5 External Wiring and Piping Box ........................................................................................................................................ 3-59

4 Basic operations ............................................................................................................................................................................ 4-61

5 Maintenance and Inspection ..................................................................................................................................................... 5-62

5.1 Maintenance and inspection interval ............................................................................................................................. 5-62

5.2 Inspection items ..................................................................................................................................................................... 5-63

5.2.1 Daily inspection items .................................................................................................................................................. 5-63

5.2.2 Periodic inspection ........................................................................................................................................................ 5-64

5.3 Maintenance and inspection procedures ..................................................................................................................... 5-65

5.3.1 Robot arm structure ..................................................................................................................................................... 5-65

5.3.2 Installing/removing the cover ................................................................................................................................... 5-67

5.3.3 Packing Replacement Procedure ............................................................................................................................ 5-69

(1) Packing Replacement Instructions ..................................................................................................................... 5-69

5.3.4 Inspection, maintenance and replacement of timing belt .............................................................................. 5-73

(1) Timing belt replacement period ......................................................................................................................... 5-73

(2) RH-3FH series: Inspecting/Adjusting the J3 axis timing belt ................................................................ 5-74

(3) RH-3FH series: Replacing the J3 axis timing belt ...................................................................................... 5-75

(4) RH-6FH/12FH/20FH series: Inspecting/Adjusting the J3 axis timing belt ..................................... 5-78

(5) RH-6FH/12FH/20FH series: Replacing the J3 axis timing belt ............................................................ 5-79

(6) RH-3FH/6FH/12FH/20FH series: Inspecting/Adjusting the J4 axis timing belt ........................... 5-81

(7) Timing belt tension ................................................................................................................................................... 5-84

5.3.5 Replacing the bellows ................................................................................................................................................... 5-85

(1) Clean specification ................................................................................................................................................... 5-85

(2) Oil mist specification ............................................................................................................................................... 5-86

5.3.6 Lubrication ........................................................................................................................................................................ 5-87

(1) Lubrication position and specifications ............................................................................................................ 5-87

(2) Lubrication method to the J1, J2, axis ............................................................................................................ 5-88

(3) Lubrication method to the shaft ......................................................................................................................... 5-88

5.3.7 Replacing the backup battery ................................................................................................................................... 5-90

(1) Replacing the battery (robot arm) ...................................................................................................................... 5-91

5.4 About Overhaul ...................................................................................................................................................................... 5-92

5.5 Maintenance parts ................................................................................................................................................................. 5-93

5.6 Resetting the origin .............................................................................................................................................................. 5-95

5.6.1 Mechanical stopper method ...................................................................................................................................... 5-96

(1) J1 axis origin setting(mechanical stopper) ..................................................................................................... 5-96

(2) J2 axis origin setting(mechanical stopper) ..................................................................................................... 5-98

(3) J3 and J4 axis origin setting (mechanical stopper) ................................................................................. 5-100

(4) All axis origin setting ............................................................................................................................................. 5-103

5.6.2 Jig method ..................................................................................................................................................................... 5-104

(1) J1 axis origin setting ............................................................................................................................................. 5-105

(2) J2 axis origin setting ............................................................................................................................................. 5-107

(3) J3 and J4 axis origin setting ............................................................................................................................. 5-108

5.6.3 ABS origin method ..................................................................................................................................................... 5-109

(1) Select the T/B ........................................................................................................................................................ 5-110

5.6.4 User origin method ..................................................................................................................................................... 5-111

5.6.5 Recording the origin data ........................................................................................................................................ 5-113

(1) Confirming the origin data label ........................................................................................................................ 5-113

(2) Confirming the origin data .................................................................................................................................. 5-113

(3) Recording the origin data .................................................................................................................................... 5-113

(4) Installing the cover ................................................................................................................................................ 5-113

6Appendix ............................................................................................................................................................................ Appendix-114

Appendix 1 : Configuration flag .......................................................................................................................... Appendix-114

1Before starting use

1 Before starting use

This chapter explains the details and usage methods of the instruction manuals, the basic terminology and the safety precautions.

1.1 Using the instruction manuals

1.1.1 The details of each instruction manuals

The contents and purposes of the documents enclosed with this product are shown below. Use these documents according to the application.

For special specifications, a separate instruction manual describing the special section may be enclosed.

Safety Manual

Explains the common precautions and safety measures to be taken for robot handling, system design and manufacture to ensure safety of the operators involved with the robot.

Standard

Specifications

Explains the product's standard specifications, factory-set special specifications, option configuration and maintenance parts, etc. Precautions for safety and technology, when incorporating the robot, are also explained.

Robot Arm

Setup &

Maintenance

Explains the procedures required to operate the robot arm (unpacking, transportation, installation, confirmation of operation), and the maintenance and inspection procedures.

Controller

Setup, Basic

Operation and

Maintenance

Detailed

Explanation of

Functions and

Operations

Troubleshooting

Explains the procedures required to operate the controller (unpacking, transportation, installation, confirmation of operation), basic operation from creating the program to automatic operation, and the maintenance and inspection procedures.

Explains details on the functions and operations such as each function and operation, commands used in the program, connection with the external input/output device, and parameters, etc.

Explains the causes and remedies to be taken when an error occurs. Explanations are given for each error No.

Additional axis function

Explains the specifications, functions and operations of the additional axis control.

Tracking Function Manual

Explains the control function and specifications of conveyor tracking

Extended Function Instruction Manual

Explains the detailed description of data configuration of shared memory, monitoring, and operating procedures, about the PLC(CR750-Q/CR751-Q controller) and the GOT(CR750-

D/CR751-D controller).

Using the instruction manuals 1-1

1Before starting use

1.1.2 Symbols used in instruction manual

The symbols and expressions shown in

Table 1-1 are used throughout this instruction manual. Learn the

meaning of these symbols before reading this instruction manual.

Table 1-1:Symbols in instruction manual

Terminology Item/Symbol iQ Platform

Controller

Meaning

Item

The robot CPU unit or robot CPU

The robot CPU system

Indicates the controller which controls the robot arm.

It consists of the robot CPU system and the drive unit.

Indicates the CPU unit for the robots which installed to the sequencer base unit (Q3 □ DB) of MELSEC-Q series. It is connected with the drive unit by the dedicated cable.

Multi-CPU system.

It consists of MELSEC units, such as the sequencer base unit, the sequencer CPU unit, and the robot CPU unit, etc.

Indicates the box which mounts the servo amplifier for robot, and the safety circuit, etc.

Item

Drive unit

Stand-alone type

Controller

Symbol

DANGER

WARNING

CAUTION

[JOG]

[RESET] + [EXE]

(A) (B)

T/B

O/P

Indicates the box which arranged control parts, such as robot CPU, servo amplifier, and the safety circuit.

Precaution indicating cases where there is a risk of operator fatality or serious injury if handling is mistaken. Always observe these precautions to safely use the robot.

Precaution indicating cases where the operator could be subject to fatalities or serious injuries if handling is mistaken. Always observe these precautions to safely use the robot.

Precaution indicating cases where operator could be subject to injury or physical damage could occur if handling is mistaken. Always observe these precautions to safely use the robot.

If a word is enclosed in brackets or a box in the text, this refers to a key on the teaching pendant.

This indicates to press the (B) key while holding down the (A) key.

In this example, the [RESET] key is pressed while holding down the

[EXE] key.

This indicates the teaching pendant.

Indicates the operating panel on the front of controller or drive unit for the controller which installed the operating panel

1-2 Using the instruction manuals

1Before starting use

1.2 Safety Precautions

Always read the following precautions and the separate "Safety Manual" before starting use of the robot to learn the required measures to be taken.

CAUTION

All teaching work must be carried out by an operator who has received special training. (This also applies to maintenance work with the power source turned ON.)

Enforcement of safety training

CAUTION

For teaching work, prepare a work plan related to the methods and procedures of operating the robot, and to the measures to be taken when an error occurs or when restarting. Carry out work following this plan. (This also applies to maintenance work with the power source turned ON.)

Preparation of work plan

WARNING

Prepare a device that allows operation to be stopped immediately during teaching work. (This also applies to maintenance work with the power source turned ON.)

Setting of emergency stop switch

CAUTION

During teaching work, place a sign indicating that teaching work is in progress on the start switch, etc. (This also applies to maintenance work with the power source turned ON.)

Indication of teaching work in progress

DANGER

Provide a fence or enclosure during operation to prevent contact of the operator and robot.

Installation of safety fence

CAUTION

Establish a set signaling method to the related operators for starting work, and follow this method.

Signaling of operation start

CAUTION

As a principle turn the power OFF during maintenance work. Place a sign indicating that maintenance work is in progress on the start switch, etc.

Indication of maintenance work in progress

CAUTION

Before starting work, inspect the robot, emergency stop switch and other related devices, etc., and confirm that there are no errors.

Inspection before starting work

Safety Precautions 1-3

1Before starting use

1.2.1 Precautions given in the separate Safety Manual

The points of the precautions given in the separate "Safety Manual" are given below.

Refer to the actual "Safety Manual" for details.

DANGER

If the automatic operation of the robot is operated by two or more control equipment, design the right management of operation of each equipment of the customer.

CAUTION

Use the robot within the environment given in the specifications. Failure to do so could lead to a drop or reliability or faults. (Temperature, humidity, atmosphere, noise environment, etc.)

CAUTION

Transport the robot with the designated transportation posture. Transporting the robot in a non-designated posture could lead to personal injuries or faults from dropping.

CAUTION

Always use the robot installed on a secure table. Use in an instable posture could lead to positional deviation and vibration.

CAUTION

Wire the cable as far away from noise sources as possible. If placed near a noise source, positional deviation or malfunction could occur.

CAUTION

Do not apply excessive force on the connector or excessively bend the cable.

Failure to observe this could lead to contact defects or wire breakage.

CAUTION

Make sure that the workpiece weight, including the hand, does not exceed the rated load or tolerable torque. Exceeding these values could lead to alarms or faults.

WARNING

Securely install the hand and tool, and securely grasp the workpiece. Failure to observe this could lead to personal injuries or damage if the object comes off or flies off during operation.

WARNING

Securely ground the robot and controller. Failure to observe this could lead to malfunctioning by noise or to electric shock accidents.

CAUTION

Indicate the operation state during robot operation. Failure to indicate the state could lead to operators approaching the robot or to incorrect operation.

WARNING

When carrying out teaching work in the robot's movement range, always secure the priority right for the robot control. Failure to observe this could lead to personal injuries or damage if the robot is started with external commands.

CAUTION

Keep the jog speed as low as possible, and always watch the robot. Failure to do so could lead to interference with the workpiece or peripheral devices.

CAUTION

After editing the program, always confirm the operation with step operation before starting automatic operation. Failure to do so could lead to interference with peripheral devices because of programming mistakes, etc.

Make sure that if the safety fence entrance door is opened during automatic operation, the door is locked or that the robot will automatically stop. Failure to do so could lead to personal injuries.

CAUTION

Never carry out modifications based on personal judgments, or use non-designated maintenance parts.

Failure to observe this could lead to faults or failures.

WARNING

When the robot arm has to be moved by hand from an external area, do not place hands or fingers in the openings. Failure to observe this could lead to hands or fingers catching depending on the posture.

1-4 Safety Precautions

1Before starting use

CAUTION

Do not stop the robot or apply emergency stop by turning the robot controller's main power OFF.

If the robot controller main power is turned OFF during automatic operation, the robot accuracy could be adversely affected.

CAUTION

DANGER

When the SSCNETIII cable is removed, install the cap in the connector.

If the cap is not installed, there is a possibility of malfunctioning by adhesion of the dust etc.

DANGER

Do not turn off the main power to the robot controller while rewriting the internal information of the robot controller such as the program or parameters. If the main power to the robot controller is turned off while in automatic operation or rewriting the program or parameters, the internal information of the robot controller may be damaged.

Don't remove the SSCNETIII cable, when the power supply of the robot controller is turned on. Don't face squarely the light emitted from the tip of the SSCNETIII connector or the cable. If light strikes the eyes, there is a possibility of feeling the sense of incongruity for the eyes. (The light source of SSCNETIII is equivalent to the class

1 specified to JIS C 6802 and IEC 60825-1.)

CAUTION

Make sure there are no mistakes in the wiring. Connecting differently to the way specified in the manual can result in failures, such as the emergency stop not being released. In order to prevent from occurring, please be sure to check that all functions (such as the teaching box emergency stop, customer emergency stop, and door switch) are working properly after the wiring setup is completed

Safety Precautions 1-5

2Unpacking to Installation

2 Unpacking to Installation

2.1 Confirming the product

The standard configuration of the robot arm, part of the purchased product, is shown in

Table 2-1

.

Confirm the parts.

Users who have purchased optional products should refer to the separate "Standard Specifications".

Table 2-1 : Standard configuration

No. Part name Type Qty. Remarks

RH-3FH series

1 Robot arm

2 Guarantee card

3 Installation bolts

4 Spring washer for installation bolts

5 Plain washer for installation bolts

6 Fixing plates

7 Fixing plates installation bolt

8 Installation bolt for machine-cable

RH-6FH series

1 Robot arm

2 Guarantee card

3 Installation bolts

4 Spring washer for installation bolts

5 Plain washer for installation bolts

6 Fixing plates

7 Fixing plates installation bolt

RH-12FH/20FH series

1 Robot arm

2 Guarantee card

3 Installation bolts

4 Spring washer for installation bolts

5 Plain washer for installation bolts

6 Fixing plates

7 Fixing plates installation bolt

8 Hanging jig

M8 x 40

For M8

For M8

M4 x 8

M12 x 45

For M12

For M12

M12×45

For M12

For M12

1 unit

1 copy

4 pcs.

4 pcs.

4 pcs.

1 set

1 set

4 pcs.

For robot arm installation

For robot arm transportation

To fix to the back of robot arm base

1 unit

1 copy

4 pcs.

4 pcs.

For robot arm installation

4 pcs.

1 set

1 set

For robot arm transportation

1 unit

1 copy

4 pcs

4 pcs

For robot arm installation

4 pcs

1 set

1 set

1 set

For robot arm transportation

9 Hanging jig fixing bolt 1 set

Note1) The numbers 3 to 5 are contained in the plastic bag of attachment in the robot arm.

2-6

Confirming the product

2Unpacking to Installation

2.2 Installation

2.2.1 Unpacking

Fixing

固定台

(a)

(b)

③六角穴付ボルト

(4箇所)

!

CAUTION

!

robot at a flat place.

The robot could tilt over if unpacked at an unstable place.

(c)

Fig.2-1 : Unpacking the robot arm

.The robot is shipped from the factory in cardboard and plywood frame packing. Always refer to

Fig. 2-1 and

unpack the robot.

CAUTION

Always unpack the robot at a flat place. The robot could tilt over if unpacked at an unstable place.

The unpacking process is shown below.

1) Using a knife, etc., slit the tape <1> fixing the upper lid <2> of the cardboard box. (

Fig. 2-1 (a)

)

2) Pull the upper lid <2> of the cardboard box off with both hands. ( Fig. 2-1 (b)

)

3) Remove the hexagon socket bolts <3> (four positions) which fix the robot. (

Fig. 2-1 (c)

)

This completes the unpacking.

Note) The robot must be transported without removing the fixing plate A and B. Remove after installing.

CAUTION

When repackaging the robot in the wooden frame, always use the fixing plate.

Installation

2-7

2Unpacking to Installation

2.2.2 Transportation procedures (

RH-3FH/6FH series

)

No.2 arm

No.1 arm

(C)

(B)

Mass

RH-3FH35** series: Approx. 31kg

RH-3FH45** series: Approx. 32kg

RH-3FH55** series: Approx. 33kg

RH-6FH35** series: Approx. 39kg

RH-6FH45** series: Approx. 40kg

RH-6FH55** series: Approx. 41kg

注意  CAUTION

VORSICHT

(A)

Fixing plate B

Fixing plate A

ロ ボ ッ ト の 運 搬 は 、 図 の 姿 勢 の よ う に

2 人 で お こ な っ て く だ さ い 。

T h e r o b o t m u s t a l w a y s b e t r a n s p o r t e d b y t w o w o r k e r s .

B e i e i n e m T r a n s p o r t s o l l t e d e r R o b o t e r v o n 2

P e r s o n e n a n d e n i n d e r

A b b i l d u n g g e z e i g t e n S t e l l e n a n g e h o b e n w e r d e n .

Fig.2-2 : Transportation of robot arm

1) The robot must be transported by two workers with putting the fixing plate A and B. Place the robot on a cart, etc., and move it to near the installation place. Transporting the robot with the following should be lim

ited to placing the robot on the frame or cart, and to positioning.

2) When transporting the robot arm, one person should hold the fixing plate A of No.2 arm (A) and No.2 arm (B) and another person should hold the fixing plate A of base (C). When transporting the robot, do not apply force to the cover, or apply a strong shock on the robot.

3) Remove the fixtures after installing the robot.

CAUTION

To prevent accidents, do not hold the robot from the left/right sides, or hold covers that have no grips .

CAUTION

Be careful not to apply force to the shaft section (J3 axis). The shaft may be damaged and the overload error may occur at the time of movement.

CAUTION

When installing the fixing tool again, place the robot in the posture where each axis shows the values listed in the table below.

CAUTION

The robot should keep vertical. (not be horizontal)

It becomes the cause of the grease leakage or the trouble.

Table 2-2 : Transportation posture

Axis

J 1

J 2

J 3

J 4

RH-3FH35**

49.5 deg.

-139.5 deg.

RH-3FH45**

25 deg.

-115 deg.

290.4mm

Not fixed

RH-3FH55**

17 deg.

-107 deg.

RH-6FH35**

57.5 deg.

-147.5 deg.

RH-6FH45**

28 deg.

-118 deg.

290.4mm

Not fixed

RH-6FH55**

19 deg.

-109 deg.

2-8

Installation

2Unpacking to Installation

2.2.3

:

Transportation procedures (

RH-12FH/20FH series) wire

No.2 arm

Mass

RH-12FH55** series: Approx. 65kg

RH-12FH70** series: Approx. 67kg

RH-12FH85** series: Approx. 69kg

RH-20FH85** series: Approx. 75kg

RH-20FH100** series: Approx. 77kg wire hook

Eye bolt

Suspension fitting

No.1 arm

Fixing plate

Base

Self-supporting plate

Fig.2-3 : Transportation of robot arm

1) Hook the wires to each of the four eyebolts attached to the suspension fitting. (Make sure the bolts are securely hooked.)

2) Lift with a crane to transport the robot to the designated location.

3) At this time, make sure that the wires, etc., do not interfere with the robot arm or the covers. Always place the cloth, etc., at interfering places.

4) Be careful not to subject the robot to physical shock during transport.

5) After installing the robot (refer to Page 10, "2.2.4 Installation procedures"

), remove the wires, the wire

hooks (the robot will stand by itself as shown in Fig. 2-3

), the self-supporting plate, suspension fitting and fixing plate.

6) Always follow the above procedures and methods to transport the robot for secondary transportation, such as when changing the installation position.

If the arm is directly suspended without using the specified suspension fittings, or if it is suspended in the work posture, the configuration devices could be damaged, and the transportation workers will be subject to risk due to an inadequate center of gravity position.

CAUTION

When transporting a robot, always attach four wires.

CAUTION

To reattach the fixing plate again, set the axes of the robot to the positions according to the table below.

表 2-3 : Transportation posture (RH-12FH/20FH series)

Axis RH-12FH55** RH-12FH70** RH-12FH85** RH-20FH85** RH-20FH100**

J1

J2

J3

Note1)

J4

-37.5°

127.5°

-21.4°

111.4°

340mm

Not fixed

-15.1°

105.1°

-21.0°

111.0°

Note1) The bottom surface of the shaft will interfere with the floor if the J3 axis is lowered down to the upper mechanical stopper. Position the axes as indicated when transporting the robot.

Installation 2-9

2Unpacking to Installation

2.2.4 Installation procedures

The installation procedure of the robot arm is shown below.

4-M8x40 (RH-3FH/6FH series)

4-M8×40

(4箇所)

<Base bottom>

RH-3FH/6FH series

2-φ6 holes

2-φ6穴

(φ8位置決めピン用下穴)

(Installation ref-

(据付基準)

Rz25

20

92

90

150

60

212

(120)

RH-12FH/20FH series

2-φ6 holes

2-φ6穴

(φ8位置決めピン用下穴)

(Installation ref-

(据付基準)

Rz25

122

120

200

60

280

(158)

Fig.2-4 : Installation dimensions

1) The robot installation surface has been machine finished. Use the installation holes (RH-6FH: 4-φ9 holes,

RH-12FH/20FH: 4-φ16 holes) opened at the four corners of the base, and securely fix the robot with the enclosed installation bolts (hexagon socket bolts).

2) Install the robot on a level surface.

3) It is recommended that the surface roughness of the table onto which the robot is to be installed by Rz25 or more. If the installation surface is rough, the contact with the table will be poor, and positional deviation could occur when the robot moves.

4) When installing, use a common table to prevent the position of the devices and jigs subject to robot work from deviating.

5) The installation surface must have sufficient strength to withstand the arm reaction during operation, and resistance against deformation and vibration caused by the static (dynamic) load of the robot arm and peripheral devices, etc.

6) After installing the robot, remove the self-supporting plate, hanging jig, and fixing plate.

7) If you operate the robot at a high speed, reaction forces are applied to the installation stand by the robot's operation. Make sure that the installation stand on which the robot is placed has sufficient strength and

2-10

Installation

2Unpacking to Installation

rigidity. Table 2-4

shows the maximum reaction force (design values) that may be applied to an installation stand. Please use these values as reference when designing the installation stand.

Table 2-4 : Magnitude of each reaction force

Unit Value

RH-3FH series

Tilt moment

: M

L

Torsional moment

: M

T

Horizontal direction translation force

: F

H

Vertical direction translation force : F

V

RH-6FH series

Tilt moment

: M

L

Torsional moment

: M

T

Horizontal direction translation force

: F

H

Vertical direction translation force : F

V

RH-12FH/20FH series

Tilt moment

: M

L

Torsional moment

: M

T

Horizontal direction translation force

: F

H

Vertical direction translation force : F

V

N ・ m

N ・ m

N

N

N ・ m

N ・ m

N

N

N ・ m

N ・ m

N

N

240

255

810

380

1,640

710

1,653

2,318

3,190

1,840

2,240

5,500

CAUTION

When installing the robot, secure enough space behind the robot for future maintenance to allow the connection of cables and the replacement of the backup battery. And don't install the robot arm in the position where direct rays or the heat of lighting hits. The skin temperature of the robot arm may rise, and the error may occur.

Installation 2-11

2Unpacking to Installation

2.2.5 Grounding procedures

(1) Grounding methods

Robot arm

Controller and personal computer

Robot arm

Controller and personal computer

(a) Dedicated grounding

(Optimum)

(b) Common grounding

(Good)

Robot arm

Controller and personal computer

(c) Common grounding

(Normal)

1) There are three grounding methods as shown in

Fig. 2-5 , but the dedicated grounding ( Fig. 2-5 (a)

) should be used for the robot arm and controller when possible. (Refer to the separate " Controller

Setup, Basic Operation and Maintenance" for details on the controller grounding.)

2) Use Class D grounding (grounding resistance

100Ω or less).

Dedicated grounding separated from the other devices should be used.

3) Use a AWG#11(4.2mm

2

) or more stranded wire for the grounding wire. The grounding point should be as close to the robot arm and controller as possi

ble, and the length of the grounding wire should be short.

Fig.2-5 : Grounding methods

(2) Grounding procedures

M4×10

1) Prepare the grounding cable (AWG#11(4.2mm

2

) or more) and robot side installation screw and washer.

2) If there is rust or paint on the grounding screw sec

tion (A), remove it with a file, etc.

3) Connect the grounding cable to the grounding screw section.

A

Robot grounding cable (AWG#11 (4.2mm

) or more)

Fig.2-6 : Connecting the grounding cable

2-12

Installation

2Unpacking to Installation

2.2.6 Connecting with the controller

(1) RH-3FH series (No-CE specification)

Note 1)

AMP1 AMP2 BRK

CN2

Two fixing screws

(固定用 2本)

CN1

AMP1

AMP2 CN2

Note 1) Although the picture is the CR751-D controller, also the connection method is the same in the CR751-Q controller

Controller side

Machine cables

Hollow

Cable clamp fixing plate

The each boards are fixed in the condition of having been inserted in the hollow.

The cables are passed

into the opening

Fig.2-7 : Connecting the machine cables (RH-3FH, No-CE specification)

Robot arm side

Plate fixing the cable clamp

(two plates)

Carry out the following procedure after installing the controller referring to the separate "Controller Setup, Basic

Operation and Maintenance" manual.

The procedure of connecting the machine cable is shown below.

1) Make sure that the power switch of the controller is turned OFF.

2) Connect the machine cable to its corresponding connector on the robot arm side.

a) Refer to Page 67, "5.3.2 Installing/removing the cover" , and remove the CONBOX cover.

b) Feed the connector of robot side to the opening on the back of the robot base.

Installation 2-13

2Unpacking to Installation c) Insert the cable clamp fixing plate attached to the machine cable into the hollow just under the opening.

Fixing the plate by two screws securely under the condition that the plates inserted into the hollow.

d) Connect the machine cable to its corresponding connector on the robot arm side. Connect the connector

(AMP1, AMP2, CN2) securely.

e) Install the CONBOX cover securely as before.

3) Connects the machine cable to the corresponding connector of the controller. Connects the connector CN1

(AMP1, AMP2, BRK) and CN2 surely.

This completes connecting the machine cables.

CAUTION

The machine cable connectors are dedicated for the controller side and robot arm side, so take special care when connecting.

If connected incorrectly, the connector pins could bend or break. Thus, even if connected correctly, the robot will not operate correctly, creating a dangerous situation.

CAUTION

Take special care to the leading of the connection cable. If the cable is pulled with force or bent excessively, wires could break or the connector could be damaged.

CAUTION

Connect the machine cable at the place without the effect of the dust or oil mist.

Please keep the dust and oil mist from being applied to of the robot-arm connector section, in the condition that the machine cable is removed. Since it becomes the cause of failure.

CAUTION

Please be careful not to catch the hand at installation and removal.

2-14

Installation

2Unpacking to Installation

(2) RH-6FH/12FH/20FH series, and RH-3FH-S15 (CE specification)

The machine-cable connection method about the RH-6FH series and the CE Marking specification of RH-3FH is shown. Although the robot arm shown in the figure is RH-6FH, the connection method is the same also by the

CE specification of RH-3FH.

Note 1)

Note 1) Although the picture is the CR750-D controller, also the connection method is the same in the CR750-Q controller

Fig.2-8 : Connecting the machine cables (RH-6FH/12FH/20FH series and RH-3FH-S15 (CE specification))

Carry out the following procedure after installing the controller referring to the separate "Controller Setup, Basic

Operation and Maintenance" manual.

CAUTION

The machine cable connectors are dedicated for the controller side and robot arm side, so take special care when connecting.

If connected incorrectly, the connector pins could bend or break. Thus, even if connected correctly, the robot will not operate correctly, creating a dangerous situation.

CAUTION

Take special care to the leading of the connection cable. If the cable is pulled with force or bent excessively, wires could break or the connector could be damaged.

CAUTION

Connect the machine cable at the place without the effect of the dust or oil mist.

Please keep the dust and oil mist from being applied to of the robot-arm connector section, in the condition that the machine cable is removed. Since it becomes the cause of failure.

CAUTION

Please be careful not to catch the hand at installation and removal.

Installation 2-15

2Unpacking to Installation

Connector on the

Connector on the

The procedure of connecting the machine cable is shown below. (Although the figure of the robot arm is the example of

RV-12SD of our company, it is the same)

1) Make sure that the power switch on the front of the controller is turned OFF.

2) Connect the machine cable to its corresponding connector on the robot arm side.

3) After connecting the connector, insert the hook attached to the connector on the machine cable side to the rear of the projection of the robot arm connector to fix securely in place.

CAUTION

Be careful not to get your hand pinched.

Projection

Hook

Minus screwdriver

Padding

To remove the cable, insert a minus screwdriver into the hook while padding with a cloth, and remove the cable by lifting the hook.

CAUTION

When installing or removing the connector, to the connector of the other party in parallel, install or remove. If load strong against one side is applied, the connector pin may be damaged and it may not be connected securely.

CAUTION

The machine cable connectors are dedicated for the controller side and robot arm side, so take special care when connecting.

If connected incorrectly, the connector pins could bend or break. Thus, even if connected correctly, the robot will not operate correctly, creating a dangerous situation.

CAUTION

Take special care to the leading of the connection cable. If the cable is pulled with force or bent excessively, wires could break or the connector could be damaged.

CAUTION

Connect the machine cable at the place without the effect of the dust or oil mist.

Please keep the dust and oil mist from being applied to of the robot-arm connector section, in the condition that the machine cable is removed.   Since it becomes the cause of failure.

CAUTION

Please be careful not to catch the hand at installation and removal.

2-16

Installation

2Unpacking to Installation

2.2.7 Ethernet Cables

Ethernet cables (4 pairs, totaling 8 lines, of AWG#24 (0.2mm

2

) cabtyre cables) are installed within the robot arm from the base unit up to the No. 2 arm, and can be used.

LAN connectors are mounted to both ends of the cables, and can therefore be used to connect to LAN connection devices. Users may also remove the LAN connectors, replace them with their own connectors, and use them as spare wiring by connecting them to user supplied cables.

Further, when passing through the inside of the shaft and using, please use the optional hand internal wiring and piping set in order to prevent the cable disconnection. (Re-cover the connector of the hand input cable that is attached to this option before using)

2.2.8 No.2 arm

<a> Ethernet cable: 4 pairs, totaling 8 lines, of AWG#24 (0.2mm

2

)

When using as the Ethernet cable

LAN connector

Shaft

Customer prepared

When using as spare wiring

Cut the LAN connectors

Robot side

Customer prepared

Connect the customer's con-

Robot side

Note) When using by passing through the shaft, please use the optional hand internal wiring and piping set to prevent the cable disconnection.

Note) Although the figure is RH-6FH, the connection method is the same also in RH-3FH/12FH/20FH.

Fig.2-9 : Pulling out the Ethernet cable

How to connect the Ethernet cable is shown below.

1) Remove the screws used to fix the No. 2 arm cover U, and then remove the No. 2 arm cover U.

2) Ethernet cables are located in the positions shown in

Fig. 2-9

<a> (coiled and stored).

3) Remove the tying band used to coil the Ethernet cable.

4) Connect the cable on the customer supplied tool.

(When using as spare wiring please remove the LAN connectors and replace with customer's connector)

5) It is possible to use the optional hand internal wiring and piping set to feed the tool cable through the inside of the shaft.

Replace the connector of the hand input cable that is attached to the hand wiring and piping set, and then connect. Please reference

Page 54, "3.4 Hand internal wiring and piping set" .

6) After the optional hand wiring and piping set has been installed, install the No. 2 arm cover U to its original position. When installing the cover please take care not to damage the spongy sealant material.

This completed connection of the Ethernet cables on the No. 2 arm.

CAUTION

CAUTION

When installing the No. 2 arm cover U to its original position please take care not to trap any cables or air hoses. If the cables/hoses are trapped when fixing the cover then cables may be disconnected or hoses punctured, leading to the robot and air driving devices to not operate properly. The sealing property of the packing may also become seriously impaired and there is a risk that the specified level of product protection may not be achievable.

When fixing the cable, please keep too much load from being applied to the cables. If too much load is applied, the may break, when the robot moves.

Installation 2-17

2Unpacking to Installation

CAUTION

When operating the robot, friction may result in dust being generated from the tip of the shaft.

On the clean specification, please be sure to seal the shaft tip with a gasket. If this is not done there is a risk that the level of cleanliness will be reduced.

2.2.9 Base area

Expansion

Inside of ADD cover

Ethernet cable

Fix the Ethernet cable to the ADD cover by cable clamp.

* The recommendation the cable clamp

OA-W1608 (OHM ELECTRIC INC.)

[Note]: Measures against the noise

If the communication error considered to originate by the noise occurs, specify and remove the noise source.

And, implement the measures against the noise by grounding of the Ethernet cable, and the addition of the ferrite core if needed.

The recommendation the ferrite core

Type: E04SR301334

(SEIWA ELECTRIC MFG. CO., LTD.)

Fig.2-10 : Pull out the Ethernet cable (Base side)

1) Loosen the two screws and remove the ADD cover located at the back of the robot base.

2) Pull out the Ethernet cable that is stored inside the cover (coiled and stored).

3) Remove the cable tie of Ethernet cable.

4) Remove the lock nut attached to the cable clamp (customer prepared) and pass through the Ethernet cable

5) Remove the grommet of ADD cover. After removing the grommet please remove the sealant material that remains in the hole in the plate.

6) Feed the Ethernet cable through the hole that was created by removing the grommet.

7) Feed the end of the Ethernet cable through the cable clamp and securely fasten the ADD cover with the lock nut.

8) Install the ADD cover in its original position. When installing the cover please take care not to damage the spongy sealing material stuck to the hole.

This completed pull out the Ethernet cables of the base section.

CAUTION

Take care against applying big force to the Ethernet cable, other cables, and the air hose.

2-18

Installation

2Unpacking to Installation

CAUTION

CAUTION

CAUTION

Please confirm not having broken or not having stripped the packing when installing or removing the cover. Contact to the dealer if packing is broken or has stripped.

Failure will be caused if the robot is used under the condition that the packing is broken or stripped, because oil mist etc. will invade in the arm.

When ADD cover is installed, please keep too much load from being applied to the cables and the air hoses. If too much load is applied, the cable will be broken and the hose is bent, therefore robot and pneumatic drive equipment cannot operate normally.

When ADD cover is installed, catch neither the cable nor the air hose.

If the bolt is tightened while it had been caught, the cable will be broken and the hose is bent, and the robot and pneumatic drive equipment cannot operate normally.

Moreover, packing does not stick securely and protection specification cannot be secured.

Installation 2-19

2Unpacking to Installation

2.2.10 About oil mist specification

(1) Piping for pressurization inside robot arm

In use in oil mist environment, protection performance can be improved by pressurizing the inside of the robot arm. Please connect the φ8 air hose to the joint for pressurization of the robot arm base portion "AIR PURGE", and pressurize the inside of the robot arm.

Refer to the separate "Standard specifications manual" for specification of air purge.

Coupling for pressurization( φ 8)

Note) Although the figure is RH-6FH, the position of the joint is the same also in RH-3FH/12FH/20FH.

Fig.2-11 : Air purge

2.2.11 About clean specification

(1) Piping for suction inside robot arm

In use of the robot of clean specification, please connect the φ8 air hose to the coupling for suction of the robot body base portion "VACUUM", and suck the inside of the robot arm.

Refer to the separate "Standard specifications manual" for vacuum condition.

Coupling for suction(

φ

8)

Fig.2-12 : Vacuum

Note) Although the figure is RH-6FH, the position of the joint is the same also in RH-3FH/12FH/20FH.

2-20

Installation

2Unpacking to Installation

(2) Duct installation

Remove the CONBOX cover on the robot arm rear and install the attached ventilation duct (reference Fig. 2-

13

). As the Z axis moves up and down the volume of the bellows varies, and air is sucked in and released out of the robot’s ventilation duct opening. Be sure to locate the ventilation duct’s opening in a position that will not affect the robot’s cleanliness.

Furthermore, whilst it is only a small amount, internal suction results in external air flowing into the robot through the ventilation duct’s opening, and therefore the following two points should be considered when deciding where to locate the ventilation duct’s opening.

・ The opening should be facing downwards

・ The opening should not be located in the vicinity of dust/dirt or liquids, etc.

(Recommended cleanliness of surrounding area: less than ISO class 5)

CONBOX cover CONBOX cover

Robot base

Ventilation duct

(with attached plate cover)

Robot base

Ventilation duct

(with attached plate cover)

Opening Opening

Internal suction

Machine cable

RH-3FH

Fig.2-13 : Installation of Exhaust Duct

Internal suction

Machine cable

RH-6FH/12FH/20FH

Note) When using the optional electromagnetic valve set, we recommend using the primary piping’s spare piping

(φ6 air hose) to release the exhaust fumes.

Please take care as leaking exhaust fumes inside the robot may have an impact on the robot’s cleanliness.

Installation 2-21

2Unpacking to Installation

2.3 Setting the origin

The origin is set so that the robot can be used with a high accuracy. After purchasing the robot, always carry out this step before starting work. This step must also be carried out if the combination of robot and controller being used is changed.

There are several methods for setting the origin, but the origin data input method will be explained here. Refer to

Page 95, "5.6 Resetting the origin"

for the other methods.

The teaching pendant is required for this operation.

[Caution] If the origin data at shipment is erased due to out of battery, it is necessary to set the origin again.

Refer to Page 95, "5.6 Resetting the origin"

and reset the origin using the jig method, mechanical stop

per method or ABS method.

2.3.1 Installing the teaching pendant (T/B)

When installing and removing the T/B, turn off the controller power supply. If T/B is installed or removed in the state of power supply ON, emergency stop alarm will occur.

If you use the robot wherein T/B is removed, please install the attached dummy connector. With the connector, put the dummy connector or draw it out.

CAUTION

Please do not pull the cable of T/B strongly or do not bend it too much.

It becomes the breaking of a wire of the cable and the cause of breakage of the connector. Please installing and removing so that stress does not start the cable with the connector itself.

(1) Installing the T/B (CR750 controller)

Explain the installation method of T/B below.

1) Check that the POWER (power supply) switch of the robot controller is OFF.

2) Connects T/B connector to the robot controller. Use as the upper surface the lock lever shown in Fig. 2-14 ,

and push in until there is sound.

Controller

A

B

T/B接続用コネクタを取り外す時は、

T/B connection, use lock release

(state which raised the lock lever to

にスライドさせてラッチを外し引き抜き

B section slide to the front, and remove and pull up out the latch.

ティーチングボックス

(T/B)

Fig.2-14 : Installing and removing the T/B (CR750 controller)

The installation of T/B is finished.

◇◆◇ If error C0150 occurs ◇◆◇

At the time of the first power supply injection, error:C0150 (the serial number of the robot arm has not been set up) occur the robot after purchase.

Parameter: Please input the serial number of the robot body into RBSERIAL. Refer to "instructions manual / controller setup, and basic operation & maintenance" for the operation method.

2-22

Setting the origin

2Unpacking to Installation

(2) Installing the T/B (CR751 controller)

Explain the installation method of T/B below.

1) Check that the POWER (power supply) switch of the robot controller is OFF.

2) Connect the T/B connector to the controller’s T/B connector. Make sure to fix it securely by fastening the hand locks (in 2 places), as shown in

Fig. 2-15 .

Controller

T/B connector

(T/B)

Fig. 2-15 : Installing and removing the T/B (CR751controller)

The installation of T/B is finished.

◇◆◇ If error C0150 occurs ◇◆◇

At the time of the first power supply injection, error:C0150 (the serial number of the robot arm has not been set up) occur the robot after purchase.

Parameter: Please input the serial number of the robot body into RBSERIAL. Refer to "instructions manual / controller setup, and basic operation & maintenance" for the operation method.

Setting the origin 2-23

2Unpacking to Installation

2.3.2 Setting the origin with the origin data input method

(1) Confirming the origin data

● Origin data history table (Origin Data History) Serial No.ES804008

Date Default . . . . . . . . .

J 1

J 2

J 3

J 4

J 5

V!#S29

06DTYY

2?HL9X

1CP55V

T6!M$Y

J 6

Method E E ・ N ・ S P E ・ N ・

S P

E ・ N ・ S P

(O: O(Alphabet), 0: Zero)

Note) Meanings of symbols in method column

E: Jig method

N: Not used

SP: Not used

The origin data to be input is noted in the origin data sheet enclosed with the arm, or on the origin data history table attached to the back side of the battery

cover. (Refer to Fig. 2-16

).

Referring to

Page 67, "5.3.2 Installing/ removing the cover"

, remove the battery cover and confirm the value.

The value given in the default setting column is the origin settings set with the calibration jig before shipment.

Fig.2-16 : Origin data label (an example)

* The origin data to input is found on also the robot examination report sheet.

WARNING

Always install/remove the cover with the controller control power turned OFF.

Failure to do so could lead to physical damage or personal injury should the robot start moving due to incorrect operations.

(2) Turning ON the control power

CAUTION

Confirm that there are no operators near the robot before turning the power ON.

1) Turn the controller [POWER] switch ON.

The CR750 controller turns ON the front power switch.

The CR751 controller turns ON the switch of the earth leakage breaker of installation outside.

2-24

Setting the origin

(3) Preparing the T/B

2Unpacking to Installation

Next, prepare to use the T/B

1) Set the mode of the controller to "MANUAL".

(The figure is example for CR750 controller)

MANUAL

MODE

AUTOMATIC

2) Set the T/B [ENABLE] switch to "ENABLE". The menu selection screen will appear.

The following operations are carried out with the T/B.

T/B背面

上:

DISABLE

Down: Enable

下:

ENABLE

*ランプ点灯

◇◆◇ Operating from the T/B ◇◆◇

Always set the mode of the controller to "MAMNUAL", and   then set the T/B [ENABLE] switch to "ENABLE".

When the T/B is valid, only operations from the T/B are possible. Operations from the controller or external   signals will not be accepted.

Setting the origin 2-25

2Unpacking to Installation

(4) Selecting the origin setting method

<MENU>

1.FILE/EDIT 2.RUN

3.PARAM. 4.ORIGIN/BRK

5.SET/INIT. 6.ENHANCED

123

CLOSE

<ORIGIN/BRAKE>

1.ORIGIN 2.BRAKE

123 CLOSE

<ORIGIN>

1.DATA 2.MECH

3.TOOL 4.ABS

5.USER

123 CLOSE

<ORIGIN> DATA

D:(■ )

J1( ) J2( ) J3( )

J4( ) J5( ) J6( )

J7( ) J8( )

123

CLOSE

1) Press the [4] key on the menu screen, and display the

ORIGIN/BRAKE screen.

2) Press the [1] key on the ORIGIN/BRAKE screen, and display the origin setting method selection screen.

3) Press the [1] key on the origin setting method selection screen, and select the data input method.

4) Display the origin data input screen

◇◆◇ Selecting a menu ◇◆◇

The menu can be selected with one of the following methods.

A: Press the numeral key for the No. of the item to be selected.

B: Using the [ ↓ ] and [ ↑ ] keys, etc., move the cursor to the item to be selected, and then press the [INP] key.

◇◆◇ The input method of numeral ◇◆◇

The number can be inputted if the key displayed on the lower left of each key is pressed. Press the

[CHARACTER] key, and in the condition that "123" is displayed on the screen lower side, press the number key.

2-26

Setting the origin

2Unpacking to Installation

(5) Inputting the origin data

T/B screen Origin data label

(D,J1,J2,J3,J4,J5,J6,J7,J8)

<ORIGIN> DATA

D:(■ )

J1( ) J2( ) J3( )

J4( ) J5( ) J6( )

J7( ) J8( )

123

CLOSE

Fig.2-17 : Correspondence of origin data label and axis

Input the value confirmed in section

Page 24, "(1)

Confirming the origin data"

.

The correspondence of the origin data label value and axis to

be input is shown in Fig. 2-17

.

The method for inputting the origin data is explained below. The value shown in

Fig. 2-16

will be input as an example.

<ORIGIN> DATA

D:(■ )

J1( ) J2( ) J3( )

J4( ) J5( ) J6( )

J7( ) J8( )

123

CLOSE

1) Confirm that the cursor is at the "D" position on the T/B display screen.

<ORIGIN> DATA

D:( V )

J1( ) J2( ) J3( )

J4( ) J5( ) J6( )

J7( ) J8( )

CLOSE

<ORIGIN> DATA

D:( V !

)

J1( ) J2( ) J3( )

J4( ) J5( ) J6( )

J7( ) J8( )

CLOSE

,

2) Input the D value "V!%S29".

Inputting "V"

Press the [CHARACTER] key and set to the character input mode. (Condition that "ABC" was displayed under the screen)

Press the [TUV] key three times. "V" will be set.

Inputting "!"

Press the [ , % ] key five times. "!" will be set.

Press the [ → ] key once and advance the cursor.

Press the [ , % ] key twice (input "%"), and press the [PQRS] key four times (input "S").

,

<ORIGIN> DATA

D:( V !%S2 9 )

J1( ) J2( ) J3( )

J4( ) J5( ) J6( )

J7( ) J8( )

123

CLOSE

Press the [CHARACTER] key and set to the numeral input mode. (Condition that "123" was displayed under the screen)

Press the [2] key (input "2"), and press the [9] key (input

"9").

"V!%S29" will appear at the "D" data on the teaching pendant screen.

<ORIGIN> DATA

D:( V !%S29 )

J1( ) J2( ) J3( )

J4( ) J5( ) J6( )

J7( ) J8( )

123

CLOSE

3) Press the [ ↓ ] key, and move the cursor to the J1 input position.

4) Input the J1 value in the same manner as above.

5) Input the J2, J3 and J4 values in the same manner.

Setting the origin 2-27

2Unpacking to Installation

<ORIGIN> DATA

D:( V!%S29)

J1( 06DTYY) J2( 2?HL9X) J3( 1CP55V)

J4( T6!MSY) J5( Z21J%Z) J6( A12%Z0)

J7( ) J8( )

ABC CLOSE

<ORIGIN> DATA

CHANGE TO ORIGIN. OK?

Yes

123

No

6) After inputting all of the values, press the [EXE] key. The origin setting confirmation screen will appear.

7) Press [F1] (Yes) to end the origin setting

◇◆◇ Moving the cursor ◇◆◇

Press the [ ↑ ], [ ↓ ], [ ← ] and [ → ] keys.

◇◆◇ Inputting characters ◇◆◇

Press the [CHARACTER] key and set to the character input mode. (Condition that "ABC" was displayed under the screen). The displayed character is scrolled each time at pressing the key.

◇◆◇ How to input symbols ◇◆◇

The symbol is allocated to ['()], [@=], and [,%] key. Please repress each key until the symbol to wish is displayed.

a) ['()] key .......................... ' ( ) " ^ : ; \ ?

b) [@=] key......................... @ = + - * / < > c) [,%] key........................... , % # $ ! & _ .

◇◆◇ Correcting an input ◇◆◇

After returning one character by pressing the [CLEAR] key, input the character again.

(6) Installing the

battery cover.

Return the battery coverr removed in section

Page 24, "(1) Confirming the origin data" to its original position.

This completes the setting of the origin with the origin data input method.

WARNING

Removing and installing the cover by always turning off the controller power.

Failure to do so could lead to the robot moving because of incorrect operations, or to physical damage or personal injury.

◇◆◇ If the origin input data is incorrect ◇◆◇

If the origin input data is incorrect, the alarm No. 1760 (origin setting data illegal) will occur when origin data input.

In this case, reconfirm the value input for the origin data.

2-28

Setting the origin

2 Unpacking to Installation

2.4 Confirming the operation

In this section, the robot will be moved manually using the T/B to confirm that the operation is correct.

Moving the robot manually is called "jog operation". This operation includes the JOINT jog that moves each axis, the XYZ jog that moves along the base coordinate system, the TOOL jog that moves along the tool coordinate system, and the CYLNDER jog that moves along the circular arc.

This operation is carried out while pressing the deadman switch on the back of the T/B.

Note) The figure of the robot which indicated to the explanation page in each jog mode is an example.

CAUTION

The robot will move during this operation. Make sure that there are no operators near the robot, and that there are no obstacles, such as tools, in the robot operation range.

CAUTION

To immediately stop the robot, release the deadman switch on the back of the T/B.

The servo power will turn OFF, and the robot will stop.

The robot will also stop if the [EMG.STOP] switch (emergency stop switch) on the front of the T/B or the [EMG.STOP] switch (emergency stop) on the front of the controller is pressed.

WARNING

Confirm that the origin has been set. If the origin has not been set, "****" will appear at the current position display on the teaching pendant, the JOINT jog oper

ation will take place in any jog mode selected.

Refer to

Page 22, "2.3 Setting the origin" for details on setting the origin.

◇◆◇ How to choose the jog mode ◇◆◇

J1: +0.00 J5: +0.00

J2: +0.00 J6: +0.00

J3: +90.00 :

J4: +0.00 :

XYZ

TOOL JOG 3-XYZ CYLNDR ⇒

Choose the jog mode

Press the [JOG] key, the jog screen will be displayed, and display the jog mode which can be chosen at the bottom of the screen. Because these correspond to the function key of [F1] - [F4], press the function key corresponding to the jog mode to wish. And, if the [FUNCTION] key is pressed, selection in jog modes other than the present display is possible. The override (100%), the mechanism number (M1), and the tool number

(T1), and the base coordinate number (B1) are displayed on the upside of the screen following the present jog mode (JOINT).

Confirming the operation 2-29

2 Unpacking to Installation

- +

- +

Fig.2-18 : JOINT jog operation

+Z

* Each axis moves independently.

* While maintaining the end axis posture, the axis moves straight along the base coordinate system.

Also, while maintaining the end axis position, the end axis posture changes..

+Z

-Y

+X

-Z

C

-X

+Y

-Y

+X

Fig.2-19 : XYZ jog operation

-Z

Base coordinate sys-

-X

+Y

2-30

Confirming the operation

+Z

2 Unpacking to Installation

* While maintaining the end axis posture, the axis moves straight along the tool coordinate system.

Also, while maintaining the end axis position, the end axis posture changes

End axis

先端軸

ツール座標原点

-Y

+X

-Z

Fig.2-20 : TOOL jog operation

C

+Z

-X

+Y

* The axis moves straight along the base coordinate system. At this time, the end axis posture is not maintained.

Also, the end axis posture changes.

+Z

-Y

+X

- +

-Z

Fig.2-21 : 3-axis XYZ jog operation

-X

+Y

-Y

+X

-Z

Base coordinate sys-

-X

+Y

Confirming the operation 2-31

2 Unpacking to Installation

+Z

* The current position is set as the arc centering on the Z axis, and the axis moves along that arc, expands and contracts in the radius direction, and moves vertically. At this time, the end axis posture is maintained. Also, while maintaining the axis posture position, the end axis posture changes.

- +

C

+X

-Y

Fig.2-22 : CYLINDER jog operation

+Z

-Z

-X

+Y

* While maintaining the end axis posture, the axis moves straight along the work coordinate system.

Also, while maintaining the end axis position, the end axis posture changes.

+Z

+Zw

-Yw

+Xw

-Xw

-Zw

+Yw

WORK coordinate system

Fig.2-23 : WORK jog operation

-Z

+X

Control point

-Y

-Z

-X

+Y

2-32

Confirming the operation

2 Unpacking to Installation

(1) JOINT jog operation

Select joint jog mode

<CURRENT> JOINT 100% M1 T0

J1: +0.00 J5: +0.00

J2: +0.00 J6: +0.00

J3: +90.00 :

J4: +0.00 :

XYZ

TOOL JOG 3-XYZ CYLNDR ⇒

Joint jog mode

Set jog speed

<CURRENT> JOINT 100% M1 T0

J1: +0.00 J5: +0.00

J2: +0.00 J6: +0.00

J3: +90.00 :

J4: +0.00 :

XYZ

TOOL JOG 3-XYZ CYLNDR

Setting the speed

[JOG] Press the key and display the jog screen.

("JOG" is displayed on the screen bottom)

Check that the "joint" in jog mode is displayed on the screen.

If other jog modes are displayed, please press the function key corresponding to the "joint." (If the jog mode which he wishes under the screen is not displayed, it is displayed that the [FUNCTION] key is pressed)

If it finishes jog operation, press the [JOG] key again, or function key which correspond to

"close."

Whenever it presses the key of [OVRD ↑ ], the override goes up. Conversely, if the [OVRD ↓ ] key is pressed, it will go down.

The current setting speed is displayed on screen upper right, and "STATUS NUMBER" of the controller.

Set the override to 10% here for confirmation work

J1 axis jog operation

・ When the [+X (J1)] keys are pressed, the J1 axis will rotate in the plus direction.

When the [-X (J1)] keys are pressed, Rotate in the minus direction.

J2 axis jog operation

- +

・ When the [+Y (J2)] keys are pressed, the J2 axis will rotate in the plus direction.

When the [-Y (J2)] keys are pressed, Rotate in the minus direction.

Confirming the operation 2-33

2 Unpacking to Installation

◇◆◇ When the robot is in the transportation posture ◇◆◇

The axes may be outside the movement area. Move these axes toward the inner side of the movement area.

J3 axis jog operation

・ When the [+Z (J3)] keys are pressed, the J3 axis will rotate in the plus direction.

When the [-Z (J3)] keys are pressed, Rotate in the minus direction.

J4 axis jog operation

・ When the [+A (J4)] keys are pressed, the J4 axis will rotate in the plus direction.

When the [-A (J4)] keys are pressed, Rotate in the minus direction.

◇◆◇If the buzzer of T/B sounds and the robot does not move ◇◆◇

If it is going to move the robot across the operation range, the buzzer of T/B sounds and the robot does not move. In this case, please move to the counter direction.

2-34

Confirming the operation

2 Unpacking to Installation

(2) XYZ jog operation

Select XYZ jog mode

<CURRENT> JOINT 100% M1 T0

J1: +0.00 J5: +0.00

J2: +0.00 J6: +0.00

J3: +90.00 :

J4: +0.00 :

XYZ

TOOL JOG 3-XYZ CYLNDR ⇒

XYZ jog mode

Set jog speed

<CURRENT> JOINT 100% M1 T0

J1: +0.00 J5: +0.00

J2: +0.00 J6: +0.00

J3: +90.00 :

J4: +0.00 :

XYZ

TOOL JOG 3-XYZ CYLNDR

Setting the speed

[JOG] Press the key and display the jog screen.

("JOG" is displayed on the screen bottom)

Check that the "XYZ" in jog mode is displayed on the screen.

If other jog modes are displayed, please press the function key corresponding to the "XYZ." (If the jog mode which he wishes under the screen is not displayed, it is displayed that the [FUNCTION] key is pressed)

If it finishes jog operation, press the [JOG] key again, or function key which correspond to

"close."

Whenever it presses the key of [OVRD ↑ ], the override goes up. Conversely, if the [OVRD ↓ ] key is pressed, it will go down.

The current setting speed is displayed on screen upper right, and "STATUS NUMBER" of the controller.

Set the override to 10% here for confirmation work.

Moving along the base coordinate system

+Z

+Z

-Y

+X

-Z

-X

+Y

+X

-Y

-X

+Y

-Z

*The direction of the end axis will not change.

・ When the [+X (J1)] keys are pressed, the robot will move along the X axis plus direction.

When the [-X (J1)] keys are pressed, Move along the minus direction.

・ When the [+Y (J2)] keys are pressed, the robot will move along the Y axis plus direction.

When the [-Y (J2)] keys are pressed, Move along the minus direction.

・ When the [+Z (J3)] keys are pressed, the robot will move along the Z axis plus direction.

When the [-Z (J3)] keys are pressed, Move along the minus direction.

Confirming the operation 2-35

2 Unpacking to Installation

◇◆◇ When the robot is in the transportation posture ◇◆◇

There are directions from which linear movement is not possible from the transportation posture. In this case, the

robot will not move. Refer to section Page 33, "(1) JOINT jog operation"

", and move the robot to a position where linear movement is possible, and then carry out XYZ jog.

◇◆◇If the buzzer of T/B sounds and the robot does not move ◇◆◇

If it is going to move the robot across the operation range, the buzzer of T/B sounds and the robot does not move. In this case, please move to the counter direction.

Changing the end axis posture

+Z

+Z

-Y

+X

-Z

C

-X

+Y

+X

-Y

*The position of the end axis will not change.

-Z

-X

+Y

・ When the [+C (J6)] keys are pressed, The Z axis will rotate in the plus direction.

When the [-C (J6)] keys are pressed, Rotate in the minus direction.

◇◆◇ When alarm No. 5150 occurs ◇◆◇

If alarm No. 5150 (ORIGIN NOT SET) occurs, the origin has not been set correctly. Reconfirm the value input for the origin data.

◇◆◇ Tool length ◇◆◇

The default tool length is 0mm, and the control point is the center of the end axis.

After installing the hand, set the correct tool length in the parameters. Refer to the separate manual "Detailed

Explanation of Functions and Operations" for details.

2-36

Confirming the operation

2 Unpacking to Installation

(3) TOOL jog operation

Select TOOL jog mode

<CURRENT> JOINT 100% M1 T0

J1: +0.00 J5: +0.00

J2: +0.00 J6: +0.00

J3: +90.00 :

J4: +0.00 :

XYZ

TOOL JOG

3-XYZ CYLNDR ⇒

TOOL jog mode

Set jog speed

<CURRENT> JOINT 100% M1 T0

J1: +0.00 J5: +0.00

J2: +0.00 J6: +0.00

J3: +90.00 :

J4: +0.00 :

XYZ

TOOL JOG 3-XYZ CYLNDR

Setting the speed

[JOG] Press the key and display the jog screen.

("JOG" is displayed on the screen bottom)

Check that the "TOOL" in jog mode is displayed on the screen.

If other jog modes are displayed, please press the function key corresponding to the "TOOL." (If the jog mode which he wishes under the screen is not displayed, it is displayed that the [FUNC

-

TION] key is pressed)

If it finishes jog operation, press the [JOG] key again, or function key which correspond to

"close."

Whenever it presses the key of [OVRD ↑ ], the override goes up. Conversely, if the [OVRD ↓ ] key is pressed, it will go down.

The current setting speed is displayed on screen upper right, and "STATUS NUMBER" of the controller.

Set the override to 10% here for confirmation work

Moving along the tool coordinate system

+Z

-X

-Y

+X

+Y

- +

-Z

C

*The direction of the end axis will not change.

・When the [+X (J1)] keys are pressed, the robot will move along the X axis plus direction of the tool coordinate system.

When the [-X (J1)] keys are pressed, Move along the minus direction.

・When the [+Y (J2)] keys are pressed, the robot will move along the Y axis plus direction of the tool coordinate system.

When the [-Y (J2)] keys are pressed, Move along the minus direction.

・When the [+Z (J3)] keys are pressed, the robot will move along the Z axis plus direction of the tool coordinate system.

When the [-Z (J3)] keys are pressed, Move along the minus direction.

Confirming the operation 2-37

2 Unpacking to Installation

◇◆◇ When the robot is in the transportation posture ◇◆◇

There are directions from which linear movement is not possible from the transportation posture. In this case, the

robot will not move. Refer to section Page 33, "(1) JOINT jog operation"

", and move the robot to a position where linear movement is possible, and then carry out XYZ jog.

◇◆◇If the buzzer of T/B sounds and the robot does not move ◇◆◇

If it is going to move the robot across the operation range, the buzzer of T/B sounds and the robot does not move. In this case, please move to the counter direction.

Changing the end axis posture

+Z

-Y

- +

+X

*The Position of the end axis will not change.

-Z

C

-X

+Y

・When the[+C (J6)] keys are pressed, The Z axis will rotate in the plus direction of the tool coordinate system.

When the[-C (J6)] keys are pressed, Rotate in the minus direction.

◇◆◇ When alarm No. 5150 occurs ◇◆◇

If alarm No. 5150 (ORIGIN NOT SET) occurs, the origin has not been set correctly. Reconfirm the value input for the origin data.

◇◆◇ Tool length ◇◆◇

The default tool length is 0mm, and the control point is the center of the end axis.

After installing the hand, set the correct tool length in the parameters. Refer to the separate manual "Detailed

Explanation of Functions and Operations" for details.

2-38

Confirming the operation

2 Unpacking to Installation

(4) 3-axis XYZ jog operation

Select XYZ456 jog mode

<CURRENT> JOINT 100% M1 T0

J1: +0.00 J5: +0.00

J2: +0.00 J6: +0.00

J3: +90.00 :

J4: +0.00 :

XYZ

TOOL JOG

3-XYZ CYLNDR ⇒

XYZ456 jog mode

Set jog speed

<CURRENT> JOINT 100% M1 T0

J1: +0.00 J5: +0.00

J2: +0.00 J6: +0.00

J3: +90.00 :

J4: +0.00 :

XYZ

TOOL JOG 3-XYZ CYLNDR

Setting the speed

[JOG] Press the key and display the jog screen.

("JOG" is displayed on the screen bottom)

Check that the "XYZ456" in jog mode is displayed on the screen.

If other jog modes are displayed, please press the function key corresponding to the "XYZ456." (If the jog mode which he wishes under the screen is not displayed, it is displayed that the [FUNC

-

TION] key is pressed)

If it finishes jog operation, press the [JOG] key again, or function key which correspond to

"close."

Whenever it presses the key of [OVRD ↑ ], the override goes up. Conversely, if the [OVRD ↓ ] key is pressed, it will go down.

The current setting speed is displayed on screen upper right, and "STATUS NUMBER" of the controller.

Set the override to 10% here for confirmation work

Moving along the base coordinate system

+Z

+Z

-X

-Y

+X

- +

-Z

C

*The direction of the end axis will change.

+Y

+X

-Y

-Z

-X

+Y

・ When the[+X (J1)] keys are pressed, the robot will move along the X axis plus direction.

When the[-X (J1)] keys are pressed, Move along the minus direction.

・ When the[+Y (J2)] keys are pressed, the robot will move along the Y axis plus direction.

When the[-Y (J2)] keys are pressed, Move along the minus direction.

・ When the[+Z (J3)] keys are pressed, the robot will move along the Z axis plus direction.

When the[-Z (J3)] keys are pressed, Move along the minus direction.

◇◆◇ The flange surface end axis posture cannot be maintained with 3-axis XYZ jog. ◇◆◇

With 3-axis XYZ jog, the flange surface end axis posture (orientation) is not maintained when moving linearly in the X, Y or Z axis direction.

Use XYZ jog to maintain the posture.

Confirming the operation 2-39

2 Unpacking to Installation

Changing the end axis posture

+Z

+Z

-X

-Y

+X

-Z

J4

+Y

+X

-Y

*The Position of the end axis will not change.

-Z

-X

+Y

・ When the[+C (J6)] keys are pressed, the J4-axis will rotate in the plus direction.

When the[-C (J6)] keys are pressed, Rotate in the minus direction.

2-40

Confirming the operation

2 Unpacking to Installation

(5)

CYLNDER

jog operation

Select cylindrical jog mode

<CURRENT> JOINT 100% M1 T0

J1: +0.00 J5: +0.00

J2: +0.00 J6: +0.00

J3: +90.00 :

J4: +0.00 :

XYZ

TOOL JOG 3-XYZ CYLNDR ⇒

CYLNDER jog mode

Set jog speed

<CURRENT> JOINT 100% M1 T0

J1: +0.00 J5: +0.00

J2: +0.00 J6: +0.00

J3: +90.00 :

J4: +0.00 :

XYZ

TOOL JOG 3-XYZ CYLNDR

Setting the speed

[JOG] Press the key and display the jog screen.

("JOG" is displayed on the screen bottom)

Check that the "CYLNDER" in jog mode is displayed on the screen.

If other jog modes are displayed, please press the function key corresponding to the "CYLNDER."

(If the jog mode which he wishes under the screen is not displayed, it is displayed that the

[FUNCTION] key is pressed)

If it finishes jog operation, press the [JOG] key again, or function key which correspond to

"close."

Whenever it presses the key of [OVRD ↑ ], the override goes up. Conversely, if the [OVRD ↓ ] key is pressed, it will go down.

The current setting speed is displayed on screen upper right, and "STATUS NUMBER" of the controller.

Set the override to 10% here for confirmation work

Moving along an arc centering on the Z axis

+Z

Arc

C

-Y

-X

+Y

+X

-Z

* The direction of the frange will not change.

  Assuming that the current position is on an arc centering on the Z axis, the robot moves along that arc.

・ When the[+X (J1)] keys are pressed, the robot will expand in the radial direction.

When the[-X (J1)] keys are pressed, Contract in the radial direction.

・ When the[+Y (J2)] keys are pressed, the robot will move along the arc in the plus direction.

When the[-Y (J2)] keys are pressed, Move in the minus direction.

・ When the[+Z (J3)] keys are pressed, the robot will move along the Z axis plus direction.

When the[-Z (J3)] keys are pressed, Move along the minus direction.

・ When the [+C (J6)] keys are pressed, The Z axis will rotate in the plus direction.

When the [-C (J6)] keys are pressed, Rotates in the minus direction.

Confirming the operation 2-41

2 Unpacking to Installation

(6) Work jog operation

Setting of the work coordinates system is necessary.

By this jog operation, robot can be move along with the direction of work (or working table etc.), so teaching operations get easier.

When jog operation, select by which work coordinates the robot moves

The setting method of the work coordinates system using T/B (R32TB) is shown in the following.

(Parameter: Setting the coordinate value to WKnCORD ("n" is meaning the number (1-8) of work coordinates) can also set up the work coordinates system. Refer to the separate manual "Detailed

Explanation of Functions and Operations" for details of parameter.)

The work coordinates system teaches and sets up the three points (WO, WX, WY).

+Z

+Xw

work coordinates

+Zw

WO

WX

WY

Notes) The figure is the example of

RV-6SD of our company, but other types are the same

+Yw

Robot coordinates system

+Y

Work

The jogging movement based on this work is possible.

+X

< Teaching point>

WO: Work coordinates system origin

WX: Position on the "+X" axis of work coordinates system.

WY: Position at the side of "+Y" axis on the X-Y plane of work coordinates system

[Supplement] : The coordinate values which use all three teaching points for setting of the work coordinates system are each only X, Y, and the Z-axis. Although the coordinate value of A, B, and C axis is not used, positioning will get easy if the XYZ jog or TOOL jog movement is effected with the same value. (The direction of the hand is the same)

Fig.2-24 : Setting of the work coordinates system (teaching point)

The setting (definition) method of the work coordinates system is shown in the following.

1) Select "6.ENHANCED" screen on the <MENU> screen.

<MENU>

1.FILE/EDIT 2.RUN

3.PARAM. 4.ORIGIN/BRK

5.SET/INIT. 6.ENHANCED

<EMHANCED>

1.SQ DIRECT 2.WORK COORD.

  123 CLOSE

  123

CLOSE

2-42

Confirming the operation

2 Unpacking to Installation

2) Press the [2] keys in the menu screen and select "2. WORK COORD."

<EMHANCED>

1.SQ DIRECT 2.WORK COORD.

<WORK COORD> WORK NUMBER (1)

TEACHING POINT (WO)

X: 0.00

Y: 0.00

Z: 0.00

  123

CLOSE

CLOSE

TEACH WX   123

WY

DEFINE

The screen shows the coordinate value of the origin

(WO) of the work coordinates number 1.

3) Selection of the work coordinates number

Press the [FUNCTION] keys, and display "W: JUMP" function. Press the function key corresponding to

"W: JUMP"

<WORK JUMP>

<WORK COORD> WORK NUMBER (1)

TEACHING POINT (WO)

X: 0.00

Y: 0.00

Z: 0.00

CHOOSE ONE OF THE WORK NUMBER

1-8.

  123 CLOSE

Press numeral key [1] - [8] and specify the work coordinates number. The coordinate value of the specified work coordinates system is displayed.

<WORK JUMP>

CHOOSE ONE OF THE WORK NUMBER

1-8.

<WORK COORD> WORK NUMBER (2)

TEACHING POINT (WO)

X: 0.00

Y: 0.00

Z: 0.00

  123 CLOSE

Operation will be canceled if the

[CLOSE] key is pressed.

CLOSE

The screen is the example which specified the work coordinates number 2. ("2" at the upper right of the screen)

4) The teaching of the work coordinates system

Teach the three points shown in

Fig. 2-24 . Confirm the name currently displayed on the "TEACHING

POINT" at the upper right of the screen. If it differs, press the function key corresponding to each point(WO, WX, WY) to teach. Move the robot's arm by jog operation (other jogging movement), and press the function key corresponding to "TEACH."([F1]) The confirmation screen is displayed.

<WORK COORD> WORK NUMBER (2)

TEACHING POINT (WO)

X: 0.00

Y: 0.00

Z: 0.00

<WORK COORD> WORK NUMBER (2)

TEACHING POINT (WO)

RECORD CURRENT POSITION.

OK?

TEACH WX   123

WY

DEFINE

Specify the teaching point [WO],[WX],[WY] teaching the position [TEACH]

Yes   123 No

Confirming the operation 2-43

2 Unpacking to Installation

Presses the function key corresponding to"Yes", the robot's current position is registered, and the registered coordinates value is displaye. Operation will be canceled if the [CLOSE] key is pressed.

<WORK COORD> WORK NUMBER (2)

TEACHING POINT (WO)

RECORD CURRENT POSITION.

OK?

<WORK COORD> WORK NUMBER (2)

TEACHING POINT (WO)

X: 214.12

Y: -61.23

Z: 553.30

Yes   123 No CLOSE

Teach the three points, WO, WX, and WY, by the same operation.

The position data taught here is each registered into the following parameters. ("n" means the work coordinates numbers 1-8)

WO= parameter: WKnWO

WX= parameter: WKnWX

WY= parameter: WKnWY

5) Setting of work coordinates (definition)

If the function key corresponding to "DEFINE" ([F1]) is pressed, the work coordinates system will be calculated using the three points, and the result will be displayed.

<WORK COORD> WORK NUMBER (2)

TEACHING POINT (WO)

X: 214.12

Y: -61.23

Z: 553.30

<WORK COORD> WORK NUMBER (2)

WORK COORDINATES DATA

(3.53, -220.00, 5.14, 0.00, 0.

00, 0.00)

TEACH

WX   123

WY DEFINE

  123 CLOSE

The alarm occurs if the work coordinates system is incalculable. (There are the three points on the straight line, or the two points have overlapped) In this case, reset alarm and re-teach the three points.

This work coordinate data is registered into parameter: WKnCORD. ("n" means the work coordinates numbers 1-8)

If the function key corresponding to "CLOSE" is pressed, it will return to the previous screen.

<WORK COORD> WORK NUMBER (2)

WORK COORDINATES DATA

(3.53, -220.00, 5.14, 0.00, 0.

00, 0.00)

<WORK COORD> WORK NUMBER (2)

TEACHING POINT (WO)

X: 214.12

Y: -61.23

Z: 553.30

  123 CLOSE

TEACH

WX   123

WY DEFINE

6) Finishing of setting the work coordinates

Press the [FUNCTION] keys, and display "CLOSE" function. Press the function key corresponding to

"CLOSE". Returns to the <MENU> screen.

<WORK COORD> WORK NUMBER (2)

TEACHING POINT (WO)

X: 214.12

Y: -61.23

Z: 553.30

<EMHANCED>

1.SQ DIRECT 2.WORK COORD.

CLOSE   123

CLOSE

2-44

Confirming the operation

2 Unpacking to Installation

Although setting of work coordinates is finishing above, confirmation of work coordinates can be done by press

ing the function key corresponding to "W GRID."([F2])

<WORK COORD> WORK NUMBER (2)

TEACHING POINT (WO)

X: 214.12

Y: -61.23

Z: 553.30

<WORK COORD> WORK NUMBER (2)

WORK COORDINATES DATA

(3.53, -220.00, 5.14, 0.00, 0.

00, 0.00)

CLOSE

  123 CLOSE

Return to the previous screen by pressing the [CLOSE] ([F4]) key.

Then, the operation method of the work jog is shown.

Change to the work jog after nearing the work.

Select WORK jog mode

<CURRENT> WORK 100% M1 T0 W1

J1: +0.00 J5: +0.00

J2: +0.00 J6: +0.00

J3: +90.00 :

J4: +0.00 :

XYZ

TOOL JOG

3-XYZ CYLNDR ⇒

WORK jog mode

[JOG] Press the key and display the jog screen. ("JOG" is displayed on the screen bottom)

Check that the "WORK" in jog mode is displayed on the screen.

If other jog modes are displayed, please press the function key corresponding to the "WORK."

(If the jog mode which he wishes under the screen is not displayed, it is displayed that the

[FUNCTION] key is pressed)

If it finishes jog operation, press the [JOG] key again, or function key which correspond to

"close."

Confirmation and selection of the work coordinates system

<CURRENT> WORK 100% M1 T0 W1

J1: +0.00 J5: +0.00

J2: +0.00 J6: +0.00

J3: +90.00 :

J4: +0.00 :

XYZ

TOOL JOG 3-XYZ CYLNDR ⇒

Target work coordinates system

Select the work coordinates system

Confirm the target work coordinates system.

The current target number is displayed on the screen upper right. (W1 - W8)

The number of work coordinates can be changed by the arrow key [Upper arrow],

[Lower arrow]

Push the key [Upper arrow], the number will increase. (W1, W2, ..... W8) Conversely, push the key [Lower arrow], the number will decrease

CAUTION

Set jog speed

<CURRENT> JOINT 100% M1 T0

J1: +0.00 J5: +0.00

J2: +0.00 J6: +0.00

J3: +90.00 :

J4: +0.00 :

XYZ TOOL

Always confirm that the number of the target work coordinates system is displayed correctly (Display of W1-W8 at the upper right of the screen)

If mistaken, the robot will move in the direction which is not meant and will cause the damage and the personal injuries.

JOG

3-XYZ CYLNDR

Setting the speed

Whenever it presses the key of [OVRD(Upper arrow)], the override goes up. Conversely, if the [OVRD(Lower arrow)] key is pressed, it will go down.

The current setting speed is displayed on screen upper right, and "STATUS NUMBER" of the controller.

Set the override to 10% here for confirmation work

Confirming the operation 2-45

2 Unpacking to Installation

The jog movement based on work coordinates system

+Z

+Xw

+Zw

-Yw

-Xw

-Zw

+Yw

Work coordinates system

Control point

+X

-Y

-X

+Y

-Z

* The direction of the end axis will not change. Move the control point with a straight line in accordance with the work coordinates system

・ When the[+X (J1)] keys are pressed, the robot will move along the X axis plus direction on the work coordinates system.

When the[-X (J1)] keys are pressed, Move along the minus direction.

・ When the[+Y (J2)] keys are pressed, the robot will move along the Y axis plus direction on the work coordinates system.

When the[-Y (J2)] keys are pressed, Move along the minus direction.

・ When the[+Z (J3)] keys are pressed, the robot will move along the Z axis plus direction on the work coordinates system.

When the[-Z (J3)] keys are pressed, Move along the minus direction.

2-46

Confirming the operation

2 Unpacking to Installation

Changing the end axis posture

+Z

+Z

+Xw

+Zw

-Yw

-X

-Xw

-Zw

+Yw

Work coordinates system

-Z

Controll point

-Y

+X

+Y

-Z

* The position of the control point does not change. The end axis is rotated.

・When the[+C (J6)] keys are pressed, The Z axis will rotate in the plus direction of the XYZ coordinate system.

When the[-C (J6)] keys are pressed, Rotate in the minus direction.

◇◆◇ When the robot is in the transportation posture ◇◆◇

There are directions from which linear movement is not possible from the transportation posture. In this case, the

robot will not move. Refer to section Page 33, "(1) JOINT jog operation"

", and move the robot to a position where linear movement is possible, and then carry out XYZ jog.

◇◆◇If the buzzer of T/B sounds and the robot does not move ◇◆◇

If it is going to move the robot across the operation range, the buzzer of T/B sounds and the robot does not move. In this case, please move to the counter direction.

◇◆◇ Tool length ◇◆◇

The default tool length is 0mm, and the control point is the center of the end axis.

After installing the hand, set the correct tool length in the parameters. Refer to the separate manual "Detailed

Explanation of Functions and Operations" for details.

Confirming the operation 2-47

3Installing the option devices

3 Installing the option devices

3.1 Installing the solenoid valve set

The installation summary of the solenoid valve is shown in Fig. 3-1 and Fig. 3-1

. Remove the No.2 arm cover U, and install the solenoid valve on the No.2 arm. Turn the controller’s power OFF before this installing operation.

Refer to

Page 67, "5.3.2 Installing/removing the cover"

for removing/ installing the cover.

(1) RH-3FH/6FH series

No. 2 arm cover U

Install to inside the No. 2 arm cover U

Solenoid valve

Fix to plate.

Items for customer to prepare

A Philips screwdriver (M4 screws)

・ Air hose for secondary piping (φ4) primary piping air hose (φ6)

(P port)

Solenoid valve exhaust hose (φ6)

(R port)

Note) When connecting this air hose, be sure to remove the dust cap attached on the robot base section.

Hand output signal connection cables (GR1, GR2)

Fixing screws (M4 x 30), two screws - left and right

(included in the solenoid valve set)

Note) Although the type in the diagram is the RH-

6FH, installation location is the same also in RH-

3FH.

Hand output signal connection connectors (GR1, GR2)

Connect to the GR1 and GR2 connectors of the robot side.

Solenoid valve exhaust joint (φ6)

(R port)

Secondary piping connection joint (φ4)

(A, B ports)

A port: From the left side in order 1, 3, 5, 7

B port: From the left side in order 2, 4, 6, 8

Primary piping connection joint (φ6)

(P port)

Fig.3-1 : Solenoid valve installation procedures (RH-3FH/6FH)

Base section

Primary piping connection joint

(φ6) (upper side: AIR IN)

Solenoid valve exhaust joint (φ6)

(lower side: RETURN)

The installation procedure is detailed below.

1) Remove the screws fixing the No. 2 arm cover U, and remove the No. 2 arm cover U.

2) Fix the solenoid valve to the plate in the position indicated in

Fig. 3-1

.Place it so that the solenoid valve's primary piping connection joints (P, R ports) are located on the right hand side, and fix it securely using the

M4 screws included (tightening torque: 1.39 to 1.89N ・ m).

3) Connect the connector (GR1, GR2) of solenoid valve with connector of robot arm side (GR1, GR2). Connect with the same names. The hand output signal cables of the robot arm side are located close to where the solenoid valve is installed and are tied up with cable tie. Cut the cable tie and connect them to the connectors.

3-48

Installing the solenoid valve set

3Installing the option devices

4) Connect the primary piping air hose (φ6). The air hoses are located close to where the solenoid valve is installed and are tied up with cable tie. Cut the cable tie and connect them. Of the two air hoses, connect the one marked “AIR IN” to the solenoid valve's P port, and the one marked “RETURN” to the R port.

Note) When connecting the RETURN air hose, be sure to remove the dust cap attached at the RETURN joint on the robot base section. If the cap is not removed, exhaust air pressure will increase and the solenoid valve may not operate properly.By connecting the exhaust air hose (φ6: customer preparation) to this RETURN air joint, exhaust air from the solenoid valve is able to escape to the designated point.

5) Connect the secondary piping air hose (φ4).

The optional hand curl tube, the hand internal wiring and piping set, or the air hose prepared by customer can all be used, however when pulling the tip of the air hose out from the shaft please be sure to use the optional hand internal wiring and piping set.

Connect the air hoses to solenoid valve port A and port B. Please refer to

Table 3-1 and connect to the

necessary ports. Covers the unused solenoid valve joints with the plugs included.

Note) When pulling the tip of the air hose out from the shaft, please be sure to use the optional hand internal wiring and piping set. A plate that can be fixed to an appropriate position and silicon

grease to apply to friction points, are both included with the product (please refer to Page 54, "3.4

Hand internal wiring and piping set"

). Further, when using the optional external wiring and piping box, the air hose can be pulled out from the rear of the No. 2 arm (please refer to

Page 59, "3.5

External Wiring and Piping Box"

).

6) If the hand output cable and the air hose have excess length, please tie the excess section by cable tie and fix it to the plate. The plate have some holes for fixing the cable/hose with a cable tie.

7) Install securely the No.2 arm cover U as before with fixing screws (tightening torque: 1.39 to 1.89 Nm).

Note) The installation surface of the clean and the oil-mist specification covers is using sealing material.

In the event that the sealing material has been removed or has been bent or broken to the extent that it cannot be return to the original form, be sure to replace the sealing material. Please inform the dealer, if exchange is necessary.

This completes installing the solenoid valve set.

Installing the solenoid valve set 3-49

3Installing the option devices

(2) RH-12FH/20FH series

No. 2 arm cover U

Install to inside the No. 2 arm cover U

For the elbow coupling addition

KJL06-99 *SUS street elbow

(SMC Corp.)

Items for customer to prepare

・ A Philips screwdriver (M4 screws)

Air hose for secondary piping (φ6) primary piping air hose (φ6)

(P port)

Solenoid valve exhaust hose (φ6)

(R port)

Note) When connecting this air hose, be sure to remove the dust cap attached on the robot base section.

Hand output signal connection cables (GR1, GR2) Fixing screws (M4 x 8), four screws

- left and right

(included in the solenoid valve set)

Solenoid valve

Fix to plate.

Hand output signal connection connectors (GR1, GR2)

Connect to the GR1 and GR2 connectors of the robot side.

Secondary piping connection joint (φ6)

(A, B ports)

A port: From the left side in order 1, 3, 5, 7

B port: From the left side in order 2, 4, 6, 8

Base section

Primary piping connection joint

(φ6) (upper side: AIR IN)

Solenoid valve exhaust joint (φ6)

(lower side: RETURN) Primary piping connection joint (φ6)

(P port)

Solenoid valve exhaust joint (φ6)

(R port)

Fig.3-2 : Solenoid valve installation procedures (RH-12FH/20FH)

The installation procedure is detailed below.

1) Remove the screws fixing the No. 2 arm cover U, and remove the No. 2 arm cover U.

2) Fix the solenoid valve to the plate in the position indicated in

Fig. 3-1

.Place it so that the solenoid valve's primary piping connection joints (P, R ports) are located on the upper side, and fix it securely using the M4 screws included (tightening torque: 1.39 to 1.89N ・ m).

3) Connect the connector (GR1, GR2) of solenoid valve with connector of robot arm side (GR1, GR2). Connect with the same names. The hand output signal cables of the robot arm side are located close to where the solenoid valve is installed and are tied up with cable tie. Cut the cable tie and connect them to the connectors.

4) Connect the primary piping air hose (φ6). The air hoses are located close to where the solenoid valve is installed and are tied up with cable tie. Cut the cable tie and connect them. Of the two air hoses, connect the one marked “AIR IN” to the solenoid valve's P port, and the one marked “RETURN” to the R port.

Note) When connecting the RETURN air hose, be sure to remove the dust cap attached at the RETURN joint on the robot base section. If the cap is not removed, exhaust air pressure will increase and the solenoid valve may not operate properly.By connecting the exhaust air hose (φ6: customer preparation) to this RETURN air joint, exhaust air from the solenoid valve is able to escape to the designated point.

3-50

Installing the solenoid valve set

3Installing the option devices

5) Connect the secondary piping air hose (φ6).

The optional hand curl tube, the hand internal wiring and piping set, or the air hose prepared by customer can all be used, however when pulling the tip of the air hose out from the shaft please be sure to use the optional hand internal wiring and piping set.

Connect the air hoses to solenoid valve port A and port B. Please refer to

Table 3-1 and connect to the

necessary ports. Covers the unused solenoid valve joints with the plugs included.

Note) When pulling the tip of the air hose out from the shaft, please be sure to use the optional hand internal wiring and piping set. A plate that can be fixed to an appropriate position and silicon

grease to apply to friction points, are both included with the product (please refer to Page 54, "3.4

Hand internal wiring and piping set"

). Further, when using the optional external wiring and piping box, the air hose can be pulled out from the rear of the No. 2 arm (please refer to

Page 59, "3.5

External Wiring and Piping Box"

).

6) If the hand output cable and the air hose have excess length, please tie the excess section by cable tie and fix it to the plate. The plate have some holes for fixing the cable/hose with a cable tie.

7) Install securely the No.2 arm cover U as before with fixing screws (tightening torque: 1.39 to 1.89 Nm).

Note) The installation surface of the clean and the oil-mist specification covers is using sealing material.

In the event that the sealing material has been removed or has been bent or broken to the extent that it cannot be return to the original form, be sure to replace the sealing material. Please inform the dealer, if exchange is necessary.

This completes installing the solenoid valve set.

(3) Hand number and solenoid valve ports (common to RH-FH series)

The connection correspondence after installation is as shown in

Table 3-1 .

Table 3-1 : Solenoid valve ports and hoses: Correspondence of couplings and hand ports

Hand Hand port Solenoid valve port Solenoid valve used

Hand

1

Hand

2

Hand

3

Hand

4

OPEN

CLOSE

OPEN

CLOSE

OPEN

CLOSE

OPEN

CLOSE

6

7

4

5

1

2

3

8

1 st row

2 nd row

3 rd row

4 th row

Installing the solenoid valve set 3-51

3Installing the option devices

3.2 Installing the hand input cable

Fig. 3-3 shows the hand input cable’s storage location on the robot.

Please use the optional external wiring and piping box to pull the hand input cable out externally. After connecting the hand input cable connector, reference

Page 59, "3.5 External Wiring and Piping Box"

, and pull it out from the robot arm.

When passing through the inside of the shaft and using it, please use the optional hand internal wiring and piping set.

Remove the No. 2 arm cover U and connect the connector above the No. 2 arm. Turn the controller’s power OFF

before this operation. Refer to Page 67, "5.3.2 Installing/removing the cover"

for removing/ installing the cover.

No. 2 arm cover U

Connect inside the No. 2 arm cover U

Connector of robot arm side

Coiled and stored by cable tie

CAUTION

*The type in the diagram is the RH-6FH, however the location is the same on the RH-3FH/12FH/20FH.

Fig.3-3 : Installing the hand input cable

The installation procedure for the hand input cable is shown below

When this cable is connected to the robot the power supply is applied to the end of this cable. The end of the cable is free at factory shipping. so, if the tool side is not connected it may be cause of the trouble such as broken the fuse by short circuit.

Before connecting to the robot, customer should check whether or not the cable tip has been properly treated.

1) Remove the screws fixing the No. 2 arm cover U, and remove the No. 2 arm cover U.

2) The hand input cable is stored in the location shown in Fig. 3-3 . Remove cable tie, and check the

connectors (HC1, HC2).

3) Connect the connector (HC1,HC2) of optional cable with connector of robot arm side (HC1, HC2). Connect with the same names.

4) Pull the hand input cables out of the robot arm. Referencing

Page 59, "3.5 External Wiring and Piping Box"

, pull the cable out.

When installation of the optional external wiring and piping box finished, Installing the hand input cable is complete.

3-52

Installing the hand input cable

3Installing the option devices

3.3 Installing the hand output cable

Fig. 3-4 shows the hand output cable’s storage location on the robot.

Please use the optional external wiring and piping box to pull the hand output cable out externally. After connect

-

ing the hand output cable connector, reference Page 59, "3.5 External Wiring and Piping Box"

, and pull it out from the robot arm.

Remove the No. 2 arm cover U and connect the connector above the No. 2 arm. Turn the controller’s power OFF

before this operation. Refer to Page 67, "5.3.2 Installing/removing the cover" for removing/ installing the cover.

No. 2 arm cover U

Connect inside the No. 2 arm cover U

Connector of robot arm side

Coiled and stored by cable tie

*The type in the diagram is the RH-6FH, however the location is the same on the RH-3FH/12FH/20FH

.

Fig.3-4 : Installing the hand output cable

The installation procedure for the hand output cable is shown below

1) Remove the screws fixing the No. 2 arm cover U, and remove the No. 2 arm cover U.

2) The hand output cable is stored in the location shown in Fig. 3-4

. Remove cable tie, and check the connectors (GR1, GR2).

3) Connect the connector (GR1, GR2) of optional cable with connector of robot arm side (GR1, GR2). Connect with the same names.

4) Pull the hand output cables out of the robot arm. Referencing Page 59, "3.5 External Wiring and Piping Box" ,

pull the cable out.

When installation of the optional external wiring and piping box finished, Installing the hand output cable is complete.

Installing the hand output cable 3-53

3Installing the option devices

3.4 Hand internal wiring and piping set

The installation procedure for the hand internal wiring and piping set is shown in

Fig. 3-5

for the RH-3FH series,

and in Fig. 3-6 for the RH-6FH series, and in Fig. 3-6

for the RH-12FH/20FH series. Remove the No. 2 arm cover

U and fix this option to the plate above the No. 2 arm.

Turn the controller’s power OFF before this operation. Refer to Page 67, "5.3.2 Installing/removing the cover"

for removing/ installing the cover.

(1) RH-3FH/6FH series

<RH-3FH series>

No. 2 arm cover U

Connect inside the No. 2 arm cover U

Secondary piping air hose

φ3-4 hoses

Applying silicon grease

Plate for fixation

(a) Match up the peak of the air hose and cable with the top end of the fixing plate

(b) Fix with silicon rubber and cable tie

Connector for hand input cable connection

(HC1, HC2)

*The diagram shows an example of the secondary piping hose connected to the optional electromagnetic valve.

Fig.3-5 : Installing the hand internal wiring and piping set (RH-3FH)

3-54

Hand internal wiring and piping set

<RH-6FH series>

No. 2 arm cover U

Connect inside the No. 2 arm cover U

Secondary piping air hose

φ4-8 hoses

3Installing the option devices

Connector for hand input cable connection

(HC1, HC2)

(a) Match up the peak of the air hose and cable with the top end of the fixing plate

Applying silicon grease

(contact surface)

Plate for fixation

(b)

*The diagram shows an example of the secondary piping hose connected to the optional electromagnetic valve.

Fig.3-6 : Installing the hand internal wiring and piping set (RH-6FH)

The installation procedure is shown below.

1) Move the J3 axis to the top end with a jog operation and shut off the controller's power supply. This is necessary for space standard settings when feeding the air hose and hand input cable through the inside of the shaft.

2) Remove the screws fixing the No. 2 arm cover U, and remove the No. 2 arm cover U.

3) When using the hand input cable connect the connectors (HC1, HC2) of optional hand input cable to connectors (HC1, HC2) of robot side. Connect with the same names.

The connectors of robot side are tied up by cable tie. Cut the cable tie and pull them out.

When the hand input cable is not used tie up the connector and fix to the plate by cable tie. The plate have some holes for fixing the cable/hose with a cable tie.

4) Connect the secondary piping air hose.

Although the diagram shows an example which connected the optional solenoid valve, the cables and hoses can be pulled out out of the robot from rear of the No.2 arm by using optional "external wiring and piping box". Refer to

Page 59, "3.5 External Wiring and Piping Box" for how to pull it out.

When using the optional solenoid valve connect to the A port or B port of solenoid valve.

Refer to

Page 48 "Fig. 3-1Solenoid valve installation procedures (RH-3FH/6FH)"

and Page 51 "Table 3-1:

Hand internal wiring and piping set 3-55

3Installing the option devices

Solenoid valve ports and hoses: Correspondence of couplings and hand ports" for connect to the port

necessary.

5) Silicone rubbers are installed in this option. As shown in the Fig. 3-5

(RH-3FH) or Fig. 3-6 (RH-6FH), fixes

this option to the metal plate of the robot arm in the three positions of silicone rubber by the attached cable tie. (the three places shown by (b) of the

Fig. 3-5

(RH-3FH) or

Fig. 3-6 (RH-6FH)).

6) Feed through inside the shaft the tool (hand) side of the hand input cables and the secondary piping air hoses.

CAUTION

In order to give the air hose and cable an appropriate space, the highest point of the curved section of the air hose and cable should be matched up with the top of the fixing plate, and fix at the tool side as is shown in section (a) of the diagram.

If the air hose and cable are fixed with no space, more friction will be applied at the top of the shaft or bent when operating the robot, so, it becomes the cause which the operation of tool (hand) is abnormal or breaks the wire

7) Do the wiring and piping of tool side.

8) Apply the attached silicon grease to the top of shaft and the surface where the air hose and the hand input cable contact the fixing plate.

9) If the hand input cable and the air hose have excess length, please tie the excess section by cable tie and fix it to the plate. The plate have some holes for fixing the cable/hose with a cable tie.

10) Install securely the No.2 arm cover U as before with fixing screws (tightening torque: 1.39 to 1.89 Nm).

Note) The installation surface of the clean and the oil-mist specification covers is using sealing material.

In the event that the sealing material has been removed or has been bent or broken to the extent that it cannot be return to the original form, be sure to replace the sealing material. Please inform the dealer, if exchange is necessary.

This completes installing the Hand internal wiring and piping set (RH-3FH/6FH series).

3-56

Hand internal wiring and piping set

3Installing the option devices

(2) RH-12FH/20FH series

<RH-12FH/20FH series>

No. 2 arm cover U

Connect inside the No. 2 arm cover U

Secondary piping air hose

φ6-4 hoses

A

Applying silicon grease

(contact surface)

View from A

(a) Match up the peak of the air hose and cable with the top end of the fixing plate

B

Applying silicon grease

(contact surface)

Fix with the nylon clip

Fix by the cable tie

Zoom in

Connector for hand input cable connection

(HC1, HC2)

View from B

*The diagram shows an example of the secondary piping hose connected to the optional electromagnetic valve.

Fig.3-7 : Installing the hand internal wiring and piping set (RH-12FH/20FH)

The installation procedure is shown below.

1) Move the J3 axis to the top end with a jog operation and shut off the controller's power supply. This is necessary for space standard settings when feeding the air hose and hand input cable through the inside of the shaft.

2) Remove the screws fixing the No. 2 arm cover U, and remove the No. 2 arm cover U.

3) When using the hand input cable connect the connectors (HC1, HC2) of optional hand input cable to connectors (HC1, HC2) of robot side. Connect with the same names.

The connectors of robot side are tied up by cable tie. Cut the cable tie and pull them out.

4) Connect the secondary piping air hose.

Although the diagram shows an example which connected the optional solenoid valve, the cables and hoses

Hand internal wiring and piping set 3-57

3Installing the option devices can be pulled out out of the robot from rear of the No.2 arm by using optional "external wiring and piping

box". Refer to Page 59, "3.5 External Wiring and Piping Box" for how to pull it out.

When using the optional solenoid valve connect to the A port or B port of solenoid valve.

Refer to Page 50 "Fig. 3-2Solenoid valve installation procedures (RH-12FH/20FH)"

and

Page 51 "Table 3-

1 : Solenoid valve ports and hoses: Correspondence of couplings and hand ports"

for connect to the port necessary.

5) As shown in Fig. 3-6 , fix to the metal plate by the attached cable tie.

6) Feed through inside the shaft the tool (hand) side of the hand input cables and the secondary piping air hoses.

CAUTION

In order to give the air hose and cable an appropriate space, the highest point of the curved section of the air hose and cable should be matched up with the top of the fixing plate, and fix at the tool side as is shown in section (a) of the diagram.

If the air hose and cable are fixed with no space, more friction will be applied at the top of the shaft or bent when operating the robot, so, it becomes the cause which the operation of tool (hand) is abnormal or breaks the wire

7) Do the wiring and piping of tool side.

8) Apply the attached silicon grease to the top of shaft and the surface where the air hose and the hand input cable contact the fixing plate.

9) If the hand input cable and the air hose have excess length, please tie the excess section by cable tie and fix it to the plate.

10) Install securely the No.2 arm cover U as before with fixing screws (tightening torque: 1.39 to 1.89 Nm).

Note) The installation surface of the clean and the oil-mist specification covers is using sealing material.

In the event that the sealing material has been removed or has been bent or broken to the extent that it cannot be return to the original form, be sure to replace the sealing material. Please inform the dealer, if exchange is necessary. .

This completes installing the Hand internal wiring and piping set (RH-12FH/20FH series).

3-58

Hand internal wiring and piping set

3Installing the option devices

3.5 External Wiring and Piping Box

The air hose that is connected inside the robot, the optional hand output cable, the hand input cable, etc., can all be pulled out from the rear of the No. 2 arm.

These can be used to connect a customer supplied solenoid valve to the hand output cable, etc.

No. 2 arm cover U

External Wiring and Piping Box

Fix to the rear of the No. 2 arm

(remove the No. 2 arm cover B)

*The type in the diagram is the RH-6FH, however the installation method is the same on the RH-3FH/12FH/20FH

.

<a>Coupling

φ6 two couplings

(RH-3FH/6FH only)

<b>Coupling

φ4 eight couplings

(RH-3FH/6FH)

φ6-eight couplings

(RH-12FH/20FH)

*The diagram shows an example of pulling the hand input cable

<c> Cable clamp attachment hole (φ21)

Two points-left and right.

Blind plug attached.

<d> In the other side has two holes for fixing the hose and cable by cable tie.

Installation holes

(M4 screw four places)

No

Table 3-2 : Hose and cables which can be pulled out

Air hoses/cables

Position to pull out

RH-3FH/6FH RH-12FH/20FH

(1) Primary piping air hose (φ6-2 hoses)

(The primary piping is equipped from rear of

<a>

Coupling

φ6 two couplings

Coupling

φ6 two couplings

(2) Secondary piping air hose (φ4-8 hoses: RH-

3FH/6FH, φ6-8 hoses: RH-12FH/20FH)

<b>

Coupling

φ8 eight

Coupling

φ8 eight

(3) Optional hand output cable

(4) Optional hand input cable

<c>

φ21 hole four place

φ21 hole four place

Example usage

Primary air supply to externally installed solenoid valve.

Taking in the secondary air from externally installed solenoid valve.

For driving the externally installed solenoid valve.

Taking in the input signals from tools such as the hand.

Note) Fix all with cable tie (sections <d> and <e> of the diagram)

<f> Positions to fix with cable tie

(two positions left and right)

<e> Fix to the external wiring and piping box with cable tie

(has two holes for fixing)

The hole for fixing the cable tie

J2 axis reduction gears

Air hose

Cable tie

Cable

Fig.3-8 : External Wiring and Piping Box

*Diagram shows an image of pulling out air hose and cables

External Wiring and Piping Box 3-59

3Installing the option devices

Fig. 3-8 shows the installation procedure for the external wiring and piping box. The procedure is the same in

RH-3FH/6FH/12FH/20FH. Remove the No. 2 arm cover B and install this option using the same screw holes. The installation procedure is shown below.

Turn the controller’s power OFF before this operation. Refer to Page 67, "5.3.2 Installing/removing the cover"

for removing/ installing the cover.

1) Remove the each fixing screws and remove the No. 2 arm cover U and the No. 2 arm cover B.

2) Pull out the air hoses or cables from the opening which removed the No. 2 arm cover B.

3) Fix (or connect) the air hoses and cables to this option box.

Previously adjust the air hose and cables to an appropriate length. Make sure that the wiring and piping lines avoid the side of the J2 reducer (because gap is narrow, it interfere with the No. 2 arm cover U).

Connect the air hoses with the joint inside this option box.

Remove the blind plug attached to this option box and fix the cable with the cable clamp.

External wiring and piping box

ボックス

(Attached to a hand output cable and a hand input cable)

引出すケーブル

 (ハンド出力ケーブルなど)

Fig.3-9 : Fixing the Cable

4) Fix the air hoses and cables to the hole inside of this box by using the attached cable tie. (section <e> of

Fig. 3-8

)

Note) Be sure to fix the air hoses and cables to prevent the hoses falling out and breaking the cable. Also, fix carefully so that the air hose and cables may not be pulled too much.

5) Install securely the external wiring and piping box to the screw holes that previously installed the No. 2 arm cover B by attached screw. (tightening torque: 1.39 to 1.89Nm).

When installing pull it little by little from the No. 2 arm side, making sure that the air hose and cables are not bent or trapped.

6) Make sure that the wiring and piping lines on the No.2 arm avoid the side of the J2 reducer (because gap is narrow, it interfere with the No. 2 arm cover U).

Fix the hoses and cables to the hole shown in section <f> of Fig. 3-8 using cable tie. There are 2 holes,

located left and right.

7) If the cables and the air hoses have excess length, please tie the excess section using cable tie.

8) Install securely the No.2 arm cover U as before with fixing screws (tightening torque: 1.39 to 1.89 Nm).

Note) The installation surface of the clean and the oil-mist specification covers is using sealing material.

In the event that the sealing material has been removed or has been bent or broken to the extent that it cannot be return to the original form, be sure to replace the sealing material. Please contact dealer when the sealing material needs to be replaced.

This completes installing the External Wiring and Piping Box.

3-60

External Wiring and Piping Box

4Basic operations

4 Basic operations

The basic operations from creating the program to automatic operation are explained in section "4. Basic operations" in the "From Controller Setup to Maintenance" manual. Refer that manual as necessary.

4-61

5Maintenance and Inspection

5 Maintenance and Inspection

The maintenance and inspection procedures to be carried out to use the robot for a long time without trouble are described in this chapter. The types and replacement methods of consumable parts are also explained.

5.1 Maintenance and inspection interval

Maintenance and inspection are divided into the inspections carried out daily, and the periodic inspections carry out at set intervals. Always carry these out to prevent unforeseen trouble, to maintain the product for a long time, and to secure safety.

(1) Inspection schedule

In addition to the monthly inspection, add the following inspection items every three months (estimated at 1,000

Hr operation hours).

0 Hr

Monthly inspection

Monthly inspection

1,000 Hr Monthly inspection 3-month inspection

Monthly inspection

Monthly inspection

2,000 Hr Monthly inspection 3-month inspection 6-month inspection

Monthly inspection

Monthly inspection

3,000 Hr Monthly inspection 3-month inspection

Monthly inspection

Monthly inspection

4,000 Hr Monthly inspection 3-month inspection 6-month inspection Yearly inspection

8,000 Hr Monthly inspection 3-month inspection 6-month inspection Yearly inspection 2-year inspection

12,000 Hr Monthly inspection 3-month inspection 6-month inspection Yearly inspection 2-year inspection 3-year inspection

Operating time

<Guideline for inspection period>

For one shift .......... 10 Hr/day ×20 days/month × 3 months = approx. 600 Hr

For two shifts........ 15 Hr/day ×20 days/month ×3 months = approx. 1,000 Hr

[Caution] When using two lines, the 3-month inspection, 6-month inspection and yearly inspection must be carried out when half the time has passed.

Fig.5-1 : Inspection schedule

5-62

Maintenance and inspection interval

5Maintenance and Inspection

5.2 Inspection items

The inspection items for the robot arm are shown below.

Also refer to section "5. Maintenance and inspection" in the "Controller setup, basic operation, and maintenance" manual, and inspect the controller.

5.2.1 Daily inspection items

Carry out the daily inspections with the procedures given in Table 5-1

.

Table 5-1 : Daily inspection items (details)

Procedure Inspection item (details)

Before turning power ON (Check the following items before turning the power ON.)

1 Are any of the robot installation bolts loose?

(Visual)

2 Are any of the cover tightening screws loose?

Securely tighten the bolts.

Securely tighten the screws.

(Visual)

3

4

5

6

Remedies

Are any of the hand installation bolts loose?

Securely tighten the bolts

(Visual)

Is the power supply cable securely connected?

Securely connect.

(Visual)

Is the machine cable between the robot and controller securely connected?

(Visual)

Securely connect.

Are there any cracks, foreign contamination or obstacles on the robot and controller cover?

Replace with a new part, or take remedial measures.

7

8

Is there any abnormality in the pneumatic system? Are there any air leaks, drain clogging or hose damage? Is the air source normal?

(Visual)

Drain the drainage, and remedy the air leaks (replace the part).

Are there any cracks, foreign contamination or obstacles on the bellows?

(Visual)

Replace with a new bellows.

After turning the power ON (Turn the power ON while monitoring the robot.)

1 Is there any abnormal motion or abnormal noise when the power is turned ON?

During operation (try running with an original program)

1 Check whether the movement points are deviated?

Check the following points if there is any deviation.

1. Are any installation bolts loose?

2. Are any hand installation section bolts loose.

3. Are the positions of the jigs other than the robot deviated?

4. If the positional deviation cannot be corrected, refer to

"Troubleshooting", check and remedy.

2 Is there any abnormal motion or abnormal noise?

(Visual)

Follow the troubleshooting section.

Follow the troubleshooting section.

Follow the troubleshooting section.

Inspection items 5-63

5Maintenance and Inspection

5.2.2 Periodic inspection

Carry out periodic inspection with the procedures given in

Table 5-2 .

Table 5-2 : Periodic inspection items (details)

Procedure Inspection item (details)

Monthly inspection items

1 Are any of the bolts or screws on the robot arm loose?

Remedies

Securely tighten the bolts.

2 Are any of the connector fixing screws or terminal block terminal screws loose?

3-month inspection items

1 Is there any grease of the shaft section still?

6-month inspection items

1 Has the dust accumulated into bellows?

(When environment with much dust)

Securely tighten the screws.

Wipe off the old grease and supply the new grease.

Remove bellows and clean the inside.

(Refer to Page 124, "5.3.5 Replacing the bellows" for how to remove bellows)

Yearly inspection items

1 Replace the backup battery in the robot arm.

Exchange it referring to Page 90, "5.3.7 Replacing the backup battery"

.

2-year inspection items

1 Is the friction at the timing belt teeth severe? If the teeth are missing or severe friction is found, replace the timing belt.

If the timing belt is loose or too tense, adjust it.

2 Is the timing belt tension abnormal?

3-year inspection items

1 Replace the bellows (J3 axis).

(Only clean specification and oil mist specification)

Replace it referring to Page 124, "5.3.5 Replacing the bellows"

Note) Supply the grease to each axis with referring to

Page 87, "5.3.6 Lubrication"

.

5-64

Inspection items

5Maintenance and Inspection

5.3 Maintenance and inspection procedures

The procedures for carrying out the periodic maintenance and inspection are described in this section. Thoroughly read the contents, and follow the instructions. This work can be commissioned to the Mitsubishi Service Depart

ment for a fee. (Never disassemble, etc., the parts not described in this manual.)

The maintenance parts, etc., required for the customer to carry out maintenance and inspection are described in

Page 93, "5.5 Maintenance parts"

of this manual. Always contact your dealer when parts are needed.

CAUTION

The origin of the machine system could deviate when this work is carried out.

"Review of the position data" and "re-teaching" will be required.

5.3.1 Robot arm structure

The outline drawing of RH-3FH series is shown in

Fig. 5-2

, and RH-6FH/12FH/20FH series is shown in

Fig. 5-3

.

<RH-3FH series>

Fig.5-2 : Outline structure drawing of robot arm (RH-3FH)

Maintenance and inspection procedures 5-65

5Maintenance and Inspection

<RH-6FH/12FH/20FH series>

Fig.5-3 : Outline structure drawing of robot arm (RH-6FH/12FH/20FH)

5-66

Maintenance and inspection procedures

5Maintenance and Inspection

5.3.2 Installing/removing the cover

<1>

No.2 arm cover U

<3> No.2 arm cover U

(Back of No.2 arm cover)

<2>

No.2 arm cover D

<6> Conbox cover

(upper side of back of base?

<5> Battery cover

Note) The cover on the top face of the

No.1 arm is not removing.

<4> ADD cover

(lower side of back of base)

*The type in the diagram is the RH-3FH, however the cover is the same on the RH-6FH/12FH/20FH.

Fig.5-4 : Installing/removing the cover

Note) This robot has packing. Refer to Page 93, "Table 5-9 : Consumable part list" for type name of packing.

CAUTION

Check to see that the packing has not been torn or peeled off when the cover was mounted/removed. If it has been torn or peeled off, please contact dealer. If the cover is used with the packing torn or peeled off, oil mist and other substances may enter inside the arm and cause a malfunction.

Maintenance and inspection procedures 5-67

5Maintenance and Inspection

Table 5-3 : Cover fixing screw list

No.

Cover name

Installation screw name: Qty.

Note1)

Common to RH-3FH/6FH/12FH/20FH series

(1) No.2 arm cover-U Truss head screw, M4 x 10: 6

(2)

(3) No.2 arm cover-B

(4)

(5) Battery cover

(6)

No.2 arm cover-D

ADD cover

CONBOX cover

Truss head screw, M4 x 10: 10

Truss head screw, M4 x 10: 6

Hexagon socket bolts, M4 x 12: 4

Hexagon socket bolts, M4 x 12: 2

Truss head screw, M4 x 10: 6

Hexagon socket bolts, M4 x 12: 4

Note1)The fixing torque for each screw are 1.39-1.89Nm.

Remarks

RH-3FH/6FH/12FH series, RH-20FH85** series

RH-20FH100** series

(1) Referring to

Fig. 5-4

, remove the covers.

(2) The names of the covers and installation screws are given in Table 5-3

.

(3) When reattaching the covers after a maintenance inspection, proceed in the reverse order of their removal.

Tightening the screw with the torque shown in Table 5-3.

[Note] Sealant is applied to the installation surface of cover in the oil mist and clean specification models. Be sure to replace the sealant if it has been dislocated and bent or crushed and does not return to its original shape. Moreover, in the case of oil mist and clean specification models, it is necessary to remove the bel

lows. Refer to Page 124, "5.3.5 Replacing the bellows" for details on how to remove bellows.

5-68

Maintenance and inspection procedures

5Maintenance and Inspection

5.3.3 Packing Replacement Procedure

The packing gets deteriorated with the passage of time and must be replaced as required.

Table 5-4 provides

guidelines for replacing the packing. Replace the packing in accordance with the instructions given below. If the packing is not replaced in a timely manner, water or oil will be allowed to intrude the robot, possibly making it inoperative.

Table 5-4 : Packing replacement guideline

Service environment

Whether or not robot is pressurized

When packing must be replaced

General environment

Not pressurized

Note1)

Clean room

Not pressurized

Note1)

Oil mist Pressurized

Not pressurized

When signs of cracking or peeling are noted in the packing.

When the cover mounted on the robot is removed/put back in place

Note1) When used in the "general" or "clean room" environment, robot can do away with pressurization.

(1) Packing Replacement Instructions

Stick again new packing as before.

1) Remove the old packing, and clean and degrease the surface on which it has been placed.

2) The sticking surface of packing is double-coated adhesive tape. Referring to

"Fig.5-5 : Example of sticking packing (good example)"

and

"Fig.5-7 : Sticking the cord-like packing"

, and stick the packing in line with form . Be careful for the packing not to slide. The example of unsuitable packing slid is shown in

"Fig.5-

6 : Example of sticking packing (bad example)"

.

3) Although the No.2 arm cover (U) sticks two or more packings per place, it has length with which packing

ends overlap. Stick packing in the following procedures. For more information, see "Fig.5-8 : Examples of packing overlaps".

Examples of improperly treated cut edge are shown, as well.

a) Stick packing in line with form of the sticking surface. Finally, cut packing so that adjoining pieces have a 1mm overlap at the end.

b) Apply liquid gasket to the cut edges. (Designated liquid gasket: 1212 (Maker: Three Bond)) c) Stick so that the gap may not be made to each other's packing.

CAUTION

Do not install the cover immediately after sticking packing. Install the cover, after the 6 hours pass after sticking packing for gasket hardening.

4) Confirm that packing is stuck correctly and install the cover. When tightening the bolts fixing the cover, avoid tightening them to a specified torque at a time. Tighten the bolt in the order shown as much as possible in the "Fig. 5-10: Example of order which tighten bolts." The torque which tightens the fixing bolt

of each cover is shown in "Table 5-3 : Cover fixing screw list" .

CAUTION

Stick the packing securely, pressing down with the finger. If sticking is insuffi

cient, when the cover is installed, packing slides by the pressure, and there is a possibility that it may become impossible to secure protection performance.

Completion of packing replacement

Maintenance and inspection procedures 5-69

5Maintenance and Inspection

Packing is stuck securely without sliding.

Fig.5-5 : Example of sticking packing (good example)

Sliding.

Fig.5-6 : Example of sticking packing (bad example)

Some of the packings to be used are cord-like.

Stick such packings by bending in line with the form.

Location at which packing is bent

Stick the packing

Cord-like packing

Fig.5-7 : Sticking the cord-like packing

5-70

Maintenance and inspection procedures

Location at which gasket is applied.

A 1mm overlap

5Maintenance and Inspection

[1] Cut the packing so that there is a 1mm overlap at the end.

Join by liquid gasket

[2] Apply liquid gasket to the cut edges.

[3] Stick the packing so that there is no gap between the adjacent pieces.

Unsuitable overlap of packing

Gasket is not applied.

Ends of packing are not in contact with each other.

Displacement at the ends of packing

Ends of packing overlap each other.

Cut edge of packing is irregular.

End of packing is cut diagonally.

Fig.5-8 : Examples of packing overlaps

Maintenance and inspection procedures 5-71

5Maintenance and Inspection

1 3

4 2

Fig.5-9 : Example of order which tighten bolts

5-72

Maintenance and inspection procedures

5 Maintenance and Inspection

5.3.4 Inspection, maintenance and replacement of timing belt

This robot uses a timing belt for the drive conveyance system of the J5 axis. Compared to gears and chains, the timing belt does not require lubrication and has a low noise. However, if the belt usage method and tension adjust

ment are inadequate, the life could drop and noise could be generated. Sufficient aging to remove the initial elon

gation of the belt, and adjustment of the belt tension have been carried out before shipment from the factory.

However, depending on the robot working conditions, elongation will occur gradually over a long time. The tension must be confirmed during the periodic inspection.

The replacement is necessary if the timing belt is in the condition which showed in "(1)Timing belt replacement period"

. The inspection and adjustment and replacement method of the timing belt of each axis is shown below.

Please check, and adjust and replace if necessary.

In addition, it is serviceable if there is the sound wave type belt tension gauge in inspection and adjustment of the

timing belt. The recommendation gauge is shown below. Please prepare by customer. Refer to the Page 84, "(7)

Timing belt tension"

for the tension adjustment value of the timing belt.

Maker:Gates Unitta Asia Company,

Type:U-505

Image of Measurement by the sound wave type belt tension gauge

Fig.5-10 : Tension adjustment method of timing belt

Measurement by the push-pull gauge

(1) Timing belt replacement period

The timing belt life is greatly affected by the robot working conditions, so a set time cannot be given. However, if the following symptoms occur, replace the belt.

1) When cracks from at the base or back of the belt teeth.

2) When the belt expands due to adherence of oil, etc.

3) When the belt teeth wear (to approx. half of the tooth width).

4) When the belt teeth jump due to belt teeth wear.

5) When the belt snaps.

CAUTION

Due to the manufacturing of the timing belt, initial wear will occur. Wear chips may accumulate in the cover after approx. 300 Hr of operating the robot, but this is not a fault. If the wear chips appear soon after wiping them off, replace the belt.

CAUTION

When the belt is replaced, the machine system origin may deviate. In this case, the position data must be reviewed.

Maintenance and inspection procedures 5-73

5 Maintenance and Inspection

(2) RH-3FH series: Inspecting/Adjusting the J3 axis timing belt

The section related to J3 axis timing belt of RH-3FH series and adjustment is shown in

Fig. 5-11 . The picture is

the image which removed the No.2 arm cover.

<3> J3 axis motor

<2> J3 axis motor fixing screw loosen lightly

<1>Tension adjustment screw

Loosen the nut, adjust by screw

<5> J3 timing pulley A

Don't remove the timing belt.

Push

<2> J3 axis motor fixing screw loosen lightly

<4> Timing belt

<6> J3 timing pulley B

Don't remove the timing belt.

Fig.5-11 : Inspecting/Adjusting the J3 axis timing belt

Inspection and adjustment procedure of the timing belt of J3 axis are shown below.

1) Confirm that the power supply of the controller is OFF.

2) Refer to Page 67 "Fig. 5-4: Installing/removing the cover" , and remove the No.2 arm cover U.

3) Visually confirm that the symptoms indicated in "(1)Timing belt replacement period" have not occurred with

the <4> timing belt.

4) Lightly press the center of the belt, and confirm that the value of belt slack is in following. The tension of

the belt is shown also in Page 84 "Fig. 5-14: Belt tension"

.

・ Belt tensioning: Force to press = approx. 2N, Flexure = 1.5mm

When adjustment is necessary, continue to follow the procedure shown below.

When adjustment is not necessary, install the No.2 arm cover U as before and finish the inspection.

5) Lightly loosen J3 motor installation screws <2> (Be careful not to overly loosen the screws.).

6) The nut which is fixing tension adjustment screw <1> is loosened, turn tension adjustment screw <1>, and adjust the tension of timing belt <4>.

When the screw is turned to the right, the belt will be stretched, and when turned to the left, will loosen.

Adjust tension to the above-mentioned value.

Note) Be careful, if the belt is removed from pulley <5> <6>, or the mesh of belt and pulley <5> <6> is shifted by loosening the screw too much, the origin will deviate. If the position deviated, reset the origin. (Refer to

Page 95, "5.6 Resetting the origin" )

7) After adjustment, fasten securely the two J3 axial motor fixing screws <2>, and the nut of tension adjustment screw <1>.

8) Improper tightening may cause the belt to loosen with vibration.

9) Install No.2 arm cover U securely as before and finish adjustment.

This completes adjustment of the J3 axis timing belt.

5-74

Maintenance and inspection procedures

5 Maintenance and Inspection

(3) RH-3FH series: Replacing the J3 axis timing belt

The procedure for replacing the J3 axis timing belt on the RH-3FH series is shown below. The diagram shows an image of the removed No. 2 arm cover U.

After replacing the J3 axis timing belt the resetting the origin of J3 and J4 axis is necessary.

1) Move the J3 axis to the position lowered about 30mm from the upper limit by jog operation. This position makes the space for removing the belt.

After moving the J3 axis turn the controller's power supply OFF.

2) Refer to

Page 67 "Fig. 5-4: Installing/removing the cover"

, and remove the No.2 arm cover U.

3) Loosen the nut of tension adjustment screw <1>, and loosen the tension adjustment screw <1>.

<3> J3 axis motor

*Move the J3 axis to the position lowered about 30mm from the upper limit previously.

<2> J3 axis motor fixing screw remove

<2> J3 axis motor fixing screw remove

<1>Tension adjustment screw

Loosen the nut and screw

<5> Timing pulley A

<6> Timing pulley B

<4> Timing belt

4) Remove two fixing screws <2>, remove the J3 axis motor <3>, remove the timing belt <4> from the timing pulley

A <5>.

<3> J3 axis motor remove

<2> J3 axis motor fixing screw remove

<2> J3 axis motor fixing screw remove

<5> Timing pulley A

<4> Timing belt

Remove from the timing pulley A <5>.

Maintenance and inspection procedures 5-75

5 Maintenance and Inspection

5) Remove the timing belt <4> from the shaft to upward.

Remove the fixing screw <7> of shaft fixing plates and lift up the shaft fixing plate <8>.

When using the optional hand internal wiring and piping set remove the fixing screws fixed to the top.

Remove the timing belt <4> from the timing belt removal space <9> created under the shaft fixing plate <8> by lift up.

<10>Shaft

(Ball screw spline)

<7>Shaft fixing screw

(four screws) remove

*Also at the back left of the diagram

<8>Shaft fixing plate lift up

<9>Timing belt removal space

<4> Timing belt

Remove from the timing belt removal space <9> to upward

<4> Timing belt

The belt was removed on the shaft fixed plate <8>

5-76

Maintenance and inspection procedures

5 Maintenance and Inspection

6) Remove the timing belt <4> from the top of the shaft

If using the optional hand internal wiring and piping set, temporarily remove the hand input cable connector

<11> and air hoses <12> of solenoid valve side. And remove the timing belt to upward.

Remove to upward

<4> Timing belt

<11> Hand input cable con

nector

Remove temporarily

<12> Air hoses

Remove temporarily

7) Install the new timing belt in reverse procedure of removal.

Install the new belt to the timing pulley (on the motor) <5> and timing pulley B <6> securely.

Fix the shaft fixing plate <8> by fastening the original fixing screws securely.

If using the hand input cables <11> and air hoses <12>, connect them as before.

8) Install the J3 axis motor <3> by tightening lightly the J3 axis motor fixing screw <2> (two screws)

9) Adjust the tension of J3 axis timing belt with referring to Page 74, "(2) RH-3FH series: Inspecting/Adjusting the

J3 axis timing belt"

.

10) Install No.2 arm cover U securely as before.

11) Reset the origin of J3 and J4 axis with referring to the Page 95, "5.6 Resetting the origin"

12) When the maintenance forecast function is valid, reset the accumulation data about the belt. Reset by the dedicated screen or parameter MFBRST of RT ToolBox2.

13) Refer to "Instruction Manual/RT ToolBox2 User's Manual" for operation of RT2 and refer to "Instruction

Manual/Detailed Explanation of Functions and Operations" for the parameter.

This completes replacement of the J3 axis timing belt.

Maintenance and inspection procedures 5-77

5 Maintenance and Inspection

(4) RH-6FH/12FH/20FH series: Inspecting/Adjusting the J3 axis timing belt

The section related to J3 axis timing belt of RH-6FH/12FH/20FH is shown in Fig. 5-12

. The picture is the image which removed the No.2 arm cover.

<3> J3 axis motor

*The RH-12FH/20FH series is also equivalent although the figure is RH-6FH.

<2> J3 axis motor fixing screw loosen lightly

<2> J3 axis motor fixing screw loosen lightly

<6> J3 timing pulley B

(Ball screw lower part)

Don't remove the timing belt.

<4> Timing belt

Push

<5> J3 timing pulley A

Don't remove the timing belt.

<1>Tension adjustment screw

Loosen the nut, adjust by screw

Fig.5-12 : Inspecting/Adjusting the J3 axis timing belt (RH-6FH/12FH/20FH)

Inspection and adjustment procedure of the timing belt of J3 axis are shown below.

1) Confirm that the power supply of the controller is OFF.

2) Refer to Page 67 "Fig. 5-4: Installing/removing the cover" , and remove the No.2 arm cover U.

3) Visually confirm that the symptoms indicated in 「

"(1)Timing belt replacement period" have not occurred

with the <4> timing belt.

4) Lightly press the center of the belt, and confirm that the value of belt slack is in following. The tension of

the belt is shown also in Page 84 "Fig. 5-14: Belt tension"

.

・ Belt tensioning: Force to press = approx. 3N, Flexure = 1.3mm

When adjustment is necessary, continue to follow the procedure shown below.

When adjustment is not necessary, install the No.2 arm cover U as before and finish the inspection.

5) Lightly loosen J3 motor installation screws <2> (Be careful not to overly loosen the screws.).

6) Loosen the tension adjustment screw <1>. Adjusts by turning the tension adjustment screw <1> slowly and moving the J3 axis motor <3> little by little.

When the screw is turned to the right, the belt will be stretched, and when turned to the left, will loosen.

Adjust tension to the above-mentioned value.

Note) Be careful, if the belt is removed from pulley <5> <6>, or the mesh of belt and pulley <5> <6> is shifted by loosening the screw too much, the origin will deviate. If the position deviated, reset the origin. (Refer to

Page 95, "5.6 Resetting the origin" )

7) After adjustment, fasten securely the two J3 axial motor fixing screws <2>, and the nut of tension adjustment screw <1>. Improper tightening may cause the belt to loosen with vibration.

8) Install No.2 arm cover U securely as before and finish adjustment.

This completes adjustment of the J3 axis timing belt.

5-78

Maintenance and inspection procedures

5 Maintenance and Inspection

(5) RH-6FH/12FH/20FH series: Replacing the J3 axis timing belt

The procedure for replacing the J3 axis timing belt on the RH-6FH/12FH/20FH series is shown below. The diagram shows an image of the removed No. 2 arm cover U.

After replacing the J3 axis timing belt the resetting the origin of J3 and J4 axis is necessary.

1) Refer to

Page 67 "Fig. 5-4: Installing/removing the cover"

, and remove the No.2 arm cover U.

2) Loosen the nut of tension adjustment screw <1>, and loosen the tension adjustment screw <1>.

<3> J3 axis motor remove

*The RH-12FH/20FH series is also equivalent although the figure is RH-6FH.

<2> J3 axis motor fixing screw remove

<2> J3 axis motor fixing screw remove

<6> Timing pulley B

(Ball screw lower part)

<4> Timing belt

<5> Timing pulley A

<1>Tension adjustment screw

Loosen the nut and screw

3) Remove two fixing screws <2>, and remove the J3 axis motor <3>.

<3> J3 axis motor remove

Remove

<2> J3 axis motor fixing screw

Remove

<2> J3 axis motor fixing screw

<5> Timing pulley A

<6> Timing pulley B

(Ball screw lower part)

<4> Timing belt

Remove from the timing pulley A (motor side <5>) and B (shaft side <6>).

4) Remove the timing belt <4> from the timing pulley A (motor side <5>) and B (shaft side <6>).

5) Install surely the new belt to the timing pulley (on the motor) <5> and timing pulley B <6>, and fix the J3 axis motor <3> with J3 axis motor fixing screw <2>.

Confirms having related the timing belt <4> to the timing pulley A <5> and the timing pulley B <6> securely.

6) Adjust the tension of J3 axis timing belt with referring to Page 78, "(4) RH-6FH/12FH/20FH series: Inspecting/

Adjusting the J3 axis timing belt" .

7) Install No.2 arm cover U securely as before.

8) Reset the origin of J3 and J4 axis with referring to the Page 95, "5.6 Resetting the origin"

Maintenance and inspection procedures 5-79

5 Maintenance and Inspection

9) When the maintenance forecast function is valid, reset the accumulation data about the belt. Reset by the dedicated screen or parameter MFBRST of RT ToolBox2. Refer to "Instruction Manual/RT ToolBox2 User's

Manual" for operation of RT2 and refer to "Instruction Manual/Detailed Explanation of Functions and

Operations" for the parameter.

This completes replacement of the J3 axis timing belt.

5-80

Maintenance and inspection procedures

5 Maintenance and Inspection

(6) RH-3FH/6FH/12FH/20FH series: Inspecting/Adjusting the J4 axis timing belt

As shown in Fig. 5-13

, the J4 axis timing belt consists of two timing belts: timing belt A <1> and timing belt B <2>.

When adjusting the timing belts, first adjust timing belt B <2> and then proceed to adjust timing belt A <1>.

<The No.2 arm bottom view (Inside of the No.2 arm cover D)>

<2> Timing belt B

Adjust first

<1> Timing belt A

Adjust next

Push

Shaft

Push

Timing pulley A

Timing pulley B

Timing pulley C

Timing pulley D

Timing belt B adjustment screw

*The RH-3FH/12FH/20FH series is also equivalent although the figure is RH-6FH.

<The No.2 arm upper view (Inside of the No.2 arm cover U)>

Timing pulley A

Timing belt B adjustment screw

*The RH-3FH/12FH/20FH series is also equivalent although the figure is RH-6FH.

Fig.5-13 : Inspecting/Adjusting the J4 axis timing belt

Maintenance and inspection procedures 5-81

5 Maintenance and Inspection

Inspection and adjustment procedure of the timing belt of J4 axis are shown below.

1) Confirm that the power supply of the controller is OFF.

2) Refer to Page 67 "Fig. 5-4: Installing/removing the cover" , and remove the No.2 arm cover U and No.2

cover D.

3) Visually confirm that the symptoms indicated in "(1)Timing belt replacement period" have not occurred with

the timing belt.

4) Lightly press the center of the belt, and confirm that the value of belt slack is in following. The tension of

the belt is shown also in Page 84 "Fig. 5-14: Belt tension"

.

Belt tensioning

・ RH-3FH .................................. <1>Timing belt A: Force to press = approx. 2N, Flexure = 1.0mm

<2>Timing belt B: Force to press = approx. 4N, Flexure = 1.2mm

・ RH-6FH/12FH/20FH........ <1>Timing belt A: Force to press = approx. 2N, Flexure = 1.0mm

<2>Timing belt B: Force to press = approx. 4N, Flexure = 1.5mm

When adjustment is necessary, continue to follow the procedure shown below.

When adjustment is not necessary, install the No.2 arm cover U and No.2 arm cover D as before and finish the inspection.

5) Adjusts the tension of the timing belt B <2>.

Lightly loosen timing pulley <B><C> fixing screws <3> (Be careful not to overly loosen the screws.).

6) Loosen the nut of tension adjustment screw <4> for timing belt B. Adjusts by turning the tension adjustment screw <4> slowly and moving the timing pulley C <5> little by little.

When the screw is turned to the right, the belt will be stretched, and when turned to the left, will loosen.

Adjust tension to the above-mentioned value.

Note) Be careful, if the belt is removed from pulley <5> <6>, or the mesh of belt and pulley <5> <6> is shifted by loosening the screw too much, the origin will deviate. If the position deviated, reset the origin. (Refer to

Page 95, "5.6 Resetting the origin" )

<The No.2 arm bottom view (Inside of the No.2 arm cover D)>

<2> Timing belt B

<5>Timing pulley C

<6>Timing pulley D

<4>Timing pulley B

Push

<3>Timing pulley <B><C> fixing screws

(three screws)

Loosen

<4> Tension adjustment screw for timing belt B

Loosen the nut and screw

*The RH-3FH/12FH/20FH series is also equivalent although the figure is RH-6FH.

<3>Timing pulley <B><C> fixing screws

(three screws)

Loosen

7) After adjustment, fasten certainly the three timing pulley <B><C> fixing screws <3>. And fasten certainly the nut of tension adjustment screw <4>.

8) Improper tightening may cause the belt to loosen with vibration.

5-82

Maintenance and inspection procedures

5 Maintenance and Inspection

9) Next, adjusts the tension of the timing belt A <1>.

Lightly loosen two J4 motor fixing screws <7> (Be careful not to overly loosen the screws.).

10) Loosen the nut of tension adjustment screw <8> for timing belt A. Adjusts by turning the tension adjustment screw <8> slowly and moving the J4 axis motor <9> little by little.

When the screw is turned to the right, the belt will be stretched, and when turned to the left, will loosen.

Adjust tension to the above-mentioned value.

Note) Be careful, if the belt is removed from pulley <10> <4>, or the mesh of belt and pulley <10> <4> is shifted by loosening the screw too much, the origin will deviate. If the position deviated, reset the origin. (Refer to

Page 95, "5.6 Resetting the origin" )

<The No.2 arm upper view (Inside of the No.2 arm cover U)>

<9>J4 axis motor

<7> J4 axis motor fixing screw

(two screws)

*Exists in the rear of J4 axis also

<1>Timing belt A

<8>Tension adjustment screw for timing belt A

Loosen the nut and screw

*The RH-3FH/12FH/20FH series is also equivalent although the figure is RH-6FH.

<The No.2 arm bottom view (Inside of the No.2 arm cover D)>

<1> Timing belt A

<10>Timing pulley A

Push

<4>Timing pulley B

*The RH-3FH/12FH/20FH series is also equivalent although the figure is RH-6FH.

11) After adjustment, fasten certainly the two J4 motor fixing fixing screws <7> And fasten certainly the nut of tension adjustment screw <8>. Improper tightening may cause the belt to loosen with vibration.

12) Install No.2 arm cover U and No.2 arm cover D securely as before and finish adjustment.

This completes adjustment of the J4 axis timing belt.

Maintenance and inspection procedures 5-83

5 Maintenance and Inspection

(7) Timing belt tension

T

T f : Pressing force s : Span d : Slack

T : Tension

T

Fig.5-14 : Belt tension

T

Table 5-5 : Pressing force (timing belt)

Axis

RH-3FH series

J3

J4(motor side)

J4(shaft side)

RH-6FH series

J3

J4(motor side)

J4(shaft side)

RH-12FH series

J3

J4(motor side)

J4(shaft side)

RH-20FH series

J3

J4(motor side)

J4(shaft side)

Belt type

309-3GT-6

336-3GT-6

282-3GT-12

264-3GT-6

315-3GT-6

363-3GT-12

288-3GT-12 M434N4

417-3GT-9 M434N4

456-3GT-20 M434N4

303-3GT-12 M434N4

417-3GT-9 M434N4

456-3GT-20 M434N4

Span : s (mm) Slack : d (mm) Pressing force : f (N)

96

64

74

82

64

95

71

99

121

71

99

121

1.5

1.0

1.2

1.3

1.0

1.5

1.1

1.5

1.9

1.1

1.5

1.9

4

3

7

4

3

7

2

2

4

3

2

4

Remarks

Table 5-6 : The preset value and adjustment value in the sound wave type belt tension gauge

Axis Belt type

M(g/m)

Preset value

W(mm/R) S(mm)

Standard tension

T(N)

RH-3FH series

J3

J4(motor side)

J4(shaft side)

RH-6FH series

J3

J4(motor side)

J4(shaft side)

RH-12FH series

J3

J4(motor side)

J4(shaft side)

309-3GT-6

336-3GT-6

282-3GT-12

264-3GT-6

315-3GT-6

363-3GT-12

288-3GT-12 M434N4

417-3GT-9 M434N4

456-3GT-20 M434N4

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

2.5

6

6

12

9.0

6.0

12.0

12

9

20

96

64

74

82

64

95

71

99

121

26-32

26-32

53-65

40-48

26-32

53-65

59

44

98

RH-20FH series

J3

J4(motor side)

J4(shaft side)

303-3GT-12 M434N4

417-3GT-9 M434N4

456-3GT-20 M434N4

2.5

2.5

2.5

12

9

20

71

99

121

59

44

98

Note) The value given in the table is the value of proper tension. Because the tension declines by the infancy expansion when exchanged to new belt, please adjust proper tension again after the operation for the about 100 hours when exchanged to new belt

The timing belt can satisfactorily convey the drive and keep a durable force only when it has an adequate tension.

The belt tension should not be too tight or too loose. Instead, it should be adjusted to a degree that elasticity is felt when the belt is pressed with the thumb. If the belt tension is too weak, the belt loosening side will vibrate. On the other hand, if the belt tension is too strong, a sharp sound will be heard and the belt tension side will vibrate.

The detailed adjustment (tension) is shown in Fig. 5-14

.

Check and adjust with the belt pressing force f and the slack amount d between spans.

5-84

Maintenance and inspection procedures

5 Maintenance and Inspection

5.3.5 Replacing the bellows

With reference to

Fig. 5-15

, exchanges the bellows. Replace method of bellows is shown below.

CAUTION

Replace the bellows in a place where there is no risk of contamination by dust and oil mist. If it must be replaced in a dust-filled area, be sure to remove as much dust as possible in advance before replacing it.

(1) Clean specification

1) Turn off the controller's power supply.

2) Refer to Page 67, "Fig.5-4: Installing/removing the cover" , and remove the No.2 arm cover U and the No.2

arm cover D.

3) Loosen the two fixing (M4) screws of bellows, and remove the bellows to downward together with No.2 arm cover D.

4) Remove the four fixing screws which fix the bellows to the No.2 arm cover D, and removes the ring, then the bellows can be removed from No.2 arm cover D.

5) Fix the new bellows to the No. 2 arm cover D in the same way (screw tightening torque: 0.8Nm). Fill the gap between the No. 2 arm cover D and the bellows with a seal such as a liquid gasket.

6) Install the No. 2 arm cover D as before.

7) Fix the bellows to shaft with adjusting the position of the bellows's bottom to 30mm from end of shaft. Align two set screws (M4) to the D cut surface and fix them securely.

8) Fill the gap between the bellows fixing section and the shaft with a seal, such as a liquid gasket.

9) Sticks the attached ABS mark on the lower part of bellows. Makes the J4 axis into the position of 0 degree by jog operation etc., and match the ABS mark sticker with ABS mark on the shaft, and stick it.

This completes the replacing bellows.

[Caution] When installing the No. 2 arm cover D to the No. 2 arm, please check the condition of the sealing. If the sealing material has been removed or has been bent or broken, and it is not suitable to be reused, be sure to replace the sealing material.

No.2 arm

Fixing screws of bellows

M3x8 four screws

No.2 arm cover D

Ring

Apply liquid gasket

No.2 arm

Apply liquid gasket

No.2 arm cover D

30mm

Set screw M4 two screws

D cut surface

Apply liquid gasket

B

Fig.5-15 : Replace the bellows (clean specification)

Maintenance and inspection procedures 5-85

5 Maintenance and Inspection

(2) Oil mist specification

1) Previously, move the J3 axis to upper end position by jog operation.

This position is necessary to set the ABS mark (marking-off line) of J4 axis after.

2) Turn off the controller's power supply.

3) Remove the four screws (M3x8) which fix the lower part of bellows to the frange.

4) Lift the bellows, and loosen the two set screws of the frange, and remove the frange.

5) Loosens the fixing screw of the bellows stop ring which is fixing the upper part of bellows, and remove bellows.

6) Installs new bellows.

7) Installs the frange in the position of 30 mm from the shaft lower end as before. Align two set screws (M4) to the D cut surface and fix them securely.

8) Fixes the bellows lower part to the frange as before. Fixes the four bellows fixing screws (M3x8) securely.

9) Makes the J4 axis into the position of 0 degree by jog operation etc., and match the ABS mark (marking-off line) with ABS mark (marking-off line) on the shaft.

In the condition that each other's ABS mark has matched, fixes the bellows upper part.

10) Fixes the fixing screw of the bellows stop ring as before, and fixes the upper part of bellows securely.

CAUTION

The fixing screw should fix the bellows stop ring in the position used as the inner side. (refer to figure) If that is not right, the fixing screw may interfere with the No.1 arm.

And, you should confirm that the stop ring has covered the perimeter of bellows surely. If the fixation is not enough, the protection performance may drop.

This completes the replacing bellows.

No.2 arm

Bellows stop ring fixing screw

Frange

Bellows fixing screw

M3x8, four screws

B

Fig.5-16 : Replace the bellows (oil mist specification)

Two set screws M4

D cut surface

30mm

Frange

5-86

Maintenance and inspection procedures

5 Maintenance and Inspection

5.3.6 Lubrication

(1) Lubrication position and specifications

The grease nipple position is shown in Fig. 5-17 . The lubrication specifications for each place are shown in Table

5-7 . Refer to the

Page 67, "5.3.2 Installing/removing the cover" for the method of removing and installing the

cover.

<4>Ball screw section application

RH-6FH/12FH/20FH

Inside of No.2 arm cover U

<2>J2 axis lubrication port

Inside of battery cover

<1>J1 axis lubrication port

<3>Shaft section application

RH-3FH: ball screw spline

RH-6FH/12FH/20FH: ball spline

Fig.5-17 : Lubrication positions

Table 5-7 : Lubrication specifications

No.

Parts to be lubricated Lubrication method

Lubrication oil

Default charge amount

(maker)

Lubrication interval

RH-3FH series

<1> J1 axis reduction gears Grease nipple

<2> J2 axis reduction gears

WC-610(Only addition)

<3>

Shaft

(ball screw spline)

Wipe the old grease, and applies

4BNo2

(Harmonic Drive Systems Inc.)

24,000 Hr

24,000 Hr

No-CE specification:

Multemp PS2

(KYODO YUSHI CO., LTD.)

CE specification:

Every 2,000km movement klübersynth UH1 14-222

(NOK Kluber Co., Ltd)

RH-6FH series

<1> J1 axis reduction gears Grease nipple

<2> J2 axis reduction gears

WC-610(Only addition)

<3> Shaft (ball spline)

<4> Shaft (ball screw)

Wipe the old grease, and applies

4BNo2

(Harmonic Drive Systems Inc.)

24,000 Hr

24,000 Hr

No-CE specification:

Multemp PS2

(KYODO YUSHI CO., LTD.)

CE specification:

Every 2,000km movement klübersynth UH1 14-222

(NOK Kluber Co., Ltd)

Lubrication amount guide

12 g

8 g

1 g

12 g

8 g

1 g

1 g

Cover to remove

Battery cover

No.2 arm cover U

Battery cover

No.2 arm cover U

Maintenance and inspection procedures 5-87

5 Maintenance and Inspection

No.

Parts to be lubricated Lubrication method

Lubrication oil

Default charge amount

(maker)

Lubrication interval

RH-12FH/20FH series

<1> J1 axis reduction gears Grease nipple

<2> J2 axis reduction gears

WC-610(Only addition)

<3> Shaft (ball spline)

<4> Shaft (ball screw)

Wipe the old grease, and applies

4BNo2

(Harmonic Drive Systems Inc.)

24,000 Hr

24,000 Hr

No-CE specification:

Multemp PS2

(KYODO YUSHI CO., LTD.)

CE specification:

 movement klübersynth UH1 14-222

(NOK Kluber Co., Ltd)

Lubrication amount guide

47 g

39g

1 g

1 g

Cover to remove

Battery cover

No.2 arm cover U

[Caution]

・ The brand name of the grease shown in the Table 5-7

is the grease put in at shipping.

・The lubrication time is a cumulative value of the operation at the maximum speed. If the operation has been sus

pended, or if the designated speed is slow, the lubrication time can be lengthened in proportion.

・ Depending on the robot operation state, the lubrication time will fluctuate, so determine the time according to the state so that the grease does not run out.

・ By the maintenance forecast function of RT ToolBox2 (option) computes the guide of the lubrication hours put together with the customer's operation status.

・ The numbers in the Table 5-7 correspond to the supply positions in Fig. 5-17

.

・Because excessive lubrication leads to the grease leak, avoid it. And, the number of times of lubrication limits to

3 times. The maintenance after it needs the overhaul work which replaces internal grease. Please ask dealer.

(2) Lubrication method to the J1, J2, axis

1) Turn off the controller's power supply.

2) Refer to the "Fig.5-6 : Installing/removing the cover" and remove the covers.

3) Insert the grease shown in

Table 5-7 using a grease gun from the lubrication grease nipple. Add only the

specified amount of grease. Adding excess grease may cause grease to leak.

CAUTION

Use manual grease gun, and inject grease with pressure 0.03Mpa or less. Do not use the grease gun, which derived by the factory air presser to avoid injecting by too high pressure.

Recommendation grease gun: KH35 (Yamada Corporation Inc.,)

4) Install the removed cover as before.

Note) Sealant is applied to the installation surface of cover in the oil mist and clean specification models.

Be sure to replace the sealant if it has been dislocated and bent or crushed and does not return to its original shape.

5) If the maintenance forecast function is enable, please reset the accumulated data about grease. Carries out the resetting operation by RT ToolBox or parameter (MFGRST). Refer to separate "RT ToolBox2 / RT

ToolBox2 mini User's Manual" for the operation method of RT ToolBox, and refer to separate "Instruction

Manual/Detailed Explanation of Functions and Operations" for details of parameter (MFGRST).

This complete of lubricating to J1, J2 axis.

(3) Lubrication method to the shaft

1) Applies the grease above the shaft only. Move the J3 axis to upper limit using the jog operation

2) Refer to Page 67 "Fig. 5-4: Installing/removing the cover" , remove the No. 2 arm cover-U. The bellows

must be removed in the case of the oil mist and clean specifications. Reference

Page 85, "5.3.5 Replacing the bellows" and remove the bellows.

CAUTION

Replace the bellows in a place where there is no risk of contamination by dust and oil mist. If it must be replaced in a dust-filled area, be sure to remove as much dust as possible in advance before replacing it.

5-88

Maintenance and inspection procedures

5 Maintenance and Inspection

3) Wipe the old grease off the ball spline or ball screw. Wipe off the grease inside the No. 2 arm cover-U and the bracket attached vertically to the shaft fixing area.

4) Apply the specified amount of grease to the ball spline and ball screws. If too much grease is applied, grease can spread inside the No. 2 arm, and if it reaches to the timing belt, can cause the timing belt to deteriorate quicker than usual.

5) Install the No.2 arm cover U as before. Install the bellows as before in the oil mist and clean specification.

Note) Sealant is applied to the installation surface of cover in the oil mist and clean specification models.

Be sure to replace the sealant if it has been dislocated and bent or crushed and does not return to its original shape.

This completes of applying grease to shaft.

Maintenance and inspection procedures 5-89

5 Maintenance and Inspection

5.3.7 Replacing the backup battery

An absolute encoder is used for the position detector, so while power of controller is turned off the position must be saved by the backup battery. The controller also uses a backup battery to save the program, etc. The battery is the lithium battery. These batteries are installed when the robot is shipped from the factory, but as these are consumable parts, they must be replaced periodically by the customer.

The guideline for replacing the battery is one year, but this will differ according to the robot's usage state. There exists the kinds of the errors about the battery shown in

Table 5-8

. If error 7500 occurs, please exchange the battery of the robot arm and the controller simultaneously.

Table 5-8 : The error about the battery

Item Error number

7520

7510

Description

The battery consumption time was exceeded

Battery voltage low

Measure

Replace the battery

7500 No battery voltage

The backup data cannot be guaranteed if this error occurs.

7520

133n Note1)

The battery consumption time was exceeded

Encoder battery voltage low。

Replace the battery

112n Encoder ABS position data lost

The backup data cannot be guaranteed if this error occurs.

Note1) “n” indicates the axis number

The method of replacing the battery of robot arm is shown below. refer to the separate "Instruction manual/Controller setup, basic operation, and maintenance" about controller's battery.

About the purchase of the battery, refers to

Page 93, "5.5 Maintenance parts" .

CAUTION

If error 7500 or 112n occurs, the program data and other data in the controller is lost and it becomes necessary to load the data such as program and origin data again.

5-90

Maintenance and inspection procedures

5 Maintenance and Inspection

(1) Replacing the battery (robot arm)

CAUTION

The power supply for the encoder is supplied by cable connected with battery board.

The cable must be connected while replacing the battery or operating usually. Thus, if the cable connection is incomplete, the encoder position data will be lost, and reset

ting the origin is necessary.

CAUTION

Replace the battery one by one . If all batterys are removed the encoder data will be lost, and resetting the origin is necessary.

The battery installation position is shown in Fig. 5-18

. Refers to the figure and replaces the batteries in the following procedures.

Fig.5-18 : Replacing the battery

1) Turn the controller control power OFF.

2) Remove the six fixing screws <1>, and remove the battery cover <2>.

3) Remove the old battery from the holder, and disconnect the lead connector.

4) Insert the new battery into the holder, and connect the lead connector. Replace all batteries with new ones at the same time.

5) Replaces the backup battery one by one in the above-mentioned procedure.

6) All the batteries should check that it has been exchanged newly. If the old battery is contained, generating heat and damaging may occur.

7) Install the battery cover <2> as before. Be careful so that the cable may not be inserted.

8) Initialize the battery consumption time.

Always carry out this step after replacing the battery, and initialize the battery usage time. Refer to the sep

arate "Instruction Manual/Detailed Explanation of Functions and Operations" for details on the operation methods.

[Note] If the reason for replacement is power down of the battery, resetting the origin is necessary. ( Page 95, "5.6

Resetting the origin"

)

Maintenance and inspection procedures 5-91

5 Maintenance and Inspection

5.4 About Overhaul

Robots which have been in operation for an extended period of time can suffer from wear and other forms of deterioration. In regard to such robots, we define overhaul as an operation to replace parts running out of speci

fied service life or other parts which have been damaged, so that the robots may be put back in shape for contin

ued use. Overhaul interval for robots presumably varies with their operating conditions and thus with the degree of the equipment's wear and loss of performance. As a rule of thumb, however, it is recommended that overhaul be carried out before the total amount of servo-on time reaches the predetermined levels (24,000 hours for the robot

body and 36,000 hours for the controller). (See Fig. 5-19

.) For specific information about parts to be replaced and timing of overhaul, contact your local service representative.

If overhaul is not performed

Shipment

Predetermined time period

Periodic inspection

Overhaul

If overhaul is performed

Servo-on time

Fig.5-19 : Periodic inspection/overhaul periods

5-92

About Overhaul

5 Maintenance and Inspection

5.5 Maintenance parts

The consumable parts that must be replaced periodically are shown in

Table 5-9 , and spare parts that may be

required during repairs are shown in

Table 5-10

. Purchase these parts from the dealer when required. Some Mit

subishi-designated parts differ from the maker's standard parts. Thus, confirm the part name, robot arm and con

troller serial No. and purchase the parts from the dealer.

Table 5-9 : Consumable part list

No.

Part name

1

2

3

Grease

Lithium battery

Liquefied gasket

RH-3FH series

4 Timing belt

5

6

RH-6FH series

7 Timing belt

8

9

RH-12FH series

10 Timing belt

11

12

RH-20FH series

13 Timing belt

14

15

ER6

Type Usage place

Reduction gears of each axis

In base

Packing

Note1)

J3 axis

J4 axis motor side

J4 axis shaft side

J3 axis

J4 axis motor side

J4 axis shaft side

J3 axis

J4 axis motor side

J4 axis shaft side

J3 axis

J4 axis motor side

J4 axis shaft side

Q'ty

An needed

5

An needed

1

1

1

1

1

1

1

1

1

1

1

1

Supplier

Mitsubishi Electric

Mitsubishi Electric

Mitsubishi Electric

Mitsubishi Electric

Mitsubishi Electric

Note1)The liquefied gasket is necessary for the place which uses two or more packings to connect.

Table 5-10 : Spare parts list

No.

Names

RH-3FH series

1 AC servo motor

2

3

4

5 Reduction gears

6

7 Ball screw spline

8

9 Bellows

10

11 Liquid gasket

4

5

6

7

RH-6FH series

1 AC servo motor

2

3

Reduction gears

Ball spline

8

9 Ball screw

10 Bellows

11

12 Liquid gasket

Usage place

J1 axis

J2 axis

J3 axis

J4 axis

J1 axis

J2 axis

J3 axis

(general environment specification)

J3 axis (clean and oil mist specification)

J3 axis (oil mist specification)

J3 axis (clean specification)

Bellows (clean specification)

J1 axis

J2 axis

J3 axis

J4 axis

J1 axis

J2 axis

J3 axis

(general environment specification)

J3 axis (clean and oil mist specification)

J3 axis

(general environment, clean and oil mist specification)

J3 axis (oil mist specification)

J3 axis (clean specification)

Bellows (clean specification)

Q'ty Supplier

1

1

1

1

An needed

Mitsubishi Electric

1

1

1

1

1

An needed

Mitsubishi Electric

Maintenance parts 5-93

5 Maintenance and Inspection

No.

Names

RH-12FH series

1 AC servo motor

2

3

4

5 Reduction gears

6

7 Ball spline

8

9 Ball screw

10 Bellows

11

12 Liquid gasket

RH-20FH series

1

2

AC servo motor

3

4

5

6

7

Reduction gears

Ball spline

8

9 Ball screw

10 Bellows

11

12 Liquid gasket

Usage place

J1 axis

J2 axis

J3 axis

J4 axis

J1 axis

J2 axis

J3 axis

(general environment specification)

J3 axis (clean and oil mist specification)

J3 axis

(general environment, clean and oil mist specification)

J3 axis (oil mist specification)

J3 axis (clean specification)

Bellows (clean specification)

J1 axis

J2 axis

J3 axis

J4 axis

J1 axis

J2 axis

J3 axis

(general environment specification)

J3 axis (clean and oil mist specification)

J3 axis

(general environment, clean and oil mist specification)

J3 axis (oil mist specification)

J3 axis (clean specification)

Bellows (clean specification)

Q'ty Supplier

1

1

1

An needed

1

1

Mitsubishi Electric

1

1

1

An needed

1

1

Mitsubishi Electric

5-94

Maintenance parts

5 Maintenance and Inspection

5.6 Resetting the origin

The origin is set so that the robot can be used with a high accuracy. After purchasing the robot, always carry out this step before starting work. The origin must be reset if the combination of robot and controller being used is changed or if the motor is changed causing an encoder area. The types of origin setting methods are shown in

Table 5-11 .

[Caution] If the old battery is replaced because it has been used up, it is necessary to set the origin again.Reset the origin using the jig method or mechanical stopper method or ABS origin method.

Table 5-11 : Origin setting method

No Method

1 Origin data input method

2 Mechanical stopper method

3 Jig method

4 User origin method

5 ABS origin method

Explanation Remarks

The origin data set as the default is input from the T/B.

This origin posture is set by contacting each axis against the mechanical stopper.

The origin posture is set with the calibration jig installed.

A randomly designated position is set as the origin posture.

This method is used when the encoder backup data lost in the cause such as battery cutting.

The setting method is explained in Page 22, "2.3 Setting the origin"

.

The setting method is explained in Page 96, "5.6.1

Mechanical stopper method"

.

The setting method is explained in Page 104, "5.6.2 Jig method" .

The setting method is explained in Page 111, "5.6.4 User origin method"

.

Before using this method, the origin must be set with the other method with same encoder. The setting method is explained in

Page 109, "5.6.3 ABS origin method"

.

Resetting the origin 5-95

5 Maintenance and Inspection

5.6.1 Mechanical stopper method

The method for setting the origin with the transportation jig is explained below.

This operation is carried out with the T/B. Set the mode of the controller to "MANUAL", and set the T/B

[ENABLE] switch to "ENABLE" to validate the T/B.

CAUTION

The brakes are released here, and the J3 axis (shaft) is moved with both hands.

For safety purposes, the brakes must be released by two workers.

(1) J1 axis origin setting(mechanical stopper)

<MENU>

1.FILE/EDIT 2.RUN

3.PARAM. 4.ORIGIN/BRK

5.SET/INIT. 6.ENHANCED

  123 CLOSE

1) Press the [4] key on the menu screen, and dis

play the Origin/Break selection screen.

2) With both hands, slowly move the J1 axis in -

(minus) direction , and contact the axis against the mechanical stopper.

J1

(-)

<ORIGIN/BRAKE>

1.ORIGIN 2.BRAKE

123

CLOSE

<ORIGIN>

1.DATA 2.MECH

3.TOOL 4.ABS

5.USER

123

CLOSE

3) Press the [1] key, and display the Origin setting selection screen.

4) Press the [2] key, and display the Mechanical stopper selection screen.

5-96

Resetting the origin

5 Maintenance and Inspection

<ORIGIN> MECH

J1( 1 ) J2( ) J3( )

J4( ) J5( ) J6( )

J7( ) J8( )

123

CLOSE

<ORIGIN> MECH

CHANGE TO ORIGIN. OK?

Yes

123

No

<ORIGIN> MECH COMPLETED

J1( 1 ) J2( ) J3( )

J4( ) J5( ) J6( )

J7( ) J8( )

123

CLOSE

5) Input "1" into the J1 axis. Set "0" to other axes.

SPACE

6) Press the [EXE] key , and display Confirmation screen.

7) Press the [F1] key , and the origin position is set up.

8) Setting of the origin is completed.

9) Refer to

Page 113, "5.6.5 Recording the origin data"

in this manual, and record the origin data on the origin data seal.

◇◆◇ Release the brake ◇◆◇

Do cursor movement into the parenthesis of each axis by the arrow key. The brakes can be released only for the axis for which a "1" is displayed on the screen. If the brakes are not to be released, press the [0] key and display a "0". If the [F1] key on the teaching pendant or the enabling switch is detached while the brakes are released, the brakes will be work immediately.

◇◆◇ Select the axis of origin setting ◇◆◇

Do cursor movement into the parenthesis of each axis by the arrow key. The origin is set only for the axis for which a "1" is displayed on the screen. If the origin is not to be set, press the [0] key and display a "0".

Resetting the origin 5-97

5 Maintenance and Inspection

(2) J2 axis origin setting(mechanical stopper)

<MENU>

1.FILE/EDIT 2.RUN

3.PARAM. 4.ORIGIN/BRK

5.SET/INIT. 6.ENHANCED

  123 CLOSE

1) Press the [4] key on the menu screen, and dis

play the Origin/Break selection screen.

2) With both hands, slowly move the J2 axis in +

(plus) direction , and contact the axis against the mechanical stopper. J

J2

(+)

<ORIGIN/BRAKE>

1.ORIGIN 2.BRAKE

123 CLOSE

<ORIGIN>

1.DATA 2.MECH

3.TOOL 4.ABS

5.USER

123 CLOSE

<ORIGIN> MECH

J1( ) J2( 1 ) J3( )

J4( ) J5( ) J6( )

J7( ) J8( )

123 CLOSE

3) Press the [1] key, and display the Origin setting selection screen.

4) Press the [2] key, and display the Mechanical stopper selection screen.

5) Input "1" into the J2 axis. Set "0" to other axes.

SPACE

6) Press the [EXE] key , and display Confirmation screen.

5-98

Resetting the origin

5 Maintenance and Inspection

<ORIGIN> MECH

CHANGE TO ORIGIN. OK?

Yes

123

No

<ORIGIN> MECH COMPLETED

J1( ) J2( 1 ) J3( )

J4( ) J5( ) J6( )

J7( ) J8( )

123

CLOSE

7) Press the [F1] key, and the origin position is set up.

8) Setting of the origin is completed.

9) Refer to

Page 113, "5.6.5 Recording the origin data"

in this manual, and record the origin data on the origin data seal.

◇◆◇ Release the brake ◇◆◇

Do cursor movement into the parenthesis of each axis by the arrow key. The brakes can be released only for the axis for which a "1" is displayed on the screen. If the brakes are not to be released, press the [0] key and display a "0". If the [F1] key on the teaching pendant or the enabling switch is detached while the brakes are released, the brakes will be work immediately.

◇◆◇ Select the axis of origin setting ◇◆◇

Do cursor movement into the parenthesis of each axis by the arrow key. The origin is set only for the axis for which a "1" is displayed on the screen. If the origin is not to be set, press the [0] key and display a "0".

Resetting the origin 5-99

5 Maintenance and Inspection

(3) J3 and J4 axis origin setting (mechanical stopper)

In the RH-3FH series, if the wiring and piping is passed in the shaft, remove the No.2 arm cover U and operate the origin setting.

Note) If origin setting is carried out with the No.2 arm cover U installed, the origin may not be set up correctly because the wiring and the piping interfere with the No.2 arm cover U.

<MENU>

1.FILE/EDIT 2.RUN

3.PARAM. 4.ORIGIN/BRK

5.SET/INIT. 6.ENHANCED

  123

<ORIGIN/BRAKE>

1.ORIGIN 2.BRAKE

CLOSE

1) In the RH-3FH series, if the wiring and piping is passed in the shaft, removes the No.2 arm cover

U referring the

Page 67, "5.3.2 Installing/remov

ing the cover"

. It is not necessary to remove the cover if wiring and piping is not passed, or if using the other robot.

2) Press the [4] key on the menu screen, and dis

play the Origin/Break selection screen.

3) Press the [2] key, and display the Break release selection screen.

123 CLOSE

4) Release the brake of the J3 axis.

Input "1" into the J3 axis. Set "0" to other axes.

<BRAKE>

J1:( 0 )J2:( 0 )J3:( 1 )

J4:( 0 )J5:( 0 )J6:( 0 )

J7:( 0 )J8:( 0 )

REL.

123 CLOSE

SPACE

5) Confirm the axis for which the brakes are to be released.

<BRAKE>

J1:( 0 )J2:( 0 )J3:( 1 )

J4:( 0 )J5:( 0 )J6:( 0 )

J7:( 0 )J8:( 0 )

REL.

123

CLOSE

No.2 arm cover

6) Pressing the [F1] key is kept with the enabling switch of T/B pressed down. The brake is released while pressing the key.

Note) The brake of the axis shown below repeats release/lock at the interval in each about 200ms for dropping the J3 axis slowly.

J3

(+)

7) With both hands, slowly move the J3 axis in +

(plus) direction , and contact the axis against the mechanical stopper.

CAUTION

For safety purposes, the step for releasing the brakes must be carried out by two workers. One worker must operate the T/B, and the other must support the J3 axis

(shaft). When the brake is released, the J3 axis could drops with its own weight.

CAUTION

If [F1] key or enable switch of T/B is released, the brakes will be work immediately.

5-100

Resetting the origin

5 Maintenance and Inspection

Clean

Oil mist

<クリーン仕様> <オイルミスト仕様>

Alignment mark

ケガキ線

8) Hold the J4 axis with your hand and rotate it slowly to match the alignment marks.

*Move the J4 axis with maintaining the condi

tion that the releasing brake of the J3 axis and the J3 axis contact to the mechanical stopper.

J4

A

<BRAKE>

J1:( 0 )J2:( 0 )J3:( 1 )

J4:( 0 )J5:( 0 )J6:( 0 )

J7:( 0 )J8:( 0 )

REL.

123 CLOSE

<ORIGIN/BRAKE>

1.ORIGIN 2.BRAKE

123

CLOSE

<ORIGIN>

1.DATA 2.MECH

3.TOOL 4.ABS

5.USER

123

CLOSE

<ORIGIN> MECH

J1( ) J2( ) J3( 1 )

J4( 1 ) J5( ) J6( )

J7( ) J8( )

123 CLOSE

<ORIGIN> MECH

CHANGE TO ORIGIN. OK?

Yes

123

No

<ORIGIN> MECH COMPLETED

J1( ) J2( ) J3( 1 )

J4( 1 ) J5( ) J6( )

J7( ) J8( )

123

CLOSE

9) Detach the [F1] key and work the brake.

Press the [F4] key and return to the origin / brake screen.

10) Press the [1] key, and display the Origin setting selection screen.

11) Press the [2] key , and display the Mechanical stopper selection screen.

12) Input "1" into the J3 and J4 axis. Set "0" to other axes.

SPACE

13) Press the [EXE] key , and display Confirmation screen.

14) Press the [F1] key, and the origin position is set up.

15) When No.2 arm cover U was removed, installs as before.

16) Setting of the origin is completed.

17) Refer to Page 113, "5.6.5 Recording the origin data"

in this manual, and record the origin data on the origin data seal.

Resetting the origin 5-101

5 Maintenance and Inspection

◇◆◇ Release the brake ◇◆◇

Do cursor movement into the parenthesis of each axis by the arrow key. The brakes can be released only for the axis for which a "1" is displayed on the screen. If the brakes are not to be released, press the [0] key and display a "0". If the [F1] key on the teaching pendant or the enabling switch is detached while the brakes are released, the brakes will be work immediately.

◇◆◇ Select the axis of origin setting ◇◆◇

Do cursor movement into the parenthesis of each axis by the arrow key. The origin is set only for the axis for which a "1" is displayed on the screen. If the origin is not to be set, press the [0] key and display a "0".

5-102

Resetting the origin

5 Maintenance and Inspection

(4) All axis origin setting

1) Refer to the paragraphs from

Page 96, "(1) J1 axis origin setting(mechanical stopper)" to

Page 100, "(3) J3 and J4 axis origin setting (mechanical stopper)" above for the description of how to adjust the origins of the

J1 to J4 axes. Line up the ABS marks for the J4 axis and move the other axes into contact with the mechanical stoppers. At this point, the robot will have the posture shown below

<ORIGIN/BRAKE>

1.ORIGIN 2.BRAKE

2) Press the [1] key, and display the Origin setting selection screen.

123

CLOSE

<ORIGIN>

1.DATA 2.MECH

3.TOOL 4.ABS

5.USER

123

CLOSE

<ORIGIN> MECH

J1( 1 ) J2( 1 ) J3( 1 )

J4( 1 ) J5( ) J6( )

J7( ) J8( )

123

CLOSE

3) Press the [2] key, and display the Mechanical stopper selection screen.

4) Input "1" into the J1 to J4 axis. Set "0" to other axes.

SPACE

5) Press the [EXE] key, and display Confirmation screen.

<ORIGIN> MECH

CHANGE TO ORIGIN. OK?

Yes

123 No

6) Press the [F1] key, and the origin position is set up.

<ORIGIN> MECH COMPLETED

J1( 1 ) J2( 1 ) J3( 1 )

J4( 1 ) J5( ) J6( )

J7( ) J8( )

123

CLOSE

This complete the Origin setting by the Mechanical stopper method.

7) Setting of the origin is completed.

8) Refer to

Page 113, "5.6.5 Recording the origin data"

in this manual, and record the origin data on the origin data seal.

Resetting the origin

5-103

5 Maintenance and Inspection

5.6.2 Jig method

This method is using the origin setting tool. If the origin setting tool is required, please ask nearby dealer. The

reference figure of the origin setting tool is shown in Fig. 5-20

.

C0.5

RZ6.3

300

Fig.5-20 : Reference dimension of origin setting tool

The procedure of setting the origin with the origin setting tool is shown below.

Carry out this method for each axis.

First, set each axis by the origin position. There are the method of releasing the brake and adjusting with the origin position manually and the method of adjusting with the origin position by jog feed. Here, explains operation by brake release.

Then, do origin setting operation and set up the origin.

CAUTION

To ensure safety, the brake-release procedure described below should always be done by two persons.

This operation is carried out with the teaching pendant. Set the mode of the controller to "MANUAL", and set the

[ENABLE] switch on the teaching pendant to "ENABLE" to enable the teaching pendant.

Do the following operations, pressing down the enabling switch of T/B lightly.

5-104

Resetting the origin

5 Maintenance and Inspection

(1) J1 axis origin setting

<MENU>

1.FILE/EDIT 2.RUN

3.PARAM. 4.ORIGIN/BRK

5.SET/INIT. 6.ENHANCED

  123

CLOSE

Select ORIGIN/BRK

1) Press the [4] key on the menu screen, and display the Origin/Break selection screen.

2) Move the J1 axis slowly toward the front using both hands. Align the pinhole of the No.1 arm and the pinhole at the base section, feed through the origin jig into the pinholes and fasten.

<ORIGIN/BRAKE>

1.ORIGIN 2.BRAKE

3) Press the [1] key, and display the Origin setting selection screen.

123

CLOSE

<ORIGIN>

1.DATA 2.MECH

3.TOOL

4.ABS

5.USER

123

CLOSE

Select TOOL

<TOOL>

J1:( 1 )J2:( 0 )J3:( 0 )

J4:( 0 )J5:( 0 )J6:( 0 )

J7:( 0 )J8:( 0 )

REL.

123

CLOSE

4) Press the [3] key, and display the Tool selection screen.

5) Input "1" into the J1 axis. Set "0" to other axes.

SPACE

6) Press the [EXE] key, and display Confirmation screen.

<ORIGIN> TOOL

CHANGE TO ORIGIN. OK?

Yes

123 No

7) Press the [F1] key, and the origin position is set up.

Resetting the origin

5-105

5 Maintenance and Inspection

<TOOL>

J1:( 1 )J2:( 0 )J3:( 0 )

J4:( 0 )J5:( 0 )J6:( 0 )

J7:( 0 )J8:( 0 )

REL.

123

CLOSE

8) Setting of the origin is completed.

9) Refer to

Page 113, "5.6.5 Recording the origin data" in this manual, and record the origin data

on the origin data seal.

◇◆◇ Release the brake ◇◆◇

Do cursor movement into the parenthesis of each axis by the arrow key. The brakes can be released only for the axis for which a "1" is displayed on the screen. If the brakes are not to be released, press the [0] key and display a "0". If the [F1] key on the teaching pendant or the enabling switch is detached while the brakes are released, the brakes will be work immediately.

◇◆◇ Select the axis of origin setting ◇◆◇

Do cursor movement into the parenthesis of each axis by the arrow key. The origin is set only for the axis for which a "1" is displayed on the screen. If the origin is not to be set, press the [0] key and display a "0".

5-106

Resetting the origin

(2) J2 axis origin setting

<MENU>

1.FILE/EDIT 2.RUN

3.PARAM. 4.ORIGIN/BRK

5.SET/INIT. 6.ENHANCED

  123

CLOSE

5 Maintenance and Inspection

1) Press the [4] key on the menu screen, and display the Origin/Break selection screen.

2) Slowly rotate the J2 axis, and align the pinholes of the No. 1 and No. 2 arms, feed through the origin jig into the pinholes and fasten.

<ORIGIN/BRAKE>

1.ORIGIN 2.BRAKE

123

CLOSE

<ORIGIN>

1.DATA 2.MECH

3.TOOL

4.ABS

5.USER

123

CLOSE

<TOOL>

J1:( 1 )J2:( 0 )J3:( 0 )

J4:( 0 )J5:( 0 )J6:( 0 )

J7:( 0 )J8:( 0 )

REL.

123 CLOSE

<ORIGIN> TOOL

CHANGE TO ORIGIN. OK?

Yes

123

No

3) Press the [1] key, and display the Origin setting selection screen.

4) Press the [3] key, and display the Tool selection screen.

5) Input "1" into the J2 axis. Set "0" to other axes.

SPACE

6) Press the [EXE] key, and display Confirmation screen.

7) Press the [F1] key, and the origin position is set up.

Resetting the origin

5-107

5 Maintenance and Inspection

<TOOL>

J1:( 1 )J2:( 0 )J3:( 0 )

J4:( 0 )J5:( 0 )J6:( 0 )

J7:( 0 )J8:( 0 )

REL.

123

CLOSE

8) Setting of the origin is completed.

9) Refer to

Page 113, "5.6.5 Recording the origin data" in this manual, and record the origin data

on the origin data seal.

◇◆◇ Release the brake ◇◆◇

Do cursor movement into the parenthesis of each axis by the arrow key. The brakes can be released only for the axis for which a "1" is displayed on the screen. If the brakes are not to be released, press the [0] key and display a "0". If the [F1] key on the teaching pendant or the enabling switch is detached while the brakes are released, the brakes will be work immediately.

◇◆◇ Select the axis of origin setting ◇◆◇

Do cursor movement into the parenthesis of each axis by the arrow key. The origin is set only for the axis for which a "1" is displayed on the screen. If the origin is not to be set, press the [0] key and display a "0".

(3) J3 and J4 axis origin setting

Origin settings for the J3 and J4 axes must be performed at the same time.

The method of origin setting is the same as the mechanical stopper method. Refer to Page 100, "(3) J3 and J4 axis origin setting (mechanical stopper)"

, perform the required origin setting operations.

This complete the Origin setting by the Jig method.

5-108

Resetting the origin

5 Maintenance and Inspection

5.6.3 ABS origin method

When the origin setting of the robot is performed for the first time, this product records the angular position of the origin within one rotation of the encoder as the offset value. If the origin setting is performed according to the

ABS origin method, this value is used to suppress variations in the origin setting operations and to reproduce the initial origin position accurately.

This operation is carried out with the teaching pendant. Set the mode of the controller to "MANUAL", and set the

[ENABLE] switch on the teaching pendant to "ENABLE" to enable the teaching pendant.

First, set to the ABS mark arrow of the axis for which the origin is to be set with jog operation. This can be set for all axes simultaneously or each axis independently.

When setting the ABS mark, always view the operations from the mark, and set at the end of the triangular mark.

The positions where the ABS mark is attached are shown in below. Refer to

Page 29, "2.4 Confirming the operation"

for details on the jog operation.

Note that if the ABS marks are peeled off, the positions can be matched using the following alternative methods.

*Match the ruling lines of the ABS mark mounting position surfaces.

Standard

Oil mist, clean specification

Clean

<クリーン仕様>

J4

底面にあります。

A

Oil mist

<オイルミスト仕様>

Alignment mark

ケガキ線

Note) There is no alignment mark of the J3 axis. Contact the J3 axis against mechanical stopper as the mechanism stopper method.

Fig.5-21 : ABS mark attachment positions

Resetting the origin

5-109

5 Maintenance and Inspection

The procedures for setting the origin with the ABS method are explained below.

(1) Select the T/B

<MENU>

1.FILE/EDIT 2.RUN

3.PARAM. 4.ORIGIN/BRK

5.SET/INIT. 6.ENHANCED

  123 CLOSE

1) Press the [4] key on the menu screen, and display the Origin/Break selection screen.

<ORIGIN/BRAKE>

1.ORIGIN 2.BRAKE

2) Press the [1] key, and display the Origin setting selection screen.

123

CLOSE

3) Press the [4] key, and display the ABS selection screen.

<ORIGIN>

1.DATA 2.MECH

3.TOOL 4.ABS

5.USER

123

CLOSE

<ABS>

J1:( 1 )J2:( 0 )J3:( 0 )

J4:( 0 )J5:( 0 )J6:( 0 )

J7:( 0 )J8:( 0 )

REL.

123

CLOSE

<ORIGIN> ABS

CHANGE TO ORIGIN. OK?

Yes

123 No

<ABS>

J1:( 1 )J2:( 0 )J3:( 0 )

J4:( 0 )J5:( 0 )J6:( 0 )

J7:( 0 )J8:( 0 )

REL.

123 CLOSE

This complete the Origin setting by the ABS method.

4) Input "1" into the axis to origin setting. Press the [EXE] key, and display Confirmation screen.

5) Press the [F1] key, and the origin position is set up.

5-110

Resetting the origin

5 Maintenance and Inspection

5.6.4 User origin method

CAUTION

Before using this method, the origin must be set with the other method.

The setting method is explained in Page 95, "Table 5-11 : Origin setting method"

.

The procedure for setting the origin with the user origin method is explained below.

This operation is carried out with the teaching pendant. Set the mode of the controller to "MAMNUAL", and set the [ENABLE] switch on the teaching pendant to "ENABLE" to enable the teaching pendant.

The operation method is shown below.

When setting the origin for the first time using this method, carry out the operations in order from step 1). For the second and following time, move the robot arm to the user origin position with jog operation, and accurately position all axis. Then start the procedure from step 4).

1) Determine the user origin position

Move the robot to the position to be set as the origin with jog operation. Refer to Page 29, "2.4 Confirming the operation" for details on the jog operation.

CAUTION

Choose the user origin position as the position where it doesn't move by the gravity.

This position is left as a guideline to position all axes with jog operation when setting the origin again with this method.

2) Enter the JOINT jog mode, and display the joint coordinates on the teaching pendant screen. Record the value of the axis for which the origin is to be set.

3) Input the value recorded in the "user designated origin parameter (USRORG)".

The parameter details and input methods are described in the separate "Instruction Manual/Detailed Explanation of Functions and Operations". Refer to that manual and input the user designated origin position.

<MENU>

1.FILE/EDIT 2.RUN

3.PARAM. 4.ORIGIN/BRK

5.SET/INIT. 6.ENHANCED

  123

CLOSE

<ORIGIN/BRAKE>

1.ORIGIN 2.BRAKE

4) Next, set the origin.

Display the menu screen.

5) Press the [4] key on the menu screen, and display the Origin/Break selection screen.

6) Press the [1] key, and display the Origin setting selection screen.

123 CLOSE

<ORIGIN>

1.DATA 2.MECH

3.TOOL 4.ABS

5.USER

123

CLOSE

7) Press the [5] key, and display the User selection screen.

Resetting the origin

5-111

5 Maintenance and Inspection

<USER>

J1:( 1 )J2:( 0 )J3:( 0 )

J4:( 0 )J5:( 0 )J6:( 0 )

J7:( 0 )J8:( 0 )

REL.

123

CLOSE

<ORIGIN> USER

CHANGE TO ORIGIN. OK?

Yes

123

No

This complete the Origin setting by the User origin method.

8) Input "1" into the axis to origin setting. Press the [EXE] key, and display Confirmation screen.

9) Press the [F1] key, and the origin position is set up.

5-112

Resetting the origin

5 Maintenance and Inspection

5.6.5 Recording the origin data

When the origin has been set with the jig method, record that origin data on the origin data label. With this, the origin can be set with the origin data input method the next time.

Confirm the origin data on the teaching pendant screen (origin data input screen). The origin data label is enclosed with the arm or attached on the back of the battery cover.

The teaching pendant operation method and battery cover removal method for confirming the origin data is the

same as the methods for setting the origin with the origin data input method. Refer to Page 24, "2.3.2 Setting the origin with the origin data input method" , and write the origin data displayed on the teaching pendant onto the ori-

gin label.

(1)

Confirming the origin data label

Remove the battery cover.

Refer to Page 67, "5.3.2 Installing/removing the cover"

, and remove the battery cover.

(2) Confirming the origin data

Confirm the value displayed on the teaching pendant's Origin Data Input screen.

Refer to Page 24, "2.3.2 Setting the origin with the origin data input method" ,

"(5)Inputting the origin data" and

display the Origin Data Input screen on the teaching pendant display screen.

(3) Recording the origin data

Write the origin data displayed on the teaching pendant to the origin data label attached to the back of the battery

cover. Refer to Page 24, "Fig.2-16 : Origin data label (an example)" , and

Page 27, "Fig.2-17 : Correspondence of origin data label and axis"

for details on the origin data label.

(4) Installing the cover

Install the battery cover removed in step "(1)Confirming the origin data label" above.

Refer to Page 67, "5.3.2 Installing/removing the cover"

, and replace the battery cover.

This completes the recording of the origin data.

Resetting the origin

5-113

6Appendix

6 Appendix

Appendix 1 : Configuration flag

The configuration flag indicates the robot posture.

For the 6-axis type robot, the robot hand end is saved with the position data configured of X, Y, Z, A, B and C.

However, even with the same position data, there are several postures that the robot can change to. The posture is expressed by this configuration flag, and the posture is saved with FL1 in the position constant (X, Y, Z, A, B, C)

(FL1, FL2).

The types of configuration flags are shown below.

(1) RIGHT/LEFT

Indicates the location of the end axis relative to the line that passes through both the rotational center of the J1 axis and the rotational center of the J2 axis.

RIGHT

FL1(Flag 1)

& B 0 0 0 0 0 0 0 0

1/0 = RIGHT/LEFT

LEFT

Note) "&B" is shows the binary

Fig.6-1 : Configuration flag (RIGHT/LEFT)

Appendix-114

Configuration flag
